Cadillac CUE User Manual

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

Contents

Introduction . . . . . . . .. . . . . . ... . 2

Radio . . . . . . . . . .... . . . . . . . . .. 17

Audio Players . . . . . . . . . . . . . . 27

OnStar System . . . . .. . . . . .. . 33

Rear Seat Infotainment . . . . 34

Navigation . . . . . . . . ... . . . . . . . 53

Voice Recognition . . . . . . . . . . 85

Phone . . . . . . . .. . . . . .. . . . . .. . 93

Settings . . . . . . .. . . . . .. . . . . . 101

Trademarks and License

Agreements . . . . . . . . . . . . . .

104

Index . . . . . . . . . . . . . . . . . . . 115

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

2 Introduction

Introduction

The names, logos, emblems,
slogans, and vehicle body designs
appearing in this manual including,
but not limited to, GM, the GM logo,
CADILLAC, CADILLAC Emblem and
CADILLAC CT6 are registered
trademarks of General Motors LLC.,
its subsidiaries, affiliates,
or licensors.

For vehicles first sold in Canada,
substitute the name General Motors
of Canada Limited for Cadillac
Motor Division, whenever it appears
in this manual.

This manual describes features that
may or may not be on the vehicle
because of optional equipment that
was not purchased on the vehicle,
model variants, country
specifications, features/applications
that may not be available in your
region, or changes subsequent to
the printing of this manual.

Keep this manual with the owner
manual in the vehicle, so it will be
there if it is needed. If the vehicle is
sold, leave this manual in the
vehicle.

Overview

Read the following pages to
become familiar with the
infotainment system features.

{

Warning

Taking your eyes off the road for
too long or too often while using
any infotainment feature can

(Continued)

Warning (Continued)

cause a crash. You or others
could be injured or killed. Do not
give extended attention to
infotainment tasks while driving.
Limit your glances at the vehicle
displays and focus your attention
on driving. Use voice commands
whenever possible.

The infotainment system has built-in
features intended to help avoid
distraction by disabling some
functions when driving. These
functions may gray out when they
are unavailable. Many infotainment
features are also available through
the instrument cluster and steering
wheel controls.

Before driving:

.

Become familiar with the
operation, faceplate buttons, and
screen buttons.

Litho in U.S.A.
Part No. 23291012 A First Printing

©

2015 General Motors LLC. All Rights Reserved.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

Introduction 3

.

Set up the audio by presetting
favorite stations, setting the
tone, and adjusting the
speakers.

.

Set up phone numbers in
advance so they can be called
easily by touching a single
button or by using a single voice
command if equipped with
Bluetooth phone capability.

See “Defensive Driving” in the
owner manual.

To play the infotainment system with
the ignition off, see “Retained
Accessory Power (RAP)” in the
owner manual.

Customer Assistance

Assistance is available to help with
Bluetooth pairing, other mobile
device interface, and operation
support of the CT6 infotainment
system. Specialists are available
when calling this Customer
Assistance number.

U.S.: 1-855-428-3669 (855 4
CUE NOW)

Canada: 1-888-446-2000 (Canadian
Cadillac Customer Care Centre)

Infotainment System

The infotainment system is
controlled by using the touchscreen,
the buttons below the touchscreen,
steering wheel controls, and voice
recognition.

1. > (Mute and Power)

2. VOLUME

3.

{ (Home Page)

Power (On/Off/Mute)

.

When off, press

> (1) to turn

the system on. Press and hold to
turn off.

.

When on, press

> to mute the

system. Press

> again to

unmute the system.

When the power is on and the
system is not muted, a quick status

pane will display when

> is

pressed. Pressing

> will mute the

system and trigger this pane to
show a long press is required to
actually power down the system.

Volume

Press the volume bar until it is seen
on the display. Slide a finger across
VOLUME to increase or decrease
the volume. Another way is to tap

up or tap down by pressing

S or T

one tap at a time.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

4 Introduction

Home Page

The Home Page is where
application icons are accessed.
Some features are disabled when
the vehicle is moving.

The Home Page can be set up to
have up to 10 icons per page.

Touch

u or v, or slide a finger left/

right across the screen to access
the pages of icons.

v (Next) : Touch to go to the next

Home Page.

u (Previous) : Touch to go to the

previous Home Page.

k (Interaction Selector) : Touch to

display the favorites list.

Touch and hold a location within the
favorites area to begin the process
of saving a favorite application.

Touch the application icon to store
as a favorite, and the name of the
application will be shown in
favorites.

Managing Home Page Icons

1. Touch and hold any of the
Home Page icons to edit
that icon.

2. Drag the icon to a new location
on the Home Page or to save it
to the applications tray.

3. Press

{ to exit edit mode.

Steering Wheel Controls

The infotainment steering wheel
controls can be used to control the
infotainment features displayed in
the instrument cluster.

When in Valet Mode (if equipped),
access to the infotainment functions
is disabled. See Settings 0 101.

g (Press to Talk) : Press to answer

an incoming call or to start a voice
recognition. See Bluetooth

(Overview) 0 93 or Bluetooth
(Infotainment Controls) 0 94

or Bluetooth (Voice Recognition)

0 97 and “OnStar Overview” in the

owner manual.

c (End Call) : Press to decline an

incoming call, or end a current call.
Press to mute or unmute the
infotainment system when not on
a call.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

Introduction 5

S or T : Press the five-way control

to the left or right to go to the
previous or next area in the display
or to the previous or next menu.

y or z : Press the five-way

control up or down to go up or down
in a list or page.

SEL : Press to select a highlighted
menu item.

x + or x − (Volume) : Press to

increase or decrease volume.

C or B (Next or Previous

Favorite) : Press to go to the next
or previous favorite when listening

to the radio. Press to go to the next
or previous track when listening to a
media source.

Using the System

Touchscreen Buttons

Touchscreen buttons show on the
screen when available. When a
function is unavailable, the button
may gray out. When a function is
selected, the button may highlight.

Home Page Features

Touch the icons on the Home Page
screen to launch an application.

Audio

If equipped, Touch the AUDIO icon
to display the active audio source
page. Available sources are AM,
FM, SXM, My Media, USB,
Bluetooth, and AUX Input.

Phone

Touch the PHONE icon to display
the Phone main page. See

Bluetooth (Overview) 0 93

or Bluetooth (Infotainment Controls)

0 94 or Bluetooth (Voice
Recognition) 0 97.

Traffic

Touch TRAFFIC icon to access the
traffic information directly from the
Home Page.

Front Camera

Touch the FRONT/CAMERA icon to
display the Front Camera + 360°
Camera screen. See “Driver
Assistance Systems” in the owner
manual.

NAV/ OnStar NAV

Touch the NAV icon to display the
navigation map or OnStar

®

Turn-by-Turn Navigation. See Using

the Navigation System 0 53 or

“OnStar Navigation” in the owner
manual.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

6 Introduction

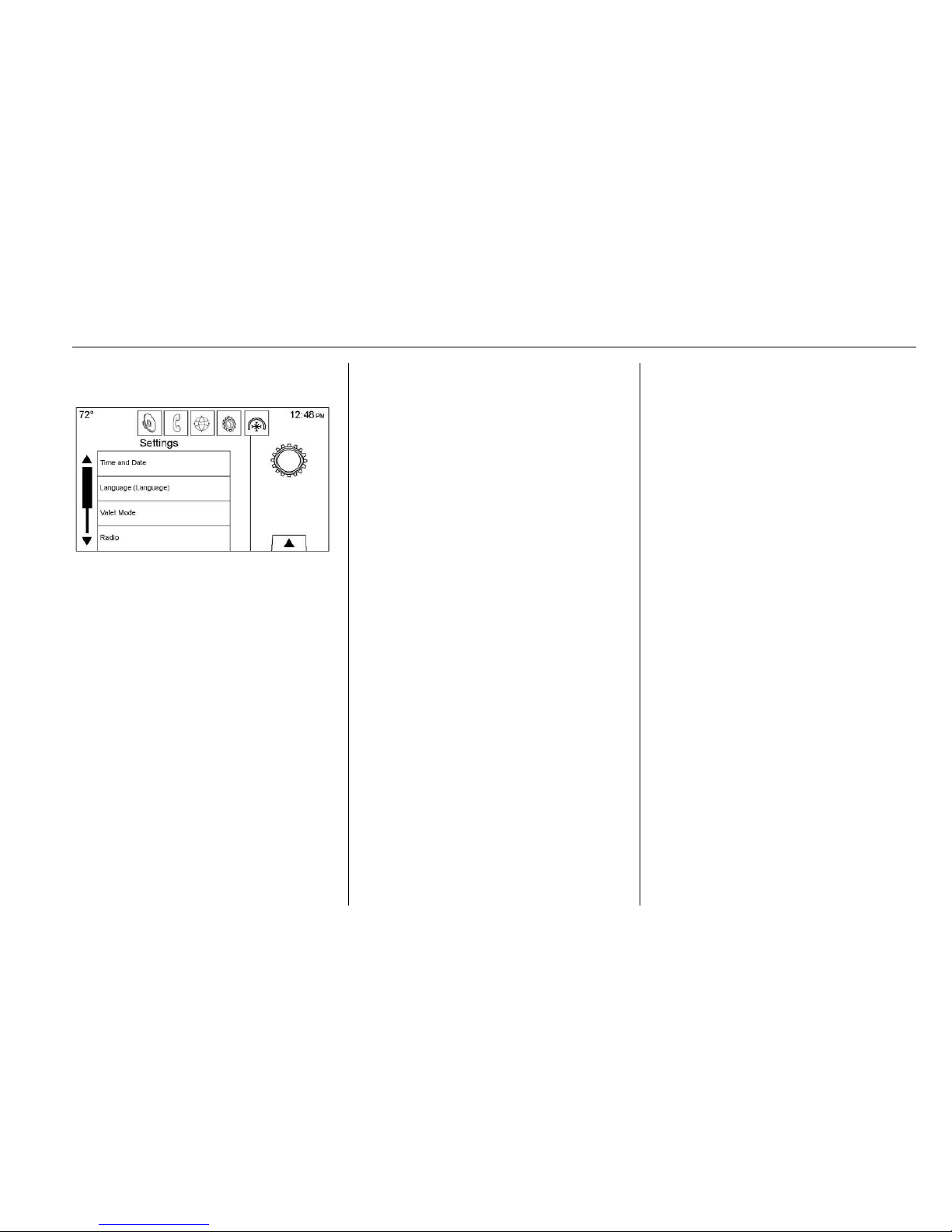

Settings

Touch the SETTINGS icon to
display the Settings menu. See

Settings 0 101.

Pandora (If Equipped)

Touch the PANDORA icon to begin
Pandora

®

. See Pandora Internet

Radio 0 23.

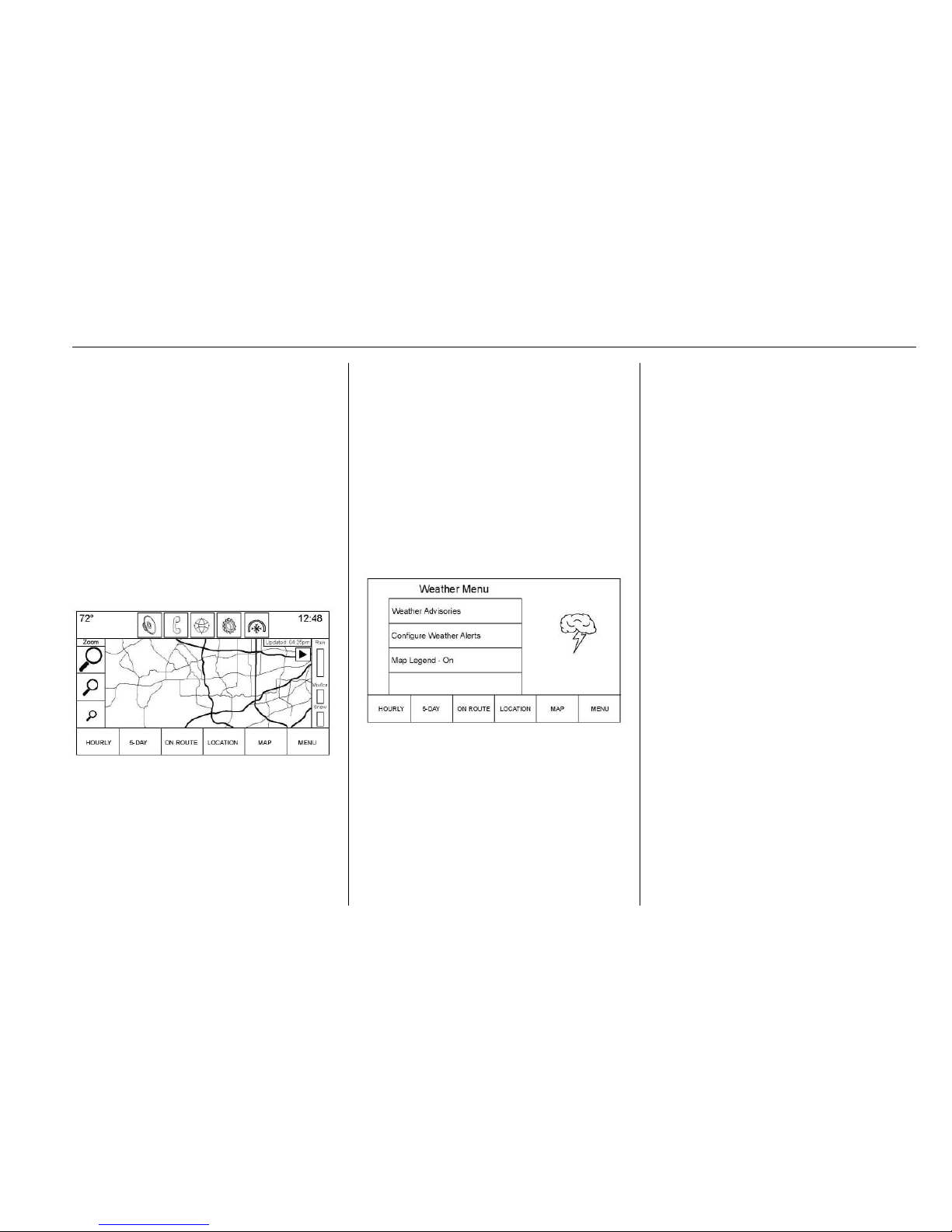

Weather (If Equipped)

Touch the WEATHER icon to
display the Weather main page. See
“SiriusXM Travel Link (If Equipped)”
under Destination 0 62.

OnStar

Touch the ONSTAR icon to display
the OnStar main page and start
OnStar voice recognition. See
“OnStar Overview” in the owner
manual.

Climate

Touch the CLIMATE icon to display
the Climate main page. See “Dual
Automatic Climate Control System”
in the owner manual.

Rear Climate (If Equipped)

Touch the R. CLIMATE icon to
display the Rear Climate main page.
See “Rear Climate Control System”
in the owner manual.

Video (If Equipped)

Touch the VIDEO icon to display the
video Rear Seat Entertainment main
page. See Rear Seat Infotainment

(RSI) System 0 34.

Applications Tray

The applications tray is at the top
center of the screen. The
applications tray can have three to
five applications.

To add an application from the
Home Page to the applications tray:

1. Touch and hold any icon on the
Home Page to enter edit mode.

2. Drag the icon to the
applications tray.

To remove an item from the
applications tray, drag the icon
from the applications tray back
to the Home Page.

Adding or removing applications
from the applications tray will not
remove them from the Home Page.

The application tray can be
customized for each person signing
into the system. For example:

.

User #1 is signed in and
customizes the application tray.

.

User #1 signs out to allow User
#2 to sign in and customize the
application tray to their
preference.

.

User #2 signs out and User #1
signs in. The application tray will
now display the preferences of
User #1.

Proximity Sensing

The infotainment system uses
proximity sensing for Maps. When
turned On, certain screen buttons
and features will become visible

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

Introduction 7

when a hand approaches the
screen. When the hand is removed,
these features fade. Proximity
sensing can be turned Off in the
Settings applications in the Display
menu options.

Touchpad

The touchpad is integrated into the
center console of the vehicle, in
front of the armrest. It provides an
alternative way to select features on
the infotainment system by using a
console mounted remote controller
instead of a touch screen.

The touchpad remote controller has
a BACK button.

3 BACK : Press to return to the

previous screen. Press and hold to
return to the main menu.

Benefits of using the touchpad:

.

Quick gestures to cycle through
media and radio sources or seek
to the next station or song.

.

Handwriting recognition for
quicker entry of address or
points of interest.

.

Control of the system while the
arm is resting on the console.

.

Haptic feedback is felt on the
fingertips while the cursor is
moving across the screen.

.

Once using the touchpad
becomes more familiar, the
dependence on looking at the
infotainment screen may
decrease.

.

The three finger gestures will
help give a quicker interaction
while raising and lowering the
favorites bar, and paging
between them.

Gestures

Use a single finger on the touchpad
to move the highlight and select
buttons on the screen.

Use the two finger gesture to control
the features on a sourced area. For
example, while in a list, move two
fingers up and down on the
touchpad to scroll a list.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

8 Introduction

Use the three finger gesture to
Select Favorites.

Other examples for using the hand
gestures are explained later in this
section. See AM-FM Radio 0 17,

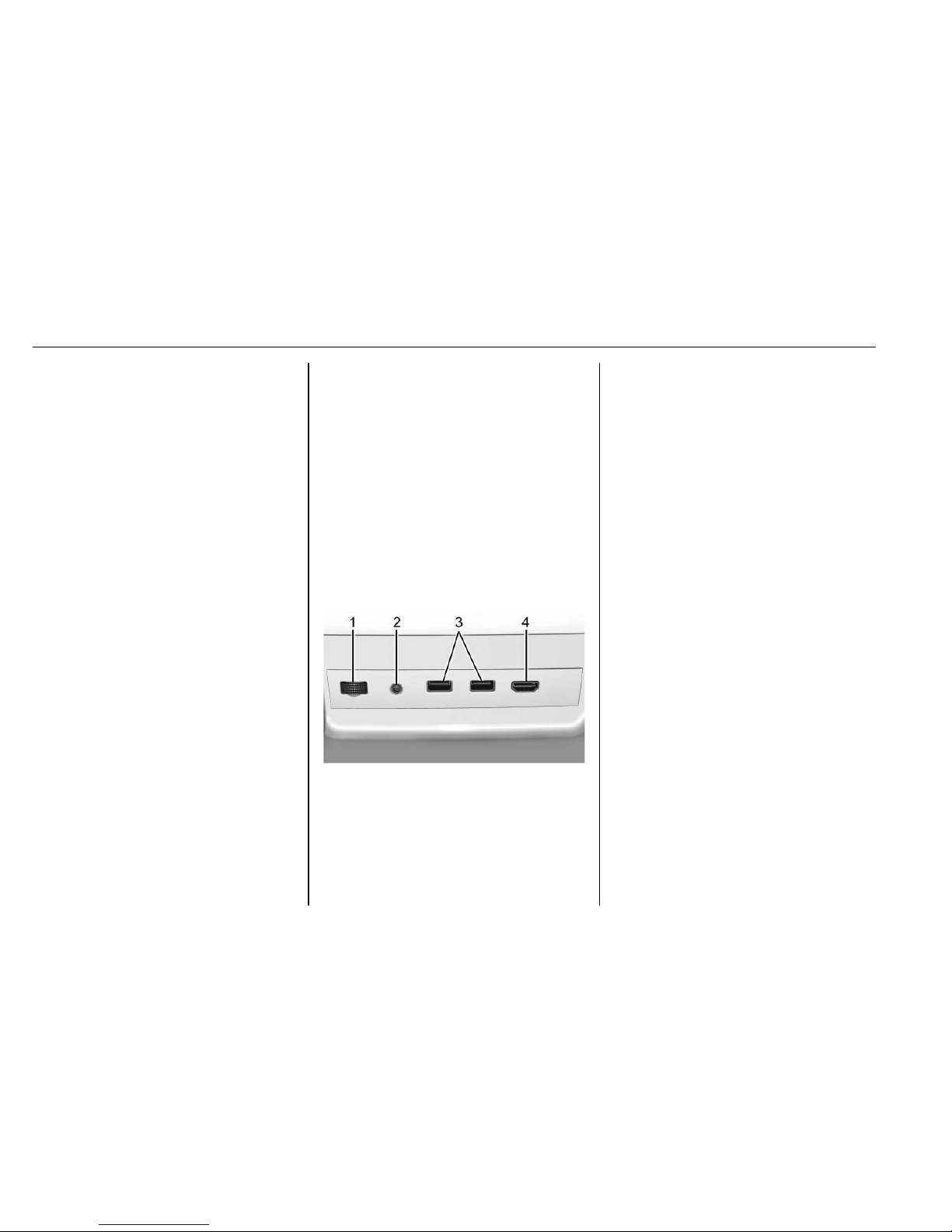

USB Port 0 27,

and Using the Navigation

System 0 53.

Character Recognition

Character Recognition or
Handwriting Recognition is offered
as an alternative to using a
keyboard. This method of character

input allows the drawing of
characters instead of picking them
out from the keyboard. It is
designed to allow quick and smooth
character entry.

After the system displays the first
drawn character with audio
feedback, the drawing of the next
character can begin. Check the list
next to the drawn character if the
system announces it incorrectly.
Use the scroll bar up or down to
select the correct one.

Handwriting Recognition has two
main modes:

.

Upper Case : Used for
Destination Entry.

.

Mixed Case : Used for all other
character entry modes.

Touch the globe button from the
alpha-numeric keyboard to open the
Handwriting Recognition screen.
Another way is to use the two finger
gesture by swiping to the left on a
keyboard screen or in a list view.

The Handwriting Recognition screen
is split into four major zones:

.

Drawing Pad

.

Character Entry Field

.

List of Possible Characters

.

Option Settings

.

Drawing Pad — Draw a
character in the display area.
This is where the drawing can
be seen on the touchpad.

When the first character is
complete, a representation of
that character can be seen, as
well as an audible response.
If the character is correct, the
next character can be started
immediately.

‐ Delete the last entered

character by drawing a line
across the character field.

‐ To create a space, draw a line

from left to right across the
character field.

.

Character Entry Field — This
section is an area across the top
of the screen. The Character
Entry section can look different
depending on which feature is
being used. When finished with
the input, press and hold using
two fingers to exit character

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

Introduction 9

recognition and confirm the
input, or press with two fingers
to exit and return to the
keyboard.

.

List of Possible Characters —

The best guess character will be
at the top of the list. If character
recognition displays the incorrect
character, look at this list and
see if the desired character is
available to select. Move the
highlight up or down the list
using two fingers to select the
desired character. Highlighting a
character from the list will
replace the incorrect character
with the desired character. The
character is displayed in the
character entry section of the
screen while an audio response
is triggered.

.

Option Settings — This section
is an area on the right side of
the Character Recognition
screen. This section will look
different depending if the
recognition mode is Upper Case
or Mixed.

Character Recognition Settings

Touch the option settings icon to
display the Character Recognition
Settings menu. Touch an option to
adjust the speed preference.

Draw Speed: The Draw Speed
setting adjusts the speed of the
character recognition feature.

For example, draw the first / of an X
on the screen. Lift the finger off the
screen to finish the other side of the
X. Change the speed setting by
selecting Faster, Default, or Slower.
Depending on the selection the
amount of time allowed to draw
multiple strokes will increase or
decrease.

Character Selection Speed: The
Character Selection Speed adjusts
the overall speed of going through
the character recognition.
Depending on the selection, the
amount of time allowed to draw and
to pick a correct character on the list
of best guesses. The options are
Faster, Default, and Slower.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

10 Introduction

Audio Feedback : Audio feedback

is an audible response to an action
that has occurred while using the
Character Recognition. An example
is when a character is complete on
the drawing pad, a representation of
that character displays and an
audible response is heard. The
audible response confirms the
system has identified the character
and to proceed with the next
character.

ABC/abc (Character Set) : Select
from the touch screen to view the
available character sets and select
to change. Some regions may not
support multiple character sets. This
button also displays the upper or
lower case characters that are
currently active in a mixed
case mode.

If mixed case characters mode is
supported, press

Q to toggle

between upper and lower case.

Interacting with the System

There are two ways to interact with
the system:

.

Highlight Elements — The
highlight element works like a
cursor but is optimized for the
vehicle by snapping from
element to element available on
the screen. Not all of the
interactive elements of the
touchscreen are available from
the touchpad. While moving from
element to element, a haptic
bump vibration is felt.

Touch the touchpad to select or
activate a currently highlighted
object. A click will be felt to
confirm the action was
performed.

.

Multi-touch Gestures — The
touchpad has hot-key features
for some of the main
applications and lists. These are
available using two fingers
across the surface of the
touchpad.

A few examples using
multi-touch gestures:

Two Fingers Revealing Map to the

Right

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

Introduction 11

Two Fingers Revealing Map to

the Left

.

Navigation

Move two fingers around the
screen to pan the map.

Press two fingers to activate the
callout menu such as pressing
on a location from the
touchscreen to highlight the
address. Clicking with two
fingers again will hide the
callout menu.

Pinch two fingers, such as the
index finger and thumb to zoom
out in a map.

Spread two fingers, such as the
index finger and thumb to zoom
in on a portion of a map.

‐ Audio

Scroll any list by moving two
fingers up and down on the
touchpad.

Move two fingers up or down
the touchpad to cycle through
all available audio sources.

Move two fingers left or right
across the touchpad to seek
up or down in broadcast radio.
In media, these gestures will
seek tracks up or down.

Press two fingers to activate
the content browse feature.

‐ Character Recognition

Press two fingers to exit
character recognition.

Use a two finger long press to
exit character recognition and
proceed to the next step.

‐ Favorites

Move three fingers up or down
on the touchpad to raise or
lower the favorites; a
maximum of three rows of
favorites can be displayed at
one time.

Move three fingers left or right
on the touchpad to page the
favorites.

Touchpad Gestures

Use the following finger gestures on
the touchpad to control the
infotainment system.

Slide a single finger across the
surface of the touchpad to move the
cursor around selectable elements.
The cursor will automatically jump
from one active element to another
active element throughout the
current page.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

12 Introduction

Press the touchpad to select or
activate the currently highlighted
object.

Press and hold over an empty
favorites location to store a favorite.

Tap twice in the same location of the
touchpad to activate “shift” while in
character recognition mode.

Glide two fingers across the surface
of the touchpad to scroll down a list
or reveal down a map. If this two
finger gesture setting has been
inverted, the scroll behavior
reverses

Because of personal preferences for
scrolling, and gesture direction, the
settings for this function can be
inverted. Select the Touchpad menu
from the Settings application to
invert this setting.

Glide two fingers across the surface
of the touchpad to scroll up a list or
reveal up a map.

If desired, select the Touchpad
menu from the Settings application
to invert this setting.

Glide two fingers across the surface
of the touchpad to pan left on a map
or go to the next media track or
favorite page.

If desired, select the Touchpad
menu from the Settings application
to invert this setting.

Glide two fingers across the surface
of the touchpad to pan right on a
map or go to the previous media
track or favorite page.

If desired, select the Touchpad
menu from the Settings application
to invert this setting.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

Introduction 13

While in character recognition
mode, press and hold two fingers to
close the character recognition pane
and execute the pane’s current
function. Some of these functions
are to search a destination or name
a contact.

This gesture is only available while
in character recognition mode.
Press to close the character
recognition pane and return to the
previous screen.

Spread two fingers, such as the
index finger and thumb to zoom in
on a portion of the map.

Pinch two fingers, such as the index
finger and thumb to zoom out on
a map.

Slide three fingers across the
surface of the touchpad to raise one
or three rows of favorites onto the
screen.

Slide three fingers across the
surface of the touchpad to lower
one or three rows of favorites from
the screen.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

14 Introduction

Infotainment Gestures

Use the following finger gestures to
control the infotainment system.

Touch/Tap

Touch/Tap is used to select a button
or option, activate an application,
or change the location inside a map.

Touch and Hold

Touch and hold can be used to start
another gesture, or to move or
delete an application.

Drag

Drag is used to move applications
on the Home Page, or to pan the
map. To drag the item, it must be
held and moved along the screen to
the new location. This can be done
up, down, right, or left.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

Introduction 15

Nudge

Nudge is used to move items a
short distance on a list or a map. To
nudge, hold and move the selected
item up or down to a new location.

Fling or Swipe

Fling or swipe is used to scroll
through a list, pan the map,
or change page views. Do this by
placing a finger on the screen then
moving it rapidly up and down or
right and left.

Spread

Spread is used to zoom in on a
map, certain images, or a web
page. Place finger and thumb
together on the screen, then move
them apart.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

16 Introduction

Pinch

Pinch is used to zoom out on a
map, certain images, or a web
page. Place finger and thumb apart
on the screen, then move them
together.

Cleaning High Gloss Surfaces
and Vehicle Information and
Radio Displays

For vehicles with high gloss
surfaces or vehicle displays, use a
microfiber cloth to wipe surfaces.
Before wiping the surface with the
microfiber cloth, use a soft bristle
brush to remove dirt that could
scratch the surface. Then use the

microfiber cloth by gently rubbing to
clean. Never use window cleaners
or solvents. Periodically hand wash
the microfiber cloth separately,
using mild soap. Do not use bleach
or fabric softener. Rinse thoroughly
and air dry before next use.

Software Updates

Website Information

See the following websites for
information:

Cadillac

In the U.S., see www.cadillac.com.

In Canada, see www.cadillac.ca.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

Radio 17

Radio

AM-FM Radio

Playing the Radio

While on the audio main page the
available sources are: AM, FM,
SiriusXM (if equipped), My Media,
USB, Bluetooth, and AUX Input.

.

Touch the RADIO screen button
to scroll through AM, FM,
or SXM (if equipped).

.

Touch the MEDIA screen button
to scroll through My Media,
USB, Bluetooth, and AUX Input.

Infotainment System Settings

Touch the RADIO screen button to
access broadcast sources.

Touch the MENU screen button to
display the following menus:

Tone Settings :

.

Bass, Midrange, and Treble :
Touch + or − to adjust.

.

Surround (if equipped):

Touch + or − to adjust. Surround
control adjusts the headrest or
seat speaker volume only.

.

Balance: Touch

S or T for more

sound from the left or right
speakers. The middle position
balances the sound between the
left and right speakers.

.

Fade: Touch

y or z for more

sound from the front or rear
speakers. The middle position
balances the sound between the
front and rear speakers.

EQ (Equalizer) Settings : The
available choices are Custom
or Talk.

DSP Modes (If Equipped) :

.

Bose

®

Panaray®system and

Bose Centerpoint

®

Surround
sound systems have four DSP
modes:

‐ Normal: Adjusts the audio to

provide the best sound for all
seating positions.

‐ Driver: Adjusts the audio to

provide the best sound for the
driver.

‐ Rear: Adjusts the audio to

provide the best sound for the
rear seat occupants.

‐ Centerpoint: Turns on the

Bose Centerpoint surround
technology. This setting
creates a surround sound
listening experience from
nearly any audio source;
existing stereo, satellite radio,
and MP3 players. For more
information on Bose

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

18 Radio

Centerpoint surround
technology, visit
www.bose.com/centerpoint.

Categories : Touch Categories
under the Audio menu to access the
categories list for AM/FM. The list
contains names associated with the
AM/FM channels. Touch on a
category name to display a list of
channels for that category. Selecting
a station from the list, tunes the
radio to that channel and returns the
display to the Now Playing.

Auto Volume Control (If
Equipped) : This feature adjusts

the volume based on vehicle speed.
Select the level between off, low,
medium - low, medium, medium -

high, or high. Touch

[ Back to go

back to the previous menu.

Some vehicles may be equipped
with the Bose

®

AudioPilot®. In these
cases, the Auto Volume main menu
item is replaced with the Bose
AudioPilot menu item. AVC or Bose
AudioPilot is available to use with
any source mode.

Bose

®

AudioPilot®noise
compensation technology (If
Equipped) : This feature adjusts

the volume based on the noise in
the vehicle and speed. When turned
ON, AudioPilot technology detects
ambient noise and vehicle speed to
continuously adjust many aspects of
the audio signal so that your music
will sound the same at a set volume
level.

The options are ON and OFF.

This feature is most effective at
lower radio volume settings where
background noise can affect how
well you hear the music being heard
through your vehicle‘s audio
system. At higher volume settings,
where the music is much louder
than the background noise, there
may be little or no adjustments by
AudioPilot.

For more information on Bose
AudioPilot noise compensation
technology, visit www.bose.com/
audiopilot.

HD Radio™ : For AM and FM only,
touch to turn HD reception on or off.

Touch

[ Back to go back to the

previous menu.

Update Station List : For AM and
FM only, touch to update the station

list. Touch

[ Back to go back to the

previous menu.

Finding a Station

Seeking a Station

Touch t or u to search for the

previous or next strongest station.

Tuning a Station

Touch the SEEK screen button to
switch to TUNE. Touch again to

change back. Touch

t or u to

manually search for a station.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

Radio 19

Direct Tune

Access Direct Tune by touching the
interaction selector TUNE screen
button to bring up the keypad.
Navigate up and down through all
frequencies or directly enter a
station using the keypad. When a
new station is entered the
information about that station
displays on the right hand side. This
information will update with each
new valid frequency tuned to.

The keypad will gray out entries that
do not contribute to a valid
frequency and will automatically
place a decimal point within the
frequency number, as needed.

A valid station will automatically
tune to the new frequency but not
close the direct tune window. Touch
the Back or Exit screen buttons.

The tune arrows on the right side of
the direct tune display tunes through
the complete station list one station
step at a time per touch. A touch
and hold advances 10 frequency
steps per second.

Touch the (X) arrow delete screen
button to delete one character at a
time. Touch and hold the (X) delete
screen button to delete all
characters.

In AM-FM modes, touch the

s or t

for the radio to go to the next or
previous strong station. Touch
Direct Tune to advance to the next
or previous frequency step in AM or
FM mode or directly enter or tune to
the frequency on the keypad.

AM-FM Categories

AM-FM Categories are available
under the AM-FM audio menu.
Touch AM-FM Categories to gain
access to the AM-FM
Categories list.

The categories list contains
category names associated with
AM-FM Channels. Selecting a given
category name displays a list of
channels for that category.

Storing Radio Station Presets

Favorites are stored in the area at
the bottom of the screen.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

20 Radio

Up to 60 preset stations can be
stored under the following:

AM, FM, SXM (if equipped), HD
Radio Stations : Touch and hold a

favorite button to save the current
station as a favorite. Touch a
favorite button to recall a favorite
station.

Mixed-Audio Favorites

Favorites that can be stored include
radio stations, navigation,
applications, contacts, tone settings,
artists, songs, albums,
podcasts, etc.

To scroll through the favorites:

.

Drag up along the top of the
favorites. To close the favorites,
drag them down.

.

Slide a finger to the right or left
to scroll through each page of

favorites. A

V indicates which

page is being viewed.

Tone Settings : While viewing the
tone settings and lifting up the
favorite buttons, touch and hold to
store a tone setting. Touch a screen
button in the favorite area to recall a
favorite tone setting.

Pandora Radio Stations : Touch
and hold a screen button to store
the Pandora application. Pandora
favorite stations work when Pandora
is launched.

The number of favorites displayed is
automatically adjusted by default,
but can be manually adjusted in the
Settings menu under Radio and
then Number of Favorites Shown.

HD Radio Technology

HD Radio™ Technology is a free
service with features such as
static-free sound, more stations built
onto the frequency such as

HD2 and HD3, and on-screen
information such as artist and song
title.

Channel Access

To access HD Radio channels:

1. Tune the radio to the channel.
If the channel is broadcasting
HD Radio Technology, the
radio will automatically switch
to digital audio, indicated with
an HD logo if HD Radio is
turned on.

2. Touch

t or u to tune to the

previous or next HD Radio
channel.

There may be a delay before the
channel starts playing.

The HD Radio channel number is
indicated next to the logo.

HD Radio channels can be saved
as favorites. Songs can be tagged
for download.

When connected to iTunes

®

, the
Sync button on the device may
need to be touched to transfer the
tags to iTunes.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

Radio 21

See AM-FM Radio 0 17
or USB Port 0 27.

For a list of all channels, see
www.hdradio.com.

Troubleshooting

Digital Audio Delay : Wait for the

signal to process. This can take
several seconds.

Volume Change, Audio Skip,
Echo, Digital Audio Lost : Channel

signal strength may be weak or the
channel is out of range. Verify
proper reception on another
channel.

If the HD Radio signal loses
reception while listening to channel
HD1, the radio will go back to the
main non-HD Radio channel.

If the HD Radio signal loses
reception while listening to channels
HD2 to HD8, the radio mutes until
the signal can be recovered or until
the channel is changed.

HD can be disabled if driving in a
weak signal area. Touch Menu from
the AM/FM screens, then touch HD
Radio to toggle HD on and off.

Satellite Radio

SiriusXM Satellite Radio
Service (If Equipped)

Vehicles with a valid SXM satellite
radio subscription can receive
SiriusXM programming.

SiriusXM satellite radio has a wide
variety of programming and
commercial-free music, coast to
coast, and in digital-quality sound.
See www.siriusxm.com or call
1-866-635-2349 in the U.S. In
Canada, see www.xmradio.ca or call
1-877-209-0079.

When SXM is active, the station
name, number, category name,
song title, and artist display on the
screen.

SiriusXM Menu

Touching the MENU screen button
may display the following:

Tone Settings : Touch + or − to
adjust the tone settings. See AM-FM

Radio 0 17.

TuneSelect : For SiriusXM only, this
feature allows alerts to be set for
artists or songs that are played on
any other channel. Touch
TuneSelect on the menu during
playback of a desired song or artist
to set an alert. Touch Manage
TuneSelect to turn the alerts On and
Off or manage the saved selection
of Artists or Songs. To unselect an
alert, touch the Song or Artist. To

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

22 Radio

delete an alert, touch −. Touch [
Back to go back to the
previous menu.

Auto Volume : If equipped, this
feature adjusts the volume based on
the vehicle speed. See AM-FM

Radio 0 17.

Bose

®

AudioPilot®noise
compensation technology (If
Equipped) : This feature adjusts

the volume based on the noise in
the vehicle. See AM-FM Radio 0 17.

Radio Reception

Unplug electronic devices from the
accessory power outlets if there is
interference or static in the radio.

FM

FM signals only reach about 16 to
65 km (10 to 40 mi). Although the
radio has a built-in electronic circuit
that automatically works to reduce
interference, some static can occur,
especially around tall buildings or
hills, causing the sound to fade in
and out.

AM

The range for most AM stations is
greater than for FM, especially at
night. The longer range can cause
station frequencies to interfere with
each other. Static can also occur
when things like storms and power
lines interfere with radio reception.
When this happens, try reducing the
treble on the radio.

SiriusXM Satellite Radio
Service

If equipped, SiriusXM Satellite
Radio Service provides digital radio
reception. Tall buildings or hills can
interfere with satellite radio signals,
causing the sound to fade in and
out. In addition, traveling or standing
under heavy foliage, bridges,
garages, or tunnels may cause loss
of the SiriusXM signal for a period
of time.

Cell Phone Usage

Cell phone usage, such as making
or receiving phone calls, charging,
or just having the phone on may

cause static interference in the
radio. Unplug the phone or turn it off
if this happens.

Backglass Antenna

The AM-FM antenna is integrated
with the rear window defogger in the
rear window. Do not scratch the
inside surface or damage the lines
in the glass. If the inside surface is
damaged, it could interfere with
radio reception. For proper radio
reception, the antenna connector
needs to be properly attached to the
post on the glass.

If attaching a cell phone antenna to
the glass, attach it between the grid
lines.

Caution

Using a razor blade or sharp
object to clear the inside rear
window can damage the rear
window antenna and/or the rear
window defogger. Repairs would

(Continued)

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

Radio 23

Caution (Continued)

not be covered by the vehicle
warranty. Do not clear the inside
rear window with sharp objects.

Caution

Do not apply aftermarket glass
tinting with metallic film. The
metallic film in some tinting
materials will interfere with or
distort the incoming radio
reception. Any damage caused to
the backglass antenna due to
metallic tinting materials will not
be covered by the vehicle
warranty.

Multi-Band Antenna

The roof antenna is for OnStar,
SiriusXM Satellite Radio (U.S. and
Canada only), and GPS (Global
Positioning System). Keep clear of
obstructions for clear reception.

If the vehicle has a sunroof, and it is
open, reception can also be
affected.

Pandora Internet Radio

If equipped, Pandora®is a free
Internet radio service that streams
personalized radio stations based
on artists, tracks, genres, and
comedians. Create stations using
the Pandora website or Smartphone

application, then use

- (thumbs up)

or

, (thumbs down) to personalize

stations. To set up an account, or for
more information, go to
www.pandora.com.

A phone or tablet with an Internet
connection and the Pandora
application installed is required.
When no internet connection or no
bluetooth signal is detected the
interaction Selector button will be
grayed out. If one of these buttons
are touched, a pop-up displays,
“Action unavailable. Please check
device connection.” Personal cell
phone data plans are used. Make
sure the latest version is installed
on the device.

Launching Pandora

Connect the iPhone to the USB
port, or connect Android™ or
BlackBerry

®

through Bluetooth. See

Auxiliary Jack 0 31 or Bluetooth
(Overview) 0 93 or Bluetooth
(Infotainment Controls) 0 94

or Bluetooth (Voice Recognition)

0 97. For first time use, set up the

stations before connecting to the
vehicle. The Pandora icon will be
available on the Home Page.

When Pandora is chosen, the
Pandora logo will populate on the
screen and will display “Acquiring
Pandora Radio Station.” Launch
times can be significant.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

24 Radio

Using the iPhone

1. Plug the device into the USB
port. The phone screen must
be unlocked.

2. Touch PANDORA on the Home
Page to launch Pandora.

3. If nothing happens when the
available Pandora screen
button is touched, download
the latest Pandora application
and retry.

The login screen may display on the
device.

Using an Android or BlackBerry
Phone

The BlackBerry phone must be
unlocked to launch Pandora service.

1. Pair the phone using Bluetooth.

2. Launch Pandora directly from
the Home Page by touching
PANDORA.

If nothing happens when the
available PANDORA screen button
is touched, download the latest
Pandora application and retry.

The login screen may display on the
device.

Pandora Menu

Touch Menu on the Pandora
main page.

Pandora has a menu system with
the following:

Tone Settings : Touch to adjust the
tone settings. See AM-FM

Radio 0 17.

Bookmark Artist : Touch to
bookmark the artist.

Bookmark Song : Touch to
bookmark the song.

Auto Volume Control (If
Equipped) : This feature sets the

auto volume based on the speed of
the vehicle and noise in the vehicle.

Some vehicles may be equipped
with the Bose AudioPilot system. In
these cases, the Auto Volume main
menu item is replaced with the Bose
AudioPilot menu item. The AVC or
Bose AudioPilot is available to use
with any source mode.

Bose AudioPilot : If equipped, this
feature adjusts the volume based on
the noise in the vehicle. See AM-FM

Radio 0 17.

Pandora Features

Pandora service has features to rate
tracks, skip tracks, or change
stations.

, (Thumbs Down) : When

touched, Pandora stores this
information, changes to the next
track, and does not play this track
on this station again. This helps
Pandora choose which tracks
should not play on this station. This
feature is only available on user
created stations.

- (Thumbs Up) : When touched,

Pandora stores this information
and

- is highlighted for the

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

Radio 25

remainder of the track. This helps
Pandora choose which tracks
should play on this station.

u (Next Track) : When touched,

Pandora changes to the next track.

r or c (Play/Stop) : Touch to play

or stop playback.

Pandora Skip Limit

Pandora limits the number of skips
allowed on their service. When the

skip limit is reached,

, or u will

not skip the currently playing track,
but the

, feedback will be

recorded.

Advertisements on Pandora

Pandora may display
advertisements. The artist name
and track title will not be displayed
and the skip track button will not be
available.

Pandora Troubleshooting

Unable to Connect Device to
Vehicle

If the device is unable to connect
through the USB or Bluetooth:

1. Turn the vehicle off.

2. Take the Remote Keyless Entry
(RKE) transmitter at least 6 m
(20 ft) away from the vehicle.

3. Wait about 30 seconds, and try
to connect the device again.
See Bluetooth (Overview) 0 93
or Bluetooth (Infotainment

Controls) 0 94 or Bluetooth
(Voice Recognition) 0 97.

Unable to Start Pandora

If the device is unable to launch
Pandora:

.

Check that the latest version of
Pandora is installed.

.

Check that there is an active
account logged into Pandora.

.

Have at least one station
created.

.

For Android and BlackBerry
devices, check that the device is
paired with the vehicle, and
whether the device displays in
the Connected phone sources
list under the Phone icon from
the Home Page.

.

For an iPhone, check that the
USB cable is connected to the
USB port and the screen is
unlocked.

.

Close Pandora on the device
and launch again. Devices that
allow multitasking may require
an extra step to quit the Pandora
application. See the cell phone
manufacturer's user guide.

Thumbs Up or Thumbs Down
Error

If there is an error trying to rate a
track with the

, or - buttons, the

message “Thumbs Down Error” or
“Thumbs Up Error” will display.

Touch OK to dismiss.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

26 Radio

Loss of Audio

Loss of Pandora audio can happen
in different ways:

.

Weak or lost data connection.

.

Device needs to be charged.

.

Application needs to be
relaunched.

.

Connection between phone and
radio was lost.

.

An iPhone is connected to both
Bluetooth and the USB port.

If there is a loss of audio, playback
can be resumed by changing the
audio flow from Bluetooth to USB
cable.

Common Pandora Messages

Pandora Error/Please Check
Device : Not signed in or Pandora

is down for maintenance.

No Stations Available : No stations
are available on the Pandora server
through the connected device.

No Internet Connection : A few
reasons for loss of Internet
connection are:

.

The connected device loses its
cellular connection.

.

The device does not support
Internet connectivity.

.

The device is not in the vehicle.

No Bluetooth Signal : The
Bluetooth signal is lost.

No skips remaining for this
station or permitted during
advertisements :

.

The maximum Pandora skip limit
has been reached according to
the plan that was obtained.

.

Skipping an advertisement was
tried.

See www.pandora.com/help. If the
service will not work, see a dealer
for assistance.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

Audio Players 27

Audio Players

Avoiding Untrusted Media
Devices

When using media devices such as
CDs, DVDs, Blu-ray Discs

®

, SD
cards, USB drives, and mobile
devices, consider the source.
Untrusted media devices could
contain files that affect system
operation or performance. Avoid use
if the content or origin cannot be
trusted.

USB Port

Audio from videos stored on USB
cards may be listened to while the
vehicle is in a forward gear. Videos
can be watched while the vehicle is
in P (Park). Use play/pause or next/
previous to control the video or
touch the browse screen to display
a list of the current video filters.

This vehicle has two USB ports in
the center console. These ports are
for data and charging. There are

also two USB ports on the rear seat
trim panel. These rear seat ports
are for charging only.

If equipped with Rear Seat
Infotainment (RSI), there may be
two USB ports in the rear media
console storage area.

Playing from a USB

A USB mass storage device can be
connected to the USB port.

Audio extensions supported by the
USB are:

.

MP3

.

WMA

.

AAC

.

OGG

.

AIFF

.

3GPP

Touch on the time bar with a finger
and drag it across to a certain point
in the song that is being listened to
currently. This feature is only
available with media playing
devices.

Gracenote

®

When plugging in a USB device,
Gracenote service builds voice tags
for music. Voice tags allow artists,
albums with hard to pronounce
names, and nicknames to be used
to play music through voice
recognition.

While indexing, infotainment
features are available.

My Media Library

My Media is only available when
more than one indexed device is
connected. It allows access to
content from all indexed media
sources. Touch the MEDIA screen
button to scroll through the options
until My Media is selected. Touch
anywhere in the central area of the
screen to browse the content.

USB MP3 Player and USB Drives

The USB MP3 players and USB
drives connected must comply with
the USB Mass Storage Class
specification (USB MSC).

To play a USB device:

1. Connect the USB.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

28 Audio Players

2. Touch MEDIA until the
connected device is shown.

Use the following when playing an
active USB source:

r (Play) : Touch to play the current

media source.

j (Pause) : Touch to pause play of

the current media source.

t (Previous/Reverse) :

.

Touch to seek to the beginning
of the current or previous track.
If the track has been playing for
less than five seconds, the
previous track plays. If playing
longer than five seconds, the
current track restarts.

.

Touch and hold to reverse
quickly through playback.
Release to return to playing
speed. Elapsed time displays.

u (Next/Fast Forward) :

.

Touch to seek to the next track.

.

Touch and hold to advance
quickly through playback.
Release to return to playing
speed. Elapsed time displays.

Z (Shuffle) : Touch the shuffle icon

on the Interaction Selector to shuffle
through the available media.

/ (Replay) : Touch the replay icon

on the Interaction Selector to
display the timebar. Move the
timebar to interact with the currently
playing song.

TONE : Touch TONE on the
Interaction Selector to access the
Tone Settings screen. Set the Bass,
Midrange, Treble, Balance,
and Fade.

USB Menu

Touch Menu to display the USB
menu. The following may be
available:

Shuffle : Touch to play the tracks
randomly. Touch again to stop
shuffle.

Bose

®

AudioPilot®: If equipped,

touch to turn Bose AudioPilot on or
off. AudioPilot is an On/Off selection
on the list entry from the Main
menu. See AM-FM Radio 0 17.

Tone Settings : Touch + or − to
adjust Bass, Midrange, Treble,
or Surround. See AM-FM

Radio 0 17.

USB Browse Menu

Touch the browse screen button to
view the browse menu and the
following options are displayed
along the bottom of the screen:

Playlists :

Supported Playlist extensions are:
m3u, pls, wpl, asx, b4s, and xspf.

1. Touch to view the playlists
stored on the USB.

2. Select a playlist to view the list
of all songs in that playlist.

3. Select a song from the list to
begin playback.

Artists :

1. Touch to view the list of artists
stored on the USB.

2. Select an artist name to view a
list of all albums by the artist.

3. To select a song, touch All
Songs or touch an album and
then select a song from the list.

Cadillac CT6 CUE Infotainment System (GMNA-Localizing-U.S./Canada-

9245669) - 2016 - crc - 11/13/15

Audio Players 29

Albums :

1. Touch to view the albums on
the USB. The artist name will
display under the list of
albums.

2. Select the album to view a list
of all songs on the album.

3. Select a song from the list to
begin playback.

Songs :

1. Touch to display a list of all
songs on the USB.

2. To begin playback, select a
song from the list.

Genres :

1. Touch to view the genres on
the USB.

2. Select a genre to view a list of
artists.

3. Select an artist to view albums
by that artist.

4. Select an album to view songs
on the album.

5. Select a song to start playback.

Podcasts, Composers, Audiobooks,
Videos, and Folder View are shown
when More is selected from the
bottom of the screen.

Podcasts :

1. Touch to view the podcasts on
the USB.

2. Select Podcast to get a list of
podcast episodes.

Composers :

1. Touch to view the composers
on the USB.

2. Select Composer to view a list
of albums by that composer.
Select an album or all songs to
view a list of songs.

3. Select a song from the list to
begin playback.

Audiobooks :

1. Touch to view the audiobooks
stored on the device. Select an
audiobook to get a list of
chapters.

2. Select the chapter from the list
to begin playback.

Folder View (If Equipped) :

1. Touch to view the directories
on the USB.

2. Select a folder to view a list of
all files.

3. Select a file from the list to
begin playback.

When a list of songs, albums,
artists, or other types of media
display, a vertical keyboard appears
on the left side of the list and a
scroll bar will appear on the right.
When using the vertical keyboard
touch the beginning character of the
desired name to display the zoom
bubble of that character. Another
way is to activate character
recognition at this screen by gliding
two fingers to the left across the
