Cadillac 2018 User Experience

2018

CT6
Cadillac User Experience

cadillac.com (U.S.)
cadillac.ca (Canada)

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

Contents

Introduction . . . . ...... . . . . . . . . . . . . . . 2

Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Audio Players . . . . . . . . . . . . . . . . . . . . . . 23

OnStar System . . . . . . . . . . . . . . . . . . . . . 29

Rear Seat Infotainment . . . . . . . . . . . 30

Navigation . . . . . . . . . . . . . . . . . . . . . . . . . 48

Voice Recognition . . . . . . . . . . . . . . . . . 78

Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Trademarks and License

Agreements . . . . . . . . . . . . . . . . . . . . . . 99

Index . . . . . . . . . . . . . . . . . . . . . . . 109

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

2 INTRODUCTION

Introduction

The names, logos, emblems, slogans,
and vehicle body designs appearing in
this manual including, but not limited
to, GM, the GM logo, CADILLAC, the
CADILLAC Emblem, and CADILLAC
CT6 CUE are registered trademarks of
General Motors LLC, its subsidiaries,
affiliates, or licensors.

For vehicles first sold in Canada,
substitute the name General Motors of
Canada Company for Cadillac Motor
Division, whenever it appears in this
manual.

Litho in U.S.A.
Part No. 23390325 A First Printing

This manual describes features that
may or may not be on the vehicle
because of optional equipment that
was not purchased on the vehicle,
model variants, country specifications,
features/applications that may not be
available in your region, or changes
subsequent to the printing of this
manual.

Keep this manual with the owner’s
manual in the vehicle, so it will be
there if it is needed. If the vehicle is
sold, leave this manual in the vehicle.

Overview

Read the following pages to become
familiar with the infotainment system
features.

Warning

{

Taking your eyes off the road for
too long or too often while using
any infotainment feature can cause
a crash. You or others could be

(Continued)

©

2017 General Motors LLC. All Rights Reserved.

Warning (Continued)

injured or killed. Do not give
extended attention to infotainment
tasks while driving. Limit your
glances at the vehicle displays and
focus your attention on driving. Use
voice commands whenever possible.

The infotainment system has built-in
features intended to help avoid
distraction by disabling some
functions when driving. These
functions may gray out when they are
unavailable. Many infotainment
features are also available through the
instrument cluster and steering wheel
controls.

Before driving:

.

Become familiar with the
operation, center stack controls,
and infotainment display.

.

Set up the audio by presetting
favorite stations, setting the tone,
and adjusting the speakers.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

INTRODUCTION 3

.

Set up phone numbers in advance
so they can be called easily by
pressing a single control or by
using a single voice command if
equipped with Bluetooth phone
capability.

See “Defensive Driving” in the owner’s
manual.

To play the infotainment system with
the ignition off, see “Retained
Accessory Power (RAP)” in the owner’s
manual.

Customer Assistance

Assistance is available to help with
Bluetooth pairing, other mobile device
interface, and operation support of the
infotainment system. Specialists are
available when calling this Customer
Assistance number.

U.S.: 1-855-428-3669 (855 4
CUE NOW)

Canada: See your dealer.

Infotainment System

The infotainment system is controlled
by using the infotainment displays,
controls on the center stack, steering
wheel controls, and voice recognition.

1. > (Mute and Power)

2. VOLUME

3.

{ (Home Page)

Power

.

When off, press
system on. Press and hold to
turn off.

.

When on, press
system. Press

the system.

When the power is on and the system
is not muted, a quick status pane

will display when
Pressing

> will mute the system and

> to turn the

> to mute the

> again to unmute

> is pressed.

trigger this pane to show a long press
is required to actually power down the
system.

Volume

Slide a finger across VOLUME to
increase or decrease the volume.

Home Page

The Home Page is where application
icons are accessed. Some features are
disabled when the vehicle is moving.

The Home Page can be set up to have
up to 10 icons per page.

u or v, or slide a finger left/

Touch
right across the screen to access the
pages of icons.

v : Touch to go to the next

Home Page.

u : Touch to go to the previous

Home Page.

k : Touch to display the favorites list.

Touch and hold a preset in the
favorites to begin the process of
saving a favorite application.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

4 INTRODUCTION

Touch the application icon to store as
a favorite, and the name of the
application will be shown in favorites.

Managing Home Page Icons

1. Touch and hold any of the Home
Page icons to edit that icon.

2. Drag the icon to a new location
on the Home Page or to save it
to the applications tray.

3. Press

{ to exit edit mode.

Steering Wheel Controls

The infotainment steering wheel
controls can be used to control the
infotainment features displayed in the
instrument cluster.

When in Valet Mode, if equipped,
access to the infotainment functions
is disabled. See Settings 0 92.

g : Press to answer an incoming call

or start voice recognition.
See Bluetooth (Overview) 0 84 or

Bluetooth (Infotainment Controls) 0 84

or Bluetooth (Voice Recognition) 0 88
and “OnStar Overview” in the owner’s
manual.

c : Press to decline an incoming

call or end a current call. Press to
mute or unmute the infotainment
system when not on a call.

S or T : Press the five-way control to

the left or right to go to the previous
or next menu on the instrument
cluster.

y or z : Press the five-way control

up or down to go up or down in a list
on the instrument cluster.

SEL : Press to select a highlighted
menu item.

x + or x − : Press to increase or

decrease volume.

C or B : Press to go to the next or

previous favorite when listening to the
radio. Press to go to the next or
previous track when listening to a
media source.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

INTRODUCTION 5

Using the System

Infotainment Display Features

Infotainment display features show on
the display when available. When a
feature is unavailable, the option may
gray out. When a feature is selected,
the option may highlight.

Home Page Features

Touch the icons on the Home Page to
launch an application.

Audio

Touch the Audio icon to display the
active audio source page. Available
sources are AM, FM, SXM (if
equipped), My Media, USB, Bluetooth,
and AUX Input Jack.

Phone

Touch the Phone icon to display the
Phone main page.
See Bluetooth (Overview) 0 84 or

Bluetooth (Infotainment Controls) 0 84
or Bluetooth (Voice Recognition) 0 88.

Projection

Touch the Projection icon to activate
Android Auto or Apple CarPlay (if
equipped) after a supported device is
connected. See Apple CarPlay and
Android Auto 0 90.

Apps

If equipped, in-vehicle Apps are
available for download. Touch
Collection icon on the Home Page to
begin.

Downloading and using Apps requires
Internet connectivity and a data plan
which can be accessed through the
vehicle’s OnStar 4G LTE Wi-Fi
hotspot, if equipped, or a compatible
mobile device hotspot. On most
mobile devices, activation of the Wi-Fi
hotspot is in the device’s Settings
menu under Mobile Network Sharing,
Personal Hotspot, Mobile Hotspot,
or similar.

To purchase data for the in-vehicle
Wi-Fi hotspot, if equipped, touch
Collection on the Home Page or
contact an OnStar Advisor. The vehicle
must have active OnStar service and a
payment method on file.

Availability of apps and connectivity
varies by vehicle, conditions, and
location. Data plan rates apply. For
more information, see
my.cadillac.com/learn.

Traffic

Touch Traffic on the Home Page to
directly access the traffic information.

Front Camera

If equipped, touch the Front/Camera
icon to display the Front Camera +
360° camera screen. See “Driver
Assistance Systems” in the owner’s
manual.

Nav/OnStar Nav

Touch the Nav icon to display the
navigation map or OnStar
Turn-by-Turn Navigation. See Using
the Navigation System 0 48 or “OnStar
Overview” in the owner’s manual.

Settings

Touch the Settings icon to display the
Settings menu. See Settings 0 92.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

6 INTRODUCTION

Text

Touch the Text icon to display the
Text Messaging main page. See Text
Messaging 0 89.

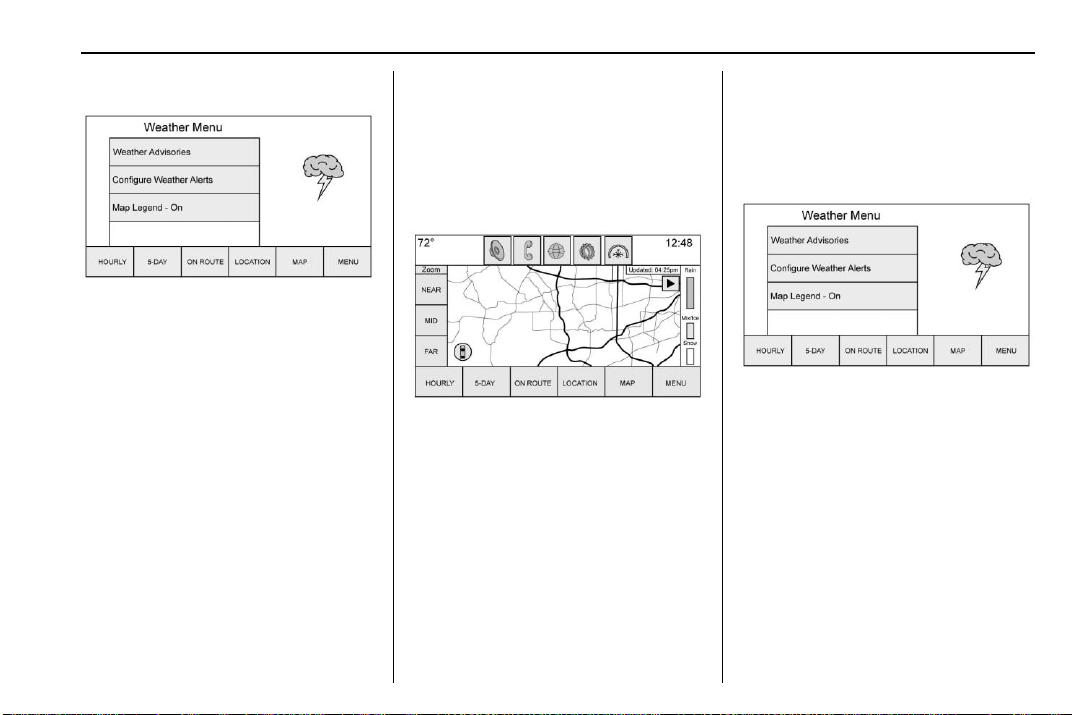

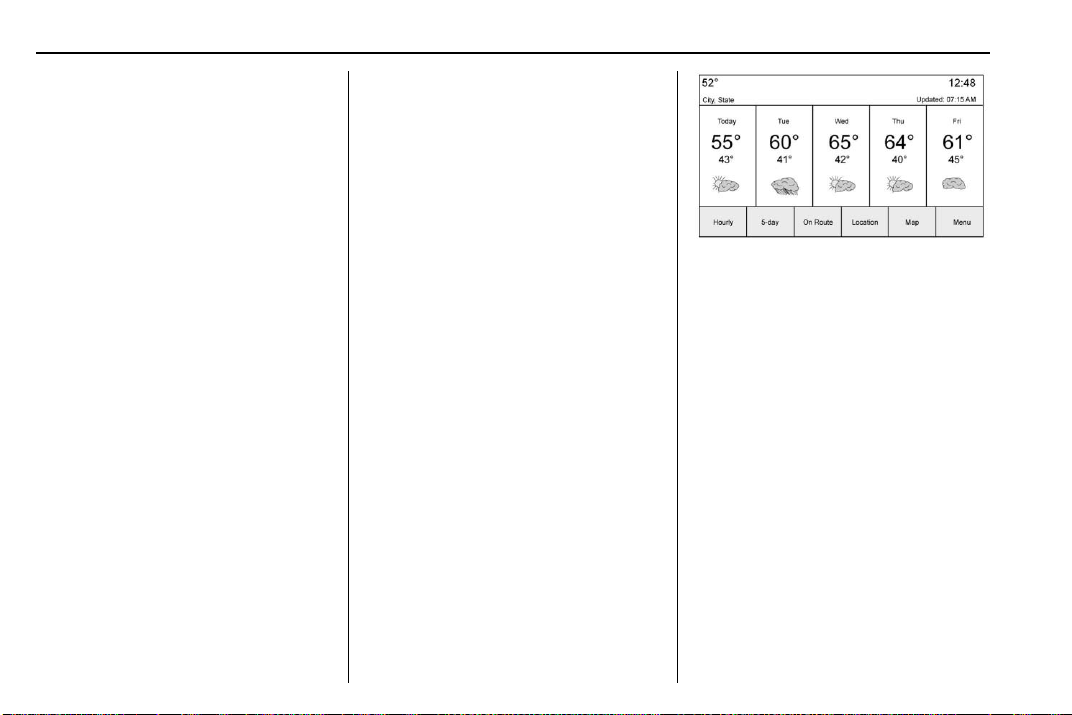

Weather

If equipped, touch the Weather icon
to display the Weather main page. See
“SiriusXM Travel Link” under
Destination 0 57.

Video

If equipped, touch the Video icon to
display the video Rear Seat
Infotainment main page. See Rear Seat
Infotainment (RSI) System 0 30.

Applications Tray

OnStar

Touch the OnStar icon to display the
OnStar main page and start OnStar
voice recognition. See “OnStar
Overview” in the owner’s manual.

Climate

Touch the Climate icon to display the
Climate main page. See “Dual
Automatic Climate Control System” in
the owner’s manual.

Rear Climate

If equipped, touch the R. Climate icon
to display the Rear Climate main page.
See “Rear Climate Control System” in
the owner’s manual.

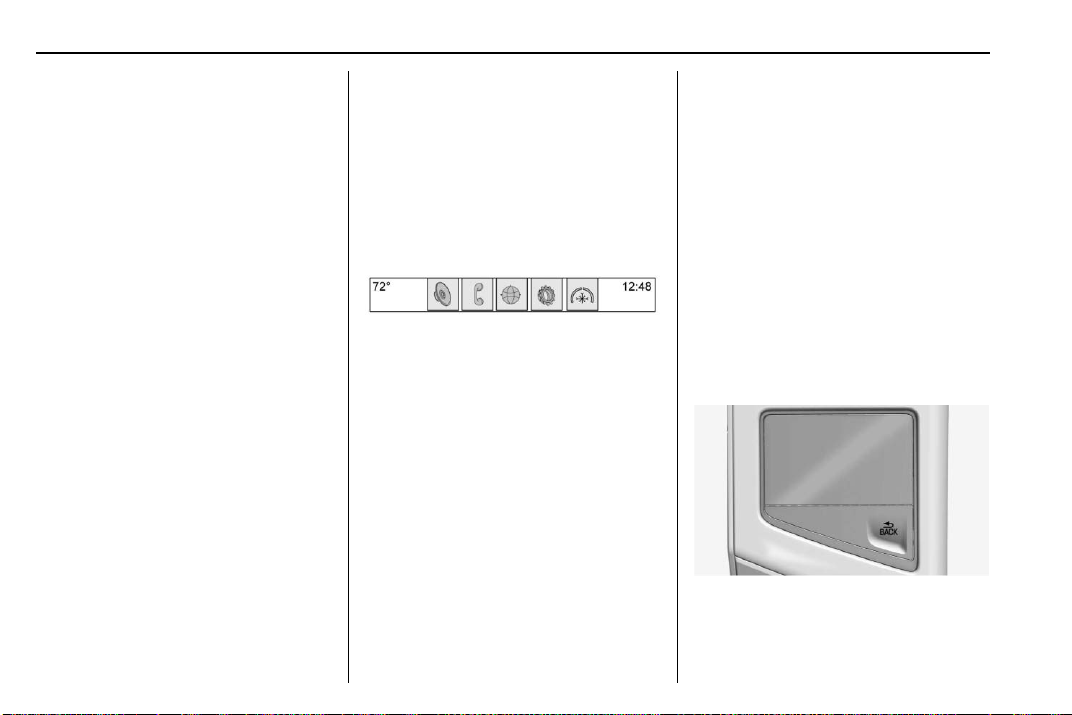

The applications tray is at the top
center of the display. It can have three
to five applications.

To add an application from the Home
Page to the applications tray:

1. Touch and hold any icon on the
Home Page to enter edit mode.

2. Drag the icon to the
applications tray.

To remove an item from the
applications tray, drag the icon
from the applications tray back
to the Home Page.

Adding or removing applications from
the applications tray will not remove
them from the Home Page.

Proximity Sensing

The infotainment system uses
proximity sensing for Maps. When
turned On, certain features will
become visible when a hand
approaches the display. When the
hand is removed, these features fade.
Proximity sensing can be turned off in
the Settings applications in the
Display menu options.

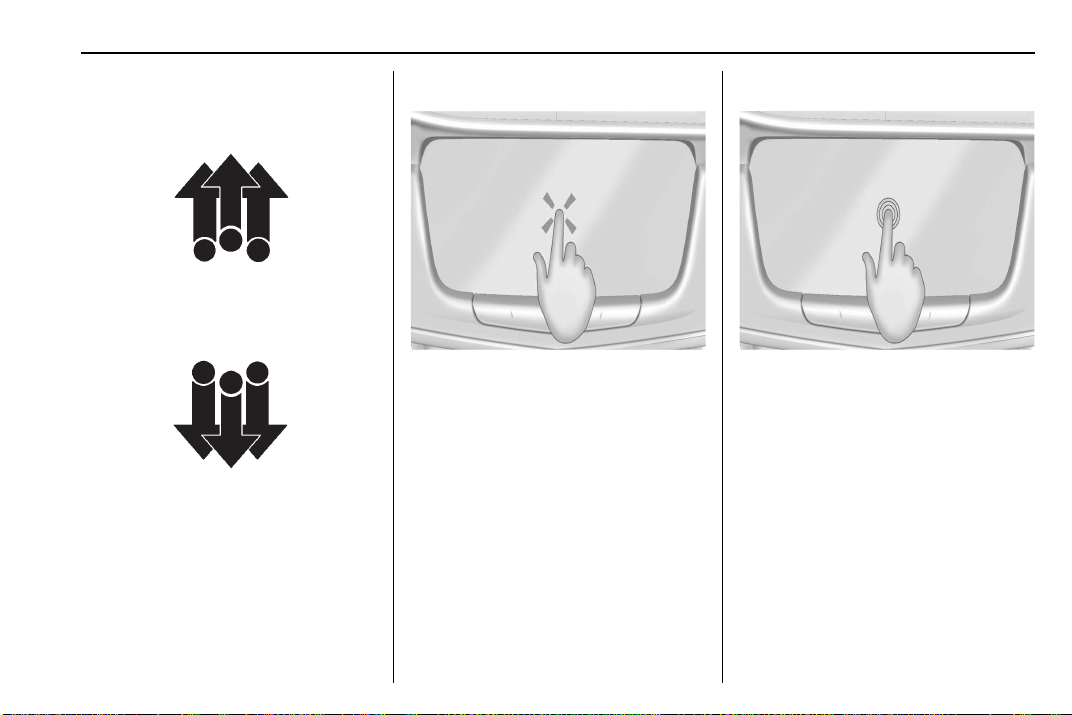

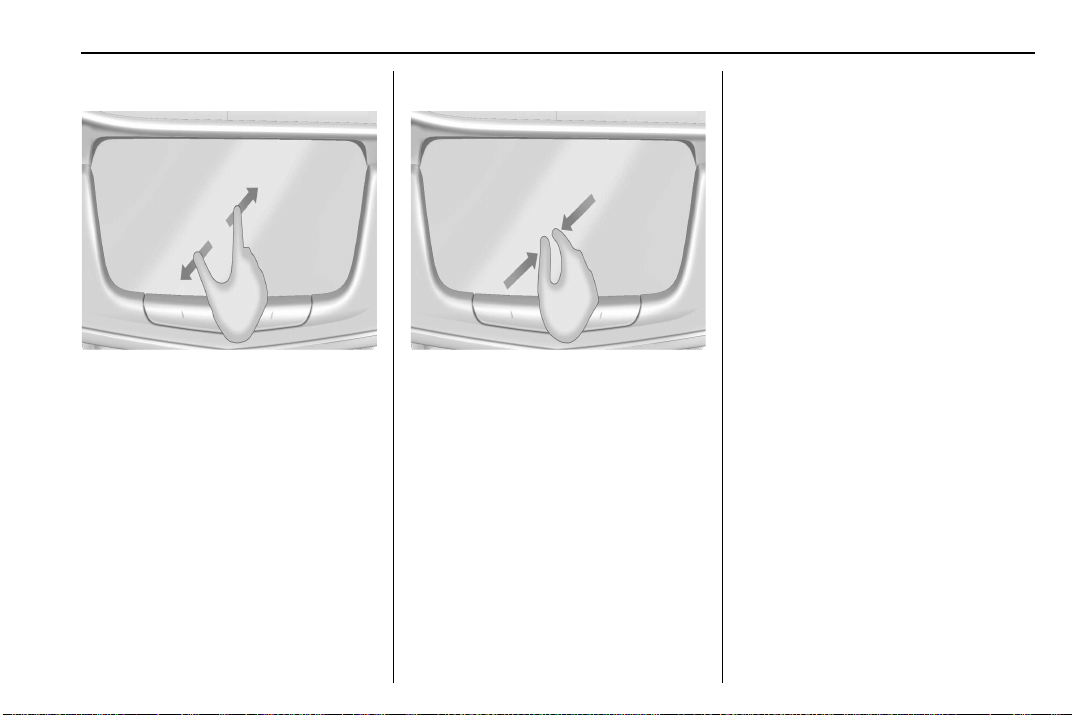

Touchpad

The touchpad is integrated into the
center console of the vehicle, in front
of the armrest. It provides an
alternative way to select features on

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

INTRODUCTION 7

the infotainment system by using a
console mounted remote controller
instead of the infotainment display.

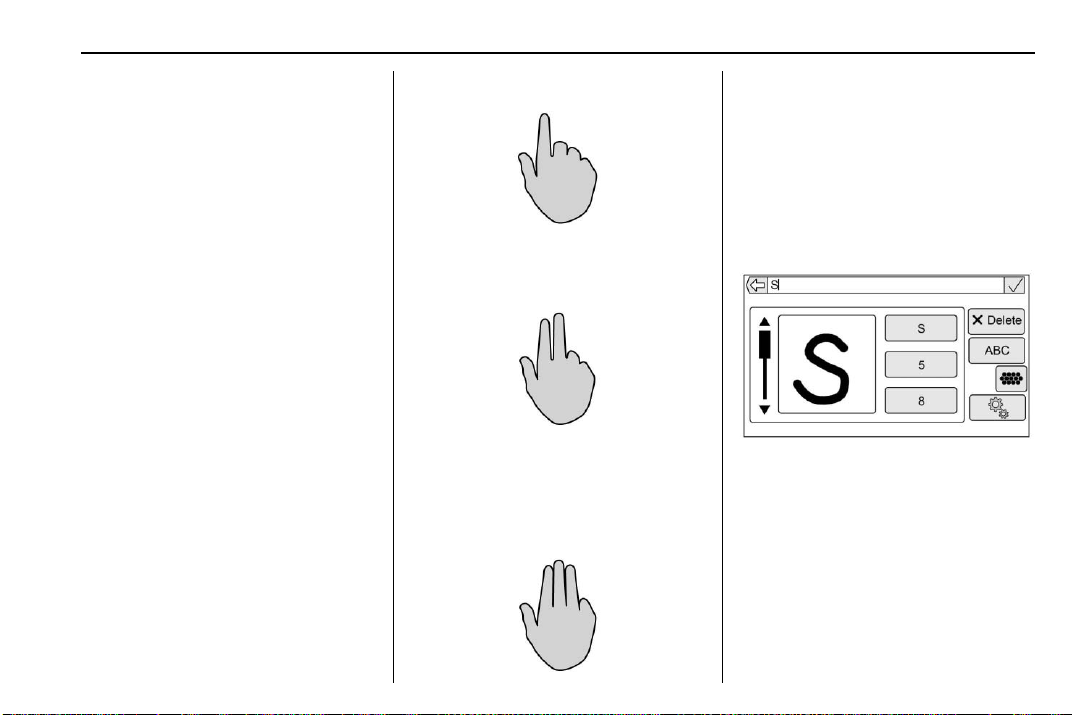

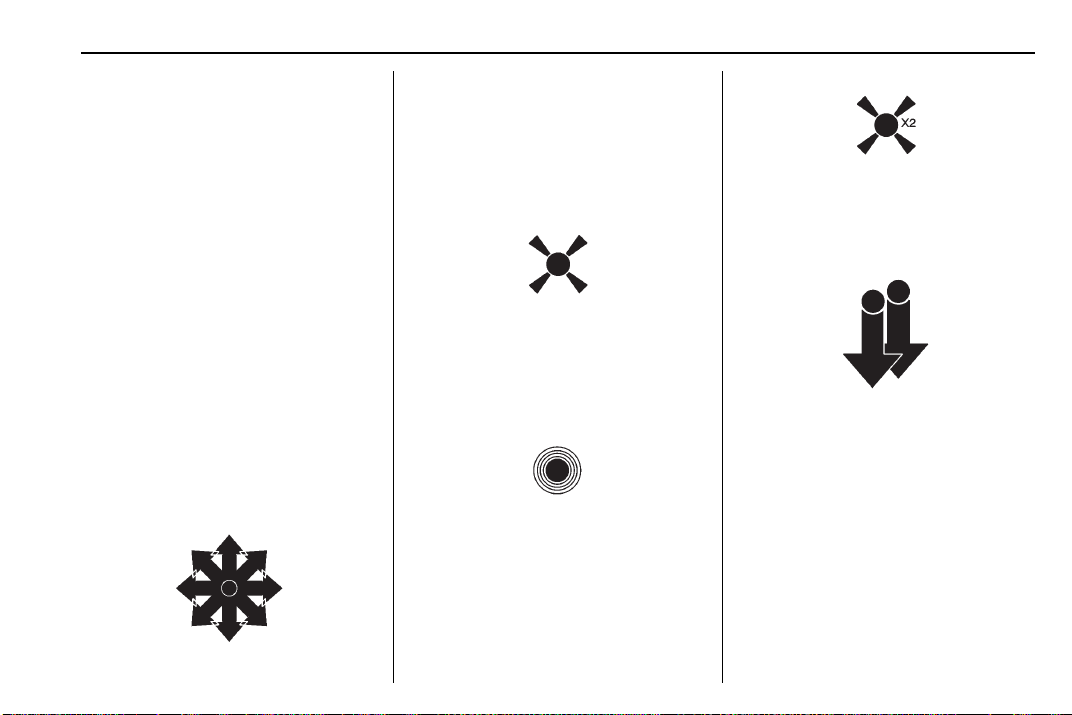

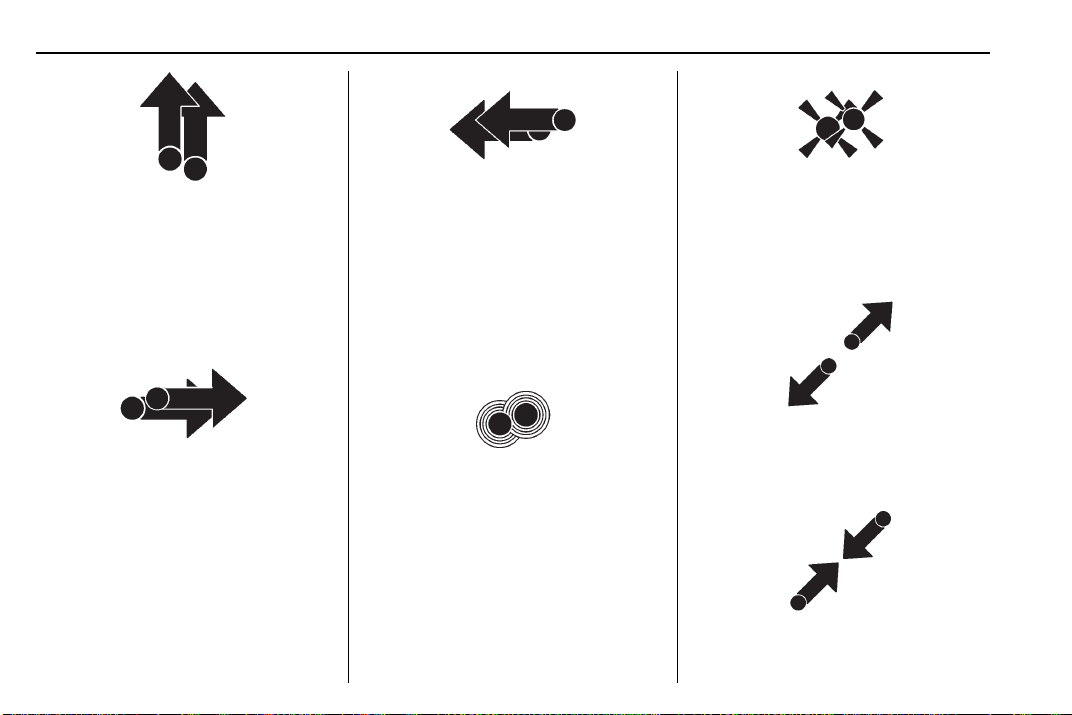

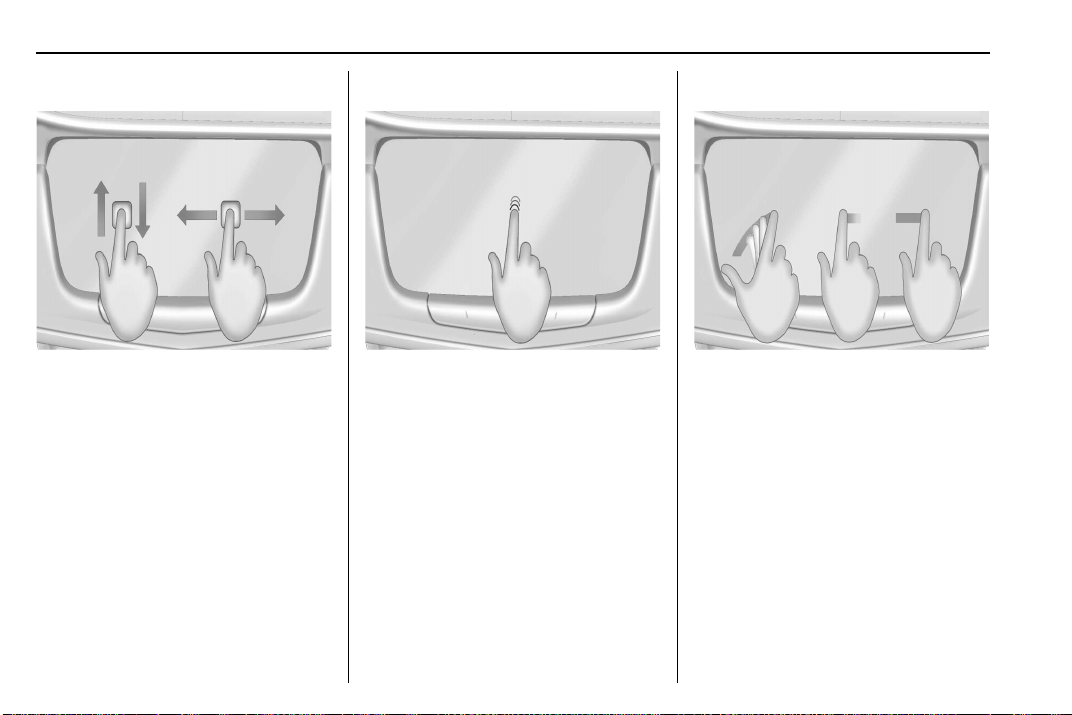

Gestures

3 BACK : Press to return to the

previous screen. Press and hold to
return to the main menu.

Benefits of using the touchpad:

.

Quick gestures to cycle through
media and radio sources or seek to
the next station or song.

.

Handwriting recognition for
quicker entry of address or places
of interest.

.

Control of the system while the
arm is resting on the console.

.

Once using the touchpad becomes
more familiar, the dependence on
looking at the infotainment
display may decrease.

.

The three finger gestures will help
give a quicker interaction while
raising and lowering the favorites
bar, and paging between them.

Use a single finger on the touchpad to
move the highlight and select options
on the infotainment display.

Use the two finger gesture to control
the features on a sourced area. For
example, while in a list, move two
fingers up and down on the touchpad
to scroll a list.

Use the three finger gesture to operate
favorites.

Other examples for using the hand
gestures are explained later in this
section. See AM-FM Radio 0 16, USB

Port 0 23, and Using the Navigation
System 0 48.

Character Recognition

Character Recognition or Handwriting
Recognition is offered as an
alternative to using a keyboard. This
method of character input allows the
drawing of characters instead of
picking them out from the keyboard.
It is designed to allow quick and
smooth character entry.

After the system displays the first
drawn character with audio feedback,
the drawing of the next character can

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

8 INTRODUCTION

begin. Check the list next to the drawn
character if the system announces it
incorrectly. Use the scroll bar up or
down to select the correct one.

Handwriting Recognition has two
main modes:

.

Upper Case: Used for Destination
Entry.

.

Mixed Case: Used for all other
character entry modes.

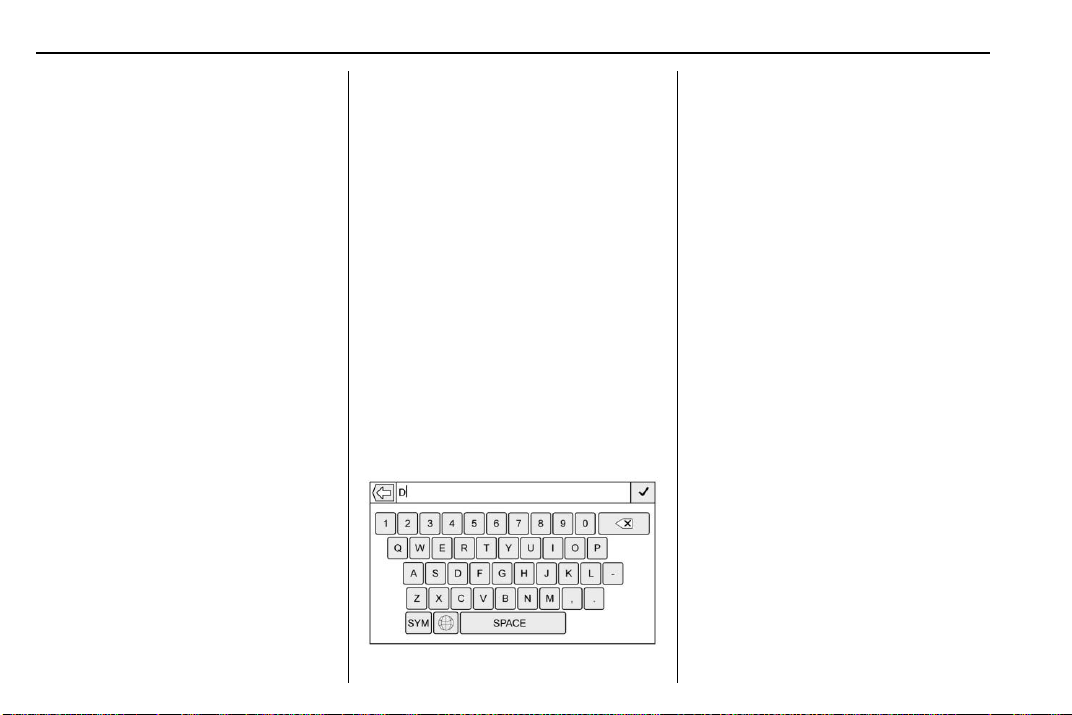

Touch the globe option from the
alpha-numeric keyboard to open the
Handwriting Recognition display.
Another way is to use the two finger
gesture by swiping to the left on a
keyboard display or in a list view.

The Handwriting Recognition screen
is split into four major zones:

.

Drawing Pad — Draw a character
in the display area. This is where
the drawing can be seen on the
touchpad.

When the first character is
complete, a representation of that
character can be seen, as well as
an audible response. If the

character is correct, the next
character can be started
immediately.

‐ Delete the last entered character

by drawing a line across the
character field.

‐ To create a space, draw a line

from left to right across the
character field.

.

Character Entry Field — This
section is an area across the top of
the display. The Character Entry
section can look different
depending on which feature is
being used. When finished with
the input, touch and hold using
two fingers to exit character
recognition and confirm the input,
or touch with two fingers to exit
and return to the keyboard.

.

List of Possible Characters —

The best guess character will be at
the top of the list. If character
recognition displays the incorrect
character, look at this list and see
if the desired character is available
to select. Move the highlight up or
down the list using two fingers to
touch the desired character.

Highlighting a character from the
list will replace the incorrect
character with the desired
character. The character is
displayed in the character entry
section of the display while an
audio response is triggered.

.

Option Settings — This section is
an area on the right side of the
Character Recognition display.
This section will look different
depending if the recognition mode
is upper case or mixed.

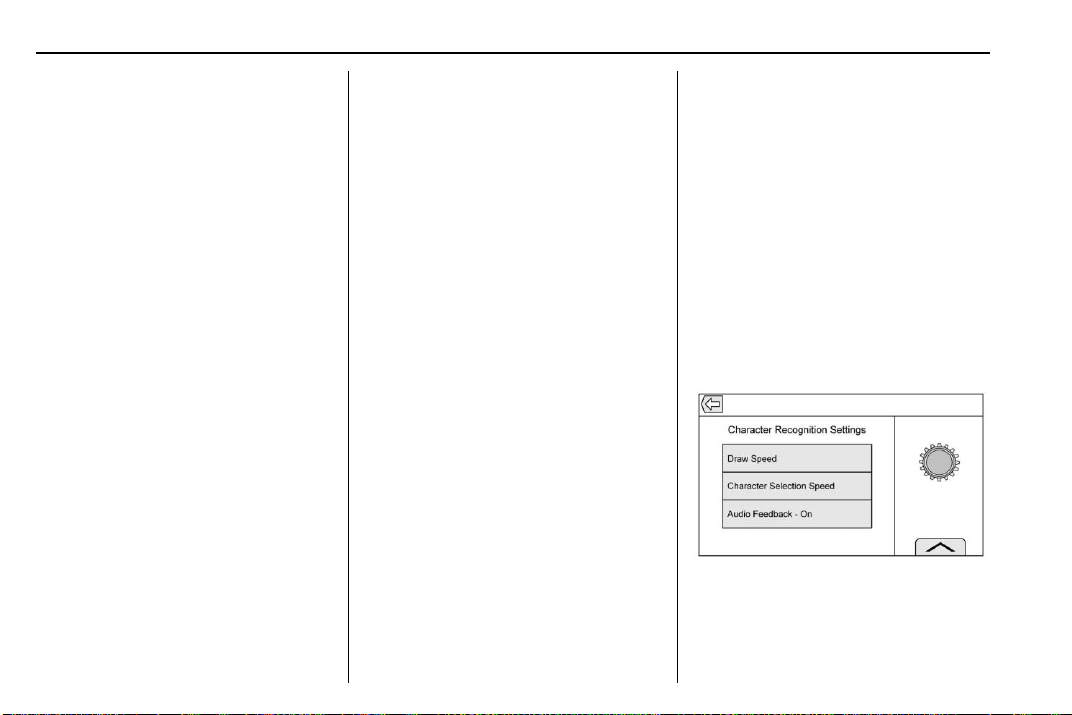

Character Recognition Settings

Touch the option settings icon to
display the Character Recognition
Settings menu. Touch an option to
adjust the speed preference.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

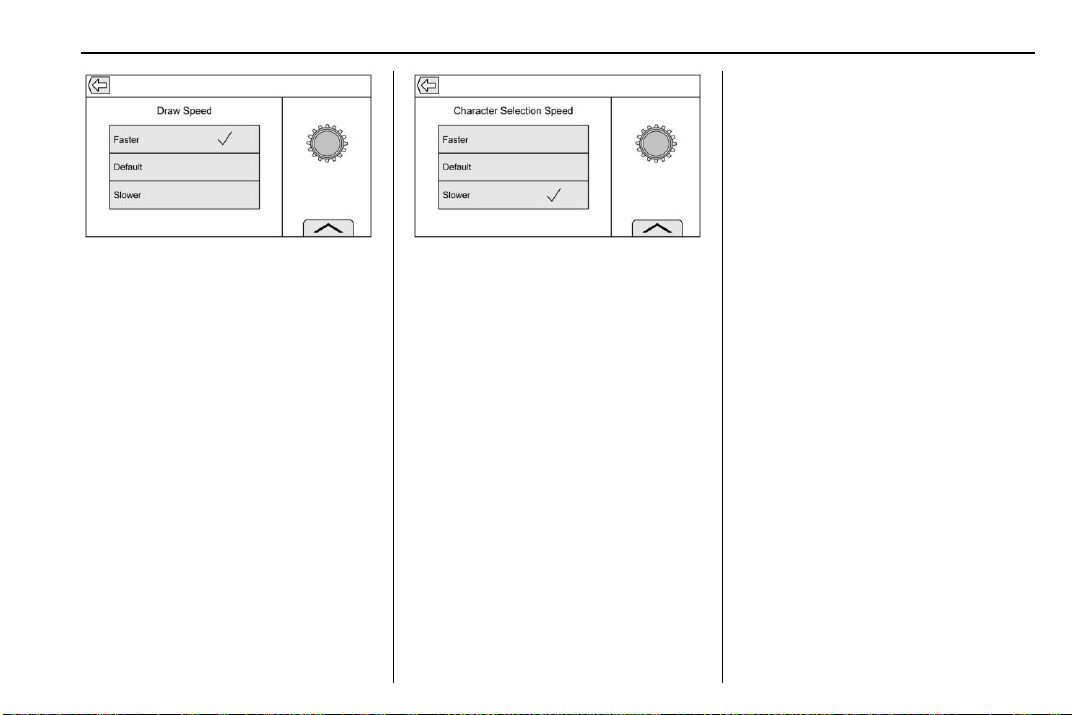

Draw Speed: The Draw Speed setting
adjusts the speed of the character
recognition feature.

For example, draw the first / of an X
on the screen. Lift the finger off the
display to finish the other side of the
X. Change the speed setting by
selecting Faster, Default, or Slower.
Depending on the selection the
amount of time allowed to draw
multiple strokes will increase or
decrease.

Character Selection Speed: The
Character Selection Speed adjusts the
overall speed of going through the
character recognition. Depending on
the selection, adjust the amount of
time allowed to draw and to pick a
correct character on the list of best
guesses. The options are Faster,
Default, and Slower.

Audio Feedback : Audio feedback is
an audible response to an action that
has occurred while using character
recognition. An example is when a
character is complete on the drawing
pad, a representation of that character
displays and an audible response is
heard. The audible response confirms
the system has identified the
character and to proceed with the
next character.

INTRODUCTION 9

ABC/abc : Touch from the
infotainment display to view the
available character sets and touch to
change. Some regions may not
support multiple character sets. This
option also displays the upper or
lower case characters that are
currently active in a mixed case mode.

If mixed case characters mode is
supported, touch

upper and lower case.

Interacting with the System

There are two ways to interact with
the system:

.

Highlight Elements — The
highlight element works like a
cursor but is optimized for the
vehicle by snapping from element
to element available on the
display. Not all of the interactive
elements of the infotainment
display are available from the
touchpad.

Touch the touchpad to select or
activate a currently highlighted
object.

Q to toggle between

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

10 INTRODUCTION

.

Multi-touch Gestures — The
touchpad has hot-key features for
some of the main applications and
lists. These are available using two
fingers across the surface of the
touchpad.

A few examples using multi-touch
gestures:

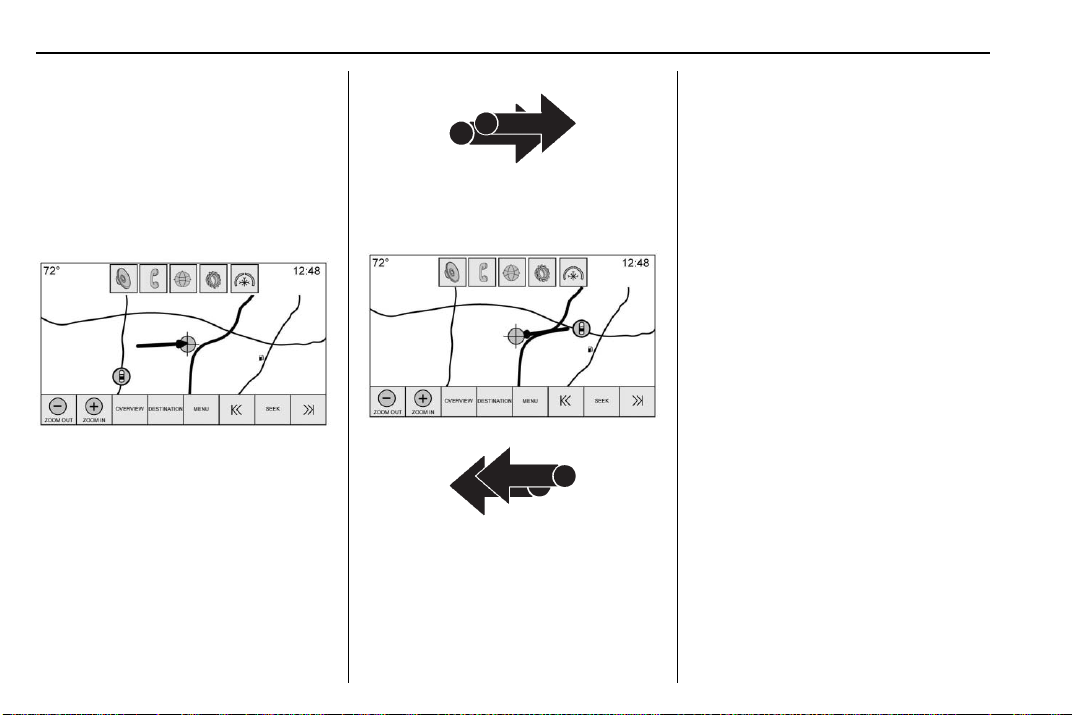

Two Fingers Revealing Map to the

Two Fingers Revealing Map to

.

Navigation

Move two fingers around the
display to pan the map.

Right

the Left

Touch to activate the callout
menu such as touching a location
from the infotainment display to
highlight the address. Touching
with two fingers again will hide
the callout menu.

Pinch two fingers, such as the
index finger and thumb, to zoom
out in a map.

Spread two fingers, such as the
index finger and thumb, to zoom
in on a portion of a map.

‐ Audio

Scroll any list by moving two
fingers up and down on the
touchpad.

Move two fingers up or down
the touchpad to cycle through
all available audio sources.

Move two fingers left or right
across the touchpad to seek up
or down in broadcast radio. In
media, these gestures will seek
tracks up or down.

Touch to activate the content
browse feature.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

INTRODUCTION 11

‐ Character Recognition

Touch to exit character
recognition.

Use a long touch to exit
character recognition and
proceed to the next step.

‐ Favorites

Move three fingers up or down
on the touchpad to raise or
lower the favorites; a maximum
of three rows of favorites can be
displayed at one time.

Move three fingers left or right
on the touchpad to page the
favorites.

Touchpad Gestures

Use the following finger gestures on
the touchpad to control the
infotainment system.

Slide a single finger across the surface
of the touchpad to move the cursor
around selectable elements. The
cursor will automatically jump from
one active element to another active
element throughout the current page.

Touch the touchpad to select or
activate the currently highlighted
object.

Touch and hold over a preset to store
a favorite.

Touch twice in the same location of
the touchpad to activate “shift” while
in character recognition mode.

Glide two fingers across the surface of
the touchpad to scroll down a list or
reveal down a map. If this two finger
gesture setting has been inverted, the
scroll behavior reverses.

Because of personal preferences for
scrolling, and gesture direction, the
settings for this function can be
inverted. Touch the Touchpad menu
from the Settings application to invert
this setting.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

12 INTRODUCTION

Glide two fingers across the surface of
the touchpad to scroll up a list or
reveal up a map.

If desired, touch the Touchpad menu
from the Settings application to invert
this setting.

Glide two fingers across the surface of
the touchpad to pan left on a map or
go to the next media track or
favorite page.

If desired, touch the Touchpad menu
from the Settings application to invert
this setting.

Glide two fingers across the surface of
the touchpad to pan right on a map or
go to the previous media track or
favorite page.

If desired, touch the Touchpad menu
from the Settings application to invert
this setting.

While in character recognition mode,
touch and hold to close the character
recognition pane and execute the
pane’s current function. Some of these
functions are to search a destination
or name a contact.

This gesture is only available while in
character recognition mode. Touch to
close the character recognition pane
and return to the previous screen.

Spread two fingers, such as the index
finger and thumb, to zoom in on a
portion of the map.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

INTRODUCTION 13

Pinch two fingers, such as the index
finger and thumb, to zoom out on
a map.

Slide three fingers across the surface
of the touchpad to raise one or three
rows of favorites onto the display.

Slide three fingers across the surface
of the touchpad to lower one or three
rows of favorites from the display.

Infotainment Gestures

Use the following finger gestures to
control the infotainment system.

Touch/Tap

Touch/Tap is used to select an option,
activate an application, or change the
location inside a map.

Touch and Hold

Touch and hold can be used to start
another gesture, or to move or delete
an application.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

14 INTRODUCTION

Drag

Drag is used to move applications on
the Home Page, or to pan the map. To
drag the item, it must be held and
moved along the display to the new
location. This can be done up, down,
right, or left.

Nudge

Nudge is used to move items a short
distance on a list or a map. To nudge,
hold and move the selected item up or
down to a new location.

Fling or Swipe

Fling or swipe is used to scroll
through a list, pan the map, or change
page views. Do this by placing a finger
on the display then moving it rapidly
up and down or right and left.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

INTRODUCTION 15

Spread

Spread is used to zoom in on a map,
certain images, or a web page. Place
finger and thumb together on the
display, then move them apart.

Pinch

Pinch is used to zoom out on a map,
certain images, or a web page. Place
finger and thumb apart on the display,
then move them together.

Cleaning High Gloss Surfaces
and Vehicle Information and
Radio Displays

For vehicles with high gloss sur faces
or vehicle displays, use a microfiber
cloth to wipe surfaces. Before wiping
the surface with the microfiber cloth,
use a soft bristle brush to remove dirt
that could scratch the surface. Then
use the microfiber cloth by gently
rubbing to clean. Never use window
cleaners or solvents. Periodically hand
wash the microfiber cloth separately,
using mild soap. Do not use bleach or
fabric softener. Rinse thoroughly and
air dry before next use.

Software Updates

Over-the-Air Software Updates

See Settings 0 92 for details on
software updates.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

16 RADIO

Radio

Touch Menu on the infotainment
display to show the following menus:

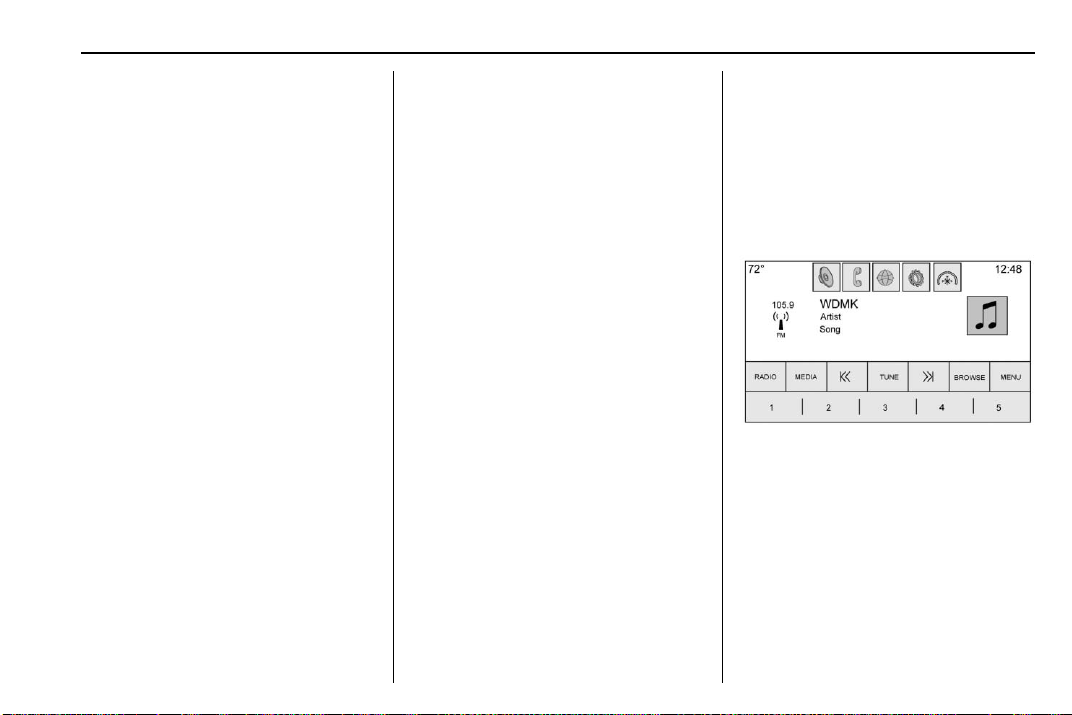

AM-FM Radio

Playing the Radio

While on the audio main page the
available sources are: AM, FM, SXM (if
equipped), My Media, USB, Bluetooth,
and AUX Input.

.

Touch Radio on the infotainment
display to scroll through AM, FM,
or SXM (if equipped).

.

Touch Media on the infotainment
display to scroll through My
Media, USB, Bluetooth, and AUX
Input.

Infotainment System Settings

Touch Radio on the infotainment
display to access broadcast sources.

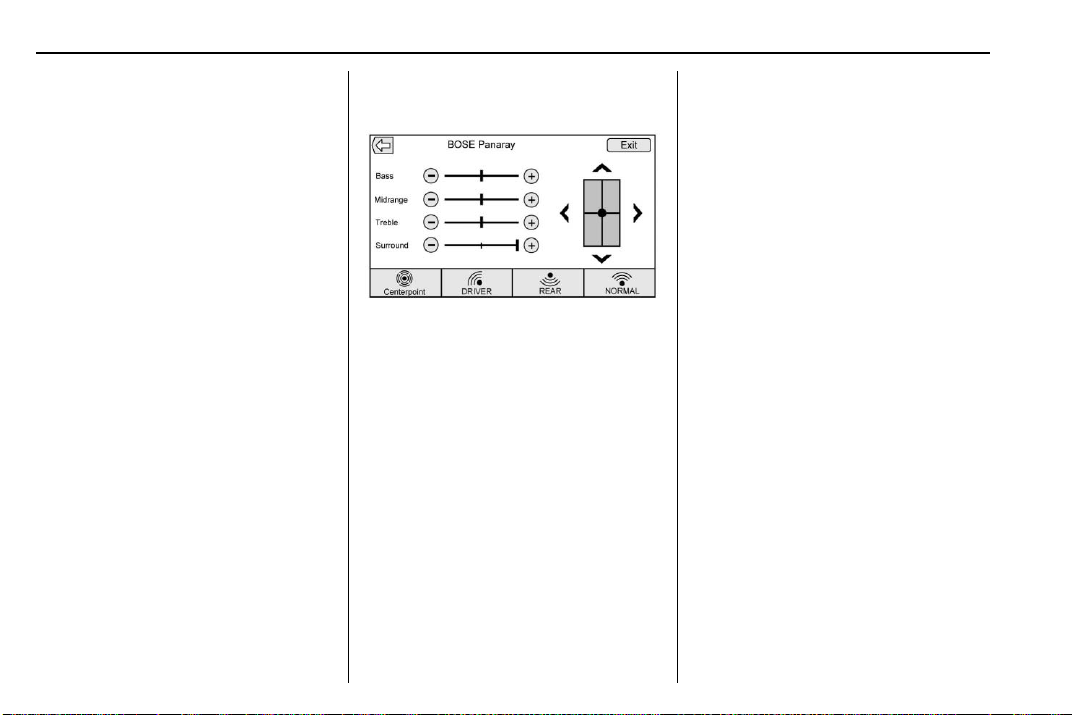

Tone Settings:

.

Bass, Midrange, and Treble: Touch
+ or − to adjust.

.

Surround (if equipped):

Touch + or − to adjust. Surround
control adjusts the headrest or
seat speaker volume only.

.

Balance: Touch the left or right
icons for more sound from the left
or right speakers. The middle
position balances the sound
between the left and right
speakers.

.

Fade: Touch the up or down icons
for more sound from the front or
rear speakers. The middle position
balances the sound between the
front and rear speakers.

EQ : If equipped, the available choices
for Equalizer are Custom or Talk.

DSP Modes (If Equipped):

.

Bose Panaray system and Bose
Centerpoint surround sound
systems have four DSP modes:

‐ Normal: Adjusts the audio to

provide the best sound for all
seating positions.

‐ Driver: Adjusts the audio to

provide the best sound for the
driver.

‐ Rear: Adjusts the audio to

provide the best sound for the
rear seat occupants.

‐ Centerpoint: Turns on the Bose

Centerpoint surround
technology. This setting creates
a surround sound from nearly
any audio source: existing
stereo, satellite radio, and MP3
players. For more information

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

RADIO 17

on Bose Centerpoint surround
technology, see www.bose.com/
centerpoint.

Categories : Touch Categories under
the Audio menu to access the
categories list for AM-FM. The list
contains names associated with the
AM-FM station. Touch a category
name to display a list of stations for
that category. Touching a station from
the list tunes the radio to that station
and returns the display to Now
Playing.

Auto Volume (If Equipped) : This
feature adjusts the volume based on
vehicle speed. Select the level between
off, low, medium - low, medium,
medium - high, or high. Touch the
Back icon on the infotainment display
to go back to the previous menu.

Some vehicles may be equipped with
Bose AudioPilot. In these cases, the
Auto Volume main menu item is
replaced with the Bose AudioPilot
menu item. AVC or Bose AudioPilot is
available to use with any source mode.

Bose AudioPilot noise compensation
technology (If Equipped) : This

feature adjusts the volume based on

the noise in the vehicle and speed.
When turned on, AudioPilot
technology detects ambient noise and
vehicle speed to continuously adjust
many aspects of the audio signal so
that your music will sound the same
at a set volume level.

The options are On and Off.

This feature is most effective at lower
radio volume settings where
background noise can affect how well
you hear the music being heard
through your vehicle‘s audio system.
At higher volume settings, where the
music is much louder than the
background noise, there may be little
or no adjustments by AudioPilot.

For more information on Bose
AudioPilot noise compensation
technology, see www.bose.com/
audiopilot.

HD Radio : For AM and FM only,
touch to turn HD reception on or off.
Touch the Back icon on the
infotainment display to go back to the
previous menu.

Update Station List : For AM and FM
only, touch to update the station list.
Touch the Back icon on the
infotainment display to go back to the
previous menu.

Finding a Station

Seeking a Station

Touch @ or 9 to search for the
previous or next strongest station.

Tuning a Station

Touch Tune on the infotainment
display to switch to Direct Tune.

Touch

@ or 9 to manually search

for a station.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

18 RADIO

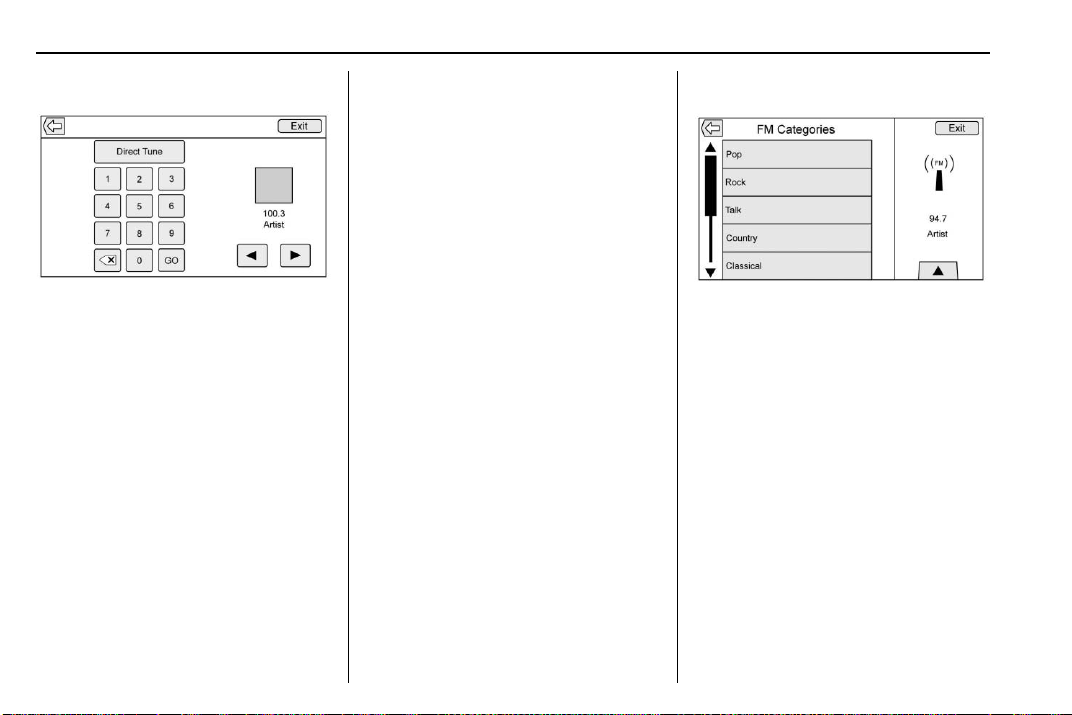

Direct Tune

Access Direct Tune by touching Tune
on the infotainment display to bring
up the keypad. Navigate up and down
through all frequencies or directly
enter a station using the keypad.
When a new station is entered, the
information about that station
displays on the right side. This
information will update with each new
valid frequency tuned.

The keypad will gray out entries that
do not contribute to a valid frequency
and will automatically place a decimal
point within the frequency number.

A valid station will automatically tune
to the new frequency but not close the
direct tune window. Touch Back or
Exit icons to close Direct Tune.

The tune arrows on the right side of
the direct tune display tune through
the complete station list one station
step at a time per touch. A touch and
hold advances 10 frequency steps per
second.

Touch (X) to delete one character at a
time. Touch and hold (X) to delete all
characters.

In AM-FM modes, touch
the radio to go to the next or previous
strong station. Touch Direct Tune to
advance to the next or previous
frequency step in AM or FM mode or
directly enter or tune to the frequency
on the keypad.

HD radio multicast stations cannot be
tuned directly through the direct tune
feature. Only the analog or
HD1 station can use that feature. Use
Tune to adjust to the multicast
stations.

AM-FM Categories

@ or 9 for

AM-FM Categories are available under
the AM-FM audio menu. Touch
AM-FM Categories to access the
AM-FM Categories list.

The categories list contains category
names associated with AM-FM
stations. Selecting a given category
name displays a list of stations for
that category.

Storing Radio Station Presets

Favorites are stored in the area at the
bottom of the screen.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

.

Up to 60 preset stations can be stored
under the following:

AM, FM, SXM (if equipped), HD
Radio Stations : Touch and hold a

preset to store the current station as a
favorite. Touch a saved favorite to
recall a favorite station.

Mixed-Audio Favorites

Favorites that can be stored include
radio stations, navigation,
applications, contacts, tone settings,
artists, songs, albums, podcasts, etc.

Slide a finger to the right or left to
scroll through each page of

favorites. A
page is being viewed.

Tone Settings : While viewing the
tone settings, drag

favorites. Touch and hold a preset to
store a tone setting. Touch a saved
favorite to recall a favorite tone
setting.

The number of favorites displayed is
automatically adjusted by default, but
can be manually adjusted in the
Settings menu under Radio and then
Number of Favorites Shown.

HD Radio Technology

If equipped, HD Radio Technology is a
free service with features such as
static-free sound, more stations built
onto the frequency such as HD2 and

To scroll through the favorites:

.

Drag

k up to display the favorites.

To close the favorites, drag
them down.

HD3, and on-screen information such
as artist and song title.

V indicates which

k up to display the

RADIO 19

Channel Access

To access HD Radio channels:

1. Tune the radio to the channel.
If the channel is broadcasting
HD Radio Technology, the radio
will automatically switch to
digital audio, indicated with an
HD logo if HD Radio is
turned on.

2. Touch

There may be a delay before the
channel starts playing.

The HD Radio channel number is
indicated next to the logo.

HD Radio channels can be saved as
favorites. Songs can be tagged for
download.

When connected to iTunes, the Sync
option on the device may need to be
touched to transfer the tags to iTunes.

See AM-FM Radio 0 16 or USB Port
0 23.

For a list of all channels, see
www.hdradio.com.

@ or 9 to tune to the

previous or next HD Radio
channel.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

20 RADIO

Troubleshooting

Digital Audio Delay : Wait for the
signal to process. This can take
several seconds.

Volume Change, Audio Skip, Echo,
Digital Audio Lost : Channel signal

strength may be weak or the channel
is out of range. Verify proper reception
on another channel.

If the HD Radio signal loses reception
while listening to channel HD1, the
radio will go back to the main non-HD
Radio channel.

If the HD Radio signal loses reception
while listening to channels HD2 to
HD8, the radio mutes until the signal
can be recovered or until the channel
is changed.

HD can be disabled if driving in a
weak signal area. Touch Menu from
the AM-FM displays, then touch HD
Radio to toggle HD on and off.

Satellite Radio

SiriusXM Satellite Radio Service

If equipped, vehicles with a valid
SiriusXM satellite radio subscription
can receive SXM programming.

SiriusXM satellite radio has a wide
variety of programming and
commercial-free music, coast to coast,
and in digital-quality sound. See
www.siriusxm.com or call
1-888-601-6296 in the U.S. In Canada,
see www.siriusxm.ca or call
1-877-438-9677.

When SXM is active, the station
name, number, category name, song
title, and artist show on the display.

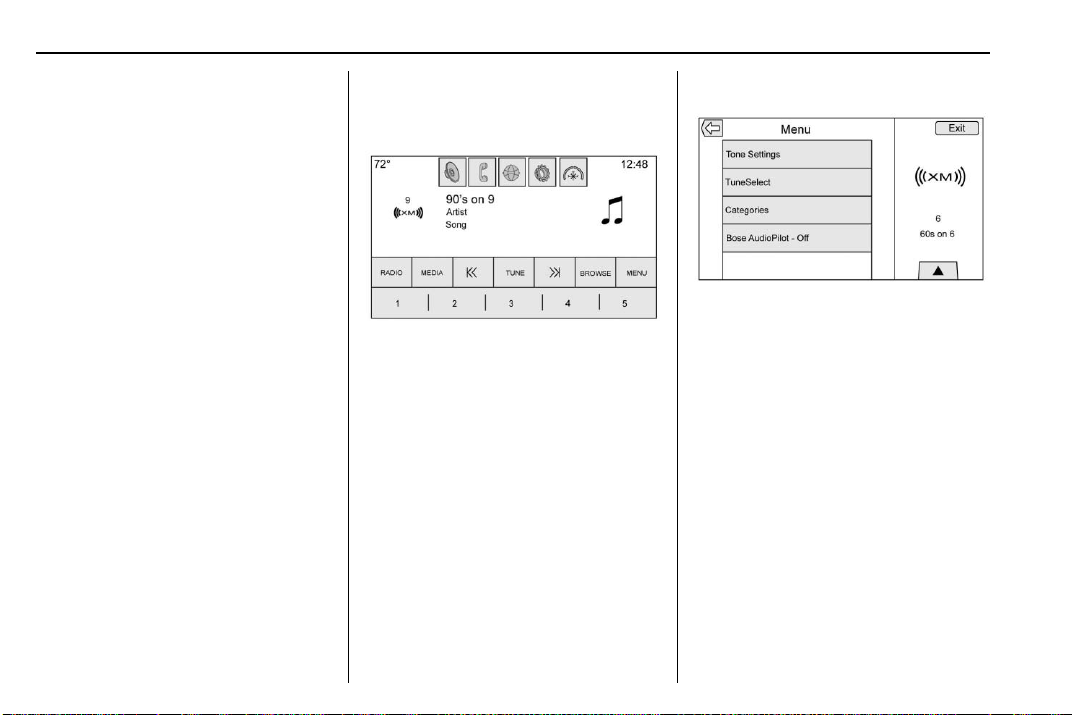

SiriusXM Menu

Touching Menu on the infotainment
display may show the following:

Tone Settings : Touch + or − to adjust
the tone settings. See AM-FM Radio
0 16.

TuneSelect : For SXM only, this
feature allows alerts to be set for
artists or songs that are played on any
other channel. Touch TuneSelect on
the menu during playback of a desired
song or artist to set an aler t. Touch
Manage TuneSelect to turn the alerts
On and Off or manage the saved
selection of Artists or Songs. To
unselect an alert, touch the Song or
Artist. To delete an alert, touch −.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

RADIO 21

Touch the Back icon on the
infotainment display to go back to the
previous menu.

Auto Volume (If Equipped) : This
feature adjusts the volume based on
the vehicle speed. See AM-FM Radio
0 16.

Bose AudioPilot noise compensation
technology (If Equipped) : This

feature adjusts the volume based on
the noise in the vehicle and speed. See
AM-FM Radio 0 16.

Radio Reception

Unplug electronic devices from the
accessory power outlets if there is
interference or static in the radio.

FM

FM signals only reach about 16 to
65 km (10 to 40 mi). Although the
radio has a built-in electronic circuit
that automatically works to reduce
interference, some static can occur,
especially around tall buildings or
hills, causing the sound to fade in
and out.

AM

The range for most AM stations is
greater than for FM, especially at
night. The longer range can cause
station frequencies to interfere with
each other. Static can also occur when
things like storms and power lines
interfere with radio reception. When
this happens, try reducing the treble
on the radio.

SiriusXM Satellite Radio Service

If equipped, SiriusXM Satellite Radio
Service provides digital radio
reception. Tall buildings or hills can
interfere with satellite radio signals,
causing the sound to fade in and out.
In addition, traveling or standing
under heavy foliage, bridges, garages,
or tunnels may cause loss of the
SiriusXM signal for a period of time.

Cell Phone Usage

Cell phone usage, such as making or
receiving phone calls, charging, or just
having the phone on may cause static
interference in the radio. Unplug the
phone or turn it off if this happens.

Backglass Antenna

The AM-FM antenna is integrated
with the rear window defogger in the
rear window. Do not scratch the inside
surface or damage the lines in the
glass. If the inside surface is damaged,
it could interfere with radio reception.
For proper radio reception, the
antenna connector needs to be
properly attached to the post on the
glass.

If attaching a cell phone antenna to
the glass, attach it between the grid
lines.

Caution

Using a razor blade or sharp object
to clear the inside rear window can
damage the rear window antenna
and/or the rear window defogger.
Repairs would not be covered by
the vehicle warranty. Do not clear
the inside rear window with sharp
objects.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

22 RADIO

Caution

Do not apply aftermarket glass
tinting with metallic film. The
metallic film in some tinting
materials will interfere with or
distort the incoming radio
reception. Any damage caused to
the backglass antenna due to
metallic tinting materials will not
be covered by the vehicle warranty.

Multi-Band Antenna

The roof antenna is for OnStar,
SiriusXM Satellite Radio, if equipped,
and GPS (Global Positioning System).
Keep clear of obstructions for clear
reception. If the vehicle has a sunroof,
and it is open, reception can also be
affected.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

AUDIO PLAYERS 23

Audio Players

Avoiding Untrusted Media Devices

When using media devices such as
CDs, DVDs, Blu-ray Discs, SD cards,
USB devices, and mobile devices,
consider the source. Untrusted media
devices could contain files that affect
system operation or performance.
Avoid use if the content or origin
cannot be trusted.

USB Port

Audio from videos stored on a USB
may be listened to while the vehicle is
in a forward gear. Videos can be
watched while the vehicle is in
P (Park). Use play/pause or next/
previous to control the video or touch
Browse to display a list of the current
video filters.

This vehicle has two USB ports in the
center console. These ports are for
data and charging. There are also two
USB ports on the rear seat trim panel.
These rear seat ports are for
charging only.

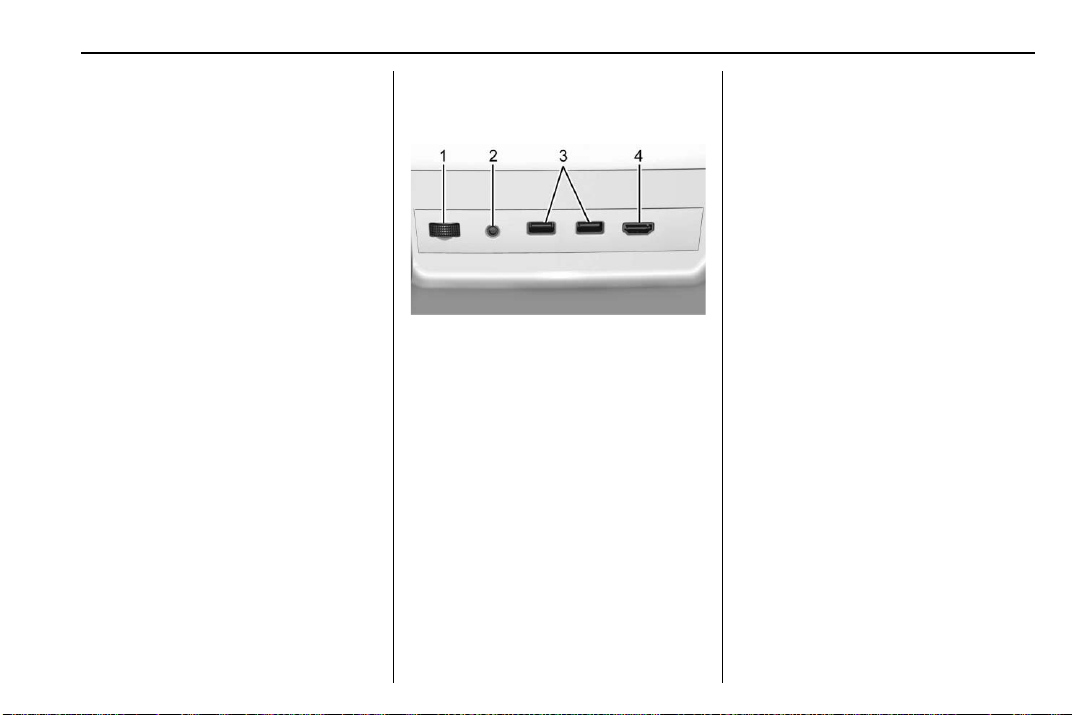

If equipped with Rear Seat
Infotainment (RSI), there may be two
USB ports in the rear media console
storage area.

Playing from a USB

A USB mass storage device can be
connected to the USB port.

Audio extensions supported by the
USB are:

.

MP3

.

WMA

.

AAC

.

OGG

.

AIFF

.

3GPP

Touch the time bar and drag it across
to a certain point in the song that is
being listened to currently. This
feature is only available with media
playing devices.

Gracenote

When plugging in a USB device,
Gracenote service builds voice tags for
music. Voice tags allow artists, albums

with hard to pronounce names, and
nicknames to be used to play music
through voice recognition.

While indexing, infotainment features
are available.

My Media Library

My Media is only available when more
than one indexed device is connected.
It allows access to content from all
indexed media sources. Touch Media
on the infotainment display to scroll
through the options until My Media is
selected. Touch anywhere in the
central area of the display to browse
the content.

USB MP3 Player and USB Devices

The USB MP3 players and USB devices
connected must comply with the USB
Mass Storage Class specification
(USB MSC).

To play a USB device:

1. Connect the USB.

2. Touch Media on the
infotainment display until the
connected device is shown.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

24 AUDIO PLAYERS

Use the following when playing an
active USB source:

r : Touch to play the current media

source.

j : Touch to pause play of the current

media source.

@ :

.

Touch to seek to the beginning of
the current or previous track.
If the track has been playing for
less than five seconds, the
previous track plays. If playing
longer than five seconds, the
current track restarts.

.

Touch and hold to reverse quickly
through playback. Release to
return to playing speed. Elapsed
time displays.

9 :

.

Touch to seek to the next track.

.

Touch and hold to advance
quickly through playback. Release
to return to playing speed. Elapsed
time displays.

Z : Touch the shuffle icon on the

infotainment display to shuffle
through the available media.

/ : Touch the replay icon on the

infotainment display to display the
time bar. Move the time bar to
interact with the currently
playing song.

Tone : Touch Tone on the
infotainment display to access the
Tone Settings display. Set the Bass,
Midrange, Treble, Balance, and Fade.

USB Menu

Touch Menu to display the USB menu.
The following may be available:

Shuff le : Touch to play the tracks
randomly. Touch again to stop shuff le.

Tone Settings : Touch + or − to adjust
Bass, Midrange, Treble, or Surround (if
equipped). See AM-FM Radio 0 16.

Auto Volume (If Equipped) : This
feature adjusts the volume based on
vehicle speed. See AM-FM Radio 0 16.

Bose AudioPilot noise compensation
technology (If Equipped) : This

feature adjusts the volume based on
noise in the vehicle and speed. See
AM-FM Radio 0 16.

USB Browse Menu

Touch Browse on the infotainment
display to view the Browse menu and
the following options are displayed
near the bottom of the display:

Playlists:

1. Touch to view the playlists
stored on the USB.

2. Touch a playlist to view the list
of all songs in that playlist.

3. Touch a song from the list to
begin playback.

Supported Playlist extensions are:
m3u, pls, wpl, asx, b4s, and xspf.

Artists:

1. Touch to view the list of artists
stored on the USB.

2. Touch an artist name to view a
list of all albums by the artist.

3. To select a song, touch All Songs
or touch an album and then
touch a song from the list.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

AUDIO PLAYERS 25

Albums:

1. Touch to view the albums on the
USB. The artist name will display
under the list of albums.

2. Touch the album to view a list of
all songs on the album.

3. Touch a song from the list to
begin playback.

Songs:

1. Touch to display a list of all
songs on the USB.

2. To begin playback, touch a song
from the list.

Genres:

1. Touch to view the genres on
the USB.

2. Touch a genre to view a list of
artists.

3. Touch an artist to view albums
by that artist.

4. Touch an album to view songs
on the album.

5. Touch a song to start playback.

Podcasts, Composers, Audiobooks,
Videos, and Folder View are shown
when More is touched from near the
bottom of the display.

Podcasts:

1. Touch to view the podcasts on
the USB.

2. Touch Podcast to get a list of
podcast episodes.

Composers:

1. Touch to view the composers on
the USB.

2. Touch Composer to view a list of
albums by that composer. Touch
an album or All Songs to view a
list of songs.

3. Touch a song from the list to
begin playback.

Audiobooks:

1. Touch to view the audiobooks
stored on the USB. Touch an
audiobook to get a list of
chapters.

2. Touch the chapter from the list
to begin playback.

Folder View (If Equipped):

1. Touch to view the directories on
the USB.

2. Touch a folder to view a list of
all files.

3. Touch a file from the list to
begin playback.

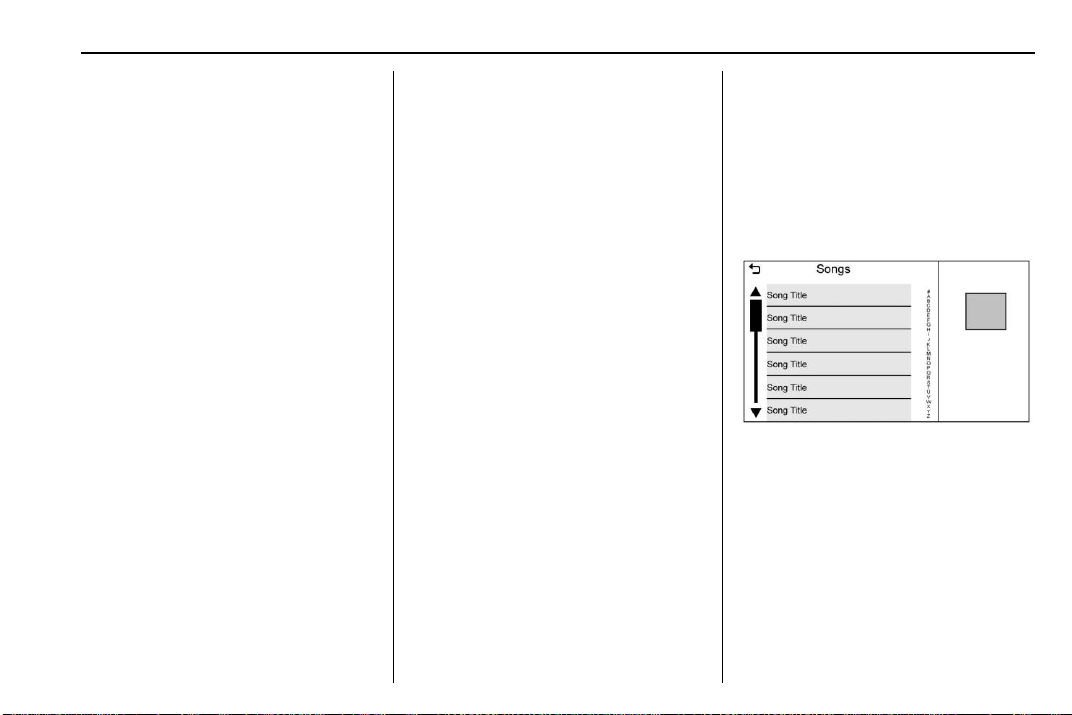

When a list of songs, albums, artists,
or other types of media displays, a
vertical keyboard appears on one side
of the list and a scroll bar on the
other side. When using the vertical
keyboard, touch the beginning
character of the desired name to
display the zoom bubble of that
character. Release the finger from the
infotainment display and the zoom
bubble disappears.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

26 AUDIO PLAYERS

Touch the scroll bar to move the list
up and down.

File System and Naming

File systems supported by the
USB are:

.

FAT32

.

NTFS

.

HFS+

The songs, artists, albums, and genres
are taken from the file’s song
information and are only displayed if
present. The radio displays the file
name as the track name if the song
information is not available.

Supported Apple Devices

To view supported devices in the U.S.,
see www.my.cadillac.com/learn. For
Canada, see your dealer.

Loss of Audio

Do not pair the Bluetooth of an
iPhone that is connected and using
the iPod feature under vehicle media
sources. If an attempt to pair the
Bluetooth of the same connected
phone is made, the system will
automatically mute the iPhone audio.

If there is a loss of audio, playback
can be resumed by changing the audio
flow from Bluetooth to USB cable.

Touch Media from the Audio main
page until USB is the source to
resume playback.

Other phones such as the Android
phones may have a similar reaction.

Bluetooth Streaming Audio and
Voice Recognition

See Bluetooth Audio 0 27 for
information on using voice
recognition with Bluetooth streaming
audio.

Make sure all devices have the latest
software downloaded.

Storing and Recalling Media
Favorites

To store media favorites, touch Media
on the infotainment display to access
the Media main page. Touch and hold
to display a list of media types. Select
from the list.

The media types that may display are:

Genres : Touch and hold a preset to
store the current genre as a favorite.
Touch a saved favorite to recall a
favorite genre. The first song of the
genre begins to play.

Artists : Touch and hold a preset to
store the current artist as a favorite.
Touch a saved favorite to recall a
favorite artist. The first song in the
artist list begins to play.

Albums : Touch and hold a preset to
store the current album as a favorite.
Touch a saved favorite to recall a
favorite album. The first song in the
album list begins to play.

Playlists : Touch and hold a preset to
store the current playlist as a favorite.
Touch a saved favorite to recall a
favorite playlist. The first song in the
playlist begins to play.

Songs : Touch and hold a preset to
store the current song as a favorite.
Touch a saved favorite to recall a
favorite song.

Podcasts or Podcast Episode : Touch
and hold a preset to store the current
podcast as a favorite. Touch a saved

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

AUDIO PLAYERS 27

favorite to recall a favorite podcast or
podcast episode. The podcast or
podcast episode begins to play.

Audiobooks : Touch and hold a preset
to store the current audiobook as a
favorite. Touch a saved favorite to
recall a favorite audiobook. The first
chapter in the audiobook begins
to play.

Videos : Touch and hold a preset to
store the current video as a favorite.
Touch a saved favorite to recall a
favorite video. The first episode in the
video begins to play. Not all formats
are supported.

Media Playback and Mute

USB playback will be paused if the
system is muted. If the steering wheel
mute control is pressed again,
playback will resume.

If the source is changed while in
mute, playback resumes and audio
will unmute.

if equipped with Rear Seat
Infotainment (RSI). Possible auxiliary
audio sources include:

.

Laptop computer

.

Audio music player

This jack is not an audio output. Do
not plug headphones into the
auxiliary input jack. Set up an
auxiliary device while the vehicle is in
P (Park).

Connect a 3.5 mm (1/8 in) cable from
the auxiliary device to the auxiliary
input jack. When a device is
connected, the system can play audio
from the device over the vehicle
speakers.

If an auxiliary device has already been
connected, but a different source is
currently active, touch Media on the
infotainment display to scroll through
audio source displays, until AUX Input
appears.

Shuffle is not available in the AUX
source menu.

Auxiliary Jack

This vehicle has an auxiliary input
jack in the center console under the
armrest and in the rear media console

Bluetooth Audio

If equipped, music may be played
from a paired Bluetooth device.
See Bluetooth (Overview) 0 84 or

Bluetooth (Infotainment Controls) 0 84

or Bluetooth (Voice Recognition) 0 88
for help pairing a device.

Volume and song selection may be
controlled by using the infotainment
controls or the phone/device.
If Bluetooth Audio is touched and no
volume is present, check the volume
setting on both your phone/device and
the infotainment system.

Music can be launched by touching
Media on the infotainment display.

To play music via Bluetooth:

1. Power on the device, and pair to
connect the device.

2. Once paired, go into the audio
application from the Home Page
or through the applications tray.
Touch Media until Bluetooth
displays.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

28 AUDIO PLAYERS

Bluetooth Audio Menu

Touch Menu on the infotainment
display to show the Bluetooth Audio
menu. The following may be available:

Auto Volume (If Equipped) : This
feature adjusts the volume based on
vehicle speed. See AM-FM Radio 0 16.

Bose AudioPilot noise compensation
technology (If Equipped) : This

feature adjusts the volume based on
noise in the vehicle and speed. See
AM-FM Radio 0 16.

Tone Settings : Touch + or − to adjust
Bass, Midrange, Treble, or Surround (if
equipped). See AM-FM Radio 0 16.

Touch the Back icon on the
infotainment display to go back to the
previous menu.

Manage Bluetooth Devices : Touch to
go to the Bluetooth page to add or
delete devices or to pair.

When touching Bluetooth audio, the
radio may not be able to launch the
audio player on the connected device
to start playing. When the vehicle is
not moving, use the phone to begin
playback.

All devices launch audio differently.
When selecting Bluetooth audio as a
source, the radio may show as paused
on the display. Touch play on the

device or touch
begin playback.

Some phones support sending
Bluetooth music information to
display on the radio. When the radio
receives this information, it will check
to see if any is available and display it.
For more information about supported
Bluetooth features, see www.gm.com/
bluetooth.

r on the display to

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

ONSTAR SYSTEM 29

OnStar System

OnStar 4G LTE

If equipped with OnStar 4G LTE, up to
seven devices, such as smartphones,
tablets, and laptops, can be connected
to high-speed Internet through the
vehicle’s built-in Wi-Fi hotspot.

Call 1-888-4ONSTAR (1-888-083-7827)
to connect to an OnStar Advisor for
assistance. See www.onstar.com for
vehicle availability, details, and system
limitations. Service and connectivity
may vary by make, model, year,
carrier, availability, and conditions. 4G
LTE service is available in select
markets. 4G LTE performance is based
on industry averages and vehicle
systems design. Some services require
a data plan.

The OnStar App

If equipped, the infotainment system
has OnStar controls in the embedded
OnStar app on the Home Page. All
OnStar functions that can be
performed with the buttons can be
done using the app. To open the app,
select the OnStar icon on the Home
Page. Features vary by region and
model.

OnStar Smart Driver

OnStar Smart Driver provides
information about driving behavior to
help maximize overall vehicle
performance, reduce wear and tear,
and enhance fuel efficiency. An
Insurance Discounts Eligibility feature
is also offered within OnStar Smart
Driver. See w ww.onstar.com for details
regarding vehicle eligibility and
system limitations.

OnStar, General Motors, and their
affiliates are not insurance providers.
Obtain insurance only from licensed
insurance providers.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

30 REAR SEAT INFOTAINMENT

Rear Seat Infotainment

Rear Seat Infotainment (RSI) System

If equipped, the system includes a
Blu-ray/DVD/CD player, two USB
ports, HDMI/MHL input, two wireless
headphones, and a remote control.

The remote control is used to select
the same or a different source for each
screen from the rear seats.

Video can be viewed from the front by
touching VIDEO on the Home Page,
if the vehicle is in P (Park). Audio will
be heard over the speakers. If another
icon is selected, the video on the rear
screen will continue to play but the
audio on the speakers will change to
the source selected.

To resume play of the video where it
left off, Pseudo Resume must be on.
See “Player Setup BD/DVD" later in
this section.

The RSI system may not operate
properly until the temperature is
above −20 °C (−4 °F) and below
55 °C (131 °F).

System Operation

The video screens are in the back of
the driver and front passenger seats.

To use:

1. Slide the screen switch left or
right on the remote control for
the desired screen.

2. Press power on the remote
control to raise and turn on the
video display.

If Remember Status has been
selected in the menu, the screens
will return to the same position
when the vehicle was turned off.

3. Select Screen Tilt from any menu
to move the screen viewing
position.

The screen will always return to
the selected position until a new
position is selected.

The system can also be turned on
from the front infotainment system by
touching VIDEO on the Home Page
and then touching On/Off.

The screens lower automatically when
the vehicle is turned off.

If RSI audio is desired without video
being displayed, go to the Settings
Menu and select Display Off. The
display will turn back on with the
press of any option on the remote.

Caution

Avoid directly touching the video
screen, as damage may occur.

Sources

Sources include AM, FM, SXM (if
equipped), HDMI/MHL, CD/DVD/
Blu-Ray, and USB.

Menus and Features

AM/FM Menu

{ (Home) on the remote

Press
control, select RADIO, then select AM
or FM.

y (Menu) to select All Strong

Press
Stations, All Stations, Favorites,
Categories, Wired Headphones,
or other RSI functions.

Only one tuner source may be active
at a time.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

.

SXM Menu (If Equipped)

Press

{ (Home) on the remote

control, select RADIO, then
select SXM.

y (Menu) to select Channel

Press
List, Categories, Favorites, SXM View,
Wired Headphones, or other RSI
functions.

Only one tuner source may be active
at a time.

Disc Menu BD

With a Blu-ray disc in the player,

{ (Home) on the remote

press
control and then select BD.

Press y (Menu) on the remote
control once to display menus based
on the media.

POP UP MENU (BD Only)

.

TOP MENU

.

COLOR

.

KEYPAD

.

DISC CONTROL

.

Select from: MORE (SETTINGS,
PREVIOUS, NEXT, STILLS OFF)

To close, press
the time out.

Disc Menu DVD

Press

y (Menu) on the remote

control once to select from:

.

TOP MENU

.

KEYPAD

.

STOP DISC

.

BACK

.


.

SETTINGS

To close, press
(Back), or wait for the time out.

y (Menu) or wait for

y (Menu), press S

REAR SEAT INFOTAINMENT 31

CD Menu

Press y (Menu) on the remote
control once to select from:

.

Track List

.

Shuffle

.

Disc Information (if available)

.

Wired Headphones

.

Brightness

.

Player Setup: Audio Compression,
Auto Enter (if available)

.

Title Search (if available)

.

Display Off

.

Screen Tilt

.

Remember RSE Status

.

Software Information

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

32 REAR SEAT INFOTAINMENT

If no disc is present, not all choices
are available.

To close, press
the time out.

Pop Up Menu (BD Only)

Select to display the on-screen menu
options. To exit the Pop Up menu,
make a selection or wait for the
timeout. When the Pop Up menu is
opened, the overlay/interaction
selector menu will be closed.

Top Menu BD/DVD

Select to display the DVD or BD menu.
Make a selection to exit the Top
menu. TOP MENU is not available for
BDAV, DVD-VR, and AVCREC.

Color (BD Only)

S (Back) or wait for

Select COLOR to display the four color
options: blue, yellow, red, and green.
Highlight a color and press ENTER
and the appropriate action will be

carried out. Press
(Menu), or wait for the 15-second
time out to close the menu. Touch the
down arrow on the yellow color to
keep the overlay menu up, but close
the color menu. The color menu is
disc dependent; selecting colors for
discs that do not support this feature
will have no function.

Keypad BD/DVD

Select to display. To close, select Exit
or MENU, wait for the menu to time
out, or touch the down arrow from the
0 or Done options. The keypad is disc
dependent and may have no function.

S (Back) or y

The keypad input is limited to four
digits.

Select Clear to clear one digit at a
time. Touch and hold to clear all
entered digits.

Disc Control (BDAV and BDMV Only)

Select to display the disc options
Subtitles, Play, Pause, Next, Previous,

and Stop. Press
the time out to close. Touch the down
arrow from Stop, Play, or Next to keep
the overlay up but close the menu.
The Disc Control menu is disc
dependent and may have no function.

Stop Disc (DVD Only)

Select to close the overlay menu.
Select Menu on the screen to open the
Disc Stopped menu.

y (Menu) or wait for

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

REAR SEAT INFOTAINMENT 33

Select from:

.

Resume Playback: Returns to the
current position on the disc and
resumes play.

.

Title Search (if available)

.

Restart Disc

.

Screen Mode

.

Wired Headphones

.

Brightness

.

Player Setup: Audio Compression,
Auto Enter (if available)

.

Display Off

.

Screen Tilt

.

Remember RSE Status

.

Software Information

Not all options are available while the
disc is playing.

Browse Media (AVCREC, BDAV,
DVD-A, DVD-VR only) allows the
media on the disc to be searched in a
list format.

More

The MORE submenu includes
SETTINGS and items related to still
pictures.

Previous/Next/Stills Off

Select PREVIOUS to turn off or
advance to the next still picture.
NEXT advances to the next picture.
Select STILLS OFF to return to the

home still, if available. Press
(Previous/Reverse/Decrease) or y

(Menu), or wait for the time out to
close the menu. Touch the down
arrow on the bottom option to close
the next still pop-up. This feature is
disc dependent.

This feature can also be accessed by
selecting Photo on the DVD
Disc menu.

S

Settings BD/DVD

Select to access:

.

Browse Media (BDAV, AVCREC,
DVD-A, DVD-VR only): Allows
browsing by Video List or Playlist.

.

Resume Playback: Restarts disc
where left off.

.

Title Search (AVCHD, DVD-V,
BDMV only): Allows the titles
provided by the disc to be
searched. Select this option to
bring up a keypad to search for
specific titles.

.

Top Menu

.

Restart Disc: Restarts the disc
from the beginning.

.

Disc Information (if available)

.

Audio Tracks

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

34 REAR SEAT INFOTAINMENT

.

Subtitles

.

Angle (BDMV, DVD-V, DVD-A
only): Select an angle by using the
up and down arrows to highlight
the option and press ENTER or
the right arrow.

.

Screen Mode: Adjusts the framing
on the RSI display. Select Normal,
Wide, or Zoom. Screen Mode only
applies to video sources and
should be maintained if the disc is
ejected.

.

Wired Headphones: Use to listen
to audio on the wired headphones.
The headphone audio plays
depending on which screen is
selected. The default is screen 1
audio.

.

Brightness: Increase the brightness
by using the up or right arrow and
decrease the brightness by using
the down or left arrow. Each
screen brightness can be adjusted
separately.

.

Player Setup: See "Player Setup
BD/DVD" following.

.

Display Off: Lowers the screen but
selected audio will continue
to play.

.

Screen Tilt: Adjusts screen tilt
angle.

.

Remember RSE Status: Returns
the screens to the same position
when the vehicle was turned off.

.

Software Information

Player Setup BD/DVD

Player Setup may include:

.

Default Menu Language: With no
disc inserted, select from a list of
languages or enter a
language code.

.

Default Audio Language: With no
disc inserted, select from a list of
languages or enter a
language code.

.

Default Subtitle Language: With
no disc inserted, select from a list
of languages or enter a
language code.

.

Audio Compression: When on, the
RSI will attempt to reduce the
difference between the audio highs
and lows. CUSTOM will increase
dialog volume.

.

Pseudo Resume: When on, the RSI
will attempt to resume play of the
video where it left off after the
vehicle has been restarted. This
can be turned on or off.

.

Auto Enter: When on, the RSI will
attempt to start play of the video
when the disc is inserted. This
feature can be turned on or off.
Not all discs support this feature.

.

Audio Channel (AVCREC, DBAV,
DVD-VR only) contains: Stereo,
Left Mono, and Right Mono. Audio

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

REAR SEAT INFOTAINMENT 35

Channel is available from the
Settings menu. Default will be
determined by the disc.

.

Format Internal User Memory:
Only shown when no disc is
inserted.

To close, press

y (Menu) or

S (Back).

Errors

Errors can occur if the local storage
area has been broken or if the ignition
is turned off during formatting. If the
screen is closed during formatting,
this will not interrupt the formatting.
If the screen is opened again, the
current state of format will be
displayed. If an error occurs, the Error
screen will display when the ignition
is turned on.

Enter Language Code

Enter the desired language code.

Language/Code User

Japanese JPN 7465

English ENG 6978

Code

French FRA 7082

German DEU 6869

Italian ITA 7384

Spanish SPA 6983

Dutch NLD 7876

Russian RUS 8285

Chinese ZHO 9072

Korean KOR 7579

Greek ELL 6976

Afar AAR 6565

Abkhazian ABK 6566

Afrikaans AFR 6570

Amharic AMH 6577

Arabic ARA 6582

Assamase ASM 6583

Aymara AYM 6589

Azerbaijani AZE 6590

Bashkir BAK 6665

Byelorussian BEL 6669

Bulgarian BUL 6671

Bihari BIH 6672

Bislama BIS 6673

Bengali BEN 6678

Tibetan BOD 6679

Breton BRE 6682

Catalan CAT 6765

Corsican COS 6779

Czech CES 6783

Welsh CYM 6789

Danish DAN 6865

Bhutani DZO 6890

Esperanto EPO 6979

Estonian EST 6984

Basque EUS 6985

Persian FAS 7065

Finnish FIN 7073

Fiji FIJ 7074

Faroese FAO 7079

Friesian FRY 7089

Irish GLE 7165

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

36 REAR SEAT INFOTAINMENT

Scots-Gaelic GLA 7168

Galician GLG 7176

Guarani GRN 7178

Gujarati GUJ 7185

Hausa HAU 7265

Hindi HIN 7273

Croatian HRV 7282

Hungarian HUN 7285

Armenian HYE 7289

Interlingua INA 7365

Interlingue ILE 7369

Inupiak IPK 7375

Indonesian IND 7368

Icelandic ISL 7383

Hebrew HEB 7269

Yiddish YID 8973

Javanese JAV 7487

Georgian KAT 7565

Kazakh KAZ 7575

Greenlandic KAL 7576

Cambodian KHM 7577

Kannada KAN 7578

Kashmiri KAS 7583

Kurdish KUR 7585

Kirghiz KIR 7589

Latin LAT 7665

Lingala LIN 7678

Laothian LAO 7679

Lithuanian LIT 7684

Latvian LAV 7686

Malagasy MLG 7771

Maori MRI 7773

Macedonian MKD 7775

Malayalam MAL 7776

Mongolian MON 7778

Moldavian MOL 7779

Marathi MAR 7782

Malay MSA 7783

Maltese MLT 7784

Burmese MYA 7789

Nauru NAU 7865

Nepali NEP 7869

Norwegian NOR 7879

Occtian OCI 7967

Oromo ORM 7977

Oriya ORI 7982

Panjabi PAN 8065

Polish POL 8076

Pashto, Pushto PUS 8083

Portuguese POR 8084

Quechua QUE 8185

Rhaeto-Romance ROH 8277

Kirundi RUN 8278

Romanian RON 8279

Kinyarwanda KIN 8287

SanSkrit SAN 8365

Sindhi SND 8368

Sangho SAG 8371

Serbo-Croatian SCR 8372

Singhalese SIN 8373

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

REAR SEAT INFOTAINMENT 37

Slovak SLK 8375

Uzbek UZB 8590

Vietnamese VIE 8673

Volapuk VOL 8679

Wolof WOL 8779

Xhosa XHO 8872

Yoruba YOR 8979

Zulu ZUL 9085

Slovenian SLV 8376

Samoan SMO 8377

Shona SNA 8378

Somali SOM 8379

Albanian SQI 8381

Serbian SRP 8382

Siswaiti SSW 8383

Sesotho SOT 8384

Sundanese SUN 8385

Swedish SWE 8386

Swahili SWA 8387

Tamil TAM 8465

Telugu TEL 8469

Tajik TGK 8471

Thai THA 8472

Tigrinya TIR 8473

Turkmen TUK 8475

Tagalog TGL 8476

Setswana TSN 8478

Tonga TON 8479

Turkish TUR 8482

Tsonga TSO 8483

Tatar TAT 8484

Twi TWI 8487

Ukrainian UKR 8575

Urdu URD 8582

Wired Headphones

Select from the Settings menu, then
select the headphone audio for the
wired headphone jack based on screen
1 or screen 2 and press ENTER or the

right arrow. Press

The headphones are set to screen 1 by
default.

Title Search (CD-DA Only)

If available, this displays a list of titles
to select by using the up and down
arrows.

Disc Information (CD-DA Only)

If the inserted disc is a BDMV, BDAV,
AVCHD, AVCREC, DVD-Video,
or DVD-VR, the disc title should
display. If the inserted disc is
DVD-Audio, DTS-CD, CDDA,
or Mixed-CD, the track number will
display.

Software Information

This allows access to Version
Information, Save Vehicle Info to USB,
and View Open Source.

Save Vehicle Info to USB allows the
current version to be saved to a jump
drive, which must be done before an
update can be performed.

View Open Source indicates where
software information can be found.

S (Back) to exit.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

38 REAR SEAT INFOTAINMENT

RSI Controls Available from the
Front Screen

To access the RSI, select VIDEO from
the HOME Page. The video app may
also be selected from the applications
tray if it has been stored in one of the
five locations.

Sourcing to DVD/BD

This allows for watching a DVD/BD
video on the front screen when the
vehicle is in P (Park).

After a disc is inserted, it will
automatically begin playing. To
resume play of the video where it left
off, Pseudo Resume must be on. See
"Player Setup BD/DVD" previously in
this section.

With the vehicle in P (Park), icons
display along the bottom of the front
infotainment display. When a DVD,
VCD, USB, or HDMI device is inserted:

When a BD is inserted:

Rear Media

This allows for transitioning between
Disc, USB, and HDMI sources for the
rear screens. Sources selected will be
automatically sourced for both rear
screens and will begin playback from
the first available file.

The video will only appear on the
front infotainment display with the
vehicle in P (Park). In any other gear,
the front infotainment display
indicates the active media source.

DVD/BD Disc Menu

With the vehicle in P (Park), touch
DISC MENU to access the DVD/BD
disc menu.

Next Track/Previous Track

| to skip ahead or { to skip

Use
back tracks. Touch

five seconds into the current track to
start at the beginning of the previous

track. Touch
five seconds into the current track to
start at the beginning of the current
track.

Fast Forward/Fast Rewind

With the vehicle in P (Park), hold
or { for approximately one and

one-half seconds to fast forward or
fast rewind. If

approximately six seconds, the rate of
fast forward or fast rewind will
increase.

{ less than

{ more than

|

| or { are held for

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

REAR SEAT INFOTAINMENT 39

Play/Pause

Touch

r to play or j to pause,

depending on the current selection.

Keypad for DVD/VCD/USB

With the vehicle in P (Park), select to
display the DVD keypad. DVD keypad
functionality is disc dependent and
may not be available on all DVDs. Up
to four digits can be entered. Select
Clear to remove one digit in the entry
field. Touch and hold Clear to remove
all digits in the entry field.

Pop Up Menu (BD Only)

This displays the pop up menu
contents for the BD. Make a selection,
use the interaction selector, or wait
for the timeout to exit pop up
menu view.

Cursor

Use to navigate and select items in
the disc menu. Touch the up, down,
right, or left arrows, or ENTER. Touch
cursor to close the interaction selector
and display a vertical menu of cursor
options. The cursor will time out and
close.

Sourcing USB/VCD/HDMI with Video

This allows for watching videos on the
front screen from devices plugged into
the rear module when in P (Park).

With the vehicle in P (Park), icons
display:

These features will function the same
as in DVD/BD sources, with the
following exceptions:

.

KEYPAD is only available for VCD
in P (Park).

.

DISC MENU is only available for
disc sources such as VCD. The
system displays the menu
provided by the disc.

Sourcing DVD/BD/USB/VCD/HDMI

With the vehicle in D (Drive), the
following icons display along the
bottom of the front screen when one
of these sources is active:

DVD/BD/USB/VCD: All options are
available.

HDMI: Only REAR MEDIA and MENU
are available.

Rear Media

Use to select Disc, USB, or HDMI
sources. Both rear screens will be
sourced and will begin playback of the
first available file. The video will only
display on the front screen if the
vehicle is in P (Park). In any other
gear, the front infotainment display
indicates the active media source.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

40 REAR SEAT INFOTAINMENT

Previous Track/Next Track

Touch

{ or | to select the previous

or next track on the current media.

Play/Pause

r to play or j to pause,

Touch
depending on the current selection.

Menu (DVD/BD/USB/HDMI/VCD)

Only available in D (Drive). Press
(Menu) to display these options:

.

Tone Settings: Use to set bass,
mid, and treble on speakers only.
Once set, tone settings are for all
sources.

.

Auto Volume: Adjusts the volume
of the audio based on the speed or
ambient noise of the vehicle. Some
vehicles may be equipped with the
Bose AudioPilot system. In these
cases, the Auto Volume main
menu item is replaced with the
Bose AudioPilot menu item. AVC
or Bose AudioPilot is available to
use with any source mode.

y

.

Traffic Announcements: Displays
traffic alerts in the RSI system.
The video will continue to play
and the audio will mute,
depending on the alert.

Closing the Menu (DVD/BD)

Touch Back or Exit to close a menu.
This will return to the previously
viewed screen.

Power

Press power on the front screen to
turn the RSI screen on or off. The
front screen will continue to operate
when the overhead screen is turned
off. A red lit power option indicates
the rear screens are on. A white lit
power option indicates the rear
screens are off.

Headphones

1. Power Indicator Light

2. Channel 1 or 2 Switch

3. Volume Control

4. Power Icon

5. Battery Cover

RSI includes two 2-channel new
digital wireless headphones. The
headphones are used to listen to
various multimedia. The wireless
headphones have a power icon,
Channel 1 or 2 switch, and a volume
control. The Digital headphones
cannot be interchanged with previous
models of GM headphones.

Press the power icon to turn on the
headphones. A light on the
headphones comes on. A f lashing light
indicates the headphones are not in

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

REAR SEAT INFOTAINMENT 41

range. Move them closer to the left
side screen until light stops f lashing.
If the light does not come on, check
the batteries. Intermittent sound or
static can also indicate weak batteries.
See “Battery Replacement” later in this
section.

Turn the headphones off when not
in use.

Press the center of the right side of
the headphone to change the channel.
Channel 1 will provide audio
associated with screen 1 and channel 2
will provide audio associated with
screen 2.

Infrared transmitters are on the top of
the left seatback video screen. The
headphones shut off automatically to
save the battery power if the RSI
system is off or if the headphones are
out of range of the transmitters for
more than three minutes. Moving too
far forward or stepping out of the
vehicle can cause the headphones to
lose the signal or have static.

Use the volume control wheel on the
right side of the headphones to adjust
the volume.

For best audio performance, wear the
headphones as indicated with L (Left)
and R (Right) on the ear pads. Do not
let anything cover the ear pads.

Caution

Do not store the headphones in
heat or direct sunlight. This could
damage the headphones and repairs
would not be covered by the vehicle
warranty. Storage in extreme cold
can weaken the batteries. Keep the
headphones stored in a cool, dry
place.

If the foam ear pads become worn or
damaged, the pads can be replaced
separately. To purchase replacement
ear pads, call 1-888-293-3332 or
contact your dealer.

Battery Replacement

To change the batteries:

1. Loosen the screw to the battery
door on the left side of the
headphones using a coin or
flat-head screwdriver.

2. Slide the battery door open.

3. Replace the two AAA batteries.

4. Replace the battery door and
tighten the screw.

Remove the batteries if the
headphones will not be used for a
long time.

Rear Seat Infotainment (RSI)
Wi-Fi (If Equipped)

The RSI Wi-Fi allows the user to
access music, videos and pictures that
are saved or taken with a smart device
to the RSI system through Digital
Living Network Alliance (DLNA)
applications. Only one smart device
can be connected to the RSI at
one time.

Placement for Optimal Performance

The RSI Wi-Fi antenna is near the RSI
disc player. The smart device
connection is stronger when it is near
the Wi-Fi antenna.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

42 REAR SEAT INFOTAINMENT

If the network is not operating at its
maximum effectiveness, try the
following:

.

Disconnect the smart device from
any other connected network to
improve the audio/video
performance.

.

Switch the band. While in any
Wi-Fi screen, select Menu, then
select Switch Band to access a
band that is available. Some
marketing regions will only
support a single band.

Digital Living Network Alliance
(DLNA) (If Equipped)

To establish an initial connection:

1. From the RSI Wireless Display
menu, select DLNA. The RSI
screen will display a Wi-Fi
network name, such as
“DIRECT-xx-Rear Seat”, as well as
the required password necessary
to complete the connection.

2. Make sure the smart device’s
Wi-Fi is enabled, and open the
device’s Wi-Fi menu.

3. From the smart device’s Wi-Fi
menu, select the
“DIRECT-xx-Rear Seat” network.
If this network is not shown at
the smart device, it will be
necessary to re-scan for available
networks.

4. Enter the RSI Password at the
smart device to complete the
connection. Once entered, the
“DIRECT-xx-CUE” network will
display as connected.

5. From the smart device’s DLNA
application, select Rear Seat 1 or
2 as the screen to display the
desired video, audio, or picture
files on the RSI.

Once the connection process is done
for the first time, the Wi-Fi
connection will be made whenever the
device is within Wi-Fi range or the
smart device Wi-Fi is turned on.

Select Menu from the remote control
to access the options to switch Wi-Fi
band, disconnect the smart device
from the RSI Wi-Fi, or to remove all
DLNA passwords that have been
saved.

Supported DLNA media types are:

.

Video: .mp4 and .mpg

.

Audio: .mp3 and .aac

.

Picture: .jpeg and .jpg

Viewing the Other Display

While the left or right screen is
connected by DLNA, the other screen
can access the same source by
selecting View Screen 1 or View
Screen 2 in the Wireless
Display menu.

Connecting Wireless Android
Devices

Many Android devices come with
pre-installed audio and video players
that support Wi-Fi streaming; consult
your smart device manual for more
information. Android devices will also
support various DLNA applications to
allow the device to connect to the RSI
wirelessly. Search the Google Play
store for DLNA applications to install
on the Android device.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

REAR SEAT INFOTAINMENT 43

Connecting Wireless Apple Devices

Apple will support various DLNA apps
to allow the device to connect to the
RSI wirelessly. Search the iTunes store
for DLNA applications to install on
the Apple device.

Auxiliary Inputs

Rear Media Connections

HDMI Input

An HDMI cable is required to connect
an HDMI device to the RSI hub. The
RSI HDMI input allows connection to:

.

Video games, disc players,
cameras, smartphones, tablets,
and A/V dongles that have HDMI
(version 1.4a) outputs.

.

Smart devices that support Mobile
High-Definition Link (MHL)
version 2.0.

The smart device may require an
adapter cable to support MHL. Refer
to your device owner’s guide.

Most RSI remote control commands
will be available to a smart device
connected through MHL.

1. Volume Control for Wired
Headphones

2. Wired Headphone Jack

3. USB Ports

4. HDMI Input

If equipped with RSI, features above
will be inside the rear armrest or
above the right shoulder of the rear
left passenger.

HDMI

The HDMI jack allows an HDMI A/V
cable to be connected from an
auxiliary device such as a camcorder,
video game system, or Apple device.
A cable from Apple is required for
Apple devices.

Power for the auxiliary devices is not
supplied by the infotainment system.

To use the HDMI input of the RSI
system:

1. Connect the auxiliary device with
an HDMI cable.

2. Power on both the auxiliary
device and the RSI video screen.

3. Press

USB

There are two USB ports to provide
the RSI system audio/video from
supported devices, as well as to
provide device charging.

Audio from these ports can only be
heard and controlled by the rear seat
passengers. Video can be heard,
shown, and controlled by the rear and
front passengers.

To use the USB ports:

1. Insert the device in one of the

{ (Home) on the remote

control and use the arrows to
change the source to HDMI.

two ports.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

44 REAR SEAT INFOTAINMENT

2. Select the source (USB 1 or USB

2) via the rear screen menu with
the remote control

option.

3. Select the source via the front by
touching VIDEO on the
Home Page.

{ (Home)

Audio Output

Audio from a Blu-ray/DVD/CD player
or auxiliary inputs can be heard
through:

.

Wireless headphones: Available for
any source depending on the
selected channel.

.

Vehicle speakers: Touch VIDEO on
the Home Page. Select any other
source to stop the speaker audio.
Rear audio will continue to play.

.

Vehicle wired headphone jack: See
“Wired Headphone Jack” following.

The RSI system transmits the audio
signal to the wireless headphones if
an audio signal is available. See
“Headphones” earlier in this section.

Front seat passengers can listen to
playback from an attached rear device
through the vehicle speakers by
selecting that source from the Video
App on the front.

Wired Headphone Jack

Press

y (Menu) on the remote

control, then select Settings and then
Wired Headphones to listen to audio
on the wired headphones. The
headphone audio plays depending on
which screen is selected. The default
is screen 1 audio.

Remote Control

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

REAR SEAT INFOTAINMENT 45

Remote Control buttons

1.

O (Power)

.

Press to turn the selected
video screen on and off.

y (Up Arrow)

2.

.

Press to scroll up a list.

3.

{ (Home)

.

Press to return to the
Home Page.

r /ENTER

4.

.

Press to select the
highlighted choice in
any menu.

.

Press and hold for quick play
(disc dependent).

5.

T (Next/Forward/Increase)

.

Radio and disc: Press to go to
the next station or track.

.

Press to go to the next menu.

J (Play/Pause)

6.

.

Press to start playing. Press
to pause. Press again to
continue playing.

z (Down Arrow)

7.

.

Press to go down a list.

y (Seek Up)

8.

.

Radio: Press to seek the next
radio station.

.

CD: Press to seek the next
track.

.

Blu-Ray/DVD: Press to seek
the next chapter.

9.

z (Seek Down)

.

Radio: Press to seek the
previous radio station.

.

CD: Press to seek the
previous track.

.

Blu-Ray/DVD: Press to seek
the previous chapter.

10.

z /T (Screen 2)

.

Slide to select screen 2 to be
controlled by the remote.

z /S (Screen 1)

11.

.

Slide to select screen 1 to be
controlled by the remote.

12. VOL/

13. VOL/

14.

15.

To use the remote control, aim it at
the transmitter window at either
seatback console and press the
buttons firmly. Direct sunlight or very
bright light could affect the ability of
the RSI transmitter to receive signals
from the remote control. Check the
batteries if the remote control does
not seem to be working. See “Battery

z (Volume Down)

.

Press to reduce the speaker’s
audio volume.

y (Volume Up)

.

Press to increase the
speaker’s audio volume.

y (Menu)

.

Press to go to the menu of
any now playing screen.

S (Previous/Reverse/Decrease

or Back)

.

Radio and disc: Press to go to
the previous station or track.

.

Press to go to the
previous menu.

.

Use as back command.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

46 REAR SEAT INFOTAINMENT

Replacement” following. Objects
blocking the line of sight could also
affect the function of the remote
control.

Caution

Storing the remote controls in a hot
area or in direct sunlight can
damage them, and the repairs
would not be covered by the vehicle
warranty. Storage in extreme cold
can weaken the batteries. Keep the
remote controls stored in a cool,
dry place.

Battery Replacement

To change the remote control
batteries:

1. Press the indented area on the
back of the remote and slide the
cover off.

2. Insert the tip of a flat-head
screwdriver into the slot marked
with arrows to eject the batteries.

3. Replace the two coin cell
batteries.

4. Replace the battery cover.

Remove the batteries from the remote
control if it will not be used for an
extended period of time.

Video Voice Over

If equipped, the RSI system has a
Video Voice Over feature to benefit
the visually and hearing impaired.

When activated, the RSI will read
aloud menu titles, menu listings,
pop-ups, alerts, and file titles from
audio and video media. Titles with
gibberish, special characters,
or foreign text may not be read aloud.

Use one of the following to turn Video
Voice Over on or off:

.

Select Video Voice Over from the
Front Display menu.

.

Select Video Voice Over from the
RSI menu.

.

Press and hold the Remote Control
Menu and Play/Pause buttons for
five seconds.

Video Voice Over will remain active
over ignition cycles until it is
turned off.

RSI Troubleshooting

No power : The ignition might not be
in ON/RUN or ACC/ACCESSORY.

The picture does not f ill the screen.
There are black borders on the top
and bottom or on both sides or it

looks stretched out : Press

on the remote control to change the
display mode setting.

In auxiliary mode, the picture
moves or scrolls : Check the auxiliary

input connections at both devices.

The remote control does not work :

Check to make sure the remote
control is programmed to the correct
screen. Make sure there is no
obstruction between the remote
control and the transmitter window
and check the batteries to make sure
they are not dead or installed
incorrectly.

There is no sound from the
headphones with the indicator light
on : If the batteries are good, make

sure the headphones are programmed
to the correct screen and on the
correct channel for the screen being
viewed.

y (Menu)

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

REAR SEAT INFOTAINMENT 47

The auxiliary source is running but
there is no picture or sound : Check

that the RSI video screen is in the
auxiliary source mode by pressing

on the remote control. Check the
auxiliary input connections at both
devices.

Sometimes the wireless headphone
audio cuts out or buzzes : Check for

obstructions, low batteries, reception
range, and interference from cell
phone towers or from cellular
telephone use in the vehicle. Check
that the headphones are on correctly
using the L (Left) and R (Right) on the
headphones. Check that the
headphones are positioned properly
with the headband across the top of
the head.

I lost the remote and/or the
headphones : See your dealer for

assistance.

The Blu-Ray/DVD is playing, but
there is no picture or sound : Check

that the RSI video screen is sourced to
the Blu-Ray/DVD player by pressing

on the remote control.

{

{

Videos from my phone are played
back sideways or upside-down when
the phone is connected via DLNA :

This cannot be corrected by the RSI
system. While playing through DLNA,
the RSI will only play back videos in
the orientation in which they were
recorded.

Video Display Error Messages

The video screen may display one of
the following:

Disc Error : There are disc load or
eject problems, the disc is inserted
with the disc label wrong side up, the
disc is damaged, or the disc is not
from the correct region.

No Disc Inserted : No disc is present.

Disc Player Error : The temperature

is outside the operating range of the
RSI system. If the temperature is
within range, see your dealer.

Video Distortion

Video distortion can occur when
operating cellular phones, scanners,
CB radios, Global Positioning Systems
(GPSs), two-way radios, mobile faxes,
or walkie talkies.

It might be necessary to turn off the
video player when operating one of
these devices in or near the vehicle.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

48 NAVIGATION

Navigation

Using the Navigation System

Touch Nav on the Home Page or the
Nav icon in the applications tray to
access the navigation application.

Touch Menu from the map view to
access the Navigation Menu. Features
displayed in the Navigation Menu can
be selected to adjust navigation
preferences.

It is advised to set up preferences
before setting a destination. To set a
destination, see Destination 0 57.

The options on the infotainment
display will time out when not
interacting. Tap anywhere on the
display to reveal the controls, then
touch the desired control.

Additional navigation features are:

.

Cancel Route/Resume To

.

Navigation Voice Preferences

.

Current Location

.

Traffic

.

Map View

.

Routing Preferences

.

Display “Places of Interest” Icons

.

Personal Data

Cancel Route/Resume To

.

While under route guidance, this
option displays Cancel Route.
Touch Cancel Route to cancel
route guidance. No further
prompts will be given. The option
then changes to Resume Route.

.

Touch the Resume To option to
resume route guidance to the last
entered destination.

.

The last location that the system
has provided guidance for can be
resumed by touching Resume To.

.

If the route includes waypoints,
the entire route can be suspended
using the Cancel Guidance option.
When Resume Guidance is
touched, all waypoints are
resumed for guidance.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

NAVIGATION 49

Navigation Voice Preferences

If equipped, touch the Navigation
Voice Preferences option to adjust the
following voice preferences:

The following options can be adjusted:

.

Voice Prompts On/Off

.

Voice Volume

.

Prompts During Phone Calls
On/Off

Voice Prompts

Touch the Voice Prompts list item to
toggle voice prompts On and Off.

Voice Volume

Adjust the loudness of the audio
feedback by touching − or +. If a
maneuver prompt is being played and

the main volume is adjusted, the
prompt volume will update and be
saved.

Prompts During Phone Calls

When enabled, the system plays a
shorter prompt while on a phone call.
This setting can be configured as to
whether a prompt would be heard
during a phone conversation.

When this setting is Off, only the
short alert tone is played when
approaching the maneuver.

Voice Prompts Mute Icon

Press the Mute icon on the left side of
the map while in map view to turn
voice prompts On or Off.

Current Location

Touch the Current Location option to
display a Current Location list.

The following information is displayed
on the Current Location list:

.

Nearest Address

.

Lat/Long

.

Nearest Hospital

.

Nearest Police

.

Nearest Fuel

.

Nearest Service

Touch any of the options to display
the Destination Details view for the
selected location to begin guidance.

Touch the Nearest Address option and
then Save to store the current location
to the Contacts List.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

50 NAVIGATION

Traffic (If Equipped)

Touch to browse the traffic in the area
as well as adjust the traffic settings.
Where traffic information is available,
it is displayed on the map.

Where live traffic flow data is
available, it is displayed as a solid line
adjacent to the road. The road is
displayed in colors to show the f low
rate as:

.

Black – Stopped or Closed

.

Red – Poor

.

Yellow – Slow

.

Green – Normal

There are several options on the
Traffic menu:

.

Show Nearby Traffic Incidents

.

Show Flow On Map On-Off

.

Show Icons On Map On-Off

.

Traffic Routing Preferences

.

Traffic Types

1. Touch Show Nearby Traffic
Incidents to access the Traffic
List menu. This menu displays
the incident symbol and highway
name, along with the distance
and heading to the incident.

2. Touch the incident to display
additional details about the
incident as well as an option to
avoid that particular incident if it
is along the current route.

Traffic Routing Preferences

The system can be configured as to
how it reacts when receiving traffic
information. Touch Traffic Routing
Preferences to access the Traffic
Routing menu.

When this setting is off, the system
will never take traffic conditions into
account when creating routes. In
addition, the two options below are
grayed out. If one of the grayed-out
options is touched, it automatically
turns the traffic avoidance feature on
and performs the desired selection.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

NAVIGATION 51

The two options, Ask Me Before
Avoiding and Automatically Avoid
Traffic will adjust the system as
follows:

.

If the Automatically Avoid Traffic
list item is touched, the system
will automatically adjust the route
based on traffic without notifying
the driver.

.

If the Ask Me Before Avoiding list
item is touched, the system will
always use Alerts to show when
there is an incident and allow it to
be avoided by touching Avoid.

If the Traffic option is touched from
the Map Menu and Traffic is not
available because the SiriusXM
subscription is not valid, a pop-up will
display with information on how to
reactivate the subscription along with
the SiriusXM radio ID.

Traffic Types

Touch to access the Traffic
Types menu.

The system can be configured to filter
out certain types of traffic events. If a
particular type has been turned off,
the system does not display it on the
map, and does not alert the driver.

Map View

Touch to select the desired map view.

A checkmark appears to indicate a
view has been selected.

3D View : The 3D View is a Heading
Up view but it includes perspective.
Map items will appear larger as the
vehicle comes closer.

Heading Up View : The Heading Up
View keeps the vehicle's current
heading at the top of the view. The
vehicle icon always faces the top of
the view as the map rotates.

North Up View : The North Up View
keeps north at the top of the view. The
vehicle icon is placed in the center of
the view and rotates to indicate the
heading for the vehicle.

Audio Information On/Off : Touch to
turn the audio information view on or
off from the main map view. When on,
the audio information becomes an

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

52 NAVIGATION

audio status screen. This allows for
two lines of audio information in the
status pane and enables the use of
some infotainment display features
and controls.

The audio status screen contains the
following elements:

.

Station Frequency

.

Artist Information

.

Song Information

.

r / j or @ or 9 Station and

Channel controls

Touch the
to go to the next or previous strong
signal station or digital channel.

When the audio status pane displays
artist and song information, touch
or 9 to go to the next or previous

track based on the current
media mode.

@ or 9 station controls

@

Day/Night Mode

Touch to access the Day/Night
Mode menu.

The options are:

.

Day Mode: Brightens the map
background.

.

Night Mode: Darkens the map
background.

.

Auto: Adjusts the screen
background automatically
depending on the exterior lighting
conditions.

3D Buildings On/Off : When 3D
building information is available for a
particular area, the icons are shown at
a zoomed level. If the current vehicle
position would be hidden by another
building, the building is shown as see

through so the vehicle icon is visible.
Touch to turn the 3D Buildings
feature On or Off.

Autozoom On/Off : At certain zoom
levels, street detail is removed to keep
the view uncluttered. Touch to turn
the Autozoom feature On or Off.

Routing Preferences

Touch the Routing Preferences option
to access the Routing Preferences
menu. Options on how the routes are
created for route guidance are listed
on this menu.

Route Style : Touch this option to
change the route type preferences.

The options are:

.

Fast (default)

.

Eco Friendly (if equipped)

.

Short

.

Edit Eco Profile

The Edit Eco Profile can be used to
configure two parameters for the Eco
Friendly route. These parameters are
Roof Load and Trailer. For each
parameter, the options are None,

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

NAVIGATION 53

Small, Medium, and Large. Touch to
scroll through the list. The default for
both is None.

These preferences are used for all
routes generated.

Route segment preferences are other
options showing on the Routing
Preferences menu.

These include:

.

Use Toll Roads On/Off

.

Use Freeways On/Off

.

Use Carpool Lanes On/Off

.

Avoid Slow Traffic On/Off

.

Use Tunnels On/Off

.

Use Time Restricted Roads On/Off

Display Places of Interest Icons

Places of Interest (POI) icons can be
displayed on the map using this view.

.

The POI icons can be turned on
and off. Touch the check box next
to the POI icon to display the icon.

.

Touch Clear All to reset the icons
that are displayed on the map.

.

A subcategory can be selected
instead of the entire category.
Touch the option rather than the
check box. The subcategories will
display. Select any of those
categories to navigate down the
hierarchy.

.

When a higher-level category has
some of its subcategories selected,
the checkmark next to it is grayed
out. This indicates that only some

of the categories below are shown.
Touch the grayed-out checkmark
to turn all of the icons for that
category on or off.

.

Touch the Safety Cameras icon to
turn the category on or off. This
POI category is turned off by
default, but can be calibrated
depending on the location. This
option may be completely turned
off if it is not allowed in a
particular area.

Personal Data

Data that the system has saved during
the course of using the navigation
system can be managed through:

.

Contacts

.

Recent Destinations

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

54 NAVIGATION

.

My POIs (if equipped)

.

Upload Saved Locations

.

Delete Autocomplete

Contacts

1. Touch Delete All Entries to
delete the entire list of contacts.
A pop-up displays to confirm.

2. Touch Edit Contacts List to
display the Contacts to edit.

Recent Destinations

.

Touch Delete All Destinations to
delete the entire recent
destination list. A pop-up displays
asking to confirm the deletion.

.

Touch Delete Individual
Destinations to display a recent
destinations list. Touch the
individual entry to delete.

My POIs

.

Touch My POIs to display a menu
of other options.

.

Touch Delete Individual
Categories. A My POIs category list
displays.

.

Touch the individual entry to
delete.

.

Touch Delete All My POIs to
delete the entire list of categories.
A pop-up displays asking to
confirm the deletion.

.

To exit out of a list, touch Exit in
the top right corner of the map to
return to the main map view.

Upload Saved Locations

.

Touch Upload on the Upload
Saved Locations menu to save the
Vehicle Contacts list and any My
POIs that have been saved to the
vehicle.

.

Once saved locations have been
uploaded to a USB, they can be
transferred to a different vehicle or
restored to the current
contacts list.

Delete Autocomplete

Touch Delete on the Delete
Autocomplete History menu to clear
personal data from the keyboard.

A pop-up displays a message to Delete
all keyboard autocomplete history.
The system clears all navigation
addresses, POIs, etc. The autocomplete
will not delete recent destinations.
Touch Cancel to stop the process.

Map Adjustments

ZOOM −/+ can be used to adjust the
scale of view on the map. When the
end of the zoom level is reached,
ZOOM −/+ will gray out.

Use the pinch/spread hand gesture to
zoom the scale of view on the map.

.

ZOOM − (minus): Pinch fingers
together to zoom out.

.

ZOOM + (plus): Spread fingers
apart to zoom in.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

.

The zoom scales can be configured for
English or metric units. To change
from English to metric, see
“Instrument Cluster” in the owner’s
manual.

Scroll Features

.

To scroll within the map, touch
anywhere on the map screen.

.

Nudge or slide a finger on the
map; the map moves in the
direction of the finger.

.

Fling a finger on the map; the map
will start scrolling in a short
continuous scroll.

.

Touch the location on the map;
the map re-centers to the location
that was touched.

Touch a location on the map; the
map zooms in one level to the
location that was touched twice.

.

When the map is re-centered away
from being locked to the vehicle
position, the crosshairs will show
in the center of the map. As the
map continues to be re-centered,
the crosshairs will remain on the
display. When the crosshairs are
shown on the display, a callout
with more information displays.
If the map is moved from the
current location, the crosshairs
will disappear along with the
callout.

.

Touch the callout next to the
crosshairs and the destination
details view displays. From this

NAVIGATION 55

view, route guidance can be
received or saved to the vehicle's
contact list.

.

When the map is re-centered, the
straight-line distance from the
vehicle to the selected point is
displayed in the callout. In
addition, a heading direction in
the form of an arrow is displayed
to indicate the direction. The
arrow is shown in relation to the
current vehicle heading.

.

Touch a POI icon on the map; the
name of the POI is shown in the
address callout, along with the city
name and state/province. If the
callout is touched, the Destination
Details view for the POI is shown.

.

After panning the map away from
the vehicle, touch Reset to return
the map to the current position.

.

Touch Overview to quickly get a
view of the entire route. The route
Overview takes the place of the
Reset while under route guidance.
Touch Reset to return the map to
the current position.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

56 NAVIGATION

Maps

The map database is stored in the
internal flash memor y that is used in
the navigation system.

Detailed Areas

Road network attributes are contained
in the map database for detailed areas.
Attributes include information such as
street names, street addresses, and
turn restrictions. A detailed area
includes all major highways, service
roads, and residential roads. The
detailed areas include Places of
Interest (POIs) such as restaurants,
airports, banks, hospitals, police
stations, gas stations, tourist
attractions, and historical monuments.
The map database may not include
data for newly constructed areas or
map database corrections that are
completed after production. The
navigation system provides full route
guidance in the detailed map areas.

Navigation Symbols

Following are the most common
symbols that appear on a map screen.

or

The vehicle symbol indicates the
current position and heading direction
of the vehicle on the map. When
under route guidance, a circle with an
arrow is added to the vehicle symbol
which indicates the direction to the
destination.

Vehicle Address Callout

Touch the vehicle icon to have the
current address of the vehicle overlaid
on the map next to the vehicle icon in
a callout. Another touch hides the
information.

Any address information about the
vehicle’s current location will be
shown, including the street, city, and
state/province names.

Touch this callout to save the current
address to the vehicle address book.

The destination symbol marks the
final destination after a route has
been planned.

The waypoint symbol marks one or
more set waypoints.

A waypoint is a stopover destination
point added to the planned route.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

NAVIGATION 57

The estimated time to the destination
displays. Touch Arrival to toggle to
duration and to the distance of the
destination.

This symbol indicates the
recommended maneuver that should
be performed. Touch it to display the
turn list or waypoint list.

The No GPS symbol appears when
there is no Global Positioning System
(GPS) satellite signal. When the GPS is
gone, the vehicle position on the map
may not be accurate.

Autozoom

As a maneuver is being approached,
the map automatically zooms in to
give greater detail.

If lane guidance is available for the
maneuver, this is also shown.

When the system begins to autozoom,
it zooms in to its minimum level.
After the maneuver is performed, the
system slowly zooms back out.

Destination

If route guidance is not active, touch
Nav on the Home Page to access the
map view. Touch the Destination icon
from the map view to enter a
destination. Available methods of
entering a destination are Address,
Intersection, POIs, Recent, and
Contacts. Several options can be
selected to plan a route. Some

destination items may be grayed out if
no destination was previously entered
or saved.

Another way to enter a destination is
to touch the blue OnStar icon and ask
an OnStar Advisor to download a
destination into the embedded
navigation system. See OnStar
System 0 74.

Touch Destination on the
infotainment display to go to the
destination entry views.

®

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

58 NAVIGATION

Available Methods of Search

.

Address (entries by hierarchy)

.

Intersection

.

Places of interest (POIs)

.

Recent (destinations)

.

Contacts

Touch any of the icons to enter a
method of search, or touch the input
field along the top to go to the
keyboard and enter a search term.

Navigation Next Turn Maneuver
Alert

The navigation system may need to
get the attention of the driver in
certain situations.

If not in the navigation application
when a near maneuver prompt is
given, it is shown as an alert. The
alert contains the turn indicator and
icon to display the main navigation
view or dismiss the alert.

Auto-Capitalization

The shift key is automatically enabled
when a period is entered on the
keyboard. Once the first character is
typed after the period, the next
character will change to lower-case.

Alpha-Numeric Keyboard

The keyboard is used in multiple
locations throughout the system and
can be used with many features. The
navigation system uses the
alpha-numeric system keyboard which
includes 1 through 0, A through Z in
QWERTY layout, hyphen, comma,
period, Space, and Sym which would
show additional characters needed.

The keyboard can also be modified to
include characters appropriate for the
region configured in the vehicle
settings.

@ : Touch to search for the

destination details of an address or
place of interest entered in the text

field. Once
indicator displays in the list of
possible matches.

@ is touched, the activity

| : Touch to display a list of

matches.

When there are multiple matches, a
dropdown arrow is shown after the
autocomplete text. This dropdown
displays an entire list of matches.
Touch the appropriate match without
having to enter more text.

z : Touch to delete the last typed

character. Touch and hold
the entire text field. If the entire text
field has been deleted, this option
becomes an Undo option. Touching
Undo will restore the deleted text.

Exit : Touch to return to the previous
Map view.

SYM : Touch to show the symbol
keyboard.

SPACE : Touch to enter a space
between characters or the words of
a name.

z to clear

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

NAVIGATION 59

Q : Touch to display the interaction

selector.

E : Touch to switch between

Alpha-Numeric Keyboard and
Character Recognition.

Special Characters

As the characters are typed on the
keyboard, a pop-up of the letter
touched displays above the key that
was touched.

Continue to touch and hold, and any
additional special characters
associated with that letter are
displayed around the current letter. To
select one of the special characters,
slide a finger left or right to adjust the
highlight of the special character.

When the alternate keyboard is used,
the system remembers it the next
time it is viewed.

Special Character List

The following characters have special
characters beneath them:

One-Shot Search

Enter a full or partial Address,
Contact, or POI into the search bar
and the system will search and display
all of the matches.

The contacts that are searched include
both the connected phone’s contacts
list and the vehicle’s contacts list.

Search Process

The process of prioritizing the search
is to help shorten the length of time
at finding the results. If there is a
100% match found when a search
type is carried out, the remaining
searches abort.

The system conducts the search in the
following order:

1. Vehicle Contacts List

2. Connected Phone Contacts List

3. POIs

4. Addresses

The Contacts are done first because
the list will be relatively short and can
be done quickly.

POIs are done next because the
amount of time it takes to search for
the average POI is consistent. The less
deviation during a search would mean
an average of less time taken.

The Addresses are last because the
standard deviation for an address
search is very large. Some address
searches are very quick, but others
may take very long. Because of this,
the address search would not be
conducted unless a good match could
not be found in either Contacts
or POIs.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

60 NAVIGATION

Autocomplete

The autocomplete is preloaded with
all recent destinations and POI
category names. Previous POI name
searches are remembered.

If only one type of result is found, the
single type result display is shown.
Within each group, they are listed in
confidence order. This means the
highest confidence result will be at
the top.

If multiple types of matches are
found, the result list with the highest
confidence match displays.

Address and Contact matches are
shown in full width list format. The
match results will display unique
icons for full addresses, streets,
intersections, cities, states/provinces,
and countries.

POIs show in a split list format with
the map on the right displaying the
locations of the matches. The brand
icon or category icon will display for
the match results.

When a list displays, the results for a
particular type can be filtered by
touching the filters along the top of

the display. If there are no particular
results for a selected type, a message
is indicated in the list.

For example:

.

For no addresses: “No Addresses
Found Within <state/region>”

.

For no POIs: “No POIs Found
Within <75 km/50 mi/ 800 km/
500 mi>.” This distance is shown
depending on what radius is
completed and what current units
are selected.

.

For no contacts: “No Contacts
Found.”

The system performs partial searches
on contacts, so typing a first name or
last name would find a match. The
entire contact name does not need to
be entered for it to be found in a
search.

Touching a contact listed on the
results list displays the standard
contact details view to touch an item,
such as an address to start routing,
or a phone number to place a call.

Address

.

A destination can be searched by
typing the address, intersection,
highway, or freeway entrance
ramps on the keyboard. This
information is typed and displayed
in the information field. Touch the
search icon to start the search.

For example:

City: Crawford

Street: Main Rd

House #: 12334

.

State/province information does
not have to be included in the
search field if entering an address
that is located in the same state/
province.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

NAVIGATION 61

.

Whenever the keyboard view is
entered, the last text that was
typed, even if it was not searched
on, will display.

.

A partial or complete address can
be typed in the search field. If a
partial address is typed, the
system attempts to use local
knowledge to fill in additional
information. For example, if no
city name or state/province are
given, the system assumes a
search for something in the
current city or a nearby city in the
current state/province. The system
is also capable of recognizing
address formats according to other
regions.

If a destination address or location
being entered is outside of the
country, the country abbreviation
must be added after the address.

Spelling Mistakes

The system is able to offer alternatives
if the searched term is not found
exactly. The system uses the closest
term it finds and provides those
results.

The system first searches the entered
term exactly. If no matches are found,
partial words are used.

Search in Process

Touch Search and the results display
with the activity indicator. There is a
non-selectable List item in the list
that says “Searching” to indicate that
it is in process.

Once the results are found, the correct
list will display.

No Results Found

If no results are found from an
entered search term, a pop-up displays
indicating there are no results found.
Touch OK to return to the
keyboard view.

Results Display

If only a single match is found at the
end of a search, the list is not shown
but the Destination Details view is
shown. Touch Back from the
Destination Details view to go back to
the results list display. If it was a POI
search, the Continue POI Search
option is available in case that was
not the desired POI.

Places of Interest (POI)

While at the Home Page, touch Nav
on the Home Page to display a view of
the map. Touch Destination on the
infotainment display to go to the
destination entry views.

1. Touch the POIs feature to display
a list of POI categories.

The first list item in every POI
list is a search function. For the
highest level of categories, touch
Spell Name or touch a categor y
and search within that selection.

2. Touch a POI category to display
subcategories.

3. If a selected subcategory has no
results in the surrounding area,
the search is expanded until a
result is found.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

62 NAVIGATION

4. If a high-level category is
selected, such as restaurants, the
map zooms in to the region near
the vehicle’s position to show the
nearest matches. When a list
appears, it can be filtered for a
particular type by touching the
filter along the top of the display.
If there are no particular results
for a selected filter type, it is
indicated in the list.

5. Pan or zoom the map using the
finger gestures to minimize the
POI list and to interact with the
map. The icons that were shown
before continue to be displayed
and updated. The list is also
updated based on where the map
was panned or zoomed. The
search for POIs is constrained to
where the map has been
moved to.

6. If the search map is touched to
re-center, the crosshairs are
shown to indicate the center of
the new search location. If a POI
icon is touched while in the full
expanded map, a callout for that

location displays. Touch the
callout to display the Destination
Details view.

7. Touch the map Reset to return
the map to automatic zooming
and searching. It is re-centered
around the vehicle’s position, the
route, the destination, or another
location that was specified for
the search. The map Reset icon
is only displayed if the map was
manually adjusted.

If multiple types of matches are
found, the All list is shown with the
results sorted by confidence order
with the highest confidence result at
the top.

Using the Keyboard

The POI can be searched by entering a
POI name, category, name and
category, or phone number on the
keyboard.

For example, enter the information as:

POI Name: Worldwide Food

POI Category: Restaurants

POI Name and Category: Worldwide

Food Restaurants

POI Phone Number: 0001222555

Additionally, a location may be
entered if the POI is not nearby. This
search will then be made around the
location that is given.

For example, enter the information as:

POI Name and Location: Worldwide
Food Chicago IL

The POI keyboard search results will
display in the order in which they
were found.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

NAVIGATION 63

POI Search Location

If browsing for POIs or searching for
results on a keyboard in a different
location than what was searched
previously, touch Search Options on
the map view to specify a different
location.

Touch an option displayed on the
Select Search Area menu.

.

POIs Along Route

.

POIs Nearby

.

POIs Near Destination

.

POIs at Another Location

Favorite POIs

Locations, categories, or a particular
POI chain ID can be saved as Favorites
in the POIs view.

k up to display the Favorites

Drag
locations.

Touch and hold a preset, then touch
the category to be saved. Whenever a
set of POIs is grouped, such as in a
category, the whole category is saved
in the favorites for recall. Whenever a
set of POIs that belong to the same
chain ID is saved in the favorites, a
POI chain saving pop-up message
displays asking to save only that
location, or to save the entire chain.
POIs are only grouped by chain when
the sorting order is Alphabetical.
Touch Sort to change the sorting
order.

Recalling a POI Category or Chain

If a POI category or chain favorite is
recalled, the system displays a list of
matching results defaulting to nearby,
but allows a search of other locations.
Touch Search Options to specify a
different location.

Creating and Downloading
Predefined POIs (My POIs)

In addition to the POIs already stored
in the Infotainment system,
predefined POIs can be created.

While creating a predefined POI, the
GPS coordinates for longitude and
latitude of the POI’s location and a
descriptive name will need to be
entered.

After creating the predefined POIs,
they can be downloaded to the
infotainment system from a USB
device.

Once downloaded, the POI data
becomes a selectable destination in
the My POIs menu.

Creating a Text File with
Information

Create a text file by using a simple
text editor software. Save this file with
a name and extension of .csv, for
example, “TomsPOI.csv.”

Enter the POI information into the
text file in the following format:

.

Longitude coordinate, Latitude
coordinate, “Name of POI,”
“Additional information,” “Phone
number.”

Example: 7.0350000, 50.6318040,
“Michaels Home,” “123 Maple
Lane,” “02379234567.”

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

64 NAVIGATION

.

The GPS coordinates must be
expressed in decimal degrees and
can be taken from a geographical
map. The additional information
and phone number strings are
optional.

.

The POI name and the additional
information string may not exceed
60 characters.

.

POI information for each
destination address must be
entered in a single separate line.

Storing the POI on a USB Device

In the root directory of a USB device,
create a folder name “myPOIs.” For
example, “F:\” is the root directory of
the USB device.

In the “myPOIs” folder, store the text
file with your POIs, for example, “F:
\myPOIs\TomsPOIs.csv.”

Downloading the POI to the
Infotainment System

Connect the USB device containing
the POI information to the USB port
of the infotainment system.
A message displays prompting
whether or not to download the POI

information from the USB device. All
POIs found are saved even if they are
in multiple folders.

Subfolders can also be created to
organize the POIs into categories, for
example, “F:\myPOIs\Restaurants
\TomsPOIs.csv.”

If the message is dismissed or ignored,
no POI information is downloaded.
This prompt will not reoccur for the
current ignition cycle.

When the system is finished
downloading, a pop-up displays asking
to specify a category for the new POIs,
if desired.

Importing and Overwriting
Categories

When POIs are found on a media
device, the date of the file is examined
and compared to the date for the files
already in the system. If the file being
downloaded is newer than the one on
the system, that particular category of
POIs is overwritten. Any other POIs
that had previously been saved in
other categories are not affected.

Address Book Download

If an Address Book is found on the
connected USB device, the same alert
is used to indicate that locations have
been found and they can be
downloaded. If there is already
content in the vehicle Contacts List,
the system prompts if the stored
content should be overwritten. Touch
Save to overwrite the existing
Contacts information. Touch Cancel to
abort the import of information.

Browsing Downloaded POIs

Access the downloaded POIs by
selecting My POIs under Personal
Data from the Menu list.

Editing My POIs

Downloaded POIs can be edited at a
category level. These POIs can either
be deleted as an entire category or
reassigned as another category. To
edit the categories:

.

Touch Edit at the main category
view to edit the POIs. Edit display
next to each category name. There
is no POI browsing in this mode;
only edit functions are available.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

NAVIGATION 65

.

Once an action such as deleting or
reassigning has been selected, the
changes are saved immediately.

Changing POI Categories

POI categories can be assigned to a
different category by using the same
method as assigning a category for a
Contact entry. When editing, the right
side of the infotainment display
indicates the current category name.

Deleting POI Categories

POI categories can be deleted by
touching Edit and then Delete.
A pop-up displays to confirm the
deletion.

Saved Destinations

Touch a saved destination from the
Contacts or Recent display.

Contacts

Touch Contacts to view the vehicle’s
contact list or a connected Bluetooth
device. If a particular contact has a
single address associated with it, that
contact has a Quick Route list option
next to it. Contacts without this Quick
Route option either have multiple

addresses or no address at all. Touch
the Quick Route option to go to the
Destination Details view.

Touch an address, either from the
Quick Route on the contact list or a
specific address from the contact
detail list, to go to the destination
view showing that address on
the map.

Trips from Contacts can be saved and
recalled. The order is based on when
the trip was last used. When the trips
are saved, they are given a default title
of the final destination name. If there
are no saved trips, this list item is
hidden.

Favorite Destinations

.

Destinations can be saved as
Favorites for recall later.
Depending on the favorite, when
an address or POI favorite is
recalled, the Destination Details
view is shown.

.

When a favorite address is being
routed, it is shown active. Touch
the active favorite to suspend that
route.

.

Save locations as Favorites for
recall later in the Destination
Details view.

.

Save trips from the Contacts List.

Storing Favorites from the Contact
Details List

A contact name or any of the
contact’s information such as phone
number, email address, or address
from Contact Details can be stored as
a Favorite.

.

Drag

k up to display the Favorites.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

66 NAVIGATION

.

Touch and hold a preset while
viewing a contact on the Contact
Details List. The contact name and
all contact information can be
stored.

.

Touch to save as a favorite. The
favorite label will be the name of
the contact.

.

Touch the Favorite to display the
destination view.

Storing Favorites from Map

Favorite locations can be stored from
the map view.

If not under route guidance, the
current vehicle location will be saved
as a Favorite. If under route guidance,
the final destination will be stored.

k up to display the Favorites.

Drag
Touch and hold a preset from the map
view to store it.

Route Guidance

.

Touch Go to go to the main
navigation view and to start route
guidance.

.

If the system has an active route,
a pop-up will display, “What would
you like to do with this
destination?” The options are: Add
As Waypoint, Set New Destination,
or Cancel.

.

If a waypoint is added, it is placed
in the location that leads to the
most efficient route.

.

There is a maximum number of
waypoints that can be added to
the system. When the maximum
number of waypoints has been
reached, a pop-up displays
indicating that a waypoint must
first be deleted before a new one
can be added. The system will
hold this waypoint into a Pending
Waypoints list and it will
automatically be added to the
route once a position is available,
either by arriving at a waypoint,
or by deleting one.

.

To save a location, drag
display the Favorites. Touch and
hold a preset to store the shown
location as a Favorite.

Estimated Time of Arrival (ETA)
and Distance

.

When under route guidance, the
system shows the ETA or travel
time, or the driving distance.

.

The ETA and travel time are
calculated using any available
traffic information.

k up to

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

.

If in a waypoint trip, the ETA,
travel time, and driving distance
are all shown relative to the final
destination.

.

The final ETA is shown taking into
consideration any time zone
crossings that the route has
traveled through.

.

Touch the ETA information area
to switch between the estimated
arrival time, total driving time
resulting, and driving distance.

Current Street Name

The current street name that the
vehicle is driving on appears near the
bottom center of the display.

When driving off-road or on an
unknown road, “Off Road Location”
displays.

City Lane Guidance

When a maneuver is approached that
has city lane guidance information, it
replaces the normal maneuver
indicator.

The arrows will expand toward the
center of the display so that the
maneuvers can be identified in an
easier way.

NAVIGATION 67

Highway Lane Guidance

The junction view image displays on
the right edge of the display and
temporarily covers the Distance
information. The current vehicle
position and street name is moved left
and centered in the available map
display when this is displayed.

Off-Road Mode

When the vehicle is off-road, the
system displays the off-road arrow in
the turn indicator and displays “Off
Road Location” in the street name
field.

Destination Arrival

The route review information displays
in the turn indicator location and the
destination address displays in the
street name field.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

68 NAVIGATION

Audio Information

The audio information remains in the
same position in the lower right
corner of the display.

The current street name information
remains in the same location, but will
truncate if needed.

Turn List

Touch the next turn indicator shown
on the map to display the turn list or
waypoint list. The interaction selector

is minimized automatically. Drag
to display the following options:

Destination

Touch Destination on the
infotainment display to add a
waypoint or change the destination
while viewing the turn list. When
Destination is touched, the display
shows the Destination displays.

End Guidance

Touch End to suspend the current
route in the turn list. When End is
touched, the turn list is exited and the
display returns to the main map view.

k up

Avoid Areas

Touch Avoid Areas to select the
highway name that is to be avoided.
The system shows a pop-up asking
how many miles or if the entire road
should be avoided.

Turn List

.

When under a waypoint trip,
touch Turn List on the
infotainment display to show the
turn list. When entering a turn
list, the next maneuver instruction
is spoken.

.

The turn list title is the name or
address of the destination. Touch
the information icon next to the
name of the destination to display
the destination information.

.

The turn list is sorted in order
with the next maneuver at the top
of the list and the subsequent
maneuvers listed below it. The
next maneuver is always
highlighted upon entry into the
Turn List to quickly show what
the next maneuver is.

.

Each maneuver indicates the
distance between it and the
previous maneuver or the vehicle’s
current location. The next
maneuver at the top will count
down until the maneuver is
reached, and then the next
maneuver will begin to
count down.

.

Each maneuver has an estimated
time of arrival based on the
current driving conditions.

Saved Trips

Waypoint trips can be saved for later
recall. Touch Add in the waypoints list
to save the trip to the Saved Trips list
in the vehicle’s contacts list. When
trips are saved, they are given a
default title of the final destination.
Saved trips can be edited by touching
Edit to access the edit display for the

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

NAVIGATION 69

saved entry. The only field that can be
edited is the name field. Touch the
name field to access the keyboard
view. Type the name change. This
change is automatically saved when
executed by the keyboard.

The saved trip can also be deleted
from the edit mode. Touch Delete and
a delete confirmation pop-up will
display.

Waypoints

.

When under a waypoint trip,
touch the next turn indicator to
bring up the waypoint list. The
last waypoint view is shown,
which could be Waypoints, Turn
List, or Edit.

.

The waypoint list is sorted in
order with the next waypoint at
the top of the list. Each waypoint
is indicated with a numbered icon,
starting with the next waypoint.

.

To indicate what segment of the
route is for the next waypoint, and
what is for the remainder of the
route, they appear in different
colors.

Optimized Route

.

Touch Optimize to optimize the
current waypoint trip.

.

The optimization is done
according to how the preferences
are set for new routes; for
example, fastest route, shortest
distance, or eco friendly.

.

While the system is optimizing the
route, the waypoint trip has the
activity indicator displayed over
top of it. If the system is
calculating the ETA and travel
distance for a waypoint, the
activity indicator is displayed in
the list header.

.

When either a waypoint trip is
first created, or additional
waypoints are added to an existing
waypoint trip, they are added in
the location that would lead to an
optimized route.

.

If a destination is already planned
and a waypoint is added, it is
either added before or after the
current destination, whichever
leads to the most optimal route.

.

If under an existing waypoint trip
consisting of two or more
destinations, any additional
waypoints are added in the
location that would lead to the
most optimal route.

Edit Route

.

Touch Edit to modify the order or
remove a waypoint from the route.
Touch Delete to remove a
waypoint from the route.

.

A pop-up displays asking for
confirmation of the waypoint
deletion.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

70 NAVIGATION

SiriusXM Travel Link Weather

If equipped, SiriusXM Travel Link
Weather is available on the navigation
system through a service fee
subscription.

From the Home Page, touch Weather.
The system displays a weather page
with a default view of the hourly
forecast. The other available views are
tabs near the bottom of the display.

These weather option displays are:

1. Hourly: The Hourly Forecast view
shows the current day’s forecast
split into 3-hour increments.

2. 5-day: The 5-day view shows the
current day’s forecast as well as
the next four days.

3. On Route: The On Route view
shows the forecasted weather for
the route. This feature is only
available while under route
guidance.

4. Location: The Location view is
where the city can be selected to
receive and display weather data.

5. Map: The map view shows three
levels of zoom on the left side of
the map. These zoom views are
Near, Mid, and Far. Touch any
one to change the zoom level.

6. Menu: Touch to display the
current advisories, turn weather
alerts on or off, and view the
map legend.

Allow approximately 15 minutes for
the current weather in the area to
display.

Weather Screen Not Under
Guidance

The weather application uses the
navigation system to provide the
appropriate information for the
guidance route. When not under
guidance, it defaults to the current
location.

City and State/Province : The city
and state/province are displayed for
the view currently shown. The default
is the current city and state that the
vehicle is in.

Forecast Information

.

The map can be panned to
another location. The forecast
information is updated to the new
location.

.

The city and state/province update
to reflect the current location.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

NAVIGATION 71

Location

Under the Location view select one of
these options to display the desired
location.

.

Search

Touch Search to access the
keyboard. The city or zip code can
be typed in. If there is a single
match, the map view returns to
the last known view before
clicking on the location tab.
If there are multiple matches,
there is a list with the possible
choices. Touch one to return to
the last known view.

.

Recent

Recent locations are a standard
list. The Recent Locations are
chronologically ordered.

.

Nearby

Nearby locations are a standard
list. The Nearby Locations are
based on how many kilometers or
miles away.

Map

The Map view shows three levels of
zoom on the left side of the map.
There is also a play icon to start the
weather map moving. For the moving
map, the other interaction elements
will fade away except for the time and
a pause icon. Touch anywhere on the
display to return the view to pause.
There is a reset icon in the lower left
corner of the map. Touch Reset to
reset back to the current vehicle
position.

Weather Menu

Touch Menu on the Weather
infotainment display near the bottom
of the map display to show the
Weather Menu.

The options are:

.

Weather Advisories: Any weather
advisories that are in effect for the
local area or while on route are
displayed in a list. Touch an
advisory from the list to display
additional details about the
advisory and shows the advisory
location on the map.

.

Configure Weather Alerts: Touch
to access the Weather Alerts
menu. Touch the Weather Alerts
line item to turn the alerts On or
Off. Touch to select any one of the

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

72 NAVIGATION

.

other line items such as High
Alert, Low Alert, Informational
Alert to filter the selected alerts
for display, while the others will be
suppressed.

.

Map Legend: Touch to display the
Map Legend.

Interaction Selector

The interaction selector near the
bottom of the screen can be used to
switch between different views within
the weather screen.

These options are:

.

HOURLY: Touch to display the
hourly forecast for the current
vehicle location. A forecast icon is
shown for each period available.

.

5 DAY: Touch to display the
current weather, six-hour forecast,
and tomorrow’s weather.
A forecast icon is shown for each
period available.

.

ON ROUTE: Touch to display the
weather of the route being taken.

.

LOCATION: Touch to select a city
to receive and display
weather data.

MAP: Touch to display a map view
of the current weather around the
area of the vehicle’s position.

.

MENU: Touch to display the
current advisories, turn weather
alerts on or off, and view the map
legend.

The map legend explains each type of
color or symbol on the map.

SiriusXM NavTraffic

If equipped, the infotainment system
may have SiriusXM NavTraffic. It is a
subscription service provided through
SiriusXM Satellite Radio. A service fee
is required to receive the SiriusXM
NavTraffic service.

Detailed traffic information is
delivered to the vehicle’s navigation
system by the SiriusXM Radio
satellites. SiriusXM NavTraffic
provides continuously updated traffic
information.

The service may be available in more
cities in the future. See
www.siriusxm.com/navtraffic/
marketcoverage for details on local
coverage.

To access the traffic features, touch
Traffic on the Map menu.

If traffic is not available because there
is no valid SiriusXM subscription, a
pop-up displays information on how
to reactivate the subscription and
SiriusXM radio ID.

Traffic Alert While Under Guidance

If data is received about a traffic
development on the route ahead, a
search for a better route is performed.
If a better route is found, information
may be displayed in an alert. This
alert displays the route information
and how much time may be saved.
If the alternative route is accepted, the
current route will be altered.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

NAVIGATION 73

If the alert is not acknowledged, the
alert automatically times out and does
not modify the route.

The detail view of the incident shows
any data about the incident as well as
how much time could be saved by
avoiding it. The map view shows the
incident, the original route, and the
suggested route. If voice prompts are
enabled, the incident information is
spoken. Touch Take New Route to
change to the new route.

Traffic Alert While Not Under
Guidance

ahead. The incident can be viewed on
the map. Touch Dismiss to return to
the previous map.

SiriusXM Travel Link Movie
Listings

A movie theater POI can be searched
through a POI search or browsed
through the POI category structure.
When SiriusXM Travel Link Movie
Listings information is available for
the selected theater, this detailed
information is shown in the additional
details area of the display.

The details shown depend on the
source of the information. Details
include:

.

Movie Names

.

Parental Ratings (G, PG-13, R, etc.)

.

Showtimes

.

Runtime

SiriusXM Travel Link Fuel Pricing

While driving and not under guidance,
the system can receive data indicating
an accident or slow traffic flow. The
information about the incident or
slow traffic is displayed as an alert
when the incident is 5 km (3 mi)

When SiriusXM Travel Link Fuel
Pricing information is available for a
particular fuel station, the price

displays for the regular unleaded or
diesel fuel, depending on the fuel type
configured in the system.

This fuel station POI can either be
searched for through a POI search or
browsed through the POI category
structure.

.

Touch Sort to change the sort
method. The default sort method
is based on distance with the
closest fuel stations shown at the
top of the list.

.

Touch Sort to cycle through the
sorting options of distance, price,
or name. The last viewed sorting
method is displayed and is
retained over ignition cycles.

If the sorting method of price has
been selected, the fuel stations in the
list will appear from the lowest to the
highest price based on the fuel type
selected. For gasoline, the price shown
is for regular unleaded. When diesel is
selected as the fuel type, the diesel
price is shown.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

74 NAVIGATION

OnStar®System

With an OnStar subscription to the
Guidance Plan, an OnStar Advisor can
download a destination to the vehicle
or into the built-in navigation system.
If an OnStar Turn-by-Turn route is in
progress, all other internal navigation
functions are disabled until the route
is completed.

When navigation is selected, the
OnStar Turn-by-Turn menu displays.

Turn-by-Turn Navigation

Touch Menu to go to the
Turn-by-Turn Menu.

The following options display:

.

Plan Route (if the vehicle is off the
route)

.

Cancel

Plan Route

Touch My Destination to display a
special version of the Maneuver View.
The Destination Address is displayed
in the Street Name and the total
distance to the destination is

displayed in the Distance to Maneuver
View. Touch DONE to return to the
Maneuver View.

Cancel a Route

If a route is in progress using either
the vehicle navigation system or the
OnStar Turn-by-Turn route, and a new
route is requested, the current route
in progress will be canceled.

An OnStar Advisor can cancel the
vehicle navigation system route. Route
guidance can be resumed by touching
Resume To in the Map menu.

Settings

Touch Settings on the Home Page to
adjust features and preferences, such
as Time and Date, Driving Mode,
Language, Valet Mode, or Radio. For
setting options, see Settings 0 92.

A few of the setting options change
the way the navigation system
displays or reacts while in use.

1. Touch Settings on the
Home Page.

2. Touch the scroll bar until the
desired option displays. Touch
the desired settings to change.

Driving Mode

If equipped, touch the Driving Mode
Home Page icon to access the Driving
Mode visualization display. From the
visualization display, Driving Mode
shows the current driving
configuration. See “Driving Mode” in
the owner’s manual.

Voice

Voice recognition allows for
hands-free operation within the
navigation, audio, phone, and weather
applications. See Voice Recognition
0 78.

Touch the voice icon to display the
Voice menu.

Confidence Threshold : Touch to
change the sensitivity of the voice
recognition system.

Prompt Length : Touch to change the
prompt length to Short or Long.

Audio Feedback Speed : Touch to
change the audio feedback speed to
Slow, Medium, or Fast.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

NAVIGATION 75

Display

Touch to access display options:

Proximity Sensing : Touch to turn
the sensing on and off, or to turn
sensing on for Map Only.

.

Touch the Calibrate Touchscreen
setting to adjust the calibration of
the infotainment display.

.

Touch Turn Display Off to turn
the display option off.

Calibrate Touchscreen : Touch to
show the calibration display.

Turn Display Off : Touch to turn the
Display option off.

Rear Camera

Touch to access the rear camera
options:

.

Guidance Lines – Touch to turn
the guidance lines option On
or Off.

.

Rear Park Assist Symbols – Touch
to turn the rear park assist
symbols option On or Off.

See the owner’s manual.

Low Fuel Alert

If the vehicle reaches a low fuel level,
the system displays an alert about the
low fuel condition. Touch More Info
to view nearby gas stations and start
guidance, if desired.

If the remaining driving distance is
available from the system, this is
included in the alert.

Global Positioning System (GPS)

The position of the vehicle is
determined by using satellite signals,
various vehicle signals, and map data.

At times, other interference such as
the satellite condition, road
configuration, condition of the vehicle,

and/or other circumstances can affect
the navigation system's ability to
determine the accurate position of the
vehicle.

The GPS shows the current position of
the vehicle using signals sent by GPS
satellites. When the vehicle is not
receiving signals from the satellites, a
symbol appears on the map screen.
See Navigation Symbols 0 56.

This system might not be available or
interference can occur if any of the
following are true:

.

Signals are obstructed by tall
buildings, trees, large trucks, or a
tunnel.

.

Satellites are being repaired or
improved.

For more information if the GPS is not
functioning properly, see Problems

with Route Guidance 0 76 and If the
System Needs Service 0 77.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

76 NAVIGATION

.

Vehicle Positioning

At times, the position of the vehicle
on the map could be inaccurate due to
one or more of the following reasons:

.

The road system has changed.

.

The vehicle is driving on slippery
road surfaces such as sand, gravel,
or snow.

.

The vehicle is traveling on winding
roads or long, straight roads.

.

The vehicle is approaching a tall
building or a large vehicle.

.

The surface streets run parallel to
a freeway.

.

The vehicle has been transferred
by a vehicle carrier or a ferry.

.

The current position calibration is
set incorrectly.

.

The vehicle is traveling at high
speed.

.

The vehicle changes directions
more than once, or the vehicle is
turning on a turn table in a
parking lot.

The vehicle is entering and/or
exiting a parking lot, garage, or a
lot with a roof.

.

The GPS signal is not received.

.

A roof carrier is installed on the
vehicle.

.

Tire chains have been installed.

.

The tires are replaced or worn.

.

The tire pressure for the tires is
incorrect.

.

This is the first navigation use
after the map data is updated.

.

The 12-volt battery has been
disconnected for several days.

.

The vehicle is driving in heavy
traffic where driving is at low
speeds, and the vehicle is stopped
and started repeatedly.

Problems with Route Guidance

Inappropriate route guidance can
occur under one or more of the
following conditions:

.

The turn was not made on the
road indicated.

.

Route guidance might not be
available when using automatic
rerouting for the next right or
left turn.

.

The route might not be changed
when using automatic rerouting.

.

There is no route guidance when
turning at an intersection.

.

Plural names of places might be
announced occasionally.

.

It could take a long time to
operate automatic rerouting
during high-speed driving.

.

Automatic rerouting might display
a route returning to the set
waypoint if heading for a
destination without passing
through a set waypoint.

.

The route prohibits the entry of a
vehicle due to a regulation by time
or season or any other regulation
which may be given.

.

Some routes might not be
searched.

.

The route to the destination might
not be shown if there are new
roads, if roads have recently

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

NAVIGATION 77

changed, or if certain roads are
not listed in the map data. See
Maps 0 56.

To recalibrate the vehicle's position on
the map, park with the vehicle
running for two to five minutes, until
the vehicle position updates. Make
sure the vehicle is parked in a location
that is safe and has a clear view of the
sky and away from large obstructions.

If the System Needs Service

If the navigation system needs service
and the steps listed here have been
followed but there are still problems,
see Problems with Route Guidance 0 76.

Map Data Updates

The map data in the vehicle is the
most up-to-date information available
when the vehicle was produced. The
map data is updated periodically,
provided that the map information
has changed.

For questions about the operation of
the navigation system or the update
process, contact the GM Nav Disc

Center toll-free phone number,
1-877-NAV-DISC (1-877-628-3472) or
go to the center’s website,
www.gmnavdisc.com. If updates are
needed, call the GM Nav Disc Center
or order online.

To order, have the vehicle’s Vehicle
Identification Number (VIN) available
to ensure the correct and most
up-to-date map data for the vehicle is
sent. See “Vehicle Identification
Number (VIN)” in the owner’s manual.

Database Coverage Explanations

Coverage areas vary with respect to
the level of map detail available for
any given area. Some areas feature
greater levels of detail than others.
If this happens, it does not mean
there is a problem with the system. As
the map data is updated, more detail
can become available for areas that
previously had limited detail. See Map
Data Updates 0 77.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

78 VOICE RECOGNITION

Voice Recognition

Voice recognition allows for
hands-free operation within the
navigation, audio, phone, and weather
applications. This feature can be

started by pressing
wheel or

display.

However, not all features within these
areas are supported by voice
commands. Generally, only complex
tasks that require multiple manual
interactions to complete are
supported by voice commands.

For example, tasks that take more
than one or a two touches such as
selecting a song or artist to play from
a media device would be supported by
voice commands. Other tasks, like
adjusting the volume or seeking up or
down, are audio features that are
easily performed by pressing one or
two controls, and are not supported
by voice commands.

In general there are flexible ways to
speak commands for completing the
tasks. Most of them, except
destination entry and voice keypad,

g on the infotainment

g on the steering

can be completed in a single
command. If the task takes more than
one command to complete, the first
command should be to indicate the
kind of task to be performed, like
“Navigation Destination Entry.” The
system replies with prompts that lead
you through a dialog to enter the
necessary information. For example,
if a destination for route guidance is
needed, say “Navigation” or
“Destination Entry.”

If your language supports it, tr y
stating a One-Shot command, such as
“Navigate to Address <number, street,
city, state>.” This type of destination
entry command is supported in some
languages. Another example of a
One-Shot Destination Entry command
is, “Navigate to Place Of Interest –
Hotels.” If these commands do not
work, try saying, “Navigate to Place of
Interest” or “Navigate to Address” and
the system will do the rest.

Voice recognition can be used when
the ignition is on or when Retained
Accessory Power (RAP) is active. See
“Retained Accessory Power (RAP)” in
the owner’s manual.

Using Voice Recognition

Voice recognition becomes available
once the system has been initialized.
This begins when the ignition is
turned on. Initialization may take a
few moments.

1. Press

2. The audio system mutes and the

g on the steering wheel

control to activate voice
recognition, or touch

infotainment display.

.

If voice recognition is started
from the steering wheel
control, the instrument
cluster displays the selections
and visual dialog content.

.

If voice recognition is started
from the infotainment
display, the selections and
visual dialog content are
displayed on both the
infotainment display and the
instrument cluster display.

system plays a prompt followed
by a beep.

g on the

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

VOICE RECOGNITION 79

3. Wait until after the beep
completes, then clearly speak
one of the commands described
in this section.

A voice recognition system
prompt can be interrupted while

it is playing by pressing

For example, if the prompt seems
to be taking too long to finish,

press

g again and the beep

should happen right away.

There are two voice prompt modes
supported:

.

Long verbal prompts: The longer
prompts provide more information
regarding the supported actions.

.

Short prompts: The short prompts
provide simple instructions about
what can be stated.

If a command is not spoken, the voice
recognition system says a help
prompt.

Prompts and Infotainment Displays

While a voice recognition session is
active, there will be corresponding
options on screens displayed. Manual

g again.

interaction in the voice recognition
session is permitted. Interaction
during a voice session may be
completed entirely using voice
commands, or some selections may
expedite a session. If a selection is
made using a manual control, the
dialog will progress in the same way
as if the selection was made through a
voice command. Once the system is
able to complete the task, or the
session is terminated, the voice
recognition dialog stops.

An example of this type of manual
intervention is touching an entr y of a
displayed number list instead of
speaking the number associated with
the entry desired.

Canceling Voice Recognition

.

Touch the Home Page.

.

Touch or say “Cancel” or “Exit.”
The display from which voice
recognition was initiated will
appear.

.

Press

i on the steering wheel

controls. The display from which
voice recognition was initiated will
appear.

Most languages do not support
natural language commands in
sentence form. For those languages,
use direct commands like the
examples shown on the display.

Helpful Hints for Speaking
Commands

Voice recognition can understand
commands that are either naturally
stated in sentence form or direct
commands that state the application
and the task.

For best results:

.

Listen for the prompt and wait for
the beep before saying a command
or reply.

.

Say “Help” or look at the
infotainment display for example
commands.

.

A voice recognition system prompt
can be interrupted while it is

playing by pressing

For example, if the prompt seems
to be taking too long to finish, to
speak the command without

g again.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

80 VOICE RECOGNITION

waiting for the prompt to
complete, press

for the beep.

.

Speak the command naturally, not
too fast, not too slow. Use direct
commands without a lot of extra
words.

.

Usually Phone and Audio
commands can be spoken in a
single command.

For example, “Call <name> at
work,” “Play” followed by the artist
or song name, or “Tune” followed
by the radio station number.

.

Navigation destinations are too
complex for a single command.
First, state a command that
explains the type of destination
needed, such as I want directions
to an “Address,” “Navigate to an
intersection,” “I need to find a
Place of Interest or POI,” or
“Directions to a Contact.” The
system responds with requesting
more details. After saying “Place of
Interest,” only major chains are
available by name. Chains are
businesses with at least 20
locations. For other POIs, say the

g again and wait

name of a category like

“Restaurants,” “Shopping Malls,” or
“Hospitals.”

Most languages do not support
natural language commands in
sentence form. For those languages,
use direct commands like the
examples shown on the display.

There is no need to memorize specific
command words. Direct commands
might be more clearly understood by
the system. An example of a direct
command would be “Call <number>.”
Examples of these direct commands
show on most of the displays while a
voice session is active. If “Phone” or
“Phone Commands,” is stated, the
system understands that a phone call
is requested and will respond with
questions until enough details are
gathered.

If the phone number has been saved
with a name and a place, the direct
command should include both, for
example “Call <name> at work.”

Using Voice Recognition for List
Options

When a list is displayed, a voice
prompt will ask to confirm or select
an option from that list. A selection
can be made by manually selecting
the item, or by speaking the line
number for the item to select.

When a screen contains a list, there
may be options that are available but
not displayed. The list on a voice
recognition display functions the same
as a list on other displays. Scrolling or
flinging can be used to help display
other entries from the list.

Manually scrolling or paging the list
on a display during a voice
recognition session suspends the
current voice recognition event and
plays the prompt “Make your selection
from the list using the manual
controls, touch the Back icon on the
infotainment display to try again.”

If manual selection takes more than
15 seconds, the session terminates
and prompts that it has timed out.
The display returns back to the
display where voice recognition was
initiated.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

VOICE RECOGNITION 81

The Back Command

Say “Back” or touch the Back icon on
the infotainment display to go to the
previous screen.

If in voice recognition, and “Back” is
stated all the way through to the
initial display, then “Back” is stated
one more time, the voice recognition
session will cancel.

Help

Say “Help” on any voice recognition
display and the help prompt for the
display is played. Additionally, a
pop-up displays a text version of the
help prompt. Depending on how voice
recognition was initiated, the Help
pop-up will either display on the
instrument cluster or the
infotainment display. Touch Dismiss
to make the pop-up go away.

Touching
playing will terminate the prompt and
a beep will be heard. Doing this will
stop the help prompt so that a voice
command can be used.

g while the help prompt is

Voice Recognition for the Radio

All audio screens have a voice
recognition icon (

voice recognition. If the voice icon is
touched in a radio display, the voice
commands for radio and media
features are available.

“Switch to AM” : Switch bands to AM
and tune to the last AM radio station.

“Switch to FM” : Switch bands to FM
and tune to the last FM radio station.

“Switch to SXM” : Switch bands to
SiriusXM and tune to the last
SiriusXM channel.

“Tune to <AM frequency> AM” :

Tune to the radio station whose
frequency is identified in the
command (like “nine fifty”).

“Tune to <FM frequency> FM” : Tune
to the radio station whose frequency
is identified in the command (like
“one oh one point one”).

“Tune to <AM frequency> AM HD” :

Tune to the HD Radio station whose
frequency is identified in the
command.

g) to launch audio

“Tune to <FM frequency> FM HD” :

Tune to the HD Radio station whose
frequency is identified in the
command.

“Tune to <FM frequency> FM HD
<HD channel number>” : Tune to the

HD Radio station whose frequency
and HD channel is identified in the
command.

“Tune to SXM <SXM channel
number>” : Tune to the SiriusXM

radio station whose channel number
is identified in the command.

“Tune to SXM <SXM channel
name>” : Tune to the SiriusXM radio

station whose channel name is
identified in the command.

Voice Recognition for
Navigation

“Navigation” : Begin a dialog to enter
specific destination information.

“Navigation Commands” : Begin a
dialog to enter specific destination
information.

“Destination Address” : Begin a
dialog to enter a specific destination
address, which includes the entire

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

82 VOICE RECOGNITION

address consisting of the house
number, street name, and city and
state.

“Destination Intersection” : Begin a
dialog to enter a specific destination
intersection.

“Destination Place of Interest” :

Begin a dialog to enter a destination
Place of Interest category or major
brand name (if equipped).

Not all brand names of businesses are
available for voice entry. Most major
chains, such as chains with more than
20 locations, should be available to
search for by name, but the name
must be precisely spoken. Nicknames
or short names for the businesses will
not likely be found. Lesser known
businesses might have to be located
by category, such as fast food, hotels,
or banks.

“Destination Contact” : Begin a
dialog to enter a specific destination
contact name.

“Cancel Route” : End route guidance.

Voice Recognition for the Phone

“Call <contact name>” : Initiate a call
to an entered contact. The command
may include location if the contact
has location numbers stored.

“Call At Home <contact name> ,” “At
Work,” “On Mobile,” or “On
Other” : Initiate a call to an entered

contact and location at home, at work,
on mobile device, or on another
phone.

“Call <phone number>” : Initiate a
call to a standard phone number or
local emergency number.

“Pair Phone” : Begin the Bluetooth
pairing process. Follow instructions on
the radio display.

“Redial” : Initiate a call to the last
dialed number.

“Switch Phone” : Select a different
phone for outgoing calls.

“Voice Keypad” : Begin a dialog to
enter special numbers like
international numbers. The numbers
can be entered in groups of digits with
each group of digits being repeated
back by the system. If the group of

digits is not correct, the command
“Delete” will remove the last group of
digits and allow them to be re-entered.
Once the entire number has been
entered, the command “Call” will start
dialing the number.

“Voice Mail” : Initiate a call to voice
mail numbers.

Voice Pass-Thru

If equipped, voice pass-thru/Siri Eyes
Free allows access to the voice
recognition commands on the cell
phone, for example, Siri or Voice
Command. See the cell phone
manufacturer's user guide to see
whether the cell phone supports this
feature. To activate the phone voice

recognition system, press and hold
on the steering wheel for a few
seconds.

This enhances the normal use of Siri.
Siri allows access to text messages,
calendars, and audio sources such as
iTunes.

g

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

Voice Recognition for OnStar

“OnStar” : If equipped, begin OnStar
Voice Recognition.

Voice Recognition for Weather

“Weather” : If equipped, begin a
dialog to enter a weather location.

VOICE RECOGNITION 83

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

84 PHONE

Phone

Bluetooth (Overview)

The Bluetooth-capable system can
interact with many cell phones,
allowing:

.

Placement and receipt of calls in a
hands-free mode.

.

Sharing of the cell phone’s address
book or contact list with the
vehicle.

To minimize driver distraction, before
driving, and with the vehicle parked:

.

Become familiar with the features
of the cell phone. Organize the
phone book and contact lists
clearly and delete duplicate or
rarely used entries. If possible,
program speed dial or other
shortcuts.

.

Review the controls and operation
of the infotainment system.

.

Pair cell phone(s) to the vehicle.
The system may not work with all
cell phones. See “Pairing” in this
section.

Vehicles with a Bluetooth system can
use a Bluetooth-capable cell phone
with a Hands-Free Profile to make and
receive phone calls. The infotainment
system and voice recognition are used
to control the system. The system can
be used while the ignition is on or in
ACC/ACCESSORY. The range of the
Bluetooth system can be up to 9.1 m
(30 ft). Not all phones support all
functions and not all phones work
with the Bluetooth system. See
www.gm.com/bluetooth for more
information about compatible phones.

Controls

Use the options on the infotainment
system and the steering wheel to
operate the Bluetooth system.

Steering Wheel Controls

g : Touch to answer incoming calls

and start voice recognition.

c : Press to end a call, decline a

call, or cancel an operation. Press to
mute or unmute the infotainment
system when not on a call.

Infotainment System Controls

For information about how to navigate
the menu system using the
infotainment controls, see Introduction
0 2.

Phone : Touch this icon to enter the
phone main menu.

Audio System

When using the Bluetooth phone
system, sound comes through the
vehicle's front audio system speakers
and overrides the audio system. Press
just above the chrome volume bar
during a call to change the volume
level. The adjusted volume level
remains in memory for later calls. The
system maintains a minimum volume
level.

Bluetooth (Infotainment Controls)

For information about how to navigate
the menu system using the
infotainment controls, see Introduction
0 2.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

PHONE 85

Pairing

A Bluetooth-enabled cell phone must
be paired to the Bluetooth system and
then connected to the vehicle before it
can be used. See the cell phone
manufacturer's user guide for
Bluetooth functions before pairing the
cell phone.

Pairing Information

.

A Bluetooth phone with music
capability can be paired to the
vehicle as a phone and a music
player at the same time.

.

Up to 10 devices can be paired to
the Bluetooth system.

.

The pairing process is disabled
when the vehicle is moving.

.

Pairing only needs to be
completed once, unless the pairing
information on the cell phone
changes or the cell phone is
deleted from the system.

.

If multiple paired cell phones are
within range of the system, the
system connects to the paired cell
phone in the order that they were
last used in the system. To link to

a different paired phone, see
“Linking to a Different Phone” later
in this section.

Pairing a Phone

1. Touch Phone on the Home Page.

2. Touch Phones and touch Pair
Device.

3. A four-digit Personal
Identification Number (PIN)
appears on the display. The PIN,
if required, may be used in
Step 5.

4. Start the pairing process on the
cell phone to be paired to the
vehicle. See the cell phone
manufacturer's user guide for
information on this process.

5. Locate “Cadillac CUE” on the
display. Follow the instructions
provided in Step 3 on the cell
phone to enter the PIN or
confirm the six-digit code shown
on the display. After the PIN is
successfully entered or the code
is confirmed, the system
responds with “<Device name>

has been successfully paired”
when the pairing process is
complete.

6. If “Cadillac CUE” does not
appear, turn the phone off or
remove the phone battery and
retry.

7. If the phone prompts to accept
connection or allow phone book
download, select Always Accept
and Allow. The phone book may
not be available if not accepted.

8. Repeat Steps 1−7 to pair
additional phones.

Listing All Paired and Connected
Phones

1. Touch Phone on the Home Page.

2. Touch Phones.

Disconnecting a Connected Phone

1. Touch Phone on the Home Page.

2. Touch Phones.

3. Touch

z next to the phone to

disconnect.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

86 PHONE

Deleting a Paired Phone

Only disconnected phones can be
deleted.

1. Touch Phone on the Home Page.

2. Touch Phones.

3. Touch

Linking to a Different Phone

To link to a different phone, the new
phone must be in the vehicle and
paired to the Bluetooth system.

1. Touch Phone on the Home Page.

2. Touch Phones.

3. Touch the new phone to link to

M next to the phone to

delete and follow the on-screen
prompts.

from the not connected
device list.

Switching to Handset or
Handsfree Mode

To switch between handset or
handsfree mode, touch the Phone icon
on the Home Page to display
“Call View.”

.

While the active call is hands-free,
touch Handset to switch to the
handset mode. The option changes
to Handsfree once the Bluetooth
device confirms it is operating as
handset.

.

While the active call is on the
handset, touch Handsfree to
switch to the hands-free mode.
The option changes to Handset
once the Bluetooth device
confirms it is operating as
hands-free.

Making a Call Using Contacts
and Recent Calls

Calls can be made through the
Bluetooth system using personal cell
phone contact information for all
phones that support the Phone Book
feature. Become familiar with the
phone settings and operation. Verify
the cell phone supports this feature.

When supported, the Contacts and
Recent Calls menus are automatically
available.

The Contacts menu accesses the
phone book stored in the cell phone.

The Recent Calls menu accesses the
recent call list(s) from your cell phone.

To make a call using the
Contacts menu:

1. Touch Phone on the Home Page.

2. Touch Contacts.

3. Touch the name to call.

4. Touch the desired contact
number to call.

To make a call using the Recent
Calls menu:

1. Touch Phone on the Home Page.

2. Touch Recent.

3. Touch the name or number
to call.

4. If necessary, select between
Missed, Recent, and Sent calls by
touching View in the top right
corner of the list.

Making a Call Using the Keypad

To make a call by dialing the
numbers:

1. Touch Phone on the Home Page.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

PHONE 87

2. Touch Keypad and enter a phone
number.

3. Touch Call to start dialing the
number.

Accepting or Declining a Call

When an incoming call is received, the
infotainment system mutes and a ring
tone is heard in the vehicle.

Accepting a Call

There are three ways to accept a call:

.

Press

g on the steering wheel

controls.

.

Touch Answer on the
infotainment display.

.

Press Answer on the instrument
cluster using the select control.

Declining a Call

There are three ways to decline a call:

.

.

.

c on the steering wheel

Press
controls.

Touch Ignore on the infotainment
display.

Press Ignore on the instrument
cluster using the select control.

Call Waiting

Call waiting must be supported on the
Bluetooth phone and enabled by the
wireless service carrier to work.

Accepting a Call

There are three ways to accept a
call-waiting call:

.

Press

g on the steering wheel

controls.

.

Touch Switch on the infotainment
display.

.

Press Switch on the instrument
cluster using the select control.

Declining a Call

There are three ways to decline a
call-waiting call:

.

Press

c on the steering wheel

controls.

.

Touch Ignore on the infotainment
display.

.

Press Ignore on the instrument
cluster using the select control.

Switching Between Calls (Call
Waiting Calls Only)

To switch between calls, touch Phone
on the Home Page to display “Call
View.” While in Call View, touch the
call information of the call on hold to
change calls.

Three-Way Calling

Three-way calling must be supported
on the Bluetooth phone and enabled
by the wireless service carrier to work.

To start a three-way call while in a
current call:

1. In the Call View, touch Add to
add another call.

2. Initiate the second call by
selecting from Recent, Contacts,
or Keypad.

3. When the second call is active,
touch the merge icon to
conference the three-way call
together.

4. Once all calls are merged, the
merge option becomes an
unmerge option. Touch to
unmerge the calls.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

88 PHONE

Some wireless service carriers
may not allow a merged call to
become unmerged.

Ending a Call

.

Press

c on the steering wheel

controls.

.

Touch End on the infotainment
display to end all existing calls,
or touch End next to a call to end
only that call.

.

Press End on the instrument
cluster using the select control.

Dual Tone Multi-Frequency
(DTMF) Tones

The in-vehicle Bluetooth system can
send numbers during a call. This is
used when calling a menu-driven
phone system.

1. Touch Phone on the Home Page.

2. While in the Call View, touch
to raise the interaction selector.

3. Select Keypad and enter the
number.

k

Voice Mail

The default voice mail number is the
phone number of the outgoing phone
source. The voice mail number can be
changed in Bluetooth settings.

To dial a voice mail number:

1. Touch Phone on the Home Page.

2. Touch Voice Mail.

3. Touch Call.

4. Enter the DTMF tones using the
keypad if needed.

Bluetooth (Voice Recognition)

Using Bluetooth Voice
Recognition

To use voice recognition, press g on
the steering wheel. Use the commands
below for the various voice features.
For additional information, say “Help”
while in a voice recognition menu. See
Voice Recognition 0 78 for help using
voice recognition commands.

Making a Call

Calls can be made using the following
commands.

Using the “Dial” or “Call” Command

To call a number:

1. Press

2. Say “Dial” or “Call” followed by

Use the “Voice Keypad” command for
international numbers or special
numbers which include * or #.

Once connected, the person called will
be heard through the audio speakers.

To call using a contact from your
phone book:

1. Press

2. Say “Dial” or “Call” and then say

Once connected, the person called will
be heard through the audio speakers.

g. The system responds

“Command Please,” followed by
a tone.

the complete phone number.

g. The system responds

“Command Please,” followed by
a tone.

the contact name. For example,
say “Call <name> Work.”

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

PHONE 89

Calling Local Emergency Numbers

1. Press

2. Say “Call <emergency number>.”

Once connected, the person called will
be heard through the audio speakers.

Using the “Switch Phone” Command

1. Press

2. After the tone, say “Switch

Using the “Voice Keypad” Command

1. Press

2. After the tone, say “Voice

g. The system responds

“Command Please,” followed by
a tone.

g. The system responds

“Command Please,” followed by
a tone.

Phone.” The system displays a
list of phones to select.

g. The system responds

“Command Please,” followed by
a tone.

Keypad.” The system allows entry
of special numbers and
characters.

Using the “Voice Mail” Command

1. Press

2. After the tone, say “Voice mail.”

g. The system responds

“Command Please,” followed by
a tone.

The system dials the voice mail
number of the connected phone.

Clearing the System

Unless information is deleted out of
the vehicle Bluetooth system, it will be
retained. This includes phone pairing
information. For directions on how to
delete this information, see “Deleting
a Paired Phone.”

Text Messaging

If equipped, the infotainment system
may allow text messages to be
received and replied to. Received
messages can also be read aloud.

Before using the text messaging
feature, check to see if the phone is
compatible.

To view compatible phones in USA,
see www.my.cadillac.com.

Text Menu

Inbox : Press to display incoming
messages. To view a message, touch

the name of the sender. Touch
listen to the text message. Touch the
Back icon on the infotainment display
to go back to the previous menu.

Settings : See “Text Settings” later in
this section.

Reply : Touch to reply using a
predefined text message. See “Text
Settings.”

Call : Touch to place a call to the
sender of the text message.

> to

Viewing a Text Message

While viewing a text message:

.

Touch Reply to reply using a
predefined text message.

.

Touch Call to place a call to the
sender of the text message.

Viewing Sender Information

If equipped, touch the name of the
sender to view sender information if
this information matches contact
information already stored.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

90 PHONE

Select a Predefined Message : Touch
to select from a set of quick messages.
Touch the message to send.

Predefined Messages

These are short text messages that
can be used to send so responses will
not have to be typed.

The messages can be deleted or a new
message can be added.

To add a new message:

1. Touch Text Settings, then touch
Manage Predefined Messages.

2. While in the predefined
messages list view, select Add
New Predefined Message and a
keyboard displays.

3. Type a new message and touch
NEW MSG when done to add the

message. Touch
to the predefined messages list.

z to delete one character

Touch
at a time.

Memory Full

This message may display if there is
no more room on the phone to store
messages.

0 to go back

Text Settings

Text Alerts : When on, this feature
will display an alert when a new text
message has been received. Touch to
turn on or off.

Manage Predefined Messages :

Touch to add, change, or delete
predefined messages.

Apple CarPlay and Android Auto

If equipped, Android Auto and/or
Apple CarPlay capability may be
available through a compatible
smartphone. If available, Projection
will appear on the Home Page of the
infotainment display.

To use Android Auto and/or Apple
CarPlay:

1. Download the Android Auto app
to your phone from the Google
Play store. No app is required for
Apple CarPlay.

2. Connect an Android phone or
iPhone by using the compatible
phone USB cable and plugging
into a USB data port. For best

performance, use the device’s
factory-provided USB cable.
Aftermarket or third-party cables
may not work.

3. When the phone is first
connected to activate Apple
CarPlay or Android Auto, the
message “Device Projection
Privacy Consent” will appear.

.

Select Continue to launch
Apple CarPlay or
Android Auto.

.

Select Disable to remove
Apple CarPlay and Android
Auto capability from the
vehicle Settings menu. Other
functions may still work.

Projection on the Home Page will
change to Android Auto or Apple
CarPlay depending on the phone.
Android Auto and/or Apple CarPlay
may automatically launch upon USB
connection. If not, touch the Android
Auto and/or Apple Carplay icon on the
Home Page to launch.

Press Home on the center stack to
return to the Home Page.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

For further information on how to set
up Android Auto and Apple CarPlay in
the vehicle, see my.cadillac.com or see
“Customer Assistance” in the owner’s
manual.

Android Auto is provided by Google
and is subject to Google’s terms and
privacy policy. Apple CarPlay is
provided by Apple and is subject to
Apple’s terms and privacy policy. Data
plan rates apply. For Android Auto
support see https://
support.google.com/androidauto. For
Apple CarPlay support see
www.apple.com/ios/carplay/. Apple or
Google may change or suspend
availability at any time. Android Auto,
Android, Google, Google Play, and
other marks are trademarks of Google
Inc.; Apple CarPlay is a trademark of
Apple Inc.

PHONE 91

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

92 SETTINGS

Settings

The Settings menu allows adjustment
of different vehicle and radio features.
The menu may contain the following:

Time and Date

See “Clock” in the owner’s manual.

Language

This will set the display language in
the radio, instrument cluster, and
voice recognition. Touch Language
and select the appropriate language.
Touch the Back icon on the
infotainment display to go back to the
previous menu.

Valet Mode

If equipped, this will lock the
infotainment system and steering
wheel controls. It may also limit top
speed, power, and access to vehicle
storage locations (if equipped).

To enable Valet Mode:

1. Enter a four-digit code on the
keypad.

2. Touch Enter to go to the
confirmation screen.

3. Re-enter the four-digit code.

Touch LOCK or UNLOCK to lock or
unlock the system. Touch the Back
icon on the infotainment display to go
back to the previous menu.

Driving Mode

If equipped, touch the Driving Mode
Home Page icon to access the Driving
Mode visualization display. From the
visualization display, Driving Mode
shows the current driving
configuration. See “Driving Mode” in
the owner’s manual.

Radio

Touch to display the Radio Menu and
the following may display:

.

Manage Favorites: Touch a
displayed Favorite to touch that
favorite to edit. Touch Rename to
rename the favorite or Delete to
delete it. Touch and hold the
station to drag it to a new
location. Touch Done to go back
to the previous menu.

.

Number of Favorites Shown:
Touch to set the number of
favorites to display. Select Auto, 5,
10, 15, 20, 25, 30, 35, 40, 45, 50,
55, or 60. Auto will automatically
add or hide additional Favorite
pages based on the number of
Favorites stored. Touch the Back
icon on the infotainment display
to go back to the previous menu.

.

Auto Volume (If Equipped): This
feature adjusts the volume based
on the vehicle speed. See AM-FM
Radio 0 16.

.

Bose AudioPilot noise
compensation technology (If
Equipped): This feature adjusts the

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

SETTINGS 93

volume based on the noise in the
vehicle and speed. See AM-FM
Radio 0 16.

.

Maximum Startup Volume: This
feature sets the maximum startup
volume. If the vehicle is started
and the volume is greater than
this level, the volume is adjusted
to this level. To set the maximum
startup volume, touch + or − to
increase or decrease. Touch the
Back icon on the infotainment
display to go back to the
previous menu.

.

Audio Cue Volume (If Equipped):
This feature adjusts the startup
and shutdown sounds. To adjust
the volume, touch + or − to
increase or decrease. This feature
can be turned on or off. Touch the
Back icon on the infotainment
display to go back to the
previous menu.

Vehicle Settings

See “Vehicle Personalization” in the
owner’s manual.

Bluetooth

From the Bluetooth infotainment
display, the following may show:

.

Pair New Device: Touch to add a
new device.

.

Device Management: Touch to
connect to a different phone
source, disconnect a phone,
or delete a phone.

.

Ringtones: Touch to change the
ring tone for the specific phone.
The phone does not need to be
connected to change the ring tone.

.

Voice Mail Numbers: This feature
displays the voice mail number for
all connected phones. The voice
mail number may be changed by
touching Edit, typing the new
number, and touching Save. Touch
the Back icon on the infotainment
display to go back to the
previous menu.

.

Text Message Alerts (If Equipped):
This feature will turn text message
alerts on or off. Touch Text
Message Alerts and then select Off
or On. Touch the Back icon on the

infotainment display to go back to
the previous menu. See Text
Messaging 0 89.

Voice

From the Voice icon, the following
may be displayed:

.

Confidence Threshold: Touch
Confirm More or Confirm Less for
the system to confirm more or less
before acting on a command.

.

Prompt Length: Touch Short or
Long for shorter or longer voice
prompts that are played during
voice recognition sessions. Touch
the Back icon on the infotainment
display to go to the
previous menu.

.

Audio Feedback Speed: Touch
Slow, Medium, or Fast for
feedback speed. Touch the Back
icon on the onfotainment display
to go back to the previous menu.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

94 SETTINGS

Display

From the Display option, the following
may show:

.

Mode: Touch Auto, Day, or Night
to adjust the display. Touch the
Back icon on the infotainment
display to go to the
previous menu.

.

Proximity Sensing: When on,
certain features will become
visible when a hand approaches
the screen. Touch Off, On,
or On-Map Only.

.

Calibrate Touchscreen: Touch to
calibrate the infotainment display
and follow the prompts. Touch the
Back icon on the infotainment
display to go back to the
previous menu.

.

Turn Display Off: Touch to turn
the display off. Touch anywhere
on the display area or any center
stack control again to turn the
display on.

Rear Camera

Touch to display the Rear Camera
menu. See “Driver Assistance Systems”
in the owner’s manual.

Return to Factory Settings

Touching Continue restores all
factory settings.

Select Return to Factory Settings and
the following list may display:

.

Restore Vehicle Settings: Restores
factory vehicle personalization
settings. Touch Restore Vehicle
Settings. Touch Cancel or
Continue. Touch the Back icon on
the infotainment display to go
back to the last menu.

.

Clear All Private Data: If available,
use to erase personal private data
before loaning or selling the
vehicle. Touch Clear All Private
Data. Touch Cancel or Continue.
If Continue is touched, a
confirmation pop-up will appear
indicating all private data has
been cleared from the system.

.

Restore Radio Settings: Restores
factory radio settings. Touch
Restore Radio Settings. Touch
Cancel or Continue.
A confirmation pop-up will appear
indicating the radio settings have
been restored if Continue is
touched. Touch the Back icon on
the infotainment display to go
back to the last menu.

Over-the-Air Software Updates

If equipped, the infotainment system
can download and install select
software updates over a wireless
connection. The system will prompt
for certain updates to be downloaded
and installed. There is also an option
to check for updates manually.

To manually check for updates, touch
Settings on the Home Page, followed
by Software Information, and then
System Update. Follow the on-screen
prompts. Steps for downloading and
installing updates may vary by
vehicle.

Downloading Over-the-Air vehicle
software updates requires Internet
connectivity, which can be accessed
through the vehicle’s built-in OnStar

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

SETTINGS 95

4G connection, if equipped and active.
If required, data plans are provided by
a third party. Optionally, a secure
Wi-Fi hotspot such as a compatible
mobile device hotspot, home hotspot
or public hotspot can be used.
Applicable data rates may apply.

To connect the infotainment system
to a secured mobile device hotspot,
home hotspot, or a public hotspot,
touch Settings on the Home Page,
followed by Wi-Fi, and then Manage
Wi-Fi Networks. Select the appropriate
Wi-Fi network, and follow the
on-screen prompts. Download speeds
may vary.

On most compatible mobile devices,
activation of the Wi-Fi hotspot is in
the Settings menu under Mobile
Network Sharing, Personal Hotspot,
Mobile Hotspot or similar.

Availability of Over-the-Air software
updates varies by vehicle and countr y.
For more information on this feature,
see www.my.cadillac.com/learn.

English and Metric Unit
Conversion

To change the display units between
English and metric units, see
“Instrument Cluster” in the owner’s
manual.

Teen Driver

If equipped, this allows multiple keys
to be registered for beginner drivers to
encourage safe driving habits. When
the vehicle is started with a Teen
Driver key, it will automatically
activate certain safety systems, allow
setting of some features, and limit the
use of others. The Report Card will
record vehicle data about driving
behavior that can be viewed later.
When the vehicle is started with a
registered key, the Driver Information
Center (DIC) displays a message that
Teen Driver is active.

To access:

1. Touch Settings on the Home
Page, then touch Teen Driver.

2. Create a Personal Identification
Number (PIN) by choosing a
four-digit PIN. Re-enter the PIN
to confirm. To change the PIN,
touch Change PIN.

The PIN is required to:

.

Register or unregister keys.

.

Change Teen Driver settings.

.

Change or clear the Teen
Driver PIN.

.

Access or delete Report Card data.

Register keys to activate:

Any vehicle key can be registered, up
to a maximum of eight keys. Label the
key to tell it apart from the
other keys.

For a pushbutton start system:

1. Start the engine.

2. For automatic transmissions, the
vehicle must be in P (Park). For
manual transmissions, the
vehicle must be stopped with the
parking brake set.

3. From the Settings menu, touch
Teen Driver.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

96 SETTINGS

4. Enter the PIN.

5. Place the Remote Keyless Entry
(RKE) transmitter key in the
transmitter pocket. See “Remote
Keyless Entry (RKE) System
Operation” in the owner's manual
for transmitter pocket location.

6. From the Teen Driver Menu,
touch Key Registration.

.

If the transmitter key is in
the transmitter pocket, it will
identify whether the
transmitter key is registered
or unregistered.

.

If the transmitter key is not
registered, the option to
register displays. Touch
Register and a confirmation
message displays.

.

If the transmitter key is
already registered, the option
to unregister displays.
If Unregister is touched, the
transmitter key is no longer
registered and a confirmation
message displays.

In vehicles with a pushbutton start
system, if a Teen Driver transmitter
key and a non-Teen Driver transmitter
key are both present at start up, the
vehicle will recognize the non-Teen
Driver transmitter key to start the
vehicle. The Teen Driver settings will
not be active.

For a keyed ignition system:

1. Start the engine.

2. For automatic transmissions, the
vehicle must be in P (Park). For
manual transmissions, the
vehicle must be stopped with the
parking brake set.

3. From the Settings menu, touch
Teen Driver.

4. Enter the PIN.

5. Touch Key Registration. The
system displays instructions for
registering or unregistering a key.
A confirmation message displays.

Manage Settings

Use the PIN to change the following
settings:

Audio Volume Limit : Allows a
maximum radio volume to be set.
Turn the audio volume limit On or
Off, and if equipped, choose the
maximum level for the audio volume.

Teen Driver Speed Warning : Allows
for setting a visual and audible
warning when a certain speed is
exceeded. The speed warning is
selectable from 64 km/h (40 mph) to
121 km/h (75 mph). The speed
warning does not limit the speed of
the vehicle.

Teen Driver Speed Limiter (If
Equipped) : Allows the maximum

speed of the vehicle to be limited to
137 km/h (85 mph). When the speed
limiter is turned On and the vehicle is
started with a Teen Driver key, the
DIC displays a message that the top
speed is limited to 137 km/h (85 mph).

When Teen Driver is Active:

.

The radio will mute when the
driver seat belt is not fastened,
and in some vehicles, when the

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

right front passenger seat belt is
not fastened. The audio from any
device paired to the vehicle will
also be muted.

.

Certain electronic devices placed
on the front passenger seat could
cause the passenger sensing
system to falsely sense an
unbuckled front passenger and
mute the radio. See “Passenger
Sensing System” in the owner's
manual.

.

Some safety systems, such as
Forward Automatic Braking,
if equipped and supported, cannot
be turned off.

.

The gap setting for the For ward
Collision Alert and Adaptive Cruise
Control, if equipped, cannot be
changed.

.

Enhanced Low Fuel Warning (if
equipped) – When the vehicle is
low on fuel, the low fuel light on
the instrument cluster flashes and
the DIC low fuel warning cannot
be dismissed.

Report Card

The vehicle owner must secure the
driver’s consent to record certain
vehicle data when the vehicle is driven
with a registered Teen Driver key.
There is one Report Card per vehicle.
Data is not recorded when Teen Driver
is not active.

The Report Card data is collected from
the time Teen Driver is activated or
the last time the Report Card was
reset. The following items may be
recorded:

.

Distance Driven – the total
distance driven.

.

Maximum Speed – the maximum
vehicle speed recorded.

.

Overspeed Warnings – the number
of times the speed warning setting
was exceeded.

.

Forward Collision Alerts – the
number of times the driver was
notified when approaching a
vehicle ahead too quickly and at
potential risk for a crash.

SETTINGS 97

.

Forward Collision Avoidance
Braking – Also referred to as
Forward Automatic Braking, this is
the number of times the vehicle
detected that a forward collision
was imminent and applied the
brakes.

.

Stability Control – the number of
events which required the use of
electronic stability control.

.

ABS Active – the number of
Antilock Brake System activations.

.

Tailgating Alerts – the number of
times the driver was alerted for
following the vehicle ahead too
closely.

.

Traction Control – the number of
times the traction control system
activated to reduce wheel spin or
loss of traction.

.

Wide Open Throttle – the number
of times the accelerator pedal is
pressed nearly all the way down.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

98 SETTINGS

Delete Report Card Data

Data is saved for all trips until the
data is deleted using the PIN or until
the maximum count is exceeded. Each
item will report a maximum of
1,000 counts. The distance driven will
report a maximum of 64,374 km
(40,000 mi).

To delete Report Card data, do one of
the following:

.

From the Report Card display,
touch Reset.

.

Touch Clear All Teen Keys/PIN
from the Teen Driver menu. This
will also unregister any Teen
Driver keys and delete the PIN.

Forgotten PIN

See your dealer to reset the PIN.

CT6 Cadillac User Experience (GMNA-Localizing-U.S./Canada-11292518) -
2018 - crc - 3/1/17

TRADEMARKS AND LICENSE AGREEMENTS 99

Trademarks and License Agreements

and iPod touch
Apple Inc., registered in the U.S. and
other countries.

FCC Information

See “Radio Frequency Statement” in
the owner’s manual.

Fees and Taxes: Subscription fee,
taxes, one time activation fee, and
other fees may apply. Subscription fee

is consumer only. All fees and
"Made for iPod," and "Made for
iPhone," mean that an electronic
accessory has been designed to
connect specifically to iPod or iPhone,
respectively, and has been certified by
the developer to meet Apple
performance standards. Apple is not
responsible for the operation of this
device or its compliance with safety
and regulatory standards. Please note
that the use of this accessory with
iPod or iPhone may affect wireless
performance. iPhone

®

, iPod nano®, iPod shuffle®,

classic

®

, iPod®, iPod

programming subject to change.

Subscriptions subject to Customer

Agreement available at www.siriusxm.

SiriusXM

®

service only available in
the 48 contiguous United States and
Canada.

In Canada: Some deterioration of
service may occur in extreme northern
latitudes. This is beyond the control of
SiriusXM

®

Satellite Radio.

Explicit Language Notice: Channels
with frequent explicit language are
indicated with an “XL” preceding the

®

are trademarks of

channel name. Channel blocking is
available for SiriusXM Satellite Radio
receivers by notifying SiriusXM:

.

USA Customers — See
www.siriusxm or call
1-888-601-6296.

.

Canadian Customers — See
www.siriusxm.ca or call
1-877-438-9677.

It is prohibited to copy, decompile,
disassemble, reverse engineer, hack,
manipulate, or otherwise make
available any technology or software
incorporated in receivers compatible
with the SiriusXM

®

Satellite Radio
System or that support the SiriusXM
website, the Online Service or any of
its content. Furthermore, the AMBER
voice compression software included
in this product is protected by
intellectual property rights including
patent rights, copyrights, and trade
secrets of Digital Voice Systems, Inc.

General Requirements:

1. A License Agreement from
SiriusXM

®

is required for any
product that incorporates
SiriusXM Technology and/or for
