Cadex C5100 User Manual

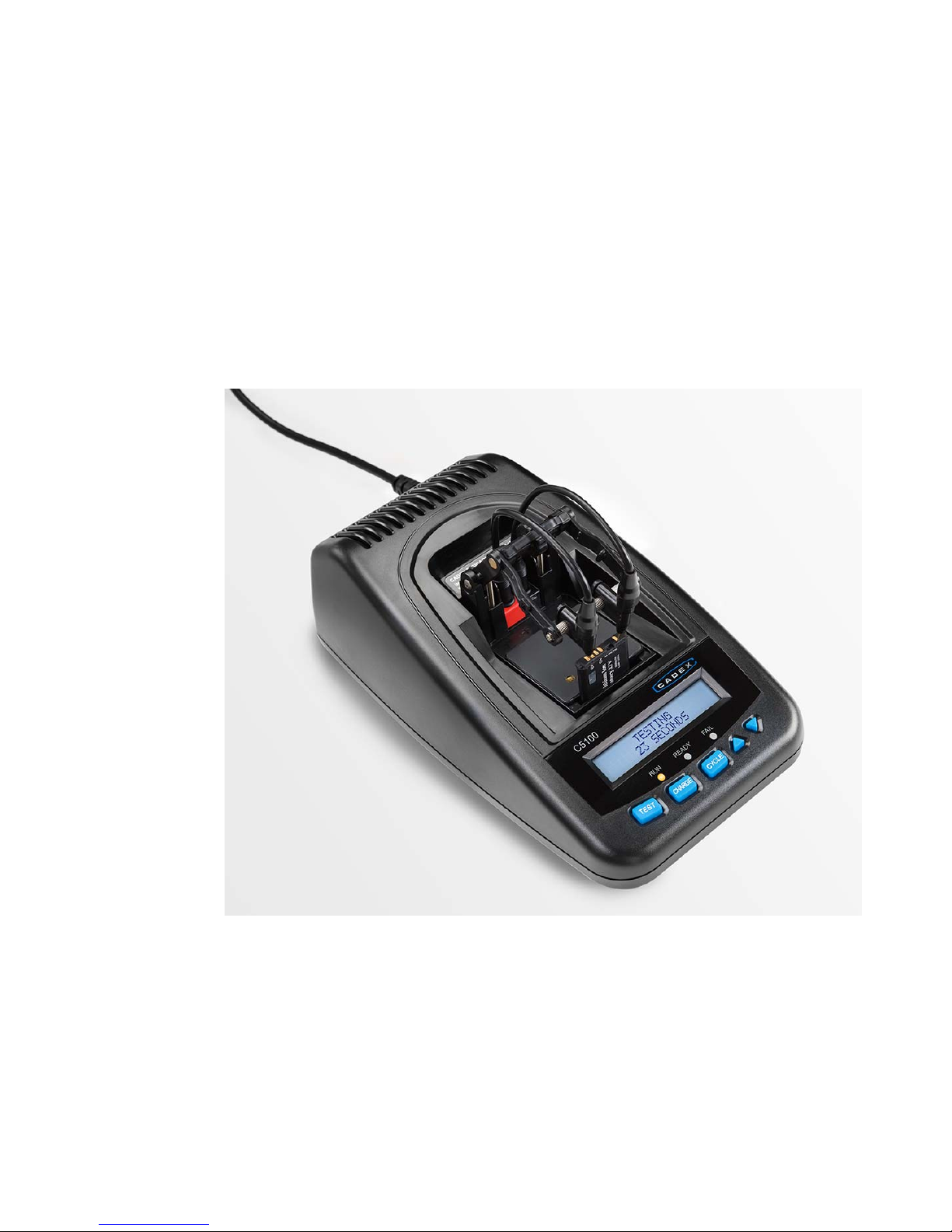

Cadex C5100

Battery Tester

User Guide

Cadex C5100 Battery Tester User Guide

Trademark

The Cadex C5100 Battery Tester™ is a registered trademark of Cadex Electronics Inc.
All other trademarks or registered trademarks mentioned herein are the property of their
respective owners.

Copyright Notice

Copyright © 2013 by Cadex Electronics Inc. All rights reserved. No part of this
publication nor the software and/or firmware controlling Cadex product(s) may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language in any form or by any means without the express
written permission of Cadex Electronics Inc.

Revision Rights

Cadex Electronics Inc. reserves the right to revise this publication and make changes in
the contents thereof without obligation to notify any person of such changes. Please
contact Cadex Electronics Inc. ([e-mail]) for suggestions or corrections.

Disclaimer

While every effort is made to ensure that the information contained in this manual and
Online Help is accurate and up-to-date, Cadex Electronics Inc. does not warrant or
guarantee the accuracy of the contents of this manual and Online Help. Further, Cadex
makes no warranties, either expressed or implied, as to the merchantability or fitness for
a particular purpose of the C5100 Firmware Utility Software or the Cadex C5100 Battery
Tester and/or its documentation.

In no event will Cadex or its officers or employees be responsible for any consequential,
incidental, or indirect damages (including damages for loss or business profits, business
interruption, and the like) arising out of the use or inability to use the Cadex C5100
Firmware Utility Software or the Cadex C5100 Battery Tester and/or its documentation.

Warranty & Service

Cadex Electronics Inc. warrants the Cadex C5100 Battery Tester unit against defective
materials and workmanship for two (2) years. Warranty starts from the original date of
shipment.

The warranty does not cover:

• Damage caused by abusive operation, negligence, accident, or improper
installation.

• Damage caused by an attempted repair not authorized by Cadex.

• Cosmetic damage caused by normal wear and tear.

• Damage from external causes such as leakage spills, power fluctuations, or

failure, inadequate packaging.

• If the product is without the appropriate model number, serial number, or safety
markings.

© 2013 Cadex Electronics Inc 1

Cadex C5100 Battery Tester User Guide

• If the product is used for rental purposes.

• Changes or modifications to the equipment not expressly approved by Cadex

Electronics Inc.

To obtain service, contact [e-mail] or (Canada) 1-604-231-7777, (USA Toll
Free) 800-565-5228, or (Europe) [phone].

To ensure that you have the most up to date information regarding use of its products,
Cadex recommends that you visit www.cadex.com/support/technical for the all revisions
to the User Manual.

Part Number: 89-207-5050
Document Number: PSMAN0070 Rev 5
June 2013

2 © 2013 Cadex Electronics Inc.

Cadex C5100 Battery Tester User Guide

Table of Contents

Section 1: General Precautions and Information ........................................................................4

Safety Notice...........................................................................................................................4

Use of Equipment....................................................................................................................4

Modification of Equipment..................................................................................................... 5

ROHS Compliance.................................................................................................................. 5

Explosion Hazard....................................................................................................................5

Charging and Discharging Lithium-ion (Li-ion) Batteries.....................................................6

Shock Hazard..........................................................................................................................7

Warranty & Service ................................................................................................................7

Radio Interference...................................................................................................................9

Disposal of Waste Electrical and Electronic Equipment (WEEE) in the European Union....9

Section 2: Introduction..............................................................................................................10

The Cadex C5100 Battery Tester Package............................................................................10

Cadex C5100 Battery Tester Features...................................................................................11

Section 3: Battery Testing.........................................................................................................13

Available Programs...............................................................................................................13

Test a Li-ion Battery .............................................................................................................14

Charge a Li-ion Battery.........................................................................................................14

Cycle a Li-ion Battery...........................................................................................................15

Select an Active C-Code....................................................................................................... 15

Possible Fault Messages........................................................................................................17

Section 4: Upgrade the C5100 Firmware.................................................................................. 18

Upgrade the Firmware .......................................................................................................... 18

Section 5: Maintenance and Spare Components.......................................................................23

Clean the Battery Adapter or RigidArm Contacts................................................................23

Clean the Cadex C5100 Battery Tester.................................................................................23

Spare Components ................................................................................................................23

Section 6: Specifications...........................................................................................................24

© 2013 Cadex Electronics Inc 3

Cadex C5100 Battery Tester User Guide

Section 1: General Precautions
and Information

Safety Notice

Use of Equipment

The Cadex C5100 Battery Tester is designed with adequate
safeguards to protect users from shock and other hazards when
used as specified within this document. However, if the
equipment is used in a manner not specified by this
documentation, the protection provided by this equipment may
be impaired. Please read this document and equipment labeling
before using the equipment.

• Read, understand and follow all instructions in this user
guide before using the Cadex C5100 Battery Tester unit.

• Refer to the battery manufacturer MSDS (Material Safety
Data Sheet) for specific handling and safety information.

• Always inspect a battery for physical damage before
testing the battery.

• Install the equipment near a socket-outlet where it is easily
accessible.

4 © 2013 Cadex Electronics Inc.

Cadex C5100 Battery Tester User Guide

Modification of Equipment

CE, FCC, CSA, UL, and other approvals apply only to the Cadex
C5100 Battery Tester in the factory-authorized configuration.
Changes or modification to the equipment not expressly approved
by Cadex will void the approvals.

ROHS Compliance

The C5100 Battery Tester complies with the European Union’s
Directive 2002/95/EC, Restrictions of Hazardous Substances
(RoHS).

Explosion Hazard

Batteries can burst if treated improperly. Follow these
precautions at all times:

 Clean battery contacts before servicing. To clean battery

contacts, use a lint-free cotton swab dipped in 100%
isopropyl alcohol.

 Ensure the battery is making a good connection with the

adapter contacts.

 Ensure that the selected C-code is correct for the chemistry,

voltage, and rating of the battery being serviced.

 Observe battery temperature. Service batteries between

5°C (41°F) and 50°C (122° F). Stop service if battery
becomes very hot. The temperatures cited here are the
battery temperatures, not the ambient temperatures. Fast
charging outside this temperature range may damage or
reduce the life of the battery. Allow cold batteries to warm
up and hot batteries to cool before charging.

x Do not attempt to charge non-rechargeable and primary

batteries such as alkaline, carbon-zinc, or non-rechargeable
lithium batteries.

© 2013 Cadex Electronics Inc 5

x Do not short the positive and negative battery terminals

together at any time.

x Do not exceed the battery manufacturer’s recommended

charge current and voltage limits for batteries.

x Do not remove the adapter from the analyzer while the

battery is running.

Cadex C5100 Battery Tester User Guide

Charging and Discharging Lithium-ion (Li-ion)
Batteries

Lithium-ion (Li-ion) batteries are safe when used as directed.
Battery safety cannot be assured when a battery pack is built with
individual cells of an unknown nature with a series and parallel
connection. Not all Li-ion cells are suited for multi-cell packs.
Only cells that meet tight voltage and capacity tolerances can be
used for series and parallel connection. Mismatched packs are
subject to overcharge resulting in venting with flame and fire.
Check with the cell manufacturer to see if the cells are suitable for
multi-cell packs.

In the past, single Li-ion cells were only available to authorized
battery manufacturers. Today, imports are becoming readily
available and often fall into the hands of the inexperienced. While
most brand name cells are equipped with an internal cell
disconnect that permanently opens the current path on high
pressure, some brands do not provide this safeguard. Many
brands don’t use a separator that shuts down the battery when
high temperatures are reached. The internal safety features are
omitted for cost reasons.

Please follow the following guidelines when charging and
discharging lithium-ion cell(s) and packs. Failing to follow
these rules could result in venting with flame, explosions, fire,
and personal injury.

x Never connect cells in parallel and/or series that are not

designed for that purpose. A cell mismatch may overcharge
and vent with flames

x Never charge or discharge the battery without connecting a

working protection circuit. Each cell must be monitored
individually and the current disconnected if an anomaly
occurs.

x Never leave the battery unattended while under charge or

discharge.

 Always attach a temperature sensor when charging and

discharging the battery. The temperature sensor must
disconnect the current on excess temperature.

 Only connect cells that are matched and have identical state-of-

charge.

6 © 2013 Cadex Electronics Inc.

Shock Hazard

Cadex C5100 Battery Tester User Guide

 Pay special attention when using an unknown brand. Not all

brands contain intrinsic safety features that protect the cell
when stressed.

 During experiments, place the test battery into a well-

ventilated fireproof container.

The Cadex C5100 Battery Tester contains high-voltage circuits,
and can pose a shock hazard when the unit is opened. Do not
attempt to open the unit – there are no user-serviceable items
inside.

 To reduce the risk of electrical shock hazard, service

batteries only when they are removed and disconnected
from their end-use equipment.

 Use the tester only as specified in the documentation.

Other uses may impair the protection provided by the
unit.

 Use only a grounded AC outlet to power the tester.

Warranty & Service

Cadex Electronics Inc. warrants the Cadex C5100 Battery Tester
against defective materials and workmanship for a period of two
(2) years from the original purchase date.

The warranty does not

• Damage caused by abusive operation, negligence,

• Damage caused by an attempted repair not authorized by

• Cosmetic damage caused by normal wear and tear.

• Damage from external causes such as leakage spills, power

• Products received without the appropriate model number,

cover:

accident, or improper installation.

Cadex.

fluctuations, power failure, or inadequate shipping.

serial number, or safety markings.

© 2013 Cadex Electronics Inc 7

• Products used for rental purposes.

Cadex C5100 Battery Tester User Guide

Warranty Service

Before sending the unit for service, contact Cadex Technical
Support at (Canada) 1-604-231-7777, (USA Toll Free) 800-565-5228,
or (Europe) [phone] or [e-mail] . If the
product requires warranty service, the representative will provide
a Return Authorization form or number and the location of the
nearest service center.

• Ship the product to the service center with freight,
insurance, and customs duties prepaid. The Return
Authorization form must be included to obtain warranty
service.

• Ensure that the unit(s) is properly packed before shipping,
preferably in the original Cadex boxes. Damage caused in
transit due to improperly packed items is not covered
under warranty.

• Products returned from warranty service are shipped with
freight prepaid by Cadex.

Non-Warranty Repairs

Before sending the unit in for service, contact Cadex Technical
Support at (Canada) 1-604-231-7777, (USA Toll Free) 800-565-5228,
or (Europe) [phone], or [e-mail]. If the
tester is not covered by warranty, the representative will provide
the contact information for the nearest service center. Contact the
service center directly to arrange to send the product in for
service. A Return Authorization form or number will be provided
only if the product is returning to the Cadex Head Office.

• Ship the product to the service center with freight,
insurance, and custom duties prepaid.

• Ensure that the unit(s) is properly packaged before
shipping.

Note: Cadex Electronics Inc. and Cadex authorized service centers
require a Purchase Order or written authorization to proceed with
repairs.

8 © 2013 Cadex Electronics Inc.

Cadex C5100 Battery Tester User Guide

Radio Interference

This equipment generates, uses, and radiates radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause interference with radio
communications. It has been tested and found to comply with the
limits for a Class “A” digital device pursuant to Subpart B of Part
15 of the FCC Rules, which are designed to provide reasonable
protection against such interference when operated in a
commercial environment. Operation of this equipment in a
residential area may cause interference, in which case the user, at
their expense, is required to take whatever measures needed to
correct the interference.

EN55022 Warning: This is a Class A product according to
EN55022. In a domestic environment, this product may cause
radio interference, in which case the user, at their own expense,
may be required to take adequate corrective measures.

The equipment is designed with adequate safeguards to protect
the user from shock and other hazards when used as specified
within this document. If the equipment is used in a manner not
specified by the documentation, the protection provided by the
equipment may be impaired. Please read the documentation and
equipment labeling before using the equipment.

Disposal of Waste Electrical and Electronic Equipment
(WEEE) in the European Union

This symbol on the product and package indicates that this
product must not be disposed with unsorted municipal waste.
Instead, it is your responsibility to dispose of WEEE by handing it
over to a designated collection point for the disposal. The separate
collection and recycling of waste equipment will help conserve
natural resources and ensure that it is disposed in a manner that
protects human health and the environment. For more
information about where you can drop off your waste equipment
for disposal, please contact your local municipal office, waste
disposal service or where you purchased the product.

© 2013 Cadex Electronics Inc 9

Cadex C5100 Battery Tester User Guide

Section 2: Introduction

The Cadex C5100 Battery Tester is a tester and charger for Li-ion
or Li-polymer type batteries. The C5100 uses a proprietary
algorithm known as QuickSort™ 2.0 to determine the current
State of Health (SoH) of the battery.

The Cadex C5100 Battery Tester Package

The Cadex C5100 Battery Tester package contains the following
items:

• Cadex C5100 Battery Tester unit.

• RigidArm Universal Battery Adapter.

• Country-specific AC power cord.

• This user guide.

IMPORTANT NOTICE

Use only grounded AC power cord(s) and outlets with the Cadex C5100 Battery Tester.
Install the equipment near a socket-outlet where it is easily accessible.

10 © 2013 Cadex Electronics Inc.

Cadex C5100 Battery Tester User Guide

Cadex C5100 Battery Tester Features

The LCD backlight on the Cadex C5100 Battery Tester automatically turns off after five minutes
of inactivity. The LCD backlight will turn itself on when any key is pressed on the unit or when
the running program is completed

The front panel of the Cadex C5100 Battery Tester has three LEDs: Run (yellow), Ready
(green), and Fail (red). The front panel also contains three buttons (Test, Charge, and Cycle) and
two scroll buttons.

Test

Performs battery rapid test using Cadex
QuickSort™. Classifies batteries into three ranges –

Good, Low, or Poor. Approximately 30 seconds.

Charge
Cycle

Charges a battery. Approximately 3 hrs.
Cycles a battery with a charge/discharge/charge

sequence and displays measured capacity as a % of
the C-code rated value. Approximately 7 hrs.

Directional

Scrolls through menus and results.

keys
Main Display
LEDs

© 2013 Cadex Electronics Inc 11

LCD viewing panel
LED status indicators

Cadex C5100 Battery Tester User Guide

Serial port

AC Power Inlet
USB Port

Used to connect to an Optional Receipt
Printer.

Attach to power outlet.
Used to connect to a computer for use with

BatteryStore. Type B USB connector.
Cable not included.

12 © 2013 Cadex Electronics Inc.

Cadex C5100 Battery Tester User Guide

Section 3: Battery Testing

Available Programs

The Boost program reactivates batteries that fall asleep due to over-discharge and brings the
battery back to life. The program charges the battery for two minutes at 100mA.

The Test program performs a battery rapid test using Cadex’s QuickSort™ 2.0 to classify the
status of the battery as Good, Low, or Poor within 30 seconds. The range is nominal 3.6V Li-ion
or Li-polymer with rated capacity values of 700-1800mAh. Batteries outside this range will not
be tested and a message No QuickSort Support appears.

The Charge program charges the battery based on the parameters in the selected C-code within
approximately 3 hours.

The Cycle program performs a charge/discharge/charge sequence on the battery based on the
parameters in the selected C-code, and displays measured capacity as a % of the C-code rated
value within approximately 7 hours.

Note: If a battery C-code that is not supported by the C5100 is selected, the unit will display one
of these messages: NiCd Not Supported, NiMH Not Supported, SLA Not Supported, 10.80V Not
Supported, or 14.40V Not Supported.

Boost Program

Applies 100mA Charge for Two Minutes

1. Apply AC power to turn on the Cadex C5100 Battery
Tester.

2. Insert the Li-ion battery to boost. There should be no LEDs
on and LCD should display “Battery Not Detected”.

3. Hold down any program key (Charge, Test, or Cycle) for
two seconds. The C5100 will display Caution Boosting, Press
d to Esc, Check Polarity, and then Press c to Continue.

4. If the c key is pressed, it will display Press Program key for
2 seconds.

© 2013 Cadex Electronics Inc 13

5. Press and hold a program key (Charge, Test, or Cycle) for
2 seconds to activate the Boost program.

6. Boost can be cancelled anytime by pressing the down
arrow key.

Cadex C5100 Battery Tester User Guide

Test a Li-ion Battery

Rapidly Test the Battery Condition in Less Than 30 Seconds

1. Apply AC power to turn on the Cadex C5100 Battery
Tester. Ensure battery adapter in installed.

2. Insert the Li-ion battery to test.

3. The Run indicator will flash when the battery is connected.

4. Select the correct C-Code for the battery (700-1800 mAh)
by pressing the dc keys.

5. Press Test. The battery test begins.

6. When the battery test is completed, the test results appear
on the screen.

Good Battery: A battery for which the QuickSort algorithm has
determined to have a capacity between 80%-100%.

Poor Battery: A battery that has any of the following: shorted,
open cells, or the QuickSort algorithm has determined that the
battery capacity is less than 70%. The Fail LED light also will turn
on.

Low Battery: A battery that does not have any of the following:
shorted cells, open cells, or above normal impedance; and for
which the QuickSort algorithm has determined that the battery
capacity is between 70% and 80%.

Charge a Li-ion Battery

A battery is charged in about three hours.

1. Apply AC power to turn on the Cadex C5100 Battery
Tester. Ensure battery adapter in installed.

2. Insert the Li-ion battery to charge.

14 © 2013 Cadex Electronics Inc.

3. The Run indicator will flash when the battery is connected.

4. Select the correct C-code for the battery by pressing the d
or c key.

5. Press Charge. The C5100 will perform a fast charge.

Cadex C5100 Battery Tester User Guide

6. When the battery has finished charging, the Ready LED
will be lit and the battery resistance will be displayed. If
there was a problem during charge, the Fail LED will be lit.

Cycle a Li-ion Battery

The Cycle button charges/discharges/charges a battery and displays the battery’s capacity in % in
about 7 hours.

1. Apply AC power to turn on the Cadex C5100 Battery
Tester. Ensure battery adapter in installed.

2. Insert the Li-ion battery to cycle.

3. The Run indicator will flash when the battery is connected.

4. Select the correct C-code for the battery by pressing the d
or c key.

5. Press Cycle. The C5100 will perform
charge/discharge/charge and indicate the measured
capacity result in %.

6. When the battery has finished cycling, the Ready LED will
be lit and the battery’s resistance in mΩ and capacity in %
will be indicated on the display. If there was a problem
during cycling, the Fail LED will be lit.

Select an Active C-Code

The Cadex C5100 Battery Tester uses one C-code of the available
C-codes (10 maximum) stored in the installed battery adapter as
the active C-code.

To select a different active C-code:

1. Insert a Li-ion battery. Press the dc keys to select the
appropriate C-code.

2. Press the appropriate program button to start processing.

The battery Voltage and C-code rated Capacity (mAh) are
displayed for each C-code.

Note: the C5100 Battery Tester is shipped with a RigidArm
Universal Adapter for QuickSort 2.0 (P/N: 07-110-0193).

The C-codes in this adapter are preset to work correctly with QuickSort

2.0.

© 2013 Cadex Electronics Inc 15

Cadex C5100 Battery Tester User Guide

The preset ranges can be accessed by pressing the dc keys to select the
capacity of the battery to be tested as noted on the label of the battery in
mAh. The default ranges are as follows:

C-code

Battery Capacity Range

• 900 (= 700-900)

• 1100 (= 901-1100)

• 1300 (= 1101-1300)

• 1500 (= 1301-1500)

• 1600 (= 1501-1600)

• 1700 (= 1601-1700)

• 1800 (= 1701-1800)

• *1900 (= 1801-1900)

• *2000 (= 1901-2000)

• *2200 (= 2001-2200)

* No TEST support. Use CYCLE to do a charge/discharge/charge program or
CHARGE to charge the battery.

16 © 2013 Cadex Electronics Inc.

Cadex C5100 Battery Tester User Guide

Possible Fault Messages

Contact Cadex Technical Support at (Canada) 1-604-231-7777, (USA Toll Free) 800-565-5228,
or (Europe) [phone], or [e-mail] for further information.

Fault Codes

Code Name Description

-3115 Target Capacity Not Met Battery Capacity < Target Capacity

-3120 Over Voltage Battery voltage too high

-3121 Battery Reversed Battery inserted backwards

-3122 Battery Shorted Battery has an internal Short.

-3129 Intermittent Battery Battery processing interrupted more than 5 times.

-3142 Discharge Timeout Discharge longer than specified timeframe.

-3144 Charge Timeout Charge longer than specified timeframe

-3150 Thermistor Failure Unable to read temperature

-3159 Hot Battery Battery is too hot to start processing.

-3160 Bad Fuse Or Driver No current for more than 30 seconds.

-3201 Cold Battery Battery is too cold to start processing.

-3202 Battery Low Battery voltage is too low to charge safely.

Warning Codes

Code Name Description

-2159 Hot Battery Battery became too hot during processing. Processing is put on
hold and will continue when the battery cools down.

-2201 Cold Battery Battery became too cold during processing. Processing is put on
hold and will continue when the battery warms up.

-2203 System Over Temperature The system became too hot during processing. Process is put on
hold and will continue when the system cools down.

-2206 Sy stem Under Temperature The system became too cold during processing. Processing is put

on hold and will continue when the system warms up.

© 2013 Cadex Electronics Inc 17

Cadex C5100 Battery Tester User Guide

Section 4: Upgrade the C5100
Firmware

Upgrade the Firmware

To upgrade the C5100 Firmware requires using the Cadex
BatteryStore software. Contact Cadex Customer Service at

(Canada) 1-604-231-7777, (USA Toll Free) 800-565-5228, or
(Europe) [phone], or [e-mail] to obtain the
C5100 BatteryStore software and the C5100 Firmware. Next,
follow these instructions to upgrade the C5100 firmware.

The Cadex BatteryStore software can update the C5100’s
firmware using a Windows-based PC. A USB cable with a Type B
connector is required to connect to the C5100 USB port (cable not
included).

To update the firmware on the C5100:

1. Install the Cadex BatteryStore software onto a PC. Connect the
C5100 via the USB port. Start/Run the installed BatteryStore
program. The Firmware Update window appears when an
older version of the firmware is detected.

2. Click Yes to continue. The C5100 Firmware Utility dialog box
should appear.

18 © 2013 Cadex Electronics Inc.

Cadex C5100 Battery Tester User Guide

3. Click the

DOWN ARROW in the Port to connect to field to select

the COM port that the C5100 is connected to. Ensure AC power
is applied to the C5100 and USB cable with a Type B connector
is connected from the analyzer to the computer. Click Search.
If there is a working connection, the firmware information
appears.

4. Click Browse to select a firmware file.

© 2013 Cadex Electronics Inc 19

Cadex C5100 Battery Tester User Guide

5. Next, click Update to initiate the firmware flash process. The
Confirm window appears.

6. Click Browse to select a firmware file. Next, click Update
to initiate the firmware flash process. The Confirm
window appears.

7. Click Yes to update the firmware.

20 © 2013 Cadex Electronics Inc.

Cadex C5100 Battery Tester User Guide

.

8. The Information window appears when the firmware has

been updated.

9. Click Exit. The Confirm window appears. Click Yes to exit

the firmware utility.

10. The Information window appears. Disconnect the USB cable
from the C5100 and click OK.

© 2013 Cadex Electronics Inc 21

Cadex C5100 Battery Tester User Guide

If error messages occur, contact Cadex Technical Support at
(Canada) 1-604-231-7777, (USA Toll Free) 800-565-5228, or
(Europe) [phone], or [e-mail].

22 © 2013 Cadex Electronics Inc.

Cadex C5100 Battery Tester User Guide

Section 5: Maintenance and
Spare Components

To maintain accuracy in test results and to achieve long product life, Cadex Electronics Inc.
recommends the following steps to maintain the C5100.

Clean the Battery Adapter or RigidArm Contacts

Clean the battery adapter contacts regularly with a lint free cotton
swab and isopropyl alcohol. This will ensure that the readings are
accurate.

Clean the Cadex C5100 Battery Tester

1. Wipe the unit with a clean damp cloth.

2. Do not use any cleaning solution on the C5100 unit.

Spare Components

The following replacement parts may be purchased from Cadex
Electronics Inc. Please contact [e-mail] for pricing and
delivery.

Description Part Number

IEC320 6’ UK Plug AC Power Cord 68-723-1805

IEC320 6’ Euro Plug AC Power Cord 68-723-1806

IEC320 6’ North American AC Power Cord 68-723-1810

RigidArm Universal Battery Adapter 07-110-0193

RigidArm Thin Pin (for batteries with blade-type contacts) 92-470-0051

USB Type A to Type B Cable 68-931-0008

© 2013 Cadex Electronics Inc 23

Cadex C5100 Battery Tester User Guide

Section 6: Specifications

Application: Single-station standalone battery tester.

Range: Supports nominal 3.6V or 7.2V Li-ion batteries, user-selectable.

Test program only supports nominal 3.6V Li-ion or Li-polymer, 700­1800mAh batteries, user-selectable.

Charge/discharge: 2A max.

Battery Interface: Custom and universal adapters; Cadex SnapLock™

system; read-only application, temperature sensor.

Line voltages: 100-240VAC, 50/60Hz 0.6A, internal power supply,
IEC320 grounded inlet, country-specific AC power cords available.

Programs: 3 buttons, up/down selection keys

Test ~30sec QuickSort™ 2.0 test

Charge 3h fast charge

Cycle Charge/discharge/charge

Boost Reactivates batteries that have protection circuits activated

due to low discharge

Display: LCD screen 2X20, backlit; RUN, READY, FAIL light signals.

Data Ports: USB Type B for connection to BatteryStore application and

firmware upgrade, RS232 9 pin female DSUB for optional printer
connection.

Physical: H 92; W 160; L 285mm (3.6x 6.3x11.2"); 0.82kg net (1.8lb)

Approvals: CSA/UL/EN60950, CE marked, ROHS and WEEE.

Warranty: Two (2) years for materials and workmanship.

Note: Specifications subject to change without notice.

24 © 2013 Cadex Electronics Inc.
