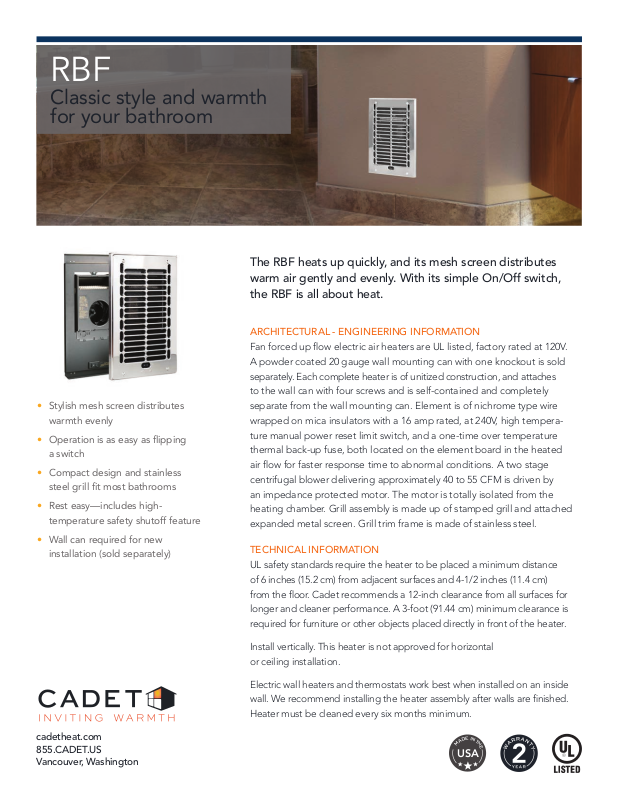

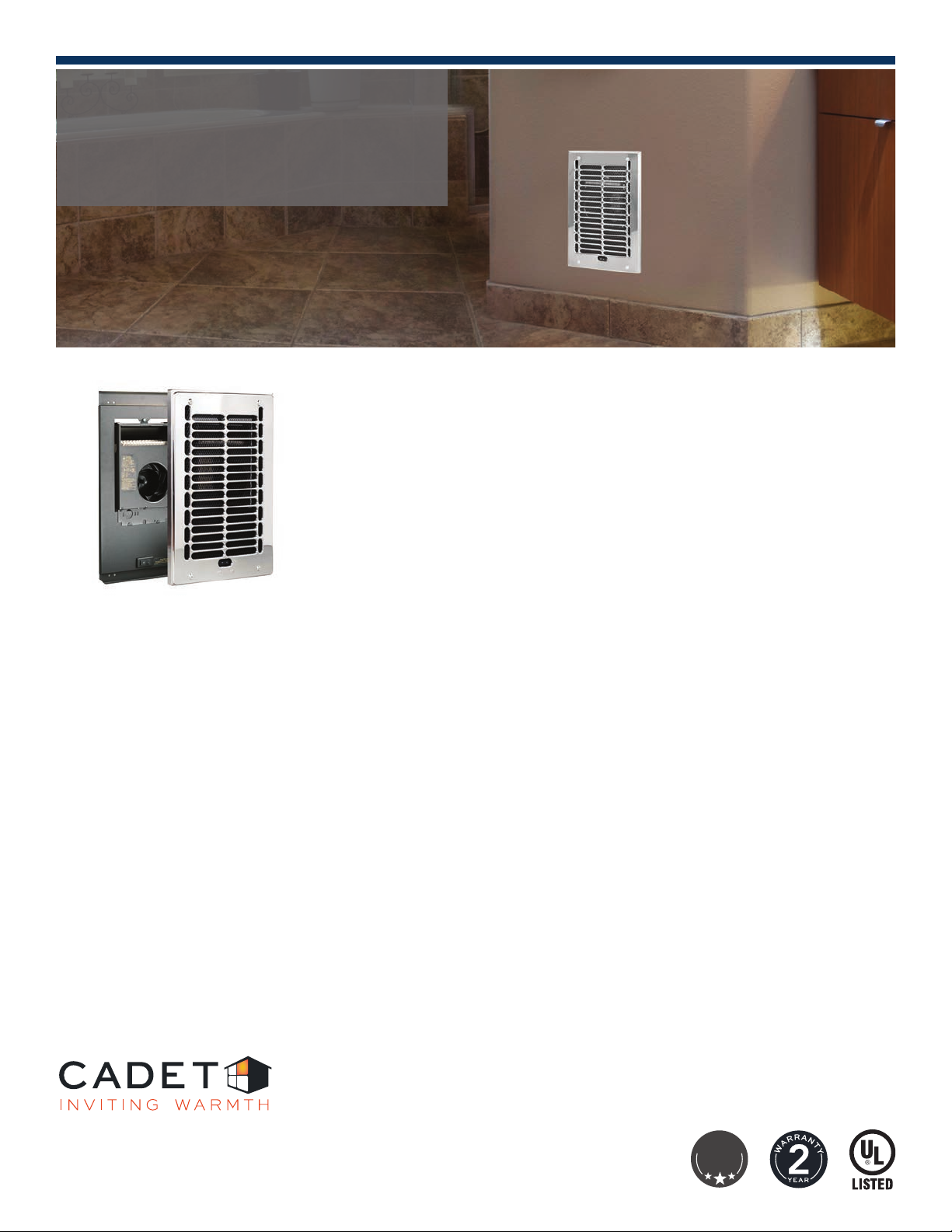

RBF
Classic style and warmth
for your bathroom
• Stylish mesh screen distributes
warmth evenly
• Operation is as easy as flipping
a switch
• Compact design and stainless
steel grill fit most bathrooms
• Rest easy—includes high-
temperature safety shutoff feature
• Wall can required for new
installation (sold separately)
The RBF heats up quickly, and its mesh screen distributes
warm air gently and evenly. With its simple On/Off switch,
the RBF is all about heat.
ARCHITECTURAL - ENGINEERING INFORMATION
Fan forced up flow electric air heaters are UL listed, factory rated at 120V.
A powder coated 20 gauge wall mounting can with one knockout is sold
separately. Each complete heater is of unitized construction, and attaches
to the wall can with four screws and is self-contained and completely
separate from the wall mounting can. Element is of nichrome type wire
wrapped on mica insulators with a 16 amp rated, at 240V, high temperature manual power reset limit switch, and a one-time over temperature
thermal back-up fuse, both located on the element board in the heated
air flow for faster response time to abnormal conditions. A two stage
centrifugal blower delivering approximately 40 to 55 CFM is driven by
an impedance protected motor. The motor is totally isolated from the
heating chamber. Grill assembly is made up of stamped grill and attached
expanded metal screen. Grill trim frame is made of stainless steel.
TECHNICAL INFORMATION
UL safety standards require the heater to be placed a minimum distance
of 6 inches (15.2 cm) from adjacent surfaces and 4-1/2 inches (11.4 cm)
from the floor. Cadet recommends a 12-inch clearance from all surfaces for
longer and cleaner performance. A 3-foot (91.44 cm) minimum clearance is
required for furniture or other objects placed directly in front of the heater.
cadetheat.com
855.CADET.US
Vancouver, Washington
Install vertically. This heater is not approved for horizontal
or ceiling installation.
Electric wall heaters and thermostats work best when installed on an inside
wall. We recommend installing the heater assembly after walls are finished.
Heater must be cleaned every six months minimum.
i
e
n
d
t
a
h
m
e
USA
Page 2
RBF
12"W x 19"H x 1/4"D • Rough-in: 10-1/4"W x 16-3/4"H x 4"D
Wall can required for new installation (sold separately)
PART MODEL DESCRIPTION WATTS VOLTS AMPS BTUS WT/LBS
79241 RBF101 Heater assembly with on/off switch and grill 1000 120 8.3 3415 8
79243 RBFC Wall can for model RBF, single pack 4.5

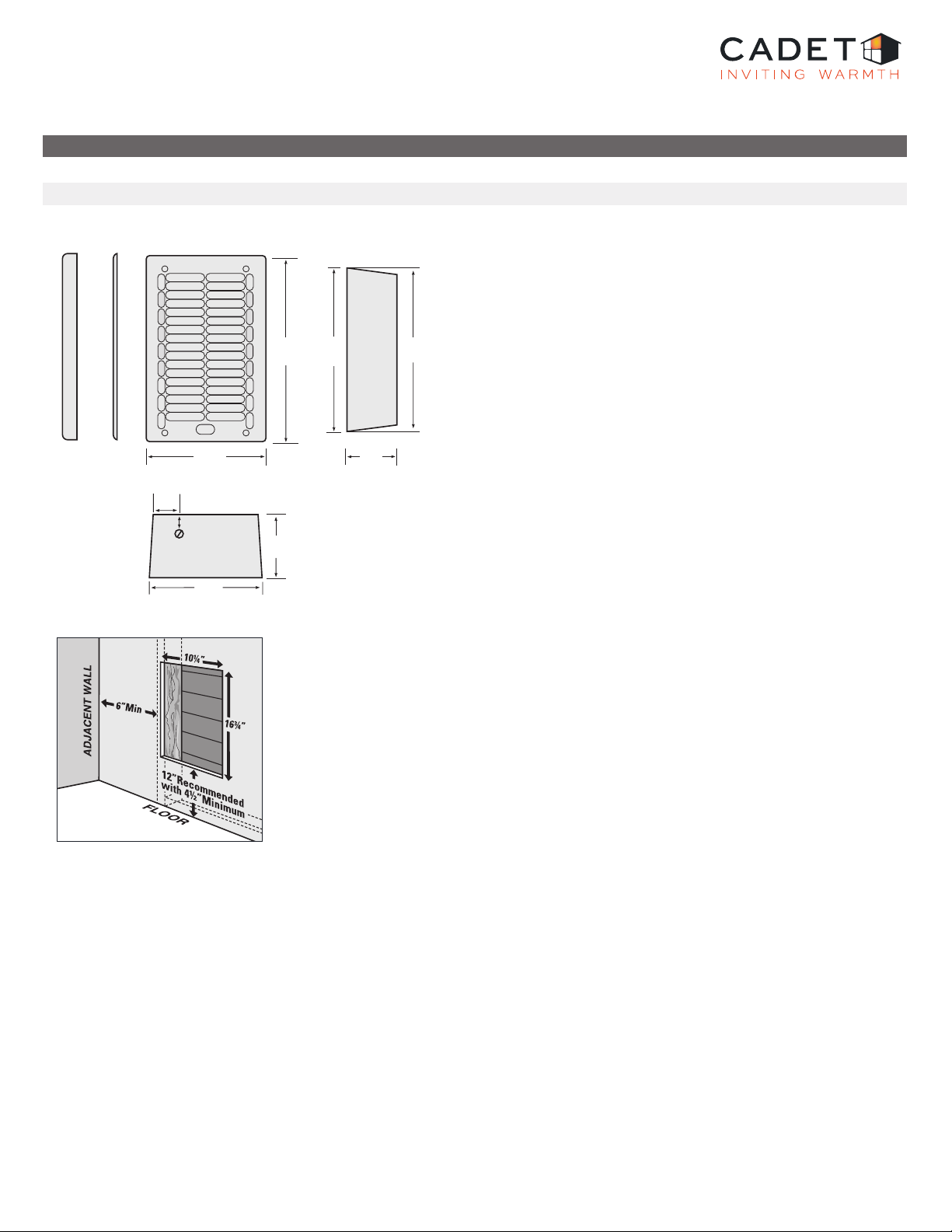

Grill Frame Grill Front
2.54
Side
¼”
1”
.63
2¾”
6.98
Wall Can Bottom
1½”
3.81
12”
30.48
101/8”
25.71
19”
48.26
0”
0
17
45.4
7
/8”
Wall Can Side
4”
10.16
17”
43.18
ROUGH-IN:
10-1/4"W x 16-3/4"H x 4"D
