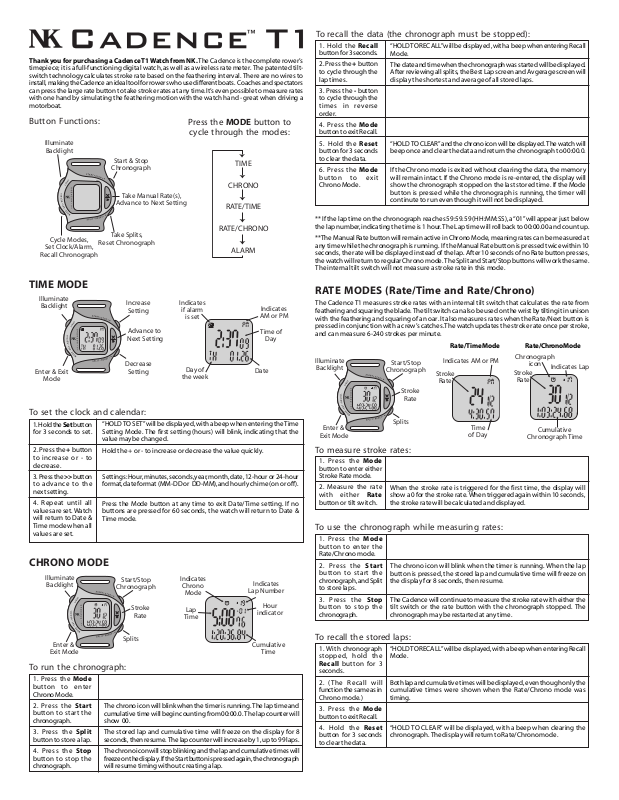

Cadence T1 User Manual

Thank you for purchasing a Cadence T1 Watch from NK. The Cadence is the complete rower’s

timepiece; it is a full-functioning digital watch, as well as a wireless rate meter. The patented tiltswitch technology calculates stroke rate based on the feathering interval. There are no wires to install, making the Cadence an ideal tool for rowers who use different boats. Coaches and spectators can press the large rate button to take stroke rates at any time. It’s even possible to measure rates with one hand by simulating the feathering motion with the watch hand - great when driving a motorboat.

Button Functions:

Press the MODE button to

cycle through the modes:

Illuminate Backlight

Start & Stop

Chronograph

TIME

CHRONO

Take Manual Rate(s),

Cycle Modes,

Set Clock/Alarm,

Recall Chronograph

Advance to Next Setting

Take Splits,

Reset Chronograph

RATE/TIME

RATE/CHRONO

ALARM

TIME MODE

Illuminate

Backlight

Enter & Exit

Mode

Increase

Setting

Advance to

Next Setting

Decrease

Setting

To set the clock and calendar:

1. Hold the Set button for 3 seconds to set.

2. Press the + button to increase or - to decrease.

3. Press the >> button to advance to the next setting.

4. Repeat until all values are set. Watch will return to Date & Time mode when all values are set.

“HOLD TO SET” will be displayed, with a beep when entering the Time Setting Mode. The first setting (hours) will blink, indicating that the value may be changed.

Hold the + or - to increase or decrease the value quickly.

Settings: Hour, minutes, seconds, year, month, date, 12-hour or 24-hour format, date format (MM-DD or DD-MM), and hourly chime (on or off).

Press the Mode button at any time to exit Date/Time setting. If no buttons are pressed for 60 seconds, the watch will return to Date & Time mode.

Indicates

if alarm

is set

Day of

the week

Indicates

AM or PM

Time of

Day

Date

CHRONO MODE

Illuminate

Backlight

Chronograph

LAP

Start/Stop

Stroke

Rate

Indicates

Chrono

Mode

Lap

Time

Lap Number

LAP

Indicates

Hour

indicator

To recall the data (the chronograph must be stopped):

1. Hold the Recall button for 3 seconds.

2. Press the + button to cycle through the lap times.

3. Press the - button to cycle through the times in reverse order.

4. Press the Mode button to exit Recall.

5. Hold the Reset button for 3 seconds to clear the data.

6. Press the Mode button to exit Chrono Mode.

** If the lap time on the chronograph reaches 59:59.59 (HH:MM:SS), a “01” will appear just below the lap number, indicating the time is 1 hour. The Lap time will roll back to 00:00.00 and count up.

**The Manual Rate button will remain active in Chrono Mode, meaning rates can be measured at any time while the chronograph is running. If the Manual Rate button is pressed twice within 10 seconds, the rate will be displayed instead of the lap. After 10 seconds of no Rate button presses, the watch will return to regular Chrono mode. The Split and Start/Stop buttons will work the same. The internal tilt switch will not measure a stroke rate in this mode.

“HOLD TO RECALL” will be displayed , with a beep when entering Recall Mode.

The date and time when the chronograph was started will be displayed. After reviewing all splits, the Best Lap screen and Avgerage screen will display the shortest and average of all stored laps.

“HOLD TO CLEAR” and the chrono icon will be displayed. The watch will beep once and clear the data and return the chronograph to 00:00.0.

If the Chrono mode is exited without clearing the data, the memory will remain intact. If the Chrono mode is re-entered, the display will show the chronograph stopped on the last stored time. If the Mode button is pressed while the chronograph is running, the timer will continute to run even though it will not be displayed.

RATE MODES (Rate/Time and Rate/Chrono)

The Cadence T1 measures stroke rates with an internal tilt switch that calculates the rate from feathering and squaring the blade. The tilt switch can also be used on the wrist by tilting it in unison with the feathering and squaring of an oar. It also measures rates when the Rate/Next button is pressed in conjunction with a crew’s catches. The watch updates the stroke rate once per stroke, and can measure 6-240 strokes per minute.

Rate/Time Mode

Illuminate

Backlight

Enter &

Exit Mode

Chronograph

LAP

Start/Stop

Stroke

Rate

Splits

Indicates AM or PM

Stroke

Rate

Time

of Day

To measure stroke rates:

1. Press the Mode button to enter either Stroke Rate mode.

2. Measure the rate with either Rate button or tilt switch.

When the stroke rate is triggered for the first time, the display will show a 0 for the stroke rate. When triggered again within 10 seconds, the stroke rate will be calculated and displayed.

To use the chronograph while measuring rates:

1. Press the Mode button to enter the Rate/Chrono mode.

2. Press the Start button to start the chronograph, and Split to store laps.

3. Press the Stop button to stop the chronograph.

The chrono icon will blink when the timer is running. When the lap button is pressed, the stored lap and cumulative time will freeze on the display for 8 seconds, then resume.

The Cadence will continue to measure the stroke rate with either the tilt switch or the rate button with the chronograph stopped. The chronograph may be restarted at any time.

Rate/Chrono Mode

Chronograph

icon

Stroke

Rate

Cumulative

Chronograph Time

Indicates Lap

LAP

Enter &

Exit Mode

To run the chronograph:

1. Press the Mode button to enter Chrono Mode.

2. Press the Start button to start the chronograph.

3. Press the Split button to store a lap.

4. Press the Stop button to stop the chronograph.

The chrono icon will blink when the timer is running. The lap time and cumulative time will begin counting from 00:00.0. The lap counter will show 00.

The stored lap and cumulative time will freeze on the display for 8 seconds, then resume. The lap counter will increase by 1, up to 99 laps.

The chrono icon will stop blinking and the lap and cumulative times will freeze on the display. If the Start button is pressed again, the chronograph will resume timing without creating a lap.

Splits

Cumulative

Time

To recall the stored laps:

1. With chronograph stopped, hold the Recall button for 3 seconds.

2. (The Recall will function the same as in Chrono mode.)

3. Press the Mode button to exit Recall.

4. Hold the Reset button for 3 seconds to clear the data.

“HOLD TO RECALL” will be displayed, with a beep when entering Recall Mode.

Both lap and cumulative times will be displayed, even though only the cumulative times were shown when the Rate/Chrono mode was timing.

“HOLD TO CLEAR” will be displayed, with a beep when clearing the chronograph. The display will return to Rate/Chrono mode.

**In order for the internal tilt-switch to register a stroke, the watch must rotate 90°. For consistent

NEED HELP? Our NK Knowledge Center has answers to many common questions, along with

tips and tricks for using NK products. It's available 24-7 at www.nkhome.com/knowledgecenter/.

For email assistance with the installation or operation of your NK product, write techsupport@nkhome.com.

For help with an apparent malfunction, or to arrange or inquire about a repair, write repairs@nkhome.com.

Or call 800.784.4221 (610.447.1555 outside of the USA), Monday to Friday, 9 to 5.

and accurate stroke rate readings, the Cadence should be pointing straight up (toward the sky) when the blade is 1/2 feathered. This allows the watch to rotate enough to activate the tilt switch with each square and feather.

You may need to adjust the placement of the watch slightly in order for the tilt switch to register and the watch to be positioned such that it is easily read. If you are getting rates that do not seem to be correct, or the watch is not registering any rates at all, try sliding the watch on the handle slightly to ensure that the tilt switch is engaging fully.

3.) 4.)

Watch

Band Opening

Band Loop

Velcro

Watch

Band Opening

Band Loop

Velcro

ALARM MODE

The Cadence T1 has an alarm that can be set to go off daily or one-time only. When the alarm is set, the alarm icon will always be displayed on the screen, no matter what mode the watch is in.

Illuminate

Backlight

Enter & Exit

Mode

To set the alarm:

1. Press the Mode button to enter the Alarm mode.

2. Hold the Set button for 3 seconds.

3. Press the + and - buttons to adjust the value and the >> button to move to the next value.

4. Press the + or - buttons to choose the type of alarm.

5. Press the Mode button to return to Alarm mode.

6. From Alarm mode, press the + or - button to turn the alarm on or off.

Increase

Setting

Advance to

Next Setting

Decrease

Setting

The watch will display the time and type of alarm: once or daily.

“HOLD TO SET” will be displayed, with a beep.

The value that is to be adjusted will blink. Hold the + and - buttons to adjust the value quickly.

Choose between Daily and Once. If Daily is selected, the alarm will go off every day at that time when the alarm is active. If Once is selected, the alarm will go off one time and then become inactive.

When the alarm sounds, the watch will beep for 30 seconds. Press any button while the alarm is beeping to turn it off.

Alarm icon

(indicates that

alarm is ON)

Indicates

AM or PM

Time

of Alarm

Indicates if

Alarm is set

Once or Daily

Watch

Band Opening

Watch

Band Opening

SPECIFICATIONS & WARRANTY

· The Cadence T1 uses one lithium CR2032 battery. Battery life estimated 1.5 years (with 3 x per day backlight use, 1 x per day alarm). NK strongly suggests taking your Cadence to a jeweler or retailer (including NK) to replace the battery.

· The Cadence T1 is guaranteed against defects in materials and workmanship for 2 years from the date of purchase. This warranty does not cover: damage due to improper use or neglect (including corrosion), impact damage, modifications or attempted repairs by someone other than an authorized NK repair agent, normal wear and tear or failed batteries. Beyond the two warranty years, the Cadence T1 is covered by NK’s Customer Care Lifetime warranty. See NK’s complete warranty policy at: http://www.nkhome.com/support/rowwarranty.html.

· Electroluminescent green backlight, 5-second duration.

· Stainless steel bezel and case back, rugged rubberized housing, shatter-resistant plastic crystal.

· Black EZ-WRAP neoprene band with hook and loop closure - 10" (25 cm) length accommodates small to large wrists and sculling blades to large sweep oars.

· Customize with accessory EZ-Wrap straps: red, orange, yellow, dark green, lime green, baby blue, navy blue, purple, burgundy, pink, gray.

· Water resistant to 5 atm/50m (ISO-2281 standard).

· US Patent number 6,980,118.

Please call 610.447.1555 or email support@nkhome.com with questions. Technical information can also be found online at: www.nkhome.com.

BACKLIGHT

Press the LIGHT button to illuminate the backlight for 5 seconds. If the LIGHT button is pressed again while the backlight is illuminated, the backlight will turn off. Additionally, if any other button is pressed while the backlight is on, the 5-second backlight timer will be restarted.

INSTALLING THE WATCH BAND

The Cadence T1 comes with a black neoprene EZ-Wrap band. Accessory bands come in a variety of colors. The band is designed to fit most wrist sizes, as well as sweep and sculling oar handles. Install the band as illustrated below:

1.) 2.)

Velcro

Watch

Band Opening

Band Loop

Watch Band

Opening

Band Loop

Velcro

NIELSEN-KELLERMAN

21 Creek Circle, Boothwyn, PA 19061 USA

phone: 610.447.1555

fax: 610.447.1577

email: info@nkhome.com

web: www.nkhome.com
