Cadence Flash F100-5, Flash F1200-1D, Flash F700-1, Flash F500-1, Flash F300-2 User Manual
...
INTRODUCTION
2
INTRODUCTION
2
Thank you for purchasing this Cadence Flash Series amplier. Over the years, the technology used to create audio ampliers
has grown by leaps and bounds. We have tens of thousands of satised customers still using our rst generation Ultra
Drive ampliers which are more than 16 years old. Our competition is satised with just continuing to build the same units
year after year without thought for improvement, but not Cadence. We consider it our mission to use our expertise in
developing the latest technologies and to bring you the absolute best sounding, most powerful ampliers on the market and
of course at a reasonable price. We are very proud to introduce this fth generation of ampliers, the Flash Series featuring
C-FORCE technology, “ARVA” and “ADR” circuitry. You will be amazed at the quality and power that these new amps oer.
You will “Boom-Harder!” with Flash Series ampliers.
We have spared no expense in designing these ampliers, creating the most rugged, reliable, powerful and best performing
ampliers. In fact we are so sure of the quality we backup every Flash Series amplier with our exclusive two-year warranty which
exemplies our commitment to excellence in car audio musical reproduction. (See enclosed warranty card for details.)
Please read this installation guide carefully for proper use of your Cadence power amplier. Should you need technical assistance
during or after your installation please call our technical-line between 9:30 am and 5:00 PM EST at (732) 370-5400. Read this
entire guide fully before attempting your installation.
WARNING: BE AWARE! Use of this amplier at extreme high volumes for extended periods of time may cause hearing loss and
or hearing damage. During periods of prolonged high volume levels it is recommended that you use ear safety devices. Playing
Cadence ampliers at high volume levels while driving will impair your ability to hear necessary trac sounds. While driving
always keep your sound volume at reasonable levels. We at Cadence want you listening for many years to come.
When installing the amplier, secure it tightly. An unmounted amplier in your car can cause serious injury to passengers and
damage to your vehicle if it is set in motion by an abrupt driving maneuver or short stop.
FEATURES
3
FEATURES
3
GOLD PLATED TERMINALS:
All the terminals on the amplier are solid brass and gold plated for high conductivity and
minimum impedance loss. The power and ground terminals are extra large and capable of
accepting 4-8 gauge wire. The speaker terminals can accept 14-16 gauge wire. When wiring
the amplier, be sure to strip just enough wire that ts into the terminal so that bare wires
do not touch each other, or the amplier chassis and cause a short circuit. We recommend
using Cadence brand lug and spade connectors for optimum signal transfer.
POWER AND PROTECTION CIRCUITRY:
Flash Series ampliers feature our unique IC controlled protection circuitry. This
sophisticated circuit constantly monitors the heat sink internal temperature and various
voltages, adjusting the amp automatically and protecting it from dangerous conditions.
The 2 LED’s located on the side of the amplier provide indication of the amplier status,
the Power LED will light when the amplier is receiving proper power, ground and remote
voltages and the IC monitoring sequence indicates the amp is functional. In case the
amplier encounters a diagnostic condition as listed below, the second LED will light
indicating a Diagnostic condition. When a diagnostic condition is sensed the amplier will
then turn into a self preservation mode and if the cause of the diagnostic condition is not
corrected will eventually shut down. There are certain critical diagnostic conditions which
will turn the amplier o immediately.
1. Speaker short circuit.
2. Input Overload.
3. Thermal overload.
4. Reverse Polarity.
To reset the amplier, you must rst diagnose what caused the problem, correct the fault and restart
the system. See the Trouble Shooting page for further details.
MUTE CIRCUIT:
The Flash Series ampliers feature an anti-thump, mute and delay circuit. This eliminates
irritating speaker damaging turn-on and turn-o transients normally experienced with less
expensive ampliers.
BASS DRIVE EQUALIZATION CIRCUITRY:
A narrow “Q” shelving equalization circuit is included in the ampliers. The equalization
system is preset at 45Hz. The boost control allows you to add up to 12dB of Bass Drive
eect. Utilize the Bass Drive to tailor your bass response to your systems needs. Please keep
in mind that by adding Bass Drive you are adding stress on your speakers. Make sure your
speakers can handle the extra power output! It would be foolish to add 12dB of gain to low
excursion 8” and 10” Sub woofers or mid ranges and tweeters. It’s a sure way to blow your
speakers. The Bass Drive was designed for High Power sub woofers.
“ADR”: - ACTIVE DYNAMIC REGULATION
Cadence Flash Series ampliers feature our proprietary ADR, Active Dynamic Regulated
power supplies. 100% HexFET devices are utilized in the power supply for high speed
(100KHz) switching frequencies. The power supplies are capable of supplying the main
amplier with a considerable amount of reserve voltage for peak “high demand” situations.
The ADR circuit provides full bandwidth power for authoritative bass response, high current
output into low impedance loads and increased headroom. The ADR is supplied with power
via a high speed, high temperature capacitance bank and 100% pure copper rails on the
PCB enabling fast transient response to musical demands.
SUPER CLASS AB AUDIO STAGE PERFORMANCE
The audio output section of the Flash Series ampliers feature Japanese studio grade,
high current Bi-Polar audio transistors. Unlike other manufacturers who use a host of
dierent type of transistors, not originally designed for audio output, i.e.: power supply
transistors, motor control transistors to produce the audio signal, (You can only imagine
what they sound like.) Cadence uses only true audio transistors in the audio section of
these ampliers. These transistors were designed and engineered to produce music. That’s
why Cadence ampliers clearly sound better. They are cleaner with lower distortion, higher
current capable and more reliable. We challenge you to test listen a Cadence amplier and
hear the dierence yourself.
FEATURES
“ARVA” - AUTOMATIC RAIL VOLTAGE ADJUSTMENT CIRCUITRY:
Cadence Flash Series amplifiers feature “ARVA” circuitry in their power supply. This circuit constantly
monitors the output stage and under high current demands will adjust the power supply rail voltages
so that enough power is available for peak situations. The “ARVA” also improves the damping factor of
the amplifier when playing low impedance mono loads. Cadence Flash Series amplifiers have tighter
sounding bass reproduction thanks to
this unique circuitry.
BATTERY VOLTAGE:
Cadence Flash Series amplifiers are rated and regulated to 13.8 volts and below. Increasing voltage to 14.4
volts will increase the power output of the amplifier in the same proportion. Maximum input voltage is
14.4 volts while the minimum voltage is 12 volts.
*** DO NOT EXCEED 14.4 INPUT VOLTAGE. ***
Though capable of high power reproduction, Cadence Flash Series amplifiers are not competition style
amplifiers! They were designed for audiophile sound reproduction.
PROTECTION CIRCUITRY:
Cadence amplifiers incorporate many outstanding protection circuits to help protect the amplifier from
being damaged during operating conditions.
Thermal Protection: When the amplifier reaches an unsafe operating temperature of 80 degrees Celsius
the amplifier will turn off. Once the amplifier cools down, simply reset the amplifier by its Remote
connection, (turn the amplifier off and then on again once you have given the amplifier a chance to cool
down) and the amp will once again begin to play.
If you live in a hot climate we suggest installing additional cooling fans in your trunk
to exhaust the hot air which can build up in the trunk this will help keep the ambient
temperature in the trunk as low as possible so that your amps work awlessly and without any
musical interruption.
Speaker Short Circuit Protection: Should your speakers short circuit due to voice coil burn out, or should the
amplifier sense an impedance too low to handle, the Protection LED will light, indicating a diagnostic condition.
Turn off your system, disconnect one speaker at a time and try to determine which speaker might be faulty.
Correct the condition and restart the amplifier. You must reset the amplifier by turning it OFF and then ON again
by the Remote power connection after correcting a diagnostic condition. (Turn your radio off and then on again.)
Clipping or total shutdown may also be a result of a bad ground connection or loose
ground. If you nd that your speakers and speaker wires are not shorted, please check
your ground connection.
Input Overload Protection: This circuit will either shutdown the amplier completely or
make the amplier spurt on and o indicating that it is in a diagnostic condition. Turn the
system o and reduce the gain on the amplier or volume from your head unit, this should
result in a corrected condition.
DC Oset Protection: Should any DC voltage try to enter the amplier via the speaker
terminals it will cause the amplier to shut down and not operate until this condition
is remedied. This circuit will also protect damaging high DC voltages from reaching your
speakers should your amplier ever malfunction.
INSTALLATION BASICS:
Before you begin with your installation, disconnect the NEGATIVE (-) terminal from your car’s
battery. This safety precaution will avoid possible short circuits while wiring your amplier.
Cadence ampliers operate on 12-volt negative ground systems only.
It is recommend that you layout your sound system design on paper rst. This will help
you during the installation so that you will have a wiring ow chart and not miss-wire any
of your components.
Mount the amplier in the trunk or hatch area of your vehicle. Never install an amplier in
the engine compartment or on the rewall. Please be sure to leave breathing room around
the amplier heat sink so that it can dissipate the heat it produces eciently. The amplier
can be installed either horizontally or vertically.
When mounting the amplier on the trunk oor, be sure to watch for your gas tank, gas
lines and elec trical lines. Do not drill or mount any screws where they might penetrate the
gas tank of your car.
INSTALLATION BASICS
5
SETTING THE CONTROLS:
AUDIO PREAMP INPUT
The Flash Series ampliers feature RCA pre amp inputs. Run RCA cables from your sound
source to the inputs of the amplier. We suggest the use of high quality shielded RCA patch
cords to help reduce and eliminate unwanted electrical noise to your system.
Be sure to run the RCA cables on the opposite side of the vehicle that you used to carry the
power and ground leads of the amplier.

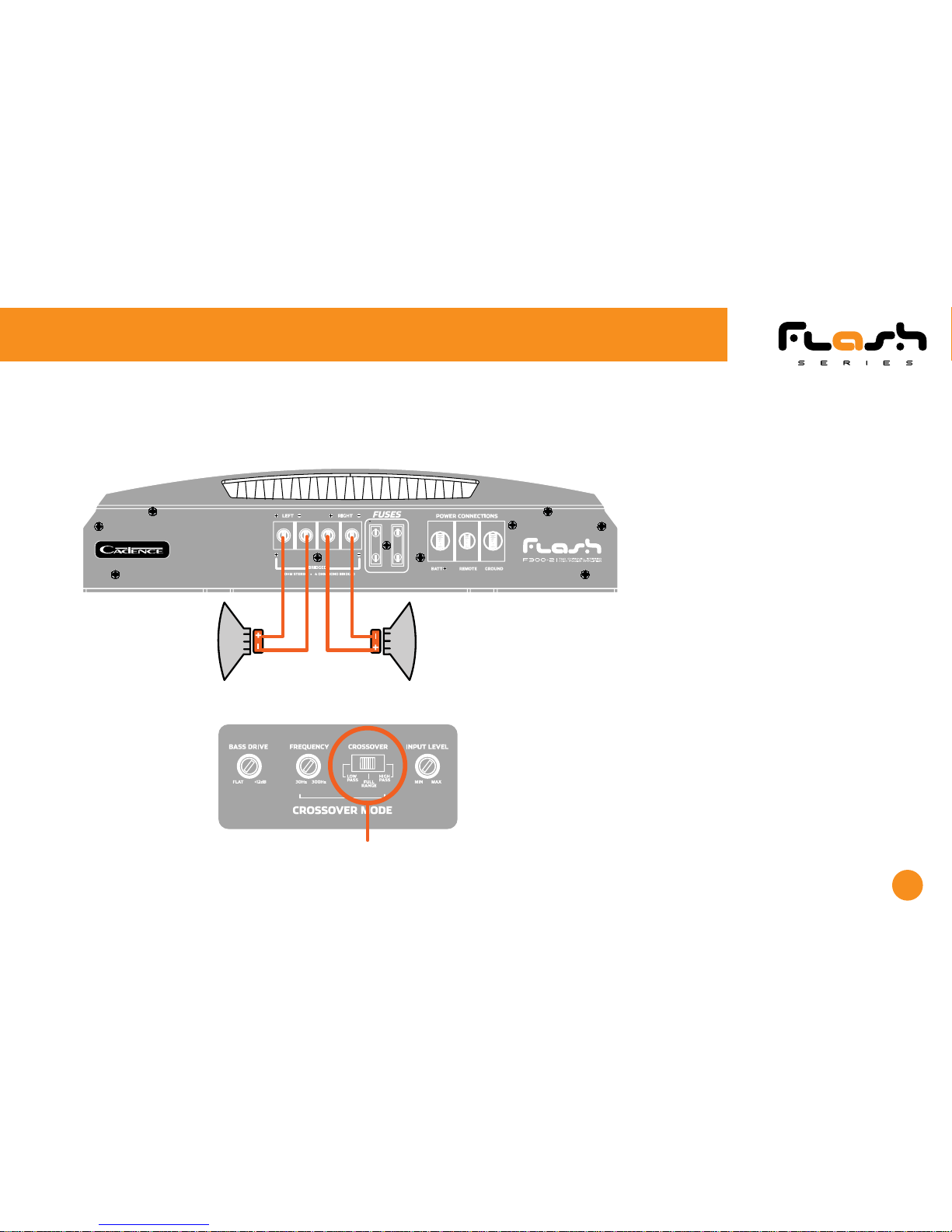

USING THE BUILT-IN LOW PASS ELECTRONIC CROSSOVER
All the Flash Series ampliers feature 12dB per octave fully adjustable low-pass and high
pass electronic crossovers.
For Low Pass sub woofer systems, set the CROSSOVER MODE switch to LOW PASS. Now
the knob marked FREQUENCY will control the low pass frequencies from 30Hz to 250Hz.
A frequent error made is setting the low pass frequency too low, especially when using
vented sub woofer enclosures. We recommend that for most installations you do not set the
frequency knob lower than 80 - 100Hz (the 12 o’clock position).
When using the ampliers for component speakers or co-axials, you will want to set the
CROSSOVER MODE switch to HIGH PASS. The FREQUENCY control knob adjusts the high
pass frequencies between 30Hz and 300Hz. Do not attach tweeters directly to the amplier,
(even in the high pass mode) without a secondary passive crossover to protect them. 250Hz
high pass is not a frequency high enough for tweeters.
SUBSONIC FILTERING
For sub woofer installations with a passive LP crossover, you can set the amplier’s
CROSSOVER MODE selector to HIGH PASS while setting the FREQUENCY KNOB to 30Hz, this
will act as SUBSONIC FILTER for all signals below 30Hz. This is especially useful for vented
enclosures where the port tuning frequency falls below the sub woofer tuning frequency to
protect against sub woofer unloading.
REMOTE TURN ON CONNECTION:
The remote turn on connection is located on the barrier strip next to the power and ground
connections. This connection is responsible for turning the amplier on and o with the rest of the
system. A smaller gauge wire can be used to make this connection to your radio’s power antenna
lead. Should your system not have any turn on leads, you can wire the remote terminal to an
accessory lead, which turns on, with your cars ignition.
POWER/GROUND WIRING:
The Flash Series ampliers are supplied with built-in fuses, never replace the fuse that the amp came
with, with one of a larger value.
We suggest you construct a Red wiring harness with 2 additional fuses. One fuse should be located
near the car battery. This fuse near the battery oers protection against damage from short circuits
to the car chassis between the battery and the amplier. A second fuse closer to the amplier oers
additional safety to the amplier itself. This fused red power wire should be attached to the amplier
power terminal marked 12V+.
The wire harness should be made of red primary cable of at least 8 gauge for the F200-2 and at
least 4 gauge for all other larger models. The harness should terminate in a large ring terminal for
connection directly to the positive terminal of the car battery. Use a spade plug to attach the wire,
which connects to the amplier location marked 12V+.
A second black color wire of equal gauge should be used as a ground connection to a welded chassis
member. When connecting the ground wire make sure that there is no paint or other insulator
blocking a good ground connection. When installing multiple ampliers, mount them in close
proximity so that they can all share the same ground point. Attach the black ground wire to the
amplier screw terminal marked Ground.
We recommend that you use the Cadence AMPKIT4 or AMPKIT8 amplier installation kits, which
contains all the cabling and accessories necessary for a good, reliable installation.
Over the years we have received ampliers back to our service department with melted power/
ground terminals. The cause of this is a bad ground connection. When there is a lack of good ground,
heat builds up at the weakest point which happens to be the contact screw of the amplier terminal.
Over time the heat generated will begin to melt the terminal. It is a good practice to feel the power
and ground wires with your hands, near their amplier connection after having played the amp for
a while. If the wires feel hot to the touch you probably have a bad or loose connection. If you are sure
of your connections and the wires still feel hot to the touch, you should upgrade the gauge of wire
to next heaviest gauge.
INSTALLATION BASICS
6
ADJUSTING THE SYSTEM
Once the system is operational, the rst thing to do, is set all crossover points to approximate
settings. In the case of the basic sub woofer system Low Pass lter crossover at 100 Hz or so. Set the
Bass Boost equalizer controls to 0 dB ( Flat Switch Position.)
Now you should set the ampliers Input Sensitivity adjustment. The knob accessible on the side of
the amplier marked INPUT GAIN adjusts the input sensitivity from 150mV to 5Volts.
To adjust the input sensitivity, turn the control using a small at head screwdriver fully counter clock
wise to the minimum position. Do not apply any pressure while turning as this might break the
control unit. Adjust your radio volume level to maximum volume. Now turn the level control on the
amplier clockwise towards the Maximum marking until audible distortion occurs. When you begin
to hear any distortion in the sound, back down one notch and your amp is set. It is helpful to have a
second person to help you set the gain.
When setting up a multi-amp system, set each amplier’s gain separately. Start o with the bass
amplier, then adjust the highs amplier’s level control to match.
Once you are satised with the level control settings, use any equalizer controls to adjust the system
tonal level for personal preference. Keep in mind that after equalizing, you may have to go back and
reset the ampliers level controls.
*** The level control of any car amplier should not be mistaken for a volume control. It is a
sophisticated device designed to match the output level of your source unit to the input level of the
amplier. Do not adjust the amplier gain to maximum unless your input level requires it.
If your unit has been professionally installed please do not change the gain settings set by the
installer, he is the professional!
Your system can also be extremely sensitive to noise when the LEVEL is set to maximum and does
not match your input signal. The gain adjustments need to be made only once when rst setting
up the system.
USING THE ELECTRONIC CROSSOVER - 4 CHANNEL MODEL
The four channel models feature separate crossovers for channels 1-2 and 3-4. All the
Flash Series ampliers feature 12dB per octave fully adjustable low-pass and high pass
electronic crossovers. Mono Block bass amps feature 24dB crossovers.
FOUR CHANNEL AMPLIFIER CONFIGURATIONS.
1. All four channels High Pass for internal component speakers in doors and rear decks.
2. Channels 1 and 2 High Pass for front component speakers, while channels 3 and 4 are
wired to sub woofers.
3. Bridge channels 1 and 2 for single high power sub woofer channel. Bridge channels
3 and 4 for second high power sub woofer channel.
For Low Pass systems, set the CROSSOVER MODE switch to LOW PASS. Now the knob
marked FREQUENCY will control the low pass frequencies from 30Hz to 250Hz. A
frequent mistake made is setting the low pass frequency too low, especially when using
vented sub woofer enclosures. We recommend that for most installations you do not set
the frequency knob lower than 100Hz (the 12 o’clock position).
When using the ampliers for component speakers or coaxial, you will want to set the
CROSSOVER MODE switch to HIGHt PASS. The FREQUENCY control knob adjusts the
high pass frequencies between 30Hz and 250Hz. Do not attach tweeters directly to the
amplier even in the high pass mode without a secondar y passive crossover to protect
them. 250Hz high pass is not a frequency high enough for tweeters.
SUBSONIC FILTERING
For sub woofer installations with a passive LP crossover, you can set the amplier’s
CROSSOVER MODE selector to HIGH PASS while setting the FREQUENCY KNOB to 30Hz,
this will act as SUBSONIC FILTER for all signals below 30Hz. This is especially useful for
vented enclosures where the port tuning frequency falls below the sub woofer tuning
frequency to protect against sub woofer unloading.
MOUNTING AND WIRING
7
MOUNTING THE AMPLIFIERS:
Choose a convenient mounting location with unobstructed airow.
The Flash ampliers feature four mounting tabs located at the ampliers four corners.
Using the supplied screws and grommets, gently mount the amplier in to position.
*** Do not over tighten the screws.***
REMOTE TURN-ON
terminal of head unit
FUSE
GROUND POINT
BATTERY
The Flash Series ampliers are supplied with built-in fuses, never replace the fuse that the amp
came with, with one of a larger value.
We suggest you construct a Red wiring harness with 2 additional fuses. One fuse should be
located near the car battery. This fuse near the battery oers protection against damage from
short circuits to the car chassis between the battery and the amplier. A second fuse closer to
the amplier oers additional safety to the amplier itself. This fused red power wire should be
attached to the amplier power terminal marked 12V+.
The wire harness should be made of red primar y cable of at least 8 gauge for the F200-2 and at
least 4 gauge for all other larger models. The harness should terminate in a large ring terminal for
connection directly to the positive terminal of the car battery. Use a spade plug to attach the wire,
which connects to the amplier location marked 12V+.
A second black color wire of equal gauge should be used as a ground connection to a welded
chassis member. When connecting the ground wire make sure that there is no paint or other
insulator blocking a good ground connection. When installing multiple ampliers, mount them
in close proximity so that they can all share the same ground point. Attach the black ground wire
to the amplier screw terminal marked Ground.
We recommend that you use the Cadence AMPKIT4 or AMPKIT8 amplier installation kits, which
contains all the cabling and accessories necessary for a good, reliable installation.
OEM RADIO INTEGRATION WITH AUTOSTART
8
This newest series of Flash ampliers features our newest
circuitry innovation. Say for example you are trying to
integrate the Cadence Flash amplier in to a system with an
OEM radio which does not have RCA output jacks or a remote
turn on wire for the amplier, until now you would have had to
congure a complicated relay system to turn on the amplier
and use en external high-low converter to send the signal
in to the amplier.
But now all you need to do is to wire your speakers to
the included High Level Input harness and plug the
harness in to the amplier. When you turn on your OEM
head unit, the amplier will receive the music signal and
automatically turn on the amplier. When you turn o the
head unit, the amplier will automatically turn o after a
60 second built-in delay.
Do not use RCA and High Level Input at the same time.
Do not keep the speakers hooked up to the High Level Input
once you are using them as the ampliers signal input.
The ideal ground point for the High Level Input harness is
the radio ground, if thats not possible to reach any good
chassis ground point will do.
GND
GROUND POINT
REAR SPEAKER
OUTPUT
REMOTE HOOK-UP OPTIONAL
WHEN USING HIGH LEVEL INPUT
RL
2 CHANNEL AMP WIRING
9
LEFT SPEAKER
2-4 OHM
CROSSOVER MODE SWITCH IN
FULL RANGE POSITION
2 OHM MINIMUM
PER CHANNEL STEREO
CROSSOVER SWITCH SET TING
RIGHT SPEAKER
2-4 OHM
All Cadence Flash two channel ampliers
can accommodate either 2 ohms or 4
ohms per channel in stereo, or one 4
ohm bridged subwoofer. The diagram on
this page shows a basic 2 speaker set up,
for example two 6” x 9” or 6.5” speakers
operating in Full Range.
Adjust Input level and Bass Drive as per
page 6 - Adjusting the System.
3 CHANNEL MIXED MONO
10
LEFT SPEAKER
4 OHM
RIGHT SPEAKER
4 OHM
SUBWOOFER
MINIMUM IMPEDANCE
4-8 OHMS
LOW PASS
FILTER INDUCTOR
HIGH PASS
FILTER CAPACITORS
CROSSOVER MODE SWITCH IN
FULL RANGE POSITION
CROSSOVER SWITCH SET TING
COMPONENT VALUES FOR
6dB PASSIVE CROSSOVER
FREQUENCY INDUCTOR CAPACITOR
80 Hz
100 Hz
120 Hz
150 Hz
7.5 mH
6.5 mH
5.5 mH
4 mH
470 uF
330 uF
330 uF
220 uF
Here is how to get a three channel system out of a
two channel amplier.
Crossover mode switch in Full Range.
Hook up Left and Right Speakers normally as per
diagram using high pass lter capacitors. Wire one
subwoofer to the bridged channel utilizing a low pass
lter inductor. You must use this capacitor and inductor
system when using 4 ohm speakers and woofers.
You can eliminate the need for the capacitors
and inductor if you use 4 ohm speakers for the
Left and Right Channel and an 8 ohm woofer for
the bridged channel.
Loading...
