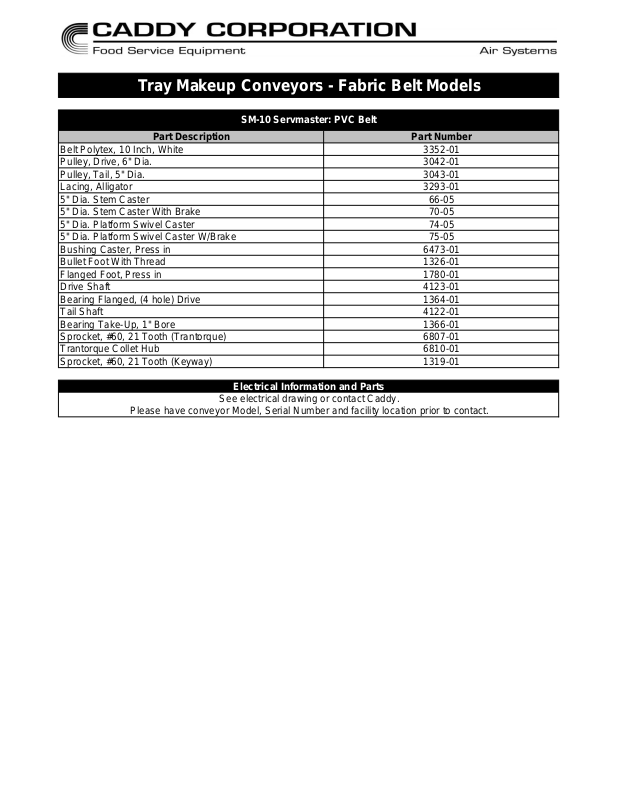

Caddy SM-10 Parts List

r

Tray Makeup Conveyors - Fabric Belt Models

SM-10 Servmaster: PVC Belt

Part Description Part Numbe

Belt Polytex, 10 Inch, White 3352-01
Pulley, Drive, 6" Dia. 3042-01
Pulley, Tail, 5" Dia. 3043-01
Lacing, Alligator 3293-01
5" Dia. Stem Caster 66-05
5" Dia. Stem Caster With Brake 70-05
5" Dia. Platform Swivel Caster 74-05
5" Dia. Platform Swivel Caster W/Brake 75-05
Bushing Caster, Press in 6473-01
Bullet Foot With Thread 1326-01
Flanged Foot, Press in 1780-01
Drive Shaft 4123-01
Bearing Flanged, (4 hole) Drive 1364-01
Tail Shaft 4122-01
Bearing Take-Up, 1" Bore 1366-01
Sprocket, #60, 21 Tooth (Trantorque) 6807-01
Trantorque Collet Hub 6810-01
Sprocket, #60, 21 Tooth (Keyway) 1319-01

Electrical Information and Parts

See electrical drawing or contact Caddy.

Please have conveyor Model, Serial Number and facility location prior to contact.
