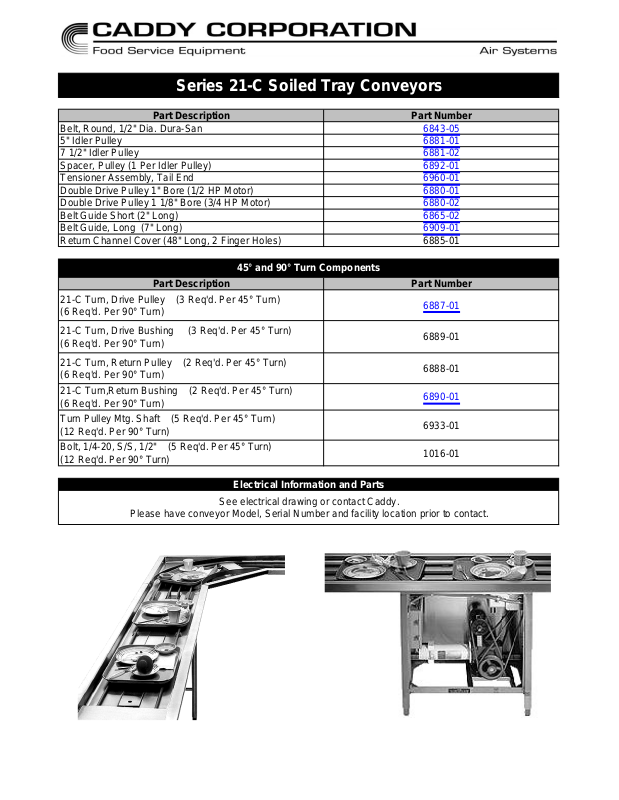

Caddy 21-C Parts List

r

r

Series 21-C Soiled Tray Conveyors

Part Description Part Numbe

Belt, Round, 1/2" Dia. Dura-San 6843-05
5" Idler Pulley 6881-01
7 1/2" Idler Pulley 6881-02
Spacer, Pulley (1 Per Idler Pulley) 6892-01
Tensioner Assembly, Tail End 6960-01
Double Drive Pulley 1" Bore (1/2 HP Motor) 6880-01
Double Drive Pulley 1 1/8" Bore (3/4 HP Motor) 6880-02
Belt Guide Short (2" Long) 6865-02
Belt Guide, Long (7" Long) 6909-01
Return Channel Cover (48" Long, 2 Finger Holes) 6885-01

45° and 90° Turn Components

Part Description Part Numbe

21-C Turn, Drive Pulley (3 Req'd. Per 45° Turn)
(6 Req'd. Per 90° Turn)

6887-01

21-C Turn, Drive Bushing (3 Req'd. Per 45° Turn)
(6 Req'd. Per 90° Turn)

21-C Turn, Return Pulley (2 Req'd. Per 45° Turn)
(6 Req'd. Per 90° Turn)

21-C Turn,Return Bushing (2 Req'd. Per 45° Turn)
(6 Req'd. Per 90° Turn)

Turn Pulley Mtg. Shaft (5 Req'd. Per 45° Turn)
(12 Req'd. Per 90° Turn)

Bolt, 1/4-20, S/S, 1/2" (5 Req'd. Per 45° Turn)
(12 Req'd. Per 90° Turn)

Electrical Information and Parts

See electrical drawing or contact Caddy.

Please have conveyor Model, Serial Number and facility location prior to contact.

6889-01

6888-01

6890-01

6933-01

1016-01
