Cadco FTCG-200 User Manual

Cadco, Ltd.

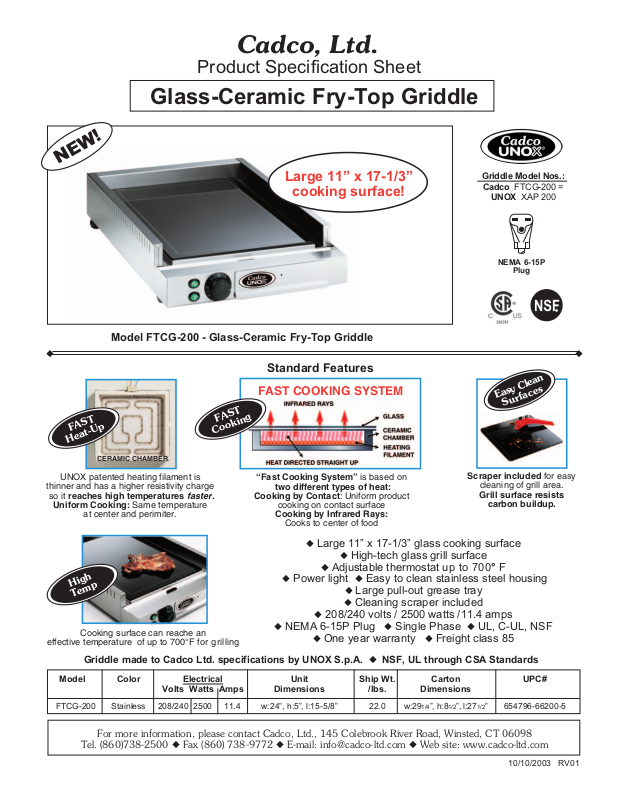

Product Specification Sheet

Glass-Ceramic Fry-Top Griddle

NEW!

Large 11 x 17-1/3

cooking surface!

Model FTCG-200 - Glass-Ceramic Fry-Top Griddle

u u

Standard Features

Griddle Model Nos.:

Cadco FTCG-200 =

UNOX XAP 200

NEMA 6-15P

Plug

FAST

Heat-Up

CERAMIC CHAMBER

UNOX patented heating filament is

thinner and has a higher resistivity charge
so it reaches high temperatures faster.

Uniform Cooking: Same temperature

at center and perimiter.

High

Temp

Cooking surface can reache an

effective temperature of up to 700°F for grilling

Griddle made to Cadco Ltd. specifications by UNOX S.p.A. u NSF, UL through CSA Standards

Model Color Electrical

Volts Watts Amps

FTCG-200 Stainless 208/240 2500 11.4

FAST

Cooking

FAST COOKING SYSTEM

Fast Cooking System is based on

two different types of heat:

Cooking by Contact: Uniform product

cooking on contact surface

Cooking by Infrared Rays:

Cooks to center of food

u Large 11 x 17-1/3 glass cooking surface

u High-tech glass grill surface

u

Adjustable thermostat up to 700° F

u Power light u Easy to clean stainless steel housing

u Large pull-out grease tray

u

Cleaning scraper included

u 208/240 volts / 2500 watts /11.4 amps

u NEMA 6-15P Plug u Single Phase u UL, C-UL, NSF

u One year warranty u Freight class 85

Unit

Dimensions

w:24, h:5, l:15-5/8 22.0 w:291/4, h:81/2, l:271/2 654796-66200-5

Ship Wt.

/lbs.

Carton

Dimensions

Easy Clean

Surfaces

Scraper included for easy

cleaning of grill area.

Grill surface resists

carbon buildup.

UPC#

For more information, please contact Cadco, Ltd., 145 Colebrook River Road, Winsted, CT 06098

Tel. [phone] u Fax [phone] u E-mail: [e-mail] u Web site: www.cadco-ltd.com

10/10/2003 RV01
