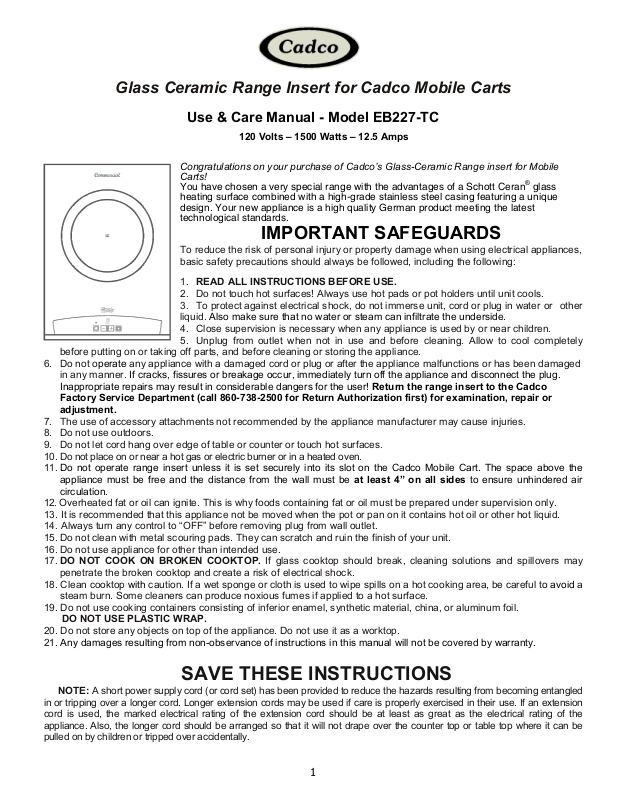

Glass Ceramic Range Insert for Cadco Mobile Carts

Use & Care Manual - Model EB227-TC

120 Volts – 1500 Watts – 12.5 Amps

Congratulations on your purchase of Cadco’s Glass-Ceramic Range insert for Mobile
Carts!

You have chosen a very special range with the advantages of a Schott Ceran
heating surface combined with a high-grade stainless steel casing featuring a unique
design. Your new appliance is a high quality German product meeting the latest
technological standards.

IMPORTANT SAFEGUARDS

To reduce the risk of personal injury or property damage when using electrical appliances,
basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS BEFORE USE.

2. Do not touch hot surfaces! Always use hot pads or pot holders until unit cools.

3. To protect against electrical shock, do not immerse unit, cord or plug in water or other
liquid. Also make sure that no water or steam can infiltrate the underside.

4. Close supervision is necessary when any appliance is used by or near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool completely

before putting on or taking off parts, and before cleaning or storing the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged
in any manner. If cracks, fissures or breakage occur, immediately turn off the appliance and disconnect the plug.

Inappropriate repairs may result in considerable dangers for the user! Return the range insert to the Cadco

Factory Service Department (call 860-738-2500 for Return Authorization first) for examination, repair or
adjustment.

7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner or in a heated oven.

11. Do not operate range insert unless it is set securely into its slot on the Cadco Mobile Cart. The space above the

appliance must be free and the distance from the wall must be at least 4” on all sides to ensure unhindered air
circulation.

12. Overheated fat or oil can ignite. This is why foods containing fat or oil must be prepared under supervision only.

13. It is recommended that this appliance not be moved when the pot or pan on it contains hot oil or other hot liquid.

14. Always turn any control to “OFF” before removing plug from wall outlet.

15. Do not clean with metal scouring pads. They can scratch and ruin the finish of your unit.

16. Do not use appliance for other than intended use.

17. DO NOT COOK ON BROKEN COOKTOP. If glass cooktop should break, cleaning solutions and spillovers may
penetrate the broken cooktop and create a risk of electrical shock.

18. Clean cooktop with caution. If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a
steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.

19. Do not use cooking containers consisting of inferior enamel, synthetic material, china, or aluminum foil.

DO NOT USE PLASTIC WRAP.

20. Do not store any objects on top of the appliance. Do not use it as a worktop.

21. Any damages resulting from non-observance of instructions in this manual will not be covered by warranty.

®

glass

SAVE THESE INSTRUCTIONS

NOTE: A short power supply cord (or cord set) has been provided to reduce the hazards resulting from becoming entangled

in or tripping over a longer cord. Longer extension cords may be used if care is properly exercised in their use. If an extension
cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the
appliance. Also, the longer cord should be arranged so that it will not drape over the counter top or table top where it can be
pulled on by children or tripped over accidentally.

1

This unit is equipped with a grounded, 3-pronged commercial plug. For safety, this plug MUST be connected to a 3
pronged outlet. Before connecting power, make sure the outlet’s voltage and frequency correspond to the data plate on

the range (120 volts/60hz.) Only connect unit to alternating current (AC).

OPERATING INSTRUCTIONS

1. Before using for the first time, become familiar with the Glass Ceramic Range Insert features, (Figure A):

2. POWERING ON

Plug the unit into the proper electrical outlet. Press the Power On/Off button to turn the unit on. The Power Indicator
Light will read "0". If there is no further activation within 30 seconds, all displays will extinguish and the control switches

into the stand-by mode. If that happens, press the Power On/Off button again to activate and to make power and Heat
Zone selections. When the appliance is turned on and a power setting from 1-9 is selected, the heating element(s) will

begin to glow red and become visible through the glass ceramic cooking surface .

3. SETTING POWER LEVEL

Setting of

power levels

4. SELECTING THE HEAT ZONE

The Glass Ceramic Cooking Surface has a power-saving two-circle heating zone, so you can match heating zone
diameter to your pot/pan diameter for maximum energy efficiency.

• The default setting is the small heating zone (6.5” diameter.)

• For activating the large heating zone (8.25”diameter), press the Heat Zone Control button on the control panel.

This will activate both large and small heating zones. When the large heating zone is activated, the red Large
Zone "ON" indicator light above the Heat Zone Control button will light up.

• For changing back to the small heating zone (6.5” diameter), press the Heat Zone Control spot on the control
panel again. When only the small heating zone is activated, the red Large Zone "ON" indicator light above the
Heat Zone Control spot will go out.

• You may choose a power level by touching the Temperature Control button with the + or
– mark

• When the + button is touched for the first time the appliance starts with power level 1;
it can be raised up to level 9 by touching the + button repeatedly.

When the – button is touched for the first time the appliance starts with level 9; this can be
reduced down to level 1 by touching the – button repeatedly.

• If the + or – button is pressed continuously, the power level will change accordingly at
intervals of 1 second.

Power Level Settings Guidelines:

• Power level 1 = lowest power output

• Power level 9 = highest power output

• 1-3- for warming up and keeping warm

• 4-6- for moderate temperature cooking

• 7-9 - for high temperature cooking
