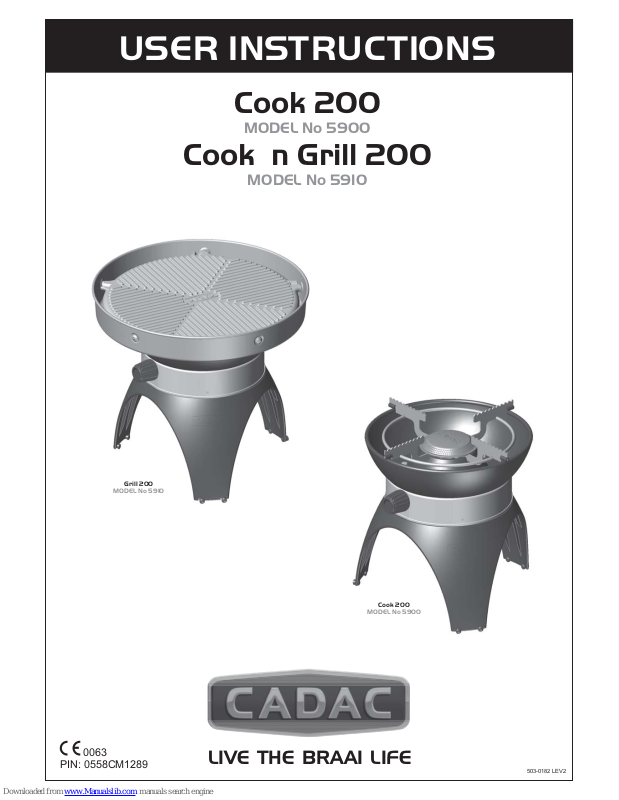

USER INSTRUCTIONSUSER INSTRUCTIONS
Cook 200
Cook n Grill 200
MODEL No 5900
MODEL No 5910
503-0182 LEV2
Cook 200
MODEL No 5900
Grill 200
MODEL No 5910
LIVE THE BRAAI LIFE
0063
PIN: 0558CM1289
?
?
?
?
?
?
?
?
?
This appliance is designed tocomply with BSEN 521:2006and SANS1539: 2006
Appliance category: Vapour pressure - Propane/Butane mix
This appliance shall only be used with the CADAC 500g disposable threaded resealable gas
cartridge (Model CA500) complying with EN417.
It may be hazardous to attempt to fit other types of gas cartridges.
Nominal Usage: 167g/hour
Gross Nominal Heat Input: 2.34kW
This product uses a CADAC 0.25 Jet
Gas appliances require ventilation for efficient performance and to ensure the safety of users and other
persons in close proximity.
Use Outdoors only!
1. General
2. Safety Information
?
?
?
?
?
?
?
?
Check that the seal is in place and in good condition before connecting the gas cartridge to the
appliance (see fig. 1).
Do not use an appliance that is leaking, damaged or which does not operate properly (malfunctioning).
Always operate the appliance on a level surface.
Always operate the appliance safely away from flammable materials. Minimum distances are
120cm above the appliance and 60cm to the rear and sides (see fig. 2).
Ensure that the gas cartridge is fitted or changed in a well-ventilated location, preferably outdoors,
away from any sources of ignition, such as naked flames, and away from other people.
If suspect a leak on your appliance (smell of gas), take it outside immediately into a well-ventilated
flame free location where the leak may be detected and stopped. If you wish to check for leaks on
your appliance, do it outside.
Never leave the appliance unattended when lit.
Do not modify the appliance. Do not use it for anything for which it has not been designed.
Do not use the appliance if it has a damaged or worn seal.
Do not try to detect leaks using a flame, the correct way
is to use soapy water.
CAUTION
IMPORTANT
Provide ample ventilation. This gas appliance consumes air (oxygen). Do not use this appliance in an unventilated space to avoid
endangering your life. If still more gas appliances and/or occupants using gas are added to the space, additional ventilation must
be provided.
Read these instructions carefully so as to familiarise yourself with the appliance before use.
Retain these instructions for future reference.
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
Before each use, ensure that the fat pan is clean and free of fat .
Keep young children away from the appliance at all times.
Handle the appliance with care, do not drop it.
During use, parts of the appliance will become hot (particularly the burner). Avoid touching hot parts
with your bare hands. If you have the need to touch a hot appliance, use gloves.
Before fitting the cartridge to the appliance, ensure that the valve seal is place and in good condition.
Carry out this check each time you fit a cartridge.
(Model 5910 Only)
?
Ensure that the control knob is turned off (turned fully clockwise) (see fig. 3).
Keep the cartridge upright when fitting it to the appliance. Carefully screw the cartridge into the
appliance, taking care not to screw the cartridge cross-threaded. Screw the cartridge on hand tight
only. Do not over tighten as you may damage the cartridge and appliance threads.
Check that the cartridge is connected to the appliance in a gas tight fashion, showing no signs of
leakage (check for the smell of gas around the connection joint). If you suspect that the connection in
not gas tight enough, soapy water must be applied to the joint (the appliance must not be fully
immersed in soapy water as this may result in an unsafe operation of the appliance). Any leak will be
seen as bubbles coming from the leakage point.
If you cannot remedy any leakage, unscrew the cartridge from the appliance and return the appliance
to your nearest CADAC stockist.
If you suspect a leakage from your appliance during use, immediately turn off the appliance control
knob (turned fully clockwise), take the appliance outside and follow the instructions above.
To light the appliance, hold a flame to the burner, turn the control knob slowly anti-clockwise and light
the burner (see fig. 4).
After lighting, do not move the appliance around during the warm up period (1 minute), as liquid gas
may enter the appliance from the cartridge causing it to flare (large yellow flames).
If flaring occurs, turn down the control knob until the flaring stops.
When in use, protect from wind for optimum performance.
Adjust the size of the flame by turning the control knob. To increase the size of the flame, turn the
control knob in the direction of the ‘+’ (anti-clockwise). To decrease the size of the flame or to turn the
appliance off, turn the knob in the direction of the ‘-’ (clockwise) (see fig. 3).
After use, always ensure the control knob is turned fully off and the appliance has cooled down
sufficiently to be able to be packed away.
In the event of light back, where the flame burns back and ignites inside the burner or venturi housing,
immediately turn the appliance off by turning the control knob fully clockwise. After the flame is
extinguished, remove the gas cartridge and check the condition of the seal; replace the seal if in doubt.
Re-light the appliance as described above. Should the flame persistently light back, return
the product to your authorised CADAC repair agent.
Flaring may also occur if food with a
high fat content is cooked with the heat setting too high. In this instance, reduce the heat setting by
adjusting the control knob.
3. Using The Appliance
Seal
Fig. 1
Fig. 2
60cm
120cm
60cm
60cm
60cm
Flammable
Fig. 3
Fig. 4
GB
