Connecting the mixer systems 1-1

Revision J2005-2 J-Type

4 &RQQHFWLQJ#WKH#PL[HU#V\VWHPV

414 &RQVROH#PRGXODULW\

The J-Type was the first console to feature CADAC’s unique frame design which
allow users to put any module in any position, thus configuring the console to suit the
project in hand. Each modu le is fitt ed with XLR connectors and jack sockets on the
rear vertical face, enabling the module to be moved quickly and easily.

The J-Type module’s design features a mo therboard, with plug-in daughter board s
for all audio and digital control functions. This ensures servicing simplicity and fast
replacement of any faulty component. Each module may be plugged into any posi­tion in the console frame, by means of top quality two-part connector system, which
is designed as a mating pair to provide excellent mechanical and electrical reliabil ity.

A rail system is used to guide each module into its correct position. Also, the console
design allows modules to be removed or inserted without powering down.

415 )UDPH#UHDU#FRQQHFWLR QV

The connection s on the J-Type console rear fr ame includ e the following ( from left to
right):

■■■■

Audio Bus - frame to frame, up to 4 frames can be connected.

■■■■

PFL output to next frame.

■■■■

PFL input from module.

■■■■

Frame, GND and 0V-connections with grounding bar.

■■■■

PSU1 connector

■■■■

PSU2 connector

■■■■

Output for monitoring of PSUs

■■■■

Data Busses + Frame address selector

■■■■

Littlite input from PFL module.

■■■■

Littlite output to next frame.

■■■■

Littlite output to lights

■■■■

COMMS ou t p ut

■■■■

Fader Bus

The use of these co nnectors is describe d in 1.3.5 Main and ex tension frame power
connections, 1.4 Connecting the console frames and 1.5 Connect Console Automa­tion System.

4

56

7

4

5

6

7

$

%

$

%

Audio Bus - fr ame to
frame

From COMMS module

To next frame

Frame-GND-0

PSU 1 & PSU2

PSU Monitor

Data Bus

Selector - Frame Address

Consol e Li t tli tes

To Lights
To Next frame
From COMMS mo dule

COMMS

Fader Bus

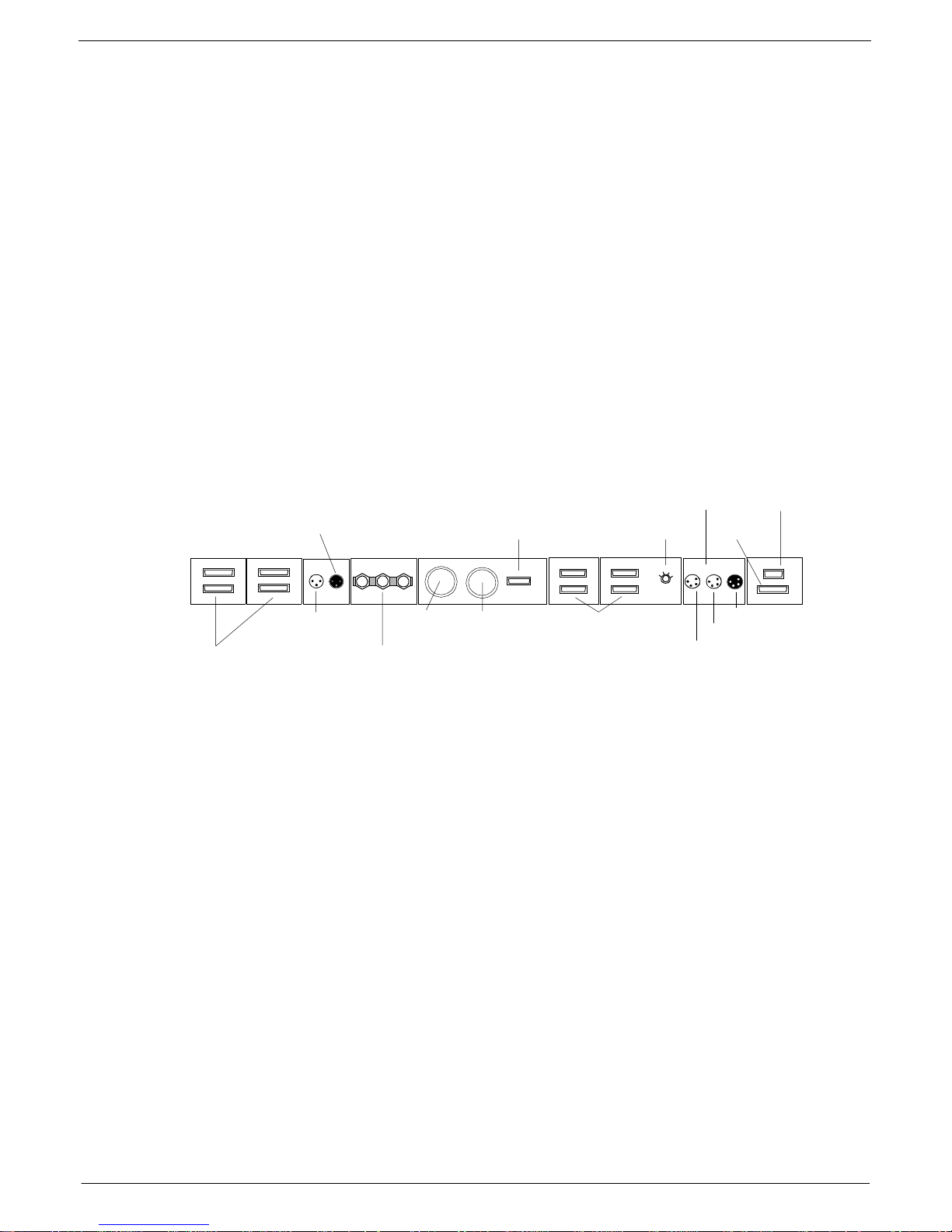

FIG 1-1. Frame Rear C onnections

1-2 Connecting the mixer systems

J-Type Revision J2005-2

416 &RQQHFW#3RZHU#VXSSO\#V\VWHP V

41614 3RZHU#VXSSO\#V\VWHP#GHVFULSWLRQ

Cadac consoles are desi gned to al low the use of tw o indepe ndent power supply sys­tems in a redundant configuration – “m ain” and “backup”. Both sets of power su pply
units are used to power the console system so that under normal conditions, the
‘loa d’ is sh ar ed bet w een th e “ m ai n” a nd “backup” P SU ’s. I f a fault o cc ur s i n on e of t h e
power units (c ausing it to ‘shut-down’), the remaining power unit will power the con­sole.

For smaller J -Type consoles (consuming no more than 44A), it is possible to use the
8400 PSU. See 1.3.7 8400 Switch-Mode Power Supply Unit.

One ±18V PSU and one +13V/+48V PSU is referred to as a “PSU System”.

Designate one pair of power supply units as “SYSTEM 1" and the other as “SYSTEM
2". PSU System 1 and PSU System 2 should be connected to the same

phase

and
on the same ‘spur’, wherever possible. In situations where it is necessary to provide
a separate ‘feed’ to each PSU system pair, make sure that the cable lengths are the
same. This is to minimize any induced a.c. power input noise by ensuring that the
“EARTH IMPEDANCE” is the same for both PSU systems.

/
1
(

/
1
(

/
1
(

/
1
(

-

-

-

-

$5($#%5$1&+#3$1(/

$5($#%5$1&+#3$1(/

$5($#%5$1&+#3$1(/

*1'#%$5 *1'#%$5

1#/

0$,1#*5281' #5()(5(1&(#($57+#(/(&752'(#6<67(0

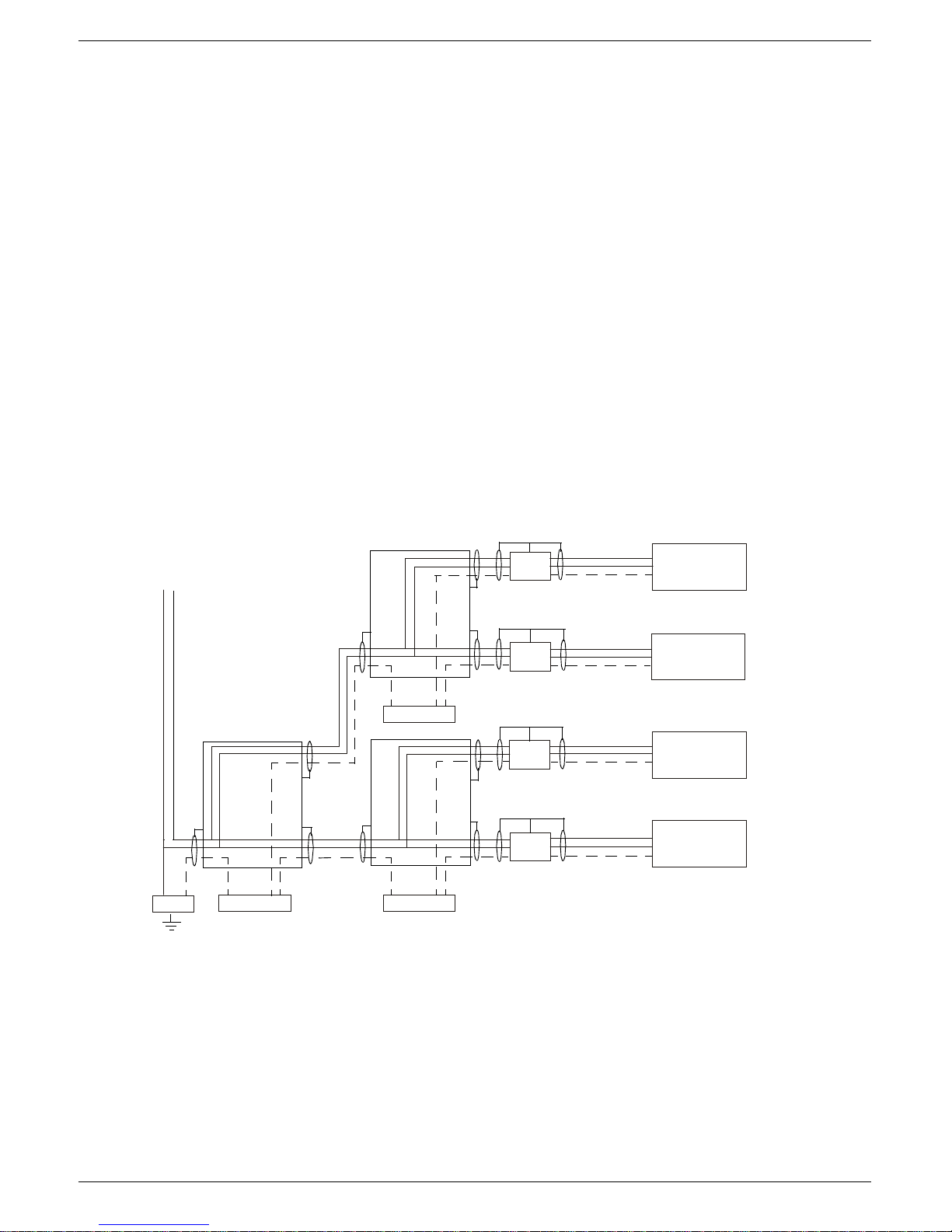

FIG 1-2. AC mains grounding diagram (single phase 200-240V)

368#4$

368#4%

368#5$

368#5%

Connecting the mixer systems 1-3

Revision J2005-2 J-Type

The a.c.-input connectors on each power supply unit have three conductors: ‘LIVE’
(brown), ‘NEUTRAL’ (blue) and ‘EARTH’ (yellow/green). For safety and electromag­netic compatibility considerations, it i s essential that the ‘EARTH’ conductor i s con­nected on all PSUs

and

the a.c. supply has an ‘E ARTH’ conductor that has a
continuous circuit to the “zero-signal reference pot e ntial” point in the building. The
ZSRP point in a building is usually found near the place where the a.c. ‘mains’ supply
enters the building (often referred to as the “MAIN GROUND REFERENCE EARTH
ELECTRODE SYSTEM”). The basic concept for correct a.c. mains wiring distribution
is shown in figure 1-1. If you need further information about this complex subject,
please refer to “Grounding Systems and their Implementation” by Charles Atkinson
and Philip Giddins published in the AES Journal Vol. 43, No. 6 – June 1995.
The grounding scheme in CADAC consoles is designed to meet the rigorous EEC

Electromagne tic Compatibility

requirements (EMC Directive - 1996 ). Any RF noise
induced in the console frame(s) is directed to the “local” ZSRP, which is the metal­work of the power supply units. In order to take full advantage of the “RF noise immu­nity” capability of the CADAC s ystem, PSU a.c. mains cables and the a.c. mains
supply EARTH conductor must be connected correctly.

41615 $&#SRZHU#UHTXLUHPHQWV

CADAC power supply units are designed to run from a minimum of 208 V up to a
maximum of 260V, 50/60Hz a.c. In many parts of the world the normal a.c. single­phase supply is 100-127V, this means that the CADAC power supply units must be
connected across two of the phases in the three-phase a.c. supply, see 1.3.4 Con­necting to a 3-phase outlet.

41616 6ZLWFK00RGH#3RZHU#6XSSO\#8QLWV

CADAC 801 9 and 8020 switch-mode power supply units are de signed to run from a
minimum of 208V up to a maximum of 260V a.c, 50/60Hz.
The 80 19 “18 V ” uni t is r ate d at 10 0A per r a il an d th e 8 020 “1 3V” un it is r at ed at 100 A.

See also Appendices, B. Switch-Mode Power Supply Units

;34<#´4;9µ#VZLWFK0PRGH#SRZHU#VXSSO\#XQLW

The older version of 8019 ±18v unit is based on two ADVANCE F20006 ‘power­blo cks’, with additional circuitry as shown on CADAC drawing number C3.8015. The
new version is based on PowerOne PSUs (serial number 34949 onwards).

The a.c. input is connected to the PSU via a 3-core cable, CMA reference 3183TQ –
BASEC approved, rated at 20A.

FIG 1-3. 8019 power supply unit

1-4 Connecting the mixer systems

J-Type Revision J2005-2

;353#´469µ#VZLWFK0PRGH#SRZHU#VXSSO\#XQLW

The older version of 8020 +13v/48v unit is based on one ADVANCE F20006 ‘pow er­block’, with additional circuitry as shown on CADAC drawing number C3.8016. The
new version is based on PowerOne PSUs (serial numb er 34949 onwards).

The a.c. input is connected to the PSU v ia a 3-core cable, CMA reference 3183TQ –
BASEC approved, rated at 20A.

5HSOD FLQJ#D#SRZHU#VXSSO\#XQLW

If replacing a switch-mode power supply unit is required, please note the following:

■■■■

Make sure that the power supply system’s power switc hes are in the position

OFF an d disconnected from the mains.

■■■■

The work should on ly be carried out by a suitably qua lified electrician.

■■■■

Be careful to observe correct polarity when connecting the new PSU.

■■■■

Note that a console must never have on e volta ge without the other, for example

+18V must never be fed into the console without -18V.

When switching the power supply system back ON after replacement has taken
place, make sure that both LEDs on the front of the PSU-system come on. If only
one LED comes on, let go of the ON push-button immediately. Failure to do so may
lead to fire hazard and major damage to th e console .

NOTE:

Under no circumstances, should the 8019 or 8020
PSU be used without a SAFETY EARTH connection. Failure
to follow this instruction is both a fire and safety hazard.

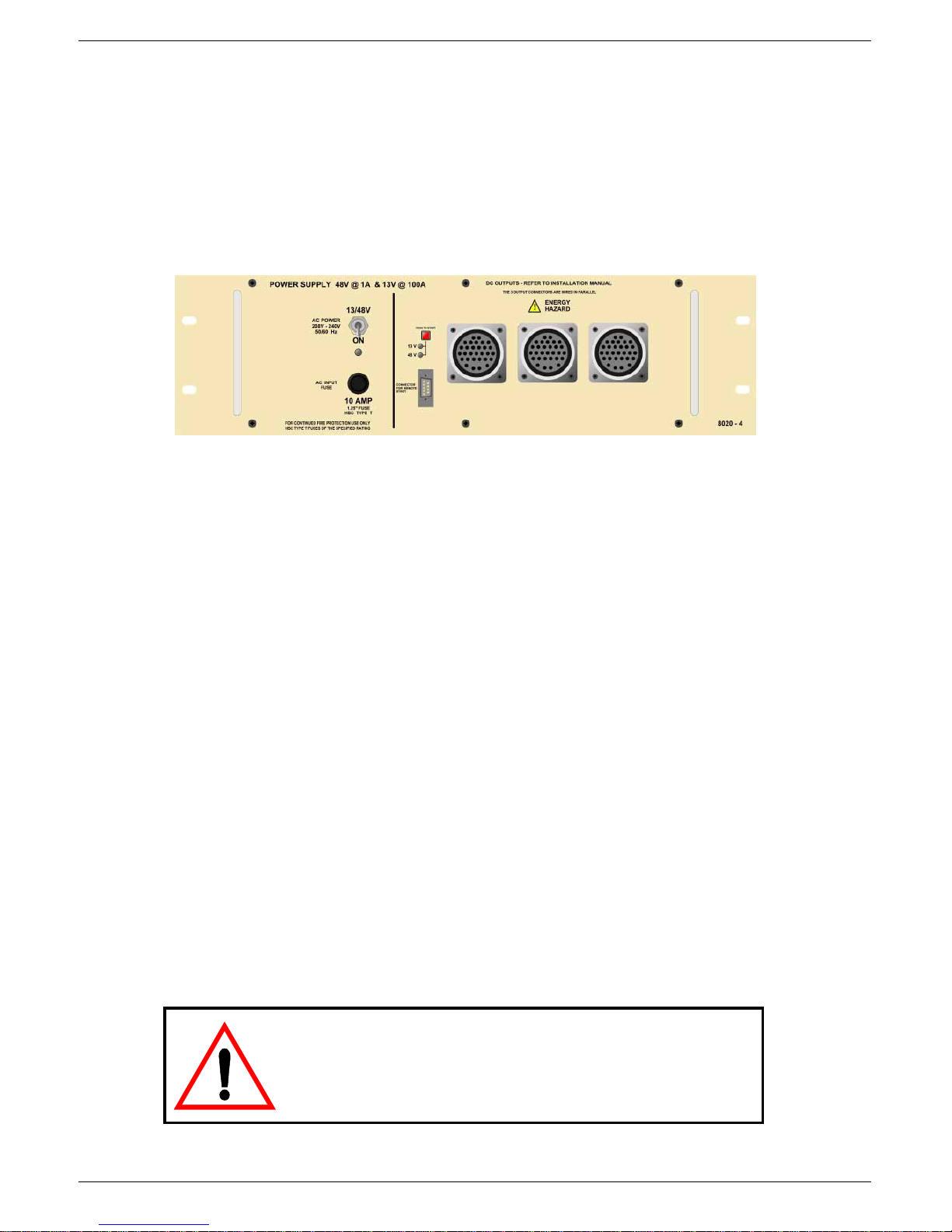

FIG 1-4. 8020 power supply unit

Connecting the mixer systems 1-5

Revision J2005-2 J-Type

41617 &RQQHFWLQJ#WR#D#60SKDVH#RXWOHW

Connection to a 3-phase outlet is required on sites where the system voltage
between any one of the phases and neutral is 100-127V and the voltage between
any t wo of the phases is 200-240V. Before connecting to any 3-phase outlet, please
refer to a qualified electrician who understands your particular installation and the
local safety and wiring regulations. Under no circumstances should the 8019 and
8020 switch-mode power supply units be operated without the green/yellow safety
earth conductor connected to the building safety earth conductor system. Each
power unit is equipped with an input supply filter whose reference ground conductor
is the chassis. Failure to connect the green/yellow safety earth conductor to the cor­rect earth/ground building reference is a safety and fire hazard.

1. Connect the LIVE (Brown) conductor on the “system 1” 8019 unit to the phase 1
(L1, R ED ) terminal on the 3-ph ase power outlet co nnector.

2. Connect the NEUTRAL (Blue) conductor on the “system 1” 8019 unit and the
LIVE (Brown) conductor on the “system 1” 8020 unit to the Phase 2 (L2, YEL­LOW) terminal on the 3-phase power outlet connector.

3. Connect the NEUTRAL (Blue) conductor on the “system 1” 8020 unit to the
Phase 3 (L3, BLUE) terminal on the 3-phase power outlet connector.

4. Connect the EARTH (Yellow/Green) conductor on the “syste m 1” 8019 unit and
the EAR T H ( Yellow/ Gre en ) co nd uc tor on the “sys te m1 “8 02 0 un it to the S A FET Y
EARTH (Yellow/Gr een) terminal on the 3-phase power outlet connector.

5. Repeat 1-4 for the “system 2” power units.

/LYH
1HXWUDO
(DUWK

/LYH
1HXWUDO
(DUWK

/LYH
1HXWUDO
(DUWK

/LYH
1HXW UDO
(DUWK

;34<

;353

;34<

;353

3+$6(#4#+/4/#5(',

3+$6(#5#+/5/#<(//2:,

3+$6(#6#+/6/#%/8(,

/4

/5

6$)(7<#($57+

/4

/5

6$)(7<#($57+

6$)(7<#($57+
<(//2:2*5( (1

NOTE:

Connection between two phases in a 3-phase outlet should under no
circumstances be carried out where the single-phase voltage (the voltage
between one of the phases and neutral) exceeds 127V. The installation
should be carried out by a qualified electrician who understands your partic­ular installation and the local safety and wiring regulations.

FIG 1-5. Connecting to a 3-phase outlet
(100-127V/200-240 system voltages)

1-6 Connecting the mixer systems

J-Type Revision J2005-2

41618 0DLQ#DQG#H[WHQVLRQ#IUDPH#SRZHU#FRQQHFWLRQV

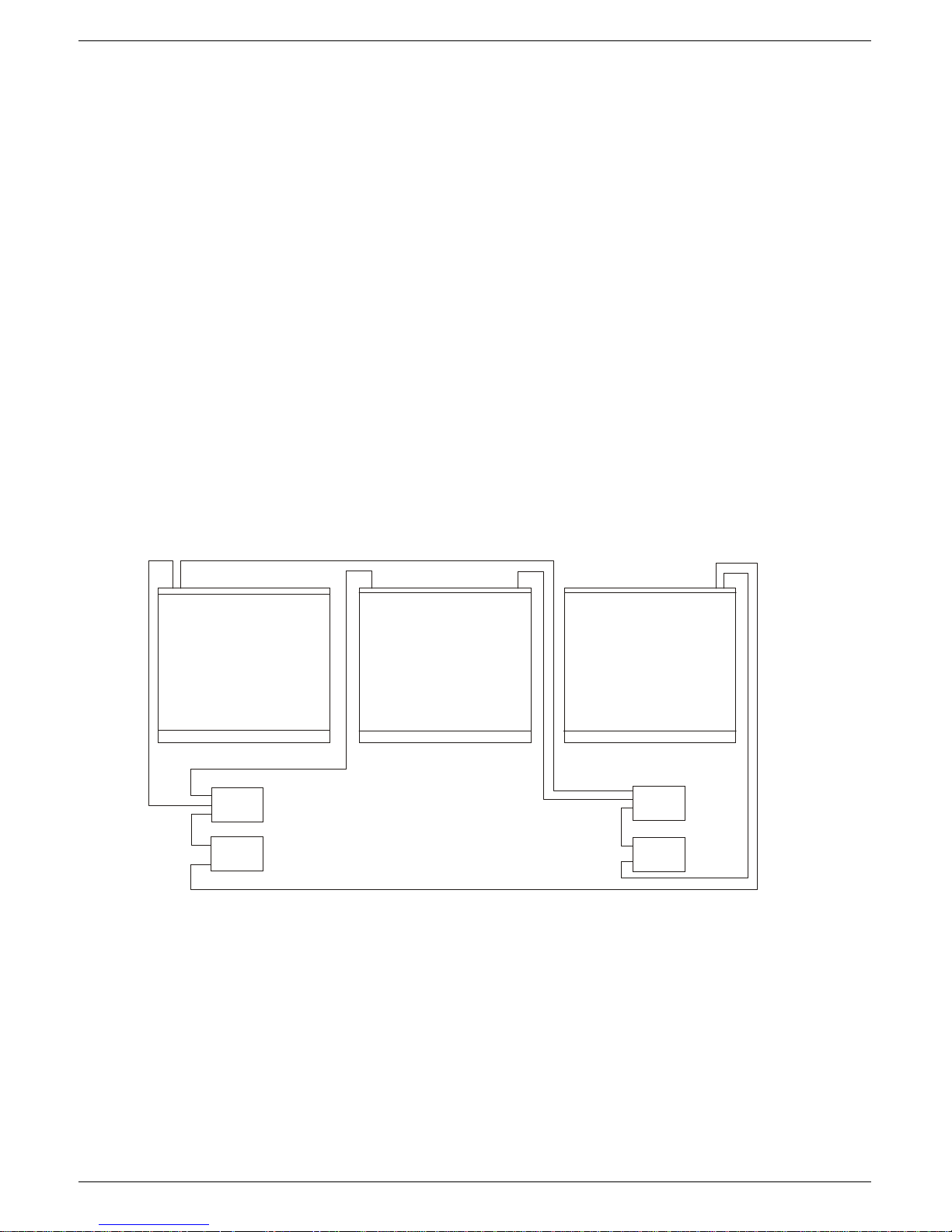

See fig 1-6 below for schematics of the frames power connections.

1. Using a short U-LINK cable (supplied), connect one of the outputs on the ±18V
PSU to one of the outputs on the +13V/+48V PSU in the “SYSTEM 1" power
supply rack. This operation “links” the d/c outputs on both power supply units in
the rack so that ±18V, +13V and +48V is available on all remaining output con­necto rs on either power unit.

2. Co nn ec t t he se co nd s ho rt “U- LI NK” c ab l e ( s uppl ie d) b etw e en th e ± 18 V PS U an d
the +13V/+48V PSU’s in the “SYSTEM 2" power supply rack.

3. Connect a PSU cable between the “SYSTEM 1" rack and the “PSU SYSTEM 1"
connector on the MAIN FRAME.

4. Connect a PSU cable between the “SYSTEM 2" rack and the “PSU SYSTEM 2"
connector on the MAIN FRAME.

5. Connect a PSU cable between the “SYSTEM 1" rack and the “PSU SYSTEM 1"
connector on the EXTENSION FRAME 1.

6. Connect a PSU cable between the “SYSTEM 2" rack and the “PSU SYSTEM 2"
connector on the EXTENSION FRAME 1.

7. Repeat procedures 5. and 6. f or EXTENSION FRAME 2 (a 3 frame console).

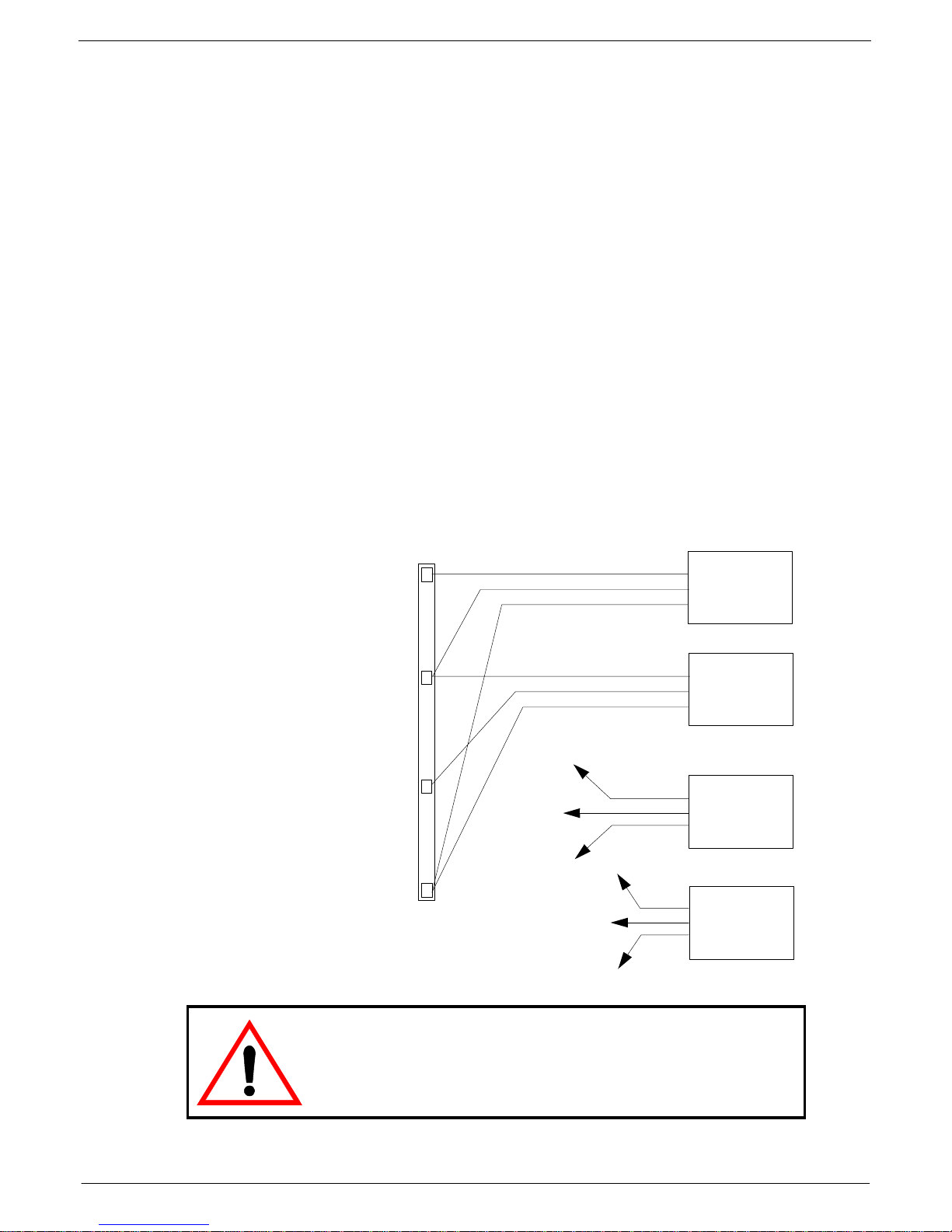

FIG 1-6. Power connections

368#6<67(0 #4#+“4;9,

368#6<67(0#5#+“4;9,

368#6<67(0#4#+7;92.469,

368#6<67(0#5#+7;92.469,

Connecting the mixer systems 1-7

Revision J2005-2 J-Type

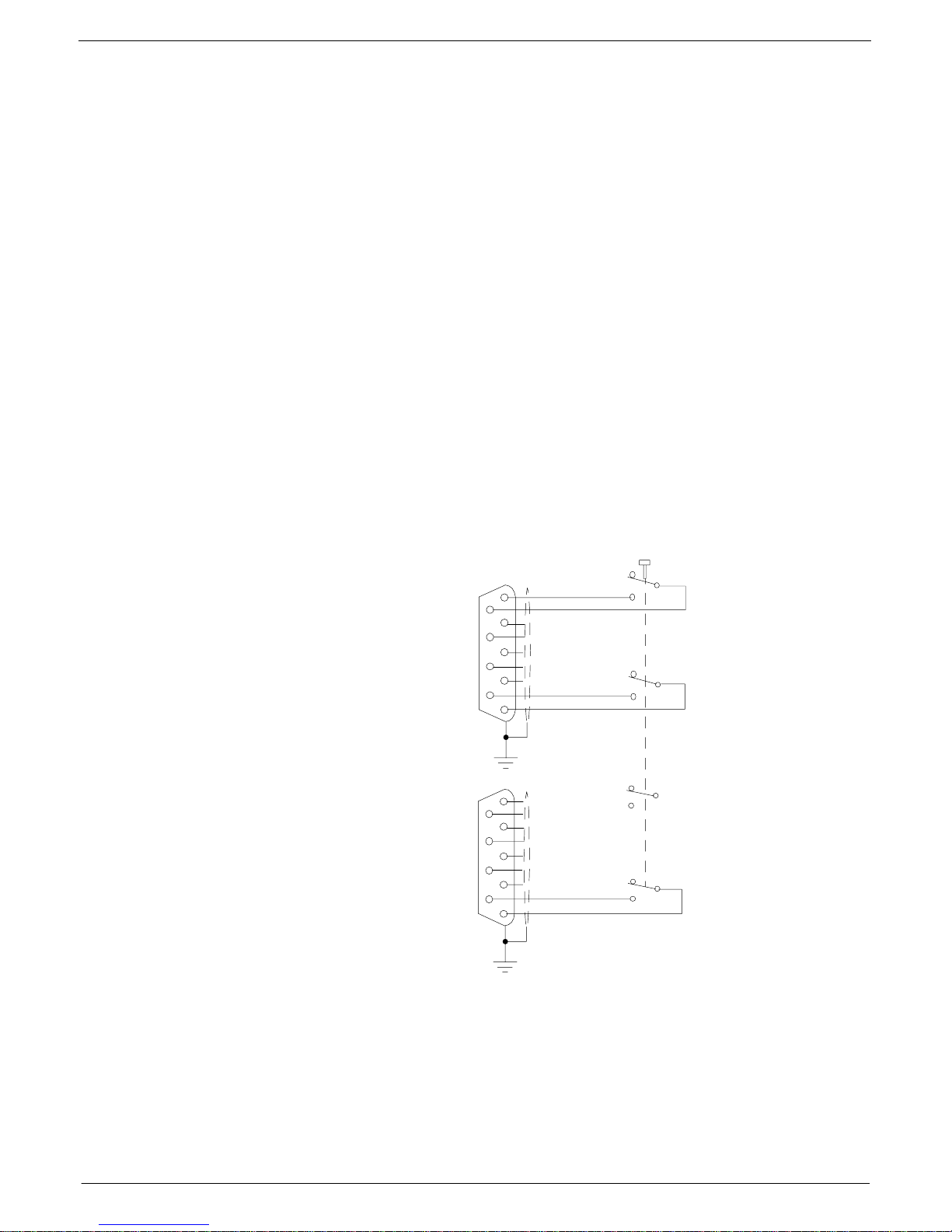

41619 ;34<#DQG#;353#FRPELQHG#5HPRWH#VWDUW

Each 801 9 and 8 02 0 s w itch - mod e p o we r su pp ly is fi tte d wit h a f ron t p an el mo unte d 9
way ‘D-type’ connector. This connector is labelled “Connections for Remote Start”.
You may connect a single remote start switch to each unit, have one switch start a
“system” pair, or wire up a single switch t o start “system 1” and “system 2” all at the
same time .

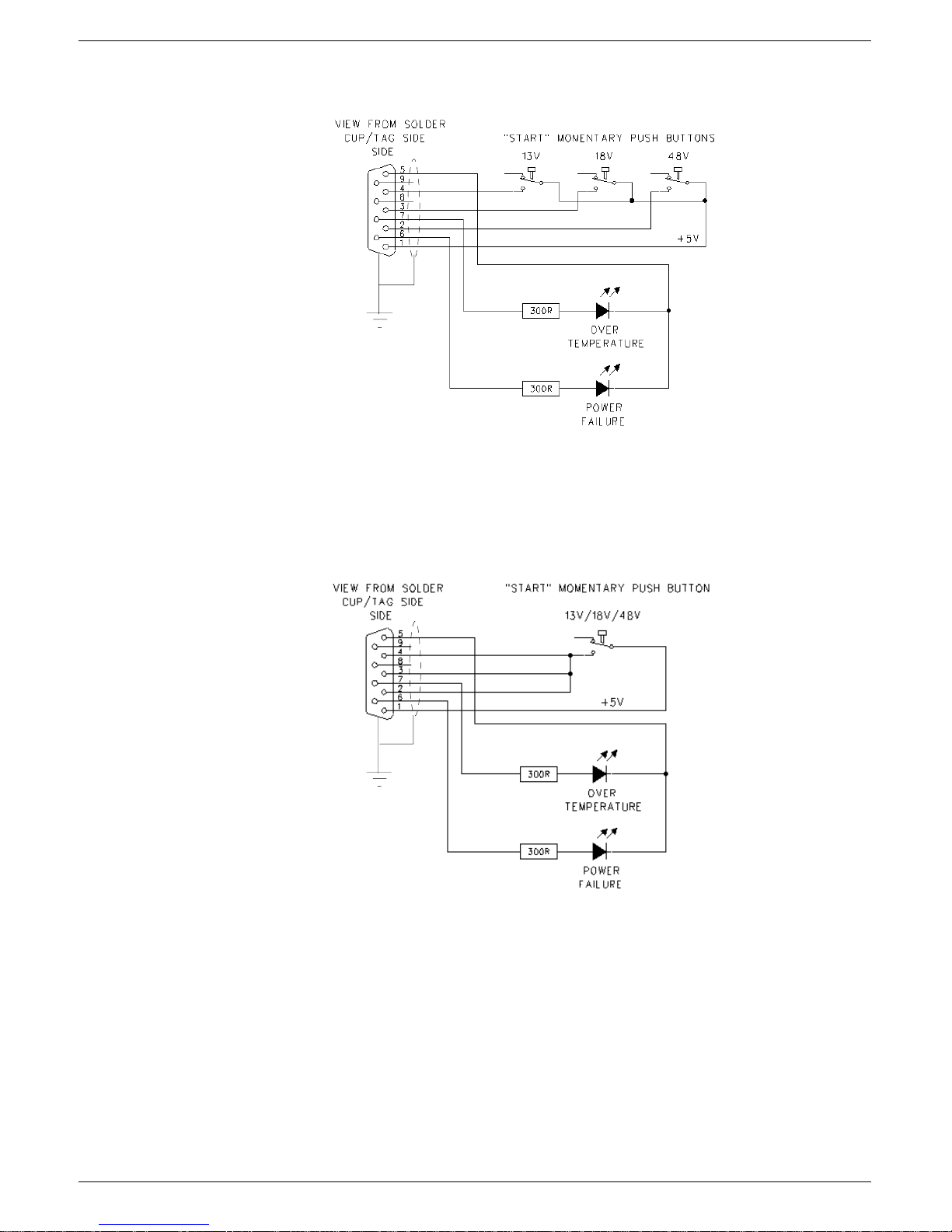

Fig 1-7 applies to 8019 and 8020 PSUs up to serial number 34949 and shows the
circ uit for starting up a “system” pair with a single switch. This has proved to be the
most popular method of connecting the remote start facility. This circuit can easily be
ext ended to provide a s ingle switch remote for all four PSUs if required.

For 8019 and 8020 PSUs from serial number 34950 onwards, see fig 1-8 and 1-9.

NOTE:

■■■■

The remote must be a ‘momentary’ type. You will need a two-pole switch for a
singl e PSU, a four-pole swit ch for a “ system” pair, or a six-pole switch for controlling
all four units.

■■■■

The remote switch(es) must be mounted on a metal panel.

■■■■

Use shielded cable for the remote switch wiring.

■■■■

The 9-way ‘D-type’ free plug must have a conductive shell. This is to ensure that
the cable shield connects directly to the PSU unit chassis.

■■■■

Connect the cable shield to the metal panel where the remote start switch(es)
are mounted.

Great care must be taken with the wiring of the switch(es) to ensure that no short-cir­cuits can occur between any two power supply units .

FIG 1-7. Remote start of 8019/8020 up to serial number 34950

PANEL MOUNTED 4-POLEVIEW FROM SOLDER

CUP/TAG SIDE

5
9

4
8
3

2
6

1

7

5
9

4
8
3

2
6

1

7

MOMENTARY SWITCH

TO CONNECTION
FOR REMOTE START
ON 8019 FRONT PANEL

TO CO NN E C TION
FOR REMOTE START
ON 8020 FRONT PANEL

NOTE: CABLE SCREEN IS
CONNECTED AT BOTH ENDS

1-8 Connecting the mixer systems

J-Type Revision J2005-2

300R

300R

18V

“START” MOMENTARY PUSH BUTTON

VIEW FROM SOLDER
CUP/TAG SIDE

OVER
TEMPERATURE

POWER FAILURE

5

9

4

8

3

2

6

1

7

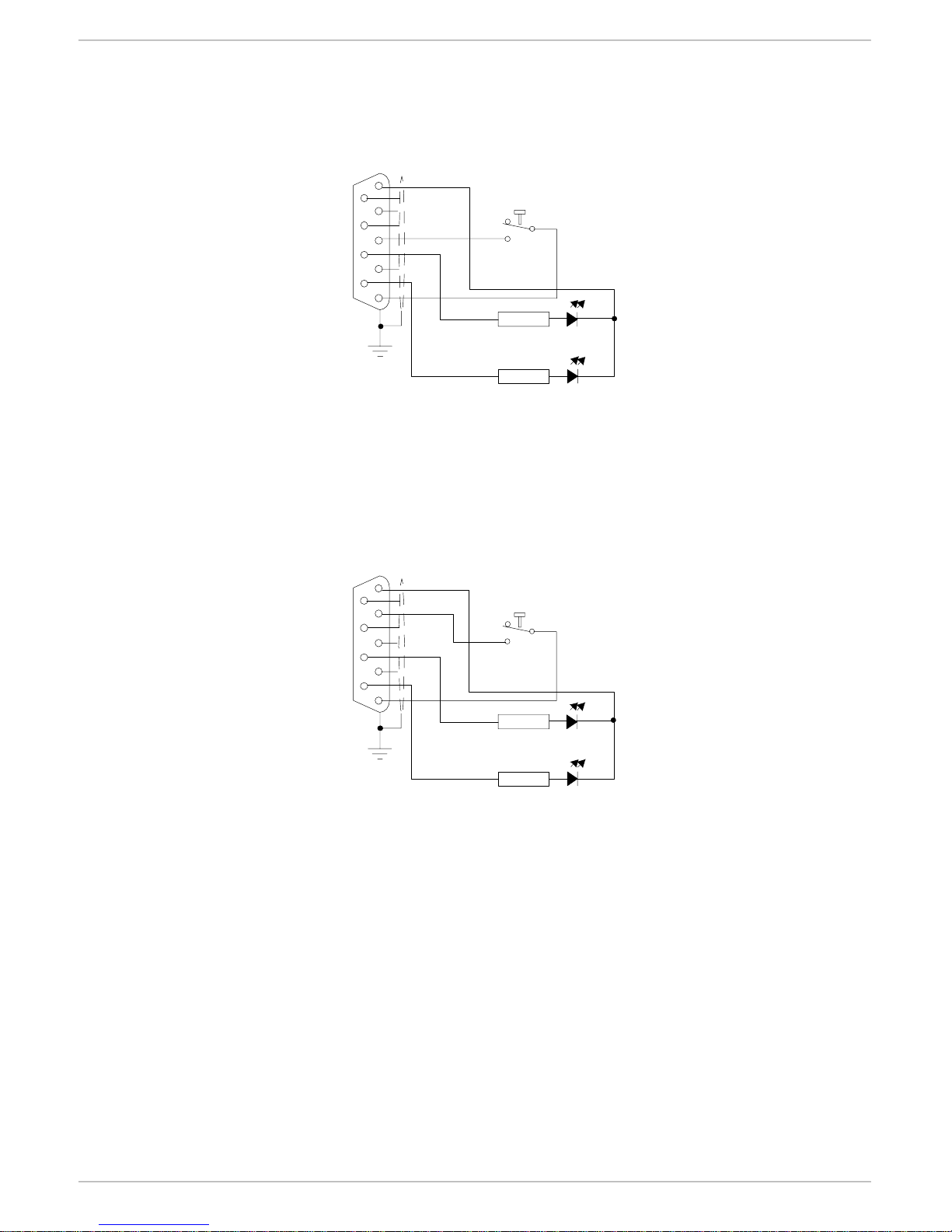

FIG 1-8. Remote start of 8019 PSU
(from serial number 34950)

300R

300R

13V

“START” MOMENTARY PUSH BUTTON

VIEW FROM SOLDER
CUP/TAG SIDE

OVER
TEMPERATURE

POWER FAILURE

5

9

4

8

3

2

6

1

7

FIG 1-9. Remote start of 8020 PSU
(from se rial number 34950)

Connecting the mixer systems 1-9

Revision J2005-2 J-Type

4161: ;733#VZLWFK0PRGH#SRZHU#VXSSO\#XQLW

CADAC 8400 switch-mode power supply u nits are designed to run from a minimum
of 208V u p to a maximum of 260V a.c, 50/60Hz.

The 8400 is rated thus +13V@92A, ±18V@44A and 48V@5A.

The a.c. input is connected to the PSU via a 3-core cable, CMA reference 3183TQ –
BASEC approved, rated at 20A.

The 8400 unit is based on one POWER ONE RPMS-ETETGDGD1ETK Power block,
with additiona l circuitry as s hown on CADAC drawing number C3.8397.

4161; 5HPRWH#VWDUW#RI#;733#368

Each 8400 switch-mode power supply provides the following outputs: 13v, ±18v and
48v. Each PSU is fitted with a fron t panel mo unted 9-way 'D-type’ connector labelled
‘Connections for Remote Start’. If a remote start facility is used, Power Failure and
Over-Temperature LEDs may also be fitted with the remote start switches if required.

Fig 3-15 shows the circuit for starting up a “system” with a single switch. This has
proved to be the most popular method of connecting the remote start facility. This cir­cuit can easily be exte nded to provide a single switch remote for all four PSUs if
required. If muliple switches are to be us ed, see fig 3-14.

NOTE:

■■■■

The remote start switch must be a ‘momentary’ type. You can use 3 separate sin­gle po le switches for each Power Supply to turn on 13v,±18v and 48v outputs of the
PSU alternatively use one single pole for all voltages.

■■■■

The remote switch(es) must be mounted on a metal panel.

■■■■

Use shielded cable for the remote switch wiring.

■■■■

The 9-way ‘D-type’ free plug must have a conductive shell. This is to ensure that
the cable shield connects directly to the PSU unit chassis.

■■■■

Connect the cable shield to the metal panel where the remote switch(es) are
mounted.

FIG 1-10. 8400 power supply unit.

1-10 Connecting the mixer systems

J-Type Revision J2005-2

Great care must be taken when wiring the s witch(es) to ensure that no short-circuits
can occur between any two power supply units.

FIG 1- 11. R emote st art o f
PSU 8400 with multiple
switches.

FIG 1-12. Remote start of PSU
8400 with a single switch

Connecting the mixer systems 1-11

Revision J2005-2 J-Type

417 &RQQHFWLQ J#WKH#FRQVROH#IUDPHV

41714 $XGLR#%XV#2#'DWD#%XV#&RQQHFWLRQV

If the console is used in a multi-fram e configuration then the busses need to be con­nected in a ‘daisy chain’ fashion.

Each end

of a frame has seven bus connectors ­four audio and two data busses plus fader bus . The bus cables are simply linked
between similar connectors on the end of the nearest frame.

Make sure that each frame has its “Frame Select” switch set to a different number.

See also Appendices, A. Important information regarding EMC.

41715 )DGHU#FRPPXQLFDWLRQV

When motor fade rs are used in extension fram es, a 9-w ay “FADER COMMS” cabl e
must be con ne ct ed between the CC M conn ect o rs sh o wn an d t h e COMM S i np ut ( se e
fig 2-3) on the extension frame rear panel.

Extension frames fitted w ith motor-faders require control dat a from the CCM. Three
9-pin female connectors Three 9-pin female connectors located on the rear panel of
the CCM are connected direct ly

to the extension frame using the supplied ‘fader
comms’ cable. The frame containing the CCM sends motor data fader data, via the
7303 interface module (always mou nted directly below the CCM on J-type consoles).

Thus, a 3 frame console wou ld requir e two “FADER COMMS” cabl es:

“FADER COMMS on EXTENSION FRAME 1 TO “FADER COMMS 2” on CCM
“FADER COMMS on EXTENSION FRAME 2 TO “FADER COMMS 3” on CCM

41716 3)/

PFL mixing amplifiers are located in the “Oscillator /Communications” module. There
are tw o PFL outputs:

■■■■

PFL Direct is a line level output t hat appears on an XLR 3-32 connecto r on the

rear panel of the OSC/Comms module, labelled “PFL DIRECT”;

■■■■

PFL to Headphone s is a high level output suitable for driving headpho nes that

appears on an XLR 3-32 connector

and

a TRS jack socket connector on the rear

panel of the OSC/Comms module, labelled “PFL TO HP”.

4

5

6

7

)5$0(#6(/(&7

$8',2#%86#)5$0 (#72#)5$0( $8',2#%86#)5 $0(#72#)5$0(

'$7$#&211(&72 5

&2006#&211 1#

72#&&0

4

5

6

7

$

%

/,1.#7+(6(#&211(&7256
72#7+(#$'-$&(17#&211(&7256
21#7+(#1(;7#)5$0(

6(7#7+(#³)5$0(#6(/(&7´
6:,7&+#72#$#81,4 8(#180%(51
7+(#)5$0(#&217$,1,1*#7+(
&&0#,6#$/:$<6#)5$0(#41

:+(1#$#)5$0(#'2(6#127#&21 7$,1
7+(#&&0#%87#'2(6#+$9(#02725
)$'(56/#&211(&7#$#)$'(5#&2006
&$%/(#)52 0#7+(#&& 0#72#7+(#)5$0(1

'$7$#&211(&725

$

%

)$'(5#%86

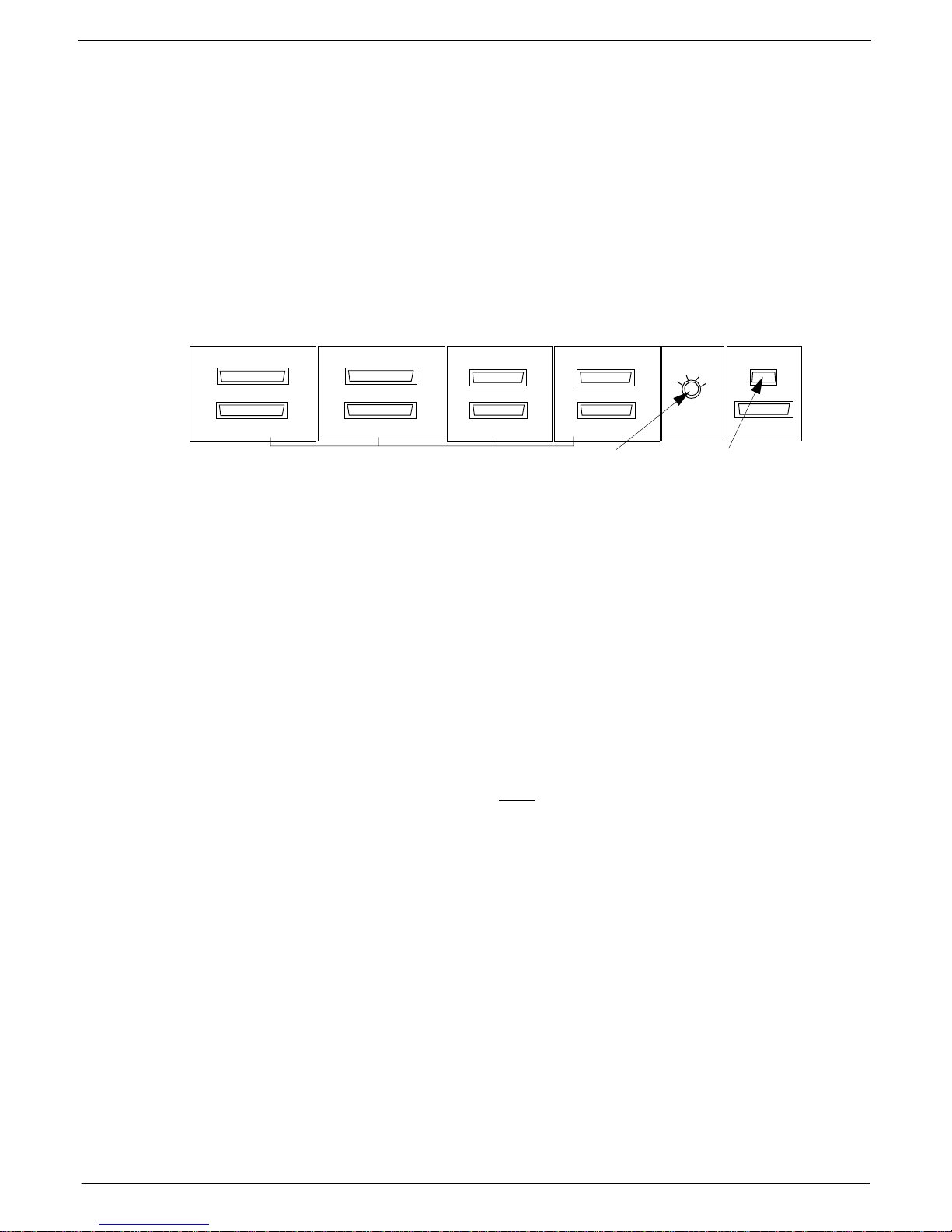

FIG 1-13. Audio/Data Bus connections.

1-12 Connecting the mixer systems

J-Type Revision J2005-2

The PFL to Headphones signal can be connected to the TRS jack sockets mounted
on the front of the console frame by using the “OSC/COMM TO FRAME” cable sup­plied. This cable has a male XLR 3-pin connector on one end and a female XLR 3­pin on the other end. Connec t one end of the “Oscil lator/Communicat ions” module’ s
“PFL TO HP” connector and the othe r end to the r ear frame connector labelled
“FROM PFL HEADPHONE XLR”.

Additional inter-frame connections are required to enable the PFL signals from mod­ules in extens ion (side) frames to be monitored. Use the cable(s) labelled “PFL
FRAME TO FRAME” to interconnect two or more frames:

■■■■

Connect one end of a “PF L FRAME TO FRAME” cable to the connector labelled
“TO NEXT FRAME” on the console frame containing the “Osc/Communications”
module.

■■■■

Connect the other end of a “PFL FRAME TO FRAME” cable to the connector
labelled “FROM PFL HEADPHONE XLR” on the next frame.

Repeat this procedure f or all other frame s in the con s ole system .

41717 /LWWOLWHV

Surface illumination of the console is provided by the use of two or more “Littlite”
units that plug into the top bar of the console frame. Control for the “Littlites” - on/off
and intensity - is located on the “Oscillator/Communications” mod ule. The variable
vol tage power supply is mounted inside the console frame.

Two cables are required to inte rconnect the “Litt lite” controls, t he variable voltage
power supply and the lamp units.

■■■■

Connect one of the cable labelled “OSC TO LITTLITES” to the connector on the
rear panel of the “Oscillator/Communications” module labelled “LITTLITES” (this
cab le has 4-pin XLR male and female connectors).

■■■■

Connect the other end of the cable labelled “OSC TO LITTLITE” to the connector
on the rear panel of the console frame labelled “FROM PFL MODULE”;

■■■■

Connect one end of the cable labelled “LITT LITE FRAME TO BAR” to the con­nector on the rear panel of the console frame labelled “TO LIGHTS” (this cable has a
4-pin male XLR connector at one end and a 5-pin XLR connector at the other end).

■■■■

Connect the other end of the cabl e labelled “LITTLITE FRAME TO BAR” to the
5-pin XLR-connector mou nted at the rear of the top bar on the console frame.

Additional inter-frame connections are required to enable the LITTLITE control sig­nals to be delivered to any extension frame(s) in the console system. Use the
cable(s) labelled “LITTLITE FRAME TO FRAME” to interconnect two or more frames.

■■■■

Connect one end of a “LITTLITE FRAME TO FRAME” cable to the connector
labelled “TO NEXT FRAME” on the console frame containing the “Oscillator/Commu­nications” modul e;

■■■■

Connect the other end of a “LITTLITE FRAME TO FRAME” cable to the connec­tor labelled “FROM PFL MODULE” on the next frame;

■■■■

Connect one end of a cable labelled “LITTLIT E FRAME TO BAR” to the connec­tor on the rear panel of the console frame labelled “TO LIGHTS” (this cable has a 4­pin mal e XLR connector at one end and a 5-pin XLR connector at the other end.

■■■■

Connect the other end of a cable labelled “LITTLITE FRAME TO BAR” to the 5­pin XLR connector mounted at the rear of the top bar on the console frame.

Repeat this procedure f or all other frame s in the con s ole system .

41718 368#,QGLFDWRU

Two sets of four L EDs are i ncorporated into t he CCM front panel to give the operator
visual indication that the “main” (PSU System 1) and “backup” (PSU System 2)
power supply units are working correctly. A cable, labelled “PSU IND.” is supplied to
inte rconnect the CCM and the console frame.

Connecting the mixer systems 1-13

Revision J2005-2 J-Type

■■■■

Connect one end of the “PSU IND” cable to the “PSU IND” 15-way male D-sub

connector on the CCM.

■■■■

Connect the other end of the “PSU IND” cable to the “PSU IND” 15-way female
D-sub connector on the r ear cons ole frame adjacent to the two multi-pin power input
connectors.

41719 (DUWK/#39/#*1'#DQG#)UDPH#&RQQHFWLRQV

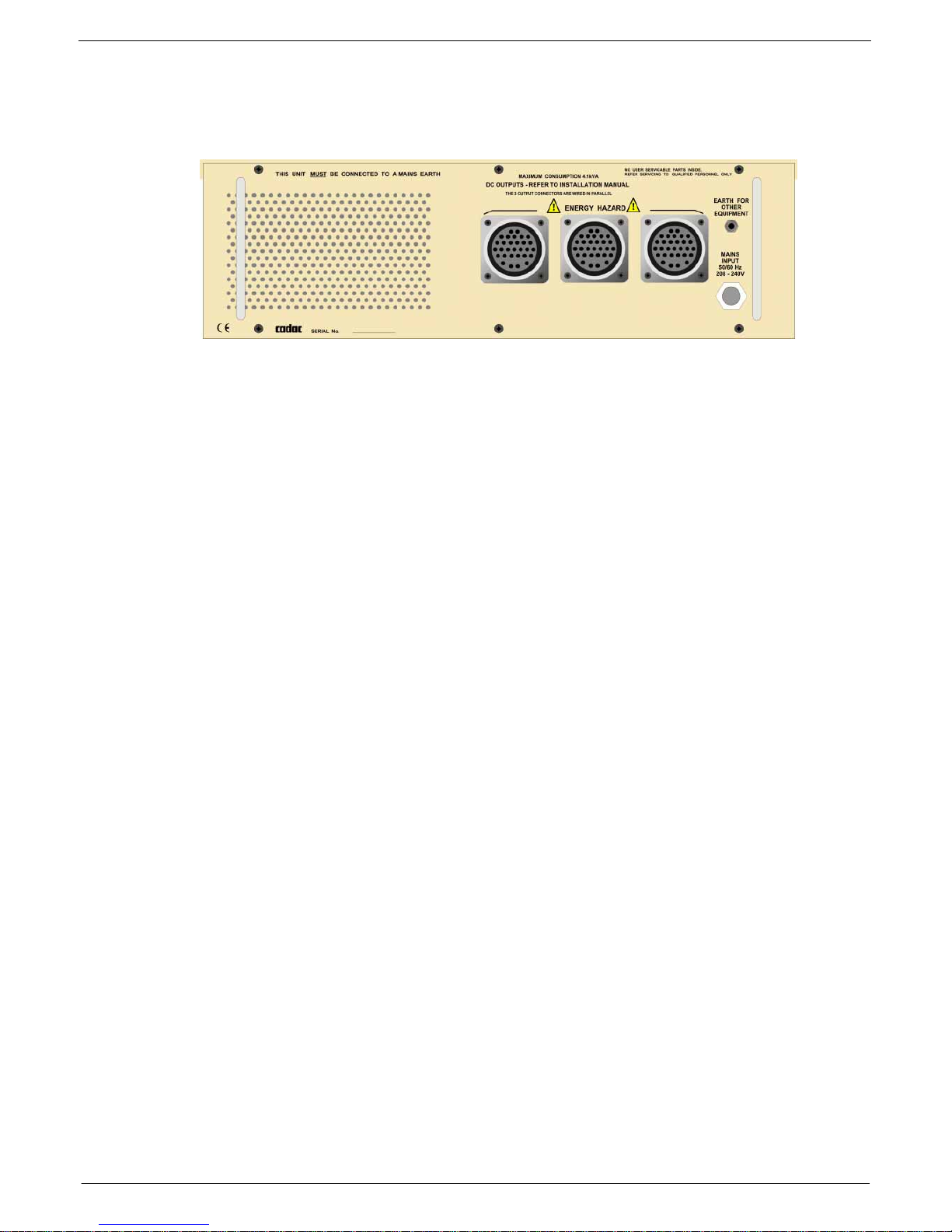

Figure 1-7 shows the rear panels of the power supply units in a single PSU system.
Under normal conditions, the 0v and Mains-Earth terminals can be connected on
both PSU systems. However, if the a.c. input lines to each pair of PSU’s has a differ­ent length, you may find that the 0v and Mains-Earth terminals can only be linked on

one

set of power suppli es, for minimum system noise.

The 0v or FRAME terminals on a PS U need

not

be directly connected to the 0v an d/
or FRAME connections on con s ole frames. The shielded po wer supply cables are
connected to the frame at both ends.

In addition to the terminals on the back of the PSUs, there are

0v, GND

and

FRAME

connections on the rear of each console frame. The shorting-bar link between the 0v,
GND and “ FRAME” term inals on each frame

must

be connected. For minimum
noise, the large diameter ‘frame-link’ cables (supplied with multi-frame consoles ),
must be connected. Always make sure that ‘frame-link’ cable nuts are tightened
again s t the copper bar.

The 0v, GND and FRAME terminals are linked in the factory with a copper bar. This
bar should ne ver be removed when the console is in normal use . Note that

Phantom

Power

cannot be delivered from the input modules to the 48V bus if the copper bar is
missing, because the screened microphone input cables will not be terminat ed. It
may also cause damage to the motor faders.

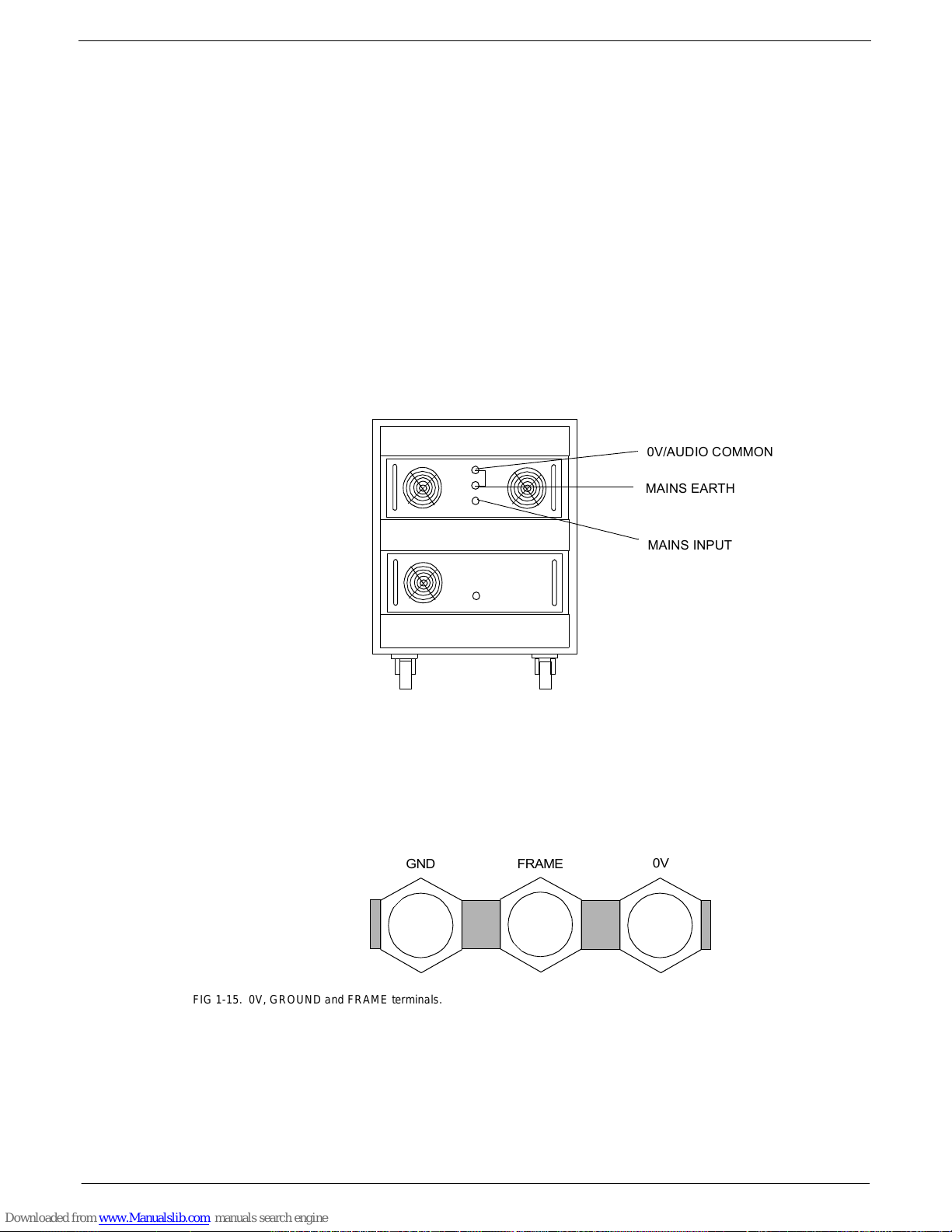

FIG 1-14. PSU system.









392$8',2#&20021

0$,16#($57+

0$,16#,1387

*1'

)5$0(

39

FIG 1-15. 0V, GROUND and FRAME terminals.

1-14 Connecting the mixer systems

J-Type Revision J2005-2

418 &RQQHFW#&RQVROH#$XWR PD WL RQ#6\VWHP

41814 &RQQHFWLRQV#0#%1&

Figures 1-16 below and 1-11 show how to connec t the Séance box to the consol e
and the computers running SAM., BNC type connection.

41815 (WKHUQHW#0#%1&

The Séance box communicates with the PCs over a 10Base-2 Ethernet connection
via a 50 ohm BNC cable terminated at each end with a 50 ohm terminator. The
Séance box has two BNC connec tors for each PC interface, which are wired in paral­lel inside. A 50 ohm terminator plugs into the BNC socket labelled TERMINATOR
and the Ethernet cable plugs into the BNC socket labelled COMPUTER. A t ermina­tor and T-piece are used to connect the Ethernet cable to the PC.

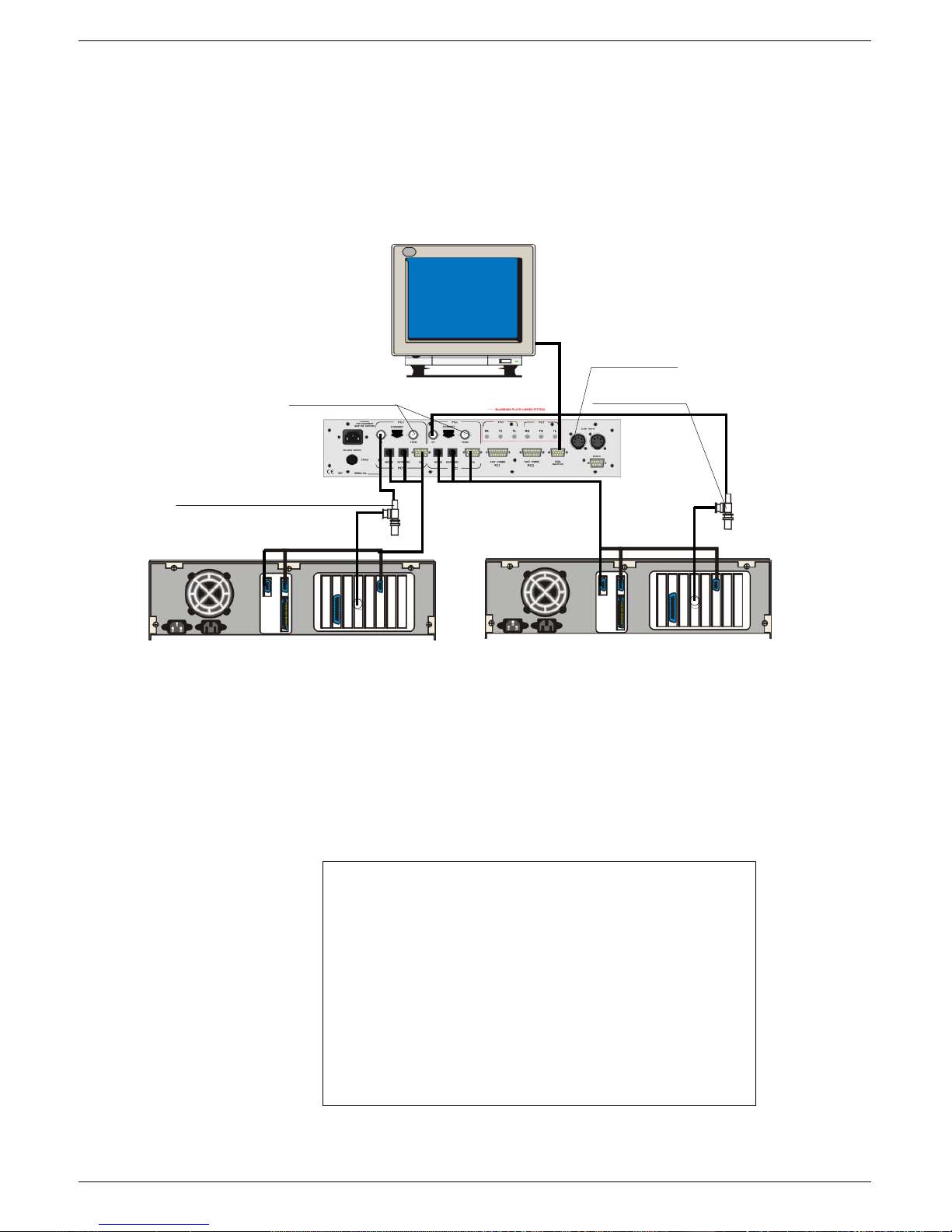

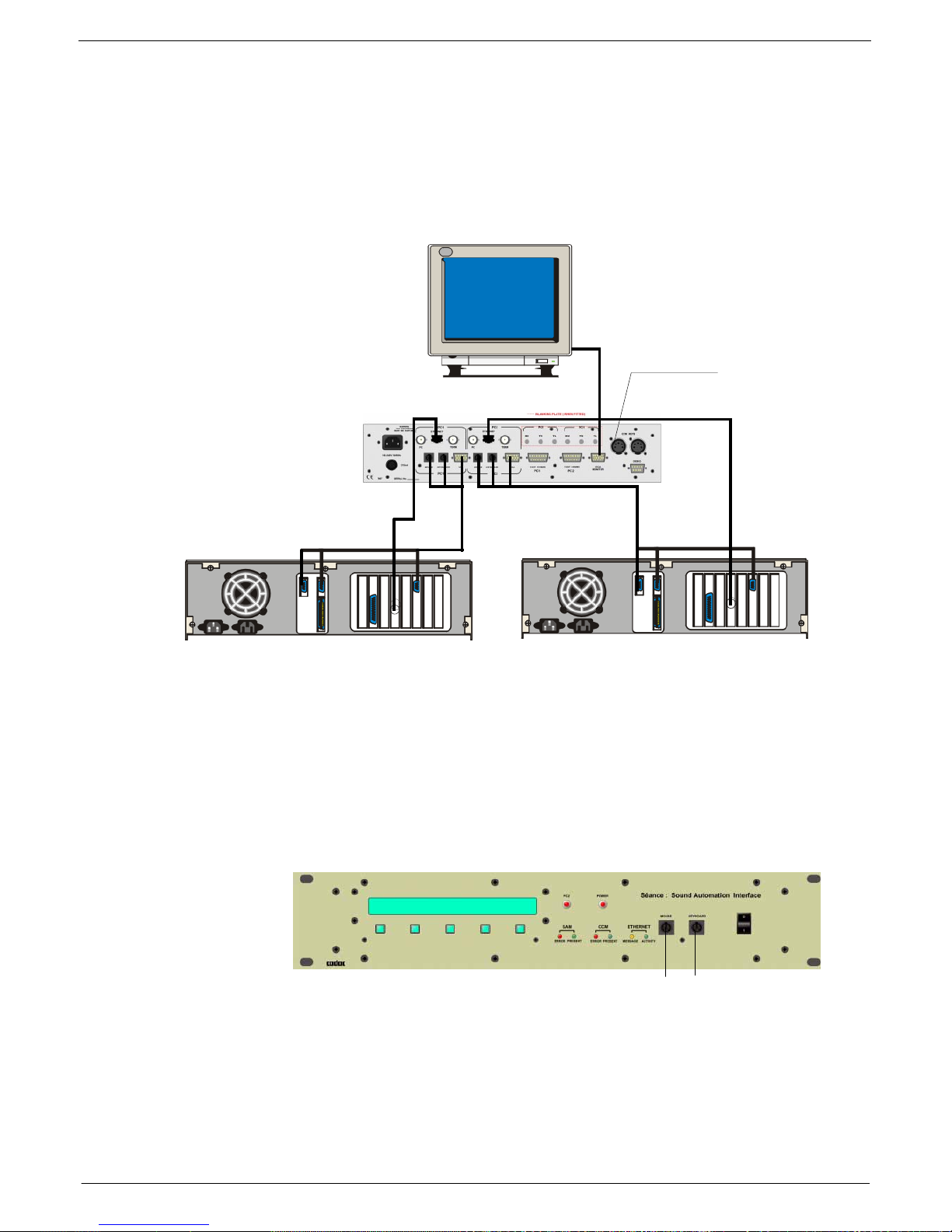

FIG 1-16. Séance rear panel connections for BNC

83#RKP#WHUPLQDWLRQ

(WKHUQHW#WHUPLQDWHG#DW#3&#HQG

0RXVH
.H\ERDUG
9*$

3&4#ZLWK#(WKHUQHW#FDUG 3&5#ZLWK#(WKHUQHW#FDUG

(WKHUQHW#WHUPLQDWHG#DW#3&#HQG

0RXVH
.H\ERDUG
9*$

7R#UHPRWH#3.1

0LQLPXP#VSHFLILFDWLRQ#IRU#D#3&#XVHG#ZLWK#WKH#############
6RXQG#$XWRPDWLRQ#0DQDJHU#6RIWZDUH

To run the Sound Automation Manager softwa re requires a PC with at least the
performance and pe ripherals as listed below:

PC Pentium 133 or later or compatible computer
Windo ws ®’95 or later or NT 4.0 or later
Graphics card 1024 x 768 pixels, 16 bit colour or better
Ethernet interface 10Mbit/sec with 10base2 connector (BNC)
32 MB RAM (Windows’98 or NT prefer 64 MB minimum)
20 MB free hard disk space
PS/2 keyboard (older 5-pin DIN keyboard can be used with adapter)
PS/2 mouse or pointing device (9-pin ’D’-serial devic es cannot be used)

Connecting the mixer systems 1-15

Revision J2005-2 J-Type

41816 &RQQHFWLRQV#0#5-78

Figure 1-17 below and fig 1-18 show how to con nect the Seance bo x to the cons ole
and the computers running SAM, using RJ45 connection.

41817 (WKHUQHW#0#5-78

The Seance box can also communicate with the PC via an RJ45 connector depending
on the type of Ethernet-card in the computer. The Séance box has two RJ45 connec­tors, one for each PC interface. These connect ors should be connected directly into
a comp uter. It is also po ss ib l e t o c onn ec t the R J45 soc k e ts t o a hu b. F or d et a il s abo ut
this, contact CADAC technical support.

41818 0RXVH

Each PC has a ‘one-to-one’ PS2 mouse cable, which connects between the PC’s
mouse port and the mou s e connector on the rear panel of the Séance box. The
mouse plugs into the mouse connector on the front panel of the Séance box.

0RXVH
.H\ERDUG
9*$

3&4#ZLWK#(WKHUQHW#FDUG 3&5#ZLWK#(WKHUQHW#FDUG

0RXVH
.H\ERDUG
9*$

7R #UHPRWH#3.1

FIG 1-17. Séance rear panel connections for RJ45

0RXVH .H\ERDUG

FIG 1-18. Séance front panel connections - BNC a nd RJ45

1-16 Connecting the mixer systems

J-Type Revision J2005-2

41819 . H\ERDUG

Each PC h as a ‘ o ne-o ne ’ PS2 k eyb oa r d c abl e , whi ch co nnect s be tw ee n t he P C’s k ey­board port and the keyboard connector on the rear panel of the Séance box. The key­board connects into the keyboard connector on the front panel of the Séance bo x.
Converters are supplied to connect to a 5-pin DIN keyboard and 5-pin DIN connectors
on the PC.

4181: 9*$

Each PC has a VGA cable connected between the computer’s VGA output and the
corresponding VGA connector on the rear panel of the Séance box. The VGA monitor
cable plug s int o t he VGA connector.

4181; &&0#NH\V

The Séance inter face reads the PC2 switch on the console’s CCM. The 5-pin XLR
conne c tors are pa ralleled together inside the Séance. A ‘female-female, one-one ca­ble ’ connec ts to the k eys conne ctor on the C CM and t he ot her ca n be us ed to con nect
to remote PREV and NEXT keys if required.

4181< )DVW#FRSSHU#FRPPXQLFDWLRQV

CADAC’s 15 way “fast copper communications” cables are used to connect between
the Séance box’s fast comms connectors and the CCM. The cable plugged into Fast
comms PC1 on the Séance box must be connected to PC1 on the CCM.

418143 'HEXJ#SRUW

The debug port is standard PC 9-pin serial port that can be used to access the
Séance box’s computer.

418144 0DLQV

The Séance box has a universal power supply and can be connected to AC mains 100
– 240V, 50/60Hz.

418145 )XVH

20mm 31 5mA fuse

Connecting the mixer systems 1-17

Revision J2005-2 J-Type

418146 &RQQHFW#6pDQFH#WR#FRQVROH

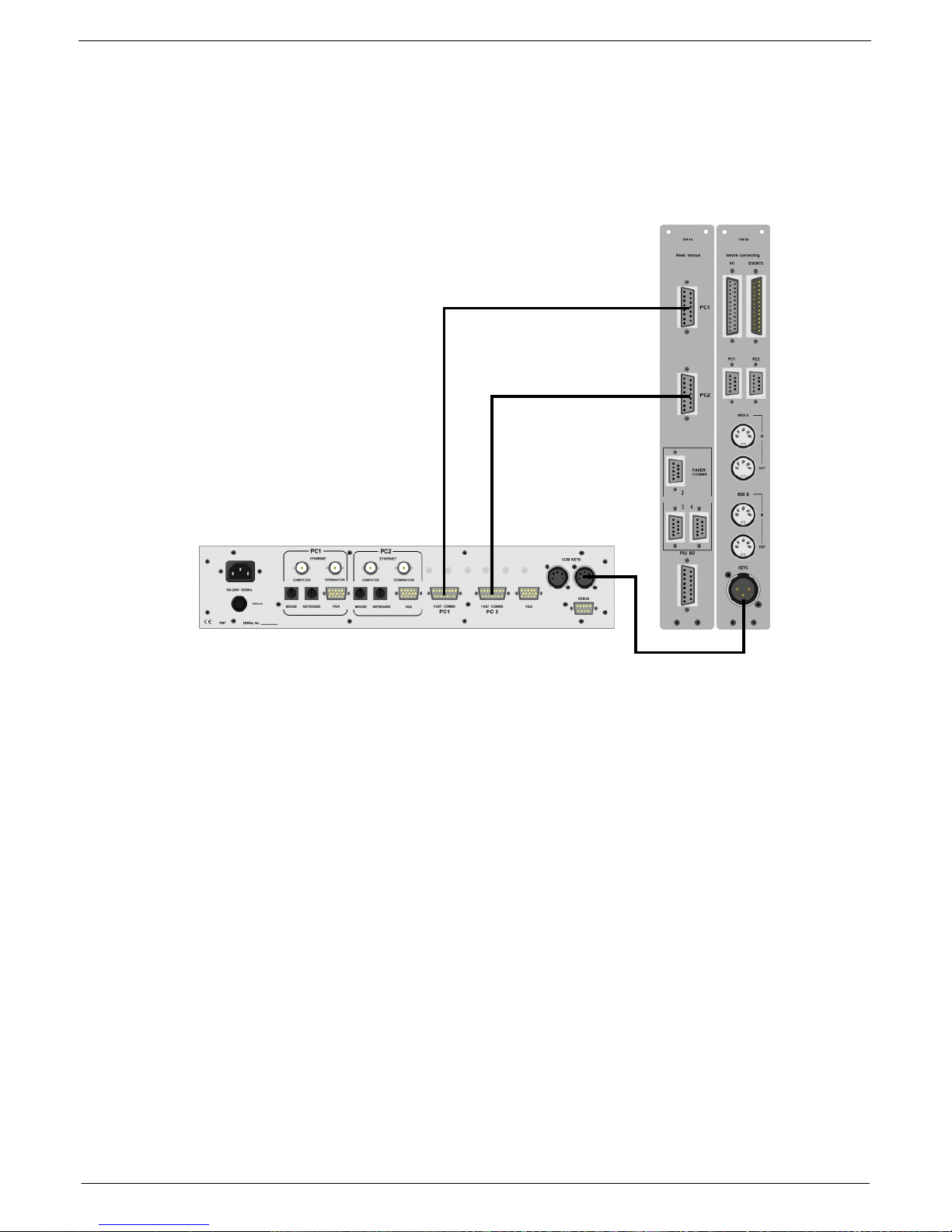

Figure 1-19 below shows how to conn ect the Séance Interface to the CCM in the
main console.

Using the cables supplied, make the following connections:

1. CCM PC1 to Séance box PC1.

2. CCM PC2 to Séance box PC2.

3. CCM KEYS to Séance box KEYS.

Details on Seance set-up can be found in the Seance Interface 7975 User & Installa­tion manu al.

FIG 1-19. Connect Séance to CCM.

1-18 Connecting the mixer systems

J-Type Revision J2005-2

418147 8VLQJ#WKH#9LGHR#DQG#.H\ERDUG#&KDQJH#RYHU#IXQFWLRQ#ZLWK#

6pDQFH#

A single keyboard, mouse and monitor can be used with two computers for main/
back-up vi a the Séance -b ox.

The Séance-box is supplied with a cable-kit allowing connections for one keyboard,
one monitor, one mouse and two computers PC1 and PC2.

Using the 5 pin XLR to XLR cable supplied, make the following connection:

■■■■

CCM KEYS (at the console end) to one of the KEYS-connectors on the rear of

the Séance-box.

The second keys connection on Séance is for use with

Remote P and N

buttons, .

418148 3&5#V\QFKURQLVDWLRQ

Using a Null modem serial interfac e cable with the appr opriate connectors for the
computers in use, make the following c onnection between the two computers .

■■■■

PC1 COM 1 or 2 to PC2 COM 1 or 2 (selectable in SAM)

Two serial port conf igurations are in common use with 9 way or 25 way 'D-Type' con­nectors.

The two comput ers will only “track” each others’ Cue position if the S AM tracking fea­ture has been enabled, see the SAM manual for details.

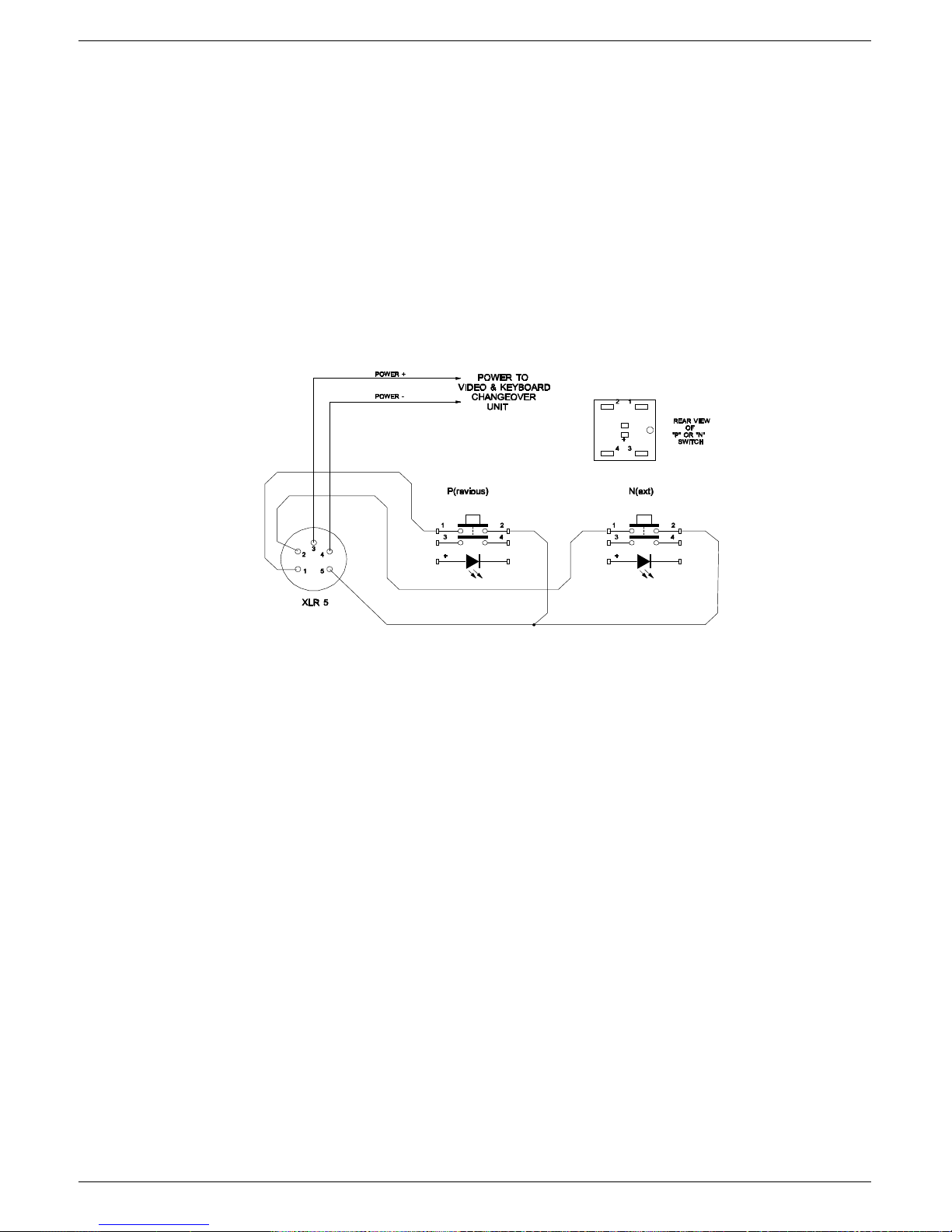

FIG 1-20. Remote P & N switch wiring detail.

Connecting the mixer systems 1-19

Revision J2005-2 J-Type

419 &RQQHFW#PDLQ#IUDPH#IDFLOLW LH V#IURP#PRGXOHV#WR#

IUDPH

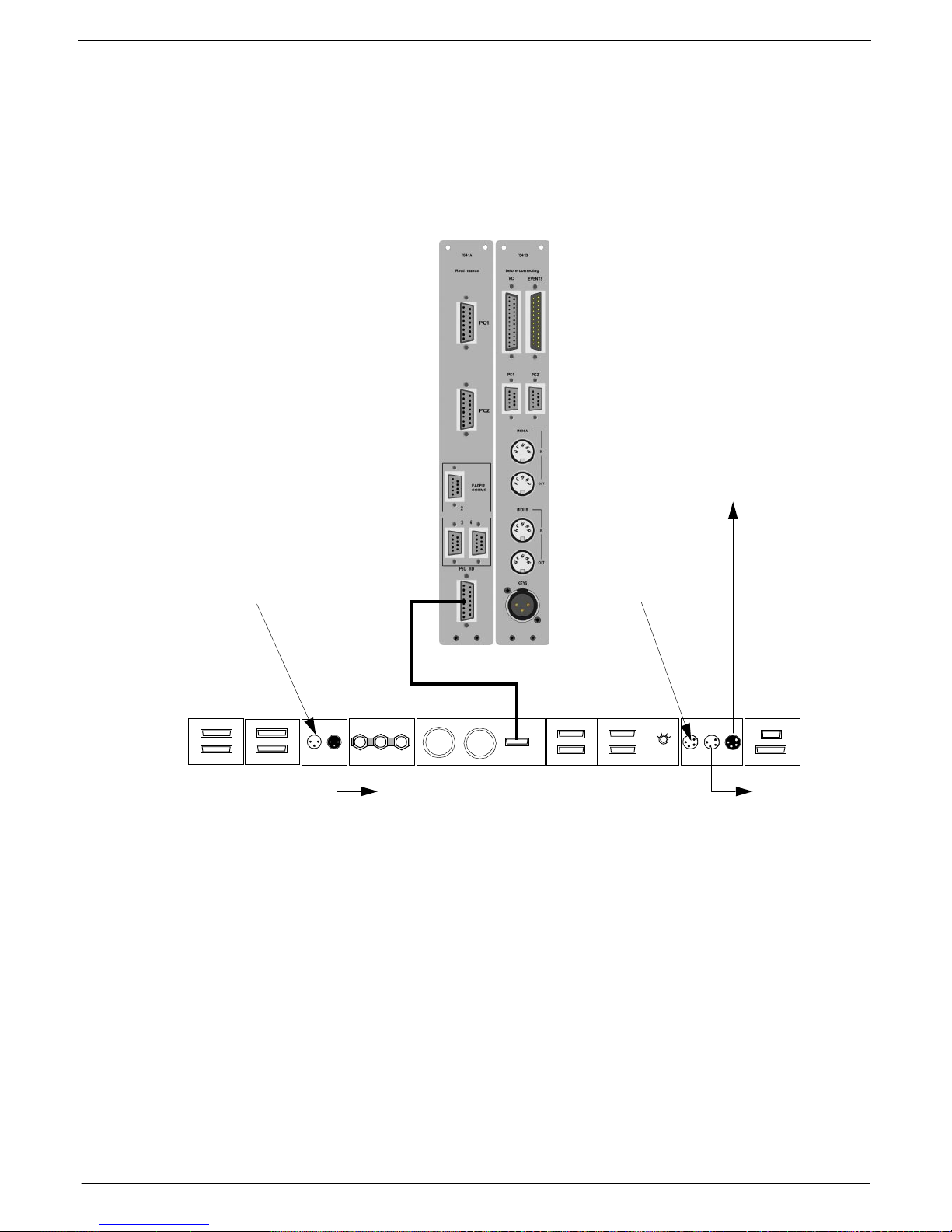

See figure 1-21 below for instructions on how to connect main frame facil ities from
modules to frame.

4

5

6

7

4

5

6

7

$

%

$

%

)URP#&2006#PRGXOH

7R#IUDPH#WRS#EDU

/LWWOLWHV

3)/

368#PRQLWRU

1H[W#IUDPH 1H[W#

)URP#&2006#PRGXOH

IUDPH

FIG 1-2 1. Connecting the main frame facilities from mod ules to frame.

1-20 Connecting the mixer systems

J-Type Revision J2005-2

41: 6ZLWFKLQJ#21

41:14 6\VWHP#SRZHU0XS#SURFHGXUH

CADAC cons oles are designed to work continuously with two power supply systems

- ‘main’ and ‘backup’ . The ‘main’ power supply pa ir (1 off ‘18v’ unit and 1 off 13v/48v
unit) ar e des ig na t ed ‘Sys te m 1 ’. The ‘b ac k up ’ pow e r su pp ly pa ir ( 1 o f f ‘1 8v’ un i t and 1
off 13v/48v unit) are designated ‘System 2’

On each power supply, turn all AC input switches to the ON-position.

Start the ±18 V and 13 V/ 48V PSUs (i n one PSU sys t em) si mu lt an eous ly, by pressi ng
and ho lding the START-buttons unti l you hear the relay click. The CCM will cycle
through its self -test routines and any Master Mute switches previously selected will
be set ON, thus protecting external equipment from possible DC pu lses when the
±18V PSUs are started.

Repeat for PSU system 2. If you cannot start the PSUs simultaneously, start the 13V/
48V first. However, do NOT operate the console for long periods without all power
lines on.

41:15 3RZHULQJ0XS#VHTXHQFH#RI#3&V

Always use the following procedure:

■■■■

Power-up console

■■■■

Select PC1 on the CCM and power up the first compu ter. Wait un til the PC 1

comput er has completed its boot-up routine, then...

■■■■

Switch to PC2 on the CCM and power-up the second computer and wait un til it

has completed its boot-up routine.

Once both computers have booted correctl y, they sh ould allo w the keyboard and
monitor to be switched back and forth without problems.

If the overall cable length for the keyboard and monitor are very long (greater than
5m), it may be necessary to use a keyboard and a monitor booster unit to retain key­board reliability and a clean monitor display.

41:16 6\VWHP#SRZHU0GRZQ#SURFHGXUH

1. On the CCM, press all Master Mute switches to the ON (down) position.

2. Cl os e down the SA M so ftware on ea ch PC , sh ut do wn Wi ndo w s® a nd s w it c h the
computers off .

3. Switch off the AC mains supply to PSU system 1.

4. Switch off the AC mains supply to PSU system 2.

.

J-Type CCM 2-1

Revision J2005-2 J-Type

5 -07\SH#&&0

514 &&0#)URQW#3DQH O#VZ LWFKHV#DQG#GLVSOD\V

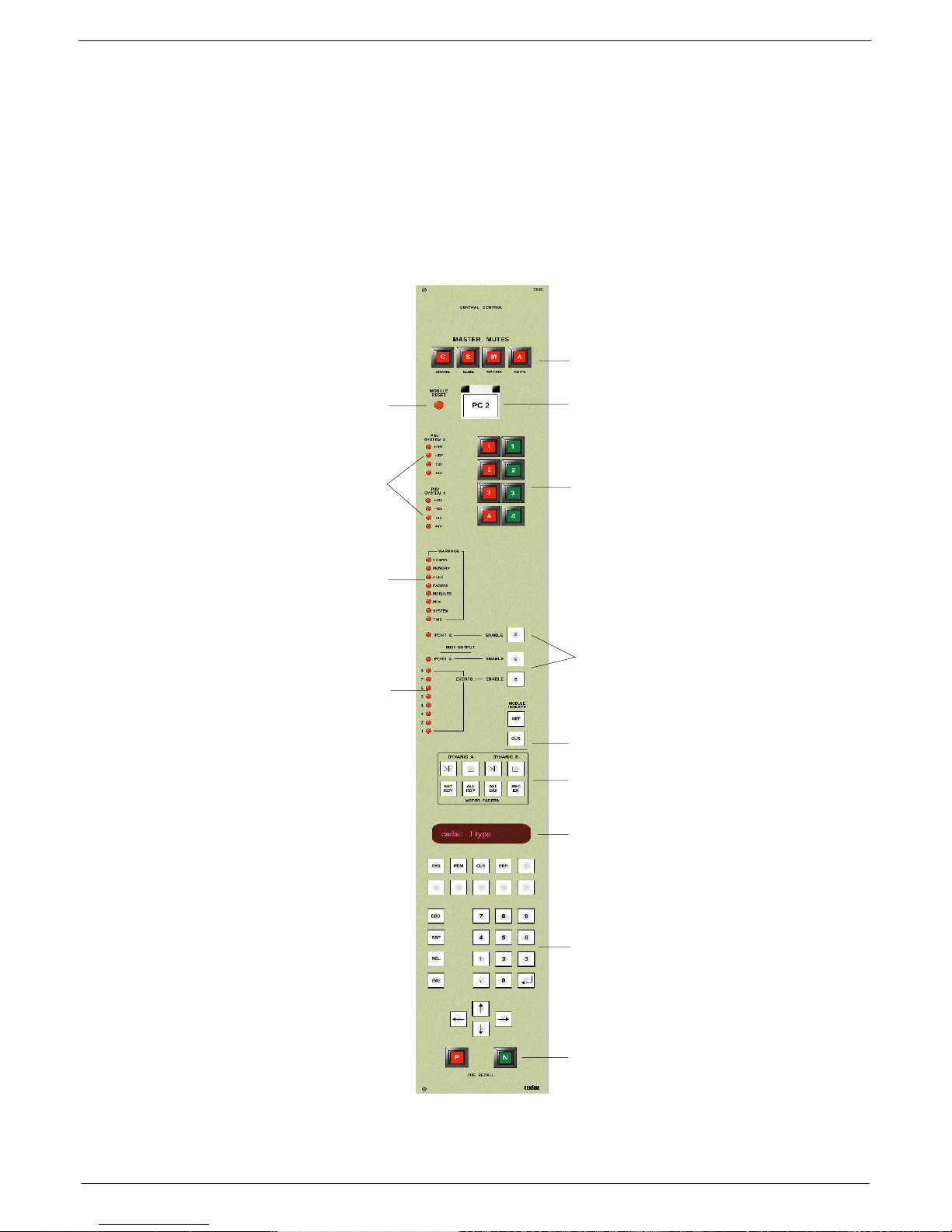

Please refer to fig 2-1 below for the location of the swit ches and displays on the J­Type CCM front panel issu e 7835 descri bed belo w.

FIG 2-1. J-type CCM control panel.

D

F

G

J

L

M

N

O

P

E

H

I

K

2-2 J-Type CCM

J-Type Revision J2005-2

D0DVWHU#0XWHV

Four separate switches to globally mute the channels, subgroups, matrix groups and
aux groups. All four switches work independen tly, so th at any comb ination of master
muting may be selected at any time. The switches are intended for manual operation
only, and their condition w ill not b e recorded w ith a cue state.

E 5HVHW

Resets the microprocessors withi n this modul e (roughly equivalent to turning the
power off then on again). Pressing reset does not clear the internal memories, maps
etc.

F3&5

The Sound Automation Manager software allows two computers to be used with the
syste m , PC1 and PC2. Separate connectors for each computer can be found on the
rear panel of the CCM. When the PC2 switch is pressed, al l data to and from th e
CCM will go to or come from PC2.

G 5HPRWH#VZLWFKHV

These are user conf igured switches for the remote cont rol of cart machines, tape
recorders etc.

H 368#6\VWHP#4#DQG#368#6\VWHP#5

The J-Type console is designed to be able to use two sets of power sup plies sim ulta­neously. These eight LEDs continuously show the status of the two sets of ±18V,
+13V and 48V power supply units. See 2.2 CCM Rear Panel connectors for conn ec ­tion details.

I :DU Q L QJ #/('V

These LEDs illuminate when a system function needs to be brought to the operator’s
attention. This may be an error condition, a “prompt”, or merely useful system infor­mation. The LEDs are labelled with the titles of each part of the automation system
about which the information is available:

1. COMMS Communications with the PC(s), Optical or RS 232 connec-

tions.

2. M EMORY Storage space used by the microprocessor to hold items such

as maps and memories

3. CUES Recall of console st at e s fr o m the PC.

4. FADERS Console fader s : channel, master and motorised.

5. M ODULES Programmabl e modules .

6. MIDI Midi inputs and outputs.

7. SYSTEM General category covering miscellaneous operations within the

CCM.

8. TIME Any timing activity, such as the current date and time.

J (QDEOH#VZLWFKHV

On/Off switches for MIDI outputs A and B, also for the Events relays. The sw itches
are momentary and ill uminate when the functions are enabled.

K0,',#DQG#(9(176#/HG*V

These show the operation of the MIDI outputs and EVENTS relays. The LEDs will
only illuminate when the appropriate ENABLE switch is “on”. (Note that this is in con­trast to the original J-Type CCM where the LEDs illuminated continuously).

If an error condition clears or is corrected aut omatically, then the LED will extinguish.
Otherwise the [Err] button (associated with the keypad) should be seen to flash and
at a conveni ent moment the operator may press it to obtain more detailed informa­tion upon the alphanumeric display.

J-Type CCM 2-3

Revision J2005-2 J-Type

L$OO#0RGXOH#,VRODWH#VHW#DQG#FOHDU

These two switches allow global switching of ISOLATE for programmable modules
such as rou ters and grou ps.

Note that these switches have no effect upon faders. Separate switches for global
fader isolate are included on the 7303 Interface module, (see 2.4 Fader Interface
Module 7303).

M 0RWRU#)DGHUV

This group of eight push-buttons may be used to control two dynamic sequences A
and B. Dynamic B is used only when an additional dynamic is being played. Both
dynami cs can run sim ultaneously. The mo tor faders can be set to safe and ready
mode respectively. In safe mode, touching the fader knob will have no impact on the
recorded sequence. In ready mode, touching the fader knob will cause the motor
fader to toggle between ready and write mode. Thus, editing of the recor ded
seque nce (dynamic A only) goes on for as long as the fader knob is actually touched
and the fader remains in ready mode.

############

PLA Y/P A USE (1)

Plays, pauses or continues a recorded sequence of motor fader
movements associated with dynamic A. If recording is enabled with the push-button
(8), then this button starts either a new recording, or starts an update of an existing
dynamic.

PLA Y/P A USE (2)

Plays, pauses or continues a recorded sequence of motor fader

movements associated with dynamic B.

STOP (3, 4 )

Stops the recorded sequence of motor fader movement s.

SET READ Y (5)

This mode allows individual faders to be “toggled” between safe and

ready mode by touching the fader kn ob.

ALL READ Y (6)

Sets all motor faders to ready mode.

ALL SAFE (7)

Sets all motor faders to safe mode.

RECORDING ENABLED (8)

Prepares the computer for recording of a dynamic

sequence. Pressing button (1) starts the actual recording.

FIG 2-2. Keypad for controll ing dynami cs.

2-4 J-Type CCM

J-Type Revision J2005-2

N $OSKDQXPHUL F#GLVSOD\

The 16 character alphanumeric display is the communication window between the
operator and th e J-Type III operating system.

In normal operating conditions, the display will show one of the following:

CUE number, or

Current Mem ory numb er, or

“cadac ` J -Type' “if no cue or memory is selected.

The display is also used for system messages via the [err] button and to traverse the
various menus for testing, mapping, etc.

O .H\SDG

The numeric keys [0] to [9] and the decimal point [.] are used to select a particular
cue or memory number in conjunct ion with one of the fun c tion keys listed below.

Key Meaning Function
[Sys] SYSTEM Calls up the SYSTEM SETUP menu.
[Mem] MEMORY Selects one of the non-volatile internal memories.
[Clr] CLEAR Clears a selected memory (i.e. sets everything to

OFF)

[Err] ERROR Writes error message or information to alphanumeric

display.

[Esc]

ESCAPE Moves backwards through a menu, or aborts an

operation, can be thought of as a “cancel” button.
[Bsp] BACKSPACE Deletes the last number entered.
[Rcl] RECALL Recall a cue or memory.
[Sve] SAVE Store a cue or memory.
[↵] ENTER Selects a menu item, starts or acknowledges

operations.

The arrow keys, [←], [→], [↑] and [↓] are used to help navigate in the various menus.

The buttons are back-lit by LEDs, and will illuminate or flash to indicate that they will
perform a useful function if pressed at that time, or that their function has been
selected.
Unlabelled buttons are reserved for use in future software updates.

P35(9#DQG#1(;7#EXWWRQV

Cause the previous or next cues to be recalled from the PC to the console.

515 &&0#UHDU#SDQHO#FRQQHFWRUV

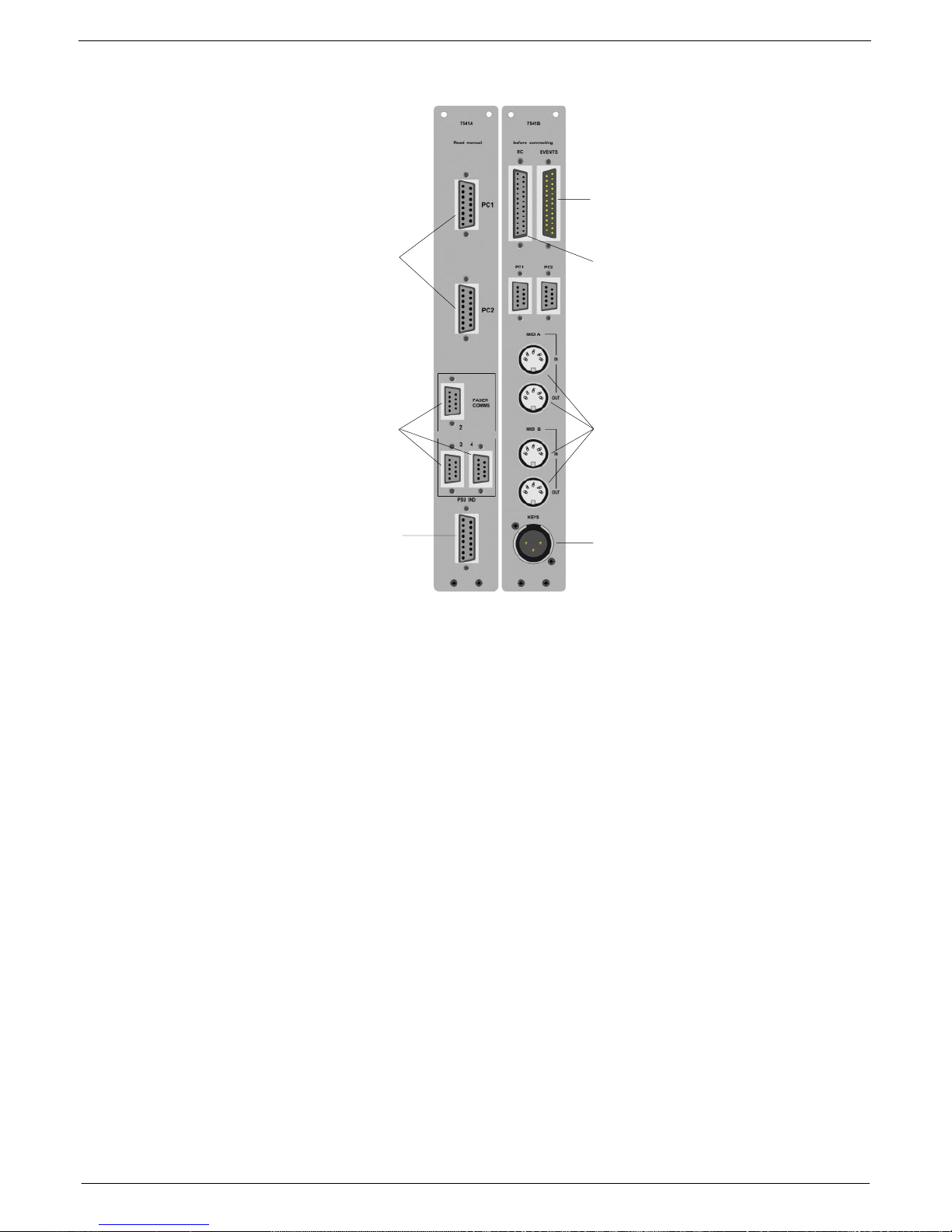

Please refer to figure 2-3 for the location of the connectors on the J-Type III CCM
module rear pa ne l des c r i be d below.

+D, )DVW#&RSSHU#&RPPXQLFDWLRQV#,22

Two cables provide the “fast copper” data link betwe en the CCM and up to two IBM®
PC or compatible computers if these are fitted with a CADAC Fast Copper Communi­cati ons board 7514. Otherw ise the ca bles run between the CCM and the Séance
box, see 1.5.1 Connections - BNC and 1.5.3 Connections RJ45. Two cables are nor­mally supplied, one for PC1 and the other for PC2. The c onnectors are labelled dif­ferently at each end. Make sure that the “CO NNECT TO CCM” end is connected to
the CCM ! The other ends of the cables are labell ed “PC1” and “PC2” respectively

If the cables are not connected correctly, the communications sys tem cannot work.

J-Type CCM 2-5

Revision J2005-2 J-Type

+E,# 368#,QGLFDWRUV

A cable with a 15 way 'D-Type' male connector at one end to a 15 way ' D-Type'
female connector at the other end is supplied for interconnection between the

PSU

Indicators

male connector on the CCM and the

PSU Indicators

female connector on

the console frame.

The

PSU System 1

and

PSU System 2

LEDs on the CCM front panel (e) in fig 2-1)

will not work unless this connection is made.

+F, 5HPRWH#&RQWURO#

The 25 way fe male 'D-Type' connector labelled RC, is for use with the eight “STOP”
and “START” switches mounted near the top of the front panel (c) in figu re 1.11).
Unless special instructions are received from the customer, this connector is not
wired dir ec tly t o the “STOP” and “START” switch es, but ter m inates in a 25 way D­type co nnector on the interface card 7513-01. This allows the user to configure the
switch wiring to suit the equipmen t they are intended to control. Great care must be
take n with the w iring of the switc h(es) to ensure that no short-circ uits can occur
between any two power supply units.

+G, 0,',#LQSXWV#DQG#RXWSXWV

Four 5 pin DIN, standard MIDI connectors for the two banks A and B are inclu ded.
The outputs may be connected to any MIDI compatible outboard equipment that
respond s t o pro gr am ch an ge s , not e on / no te of f and vel oc it y in f orma tio n. Se e Sou nd
Automation Manager or SAM manual - MIDI, for programming details.

FIG 2-3. J-Type CC M rear panel

D

E

F

G

H

I

J

2-6 J-Type CCM

J-Type Revision J2005-2

+H, .H\V

See 1.5.13 Conne c t Seance to console and 1.5.14 Using the Video and Keyboard
Change Over Function with Seance.

+I, )DGHU#FRPPXQLFDWLRQV

See 1.4.1 Audio Bus/Data Bus Connections .

+J,# (YHQWV

The 25 w ay male 'D-Type' connector labelled

EVENTS

allows the EVENT relay con-

tacts to be wired out for external equipment control. The wiring details a re shown in

Table 1

. See SAM manual for details.

Pin no. Relay no. Function

01 1 normally CLOSED contact
14 1 MOVING cont act (wiper)
02 1 n o rmally OPE N contact
15 2 normally CLOSED contact
03 2 MOVING cont act (wiper)
16 2 n o rmally OPE N contact
04 3 normally CLOSED contact
17 3 MOVING cont act (wiper)
05 3 n o rmally OPE N contact
18 4 normally CLOSED contact
06 4 MOVING cont act (wiper)
19 4 n o rmally OPE N contact
07 5 normally CLOSED contact
20 5 MOVING cont act (wiper)
08 5 n o rmally OPE N contact
21 6 normally closed contact
09 6 MOVING cont act (wiper)
22 6 n o rmally OPE N contact
10 7 normally CLOSED contact
23 7 MOVING cont act (wiper)
11 7 n o rmally OPE N contact
24 8 normally CLOSED contact
12 8 MOVING cont act (wiper)
25 8 n o rmally OPE N contact
13 GROUND

J-Type CCM 2-7

Revision J2005-2 J-Type

516 ,QWHUQDO#PRGXOH#VHWWLQJV

51614 6HOHFWLRQ#RI#&38#FORFN#VSHHG

The selection of the clock speed for the CC M module determines wh ich type of com­munications is to be used. The CPU clock speed jumpers are found on the

7249 J-

Type CCM MkII and 7835 J-type CCM MKIII Main Processor Board

.

Communications system CPU Clock Links required

Fast Copper 16MHz J3 to J4
RS 232 11.0592MHz J1 to J2, J4 to J5

To change the CPU cl ock speed , remove the CCM and place the module on a flat
surface with the front panel towards you. The 7249 or 7835 main processor board is
the large sub-board on the right or bottom of the module. Jumpers J1 to J5 are
locat ed below U 1 (the 80C1 52JA-processor chip). Use the links provided to set the
cloc k speed.

To use motor faders or SAM/Séance, Fast Copper is required.

51615 0RGXOH#SRZHU0XS#VWDWH#+,VR21LVR#VHOHFWLRQ,

When the console is first powered up, programmable modules may be set to power
up in ISOLATE mode or in NOT ISOLATE mode. This option is user selectable by
setting links on the motherboard. The factory setting is NOT ISOLATE.

6HOHFWLQJ#RU#FKDQJLQJ#WKH#RSWLRQV

Place the CCM modu le on a flat surface so that the front panel is f acing you and the
mother board is laying on the surface. Locate the three way male molex connector

CN26

. This can be found on the mother board near the EVENT LEDs

LD12

and

LD16

, close to the front panel.

CN26

is surrounded by a white rectangle and is

clearly labelled “POWER-UP STATE” (see fig 2-4 for details).

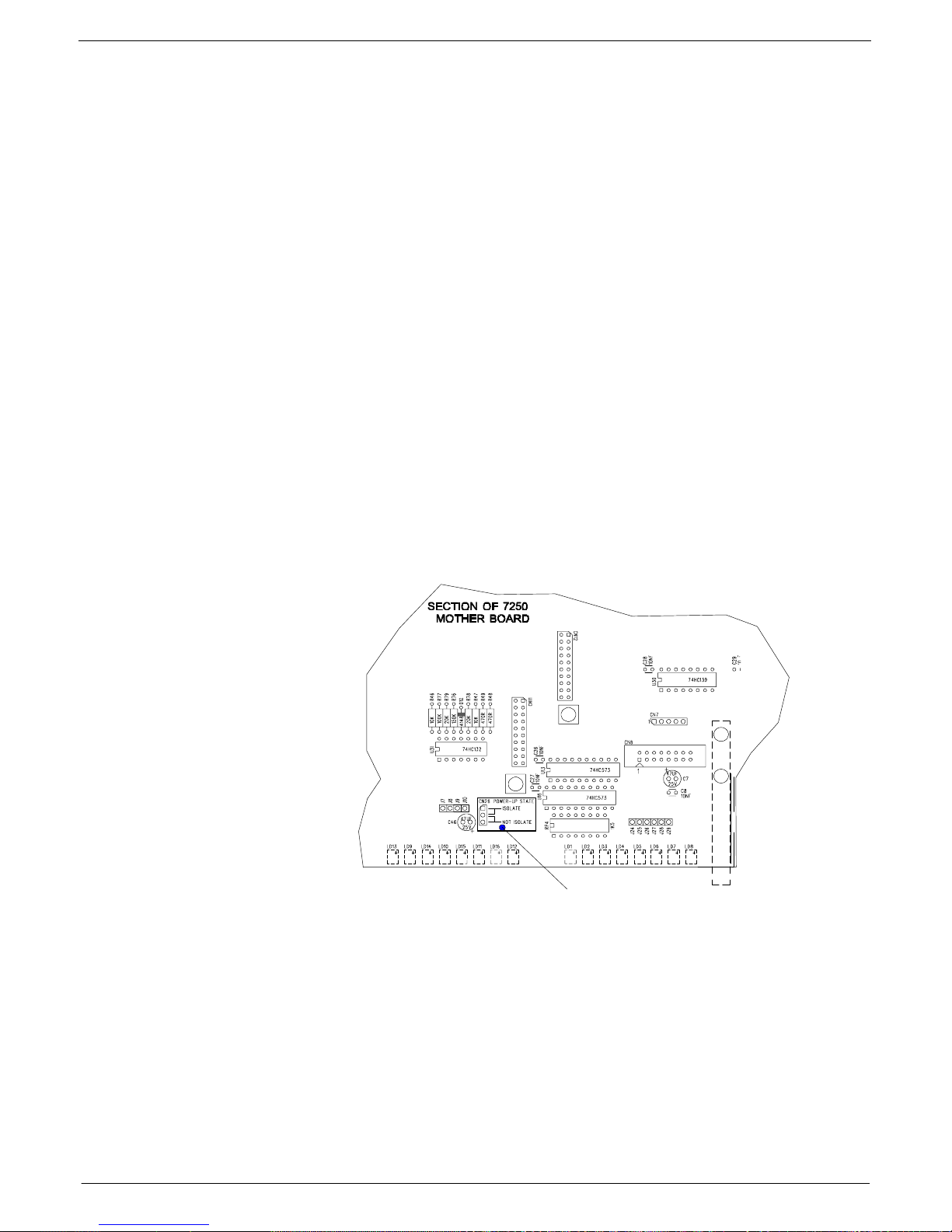

FIG 2-4. J-typ e mkIII CCM Po wer up st ate option sele ction.

Move PROGRAMMABLE LINK
to appropriate pins.

ISOLATE: Pins 1 & 2

127#,62/$7(=#3LQV#5#)#6

2-8 J-Type CCM

J-Type Revision J2005-2

The factory setting is NOT ISOLA TE, so that the

programmable jumper

is set to link

pins 2 and 3.

To change the POWER-UP STATE to ISOLATE:

Pull off the

programmable jumper

and replace it so that pins 1 and 2 are linked.

517 )DGHU#LQWHUIDFH#PRGXOH#+:636,

The Fader Interface module is fitted in the fader well below the CCM module and pro­vides the connections between the faders and CCM.

Note: If the CCM is moved, the 7303 module MUST be moved with it. The 7303
MUST be connected to the 20- way ribbon coming from the CCM position otherwise,
fader communications will not work.

The front panel of the module contains the global “All Fader” BYPASS and ISOLATE
switches (s ee figure fig 2-5).

51714 $OO#)DGHU#%\SDVV

When the SET switch is pressed, all faders in the console are put in BYPASS mode.

When the CLEAR switch is pressed, all faders in the console are put in normal VCA
mode.

The switches ar e recessed slightly to avoid accidental opera tion.

$OO#)DGHU
%\3DVV

6HW####&OHDU 6HW###&OHDU

$OO#)DGHU
,VRODWH

FIG 2-5. J-type mkIII fader power start up option selection.‘

J-Type CCM 2-9

Revision J2005-2 J-Type

51715 $OO#)DGHU#,VRODWH

When the SET switch is pres sed, all faders in t he console are put in ISOLATE mode.

When the CLEAR switch is p ressed, all faders in the console are put in NOT ISO­LATE mode.

The switches are recessed slightly to avoid accidental operation.

51716 )DGHU#SRZHU0XS#VWDWH

When the cons ole is f irst powered u p, the faders may be set to power up in ISOLATE
mode or in NOT ISOLATE mode and/or in BYPASS mode or in normal VCA mode
(NOT BYPASS). These options ar e user selectable by setting links on the 7283 pcb
(7303 mother board). The factory setting is NOT ISOL ATE and norma l VCA mode .

&KDQJLQJ#WKH#SRZ HU0XS#VWDWH

With reference to figure 1.15, remove the 7303 Fader Interface module from the
fader well, and locate the 3 pin male molex connectors

CN4

and

CN5

. Remove the

appropriate

programmable jumper(s)

from the factory settings and change them to

the position required.

The LED (

LD1

) on this board indicates that power is being supplied to the logic

devices on this board and should be on continuously.

518 0RGXOH#OHY HO#VRIWZDUH

When first switched on or after being reset, the CCM display briefly shows the soft­ware version number and then executes a check of its internal m emory.

Assuming all is found to be well, the display then changes to “cadac J-Type” and the
CCM is r eady to be used. This is one of the “root” displays, and it is always possible
to get back to this point by pressing the

[Esc]

key (it may be n ecessary to press

[Esc]

sev eral times). The othe r “root” di splay possibilities are a

cue number

or a

memory number

. If this is the case, the appropriate keypad buttons will illuminate to

show which will perform a useful function if pressed at this point.

The basic operations that can be performed from the “root” disp lay can be summa­rized as follows, where button names are shown in

bold

type:-

Operation:Type:

Recall cue at the E DIT pointer on PC

Rcl

Save cue to CURRENT EDIT pointer on PC

Sve

Recall cue number nnn.n from P C

nnn.n Rcl

Save cue number nnn.n to PC

nnn.n Sve

Recall internal memory n

Mem n Rcl

Save internal memory n

Mem n Sve

Clear internal memory n

Mem n Clr

(where n is a number 0 - 9)

Explain a warnin g LED (if applicabl e)

Err

Start the “System setup” menu

Sys

The P(revious) and N(ext) buttons can always be used at any time to recall the previ­ous or next cue fr om the PC t o the con s ole.

■■■■

It is not necessary to give a complete four digit cue number, for example, cue

25.0 can be entered as just “25”.

■■■■

When a memory is “Cleared ” all switches are set to be OFF, all fader groups to 0

and all master displays to be blank.

2-10 J-Type CCM

J-Type Revision J2005-2

51814 6DYLQJ#D#&XH

To save a Cue, the CCM must be at one of its “root” displays, (see above for descrip­tions of the root displays) . You can always get back to the root display by pressin g
the

[Esc]

key one or two times.
Enter the num ber required for the Cue, using the CCM keypad and press the [Sve]
key.

The console status will be sa ved to that Cue num ber (in RAM) and the Cue number
will appear in the Cue List Window on the PC.

If the Cue number already exists, the CCM display will prompt with “Overwrite
CUE?”. Similarly, the PC will prompt with:

“Cue n exists

Press ENTER to overwrite”

■■■■

Press [↵] to confirm or

[Esc]

to cancel. You may use the keys on the CCM key-

pad or the equivalent keys on the PC's keyboard.

If you press the [Sve] key with no number, the system will try to save the console sta­tus to the Cue at the current pointer on the PC and w ill respond with the same
prompts as set ou t above. This do es

not

apply if there are no Cues in the Cue List
Window, (this would be the case if you were starting to program a new Show). When
the Cue List Window is empty, [Sve] creates a C ue and gives it the number 1.0.

An invalid Cue number, (outside the range 0.01 to 9999.99), will result in the error
prompt “Bad cue number”, on the CCM display , and “Bad cue number from CCM”, on
the PC monitor. Press [↵] or

[Esc]

to continue.

51815 5HFDOOLQJ#D#&XH

To recall a Cue, the CCM must be at one of its “root” displays, (see a bove for descrip­tions of the root displays) . You can always get back to the root display by pressin g
the

[Esc]

ke y one or two times.

Enter the number required for the Cue, u s ing the CCM keypad and press t he [Rcl]
key.

If the C ue number exist s, the console status will be update d to the data contained in
that C ue number (the last time it was saved).

If the Cue number does not exist , the CCM display will show the error prompt, “ non­existent cue” and the PC will show the error as “Cue n does not e xist”. Press [↵] or

[Esc]

to continue.

51816 6DYLQJ#D#FRQVROH#VWDWH#WR#DQ#LQWHU QDO#PHPRU\

To save a console state to an internal memory, th e CCM must be at one of its “root”
displays, (s ee ab o v e f o r de sc rip tio ns of the r o ot d is pl a y s). You can al w a y s get ba c k t o
the root display by pressing th e

[Esc]

key several times.

■■■■

Press the [Mem] key.

■■■■

Enter the number for the internal memory.

■■■■

Press the [Sve] key.

The console state is saved to the internal memory.

51817 5 HFDOOLQJ#D#FRQVROH#VWDWH#IURP#WKH#LQWHU QDO#PHPRU \

To recall a cons ole state from an internal memory, the CCM must be at one of its

J-Type CCM 2-11

Revision J2005-2 J-Type

“root ” displays, (see above for descriptions of the root displays). You can always get
back to the root displa y by pre ssing the

[Esc]

key on e or two times.

■■■■

Press the [Mem] key.

■■■■

Enter the number of the internal memory required.

■■■■

Press the [Rcl] key.

The current console state is replaced by the state stored in the internal memory.

519 7KH#6\VWHP#6HWXS#PH QX

This is a set of menus which are navigated by using the

up

and

down

arrow keys [↑]

and [↓], with selections being made by pressing

enter [↵

], and canc el le d b y pres sin g

[Esc]

.

Menu items appear in the display with either a question mark (?) or pair of
arrows(⇑⇓) on the right. The arrows indicate that this is the title of the current menu
and that the user should press the up and down arrow keys to make a selection. The
question mark means that this is a selectable item, (press [↵] to select). The menu
wrap s around, so if you move down from “User setup?” you get to “System setup

⇑⇓

“again. In order to speed up the actio n of traversing these menus, they

do not

reset themselves to the title position each time that they are used. For example; if
“Map Faders?” was selected the last time the [Sys] key was pressed, then the “Map
Faders?” option will appear again, the next time the [Sys] is pressed (provided that
the CCM has not been reset).

Press the [Sys] key.

The first menu contains the following items:

#

System setup

⇑⇓

Title

Map Faders ?

Perform fader mappin g.

Map Routers ?

Perform router mapping.

Map Chans ?

Perform mapping of programmable channels

Map Grou ps ?

Perform programmable group mapping.

Map Aux Groups ?

Perform mapping of programmable Aux groups

Test System ?

Move to the system test menu

User setup ?

Move to the user setup menu

The Map Faders, Router and Groups options will immediately perform that operatio n,
whereas the Test System and User Setup selections lead on to other menus:

System Te st

⇑⇓

Title

Tes t Fad ers1 ?

Test routines for channel and group faders

Tes t Fad ers2 ?

Read information from the m otor faders

Test Motor VCRs ?

Check mechanica l operation of motor faders

Tes t Keys ?

Check keys indicate on the display

Test MIDI ?

Send programme changes to MIDI-connections

Test Events ?

Check relays and indication of e vents

Tes t C o mm s ?

Check communications busses

Tes t R o uter s ?

Check routers

Test Pot Nulls ?

Check if the pot nulls out in the centre position

Test Modul Bus ?

CADAC TESTS

Show Time ?

Show real-time clock

Show Date ?

Show real-time clock and date

View Error Log ?

Look through the last recorded errors

Clear Error Log ?

Clear the error log.

.

.. and...

User Setup

⇑⇓

Title

Enable options ?

Set 2nd Function on or off

Set P&N Keys ?

Select how the P and N buttons are illuminated.

Midi PC Filter ?

Program change filter on/off

MIDI All off ?

All notes off messages on/off

Show Map Add r e ss es ?

Shows Module/Fader addr.while mapping on/off

GroupLnk ?

Configure channel faders relative to master

2-12 J-Type CCM

J-Type Revision J2005-2

Twin Mast er s ?

Set number of twin masters

Event Duration ?

Set duration of event (i.e. length of pulse required

for control of external equipment)

Revert Mode ?

Set motorized faders to revert to original position

when moved

Revert Time ?

Set the time it takes for a motorized fader to revert

to its original position

Fade Profile ?

Set fade profile to LOG or LIN

0DSSLQJ

Before the console automation can be used, all faders and programmable modules
must be mapped. Each Map is stored in non- volatile memory with in the CCM. Map­ping o perations should only need t o be performed if the layout of the modules wi thin
the frame have been changed. A new console is al ways mapped by CADAC before it
leaves the factory.

Each module position in a frame is i dentified by a unique n umber (the address). This
number is set by a combination of a small PCB fixed to the frame beneath each mod­ule an d the frame number switch at the back of a frame. As each fader is connected
to a module, it too can be given a uniq ue address.

By themselves these numbers are not particularly “user- friendly” , for example the
first programmable router module may be in frame position 28, but it is preferable to
call it “router 1" not “router 28". The Maps therefore allow the user to give any partic­ular fader or module an identifying number that is more appropriate than the address
fix ed by the hardwar e. The CCM will then convert between the address and the new
module (or fader) number automatically.

51914 )DGHU#0DSSLQJ

Ensure all faders are

NOT ISOLATED

and

NOT MUTED

.

Select “Map Faders?” from the syste m setup menu and press [↵].

The display changes to “Wait......”, as the CCM checks for faders in the console.

When th e ch ec k is c omple t e , th e di sp lay chang es t o “Faders: 0". The CCM i s no w
ready for mapping to begin.

Press the

MUTE

button of the channel fader that you wish to be

“channel fader 1"

,

usually the left-most fader in the frame. The

MUTE

led will illuminate briefly then

extinguish - the CCM display should now read “Faders: 1 “. Now press the

MUTE

button of the channel fader you wish to be

“channel fader 2"

, usually the next one
along - the CCM display should now read “Faders: 2 “. Continue setting each fader
into MUTE until all the c hannel f aders ha ve been mapped.

Continue pressing the Mute buttons for the MASTER faders. The number shown in
the CCM display shows the

total

number of faders in the console. Note that the DC
MASTE R bus contr olled b y each maste r fader i s set by switche s on the fader PCB
and is

not

affected by fader mappin g.

If you are satisfied that the console faders hav e been mapped correctly, press [↵] to
stop mapp in g an d st ore t he ne w map, otherw ise pr es s

[Esc]

to cancel this operation.

51915 5 RXWHU#0DSSLQJ

Ensure all programmable routers are

NOT ISOLATED.

■■■■

Select “Map Routers?” from the system menu and press [↵].

The display changes to “Routers: 0".

■■■■

Press the

RECALL

button of the router that you wish to be “router 1".

The RECALL led will illuminate - the CCM display should now read “Rou ters: 1".

J-Type CCM 2-13

Revision J2005-2 J-Type

Continue until all the routers have been map ped. The display in the CCM will show
the total number of routers mapped.

If you are satisfied that the routers have been mapped correctly, press to [↵] stop
mapping and store the new map, otherwise press

[Esc]

to cancel this operation.

51916 &KDQQHO#0DSSLQJ

Channel mapping allows mapping of the actual programmable channels:

STEREO INPUT
DUAL INPUT
DUAL INPUT WITH SUBGROUP ROUTING

■■■■

Select “Map Chans” from the system menu and press [↵].

The CCM display changes to “Chans: 0”

■■■■

Map ind ividual ch annels b y pressing the MUTE-b utton (red button w ith an M) of

the channel on th e console.

■■■■

When required channels have been selected, press [↵].

The display changes to “Save New Map?”

If you want to save the map, press [↵] or [Esc] to cancel the oper ation.

51917 3 URJUDPPDEOH #*URXS#0DSSLQJ

The followi ng instruct ions only ap ply to 7170-1 and 7925 Group modules.

Mappin g do es

not

affect the audio bus connections of the module, which are set

internally.

■■■■

Ensure all pr ogra mm able groups ar e

NOT ISOLATED.

■■■■

Select “Map Groups?” from the system menu and press [↵].

■■■■

CCM display changes to “Groups: 0”.

■■■■

Press the SUB-GROUP

MUTE

button of the group module that you wish to be

“group 1".

The

MUTE

led will illuminate briefly then extinguish - the CCM display should now
read “Gr oup s: 1". Con t in ue un ti l al l the gr oup s have b een ma pp ed. The di spl a y in th e
CCM will show the total number of groups mapped.

If you are satisfied that the groups have been mapped correctly, press [↵] to stop
mapping and store the new map, otherwise press

[Esc]

to cancel this operation.

51918 $ X [LOLDU\#*URXS#0DSSLQJ

Each cons ol e ca n ha v e up to 3 auxi lia ry prog r a mmab l e g roup mod ul es . The physica l
address of each of these is preset at factory, so that when a group is selected by
pressing the Aux Gr oup MUTE-b utton, the address is au tomaticall y given.

Mappin g do es

not

affect the audio bus connections of the module, which are set

internally.

■■■■

Ensure all programmable Aux Group modules are

NOT ISOLATED.

■■■■

Select “Map Aux Group?” fr om the system menu and press [

↵↵↵↵

].

■■■■

Press t he Au x Gr ou p MUT E but t on of th e mo du le th at y ou wish to be “m od ule 1".

The MUT E led will illuminate briefly the n extinguish - the C CM display should now
read “Aux Groups: 0“. Continue until all the groups have been mapped. The display
in the CCM will show the total number of Aux Group modules mapped (max 3).

2-14 J-Type CCM

J-Type Revision J2005-2

51919 7HVW #6\VWHP

This option contains a sub-menu, the options of which appear in 2.3.8 – 2.3.21.

5191: 8VHU#6HWXS

This option contains a sub-menu, the options of which appear in 2.3.22 – 2.3.32.

7HVW#6\VWHP

5191; 6\VWHP#WHVW#²#7HV W#IDGHUV#4

In the system menu, select “

Test System?”

using t he Up or Down arrow button.

The display shows “

Test System?”.

■■■■

Press [↵], followed by the Down Arrow button, until the display shows “

Test fad-

ers 1?

”

■■■■

Press [↵]. The display changes to “

Testing Faders

”.

The group number displa y on each of the channels faders increments from 0 to F,
before returning to zero. Each time the fader group display returns to zero, the faders
move on one ste p in the cycl e of:

Everything Off
Mute On
Aux VCA On
Mute & Aux VCA On

Press

[Esc]

to return to the system menu or Down arrow to perform next test.

5191< 7HVW #IDGHUV#5

In the system menu, select “

Test System?”

using t he Up or Down arrow button.

The display shows “

Test System?”.

■■■■

Press [↵], followed by the Down Arrow button, until the display shows “

Test fad-

ers 2?

”

These tests are for the operation of Motor faders o nly

. If there are no Motor faders in

the console, skip these tests and go to 2.3.11 “

Test keys

”.

■■■■

Press [↵]. Check that all Motor faders are responding and that their positions are

correct l y di splayed.

■■■■

Using the Left and Right arrow keys, select the fader to test. (Press [↵] to go

directly to the channel faders.)

The display shows: “Group 1:0000 00”

The left and right arrow keys may be used to select each fader in turn, group 1
through 16, then channel 1 upwards. The numbers displayed after the colon rep re­sent the raw fader data. If you are experiencing difficulties, please contact CADAC.

519143 7HVW#PRWRU#IDGHUV

In the system menu, select “

Test System?”

using t he Up or Down arrow button.

The display shows “

Test System?”.

J-Type CCM 2-15

Revision J2005-2 J-Type

■■■■

Press [↵], followed by the Down Arrow button, until the display shows “

T est Motor

Fders?

”

■■■■

Press [↵]. The Motor faders should now move up and down (they move slower at
the bottom end). Check that all Motor faders are moving at the same rate and that
they run smoothly.

■■■■

Press

[Esc]

to return to the system menu or Down arrow to perform next test.

519144 7HVW#NH\V

In the system menu, select “

Test System?”

using the Up or Down arrow button.

The display shows “

Test System?”.

■■■■

Press [↵], followed by the Down Arrow button, until the display shows “

Tes t

Keys?

”

■■■■

Press [↵]. The display shows

“Button = ...”

■■■■

Press ea ch of th e b utt o ns , inc lu di ng th e P & N but t on s (b ut not the E sc b u tto n) in
turn, ensuring that the display shows what button has been pressed.

■■■■

Check also the external P & N.

Press

[Esc]

to return to the system menu.

519145 7HVW#0,',

In the system menu, select “

Test System?”

using the Up or Down arrow button.

The display shows “

Test System?”.

Press [↵], followed by the Down Arrow button, until the display shows “

Test MIDI?

”

■■■■

Press [↵]. This test outputs programme change to the MIDI-connections on the
back of the CCM, indicating channel changes in ascending order for MIDI A (1-16)
and in descending order for MIDI B ( 16-1).

To perform a cable test and to ensure MIDI-cables have not been crossed over, a
cable can be connected between MIDI out and MIDI in. This will cause a flashing “A”
if connected between MIDI A output and MIDI A input and a flashing “B” if connected
between MIDI B output and MIDI B input.

Press [Esc] to return to the system menu or Down arrow to perform next test.

519146 7HVW#HYHQWV

In the system menu, select “

Test System?”

using the Up or Down arrow button.

The display shows “

Test System?”.

■■■■

Press [↵], followed by the Down Arrow button, until the display shows “

Tes t

Events?

”

■■■■

Press [↵]. Make sure that the Events enable switch is on. The LED’s indicating
events should now co me on and off in sequence. Turning the enable switch off
shoul d cause all the LED’s to extinguish.

■■■■

Press [Esc] to return to the system menu or Down arrow to perform next test.

519147 7HVW#&RPPV

In the system menu, select “

Test System?”

using the Up or Down arrow button.

The display shows “

Test System?”.

Press [↵], followed by the Down Arrow button, until the display shows “

Test Comms ?

”

2-16 J-Type CCM

J-Type Revision J2005-2

■■■■

Press [

↵↵↵↵

]. The display shows “Comms busses OK” for a few seconds before

returning to “

Test Comms?”

■■■■

If there is a fault, a fault code is display ed indicating the type of fault.

This test automatically returns to “Test comms?”.

519148 7HVW#5RXWHUV

In the system menu, select “

Test System?”

using t he Up or Down arrow button.

The display shows “

Test System?”.

■■■■

Press [↵], followed by the Down Arrow button, until the display shows “

Test Rout -

ers?

”

■■■■

Press [↵] if there are any Mk I routers in the co nsole. If ther e are mapped rout ers

in the console, t hree tests ca n be performed:

Toggle throug h each LED
Toggle through each BANK.
Toggle through each SECTION.

Check that they all work with the Up and Down arrow keys, to go through the steps
and with the Left and Right arrow keys to select router.

Press [Esc] to return to the system menu.

519149 7HVW#3RW#1XOOV

This test sets the data for the pot nulls in the following modules for all pots to their
centre positions.

■■■■

Programmabl e channel

■■■■

Programmabl e group

■■■■

Programmable Auxiliary group

In the system menu, select “

Test System?”

using t he Up or Down arrow button.

The display shows “

Test System?”.

■■■■

Press [↵], followed by the Down Arrow button, until the display shows “

Test Pot

Nulls?

”

■■■■

Press [

↵↵↵↵

]. The display should show “

Nulls centred

”.

This test automatically returns to “Test Pot Nulls?”.

51914: 7HVW#0RGXOH#%XV

CADAC tests

J-Type CCM 2-17

Revision J2005-2 J-Type

51914; 6KRZ#7LPH

In the system menu, select “

Test System?”

using the Up or Down arrow button.

The display shows “

Test System?”.

■■■■

Press [↵], followed by the Down Arrow button, until the display shows “

Show

Time?

”

■■■■

Press [↵]. The display shows the time as set in the PC.

Press [Esc] to return to the system menu or Down arrow to perform next test.

51914< 6KRZ#'DWH

In the system menu, select “

Test System?”

using the Up or Down arrow button.

The display shows “

Test System?”.

Press [↵], followed by the Down Arrow button, until the display shows “

Show Date?

”

■■■■

Press [↵]. The display shows the date as set in the PC.

Press [Esc] to return to the system menu or Down arrow to perform next test.

NOTE:

The Time/Date do not increment when power is removed from the console.

They rely upon SAM updating them when co mmunications are firs t established.

519153 9LHZ#(UURU#/RJ

In the system menu, select “

Test System?”

using the Up or Down arrow button.

The display shows “

Test System?”.

Press [↵], followed by the Down Arrow button, until the display shows “

View Error

Log?

”

■■■■

Press [↵]. The display lists the time and date of errors/events.

■■■■

Select

Time/Date

with the arrow keys.

■■■■

Press the Right arrow key to display the type of error.

■■■■

Press the Left arrow key to get back to the list of time/date.

NOTE:

Some messages are included in the error log for debugging purposes tha t

are not in themselves errors. Examples are Time/Date reset

or

Host is Séance

on

the display are not errors.

Press [Esc] to return to the system menu.

519154 &OHDU#(UURU#/RJ

In the system menu, select “

Test System?”

using the Up or Down arrow button.

The display shows “

Test System?”.

■■■■

Press [↵], followed by the Down Arrow button, until the display shows “

Clear

Error Log?

”

■■■■

Press [

↵↵↵↵

]. The log is cleared and the event is entered in the Error log.

This test automatically returns to the system menu.

2-18 J-Type CCM

J-Type Revision J2005-2

8VHU#6HWXS

519155 (QDEOH#RSWLRQV

The

Enable

switches on the CCM have a “second function” capability. This allows

you to over ride the setting of one or both MIDI ports and/or the Events for one Cue
only.

When “2nd Function on” is selected, the software will interpret a “double key press”
as an instruction to reverse the condition of the Ena ble switch for one Cue only.

Example: MIDI ports A, B and Events enabled, but you wish to disable MIDI port B
for one Cue only.

Press MIDI port B Enable switc h two times in quick succession, (rather li ke “double
clicking” with the mouse). The LED in the MIDI port B Enable switch will now “flash”.

Recall the required Cue. MIDI information from port A and the Events will be tr ans­mitted, but no data will be transmitted from MIDI port B. The LED in the MIDI port B
Enable switch will now return to fully “on”. If another Cue is now recalled, then data
will be transmitted on MIDI ports A, B and the Events.

6HOHFWLQJ#WKH#5QG#)XQFWLRQ#RQ#RU#RII

■■■■

Press the [Sys] key to use the

System Set up

menu.

■■■■

Press the [↑] or [↓] cursor keys until

“User Setup

?” appears in the CCM d isplay.

■■■■

Select the sub-menu by pressing [↵].

The CCM display w ill respond with

“User Setup

⇑⇓“.

■■■■

Press the [↑] or [↓] cursor keys again until

“Enable keys ?”

appears in the CCM

display.

■■■■

Press [↵], to select the option.

The CCM display w ill show either:

“2nd Function on”
or
“2nd Function off”

Press the [↵] key to toggle between on or off. When “2nd Function sax” is set as
requir ed, press

[Esc]

to return to one of the “root” displays.

519156 6HW#3#)#1#NH\V

The illumination of the P(revious) and N(ext) switches can be set for the following
conditions:

“On” all the time (lit).

“Off” all the time (unlit).

Come “on” for short time when the switch is pressed, and then go
“off” (flash).

■■■■

Press the [Sys] key to use the

System Set up

menu.

■■■■

Press the [↑] or [↓] cursor keys until

“User Setup

?” appears in the CCM d isplay.

■■■■

Select the sub-menu by pressing [↵].

The CCM display w ill respond with

“User Setup

⇑⇓“.

J-Type CCM 2-19

Revision J2005-2 J-Type

■■■■

Press the [↑] or [↓] cursor ke y s ag ain un t il “P & N k e ys ?” ap pe ars i n th e CC M di s­play .

■■■■

Press [↵], to select the option.

The CCM display will show either:

“P & N keys: lit”
or
“P & N keys: unlit”
or
“P & N keys: flash”

■■■■

Press the [↵] key to cycle through three options.

When the required option is set, press

[Esc]

to return to one of the “root” displays.

519157 0,',#3&0ILOWHU

The MIDI Program Change filter can be selected on or off.
When the MIDI Program Change filter is “on”, only the first Program Change mes­sage for a specific MIDI Channel is sent. Any iden tical PC messages to the same
channel are filtered out.

Alternatively, when th e MIDI Program Change filter is “off”,

all

PC messages are

sent, whenever they appear in the dat a.

The reason for including this option, is that some types of MIDI controlled equipment
“close down” for a short time when a PC message is received, causi ng a brief loss of
the audio signal. It is therefore unnecessary and undesirable to repeat the same PC
number.

■■■■

Press the [Sys] key to use the System Setup menu.

■■■■

Press the [↑] or [↓] cursor keys until

“User Setup?”

appears in the CCM display.

■■■■

Select the sub-menu by pressing [↵].

7KH#&&0#GLVSOD\#ZLOO#UHVSRQG#ZLWK#

“User Setup

⇑⇓“.

■■■■

Press the [↑] or [↓] cursor keys again until

“MIDI PC filter?”

appears in the CCM

display.

■■■■

Press [↵], to select the option.

The CCM display will show:

“PC filter on ”

or “PC filter off”

■■■■

Press [↵], to toggle between on and off.

When the required option is set, press

[Esc]

to return to one of the “root” displays.

519158 0,',#$OO#1RWHV#2II

When a

Note On

message is sent to MIDI equipment, the note will “play” continu-

ously until a

Note Off

message is received.

If a Cue sequence is terminated befor e the

Note Off

message is sent, then the note

will carry on “sounding”, and may cause a problem. The MIDI

All Notes off

option is

designed to deal with this problem.

If you select “MIDI All Notes Off: Yes”, then an

All Notes Off

message is se nt on each
channel of a particular port when the relevant MID I O/P Port Enable switches is set
“off”.

■■■■

Press the [Sys] key to use the

System Setup

menu.

2-20 J-Type CCM

J-Type Revision J2005-2

■■■■

Press the [↑] or [↓] cursor keys until

“User Setup?”

appears in the CCM display.

■■■■

Select the sub-menu by pressing [↵].

The CCM display w ill respond with

“User Setup

⇑⇓“

.

■■■■

Press the [↑] or [↓] cursor keys again until “MIDI All Notes Off?” appears in the

CCM display.

■■■■

Press [↵], to select the option.

The CCM display w ill show:

“All Notes Off no“

or

“All Notes Off yes”

■■■■

Press [↵], to tog gle between yes and no.

When the required option is set, press

[Esc]

to return to one of the “root” displays.

519159 6KRZ#PDS#DGGUHVV

The default setting of

“Show map address”

is Off. In this state, the CCM display

shows the number of faders/modules being mapped. In addition, if

“Show map

address”

is On, th e display also shows the physical address of the module or th e

fader as a hexadecimal repres entation.

When the required option is set, press [Esc] to return to one of the “root” displays.

*URXS#/LQN#0RGH

If motorized VCA channel faders are used in conjunction with motoriz ed DC master
faders, then the system can be configured so that a single DC master fader can
move all the channel faders in the console. More specifically, if a group of faders con­trolling the orchestra “mix” are assigned to a particular DC master fader then logi­cally, they will all move relative to the master controlling element. In this situation
“A UX fro m VC A” do es not h a v e the sam e me an in g as a no n- mo tor f ad er s yste m. Th e
mode of operation where the c hannel faders “move ” relative to the DC master faders
is called Group-Link mode.

In many live sound applications, a motor fa der system needs to have a second mo de
of operation in order to mak e the system as flexible as poss ible . When Group-Link is
off, channel fader movements are “disconnected” f rom the DC master fader move­ments , although level changes are still achieved using VCA control. This allows the
motor fader system to behave more like a manual fader system.

*URXS0/LQN#RII

The channel fader motor system is “disconnec ted” from the DC master bus motor
system. In this mode, DC master faders

will not

“move” channel faders.

When AUX VCA

is not

selected on a channel fader:

■■■■

The post fader auxi li ary se nd si gn al wil l be un der th e cont r ol of th e ch an nel fader

only.

■■■■

The DC master fader will only control the main VCA on the channel

■■■■

When the Aux VCA switch is selected on a fader, then the appropriate DC mas-

ter fader will control the

Main

VCA and the

Aux

VCA on the channel .

■■■■

The main and the auxiliary signal levels will follo w the master control el ement.

In this mode, the motor f ader system w ill behave in th e same way as a non-motor
fader VCA system, except that chann el and DC master faders may be pr ogrammed
for “snapshot” position changes even if the appropriate m aster is at ∞.

J-Type CCM 2-21

Revision J2005-2 J-Type

*URXS0/LQN#RQ

In Group-Link mode, the DC master faders can “move” channel faders. AUX from
VCA does not have the same m eaning as in a non-motor fader system.

When AUX VCA

is not

selected on a channel fader:

■■■■

The channel fader MUTE button only effects the

main

audio output from a chan-

nel

■■■■

When the AUX VCA switch is selected on a fader:

■■■■

The channel fader MUTE button affects the main

and

the post fader aux. send

signals from th e channel.

Channel faders selecte d to a DC master fader w ill always “follow” t he DC master
Fader. Channel and DC master faders may be programmed for “Snapshot” position
changes and can be used in dynamic cues.

0RWRU#IDGHU#EHKDYLRXU#ZKHQ#VZLWFKLQJ#EHWZHHQ#PRGHV

When entering or leaving

Group-Link

mode, t h e c hanne l f ad er posi t io n

will change

if
it is a ssigned to a VC A group other than 0, and the relevant DC master is set at a
position other than 0dB

51915: 7ZLQ#PDVWHUV

This option is used in the event that an external master fader box is connected to the
console. When “twins” are enabled, moving a Master Fader will cause its twin to
move in the same way. This allows a modicum of remote control.

■■■■

Using the arrow keys, select

“Twin masters”

in the menu

“User Setup”

and press

[↵].

■■■■

Select the number tax of Twin masters in the box, by pressing [↵] until the

number appears on the CCM display.

Press

[Esc]

to go back to the

“User Setup”

menu.

51915; (YHQW#GXUDWLRQ

The Events-function allows control of external equipment, such as CD-players, tape­decks, effects-boxes etc. via 8 relays within the CCM. These relays can be in one of
three states:

ON = always on
OFF = always off
PULSE = toggles between on and off

PULSE duration can be set to a value (1-25) as required to control the external
equipment.

■■■■

Using the arrow keys elect

“Event Duration”

in the menu

“User Setup”

and press

[↵].

■■■■

The display shows “Event Dur: “

■■■■

Press [↵] again until PULSE is set to a value between 1-2 5 (25 = 3 sec).

Press [Esc] to go back to the

“User Setup”

menu.

2-22 J-Type CCM

J-Type Revision J2005-2

51915< 5HYHUW#0RGH

Rev e rt Mode al lo ws mot o r f a de rs to r e turn t o thei r orig in al po si tio ns if t hey ha ve bee n
manually put in their position. The time they take to do this may be programmed (see
belo w) and the o perating circumstances which prompt them to “revert” may be set
as:

OFF Function Off
REC Function enabled when recording a dynamic
REC/PLAY Function enabled when recording or playing back a dynamic
ALWA YS Function always enabled

The op tion ALWAYS is primarily inte nded fo r test purposes.

519163 5HYHUW#7LPH

The time it will take for a motorized fader to resume its original position is set using
the option

Revert Time

in the User Setup in the CCM. Enter a value with the numeri-

cal button and then press

Enter.

519164 )DGH#SURILOH

The movement profile for X-fades may be selected as linear or l ogarithmic depend­ing on the applic ation.

Linear profile moves the fader at constant “millim etres per se cond” which is best for
fading -out sounds.
Logarithmic profile is designed so that two f aders moving in opposite directi ons pass
each other about 4.5 dB down from maximum, creating a suitable panning effect.

■■■■

Select with arrow buttons, then press

Enter

.

7865 Stereo Input Channel 3-1

Revision J2005-2 J-Type

6 3URJUDPPDEOH#PRGXOHV#0#LQSXW

J-Type progr a mm a bl e mo du le s add switch

RESET

and/or potentiometer

RECALL

autom ation to the original Fader, Events and MIDI autom ation available as standard
to the J-Type console system.

614 :;98#6WHUHR#,QSXW#&KDQQHO

The left and right inputs have sep arate controls f or gain, 20dB pad, ph ase-change,
phantom power, on/off and PFL. This allows either input to be used with either one
stereo or two mon o mi crophone s or lin e level sou r c es. Th e Osc i l lat or Bus can b e
injected into both input amplifiers and all input switching can be isolated from the
computer.

The stereo direct output may be selected pre or post the c hannel fader, and/or pre or
post the EQ section.

Routing swit ches to all 16 sub groups are provided. When working with a ster eo
input, left ha nd signa ls appear on ‘odd’ numbered sub groups and r ight hand signals
appear on ‘even’ numbered sub groups. However, when the dual-concentric pan-pot
is in serted, eit h er i np ut ma y b e ‘p an ned’ be t wee n a n y com bina ti on of ‘ o dd’ and ‘even’
sub groups. The pan-pots also control the panning for the stereo auxiliary send sec­tion.

There are ten mono and one stereo auxiliary send sectio ns. Each of the aux-sends
can be switched on/off and pre or post fader, and have individual level controls.

The four-band stereo equalizer has controls for ±18 dB boost or cut, variable fre­quency and “Q”. Variable frequency low-pass and high-pass filter sections are also
included.

An external stereo audio processing device can be connected to the module via
‘TRS’ send and return jacks. The external processor is connected in series with the
chann el signal when ‘Insert’ is selected. The EQ and Filters can be switch ed pre or
post the insert point.

All audio inputs and output s are electronically balanced.

3-2 7865 Stereo Input Channel

J-Type Revision J2005-2

61414 ,QSXW#/HIW#*DLQ

Gain control for the stereo left input, giving conti nuously variable gain fr om the mini­mum of 10dB to 60dB .

61415 ,QSXW#/HIW#3)/

Press this button to ‘listen’ to the signal on the stereo left hand only (pre routing and
EQ).

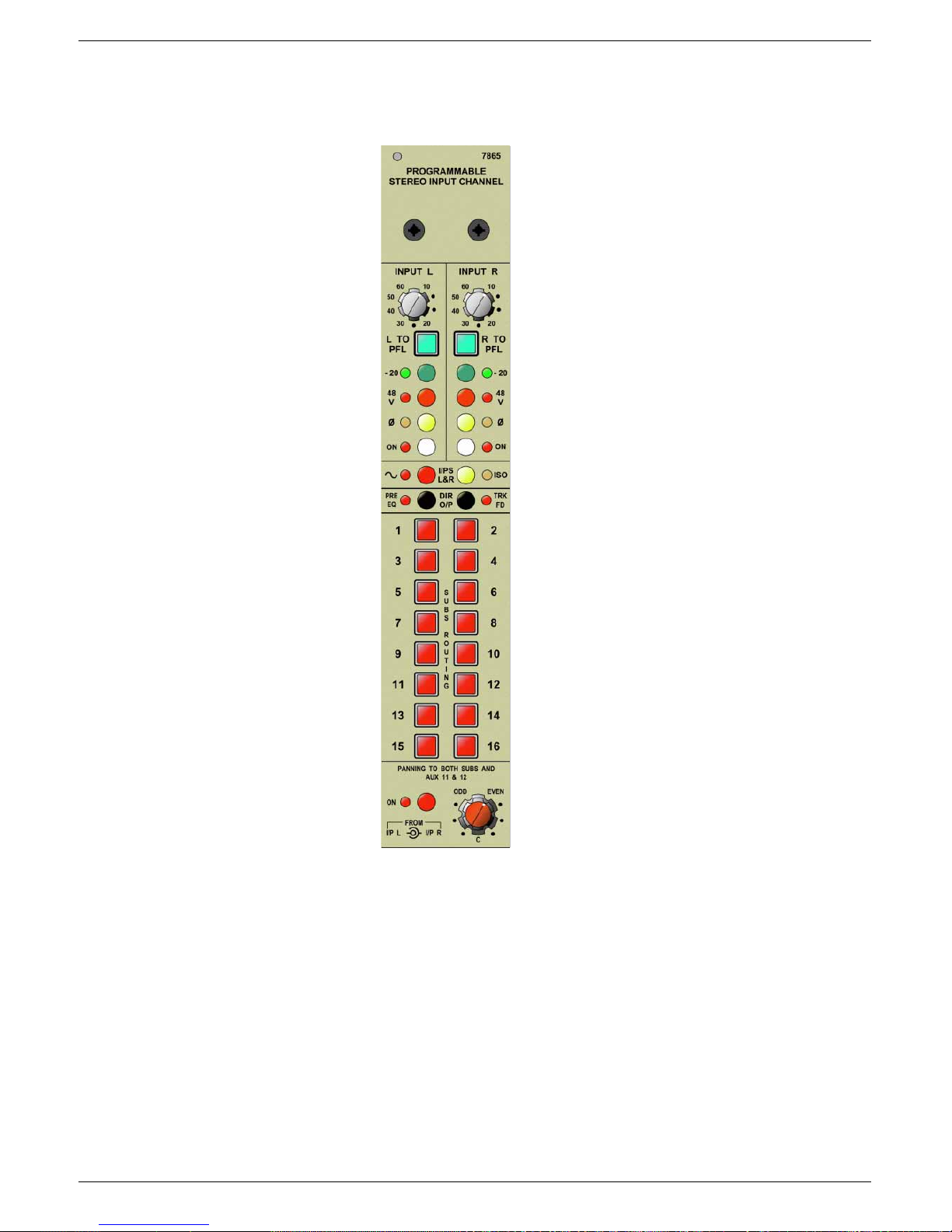

3.1.10 Input Right Gain

3.1.11 Input Right PFL

3.1.12 Input Right -20dB Pad

3.1.13 Input Right Phantom Power

3.1.14 Input Right Phase Change

3.1.15 Input Right On/Off

3.1.16 Input Ampl ifier/Isolate

3.1.17 Direct O/P Post Channel Fader

3.1.18 Sub Group Routing Switches

3.1.19 Pan Pot

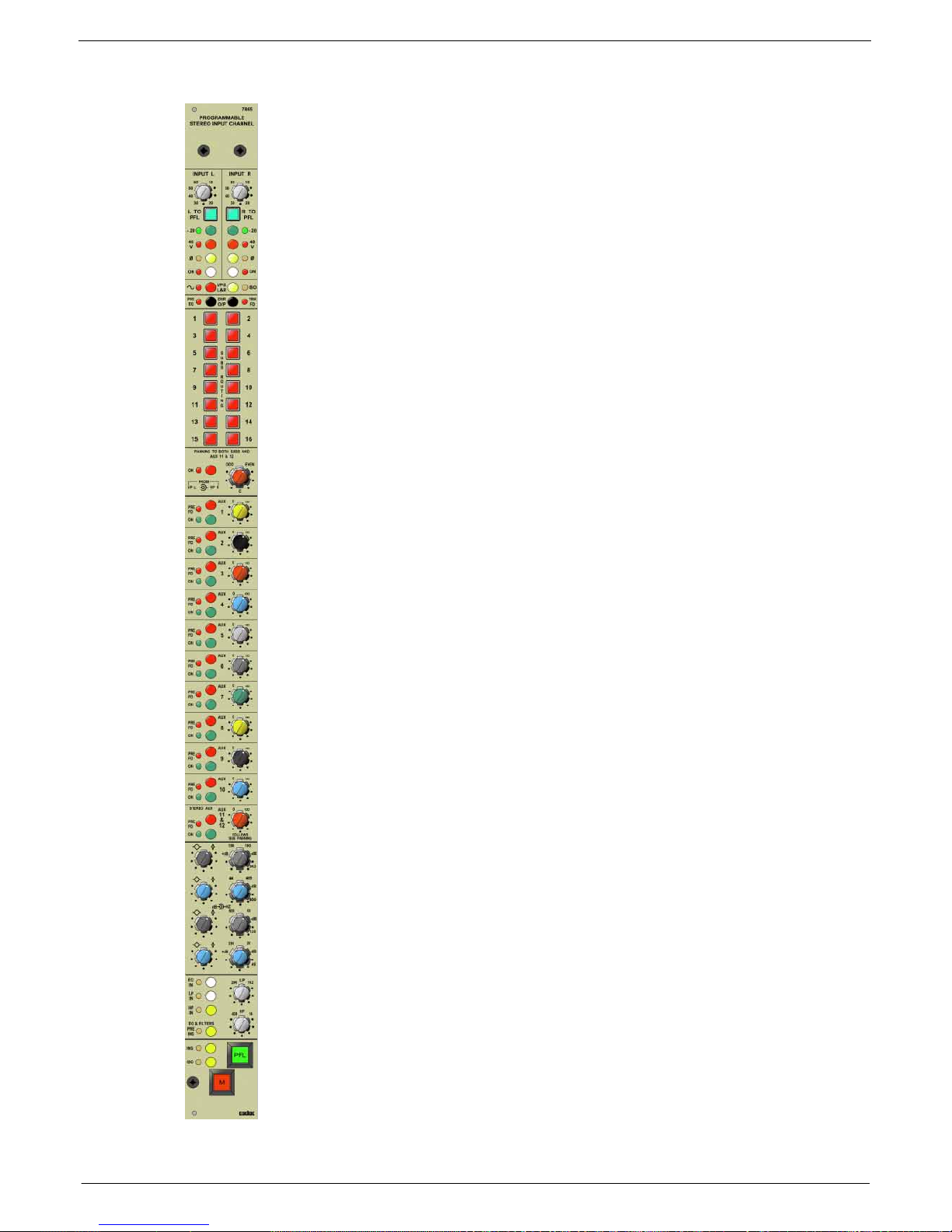

:;98#6WHUHR#,QSXW#&KDQQHO

3.1.1 Input Left Gain

3.1.2 Input Left PFL

3.1.3 Input Left -20dB Pad

3.1.4 Input Left Phantom Power

3.1.5 Input Left Phase Change

3.1.6 Input Left On/Of

3.1.7 Oscillator Bus Select

3.1.8 Direct O/P Pre EQ

3.1.9 Pan Pot Inset

7865 Stereo Input Channel 3-3

Revision J2005-2 J-Type

61416 ,QSXW#/HIW#²53G%#3DG

Press this button to c hange the input from “ m icrophone sensitivity” to “line level”. The
‘20dB’ pad is inserted before the input amplifier.

61417 ,23#4#3KDQWRP#3RZHU

Press this button to connect 48V phantom power to the stereo left input connec­tor.This function has a slow ’ramp-up’ (approximately 30 seconds to get from 0v to
48v). Note that this function is interlocked with the oscillator, see 3.1.7.

61418 ,23#4#3KDVH#&KDQJH

When this button is selected, the stereo left input signal phase is reversed (180°).

61419 ,QSXW#/HIW#2Q22II

Input on/off switches are provid ed on both left and righ t inputs for maximum versat il­ity under program control.

6141: 2VFLOODWRU#EXV#6HOHFW

Press this button to connect Left and Right inputs to the ‘Oscillator/PNG’ bus. For this
function to work, the ‘Oscillator/PNG’ module must be selected to “CHANNELS”.

This facili ty allows you to check that an individual module, or the whole console is
workin g correctly.

Please note that this switch is interlocked with the 48 V switches such that if one is
ON, you cannot select the other.

6141; 'LUHFW#223#¶3UH·#(4

The default setting for the channel ‘direct output’ circuit is post-EQ and pre-fader.
When the ‘direct output’ is used to feed an external monitor mixer or recording
machine, it is p ossible that the E Q settings for th e ‘front-of-house’ mix will clash will
the requirements for these purposes. Press the “PRE EQ” button to derive the ‘direct
output’ signal ‘pre’ the channel EQ.

6141< ¶3D Q #3RW·#,QVHUW

Press this button to insert the ‘pan pot’.

614143 ,QSXW#5LJKW#*DLQ

As 3.1.1 for the ‘right-hand’ input.

614144 ,QSXW#5LJKW#3)/

As 3.1.1 but for the ‘right-hand’ input.

3-4 7865 Stereo Input Channel

J-Type Revision J2005-2

614145 ,QSXW#5LJKW#²53G%#3DG

As 3.1.3, but for the ‘right-hand’ inpu t.

614146 ,QSXW#5LJKW#3KDQWRP#3RZHU

As 3.1.4, but for the ‘right-hand’ inpu t.

614147 ,QSXW#5LJKW#3KDVH#&KDQJH

As 3.1.5, but for the ‘right-hand’ inpu t.

614148 ,QSXW#5LJKW#2Q22II

See 3.1.6.

614149 ,QSXW#DPSOLILHU#,VRODWH

This function ‘isolates ’ the switch data ( for both input amplifiers) from the computer.
There are many instances during a prod uction rehearsal, w hen module routing or
level chan ges need to be made to solve a problem. When you are rehearsing a
seque nce of c ues, there may not be time to record the changes in all of the cues that
are affected. When you press the ‘ISOLATE’ button, previously recorded switch data
will be ignored by the module, leaving the switches at their new setting until you can­cel the function.

61414: 'LUHFW#223#¶3RVW·#&KDQQHO#)DGHU

The default setting for the ch annel ‘direct output’ circuit is post-EQ and pre- fader.
Press the “TRK FD” button when you need to control th e ‘direc t output’ level with the
channel fader.

61414; 6XE#*URXS#5RXWLQJ#6ZLWFKHV

Sixteen swit ches that allow you to route the channel signals to one or all of the Sub
Group routing bus’.

61414< ¶3DQ#3RW·

A dual-concentric potentiometer, where the upper knob controls ‘panning’ for the Left
input and the lower (or outer) knob controls ‘panning’ for the Right input. When the
‘Pan Pot’ Insert switch is selected, ei ther input signal can be ‘panne d’ between any
pair of odd and even Sub G roups.

Note that the ‘pan pot’ also controls ‘panning’ to the Stereo Auxiliary Send.

7865 Stereo Input Channel 3-5

Revision J2005-2 J-Type

614153 $X[#6HQG#¶3UH0)DGHU·

The default setting for the channel auxiliary send circuits is ‘off’ and post-fader.

Press the “PRE FD” button to derive the aux send signal pre-fader.

614154 $X[#6HQG#¶2Q22II ·

The default setting for the channel auxiliary send circuits is ‘off’ and post-fader.

Press the “ON” button to switch the aux send section into circuit.

614155 6WHUHR#$X[#6HQG#¶3UH0)DGHU·

The default setting for the channel auxiliary send circuits is ‘off’ and post-fader.

Press the “PRE FD” button to derive the stereo aux send signal pre-fader.

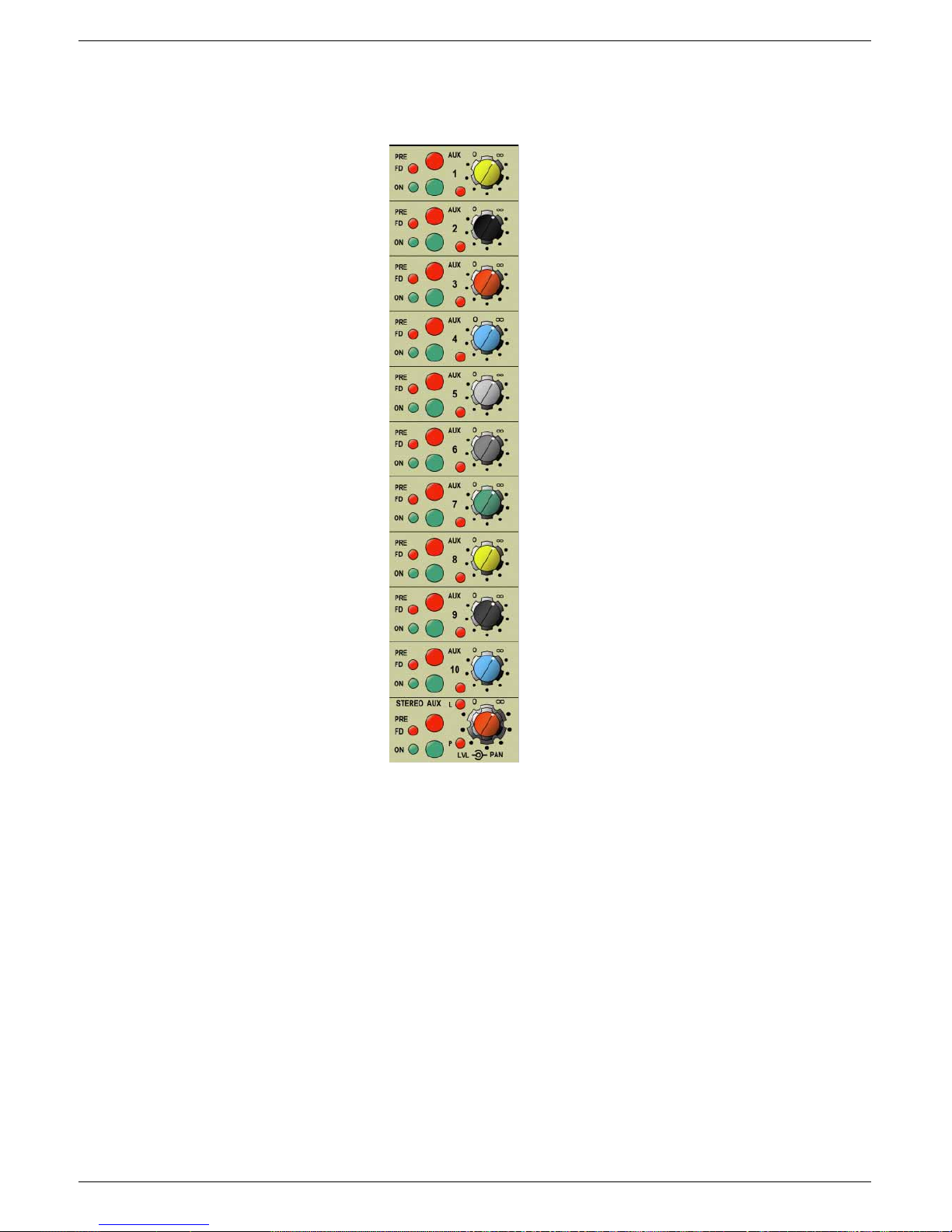

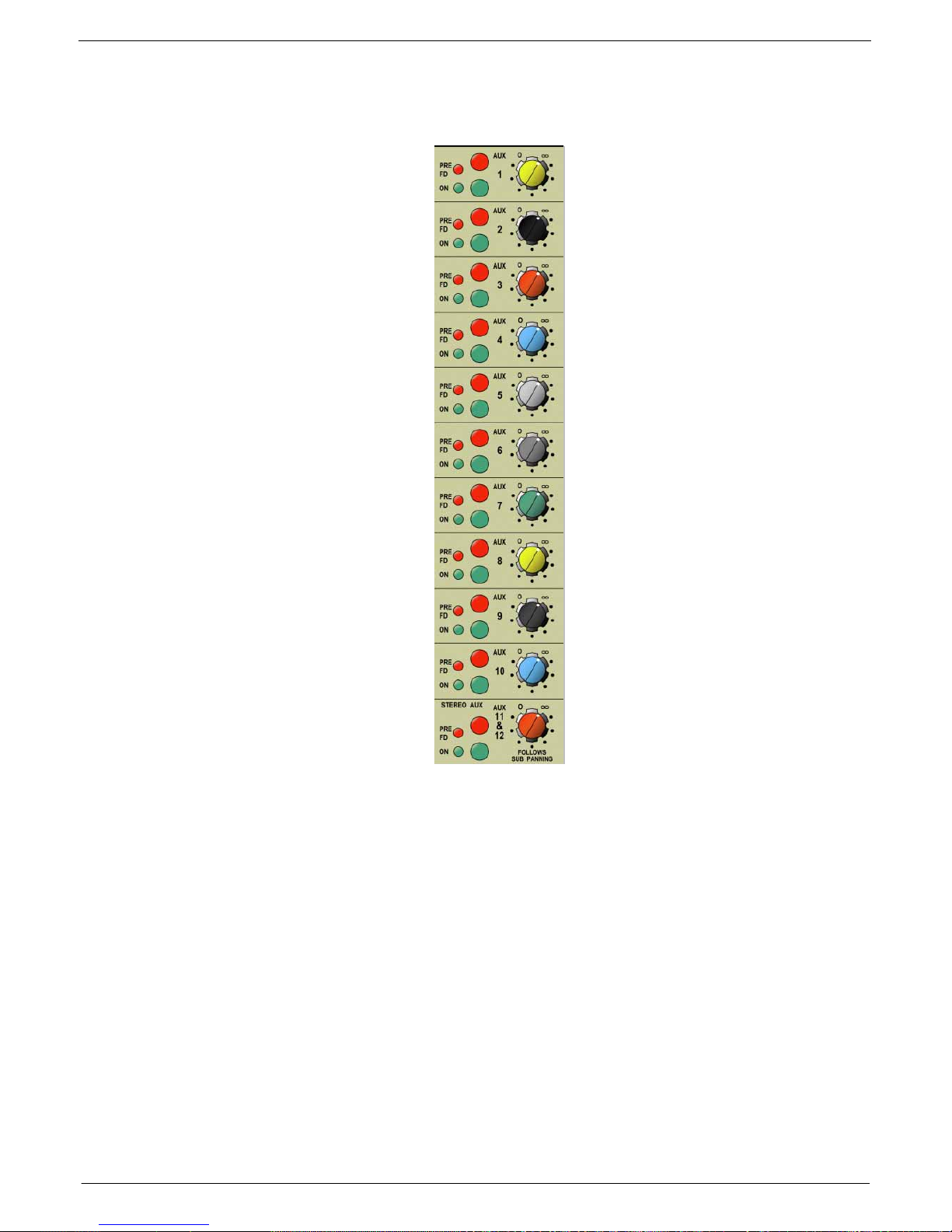

:;98#6WHUHR#,QSXW#&KDQQHO

3.1.20 Aux Send Pre Fader

3.1.21 Aux Send O n/Off

3.1.22 Stereo Aux Send Pre Fader

3.1.23 St ereo Aux Send On/Of f

3.1.24 Aux Sen d Level

3.1.25 Stereo Aux send Level

3-6 7865 Stereo Input Channel

J-Type Revision J2005-2

614156 6WHUHR#$X[#6HQG#¶2Q22II ·

The default setting for the channel auxiliary send circuits is ‘o ff’ and post-fader.

Press the “ON” button to switch the stereo aux send section into circuit.

614157 $X[#6HQG#/HYHO

Level control for an auxiliary send section.

614158 6WHUHR#$X[#6HQG#/HYHO

Level control for the stereo auxiliary send section.

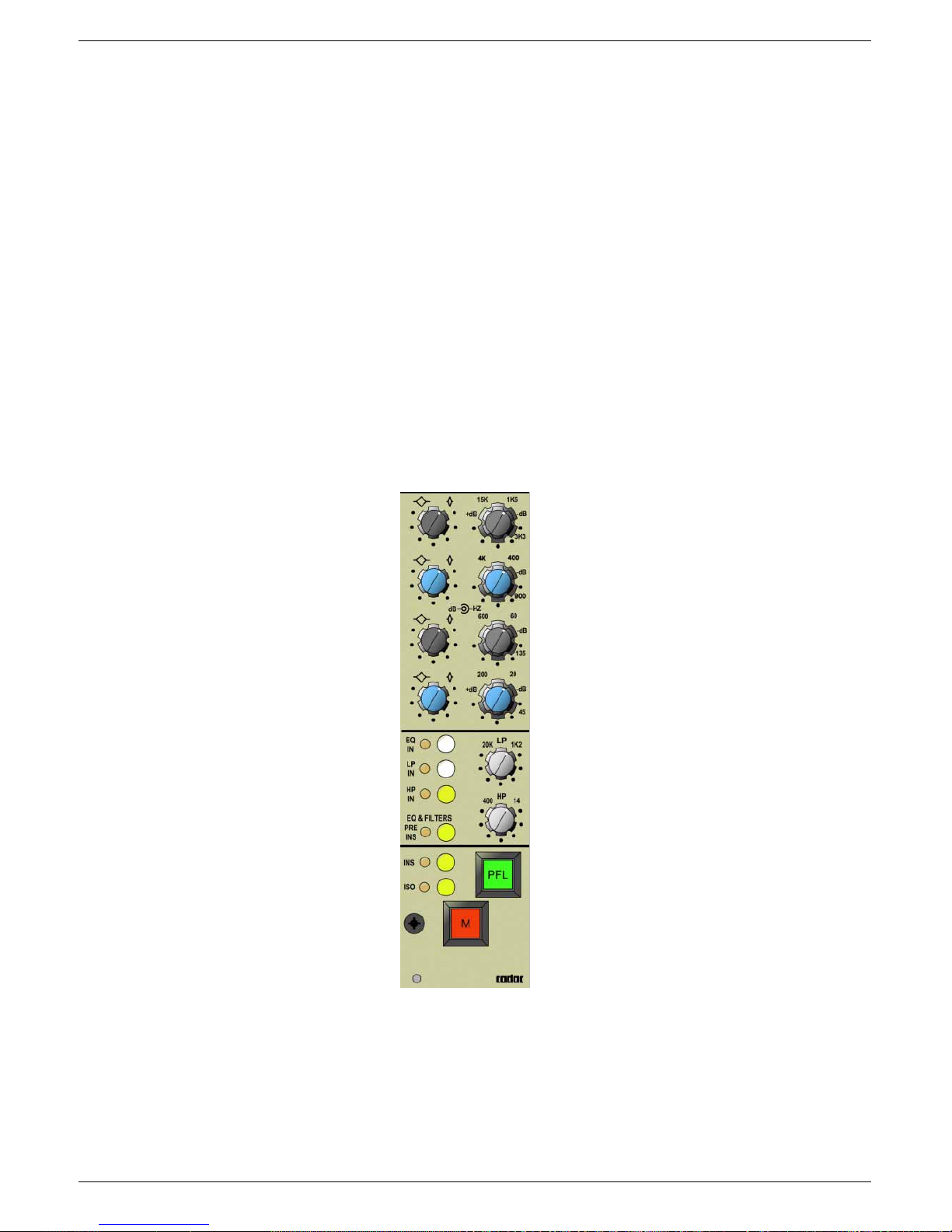

:;98#6WHUHR#,QSXW#&KDQQHO

3.1.27 HF EQ Boost/Cut and Fre­quency C on tr o ls

3.1.29 H MF EQ Boos t/ C ut an d Fre­quency C on tr o ls

3.1.31 LMF EQ Boost/Cut and Fre­quency C on tr o ls

3.1.33 LF1 EQ Boost/Cut and Fre­quency C on tr o ls

3.1.38 LP Filter Frequency

3.1.39 HP Filter Frequency

3.1.42 Main PFL

3.1.43 Channel Mute

3.1.26 HF EQ “Q” Control

3.1.28 HMF EQ “Q” Control

3.1.30 LMF EQ “Q” Control

3.1.32 LF EQ “Q” Control

3.1.34 EQ In/Out

3.1.35 LP Filter In/Out

3.1.36 HP Filter In/Out

3.1.37 EQ and Filters Pre and Post
Insert

3.1.40 Insert In/Out

3.1.41 All Modules Isolate

7865 Stereo Input Channel 3-7

Revision J2005-2 J-Type

614159 +)#(4#¶4·#&RQWURO

The ‘Q’ control varies the bandwidth of the EQ section in the range Q=1 to Q=3. A
low value of Q gives a wide bandwidth.

This means that a relatively large range of fr equencie s (either side of the centre fre­quency selected by the ‘Frequency’ control) have boost/cut applied. As the value of
Q is incr eased, the bandwidth is reduced, so that a very much smaller range of fre­quencies have boost/cut applied.

61415: +)#(4#%RRVW2&XW#DQG#)UHTXHQF\#&RQWURO

A dual-concentric potentiometer wher e the ‘inner’ knob is the ‘Boost /C ut’ control for
the EQ s ection and the ‘outer’ knob is the ‘Frequency’ potentiometer .

Boost/Cut±18 dB
FrequencyVariable from 1.5kHz to 15kHz

61415; +0)#(4#¶4·#&RQWURO

The ‘Q’ control varies the bandwidth of the EQ section in the range Q=1 to Q=3. A
low value of Q gives a wide bandwidth. This means that a relatively large range of
frequencies (either side of the centr e frequency selected by the ‘Frequency’ cont rol)
have boost/cut applied. As t he value of Q is incr eased, the bandwidth is reduced, so
that a very much smaller range of frequencies have boost/cut applied.

61415< +0)#(4#%RRVW2&XW#DQG#)UHTXHQF\#&RQWURO

A dual-concentric potentiometer wher e the ‘inner’ knob is the ‘Boost /C ut’ control for
the EQ s ection and the ‘outer’ knob is the ‘Frequency’ potentiometer .

Boost/Cut±18 dB
FrequencyVariable from 400Hz to 4kHz

614163 /0)#(4#¶4·#&RQWURO

The ‘Q’ control varies the bandwidth of the EQ section in the range Q=1 to Q=3. A
low value of Q gives a wide bandwidth. This means that a relatively large range of
frequencies (either side of the centr e frequency selected by the ‘Frequency’ cont rol)
have boost/cut applied. As t he value of Q is incr eased, the bandwidth is reduced, so
that a very much smaller range of frequencies have boost/cut applied.

614164 /0)#%RRVW2&XW#DQG#)UHTXHQF\#&RQWURO

A dual-concentric potentiometer wher e the ‘inner’ knob is the ‘Boost /C ut’ control for
the EQ s ection and the ‘outer’ knob is the ‘Frequency’ potentiometer .

Boost/Cut±18 dB
FrequencyVariable from 60Hz to 600Hz

614165 /)#(4#¶4·#&RQWURO

The ‘Q’ control varies the bandwidth of the EQ section in the range Q=1 to Q=3. A
low value of Q gives a wide bandwidth. This means that a relatively large range of
frequencies (either side of the centr e frequency selected by the ‘Frequency’ cont rol)
have boost/cut applied. As t he value of Q is incr eased, the bandwidth is reduced, so
that a very much smaller range of frequencies have boost/cut applied.

3-8 7865 Stereo Input Channel

J-Type Revision J2005-2

614166 /)#%RRVW2&XW#DQG#)UHTXHQF\#&RQWURO

A dual-concentr ic potentiometer where the ‘inn er’ knob is the ‘Boost/Cut’ cont rol for
the EQ s ection an d the ‘outer’ knob is the ‘Frequency’ potentiometer.

Boost /Cut±18 dB
FrequencyVariable from 20Hz to 200Hz

614167 (4#¶,Q22XW·

Press the “EQ IN” button to put the equalizer in the channel signal chain.

614168 /3#)LOWHU#¶,Q22XW·

Press the “LP IN” button to put the Low Pass Filter in the channel signal chain.

614169 +3#)LOWHU#¶,Q22XW·

Press the “HP IN” button to put the High Pass Filter in the channel signal chain.

61416: (4#DQG#)LOWHUV#¶3UH·#RU#¶3RVW·#,QVHUW

The de fault routing for the EQ and Filter sections is ‘post’ the insert point.

Press the “PRE INS” button to re-route the EQ and Filter sections ‘pre’ the insert
point.

61416; /3)#)UHTXHQF\

Variable frequency control for the Low Pa ss Filter. The ‘knee’ frequency can be var­ied from 1.2kHz to 35kHz.

61416< +3)#)UHTXHQF\#

Variable frequency control for the High Pass Filter. The knee’ frequency can be var­ied from 14Hz to 400Hz.

614173 ,QVHUW#¶,Q22XW·

Stereo input channels have a “SEND” and “RETURN”

break-jack

facility. This is to
allow the channel signal to be sent out to, and returned from an external stereo
audio-processing unit. The channel signals are always present at the two “SEND”
jac k s, but wh en ‘insert’ is not selected, the channel signals will by-pass the
“RETURN” jacks.

Press the “INS” button to ‘open’ the “RETURN” jacks and receive the modified signal
from the external stereo audio-processing unit.

614174 $OO#0RGXOH#,VRODWH

This function ‘isolates ’ the module switch data fro m the computer. There are many
instances during a production rehearsal, when module routing or level changes need
to be made to solve a problem.
When y ou are rehearsing a sequence of cues, there may not be time to record t he
changes in all of the cues that are affected. When you press the ‘ISOLATE’ button,

7865 Stereo Input Channel 3-9

Revision J2005-2 J-Type

previously recorded switch data will be ignored by the module, leaving the switches
at their new setting until you cancel the function.

614175 0DLQ#3)/

Press this button to ‘listen’ to the channel signa l s pre-fader.

614176 &KDQQHO#0XWH

Press this button to mute the channel manually.

The MUT E switch has a secondary function when used in conjunction with the
CHECK switch, (located on the OSC Module). If a channel is muted (MUTE switch
‘On’) and the CHECK switch is pressed, the muted channel is unmuted, but all other
channels are forced into MUTE. This allows the originally muted channel(s) to have a
‘SOLO’ function.

3-10 7865 Stereo Input Channel

J-Type Revision J2005-2

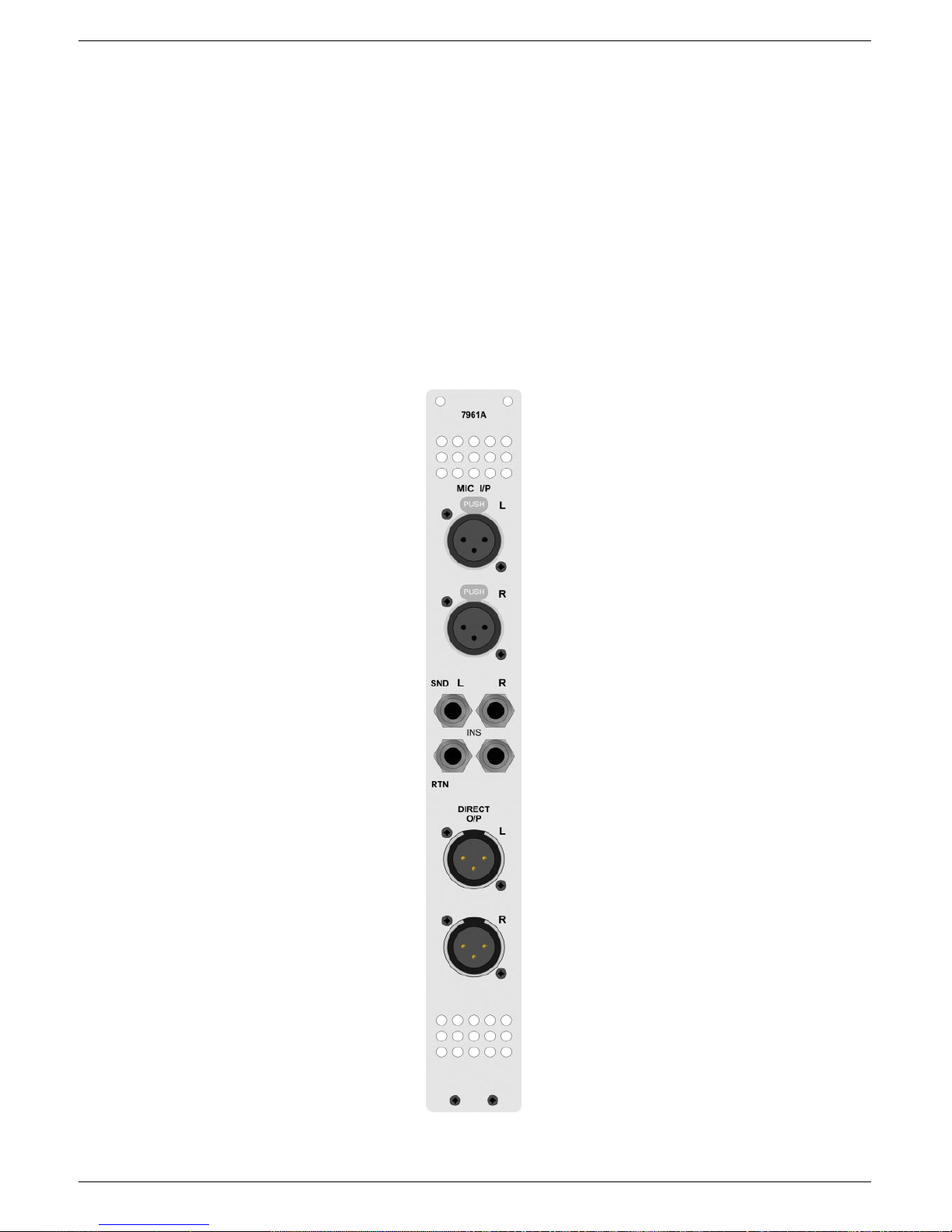

614177 0RGXOH#UHDU#SDQHO#FRQQHFWRUV

Inputs left & Right Electronically balanced inputs on XLR 3-31 connector s for micro­phone or line level sources.

Insert Sends Standard 0.25” (6.35 mm) TRS jack sockets, providing continuous elec­tronically balanced outputs.

Insert Retu rns El ect ro ni cal l y ba lanc ed inp ut s o n stan da rd 0. 2 5” ( 6.35 mm) TRS j ack
sockets that are switched into use when the “INS” switch is selected.

Direct Outputs Left and Right balanced outputs from the module, delivered to XLR 3­32 conn ectors .

Important note: Pin 1 on the XLR connectors and the ‘sleeve’ connections on the
jack sockets are connected to FRAME. This is to ensure that the console can comply
with the Electro Magnetic Compatibility (EMC) directive.

INPUT RIGHT

INSERT SEND RIGHT

INSERT RETURN RIGHT

DIRECT OUTPUT RIGHT

INPUT LEFT

INSERT SEND LEFT

INSERT RETURN RIGHT

DIRECT OUTPUT LEFT

7496 Dual Input Channel 3-11

Revision J2005-2 J-Type

615## :7<9#'XDO#,QSXW#&KDQQHO

The 7496 Dual I nput Chan nel is one of two fully programmable mono input channels
where al l s wi tch dat a and po tent i ome te r po si ti on ca n be sa v e d t o a nd re ca ll ed fro m a
cue, using the CADAC Sound Aut omation Manager software.

The inputs have contr ols for gain, 20dB pad, phase change, phantom power, on/of f
and PFL. This allows either input to be used with microphone or line level sources.
The two input signals are “mixed” when both input amplifiers are selected on. The
Oscill ato r Bus c an be i nj ecte d i nt o bo t h i nput a mpl i fier s an d all i np ut switch in g can be
isolated from the computer.

The dir ec t out p ut ma y be se le cted pr e o r po st the c ha nn el fa de r, an/o r pr e or pos t the
EQ section.

Routing switches to all 16 sub groups are provided and the pan-pot may be inserted
to “pan” between any combination of “odd” and “even” sub groups.

There are ten mono and one stereo auxiliary send sectio ns. Each of the aux-sends
can be switched on/off and pre or post fader or pre EQ.

The four-band equalizer has controls for ±18dB boost or cut, variable fr equency and
“Q”. The equalizer section is independent from the variable frequency for low pass
and hi gh-pass filter sections. It is therefore possible to progra m the channe l so that
when input 1 is selected, the four b and EQ is inserted and when input 2 is selected,
the LP and HP filters are inserted.

An external audio processi ng device can be conn ected to the module via 2TRS”
send and return jacks. The external processor is connec ted in series with the chan­nel signal when “Insert” is selected. The EQ and Filter s can be switched pre or post
the insert point.

All audio inputs and output s are electronically balanced.

3-12 7496 Dual Input Channel

J-Type Revision J2005-2

61514 ,23#4#*DLQ

Gain con tro l for in put 1, gi vi ng co nti nu ou sl y v aria b l e gain from th e mi ni mu m of 10 dB
to 60 dB. The position of the gain potentiometer is recorded during a SAVE com­mand.

61515 ,23#4#1XOO#/('

The Null LED will be illuminated if the posit ion of the I/P 1 gain pot is dif ferent from
the programmed position. To recall the programmed position, rotate the potentiome­ter until the LED goes ‘out’.

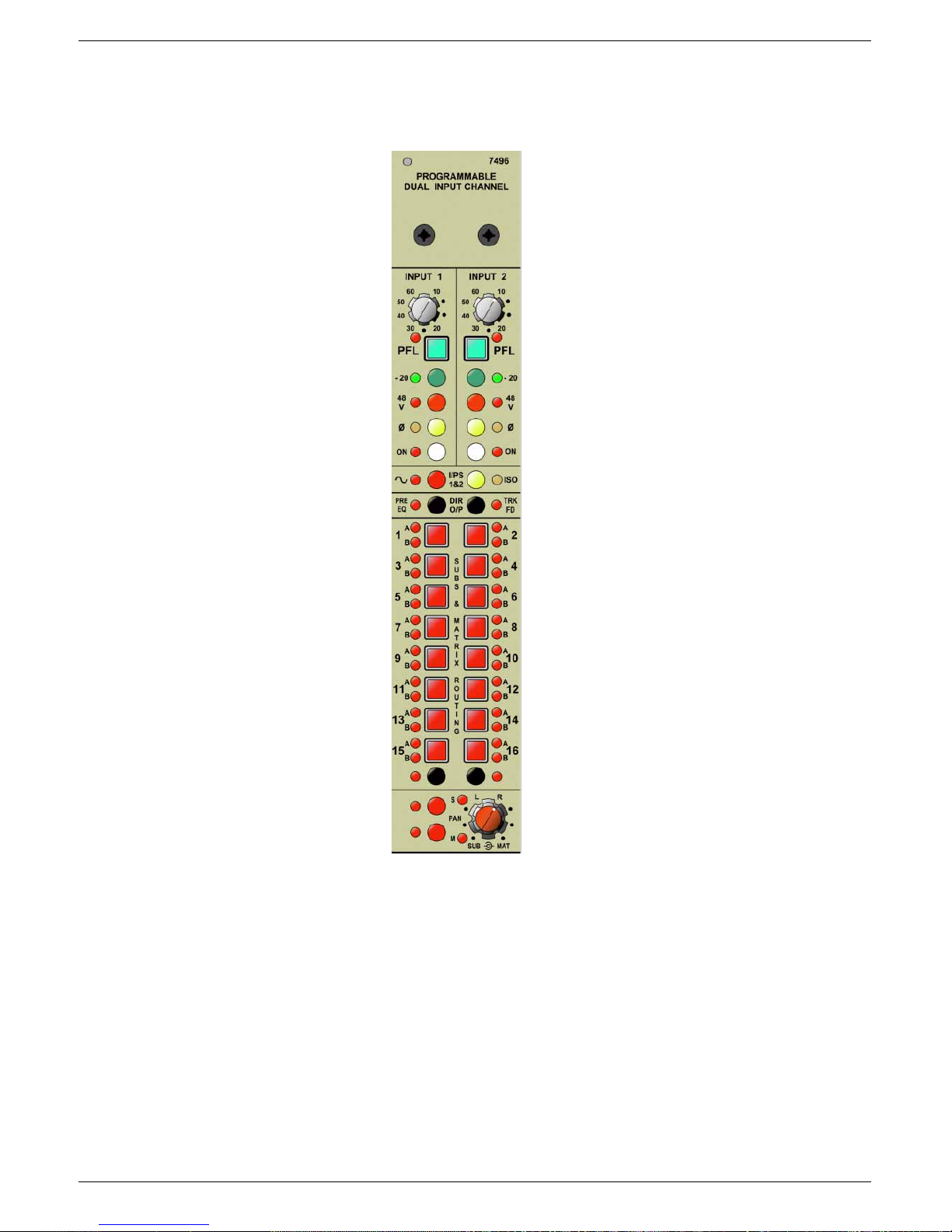

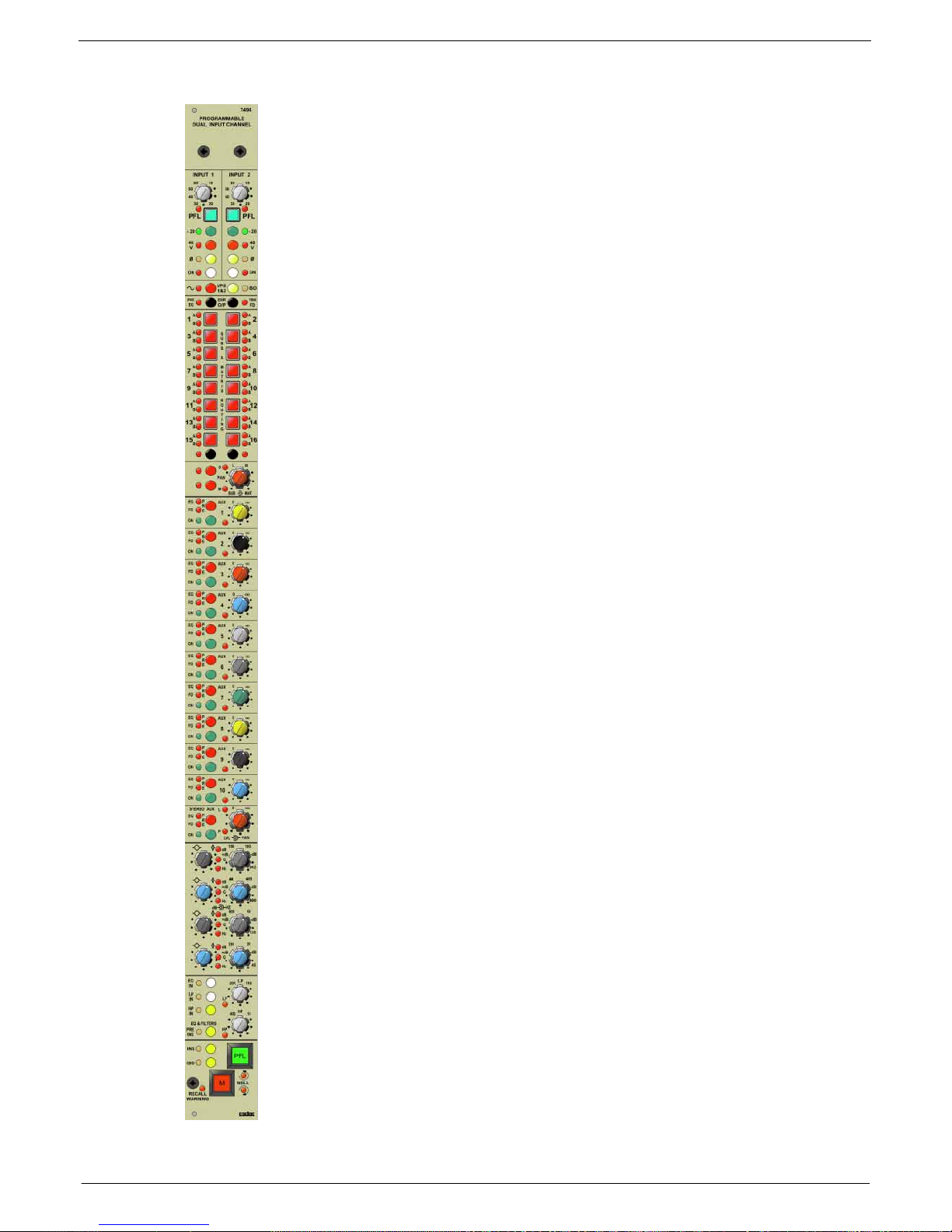

:7<9#'XDO#,QSXW#&KDQQHO

3.2.1 I/P Ga in

3.2.2 I/P 1 Null LED

3.3.3 I/P 1 PFL

3.2.4 I/P 1 -20dB Pad

3.2.5 I/P 1 Phantom Power

3.2.6 I/P 1 Phase Change

3.2.7 I/P 1 On/Off

3.2.15 Oscillator Bus Select

3.2.17 Direct O/P “Pre” EQ

3.2.8 I/P 2 Gain

3.2.9 I/P 2 Null LED

3.2.10 I/P 2 PFL

3.2.11 I/P 2 -20dB Pad

3.2.12 I/P Phantom Power

3.2.13 I/P Phase Change

3.2.14 I/P 2 On/Off

3.2.16 Input Amplifier isolate

3.2.18 Direct O/P “Post” Channel fader

3.2.19 Subs and Matrix Routing switches

3.2.20 Subs and Matrix Routing LEDs

3.2.21 Matrix A select

3.3.23 Pan Pot Insert

3.2.22 Matrix B select

3.2.24 Pan Pot Null LED

3.2.25 Pan Pot

7496 Dual Input Channel 3-13

Revision J2005-2 J-Type

61516 ,23#4#3)/

Press this button to ‘listen’ to the signal on I/P1 only (pre routing and EQ).

61517 ,23#4#²53G%#3DG

Press this button to c hange the input from “ m icrophone sensitivity” to “line level”. The
‘20dB’ pad is inserted before the input amplifier.

61518 ,23#4#3KDQWRP#3RZHU

Press this button to connect 48V phantom power to the input connector. This func­tion has a slow ’ramp-up’ (approximately 30 seconds to get from 0v to 48v).

61519 ,23#4#3KDVH#&KDQJH

When this button is selected, the input signal phase is reversed (180°).

6151: ,23#4#2Q22II

Input on/off switches are provid ed so that input signals can be changed (switched
on-to- off or vice-versa) under program control.

6151; ,23#5#*DLQ

As 3.2.1, but for input 2.

6151< ,23#5#1XOO#/('

As 3.2.2, but for input 2.

615143 ,23#5#3)/

As 3.2.3, but for input 2.

615144 ,23#5#²53G%#3DG

As 3.2.4 but for input 2.

615145 ,23#5#3KDQWRP#3RZHU

As 3.2.5, but for input 2.

615146 ,23#5#3KDVH#&KDQJH

As 3.2.6, but for input 2.

615147 ,23#5#2Q22II

As 3.2.7, but for input 2.

3-14 7496 Dual Input Channel

J-Type Revision J2005-2

615148 2VFLOODWRU#%XV#6HOHFW

Press this button to connect inputs 1 and 2 to the ‘Oscillator/PNG’ bus. For this func­tion to work, the ‘Oscillator/PNG’ module must be selected to “CHANNELS”. This
faci li t y al lo ws y ou to che c k t hat a n in di vidu al mod ul e , or th e who l e conso le is wor ki ng
correctly.

615149 ,QSXW#$PSOLILHU#,VRODWH

This function ‘isolates’ the switch and potentiometer recall data (for both input ampli­fiers) from the computer. There are many instances during a pr oduction rehearsal,
when module routing or level changes need to be made to solve a prob lem. When
you are rehearsing a sequence of cues, there may not be time to record the changes
in all of the cues that are affected. When you press the ‘ISOLATE’ button, previously
recorded switch and pot data will be ignored by the module, leaving the controls at
their new setting until you cancel the function.

61514: 'LUHFW#223#¶3UH·#(4

The default setting for the ch annel ‘direct output’ circuit is post-EQ and pre- fader.
When the ‘direct output’ is used to feed an external monitor mixer or recording
machine, it is possible that the EQ settings for the ‘front-of-house’ mix will clash will
the requirements for these purposes.

Press this button to derive the ‘direct output’ signal ‘pre’ the channel EQ.

61514; 'LUHFW#223#¶3RVW·#&KDQQHO#)DGHU

The default setting for the ch annel ‘direct output’ circuit is post-EQ and pre- fader.

Press this button when you need to control the ‘direct output’ level with the channel
fader.

61514< 6XE#*URXS#5RXWLQJ#6ZLWFKHV

Sixteen swit ches that allow you to route the channel signal to one or all of the Sub
Group routing bus’.

615153 6XE#*URXS#5RXWLQJ#/('V

Sixteen LEDs which when lit indicate to which Sub Groups the channel signal has
been routed. Using the A & B buttons also allow routing to the 32 Matrix.

615154 0DWUL[#$#VHOHFW

Selecting MAT A will cause the M AT A LED to flash and the routing t o matrix A (1- 16)
is again selected by the appropriate square button. When selected ON the relevant
LED will illuminate. This action does not affect the state of the Sub Grou ps.

615155 0DWUL[#%#VHOHFW

As for 3.2.21.

7496 Dual Input Channel 3-15

Revision J2005-2 J-Type

615156 ¶3DQ#3RW·#,QVHU W

Press these buttons to insert the ‘pan pot’, either to Sub groups or Matrix.

615157 ¶3DQ#3RW·#1XOO#/('

The Null LED will be illuminated if the position of the ‘pan pot’ is different from the
programmed position. To recall the programmed position, rotate the potentiometer
until the LED goes ‘out’.

615158 ¶3DQ#3RW·

When the ‘Pan Pot’ Insert switch is selected, the input signal can be ‘panned’ between
any pair of odd and even Sub Groups. The position of the ‘pan’ potentiometer is
recorded during a SAVE command. The inner pot is for Sub Groups, the outer for
Matrix.

3-16 7496 Dual Input Channel

J-Type Revision J2005-2

615159 $X[#6HQG#¶3UH0(4·

The default setting for the channel auxiliary send circuits is ‘o ff’ and post-EQ.
Press t he ‘PRE’ button until the PRE EQ LED illuminates to derive the aux signal
pre-EQ.

61515: $X[#6HQG#¶3UH0)DGHU·

The default setting for the channel auxiliary send circuits is ‘o ff’ and post-fader.
Press the “PRE” button until the PRE FD LED illuminates to derive the aux send sig­nal pre-fader.

NOTE: Only one of the options 3.2.26 or 3.2.27 can be selected at the same time.

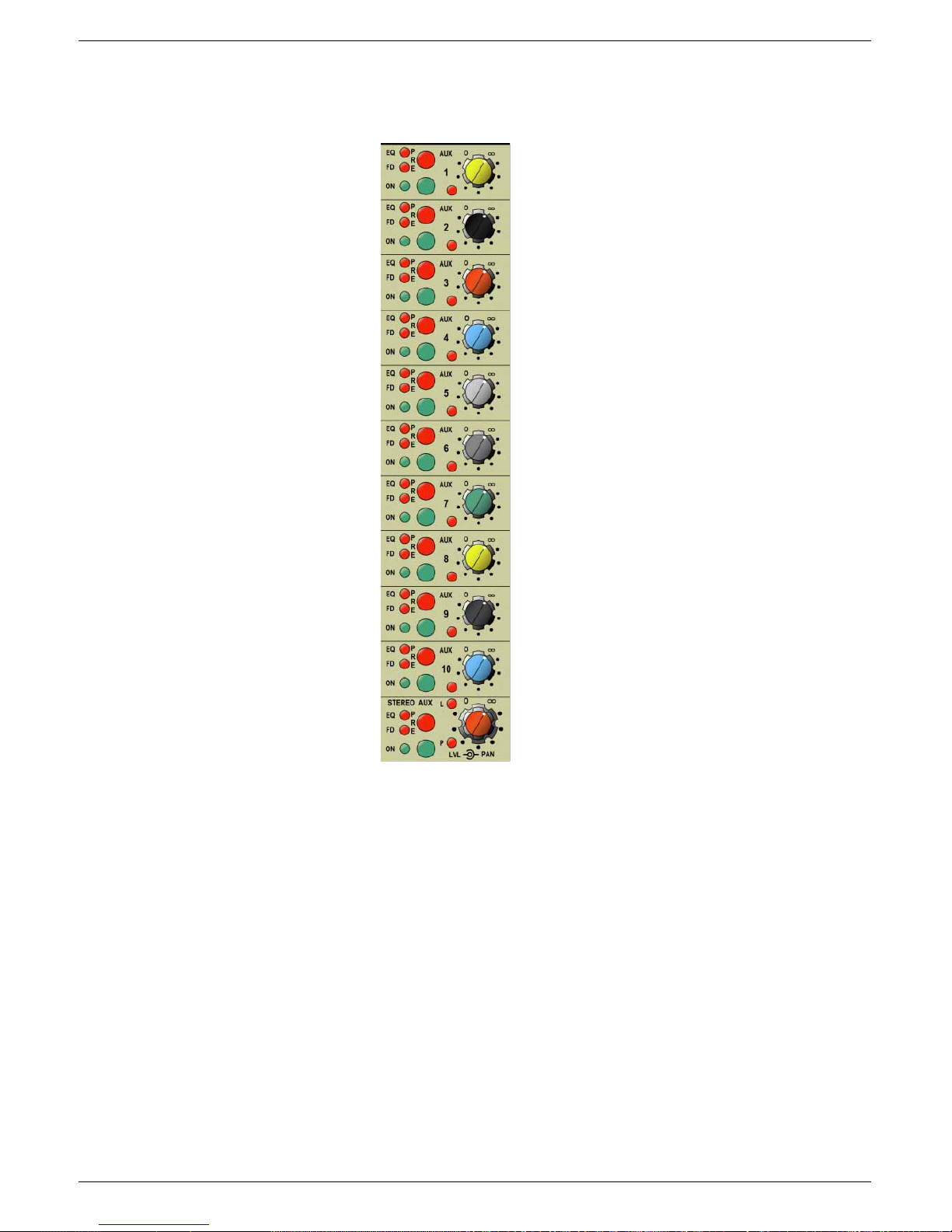

:7<9#'XDO#,QSXW#&KDQQHO

3.2.31 Stereo Aux Send Pre EQ

3.2.32 Stereo Aux Send Pre Fader

3.2.33 Stereo Aux Send On/O ff

3.2.26 Aux Send Pr e-EQ

3.2.27 Aux Send Pre Fader

3.2.28 Aux Send On/Off

3.2.34 Stereo Aux Send Level Pot Null LED

3.2.35 Stereo Aux Send Level and Pan

3.2.36 Stereo Aux Send “Pan Pot” Null LED

3.3.29 Aux Send Level

3.3.30 Aux Send Pot Null LED

7496 Dual Input Channel 3-17

Revision J2005-2 J-Type

61515; $X[#6HQG#¶2Q22II ·

The default setting for the channel auxiliary send circuits is ‘off’ and post-fader.

Press the “ON” button to switch the aux send section into circuit.

61515< $X[#6HQG#/HYHO

Level control for an auxiliary send section.
The position of the ‘le vel’ potentiome ter is recorded durin g a SAVE command .

615163 $X[#6HQG#3RW#1XOO#/('

The Null LED will be illuminated if the position of the ‘aux send pot’ is different from
the programmed position. To recall the programmed position, rotate the potentiome­ter until the LED goes ‘out’.

615164 6WHUHR#$X[#6HQG#¶3UH0(4·

The default setting for the channel auxiliary send circuits is ‘off’ and post-EQ.
Press the ‘PRE’ b utton until the PRE EQ LED illumi nates to derive the st ereo aux
send si gnal pre-EQ .

615165 6WHUHR#$X[#6HQG#¶3UH0)DGHU·

The default setting for the channel auxiliary send circuits is ‘off’ (post-fader).
Press the “PRE” button until the PRE FD illuminates to derive the stereo aux send
signal pre-fader.

615166 6WHUHR#$X[#6HQG#¶2Q22II·

The default setting for the channel auxiliary send circuits is ‘off’ (post-fader).
Press the “ON” button to switch the stereo aux send section into circuit.

615167 6WHUHR#$X[#6HQG#/HYHO#3RW#1XOO#/('

The Null LED will be illuminated if the position of the ‘stereo aux send pot’ is different
from the programmed position. To recall the programmed position, rotate the potenti­ometer until the LED goes ‘out’.

615168 6WHUHR#$X[#6HQG#/HYHO#DQG#¶3DQ·

A dual-concentric potentiometer where the ‘inner’ knob is the level control f or the ste­reo auxiliary send section and t he ‘outer’ knob is the stereo aux ‘pan pot’. The posi­tions of the ‘level’ and ‘pan’ potentiometers are recorded during a SAVE command.

615169 6WHUHR#$X[#6HQG#¶3DQ#3RW·#1XOO#/('

The Null LED will be illuminated if the position of the ‘stereo aux pan pot’ is different
from the programmed position. To recall the programmed position, rotate the potenti­ometer until the LED goes ‘out’.

3-18 7496 Dual Input Channel

J-Type Revision J2005-2

61516: +)#(4#¶4·#&RQWURO

The ‘Q’ control varies the bandwidth of the EQ section in the range Q=1 to Q=3. A
low value of Q gives a wide bandwidth.
This means that a relatively large range of frequencies (either side of the centre fre­quency selected by the ‘Frequency’ control) have boost/cut applied. As the value of
Q is increased, the bandwidth is reduced, so that a very much smaller range of fre­quencies have boost/cut applied.

61516; +)#(4#%RRVW2&XW#DQG#)UHTXHQF\#&RQWURO

A dual-concentr ic potentiometer where the ‘inn er’ knob is the ‘Boost/Cut’ cont rol for
the EQ s ection an d the ‘outer’ knob is the ‘Frequency’ potentiometer.

Boost /Cut±18 dB
FrequencyVariable from 1.5kHz to 15kHz

61516< +0)#(4#¶4·#&RQWURO

The ‘Q’ control varies the bandwidth of the EQ section in the range Q=1 to Q=3. A
low value of Q gives a wide bandwidth. This means that a relatively large range of
frequencies (either side of the centre frequency selected b y the ‘Fr equency’ control)
have boost/cut applied. As the va lue of Q is increase d, the bandwidth is reduced, so
that a very much smaller range of frequencies have boost/cut applied.

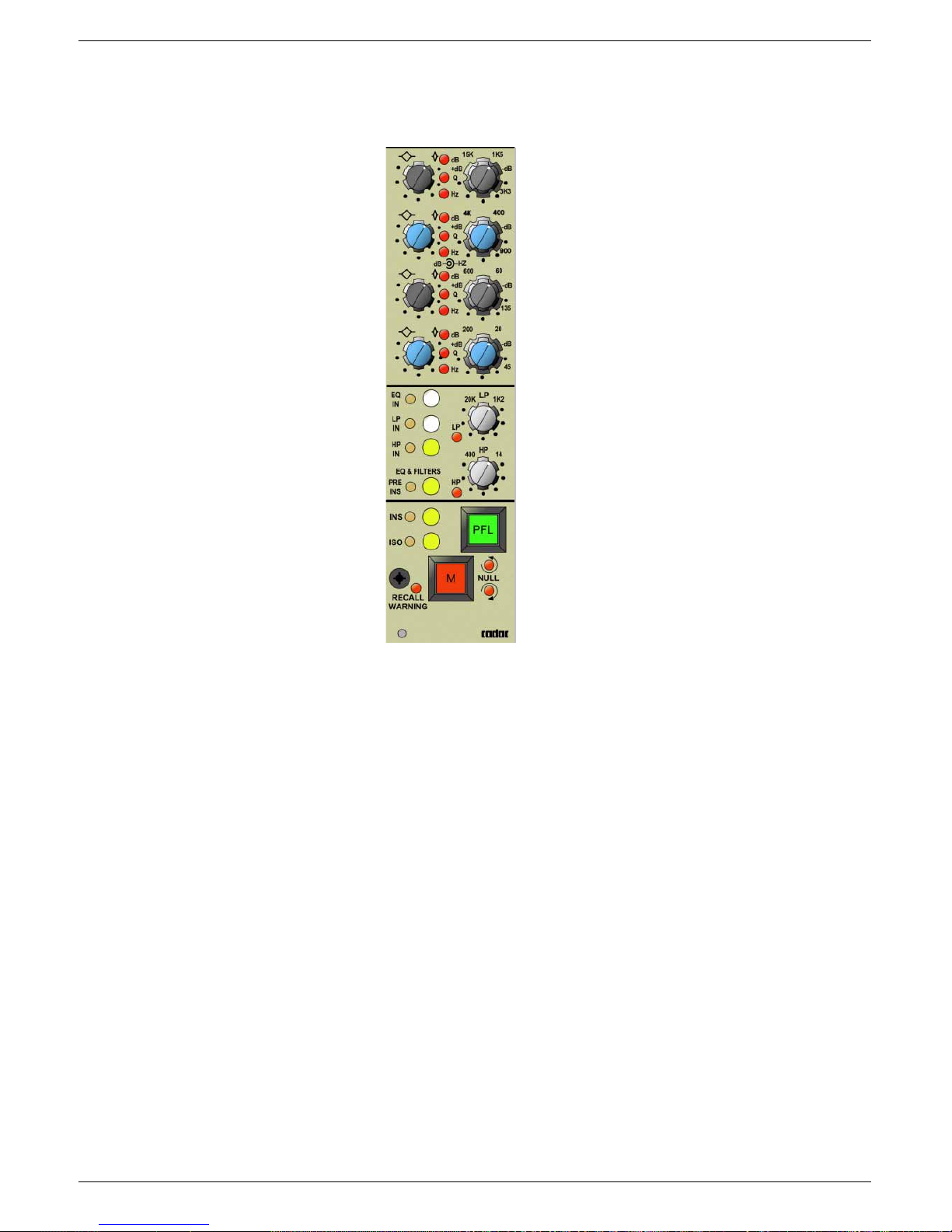

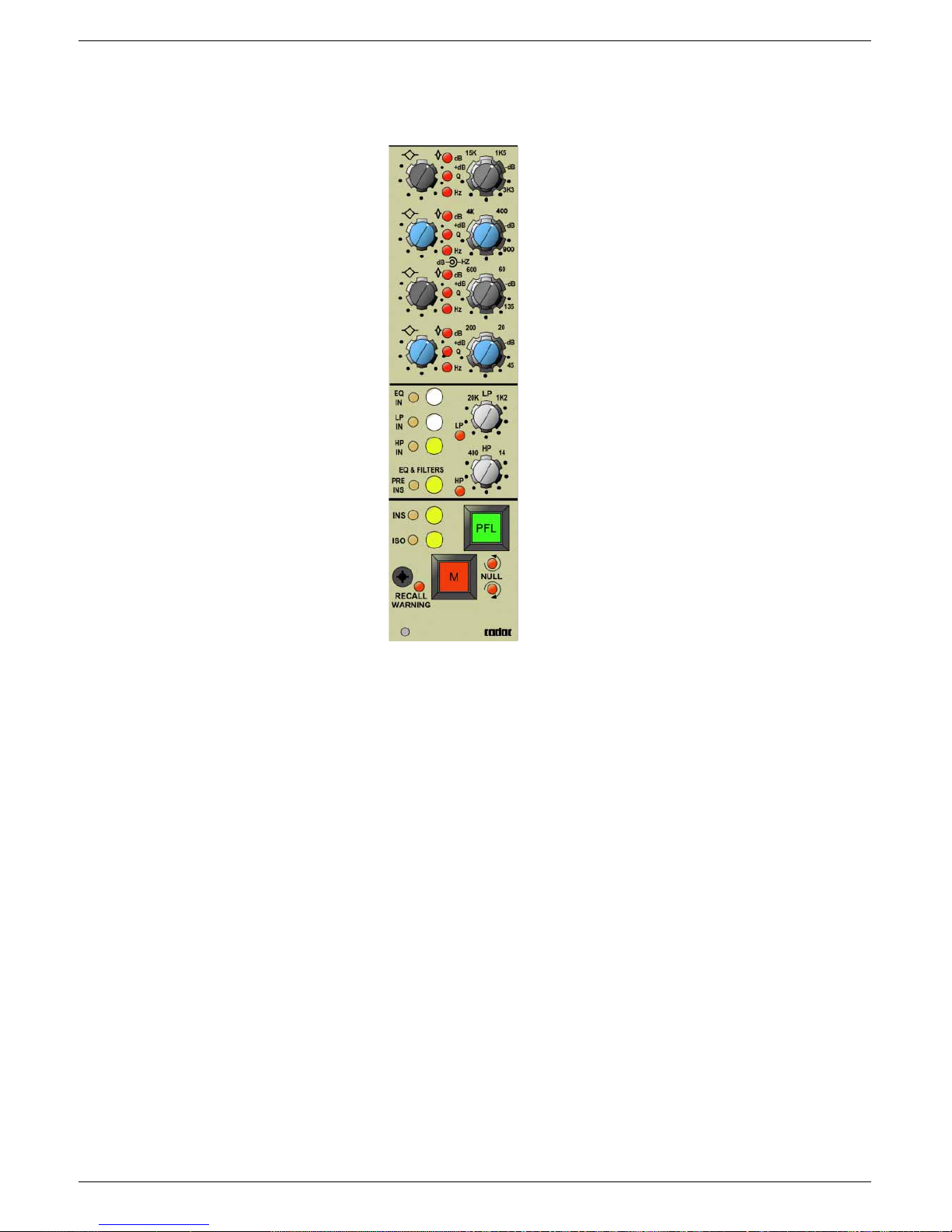

:7<9#'XDO#,QSXW#&KDQQHO

3.2.38 HF EQ Boost/Cut and Fre­quency Controls

3.2.40 HMF EQ Boost/Cut and
Frequency Con trols

3.2.42 LMF EQ Boost/Cut and Fre­quency Controls

3.2.44 LF EQ Boost/Cut and Fre­quency Controls

3.2.49 LP Filter Frequency

3.2.57 Null LED (2)

3.2.50 HP Filter Frequency

3.2.53 Main PFL

3.2.54 Channel Mute

3.2.56 Recall Null Direction LEDs

3.2.37 HF EQ “Q” Control

3.2.39 HMF EQ “Q” Control

3.2.41 LMF EQ “Q” Control

3.2.57 Null LED (4)

3.2.43 LF EQ “Q” Control

3.2.45 EQ In/Out

3.2.46 LP Filter In/Out

3.2.47 HP Filter In/Out

3.2.48 EQ and Filt ers Pre and Post
Insert

3.2.51 Insert In/Out

3.2.52 All Module Isolate

3.2.55 Pot ‘Reset’ Warning

7496 Dual Input Channel 3-19

Revision J2005-2 J-Type

615173 +0)#(4#%RRVW2&XW#DQG#)UHTXHQF\#&RQWURO

A dual-concentric potentiometer wher e the ‘inner’ knob is the ‘Boost /C ut’ control for
the EQ s ection and the ‘outer’ knob is the ‘Frequency’ potentiometer .

Boost/Cut±18 dB
FrequencyVariable from 400Hz to 4kHz

615174 /0)#(4#¶4·#&RQWURO

The ‘Q’ control varies the bandwidth of the EQ section in the range Q=1 to Q=3. A
low value of Q gives a wide bandwidth. This means that a relatively large range of
frequencies (either side of the centr e frequency selected by the ‘Frequency’ cont rol)
have boost/cut applied. As t he value of Q is incr eased, the bandwidth is reduced, so
that a very much smaller range of frequencies have boost/cut applied.

615175 /0)#%RRVW2&XW#DQG#)UHTXHQF\#&RQWURO

A dual-concentric potentiometer wher e the ‘inner’ knob is the ‘Boost /C ut’ control for
the EQ s ection and the ‘outer’ knob is the ‘Frequency’ potentiometer .

Boost/Cut±18 dB
FrequencyVariable from 60Hz to 600Hz

615176 /)#(4#¶4·#&RQWURO

The ‘Q’ control varies the bandwidth of the EQ section in the range Q=1 to Q=3. A
low value of Q gives a wide bandwidth. This means that a relatively large range of
frequencies (either side of the centr e frequency selected by the ‘Frequency’ cont rol)
have boost/cut applied. As t he value of Q is incr eased, the bandwidth is reduced, so
that a very much smaller range of frequencies have boost/cut applied.

615177 /)#%RRVW2&XW#DQG#)UHTXHQF\#&RQWURO

A dual-concentric potentiometer wher e the ‘inner’ knob is the ‘Boost /C ut’ control for
the EQ s ection and the ‘outer’ knob is the ‘Frequency’ potentiometer .

Boost/Cut±18 dB
FrequencyVariable from 20Hz to 200Hz

615178 (4#¶,Q22XW·

Press the “EQ IN” button to put the equalizer into the channel signal chain.

615179 /3#)LOWHU#¶,Q22XW·

Press the “LP IN” button to put the Low Pass Filter into the channel signal chain.

61517: +3#)LOWHU#¶,Q22XW·

Press the “HP IN” button to put the High Pass Filter into the channel signal chain.

61517; (4#DQG#)LOWHUV#¶3UH·#RU#¶3RVW·#,QVHUW

The default routing for the EQ and Filter sections is ‘post’ the insert point.

3-20 7496 Dual Input Channel

J-Type Revision J2005-2

Press the “PRE INS” button to re-route the EQ and Filter sections ‘pre’ the insert
point.

61517< /3)#)UHTXHQF\

Variable frequency control for the Low Pa ss Filter. The ‘knee’ frequency can be var­ied from 1.2kHz to 20kHz.

615183 +3)#)UHTXHQF\#

Variable frequency control for the High Pass Filter. The ‘k nee’ frequency can be var­ied from 14Hz to 400Hz.

615184 ,QVHUW#¶,Q22XW·

Stereo input channels have a “SEND” and “RETURN”

break-jack

facility. This is to
allow the channel signal to be sent out to, and returned from an external audio-pro­cessing unit. The channel signals are always present at the “SEND” jack, but when
‘insert’ is not selected, the channel signals will by-pass the “RETURN” jack.

Press the “INS” button to ‘open’ the “RETURN” jack and receive the modified signal
from the external audio-processing unit.

615185 $OO#0RGXOH#,VRODWH

This function ‘isolates ’ the module switch data fro m the computer. There are many
instances during a production rehearsal, when module routing or level changes need
to be made to solve a problem.
When y ou are rehearsing a sequence of cues, there may not be time to record t he
changes in all of the cues that are affected. When you press the ‘ISOLATE’ button,
previously recorded switch data will be ignored by the module, leaving the switches
at their new setting until you cancel the function.

615186 0DLQ#3)/

Press this button to ‘listen’ to the channel signals pre-fader.

615187 &KDQQHO#0XWH

Press this button to mute the channel manually.

The MUT E switch has a seconda ry function w hen used in co njunction with the
CHECK switch, (located on the OSC Module). If a channel is muted (MUTE switch
‘On’) and the CHECK swi tch is pressed, the muted chann el is unmu ted, but all other
channels are forced into MUTE. This allows the originally muted channel(s) to have a
‘SOLO’ function.

615188 3RWHQWLRPHWHU#¶5HFDOO·#:DU QLQJ

This L ED will ‘flash’ when any potentiomet er on the module is at a different position
to that recorded in the current cue.

615189 ¶5HFDOO·#1XOO#'LUHFWLRQ#/('V

A pair of LEDs that indicate the direction you need to turn the current potenti ometer

7496 Dual Input Channel 3-21

Revision J2005-2 J-Type

to achieve the ‘null’ position. When the ‘null’ point is reache d, both LED s will turn
‘off’. Turning any pot will make it the current pot. Null LEDs are provided for Hz, Q,
Cut/Boost and Filters.

61518: 1XOO#/('V

Indicates fader/pot is in the programmed/ correct position.

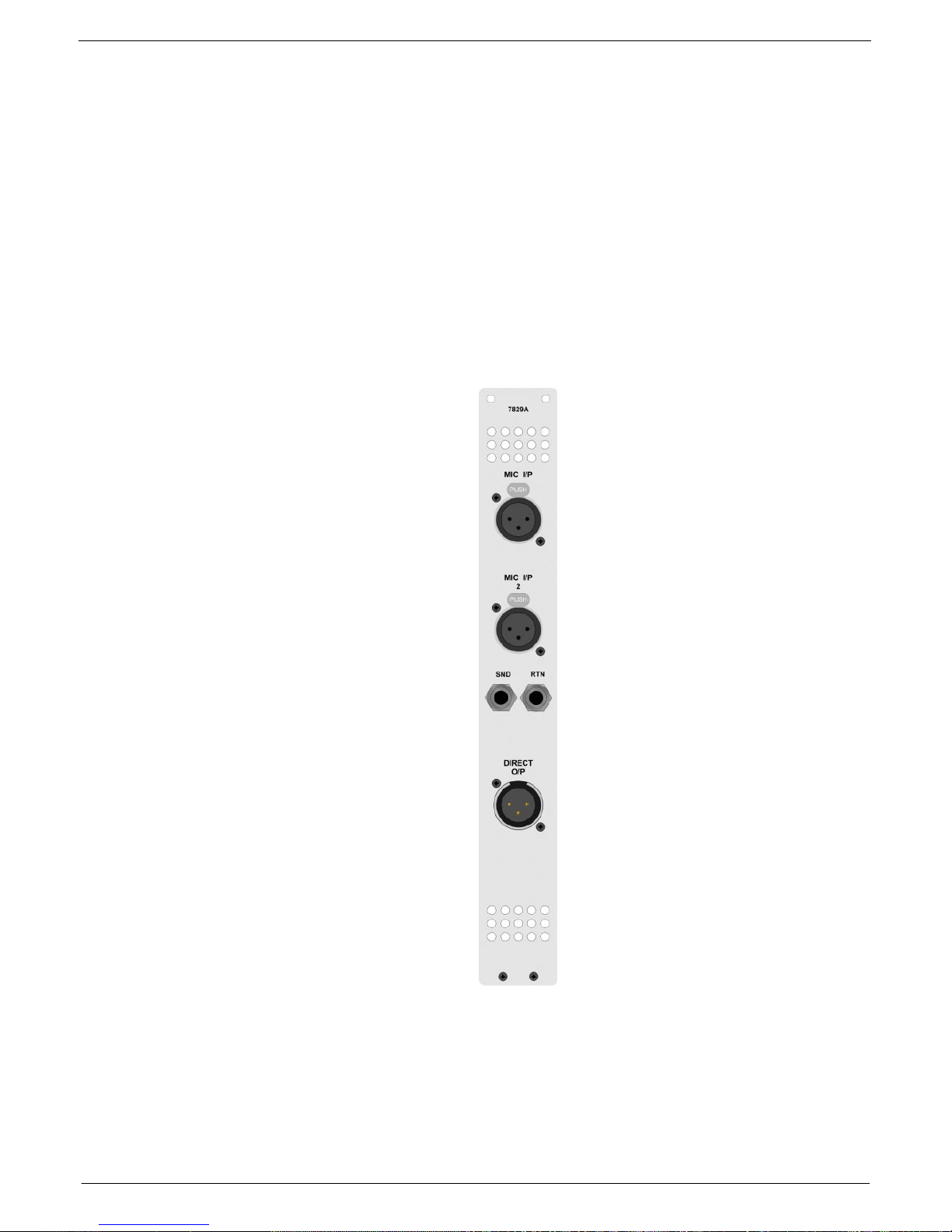

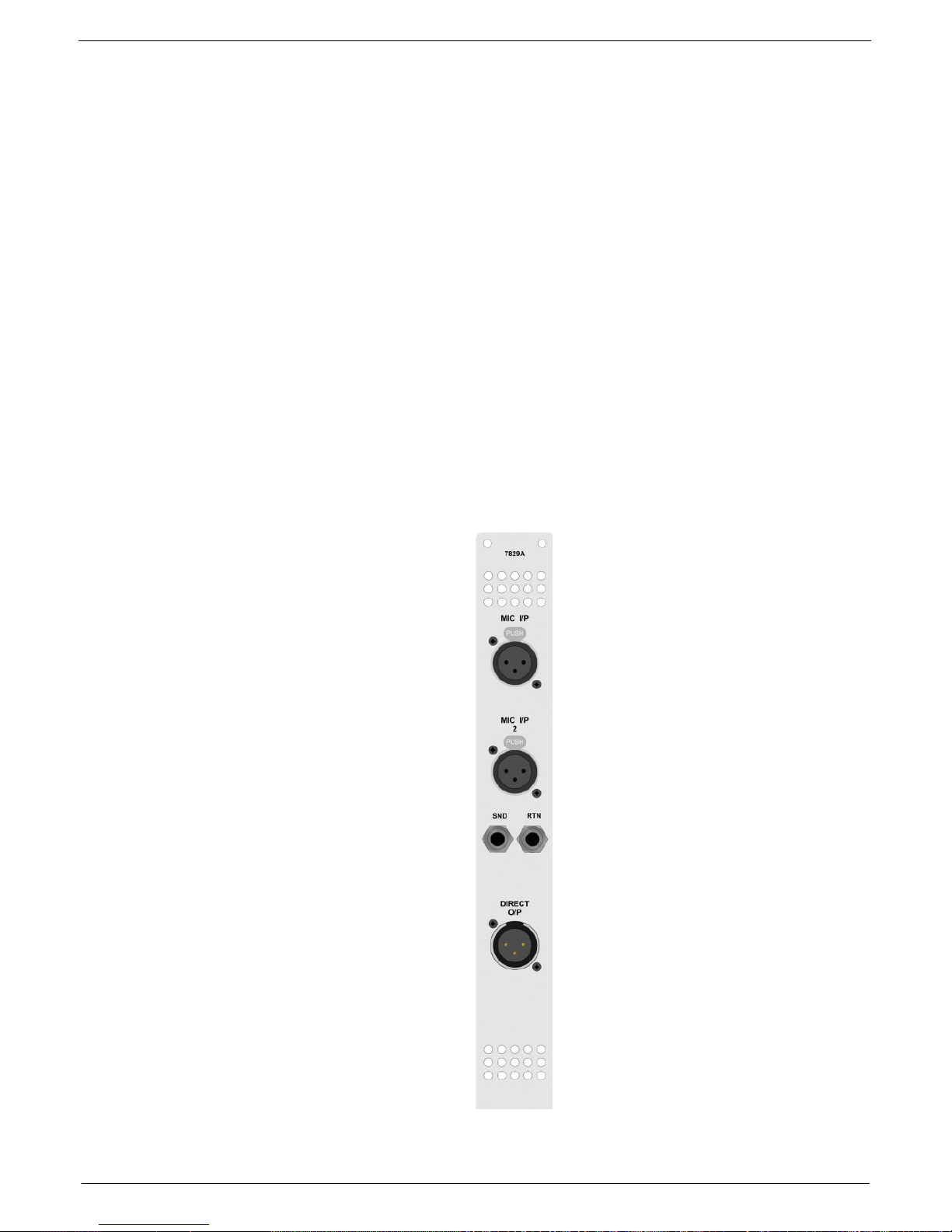

61518; 0RGXOH#5HDU#3DQHO#&RQQHFWRUV#:7<9

Inputs 1 and 2

Electronically balance d inputs on XLR 3-31 connectors for micro-

phone or lin e leve l sou rc es.

Insert Send

Standard 0.25” (6.35 mm) TRS jack socket, providing continuous elec-

tronically balanced output.

Insert Return

Electronically balanced input on standard 0.25” (6.35 mm) TRS jack

socket that are switched into use when the “INS” switch is selected.

Direct Output

Balanced output from the module, delivered to an XLR 3-32 connec-

tor.

Important note:

Pin 1 on the XLR connectors and the ‘sleeve’ connections on the
jack soc k et s a re co nn ecte d t o FR AME. Thi s i s to ensu re that t he con so le can compl y
with the Electro Magnetic Compatibility (EMC) directive.

INPUT 1

INPUT 2

INSERT RETURN

DIRECT OUTPUT

INSERT SEND

3-22 7496 Dual Input Channel

J-Type Revision J2005-2

7830 Dual input channel 3-23

Revision J2005-2 J-Type

616## :;63#'XDO#LQSXW#FKDQQHO

The 7830 Dual I nput Chan nel is one of two fully programmable mono input channels
where all switch data and potentiometer position data can be saved to and recalled
from a cue, using the CADAC

Sound Automation Manager

software.

The inputs have contr ols for gain, 20 dB pad, phase-change, phantom power, on/off
and PFL. This allows either input to be used with microphone or line level sources.
The two input signals are ‘mixed’, when both input amplifiers are selected ‘on’. The
Oscill ato r Bus c an be i nj ecte d i nt o bo t h i nput a mpl i fier s an d all i np ut switch in g can be
isolated from the computer.

The direct outpu t may be selected pre or post the channel fader , and/or pre or post
the EQ section.

Routing switches to all 16 sub groups are provided and the pan-pot may be inserted
to ‘pan’ between ‘odd’ and ‘even’ sub groups.

There are ten mono and one stereo auxiliary send sectio ns. Each of the aux-sends
can be switched on/off and pre or post fade r.

The four-band equalizer has controls for ±18 dB boost or cut, variable frequency and
“Q”. The equalizer section is independent from the variable frequency low-pass and
high-pass filter sect ions. It is ther efore possible to program the channel so that when
input 1 is selected, t he four band EQ is inserted and when input 2 is sele cted, the LP
and HP filters are inserted.

An ext ernal aud io proce ss in g device can be conn ec ted t o th e mod ul e via ‘T RS ’ se nd
and return jacks. The external processor is connected in series with the channel sig­nal when ‘Insert’ is selected. The EQ and Fil ters can be switched pre or post the
insert point.

All audio inputs and output s are electronically balanced.

3-24 7830 Dual input channel

J-Type Revision J2005-2

61614 ,23#4#*DLQ

Gain con tro l for in put 1, gi vi ng co nti nu ou sl y v aria b l e gain from th e mi ni mu m of 10 dB
to 60 dB. The position of the gain potentiometer is recorded during a SAVE com­mand.

61615 ,23#4#1XOO#/('

The Null LED will be illuminated if the posit ion of the I/P 1 gain pot is dif ferent from
the programmed position. To recall the programmed position, rotate the potentiome­ter until the LED goes ‘out’.

61616 ,23#4#3)/

Press this button to ‘listen’ to the signal on I/P1 only (pre routing and EQ).

61617 ,23#4#²53G%#3DG

Press t hi s b u tto n t o c ha ng e t he in pu t f r om “mic ro ph on e s ens iti vi ty ” to “li ne level” . Th e
‘20dB’ pad is in serted befor e the inp ut amplifier.

61618 ,23#4#3KDQWRP#3RZHU

Press this button to connect 48V phantom power to the input connector. This func­tion has a slow ’ramp-up’ (approximately 30 seconds to get from 0v to 48V).

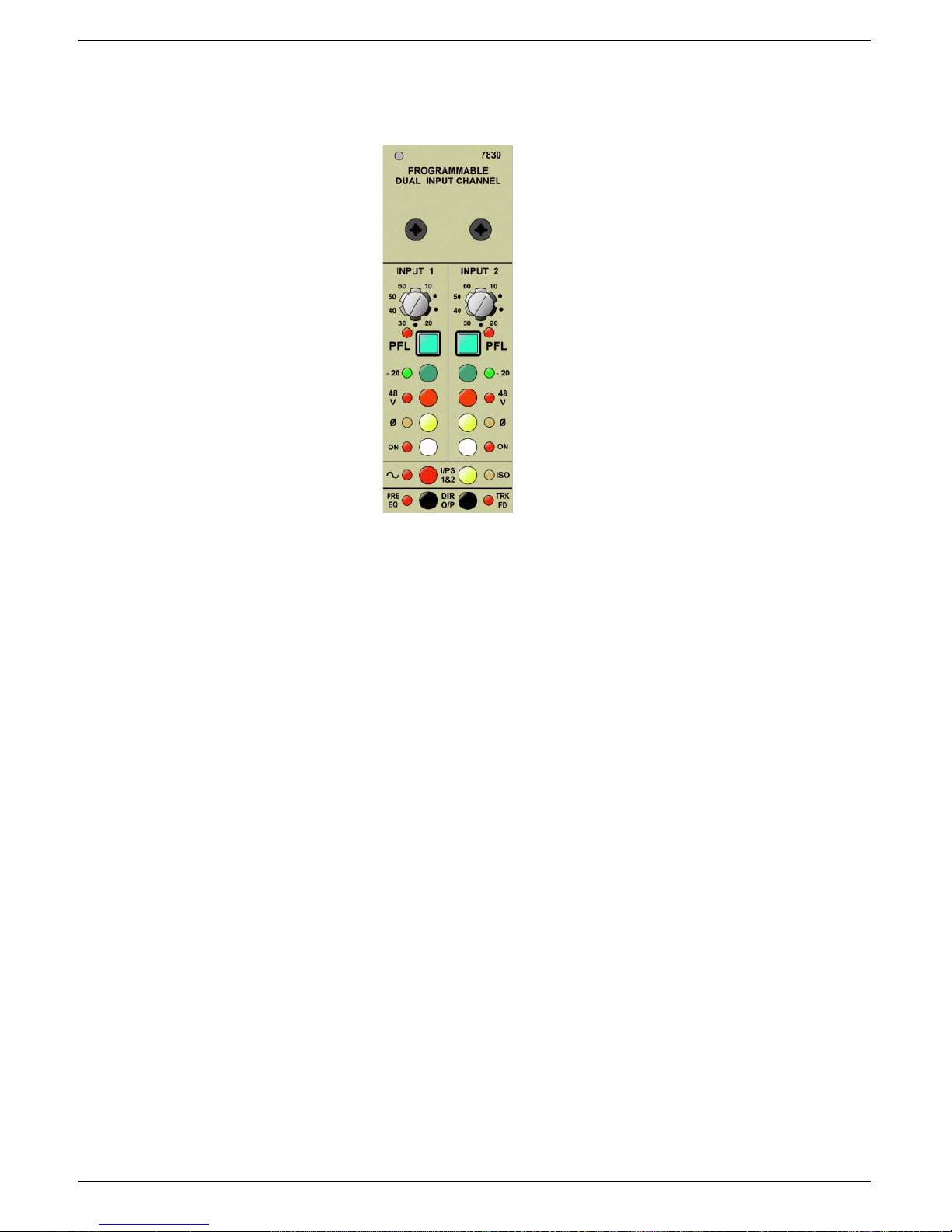

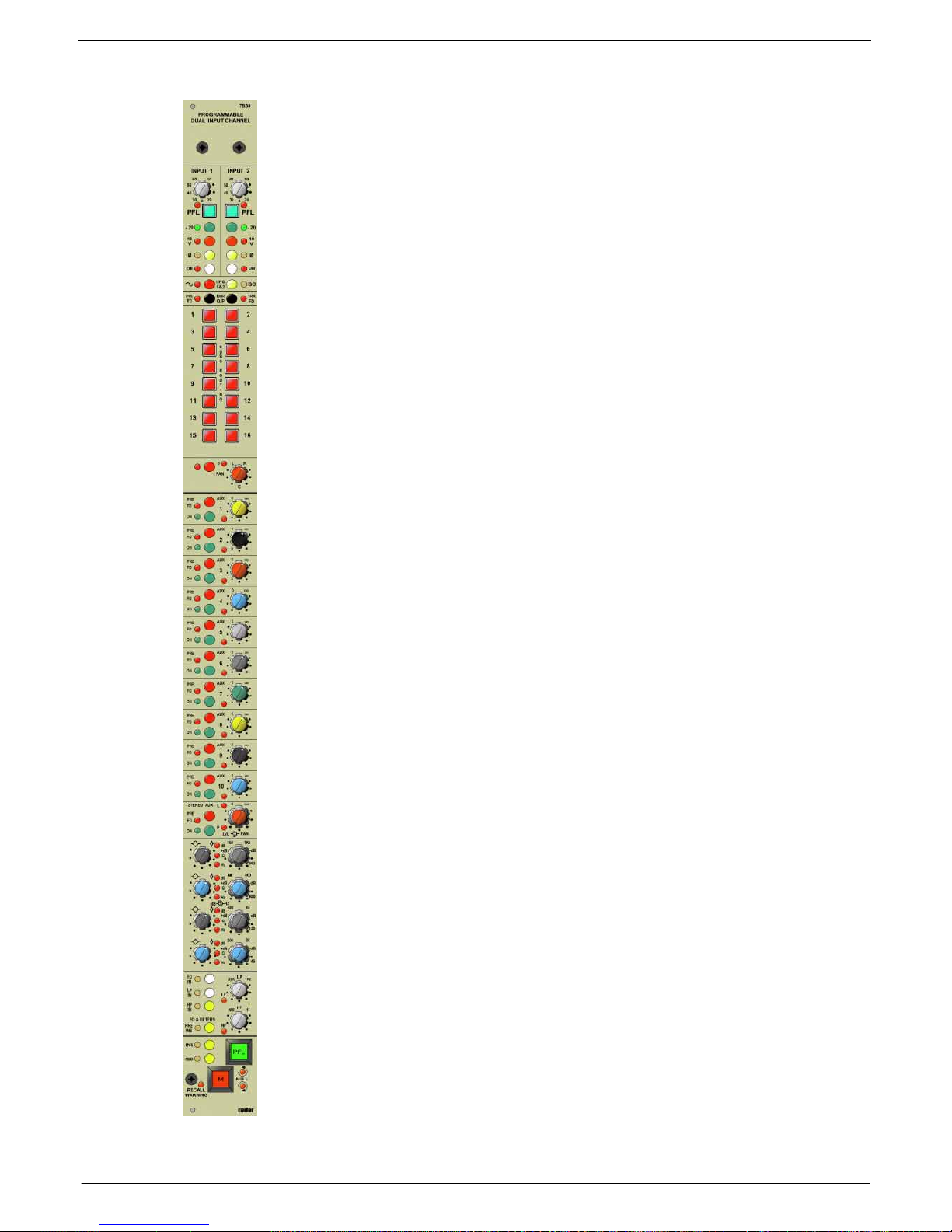

3.3.8 I/P 2 Gain

3.3.9 I/P 2 Null LED

3.3.10 I/P 2 PFL

3.3.11 I/P 2 -20dB Pad

3.3.12 I/P 2 Phantom Power

3.3.13 I/P 2 Phase Change

3.3.14 I/P 2 On/Off

3.3.16 Input Amplifier isolate

3.3.18 Direct O/P “Post” Channel fader

3.3.1 I/P 1 Gain

3.3.2 I/P 1 Null LED

3.3.3 I/P 1 PFL

3.3.4 I/P 1 -20dB Pad

3.3.5 I/P 1 Phantom Power

3.3.6 I/P 1 Phase Change

3.3.7 I/P 1 On/Off

3.3.15 Oscillator Bus Select

3.3.17 Direct O/P “Pre” EQ

:;63#'XDO#,QSXW#&KDQQHO

7830 Dual input channel 3-25

Revision J2005-2 J-Type

61619 ,23#4#3KDVH#&KDQJH

When this button is selected, the input signal phase is reversed (180°).

6161: ,23#4#2Q22II

Input on/off switches are provid ed so that input signals can be changed (switched
on-to- off or vice-versa) under program control.

6161; ,23#5#*DLQ

As 3.3.1, but for input 2.

6161< ,23#5#1XOO#/('

As 3.3.2, but for input 2.

616143 ,23#5#3)/

As 3.3.3, but for input 2.

616144 ,23#5#²53G%#3DG

As 3.3.4, but for input 2.

616145 ,23#5#3KDQWRP#3RZHU

As 3.3.5, but for input 2.

616146 ,23#5#3KDVH#&KDQJH

As 3.3.6, but for input 2.

616147 ,23#5#2Q22II

As 3.3.7, but for input 2.

616148 2VFLOODWRU#%XV#6HOHFW

Press this button to connect inputs 1 and 2 to the ‘Oscillator/PNG’ bus. For this func­tion to work, the ‘Oscillator/PNG’ module must be selected to “CHANNELS”. This
faci li t y al low s y ou to c he c k th at an in di vi du al mod ul e , or th e who le cons ole is work in g
correctly.

616149 ,QSXW#$PSOLILHU#,VRODWH

This function ‘isolates’ the switch and potentiometer recall data (for both input ampli­fiers) from the computer. There are many instances during a production rehearsal,
when module routing or level changes need to be made t o solve a problem. When
you are rehearsing a sequence of cues, there may not be time to record the changes
in all of the cues that are affected. When you press t he ‘ISOLATE’ but ton, previously

3-26 7830 Dual input channel

J-Type Revision J2005-2

recorded switch and pot data will be ignored by the module, leaving the controls at
their new setting until you cancel the function.

61614: 'LUHFW#223#¶3UH·#(4

The default setting for the ch annel ‘direct output’ circuit is post-EQ and pre- fader.
When the ‘direct output’ is used to feed an external monitor mixer or recording
machine, it is possible that the EQ settings for the ‘front-of-house’ mix will clash will
the requirements for these purposes.

Press this button to derive the ‘direct output’ signal ‘pre’ the channel EQ.

61614; 'LUHFW#223#¶3RVW·#&KDQQHO#)DGHU

The default setting for the ch annel ‘direct output’ circuit is post-EQ and pre- fader.

Press this button when you need to control the ‘direct output’ level with the channel
fader.

61614< 6XE#*URXS#5RXWLQJ#6ZLWFKHV

Sixteen swit ches that allow you to route the channel signal to one or all of the Sub
Group routing bus’.

616153 #¶3DQ#3RW·#,QVHUW

Press t his button to insert the ‘pan pot’. The adjacent LED indicates function has
been selected.

3.3.19 Su b Gr ou p R ou tin g S w it ch es

3.3.21 Pan Pot Null LED

3.3.22 Pan Pot

3.3.20 Pan Pot Insert switch and LED

:;63#'XDO#,QSXW#&KDQQHO

7830 Dual input channel 3-27

Revision J2005-2 J-Type

616154 ¶3DQ#3RW·#1XOO#/('

The Null LED will be illuminated if the position of the ‘pan pot’ is different from the
programmed position. To recall the programmed position, rotate the potentiometer
until the LED goes ‘out’.

616155 ¶3DQ#3RW·

When the ‘Pan Pot’ Insert switch is selected, the input signal can be ‘panned’ between
odd and even Sub Groups. The position of the ‘pan’ potentiometer is recorded during
a SAVE command.

3-28 7830 Dual input channel

J-Type Revision J2005-2

616156 $X[#6HQG#¶3UH0)DGHU·

The default setting for the channel auxiliary send circuits is ‘o ff’ and post-fader.
Press the “PRE FD” button to derive the aux send signal pre-fader.

616157 $X[#6HQG#¶2Q22II·

The default setting for the channel auxiliary send circuits is ‘o ff’ and post-fader.
Press the “ON” button to switch the aux send section into circuit.

616158 $X[#6HQG#/HYHO

Level control for an auxiliary send section.
The position of the ‘le vel’ potentiome ter is recorded during a SAVE command.

3.3.25 Aux Send Level

3.3.26 Aux Send Pot Null LED

3.3.23 Aux Send “Pre-Fader

3.3.24 Aux Send O n/Off

3.3.29 Stereo Aux Send Level Pot Null LED

3.3.30 Stereo Aux Send Level and Pan

3.3.31 Stereo Aux Send “Pan Pot” Null LED

3.3.27 Stereo Aux Send “Pre-Fader”

3.3.28 Stereo Aux Send On/O ff

:;63#'XDO#,QSXW#&KDQQHO

7830 Dual input channel 3-29

Revision J2005-2 J-Type

616159 $X[#6HQG#3RW#1XOO#/('

The Null LED will be illuminated if the position of the ‘aux send pot’ is different from
the programmed position. To recall the programmed position, rotate the potentiome­ter until the LED goes ‘out’.

61615: 6WHUHR#$X[#6HQG#¶3UH0)DGHU·

The default setting for the channel auxiliary send circuits is ‘off’ and post-fader.

Press the “PRE FD” button to derive the stereo aux send signal pre-fader.

61615; 6WHUHR#$X[#6HQG#¶2Q22II·

The default setting for the channel auxiliary send circuits is ‘off’ and post-fader.

Press the “ON” button to switch the stereo aux send section into circuit.

61615< 6WHUHR#$X[#6HQG#/HYHO#3RW#1XOO#/('

The Null LED will be illuminated if the position of the ‘stereo aux send pot’ is different
from the programmed position. To recall the programmed position, rotate the potenti­ometer until the LED goes ‘out’.

616163 6WHUHR#$X[#6HQG#/HYHO#DQG#¶3DQ·

A dual-concentric potentiometer where the ‘inner’ knob is the level control f or the ste­reo auxiliary send section and t he ‘outer’ knob is the stereo aux ‘pan pot’. The posi­tions of the ‘level’ and ‘pan’ potentiometers are recorded during a SAVE command.

616164 6WHUHR#$X[#6HQG#¶3DQ#3RW·#1XOO#/('

The Null LED will be illuminated if the position of the ‘stereo aux pan pot’ is different
from the programmed position. To recall the programmed position, rotate the potenti­ometer until the LED goes ‘out’.

3-30 7830 Dual input channel

J-Type Revision J2005-2

616165 +)#(4#3RW#1XOO#/('V

Three N ull LEDs that illuminate if the position of the ‘Q’, ‘Boost/Cut’ or ‘Frequency’
potentiometers in the HF EQ section are in a posi tion different from that pro­grammed.

Upper LED “dB” Null LED for ‘Bo ost/Cut’ pot
Middle LED “Q” Null LED for ‘Q’ pot
Lower LED “Hz” Null LED for ‘Freque ncy’ pot

To recall the programmed position, rotate the appropriate potentiometer until the
LED goes ‘out’.

616166 +)#(4#¶4·#&RQWURO

The ‘Q’ control varies the bandwidth of the EQ section in the range Q=1 to Q=3. A
low value of Q gives a wide bandwidth. This means that a relatively large range of
frequencies (either side of the centre frequency selected b y the ‘Fr equency’ control)
have boost/cut applied.

As the value of Q is increased, the bandwidth is reduced, so that a very much
smaller range of frequencies have boost/cut applied. The position of the ‘Q’ potenti­ometer is recorded during a SAVE command.

3.3.34 HF EQ Boost/Cut and Frequency
Control

3.3.37 H M F EQ Boost/Cut and F requency
Control

3.3.40 LMF EQ Boost/Cut and Frequency
Control

3.3.43 LF EQ Boost/Cut and Frequency C on­trol

3.3.48 LPF Frequency

3.3.49 LPF Frequency Pot Null LED

3.3.50 HPF Frequency

3.3.51 HPF Frequency Pot Null LED

3.3.54 Main PFL

3.3.56 Channel Mute

3.3.57 R ecall Null Direction LEDs

3.3.32 HF EQ Pot Null LEDs

3.3.33 HF EQ “Q” Control

3.3.35 HMF EQ Pot Null LEDs

3.3.36 MF2 EQ “Q” Control

3.3.38 LMF EQ Pot Null LEDs

3.3.39 MF1 EQ “Q” Control

3.3.41 LF EQ Pot Null LEDs

3.3.42 LF EQ “Q” Control

3.3.44 EQ In/Out

3.3.45 LP Filter In/Out

3.3.46 HP Filter In/Out

3.3.47 EQ and Filte rs Pre and Post Insert

3.3.52 Insert in/Out

3.3.53 All Module Isolate

3.3.55 Potentiometer “Reset” Warning

:;63#'X DO#,QSXW#&KDQQHO

7830 Dual input channel 3-31

Revision J2005-2 J-Type

616167 +)#(4#%RRVW2&XW#DQG#)UHTXHQF\#&RQWURO

A dual-concentric potentiometer wher e the ‘inner’ knob is the ‘Boost /C ut’ control for
the EQ s ection and the ‘outer’ knob is the ‘Frequency’ potentiometer .

Boost/C u t ±18 dB
Frequency Variable from 1.5kHz to 15kHz

The positions of the ‘boost/cut’ and ‘freq’ potentiometers are recorded during a SAVE
comman d.

616168 +0)5#(4#3RW#1XOO#/('V

Three N ull LEDs that illuminate if the positi on of the ‘Q’ , ‘Boost/Cut’ or ‘Frequency’
potentiometers in the MF2 EQ section are in a position different from that pro­grammed.

Upper LED “dB” Null LED for ‘Boost/Cut’ pot
Middle LED “Q” Null LED for ‘Q’ po t
Lower LED “Hz” Null LED for ‘Frequency’ pot

To recall the programmed position, rotate the appropriate potentiometer until the
LED goes ‘out’.

616169 +0)#(4#¶4·#&RQWURO

The ‘Q’ control varies the bandwidth of the EQ section in the range Q=1 to Q=3. A
low value of Q gives a wide bandwidth. This means that a relatively large range of
frequencies (either side of the centr e frequency selected by the ‘Frequency’ cont rol)
have boost/cut applied. As t he value of Q is incr eased, the bandwidth is reduced, so
that a very much smaller range of frequencies have boost/cut applied. The position
of the ‘Q’ potentiometer is recorded during a SAVE command.

61616: +0)#(4#%RRVW2&XW#DQG#)UHTXHQF\#&RQWURO

A dual-concentric potentiometer wher e the ‘inner’ knob is the ‘Boost /C ut’ control for
the EQ s ection and the ‘outer’ knob is the ‘Frequency’ potentiometer .

Boost/Cut ±18 dB
Frequency Variable from 400Hz to 4kHz

The positions of the ‘boost/cut’ and ‘freq’ potentiometers are recorded during a SAVE
comman d.

61616; /0)#(4#3RW#1XOO#/('V

Three N ull LEDs that illuminate if the positi on of the ‘Q’ , ‘Boost/Cut’ or ‘Frequency’
potentiometers in the MF1 EQ section are in a position different from that pro­grammed.

Upper LED “dB” Null LED for ‘Boost/Cut’ pot
Middle LED “Q” Null LED for ‘Q’ po t
Lower LED “Hz” Null LED for ‘Frequency’ pot

To recall the programmed position, rotate the appropriate potentiometer until the
LED goes ‘out’.

3-32 7830 Dual input channel

J-Type Revision J2005-2

61616< /0)#(4#¶4·#&RQWURO

The ‘Q’ control varies the bandwidth of the EQ section in the range Q=1 to Q=3. A
low value of Q gives a wide bandwidth. This means that a relatively large range of
frequencies (either side of the centre frequency selected b y the ‘Fr equency’ control)
have boost/cut applied. As the va lue of Q is increase d, the bandwidth is reduced, so
that a very much smaller range of frequencies have boost/cut applied. The position
of the ‘Q’ potentiometer is recorded during a SAVE command.

616173 /0)#%RRVW2&XW#DQG#)UHTXHQF\#&RQWURO

A dual-concentr ic potentiometer where the ‘inn er’ knob is the ‘Boost/Cut’ cont rol for
the EQ s ection an d the ‘outer’ knob is the ‘Frequency’ potentiometer.

Boost/Cut ±18 dB
Frequency Variable from 60Hz to 600Hz

The positions of the ‘boost/cut’ and ‘freq’ potentiometers are recorded during a SAVE
command.

616174 /)#(4#3RW#1XOO#/('V

Three N ull LEDs that illuminate if the position of the ‘Q’, ‘Boost/Cut’ or ‘Frequency’
potentiometers in the LF EQ section are in a position different fro m that programmed.

Upper LED “dB” Null LED for ‘Boost/Cut’ pot
Middle LED “Q” Null LED f or ‘Q’ pot
Lower LED “Hz” Null LED for ‘Frequency’ pot

To recall the programmed position, rotate the appropriate potentiometer until the
LED goes ‘out’.

616175 /)#(4#¶4·#&RQWURO

The ‘Q’ control varies the bandwidth of the EQ section in the range Q=1 to Q=3. A
low value of Q gives a wide bandwidth. This means that a relatively large range of
frequencies (either side of the centre frequency selected b y the ‘Fr equency’ control)
have boost/cut applied. As the va lue of Q is increase d, the bandwidth is reduced, so
that a very much smaller range of frequencies have boost/cut applied. The position
of the ‘Q’ potentiometer is recorded during a SAVE command.

616176 /)#%RRVW2&XW#DQG#)UHTXHQF\#&RQWURO

A dual-concentr ic potentiometer where the ‘inn er’ knob is the ‘Boost/Cut’ cont rol for
the EQ s ection an d the ‘outer’ knob is the ‘Frequency’ potentiometer.

Boost/C u t ±18 dB
Frequency Variable from 20Hz to 200Hz

The positions of the ‘boost/cut’ and ‘freq’ potentiometers are recorded during a SAVE
command.

616177 (4#¶,Q22XW·

Press the “EQ IN” button to put the equalizer in the channel signal chain.

7830 Dual input channel 3-33

Revision J2005-2 J-Type

616178 /3#)LOWHU#¶,Q22XW·

Press the “LP IN” button to put the Low Pass Filter into the channel signal chain.

616179 +3#)LOWHU#¶,Q22XW·

Press the “HP IN” button to put the High Pass Filter into the channel signal chain.

61617: (4#DQG#)LOWHUV#¶3UH·#RU#¶3RVW·#,QVHUW

The default routing for the EQ and Filter sections is ‘post’ the insert point.

Press the “PRE INS” button to re-route the EQ and Filter sections ‘pre’ the insert
point.

61617; /3)#)UHTXHQF\

Variable frequency control for the Low Pass Filter. The ‘knee’ frequency can be var­ied from 1.2kHz to 20kHz. The position of the ‘LP Freq’ potentiometer is recorded
during a SAVE command.

61617< /3)#)UHTXHQF\#3RW#1XOO#/('

The Null LED will be illuminated if the position of the Low Pass Filter pot is different
from the programmed position. To recall the programmed position, rotate the potenti­ometer until the LED goes ‘out’.

616183 +3)#)UHTXHQF\#

Variable frequency control for the Hi gh Pass Filter. The ‘knee’ frequency can be var­ied from 14Hz to 400Hz. The position of the ‘HP Freq’ potentiometer is recorded dur­ing a SAVE command.

616184 +3)#)UHTXHQF\#3RW#1XOO#/('

The Null LED will be illuminated if the position of the High Pass Filter pot is different
from the programmed position. To recall the programmed position, rotate the potenti­ometer un til the LED goes ‘ou t ’.I ns ert ‘In /O ut ’

616185 ,QV HU W#,Q22XW

All input channels have a “SEND” and “RETURN”

break-jack

fa cility. This is to allow
the channel signal to be sent out to, and returned from an external audio-pro cessing
unit. T he cha nn el sign al is a lw ays prese nt at th e “ SE ND ” jac k , b ut w he n ‘i ns ert’ is no t
selected, the channel signal will by-pass the “RETURN” jack.

Press the “INS” button to ‘open’ the “RETURN” jack and receive the modified signal
from the external audio-processing unit.

616186 $OO#0RGXOH#,VRODWH

This function ‘isolates’ the module switch and potentiometer recall data from the
computer. There are many instances during a production rehearsal, when module
routi ng or le v e l cha ng es ne ed to be made to sol v e a pr ob le m. W he n y ou are re hea rs-

3-34 7830 Dual input channel

J-Type Revision J2005-2

ing a sequence of cues, there may not be time to record the changes in all of the
cues that are affected. When you press the ‘ISOLATE’ button, prev iously re corded
switch and pot data will be ignored by the mo dule, leaving the controls at their new
setting until you cancel the function.

616187 0DLQ#3)/

Press this button to ‘listen’ to the channel signal pre-fader.

616188 3RWHQWLRPHWHU#¶5HFDOO·#:DU QLQJ

This L ED will ‘flash’ when any potentiomet er on the module is at a different position
to that recorded in the current cue.

616189 &KDQQHO#0XWH

Press this button to mute the channel manually.

The MUT E switch also has a sec ondary function when use d in conjunction with the
CHECK switch, (located on the OSC Module). If a channel is muted (MUTE switch
‘On’) and the CHECK swi tch is pressed, the muted chann el is unmu ted, but all other
channels are forced into MUTE. This allows the originally muted channel(s) to have a
‘SOLO’ function.

61618: ¶5HFDOO·#1XOO#'LUHFWLRQ#/('V

A pair of LEDs that indicate the direction you need to turn the current potenti ometer
to achieve the ‘null’ position. When the ‘null’ point is reached, both LEDs will turn
‘off’. Tu rning any pot will make it the current pot.

7830 Dual input channel 3-35

Revision J2005-2 J-Type

61618; 0RGXOH#5HDU#3DQHO#&RQQHFWRUV#:;63

Inputs 1 and 2

Electronically balance d inputs on XLR 3-31 connectors for micro-

phone or lin e leve l sou rc es.

Insert Send

Standard 0.25” (6.35 mm) TRS jack sockets, providing contin uous elec-

tronically balanced outputs.

Insert Return

Electronically balanced inputs on standard 0.25” (6.35 mm) TRS jack

sockets that are switched in to use when the “INS” switch is selected.

Direct Output

Balanced output from the module, delivered to an XLR 3-32 connec-

tor.

Important note:

Pin 1 on the XLR connectors and the ‘sleeve’ connections on the
jack soc k et s a re co nn ecte d t o FR AME. Thi s i s to ensu re that t he con so le can compl y
with the Electro Magnetic Compatibility (EMC) directive.

INPUT 1

INPUT 2

INSERT RETURN

DIRECT OUTPUT

INSERT SEND

3-36 7830 Dual input channel

J-Type Revision J2005-2

7925 Programmable Group Module 4-1

Revision J2005-2 J-Type

7 3URJUDPPDEOH#0RGXOHV#0#6XE/#

0DWUL[/#350#)#$X[

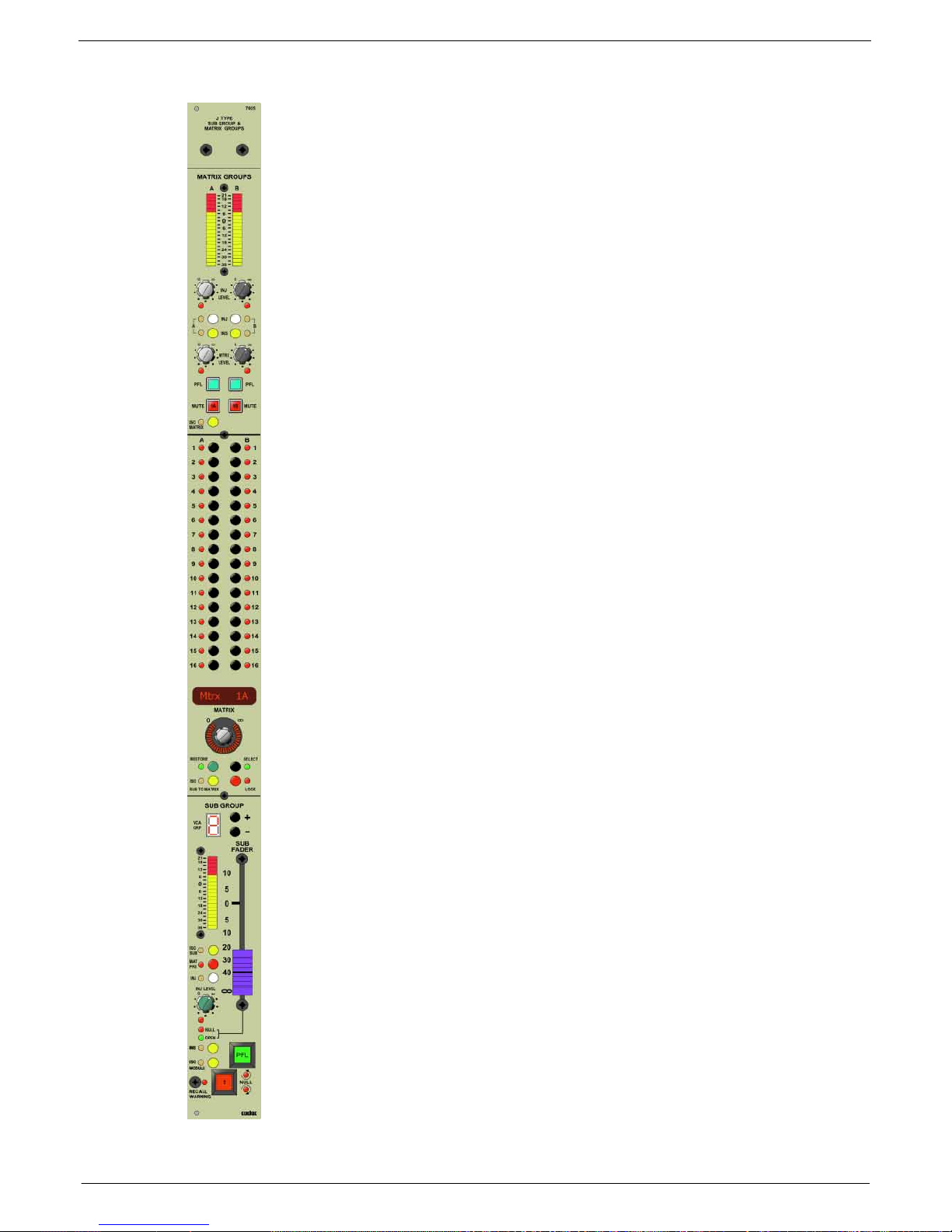

714 :<58#3URJUDPPDE OH#*URXS#0RGXOH

The 7925 Group Module is fully programmable. All switch data, potentiometer posi­tion recall data and Sub-to-Matrix Level data can be saved to and recalled from a
cue, using the CADAC

Sound Automation Manager

software.

The Sub Group has a VCA fader that can be controlled from any DC Master fader
insta lled in th e console, and the fader position can be saved to a cue. The ‘Inject’
input has an On/Off switch and Le vel potentiometer. An ‘Insert’ facility is provided
and the Sub Group can be routed to the Sub-to-Matrix section ‘pre/post-fader’.

The Sub-to-Matrix section has a routing switch for each mat rix bus, plus a VCA to
control the audio lev el. The VCA level is set using an assignable controller.

The module contains two Matrix Groups , labelled ‘A’ and ‘B’. E ach Matrix Group has
‘Inject’ on/off and level pot, an ‘Insert’ facility and output level pot.

4-2 7925 Programmable Group Module

J-Type Revision J2005-2

71414 0DWUL[#$#22S#/HYHO#0HWHU

A 20 segment LED meter that measures the Matrix output level ‘post’ the Matrix
Le vel potentiomet er.

71415 0DWUL[#$#,QMHFW#/HYHO

Level control for the ‘Inject-to-Matrix-Bus’ input.

71416 0DWUL[#$#,QMHFW#/HYHO#1XOO#/('

The Null LED will be illuminated if the positi on of the Matrix A Inject pot is dif ferent
from the programmed position. To recall the progra mmed position, rota te the potenti­ometer until the LED goes ‘out’.

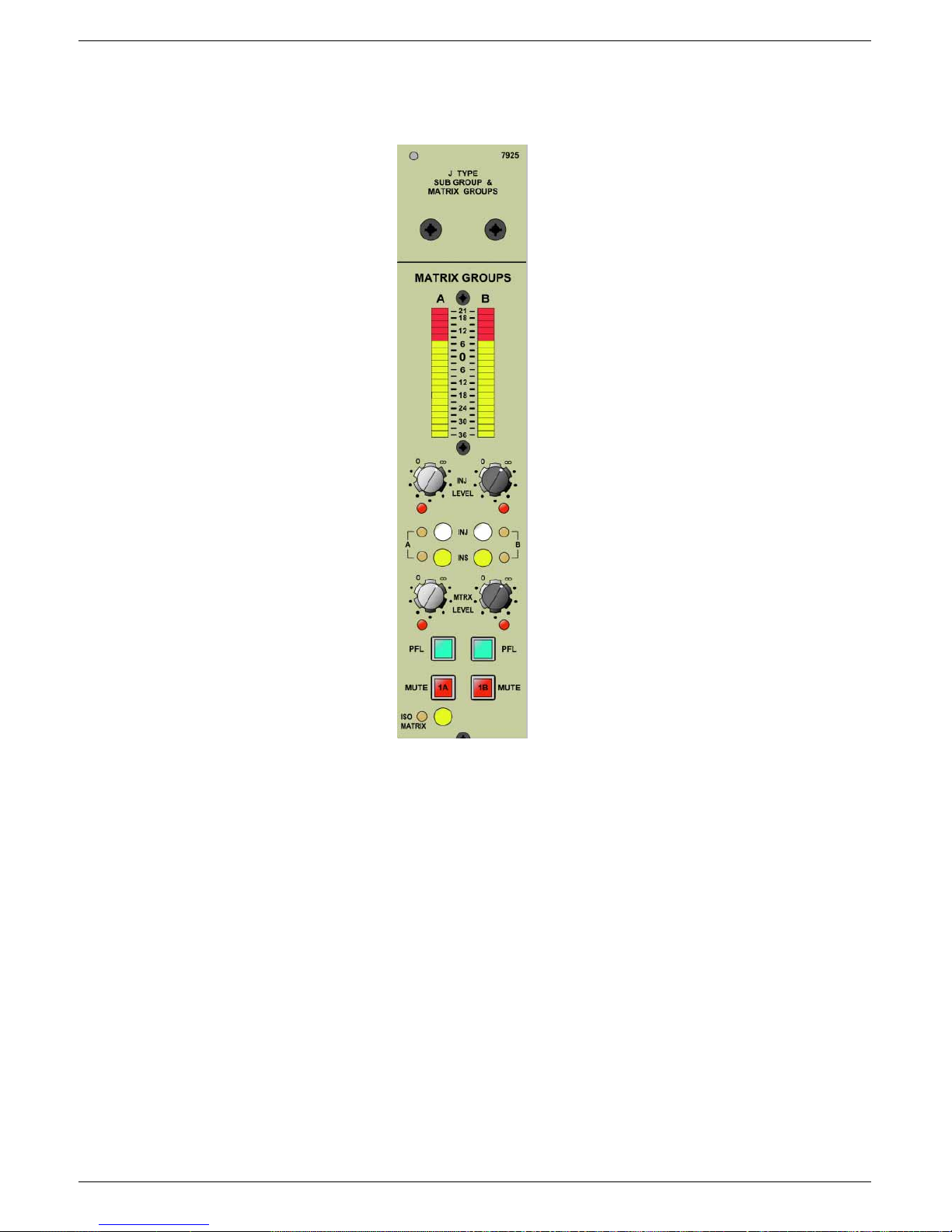

4.1.11 Matrix B O/P Level meter

4.1.12 Matrix B Inject Level

4.1.13 Matrix B Inject Level Null LED

4.1.14 Matrix B Inject On/Off

4.1.15 Matrix B Insert In/Out

4.1.16 Matrix B Output Level

4.1.17 Matrix B Output Level Null LED

4.1.18 Matrix B PFL

4.1.19 Matrix B Mute

4.1.1 Matrix A O/P Level Meter

4.1.2 Matrix A Inject Level

4.1.3 Matrix A Inj ect Level Null LED

4.1.4 Matrix A Inject On/Off

4.1.5 Matrix A Insert In/Out

4.1.6 Matrix A Output Level

4.1.7 Matrix A Output Level Null LED

4.1.8 Matrix A PFL

4.1.9 Matrix A Mute

4.1.10 Matrix Section Isolate

:<58#3URJUDPPDEOH#*URXS#0RGXOH

7925 Programmable Group Module 4-3

Revision J2005-2 J-Type

71417 0DWUL[#,QMHFW#2Q22II

On/Off switch for the Inject circuit.

71418 0DWUL[#$#,QVHUW#,Q22XW

All Matrix Groups have a “SEND” and “RETURN”

break-jack

facility. This is to allow
the group signal to be sent out to, and returned from an external audio-processing
unit. The group signal is always present at the “SEND” jack, but when ‘insert’ is not
selected, the group signal will by-pass the “RETURN” jack.

Press the “INS” button to ‘open’ the “RETURN” jack and receive the modified signal
from the external audio-processing unit.

71419 0DWUL[#$#223#/HYHO

Potentiometer for controlling the Matrix output level.

7141: 0DWUL[#$#223#/HYHO#1XOO#/('

The Null LED will be illuminated if the position of the Matrix A O/P Level pot is differ­ent from the programmed position. To recall the programmed position, rotate the
potentiometer until the LED goes ‘out’.

7141; 0DWUL[#$#3)/

Press this button to ‘listen’ to the signal on Matrix A only, (pre O/P Level pot).

7141< 0DWUL[#$#0XWH

Manual, and programmable mute for Matrix A.

714143 0DWUL[#6HFWLRQ#,VRODWH

This function ‘isolates’ the switch and potentiometer recall data (for Matrix A and B)
from the computer. There are many instances during a production rehearsal, when
modul e routing or lev el change s need to be made to solve a problem. When you ar e
rehearsing a sequence of cues, there may not be time to record the changes in all of
the cues that are affected. When you press t he ‘ISOLATE’ button, previousl y
recorded switch and pot data will be ignored by the module, leaving t he controls at
their new setting until you cancel the function.

714144 0DWUL[#%#223#/HYHO#0HWHU

As 4.1.1, but for Matrix B.

714145

714145714145

714145 0DWUL[#%#,QMHFW#/HYHO

As 4.1.2, but for Matrix B.

714146 0DWUL[#%#,QMHFW#/HYHO#1XOO#/('

As 4.1.3, but for Matrix B.

4-4 7925 Programmable Group Module

J-Type Revision J2005-2

714147 0DWUL[#%#,QMHFW#2Q 22II

As 4.1.4, but for Matr ix B.

714148 0DWUL[#%#,QVHUW#,Q22XW

As 4.1.5, but for Matr ix B.

714149 0DWUL[#%#/HYHO

As 4.1.6, but for Matr ix B.

71414: 0DWUL[#%#/HYHO#1XOO#/('

As 4.1.7, but for Matr ix B.

71414; 0DWUL[#%#3)/

As 4.1.8, but for Matr ix B.

71414< 0DWUL[#%#0XWH

As 4.1.9, but for Matr ix B.

7925 Programmable Group Module 4-5

Revision J2005-2 J-Type

714153 6XE#WR#0DWUL[#5RXWLQJ

These buttons may be controlled by the Cue Automation.The associated LED indi­cates O n/Off for each Sub to Matrix cross point. T hey are also used in conjunction
with SELECT, LOCK and RESTORE to select/control audio level at each cross point.

714154 6XE#WR#0DWUL[#'LVSOD\

The display indicates which Sub to Matrix cross point that is being adjust ed.

714155 6XE#WR#0DWUL[#/HYHO#&RQWUROOHU

This rotary control is used to adjust the Sub to Matrix Lev el, indicated by a ring of

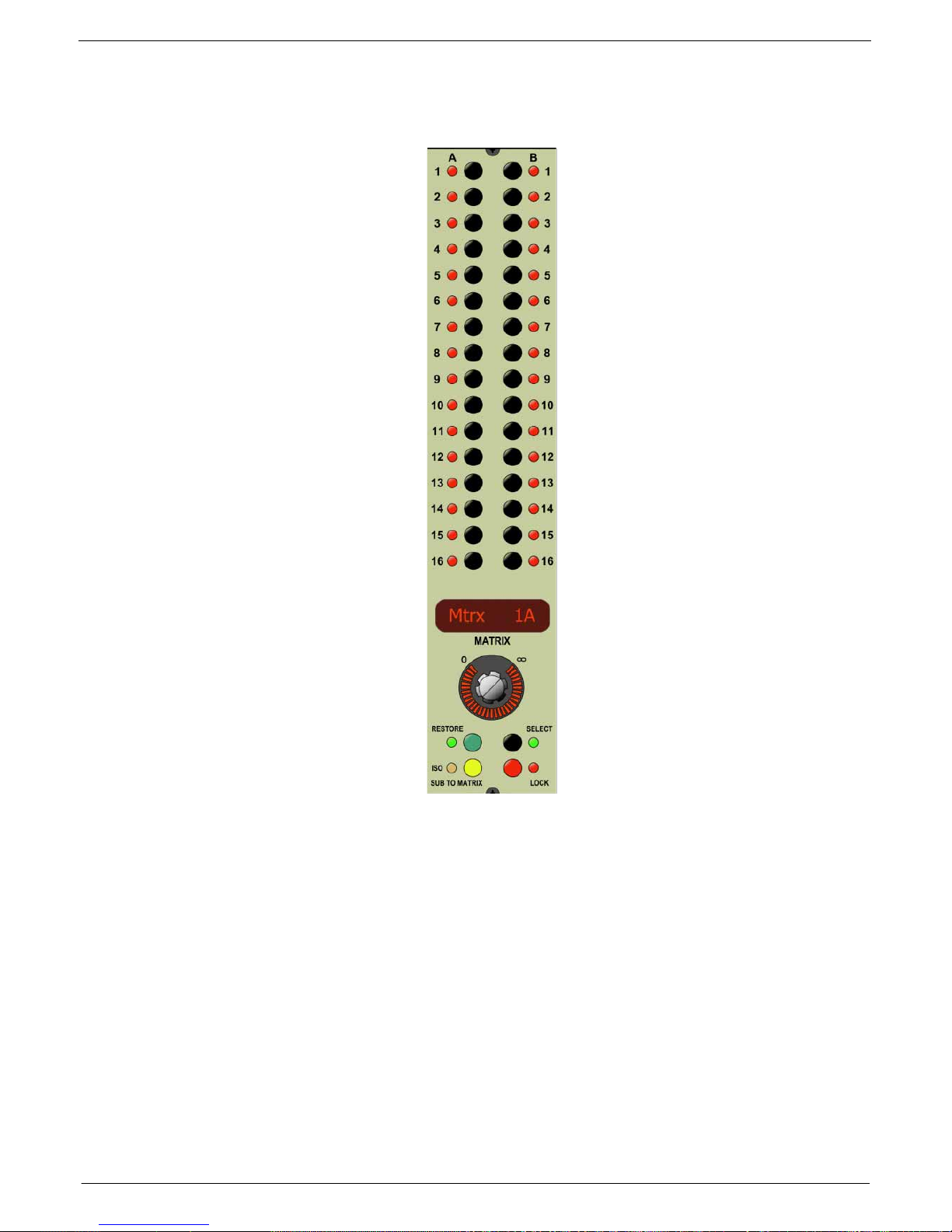

4.1.20 Sub to Matrix R outing

4.1.21 Sub to Matrix display

4.1.22 Sub to Matrix Level Controller

4.1.24 S ub to Matrix Select

4.1.26 S ub to Matrix Selection Loc k

4.1.23 Sub to Matrix Restore

4.1.25 Sub to Matrix Isolate

:<58#3URJUDPPDEOH#*URXS#0RGXOH

4-6 7925 Programmable Group Module

J-Type Revision J2005-2

LEDs surrounding the control. Each LED indicates approximately a 2dB change. The
rate of change is ‘speed’ dependent. At the slowest ’speed’ ea ch increment is
approximately 1/4 dB. Max attenuation is >60dB. Pressing the knob will increment
the selection to the next c ross-point.

714156 6XE#WR#0DWUL[#5HVWRUH

Resets the selected cross-point to its previously stored lev el.

714157 6XE#WR#0DWUL[#6HOHFW

Used in con ju nc t ion w i th th e R o utin g switch es to sele ct whi ch cr os s-po in t is avail ab l e
on the rotary level set control. Resets after the cross-point is selected to the rotary
control.

714158 6XE#WR#0DWUL[#,VRODWH

Isolates the Sub to Matrix routing buttons from the Cue Automation. It also inhibits
the recall of the stored Su b to Matrix VCA levels.

714159 6XE#WR#0DWUL[#6HOHFWLRQ#/RFN

Used to lock the SELECT mode ON.

7925 Programmable Group Module 4-7

Revision J2005-2 J-Type

71415: 6XE#*URXS#'&#0DVWHU#'LVSOD\

Indicates which DC Master controls the Sub Group.

71415; 6XE#*URXS#'&#0DVWHU#6HOHFW

Assigns the Sub Group level control to a DC Master.

71415< 6XE#*URXS#223#/HYHO#0HWHU

20-segment LED meters indicate the output level of the Sub Group.

714163 6XE#*URXS#223#/HYHO#)DGHU

Contr ols the Sub G roup output level.

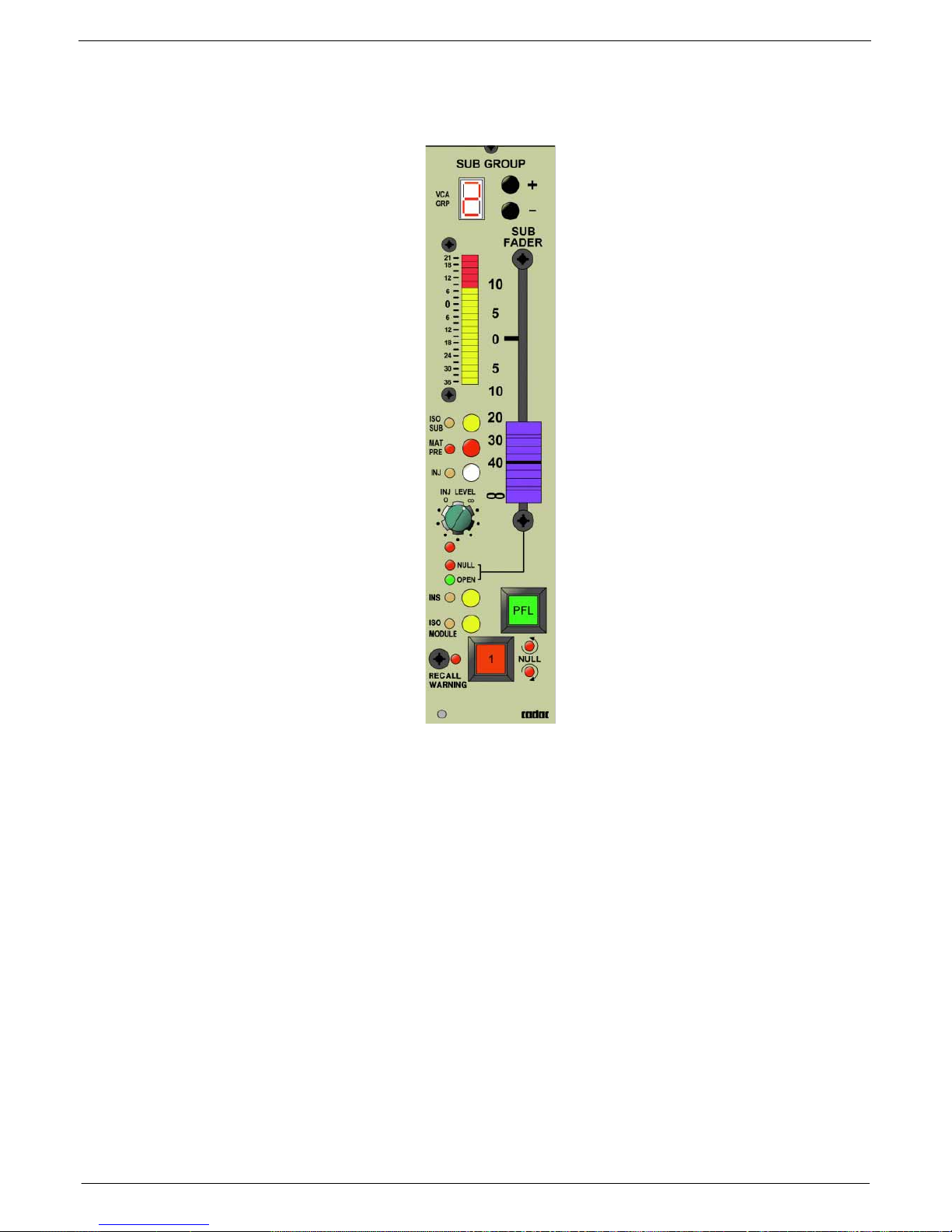

4.1.28 Sub Group DC Master Select

4.1.30 Sub Group O/P Level Fader

4.1.40 Sub Group PFL

4.1.42 Null Direction LED

4.1.27 Sub Group DC Master Display

4.1.29 Sub Group O/P Level Meter

4.1.31 Su b Gr ou p Iso late

4.1.32 Sub to Matr ix Pre-Fader

4.1.33 Sub Group Inject On/Off

4.1.34 Sub Group Inject Level

4.1.35 Sub Group Inject Level Null LED

4.1.36 Sub Group Fader Null LED

4.1.37 Sub Group Fader ‘Open’ LE D

4.1.38 Sub Group Insert In/Out

4.1.39 G roup Module Isolate

4.1.41 Potentiometer Recall Warning

:<58#3URJUDPPDEOH#*URXS#0RGXOH

4-8 7925 Programmable Group Module

J-Type Revision J2005-2

714164 6XE#*URXS#,VRODWH

Isolates the Sub Group functions from the Cue Automation.

714165 6XE#WR#0DWUL[#3UH0)DGHU

Switches the Sub to Matrix send to be Pre-Fader.

714166 6XE#*URXS#,QMHFW#2Q 22II

Switches Sub Group Inject On/Off.

714167 6XE#*URXS#,QMHFW#/HY HO

Sets the input level of the inject input.

714168 6XE#*URXS#,QMHFW#/HY HO#1XOO#/('

Indicates Sub Group Inject Level Null. The Null LED will be illuminated if the position
of the inject pot is dif ferent from th e programmed position. To recall the programmed
position, rot ate the pot until th e LED extinguishes.

714169 6XE#*URXS#)DGHU#1XOO#/('

Indica te s S ub Grou p Fader Null. The Nul l L ED wi ll be il l umi nat ed if the p os it i on of th e
inje ct pot is different from the programmed position. To recall the programmed posi­tion, slide the fader until the LED extinguishes.

71416: 6XE#*URXS#)DGHU#¶2SHQ·#1XOO#/('

Indicates Sub Group Fader open. The LED will extinguish if the fader is at the bottom
or if a DC Master shuts it down.

71416; 6XE#*URXS#,QVHUW#,Q22XW

Swit ches sub group INSER T in/out.

71416< *URXS#0RGXOH#,VRODWH

Switches the complete module in or out of the Cue Automation.

714173 6XE#*URXS#3)/

Illuminated sub group PFL switch.

714174 3RWHQWLRPHWHU#5HFDOO#:DUQLQJ

When flashing indicates that one or more control is not at its preset position.

7925 Programmable Group Module 4-9

Revision J2005-2 J-Type

714175 1XOO#/('V

Indicates in which direction to rotate the current pot to reach the N ull poin t. When
any pot/fader is moved it becomes the current one.

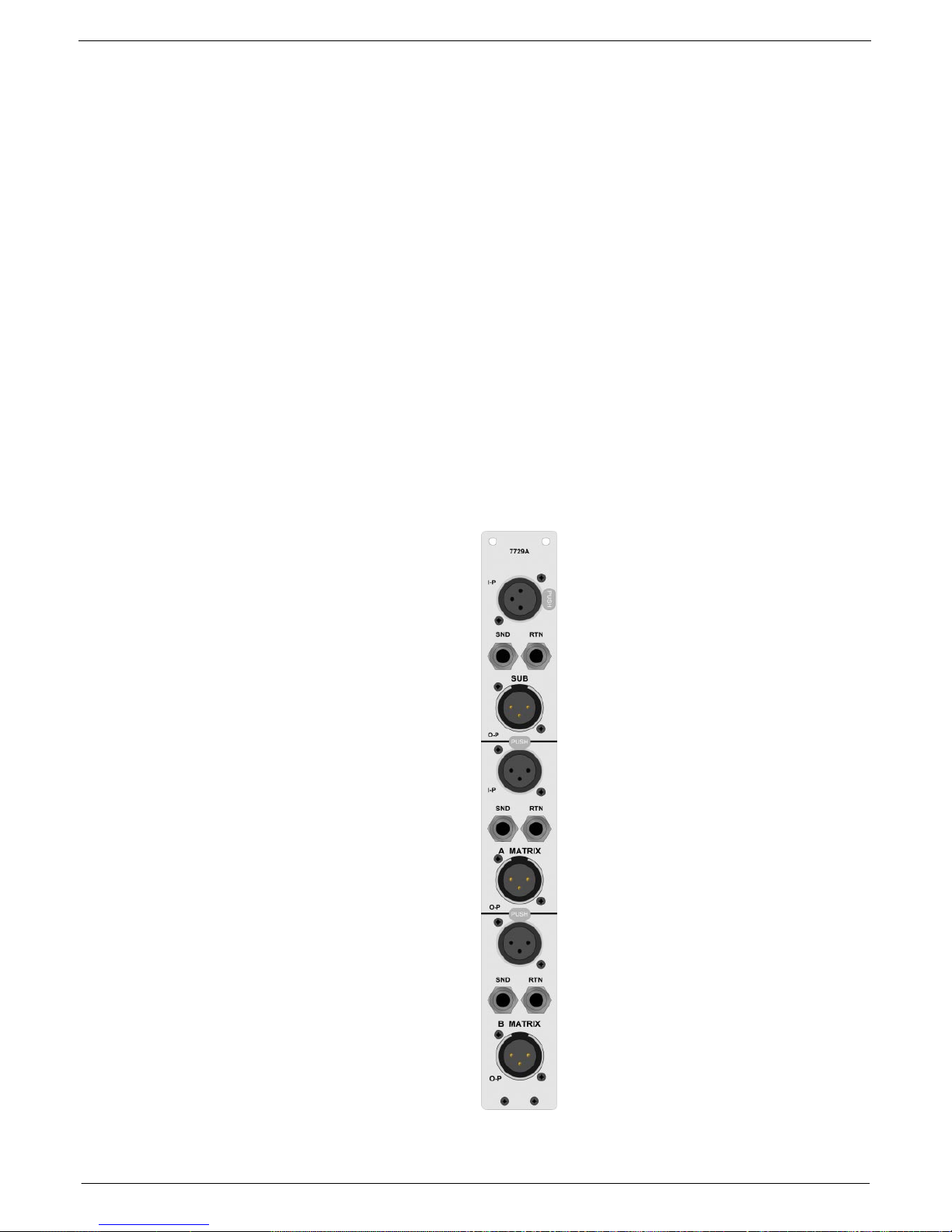

714176 0RGXOH#5HDU#3DQHO#&RQQHFWRUV#:<58

Input Sub

Electronically balanced inject input on XLR 3-31 connectors for line level

sources.

Input Matrix A and B Electronically balanced in ject inpu ts on XLR 3-31 connectors
for line level sources.

Insert Send

Standard 0.25” (6.35 mm) TRS jack sockets, providing contin uous elec-

tronically balanced outputs.

Insert Return

Electronically balanced inputs on standard 0.25” (6.35 mm) TRS jack

sockets that are switched in to use when the “INS” switch is selected.

Matrix Outputs A and B

Balanced outputs from the module, delivered to an XLR 3-

32 conn ector.

Sub Output Balanced output from the module, delivered to an XLR 3-32 connector

Important note:

Pin 1 on the XLR connectors and the ‘sleeve’ connections on the
jack soc k et s a re co nn ecte d t o FR AME. Thi s i s to ensu re that t he con so le can compl y
with the Electro Magnetic Compatibility (EMC) directive.

INPUT SUB GROUP

INSERT RETURN

SUB GROUP OUTPUT

INPUT MATRIX A

INSERT RETURN

MATRIX A OUTPUT

INPUT MATRIX B

INSERT RETURN

MATRIX B OUTPUT

INSERT SEND

INSERT SEND

INSERT SEND

4-10 7925 Programmable Group Module

J-Type Revision J2005-2

7972 Programmable Aux Groups Module 4-11

Revision J2005-2 J-Type

715## :<:5#3URJUDPPDEOH#$X[#*URXSV#0RGXOH

The 7972 Aux group Module is fully programmable. All switch data and potentiometer
posit ion recall data can be saved to and re called from a cue with the Soun d Automa­tion Manager software.

The module contains four Aux groups labelled 1-4 or 5-8 or 9-12. Each Group has an
Output level fader that can be controlled from a DC Master Fader by pressing the
VCA s witch on the module and the fader position can be saved to a cue. The Inject
Input has an On/Off switch , an associated LED and a Level potentiometer . The
INSE RT facility enables selection of the INSERT to th e Aux Input. They also have
MUTE, PFL and ISO.

4-12 7972 Pr ogrammable A ux Groups Module

J-Type Revision J2005-2

71514 2XWSXW#OHYHO#/('#PHWHUV

Indicate the ou tput level of the two Aux Sends.

71515 ,QMHFW#/HYHO

Potentiometers for adjusting the inject level into the Aux Sends.

71516 ,QMHFW#OHYHO#18//#/('

This LED illuminates if the setting of the potentiometer deviates from t he previously
programmed position. Rotate pot until LED extinguishes.

71517 ,QMHFW#VZLWFKHV

Mixes the signal on the Inject Input into th e Aux Mix.

4.2.1 Output level LED meters

4.2.2 Inject Level

4.2.3 Inject Level Null LED

4.2.4 Inject switches

4.2.5 VCA switches

4.2.6 Insert switches

4.2.7 Iso la t e switc hes

4.2.8 PFL switches

4.2.9 Mute switches

:<:5#3URJUDPPDEOH#$X[#*URXSV#0RGXOH

7972 Programmable Aux Groups Module 4-13

Revision J2005-2 J-Type

71518 9&$#VZLWFKHV

Enables VCA control of each Aux from the associated channel fader.

71519 ,QVHUW#VZLWFKHV

Selects INSERT to the Aux Input.

7151: ,VRODWH#VZLWFKHV

Isolates the Aux Send from the Cue Automation.

7151; 3)/#VZLWFKHV

Illuminated PFL switch. PFLs can be interlocked from the 7974 Comms modu le.

7151< 0XWH#VZLWFKHV

Mute for each Aux output.

4-14 7972 Pr ogrammable A ux Groups Module

J-Type Revision J2005-2

715143 2XWSXW#OHYHO#IDGHUV

Control the output level for Aux Groups.

715144 $X[#*URXS#RSHQ#/('

When the Aux channel is under VCA control, this LED indicates that the Aux Group
is open.

715145 )DGHU#1XOO#/('

This LED indicates that the fader is not at its recorded position. slide fader until LED
extinguishes.

715146 1XOO#/('V

Indicate in which direction to rotate the pot or slide the fader to reach the Null point.

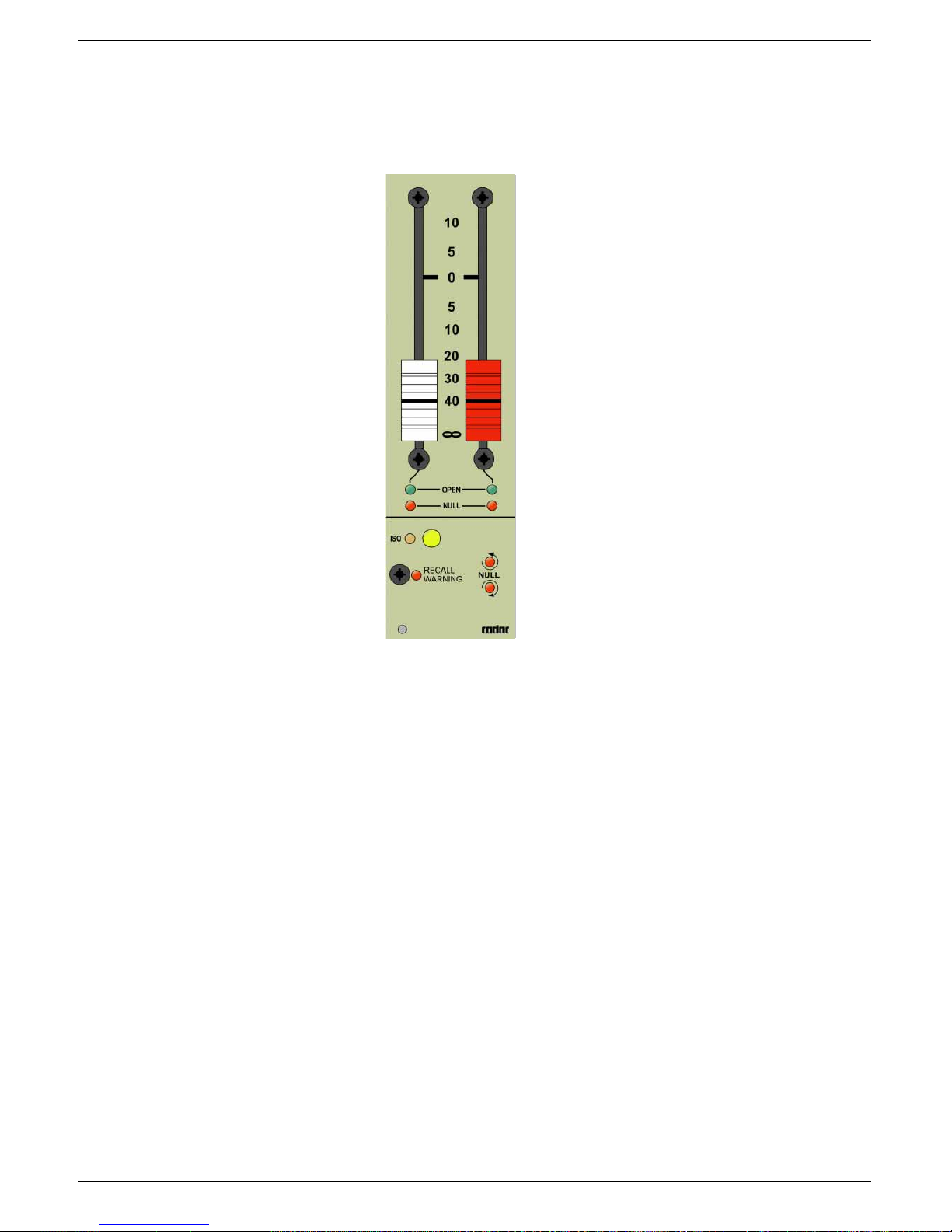

4.2.10 Output level faders

4.2.11 Aux channel open LE D

4.2.12 Fader Null LE D

4.2.13 Null LEDs

4.2.14 Isolate switch/LED

4.2.15 Recall warning

:<:5#3URJUDPPDEOH#$X[#*URXSV#0RGXOH
