SWITCHBLADE 2
DO NOT USE THIS PRODUCT UNLESS YOU HAVE READ AND UNDERSTAND THESE WARNINGS, CAUTIONS, AND INSTRUCTIONS WHICH ARE FOR YOUR SECURITY AND PROTECTION. THIS INFORMATION MAY BE SUBJECT TO CHANGE AT ANY TIME. FOR CURRENT UPDATES, PLEASE VISIT OUR WEBSITE AT: WWW.CABRINHAKITES.COM
IF YOU ARE BELOW THE AGE OF 18, YOU SHOULD HAVE YOUR PARENT OR GUARDIAN READ THESE WARNINGS, CAUTIONS AND INSTRUCTIONS AND SHOULD NOT USE THIS PRODUCT UNLESS YOU ARE UNDER THE PROPER GUIDANCE AND SUPERVISION OF SUCH A PERSON.
The use of this product exposes the user to many unavoidable and unexpected risks, dangers and hazards. The suppliers of this product are not responsible for any damage to property or any personal injury caused by any active negligence of the suppliers or by any use, misuse, abuse or irresponsible use of this product by the user.
Kitesurfing is an extreme sport. Power kites and their lines and control equipment can be danger­ous to flyers and to anyone in the vicinity of their use. Kitesurfing must be taken seriously and we recommend that, at least in the early stages of your use, you seek the guidance of professional instructors and experienced kiteboarders. Improper and/or unreasonable use of this kite may result in death or serious injury to any part of your body and to others. Do not use your kite near power lines, airports or streets, and keep your kite fly lines away from people and obstacles. Al­ways fly in an open area and observe wind and weather conditions, particularly in circumstances where you may encounter offshore, onshore winds or strong winds. Do not attempt to use your kite on water until you are confident and comfortable with the use of a trainer kite on land. Spend time to become familiar with the operation of your kite and remember that you are responsible for its operation and for the security of those around you. As you learn the sport, work within your own limitations and do not exceed them. If you intend to use the kite on water, always use appropriate protective gears and flotation devices and do not attach yourself or tie yourself permanently to the kite lines. The kite is not intended for use as a flying device nor indeed is it intended as a means of flotation.
...continues to next page
continued from previous page...
KITESURFING is an extremely diverse sport, with many disciplines and ability levels. As with all sports, there can be certain inherent risks. The fol­lowing contains key security points to remember when operating your Cabrinha kite.
• Kitesurfing is a HAZARDOUS activity and the use of Kitesurf­ing equipment involves the risk of serious personal injury to any part of the user’s body or death.
• Injuries are an INHERENT RISK of kitesurfing and the par­ticipation in kitesurfing implies the user’s acceptance and express assumption of those risks.
• Children should always be under adult supervision.
• It is strongly recommended that beginners take lessons.
• ALWAYS inspect your equipment for signs of wear and tear each time before use, particularly all lines, canopy, bladders, screws and fittings.
• IF any products are found to show signs of wear & tear these should be repaired or replaced immediately and before further use. If in doubt about any signs of wear & tear, please contact your local vendor. Contact details are available from www. cabrinhakites.com
• NEVER place yourself in a situation where breakage of any one of the various kitesurfing components would pose a risk to yourself or others, or make it impossible to return to the shore securely & unassisted.
• Make sure you use properly designed and manufactured parts from reputable suppliers.
• Take time to study the conditions including sea state, tides, currents, weather conditions and forecasts before you decide to go sailing. Beware of sailing in offshore or onshore winds.
• Familiarize yourself with any new location before venturing onto the water. Ask the locals to tell you about any hazards.
• Watch out for other beach users, especially swimmers and small children. Make sure you keep your board and rig under control at all times and that they don’t get blown about on the beach or in the water.
• Always use appropriate protective gear and flotation devices. Wear the correct protective clothing for the conditions such as a wetsuit or a UV top. It is recommended to wear a helmet.
• Make sure someone knows where you’ve gone & when you are expected back – always sail with a buddy.
• Be aware of the conditions as they change. Always return to the beach if there is a significant change in the conditions. i.e. wind dropping or wind & waves increasing.
• As you learn the sport, work within your own limitations and do not exceed them.
• Do not alter, modify or change this product.
• This product is designed and manufactured only for kitesurf­ing on water or snow.
• Keep these warnings, cautions and instructions for future reference.
SNOW USE GENERAL GUIDELINES
1) Always stay in control and be able to stop or avoid other people or objects
2) SNOWKITE: People downwind or down slope have right of way. It is your responsibility to avoid them
3) SNOWBOARD: People down slope have right of way. It is your responsibility to avoid them
4) You must not stop where you obstruct others or are not visible.
5) Whenever starting or merging with others look upwind/up hill and yield to others.
6) Always use devices to help prevent runaway equipment.
7) Observe any and all posted signs and warnings
8) Keep out of closed areas
9) SNOWBOARD: Prior to using any lift you must have the knowledge and ability to load, ride and unload safely.
10) Do not snowboard/snowkite when tired or under the influ­ence of alcohol or drugs.
11) Snow terrain and snowboarding/snowkiting conditions vary constantly--watch out for and avoid any man made struc­tures, trees, rocks, debris, variations in terrain or slopes, avalanche areas, crevasse, cliffs, power lines, water hazards, changes in snow surfaces or texture due to altitude and sun exposure, wind and weather changes, and any other condi­tions which could affect your ability to properly control your
snowboard/snowkite.
RECOMMENDED KITESURFING PRACTICE:
USER MANUAL
INDEX
2 Introduction 3 Important Information 4 Wind, Water, & Weather Conditions / Wind Range Chart 5 Know Your Ability Level / Kiteboarding Location 6 Important Information 7 Beach Etiquette
KITE OVERVIEW & CONTROL SYSTEM

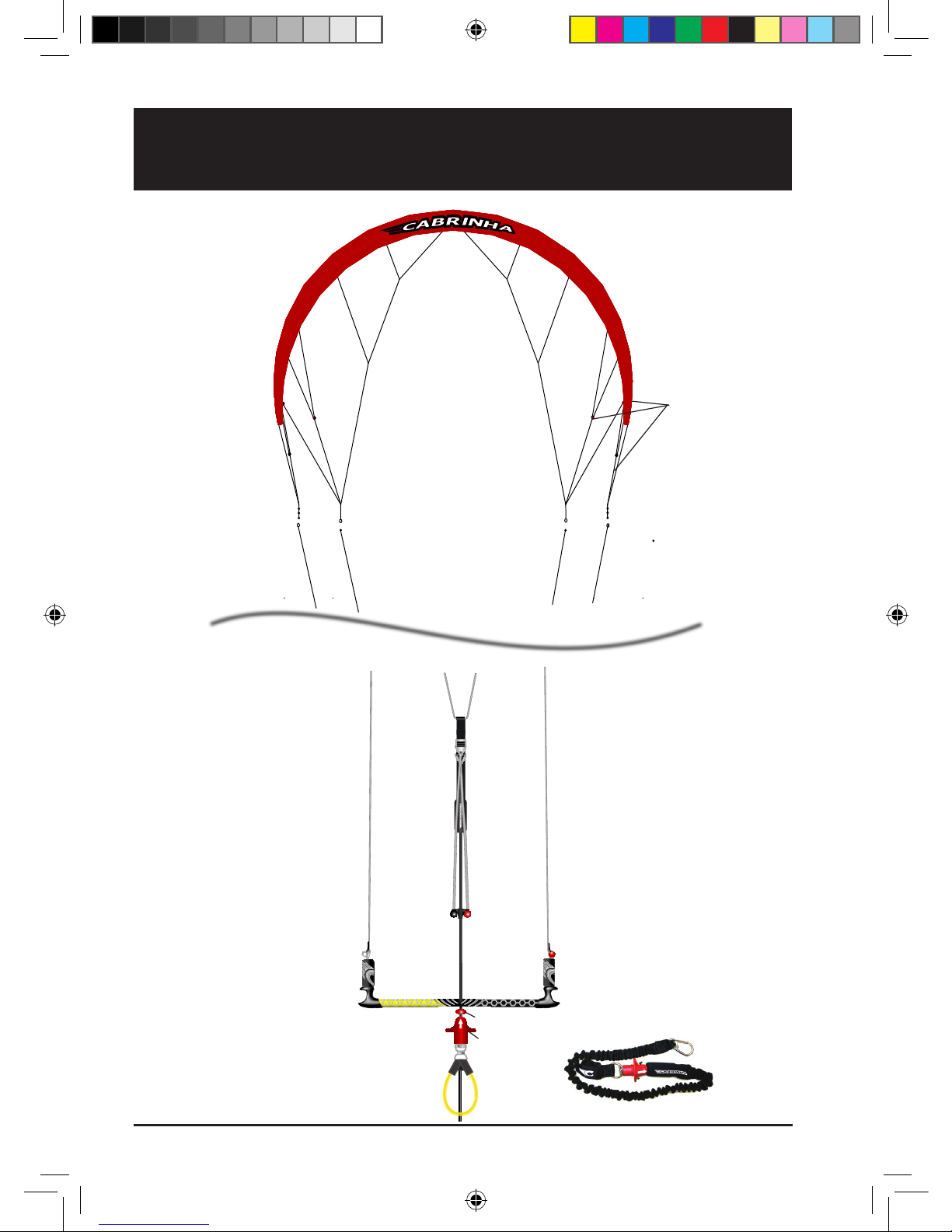

8 Switchblade 2 Overview
SETUP
10 Sprint Inflation System 11 Inflating the Kite 12 Tips for Securing Your Kite Deflating the Kite 16 Attaching Control Lines
HOW TO:

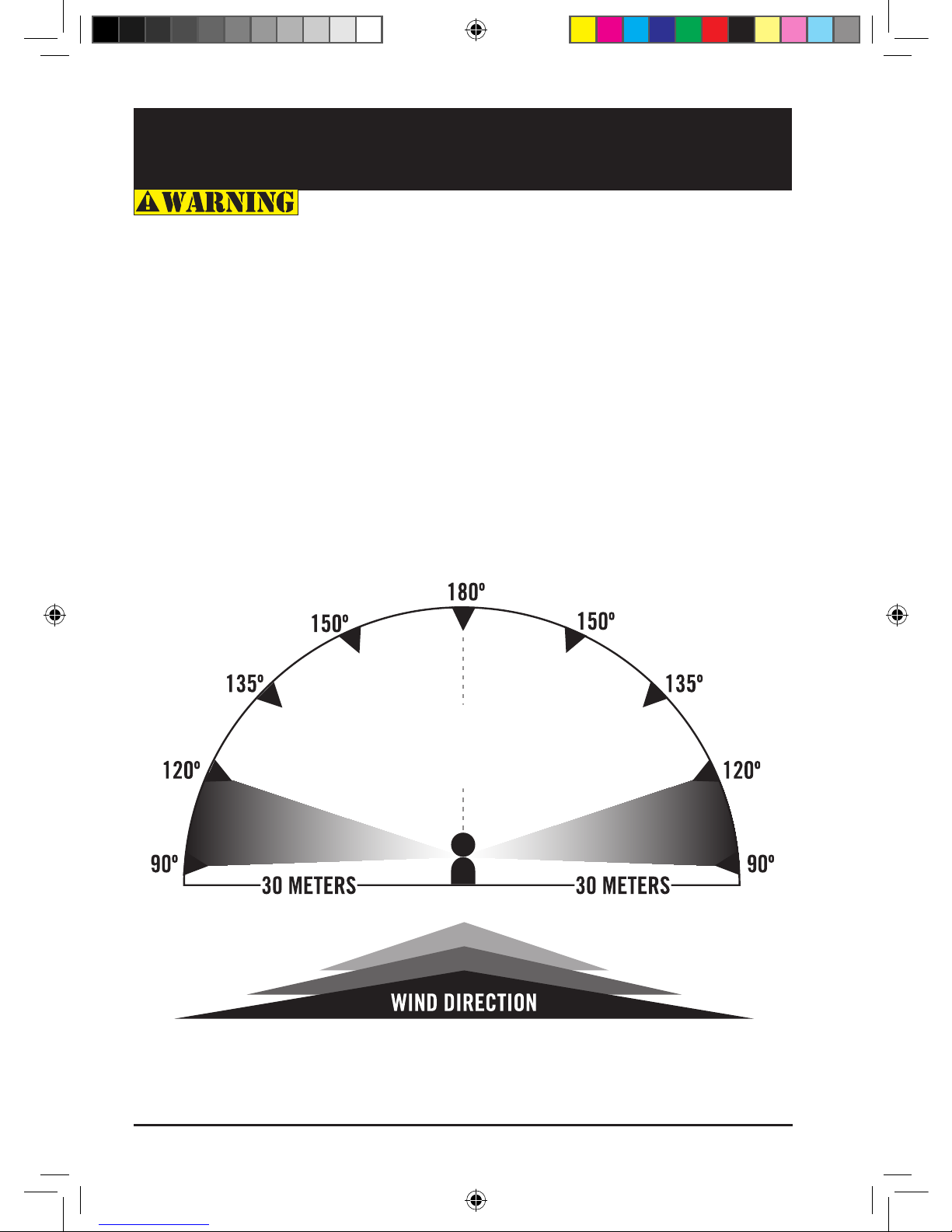

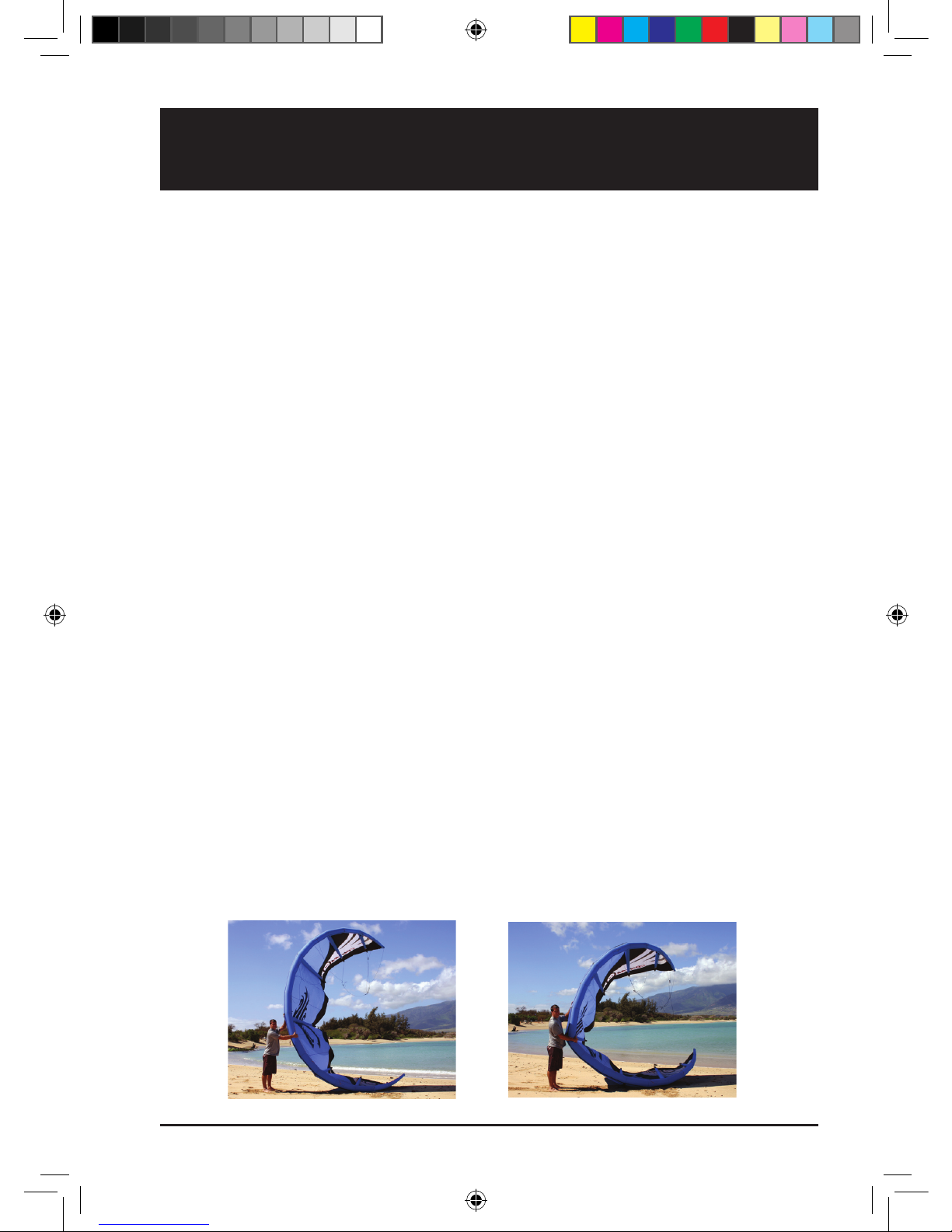

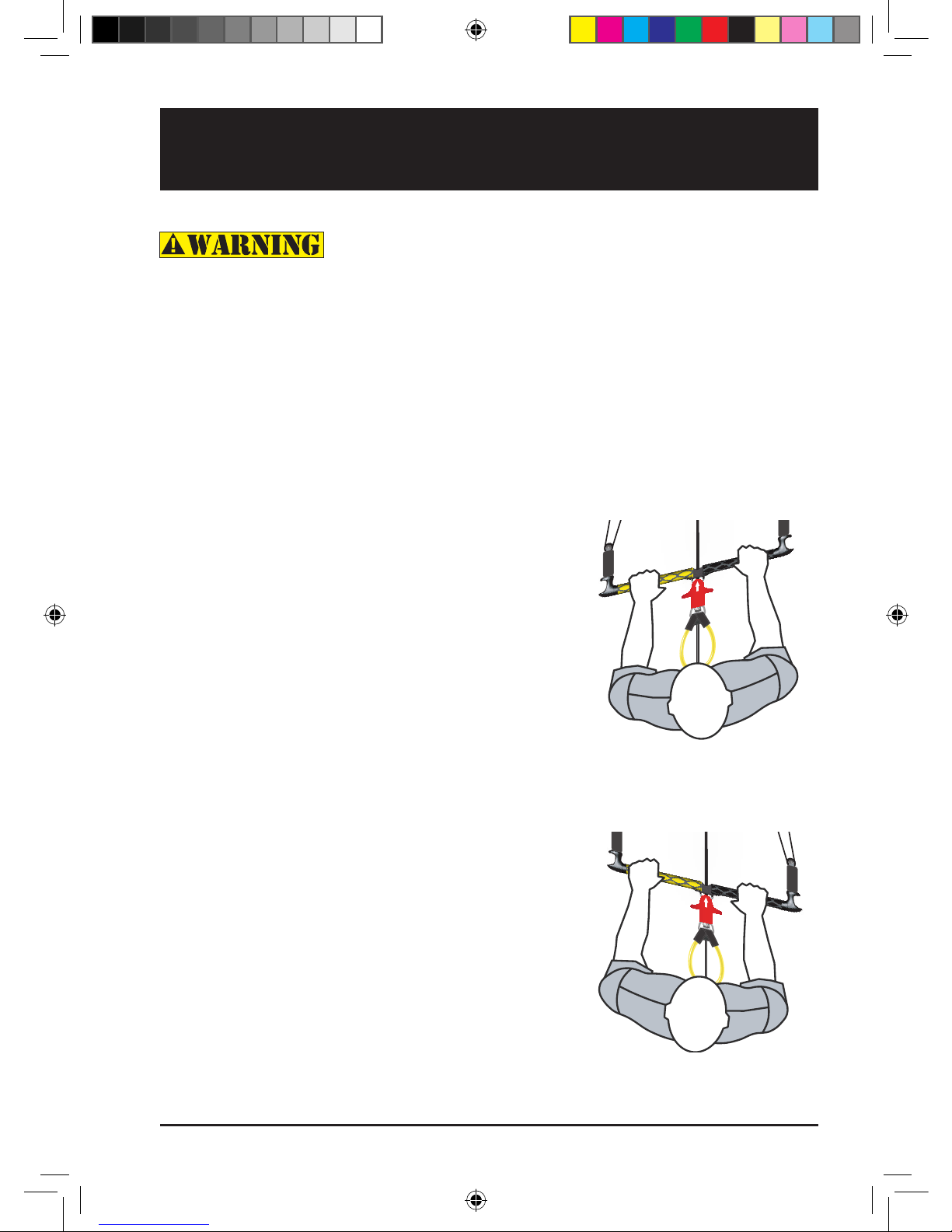

17 Area of Operation / Kite Positions, Zones & Power 19 Steering 20 Planning Your Launch 21 Launching & Landing with a Partner 23 Relaunching 24 Tuning The Kite

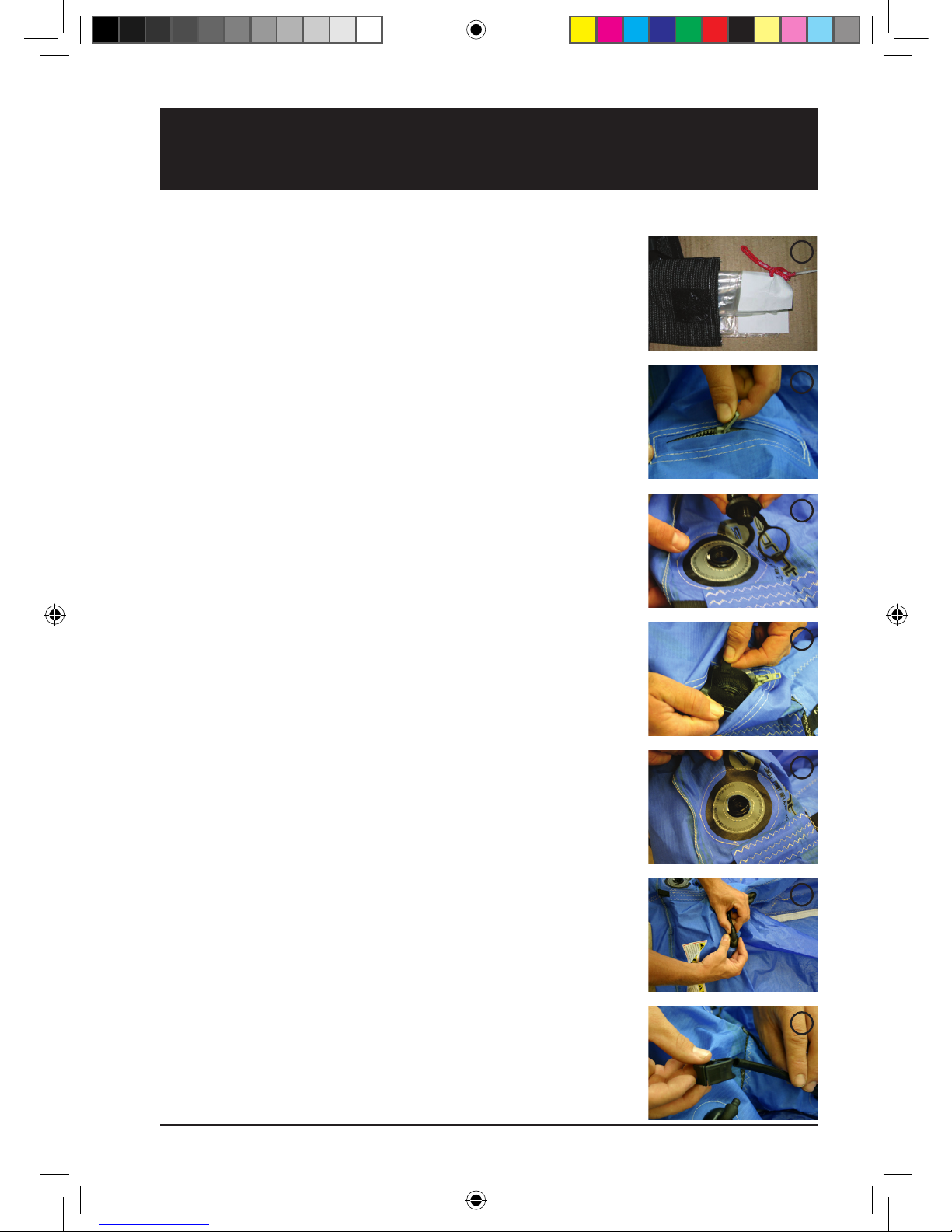

25 Repairs - Tears / Struts Bladders 27 Repairs - Leading Edge Bladders
29 Glossary
1
SWITCHBLADE 2
2
THANK YOU for purchasing a Cabrinha kite and welcome to the sport of kiteboarding.
As you may know, the excitement of Kiteboarding is attracting people of all ages from all corners of the globe. It’s one of the most dynamic and fastest growing sports in the world.
CAUTION: It can also be overwhelming if not approached in an educated man-
ner. That’s why we have supplied this extensive user’s manual. It will help to educate you about your new kite and about the ways in which to use it. It contains information regarding the setup, care and maintenance of your Switchblade kite. For information about operation of the kite including how to power up and de-power your kite you must refer to the manual supplied with your Cabrinha control system. Please note that only a Switchblade compatible control system will provide all of the security and performance functions associated with this bow kite. Consult www.cabrinhakites.com for a list of compatible control systems for use with this kite.
Please read this user’s manual carefully and entirely before using this kite. This manual is not intended to replace proper kiteboard­ing instruction, but rather to supplement it. Do not attempt to kiteboard without appropriate instruction. It will make this sport more enjoyable, not only for yourself, but for those around you.
I NT R O D U C T I O N
3
IMPORTANT INFORMATION
KITEBOARDING is an extremely diverse sport, with many disciplines and ability levels. As with all sports, there are certain inherent risks. The following contains key points to remember when operating your Cabrinha kite.
• Be familiar with the set up and use of the supplied security systems: OVERRIDE and the Harness Loop Quick Release systems.
• Make sure your control system is rigged and used according to the supplied instructions.
• Make sure your kite is compatible with the
control system.
• Always use your Cabrinha kite with a security system.
• NEVER permanently attach yourself to this kite, the control bar, or lines.
• NEVER use this kite as a flying device.
• NEVER touch the kite lines while they are under tension; do not catch the kite using these lines.
• When inflated but not in use, secure your kite with sand or with something heavy and non-abrasive; the more weight the better (see “Kite Care” for more information). An inflatable power kite will still fly, even without a rider, so be mindful of those around you and secure your kite. Your kite may cause serious injury or death if it launches unexpectedly.
• Do not lend your gear to someone who has not been fully instructed on the use of inflatable kites. Other users should also read this user’s manual and be proficient in all its points.
• Check your gear before use. Insure that your flying lines, security systems, kite, board, etc. are all rigged properly and are in working order.
PROTECTIVE GEAR
We strongly recommend the use of the following protective gear:
• Helmet
• Life Jacket, Impact Vest, or Flotation Vest
• Neoprene Wet Suit
• Gloves
• Foot Protection
• Eye Protection
• Knife
• Sunscreen
I M P O R T A N T I N F O R M A T I O N
4
















* How to read: Gray = best suited for. Light Gray = usable. White = not recommended.
WIND, WATER, AND WEATHER CONDITIONS
• Do not underestimate the power of the wind.
• Be aware of unpredictable and changing weather conditions.
• Avoid “offshore” or “onshore” wind conditions.
• Avoid strong, gusty wind.
• Be careful of wave conditions, especially when learning.
• Be educated about tides and rip currents.
• Be mindful of your ability level. Do not kiteboard if conditions are beyond your ability level.
• Be educated about air and water temperatures and wear appropriate protection against the elements.
• Do not use this product in thunderstorms.
• Consult an anemometer to determine wind speeds if necessary.
• Do not use an oversized kite. Consult your Wind Range Chart for the correct recommended size. Use your common sense. If in doubt about what kite size to use, choose smaller rather than bigger.
• Make certain that you are physically capable of operating the security Quick Release(QR) and Override™ devices provided with this kite. This kite and control system has been designed around a typical rider weight of 75kg.
Riders with a weight greater than 75kg may need to use more force to operate the QR than lighter riders. Increases in
wind strength may also result in greater force being required to operate the QR. Be certain to seek the advice of a profes­sional such as your Authorized Cabrinha Dealer about the performance of the security systems in relation to body weight.
I M P O R T A N T I N F O R M A T I O N
WIND, WATER, & WEATHER CONDITIONS / WIND RANGE CHART
WIND RANGE CHART
This wind range chart is only to be used as a point of reference. It is based upon a rider who is approximately 170 lbs. (75 kg). Actual use may vary based on your body weight, ability level, water conditions, board size, and riding style. When choosing a kite size, please use your personal experience, common sense, and always check what other riders are using on the water for a size reference. Lighter riders should use a smaller kite and heavier riders may need a size larger. Be certain to seek the advice of a professional such as an instructor or Authorized Cabrinha Dealer before making your decision.
5
KNOW YOUR ABILITY LEVEL
• Do not attempt kiteboarding without appropriate instruction.
• Do not kite alone.
• Launch, land, and ride together with a partner or have some­one on shore who can keep an eye on you.
• Make sure you are in good physical condition before using this product.
• Practice flying a small, traction kite or a “trainer kite” before flying this kite.
• The more time spent on the “trainer kite”, the faster you will learn.
• Make sure you are a proficient swimmer before using this product in or near the water.
• Make sure the wind and water conditions are within your ability level and that you have made the correct equipment choices.
• Never kiteboard further from shore than you are able to swim back.
• Always save a reserve of energy; end your kiteboarding ses­sion before you are exhausted.
• Make sure you’ve done your homework and that you know the security precautions of all aspects of the sport: rigging, Launching, landing, flying, riding, kiting among other water users, self rescuing, etc.
• Understand your security systems before ever launching your kite.
• Understand the technique of self-rescue before using this product in or near the water.
• Never let someone who is not familiar with inflatable kites launch, catch, or use your kite. You will endanger them, as well as yourself and those around you.
• You are responsible for the proper operation of your kite.
KITEBOARDING LOCATION
• Observe local laws and regulations regarding this product and the usage area.
• Talk to the local riders about the weather conditions and beach rules.
• Check your area thoroughly before launching your kite.
• Make sure you have considerable space in which to launch, land, and use this product.

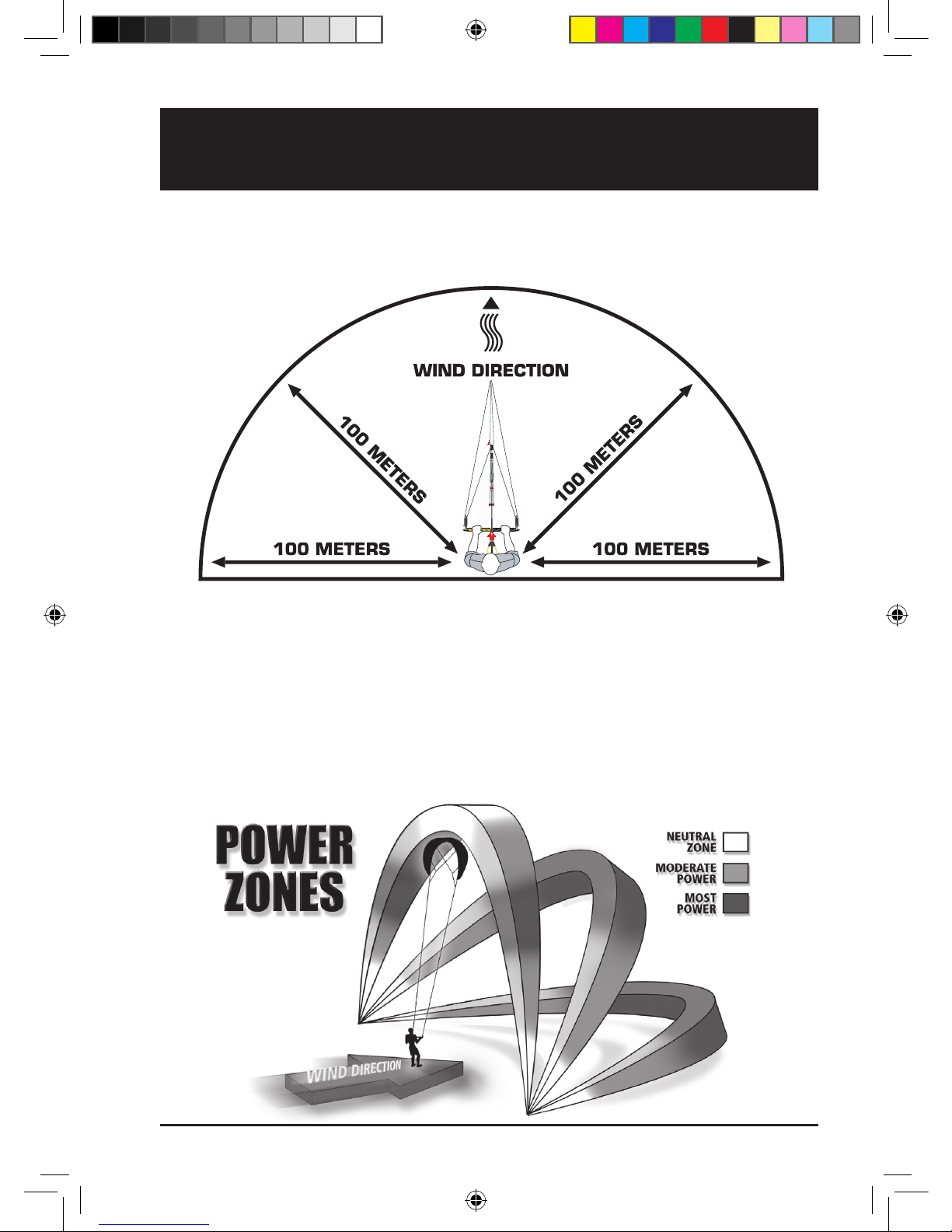

• You should have at least 100 meters of space on both sides and downwind of you. Be especially aware of your downwind area.
• Be mindful and aware of the wind direction in relation to your launch area.
• Avoid areas with rocks and/or shallow or exposed reefs.
• Be mindful of tide changes. As water levels change, you may be exposed to new obstructions.
• Avoid launching, landing or using this product near power lines, telephone poles, trees, people, pets, buildings, auto­mobiles, streets, sharp objects and airports.
• Avoid crowded beaches and waterways.
• Make sure your lines do not cross a walkway or passage.
• Do not let others walk between you and your kite.
• Be careful and mindful of other water users, including windsurfers, boaters, jet skiers, swimmers, floating objects, etc.
• Before launching, make sure you have scouted a backup landing area, in case you do not make it back to your launch spot.
I M P O R T A N T I N F O R M A T I O N
KNOW YOUR ABILITY LEVEL / KITEBOARDING LOCATION
6
I M P O R T A N T I N F O R M A T I O N
KITE CARE
Due to the often extreme nature of kiteboarding, a thorough approach should be taken when caring for your kite and all its as­sociated rigging, as well as your protective gear.
PREPARING FOR YOUR SESSION
• Thoroughly check your protective equipment (helmet, etc.) to make sure it is in working order and in good condition.
• A frequent inspection of the kite and the control system should be made in order to identify punctures, tears, or abrasions in the canopy, struts, or security systems. It is also necessary to check the fly lines for wear and for unwanted knots, which may reduce the strength of the fly lines.
• Do not rig on asphalt, cement, gravel, or other abrasive surfaces; doing so may damage your equipment. It is best to rig on sand or grass. Damage done to your equipment by rigging on abrasive surfaces will not be covered under warranty.
• Do not rig among sharp objects that could tear the canopy or puncture the struts and leading edge bladder.
• Take care not to expose your flying lines to sharp objects that may wear through them.
• While setting up, secure your kite with sand or sand bags. Do not secure your kite with rocks or other sharp or abrasive objects that may damage your kite.
BETWEEN SESSIONS
• Never leave an inflated kite unattended on the beach for a long period of time. Winds may shift or change and the kite may become unsecured and fly off.
• Do not leave an inflated kite (secured or not), directly exposed to the wind for any length of time. This allows the trailing edge to flutter excessively, which can damage the kite or tangle the bridles/control lines. If you must leave the kite exposed to the wind on the beach, place sufficient amounts of sand between each strut and near the trailing edge to minimize or stop the fluttering
• Do not leave your kite exposed to sunlight for long periods of time. Between sessions, choose a shaded area to secure your kite. When not in use, stow away.
PROPER STORAGE
• It is recommended to wash your kite with fresh water and dry thoroughly before rolling and storing.
• Do not roll up kite when wet.
• Clear the kite of sand or other foreign objects before stowing.
• Once it is clean and dry, stow your kite in the supplied bag in a clean, dry, cool place.
• Do not place heavy objects on the bag containing the kite.
• Do not leave your kite inflated in your car or car rack box; exposing the kite to extreme temperatures while inflated may damage the internal bladders.
• Wash your control system with fresh water from time to time by placing the entire control system (with lines wound onto the bar) into a bucket of fresh water and let it sit for 5 minutes. Allow to dry thoroughly before storing in a dry location.
• Once it is clean and dry, stow your control bar in the supplied bag in a clean, dry, cool place.
