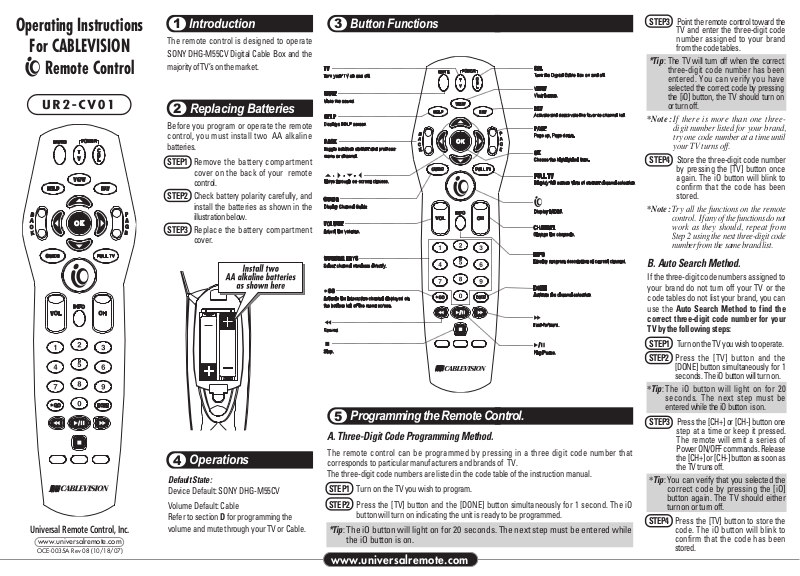

CABLEVISION UR2-CV01 Operating Instructions

Universal Remote Control, Inc.

www.universalremote.com

OCE-0035A Rev 08 (10/18/07)

Operating Instructions

For CABLEVISION

Remote Control

The remote control is designed to operate SONY DHG-M55CV Digital Cable Box and the majority of TV’s on the market.

Introduction

Default State :

Device Default: SONY DHG-M55CV

Volume Default: Cable Refer to section D for programming the volume and mute through your TV or Cable.

Operations

Replacing Batteries

Before you program or operate the remote control, you must install two AA alkaline batteries.

STEP1 Remove the battery compartment

cover on the back of your remote control.

STEP2 Check battery polarity carefully, and

install the batteries as shown in the illustration below.

STEP3 Replace the battery compartment

cover.

Button Functions

Programming the Remote Control.

A. Three-Digit Code Programming Method.

The remote control can be programmed by pressing in a three digit code number that corresponds to particular manufacturers and brands of TV. The three-digit code numbers are listed in the code table of the instruction manual.

STEP1 Turn on the TV you wish to program.

STEP2 Press the [TV] button and the [DONE] button simultaneously for 1 second. The iO

button will turn on indicating the unit is ready to be programmed.

*Tip :

The iO button will light on for 20 seconds. The next step must be entered while the iO button is on.

STEP3 Point the remote control toward the

TV and enter the three-digit code number assigned to your brand from the code tables.

*Tip : The TV will turn off when the correct

three-digit code number has been entered. You can verify you have selected the correct code by pressing the [iO] button, the TV should turn on or turn off.

*Note : If there is more than one three-

digit number listed for your brand, try one code number at a time until your TV turns off.

STEP4 Store the three-digit code number

by pressing the [TV] button once again. The iO button will blink to confirm that the code has been stored.

*Note : Try all the functions on the remote

control. If any of the functions do not work as they should, repeat from Step 2 using the next three-digit code number from the same brand list.

B. Auto Search Method.

If the three-digit code numbers assigned to your brand do not turn off your TV or the code tables do not list your brand, you can use the Auto Search Method to find the

correct three-digit code number for your TV by the following steps:

STEP1 Turn on the TV you wish to operate.

STEP2 Press the [TV] button and the

[DONE] button simultaneously for 1 seconds. The iO button will turn on.

*Tip : The iO button will light on for 20

seconds. The next step must be entered while the iO button is on.

STEP3 Press the [CH+] or [CH-] button one

step at a time or keep it pressed. The remote will emit a series of Power ON/OFF commands. Release the [CH+] or [CH-] button as soon as the TV truns off.

*Tip :

You can verify that you selected the correct code by pressing the [iO] button again. The TV should either turn on or turn off.

STEP4 Press the [TV] button to store the

code. The iO button will blink to confirm that the code has been stored.

www.universalremote.com

TV Code Tables

ESA 031 168 FISHER 007 057 FUJITSU 164 197 028 157 149 066 217 FUNAI 028 043 238 052 168 FUTURETECH 043 GATEWAY 165 031 GE 070 073 130 144 160 161 004 008 009 034 056 074 091

155 232 233 236 239 245 081 120 GEM 031 GIBRALTER 004 073 GO VIDEO 239 GOLDSTAR 004 106 112 127 247 250 GRUNPY 028 043 HAIER 004 116 HALL MARK 004 HANNSPREE 099 HARLEY DAVIDSON 028 HARSPER 220 HARMAN KARDON 164 HARVARD 043 HISENSE 198 021 HITACHI 004 007 009 011 072 010 012 023 075 127 158 236 238 HP 027 039 098 HQ 238 HUMAX 122 HYUNDAI 049 067 ILO 055 INFINITY 164 INKEL 129 INSIGNIA 068 069 078 096 100 164 168 229 026 INSTANTREPLAY 236 INTEQ 073 JBL 164 JCB 001 JCL 236 JCPENNEY 004 008 024 030 065 070 101 127 160 156 234 236 239

247 JENSEN 013 JVC 038 001 034 083 195 236 242 159 227 KENWOOD 070 001 238 KLEGG 220 KLOSS 002 059 KONKA 026 KREISEN 202 KTV 070 043 127 154 LG 004 106 112 127 247 250 LLOYD 238 LODGENET 072 LOEWE 196 164 LOGIK 072 LUXMAN 004 LXI 007 015 052 081 160 164 238 MAGIN 239 MAGNAVOX 070 003 004 022 059 060 061 063 064 127 164 094 160

056 236 238 243 205 028 138 168 035 211 077 050 MAJESTIC 072 MARANTZ 164 070 236 243 MARTA 247 MATSUI 164 MATSUSHITA 080 MAXENT 165

MAKER(BRAND) NAME

CODE NUMBER (3 DIGIT) LIST

ADMIRAL 072 081 160 161 096 ADVENT 147 224 AIWA 238 141 145 AKAI 031 070 146 004 148 124 226 104 108 AKIO 103 ALARON 028 AMARK 112 127 AMERICA ACTION 043 AMERICAN HIGH 236 AMPRO 073 167 245 ANAM 043 054 056 080 112 236 AOC 058 070 004 112 APEX DIGITAL 015 150 036 037 ASTAR 164 AUDIOVOX 076 103 043 035 224 228 078 AVION 223 BAYSONIC 043 BELL&HOWELL 072 BRADFORD 043 BROKSONIC 231 252 096 170 CAIRN 162 CANDLE 070 002 003 004 CANON 236 CAPEHART 058 CARVER 164 CELEBRITY 001 CETRONIC 043 CINERAL 103 120 CITIZEN 070 002 003 004 101 103 127 CLASSIC 043 CONCERTO 004 CONTEC 043 051 CORONADO 127 CRAIG 043 054 028 239 CROSLEY 164 CROWN 043 127 CURTIS MATHES 070 004 101 127 236 011 072 081 120 164 CXC 043 DAEWOO 076 103 112 004 127 016 043 044 125 120 235 249 DAYTRON 004 127 DELL 004 041 164 DENON 011 DIGITAL LIFESTYLE 163 DIGITRON 101 DREAMVISION 090 DUMONT 004 073 DURABRAND 168 DWIN 131 132 161 DYNASTY 043 DYNATECH 062 238 DYNEX 096 ELECTROBAND 001 ELECTROGRAPH 220 ELECTROHOME 024 076 127 ELEMENT 004 110 EMERSON 005 028 043 048 076 096 155 004 051 127 151 153 154

231 236 238 247 252 168 ENVISION 070 EPSON 087

MAKER(BRAND) NAME

CODE NUMBER (3 DIGIT) LIST

MAKER(BRAND) NAME

CODE NUMBER (3 DIGIT) LIST

MAKER(BRAND) NAME

CODE NUMBER (3 DIGIT) LIST

MEGATRON 004 MEI 236 MEMOREX 004 007 072 234 236 238 245 247 028 096 METZ 088 MGA 024 070 004 042 239 MIDLAND 073 MINERVA 088 MINTEK 077 MINUTZ 008 MITSUBISHI 109 024 042 004 040 146 028 232 255 081 200 MOTOROLA 081 MTC 070 004 062 101 238 239 MULTITECH 238 043 NAD 015 025 NEC 070 130 134 040 056 007 019 024 004 182 140 NIKEI 043 NIKKO 103 NIKO 175 NORCENT 211 NTC 103 NUVISION 084 OLEVIA 219 004 161 144 160 ONKING 043 ONWA 043 OPTIMUS 080 OPTOMA 029 032 OPTONICA 019 081 ORION 096 201 203 204 205 231 252 028 PANASONIC 034 056 080 164 234 236 244 190 230 PENTAX 236 PHILCO 070 003 004 024 056 059 060 063 064 127 164 236 238

243

PHILIPS 164 005 038 093 127 070 003 004 059 236 238 243 247

199 218 PILOT 247 PIONEER 023 025 135 176 004 018 070 183 191 208 214 182 POLAROID 015 024 031 046 086 092 097 224 228 006 110 026 118

119 PORTLAND 004 127 103 PRISM 034 PRIMA 147 164 PROSCAN 144 160 161 167 PROTON 004 058 127 171 173 193 PROTRON 102 213 004 115 PROVIEW 110 QUASAR 034 056 234 236 244 RADIO SHACK 004 019 127 043 250 RCA 160 161 144 156 065 070 004 023 024 056 074 152 232

233 236 238 239 081 REALISTIC 007 019 236 238 239 247 REVOLUTION HD 220 RICO 241 RUNCO 072 073 130 179 180 181 182 216 194 SAMPO 070 004 058 165 SAMSUNG 004 101 127 133 160 089 105 070 237 239 184 185 192 SANSEI 120 SANSUI 238 252 096 SANYO 007 053 057 082 020 239 SCEPTRE 036 SCOTCH 004 SCOTT 004 005 028 043 048 127 113

SEARS 004 007 015 028 030 057 082 094 127 160 238 247

052 164 SELECO 189 SEMIVOX 043 SEMP 015 SHARP 081 014 019 028 004 022 127 236 251 SIGNATURE 072 238 SOLE 177 178 SONY 001 085 126 139 236 240 241 SOUNDESIGN 003 004 028 043 238 SOVA 004 169 174 SOYO 163 SPECTRICON 112 SPECTRONIQ 004 SQUAREVIEW 052 SSS 004 043 STARLITE 043 SUPERSCAN 168 SUPRE MACY 002 SUPREME 001 SV2000 168 SVA 046 SYLVANIA 070 003 052 059 060 063 064 127 160 164 044 056

236 238 243 168 121 SYMPHONIC 052 238 168 SYNTAX OLEVIA 219 004 161 144 160 TANDY 081 238 TATUNG 056 062 TEAC 238 TECHNICS 034 080 236 244 TECHNOL ACE 028 TECHWOOD 004 TEKNIKA 002 003 004 024 028 043 072 101 127 103 236 238

247 164 TELERENT 072 TERA 172 THOMPSON 166 TNCI 073 TMK 004 TOSHIBA 015 030 007 040 062 101 142 137 045 TOTEVISION 127 239 247 UNITECH 239 UNIVERSAL 008 009 VIDEO CONCEPTS 146 238 VIDEOSONIC 239 VIDIKRON 188 164 182 VIDTECH 004 VIEWSONIC 210 VIORE 055 VISCO 209 VITO 004 VIZIO 004 031 WARDS 004 064 164 008 009 019 028 060 061 063 072 074

127 070 236 238 239 WESTINGHOUSE 076 036 221 222 001 WINBOOK 079 YAMAHA 004 070 238 206 207 YORK 004 YUPITERU 043 ZENITH 011 072 073 095 103 238 241 245 247 096 ZONDA 112

C. To Find the Three Digit Code

Number That was Stored in the TV.

STEP1 Press the [TV] button and the [DONE]

button simultaneously for 1 second.

*Tip : The iO button will light on for 20

seconds. The next step must be entered while the iO button is on.

STEP2 Press the [INFO] button.

The iO button will blink number of times indicating the number of each digit of the code number. Each digit is separated by a 1 second interval of the iO button being turned off.

Example : One blink, three blinks and eight

blinks with an interval of 1 second of iO button being turned off, indicates the code number 138.

Note : Ten blinks is equal to the number 0.

D. Program the Volume Controls.

By following the steps below, the user can program the volume controls (Volume Up, Volume Down and Mute) . Once you program the remote control for your TV, the remote is automatically set to control the volume on your TV. If you wish you can control the volume via your CABLE box, use the following steps.

STEP1

Press the [CBL] button and the [DONE] button simultaneously for 1 second. The iO button will turn on.

*Tip : The iO button will light on for 20

seconds. The next step must be entered while the iO button is on.

STEP2 Press the [VOL +] button. STEP3 Press the [CBL] button.

The iO button will blink to confirm the programming.

To return to original state:

If you wish you can control the volume via your TV, repeat the above steps by pressing

[TV] in STEP3 .

E. Low Battery Warning.

When the battery is low (2.0V-2.3V) and needs to be replaced with fresh batteries, the iO button will blink five times whenever a [DEVICE] button is pressed to turn on equipment.

F. Memory Lock System.

This remote control is designed to retain programmed memory for 10 years even after batteries are removed from the remote control.

G. Write your TV Set-up codes:

Set-up Code Number :
