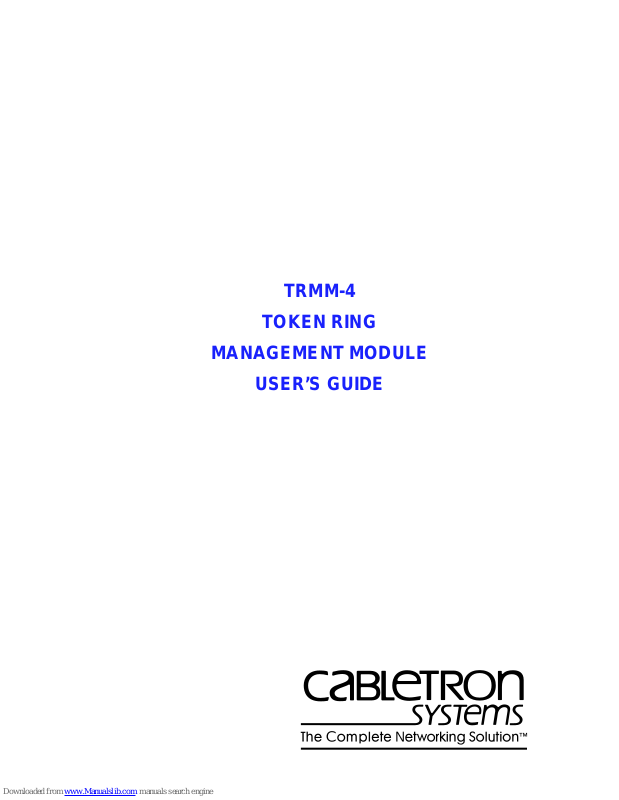

Cabletron Systems TRMM-4 User Manual

BOOKTITLE2 OPTIONAL

TRMM-4

TOKEN RING

MANAGEMENT MODULE

USER’S GUIDE

TRMM-4 QUICK REFERENCE

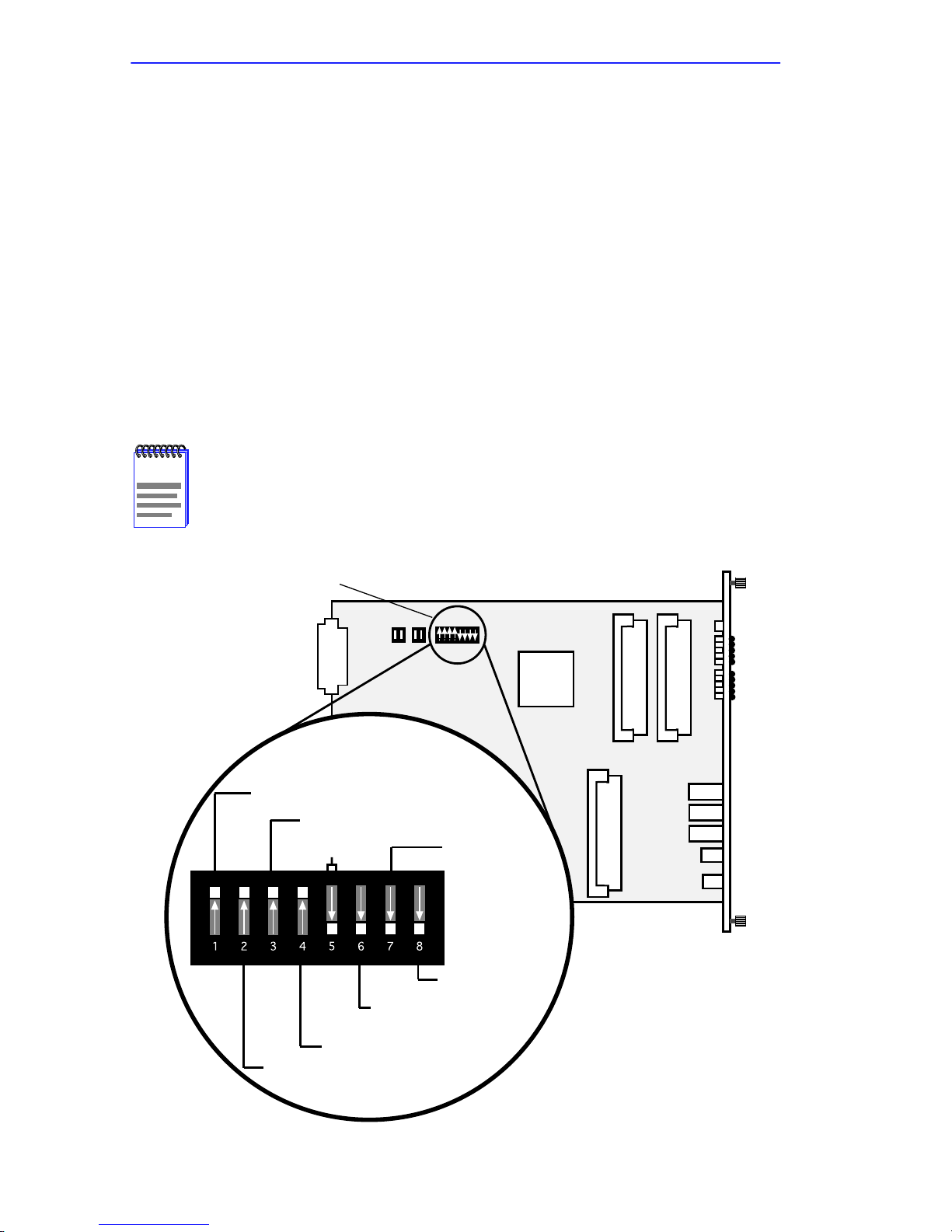

QR.1 SWITCHBLOCK SW1 SETTINGS

FNB Ring 1

FNB Ring 3

Unused

on

NVRAM
Clear

SW1

Forced
Network Download

FNB Ring 4

FNB Ring 2

Reset
Passwords

Switchblock SW1 With Factory Default Settings

Switch Function

(Default settings shown in

bold

1 Ring speed of FNB Ring 1 for all port switching MIMs.

On – 16 Mbps

; Off – 4 Mbps

2 Ring speed of FNB Ring 2 for all port switching MIMs.

On – 16 Mbps

; Off – 4 Mbps

3 Ring speed of FNB Ring 3 for all port switching MIMs.

On – 16 Mbps

; Off – 4 Mbps

4 Ring speed of FNB Ring 4 for all port switching MIMs.

On – 16 Mbps

; Off – 4 Mbps

)

5 Unused
6 Toggle to initiate a Forced Network Download.
7 Toggle to clear NVRAM.
8 Toggle to reset passwords to defaults.

QR-1

TRMM-4 QUICK REFERENCE

The TRMM-4 does not control the ring speeds of single-ring

NOTE

MIMs.

QR.2 LED STATUS DESCRIPTIONS

LED Status Meaning

OFF No power to module.
GREEN Testing and booting are nearly complete.

CPU

LWRP

16 Mb

XMT

RCV

Blinking
GREEN

RED Module is resetting or has detected errors.
Blinking RED Module has failed self-tests.
OFF The left connection is

AMBER

AMBER Interface ring speed is set to 16 Mbps.
OFF Interface ring speed is set to 4 Mbps
Flashing

GREEN
Blinking RED Beaconing condition on the ring.
OFF Interface is inactive.
RED Interface is disabled.
Flashing

AMBER

Operational.

not

left wrapped.

Left connection has been wrapped. FNB Ring 1
interface has been isolated from all other MIMs.

.

Information transmission by the TRMM-4

Network activity.

.

RED Interface disabled.

GREEN

NSRT

OFF Interface is not inserted into any ring.

QR-2

Interface is inserted into the ring and is
participating as a station on that ring.

TRMM-4 QUICK REFERENCE

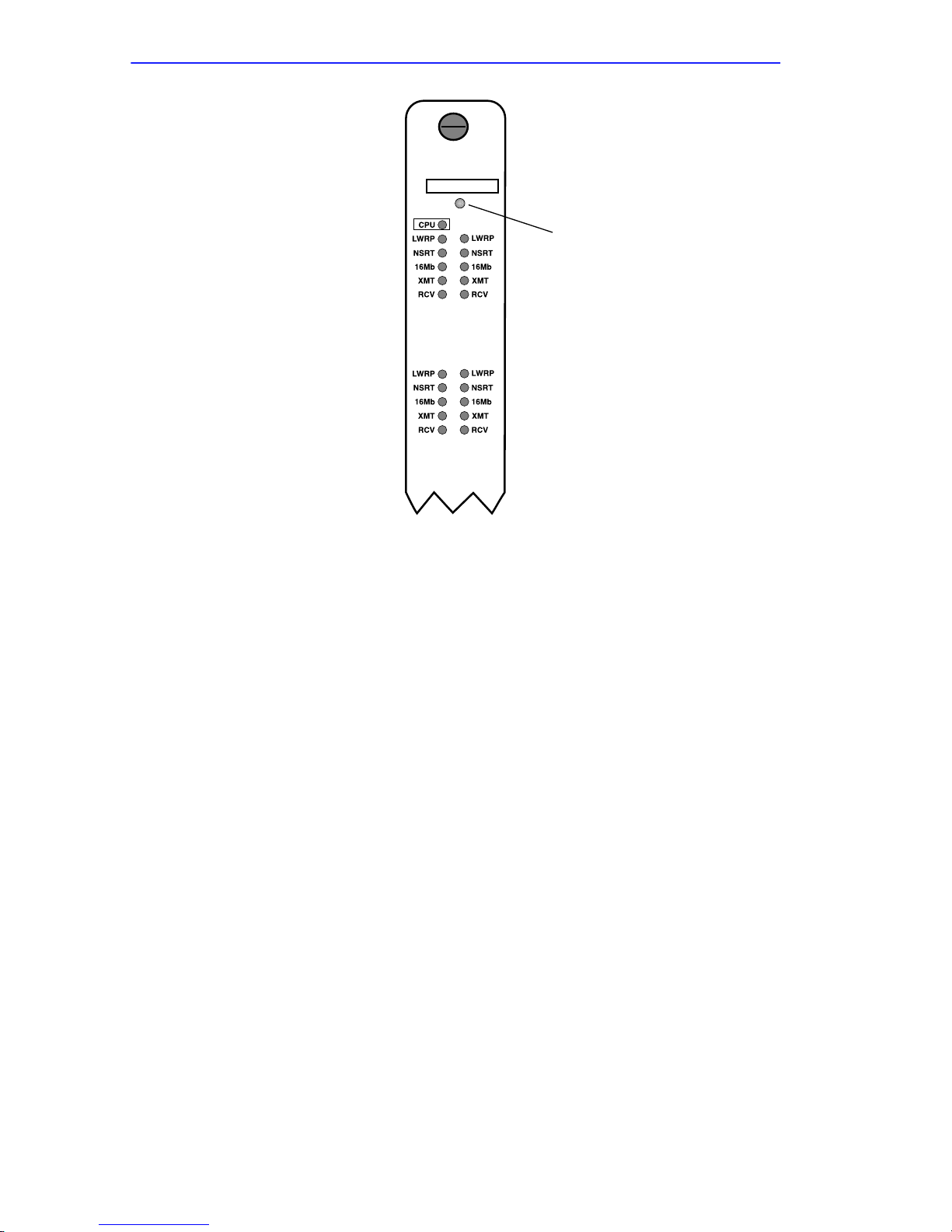

QR.3 CPU - CENTRAL PROCESSOR UNIT

The

CPU

LED indicates the operational status of the TRMM-4’s

CPU

processor. During start-up, the
operational states, as shown below in the table.

State(s) Meaning

OFF The module is not receiving power.
Briefly turns RED The module is resetting.
GREEN The module has passed its power check.

LED indicates a variety of

AMBER

Cycles through AMBER,
OFF, GREEN, and OFF for a
while.

Momentarily to RED, but
continues cycling.

If blinking RED,
(continuously)

GREEN Testing and booting are nearly complete.

Blinking GREEN

Performing diagnostic checks.
(It will stay here for a while.)

Testing and booting period has begun.

The module has detected errors during
the start-up sequence, but has continued
the process.

The module has failed self-tests.

The module is fully functional.

LED stays BLINKING GREEN under
normal operation.

The CPU

QR-3

TRMM-4 QUICK REFERENCE

QR-4

Only qualified personnel should perform installation
procedures.

NOTICE

Cabletron Systems reserves the right to make changes in specifications and other information
contained in this document without prior notice. The reader should in all cases consult Cabletron
Systems to determine whether any such changes have been made.

The hardware, firmware, or software described in this manual is subject to change without notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL,

INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT
NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR
THE INFORMATION CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN
ADVISED OF, KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH
DAMAGES.



Copyright 1997 by Cabletron Systems, Inc., P.O. Box 5005, Rochester, NH 03866-5005
All Rights Reserved
Printed in the United States of America

Order Number: 9031391-01 September 1997

Cabletron Systems, SPECTRUM, LANVIEW
Element Manager, MIM

VT100

is a trademark of Digital Equipment Corporation.

All other product names mentioned in this manual may be trademarks or registered trademarks of
their respective companies.

, and

TRMM-4

, FNB, and MMAC

are trademarks of Cabletron Systems, Inc.

are registered trademarks and

FCC NOTICE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

NOTE:

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment uses, generates, and can radiate radio frequency energy and if not installed in
accordance with the operator’s manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause interference in which case the user
will be required to correct the interference at his own expense.

This equipment has been tested and found to comply with the limits for a Class A digital

WARNING:

party responsible for compliance could void the user’s authority to operate the equipment.

Changes or modifications made to this device which are not expressly approved by the

Printed on Recycled Paper

i

NOTICE

DOC NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.

VCCI NOTICE

This is a Class A product based on the standard of the Voluntary Control Council for Interference by
Information Technology Equipment (VCCI). If this equipment is used in a domestic environment,
radio disturbance may arise. When such trouble occurs, the user may be required to take corrective
actions.

CABLETRON SYSTEMS, INC. PROGRAM LICENSE AGREEMENT

IMPORTANT:

This document is an agreement between you, the end user, and Cabletron Systems, Inc. (“Cabletron”)
that sets forth your rights and obligations with respect to the Cabletron software program (the
“Program”) contained in this package. The Program may be contained in firmware, chips or other
media. BY UTILIZING THE ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME
BOUND BY THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND
THE LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IF YOU DO NOT
AGREE TO THE TERMS OF THIS AGREEMENT , PR OMPTLY RETURN THE UNUSED
PRODUCT TO THE PLACE OF PURCHASE FOR A FULL REFUND.

Before utilizing this product, carefully read this License Agreement.

CABLETRON SOFTWARE PROGRAM LICENSE

1. LICENSE
package subject to the terms and conditions of this License Agreement.

You may not copy, reproduce or transmit any part of the Program except as permitted by the
Copyright Act of the United States or as authorized in writing by Cabletron.

2. OTHER RESTRICTIONS. You may not reverse engineer, decompile, or disassemble the
Program.

3. APPLICABLE LA W. This License Agreement shall be interpreted and governed under the laws
and in the state and federal courts of New Hampshire. You accept the personal jurisdiction and
venue of the New Hampshire courts.

. You have the right to use only the one (1) copy of the Program provided in this

ii

NOTICE

EXCLUSION OF WARRANTY AND DISCLAIMER OF LIABILITY

1. EXCLUSION OF

writing, Cabletron makes no warranty, expressed or implied, concerning the Program (including
its documentation and media).

CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO
YOU BY CABLETRON IN WRITING, EITHER EXPRESSED OR IMPLIED, INCLUDING
BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE
ACCOMPANYING WRITTEN MA TERIALS, AND ANY A CCOMPANYING HARDW ARE.

2. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL

CABLETRON OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER
(INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS,
PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, SPECIAL,
INCIDENTAL, CONSEQUENTIAL, OR RELIANCE DAMAGES, OR OTHER LOSS)
ARISING OUT OF THE USE OR INABILITY TO USE THIS CABLETRON PRODUCT,
EVEN IF CABLETRON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR
ON THE DURATION OR LIMITATION OF IMPLIED WARRANTIES, IN SOME
INSTANCES THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO
YOU.

WARRANTY. Except as may be specifically provided by Cabletron in

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

The enclosed product (a) was developed solely at private expense; (b) contains “restricted computer
software” submitted with restricted rights in accordance with Section 52227-19 (a) through (d) of the
Commercial Computer Software - Restricted Rights Clause and its successors, and (c) in all respects
is proprietary data belonging to Cabletron and/or its suppliers.

For Department of Defense units, the product is licensed with “Restricted Rights” as defined in the
DoD Supplement to the Federal Acquisition Regulations, Section 52.227-7013 (c) (1) (ii) and its
successors, and use, duplication, disclosure by the Government is subject to restrictions as set forth in
subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at

252.227-7013. Cabletron Systems, Inc., 35 Industrial Way, Rochester, New Hampshire 03867-0505.

iii

NOTICE

DECLARATION OF CONFORMITY

Application of Council Directive(s):

Manufacturer’s Name:

Manufacturer’ s Address:

European Representative Name:

European Representative Address:

Conformance to Directive(s)/Product Standards:

Equipment Type/Environment:

89/336/EEC
73/23/EEC

Cabletron Systems, Inc.
35 Industrial Way

PO Box 5005
Rochester, NH 03867

Mr. J. Solari
Cabletron Systems Limited

Nexus House, Newbury Business Park
London Road, Newbury
Berkshire RG13 2PZ, England

EC Directive 89/336/EEC
EC Directive 73/23/EEC
EN 55022
EN 50082-1
EN 60950

Networking Equipment, for use in a
Commercial or Light
Environment.

Industrial

We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged
with this notice conforms to the above directives.

Manufacturer Legal Representative in Europe
Mr. Ronald Fotino Mr. J. Solari

___________________________________ ___________________________________

Full Name Full Name
Principal Compliance Engineer Managing Director - E.M.E.A.

___________________________________ ___________________________________

Title Title
Rochester, NH, USA Newbury, Berkshire, England

___________________________________ ___________________________________

Location Location

iv

CONTENTS

PREFACE

CHAPTER 1 INTRODUCTION

1.1 TRMM-4 Functional Overview.....................................................1-2

1.1.1 Port Assignment .............................................................1-2

1.1.2 Ring Poll Failure Recovery .............................................1-3

1.1.3 Network Management..................................................... 1-3

1.1.4 Dividing Stations Among Rings ......................................1-4

1.1.5 Segmenting The FNB For Additional Rings.................... 1-5

1.1.6 Module Bypassing, Ring Bypassing, And Port Disabling 1-6

1.1.7 Network Interfaces.......................................................... 1-7

1.1.8 Ring Speed Assignments ...............................................1-7

1.1.9 Automatic Configuration At Power-Up............................1-7

1.1.10 RMON Functionality........................................................1-8

1.1.11 SNMP Traps ...................................................................1-8

1.1.12 Ring Security ..................................................................1-8

1.1.13 Automatic Beacon Recovery Process (ABRP) ...............1-8

1.1.14 Access To MIB Libraries.................................................1-8

1.1.15 TFTP Download Of Flash Image ....................................1-9

1.1.16 UPS Monitoring...............................................................1-9

1.2 User Access To Management Controls.......................................1-9

1.2.1 COM Ports......................................................................1-9

1.2.2 Telnet............................................................................ 1-10

1.2.3 Remote Network Management Applications................. 1-10

1.3 Front Panel Features.................................................................1-11

1.3.1 LANVIEW LEDs............................................................ 1-11

1.3.2 Reset Button.................................................................1-11

v

CONTENTS

CHAPTER 2 INSTALLATION

2.1 Unpacking And Handling The TRMM-4 .......................................2-1

2.2 Setting Switches And Jumpers ....................................................2-2

2.2.1 Setting FNB Ring Speeds ...............................................2-3

2.2.2 Forced Network Download..............................................2-3

2.2.3 Clearing NVRAM.............................................................2-4

2.2.4 Resetting Passwords To Defaults...................................2-4

2.3 Management Module Overrides...................................................2-4

2.3.1 Single Ring MIMs............................................................2-4

2.3.2 Port Switching MIMs........................................................2-4

2.4 Installing The TRMM-4.................................................................2-5

2.5 Resetting The Management Module............................................2-7

2.6 Configuring The TRMM-4 Using LM ............................................2-8

2.6.1 Establishing The Terminal Connection............................2-8

2.6.2 Assigning A Host IP Address ..........................................2-9

2.7 Choosing A Hub Configuration ..................................................2-10

2.7.1 Auto Configuration.........................................................2-10

2.7.2 Collapsed Backbone Configuration...............................2-11

2.7.3 Split Hub Configuration .................................................2-12

2.8 Connecting A UPS.....................................................................2-13

2.9 Power-On Diagnostics ...............................................................2-13

CHAPTER 3 MONITORING AND TROUBLESHOOTING

3.1 LANVIEW LEDS ..........................................................................3-1

3.1.1 CPU - Central Processor Unit .........................................3-3

3.1.2 LWRP - Left Wrap...........................................................3-3

3.1.3 16 Mb - Ring Speed 16 Mbps..........................................3-4

3.1.4 XMT - Transmit................................................................3-4

3.1.5 RCV - Receive.................................................................3-4

3.1.6 NSRT - Insert ..................................................................3-4

3.2 Troubleshooting The Network......................................................3-4

3.2.1 Failure To Access Local Management............................3-5

3.2.2 No Response To Remote Management..........................3-5

3.2.3 Failure To Manage Rings................................................3-6

3.2.4 Checking The Hub...........................................................3-6

3.2.5 Checking The Entire Network..........................................3-7

vi

CONTENTS

APPENDIX A INTRODUCTION TO MULTIPLE-RING MMAC

FUNCTIONALITY

A.1 Why Use Multiple Rings? ............................................................A-1

A.2 The Flexible Network Bus (FNB).................................................A-1

A.2.1 New Terminology ............................................................A-1

A.3 Comparing Port Switching And Single Ring MIMs ......................A-2

A.3.1 Single Ring Versus Port Assignment Management

Modules...........................................................................A-4

A.3.2 Mixing Single Ring And Port Switching MIMs .................A-4

A.4 Available Rings............................................................................A-4

A.4.1 FNB Rings.......................................................................A-4

A.4.2 Auxiliary Rings ................................................................A-5

A.4.3 Bypassed Rings ..............................................................A-5

A.5 A Sample Configuration...............................................................A-5

APPENDIX B BEACONING PROTECTION AND RECOVERY

APPENDIX C SPECIFICATIONS AND SETUP REQUIREMENTS

C.1 TRMM-4 Specifications ...............................................................C-1

C.2 LM Console Setup Requirements................................................C-1

C.3 COM Port Pinouts........................................................................C-2

C.4 Environmental Requirements......................................................C-5

C.5 Regulatory Compliance...............................................................C-5

C.6 Year 2000 Compliance................................................................C-6

APPENDIX D SUPPORTED MIB GROUPS

INDEX

vii

CONTENTS

viii

PREFACE

Welcome to the

Guide

. This manual describes the TRMM-4 Management Module

TRMM-4 Token Ring Management Module User’s

capabilities and features, operating specifications and configuration,
installation, and troubleshooting procedures. Users of the TRMM-4
should have a basic working knowledge of the IEEE 802.5 standard for
Token Ring networks and Token Ring network physical components.

DOCUMENT CONVENTIONS

The following conventions are used throughout this document:

Bold Italics

other

publications.

NOTE

are used for references to Cabletron Systems documents and

Note

calls your attention to information of special importance.

TIP

!

CAUTION

Tip

gives you a helpful hint concerning procedures and actions.

Caution

avoid damaging software, configuration settings, or equipment.

Hazard

equipment damage or personal injury because of dangers
associated with electrical shock.

calls your attention to information you should heed to

calls your attention to an action that could result in

ix

PREFACE

USING THIS MANUAL

Prior to installing and operating the TRMM-4, read through this manual
completely. If you are not familiar with port switching and four-ring
Flexible Network Bus (FNB) applications, read Appendix A.

The manual is organized as follows:
The Quick Reference Card at the front of this book provides visual aids

particularly useful to the installer.
Chapter 1,

Introduction

, describes the features and capabilities of the

TRMM-4.
Chapter 2,

Installation

, contains instructions for installing the TRMM-4
into a Multi Media Access Center (MMA C) and configuring the TRMM-4
for operation.

Chapter 3,

Monitoring And T roubleshooting

, provides instructions for
using LANVIEW LEDs. It also describes procedures to be performed if
problems emerge after the installation of the TRMM-4.

Appendix A,

Introduction To Multiple-Ring MMAC Functionality

,
discusses the concepts of port switching, differences between switching
and single ring MIMs, and presents a sample configuration.

Appendix B,

Beaconing Protection And Recovery

, describes Cabletron

Systems Automatic Beacon Recovery Process (ABRP).
Appendix C,

Specifications And Setup Requirements

, lists the
specifications of the TRMM-4, the requirements for terminal equipment
attached to the TRMM-4, and details pinout specifications for ports and
cables.

Appendix D,

Supported MIB Groups

Bases and their respective functionality supported by the TRMM-4.

x

, lists Management Information

PREFACE

RELATED MANUALS AND RECOMMENDED READING

The Cabletron Systems manuals listed below should be used to
supplement procedures and other technical data provided in this manual.
Procedures in related manuals are referenced where appropriate, but are
not repeated.

TRMM-4 Local Management User’s Guide
Multi-Media Access Center Overview and Set Up Guide

The following publications are recommended as references about the
implementation of Token Ring networks:

Local Area Networks, Token Ring Access Method
LAN Troubleshooting Handbook

, Mark Miller (1989, M&T

, IEEE 802.5

Publishing, Inc.)

Token Ring Technology Guide

, Cabletron Systems

The manuals referenced above can be obtained from the World W ide Web
in Adobe Acrobat Portable Document Format (PDF) at the following site:

http://www.cabletron.com/manuals

These manuals are also available on the Cabletron Systems Hardware
Manuals CD-ROM.

GETTING HELP

If you need additional support related to this device, or if you have any
questions, comments, or suggestions concerning this manual, contact the
Cabletron Systems Global Call Center:

Phone [phone]
Internet mail [e-mail]
FTP ctron.com (134.141.197.25)

Login
Password

BBS [phone]

Modem setting 8N1: 8 data bits, No parity, 1 stop bit

For additional information about Cabletron Systems or our products,
visit our World Wide Web site:
For technical support, select

anonymous
your email address

http://www.cabletron.com/

Service and Support

.

xi

PREFACE

Before calling the Cabletron Systems Global Call Center, have the
following information ready:

•

Your Cabletron Systems service contract number

•

A description of the failure

•

A description of any action(s) already taken to resolve the problem
(e.g., changing mode switches, rebooting the unit, etc.)

•

The serial and revision numbers of all involved Cabletron Systems
products in the network

•

A description of your network environment (layout, cable type, etc.)

•

Network load and frame size at the time of trouble (if known)

•

The device history (i.e., have you returned the device before, is this a
recurring problem, etc.)

•

Any previous Return Material Authorization (RMA) numbers

xii

CHAPTER 1

INTRODUCTION

The TRMM-4 Management Module (see Figure 1-1) can manage four
Token Rings simultaneously and control all Token Ring MIMs within a
Multi Media Access Center (MMAC). Also, it can assign ports to
different rings on port switching MIMs. The TRMM-4 is 802.5 and IBM
compliant.

TRMM-4

SN

RESET

R

R

I

I

N

N

G

G

1

2

R

R

I

I

N

N

G

G

3

4

C
O

M
1

C
O

M
2

Figure 1-1 TRMM-4 Management Module

TOKEN RING

1-1

INTRODUCTION

1.1 TRMM-4 FUNCTIONAL OVERVIEW

The TRMM-4 offers the follo wing features for the monitoring and control
of Token Ring LANs:

• Complete compatibility with all Token Ring MIMs.

• Ability to assign ports to different rings on port switching MIMs.

• Full RMON statistical/error network monitoring to track network

performance.

• Ability to act as a Distributed LAN Monitor (DLM) to reduce the

bandwidth needed for network management.

• Cabletron Systems Automatic Beacon Recovery Process (ABRP)

which enables networks to quickly recover from beaconing conditions
automatically .

• Ring Security options that allow you to regulate access to your

networks.

• SNMP compliance.

• Auto-configuration options (at initial power-on or after clearing

NVRAM) that allow you to automatically configure a collapsed
backbone or two independent Token Rings.

• A power-on Learn Mode that determines and maintains the

configuration of any port switching MIMs in the hub.

• Runtime IP address discovery that broadcasts BootP requests to obtain

an IP address if one is not assigned to Interface 1.

• Ring Poll Failure Recov ery that allo ws the TRMM-4 to automatically

remove stations that are causing ring poll failures.

1.1.1 Port Assignment

The TRMM-4 can individually assign ports to different rings on port
switching MIMs (e.g., TDRMIM and TRXMIM). This allows users to
insert into one of six different rings.

1-2

INTRODUCTION

1.1.2 Ring Poll Failure Recovery

The Cabletron Systems Ring Poll Failure Recovery Process automatically
removes any station that fails to correctly participate in the ring poll
process. This feature ensures that other stations are not prevented from
inserting into the ring by an unresolved ring poll failure condition caused
by a malfunctioning station on the ring. Upon detecting the presence of
Neighbor Notification Incomplete (NNI) frames on the ring, the TRMM-4
learns the identity of the offending station and transmits a Remove MAC
frame to the station to remove it from the ring.

The TRMM-4 transmits a trap (if traps are enabled) to the Network
Management Station (NMS) notifying the NMS that it was either able or
not able to correct the ring poll failure condition. If the recovery process
corrects the ring poll failure condition, the trap notifies the NMS that the
condition was corrected and specifies the offending station’s MAC
address and the port on the hub to which the offending station was
connected.

If the offending station cannot be definitively removed from the ring by
the recovery process (that is, if the offending station repeatedly attempts
to re-insert before the recovery process has concluded), a trap notifies the
NMS that the condition was not corrected and also identifies the last
station to correctly participate in the ring poll process. This information
helps network-management personnel to pinpoint the offending station,
which may need to be physically disconnected from the lobe port to
resolve the problem.

1.1.3 Network Management

The TRMM-4 allows you to monitor, configure, and manage networks
using:

• Out-of-band Local Management (LM) application

• A variety of in-band SNMP network management softw are, including

the Cabletron Systems SPECTRUM family.

1-3

INTRODUCTION

1.1.4 Dividing Stations Among Rings

The TRMM-4 is a port assigning management module. As described in
Appendix A, it provides the support needed by port switching MIMs to
execute port switching. This feature enables you to segment and manage
multiple Token Rings in the MMAC. Figure 1-2 shows an example of
how the TRMM-4 can assign the 12 ports of a TDRMIM to the FNB
rings.

In configuration A, Ports 1–3 are assigned to FNB Ring 1, Ports 4–6 are
assigned to FNB Ring 2, Ports 7–9 are assigned to FNB Ring 3, and Ports
10–12 are assigned to FNB Ring 4.

1

7

FNB Ring 1

3

FNB Ring 3

9

2

8

Configuration A
(Ports assigned

DR

SN

RING 1

16 Mb
16 Mb

RING 2

16 Mb

RING 3

16 Mb

RING 4

16 Mb

AUX 1

16 Mb

AUX 2

1
X

LINK PEN

2

R

X

I
N

3

G

X

P
O

LINK PEN

4

R

X

T
S

5

X

1

6

X

7
X

LINK PEN

8

R

X

I
N
G

9
X

P
O

10

LINK PEN

R

X

T
S

11

1

X

12
X

SWITCHING UTP/STP

TOKEN RING

BYP MGMT

RI

RO

RI

RO

10

FNB Ring 2

6

FNB Ring 4

22

ERR

IN USE
IN USE
IN USE
IN USE
IN USE
IN USE

TX

RX

TX

RX

TX

RX

TX

RX

4

12

5

11

to all FNB rings)

Figure 1-2 Sample Port/Station Assignments To The FNB Rings

(Configuration A)

In Figure 1-3 (configuration B), Port 2 is assigned from FNB Ring 1 to
FNB Ring 3, and Port 9 is assigned from FNB Ring 3 to FNB Ring 1.

1-4

INTRODUCTION

1

FNB Ring 1

3

7

FNB Ring 3

2

9

DR

SN

RING 1
RING 2
RING 3
RING 4
AUX 1
AUX 2

1
X

2
X

3
X

4
X

5
X

6
X

7
X

8
X

9
X

10

X

11

X

12

X

SWITCHING UTP/STP

TOKEN RING

8

Configuration B
(Port 2 assigned to

R
I
N
G

P
O
R
T
S

1

R
I
N
G

P
O
R
T
S

1

BYP MGMT
16 Mb
16 Mb
16 Mb
16 Mb
16 Mb
16 Mb

LINK PEN

RI

LINK PEN

RO

LINK PEN

RI

LINK PEN

RO

22

ERR

IN USE
IN USE
IN USE
IN USE
IN USE
IN USE

TX

RX

TX

RX

TX

RX

TX

RX

4

FNB Ring 2

6

10

FNB Ring 4

12

FNB Ring 3, Port 9
assigned to FNB Ring 1)

Figure 1-3 Sample Port/Station Assignments To The FNB Rings

(Configuration B)

5

11

Refer also to the TRMM-4 Local Management User’s Guide for details
on the execution of port assignment within an MMAC through the Local
Management application.

1.1.5 Segmenting The FNB For Additional Rings

FNB segmentation or “ring-wrapping” is another means of creating
additional Token Rings in the MMAC. In the MMAC, each Token Ring
MIM connects to adjacent MIMs, forming continuous FNB rings
extending from the first module in the hub to the last.

You can wrap the FNB interfaces of a single ring MIM
(e.g., the TRMIM-24A), breaking the backplane and segmenting the
FNB. For example, the FNB shown in Figure 1-4 has been segmented
between the MMAC’s Slots 5 and 6. The resulting segmented portions of
the FNB remain fully functional, but they do not communicate with each
other. Thus, you can increase the number of Token Ring LANs operating
in the MMAC by segmenting the FNB.

1-5

INTRODUCTION

All single ring MIMs can wrap their connection (on either side) to the
FNB which makes it possible to segment the FNB; port switching MIMs
(e.g., the TRXMIM) do not. See the TRMM-4 Local Management User’s
Guide for details and procedures.

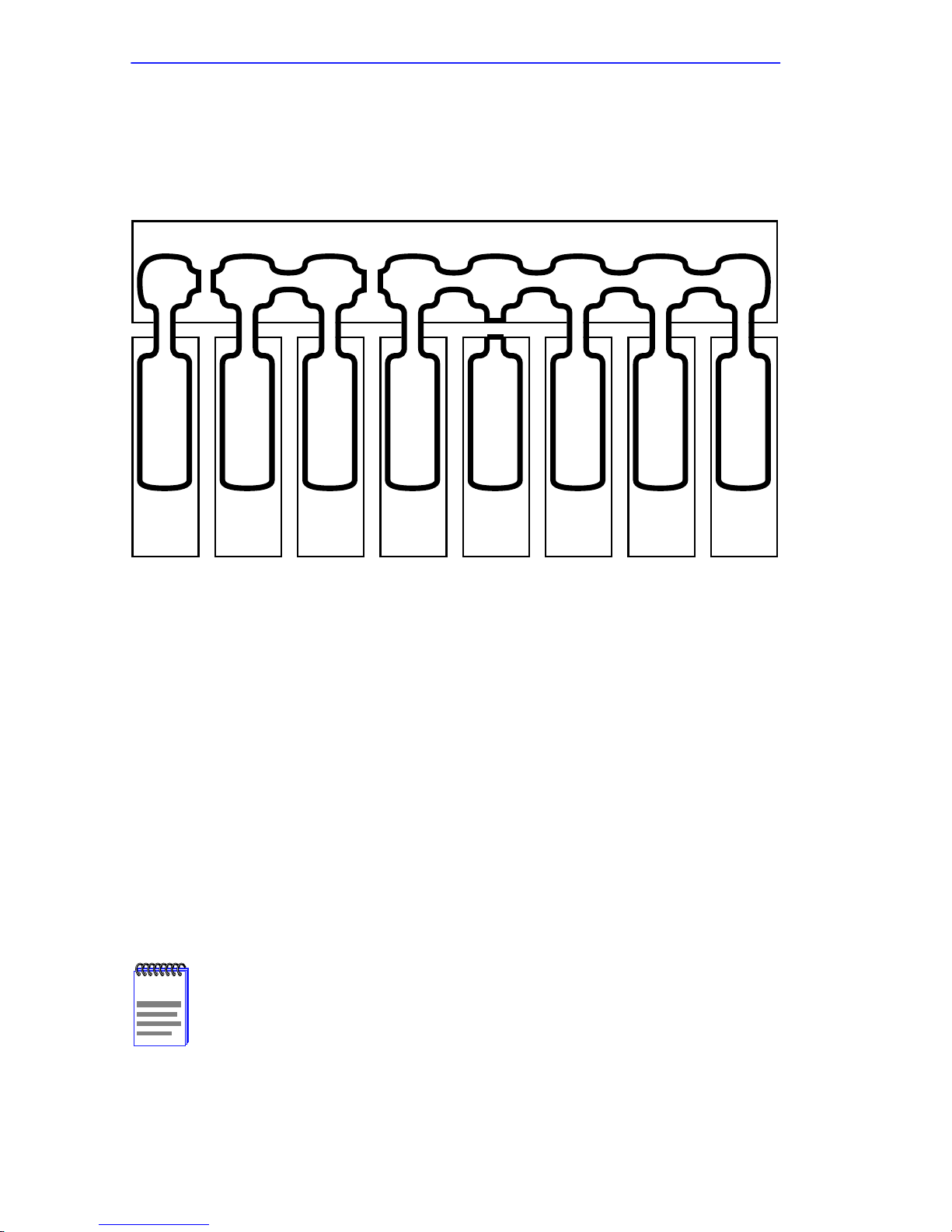

FNB

Token Ring LAN

Board 8

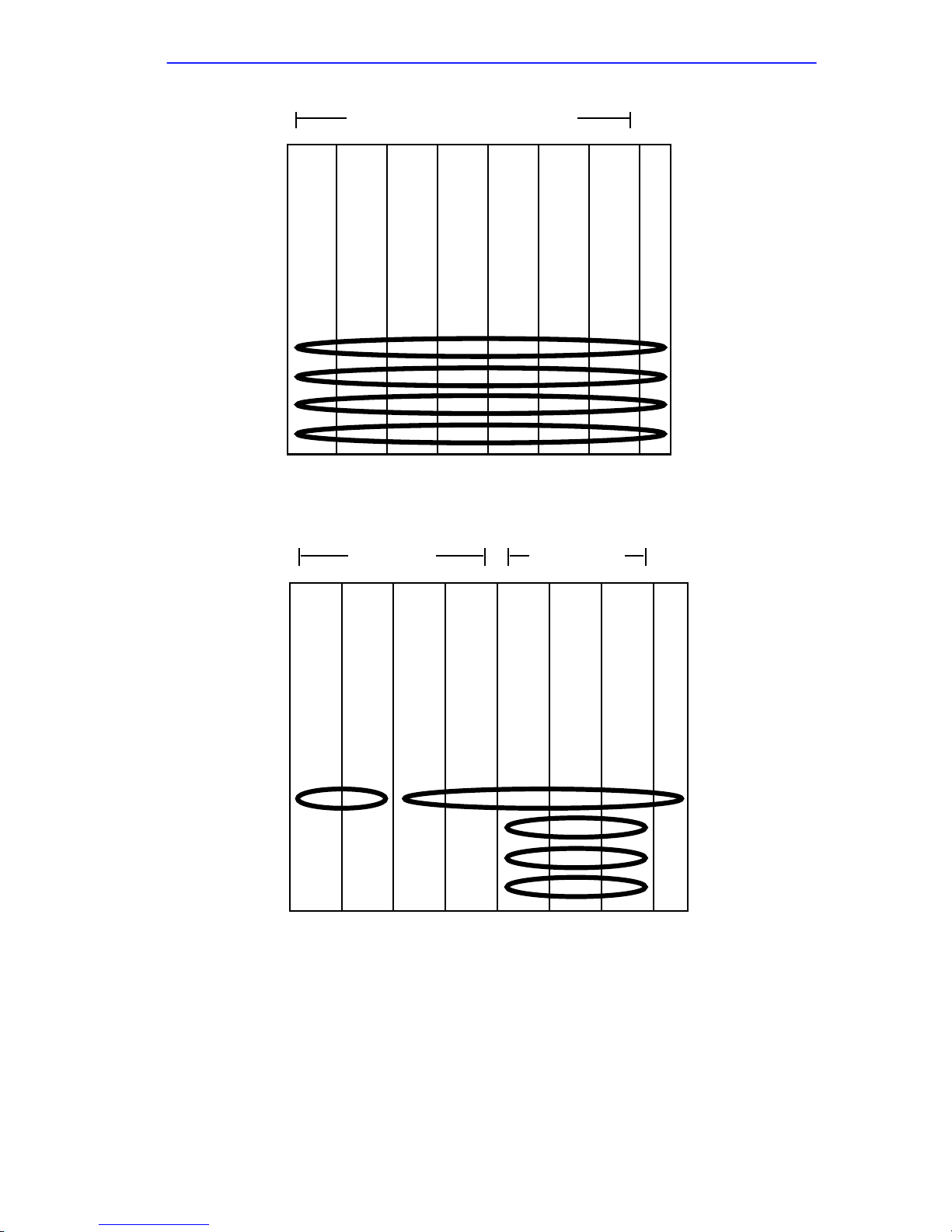

Figure 1-4 Bird’s-Eye Model Of FNB Segmenting And Bypassing

Token Ring LAN

Board 7

Token Ring LAN

Board 6

Token Ring LAN

Board 5

Token Ring LAN

Board 4

Token Ring LAN

Board 3

Token Ring LAN

Board 2

Token Ring LAN

<---|<---><---><-B->|---><---||---| |--->

Board 1

1.1.6 Module Bypassing, Ring Bypassing, And Port
Disabling

This section describes the concepts and results of Module Bypassing,
Ring Bypassing, and Port Disabling.

Module Bypassing

The TRMM-4 allows you to create more isolated LANs by deliberately
bypassing a MIM’s ring connection from the FNB. For example, in the
configuration represented in Figure 1-4, the MIM in Slot 4 is bypassed
from the FNB.

Having a MIM in module bypass mode does not necessarily

NOTE

mean that the MIM is devoid of network activity. Even if all ring
channels are bypassed from the backplane, the MIM may host
active LANs internally.

1-6

INTRODUCTION

Ring Bypassing

With port switching MIMs (e.g., the TRXMIM), bypassing may also be
performed on a per ring basis. For example, a MIM’s Ring 3 channel may
be bypassed (i.e., isolated) from the FNB while the MIM’s Ring 1,
Ring 2, and Ring 4 channels remain connected to their respective FNB
channels. This is called a ring bypass. If all channels are bypassed from
the FNB the module is effectively in full module bypass.

Port Disabling

You can disable any port on any MIM in the MMAC, thus preventing any
device from using that port.

1.1.7 Network Interfaces

The TRMM-4 has four dedicated network interfaces, one for each
FNB ring. The TRMM-4 participates in all four interfaced networks
simultaneously, while still acting as a single network management agent
with a single IP address. Each interfaced network receives individual
management attention.

1.1.8 Ring Speed Assignments

The TRMM-4 assigns FNB ring speed settings (4 Mbps or 16 Mbps).
This sets the interface between MIMs and FNB rings. See Section 2.3 for
details about the interaction of MIMs and the TRMM-4.

1.1.9 Automatic Configuration At Power-Up

The TRMM-4 stores operational parameters in its Non-Volatile RAM
(NVRAM). Whenever the TRMM-4 is powered-up or reset, it compares
the MIMs currently in the hub with those last registered. All MIMs
recognized throughout the hub are placed in management mode and
reconfigured according to settings stored in the NVRAM. Thus,
configuration settings stored before power-down are reinstated at the next
power-up.

Any MIM that is not recognized at power-up is allowed to operate in the
configuration dictated by its own hardware settings. The TRMM-4
observes the MIM’s configuration settings and stores them in NVRAM.

1-7

INTRODUCTION

1.1.10 RMON Functionality

The TRMM-4 performs RMON (Remote Monitoring MIB) statistical
monitoring on all interfaced LANs. See Appendix D, for a listing of
supported MIBs.

1.1.11 SNMP Traps

The TRMM-4 operates as a Ring Error Monitor (REM), collecting data
on the network, monitoring performance conditions, and noting station
access to the Token Rings. Using the Local Management application, you
can configure the TRMM-4 to issue SNMP traps to selected network
management stations to provide information about the network.

1.1.12 Ring Security

Ring Security is a feature that enables network managers to monitor and
restrict station access to Token Rings through an editable “allowed list”
which registers the MAC address of each station “allowed” on the ring.
See the TRMM-4 Local Management User’s Guide for details and
procedures.

1.1.13 Automatic Beacon Recovery Process (ABRP)

The TRMM-4’s Automatic Beacon Recovery Process (ABRP) actively
guards against network interruptions due to beaconing. When beaconing
is detected, ABRP isolates the problematic portion of the network from
the ring, enabling the network to recover without user intervention and
preventing beaconing conditions from halting network operations. See
Appendix B for more information on ABRP and the network problems it
addresses.

1.1.14 Access To MIB Libraries

Among the tools provided by the TRMM-4 Local Management is a MIB
Navigator. This tool allows you to browse through and access the library
of MIBs (Management Information Bases) available with the TRMM-4.
A list of supported MIB groups is provided in Appendix D. See the
TRMM-4 Local Management User’s Guide for further detail on the use
of the MIB Navigator tool.

1-8

INTRODUCTION

1.1.15 TFTP Download Of Flash Image

The firmware in the TRMM-4, sometimes referred to as the flash image,
is the module’ s operating system file. Using the Local Management Flash
Download screen, this file may be replaced or upgraded; a new image
may be downloaded by TFTP (Trivial File Transfer Protocol) from a
TFTP server into the on-board memory of the TRMM-4.

1.1.16 UPS Monitoring

The TRMM-4 can monitor an Uninterruptible Power Supply (UPS). The
devices are connected via a special cable from the TRMM-4 COM port to
the UPS. See the TRMM-4 Local Management User’s Guide for details
about configuring the COM ports to support UPS monitoring.

1.2 USER ACCESS TO MANAGEMENT CONTROLS

The TRMM-4 supports multiple simultaneous communications sessions.
By connecting to properly configured COM ports, you can gain
out-of-band access to management controls using any machine configured
to emulate a Digital Equipment Corporation VT100 series terminal.

The TRMM-4 also supports in-band Telnet access to the management
agent through its FNB interfaces. This provides remote in-band access to
the Local Management application and allows you to exercise
management control through a variety of in-band remote network
management software packages including Cabletron Systems
SPECTRUM family.

The TRMM-4 Local Management User’s Guide provides all necessary
procedures for accessing the Local Management application.

1.2.1 COM Ports

There are two RJ45 connector COM (Communications) ports on the front
panel that provide local out-of-band EIA RS232C connections to the
TRMM-4. Using Local Management, you can select from two COM port
applications: LM and UPS. Also, both COM ports can support a modem
connection.

1-9

INTRODUCTION

LM

When configured for LM (default configuration), COM ports provide
access directly to the Local Management application for any actual or
emulated DEC VT100 terminal configured according to Appendix C.
Each COM port automatically detects the baud rate of the connecting
terminal and self-configures accordingly, when the user sends a keyboard
character.

Although either port will support the Local Management

NOTE

UPS

connection, start-up diagnostic information regarding BOOTP
and network interface initialization is available only on COM 2.

The UPS COM port configuration supports a monitoring connection for
an Uninterruptible Power Supply (UPS). After using a DB9-to-RJ45 cable
to connect the UPS and the TRMM-4, a MIB tool can be used to get
specific information about the state of the UPS.

1.2.2 Telnet

After the TRMM-4 is given an IP address, as described in Section 2.6.2,
you can access the Local Management application directly via a Telnet
session from any of the four interfaced networks.

1.2.3 Remote Network Management Applications

All Cabletron Systems Token Ring management modules are SNMP
compliant. Thus, communication with the TRMM-4 can be established
through any SNMP network management software package, including
Cabletron Systems SPECTRUM family. The TRMM-4 serves as the
in-band SNMP management agent for all four interfaced networks.

1-10

INTRODUCTION

1.3 FRONT PANEL FEATURES

The front panel contains LANVIEW LEDs and a reset button.

1.3.1 LANVIEW LEDs

The LANVIEW LED system comprises several LEDs, located on the
front panel of the TRMM-4. Operating as a visual diagnostic and status
monitoring system, the LEDs light, blink, and flash in various colors to
indicate different network and module-specific conditions, thereby
facilitating the quick diagnosis of physical layer network problems. The
system is discussed in detail in Section 3.1.

1.3.2 Reset Button

The reset button causes the TRMM-4 to reboot when pressed. See

Section 2.5, for a detailed description of the Reset procedure.

1-11

INTRODUCTION

1-12

CHAPTER 2

INSTALLATION

This chapter discusses the following topics:

• Unpacking the TRMM-4

• Setting switches and jumpers on the TRMM-4

• Management module overrides

• Installing the TRMM-4 into an MMAC

• Resetting the TRMM-4

• Configuring the TRMM-4 using the Local Management application

• Choosing a hub configuration

• Connecting a UPS so it can be monitored by the TRMM-4

2.1 UNPACKING AND HANDLING THE TRMM-4

Electrostatic Discharge (ESD) can damage the TRMM-4. To

!

CAUTION

To unpack the TRMM-4:

1. Carefully remove the module and other items from the shipment.

You should have the following items:

• TRMM-4 module

• Disposable grounding wrist strap

• RS232 console cable kit, which includes an RJ45-to-DB9 PC

prevent ESD damage when handling the module:

• Wear the grounding wrist strap.

• Hold only the edges of the board or the metal front panel.

• Avoid touching the components or the surface of the board.

adaptor and a straight-through cable with RJ45 plugs

• TRMM-4 Management Module User’s Guide

2-1

INSTALLATION

Save the box and packaging materials for possible future repackaging
and shipment.

2. Put on the grounding wrist strap. Remove the TRMM-4 from the

protective bag and place it on top of the bag in a dry, static-free,
dust-free area.

3. Inspect the contents for any signs of damage.

Notify Cabletron Systems Global Call Center (see Preface) if you
detect any damaged or missing parts.

2.2 SETTING SWITCHES AND JUMPERS

See Figure 2-1 when setting switches. Only reposition the

NOTE

documented switches. All other switches are set at the factory.
Note their positions for future reference.

Switchblock 1 (SW1)

FNB Ring 1

FNB Ring 3

Unused

on

SW1

FNB Ring 2

Forced
Network Download

FNB Ring 4

NVRAM
Clear

Reset
Passwords

Figure 2-1 TRMM-4 Switches On Switchblock 1

2-2

INSTALLATION

Switchblock 1 (SW1), shown in Figure 2-1, contains switches that:

• Set the speed of FNB rings

• Clear NVRAM

• Clear SNMP Community Names Passwords

• Initiate a forced network download

2.2.1 Setting FNB Ring Speeds

Switches 1, 2, 3, and 4 set the ring speeds for the FNB Rings
(see Table 2-1). These settings may override hardware speed settings on
port switching MIMs. (See Section 2.3 for complete details about
management module overrides.) The switches do not override the ring
speed setting for single ring MIMs.

Table 2-1 Setting FNB Ring Speeds

FNB Ring

Ring 1 1

Ring 2 2

Ring 3 3

Ring 4 4

Switch
Number

Switch Position/Ring Speed

On – 16 Mbps

Off – 4 Mbps

On – 16 Mbps

Off – 4 Mbps

On – 16 Mbps

Off – 4 Mbps

On – 16 Mbps

Off – 4 Mbps
Note: Default settings in bold.

2.2.2 Forced Network Download

Any repositioning of Switch 6 will cause the TRMM-4 to initiate a BootP
server forced network download. If no BootP server responds, the
TRMM-4 will continue to send BootP requests until it is reset. Upon
reset, it will send BootP requests (less than eleven times). If no BootP
server responds, the TRMM-4 will resume normal operation booting from
Flash memory instead.

2-3

INSTALLATION

2.2.3 Clearing NVRAM

The hub’s configuration is stored in the NVRAM of the management
module. To clear NVRAM and erases the configuration of the hub (except
for the System Time and System Date), move Switch 7 to the opposite
position. This is a toggle switch therefore ON/OFF are irrelevant.

2.2.4 Resetting Passwords To Defaults

Switch 8 is a toggle switch. By changing the current position of Switch 8,
all user-set SNMP Community Names (passwords) are cleared and
returned to factory defaults. (See the TRMM-4 Local Management
User’s Guide for an explanation of SNMP Community Names.)

2.3 MANAGEMENT MODULE OVERRIDES

The TRMM-4 treats the configuration setting of single ring MIMs
differently than port switching MIMs.

2.3.1 Single Ring MIMs

The TRMM-4 does not override the settings of single ring MIMs. The
TRMM-4 reads the configuration settings of the jumpers/switches on
single ring MIMs and implements them.

2.3.2 Port Switching MIMs

Although port switching MIMs have switches and jumpers to set their
configuration, the TRMM-4 controls the speed of the FNB rings and the
assignment of ports to different rings. This may cause conflicts that result
in the overriding of a MIM’s configuration or bypassing a MIM ring from
the FNB.

At boot-up a non-configured TRMM-4 detects the slot and configuration
of each Token Ring MIM in the hub. It remembers this information by
saving it to NVRAM. Thus, once the TRMM-4 stores the configuration of
a port switching MIM:

• Any subsequent changes to the MIM’s switches and jumpers will be

overridden.

• MIM rings set to a different speed than FNB rings (at power-on) are

bypassed from the FNB.

2-4

INSTALLATION

Any later attempt to use the switches and jumper of a MIM to set its
configuration will be overridden until the management module’s
NVRAM is cleared or a different type of MIM is installed.

2.4 INSTALLING THE TRMM-4

Only qualified personnel should perform installation
procedures.

The following guidelines are helpful in configuring the system at
installation:

• The TRMM-4 must be installed into Slot 1. It is the right-most slot in

the MMAC-M8FNB and MMAC-M5FNB, or the lowest slot in the
MMAC-M3FNB (see Figure 2-2).

Slot For TRMM-4

MIM Slots MIM Slots

Slot For TRMM-4

MIM Slots

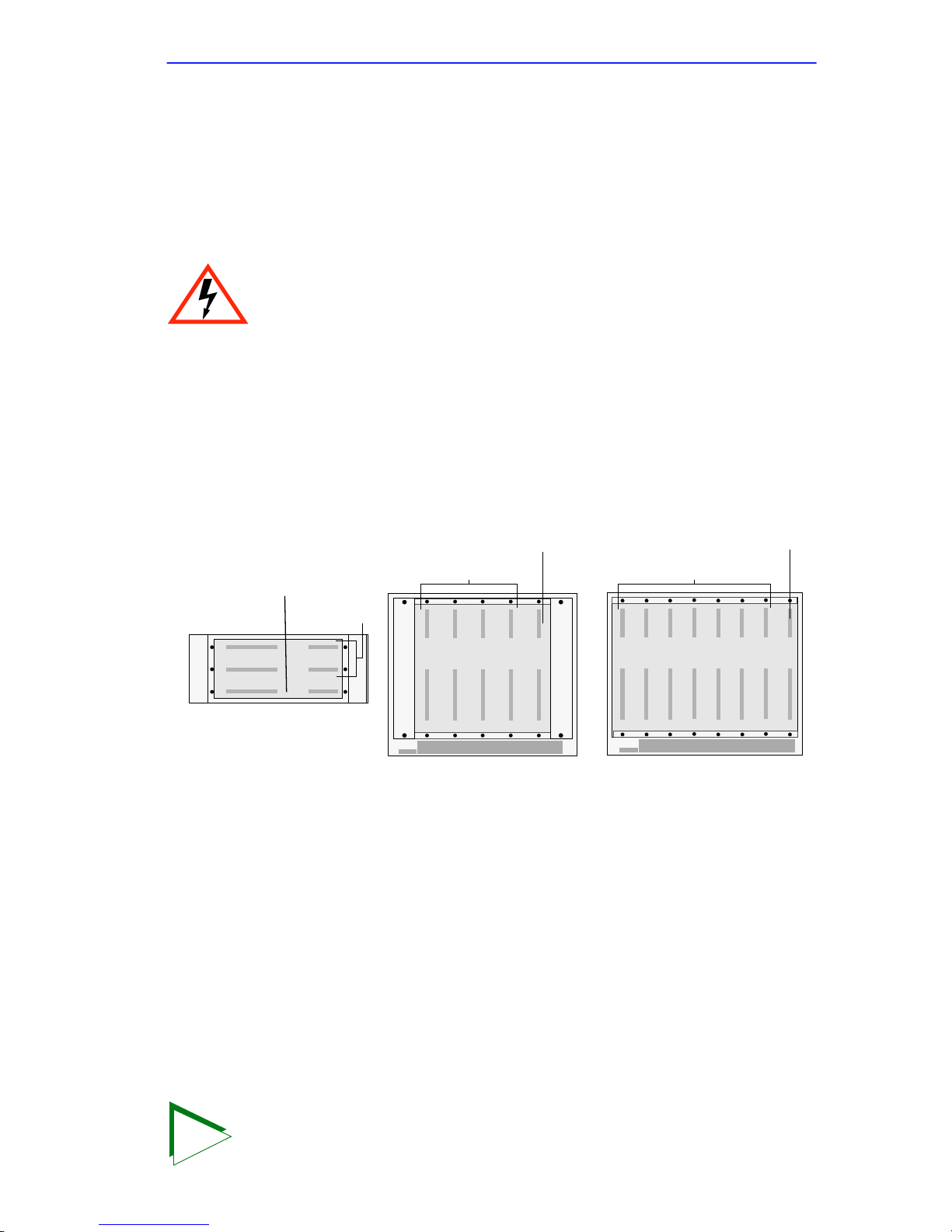

MMAC-M3FNB/-3FNB

Figure 2-2 Slot Location For TRMM-4 In An MMAC

Slot For TRMM-4

MMAC-M8FNB/-8FNBMMAC-M5FNB/-5FNB

• Ensure that the MMAC has the proper type and number of power

supplies to support the configuration. Call the Cabletron Systems
Global Call Center to determine the exact power requirement for your
configuration.

Multiple Token Ring MIMs, within an MMAC, are automatically linked
at power on, provided that the MMAC has a Flexible Network Bus
(FNB). Without an FNB, the individual MIMs will not be linked, but
rather will form independent Token Ring networks.

It is recommended that you perform the initial installation with

TIP

the MMAC not powered on.

2-5

INSTALLATION

Put on the anti-static wrist strap included in the shipment and install the
TRMM-4 into the MMAC as follows:

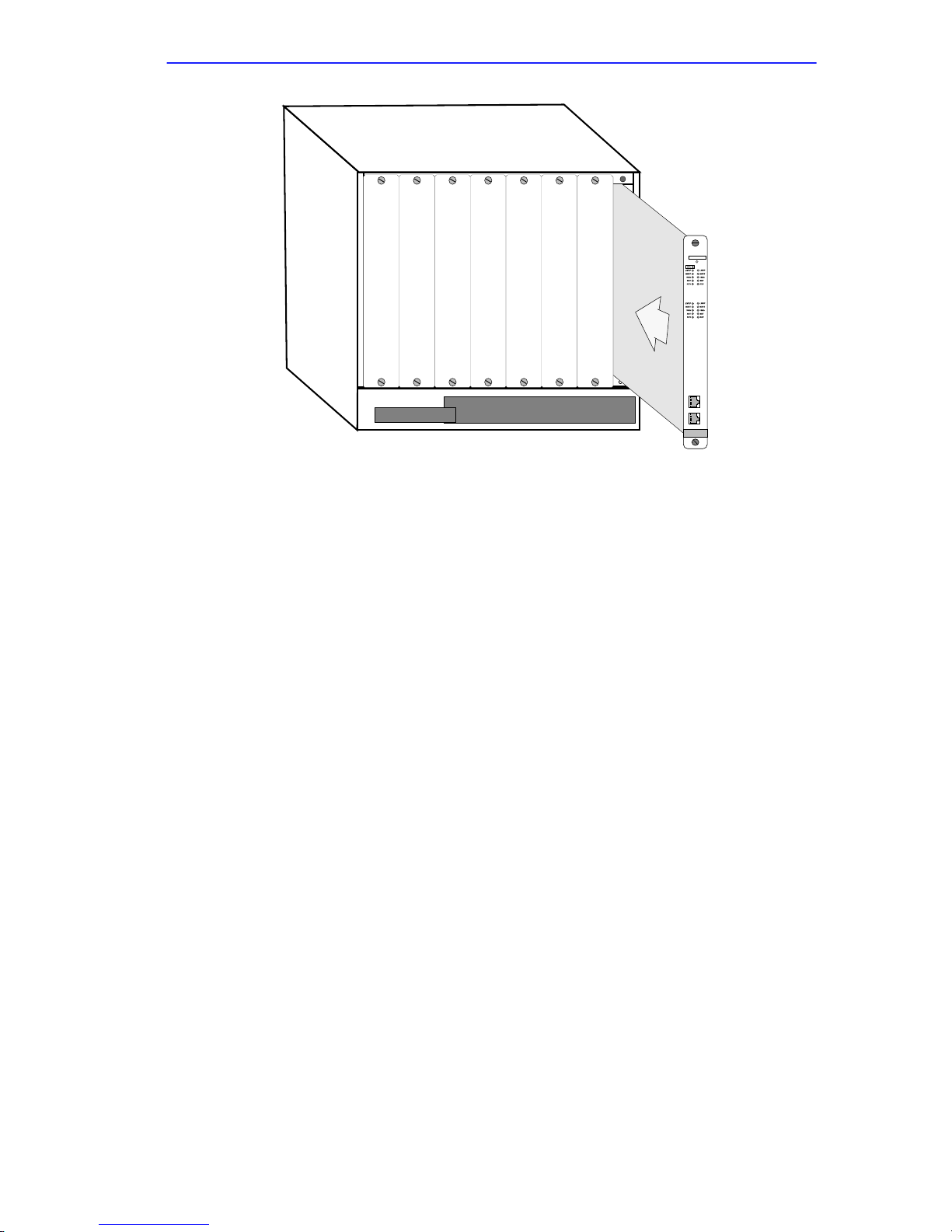

1. Remove the blank protective panel from the Slot 1 (see Figure 2-3).

Figure 2-3 Removing The Protective Panel Of Slot 1

2. Slide the TRMM-4 into the MMAC chassis (see Figure 2-4). Be sure

that the module is in the slot guides at the top and bottom of the
chassis.

When performed correctly, you should be able to feel the management
and FNB interface connectors on the TRMM-4 insert smoothly and
snugly into their respective connectors on the MMAC backplane. The
front panel of the TRMM-4 should align with the front panels of other
installed modules.

Never use more than the minimal amount of physical force

!

CAUTION

necessary to insert the TRMM-4 into the MMA C . If you feel any
resistance while inserting, STOP! Remove the module and
inspect the slot and the TRMM-4 for obstructions or structural
irregularities. If you detect damaged components, call
Cabletron Systems Global Call Center for assistance.

2-6

INSTALLATION

TRMM-4

SN

RESET

TOKEN RING

Figure 2-4 Inserting The TRMM-4 Into The MMAC

R

R

I

I

N

N

G

G

1

2

R

R

I

I

N

N

G

G

3

4

C
O
M

1

C
O
M

2

3. Secure the TRMM-4 to the MMAC by tightening the knobs on the

TRMM-4.
Failure to tighten down the knobs may result in a faulty connection to

the MMAC backplane.
TRMM-4 LEDs light in accordance with the existing configuration.

2.5 RESETTING THE MANAGEMENT MODULE

The TRMM-4 has a Reset button that is accessible through a small hole in
its front panel (see Figure 2-5). Pressing Reset causes the module to
simulate a power OFF/ON cycle. Resetting the TRMM-4 will not effect
the operation of other MIMs in the hub.

To reset the TRMM-4, press the Reset button with a non-conductive,
pointed instrument that can be inserted through the access hole. When the
button is released, the module begins its boot sequence and self-tests.
Upon successful completion of the boot-up procedure, the CPU LED
should return to blinking GREEN. If the CPU LED fails to return to
blinking GREEN at the end of the boot/self-test sequence, note which
LEDs are lit and consult Section 3.1.

2-7

INSTALLATION

TRMM-4

SN

RESET

R

R

I

I

N

N

G

G

1

2

R

R

I

I

N

N

G

G

3

4

Reset button

Figure 2-5 Reset Button On Front Panel

2.6 CONFIGURING THE TRMM-4 USING LM

This section provides a quick reference for LM configurations to
complete the installation. Detailed instructions are provided in the
TRMM-4 Local Management User’s Guide.

2.6.1 Establishing The Terminal Connection

Both COM ports are factory-configured to support RS232 connections to
actual or emulated VT100 series terminals. See Appendix D, for terminal
setup specifications and COM port pinouts.

To establish the terminal connection:

1. Attach the supplied terminal cable to a COM port configured for LM

(see Figure 2-6).

2. Attach the appropriate adapters (9 or 25 pin) to the other end of the

cable and insert it into the RS-232 port on the LM terminal.

3. Ensure the TRMM-4 is powered-up. If using an emulator for the Local

Management terminal, run the emulator program.

2-8

INSTALLATION

MMAC - M8FNB

TRMM-4

SN

MGMT
ACT

RESET

ACT
ACT
ACT
ACT
ACT

R

R

I

I

N

N

G

G

1

2

2
X

4
X

R

R

I

I

N

N

6

G

G

X

3

4

8
X

10
X

12
X

14
X

16
X

18
X

C
O

20

M

X

1

22

C

X

O
M

24

2

X

TOKEN RING

SWITCHING UTP/STP

TOKEN RING

C
O

M

1

C
O

M

2

TOKEN RING

Local

Management

Local

Management

Terminal

Cable

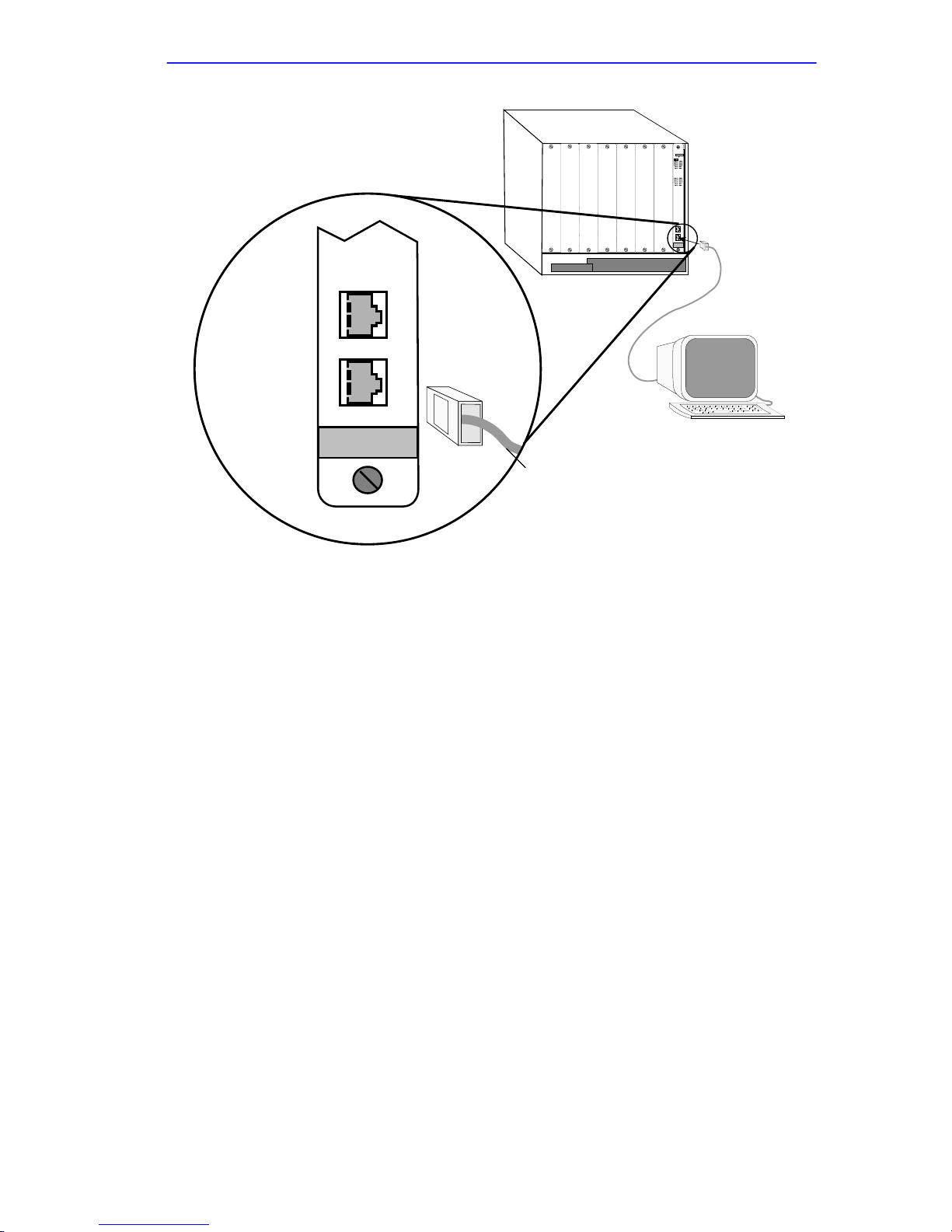

Figure 2-6 Connecting The T erminal Cable T o The TRMM-4

4. Press the Return key on the terminal to enable the COM port to

self-adjust to the baud rate. The Local Management password screen
appears.

5. Press the Return key to enter the Main Menu screen. (The default

password is no entry. If the TRMM-4 has been configured before, a
password may be required.)

6. To disconnect from Local Management, disconnect the cable (or quit

the emulator program).

2.6.2 Assigning A Host IP Address

You must assign an IP address to the SNMP Agent (management agent) in
the TRMM-4 if you want to manage the module remotely. Assign an IP
address as follows:

1. Consult the Network Administrator for an IP address.

2. Enter the MAIN MENU screen as described in Section 2.6.1.

2-9

INSTALLATION

3. Select the SETUP MENU screen.

4. Enter the SYSTEM LEVEL screen.

5. Select the Host IP address field and type the appropriate IP

address. Press the Enter key to accept the entry.

6. Select SAVE at the bottom of the screen and press the Enter key.

The TRMM-4 does a warm reboot that does not effect network traffic.

2.7 CHOOSING A HUB CONFIGURATION

When you install a new TRMM-4 or clear NVRAM on one that is
configured, the Configuration screen appears during power-on
(see Figure 2-7).

This screen allows you to configure the hub as one of the following:

• Hub, based on the settings of the MIMs’ switches and/or jumpers

(Default condition)

• Collapsed Backbone

• Split Hub

The

NOTE

The Configuration screen appears for 60 seconds. In order to
“freeze” the screen so you can make selections, press the

Spacebar on the keyboard.

2.7.1 Auto Configuration

The Auto Configuration option is the default condition. It is implemented
automatically when you install a new TRMM-4 or clear NVRAM. (See

Section 2.2.3 for details about clearing NVRAM.) Auto Configuration

will apply the MIMs’ switches and/or jumper(s) settings. To implement
this option press the Enter key or wait 60 seconds.

2-10

INSTALLATION

USER ALERT! No MMAC hub/MIM configuration information is saved in this
management module.

MULTI-RING MIMs:

---------------­ The management module will query each Multi-Ring MIM for port configuration,
with the following options:
COLLAPSED BACKBONE - Each MIM contains isolated rings.
DEFAULT - Management module will unbypass each MIM.

SINGLE-RING MIMs:

----------------­ The management module will always set port configuration defaults, with
the following options:
SPLIT HUB - The hub will be segmented into two rings starting at
a user specified slot.
COLLAPSED BACKBONE - Each MIM contains an isolated ring.
DEFAULT - Management module will connect all MIMs together to
create one ring with all ports enabled.
*******************************************************************************
Configure as a SPLIT HUB or COLLAPSED BACKBONE? y/[n]: (Secs. Remaining:54)

Figure 2-7 Configuration Screen

2.7.2 Collapsed Backbone Configuration

The Collapsed Backbone configuration isolates all MIM rings from the
FNB. An external device such as a switch or router is required for these
rings to communicate. To implement a Collapsed Backbone:

1. Install a new TRMM-4 or clear NVRAM on one that is configured

and install it.
The “Configure as SPLIT HUB or COLLAPSED BACKBONE?

y/[n]” message appears.

2. Press Y.

The “Configure a SPLIT HUB allowing two Token Rings

to exist? y/[n]” message appears.

3. Press N.

The “

Configure as COLLAPSED BACKBONE Hub? y/[n]”

message appears.

2-11

INSTALLATION

4. Press Y.

The “

All MIMs will bypass the FNB rings.
Is this correct? y/[n]” message appears.

5. Press Y.

The “

Hub Reconfiguration selected:

Configuring as Collapsed Backbone” message appears.

2.7.3 Split Hub Configuration

The Split Hub configuration allows you to segment the FNB into two
Token Rings adjacent to any single ring MIM in the hub. You cannot
segment the hub between any port switching MIMs.

To implement a Split Hub configuration:

1. Install a new TRMM-4 or clear NVRAM on one that is configured

and install it.
The “Configure as SPLIT HUB or COLLAPSED BACKBONE?

y/[n]” message appears.

2. Press Y.

The “

to exist? y/[n]” message appears.

3. Press Y.

The “

Configure a SPLIT HUB allowing two Token Rings

Enter slot number which begins second ring? 2-8”

message appears.

4. Enter the slot number. (The second ring will begin at that slot.)

If you enter a slot that contains a port switching MIM, the “

character [x]” message appears. Re-enter a correct slot.

The “

5. Press Y.

The “

Is this correct? y/[n]” message appears.

Configuring as Split Hub” message appears.

INVALID

2-12

INSTALLATION

2.8 CONNECTING A UPS

The TRMM-4 can be used to monitor a UPS. It must be connected to the
UPS using a special DB9-to-RJ45 cable assembly available from
Cabletron Sales. See Table C-5 for details about pinouts for the cable.

2.9 POWER-ON DIAGNOSTICS

During the start-up sequence, the TRMM-4 performs diagnostic hardware
testing. The progress of this testing can be monitored by connecting an
LM terminal to the COM2 Port. Some examples of the tests performed by
the TRMM-4 are:

• Memory tests

• SCC console tests

• Timer tests

• Token Ring adapter tests

2-13

INSTALLATION

2-14

CHAPTER 3

MONITORING AND TROUBLESHOOTING

This chapter describes how to verify proper configuration and operation
of the TRMM-4 using the LANVIEW LED system. It also provides a
checklist to help isolate problems typically encountered during
installation.

3.1 LANVIEW LEDS

LANVIEW LEDs are a built-in visual diagnostic system of colored LEDs
which are used for monitoring module and network status. Figure 3-1
shows the location of the LEDs. Table 3-1 lists the LEDs and their
function.

TRMM-4

SN

RESET

R

R

I

I

N

N

G

G

1

2

R

R

I

I

N

N

G

G

3

4

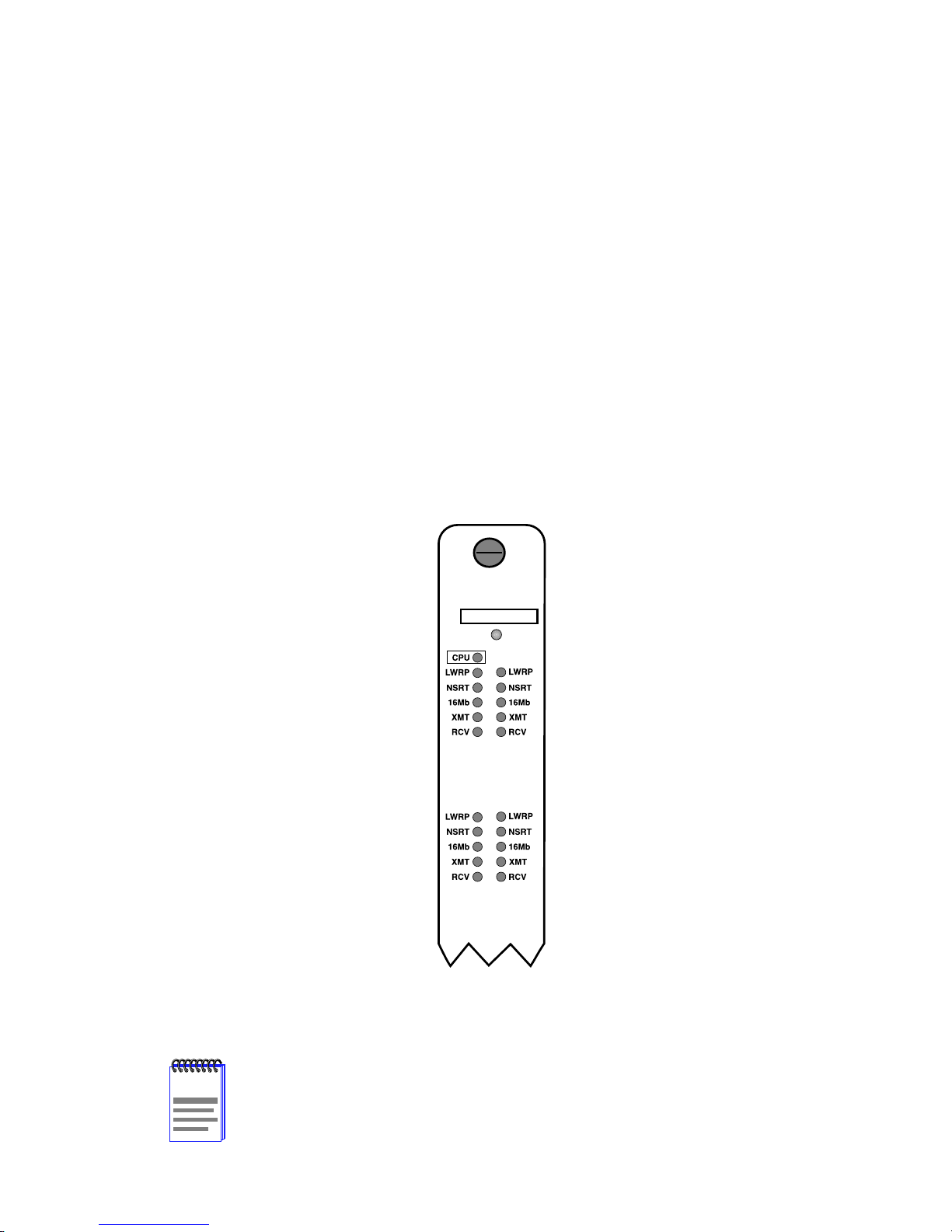

Figure 3-1 LANVIEW LEDs

A “blinking” LED cycles steadily between on and off. The

NOTE

“flashing” rate of an LED depends on the monitored factors
(e.g., data flow) and is variable. A rapidly flashing LED may
appear to be solidly lit.

3-1

MONITORING AND TROUBLESHOOTING

Table 3-1 LANVIEW LED Status Descriptions

LED Status Meaning

OFF No power to module.
GREEN Testing and booting are nearly complete.

CPU

LWRP

16 Mb

XMT

Blinking
GREEN

Operational.

RED Module is resetting or has detected an error.
Blinking RED Module has failed self-tests.
OFF The left connection is not left wrapped.

Left connection has been wrapped. FNB

AMBER

Ring 1 interface has been isolated from all

other MIMs.
AMBER Interface ring speed is set to 16 Mbps.
OFF Interface ring speed is set to 4 Mbps.
Flashing

GREEN

The TRMM-4 is transmitting data.

Blinking RED Beaconing condition on the ring.
RED Interface is disabled.

3-2

RCV

NSRT

OFF Interface is inactive.
Flashing

AMBER

Network activity.

OFF Interface is inactive.

GREEN

Interface is inserted into the ring and is

participating as a station on that ring.
OFF Interface is not inserted into any ring.

MONITORING AND TROUBLESHOOTING

3.1.1 CPU - Central Processor Unit

The CPU LED indicates the operational status of the TRMM-4’s
processor. When the module first receives power or is reset, it begins a
boot sequence and some self-tests. Booting takes several minutes, the
time depends on the number of modules in the hub and the size of the
firmware image being downloaded into the TRMM-4.

During start-up, the CPU LED indicates a variety of operational states, as
shown in Table 3-2.

Table 3-2 CPU LED Operational States

State(s) Meaning

OFF The module is not receiving power.
Briefly turns RED The module is resetting.
GREEN The module has passed its power check.

AMBER

Cycles through AMBER,
OFF, GREEN, and OFF for a
while.

If blinking RED, and stays
that way.

GREEN Testing and booting are nearly complete.

Blinking GREEN

Performing diagnostic checks.
(It will stay here for a while.)

Testing and booting period has begun.

The module has failed self-tests.

The module is fully functional.

LED stays blinking GREEN under normal
operating conditions.

The CPU

3.1.2 LWRP - Left Wrap

The LWRP (Ring 1 Left Wrap) LED indicates the state of the TRMM-4’s
left FNB Ring 1 connection.

AMBER indicates that the left connection has been wrapped; the
TRMM-4’s FNB Ring 1 segment has been isolated from all other MIMs.

OFF is the normal state; the left connection is not left wrapped.

3-3

MONITORING AND TROUBLESHOOTING

3.1.3 16 Mb - Ring Speed 16 Mbps

The 16 Mb LED indicates the ring speed.
AMBER indicates that the interface ring speed is set to 16 Mbps.
OFF indicates that the interface ring speed is set to 4 Mbps.

3.1.4 XMT - Transmit

The XMT LED indicates the transmitting status of the interface.
Flashing GREEN indicates the TRMM-4 is transmitting data.
Blinking RED indicates a beaconing condition on the ring.
OFF indicates that the interface is inactive.
Blinking RED together with the RCV LED indicates the interface is

trying to insert into the ring.

3.1.5 RCV - Receive

The RCV LED flashes AMBER for every packet received, regardless of
source or destination. It indicates the load on the network.

Blinking RED simultaneously with the XMT LED indicates the interface
is trying to insert into the ring.

OFF indicates no activity.

3.1.6 NSRT - Insert

The NSRT LED indicates interface activity.
GREEN indicates that the interface is inserted into the ring and is

participating as a station on that ring.
OFF indicates that the interface is not inserted into any ring.

3.2 T ROUBLESHOOTING THE NETWORK

This section describes troubleshooting procedures you can perform to
diagnose and correct problems with the TRMM-4 and the MIMs in the
MMAC. The following procedures can help resolve problems typically
encountered with network installations.

3-4

MONITORING AND TROUBLESHOOTING

3.2.1 Failure To Access Local Management

If you cannot connect to Local Management, check the following:

• Ensure that the terminal is set to the correct settings as described in the

TRMM-4 Local Management User’s Guide.

• Try accessing the LM of another management module to determine if

the problem is with the management module or the terminal.

• Check each cable connection.

- Try a different cable.

- Ensure you are using the correct adapter.

- Verify the pinouts for every connection.

- Check the cable conductors for continuity using a cable tester

designed for this task.

• Confirm that the MMAC and the LM terminal are connected to the

proper AC power source (120 Vac or 240 Vac) and are powered on.

3.2.2 No Response To Remote Management

After assigning an IP address to the TRMM-4 you should be able to
manage the hub from an NMS. If you cannot establish contact from an
NMS try the following:

• Confirm that the TRMM-4 has been assigned an appropriate IP

address as discussed in Section 2.6.2. Ensure this is the IP address that
you are trying to contact with the NMS.

• Ensure the subnet masks of the TRMM-4 and the NMS are

compatible.

• Ensure the NMS is not isolated from the TRMM-4. For instance, if the

NMS and the TRMM-4 are on different rings, ensure these rings are
switched or bridged together.

- Use a PING utility to determine if IP traffic is reaching the

TRMM-4. If the TRMM-4 does not respond to PING requests,
attempt to PING another device on the same subnet. If that de vice
responds, then the problem may be with the TRMM-4. If the
device does not respond, the problem is likely not isolated to the
TRMM-4.

3-5

MONITORING AND TROUBLESHOOTING

3.2.3 Failure To Manage Rings

If the TRMM-4 is not gathering statistical data on an interface, try the
following:

• Use each NSR T LED to verify the management interfaces are inserted

and participating in the ring.

• If the problem is with FNB Ring 1, verify that the LWRP LED is unlit

indicating the TRMM-4 is not isolated from FNB Ring 1.
Failure of a management interface to insert may indicate a beaconing

ring. The TRMM-4 will not insert into a beaconing ring. After
detecting a beaconing ring the TRMM-4 will continuously stop trying
to insert for 30 seconds and then re-attempt insertion. If you suspect a
beacon, remove MIMs from the hub one at a time (pausing long
enough for the TRMM-4 to try to re-insert) until the TRMM-4 inserts
into the ring. When you remove a MIM with a device that was causing
the beacon, the beacon should stop and the TRMM-4’s NSRT LED
(for that interface) will turn GREEN.

3.2.4 Checking The Hub

This section describes how to inspect the hub to verify proper operation or
isolate problems.

• Check the status of the LEDs on all MIMs in the MMAC. See the

appropriate MIM User’s Guides for descriptions of its LEDs.

- Ensure the ERR LED(s) on the MIMs are unlit. A lit ERR LED

may indicate a speed-fault condition, or a RO port that has no
connection. If neither of these conditions occurred, remove and
then reinsert MIMs to resolve the problem.

- Use the LEDs to ensure that you configured the hub as intended.

Does the MGMT LED(s) show MIMs under TRMIM-4 control?
Does each 16 Mb LED indicate that each ring has been set to the
correct speed? Use the BYP and ACT LED(s) to verify which
rings are in bypass and/or active.

• Ensure MIMs are installed in the correct slots for your configuration.

3-6

MONITORING AND TROUBLESHOOTING

Group all port switching MIMs together. Single ring MIMs

NOTE

• Check that the TRMM-4 and all MIMs are securely installed in and

(e.g., TRMIM-24A) should be segregated to the left-most slots
in the MMAC. Do not intermingle them with port switching
MIMs, as this will segment the FNB Rings 2 through 4 into
multiple unmanaged Token Rings.

fastened to the MMA C. If necessary, correctly re-insert the TRMM-4
and each MIM and then tighten the knobs.

• Be sure that the Token Ring stations and the MMAC are operating in

accordance with their respective po wer-requirement specifications and
are powered on.

3.2.5 Checking The Entire Network

This section describes areas to check if the problem is not immediately
apparent.

• Trace the ring path through the network to ensure that there are no

physical layer problems. While tracing the ring:

- Check the cable connections at MIMs, patch panels and wall

plates, and Token Ring stations.
Are all connectors inserted fully into or secured to ports?

- Check the installation of the Token Ring network interface cards

in Token Ring stations.

- Are the network cards correctly configured and installed?

- Check the cable conductors for continuity.

Use cable testers designed for this task.

• Ensure that the maximum cable lengths specified for the media types

used in the installation and also the maximum number of stations
supported are not exceeded.

The cable lengths and station counts for other types of MIMs in the
installation are discussed in their documentation.

When these checks have been successfully completed for each connection
and any other necessary corrections have been made, the network should
perform normally. If network problems persist, contact Cabletron
Systems Global Call Center for assistance (see Preface).

3-7

MONITORING AND TROUBLESHOOTING

3-8

APPENDIX A

INTRODUCTION TO MULTIPLE-RING MMAC

FUNCTIONALITY

This appendix explains the closely related concepts of port switching and
the four-ring Flexible Network Bus (FNB). It also compares port
switching MIMs with single ring MIMs. The appendix concludes with a
sample configuration.

A.1 WHY USE MULTIPLE RINGS?

Port switching MIMs allow network users to be distributed among many
rings. The efficiency of a Token Ring network is increased by dividing
large numbers of users among multiple rings. A topology that groups
users among many small rings offers the following advantages:

• Provides more bandwidth for each station.

• Reduces contention for the token.

• Prevents the propagation of errors across the network.

A.2 THE FLEXIBLE NETWORK BUS (FNB)

The FNB is a data bus which spans the entire width of the MMAC. The
FNB contains four vertically stacked independent Token Rings. Only
port switching MIMs can access FNB Rings 2 through 4. The FNB
provides connectivity between MIMs on the same ring.

A.2.1 New T erminology

The four vertically stacked FNB rings are now referred to as FNB
Rings 1, 2, 3, and 4. Single ring MIMs (e.g., TRMIM-24A) can only
insert into and communicate across FNB Ring 1. This ring was referred to
in earlier manuals as the “FNB ring,” or simply “FNB.” The term “FNB”
now refers collectively to the channels and connectors of the MMAC
backplane’s communications bus which supports FNB rings,
interconnects MIMs, and carries all user-data.

A-1

INTRODUCTION TO MULTIPLE-RING MMAC FUNCTIONALITY

A.3 COMPARING PORT SWITCHING AND SINGLE RING

MIMS

The FNB serves as a single Token Ring (FNB Ring 1) for topologies
comprised of MIMs that do not support port switching (such as a
TRMIM-24A and TRRMIM-2AT). Each MIM in the MMAC may attach
to adjacent MIMs and operate together; or can “wrap” (bypass) their
connection to the MIM on either side, segmenting the FNB into multiple,
isolated Token Rings, as illustrated in Figure A-1.

TRMIM-24A

FNB ring
segment B

FNB ring wrapped at TRMMIM's right FNB interface.

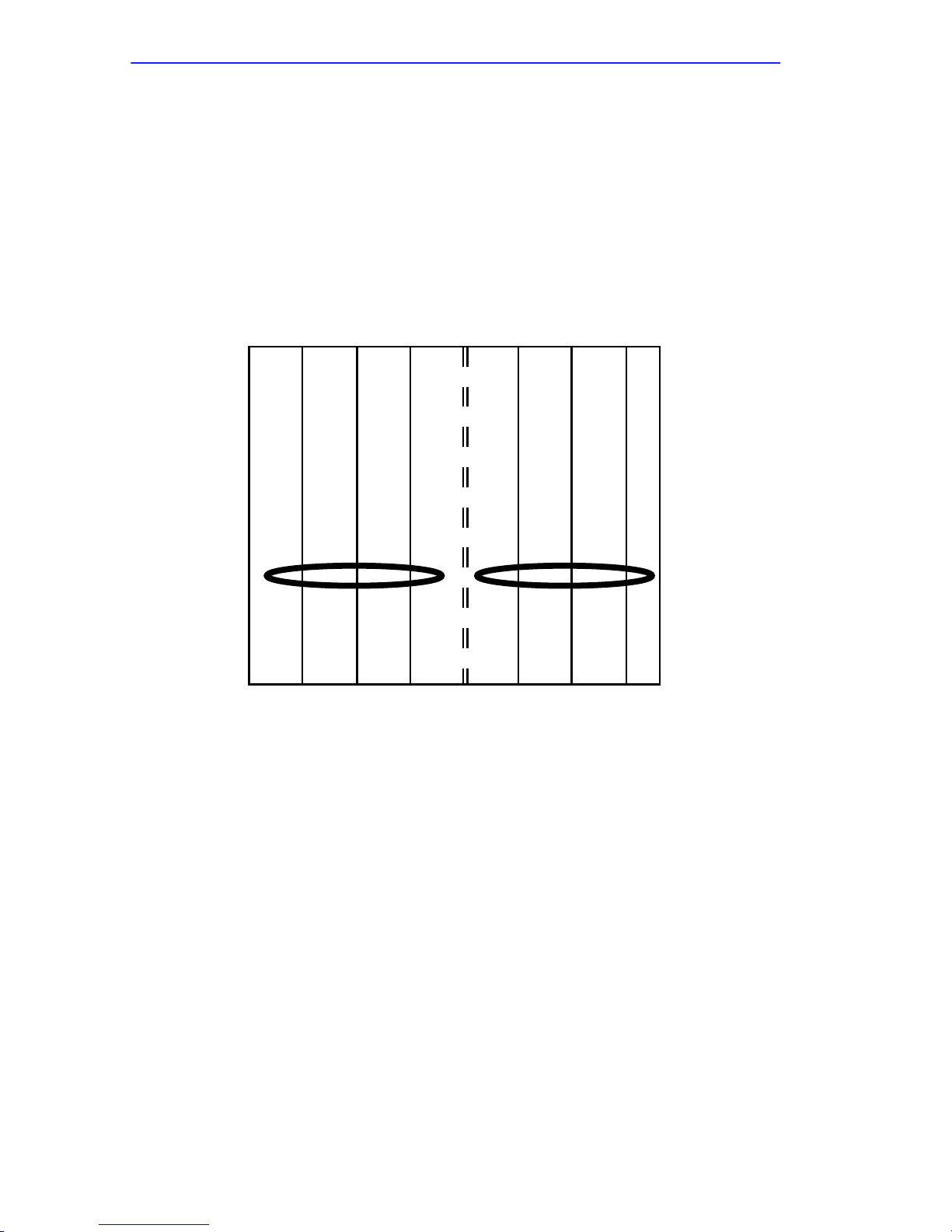

Figure A-1. FNB Segmentation Produces Two Isolated FNB Rings

TRMIM-24A

TRMIM-24A

TRMMIM

TRMIM-24A

TRMIM

TRMIM

TRMM

FNB ring
segment A

Each port switching MIM (such as the TRXMIM) makes use of additional
pins in its FNB connector to create four vertically stacked, parallel FNB
rings (as illustrated in Figure A-2) with simultaneous access to four FNB
rings. Port switching MIMs switch each of their ports to one of these FNB
rings, providing all users with access to multiple rings. Each FNB ring is
an isolated Token Ring and these rings do not communicate with each
other through the FNB. Refer to Figure A-3 for a comparative illustration
of the FNB connectivity of port switching and single ring MIMs.

A-2

INTRODUCTION TO MULTIPLE-RING MMAC FUNCTIONALITY

Port Switching MIMs

TRMM-4

TDRMIM-AT

TDRMIM-AT

TRXMIM-54A

TRXMIM-54A

TRXMIM-54A

TRXMIM-54A

TRXMIM-54A

FNB Ring 1
FNB Ring 2

FNB Ring 3
FNB Ring 4

Figure A-2. Four Vertically Stacked Rings

Segmented

TRMIMs

TRMIM-24A

TRMIM-24A

TRMIM-24A

TRMIM-24A

TRXMIMs

TRXMIM-24A

TRXMIM-24A

TRXMIM-24A

TRMM-4

FNB Ring 1

FNB Ring 1

FNB Ring 2
FNB Ring 3

FNB Ring 4

Figure A-3. Comparative View Of Single Ring And Multi-Ring Connectivity

A-3

INTRODUCTION TO MULTIPLE-RING MMAC FUNCTIONALITY

A.3.1 Single Ring Versus Port Assignment Management

Modules

A single ring management module can only manage one ring. A mid-slot
management module must be installed to manage each additional ring.
The use of mid-slot management modules reduces the slots available for
other MIMs. The TRMM-2 and TRMM-4 can manage multiple rings
without using additional MIM slots.

A.3.2 Mixing Single Ring And Port Switching MIMs

Single ring MIMs and port switching MIMs are compatible and
interconnectable across FNB Ring 1; however, as shown in Figure A-3,
single ring MIMs cannot communicate with FNB Rings 2, 3, or 4.
Installing a single ring MIM between port switching MIMs stops
communication on FNB Rings 2, 3, and 4, splitting these rings into
separate Token Rings on either side of the single ring MIM. Therefore, it
is recommended that all port switching MIMs be grouped together in the
right-most MIM-slots.

Single ring MIMs can still segment FNB Ring 1, as shown in Figure A-3.
They view the FNB as having only one ring and are not affected by the
use of FNB Rings 2, 3, or 4.

A.4 AVAILABLE RINGS

This section describes the rings that can be used in port switching
configurations. They are:

• FNB rings

• Auxiliary rings

• Bypassed rings

A.4.1 FNB Rings

Each port can insert into one of the four FNB Rings (described in

Section A.2.1). Each ring is an independent Token Ring. Use a device

such as a switch or router to allow users on different FNB rings to
communicate.

A-4

INTRODUCTION TO MULTIPLE-RING MMAC FUNCTIONALITY

A.4.2 Auxiliary Rings

Each port switching MIM has two auxiliary rings. These rings never
communicate with FNB rings, unless through an external device such as a
switch or router. A station on an auxiliary ring can only communicate
with stations attached to the same MIM and assigned to the same
auxiliary ring. Auxiliary rings are useful to provide a dedicated ring for
the transfer of large amounts of data, as occurs when “backing up”
servers.

A.4.3 Bypassed Rings

A management module can bypass (prevent communication among) any
port switching MIM from any or all of the FNB rings. Any station
connected to a bypassed ring will not communicate with FNB rings
(it can however communicate with other stations on that bypassed ring).
For example, stations attached to Ring 2 on a bypassed MIM will not
communicate with stations on MIMs inserted into FNB Ring 2.

A.5 A SAMPLE CONFIGURATION

The purpose of the port switching family of MIMs is to segment traffic
and provide the advantages described in Section A.1. As an example
configuration, Figure A-4 shows an MMAC configured with multiple
rings. The users of each ring typically share a server. One of these user
groups is attached to a MA U that is connected to a TRXMIM port that has
been configured as a RO port. The switch provides the communication
among rings.

A-5

INTRODUCTION TO MULTIPLE-RING MMAC FUNCTIONALITY

MMAC

SN

SN

SN

SN

SN

ERR

BYP MGMT

ERR

BYP MGMT

ERR

BYP MGMT

ERR

RING 1

16 Mb ACT
16 Mb

RING 2

ACT

16 Mb

RING 3

ACT

16 Mb

ACT

RING 4
AUX 1

16 Mb

ACT

AUX 2

16 Mb

ACT

BYP MGMT

RING 1

RING 1

RING 1

16 Mb ACT

16 Mb ACT

16 Mb ACT

16 Mb

RING 2

ACT

16 Mb

RING 2

ACT

16 Mb

RING 2

ACT

16 Mb

RING 3

ACT

16 Mb

RING 3

ACT

16 Mb

RING 3

ACT

16 Mb

ACT

16 Mb

ACT

16 Mb

ACT

RING 4

RING 4

RING 4

AUX 1

AUX 1

AUX 1

16 Mb

ACT

16 Mb

ACT

16 Mb

ACT

AUX 2

AUX 2

AUX 2

16 Mb

ACT

16 Mb

ACT

16 Mb

ACT

1

1

1

2

2

2

X

X

3

4

X

X

5

6

X

X

7

8

X

X

10

9

X

X

11

12

X

X

13

14

X

X

15

16

X

X

17

18

X

X

19

20

X

X

21

22

X

X

23

24

X

X

SWITCHING UTP/STP

TOKEN RING

2

X

X

X

X

X

3

3

4

4

4

X

X

X

X

X

5

5

6

6

6

X

X

X

X

X

7

7

8

8

8

X

X

X

X

X

10

9

10

9

10

X

X

X

X

X

11

11

12

12

12

X

X

X

X

X

13

13

14

14

14

X

X

X

X

X

15

15

16

16

16

X

X

X

X

X

17

17

18

18

18

X

X

X

X

X

19

19

20

20

20

X

X

X

X

X

21

21

22

22

22

X

X

X

X

X

23

23

24

24

24

X

X

X

X

X

SWITCHING UTP/STP

SWITCHING UTP/STP

TOKEN RING

TOKEN RING

FNB Ring 1 User

FNB Ring 2 User

FNB Ring 3 User

FNB Ring 4 User

SWITCHING UTP/STP

ERR

BYP MGMT

RING 1

16 Mb ACT
16 Mb

RING 2

ACT

16 Mb

RING 3

ACT

16 Mb

ACT

RING 4
AUX 1

16 Mb

ACT

AUX 2

16 Mb

ACT

1

1

2

X

X

X

3

3

4

X

X

X

5

5

6

X

X

X

7

7

8

X

X

X

9

10

9

X

X

X

11

11

12

X

X

X

13

13

14

X

X

X

15

15

16

X

X

X

17

17

18

X

X

X

19

19

20

X

X

X

21

21

22

X

X

X

23

23

24

X

X

X

SWITCHING UTP/STP

TOKEN RING

TOKEN RING

Port configured
for RO

Ring

1

2

Switch

4

3

MAU

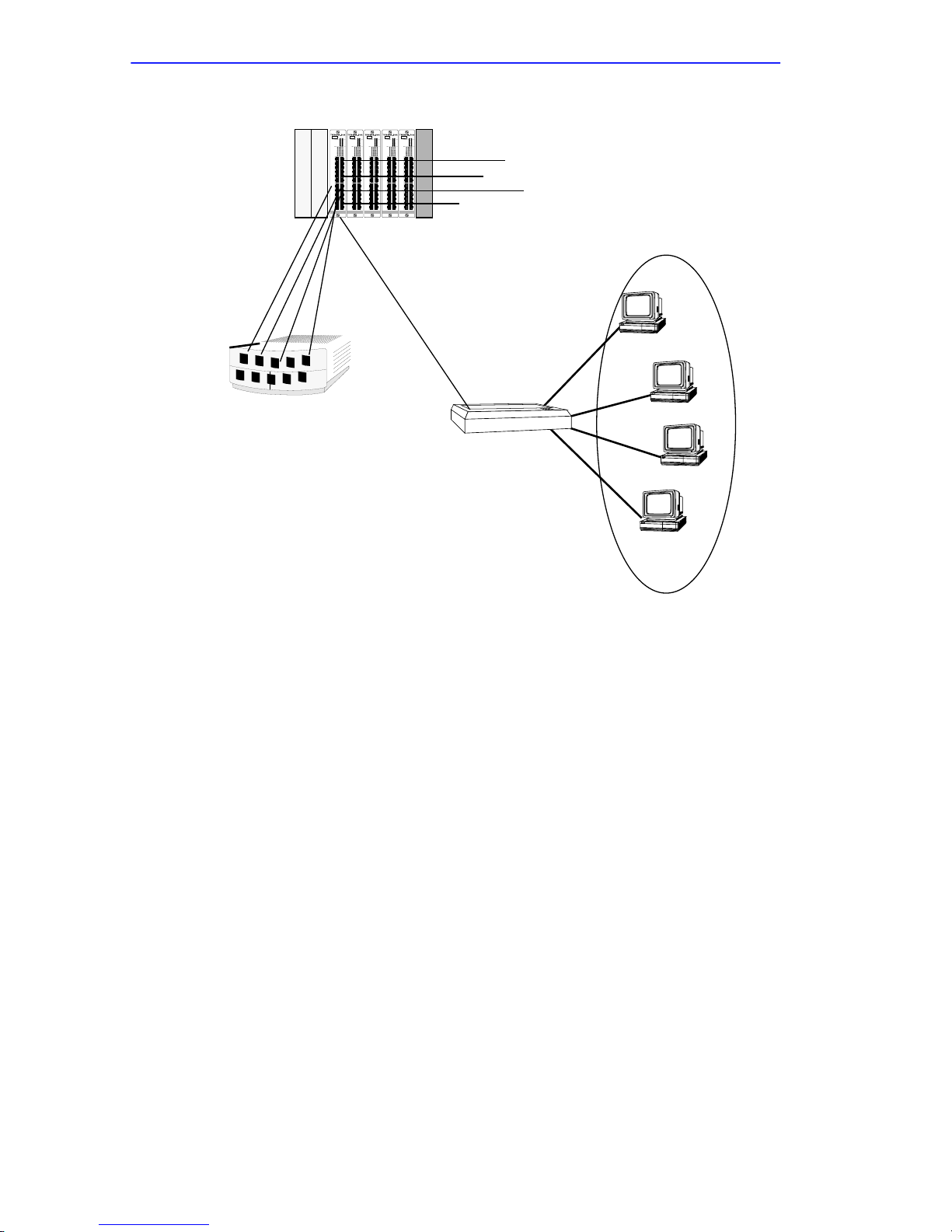

Figure A-4. MMAC Configured With Multiple Rings

Ring 1

A-6

APPENDIX B

BEACONING PROTECTION AND RECOVERY

The Cabletron Systems Automatic Beacon Recovery Process (ABRP) is
an effective beaconing protection and recovery system. It automatically
identifies and partitions malfunctioning ring segments and re-enables the
trunk and lobe ports associated with those segments when they are
restored to an operating condition. The ABRP is invoked when the
TRMM-4 detects excessive error frames (Beacon, Claim Token, or Purge
MAC frames) on the ring, that is, frames exceeding tolerable thresholds
associated with normal ring functioning.

The ABRP consists of a set of recovery algorithms, each one employs a
distinct troubleshooting method for determining the origin of error
frames. Using an iterative process, the ABRP launches the first recovery
algorithm and only then initiates each subsequent algorithm if the
preceding one fails to isolate the malfunctioning ring segment. A brief
description of each algorithm in the order that they may need to be used
by the ABRP is listed in Table B-1.

B-1

BEACONING PROTECTION AND RECOVERY

Table B-1 ABRP Recovery Algorithms

Algorithm Function Description

The ABRP sequentially disables all Ring
In/Ring Out ports on the ring to attempt to
discover and isolate the malfunctioning

1

2

Check Ring
Ports

Check
Recently
Inserted
Stations

segment. If error frames on the ring disappear
immediately after a ring port is disabled, then
that port remains disabled and all other ring
ports are automatically re-enabled. If the error
frames persist after all ring ports are disabled,
then the ABRP launches Algorithm 2.

The ABRP sequentially disables only those
lobe ports into which stations were inserted
within the 60 seconds preceding the
appearance of error frames on the ring. If
hard error frames disappear immediately after
a lobe port is disabled, then that port remains
disabled and all other ports are automatically
re-enabled. If error frames are still present
after all recently inserted lobe ports are
disabled, then the ABRP launches
Algorithm 3.

The ABRP examines data collected by the
MAC Frame Processor from error frames to

3

4

Check Error
Frame Data

Check All
Lobe Ports

find the origin of the malfunctioning segment
and then remove it from the ring by disabling
its associated lobe port. If this method fails,
then the ABRP launches Algorithm 4.

The ABRP iteratively disables half of the
active lobe ports on the ring until the lobe port
associated with the problematic station is
detected.

After the ABRP completes the troubleshooting and corrective processes
required to isolate a problematic ring segment, it transmits traps to the
Network Management Station (NMS) that identify the beacon type, the
problem’s origin and duration, and ports/modules that were left disabled.
See the TRMM-4 Local Management User’s Guide for information
about using the LM System Level application to configure ABRP
parameters for the TRMM-4.

B-2

APPENDIX C

SPECIFICATIONS AND SETUP REQUIREMENTS

C.1 TRMM-4 SPECIFICATIONS

Ports: 4 FNB (Rings 1, 2, 3, 4)

2 RS232C COM Ports (RJ45)

CPU: 33 MHz Intel i960 RISC-based

microprocessor

CPU Memory: 8 MB Dynamic RAM

(expandable to 12 MB)

Buffering Memory: 4 MB DRAM

(expandable to 12 MB)

Operating System Memory
FLASH SIM: 2 MB (expandable to 12 MB)

Dimensions: 11.5 in. H x 1 in. W x 13.4 in. D

(29.4 cm H x 2.56 cm W x 34.4 cm D)

Weight: 2.5 lb

(1.13 km)

C.2 LM CONSOLE SETUP REQUIREMENTS

All conditions, guidelines, and requirements regarding

NOTE

Any actual or emulated DEC VT100 series terminal configured as defined
below will support access to Local Management (LM) through a COM
port set to its LM configuration.

Table C-1 lists the requirements for VT100 setups. For parameters that

are not listed, any option should be acceptable. You can press F3 on the
keyboard of VT100 series terminals to access the Setup Directory.
If you use a terminal emulator, see the equipment manual for setup
procedures that correspond to the selections in Table C-1.

equipment used with the TRMM-4 must be satisfied to ensure
optimum performance from the TRMM-4. Failure to follo w these
guidelines may result in unsatisfactory network performance.

C-1

SPECIFICATIONS AND SETUP REQUIREMENTS

Table C-1 Terminal Settings For LM Console

Menu Parameter Setting

Display Setup: Columns 80 Columns

Controls Interpret controls
Auto wrap No Auto wrap
Text Cursor No Cursor

General Setup: Mode VT100, 7 bit control

Cursor keys Normal cursor keys

Communications
Setup:

Transmit

Receive Receive = transmit
Bits, parity 8 Bits, no parity
Stop Bit 1 Stop Bit

(all values from 2400 to
19,200 accepted)

Local Echo No Local Echo
Port Data Leads Only
Auto Answerback No Auto Answerback

Keyboard Setup: Keys Typewriter keys

Margin bell No Margin bell
Auto Answerback No Auto Answerback

C.3 COM PORT PINOUTS

The COM ports (female RJ45) support RS232C connections. Figure C-1
shows the pin signals for each COM port. Figure C-2 and Figure C-3
show the connector numbers for DB25 and DB9 plugs. The maximum
cable length from the COM port to any device is 50 feet.

Pinouts for connection to a PC, VT Series terminal, modem, and UPS are
shown in Tables C-2 through C-5.

C-2

SPECIFICATIONS AND SETUP REQUIREMENTS

Clear To Send

Request To Send

Data Terminal Ready

Signal Ground

Receive

Data Set Ready

Data Carrier Detect

Transmit

Figure C-1. RJ45 Signal Assignments For COM Port Pins

8

7
6
5
4
3
2
1

RJ45 Plug

18 25 14

RJ45 Connector

Female 25 Pin D-Shell

113

DB25 Connector

Figure C-2. RJ45 And DB25 Connector Plug Pin Numbers

RJ45 Plug

18

Female 9 Pin D-Shell

15

96

Figure C-3. RJ45 And DB9 Connector Plug Pin Numbers

RJ45 Connector

DB9 Connector

C-3

SPECIFICATIONS AND SETUP REQUIREMENTS

Table C-2 RJ45-To-DB25 (VT Series)

RJ45 DB25 Female

Pin Description Pin Description

1 Transmit 3 Receive

2

4 Receive 2 Transmit
5 Ground 7 Ground

6

Data Carrier

Detect

Data Terminal

Ready

Table C-3 RJ45-To-DB9 (PC)

20

5 Clear to Send

Data Terminal

Ready

RJ45 DB9 Female

Pin Description Pin Description

1 Transmit 2 Receive

2

4 Receive 3 Transmit

Data Carrier

Detect

7 Ready to Send

C-4

5 Ground 7 Ground

6

Data Terminal

Ready

8 Clear to Send

SPECIFICATIONS AND SETUP REQUIREMENTS

Table C-4 RJ45-To-DB25 (Modem)

RJ45 DB25 Female

Pin Description Pin Description

1 Receive 2 Transmit

2

4 Transmit 3 Receive
5 Ground 7 Ground

6 Clear to Send 20

8 22 Ring Indicator

Data Transmit

Ready

Table C-5 RJ45-To-DB9 (UPS)

8

Data Carrier

Detect

Data Terminal

Ready

RJ45 DB9 Female

Pin Description Pin Description

1 Transmit 1 Receive
4 Receive 2 Transmit
5 Ground 9 Ground

C.4 ENVIRONMENTAL REQUIREMENTS

Operating Temperature: 5°C to 40°C (41°F to 104°F)
Storage Temperature: -30°C to 73°C (-22°F to 164°F)
Operating Relative Humidity: 5% to 90% (non-condensing)

C.5 REGULATORY COMPLIANCE

The TRMM-4 meets the following requirements:

Safety

UL1950, CSA C22.2 No. 950, EN 60950, IEC 950, and 73/23/EEC

C-5

SPECIFICATIONS AND SETUP REQUIREMENTS

Electromagnetic Compatibility (EMC)

FCC Part 15, EN 55022, CSA C108.8, VCCI V-3, EN 50082-1, and
89/336/EEC

C.6 YEAR 2000 COMPLIANCE

The TRMM-4 is Year 2000 Compliant.

C-6

APPENDIX D

SUPPORTED MIB GROUPS

The TRMM-4 provides access to the following Management Information
Bases and their respective functionality:

Standard MIBs

MIB-2 (RFC 1231)

•

• IEEE RMON MIB (RFC 1271)

• RMON Extensions for Token Ring (RFC 1513)

Cabletron Enterprise MIBs

Download

•

• MIB-II Extensions

• Token Ring FNB (Flexible Network Bus)

• DOT 5 Physical & Logical

• UPS (Uninterruptible Power Supply)

• Device

• DLM (Distributed LAN Monitor)

• PIC MIB (Product Information Chip MIB)

• Chassis MIB

RMON

The RMON MIB enables the TRMM-4 to compile extensive information
about devices, data traf fic, and ev ents on the ring. Y ou can acti vate RMON
in the TRMM-4 through any remote management application that has
RMON-configuration capabilities (Cabletron Systems SPECTRUM
Element Manager for the TRMM-4 for example). The groups are
organized into three components. To implement associated RMON
groups, you enable the component containing the groups. RMON
component groups are listed and briefly described as follows:

• RMON Default Component

- Statistics Group – Records frame-traffic and

network-performance statistics.

- Token Ring Group – Records statistics on each ring station, their

relative position in the ring, and their configuration parameters. It
also records information on source-route bridging data detected in
frame packets.

D-1

SUPPORTED MIB GROUPS

- History Group – Records frame-traffic and network-performance

statistics for a specific time period.

- Alarm Group – Compares threshold parameters to event counters

to determine if event thresholds have been crossed.

- Events Group – Controls the generation and disposition of ev ents

detected by the Alarm group.

• Host Component

- Host Group – Records statistics on frame traffic for ev ery host, or

station, detected on the ring.

- Host Top N Group – Records statistics on the ranking of hosts in

specific categories.

- Matrix Group – Records statistics on communications between

hosts.

• Capture Component

- Filter Group – Compares packets on the ring to criteria specified

in a filter expression to determine whether packets need to be
captured for analysis.

- Packet Capture Group – Performs the capture of packets meeting

criteria specified by the Filter Group.

To implement RMON functions provided by the Capture

NOTE

component (Filter and Packet Capture groups), you must
increase the TRMM-4’s LDRAM capacity from the default 8 MB
to 12 MB by replacing the 4 MB LDRAM SIMM with an 8 MB
LDRAM SIMM. You can order the 8MB-FPM-UGK-60 SIMM
upgrade kit for this purpose from Cabletron Systems.

D-2

RMON MIB Groups

RMON MIB groups are shown in Table D-1.

SUPPORTED MIB GROUPS

.

Table D-1 RMON MIB RFC 1271/1513 Support

Group Subgroup

Statistics
rmon 1

History
rmon 2

Alarm
rmon 3

Host
rmon 4

HostTopN
rmon 5

Matrix
rmon 6

Token Ring ML Stats Table
Token Ring P Stats Table

History Control Table
Token Ring ML History Table
Token Ring P History Table

Alarm T ab le

Host Control Table
Host Table
Host Time Table

HostTopN Control Table
HostTopN T able

Matrix Control Table
Matrix SD Table
Matrix DS Table

Filter
rmon 7

Capture
rmon 8

Event
rmon 9

Token Ring
rmon 10

Filter Table
Channel Table

Buffer Control Table
Log Table

Event Table
Buffer Table

Ring Station Control Table
Ring Station Table
Ring Station Order Table
Ring Station Config Control Table
Ring Station Config Table
Source Routing Stats Table

D-3

SUPPORTED MIB GROUPS

D-4

INDEX

A

Access using SPECTRUM

family 1-9, 1-10
Access using Telnet 1-10
Assigning a host IP address 2-9
Automatic Beacon Recovery Process

(ABRP)

described B-1 to B-2
setting via Local Management 1-8

Automatic configuration at power

up 1-7

B

Beaconing, protection and

recovery B-1 to B-2

C

COM ports

access to LM applications 1-9,

1-10

access to UPS monitoring 1-10
pinouts C-2

Configuring the TRMM-4

establishing the terminal

connection 2-8, 2-9

segmenting for additional

rings 1-5, 1-6

terminology A-1

Forced Network Download

Switch 6 2-3

G

Getting help xi
Grounding wrist strap 2-2

H

Hub configuration

auto option (default) 2-10
collapsed backbone option 2-11,

2-12

split hub option 2-12

I

Installation

procedure 2-6
resolving problems with 3-4, 3-6

K

Knobs on front panel

tightening 2-7

D

Document

conventions ix
organizational structure x

E

Electrostatic discharge 2-1

F

Flash image

downloading with TFIP 1-9

FNB

a description A-1
ring speed settings 2-3

L

LANVIEW LEDs

16 Mb (ring speed) 3-4
a description 1-11
CPU (central processing unit) 3-3
ERR (error) 3-6
listing 3-2
LWRP (left wrap) 3-3
NSRT (insert) 3-4
RCV (receive) 3-4
XMT (transmit) 3-4

IX-1

INDEX

M

MIB

groups supported D-1, D-3

MIB Navigator

access to MIB libraries 1-8
using Local Management 1-8

MIMs

management module

overrides 2-4
port switching 1-6, A-4
single-ring A-4

Module bypassing 1-6

N

Network

beacon recovery B-1 to B-2
ring poll failure recovery 1-3

NVRAM clear

Switch 7 2-4

Ring Error Monitor (REM) 1-8
Ring poll failure recovery 1-3
Ring security

setting with Local

Management 1-8

Ring speed

assignments 1-7, 2-3

Rings

auxiliary A-5
bypassed A-5
FNB A-4

RMON functionality

using Local Management 1-8

S

SNMP traps

setting with Local

Management 1-8

Storage temperature C-5

O

Operating temperature C-5

P

Pinouts

for COM ports C-4
for modem connection C-5
for UPS connection C-5

Port

assigning 1-4
disabling 1-7

R

Relative humidity C-5
Reset button 1-11
Resetting passwords

Switch 8 2-4

Ring

bypassing 1-7
speed settings 2-3

T

Technical support xi
TRMM-4

an overview 1-2
choosing a hub

configuration 2-10, 2-12
installation in MMACs 2-5, 2-6
network interfaces 1-7
power-on diagnostics 2-13
setting switches 2-3
specifications C-1
supported MIBs D-1
unpacking and handling 2-1

Troubleshooting

checklist 3-4, 3-6

IX-2

U

UPS connection 2-13

V

VT100 series terminal

setup requirements for access to

LM C-1, C-2

W

Wrist strap, anti-static 2-1

INDEX

IX-3

INDEX

IX-4
