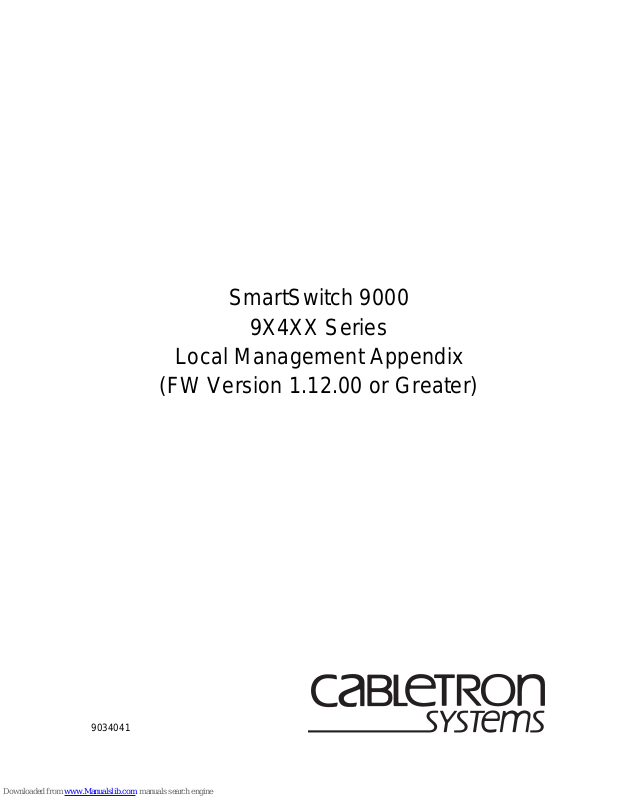

SmartSwitch 9000

9X4XX Series

Local Management Appendix

(FW Version 1.12.00 or Greater)

Page 2

Page 3

Appendix

9X4XX Series Local Management

This appendix supplements the SmartSwitch 9000 Local Management User ’s Guide, part number 9032089-01.

The latest firmware version(1.12.00)features new Local Management screens that are described in this appendix. For further information about Cabletron Product User ’s Guides, refer to http://www.cabletron.com/manuals.

Page 4

9X4XX Series Local Ma nagement

Access Control Screen

The Access Control Screen, Figure 1, allowsa user to assign up to 16 IP addresses, in order to limit remote management access of the SmartSwitch 9000 modules. This feature can be enabled or disabled, and it does not op erate when a user accesses it locally through the Environmental Module EPIM port or through a module front panel port.

To access the Access Control Screen, go to the M odule Configuration Menu Screen, Then, select the SNMP Configuration option. Finally, select the Access Control List option.

SmartSwitch 9000 Local Management

Module Name: 9F426-02 Firmware Revision: 01.12.00 Slot Number: 10 BOOTPROM Revision: 01.01.01

Access Control Lists: [DISABLED]

Access Control

IP Addresses

0.0.0.0 0.0.0.0

SAVE EXIT RETURN

Figure 1. Access Control Screen

Page 5

Access Control Screen Fields

The following information briefly explains each Access Control Screen field:

Access Control Lists (Toggle)

This field can be either of the following:

• DISABLED

• ENABLED

IP Addresses (Modifiable)

These fields allow a user to input up to 16 specific IP addresses that are allowed to access the m anagement feature.

Saving Modifications

To save your modifications of the values on the Access Control Screen:

1. Use the arrow keys to highlight SAVE at th e bottom o f the screen, then press

the Return key.

9X4XX Series Local Ma nagement

2. When the message “SAVED OK” displays, th e edits you have made are saved.

If you exit without saving, the message “NOT SAVED -- PRESS SAVE TO KEEP CHANGES” displays. If you exit without saving, your edits will be lost.

Exiting the Access Control Screen

To exit the Access Control Screen, use the arrow keys to highlight RET URN ,and then press the Return key.

Page 6

9X4XX Series Local Ma nagement

Flash Download Configuration Screen

The Flash Download Configuration Screen, Figure2, allows a user to replace the informationstoredintheFlashmemorywithanewimagefiledownloadedfrom a TFTP server. Before downloading an image to the device, copy the image to the network TFTP server. Additionally, N VR AM parameters can be downloaded to a designated configuration server or uploaded to a module using this feature.

To access the Flash Download Configuration Screen from the Module Configuration Menu Screen, use the arrow keys to highlight th e FLASH DOWNLOAD CONFIGURATION menu item, and then press th e Return k ey. The Flash Download Configuration Screen displays.

Note: This f eature is supported in firmware versions greater than 1.12.00.

SmartSwitch 9000 Local Management

Flash Download Configuration

Module Name: 9F426-02 Firmware Revision: 01.12.00 Slot Number: 10 BOOTPROM Revision: 01.01.01

Download Method: [RUNTIME]

Reboot After Download: [YES]

TFTP Gateway IP Addr: xxx.xxx.xxx.xxx

Download Server IP: xxx.xxx.xxx.xxx

Download File Name: C:\IMAGES\SSX\11011.FLS

Last Image Server IP: xxx.xxx.xxx.xxx

Last Image File Name: C:\IMAGES\SSX\11011.FLS

Transfer Status: Transfer Successful

SAVE EXIT RETURN

Figure 2. Flash Download Configuration Screen

Page 7

Flash Download Configuration Screen Fields

The following information briefly explains each Flash Download Configuration Screen field:

Download Method (Selectable)

This field indicates the download or upload method u sed by the device, and can be one of the following:

• RUNTIME - The modu le attempts a TFTP download based on the IP address and file name entered in the fields at the bottom of the Flash Download Configuration screen. With the RUNTIME method, these additional fields are displayed:

- Download ServerIP (Modifiable) - This field is used to select the IP address

of the TFTP server to be used for the Flash download.

- Download File Name (Modifiable) - This field is used toselect the complete

TFTP server path and file name of the new image.

• DOWNLOAD CONFIG - Saves al l NVRAM parameters to a specified Download server th at can be accessed later using the UPLOAD CONF IG option. With the DOW NLOAD CONFIG method, these additional fields are displayed:

9X4XX Series Local Ma nagement

- Configuration Server I P (Modifiable) - This field is used to select the IP

address of the Configuration server to be used for the Flash down load.

- Configuration File Name (Modifiable) - This field is used to select the

complete Configuration server path and file name of the new image.

• UPLOAD C O N FIG - Sends NVRAM parametersback to the modu le. To use th e UPLOAD CONFIG option, a user must first assign an IP address to the module. With the UP LOAD CONFIG method, these additional fields are displayed:

- Configuration Server I P (Modifiable) - This field is used to select the IP

address of the Configuration server to be used for the Flash down load.

- Configuration File Name (Modifiable) - This field is used to select the

complete Configuration server path and file name of the new image.

Page 8

9X4XX Series Local Ma nagement

Reboot After Download (Toggle ) (Only available for the RUNTIME option)

This field n otifies a user that the module will reboot after the down load is complete. This field toggles between the following:

• YES - The modu le reboots after the download is completed.

• NO - The modu le continues u sing the existing firmware image and stores the new firmware image i n Flash memory.When the module is reset or during the next power up, the device boots from Flash memory using the new image.

TFTP Gateway IP Addr (Modifiable)

This field displays the IP address of the TFTP gateway server defined on the General Configuration screen.

Last I mage Server IP (Read-Only)

This field displays the IP address of the server used for the previous Flash Download.

Last Image File Name (Read-Only)

This field displays th e complete path an d file name of the last i mage downloaded to Flash.

Transfer Status (Read-Only)

This field displays the status of the current or most recent download or upload.

Using RUNTIME to Download an Image File

To download an image file using RUNTIME:

1. Use the arrow keys to highlight the Download M ethod field.

2. Press the Space Bar to select RUNTIME.

3. Use the arrow keys to highlight the Reboot After Download field.

4. Use the Space Bar to select either of th e following:

• YES - A user wants the module to reboot after the download is com pleted.

• NO - A user wants the module to store the new image in Flash memory

until the module is manually reset.

5. Use the arrow keys to highlight the TFTP Gateway IP Addr field.

6. Set the IP address of the TFTP gateway server (this defaults to the same IP address as that set in the TFTP Gateway IP Addr field on the General Configuration Screen).

7. Use the arrow keys to highlight the Download Server IP field.

Page 9

9X4XX Series Local Ma nagement

8. Enter the IP address of the TFTP server using the standard qu ad dotted octet

format.

9. Use the arrow keys to highlight the Download File Name field.

10. Enter the complete path and file name of the image stored on the download

server.

11. Use the arrow keys to highlight EXECUTE at the bottom of the screen and

press the Enterkey. The message “RUNTIMEDOWNLOAD. WILL COMMIT TO FLASH.” di splays in the event message line at th e top of the screen. The new image is downloaded into Flash memory.

Page 10

9X4XX Series Local Ma nagement

PHY Configuration (Full Duplex FDDI)

The PHY Configurat ion Screen, Figure 3 , provides support for the DEC (Digital Equipment Corporation) Full Duplex FDDI option.

Note: This screen is used only on the 9F4XX-series modules. To access the PHY C on figuration Screen, go to the Module Configuration Screen.

Then, select the FDDI Co nfiguration op tion. Finally, select the PHY Configuration option.

SmartSwitch 9000 Local Management

PHY Configuration

Module Name: 9F426-02 Firmware Revision: 01.12.00 Slot Number: 10 BOOTPROM Revision: 01.01.02

PORT # REQUESTED MODE OPERATION MODE LINK STATE PORT STATUS

1 AUTONEGOTIATE HALF DUPLEX - DAS No Link ENABLED 2 AUTONEGOTIATE HALF DUPLEX - DAS No Link ENABLED

SAVE SET ALL PORTS: AUTONEGOTIATE EXIT RETURN

Figure 3. PHY Configuration Screen

Page 11

PHY Configuration Screen Fields

The following information briefly explains each P H Y Configuration Screen field:

PORT # (Read Only)

This field shows which FDDI port is being referenced.

REQUESTED MODE (Toggle)

This user-configurable field offers three configuration options listed below.

• HALF DUPLEX - DAS -- Half Duplex Dual Attached Station mode.

• FULL DUPLEX - DAS -- Full Duplex Dual Attached Station mode.

• AUTONEGOTIATE -- This mode supports DEC’s Full Duplex FDDI option

when connecting to a device that also supports DEC Full Duplex FDDI.

OPERATION MODE (Read Only)

Displays the real time mode of operation per FDDI port. Three options are supported and are configured via the REQUESTED MODE toggle selections.

9X4XX Series Local Ma nagement

• HALF DUPLEX - DAS -- Half Duplex Dual Attached Station mode.

• FULL DUPLEX - DAS -- Full Duplex Dual Attached Station mode.

• AUTONEGOTIATE -- This mode supports DEC’s Full Duplex FDDI option

when connecting to a device that also supports DEC Full Duplex FDDI.

LINK STATE (Re ad Only)

This field indicates whether there is link or no link to the individual FDDI ports.

PORT STATUS (Read Only)

This field displays the port status as being either enabled or disabled.

SET ALL PORTS (Toggle)

This field will set all FDDI ports to the same m ode of operation. The available modes are:

• HALF DUPLEX - DAS -- Half Duplex Dual Attached Station mode.

• FULL DUPLEX - DAS -- Full Duplex Dual Attached Station mode.

• AUTONEGOTIATE -- This mode supports DEC’s Full Duplex FDDI option

when connecting to a device that also supports DEC Full Duplex FDDI.

Page 12

9X4XX Series Local Ma nagement

Saving Modifications

To save your modifications of the values on the PHY Configuration Screen:

1. Use the arrow keys to highlight SAVE at the bottom o f the screen, th en press the Return key.

2. When the message “SAVED OK” displays, th e edits you have made are saved.

If you exit without saving, the message “NOT SAVED -- PRESS SAVE TO KEEP CHANGES” displays. If you exit without saving, your edits will be lost.

Exiting the PHY Configuration Screen

To exit the PHY Configuration Screen, use the arrow keys to highlight RETURN, andthenpresstheReturnkey.

Page 13

Port Redirect Screen

The Port Redirect Screen, Figure 4, a llows a user to set each front panel port as a source or destination port. Frames received on the source port can be redirected to the destination port. For example, p ort 1 c an be s e t as the source port with port 2 as the d es tination port. Frames from port 1 are then automatically redirected to port 2. The port redirect function is useful for troubleshooting purposes, as it allows traffic to be sent to a particular port where, with the use of an analyzer or RMON probe, all current traffic from the source port can be examined.

To access the Port Redirect screen, go to the Modu le Configuration Screen. Then, select the Port Redirect option.

Note: Although all traffic from the source port (including errored frames) is sent to the destination port, normal switching is still performed for all frames on the source port.

9X4XX Series Local Ma nagement

SmartSwitch 9000 Local Management

Port Redirect

Module Name: 9E423-24 Firmware Revision: 01.12.00 Slot Number: 9 BOOTPROM Revision: 01.01.02

Source Port Destination Port

-- --

Source Port [1] Destination Port [1] Status [ADD]

Mirror Status [DISABLE] Mirror State [START]

SAVE EXIT RETURN

Figure 4. Port Redirect Screen

Page 14

9X4XX Series Local Ma nagement

Port Redirect Screen Fields

The following information briefly explains each P ort Redirect screen field:

Source Port (Read-only)

This field displays whi ch ports are currently set as source ports.

Destination Por t (Read-only)

This field displays corresponding ports that are currently set as destination ports. Only one destination port may be assigned to a source port.

Source Port [ n] (Toggle)

This field is used to select the po rt [n] that is to be changed to a sou rce port.

Destination Por t [ n ] (Toggle)

This field is used to select the port [n] that is to be changed to a destination port.

Status (To ggle)

This field is used to add or delete source and d estination ports selected in the Source Port [n] and Destination Port [n] fields.

Mirror Status (Toggle)

This field is used to ENABLE or DISABLE (default) the Mirror function.

Mirror State (Toggle)

This field is used to START (default) or STOP the Mirroring function.

Page 15

Slot Configuration

The Slot Configuration Screen, Figure 5, allows a user to configure IP addresses for individual 9X4XX series modules, which support firmware version 1.12.00 or greater.

To access the Slot Con figuration Screen, go to the Module Menu Screen. Then, select the Slot Configuration option.

Note: Each slot’s Module IP Address field and Subnet Mask field become read-only on ce an IP address is assigned to a module.

Module Name: 9F426-02 Firmware Revision: 01.12.00 Slot Number: 10 BOOTPROM Revision: 01.01.02

SLOT # MODULE Name Module IP Address Subnet Mask

1 9T122-24 2 9T122-24 3 9A426-02 4 9T122-08 5 6 9T122-24 7 8 9T425-16 9 9E423-24 xxx.xxx.xxx.xxx 255.255.0.0

<10> 9F426-02 xxx.xxx.xxx.xxx 255.255.0.0

11 12 13 14 9T428-16

SAVE EXIT RETURN

9X4XX Series Local Ma nagement

SmartSwitch 9000 Local Management

Slot Configuration

Figure 5. Slot Configuration Screen

Page 16

9X4XX Series Local Ma nagement

Slot Configuration Screen Fields

The following information briefly explains each Slot Configuration screen field:

SLOT # (Read-only)

This field displays the slot number of the chassis where the module is located.

MODULE Name (Read-only)

This field displays the name of the SmartSwitch 9000 module.

Module IP Address (M odifiabl e)

This field allows a user to assign an IP address to an individual module. After a user assigns a Module I P Address, the field becomes read-only.

Subnet M ask (Modifiable)

This field allows a user to assign a Subnet mask to an individual module. After a user assigns a Subnet M ask, this field becomes read-only.

Saving Modifications

To save your modifications of the values on the Slot Configuration Screen:

1. Use the arrow keys to highlight SAVE at the bottom o f the screen, th en press the Return key.

2. When the message “SAVED OK” displays, th e edits you have made are saved.

If you exit without saving, the message “NOT SAVED -- PRESS SAVE TO KEEP CHANGES” displays. If you exit without saving, your edits will be lost.

Exiting the Slot Configuration Screen

To exit the Slot Con figu ration Screen, use the arrow keys to highlight RETURN, andthenpresstheReturnkey.
