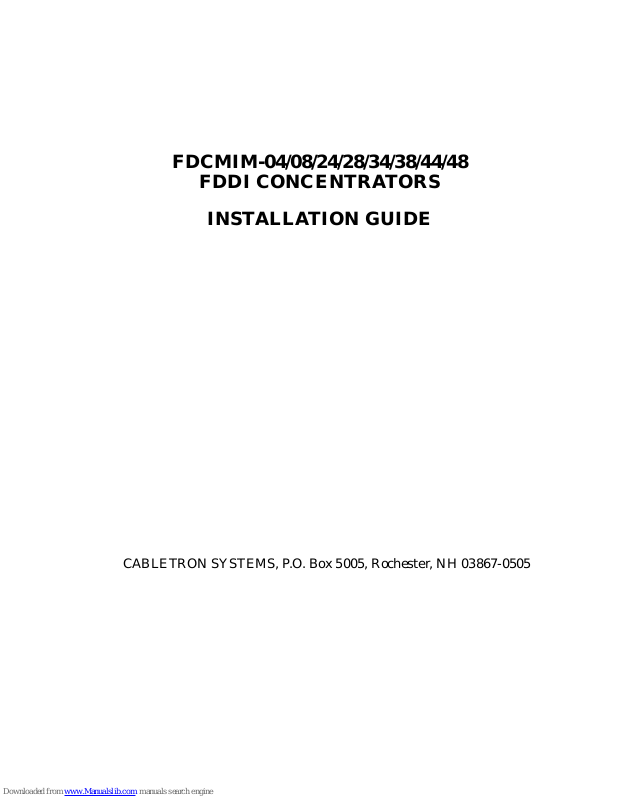

Cabletron Systems FDCMIM-24, FDCMIM-44, FDCMIM-28, FDCMIM-34, FDCMIM-38 Installation Manual
...
FDCMIM-04/08/24/28/34/38/44/48
FDDI CONCENTRATORS
INSTALLATION GUIDE
CABLETRON SYSTEMS, P.O. Box 5005, Rochester, NH 03867-0505
NOTICE
NOTICE
Cabletron Systems reserves the right to make changes in
specifications and other information contained in this document
without prior notice. The reader should in all cases consult Cabletron
Systems to determine whether any such changes have been made.
The hardware, firmware, or software described in this manual is
subject to change without notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR
ANY INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL
DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO
LOST PROFITS) ARISING OUT OF OR RELATED TO THIS
MANUAL OR THE INFORMATION CONTAINED IN IT, EVEN IF
CABLETRON SYSTEMS HAS BEEN ADVISED OF, KNOWN, OR
SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH
DAMAGES.
© Copyright November 1993 by:
Cabletron Systems, Inc.
P.O. Box 5005
Rochester, NH 03867-0505
All Rights Reserved
Printed in the United States of America
Order Number: 9030669-02 November 1993
SPECTRUM, LANVIEW
trademarks and
FDCMIM-04, FDCMIM-08, FDCMIM-24
FDCMIM-28, FDCMIM-38, FDCMIM-38, FDCMIM-44
, and
Remote LANVIEW
are registered
,
,
FDCMIM-48, EMME, CXRMIM, TRMM, TPRMIM, FORMIM
FDMMIM, FDMMIM-04, FDMMIM-24, FDMMIM-30
MMAC-3FNB, MMAC-5FNB, MMAC-8FNB, MMAC-M8FNB
IRM, IRM2, IRM3, IRBM
CompuServe
is a registered trademark of CompuServe, Inc.
are trademarks of Cabletron Systems, Inc.
,
,
,
Ethernet
Windows
is a trademark of Xerox Corporation.
is a registered trademark of Microsoft Corporation.
i
FCC NOTICE
.
FCC NOTICE
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE
limits for a Class A digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment uses, generates, and can
radiate radio frequency energy and if not installed in accordance with
the operator’s manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause interference in which case the user will be required to
correct the interference at his own expense.
WARNING
not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
: This equipment has been tested and found to comply with the
: Changes or modifications made to this device which are
DOC NOTICE
This digital apparatus does not exceed the Class A limits for radio
noise emissions from digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of
Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la class
A prescrites dans le Règlement sur le brouillage radioélectrique édicté
par le ministère des Communications du Canada.
Printed on recycled paper
ii
SAFETY INFORMATION
SAFETY INFORMATION
CLASS 1 LASER TRANSCEIVERS
CLASS 1
LASER PRODUCT
Class 1 Laser Products
The FDCMIM-34 and FDCMIM-38 connectors use Class 1 Laser
transceivers. Read the following safety information before installing
or operating the FDCMIM-34 or FDCMIM-38.
The Class 1 laser transceivers use an optical feedback loop to
maintain Class 1 operation limits. This control loop eliminates the
need for maintenance checks or adjustments. The output is factory set,
and does not allow any user adjustment. Class 1 Laser transceivers
comply with the following safety standards:
• 21 CFR 1040.10 and 1040.11 U.S. Department of Health and
Human Services (FDA).
• IEC Publication 825 (International Electrotechnical
Commission).
• CENELEC EN 60825 (European Committee for
Electrotechnical Standardization).
When operating within their performance limitations, laser
transceiver output meets the Class 1 accessible emission limit of all
three standards. Class 1 levels of laser radiation are not considered
hazardous.
iii
SAFETY INFORMATION
SAFETY INFORMATION
CLASS 1 LASER TRANSCEIVERS
Laser Radiation and Connectors
When the connector is in place, all laser radiation remains within the
fiber. The maximum amount of radiant power exiting the fiber (under
normal conditions) is -12.6dBm or 55x10
Removing the optical connector from the transceiver allows laser
radiation to emit directly from the optical port. The maximum
radiance from the optical port (under worst case conditions) is 0.8 W
cm-2 or 8x10 3 W m-2 sr-1.
-6
watts.
WARNING
: Do not use optical instruments to view the laser output.
The use of optical instruments to view laser output increases eye
hazard. When viewing the output optical port, you must remove power
from the network adapter.
iv
CONTENTS
CONTENTS
CHAPTER 1 INTRODUCTION
1.1 Using This Manual ....................................................................1-1
1.2 Overview.....................................................................................1-2
1.3 Getting Help...............................................................................1-4
CHAPTER 2 CONFIGURATION AND INSTALLATION
2.1 Installation Requirements......................................................... 2-1
2.2 Adding MIMs to an MMAC ....................................................... 2-1
2.3 MMAC Configurations...............................................................2-3
2.3.1 FDCMIMs Exclusively .................................................2-4
2.3.2 IRM3 and Ethernet MIMs with FDCMIMs ................2-5
2.3.3 EMME and RMIMs with FDCMIMs ...........................2-5
2.3.4 TRMM and Token Ring MIMs with FDCMIMs .........2-7
2.4 Twisted Pair Pinout Configuration...........................................2-8
2.5 Installing the FDCMIM.............................................................2-9
CHAPTER 3 USING LANVIEW
3.1 FDCMIM Status LEDs..............................................................3-1
3.2 Port Status LEDs.......................................................................3-2
CHAPTER 4 SPECIFICATIONS
v
INTRODUCTION
CHAPTER 1
INTRODUCTION
The FDCMIM-04/08/24/28/34/38/44/48 are components of a modular
dual attached concentrator. These components attach to an FDDI dual
ring through the Cabletron Systems FDMMIM, FDMMIM-04,
FDMMIM-24, or FDMMIM-30.
Note:
FDCMIM refers to the FDCMIM-04/08/24/28/34/38/44/48.
FDCMIMs reside in a Multi Media Access Center (MMAC), and you
can use them either with or without an FDMMIM, since you can form
a stand-alone FDDI network using one or more FDCMIMs.
Throughout this manual, unless otherwise noted, the term
The FDCMIM-X4s have four and the FDCMIM-X8s have eight master
ports (where X varies, depending on the cable/transmitter type) that
accept different connectors. Chapter 4,
operating specifications for the different available FDCMIM cable and
transmitter types.
1.1 USING THIS MANUAL
This manual explains how to install FDCMIM concentrator modules.
The following summarizes the chapter organization.
Chapter 1,
Chapter 2,
requirements, and detailed instructions for installing your FDCMIM
into an MMAC hub as a stand-alone concentrator.
Chapter 3,
FDCMIM LANVIEW LED.
Introduction
Configuration and Installation
Using LANVIEW®, describes the purpose of each
, describes the FDCMIM and its features.
Specifications
, includes installation
, lists the
Chapter 4,
FDCMIM cable/transmitter type.
Specifications
, provides operating specifications for each
Page 1-1
