Cabletron Systems Ethernet Hubs User Manual

Cabletron Ethernet Hubs

Management Module Guide

Notice

Cabletron Systems reserves the right to make changes in speciﬁcations and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made.

The hardware, ﬁrmware, or software described in this manual is subject to change without notice. IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL,

INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN ADVISED OF, KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH DAMAGES.

Virus Disclaimer

Cabletron has tested its software with current virus checking technologies. However, because no anti-virus system is 100% reliable, we strongly caution you to write protect and then verify that the Licensed Software, prior to installing it, is virus-free with an anti-virus system in which you have conﬁdence.

Cabletron Systems makes no representations or warranties to the effect that the Licensed Software is virus-free.

Cabletron Systems, Inc. P.O. Box 5005 Rochester, NH 03866-5005

SPECTRUM , the SPECTRUM IMT/VNM logo, DCM , IMT , and VNM are registered

trademarks, and SpectroGRAPH , SpectroSERVER , Inductive Modeling Technology ,

Device Communications Manager , and Virtual Network Machine are trademarks of

Cabletron Systems, Inc.

C++ is a trademark of American Telephone and Telegraph, Inc. UNIX is a trademark of UNIX System Laboratories, Inc. OSF/Motif and Motif are trademarks of the Open Software Foundation, Inc. X Window System is a trademark of X Consortium, Inc. Ethernet is a trademark of Xerox Corporation.

9030367 E7

Restricted Rights Notice

(Applicable to licenses to the United States Government only.)

1. Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013.

Cabletron Systems, Inc., 35 Industrial Way, Rochester, New Hampshire 03866-5005.

2. (a) This computer software is submitted with restricted rights. It may not be used,

reproduced, or disclosed by the Government except as provided in paragraph (b) of this Notice or as otherwise expressly stated in the contract.

(b) This computer software may be:

(1) Used or copied for use in or with the computer or computers for which it was

acquired, including use at any Government installation to which such computer or computers may be transferred;

(2) Used or copied for use in a backup computer if any computer for which it was

acquired is inoperative;

(3) Reproduced for safekeeping (archives) or backup purposes;

(4) Modified, adapted, or combined with other computer software, provided that the

modified, combined, or adapted portions of the derivative software incorporating restricted computer software are made subject to the same restricted rights;

(5) Disclosed to and reproduced for use by support service contractors in accordance with

subparagraphs (b) (1) through (4) of this clause, provided the Government makes such disclosure or reproduction subject to these restricted rights; and

(6) Used or copied for use in or transferred to a replacement computer.

computer software, it is licensed to the Government, without disclosure prohibitions, with the minimum rights set forth in paragraph (b) of this clause.

(d) Any other rights or limitations regarding the use, duplication, or disclosure of this

computer software are to be expressly stated in, or incorporated in, the contract.

(e) This Notice shall be marked on any reproduction of this computer software, in whole or in

part.

Cabletron Ethernet Hubs

ii Management Module Guide

Preface

What is in this Guide ........................................................................................................... xi

Conventions ......................................................................................................................... xii

Related SPECTRUM Documentation................................................................................. xii

Other Related Documentation............................................................................................ xii

Getting Help .........................................................................................................................xv

Chapter 1 Introduction

What is in this Chapter...................................................................................................... 1-1

Cabletron Ethernet Hubs Management Module .............................................................. 1-1

Terminology ........................................................................................................................ 1-2

Chapter 2 Device Views

What is in this Chapter...................................................................................................... 2-1

Accessing the Device View ................................................................................................. 2-1

Ethernet Hubs Device View Description........................................................................... 2-2

Device View Banner............................................................................................................ 2-4

MMAC Device Panel........................................................................................................... 2-5

MMAC Device Statistics Panel.......................................................................................... 2-7

Logical MIM Representation ............................................................................................. 2-8

Gauge Control Panel.................................................................................................. 2-13

Selected Attribute................................................................................................ 2-13

Gauge Mode ......................................................................................................... 2-13

Gauge Type .......................................................................................................... 2-13

Gauge Control Panel Buttons ............................................................................. 2-14

Physical MIM Representation ......................................................................................... 2-15

Port Source Address View ................................................................................................ 2-18

Cabletron Hub LEDs........................................................................................................ 2-18

SIRM Hubs ................................................................................................................. 2-19

IRM2 Hubs ................................................................................................................. 2-19

IRM3 Hubs ................................................................................................................. 2-20

IRBM Hubs................................................................................................................. 2-21

MRXI Hubs................................................................................................................. 2-22

MiniMMAC Hubs....................................................................................................... 2-22

9030367 E7

iii

Chapter 2 Device Views (continued)

Changing MIM Representations ......................................................................................2-23

Changing MIM Representations on the Entire Hub ................................................2-23

Changing MIM Representations on a Single Module

Using the Menu Bar ...................................................................................................2-23

Changing MIM Representations on a Single Module

Using the Mouse.........................................................................................................2-24

Chapter 3 Application Views

What is in this Chapter ......................................................................................................3-1

Accessing the Application View..........................................................................................3-1

Application View Description .............................................................................................3-2

HASPART Panel ...........................................................................................................3-4

SNMP System Group View ..........................................................................................3-4

SNMP UDP Group View ..............................................................................................3-4

SNMP ICMP Group View.............................................................................................3-5

SNMP IP Group View...................................................................................................3-7

IRBM MMAC Bridge Database View........................................................................3-10

Acquired Database...............................................................................................3-10

Permanent Database............................................................................................3-11

UPS Statistics View....................................................................................................3-12

Chapter 4 Conﬁguration Views

What is in this Chapter ......................................................................................................4-1

Accessing the Conﬁguration View......................................................................................4-1

Conﬁguration View Description .........................................................................................4-2

Model Conﬁguration.....................................................................................................4-3

Device Conﬁguration....................................................................................................4-4

Bridge Information.......................................................................................................4-5

Conﬁguration View Buttons.........................................................................................4-5

Source Address View ....................................................................................................4-6

Device Source Address Table .......................................................................................4-7

Control View .................................................................................................................4-7

Conﬁgure Alarms View.................................................................................................4-9

Redundancy View .......................................................................................................4-11

Flash Download View...........................................................................................4-14

Additional Conﬁguration View............................................................................4-15

Community and Trap Table.................................................................................4-15

Bridge Conﬁguration View.........................................................................................4-17

Model Conﬁguration ............................................................................................4-17

Device Conﬁguration............................................................................................4-17

Conﬁguration View Buttons ................................................................................4-18

Hub Redundancy Management........................................................................................4-21

Setting Redundant Circuits .......................................................................................4-24

Cabletron Ethernet Hubs

iv Management Module Guide

Chapter 5 Diagnostic Views

What is in this Chapter...................................................................................................... 5-1

Accessing the Diagnostic View........................................................................................... 5-1

Diagnostic View Description .............................................................................................. 5-2

SIRM Hub..................................................................................................................... 5-3

MRXI Hubs................................................................................................................... 5-4

Chapter 6 Performance Views

What is in this Chapter...................................................................................................... 6-1

Device Performance View................................................................................................... 6-1

Accessing the Device Performance View ........................................................................... 6-2

IRBM, IRM2, IRM3 and MiniMMAC Hubs ................................................................ 6-3

SIRM and MRXI Hubs................................................................................................. 6-6

MIM Performance View...................................................................................................... 6-6

IRBM, IRM2, IRM3 and MiniMMAC Hubs ................................................................ 6-7

SIRM and MRXI Hubs............................................................................................... 6-10

HASPART Panel .................................................................................................. 6-11

Port Performance View..................................................................................................... 6-11

Device View Access Method ....................................................................................... 6-11

DevTop View Access Method ..................................................................................... 6-12

IRM2, IRM3, IRBM, and MiniMMAC Hubs ............................................................. 6-13

SIRM Hubs ................................................................................................................. 6-16

MRXI Hub .................................................................................................................. 6-17

Chapter 7 Event and Alarm Messages

What is in this Chapter...................................................................................................... 7-1

Cabletron Ethernet Hub Alarms and Events.................................................................... 7-2

Index

9030367 E7

Cabletron Ethernet Hubs

vi Management Module Guide

Figures

Chapter 2 Device Views

Figure 2-1. Accessing the Device View ................................................................................... 2-2

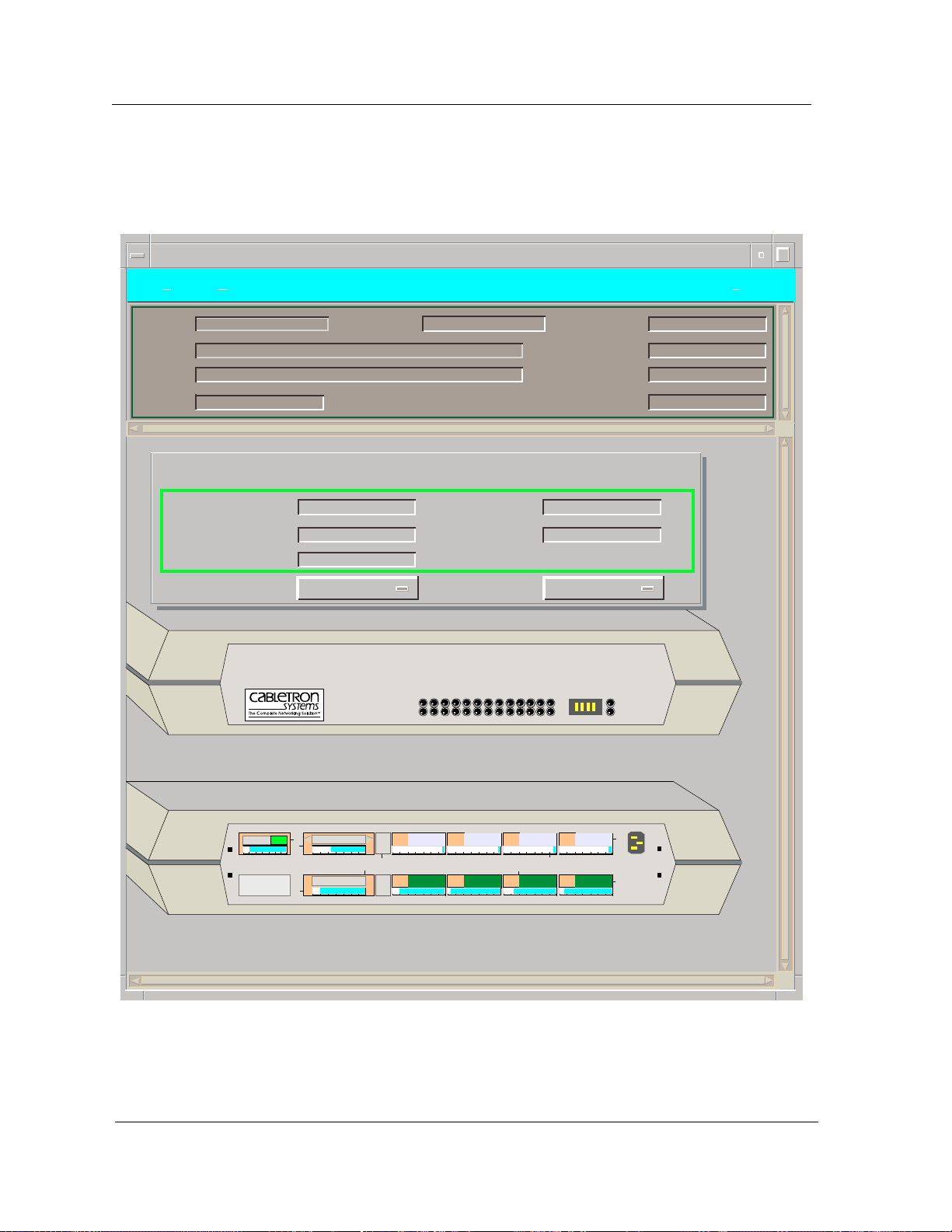

Figure 2-2. Cabletron Hub Device View ................................................................................. 2-3

Figure 2-3. MMAC Device Statistics Panel ............................................................................ 2-7

Figure 2-4. Logical MIM Representation of IRM2, IRM3, and IRBM Device Views .......... 2-10

Figure 2-5. Logical MIM Representation of IRM2, IRM3, and IRBM Device View

(accessed through the Physical MIM Representation) ..................................... 2-11

Figure 2-6. Logical MIM Representation of MiniMMAC Device View ............................... 2-12

Figure 2-7. Physical MIM Representation of IRM2, IRM3 and IRBM Device Views ........ 2-16

Figure 2-8. Physical MIM Representation of MiniMMAC Device View ............................. 2-17

Chapter 3 Application Views

Figure 3-1. Accessing the Application View ........................................................................... 3-2

Chapter 4 Conﬁguration Views

Figure 4-1. Accessing the Conﬁguration View ....................................................................... 4-2

Figure 4-2. Redundantly Connected Hub Device ................................................................. 4-23

Chapter 5 Diagnostic Views

Figure 5-1. Accessing the Diagnostic View ............................................................................. 5-2

Chapter 6 Performance Views

Figure 6-1. Accessing the Device Performance View ............................................................. 6-2

9030367 E7

vii

Cabletron Ethernet Hubs

viii Management Module Guide

Tables

Chapter 1 Introduction

Table 1-1. Model Type Descriptions....................................................................................... 1-2

Chapter 2 Device Views

Table 2-1. Logical Gauge Menu Options................................................................................ 2-6

Table 2-2. Gauge Mode Menu Options................................................................................... 2-6

Table 2-3. Port Status Values................................................................................................. 2-9

Chapter 3 Application Views

Table 3-1. SNMP ICMP Group View Information................................................................. 3-6

Table 3-2. IP Address Table Information View Fields.......................................................... 3-8

Table 3-3. IP Route Table Information View Fields.............................................................. 3-8

Table 3-4. SNMP IP Group View Information....................................................................... 3-9

Table 3-5. IRBM MMAC Acquired Database Table ............................................................ 3-11

Table 3-6. IRBM MMAC Permanent Database Table......................................................... 3-12

Chapter 4 Conﬁguration Views

Table 4-1. MMAC Source Address Board/Port Location View Fields .................................. 4-7

Table 4-2. Error Source Table Fields ................................................................................... 4-11

Table 4-3. MMAC Redundancy Information View Fields................................................... 4-12

Table 4-4. Address Delete View Fields ................................................................................ 4-13

Table 4-5. Circuit Reset View Fields.................................................................................... 4-13

Table 4-6. DownLoad Software View Field Definitions ...................................................... 4-14

Table 4-7. Community Table Detail View Field Definitions............................................... 4-16

Table 4-8. SNMP ICMP Group View Fields ........................................................................ 4-18

Table 4-9. Additional Bridge Information View Fields....................................................... 4-19

Table 4-10. Setup Information View Fields........................................................................... 4-19

Table 4-11. Topology Information View Table Fields ........................................................... 4-20

Table 4-12. Forward Delay & Hello Information View Fields.............................................. 4-20

Table 4-13. IRBM Bridge Control View Fields...................................................................... 4-21

9030367 E7

Chapter 6 Performance Views

Table 6-1. Multi-Attribute Line Graph Definitions...............................................................6-3

Table 6-2. Frame Breakdown Pie Chart.................................................................................6-4

Table 6-3. Error Breakdown Pie Chart ..................................................................................6-4

Table 6-4. MIM Configuration View Fields............................................................................6-9

Table 6-5. IRM2, IRM3, IRBM, and MiniMMAC Configure Alarms View Fields ...............6-9

Table 6-6. SIRM and MRXI MIM Configure Alarms View Fields ......................................6-10

Table 6-7. Port Configuration View Field Definitions.........................................................6-15

Table 6-8. Port Configure Alarms View Field Definitions ..................................................6-15

Table 6-9. Ethernet Port Standard Statistics View Field Definitions................................6-17

Table 6-10. Ethernet Port Standard Statistics View Field Definitions................................6-18

Table 6-11. Ethernet Port Configure Alarms View Field Definitions...................................6-18

Chapter 7 Event and Alarm Messages

Table 7-1. Events and Alarms.................................................................................................7-2

Cabletron Ethernet Hubs

x Management Module Guide

Preface

Use this guide if you are going to manage a Cabletron Ethernet Hub through SPECTRUM. Before reading this guide, you should be familiar with SPECTRUM’s functions as described in the SPECTRUM Operator’s Reference , and the SPECTRUM Administrator’s Reference . You should also be familiar with any network management and hardware requirements described in the related hardware documentation.

What is in this Guide

The following chapter descriptions outline the organization of the Cabletron

Ethernet Hubs Management Module Guide .

Chapter Description

Chapter 1

Introduction

Chapter 2

Device Views

Chapter 3

Application Views

Chapter 4

Conﬁguration Views

Chapter 5

Diagnostic Views

Chapter 6

Performance Views

Describes the Cabletron Ethernet Hubs management module and model types.

Describes the Device Views available for each Cabletron Ethernet Hub model type.

Describes the Application Views available for each Cabletron Ethernet Hub model type.

Describes the Conﬁguration View available for each Cabletron Ethernet Hub model type.

Describes the Diagnostic View available for each Cabletron Ethernet Hub model type.

Describes the Performance View available for each Cabletron Ethernet Hub model type.

9030367 E7

Chapter 7

Event and Alarm Messages

Contains a listing and explanation of the alarm and event messages generated in the Event Log or Alarm View for the Cabletron Ethernet Hub model types.

Conventions

In this manual, the following conventions are used:

• Command names are printed in bold ; for example, Clear or Save &

Close .

• Menu selections to access a view are printed in bold ; for example,

Conﬁguration or Detail .

• Buttons are represented by a shadowed box; for example, .

Getting Help

For additional support for SPECTRUM products, or to make comments or suggestions regarding SPECTRUM or this manual, contact Cabletron Systems Technical Support via one of the following means:

Location Mail FAX Telephone

Getting Help

North America

Europe

Paciﬁc

Japan

Singapore

Germany

Cabletron Systems, Inc. P. O. Box 5005 Rochester, NH 03866-5005

E-mail: spectrum-support@ctron.com

Cabletron Systems, Ltd. Network House Newbury Business Park London Road, Newbury Berkshire, England RG13 2PZ

E-mail: eurospec@ctron.com

Cabletron Systems, Inc. Allambie Grove Estate 25 French’s Forest Road East French’s Forest, NSW 2086 Sydney, Australia

E-mail: spectrum-support@ctron.com

Cabletron Systems, KK JTB Building 9F 164 Maranouchi Chiyoda-ku Tokyo 100 Japan

E-mail: spectrum-support@ctron.com

Cabletron Systems, Inc. 85 Science Park Drive #03-03/04 The Cavendish Singapore 051

E-mail: spectrum-support@ctron.com

Cabletron Systems GmbH Dreieich Park Im Geﬁerth 13d 63303 Dreieich Frankfurt, Germany E-mail: spec-germany@ctron.com

603-337-3075 603-337-3500

(*)-44-635-552062 (*)-44-635-580000

(*)-61-2-950-5950 (*)-61-2-950-5900

(*)-81-3-3240-1985 (*)-81-3-3240-1981

(*)-65-7763382 (*)-65-7755355

(*)-49-6103/991-229 (*)-49-6103/991-269

*International Operator Code

Questions About SPECTRUM Documentation?

Send your questions, comments or suggestions regarding SPECTRUM documentation to the Technical Communications Department directly via the

E-MAIL

following internet address:

spectrum-techdocs@ctron.com

9030367 E7 Preface

xiii

Getting Help

Preface Cabletron Ethernet Hubs xiv Management Module Guide

Introduction

What is in this Chapter

This chapter describes the SPECTRUM Management Module for the Cabletron Ethernet Hub family of devices. It also provides the Model Type Names assigned to the hubs in SPECTRUM. The Model Type Name refers to the template used to specify device attributes, actions, and associations for device models in SPECTRUM.

Chapter 1

Cabletron Ethernet Hubs Management Module

The SPECTRUM Ethernet Hubs Management Module manages the Cabletron Ethernet Hub family of devices by using the SNMP network management agent and the Management Information Bases (MIBs), included with the management module.

Table 1-1 provides the Model Type Names for the Cabletron Ethernet hubs and a brief description of the intelligent hub module devices supported by the Cabletron Ethernet Hubs Management Module.

9030367 E7

1-1

Terminology

Table 1-1. Model Type Descriptions

Model Type Name Hub Description

Hub_CSI_IRBM An Intelligent Repeater Bridging Module

Hub_CSI_IRM2 An Intelligent Repeater Module-2 (IRM2)

Hub_CSI_IRM3 An Intelligent Repeater Module-3 (IRM3)

Hub_CSI_SIRM An Intelligent Repeater Module (IRM)

Hub_CSI_MRXi An MRXI intelligent repeater module

Hub_CSI_MiniM A MiniMMAC intelligent repeater module

(IRBM) managed through the Simple Network Management Protocol (SNMP) only. This module includes bridging functionality that is similar to a Cabletron SNMP NB25.

managed through SNMP only.

If you have installed both the Hub_CSI_MRXi (Cabletron Ethernet Hubs

NOTE

Management Module) and the HubCSIMRXi (MRXI-24 Management Module), and are going to model an MRXI or MRXI-2, make sure you select the Hub_CSI_MRXi (MRXI/MRXI-2) model type from the Select Model Type menu, NOT the HubCSIMRXi (MRXI-22 or 24) model type.

If you are running a previous version of SPECTRUM, the following user

NOTE

interface aspects may differ from those in SPECTRUM version 4.0:

• Order and names of menu selections

• Navigational features (mouse button functionality)

For information about menu selections and navigating within previous versions of SPECTRUM, refer to the SPECTRUM System User’s Guide. For information about menu selections and navigating within SPECTRUM version 4.0, refer to the SPECTRUM Operator’s Reference.

Terminology

This section deﬁnes several terms used in this guide to describe Cabletron

Ethernet hub and board model types.

Introduction Cabletron Ethernet Hubs 1-2 Management Module Guide

Terminology

Hub Chassis

The software model representation of an MMAC with no boards installed in its slots. An MMAC chassis can have three, ﬁve, or eight slots.

Media Interface Modules (MIMs)

The software model representations of boards installed in an MMAC hub chassis. For the purposes of this guide, the term MIM will represent all MIMs that can be installed in a Cabletron hub.

Intelligent MIMs

MIMs that provide network management functions and network media interfacing.

Non-intelligent MIMs

MIMs that provide interfaces to different kinds of network media, but have no network management capabilities.

Single-Port Interface Modules (SPIMs)

For the MRXI and MiniMMAC hubs, this term is used to represent the nonintelligent MIMs that can be installed in these hub chassis types.

9030367 E7 Introduction

1-3

Terminology

Introduction Cabletron Ethernet Hubs 1-4 Management Module Guide

Device Views

What is in this Chapter

This chapter provides a description of the Device View for the Cabletron Ethernet Hubs Management Module. This description includes an explanation of the menu bar access to the various views used to control and monitor the hub devices, and how to use the Device View to view the logical and physical representations of Cabletron hubs, access SPECTRUM generic views, and monitor hub performance. It also points out differences in the Device Views of various Cabletron hubs.

Chapter 2

Accessing the Device View

You can access the Device View using one of the following methods (refer to Figure ):

• Double-click on the Device View button of the icon. This opens the Device View last accessed (i.e., Logical or Physical Device View) for this device.

• Highlight the icon and select Device -> Logical or Device -> Physical from the Icon Subviews menu. The Hub_CSI_MRXi and Hub_CSI_ MiniM model types do not support the Logical/Physical submenu, and provide access to the Logical Device View through the Device menu item.

9030367 E7

2-1

Ethernet Hubs Device View Description

Figure 2-1. Accessing the Device View

Double-click

Close Navigate Alarms Performance Notes... Utilities Zoom Conﬁguration Diagnostic Acknowledge

Flash Green Enabled

Application

Device

DevTop

Logical Physical

Select Logical or Physical

Ethernet Hubs Device View Description

The Device View for a hub allows you to view a logical or physical representation of the Media Interface Modules (MIMs) installed in a hub. The logical MIM representation shows a port status label and a logical gauge, while the physical MIM representation shows the actual physical appearance of the module and its LEDs. The Device View also provides you with menu bar access to the views that monitor and control the hub, the hub modules and each module port.

The Device View shows an actual representation of the hub conﬁguration. The representation is updated after each SPECTRUM polling cycle to show any changes in the hub conﬁguration. For example, if a module is pulled from or added to the hub, the device view displays the new conﬁguration. Figure displays one example of a Cabletron Ethernet Hub Device View.

Device Views Cabletron Ethernet Hubs 2-2 Management Module Guide

Ethernet Hubs Device View Description

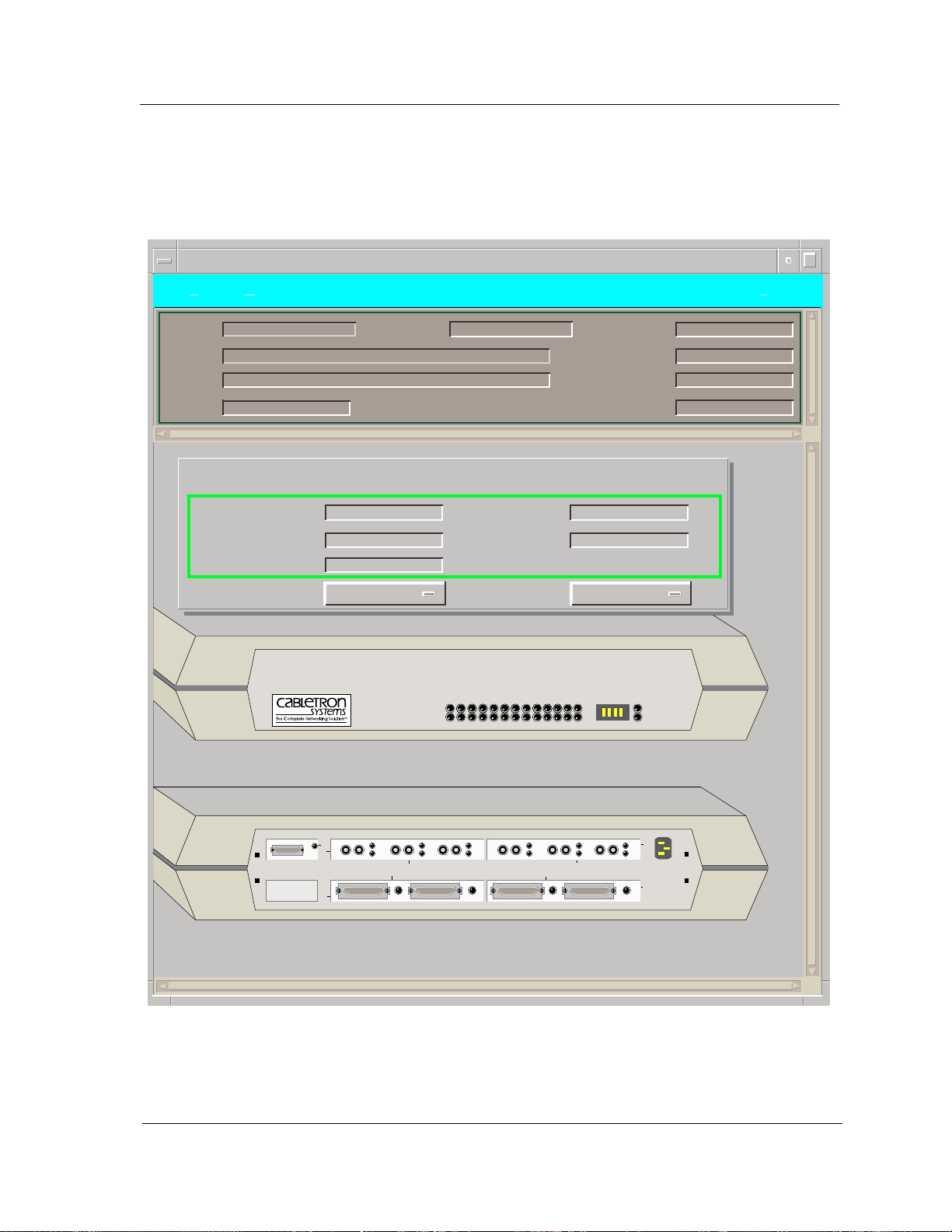

Figure 2-2. Cabletron Hub Device View

Primary Landscape 0x00400000 - VNM Host - IRBM Hub of type Hub_CSI_IRBM

*File View Help?

Model Name

Contact

Description

Location

IRBM Hub

MT8

1 2 3 4 5 6 7 8

165

180

256

IRBM Hub

MT8

Network Address

1 2

System Up Time

Manufacturer

Device T ype

Serial Number

IRBM Hub

IRBM

OFF

9030367 E7 Device Views

2-3

Device View Banner

The top portion of the IRM, IRM2, IRM3, and IRBM Logical Device Views displays the following information. A condition status banner surrounding this information displays the condition status color for the device, with the exception of Flashing Green, which is only valid for the Contact Status Label. Refer to Table 3-1 for deﬁnitions of condition status colors.

Model Name

The user-deﬁned or default model name.

Net Address

The Internet Protocol (IP) address assigned to the device.

Sys Up Time

The time the device has been active without failure, displayed in the following format: days+hours:minutes:seconds.

Contact

The textual identiﬁcation and contact information of the person responsible for managing the device.

Manufacturer

The manufacturer of the device.

Description

A textual description of the device. This description may include the name and version of the hardware type, the software operating system, and the networking software.

Device Type

A hardware description of the device being modeled.

Location

The location of the device as entered in the Creation dialog box when the model was created. If no location has been speciﬁed, this ﬁeld displays the model name of the SPECTRUM location view containing the device.

Serial Number

The serial number of this device.

Device Views Cabletron Ethernet Hubs 2-4 Management Module Guide

MMAC Device Panel

The top portion of a MiniMMAC hub Device View displays an MMAC Device Panel. The IRBM, IRM, IRM2, and IRM3 Device Views also display the Device Panel when accessed by selecting the Physical Device View from the Icon Subviews Menu. The MMAC Device Panel appears in the Device View in both the logical and physical MIM representations. The MMAC Device Panel displays the following information about the hub:

Name

The user-deﬁned or default model name for the hub.

Location

Net Address

The IP address of the hub.

Device Type

The SPECTRUM model type name of the hub.

MMAC Device Panel

System UpTime

The time the hub has been active without failure. The time is displayed in the following format: days+hours:minutes:seconds

The colored rectangle that appears around these ﬁelds displays the device contact status. For a list of device contact status colors, refer to Table 3-2.

The MMAC Device Panel also provides a Logical Gauges button and a Gauge Mode button. These buttons allow you to change the type of statistical information presented in the Logical MIM horizontal bar gauges. The Logical MIM bar gauges appear under the name of the module (e.g., IRM2) and under each module port. The following sections describe how these buttons work.

Logical Gauges

The Logical Gauges button lets you change the statistics represented in the horizontal gauges for the entire MMAC. The horizontal gauges can display a given statistic as either a percentage or a rate, depending on the setting of the Gauge Mode button. When you single-click on the Logical Gauges button, a menu appears. Table 2-1 provides a list of the Logical Gauge menu options.

Gauge Mode

The Gauge Mode button allows you to change the gauge representation of the selected statistic. Table 2-2 provides a list of the Gauge Mode menu options.

9030367 E7 Device Views

2-5

MMAC Device Panel

Table 2-1. Logical Gauge Menu Options

Option Deﬁnition

Frames Indicates frames received or transmitted by the module

or port.

Bytes Indicates bytes received or transmitted by the module

or port.

Recv_Colls Indicates collisions detected by the module or port

while receiving data.

Trans_Colls Indicates collisions generated by the module or port

during transmission. Total_Errors Indicates errors detected by the module or port. Align_Errors Indicates misaligned packets detected by the module or

port. CRC_Errors Indicates packets with bad Cyclical Redundancy

Checks (CRCs) received by the module or port. Runts Indicates runt packets received by the module or port.

Runt packets are packets that are less than the

standard Ethernet frame of 64 bytes, not including

preamble. Giants Indicates giant packets received by the module or port.

A giant packet exceeds 1518 bytes not including

preamble. OutOfWindow Indicates collisions out of the standard window (51.2µs)

due to a network problem.

Table 2-2. Gauge Mode Menu Options

Option Deﬁnition

Percentages Displays the selected statistic as a percentage of the

total statistics for the module.

Rates Displays the selected statistic as a rate over a given

time frame.

Device Views Cabletron Ethernet Hubs 2-6 Management Module Guide

MMAC Device Statistics Panel

The top portion of the MRXI Device View and the IRM Device View (when accessed by selecting Physcial from the Device View submenu) displays the MMAC Device Statistics Panel. This panel displays the Frame Rate and Collision Rate information for the hub. Each rate is color-coded to correspond to the Multi-Attribute Line Graph. Figure 2-3 shows an example of the MMAC Device Statistics Panel.

Figure 2-3. MMAC Device Statistics Panel

MMAC Device Statistics Panel

Fri Jan 31 08:05:19 1996

Three buttons are available on the MMAC Device Statistics Panel. These buttons allow you to change the statistical presentation of the Multi-Attribute Line Graph or the Logical MIM horizontal bar gauges. The buttons and their functions are as follows:

Lin

1000

800

600

400

200

00:3:00:6:00:9:0

MMAC Device Statistics

Frame Rate

Collision Rate

Logical Gauges

Gauge Mode

Frames Percentage

Log/Lin

This button allows you to toggle between a logarithmic and a linear scale presentation of the multi-attribute line graph.

9030367 E7 Device Views

2-7

Logical MIM Representation

Logical Gauges

This button allows you to change the statistics represented in the horizontal gauges for the entire MMAC. When you single-click on the Logical Gauges button, a menu appears. The horizontal bar gauge changes color depending on the statistic being represented. The following table provides a list of the menu options and their corresponding gauge color deﬁnitions.

Menu Option Gauge Color Deﬁnition

Frame Light blue Indicates the number of frames received or

Collisions Yellow Indicates the total number of collisions

transmitted by the module or port.

detected by the module or port.

Gauge Mode

The Gauge Mode button allows you to change the gauge representation of the selected statistic. Refer to Table 4-2 for the statistic gauge representations.

Logical MIM Representation

The logical MIM representation provides information about the individual modules. For information on the Device View physical MIM representation, see the section titled “Physical MIM Representation.”

The logical MIM representation provides port status labels and double-click zones that provide access to information on each module installed in the hub. The logical MIM representation also provides several double-click zones that function as follows:

Port Number

Indicates the port number. You can double-click on the port number to bring up a notes window.

Port Status

Indicates the status of the port. You can double-click on this zone to bring up the Port Performance view, which is described in Chapter 6. When you have accessed the Logical MIM representation through the Physical MIM representation, double-clicking the Port Status Label opens the Port Administration Status dialog box. If you have write privileges, you can doubleclick on this zone to change the port administration status from ON to OFF or from OFF to ON. Table 2-3 provides the port status values.

Device Views Cabletron Ethernet Hubs 2-8 Management Module Guide

Port Performance

Indicates the frame rate for the port. You can change this display using the Gauge Control Panel, which is described later in this chapter. When you have accessed the Logical MIM representation through the Physical MIM representation, the Port Performance label displays a gauge. The rates or percentages measured by this gauge depend on the setting of the Logical Gauges and Gauge Mode buttons. You can double-click on the Port Performance Gauge to bring up the port performance view, which is described in Chapter6.

Table 2-3. Port Status Values

Status Color Code

NLNK (No link) Yellow ON Green OFF Blue SEG (Segmented) Red NSQE Green (IRBM) SQE Green (IRBM) CL Blue (IRBM)

Logical MIM Representation

NOTE

You can also access several generic views from the View and Device Menu pulldown menus. These generic views include:

• Conﬁguration View

• Performance View

• Diagnostic View

• Application View

• Display Logical/Physical MIMs

The procedures for displaying these generic views are given in the section titled “Changing MIM Representations” later in this chapter.

Figures 2-4 through 2-6 show some examples of Device Views for Cabletron hubs. The examples show one or more modules displayed in a Logical Representation.

Some modules may not support logical MIM representations. Refer to the speciﬁc module’s hardware documentation.

9030367 E7 Device Views

2-9

Logical MIM Representation

Figure 2-4. Logical MIM Representation of IRM2, IRM3, and IRBM Device Views

Primary Landscape 0x00400000 - VNM Host - IRM-3 Hub #2 of type Hub_CSI_IRM3

*File View Help?

NLK

Network Address

1 2

Model Name

Contact

Description

Location

IRM-3 Hub #2 IRM-3 Hub #2

THIN

SEG

IRM-3 Hub #2

10BT-T

1 2 3 4 5 6 7 8

9 10 11 12

System Up Time

Manufacturer

Device T ype

Serial Number

IRM3

OFF

Device Views Cabletron Ethernet Hubs 2-10 Management Module Guide

Logical MIM Representation

Figure 2-5. Logical MIM Representation of IRM2, IRM3, and IRBM Device View

(accessed through the Physical MIM Representation)

Primary Landscape 0x00400000 - VNM Host - IRBM Hub of type Hub_CSI_IRBM

*File View Help?

Model Name

Contact

Description

Location

Name

Location

Network Address

Logical Gauges

Network Address

MMAC Device Panel

IRBM Hub

My Ofﬁce

132.177.118.24

Frames

1 2 3

MT8

Device T ype

System UpTime

Gauge Mode

MT8

1 2 3

System Up Time

Manufacturer

Device T ype

Serial Number

Hub_CSI_IRBM

2+01:17:39

Percentage

IRBM

1 2

OFF

9030367 E7 Device Views

2-11

Logical MIM Representation

Figure 2-6. Logical MIM Representation of MiniMMAC Device View

Primary Landscape 0x00400000 - VNM Host - MiniMMAC Hub of type Hub_CSI_MiniM

*File View Help?

Model Name

Contact

Description

Location

Name

Location

Network Address

Logical Gauges

MiniMMAC MULTIMEDIA ACCESS CENTER

WITH REMOTE LANVIEW

Network Address

MiniMMAC Device Panel

MiniMMAC Hub

My Ofﬁce

132.177.118.24

Frames

RECEIVE PORT OK

Device T ype

System UpTime

Gauge Mode

12345678910111213PORT

System Up Time

Manufacturer

Device T ype

Serial Number

Hub_CSI_MiniM

0+00:33:56

Percentage

SYSTEM

COLLISION

POWER

SPIM-A ON

THE REMOTE LANVIEW OPTION IS NOT INSTALLED

MPIM-F2

MPIM-A

NLNK

NLNK4NLNK

100-340V~ 50-60Hz

IFI

Device Views Cabletron Ethernet Hubs 2-12 Management Module Guide

Gauge Control Panel

The Gauge Control Panel allows you to change the type of statistical information presented in the Port Performance label of the Logical MIM Representation. To access the Gauge Control Panel, single-click on the rightmost module in the hub chassis to highlight it and then select Gauge Control

Panel from the Icon Subviews menu.

Selected Attribute

This area of the Gauge Control Panel allows you to select the statistical attribute displayed on the Logical Interface Icon’s Gauge. The label changes color to reﬂect the attribute selected. Refer to Table 4-1 for a list of the attribute deﬁnitions.

Gauge Mode

Logical MIM Representation

Gauge Control Panel

Gauge Type

This area of the Gauge Control Panel allows you to select the mode presented by the Logical Gauge. Possible selections are Totals, Rates, or Percentages. The Percentages selection represents the percentage of the interface compared to the rest of the interfaces, and is not currently supported. Once you select these attributes, click the Gauge Control Panel Apply button to activate the mode represented in the Logical Gauge Label (f).

This option allows you to select either a numeric or linear representation of the Logical Gauge.

9030367 E7 Device Views

2-13

Logical MIM Representation Gauge Control Panel

Gauge Control Panel Buttons

The following buttons are available in the Gauge Control Panel:

Apply

Apply the Selected Attribute selection(s) to the Port Performance label. The settings cannot be saved.

Keep Settings

Save the current settings while running SpectroGRAPH.

Reset

Reset back to the last Keep Settings selections.

Close the Gauge Control Panel and reset back to the default attribute of Frame Rate.

Default

Return all settings to their default values.

Device Views Cabletron Ethernet Hubs 2-14 Management Module Guide

Physical MIM Representation

The Physical MIM Representation of the hub shows each of the modules installed in the hub along with the current LED status conditions (on or off). The Physical MIM Representation gives you the same access to generic views as the Logical MIM Representation.

Figures 2-7 through 2-9 show some examples of Device Views showing modules in a physical representation.

Physical MIM Representation

9030367 E7 Device Views

2-15

Physical MIM Representation

Figure 2-7. Physical MIM Representation of IRM2, IRM3 and IRBM Device Views

Primary Landscape 0x00400000 - VNM Host - IRBM Hub of type Hub_CSI_IRBM

*File View Help?

Model Name

Contact

Description

Location

Name

Location

Network Address

Logical Gauges

Network Address

MMAC Device Panel

IRBM Hub

My Ofﬁce

132.177.118.24

Frames

Device T ype

System UpTime

Gauge Mode

MT8 MIM

R C V

MT8 MIM

R C V

System Up Time

Manufacturer

Device T ype

Serial Number

Hub_CSI_IRBM

2+01:17:39

Percentage

IRBM

L N K

M M

C O N S O L E

C O M M

TH RH

ETHERNET

F O

I R L

Device Views Cabletron Ethernet Hubs 2-16 Management Module Guide

Physical MIM Representation

Figure 2-8. Physical MIM Representation of MiniMMAC Device View

Primary Landscape 0x00400000 - VNM Host - MiniMMAC Hub of type Hub_CSI_MiniM

*File View Help?

Model Name

Contact

Description

Location

Name

Location

Network Address

Logical Gauges

MiniMMAC MULTIMEDIA ACCESS CENTER

WITH REMOTE LANVIEW

Network Address

MiniMMAC Device Panel

MiniMMAC Hub

My Ofﬁce

132.177.118.24

Frames

RECEIVE PORT OK

Device T ype

System UpTime

Gauge Mode

12345678910111213PORT

System Up Time

Manufacturer

Device T ype

Serial Number

Hub_CSI_MiniM

0+00:33:56

Percentage

SYSTEM

COLLISION

POWER

THE REMOTE LANVIEW OPTION IS NOT INSTALLED

P W

R L

PWR PWR PWR PWR

R L

100-340V~ 50-60Hz

IFI

9030367 E7 Device Views

2-17

Port Source Address View

The Port Source Address View is available from the IRBM, IRM2, IRM3, and MiniMMAC Device Views. This view allows you to display the Source Address information for the port. To open the Port Source Address View, follow these steps:

1. Click on the port icon with the right mouse button to display the port Icon Subviews menu.

2. Select Port Source Address View from the this menu.

You can also display the Port Source Address View as follows:

1. Click on the port icon to highlight it.

2. Select Icon Subviews from the View menu.

3. Select Port Source Address View from the Icon Subviews menu.

The Port Source Address View displays the following information:

Name

The user-deﬁned or default name for the hub.

Network Address

The IP address of the hub.

Device Type

The SPECTRUM model type name of the hub.

Slot/Port Number

The slot number and the port number in this format: 1.1 (Slot number 1, Port number 1).

Source Address Table

The list of Source Addresses for the port. The print button allows you to print out a copy of the table to a printer or a ﬁle.

Cabletron Hub LEDs

This section describes the LEDs available on Cabletron Systems intelligent modules for the MMAC hub chassis types and the LEDs available on the front panel of the MRXI and MiniMMAC. You can see these LEDs in the Physical Representation of the Device View. For more speciﬁc information on LEDs, refer to the corresponding Cabletron hardware installation manual.

Device Views Cabletron Ethernet Hubs 2-18 Management Module Guide

SIRM Hubs

Cabletron Hub LEDs

SIRM Hubs

The SIRM supports LEDs that represent operating status, collision rates, error rates, packets transmitted and packets received for the entire hub as follows:

Fail (Error)

This LED is located on the top of the left-hand LED column. It indicates that a problem has been detected with the SIRM.

CLN (Collision Present)

This LED is located on the top of the right-hand LED column and is not labelled in SPECTRUM. It indicates that the SIRM is detecting a collision signal from one of the segments connected to the hub.

Unlabeled 1

This LED is located below the Fail LED. It indicates that the SIRM is receiving network management packets.

Unlabeled 2

This LED is located below the CLN LED. It indicates that the SIRM network management software is on line and functional.

IRM2 Hubs

The SIRM modules also contain an RCV and POK LED that are associated with its repeater port and its network management port.

The IRM2 supports LEDs that represent operating status, collision rates, error rates, packets transmitted, and packets received for the entire hub as follows. The LEDs are listed in top to bottom order, except where otherwise noted.

ER (Error)

This LED indicates that a problem has been detected with the IRM2.

PW (Power)

This LED indicates that the hub is receiving power.

RC (Receive)

This LED indicates the IRM2 is repeating a data packet received from one of the segments connected to the hub chassis.

XM (Transmit)

This LED indicates that the IRM2 is transmitting a data packet out to all other segments connected to the hub chassis.

CL (Collision Present)

This LED indicates the IRM2 is detecting a collision signal from one of the segments connected to the hub chassis.

9030367 E7 Device Views

2-19

Cabletron Hub LEDs IRM3 Hubs

PO (Port OK)

This LED is lit to indicate that the Network Interface Chip associated with the IRM2’s internal repeater port has passed an internal Loop Back Test and is ready for transmission.

P1 (Port 1 OK)

This LED is lit to indicate that the Network Interface Chip associated with the IRM-2’s external repeater port has passed an internal Loop Back Test and is ready for transmission.

R1(Receive 1)

This LED is located to the left of the P1 LED. It indicates the IRM2 is repeating a data packet received from the segment connected to the IRM2 AUI Port or Fiber Optic Port.

LN (Link)

This LED is located below the IRM2’s AUI port. It indicates that a link has been established between the ﬁber optic port on the IRM2 and the ﬁber optic device at the other end of the ﬁber optic link segment.

IRM3 Hubs

The IRM3 supports LEDs that represent operating status, collision rates, error rates, packets transmitted and packets received for the entire hub as follows:

PW (Power)

This LED is located at the top of the left-hand LED column. It indicates that the IRM3 is receiving power from the MMAC.

OK (Board OK)

This LED is located at the top of the right-hand LED column. If this LED is lit, the module is operating properly. If this LED is not lit, there is an initialization problem. You may need to press the Reset switch.

RC (Receive)

This LED is located below the OK LED. It indicates that the IRM3 is repeating a packet received from a connected segment.

MM (Management)

This LED is located below the PW LED. It indicates that the IRM3 is receiving or transmitting management packets.

CL (Collision)

This LED is located below the MM LED. It indicates that a collision has been detected on a segment.

PO (Port OK)

This LED is located below the RC LED. It indicates that the internal repeater port is OK.

Device Views Cabletron Ethernet Hubs 2-20 Management Module Guide

IRBM Hubs

Cabletron Hub LEDs

IRBM Hubs

ON (AUI)

This LED is located above the AUI port and to the left of the PW LED. It indicates that the AUI port is the active repeater port.

PW (Power)

This LED is located above the AUI port and to the right of the ON LED. It indicates that the AUI port is receiving power.

ON (FO)

This LED is located below the AUI port and to the left of the LN LED. It indicates that the ﬁber optic port is the active repeater port.

LNK (Link)

This LED is located below the AUI port and to the right of the ON LED. It indicates that a link has been established between the port and the ﬁber optic device.

The IRBM is divided into two sets of LEDs. One set, located in the right-hand LED column, is associated with the IRBM’s repeating functions and a second set is associated with the IRBM’s bridging functions. The repeater set has the same functions as the LEDs described for the IRM2. The bridging set of LEDs is as follows:

ON (On Line)

This LED is located at the top of the left-hand LED column. It indicates that the IRBM’s bridging functionality is on line and operational.

ST (Stand By)

This LED is located below the ON LED. It indicates that the IRBM’s bridging functionality is in the standby mode and is not capable of forwarding packets.

RC (Receive)

This LED is located below the ST LED. It indicates that the IRBM’s bridge port is receiving data packets.

XM (Transmit)

This LED is located below the RC LED. It indicates that the IRBM’s bridge port is transmitting packets to the segment connected to it.

CP (Collision Present)

This LED is located below the XM LED. It indicates that a collision is occurring on the segment connected to the IRBM’s bridge port. On some IRBMs, this LED may be labelled CP.

PO (Power)

This LED indicates that the hub is receiving power.

9030367 E7 Device Views

2-21

Cabletron Hub LEDs MRXI Hubs

MRXI Hubs

The MRXI supports LEDs that represent operating status, collision rates, error rates, packets transmitted and packets received for the entire hub as follows:

POWER

This LED indicates that the hub is receiving power.

LNK (Link)

This LED indicates that a link has been established between the module and the 10BASE-T device at the other end of the twisted pair segment. This LED remains lit as long as the link is maintained. The link LED ﬂashes to indicate that the hub has established a link with reversed polarity.

RCV (Receive)

This LED indicates that the hub is receiving a data packet on that segment.

COLLISION

This LED indicates that a collision is occurring on a system level.

MGMT (Management)

When ﬂashing, this LED indicates that the MRXI’s network management software is receiving a packet directed toward management.

FAULT

This LED indicates than an error has been detected by the MRXI’s software.

XMT (Transmit)

This LED indicates that the hub is transmitting packets to the segment connected to it.

MiniMMAC Hubs

The MiniMMAC supports LEDs that represent network activity and operating status, as follows:

PORT OK

This LED indicates that the corresponding port is not segmented from the network and is ready to transmit or receive packets from a segment attached to the port.

RECEIVE

This LED indicates that the MiniMMAC is receiving a data packet from the segment attached to the corresponding port.

POWER

This LED indicates that the MiniMMAC is receiving power.

Device Views Cabletron Ethernet Hubs 2-22 Management Module Guide

COLLISION

This LED indicates that the MiniMMAC has detected a collision on one of its ports.

FLT (Fault)

This LED is located on the back of the MiniMMAC. It indicates that an error has been detected by the MiniMMAC’s software.

XMT (Transmit)

This LED is located on the back of the MiniMMAC. It indicates that the hub is transmitting packets to the segment connected to it.

Changing MIM Representations

You can change the MIM representation of the entire hub or the MIM representation of selected modules in the hub. The following sections describe several methods for changing MIM representations.

Changing MIM Representations

Changing MIM Representations on the Entire Hub

To change the representation of the entire hub Device View, follow these steps:

1. Within the hub Device View, pull down the Device Menu.

2. Click on either the Display Physical MIMs or Display Logical MIMs

menu option. The appearance of the hub changes to the selected MIM representation.

Changing MIM Representations on a Single Module Using the Menu Bar

To change the representation of a single module using the menu bar, follow these steps:

1. From the Physical representation of the Device View, move the mouse

pointer onto the module. Single-click the left mouse button.

2. Select the Icon Subviews from the View menu.

3. Select the Go Logical menu option. The selected module changes its

appearance and appears to extend from the hub chassis.

9030367 E7 Device Views

2-23

Changing MIM Representations Changing MIM Representations on a Single Module Using the Mouse

This procedure works only when you are viewing the Physical representation

NOTE

of modules and you want to change to a Logical representation.

Changing MIM Representations on a Single Module Using the Mouse

To change the MIM representation of a single module using the mouse, follow these steps:

1. From the Physical representation of the Device View, move the mouse pointer onto the module.

Make sure that the mouse pointer is not on top of, or next to, a gauge or port

NOTE

connector (depending on the initial MIM presentation) otherwise a Port Performance View will open.

NOTE

2. Double-click the left mouse button. The appearance of the selected module changes. A selected single module appears to extend from the hub chassis.

3. Double-click the left mouse button again to return the module to its original appearance.

This procedure works only when you are viewing the Physical representation of modules and you want to change to a Logical representation.

Device Views Cabletron Ethernet Hubs 2-24 Management Module Guide

Application Views

What is in this Chapter

This chapter describes the Cabletron Ethernet Hubs Management Module Application Views. The Application View provides buttons that allow you to access increasingly detailed views of network information, and table entries within views that provide you with double-click zones that navigate to devicespeciﬁc information views.

Chapter 3

Accessing the Application View

You can access the Application View using one of the following methods (refer to Figure ):

• Double-click on the Application View label of the icon.

• Highlight the icon and select Application from the Icon Subviews menu.

9030367 E7

3-1

Application View Description

Figure 3-1. Accessing the Application View

Double-click

Close Navigate Alarms Performance Notes... Utilities Zoom Conﬁguration Diagnostic Acknowledge

Flash Green Enabled

Application

Device DevTop

Select Application

Application View Description

The Application View presents protocol related performance and error statistics for a device. Protocols covered include TCP/IP, ICMP, and UDP. The Application View also gives you access to ﬁrmware attribute information for the Cabletron hub device. If the hub device is connected to other devices, you can access additional attribute information for the connected devices through the Application View HASPART Panel. The following sections describe the Application Views for each Cabletron Ethernet hub.

The Application Views for Cabletron Ethernet hubs are similar. There are only two differences:

• The IRBM Hub Application View provides an extra button (the Bridge Databases button), which presents bridging statistics on the IRBM hub.

Application Views Cabletron Ethernet Hubs 3-2 Management Module Guide

Application View Description

• The IRM3 Hub Application View provides a UPS button, which displays an Uninterruptible Power Supply (UPS) statistics view.

The Application View for the IRBM, IRM2, IRM3, SIRM, MiniMMAC and MRXI hubs contains the following ﬁelds and buttons:

Model Name

The user-deﬁned or default name of the model.

Device Name

The ASCII name of the device read from the device ﬁrmware.

Network Address

The network IP address of the device (e.g., 132.177.118.24).

System

This button provides access to the SNMP System Group View, which is described later in this chapter.

UDP

This button provides access to the SNMP User Datagram Protocol (UDP) Group View, which is described later in this chapter.

ICMP

This button provides access to the SNMP Internet Control Message Protocol (ICMP) Group View, which is described later in this chapter.

This button provides access to the SNMP Internet Protocol (IP) Group View, which is described later in this chapter.

Bridge Databases

This button, available only in the IRBM Application View, provides access to the IRBM MMAC Bridge Database View. This view is described later in this chapter.

9030367 E7 Application Views

3-3

Application View Description HASPART Panel

UPS

This button, available only in the IRM3 Application View, provides access to the Uninterruptible Power Supply (UPS) Statistics View. This view is described later in this chapter.

HASPART Panel

The HASPART Panel allows you to access Performance Views for the modules installed in the hub. You can either double-click on the name of the module in the HASPART panel, or you can highlight the name and click on OK. The Performance View for modules is described in Chapter 6.

SNMP System Group View

You can access the SNMP System Group View by clicking on the System button in the Application View. The SNMP System Group View provides the following information:

System Descriptor

A textual description of the hub. This description includes the name of the hardware type and the networking software.

System Up Time

The time since the hub network management software was last reinitialized, displayed in the following format: days+hours:minutes:seconds

System Object Id

The Structure of Management Information (SMI) identiﬁcation of the network management subsystem contained in the hub.

SNMP UDP Group View

You can access the SNMP UDP Group View by clicking on the UDP button in the Application View. The SNMP UDP Group View provides the following information:

In DataGrams

The total number of UDP datagrams delivered to UDP users.

Out DataGrams

The total number of UDP datagrams sent from this entity.

In Errors

The number of received UDP datagrams that could not be delivered for reasons other than the lack of an application at the destination port.

Application Views Cabletron Ethernet Hubs 3-4 Management Module Guide

Msgs with no Ports

The total number of received UDP datagrams for which there was no application at the destination port.

SNMP ICMP Group View

You can access the SNMP ICMP Group View by clicking on the ICMP button in the Application View. The SNMP ICMP Group View displays the following information for the hub:

Messages

Displays the total number of ICMP messages that the hub received or attempted to transmit, including messages containing errors.

Errors

Displays the total number of ICMP messages that the hub received containing errors or did not transmit because of errors.

Dest. Unreachable

Displays the total number of ICMP Destination Unreachable messages received or transmitted by the hub. This indicates that a network or host was unreachable, a protocol was not running, or IP datagram fragmentation was necessary but disallowed because the Don’t Fragment ﬂag was set.

Application View Description

SNMP ICMP Group View

Time Exceeds

Displays the total number of ICMP Time Exceeded messages received or transmitted by the hub. This indicates that an IP datagram was discarded because its TTL had expired or it was in the reassembly queue for too long.

Parameter Problems

Displays the total number of ICMP parameter problem messages received or transmitted by the hub. This indicates an error in an IP datagram’s header.

Src Quench Msgs

Displays the total number of ICMP Source Quench messages received or transmitted by the hub. This indicates that a network device is discarding IP datagrams due to a lack of buffer space.

Redirects

Displays the total number of ICMP Redirect messages received by the hub if it is operating as a host. ICMP redirects are transmitted to the host by a gateway informing the host of another gateway on the same IP network that is closer to the desired transmission destination.

More ICMP Stats...

This button allows you to access an additional SNMP ICMP Group View. Table 3-1 provides the information displayed by the second SNMP ICMP Group View.

9030367 E7 Application Views

3-5

Application View Description SNMP ICMP Group View

Table 3-1. SNMP ICMP Group View Information

Field Deﬁnition

Echo Displays the total number of times the hub received ICMP

Echo Request messages from another network device or transmitted them to another network device. Echo Requests test the availability of a device.

Echo Reply Displays the total number of times the hub received ICMP

Echo Reply messages from a network device to which it transmitted an Echo Request or the total number of times the hub transmitted an Echo Reply to a network device from which it received an Echo Request. Echo Replies conﬁrm availability of a network device.

TimeStamp Displays the total number of times the hub received ICMP

TimeStamp Request Messages from another network device or transmitted them to another network device. TimeStamp Requests test the network time delay between devices.

TimeStamp Reply Displays the total number of times the hub received ICMP

TimeStamp Reply messages from a network device to which it transmitted a TimeStamp Request or the total number of times the hub transmitted a TimeStamp Reply to a network device from which it received a TimeStamp Request. TimeStamp Replies conﬁrm the network time delay between devices.

Addr Mask Request

Addr Mask Reply Displays the total number of times the hub received ICMP

Displays the total number of times the hub received ICMP Address Mask Request Messages from another network device or transmitted them to another network device. Address Mask Requests are transmitted to determine the subnet address mask associated with a local IP network.

Address Mask Reply messages from a network device to which it transmitted an Address Mask Request or the total number of times the hub transmitted an Address Mask Reply to a network device from which it received an Address Mask Request. Address Mask Replies determine the subnet address mask of a local IP network.

Application Views Cabletron Ethernet Hubs 3-6 Management Module Guide

SNMP IP Group View

You can access the SNMP IP Group View by clicking on the IP button in the Application View. The SNMP IP Group View displays the following information:

IP Forwarding

Displays whether the hub is operating as a gateway or a host.

Default TTL

Displays the default Time-To-Live (TTL) value, in seconds, that is found in the IP header of datagrams if a TTL value was not provided by the transport layer protocol.

In Packets

Displays the total number of datagrams received including those with errors.

In Header Errors

Displays the total number of received datagrams discarded due to invalid addresses in their IP headers (e.g., bad checksum, version number mismatch, time-to-live exceeded, etc.).

Application View Description

SNMP IP Group View

In Address Errors

Displays the total number of received datagrams discarded due to invalid addresses in the IP header’s destination ﬁeld. If the hub is not acting as a gateway, this ﬁeld includes datagrams discarded because the destination address was not a local address.

Forward Datagrams

Displays the total number of received datagrams for which the hub, if acting as a gateway, was not their ﬁnal destination and an attempt was made to route them to this destination. If the hub is not acting as a gateway, this ﬁeld displays the number of datagrams successfully routed through the IP Route Table.

Unknown Protocol

Displays the total number of locally addressed datagrams received successfully but discarded because of an unknown or unsupported protocol.

In Discards

Displays the total number of received datagrams discarded even though no errors were encountered to prevent their continued processing. Such datagrams may have been discarded to increase buffer space.

In Deliveries

Displays the total number of datagrams successfully delivered.

9030367 E7 Application Views

3-7

Application View Description SNMP IP Group View

IP Add Table

This button allows you to access the IP Address Table. This table provides the hub IP address, interface index, subnet mask and broadcast address. The Print button allows you to print out a copy of the table to a printer or a ﬁle. Double-clicking on a table entry opens the IP Address Table Information View. Table 3-2 provides the information displayed by the IP Address Table Information View.

Table 3-2. IP Address Table Information View Fields

Field Deﬁnition

IP Address The IP address of the interface. Interface The number of the interface. Net Mask Addr The subnet mask address of the interface. Broadcast Addr The broadcast address of the interface.

IP Route Table

This button allows you to access the IP Route Table. This table provides a description of each transmission route known by the hub. The Print button allows you to print out a copy of the table to a printer or a ﬁle. Double-clicking on a table entry opens the IP Route Table Information View. Table 3-3 provides the information displayed by the IP Route Table Information View.

Table 3-3. IP Route Table Information View Fields

Field Deﬁnition

Destination Address The destination IP address of this route. An

address of 0.0.0.0 is considered a default route.

Local Interface The local interface through which the next

hop on this route should be reached. Next Hop Address The IP address of the next hop on this route. Route Type Speciﬁes the type of route. You may change

this by clicking on the button and selecting a

new choice. Possible values are: N/A, Other,

Invalid, Direct, and Remote. Primary Metric_1 The primary routing metric for this route. If

this metric is not used, its value should be set

to -1.

Application Views Cabletron Ethernet Hubs 3-8 Management Module Guide

Application View Description

SNMP IP Group View

Table 3-3. IP Route Table Information View Fields (Continued)

Field Deﬁnition

Alternate Metric_2 Alternate routing metric for this route. If this

metric is not used, its value should be set to -

Alternate Metric_3 Alternate routing metric for this route. If this

metric is not used, its value should be set to -

Alternate Metric_4 Alternate routing metric for this

Route Protocol The protocol type of the route. Route Age The number of seconds since this route

route. If this metric is not used, its value should be set to -1.

was last updated or determined to be correct.

More IP Stats...

This button allows you to display an additional SNMP IP Group View. Table 3-4 displays the information supplied by the view.

Table 3-4. SNMP IP Group View Information

Field Deﬁnition

Out Packets Displays the total number of transmission requests from

the local IP network received by the hub.

Out Discards Displays the number of transmitted datagrams discarded

even though no errors were encountered to prevent their continued processing. Such datagrams may have been discarded to increase buffer space.

Out No Routes Displays the total number of IP datagrams discarded

because no route could be found to transmit them to their destination address.

Reassembly Timeout

Reassembled Fragments

Reassembly OKs Displays the total number of IP datagram fragments

Displays the maximum number of seconds that IP datagram fragments are held by the hub while awaiting reassembly.

Displays the total number of IP datagram fragments received by the hub that needed to be reassembled.

successfully reassembled.

9030367 E7 Application Views

3-9

Application View Description IRBM MMAC Bridge Database View

Table 3-4. SNMP IP Group View Information (Continued)

Field Deﬁnition

Reassembly Fails Displays the total number of IP datagram fragment

reassembly failures detected by the IP reassembly algorithm due to time out, errors, etc.

Fragment OKs Displays the total number of IP datagrams that have been

successfully fragmented by the hub.

Fragment Fails Displays the total number of IP datagrams that could not

be fragmented by the hub because their Don’t Fragment ﬂag was set.

Fragment Creates Displays the total of IP datagram fragments that have been

generated by the hub as a result of fragmentation.

IRBM MMAC Bridge Database View

You can access the IRBM MMAC Bridge Database View by clicking on the Bridge Databases button in the IRBM MMAC Application View. The IRBM MMAC Bridge Database View provides the following information:

Model Name

The user-deﬁned or default name of the IRBM model.

Acquired Database

The following ﬁelds and buttons appear under the Acquired Database heading:

Total Entries

The total number of entries in the acquired database.

Maximum Entries

The maximum number of entries allowed in the acquired database.

Static Entries

The number of addresses added to the acquired database by you or the network manager.

Static Entry Age Lmt

The length of time allowed for a static entry in the acquired database to be inactive before it is dropped from the database. This time is ﬁxed at zero (0).

Dynamic Entries

The number of entries that have been accumulated in the acquired database through the bridge’s learning process.

Application Views Cabletron Ethernet Hubs 3-10 Management Module Guide

Application View Description

IRBM MMAC Bridge Database View

Dynamic Entry Age Lmt

The length of time allowed for a dynamic entry in the acquired database to be inactive before it is dropped from the database.

Database Entries

This button allows you to erase (set to zero) all entries in the acquired database.

Acquired Database Table

This button allows you to display the IRBM MMAC Acquired Database Table. Table 3-5 provides the information displayed by the table. The Print button allows you to print out a copy of the table to a printer or a ﬁle. Double-clicking on entries in this table brings up entry-speciﬁc information views. The Acquired Database Table View also provides a ﬁeld in which you can enter a new source address and a button that allows you to select ﬁltering.

To add a new source address to the database, type the address into the New Source Address ﬁeld below the Acquired Database Table.

Select Filtering

This button allows you to acess an IRBM MMAC Filter Selection View that lets you update ﬁlter selections for new source addresses.

Table 3-5. IRBM MMAC Acquired Database Table

Field Deﬁnition

Entry Type The entry type: Static or Dynamic. Source Address The source of this acquired database entry, i.e, the

instance. Port1 Out The outbound port for packets entering port 1. Port2 Out The outbound port for packets entering port 2.

Permanent Database

The following ﬁelds and buttons appear under the Permanent Database heading:

Current Entries

The number of entries currently recorded in the bridge’s permanent database.

9030367 E7 Application Views

3-11

Application View Description UPS Statistics View

Maximum Entries

The maximum number of entries allowed in the permanent database.

Database Entries

This button allows you to erase (set to zero) all entries in the permanent database.

Permanent Database Table

This button allows you to display the IRBM MMAC Permanent Database Table. Table 3-6 provides the information displayed in the table. The Print button allows you to print out a copy of the table to a printer or a ﬁle. Doubleclicking on entries in this table brings up entry-speciﬁc information views. The Permanent Database Table View also provides a ﬁeld in which you can enter a new source address and a button that allows you to select ﬁltering.

To add a new source address to the database, type the address into the New Source Address ﬁeld below the Permanent Database Table.

Select Filtering

This button allows you to access an IRBM MMAC Filter Selection View that lets you update ﬁlter selections for new source addresses.

Table 3-6. IRBM MMAC Permanent Database Table

Field Deﬁnition

Entry Type The entry type: Static or Dynamic. Source Address The source address of entries allowed in permanent

database. Port1 Out The outbound port for packets entering port 1. Port2 Out The outbound port for packets entering port 2.

UPS Statistics View

You can access the UPS Statistics View by clicking on the UPS button in the IRM3 MMAC Application View. This view provides information on the status of the UPS connected to the IRM3.

The UPS Statistics View contains a multi-attribute line graph that has a scroll bar. You can use this graph to view performance statistics for the UPS.

Application Views Cabletron Ethernet Hubs 3-12 Management Module Guide

Application View Description

UPS Statistics View

The UPS Statistics View is similar to a hub Performance View. For more information on how to use this type of view, refer to Chapter 6, Performance Views. The UPS Statistics View displays the following information:

Name

The user-deﬁned or default name of the model.

Location

Network Address

The Internet Protocol (IP) address of the device.

Device Type

The SPECTRUM Model Type (e.g., Hub_CSI_IRM3).

System Up Time

The time, displayed in days+hours:minutes:seconds, that the device has been on-line.

Battery Capacity

The current battery capacity of the UPS. Values are displayed as a percentage. Additional ﬁelds show the Average and the Peak Value of this quantity.

Battery Volts Out

The battery output voltage. Additional ﬁelds show the Average and the Peak Value of this quantity.

AC Line Volts In

The input line voltage. Additional ﬁelds show the Average and the Peak Value of this quantity.

UPS Model

This button allows you to select the Model of UPS in use. Possible selections are: 370, 400, 600, 900, 1250, and 2000. The model assignment is not information gathered from the UPS; rather, it is an assignment made from the IRM3. This model type code needs to be assigned after the cable has been connected between the IRM3 and the UPS and before any access to the UPS MIB can take place.

UPS Status

Displays the test states. Possible states include Unit_OK, Unit_Failed, Bad_Battery, No_Recent_Tests, and Unit_In_Test.

UPS Uptime in Hours

The amount of time that the UPS connected to the IRM3 has been running since start-up.

9030367 E7 Application Views

3-13

Application View Description UPS Statistics View

Test

This button allows you to initiate a test cycle on the UPS device. To place the UPS into test mode, click on Initiate. The UPS Status ﬁeld updates to reﬂect the current status of the device.

Scroll to Date-Time

This button allows you to view historical data on UPS performance. Click on this button to set the viewing area of the graph to begin at a speciﬁed date and time.

Change Time Scale

This button allows you to specify the Y axis time scale for the graph.

Log/Lin

This button allows you to change how the multi-attribute line graph is displayed. You can display the network statistics in Logarithmic or Linear format.

Application Views Cabletron Ethernet Hubs 3-14 Management Module Guide

Conﬁguration Views

What is in this Chapter

This chapter describes the Conﬁguration View for Cabletron hub devices. The Conﬁguration View provides buttons that allow you to access increasingly detailed views of network information. Table entries within views provide you with double-click zones to navigate to device-speciﬁc Information Views.

Chapter 4

Accessing the Conﬁguration View

You can access the Conﬁguration View using one of the following methods (refer to Figure ):

• Double-click on the Conﬁguration View label of the icon.

• Highlight the icon and select Conﬁguration from the Icon Subviews

menu.

9030367 E7

4-1

Conﬁguration View Description

Figure 4-1. Accessing the Conﬁguration View

Double-click

Close Navigate Alarms Performance Notes... Utilities Zoom

Conﬁguration

Diagnostic Acknowledge

Flash Green Enabled Application Device DevTop

Select Conﬁguration

Conﬁguration View Description

The Conﬁguration View presents model and device network conﬁguration information for Cabletron hubs. It provides information on the device model in the VNM database and the device’s ﬁrmware conﬁguration. Depending on the device, other conﬁguration information may be available in this view. The Conﬁguration View for Cabletron Ethernet Hubs is divided into two sections: Model Conﬁguration and Device Conﬁguration. The IRBM Conﬁguration View also includes a Bridge Information section. Buttons at the bottom of the view provide access to more detailed conﬁguration information.

Conﬁguration Views Cabletron Ethernet Hubs 4-2 Management Module Guide

SPECTRUM uses the poll time and logging ratio attributes to determine how

NOTE

often it will poll the device and re-read the conﬁguration. The product of these two attributes is the time frame used for polling. Resetting either of these attributes to zero will disable polling. The default is 10 minutes.

Model Conﬁguration

This area of the Conﬁguration View provides the following information:

Model Name

The user-deﬁned or default name of the model.

Network Address

The network IP address (e.g., 132.177.118.24).

Community Name

The Community Name that has been assigned locally to the hub.

Security String

The assigned security string for the device. (Refer to the SPECTRUM Administrator’s Reference for information on setting up security in

SPECTRUM.)

Conﬁguration View Description

Model Conﬁguration

Polling Interval

The time, in seconds, between SpectroSERVER polls of the network for the hub model.

Poll Log Ratio

The number of SpectroSERVER polls of a device that occur prior to logging the poll results in the database.

Max Pull Boards

The maximum number of board models allowed in the pulled board list.

Polling Status

This button allows you to disable SpectroSERVER polls of a device by setting Polling Status to False. This button is useful in disabling rollup conditions for minor network events such as workstation power-downs. This button will also set all of the models collected by this hub to false. If set to true, models collected by this hub will be set to true.

Monitor Precedence

The monitor precedence value associated with the device. You must explicitly reset this value to a higher value than that of the existing monitoring point to designate this device as the monitoring point.

9030367 E7 Conﬁguration Views

4-3

Conﬁguration View Description Device Conﬁguration

Device Conﬁguration

This area of the Conﬁguration View provides the following information:

Device Name

The ASCII name of the device that this agent manages.

IP Address

The network IP address (e.g., 132.177.118.24).

PROM Revision

The revision number of the hub ﬁrmware.

MMAC Type

The type of MMAC, for example, 3, 5, or 8-slot MMAC (e.g., MMAC3, MMAC5, MMAC8). You supply the MMAC type when you create the icon. The default is MMAC8. This button is not available in the MRXI or the MiniMMAC Conﬁguration Views.

Port Association

This button allows you to select the state of operation of AUI and Fiber ports on the device. This button is not available in the IRM, MRXI, or MiniMMAC Conﬁguration Views. Possible states include some subset of the following states:

AUI_Brdg\Fiber_Off AUI_Off\Fiber_Brdg AUI_Brdg\Fiber_Rptr AUI_Rptr\Fiber_Brdg AUI_Off\Fiber_Rptr AUI_Rptr\Fiber_Off

Current Date

A character representation of the current date. This ﬁeld does not appear in the MRXI Conﬁguration View.

Current Time

The current time of day as measured by the device. This ﬁeld does not appear in the MRXI Conﬁguration View.

Ports On Out Of

The number of operating ports on the device out of the total number of ports.

Conﬁguration Views Cabletron Ethernet Hubs 4-4 Management Module Guide

Bridge Information

This section of the Conﬁguration View is available only for the IRBM hub. The Conﬁguration View button found in this section accesses the IRBM Bridge Conﬁguration View, which is described later in this chapter.

Conﬁguration View Buttons

This section of the Conﬁguration View contains buttons that provide access to device-speciﬁc information views. This section provides the following buttons:

Find Source Address

This button allows you to access the hub’s Source Address View, which is described later in this chapter. This button is not available in the IRM or the MRXI Conﬁguration Views.

Conﬁguration View Description

Bridge Information

Source Address Table

This button allows you to access the Device Source Address Table, which is described later in this chapter. This button is not available in the IRM or the MRXI Conﬁguration Views.

Control

This button allows you to access the Control View, which is described later in this chapter.

Conﬁg Alarms

This button allows you to access the Conﬁgure Alarms View, which is described later in this chapter. This button is not available in the IRM Conﬁguration View.

Redundancy

This button allows you to access the MMAC Redundancy View, which is described later in this chapter. This button is not available in the IRBM or the IRM Conﬁguration Views.

9030367 E7 Conﬁguration Views

4-5

Conﬁguration View Description Source Address View

Flash Download

This button allows you to access the Flash DownLoad View. This button is available only in the IRM3, MRXI, and MiniMMAC Conﬁguration Views.

Additional Conﬁguration

This button allows you to access an additional conﬁguration view, which is described later in this chapter. This button is available only in the IRM2 and IRM3 Conﬁguration Views.

Community Table

This button allows you to access the Community and Trap Table View, which is described later in this chapter. This button is available only in the IRM2 and IRM3 Conﬁguration Views.

Source Address View

You can access the Source Address View by clicking on the Find Source Address button in the Conﬁguration View. This view gives you the ability to trace a MAC address to the board and port where the address is detected, and provides the following information. This view is not available for IRM or the MRXI hubs.

Model Name

The user-deﬁned or default name of the model.

Network Address

The network IP address (e.g., 132.177.118.24).

Source Address

User-deﬁned MAC address using the format xx.xx.xx.xx.xx.xx.

Find Board/Port

This button allows you to access the Source Address Board/Port Location View. Figure 4-1 provides the information contained in the view.

Conﬁguration Views Cabletron Ethernet Hubs 4-6 Management Module Guide

Conﬁguration View Description

Device Source Address Table

Table 4-1. MMAC Source Address Board/Port Location View Fields

Field Deﬁnition

Model Name The user-deﬁned or default name of the hub model. Network Address The network IP address (e.g., 132.177.118.24). Source Address User-deﬁned MAC address using the format

xx.xx.xx.xx.xx.xx. Board Number The board number where the MAC address is detected. Port Number The port number where the MAC address is detected.

Device Source Address Table

You can access the Device Source Address Table by clicking on the Source Address Table button in the Conﬁguration View. You can sort, update, and search the table for certain MAC addresses. To display the Sort and Find options, click on a column heading. To use the Find option, click on the Find button and enter the MAC address to search for. This view provides the following information. This view is not available for the IRM or the MRXI hubs.

Control View

Name

The user-deﬁned or default name of the model.

Network Address

The network IP address (e.g., 132.177.118.24).

Device Type

The SPECTRUM model type name of the hub.

System Up Time

The time the hub has been active without failure. The time is displayed in the following format: days+hours:minutes:seconds.

You can access the Control View by clicking the Control button in the Conﬁguration View. This view provides the following information:

Model Name

The user-deﬁned or default name of the hub model. This ﬁeld does not appear in the IRM Control View.

Device Name

An ASCII name of the device that this agent manages. This ﬁeld does not appear in the IRM Control View.

9030367 E7 Conﬁguration Views

4-7

Conﬁguration View Description Control View

Network Address

The network IP address (e.g., 132.177.118.24). This ﬁeld does not appear in the IRM Control View.

Counters

This button allows you to reset all of the device’s counters to 0.

Restart Device

This button allows you to restart the device.

Device Redundancy

This button allows you to reset the redundancy for the entire hub. This button is not available in the IRBM or the IRM Control Views.

Device Discover

This button causes the device and all devices connected to it to send Link-up traps. This button is not available in the IRM, IRM3, or MRXI Control Views.

Source Address Age Time

The number of seconds that a source address is not detected before it is removed from the source address table. This ﬁeld does not appear in the IRM or MRXI Control Views.

Source Address Traps

This button controls sending of source address related traps. Possible options are TrapsOn and TrapsOff. This button is not available in the IRM or MRXI Control Views.

Source Address Lock

This button indicates whether detection of source addresses on a port that are not in the source address table will cause the port to be turned off. Possible states are LockOff and LockOn. If a port is turned off, an event and alarm will be generated to warn you of this condition. This button is not available in the IRM or MRXI Control Views.

Conﬁguration Views Cabletron Ethernet Hubs 4-8 Management Module Guide

Factory Defaults

This button allows you to reset the device’s settings to their factory defaults. This button is only available in the IRM2 and IRM3 Control Views. (Does not affect IP address)

Conﬁgure Alarms View

You can access this view by clicking on the Conﬁg Alarms button in the Conﬁguration View. This view allows you to set threshold alarms and enable them. The Conﬁgure Alarms View is not available for the IRM hub. This view contains the following information:

Model Name

The user-deﬁned or default name of the model.

Device Name

The ASCII name of the device read from the device ﬁrmware.

Network Address

The network IP address (e.g., 132.177.118.24).

Conﬁguration View Description

Conﬁgure Alarms View

Trafﬁc Alarms

This button allows you to Enable or Disable detection of Trafﬁc Alarms.

Trafﬁc Threshold

The threshold value within the alarm timebase which, once that number of packets is exceeded, generates a trafﬁc alarm.

Collision Alarms

This button allows you to Enable or Disable detection of device-level Collision Alarms.

Collision Threshold

The threshold value within the alarm timebase which, once that number of collisions per good packet is exceeded, generates a collision alarm. Possible values range from 1 to 15.

Error Alarms

This button allows you to Enable or Disable detection of Error Alarms. This button is not available in the MRXI Conﬁgure Alarms View.

9030367 E7 Conﬁguration Views

4-9

Conﬁguration View Description Conﬁgure Alarms View

Error Threshold

The threshold value within the alarm timebase which, once the percentage of errors per good packet is exceeded, generates an error alarm. This ﬁeld is not available in the MRXI Conﬁgure Alarms View.

Broadcast Alarms

This button allows you to Enable or Disable detection of Broadcast Alarms. This button is available only in the IRM2 and IRM3 Conﬁgure Alarms Views.

Broadcast Threshold

The threshold value within the alarm timebase which, once that number of broadcasts received is exceeded, generates a broadcast alarm. This ﬁeld is available only in the IRM2 and IRM3 Conﬁgure Alarms Views.

Time Base

The number of seconds used as the interval for performing all of the rate alarm checks. The minimum is 10 seconds. For example, if the time base is 10 seconds, an alarm will occur only when the speciﬁed number of errors occurs within 10 seconds.

Audible Alarm

This button allows you to Enable or Disable the audible alarm in the hub. You must have a community name with Read/Write permission to update this feature. This button is available only in the IRM2 and IRM3 Conﬁgure Alarms Views.

Sound Audible Alarm

This button permits a management station to turn off a sounding alarm. Attempting to change this button to the ON position may result in a write failure error. You must have a community name with Read/Write permission to update this feature. This button is available only in the IRM2 and IRM3 Conﬁgure Alarms Views.

Conﬁguration Views Cabletron Ethernet Hubs 4-10 Management Module Guide

Error Source Table

The Conﬁgure Alarms View also displays an Error Source Table, which displays a series of buttons which allow you to select the types of errors that will cause alarms. Table 4-2 provides the deﬁnitions of the errors contained in the Error Source Table.

Table 4-2. Error Source Table Fields

Error Deﬁnition

Align Measures the number of misaligned frames detected by the

hub. Runts Measures the number of runt frames detected by the hub. Giants Measures the number of packets longer than 1,518 bytes

detected by the hub. CRC Measures the number of packets with bad Cyclic

Redundancy Checks (CRCs) detected. OOW Measures the number of Out-Of-Window (OOW) collisions

detected by the hub.

Conﬁguration View Description

Redundancy View

No_Resource Measures the number of No_Resource errors detected by the

Redundancy View

You can access the Redundancy View by clicking on the Redundancy button in the Conﬁguration View. This view is not available for the IRBM or the IRM hubs. The Redundancy View provides the following information:

Model Name

The user-deﬁned or default name of the model.

Device Name

An ASCII name of the device that this agent manages.

Maximum Circuits

The maximum number of circuits.

Available Circuits

The number of available circuits. This ﬁeld does not appear in the IRM3 Redundancy View.

Redundant Poll Interval

The number of seconds between polls for redundancy.

hub.

9030367 E7 Conﬁguration Views

4-11

Conﬁguration View Description Redundancy View

Test Redundant Circuits

This button allows you to test the redundant circuit.

Test Time of Day

The time of day at which the redundant circuits should be tested. This ﬁeld is not available in the MRXI Redundancy View.

Redundancy Table

This button allows you to display the MMAC Redundancy Table. The Redundancy Table allows you to set up redundant circuit connections between any two or more hubs that have redundant capability in their ﬁrmware. For more information on setting up redundant circuits, refer to Hub Redundancy Management in this chapter.

You can double-click on any of the circuit names in the Redundancy Table to access the MMAC Redundancy Information View. This view lets you set up redundancy circuits. Table 4-3 provides the information contained in the view.

Table 4-3. MMAC Redundancy Information View Fields

Field Deﬁnition

Circuit Name The name of the indicated circuit. Retry Count The number of unanswered polls allowed for the

indicated circuit before the current connection is declared bad.

Bd/Port Combination The number of board/port combinations associated

with the indicated circuit.

MAC Address Add (IRM2, MRXI, MiniMMAC)

IP Address Add (IRM3) Adds the IP address to the polling list for the indicated

Number of Addresses The number of addresses associated with the indicated

Circuit Enable Enables or disables the indicated circuit. Circuit Number The number from the circuit names in the Redundancy

Board Port Instance The board number and port number that the

Adds the Ethernet address to the polling list for the indicated circuit.

circuit.

table (e.g., Circuit 04).

redundant circuit is connected to. For example, 3.6 is

board 3, port 6. Port Circuit Status The current state of this port in the redundant circuit. Port Circuit Type The type of port this port is in the redundant circuit.

Conﬁguration Views Cabletron Ethernet Hubs 4-12 Management Module Guide

Panels at the bottom of the Redundancy Information View provide additional information. For the IRM2, MRXI, and MiniMMAC, the panels are Board Member, Port Member, and Redundancy Table. For the IRM3, there are two Redundancy Table panels. Double-clicking on any of the entries in the Polled Address list of the Redundancy Table for the IRM2, MRXI, or MiniMMAC opens the Address Display View. The Address Display View has two ﬁelds: Polled Address, which is the MAC address, and Instance, which is the board number and port number associated with the address. For example, 1.1 is board 1, port 1. The IRM3 has no Address Display View.

The Redundancy Information View also provides the following two buttons:

Address Delete View

The Address Delete View button displays the Address Delete View. This view contains the Redundancy Table and a ﬁeld. Table 4-4 provides the information contained in the view.

Table 4-4. Address Delete View Fields

Field Deﬁnition

Conﬁguration View Description

Redundancy View

MAC Address Delete (IRM2), MRXI, MiniMMAC

IP Address Delete (IRM3)

Removes the Ethernet address from the polling list for the indicated circuit. You enter a MAC address in this ﬁeld.

Removes the IP address from the polling list for the indicated circuit. You enter an IP address in this ﬁeld.

The IRM2, MRXI, and MiniMMAC Address Delete Views allow you to doubleclick on the Polled Addresses in the Redundancy Table to access an Address Display View. The Address Display View has two ﬁelds: Polled Address, which is the MAC address, and Instance, which is the board number and port number associated with the address. For example, 1.1 is board 1, port 1.

Reset Circuit View

This button allows you to access the Circuit Reset View. This view allows you to reset a single Redundancy circuit. Table 4-5 provides the information contained in the view.

Table 4-5. Circuit Reset View Fields

Field Deﬁnition

Circuit Number The circuit number to be reset. Circuit Reset Resets the indicated circuit.

9030367 E7 Conﬁguration Views

4-13

Conﬁguration View Description Redundancy View

Flash Download View

You can access the Flash Download View by clicking on the Flash Download button in the Conﬁguration View. This view is available only for the IRM3, the MRXI, and the MiniMMAC hubs. The Flash Download View displays the following information:

Model Name

The user-deﬁned or default name of the hub model.

Network Address

The network IP address (e.g., 132.177.118.24).

Last Image Filename

The ﬁlename of the last image to be loaded into ﬂash memory successfully.

Last Server IP Address

The IP address of the ﬁle server used to load the image presently in ﬂash memory.

Flash Size in Bytes

The size in bytes of the ﬂash memory contained in the module.

Flash Count

The number of times that the ﬂash memory has been reprogrammed. This value is initialized to 1 upon initial power up of the device.

Firmware Base Address

The starting address of the ﬁrmware in RAM.

Firmware Top Address

The ending address of the ﬁrmware in RAM.

Firmware Start Address

The jump address of the ﬁrmware in RAM as established by the boot process.

DownLoad Software

This button allows you to access the DownLoad Software View. This view allows you to upgrade the hub’s ﬁrmware from a TFTP Boot Server. Table 4-6describes the ﬁelds provided by this view.

Table 4-6. DownLoad Software View Field Deﬁnitions

Field Deﬁnition

Model Name The user-deﬁned or default name of the hub model. Network Address The network IP address (e.g., 132.177.118.24).

Conﬁguration Views Cabletron Ethernet Hubs 4-14 Management Module Guide

Conﬁguration View Description

Redundancy View

Table 4-6. DownLoad Software View Field Deﬁnitions (Continued)

Field Deﬁnition

Force On Boot When set to Server, the boot software will attempt to boot

from the TFTP boot server. If no boot is found and ﬂash memory is valid, the device will boot from the ﬂash memory regardless of the setting for this variable. When set to Flash_Memory, the device will boot from ﬂash memory.

TFTP Request Host

TFTP Request FileName

RAM To Flash When set to Commit, the boot software will erase the ﬂash

Cold Boot When set to Initiate, the boot software will initiate a reboot

A user-deﬁned IP address of the server to be used when the ﬁrmware is to be loaded over the network.

A user-deﬁned ﬁlename that is requested of the server when the ﬁrmware is to be loaded over the network.

memory, compress the download code, and save the compressed image into ﬂash memory.

of the system. All MIB variables in this view used to control the exact nature of the download should be set prior to the setting of this variable.

Additional Conﬁguration View

You can access the Additional Conﬁguration View by clicking the Additional Conﬁguration button in the Conﬁguration View. In addition to the model name and network address, this view shows three panels, each with eight slot designations. The panels are labeled Ethernet MIMs, Token Ring MIMs, and FDDI MIMs. When the button next to a slot number is depressed, it means that a MIM of that type is installed in the slot. This view is available only for the IRM2 and IRM3 hubs.

Community and Trap Table

You can access the Community and Trap Table by clicking the Community Table in the Conﬁguration View. The Sort buttons allow you to alter the display format of the table. The Find button allows you to search the name column to locate a speciﬁc community name. Clicking on a column heading allows you to access the Sort and Find Buttons. The Update button allows you to update the contents of the table. Double-clicking on any entry in the Community and Trap Table opens the Community Table Detail View speciﬁc to the selected table entry. This view allows you to modify the statistics and parameters for the device. Table 4-7 provides deﬁnitions of the Community Table Detail View. The Community and Trap Table is available only for the IRM2 and IRM3 hubs. This table provides the following information:

9030367 E7 Conﬁguration Views

4-15

Conﬁguration View Description Redundancy View

You must have Administrative Privileges to access the Community and Trap

NOTE

Table View and all subviews. Without superuser access you cannot access or change any of the information displayed in this view.

Name

Displays the community name.

Access

Displays the user access permissions.

Traps

Displays the current status of traps. Possible values are enabled or disabled.

IP Addr

Displays the trap host IP address. This is the IP address traps are sent to if they are enabled.

Table 4-7. Community Table Detail View Field Deﬁnitions

Field Deﬁnition

Device Name The name of the physical device. Model Name The user-deﬁned or default name of the hub model. Community String The current community name. Access The user access permissions for the community name.

Possible values are: none, readonly, readwrite, and

superuser. Trap Host The IP address of the host to which traps will be sent. Traps Toggles trap generation. Possible values are: enabled or

disabled.

Conﬁguration Views Cabletron Ethernet Hubs 4-16 Management Module Guide

Bridge Conﬁguration View

You can access the Bridge Conﬁguration View by clicking on the Conﬁguration View button in the Bridge Information section of the Conﬁguration View. This view is available only for the IRBM hub. The IRBM Bridge Conﬁguration View is divided into two sections: Model Conﬁguration and Device Conﬁguration. In addition, buttons at the bottom of the screen provide access to more detailed informational views.

Model Conﬁguration

This section of the Bridge Conﬁguration View provides the following information:

Model Name

The user-deﬁned or default model name.

Network Address

The network IP address (e.g., 132.177.118.24).

Conﬁguration View Description

Bridge Conﬁguration View

Community Name

The Community Name that has been assigned locally to the hub.

Security String

The IRBM’s assigned security string. (Refer to the SPECTRUM Administrator’s Reference for information on setting up security in

SPECTRUM.)

Polling Interval

The time, in seconds, between SpectroSERVER polls of the network for the hub model.

Poll Log Ratio

The number of SpectroSERVER polls of a device that occur prior to logging the poll results in the database.

Device Conﬁguration

This section of the Bridge Conﬁguration View provides the following information:

Bridge Name

The user-deﬁned name of the bridge. The default is ETHERNET BRIDGE.

Bridge Type

The type of bridge (e.g., NB25E, IRBM, or NB20E).

9030367 E7 Conﬁguration Views

4-17

Conﬁguration View Description Bridge Conﬁguration View

Bridge Location

The user-deﬁned name to indicate the location of the bridge on the network. The default location is LOCAL.

Firmware Version

The release version of the ﬁrmware installed in the bridge.

Number of Ports

The number of ports present on the bridge.

Conﬁguration View Buttons

This section of the Bridge Conﬁguration View contains buttons that provide access to more speciﬁc information views. This section provides the following buttons:

Bridge/Root Information

This button allows you to access the Bridge/Root Information View. Table 4-8 provides the information contained in the view.

Table 4-8. SNMP ICMP Group View Fields

Field Deﬁnition

Model Name The user-deﬁned or default name of the model. Root Bridge ID The unique identiﬁer of the bridge recorded as the root. Root Port The port identiﬁer for the port that provides the lowest cost

path to the root (i.e., that port for which the sum of values of the designated cost and path cost parameters held for the

port is lowest). Root Cost The cost of the path to the root from this bridge. Root Brdg Max

Age

The value of the Max Age parameter when the bridge is the

root or is attempting to become the root. A time of 6 to 40

seconds is allowed. The default is 20 seconds.

Additional Bridge Information

This button allows you to access the Additional Bridge Information View. Table 4-9 provides the information contained in the view.

Conﬁguration Views Cabletron Ethernet Hubs 4-18 Management Module Guide

Table 4-9. Additional Bridge Information View Fields

Field Deﬁnition

Model Name The user-deﬁned name or default name of the model. Bridge Priority The part of the bridge address that contains the identiﬁer

used in the spanning tree for priority comparisons. The allowed range is 0 through FFFF. The default is 8000.

Hold Time The minimum time period elapsing between the

transmission of conﬁguration BPDUs through a given bridge port.

Protocol Max Age The maximum age of received protocol information before it

is discarded.

Trap Type Obj ID Contains the object identiﬁer of the ﬁrst VarBinding in the

last trap generated by the bridge.

Bridge Setup Information

Conﬁguration View Description

Bridge Conﬁguration View

This button allows you to access the Setup Information View. Table 4-10 provides the information contained in the view.

Table 4-10. Setup Information View Fields

Field Deﬁnition

Model Name The user-deﬁned name or default of the model. Bridge ID The unique identiﬁer of the bridge. The ﬁrst two bytes of the

identiﬁer are the bridge priority and the last six bytes are the

Ethernet address. Switch Settings The current switch settings read from the bridge hardware. Number of

Restarts Type of Filtering The type of ﬁltering to be performed by the bridge. The

STA Protocol The spanning tree algorithm under which the bridge is

The number of times the bridge has been powered up or

restarted.

default is IEEE 802.1.

operating. Selections include: 802.1-compliant spanning tree

algorithm environment (802.1), DEC LAN Bridge 100

environment (DEC) and without spanning tree algorithm

enabled (None). The default is 802.1.

9030367 E7 Conﬁguration Views

4-19

Conﬁguration View Description Bridge Conﬁguration View

Topology Information

This button allows you to access the Topology Information View. Table 4-11 provides the information contained in the view.

Table 4-11. Topology Information View Table Fields

Field Deﬁnition

Model Name The user-deﬁned or default name of the model. Time Topology

Change

Topology Change Indicates if a bridge Topology change is in progress. Topology Change

Count

The time in seconds that has elapsed since the bridge’s Topology Change Flag last recorded the value of a topology change.

The number of times the bridge’s Topology Change Flag has been changed since the bridge was powered up or initialized.

Fwd Dly & Hello Information

This button allows you to access the Forward Delay & Hello Information View. Table 4-12 provides the information contained in the view.

Table 4-12. Forward Delay & Hello Information View Fields

Field Deﬁnition

Model Name The user-deﬁned or default name of the model. Forward Delay

Parm

Forward Delay The time spent in the listening state while moving from the

Hello Time Parm The value of the Hello Time parameter when the bridge is

Hello Time The time interval between the transmission of Conﬁguration

The value of the forward delay parameters when the bridge is the root or attempting to become root. A time of 4 to 30 seconds is allowed.

blocking state to the learning state, or the time spent in the learning state while moving from the listening state to the forwarding state.

the root or is attempting to become the root. A time of 1 to 10 seconds is allowed. The default is 2 seconds.

BPDUs by a bridge that is attempting to become the root.

Conﬁguration Views Cabletron Ethernet Hubs 4-20 Management Module Guide

Control

This button allows you to access the IRBM Bridge Control View. Table 4-13 provides the information contained in the view.

Table 4-13. IRBM Bridge Control View Fields

Field Deﬁnition

Hub Redundancy Management

Current Bridge Status

Bridge Status Control

Bridge Restart Forces the bridge to undergo a software reset. Bridge Settings Restores the bridge settings to their default values.

The status of the bridge, for example, ON-LINE, STAND BY,

or DISABLED.

Enables or disables the bridge.

Hub Redundancy Management

The hub redundancy management features described in this section include information speciﬁc to the following Cabletron hub devices:

• IRM2

• IRM3

• MRXI

• MiniMMAC

The SIRM and the IRBM hub devices do not have redundant circuit

NOTE

compatibility available in their device ﬁrmware.

SPECTRUM allows redundant “circuit” connections between any two or more hub devices that have redundant capability in their ﬁrmware. A circuit is represented by a cable connection from one module port on a primary hub device to one or more module ports on secondary hub devices. The cable connections can use any valid cable type, including thin-net, coaxial, ﬁber optic, or AUI. The terminating connectors used depend on the type of cable connecting the module ports.

Any two or more cable connections create a complete circular “circuit” pathway between the two devices. One pathway is always set up as primary and the others as secondary. The secondary circuit becomes active if the

9030367 E7 Conﬁguration Views

4-21

Hub Redundancy Management

primary pathway fails. This allows the primary hub device to repeat data packet information on an alternative module port if a problem exists on the primary port.

Although circuit connections typically occur between devices in the same room, the circuit connections can also occur over longer distances between ﬂoors or buildings (with the proper FDDI cables and associated modules). Refer to Figure 4-2 for an illustration of a typical redundant cable circuit connection between two redundant hub devices.

Conﬁguration Views Cabletron Ethernet Hubs 4-22 Management Module Guide

Figure 4-2. Redundantly Connected Hub Device

Primary Hub Device

Hub Redundancy Management

Backup Inactive Circuit

MT8

IRB

MT8

LLRR

C O N

LLRR

C O

ETHE

Primary Active Circuit

IRB

MT8

LLRR

C O N

LLRR

C O

TH RH

ETHE

F O

Secondary Hub Device

The following example illustrates redundancy between hubs.

Say that you have used redundant circuit management to create a connection between the Accounting Department and the Payroll Department of your company. These departments are on the same ﬂoor and have two repeaters between them on an Ethernet network. Suppose a system overload occurred

9030367 E7 Conﬁguration Views

4-23

Hub Redundancy Management Setting Redundant Circuits

when you were sending direct deposit payroll information from the Payroll Department to the Accounting Department the night before payday. This could be a disastrous situation.

Redundant circuit management would prevent this situation by allowing the primary hub device to automatically switch from the primary circuit to the secondary circuit. The backup circuit would become active and continue sending data over its cable connection. Redundancy becomes especially important for unattended night time batch jobs, or for jobs where a communications problem could seriously interfere with normal business operations.

Setting Redundant Circuits

The following procedure uses an IRM2 hub device as an example. However, this procedure can also be used with MRXI and MiniMMAC hubs as primary devices. The secondary device can be any hub device with redundancy capability (e.g., MRXI, MiniMMAC, IRM2, IRM3). This procedure may also be used to conﬁgure multiple secondary hub devices.

NOTE

These instructions assume that you have a primary MMAC hub module port physically attached to a secondary MMAC hub module port. Both these modules must have redundant circuit capability. The backup port connection cannot be completed until you have set up the active connection in SPECTRUM. For convenience, you should also prepare a list of secondary hub Ethernet addresses before beginning this procedure. Also, SNMP devices require the use of the Community Name attribute. The SPECTRUM default of “public” grants read-only privileges, which allow you to view device attributes, but not modify them. Since setting up redundancy requires modifying the device attributes, you should set the Community Name to “ctron,” which grants read/write privileges. You can set the Community Name when you create the device or change it in the Device Conﬁguration View.

To set redundant circuits for the devices modeled in SPECTRUM, follow these steps:

1. Click on the icon to select it.

2. If contact has been established and the icon is green, bring up the Conﬁguration View.

3. From the Conﬁguration View menu, click on the Redundancy button. In the Redundancy View window, click on Redundancy Table.

Conﬁguration Views Cabletron Ethernet Hubs 4-24 Management Module Guide

Hub Redundancy Management

Setting Redundant Circuits

4. Choose any circuit from the Circuit Name list that appears by double-

clicking on it. A Redundancy Information View window appears.

5. Set the Retry Count to any value between 1 and 10, inclusive.

6. For any of the devices other than the IRM-3 enter the Ethernet address of

the secondary hub device, which will be polled, in the MAC Address Add ﬁeld. This ﬁeld should allow you to enter the address in any of the following formats (where X is any hexadecimal value from 0 to F):

XX.XX.XX.XX.XX.XX XX:XX:XX:XX:XX:XX XX-XX-XX-XX-XX-XX

For the IRM-3, enter the IP address of the secondary hub device, which will be polled, in the IP Address Add ﬁeld. You should enter this address in the format NNN.NNN.NNN.NNN (where NNN is a decimal number from 0 to

255).

7. Enter the Board Port Instance for the primary connection. For example, if

the primary connection is on port 4 of a module in the device’s ﬁfth slot, the Board Port Instance would be 5.4. (Modules on these devices start from 1 and can go up to 8 depending on the MMAC type.)

8. Change the Port Circuit Status to Active and the Port Circuit Type to

Primary.

9. Choose Save All Changes from the File menu. This will save the circuit

conﬁguration you entered.

10. Now change the Board Port Instance to represent the backup connection.

Change the Port Circuit Status to Inactive and the Port Circuit Type to Backup.

11. Choose Save All Changes from the File menu. This will save the circuit

conﬁguration you entered for the backup connection.

12. Close this Redundancy Information View and then bring it up again.

Verify that the redundancy setup information is present and correct.

13. Click on the Circuit Enable ﬁeld and choose Enable. This enables the

circuit that was created on the primary hub device. Choose Save All Changes from the File menu.

14. Now physically connect the secondary circuit between the two hub

devices. To test the redundancy, disconnect the primary circuit and make sure the backup circuit becomes active.

9030367 E7 Conﬁguration Views

4-25

Hub Redundancy Management Setting Redundant Circuits

Conﬁguration Views Cabletron Ethernet Hubs 4-26 Management Module Guide

Diagnostic Views

What is in this Chapter

This chapter describes the Diagnostic View for Cabletron hub devices. The Diagnostic View provides a complete breakdown of network errors gathered by the Cabletron hub on a network segment. Each error attribute is summarized over two intervals: the Total number counted since the device was powered on; and the Last Poll, which is the number counted since the last poll.

Chapter 5

Accessing the Diagnostic View

You can access the Diagnostic View using one of the following methods (refer to Figure ):

• Double-click on the Diagnostic View label of the icon.

• Highlight the icon and select Diagnostic from the Icon Subviews menu.

9030367 E7

5-1

Diagnostic View Description

Figure 5-1. Accessing the Diagnostic View

Double-click

Close Navigate Alarms Performance Notes... Utilities Zoom Conﬁguration

Diagnostic

Acknowledge

Flash Green Enabled Application Device DevTop

Select Diagnostic

There is no Diagnostic View for the IRBM, IRM2, IRM3, or MiniMMAC hub.

NOTE

Following the procedure to open the Diagnostic View will open the hub Performance View instead.

Diagnostic View Description

The Cabletron hub Diagnostic View provides the following navigational features:

• Buttons allow you to access increasingly detailed views of network information, to select a graphical representation for the error attributes, and to bring up the Events and Alarms Log Views.

Diagnostic Views Cabletron Ethernet Hubs 5-2 Management Module Guide

SIRM Hub

Diagnostic View Description

SIRM Hub

• Table entries within views provide double-click zones, which navigate you to device-speciﬁc Information Views.

The Cabletron SIRM MMAC Diagnostic View provides the following information:

Model Name

The user-deﬁned or default name of the model.

Device Name

The ASCII name of the device read from the device ﬁrmware.

Network Address

The network IP address (e.g., 132.177.118.24).

Total

The total number of collisions counted since the device was powered on.

Last Poll

The number of collisions counted since the last poll.

Total Collisions

This button displays a graph showing SIRM MMAC Hub Collisions. The graph has a scroll bar that allows you to view the history of the hub collision statistics. The bottom axis of the graph shows the time in seconds broken into ﬁve minute intervals. The right axis shows the rate of collisions that occurred in the last polling interval. There is also a small box on the graph that shows the rate of collisions counted during that last polling interval.

Events

This button allows you to access the Event Log containing a list of network events speciﬁc to the hub. You can scroll through the Event Log using the menu or the scroll bars.

Alarms

This button allows you to access the IRM MMAC Alarms View. The Alarms View displays a list of current network alarms. For information on how to use the Alarms View, refer to the SPECTRUM Operator’s Reference.

9030367 E7 Diagnostic Views

5-3

Diagnostic View Description MRXI Hubs

MRXI Hubs

The Cabletron MRXI Hub Diagnostic View provides the following information:

Model Name

The user-deﬁned or default name of the model.

Device Name

The ASCII name of the device read from the device ﬁrmware.

Total (Receive Collisions)

The total number of receive collisions detected by the MRXI Hub.

Total (Transmit Collisions)

The total number of transmit collisions detected by the MRXI Hub.

Last Poll (Transmit Collisions)

The number of transmit collisions detected by the MRXI Hub since SPECTRUM last polled the device.

Last Poll (Receive Collisions)

The number of receive collisions detected by the MRXI Hub since SPECTRUM last polled the device.

Receive Collisions

This button allows you to access a graph showing MRXI Hub Receive Collisions. The graph has a scroll bar that allows you to view the history of the hub collision statistics. The bottom axis of the graph shows the time in seconds broken into ﬁve minute intervals. The right axis shows the rate of collisions that occurred in the last polling interval. There is also a small box on the graph that shows the rate of collisions counted during that last polling interval.

Transmit Collisions

This button allows you to access a graph showing MRXI Hub Transmit Collisions. The graph has a scroll bar that allows you to view the history of the hub collision statistics. The bottom axis of the graph shows the time in seconds broken into ﬁve minute intervals. The right axis shows the rate of collisions that occurred in the last polling interval. There is also a small box on the graph that shows the rate of collisions counted during that last polling interval.

Diagnostic Views Cabletron Ethernet Hubs 5-4 Management Module Guide

Diagnostic View Description

MRXI Hubs

Events

This button allows you to access the Event Log containing a list of network events speciﬁc to the hub. You can scroll through the Event Log using the menu or the scroll bars.

Alarms

This button displays the MRXI MMAC Alarms View. The Alarms View displays a list of current network alarms. For information on how to use the Alarms View, refer to the SPECTRUM Opertator’s Reference.

9030367 E7 Diagnostic Views

5-5

Diagnostic View Description MRXI Hubs

Diagnostic Views Cabletron Ethernet Hubs 5-6 Management Module Guide

Performance Views

What is in this Chapter

This chapter describes the Device, MIM, and Port Performance Views available for Cabletron hub devices.

• The Device Performance View provides trafﬁc data attributes for the trafﬁc on the network segments connected to the Cabletron hub device.

• The MIM Performance View for Cabletron Ethernet hubs displays network statistics and information for each module installed in a hub chassis.

Chapter 6

• The Port Performance View for Cabletron Ethernet hubs displays network statistics and information for individual ports on a MIM board.

These views summarize trafﬁc ﬂow (in bytes and packets), and gives a statistical and graphical breakdown of trafﬁc by packet size.

Device Performance View

The Cabletron hub Device Performance View provides the following navigational features:

• Buttons allow you to access increasingly detailed views of network information, and select graphical representations for each traffic attribute.

• Table entries within views provide double-click zones which navigate you to device-speciﬁc Information Views.

9030367 E7

6-1

Accessing the Device Performance View

The following sections describe the ﬁelds and buttons available for individual Cabletron hub devices.

Accessing the Device Performance View

You can access the Device Performance View using one of the following methods (refer to Figure ):

• Double-click on the Performance View label of the icon.

• Highlight the icon and select Performance from the Icon Subviews

menu.

Figure 6-1. Accessing the Device Performance View

Double-click

Close Navigate Alarms

Performance

Notes... Utilities Zoom Conﬁguration Diagnostic Acknowledge

Flash Green Enabled Application Device DevTop

Select Performance

Performance Views Cabletron Ethernet Hubs 6-2 Management Module Guide

Accessing the Device Performance View

IRBM, IRM2, IRM3 and MiniMMAC Hubs

The Performance View displays monitoring point performance statistics gathered by SPECTRUM. These statistics include load, error rate, frame rate and collision rate. The banner across the top of the Performance View provides information about the monitoring point. The border color of the banner indicates the device status. The banner area contains the following ﬁelds:

Name

The user-deﬁned or default name of the model.

Location

Network Address

The network IP address of the device.

Device Type

The SPECTRUM Model Type (e.g., Hub_CSI_IRBM).

System Up Time

The time, displayed in days+hours:minutes:seconds, that the device has been on-line.

The Performance View includes a multi-attribute line graph that shows network load in green, frame rate in blue, percent errors in orange and the percent collisions in yellow. For the IRM2 and IRM3 hubs, the number of active users is shown in brown.

Table 6-1 displays the categories of information supplied by the Performance View.

Table 6-1. Multi-Attribute Line Graph Deﬁnitions

Statistic Deﬁnition

Load Percentage of the bandwidth used by the device. Frame Rate Number of frames per second that are repeated by the device. % Errors Percentage of frames that are Error Frames. % Collisions Percentage of frames that are Collision Frames. Active Users (IRM2 and IRM3 only.) The number of active users seen by

this device.

9030367 E7 Performance Views

6-3

Accessing the Device Performance View IRBM, IRM2, IRM3 and MiniMMAC Hubs

In addition to the banner and the Multi-Attribute Line Graph, the Performance View provides the following buttons:

Log/Lin

This button allows you to toggle how the multi-attribute line graph is displayed. You can display the network statistics in Logarithmic or Linear format.

Detail

This button displays a view that shows Frame Breakdown and Error Breakdown pie charts. Four buttons at the bottom of each pie chart allow you to display the statistics as a total count or as a percentage of the sum of all attributes in each pie chart. You can also select Clear to clear the pie chart’s buffer. The pie chart will resume displaying the count as a percentage of the sum of all attributes in the pie chart since the buffer was cleared. For more information on how these pie charts display network attributes, refer to the SPECTRUM Operator’s Reference. The Detail button is not available for the IRM3 Hub.

The No_resources ﬁeld, located below the pie chart, displays the number of No Resource conditions detected by the hub. Table 6-2 and Table 6-3provide deﬁnitions of the information contained in the pie charts.

Table 6-2. Frame Breakdown Pie Chart

Statistic Deﬁnition

Good Frames The number of frames detected on all ports of the hub. Errors The sum of all errors including alignment, CRC, runts, giants

and OOW collisions.

Collisions The sum of received and transmitted collisions detected by the

hub.

Table 6-3. Error Breakdown Pie Chart

Statistic Deﬁnition

Alignment The number of frames with alignment errors detected by the

hub. CRC Errors The number of frames with bad CRCs detected by the hub. Runts The number of frames detected with a size of less than 64

bytes.

Performance Views Cabletron Ethernet Hubs 6-4 Management Module Guide

Accessing the Device Performance View

IRBM, IRM2, IRM3 and MiniMMAC Hubs

Table 6-3. Error Breakdown Pie Chart (Continued)

Statistic Deﬁnition

Giants The number of frames detected with a size greater than 1518

bytes.

OOW Coll The number of Out Of Window collisions detected by the hub.

Errors

This button, available only for the IRM3, provides the same information as the Detail button for IRM2, IRBM, and MiniMMAC hubs.

Frames

This button, available only for the IRM3, displays two pie charts. The Frame Size pie chart shows the total number of frames, grouped according to their size in bytes. The Protocol pie chart shows the number of frames per protocol type.

Scroll to Date-Time

This button allows you to view historical data related to hub performance. For example, if you set a date and time for two days ago, you can view hub performance statistics for two days ago.

Change Time Scale

This button allows you to change how time is measured on the line graph in the hub Performance View. You can choose to display statistics in time blocks ranging from 1 to 100 hours.

Events

This button accesses the Event Log containing a list of hub-speciﬁc network events. Use the menu or the scroll bars to scroll through the Event Log.

Alarms

This button allows you to access the Alarms View. The Alarms View displays a list of current network alarms. For information on how to use the Alarms View, refer to the SPECTRUM Operator’s Reference.

9030367 E7 Performance Views

6-5

MIM Performance View SIRM and MRXI Hubs

SIRM and MRXI Hubs

The Performance View for the SIRM and the MRXI hubs provides the following information:

Model Name

The user-deﬁned or default name of the model.

Device Name

The ASCII name of the device read from the device.

Network Address

The network IP address (e.g., 132.177.118.24).

The Performance View also displays a bar gauge at the bottom of the view. The right box (green number) and the bar gauge show the number of packets since the last poll. The left box (white number) shows the number of packets measured since the hub was powered up.

In addition, the Performance View provides a Packets Per Poll button. The Packets Per Poll button displays a graph showing the rate of packets counted per poll. The graph that appears has a scroll bar that lets you view the recent hub performance statistics. The bottom axis of the graph shows the time in seconds broken into 5 minute intervals. The right axis shows the rate of packets received during the last polling interval.

There is also a small box on the graph that shows the rate of packets received during the last polling interval. You can scroll to a particular date and time to view past hub performance statistics. A Set Date-Time (SDT) button is provided in the lower-right corner for setting a speciﬁc date and time for which you want to view statistics.

MIM Performance View

You can access non-intelligent and third-party-intelligent MIM Performance Views through the following views: The hub Device View, or the HASPART Panel in the hub Application View. You can also refer to the management module guide for any third-party modules installed in the hub. To open the MIM Performance View from the Device View, follow these steps:

1. Click on the module to highlight it.

2. Select Icon Subviews from the View menu.

3. Select Module Performance from the Icon Subviews menu.

Performance Views Cabletron Ethernet Hubs 6-6 Management Module Guide

IRBM, IRM2, IRM3 and MiniMMAC Hubs

You can also access the MIM Performance View from the Device View as follows:

1. Click on the Module Label with the right mouse button to access the Icon Subviews menu.

2. Select Module Performance from the Icon Subviews menu.

IRBM, IRM2, IRM3 and MiniMMAC Hubs

The MIM Performance View displays monitoring point performance statistics gathered by SPECTRUM. These statistics include load, error rate, frame rate and collision rate. The banner across the top of the Performance View provides information about the monitoring point. The border color of the banner indicates the device status. The border area contains the following ﬁelds:

Name

The user-deﬁned or default name of the model.

Location

MIM Performance View

Network Address

The network IP address of the device.

Device Type

The SPECTRUM Model Type (e.g., Hub_CSI_IRBM).

System Up Time

The time, displayed in days+hours:minutes:seconds, that the device has been online.

Slot Number

The number of the hub slot in which the module is installed.

The Performance View includes a multi-attribute line graph that shows network load in green, frame rate in blue, error rate in orange and collision rate in yellow. The IRM3 has an additional ﬁeld, Active Users, which displays the number of active users detected by the hub. Table 6-1 displays the categories of information supplied by the MIM Performance View.

In addition to the banner and the Multi-Attribute Line Graph, the Performance View provides the following buttons:

9030367 E7 Performance Views

6-7

MIM Performance View IRBM, IRM2, IRM3 and MiniMMAC Hubs

Log/Lin

This button allows you to toggle how the multi-attribute line graph is displayed. You can display the network statistics in Logarithmic or Linear format.

Detail

This button, not available for the IRM3, displays the same Detail view as described earlieer in this chapter. Refer to that section for information on this view.

Errors

This button, available only for the IRM3, provides the same information as the Detail button for IRM2, IRBM, and MiniMMAC hubs.

Frames

Scroll to Date-Time

This button allows you to view historical data related to module performance. For example, if you set a date and time for two days ago, you can view module performance statistics for two days ago.

Change Time Scale

This button lets you change how time is measured on the line graph in the MIM Performance View. You can choose to display statistics in time blocks ranging from 1 to 100 hours.

MIM Conﬁguration

This button opens the MIM Conﬁguration View. This view allows you to conﬁgure the module information. Table 6-1 provides deﬁnitions of the ﬁelds contained in the MIM Conﬁguration View. This view also has one button. The Conﬁg Alarms button allows you to access the MIM Conﬁgure Alarms View,

Performance Views Cabletron Ethernet Hubs 6-8 Management Module Guide

which allows you to set threshold alarms and enable them. Table 6-4 displays the information contained in this view. The Conﬁgure Alarms View also displays an Error Source Table, which lets you select the types of errors that will cause alarms. Table 4-2, in the Conﬁguration View chapter, provides the information contained in the Error Source Table.

Table 6-4. MIM Conﬁguration View Fields

Field Description

MIM Name The name of the module. Serial Number The serial number of the MIM device. MIM Type The type of module (i.e., IRM2). Slot Number The number of the hub slot that contains the

module.

Ports On Out Of The number of operating ports on the device out of

the total number of ports.

MIM Performance View

IRBM, IRM2, IRM3 and MiniMMAC Hubs

Table 6-5. IRM2, IRM3, IRBM, and MiniMMAC Conﬁgure Alarms View Fields

Field Description

Model Name The user-deﬁned or default name of the module

model. MIM Name The name of the module device. Slot Number The number of the hub slot that contains the

module. Trafﬁc Alarms Enables the sending of device-level trafﬁc traps. Trafﬁc Threshold Alarm Permits a port to be disabled on a trafﬁc threshold

alarm. Trafﬁc Threshold The threshold of packets within the Time Base that

will cause a trafﬁc alarm. Collisions Alarms Enables the sending of device-level collision alarms. Collisions Threshold Alarm Permits a port to be disabled on a collision threshold

alarm. Collisions Threshold The threshold of collisions per good packet that will

generate an alarm. Values can be 1 to 15. Error Alarms Enables the sending of device-level error alarms. Error Threshold Alarm Permits a port to be disabled on an error threshold

alarm. Error Threshold The threshold of errors per good packet that will

generate an alarm.

9030367 E7 Performance Views

6-9

MIM Performance View SIRM and MRXI Hubs

SIRM and MRXI Hubs

The Performance View for the SIRM and the MRXI modules provides the following information:

Model Name

The user-deﬁned or default name of the hub model.

Network Address

The network IP address (e.g., 132.177.118.24).

MIM Name

The name of the module.

MIM Type

The type of module (i.e., IRM2).

Slot Number

The number of the hub slot that contains the module.

Ports On Out Of

The number of operating ports on the device out of the total number of ports.

Standard Statistics

This button allows you to access the MIM Standard Statistics View. The MIM Standard Statistics View displays two bar gauges at the bottom of the view, displaying information on Packets and Collisions. The right box (green number) and the bar gauge show the number of packets/collisions since the last poll. The left box (white number) shows the number of packets/collisions measured since the module was powered up. The Packets and Collisions buttons display rate graphs for each statistic.

Config Alarms

This button allows you to access the MIM Conﬁgure Alarms View, which allows you to set threshold alarms and enable them. Table 6-6 displays the information contained in this view.

Table 6-6. SIRM and MRXI MIM Conﬁgure Alarms View Fields

Field Description

Model Name The user-deﬁned name of the MIM model. Network Address The IP address of the device. MIM Name The name of the MIM device.

Performance Views Cabletron Ethernet Hubs 6-10 Management Module Guide

Port Performance View

Table 6-6. SIRM and MRXI MIM Conﬁgure Alarms View Fields (Continued)

Field Description

Slot Number The number of the hub slot that contains the MIM. Trafﬁc Alarms Enables the sending of device-level trafﬁc traps. Trafﬁc Threshold The threshold of packets within the Time Base that

will cause a trafﬁc alarm.

Collisions Alarms Enables the sending of device-level collision

alarms.

Collisions Threshold The number of collisions per good packet measured

by the device that will generate an alarm. Values can be 1 to 15.

HASPART Panel

The HASPART Panel allows you to access Port Performance Views for the modules installed in the hub. You can either double-click on the name of the module in the HASPART Panel, or you can highlight the name and click on OK. The Port Performance View for modules is described in the next section.

Port Performance View

The Cabletron hub Port Performance View provides the following navigational features:

• Buttons allow you to access increasingly detailed views of network information.

• Table entries within views provide double-click zones which navigate you to device-speciﬁc Information Views.

You can display Port Performance Views from the DevTop View or the Device View.

Device View Access Method

There are three ways to access the Port Performance View from the Device View. To display a Port Performance View from the Device View, follow these steps:

1. Click on an individual port in the Logical MIM Representation with

the right mouse button to display the pop-up menu.

9030367 E7 Performance Views

6-11
