DEC Gig a Sw i t ch
Management Module Guide
®
9031754 E4
i
Notice
Cabletron Systems reserves the right to make changes in specifications and other information
contained in this document without prior notice. The reader should in all cases consult Cabletron
Systems to determine whether any such changes have been made.
The hardware, fi rmware, o r s o f tware de scribed in this man ual is subject to change with o ut notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL,
INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT
NOT LIMITED TO LOST PROFITS) A RI SING OUT OF OR RELATED TO THIS MANUAL OR
THE INFORMATION CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN
ADVISED OF, KNOWN , OR SHOU L D H AVE KNOWN, THE POSSIBIL IT Y OF SUC H
DAMAGES.
V irus Disclaimer
Cabletron has test ed its so ftware with cur rent virus checking technologies. Howeve r, because no
anti-virus system is 100% rel iable, we str o ngl y cau tio n you to wri te prot ect and then verify that
the Licensed Sof tw a re, prio r to installing it, is virus-fr ee with an anti-virus syste m in whic h yo u
have confiden ce.
Cabletron Systems makes no representations or warranties to the effect that the Licensed
Software is virus-free.
Copyright © January, 1997, by Cabletron Systems, Inc. All rights reserved.
Printed in the United States of America.
Order Number: 9031754 E4
Cabletron Systems, Inc.
P.O. Box 5005
Rochester, NH 03866-5005
SPECTRUM, the SPECTRUM IMT/VNM logo, DCM, IMT , and VNM are registered
trademarks, and Spectr oGRAP H, SpectroSERVER, Inductive Modeling Technology,
Device Communications Manager, and Virt ua l Netwo rk Machine are trademarks of
Cabletron Systems, Inc.
C++ is a trademark of American Telephone and Telegraph, Inc.
UNIX is a tradem ark of UNI X Syst em L aboratories, Inc.
OSF/Motif and Motif are trademarks of the Open Software Foundation, Inc.
X Window System is a trademark of X Consortium, Inc.
Ethernet is a trademar k of Xerox Corpo ra tion.
DEC GigaSwitch
ii Management Module Guide
Restricted Rights Notice
(Applicable to licenses to the United States Government only.)
1. Use, duplication , or disc losur e by the Gov ern m en t is sub je ct to restr ict io ns as se t forth in
subparagraph (c) (1) (ii) of the Rights in T echnical Data and Computer Software clause at
DFARS 252.227-7013.
Cabletron Systems, Inc., 35 Industrial Way, Rochester, New Hampshire 03866-5005.
2. (a) This computer software is submitted with restricted rights. It may not be used,
reproduced, or disclosed by the Government except as provided in paragraph (b) of this
Notice or as otherwise expressly stat ed in the contra ct.
(b) This computer software may be:
(1) Used or copied for use in or with the computer or computers for which it was
acquired, inclu ding use at any Governme nt in stallation to which su ch compu te r or
computers may be transferred;
(2) Used or copied for use in a backup computer if any computer for which it was
acquired is inoperative;
(3) Reproduced for safekeeping (archives) or backup purposes;
(4) Modified, adapted, or combined with other computer software, provided that the
modified, combined, or adapted portions of the derivat ive so ftware incor porati ng
restricted computer software are made subject to the same restricted rights;
(5) Disclosed to and reproduced for use by support service contractors in accordance with
subparagraphs (b) (1) through (4) of this clause, provided the Government makes
such disclosure or reproduction subject to these restricted rights; and
(6) Used or copied for use in or transferred to a replacement computer.
(c) Notwithstanding the foregoing, if this computer software is published copyrighted
computer software, it is licensed to the Government, without disclosure prohibitions, with
the minimum rights set f o rt h in paragrap h (b) of this cl a use.
(d) Any other righ ts or lim itations regarding the use , duplication, or disclo sur e of this
computer software are to be expressly stated in, or incorporated in, the contract.
(e) This Notice shall be marked on a ny repr oducti on of this computer software, in who le or in
part.
9031754 E4
iii
Contents
Preface
What Is in This Guide.......................................................................................................... xi
Who Should Read This Manual........................................................................................... xi
How This Manual Is Organized ..........................................................................................xii
Conventions .........................................................................................................................xii
Related SPECTRUM Docu ment a t ion.......... ................. ....................... ........................ ......xiii
Other Related Documentation...........................................................................................xiii
Getting Help........................................................................................................................xiv
Chapter 1 Introduction
What Is in This Chapter.....................................................................................................1-1
DEC GigaSwitch Management Module.............................................................................1-1
SPECTRUM and the DEC GigaSwitch.............................................................................1-2
DEC GigaSwitch Applications...........................................................................................1-2
Chapter 2 Device View
What Is in This Chapter.....................................................................................................2-1
Logical Device View............................................................................................................2-1
Accessing the Logical Device View..............................................................................2-2
Interface Device View.........................................................................................................2-5
Device Icon Panel.........................................................................................................2-8
Interface Options Panel...............................................................................................2-8
Logical Interface Icon...................................................................................................2-9
Device Topology View/Interface Number Label...................................................2-9
Interface Status View/Interface Status Label......................................................2-9
Interface Configuration View/Port Type Label..................................................2-10
Interface Address Translation Table/MAC Address Label ................................ 2-11
Network Information Panel/Network Information Label .................................2-11
Interface Performance View/Logical Gauge Label.............................................2-12
Gauge Control Panel..................................................................................................2-14
Selected Attribute................................................................................................2-14
Gauge Mode.........................................................................................................2-14
Gauge Type ..........................................................................................................2-15
Gauge Control Panel Buttons.............................................................................2-16
Physical Device View ........................................................................................................2-17
Accessing the Physical Device View..........................................................................2-17
DEC GigaSwitch
iv Management Module Guide
Chapter 3 Configuration Views
What Is in This Chapter.....................................................................................................3-1
DEC GigaSwitch Device Configuration View....................................................................3-1
Accessing the Device Configuration View..........................................................................3-2
Interface Address Translation Table...........................................................................3-2
Interface Configuration Table......................................................................................3-3
Module Configuration View................................................................................................3-3
Board Table View...................................................................................................3-3
Port Configuration View.....................................................................................................3-4
FDDI MAC Table View.................................................................................................3-4
Chapter 4 Event and Alarm Messages
What Is in This Chapter.....................................................................................................4-1
DEC GigaSwitch Events and Alarms ................................................................................4-1
Chapter 5 DEC-Specific Applicatio ns
What Is in This Chapter.....................................................................................................5-1
DecGigaApp.........................................................................................................................5-1
Configuration................................................................................................................5-2
GigaSwitc h ARP............... ....................... ........................ ........................ .....................5-3
GigaSwitch Bridge Statistics.......................................................................................5-4
GigaSwitch Cut Through Mapping..............................................................................5-4
Configuring Cut Through Mapping ......................................................................5-4
GigaSwitc h Fi l t ers.............. ........................ ....................... ........................ ...................5-5
Editing Existing Matrices......................................................................................5-5
Adding a Matrix to the Table..........................................................................5-5
Editing Destination Filters....................................................................................5-6
Adding Entries to the Destination Filters Table ...........................................5-6
SAP Filters..... ................ ........................ ........................ ....................... .................5-6
Editing the Settings for an Existing Filter ....................................................5-7
Adding an Entry to the SAP Filter View........................................................5-7
SNAP Filters............................ ........................ ....................... ........................ .......5-7
Editing an Existing SNAP Filter....................................................................5-7
Adding a SNAP Filter to the Table.................................................................5-8
Source Filters.........................................................................................................5-8
Editing an Existing Source Filter...................................................................5-8
Adding a Source Filter to the Table................................................................5-8
GigaSwitc h M Port s.............. ........................ ........................ ....................... .................5-9
Enabling or Disabling a Particular M Port..........................................................5-9
GigaSwitc h STP................................ ........................ ........................ ....................... .....5-9
Enabling or Disabling the Span nin g Tree Application for a Particular Port .....5-9
Upgrade.......................................................................................................................5-10
Upgrading Card Firmware..................................................................................5-10
Model Information View................................. ........................ ........................ ............5-10
Setting the Poll Interval......................................................................................5-10
9031754 E4
v
Chapter 5 DEC-Specific Applicatio ns (continued)
DecElanApp......................................................................................................................5-11
Configuration .............................................................................................................5-11
Bridge Databases ......................................................................................... ..............5-11
Extended Bridge.........................................................................................................5-12
Characteristics.....................................................................................................5-12
Disable Spanni n g Tree... ........................ ........................ ....................... ..............5-13
NTP ................... ........................ ........................ ....................... ........................ ....5-13
Rate-Limit ing.................. ........................ ........................ ....................... ..............5-13
Spanning Tree.......... ................. ........................ ....................... ........................ ....5-14
Extended FDDI....................................................................................................5-14
Protocol Databases.....................................................................................................5-15
SNMP Authentication................................................................................................5-15
SNMP User Communities Table.........................................................................5-16
SNMP Trap User Table .......................................................................................5-16
Model Information View .................................... ........................ ....................... .........5-17
Index
DEC GigaSwitch
vi Management Module Guide
9031754 E4
vii
Figures
Chapt er 2 Device View

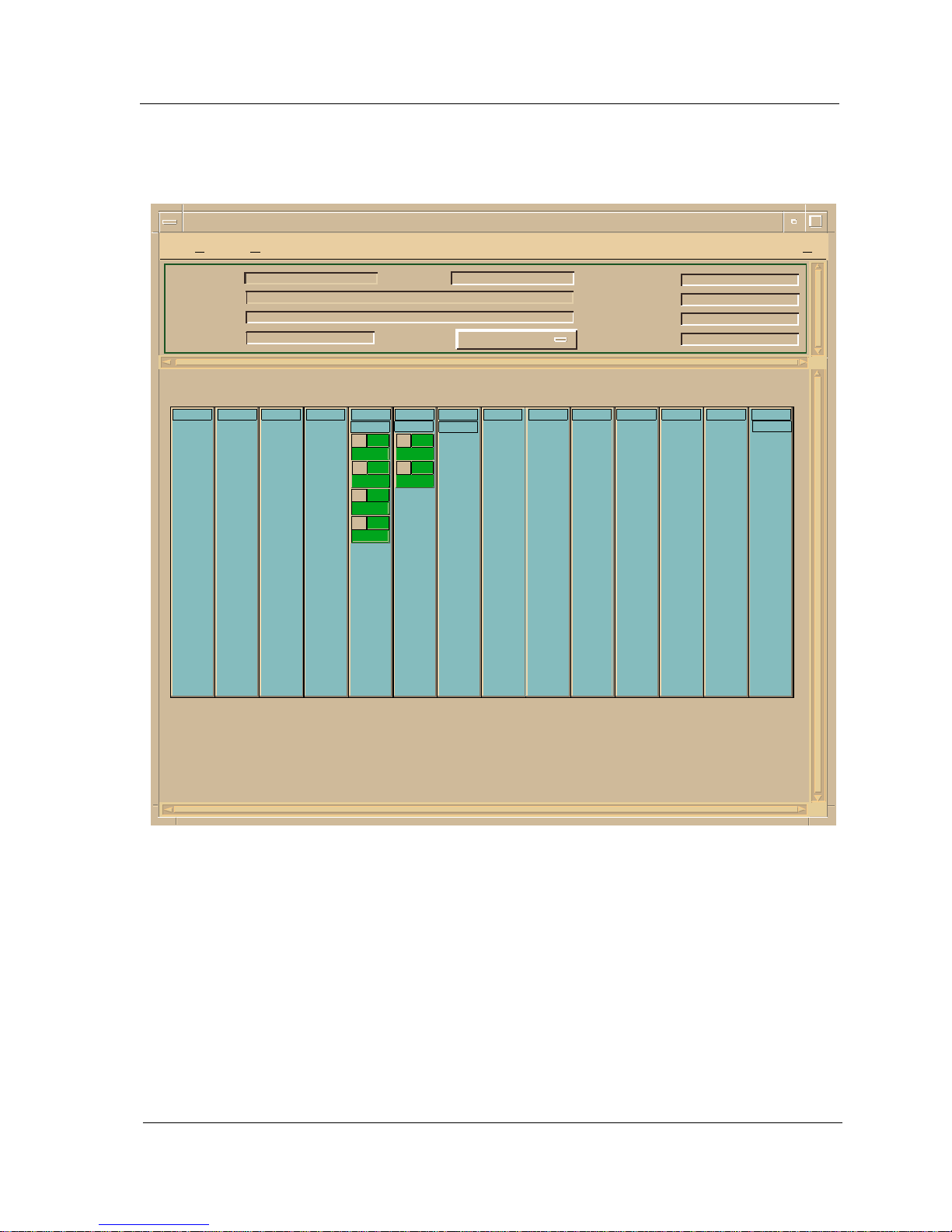

Figure 2-1. DEC Gigaswitch Logical Device View .................................................................2-3
Figure 2-2. DEC Gig aswitch Logical Device View - Label and Double-Cl ick Zo nes ............ 2-4

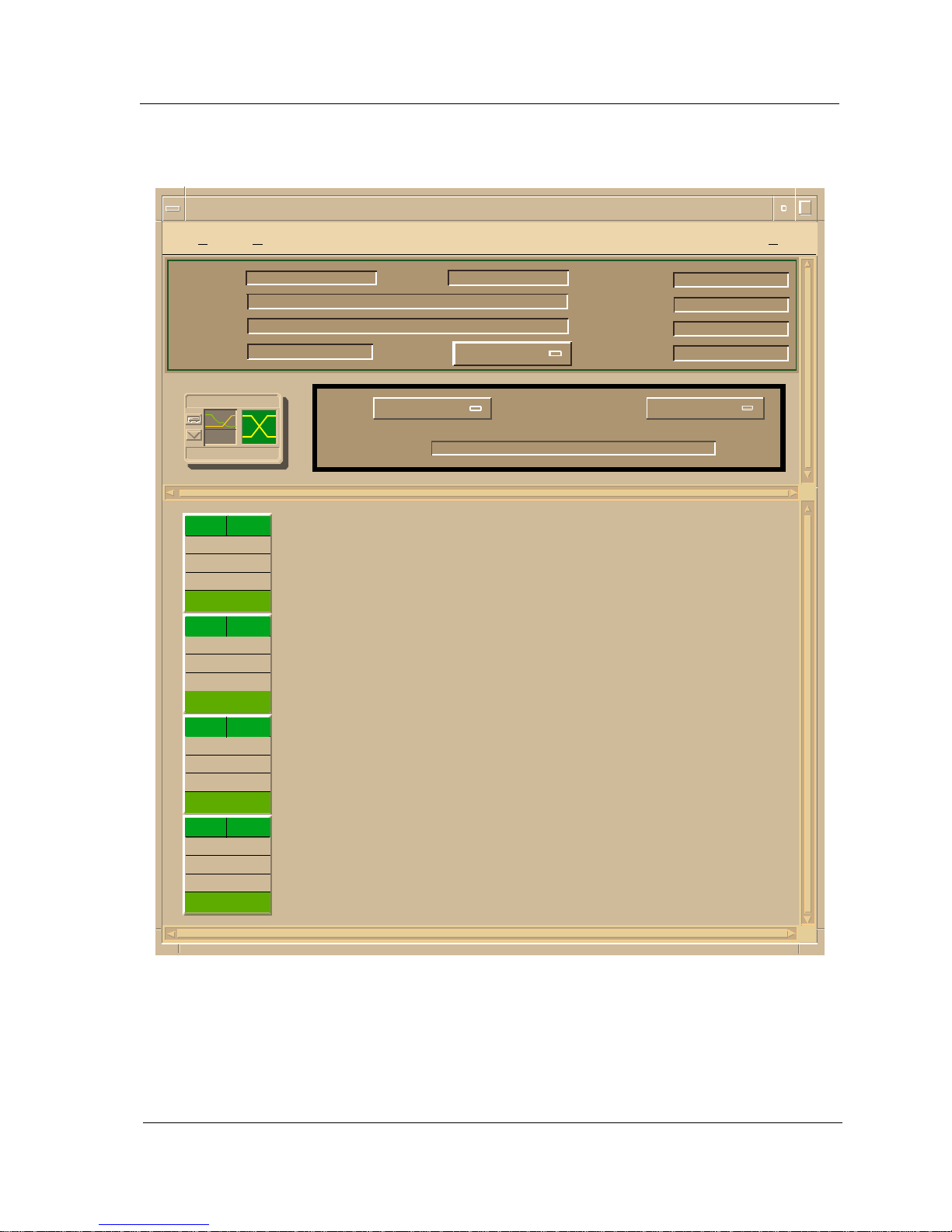

Figure 2-3. Interface Device View ...........................................................................................2-7

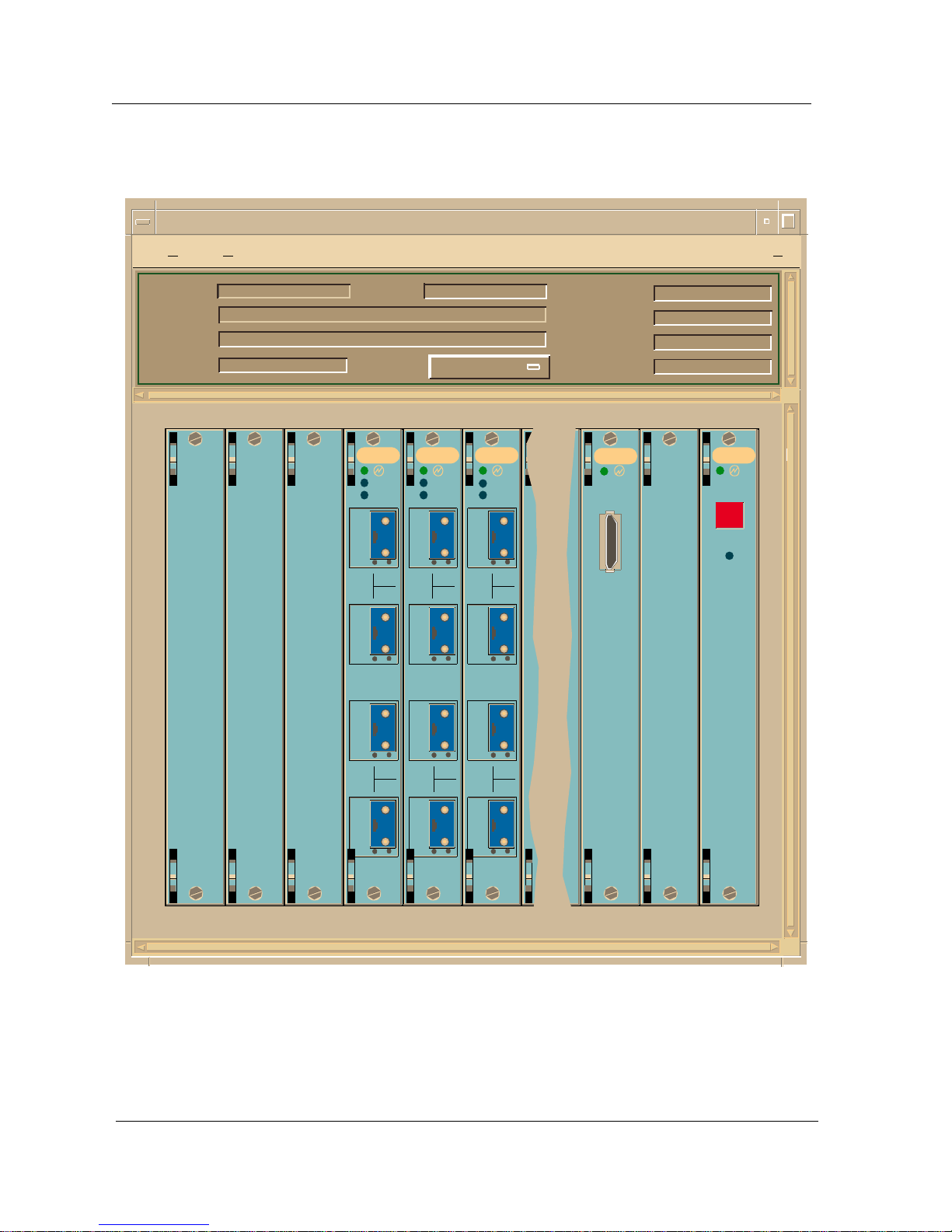

Figure 2-4. DEC GigaSwitch Physical Device View .............................................................2-18
Chapter 5 DEC-Specific Applications
Figure 5-1. The DecGigaApp Icon Subviews menu ................................................................5-2

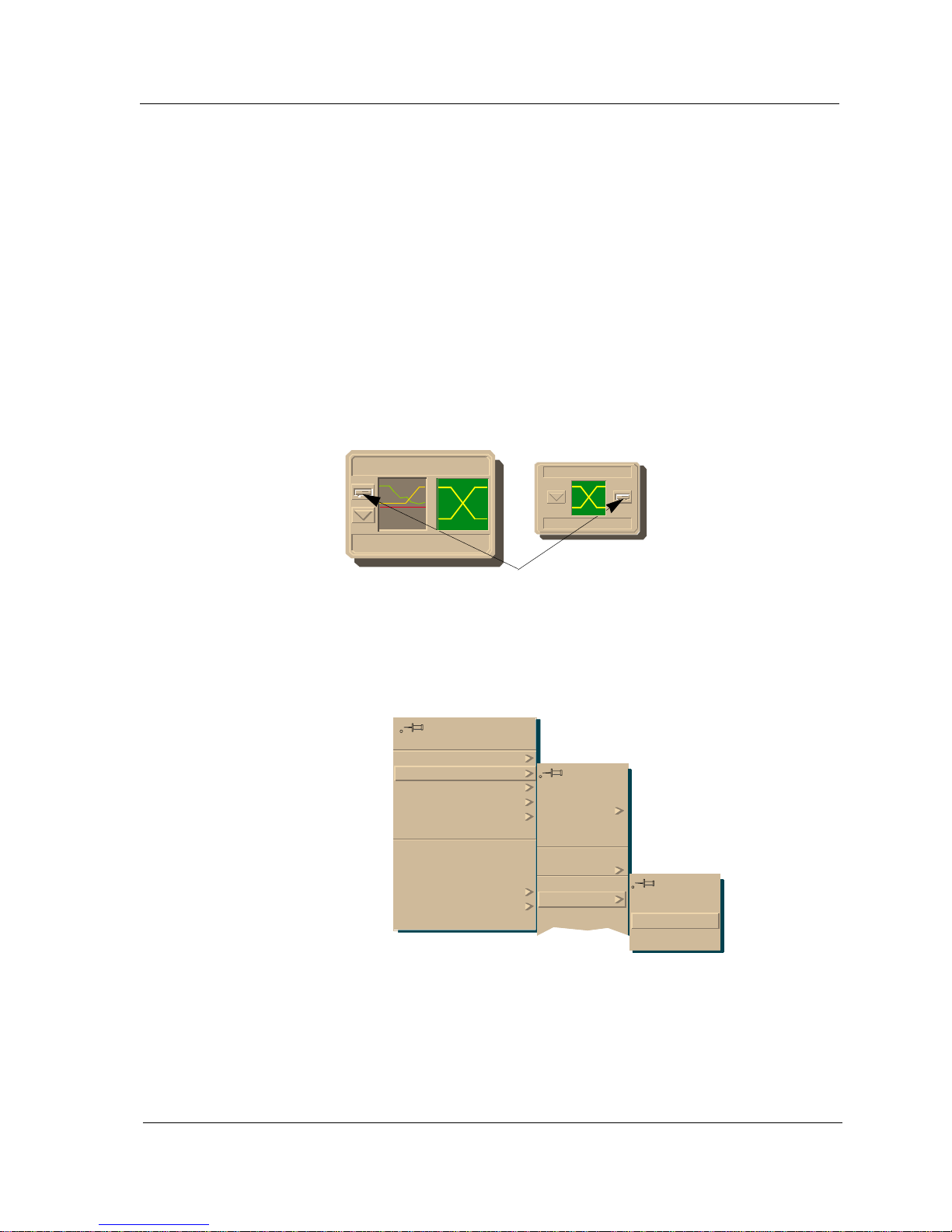

Figure 5-2. The Extended Bridge Submenu .........................................................................5-12
DEC GigaSwitch
viii Management Module Guide
9031754 E4
ix
Tables
Chapt er 2 Devic e View
Table 2-1. Module Menu Selections .......................................................................................2-4
Table 2-2. Port Icon Subviews................................................................................................2-5
Table 2-3. Interface Status Label Definitions .......................................................................2-9
Table 2-4. Interface Types for the DECGigaSwitch............................................................2-10
Table 2-5. Color and Statistical Definitions for each Attribute ..........................................2-12
Table 2-6. GaugeTotals Mode Attribute and Color Definitions ..........................................2-14
Table 2-7. GaugeRates Mode Attribute and Color Definitions...........................................2-15
Table 2-8. DEC Gigaswitch l Physical Device View- Module Icon Subviews.....................2-19
Chapter 4 Event and Alar m Mes sage s
Table 4-1. DEC GigaSwitch Events and Alarms...................................................................4-1
DEC GigaSwitch
x Management Module Guide
9031754 E5
xi
Preface
What Is in Th is Guide
This manual serves as a reference guide to the DEC GigaSwitch management
module softwar e , provid in g the info r m atio n ne c e ssar y to crea te, co nfigure,
and monitor the DE C GigaSwitch in SPECT RU M.
Who Should Read This Manual
You should read this manual if you are going to m odel and mo nitor a DEC
GigaS witch de vice through SPEC T R U M.
Before reading this manual, you should be familiar with SPECTRUM’s
functionality. Familiarity with network management is helpful, as is an
understanding of the device hardware and firmware described in the
GigaSwitch’s hardwar e man ual.
How This Man ua l I s Or ga nized
Preface DEC GigaSwitch
xii Management Module Guide
How This Manual Is Organized
This guide is organi zed as fo llows:
Conventions
In this manual the following conventions are used.
• Command names are printed in bold; for example, Cle ar or Save &
Close.
• Menu selections to access a view are printed in bold; for ex a m ple,
Configura tion or Detail.
• Buttons are represented by a shadowed box; for example, .
Chapter Description
Chapter 1
Introduction
Describes the DEC GigaSwitch management module
and m odel t ypes .
Chapter 2
Device Views
Describes the Logic al and Ph ysical device view s for
the DEC GigaSwi tch .
Chapter 3
Configuration Views
Describe s the Device, Modu le , a nd P ort
Configurat ion Views for the DE C GigaSwitch.
Chapter 4
Event s and Al a r m s
Describes the DECElan and DECGiga applications
for the DEC GigaSwitch.
Chapter 5
DEC-Specific
Applications
Describes the Event and Alar m mess ages and the
corresponding Pr o bable Caus e me ssages specific to
the DEC GigaSwi tch .
Help
9031754 E5 Preface
xiii
Related SPECTRUM Documen tati on
Related SPECTRUM Documentation
Refer to the followin g d ocum e n tatio n for mo re inf o rmation on using
SPECTRUM:
SPECTRUM Report Generator User’s Guide
SPECTRUM AutoDiscovery User’s Guide
Getting Started with SPECTRUM for Operators
Getting Started with SPECTRUM for Administrators
How to Manage Your Network with SPECTRUM
Other Related Documentation
LAN Troubleshooting Handbook, Mark Miller (1989, M&T Publis hin g, Inc. )
Local Area Networks, Architectures and Implementations, James Martin &
Kathleen K. Chapman for the Arben Group, Inc. (1989, Prentice -Hall, Inc .)
The Simple Book — An Introduction to Management of TCP/IP-based
Internets, Marshall T. Rose, Performan ce Sys te ms In tern atio n al, Inc .
Computer Networks, Andrew S. Tanenbaum, Prentice-Hall, Inc.
Internetworking Technology Overview, Cisco Systems, Inc. (1993, Cisco
Systems, Inc.)
Getting Help
Preface DEC GigaSwitch
xiv Management Module Guide
Getting Help
For additional support for SPECTRUM products, or to make comments or
suggestions re garding SPE CTRUM or this manu al, contac t C able tr o n
Systems Technical Support via one of the following means:
Location Mail FAX Telephone
North Ame ri c a
Cabletron Syst em s, Inc.
P. O. Box 5005
Rochester, NH 03866- 5005
E-mail: spectrum-support@ctron.com
603-337-3075 603-337-3500
Europe
Cabletron Systems, Ltd.
Network Hous e
Newbu r y Busin e ss Park
London Road, Newbury
Berkshire, England RG13 2PZ
E-mail: eurospec@ctron.com
(*)-44-635-552062 (*)-44-635-580000
Pacific
Cabletron Syst em s, Inc.
Allambie Grove Estate
25 French’s Forest Road East
French’s Forest, NSW 2086
Sydney, Australia
E-mail: spectrum-support@ctron.com
(*)-61-2-950-5950 (*)-61-2-950-5900
Japan
Cabletron Systems, KK
JTB Building 9F
164 Maranouchi
Chiyoda-ku
Tokyo 100 Japan
E-mail: spectrum-support@ctron.com
(*)-81-3-3240-1985 (*)-81-3-3240-1981
Singapore
Cabletron Syst em s, Inc.
85 Science Park Drive
#03-03/04
The Cavendish
Singapore 051
E-mail: spectrum-support@ctron.com
(*)-65-7763382 (*)-65-7755355
Germany
Cabletron Systems GmbH
Dreieich Park
Im Gefierth 13d
63303 Dreieich
Frankfurt, Ger man y
E-mail: spec-g erman y@ctro n .c om
(*)-49-6103/991-229 (*)-49-6103/991-269
*International Operator Code
Questions About SPECTRUM Documentation?
Send your questions, comments or suggestions regarding SPECTRUM
documentati on to the T echnical Communications Department direc tly v ia the
following internet ad dress:
spectrum-techdocs@ctron.com
E-MAIL
9031754 E5
1-1
Chapter 1
Introduction
What Is in This Chapter
This chap te r d e scribes th e SP E C T R U M Ma n a ge m e nt Module for the DEC
GigaSwitch. It also pro vide s the mo d el typ e na mes assig ne d to th e DEC
GigaSwitch in SPECTRUM. The model type name refers to the template used
to specify attribute s, actio ns , and ass oc iations for device models in
SPECTRUM.
DEC GigaSwitch Management Module
The DEC GigaSwitch Management Module supports all DEC GigaSwitch
device mod el s ma naged throug h the SN M P ad vanced networ k ma na ge m e nt
agent. SPECTRUM bases its management of these devices on the
Management Information Base (MIB), which comes as part of the
management module. The SPECTRUM model type name of the DEC
GigaSwitch device is as follows:
DECGigaSwitch: A DEC GigaSwitch data switch. SPECTRUM sup ports t h e
Fiber GIGAswit ch/F DDI System Linecar d , 2-po rt (FGL - 2), Sw itch Con trol
Processor (SCP), and Clock cards. The DEC GigaSwitch allows for 14
linecards to be installed into its back providing for a total of 32 simultaneous
network connections.
SPECTRUM supports the following firmware revisions:
2.00, 2.10, 2.20.
Support is currently available only for the FDDI GigaSwitch hub, but support
for the ATM hub will be available in a future release.
SPECTRUM and the DEC GigaSwitch
Introduction DEC GigaSwitch
1-2 Management Module Guide
SPECTRUM and the DEC GigaSwitch
The DEC GigaSwitch Management Module model will allow modeling of the
DEC GigaSwitch device.
Supported Dev ices: GigaSwitch/FDD I
Supporte d C a rd s : FG L2 , SCP, Clock card
Firmware Versions: 2.00, 2.10, 2.20
DEC GigaSwi tch Appli cati ons
The DEC GigaSwitch supports both commo n and dev ice-sp ecific a ppl icat ions.
SPECTRUM m anagement of the DEC Gi gaSwitch utilizes the following
Management Information Bases (MIB’s) which come as a part of the software
module for the model type:
• Internet MIB-II (RFC 1213)
• IETF Bridge MIB (RFC 1286)
• RFC 1285 (FDDI)
• DEC Elan V endor MIB (Version 2.7)
• DEC GigaSwitch MIB (Version 1.0)
The MIB-II, IETF Bridge MIB, and the FDDI applications are described in the
Applications documentation.The DECGigaApp and the DECElanApp are the
GigaSwitch’s device-spe ci fic app licat io ns and ar e de tailed in Chap t er 5, DEC-
Specific Applications.
NOTE
If you are running a previous version of SPECTRUM, the following user
interf a c e aspect s m a y diff er from th ose in SPECTRUM version 4 .0:
• Ord er and names of m en u se l ec ti o ns
• Navigational features (mouse button functionality)
9031754 E5
2-1
Chapter 2
Device View
What Is in This Chapter
This chapter describes the Gigaswitch’s Logical. Interface and Physical Device
views and how to utilize the se vie w s to manage and access info rmation from
the Gigaswitch modu le . The Logic al De vic e vie w pro vide s a logical
representati on of the Gigaswitch modul e and ac cess to con figur atio n and
status inform atio n on the m od ule itself , the Rin g In and Ring Out ports, and
the station ports.
The Interface Device view displays interface icons for each of the linecards
installed in theGigaSwitch, allowing you to set and gather information about
each of the interfaces.
The Physical Devi ce view pr ovides a physi cal represen tation of t he Gigaswi tch
and allows access to configuration and status information for the Gigaswitch
module.
Logical Device View
This section descr ibe s the inf orm a tio n available from the Gigas witc h L ogic a l
Device view.
The following diag ram illu str ate s ho w to acc es s the Gigaswitch’s Logical
Device view and F igur e 2-1 shows the module’s Logical De vic e view. The
Logical Device v iew p rovide s ac cess to d etaile d info rmati on abou t the

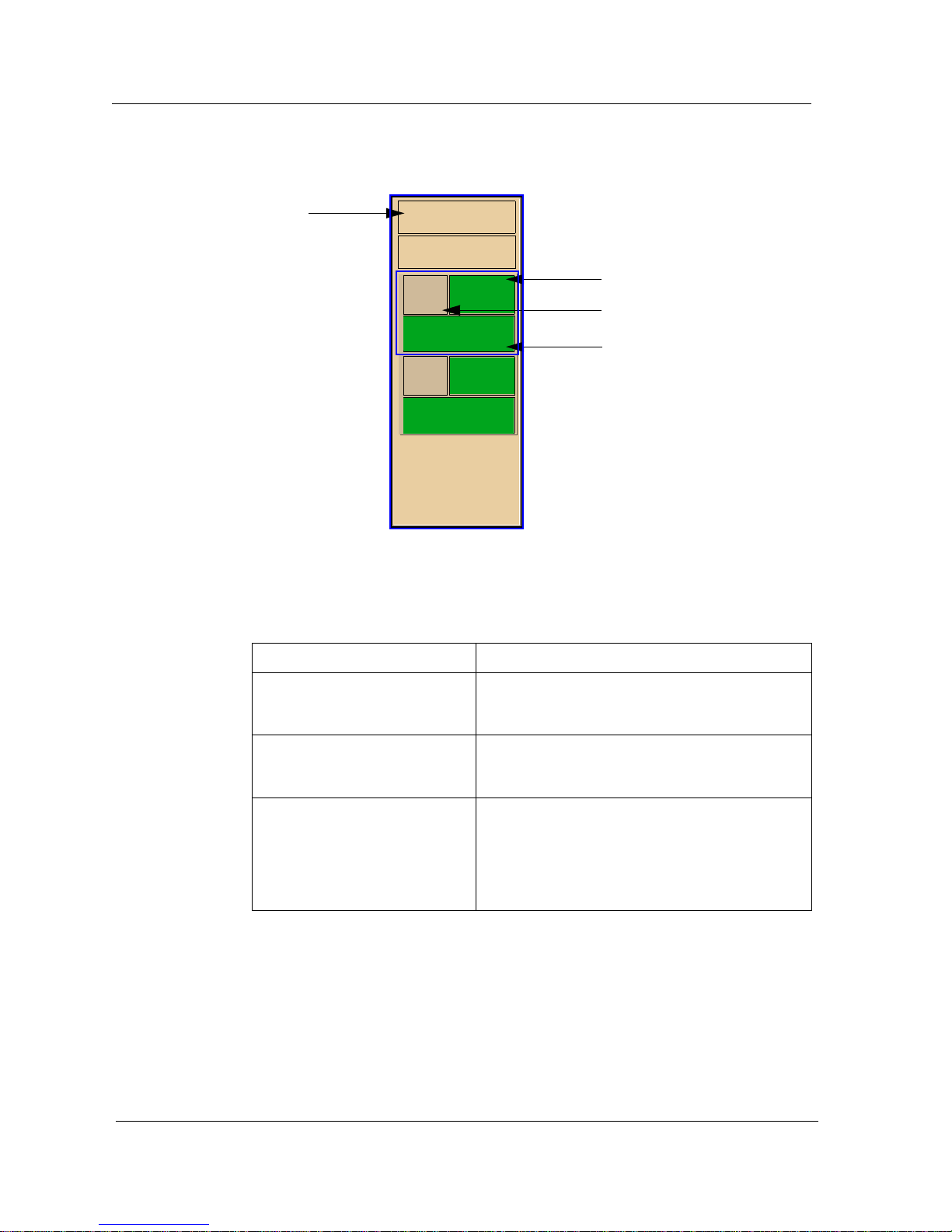

Gigaswitch module. Figure 2-2 displays the Gigaswitch Logic al Mod ule and
the menu selections available by double-clicking the left mouse button on each
zone of the module.
Logical Device View
Access in g th e Logical D e vi ce View
Device View DEC GigaSwitch
2-2 Management Module Guide
Acces si ng the Lo gical Devi ce V ie w

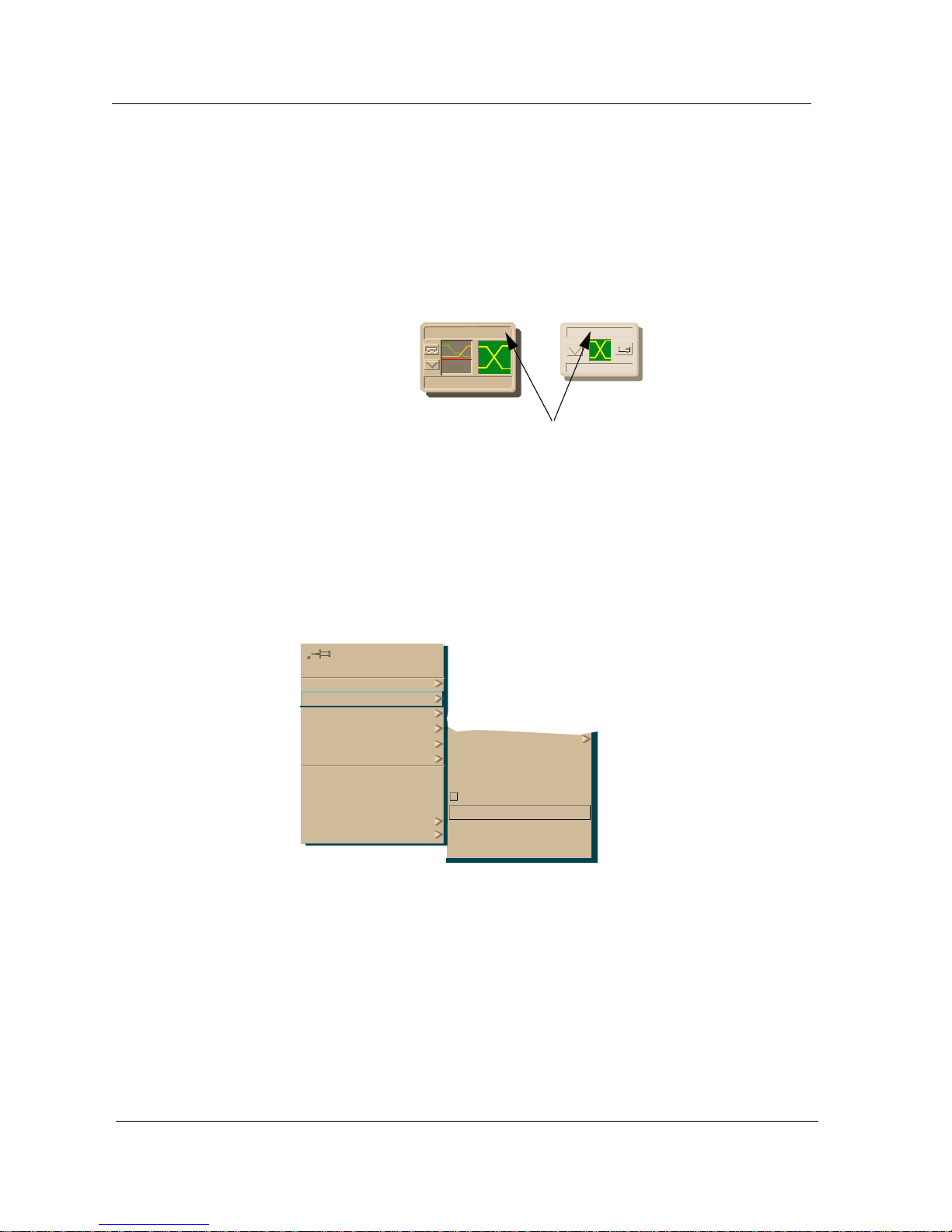

The Logical Device view is accessed using one of the following methods:
• Double-click on t h e D evice view button of the Gigaswit c h device icon. T his
will open the Device view that was opened last (i.e. L ogica l, P hys ical , or
Interface).
• Highlight the DEC Gigaswitch device icon and select Device -> Logical
from the Icon Subviews menu.
Device View Button
Go Back
Go Up
Icon Subviews
View Path
New View
Bookmarks
View History
Curre nt View Info...
Notes...
Jump by name...
Zoom
Map Hierarchy
Close
Navigate
Alarms
Performance
Notes...
Utilities
Zoom
Device
DevTop
Logical
Physical
Interface
9031754 E5 Device View
2-3
Logical Device View
Accessing the Logical Device View
Figure 2-1. DEC Gigaswitc h Logical Device View
*File View Help?
Primary Landscape 0x00400000 - VNM Host -GigaSwitch of type DECGigaSwitch
Model N ame
Contac t
Descriptio n
Locati on
Net Addr
Prime-App
Sys U p Time
Manufa ct ure r
Device T ype
Seri a l Nu mb er
1
23456789
10 1 1 12 13 14
FGL2
FGL2 CLOCK SCP
Run
Spanning
Run
Spanning
Run
Spanning
Run
Spanning
Run
Spanning
14
Run
Spanning
10
13
14
13
9
Loading...
