Cabletron Systems DELHE-UA User Manual

DIGITAL Fa st Ether net
Interface Module

DELHE-UA

User’s Guide

DIGITAL Fa st Ether net
Interface Module

DELHE-UA

User’s Guide

Part Number: 9032765

September 1998

This book describes the DELHE-UA features and how to install and
troubleshoot the equipment.

Revisio n /Update Info rmation: This is a new doc u m en t.

Cabletron Sy s tems reserves the r ight to make changes in specifications and other information
contained in this document without prior notice. The reader should in all cases consult Cabletron
Systems to determine whether any such change s have been made.

The hardware, f irmware, or so ftw are described in this manua l i s subject to change wit hout notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL,

INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT
NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR
THE INFORMATION CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN
ADVISED OF, KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH
DAMAGES.

 Copyright 1998 by Cabletron Systems, Inc., P.O. Box 5005, Rochester, NH 03866-5005
All Rights Reserved
Printed in the United States of America

LANVIEW is a registered trademar k of Cabletron Systems, Inc.
DIGITAL and the DIGITAL logo are trademarks of D igital Equipment Corporation.
All other pro duct names mentioned in this manu al may be trademark s or registered trademarks of

their respective companies.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

The enclosed pr oduct (a) was de veloped solely at private expe ns e; (b) contains “restricted computer
software” submitted wi th restricted rights in accordance with Section 52227-19 (a) throug h ( d) of the
Commercial Computer Software - Restricted Rights Clause and its successors, and (c) in all respects
is propriet ary data belonging to Cablet r on and/or its s uppliers.

For Department of Defense units, the pr oduct is licens ed with “Restricted Righ ts” as defined i n the
DoD Supplement to the Federal Acquisition Regul ations, Section 52.227-7013 (c ) (1) (ii) and i ts
successors, and use, duplication, disclosure by the Government is subject to restrictions as set forth in
subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at

252.227-7013. Cabletron Systems, Inc., 35 Industrial Way, Rochester, New Hampshire 03867-0505.

FCC Notice — Class A Computing Device:
This equipment generates, uses, and may emit radio frequency ener gy. The equipment has been typ e
tested and found to comply wit h the limits f or a Cl as s A digital device pursuant to Part 15 of FCC
rules, whic h ar e designed to p rovide reasonable protect ion against s uch radio frequency interference.
Operation of this equipment in a residential area may cause interference in which case the user at his
own expense will be requ ired to take whate ver meas u res may be requi red to correc t the inte rfe rence .
Any modific atio ns to t his dev ice - unless expr essl y appr oved by th e manuf actur er - can void t he us er's
authority to operate this eq uipment under part 15 of the FCC rules.

DOC Notice — Class A Computing Device:
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulatio ns of the Canadian Departme n t of
Communications .

Le présent ap par e il numéri que n’émet pas d e br uits radioélectriq ues dépassant les limites applicables
aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique
édicté par le min istère des Communi cations du Ca nada.

VCCI Notice — Class A Computing Device:

Taiwanese Notice — Class A Computing Device:

CE Notice — Class A Computing Device:
Warning!

This is a Class A product. In a domest ic environment, this product may cause radio interference, in
which case the user ma y be r equired to take adequate measures .

Achtung!

Dieses ist ein G er ä t der Funkstörgrenzwertklasse A. In Woh nbereichen können bei Betrieb dieses
Gerätes Rundf unkstöru ngen auftreten, in welch en Fällen der Benutzer für ent s prechende
Gegenma

Avertissement!

Cet appareil est un appareil de Classe A. Dans un environnement résidentiel cet appareil peut
provoquer des bro uillag es r adioél ec triqu es. Dans ce cas, il p eut êt re deman dé à l' uti lisateu r de pr end re
les mesures appropriées.

ßnahmen verantw o rtlich ist.

CABLETRON SYSTEMS, INC. PROGRAM LICENSE AGREEMENT

IMPORTANT: Before utilizing this product, carefully read this License Agreement.

This document is an agreement between you, the en d user, and C abletron Systems, Inc. (“Cabl etron”)
that sets forth your rights and obligations with re s pect to the Cabl etron softwar e program (t he
“Program”) contained in this package. The Program may be contained in firmware, chip s or oth er
media. BY UTILIZING THE ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME
BOUND BY THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND
THE LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY . IF YOU DO NOT
AGREE TO THE TERMS OF THIS AGREEMENT, PROMPT LY RETURN THE UNUSED
PRODUCT TO THE PLACE OF PURCHASE FOR A FULL REFUND.

CABLETRON SOFTWARE PROGRAM LICENSE

1. LICENSE. You have t he r ight to use only the one (1) copy of the P rogram provided in this
package subject to the terms and conditions of this License Agreement.

You may not copy, reproduce or transmit any part of the Program except as per m it ted by the
Copyright Act of the United States or as authorized in writing by Cabletron.

2. OTHER RESTRICTIONS
Program.

3. APPLICABLE LAW
and in the state and federal courts of New Hampshire. You accept the personal jurisdiction and
venue of the New Hampshire courts.

. You may not reverse engineer, de compile, or disassemble the

. Thi s Licens e Agreement shall be in terpreted an d gover ned under the l aws

EXCLUSION OF WARRANTY AND DISCLAIMER OF LIABILITY

1. EXCLUSION OF WARRANTY. Except as may be specifically provided by Cabletron in
writing, C ablet ron make s no war ran ty, expre ss ed or i mpli ed, co nce rnin g the P rogra m ( incl uding
its document ati on and media).

CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO
YOU BY CABLETRON IN WRITING, EITHER EXPRESSED OR IMPLIED, INCLUDING
BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PAR TICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE
ACCOMPANYING WRITTEN MATERIALS, AND ANY ACCOMPANYING HARDWARE.

2. NO LIABILITY FOR CONSEQUENTIAL DAMAGES
CABLETRON OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER
(INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS,
PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, SPECIAL,
INCIDENTAL, CONSEQUENTIAL, OR RELIANCE DAMAGES, OR OTHER LOSS)
ARISING OUT OF THE USE OR INABILITY TO USE THIS CABLETRON PRODUCT,
EVEN IF CABLETRON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR
ON THE DURATION OR LIMITATION OF IMPLIED WARRANTIES, IN SOME
INSTANCES THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO
YOU.

. IN NO EVENT SHALL

SAFETY INFORMATION

CLASS 1 LASER TRANSCEIVERS

THE DELHE-UA GIGABIT ETHERNET MODULES USE

CLASS 1 LASER TRANSCEIVERS. READ THE FOLLOWING

SAFETY INFORMATION BEFORE INSTALLING OR OPERATING

THESE ADAPTERS.

The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation limits. This
control loo p elimina te s the need for mainte nance chec ks or adjust me nts . The outp ut is f acto ry set , and
does not allow any user adjustment. Class 1 laser transceivers comply with the following safety
standards:

• 21 CFR 1040.10 and 1040. 11 U.S. Department of Health and Human Services (FDA).

• IEC Publicatio n 825 (Intern atio nal Electro tec h nical Co mmi s sion).

• CENELEC EN 60825 (European Committee for Ele ctrotechnical Standardization).
When operating w it hi n their performance li mitations, laser transceiver output meets the Class 1

accessible emission limit of all three standard s. C lass 1 levels of laser radiation are not considered
hazardous.

SAFETY INFORMATION

CLASS 1 LASER TRANSCEIVERS

LASER RADIATION AND CONNECTORS

When the connector is in place, all laser radiation remains w ithin the fiber. The maximum amount of
radiant power exiting the fiber (un der normal conditions) is -12.6 dBm or 55 x 10

Removing the optical connect or from the trans ceiver allows laser radiation to emit directly from the
optical port. The maximum radiance from the optical port (under worst case conditions) is

0.8 W cm

Do not use optica l i nstruments to view the laser output. The use of optical instruments to view
laser output increases eye hazard. When viewing the outp ut optical port, power must be
removed from the network adapter.

-2

or 8 x 103 W m2 sr-1.

-6

watts.

DECLARATION OF CONFORMITY

Application of Council Directive(s): 89/336/EEC

73/23/EEC

Manufacturer’s Name: Cabletron Systems, Inc.

Manufacturer’s Address: 35 Industrial Way

PO Box 5005
Rochester, NH 03867

European Representative Name: Mr. J. Solari

European Representative Address: Cabletron System s Limit ed

Nexus House, Newbury Business Park
London Road, Newbury
Berkshire RG13 2PZ, England

Conformance to Directive(s)/Product Standards: EC Directive 89/336/EEC

EC Directive 73/23/EEC
EN 55022
EN 50082-1
EN 60950

Equipment Type/Environment : Networking Equipment, for use in a

Commercial or Light Industrial
Environment.

We the undersigned, hereby dec lare , under our sole responsibilit y, that the equipment packaged
with this notice conforms to the above directives.

Manufacturer Legal Representative in Europe
Mr. Ronald Fo tino Mr. J. So lari

___________________________________ ___________________________________

Full Name Full Name
Principal Compliance Engineer Managing Director - E.M.E.A.

___________________________________ ___________________________________

Title Title
Rochester, NH, USA Newbury, Berkshire, England

___________________________________ ___________________________________

Location Location

CONTENTS

PREFACE

Using This Guide .....................................................................................xi

Structure of This G uide ...........................................................................xi

Document Conventions ..........................................................................xii

Related Document a tion .......... .............. ............................. .....................xii

Correspondence ....................................................................................x iii

Documentation Comments.......................................................... xiii

World Wide Web.......................................................................... xiii

Getting Help ........................... .............. ............................. ....................xi ii

SAFETY

Overview ................................................................................................xv

Safety Requirements . ............................................................................xvi

CHAPTER 1 INTRODUCTION

1.1 Overview................................................................... .............. .....1-1

1.1.1 Connectivity ....................................................................1-1

1.1.2 Local Management .........................................................1-2

1.1.3 Full Duplex Switched Ethernet........................................1-2

1.1.4 LANVIEW Diagnostic LEDs............................................1-2

1.2 FEPIM Options............................................................................ 1-2

CHAPTER 2 INSTALLATION

2.1 Unpacking the DELHE-UA..........................................................2-1

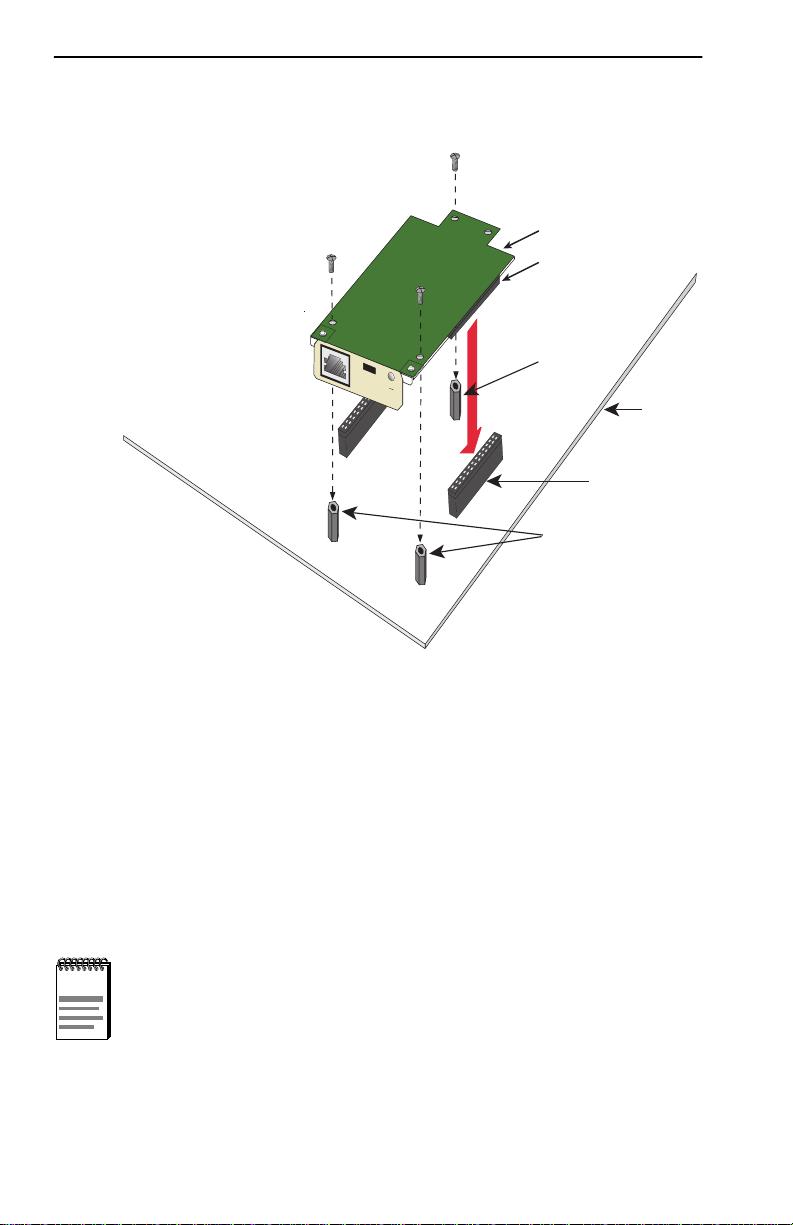

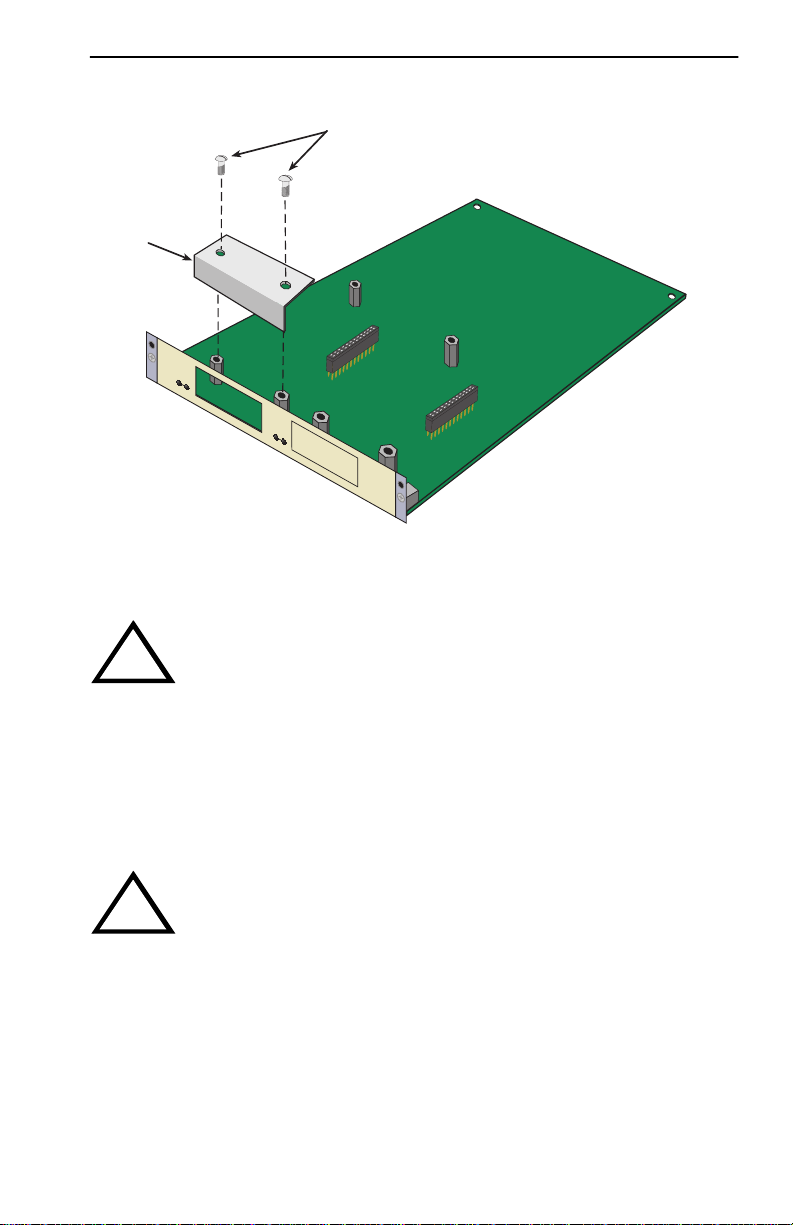

2.2 Installing Fast Ethernet (Port) Interface Modules ........................2-2

2.3 Installing the DELHE-UA.............................................................2-5

2.3.1 Installing the DELHE-UA in an Interface Module............2-5

2.4 Connecting to the Network ..........................................................2-8

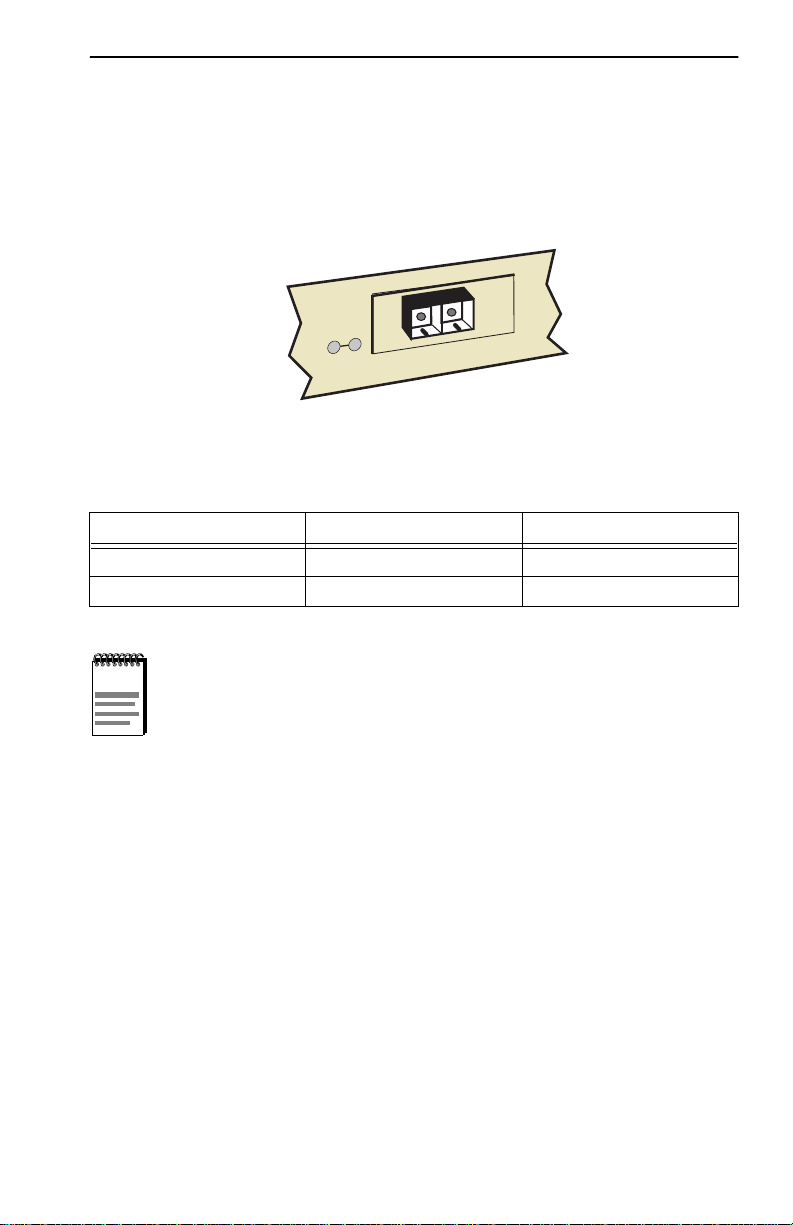

2.4.1 Connecting a Fiber Optic Segment to the FEPIM...........2-9

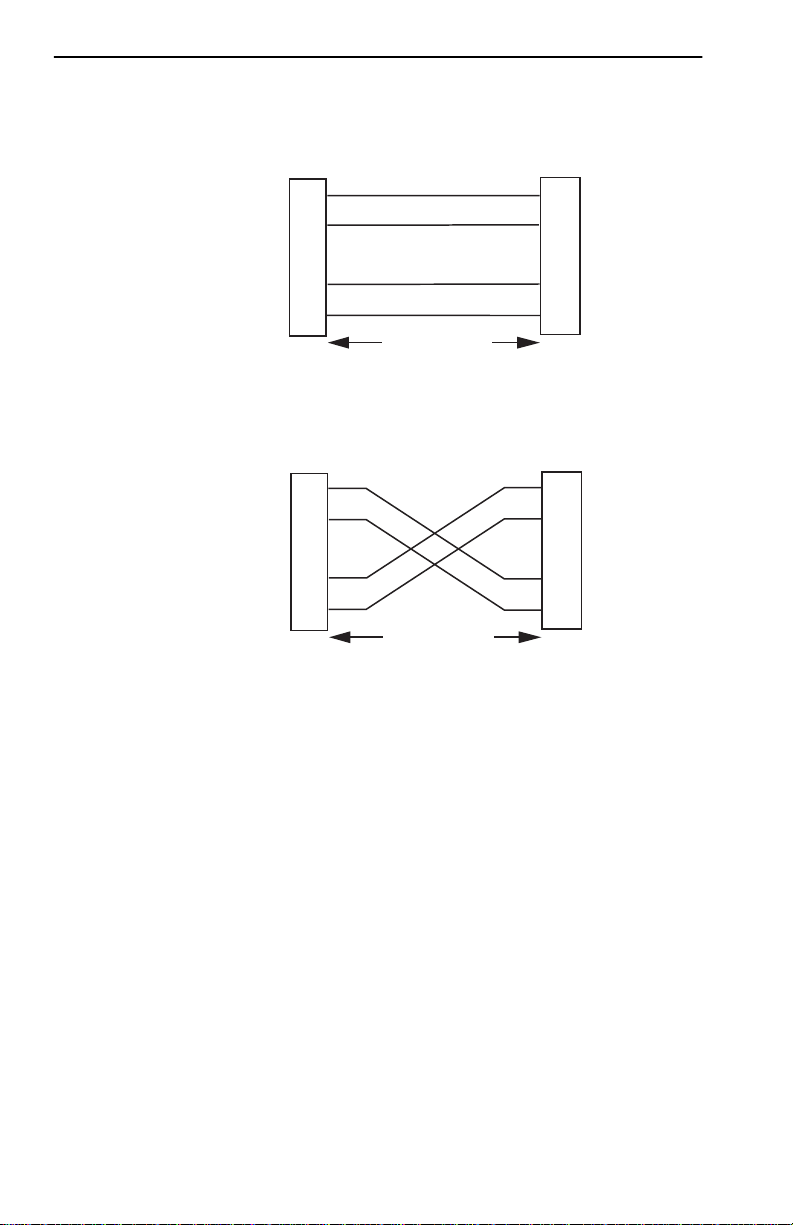

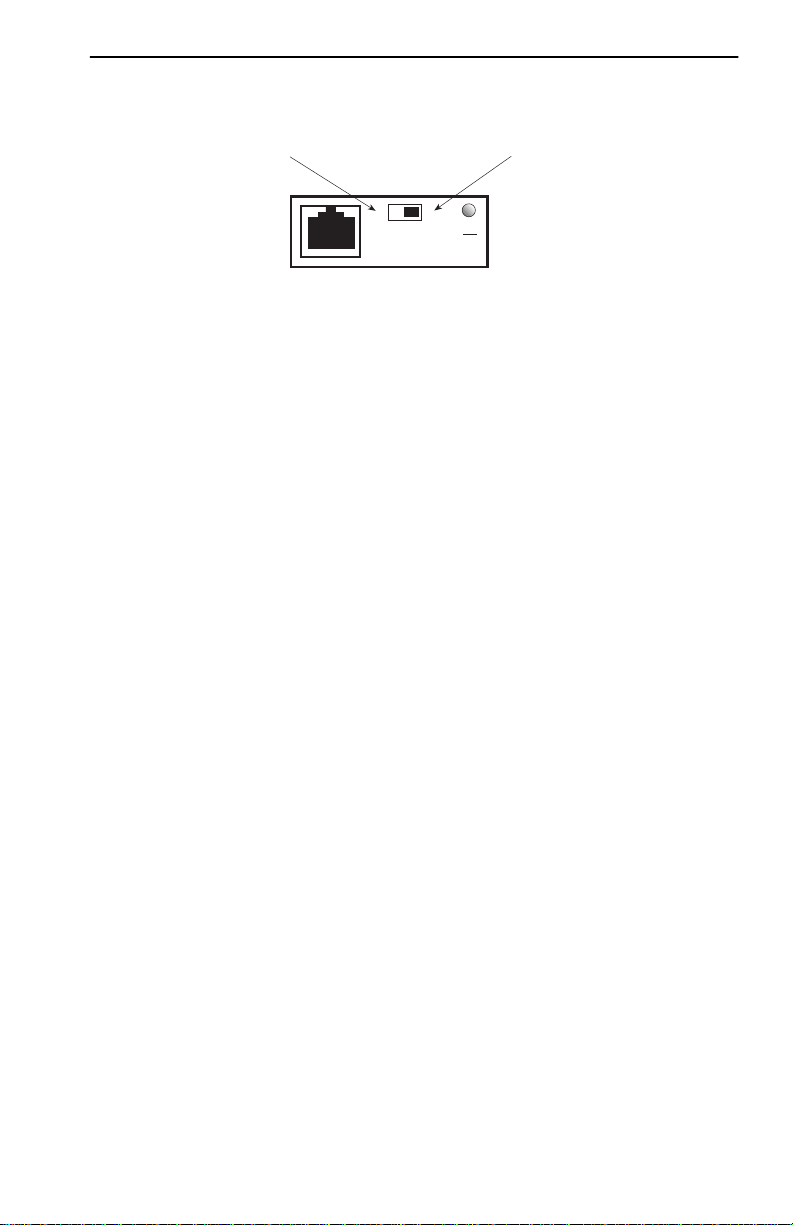

2.4.2 Connecting a Twisted Pair Segment

to the DEL TX-UI............................................................2-10

CHAPTER 3 LANVIEW LEDs 3-1

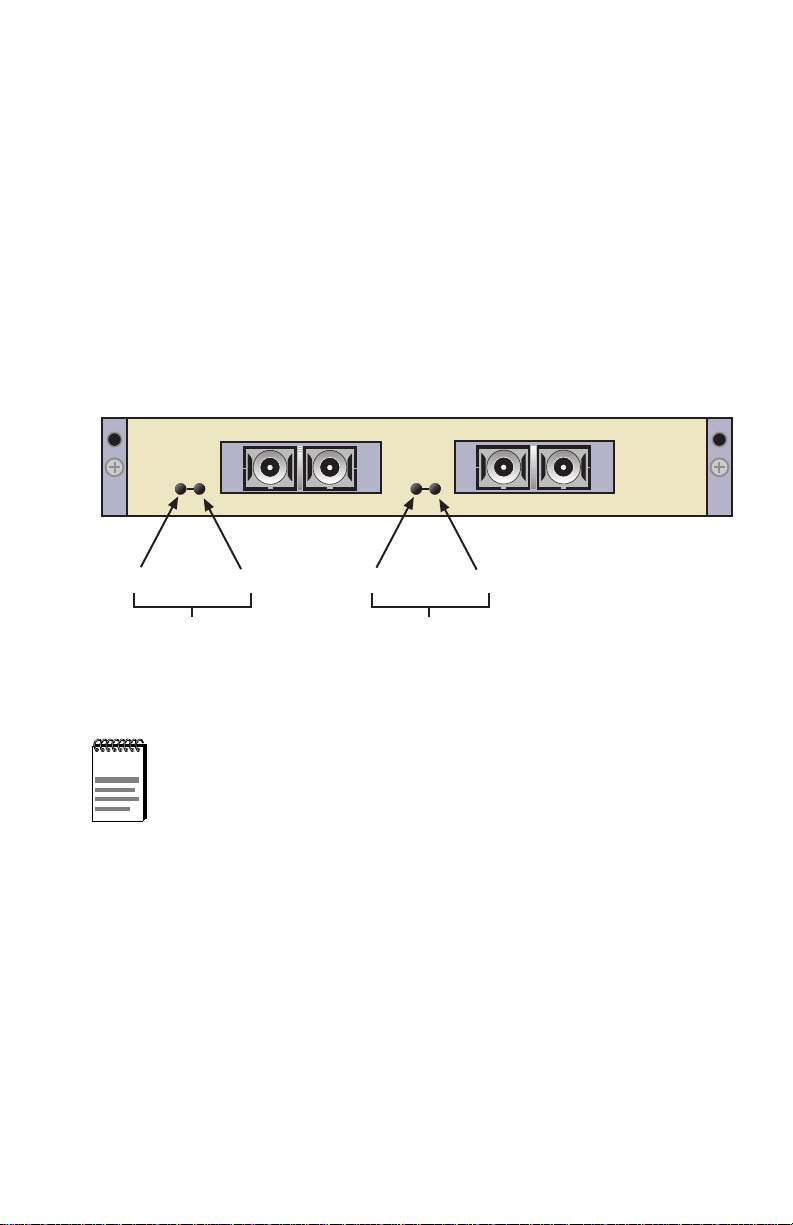

3.1 DELHE-UA LEDs.........................................................................3-1

3.2 DELTX-UI LE D ............................................................................3-2

3.3 DELHE-UA Local Managem ent...................................................3-3

APPENDIX A DELHE-UA SPECIFICATIONS

DELHE-UA User’s Guide

vii

Contents

A.1 Physical Properties ............................................... ....... ....... ..... ...A-1

A.2 Environmental Requirements..................................................... .A-1

A.3 FEPIM Options............................................................................A-1

A.4 Regulatory Compliance...............................................................A-2

APPENDIX B FEPIM SPECIFICATIONS

B.1 DELTX-UI....................................................................................B-1

B.2 DELFX-UI....................................................................................B-2

B.3 DELF3-UI....................................................................................B-3

viii

DELHE-UA User’s Guide

Figures

FIGURES

Figure Page

1-1 DELHE-UA...............................................................................1-1

2-1 Removing the FEPIM Coverplate.............................................2-3

2-2 Installing the FEPIM .................................................................2-4

2-3 Removing the HSIM Coverplate...............................................2-6

2-4 Installing the DELHE-UA..........................................................2-7

2-5 DELTX-UI Crossover Switch..................................................2-11

2-6 Twisted Pair Cabling .............................................................. 2-12

3-1 DELHE-UA LANVIEW LEDs........... .............. ............... ............3-1

3-2 DELTX-UI LED.........................................................................3-2

B-1 DELTX-UI Pinouts....................................................................B-1

B-2 DELFX-UI.................................................................................B-2

B-3 DELF3-UI.................................................................................B-3

DELHE-UA User’s Guide ix

Tables

TABLES

Table Page

1-1 FEPIM Options ............ .............. ............... ............................ ....1-2

3-1 DELHE-UA LEDs.......................... .............. ............................ ..3-2

3-2 10/100 LED Indications When RX LED Is On...........................3-3

3-3 10/100 LED Indications When RX LED Is Off . ..........................3-3

x DELHE-UA User’s Guide

PREFACE

Welcome to the DIGITAL Fast Ethernet Interface Module DELHE-UA
User’s Guide. This manual describes the DELHE-UA and provides
information conc erning features , installation, troubleshoot ing, information
on Local Management, and specifications for the DELHE-UA. The
DELVM-UA is a Fast Eth ernet inte rface module. This manual refers t o the
DELHE-UA as an HSIM (High Speed Interface M odule).

USING THIS GUIDE

Reading through this manual completely will he lp you understand the
features and capabilitie s of the DELHE-UA.

A general working knowledge of Ethernet and data communications
networks and their physical lay er compone nts is helpful when installing
this device.

STRUCTURE OF THIS GUIDE

This guide is organized as follo ws:
Chapter 1, Introduction, describes the DELHE-UA features.
Chapter 2, Installation, describes how to instal l a DELHE-UA into an

interface module (host platform).

The term “host platform” is used to describe the interface
module into which the DELHE-UA can be installed.

Chapter 3, LANVIEW LEDs, describes how to use the DELHE-UA
LEDs to monitor performance and status.

Appendix A, DELHE-UA Specifications, lists the operating
specifications and regulatory compliance of the DELHE-UA.

Appendix B, FEPIM Sp eci fica ti ons , lists the operating specifications
and regulatory c ompliance for the GPIMs.

DELHE-UA User’s Guide xi

Preface

DOCUMENT CONVENTIONS

Throughout this guide , the following symbols are used to ca ll attention to
important information.

Note symbol. Calls the reader’s attention to any item of
information that may be of special importance.

Caution symbol. Contains information essential to avoid
damage to the equipment.

!

Electrical Hazard Warning symbol. Warns against an action
that could result in personal injury or death due to an electrical
hazard.

RELATED DOCUMENTATION

The documentation for the host device in which the DELHE-UA is to be
installed provide s additional information about the setup of the

DELHE-UA. This user’s guid e ref erences procedur es i n these document s,
where appropriate, but does not repeat them.

These documents can be obtained on the World Wide Web in Adobe
Acrobat Portable Document Format (PDF) at the site s listed in the World
Wide Web section of this Preface.

xii DELHE-UA User’s Guide

Correspondence

CORRESPONDENCE

Documentation Comments

If you have comments or suggestions about this manual, send them to
DIGITAL Network Products:

Attn.: Documentation Project Manager
E-MAIL: doc_quality@lkg. mts.dec.com

World Wide Web

T o locate product-spe cific information, refer to the DIGITAL Network
products Home Page on the World Wide W eb at the following locations:

North America: http://www.networks.digital.com
Europe: http://www.networks.europe.digital.com
Asia Pacific: http://www.networks.digital.com.au

GETTING HELP

Contact your DIGITAL representative for technical support. Before
calling, have the following inf ormation ready:

• A description of the failure

• A description of any action(s) already ta ken to resolve the problem

(e.g., changing mode switches, rebooting the unit, etc.)

• A description of your network environment (layout, cable type, etc.)

• Network load and frame size at the time of trouble (if known)

• The device history (i.e. , have you returned the de vice before, is this a

recurring problem, etc.)

DELHE-UA User’s Guide xiii

SAFETY

OVERVIEW

Any warning or caution that appears in this manual is defined as follows:

WARNING

VORSICHT

DANGER

AVISO

CAUTION

Warns against an action that could result in
equipment damage, personal injury, or death.

Warnt den Benutzer vor Aktionen, die das

Gerät beschädigen, Personen verletzen oder
sogar zum Tot führen könnten.

Déconseille à l' utili sateur d'ex écut er une ac tion
pouvant entraîne r des domm ages matérie ls,
corporels voi re même la mort.

Previene contra una acción que podría dañar
el equipo, provoc ar daños personales o la
muerte.

Contains inf ormation essential to avoid
damage to the equipment.

!

ACHTUNG

ATTENTION

PRECAUCIÓN

Liefert wichti ge Informationen, um einen
Geräteschaden zu vermeiden.

Informations indispensables permettant
d'éviter les dom ma ges m atériels.

Contiene informa ción esencial para evitar
daños al equipo.

DELHE-UA User’s Guide xv

Safety

SAFETY REQUIREMENTS

The warnings or cautions that must be observed for the hardware
described in this man ual are list ed belo w in Engli sh, German, French, a nd
Spanish.

WARNING

VORSICHT

DANGER

AVISO

WARNING

VORSICHT Das Gehäuse sollte ordnungsgemäß ange-

DANGER Avant de rebrancher le cordon d'alimentation,

A V ISO Asegúrese de que la cubier ta del chasis esté

WARNING

Only qualified personnel should install or
service this unit .

Diese Einheit darf nur von qualifiz ierten
Fachleuten installiert oder gewartet werden.

L’inst allation et la maintenance de cet appareil

sont réservées à un pers onnel qualifié.
Sólo el personal cua li fic ado debe i nstal ar o dar

mantenimiento a est a unidad.
Ensure that the chassis cover is in place

before reconnecting the power cord.

bracht sein, bevo r das Net zkabel wieder ange­schlossen wird.

vérifiez que le couver cle du châssis est bien en
place.

en su sitio antes de volver a conectar el cable
de alimentaci ón.

Certain FEPIM s use Class 1 l asers. Do not use
optical instruments to vi ew the laser output.
The use of optical instr um ents to view laser
output increases eye hazard. When viewing
the output optical port, power must be
removed from the network adapter.

VORSICHT Ei nige FEPIMs benutzen Laser der Klasse 1.

Zum Ansehen der Laserausgabe dürfen keine
optischen Geräte benutz t werden, da dadurch
das Risiko von Augenverletzungen erhöht
wird. Vor dem Ansehen des optischen Aus­gangsanschlusses muß der Netzwerkadapter
vom Stromanschluß getrennt werden.

xvi DELHE-UA User’s Guide

Safety Requirements

DANGER Certains FEPIM utilisent des lasers de classe

1. Ne pas utiliser d’instruments optiques pour
visualiser la sortie laser, car ces instruments
augmentent les risques oculaires. Pour visual-

iser le port optique , débrancher l'adaptateur
secteur.

AVISO Ciertos FEPIMs utilizan rayos láse r de Clas e

1. No utilice instrum entos ópticos para ver la
salida láser. El uso de estos instrumentos para
tal fin aument a el peligro par a la vi sión.
Cuando mire al puerto óptico de salida, se
debe eliminar la alimenta ción del adaptador de
red.

The DELF3-UI uses Cl ass 1 la sers. Do not use
optical instruments to vi ew the laser output.

WARNING

VORSICHT

The use of optical instr um ents to view laser
output increases eye hazard. When viewing
the output optical port, power must be
removed from the network adapter.

DELF3-UI verwendet Laser der Kl asse 1.
Ver wenden Sie keine optisc hen G eräte, um
den Laserausgang zu betrachten, da dies die
Gefahr für die Augen erhöhen würde. Wenn
Sie den optischen Laserausgang betrachten
wollen, muß zuvor die Stromversorgung des
Netzwerkadapter s ausgeschaltet werden.

L’appareil DELF3-UI utilise des lasers de
classe 1. N’utilisez pas d’instruments optiques

DANGER

AVISO

pour visuali ser la sortie laser, car ces
instruments augmentent les risques oculaires.
Pour visualiser le port optique, débrancher
l’adaptateur secteur

El DELF3-UI utiliza láser de cla se 1. No use
instrumentos ópticos para ver la salida de
láser. El uso de instrumentos ópticos para ver
la salida de láser aumenta el riesgo para la
vista. Cuando mire al puerto ópt ico de salida,
asegúrese siempre de haber desconectado la
alimentaci ón eléctrica del adaptador de red.

DELHE-UA User’s Guide xvii

Safety

The DEL VM -UA, FEPIM, and the host module
or hub are sensitive to st atic discharges. Use

CAUTION

!

ACHTUNG Der DELVM -UA, FEPIMs und das Host-Modul

ATTENTION L'appareil DELVM-UA, les connecteurs FEPIM

an antistatic wri st strap and observe all static
precautions during this procedure. Failure to
do so could result in damage to this equipment

bzw. der Hub si nd für statische Entladungen
empfindlich. Benutzen Sie deshalb ein Antista­tikarmband, und beach ten Sie währe nd dieses
Ver fahrens alle diesbezüglichen Vorsichts­maßnahmen. Bei Nichtbeachtung könnte das
Gerät beschädigt werden.

et le concentrateur ou l e module hôte sont sen­sibles à l'élect ri cité stati que. Au cours de cette
procédure, utilisez des bracelets antistatiques
et respectez tout es les précautions relatives à
l'électric it é statique. Si vous ne tenez pas
compte de ces consei ls, vous risquez
d'endommager cet équipement.

DEL V M-UA, FPIMs y el hub o módulo de host
es sensible a la descarga estática. Utilice una

PRECAUCIÓN

CAUTION

ACHTUNG

ATTENTION

PRECAUCIÓN

banda antiestática para la muñeca y observe
todas las precauciones sobre estática durante
este procedimiento. Si no se cumple con estos
requisitos, se puede dañar el equipo.

Before installing a DELFX-UI or DELF3-UI
module into the host module, remove the
protective cov er on t he SC connector.

Vor der Installation eines DELFX-UI- oder
DELF3-UI-Moduls i n das Hostsystemmodul
muß der Gummistöpsel vom
SC-Anschlußstecker entfernt werden.

Avant d'installer un module DELFX-UI ou
DELF3-UI dans le module hôte, re ti rer le
bouchon de protecti on du connecteur SC

Antes de instalar un módulo DELFX-UI o
DELF3-UI en el módulo del sistema central,
retire la cubierta protect ora del conector SC.

xviii DELHE-UA User’s Guide

CAUTION

ACHTUNG

ATTENTION

PRECAUCIÓN

Safety Requirements

Ensure that the FEPIM or DELVM-UA
connector ali gns with the DELVM-UA, module,
or device connector pins to prevent bending
the pins. Failure to do so can damage the
DEL V M-UA, FEPIM, module or device.

Ver gewissern Sie sich, daß der FEPIM- oder
DELHE-UA-Stec ker gerade in den DEL HE-UA,
das Modul oder den Geräteanschluß
eingesetzt wird und die Nadeln nicht gebogen
werden. Wird er schräg eingesetzt, könnten
DELHE-UA, FEPIM, das Modul oder das Gerät
beschädigt werden.

S'assurer que les connecteurs FEPIM ou
DELHE-UA (selon le cas) sont bien enfi chés.
Dans le cas contraire, les appareils
DELHE-UA et FEPIM risquent d'être
endommagés.

Asegúrese de que el conector FEPIM o
DELHE-UA está alineado con el DELHE-UA,
módulo o patillas del conector del dispositivo
para evitar la curvatura d e las patillas. Si no se
hace así, se pueden producir daños en el
DELHE-UA, FEPIM, módulo o dispositivo.

Do not touch the ends of the fiber opti c
strands, and do not let the ends come in
contact with dust, dirt, or other contam inants.
Contaminatio n of the ends causes problem s in

CAUTION

data transmissions. If the ends bec om e
contaminated, blow the surfac es clean with a
canned duster. A fiber port cleaning swab
saturated with optical-grade isopr opyl alcohol
may also be used to clean the ends.

DELHE-UA User’s Guide xix

Safety

ACHTUNG

ATTENTION

PRECAUCIÓN

Das Ende an beiden Seiten des

Glasfaserkabel s darf nicht berührt werden
oder mit Staub, Schmutz und anderen Stoffen
in Berührung kommen, die zur V erunreinigung
führen und Datenübertragungsprobleme
verursachen könnten. In einem solchen Fall
müssen die Enden mit einem eigens dazu
bestimmten Staubreiniger (z.B. einem
speziellen Staubspray oder einem in
Isopropylal kohol getauchten Wattestäbchen)
sorgf äl tig ge r e in ig t w e rd e n.

Evitez de toucher les extrémités des fi ls en
fibre optique et assurez-vous que ceux -ci
n'entrent pas en contact avec de la poussière,
de la saleté ou autres agents contaminants,
pouvant provoquer des erreurs de
transmission de données. Si les extrémités
sont sales, nett oyez-les à l'aide d'un chiffon.
Un tampon de nettoyage de port optique
imbibé d'alcool isopropylique peut également
être utilisé.

No toque los extremos de los fil amentos de la
fibra óptica, ni permita que dichos extremos
entren en cont acto con pol vo, suci eda d u otros
contaminantes. La contam inación de los
extremos origina problemas en la t ransmisión
de los datos. Si los extremos se contaminan,
limpie su superfic ie con un plumer o her mético.
Un cepillo especial de limpieza para puert os
de fibra ópt ica con alcohol isopropílico de
calidad óptica también puede res ultar útil para
limpiar los extremos.

xx DELHE-UA User’s Guide

CHAPTER 1

INTRODUCTION

The DELHE-UA has two F ast Ethernet ports in which Fast Ethernet
(Port) Interface Mod ules (FEPIMs) ca n be installe d. Figure 1-1 shows the
DELHE-UA.

FEPIM 1

Ports 1 and 2

Figure 1-1 DELHE-UA

FEPIM 2

DELHE-UA

SP

fepim_ports

1.1 OVERVIEW

The DELHE-UA extends the functionalit y of certa in DIGITAL interface
modules by providing high- speed uplink c apability through Fast Ethernet
technology with diff erent types of media.

1.1.1 Connectivity

The DELHE-UA module supports Fast Ethe rnet technology, using
intercha nge ab le Fas t Ethernet Port Interfa ce Modules (FEPIMs). The
FEPIMs support three types of media connectivity: RJ45 Category 5
unshielded twisted pair, and SC connectors for either single or multimode
fiber. The FEPIMs support an uplink to 100 Mbps Fast Ethernet
backbones or a high speed connection to a local server.

DELHE-UA User’s Guide 1-1

Chapter 1: Introduction

1.1.2 Local Management

The DELHE-UA is managed through the host device in which it is
installed. For information concerning Local Management for the
DELHE-UA, refer to the manual for the host platform. For details on
obtaining the host platform manual, refe r to Related Documentation in the
Preface.

1.1.3 Full Duplex Switched Ethernet

The optional Fast Ethernet (Port) Interf ace Modules for the DELHE-UA
can be configured to operate in Full Duplex Switched Ethernet mode.

1.1.4 LANVIEW Diagnostic LEDs

Cabletron Systems provides a visual dia gnostic and monitoring system
called LANVIEW. The DELHE-UA LANVIEW LEDs help you quickly
identify transmit and receive status. Chapter 3 provides inf ormation on
the DELHE-UA LEDs and the DELTX- UI LED.

1.2 FEPIM OPTIONS

The FEPIM options for the DELHE-UA are liste d in T able 1-1. Check the
Release Notes with the host platfor m for changes or additions to this list.

T able 1-1 FEPIM Options

Part Number Connector Media type

DEL TX-UI RJ45 category 5 unshielded twisted pai r
DELFX-UI SC fiber multimode fiber
DELF3-UI SC fiber single mode fiber

1-2 DELHE-UA User’s Guide

CHAPTER 2

INSTALLATION

T o install the DELHE-UA the following items are required:

• Antistatic wrist strap

• Phillips screwdriver

• Fast Ethernet (Port) Interface Modules (FEP IMs) in the appropriate

media

Before attempting to use the DELHE-UA you should be familiar
with the

Specifications.

2.1 UNPACKING THE DELHE-UA

The DELHE-UA and the host platform are sensitive to static
discharges. Use an antistatic strap and observe all static

!

precautions during this procedure. Failure to do so could result
in damage to the DELHE-UA, host module or device.

IEEE 802.3, 802.3 10BASE-T,

and

802.3u 100BASE-T

Unpack the DELHE-UA as follows:

1. Remove the DELHE-UA from the shipping box.

2. Leave the module in its antistatic bag until you are ready to install it.

3. Attach the antistatic wrist strap ( refe r to the i nstru c tions on the

antistatic wrist strap package for proper use).

DELHE-UA User’s Guide 2-1

Chapter 2: Installation

4. After removing the module from its anti static bag, visuall y inspect the

device. If you notice any sign of damage, contact a DIGITAL
representative immedi ately. Save the antistatic bag in the event the
module must be reshipped.

2.2 INSTALLING FAST ETHERNET (PORT) INTERFACE MODULES

Only qualified personnel should perform installation
procedures.

Fast Ethern et (Po rt ) Int erfa ce Modules (FEPIMs) must be installed in the
DELHE-UA before installing the DELHE-UA in the host device. The
FEPIMs provide conne ctivit y to the networ k. At le ast on e FEPIM must be
installed in either port one or port two. To install an FEPIM in the
DELHE-UA, proceed as f ollows:

The DELF3-UI uses Class 1 lasers. Do not use optical
instruments to view the laser output. The use of optical
instruments to view laser output increases eye hazard. When
viewing the output optical port, power must be removed from
the network adapter.

The FEPIM and the DELHE-UA are sensitive to static
discharges. Use an antistatic wrist strap and observe all static

!

precautions during this procedure. Failure to do so could
damage the FEPIM or the DELHE-UA.

1. Remove the coverplate from the port slot where the FEPIM will be

installed.
To remove the coverplate, refer to Figur e 2-1 and proceed as follows:
a. Remove the two screws fastening the coverplate to the standoffs.

Save the screws.

b. Lift and remove the coverplate from the top of the front standof fs.

2-2 DELHE-UA User’s Guide

FEPIM

Coverplate

Installing Fast Ethernet (Port) Interface Modules

Standoff Screws

FEPIM 1

FEPIM 2

DELHE-UA

SP

Figure 2-1 Removing the FEPIM Coverplate

coverplate_remove

Before installing a DELFX-UI or DELF3-UI module into the host
module, remove the protective cover on the SC connector.

!

2. Refer to Figure 2-2. Gently pull the faceplate of the DELHE-UA

forward to all ow room for the F EPIM to be a ligned over the c onnector.

3. Align the F EPIM connector into the DELHE-UA connector pins. See

Figure 2-2.

Ensure that the FEPIM connector aligns with the DELHE-UA
connector pins to prevent bending the pins. This can damage

!

both the DELHE-UA and the FEPIM.

DELHE-UA User’s Guide 2-3

Chapter 2: Installation

DELFX-UI

Module

Module
Connector

Rear

10

100

Standoff

Front
Standoffs

DELHE-UA
Connector

DELHE-UA

feinstall

Figure 2-2 Installing the FEPIM

4. Press down firmly on the FEPIM until the pins slide all the way into

the DELHE-UA connector. Ensure that the FEPIM seats flush on the
standoffs.

5. Secure the FEPIM using the screws enclosed in the FEPIM packagin g.

The screw used to attach the rear of the FEPIM to the standoff is
optional and not necessary for pro per install ation. Refer to Figure 2-2.

If SC protective covers were removed from a fiber FEPIM,
replace the covers until the port is connected to the network to
reduce the chance of dust and contaminants entering the port.

2-4 DELHE-UA User’s Guide

Installing the DELHE-UA

2.3 INSTALLING THE DELHE-UA

Only qualified personnel should install or service this unit.

A DELHE-UA can be installed in any DIGITAL device that supports
HSIMs (High Speed Interface Module) technology (e.g., DLE52-MA,
DLE28-MA).

Refer to the Release Notes for the version of firmware running
on the DIGITA L host platform to ensure that the DELHE-UA is
supported.

The following subsections provide generic instructions for installing a
DELHE-UA in an interface module. Refer to the specif ic int erface
module documentation for exact HSIM slot and connector locations.

The FEPIMs should already have been installed in the
DELHE-UA at this time. If the FEPIMs have not been installed,
return to Section2.2.

2.3.1 Installing the DELHE-UA in an Interface Module

T o install a DELHE-UA in an interface module that supports HSIM
technology, perform the following steps.

1. Note the ports of the interface module that have cables attached to

them. Write down the ports and label the cables to make it easier to
reattach the network properly after the installation. Then disconnect
the cables from the ports.

2. Attach the antistatic wrist strap ( refer to the instructions outlined on

the antistatic wrist strap package).

3. If the interface module is installed in a chassis, unlock the top and

bottom plastic locking tabs of the modul e faceplate.

4. Remove the module from the chassis, and place it down fl at with the

internal components facing up.

DELHE-UA User’s Guide 2-5

Chapter 2: Installation

5. Remove and save the two faceplate mounting screws securing the

HSIM coverplate and remove the coverplate. See Figur e 2-3.

DELHE-UA
Coverplate

Faceplate Mounting Screws

2555_03

Figure 2-3 Removing the HSIM Coverpl ate

6. Refer to Figure 2-4 and place the DELHE-UA behind the module

faceplate.

2-6 DELHE-UA User’s Guide

Connector

Cutaway view of connector

DELHE-UA

Installing the DELHE-UA

Standoff Screws

Connector
(top view)

FEPIM 1

FEPIM 2

DELHE-UA

SP

Faceplate Mounting Screws

HSIM
Connector

Host Platform

Standoffs

mounting

Figure 2-4 Inst alling the DELHE-UA

7. Align the connector on the DELHE-UA with the connect or on the

module.

Ensure that the DELHE-UA connector aligns with the module
connector pins to prevent bending the pins. This can damage

!

both the DELHE-UA and the module.

8. Press down firmly on the connector area of the DELHE-UA until the

connector slides all the way ont o the pins. Ensure that the stando ffs on
the interface module align with the standoff screw holes on the
DELHE-UA.

DELHE-UA User’s Guide 2-7

Chapter 2: Installation

9. Secure the DELHE-UA to the module faceplate using the mounting

screws saved in Step 5.

10. Secure the DELHE-UA to the module standoffs using the standoff

screws included in the DELHE-UA shipping materials.

11. Reinstall the interface module in the chassis.

12. Reattach the network cabling to the interface module.

2.4 CONNECTING TO THE NETWORK

The DELHE-UA can be connected to the network using either fiber optic
cable or twisted pair cable . The media chosen deter mines which type of
FEPIM to be used. When using fiber optic cable, use either the
DELFX-UI or the DELF3-UI. The DELFX-UI is used for multimode
fiber cable, and the DELF3-UI is used for single mode fiber cable. Refer
to Appendix B for details on which FEPIM to use with the appropriate
fiber optic cable. To connect to the network using fiber optic cable, refer
to Section 2.4.1. When using twisted pair cabling, use the DELTX-UI. To
connect to the network using twisted pair cab le, refer to Section 2.4.2.

2-8 DELHE-UA User’s Guide

Connecting to the Network

2.4.1 Connecting a Fiber Optic Segment to the FEPIM

DIGITAL offers fiber optic cab les that use SC style connectors which are
keyed to ensure proper crossover of the transm it and receive fibers.

An odd number of crossovers (preferably one) must be
maintained between like devices so that the transmit port of
one device is connected to the receive port of the other device
and vice versa.

If the fiber optic cable being used has SC style connectors that
do not resemble MIC style connectors, or has SC connectors
on one end and a different type on the other, such as ST
connectors, ensure that the proper crossover occurs.

1. Remove the protective covers from the fiber optic ports and f rom the

ends of the connectors.

Leave the protective covers in place when the connectors are
not in use to prevent contamination.

Certain FEPIMs use Class 1 lasers. Do not use optical
instruments to view the laser output. The use of optical
instruments to view laser output increases eye hazard. When
viewing the output optical port, power must be removed from
the network adapter.

DELHE-UA User’s Guide 2-9

Chapter 2: Installation

Do not touch the ends of the fiber optic strands, and do not let
the ends come in contact with dust, dirt, or other contaminants.

!

Contamination of the ends causes problems in data
transmissions. If the ends become contaminated, blow the
surfaces clean with a canned duster. A fiber port cleaning swab
saturated with optical-grade isopropyl alcohol may also be
used to clean the ends.

2. Insert one end of the SC connector into the FEPIM.

3. At the other end of the fiber opt ic cable, attach the SC connector to the

other device.

4. Verify that a link exists by checking that the port receive LED is ON

(flashing amber, blinking green, or solid green). If the receive LED is
OFF and the transmit LED is not blinking amber, perform the
following steps until it is ON:

a. Check that the power is turned on for the device at the other end

of the link.

b. Verify proper crossove r of fib er strands between the port on the

DELHE-UA and the fiber optic devi ce at the other end of the fiber
optic link segment.

c. Verify that the fiber connection meets the dB loss specifications

outlined in Appendix B.

If a link has not been established, refe r to Chapter 3, LANVIEW LEDs,
before contacting a DIGITAL representative.

2.4.2 Connecting a Twisted Pair Segment

to the DELTX-UI

A DEL TX-UI has an internal crossover switch. When connecting a
workstation, use a straight-through cable and set the FEPIM crossover
switch shown in F igure 2-5 to the crossed over position marked with X.
When connecting network ing device s, such as another br idg e, repeate r , or
router, use a straight-through c able and set the FEPIM crossover switch
shown in Figure 2-5 to the straight-through position, marked with =.

2-10 DELHE-UA User’s Guide

Connecting to the Network

Position X
(crossed over)

1. RX+

2. RX-

3. TX+

4. NC

5. NC

6. TX-

7. NC

8. NC

Figure 2-5 DELTX-UI Crossover Switch

x

DEL TX-UI

=

100

Position =
(not crossed over)

1. TX+

2. TX-

10

3. RX+

4. NC

5. NC

6. RX-

7. NC

8. NC

fecrossover

A schematic of a straight-through and a crossover cable is shown in
Figure 2-6. If the wires do not cross over, use the switch on the
DELTX-UI to internally cross over the RJ45 port. Figure 2-5 shows how
to properly set the DELTX-UI crossover switch.

DELHE-UA User’s Guide 2-11

Chapter 2: Installation

TO

RJ45 Port

RX+

RX– 2

Straight-Through Cable

10BASE-T or 100BASE-TX

1

TO

Device Port

1
2

RX+
RX–

TO

TX+

3

TX–

6

RX+

1

RX–

2

TX+

3

TX–

6

25041-08

NOTE:
RX+/RX– and TX+/TX–
must share a common
color pair.

TX+

TX–

RJ45 Port

RX+
RX– 2

TX+
TX–

3
6

Crossover Cable

TO

1

3
6

RJ45 to RJ45

10BASE-T or 100BASE-TX

Device Port

RJ45 to RJ45

Figure 2-6 Twisted Pair Cabling

Connect a DELTX-UI to a twisted pair segment as follows:

1. Ensure that the device connected to the other end of the segment is

powered ON.

2. Connect the twisted pai r segment to the module by insert ing the RJ45

connector on the twisted pair cable into the RJ45 port on the module
shown in Figure 2-5.

3. Verify that a link exists by checking that the port receive LED is on

(flashing amber, blinking green, or solid green). If the receive LED is
off, perform the following steps until it is on:

a. Verify that t he 100BASE-TX device at the other end of t he twist ed

pair segment is powered up.

2-12 DELHE-UA User’s Guide

Connecting to the Network

b. Verify that the RJ45 connector on the twisted pa ir segment h as the

proper pinouts.

c. Check the cable for continuity.
d. Make sure that the twisted pair connection meets cable

specifications outlined in Appendix B.

e. Confirm that the crossover switch is in the correct position.

If a link is not established, refer to Chapter 3, LANVIEW LEDs, for
information before conta ct ing a DIGITAL representative.

DELHE-UA User’s Guide 2-13

CHAPTER 3

LANVIEW LEDs

This chapter describes how to use the LANVIEW LEDs to monitor the
DELHE-UA status and diagnose DELHE-UA problems.

3.1 DELHE-UA LEDs

Refer to Figure 3-1 for the location of the DELHE-UA LEDs and
T able 3-1 for a descr iption of the LED indications.

FEPIM 1

Receive (RX)

LEDs for FEPIM 1 LEDs for FEPIM 2

Transmit (TX)

Figure 3-1 DELHE-UA LANVIEW LEDs

Receive (RX)

The terms flashing, blinking, and solid used in Table 3-1
indicate the following:

Flashing ind ic ates an irregular LED pulse.
Blinking indicates a steady LED pulse (approximately 50% on

and 50% off).
Solid indicates a steady LED light. No pulsing.

FEPIM 2

Transmit (TX)

DELHE-UA

SP

DELHE-UA User’s Guide 3-1

Chapter 3:

T able 3-1 DELHE-UA LEDs

LED Color Definition

Green Link, no act ivity. Port enabl ed.
Green (Blinking ) Link, port disabled.

Receive

Amber (Flashing) Link, activity. Port enabled.
Off

No link, no activit y. Port enabled or

disabled.
Red (Solid) Diagnostic fa il ure.
Green (Flashing) Activity, port enabled.
Amber (Blinking) Port in standby.

Transmi t

Off No activity, port enabled.
Red (Flashing) Collision.
Red (Solid) Diagnostic fa il ure.

3.2 DELTX-UI LED

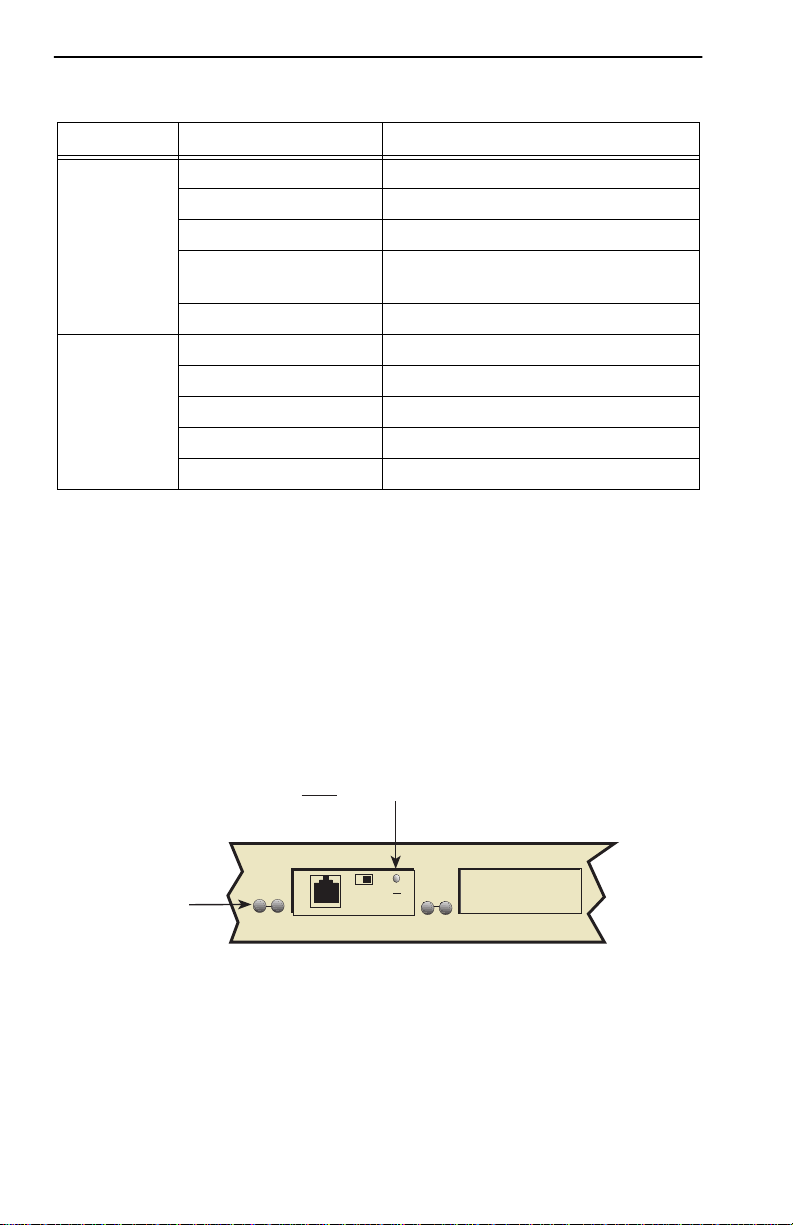

The optional DELTX-UI has one LED labeled 10/100. The 10/100 LED
together with the RX LED allows the user to dete rmine the link sta tus and
the operating speed of the Fast Ethernet (Port) Interface Modul e. The
10/100 LED and the Receive (RX) LED are shown in Figure 3-2.

Table 3-2 and Table 3-3 provide a functional description of the 10/100
LED when the RX LED is on or off, respectively.

10

LED

100

FEPIM 1 FEPIM 2

=

x

Receive
(RX) LED

Figure 3-2 DELTX-UI LED

3-2 DELHE-UA User’s Guide

DELTX-UI

10
100

2286_41

DELHE-UA Local Management

A link exists if the associated port RX LED is on.

T able 3-2 10/100 LED Indicati ons W hen RX LED Is On

LED Color Indication

10/100 Off DELTX-UI is operating at 10 Mbps.

Green DELTX-UI is operating at 100 Mbps.

No link exists if the associated port RX LED is off.

f

LED Color Indication

10/100 Off No link or no cable attached. DELTX-UI

Table 3-3 10/100 LED Indications When RX LED Is Off

forced to 10 Mbps operation, or is

manually set to “au to- negotiate” mode.

Green No link or no cable attached. DELTX-UI is

forced to 100 Mbps operation.

3.3 DELHE-UA LOCAL MANAGEMENT

For information concerning Local Management for the DELHE-UA, refer
to the host device manual.

DELHE-UA User’s Guide 3-3

APPENDIX A

DELHE-UA SPECIFICATIONS

This chapter lists the specif ic ations and regulatory r equirements for the
DELHE-UA. Cabletron Systems reserves the ri ght to change these
specifications at any time withou t notice.

A.1 PHYSICAL PROPERTIES

Dimensions

Weight 0.34 kg (0.75 lb)
MTBF (Predicted) 200,000 hours

4.8H x 15.5W x 28.6D (cm)

1.9H x 6.1W x 11.3D (in)

A.2 ENVIRONMENTAL REQUIREMENTS

Operating Temperature 5°C to 40°C (41°F to 104°F)
Storage Temperature -30°C to 73°C (-22°F to 164°F)
Operating Relative Humidity 5% to 90% (non-condensing)

A.3 FEPIM OPTIONS

The FEPIM options for the DELHE-UA include the DELTX-UI,
DELFX-UI, and the DELF3-UI. Refer to Appendix B for FEPIM
specifications.

DELHE-UA User’s Guide A-1

Appendix A: DELHE-UA Specifications

A.4 REGULATORY COMPLIANCE

This equipment meets the following safet y and electr omagnetic
compatibility (EMC) requirements:

Safety

Electromagnet ic
Compatibility (EMC)

UL 1950, CSA C22.2 No.950, EN 60950, IEC 950, and
73/23/EEC

FCC Part 15, EN 55022, CSA C108.8, EN 50082-1,
VCCI V-3, 89/336/EEC, and AS/NZS 3548

A-2 DELHE-UA User’s Guide

APPENDIX B

FEPIM SPECIFICATIONS

This appendix provides specific ations for the Fast Ethernet (Port)
Interface Modules. Cabletron Systems reserves the right to change the se
specifications at any time withou t notice. The DELHE-UA supports the
following Fast Ethernet (Port) In terface Modules: the DELTX-UI, the
DELFX-UI, and the DELF3-UI.

B.1 DELTX-UI

The DELTX-UI uses an RJ45 connector supporting Category 5

(85 – 111 ohms) Unshielded Twisted Pair (UTP) and Shielded Twisted
Pair (STP) cabling.

The slide switch on the DELTX-UI dete rmine s the crossover status of the
cable pairs. If the switch is on the
over . I f the switch is on the = side, the pairs are not internally crossed
over . F igure B-1 shows the pinout s for the DELTX-UI with the switch in
each position.

X side, the pairs are internally crossed

Position X
(crossed over)

1. RX+

2. RX-

3. TX+

4. NC

DELHE-UA User’s Guide B-1

5. NC

6. TX-

7. NC

8. NC

x

=

DELTX-UI

Figure B-1 DELTX-UI Pinouts

100

Position =
(not crossed over)

1. TX+

2. TX-

10

3. RX+

4. NC

5. NC

6. RX-

7. NC

8. NC

fecrossover

Appendix B: FEPIM Specifications

B.2 DELFX-UI

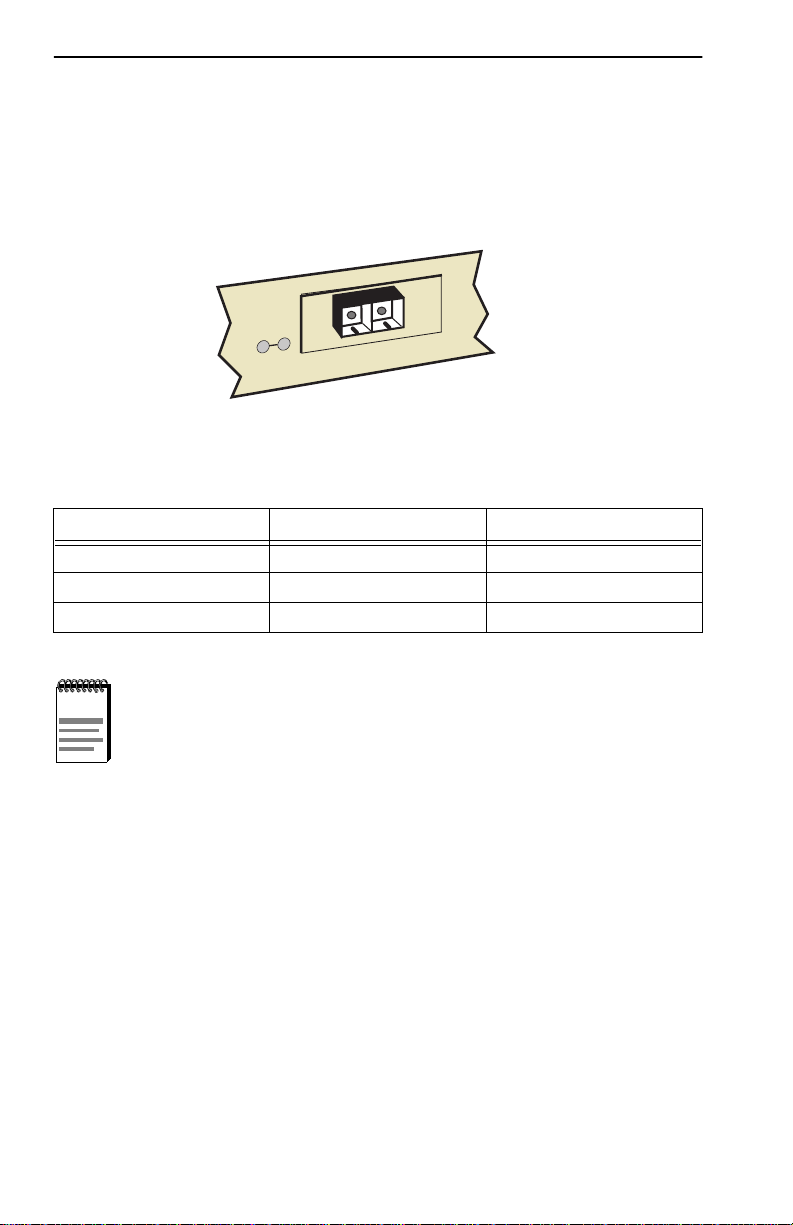

The DELFX-UI shown in Figure B-2 uses an SC style connector that
supports multimode fiber opti c cabling. Specif ications f or the DELFX-UI
are listed in Table B-1, below.

DELFX-UI

2286-40

Figure B-2 DELFX-UI

Table B-1 Transmitter Power

Cable Type Worst Case Budget Typical Budget

50/125 µm fiber optic 6.0 dB 9.0 dB

62.5/125 µm fiber optic 9.0 dB 12.0 dB
100/140 µm fiber optic 15.0 dB 18.0 dB

The transmitter power levels and receive sensitivity levels
listed are peak power levels after optical overshoot. A peak
power meter must be used to correctly compare the values
given above to those measured on any particular port. If power
levels are being measured with an average power meter, add
3 dB to the measurement to compare the measured values to
the values listed above.

B-2 DELHE-UA User’s Guide

DELF3-UI

B.3 DELF3-UI

The DELF3-UI shown in Figure B-3 uses an SC style connector that
supports single mode fiber optic cabling. Specifications for the
DELF3-UI are listed in Table B-2, below.

DELF3-UI

2286-68

Figure B-3 DELF3-UI

Table B-2 Transmitter Power

Cable Type Worst Case Budget Typical Budget

8/125 µm fiber optic >10.0 dB <10.0 dB

12.5/125 µm fiber optic >10.0 dB <10.0 dB

The transmitter power levels and receive sensitivity levels
listed are peak power levels after optical overshoot. A peak
power meter must be used to correctly compare the values
given above to those measured on any particular port. If power
levels are being measured with an average power meter, add
3 dB to the measurement to compare the measured values to
the values listed above.

DELHE-UA User’s Guide B-3
