Cabletron Systems Cabletron CyberSWITCH CSX5500, CSX6000, CSX7000, CyberSWITCH 5500, CyberSWITCH 6000 User Manual

CENTRAL SITE

REMOTE ACCESS SWITCH

USER’S GUIDE

Release 7.4

Cabletron Systems

[phone] phone
[phone] fax
[e-mail]

USER’S GUIDE

2 CyberSWITCH

NOTICE

You may post this document on a network server for public use as long as no
modificati ons are ma d e to the d o cu m e n t .

Cabletron Systems reserves the right to make changes in specifications and other
information contained in this document without prior notice. The reader should in
all cases consult Cabletron Systems to determine whether any such changes have
been made.

The hardware, firmware, or software described in this manual is subject to change
without notice.

IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY
INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES
WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING
OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION
CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN ADVISED OF,
KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH
DAMAGES.

©Copyrigh t 1999 by Cabletron Systems, Inc . All rights reserved.

Cabletron Systems, Inc.
P.O. Box 5005
Rochester, NH 03866-500 5

Order Number: 9032186-04

VIRU S D ISCLAIMER

Cabletron Systems has tested its software with current virus checking
technologies. H owev er, because no anti-vir us sy stem is 100% reliabl e, we strongly
cauti on you to wr ite pro tect and th en verif y that th e Licen sed Sof tware, pr ior to
installing it, is virus-free with an anti-viru s system in which yo u have confi denc e.

Cabletron Systems makes no representations or warranties to the effect that the
Licensed Software is virus-free.

Copyright © July 1997, by Cabletron Systems, Inc. All rights reserved.

Only qualified personnel should perform installation
procedures.

!

CAUTION

Central Site Re mote Access Switch 3

TRADEMARKS

Cabletron Systems, CyberSWITCH, MMAC-Plus, SmartSWITCH, SPECTRUM,
and SecureFast Virtual Remote Access Manager are trademarks of Cabletron
Systems, Inc.

All other product names m entioned in this manual are tradema rks or registered
trademarks of their re sp e ctive companies.

COPYRIGHTS

All of the code for this product is copyright ed by Cable tron System s , Inc.

© Copyright 1991-1997 Cabletron Systems, Inc. All rights reserved. Printed in the
United States of America .

Portio ns of the code for this p roduct are co pyrighted by the follow ing corpor ations:

Epilogue Technolo gy Co rporat io n
Copyright 1991-1993 by Epilogue Technology Corporati on. All rights reserved.

Livingston Enterprises, Inc.
Copyright 1992 Livingston Enterprises, Inc.

Security Dynamics Technologies Inc.
Copyright 1995 by Security Dynamics Technologies Inc. All rights reserved.

Stac El e c troni cs
Stac Electronics 1993, including one or more U.S. Patents No. 4701745, 5016009,
5126739 and 5146221 and other pending patents.

Telenetw orks
Copyright 1991, 92, 93 by Telene tworks. All rights reserved.

FCC NOTICE

This device complies with Part 15 of the FC C rules. Operation is subject to the
following two conditions: (1) this d e vice m a y no t caus e ha r mful int erfe rence , an d
(2) this device must accept any int erference received, includ ing interference that
may caus e undesired o p e ra ti on .

NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment uses,
generates, and can radiate radio frequency energy and if not installed in
accordance with the operator’s manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
interference in which case the user will be required to correct the interference at his
own expense.

USER’S GUIDE

4 CyberSWITCH

WARNING : Changes or modific ations made to this d evice wh ich ar e not expr essly

approved by the party responsible for compliance could void the user’s authority
to operate the equipment.

DOC NOTICE

This digital apparatus do es not exceed the Class A limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Commu nicati ons.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la class A prescrites dans le
Règlement sur le brouillage radioélectrique édicté par le ministère des
Communicatio ns du Cana d a.

VCCI NOTICE

This is a Class 1 product based on the standard of the Voluntary Control Council
for Interference by Information Technology Equipment (VCCI). If th is equipment
is used in a domestic environment, radio disturbance may arise. When such
trouble occurs, the user may be required to take corrective ac tions.

CABLETRON SYSTEMS, INC. PROGRAM LICENSE AGREEMENT

IMPORTANT: Before utilizing this product, carefully read this License Agreement.

This document is an agreement between you, the end user, and Cabletron Systems,
Inc. ("Cabletron") that sets forth your rights and obligations with respect to the
Cabletron software program (the "Program") contained in this package. The
Progra m may be contai ned in fi rmware, ch ips or ot her media. BY UTILIZ ING THE
ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME BOUND BY THE
TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND THE
LIMITATION OF WA RRANTY A ND DISCLAIMER O F LIABILITY. IF YOU DO
NOT AGREE TO THE TERMS OF THIS AGREEMENT, PROMPTLY RETURN
THE UNUSED PRODUCT TO THE PLACE OF PURCHASE FOR A FULL
REFUND.

Central Site Re mote Access Switch 5

CONTENTS

U

SING THIS GUIDE 25

Documentation Set 26
Guide Conventions 27

SYSTEM OVERVIEW 29

The CyberSWITCH 30

Unique System Featur es 31
Interoperability Overv iew 34

Interoperability Protocols 34
Interoperability Devices 35

Encryption Overview 36

Network Layer 36

Link Layer 36
Security Overview 37
Network Interface Overview 37
System Compon e nts 38
Remote ISDN Devices 39
Switches Supported 40

Hardware Overvi ew 41

System Platforms 41

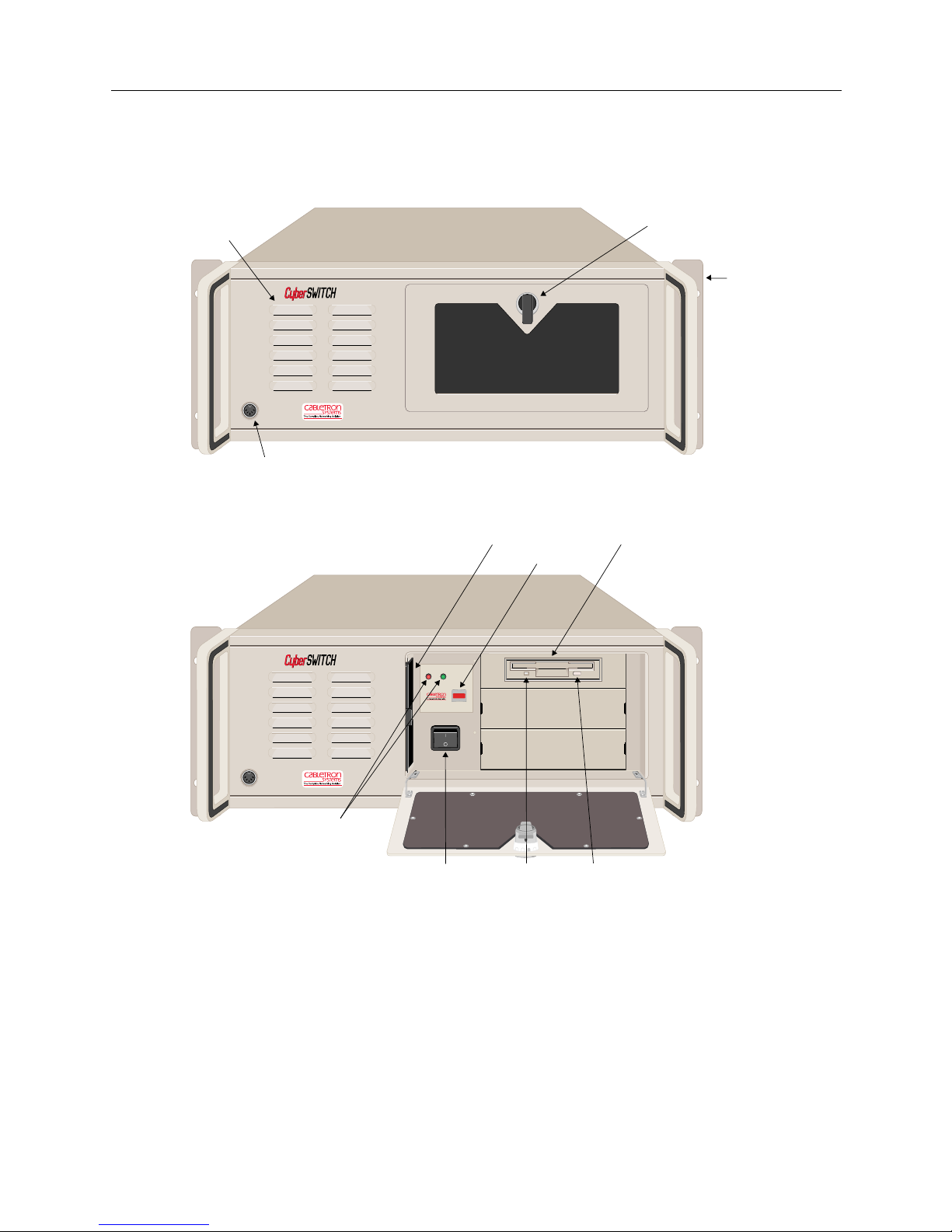

The CSX5500 42

Platform Description 4 2
Cleaning the CSX5500 Air Filter 43
Platform Characteristics 44
Caution for DC-Powered CSX5500s 45

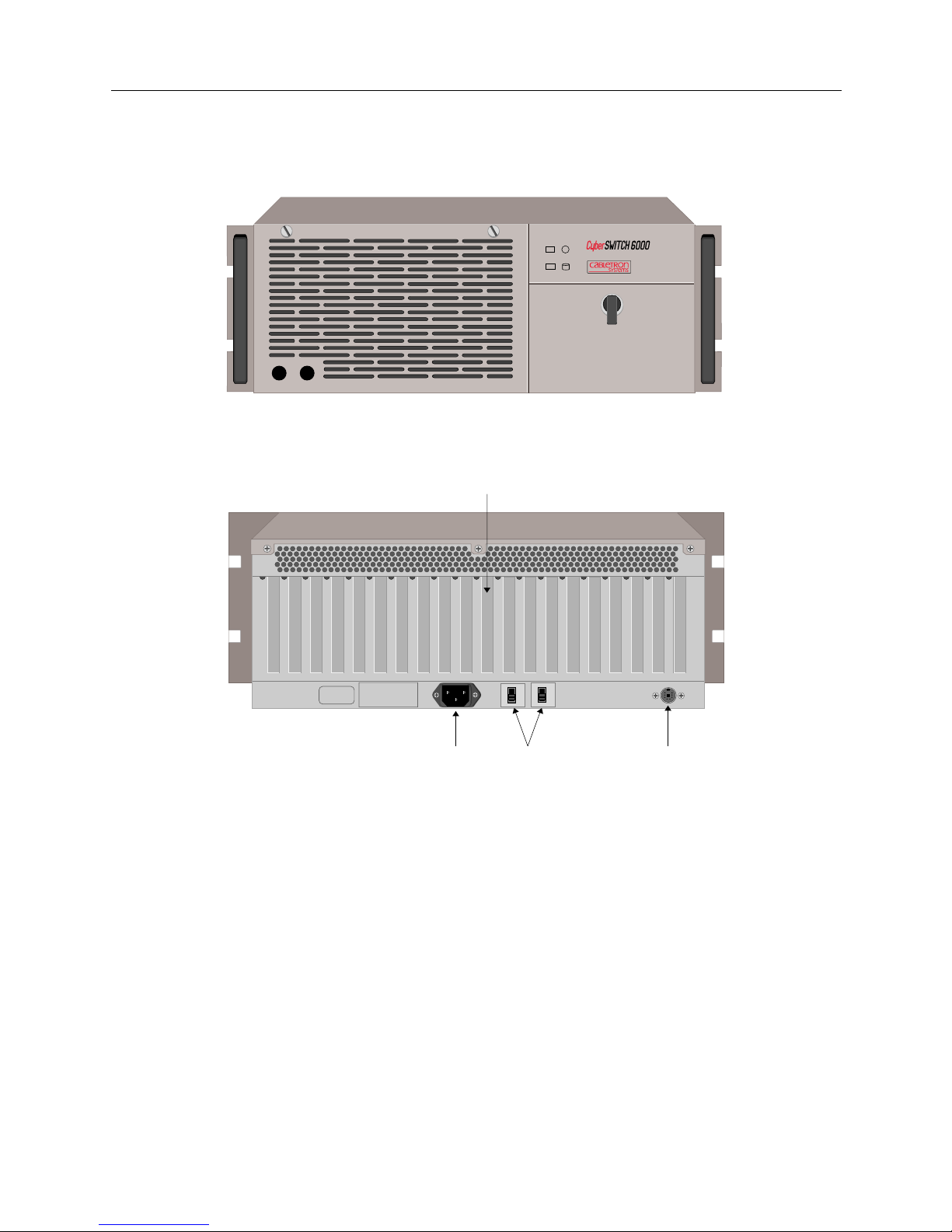

The CSX6000 46

Platform Description 4 6
Cleaning the CSX6000 Air Filter 47
Platform Characteristics 47
Caution for DC-Powered CSX6000s 48

The CSX7000 49

Platform Description 4 9
Platform Characteristics 49
Caution for DC-Powered CSX7000s 50

The NE 2000-II (A Network Express Platform) 51

Platform Description 5 1
Platform Characteristics 52

The NE 4000 (A Network Express Platform) 53

Platform Description 5 3
Platform Characteristics 53

The NE 5000 Platform (A Network Express Platform) 55

Platform Description 5 5
Cleaning the NE 5000 Air Filter 56
Platform Characteristics 57

USER’S GUIDE

6 CyberSWITCH

System Adapters 58

Ethern et Ad a pt e rs 58

Ethernet-2 Adapter 58
Ethernet-1 Adapter 58
Hardware Characteristics 59
LAN Connec ti on 59

Basic Rate Adapters 59

BRI-4 Basic Rate Adapter 59
BRI-1 Basic Rate Adapter 60
BRI Connection 60

Primary Rate Adapters 61

The PRI-8 61
The PRI-23 61
The PRI-23/30 62
PRI-8, PRI-23, and PRI-23/30 Connection 63

Expander Adapter 63

Hardware Characteristics 63

V.35 Adapter 64

Hardware Characteristics 64
V.35 Connection 64

RS232 Adapter 65

Hardware Characteristics 66
RS232 Connection 6 6

Digital Modems 67

The D M-8 68
The DM-24 68
The DM-24+and DM-30+ 68

Encryption Adapter 69

Software Overview 70

System software 70
Administration software 70
System Files 71

Configuration Files 71

Operational Files 72

User Level Security Files 73

SYSTEM INSTALLATION 74

Orderi n g IS DN Service (US Only) 75

Overview 75
Orde ring NI-1 Lines Using EZ-ISDN Code s 75
Orde ring NI-1 Lines Using NI-1 ISDN Ordering Codes 75
Ordering BRI ISDN Lines using Provisioning Settings 75

Provisioning Settings for AT&T 5ESS Switches 76

AT&T 5ESS NI-1 Service 77
AT&T 5ESS Custom Point-to-Poin t Service 78

Provision Sett ings for Northern Telecom DMS-100 Switches 78

Northern Telecom DMS100 NI-1 Service 79
Northern Telecom DMS100 Custom Service 80

Basic Inf o rm a tio n f or Ord e ring PRI ISD N Li n es 80

Central Site Re mote Access Switch 7

Hardware Installat ion 83

Overview 83
Pre-Installation Requirements 83
Selecting S lots for the Adapter s 84
Adapter Settings 85

Adapter Interrupt and I/O Addres s Settings 86

WAN Adap ter s 86
DM-8 Adapter I/O Address Settings 86
DM-24 Adapter Interrupt and I/O Address Settings 87

DM-24+ and the DM-30+ Adapter Address Setti ngs 88
Encryption Adapter Settings 89
MVIP Settings 89
Additional Adapter Settings 90

PRI-8 90

PRI-23 91

PRI-23/30 92

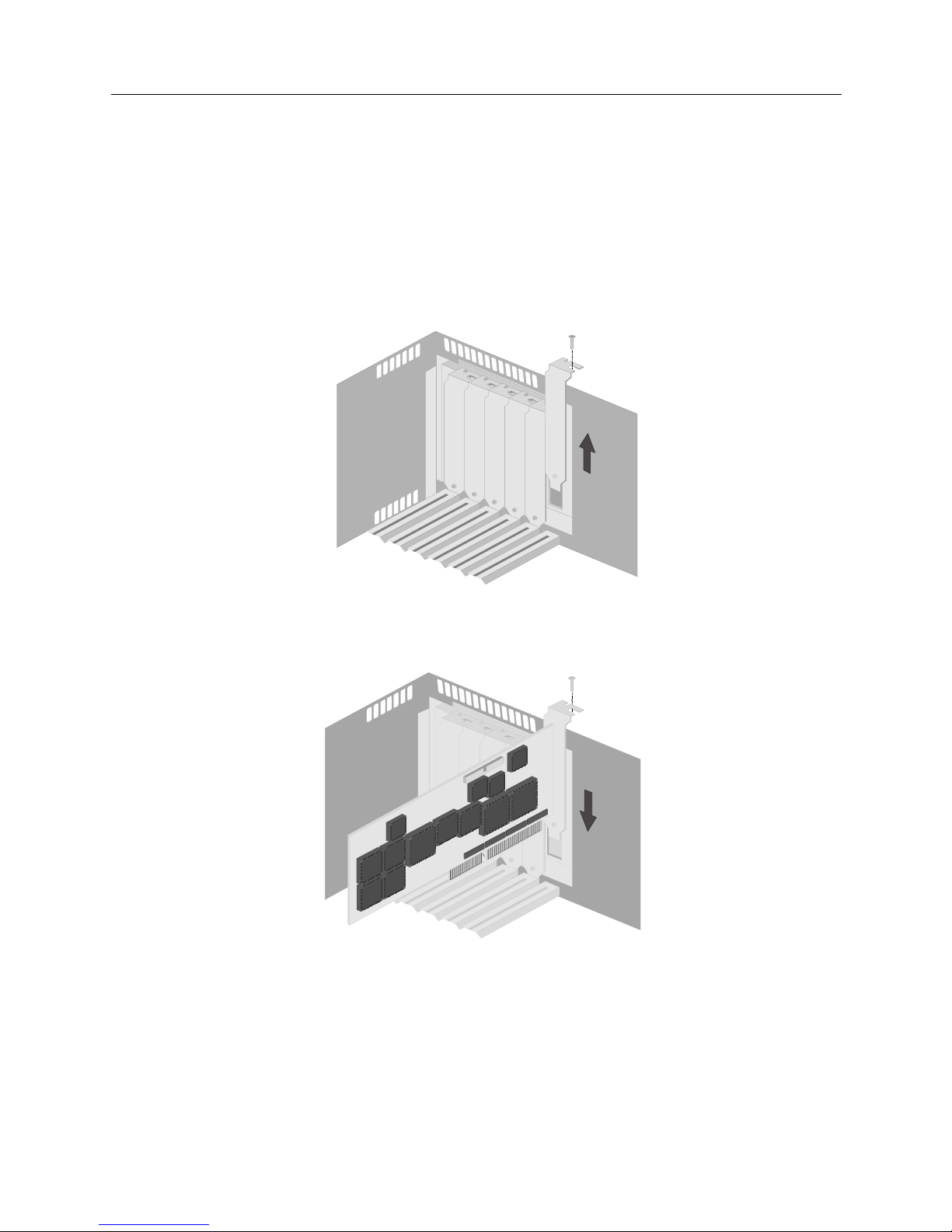

Inserting the Adapters into the Cyber SWIT CH 93

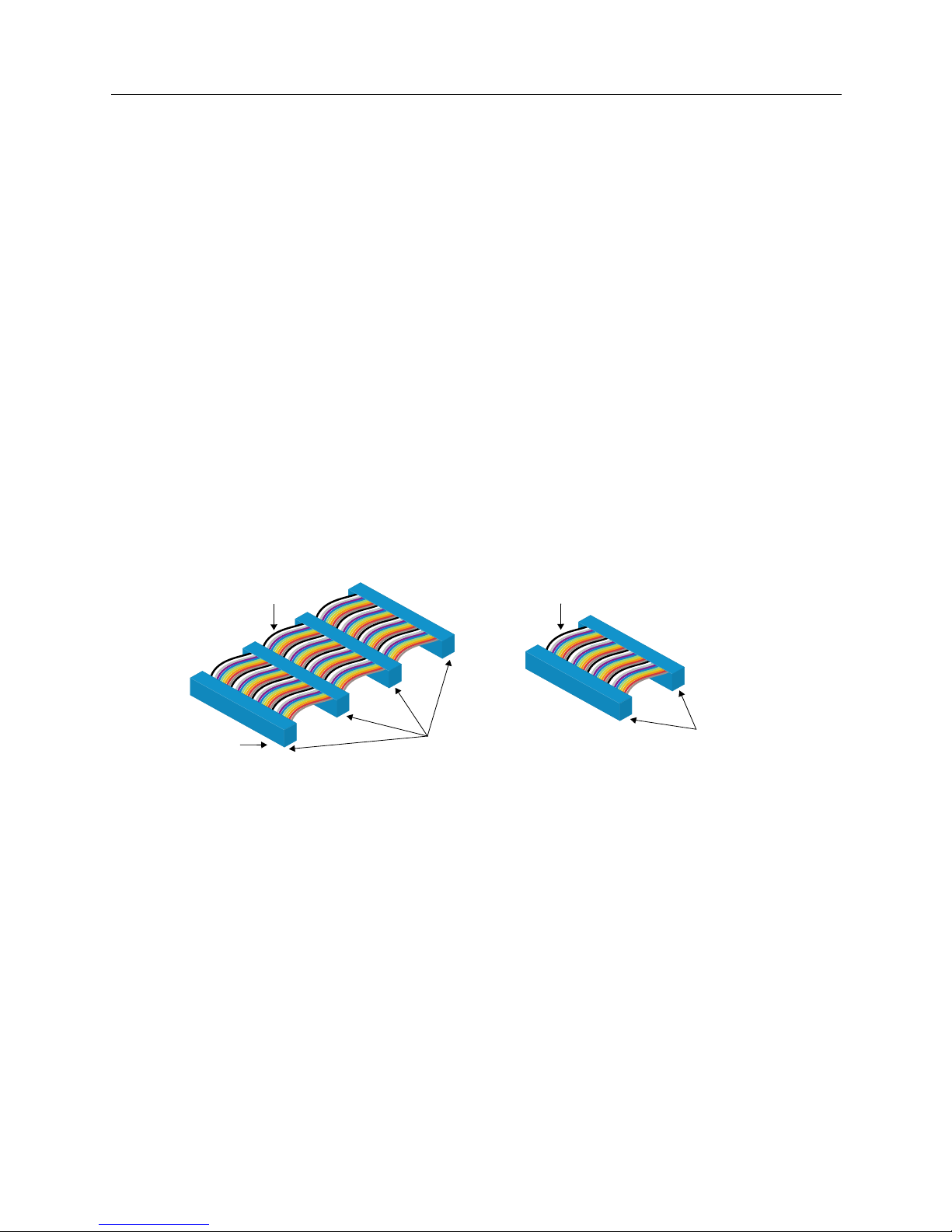

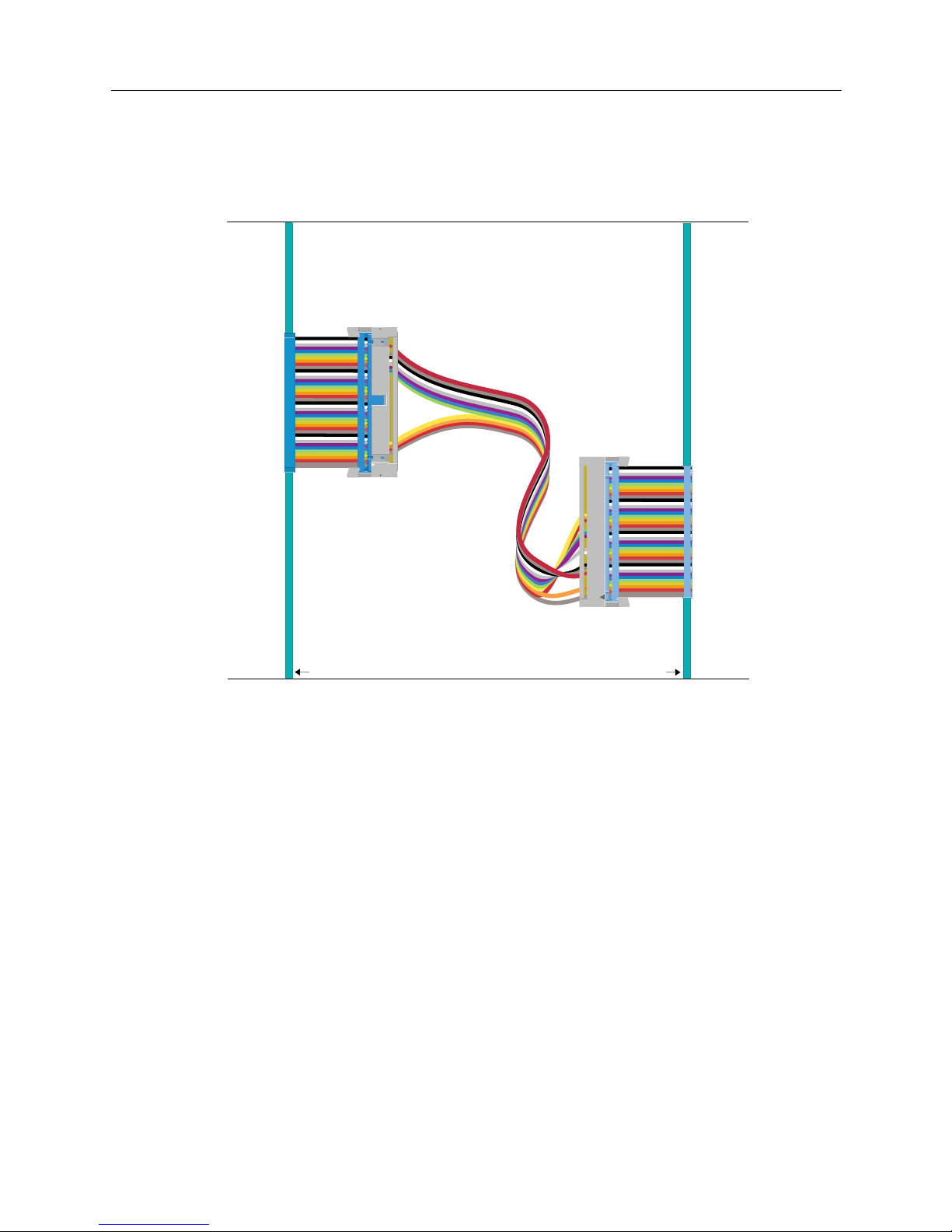

Connecting Adapter Inter-Board Cables 94

Connecting Multiple Adapters 94
Connecting a WA N Ad apte r to the LC D 96
Summary of Guidelines 97

Cabling Guidelines 97

Termination G uide lin e s 97

Accessing the CyberSWITCH 98

Overview 98
Making Connections 98

Direct Co nne ction 98

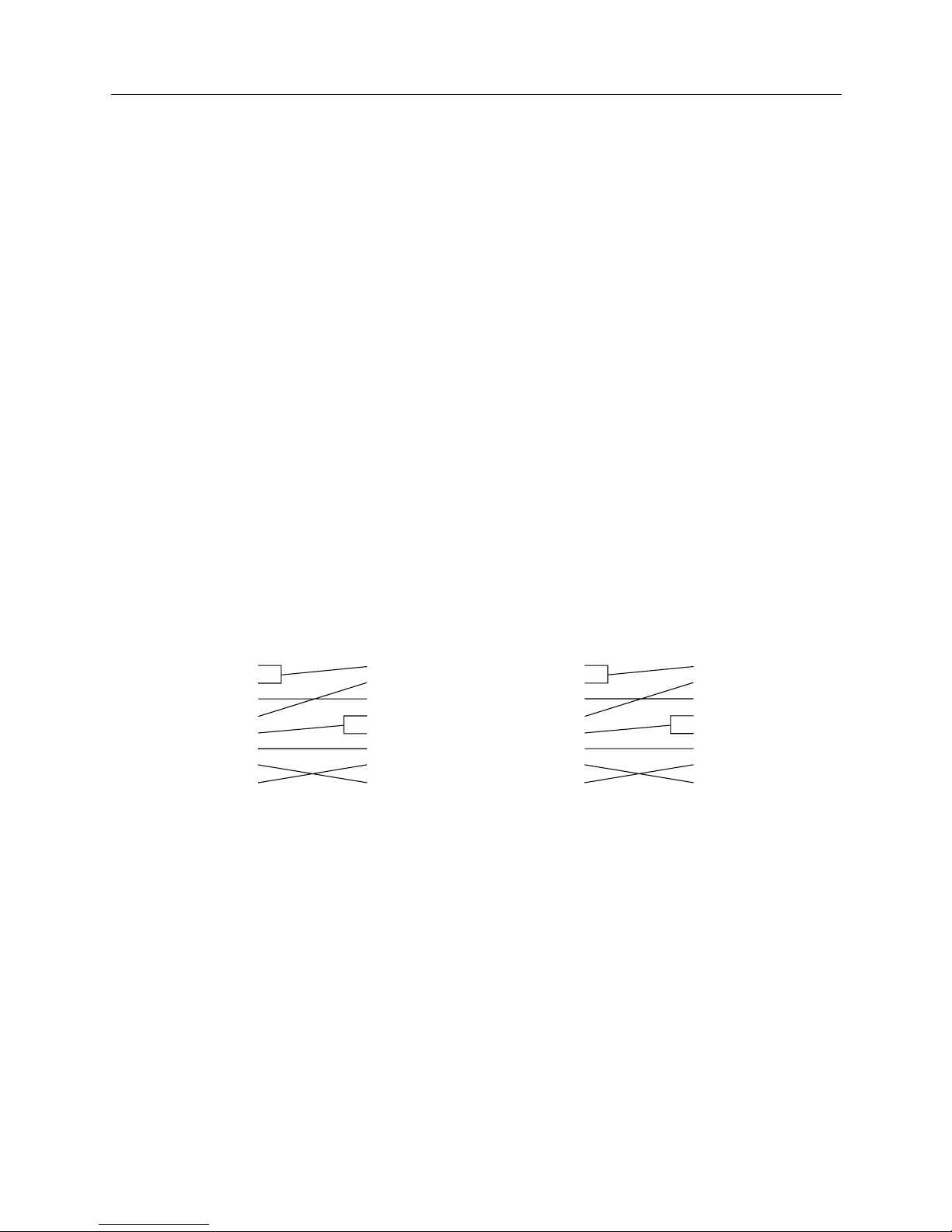

Null-Modem Connection to a PC 99
Remote Connec tion using Telne t 100
Remote Connec tions (Modem to Modem) 10 1

Analog Modem on the CyberSWITCH 101

Digital Modem on the CyberSWITCH 102

Establishing an Administration Session 103
Accessing th e Re lease Notes 104

Upgrading System Software 105

Overview 105
Installing Software 105
Upgrading System Soft war e 107

Local Upgrade 107

Procedure 107

Handling Upgrade Warnings and Errors 108
Remote Upgrade 10 8

Accessing th e Re lease Notes 109

USER’S GUIDE

8 CyberSWITCH

BASIC CONFIGURATION 110

Configuration Tools 111

Overview 111
CFGEDIT 111

Executing CFGEDIT 112
Saving CFGEDIT Changes 112

Dynamic Management 112

Executing Dynamic Management 112
Utility Dynamic Management Commands 113
Saving Dynamic Managem e n t Changes 113

Using the Network Worksheets 114
Using the Configuration Chap ters 114

Configuring Resources and Lines 115

Overview 115
Resources 115

Configuring Resour ces 115
Resource Configuration Elements 116
Resource B ackground Information 117

Lines 119

Configuring Line s 119

Configuring a Line for a BRI Resource 119

Configuring a Line for a PRI Resource 119

Configuring a Line for V.35 and RS232 Resources 120

Configuring Changes fo r a COMMPORT Res ource 121
Line Configuration Elements 122
Line Background Information 126

R2 Signaling 127

Subaddresses 127

Configuring a Subaddress 127
Subaddress Configuration Elements 127
Subaddresses Background Information 127

Configuring Basic Bridging 128

Overview 128
MAC Layer Bridging Option 128

Enabling/Disabling Bridging 128
MAC Layer Bridging Configuration Elements 128
MAC Layer Bridging Background Info rma tion 129

Configuring Basic IP Rou ting 130

Overview 130
Interne t P rotocol (IP) Option 130

Enabling IP 130
IP Option Configurati on Elements 131
IP Background Information 131

IP Operating Mode 131

Configuring the IP Operating Mode 131
IP Operating Mode Configuration Elements 132
IP Operating Mode Background Information 132

Central Site Re mote Access Switch 9

IP Network Interf aces 133

Configuring Interfaces 133
Network Interface Configuration Elements 135
IP Network Inte rface Background Inform ation 140

IP RIP and the IP Network Interf aces 145

IP RIP over Dedicated Connection s 148

IP Host Operating Mode and the IP Network Interfaces 150

Using Multiple IP Addres ses 150

Static Routes 152

Configuring Static Routes 152
Static Route Configurati on Elements 154
Static Route Background Information 156

Default Routes 157

Configuring Default Routes 157
Default Route Configuration Elements 157

Routing Information Protoc ol (RIP) Option 158

Enabling/Disabling IP RIP 158
IP RIP Configuration Elements 159
IP RIP Background Information 159

SECURITY AND ENCRYPTION OPTIONS 160

Security Overview 161

Overview 161
Security Level 161
Syste m Opti ons and In f ormat ion 162
Device Level Databases 162
User Level Databases 163
Off-node Server Information 163
Network Login Information 163

Configuring Security Level 164

Overview 164
No Security 166

Configuring No Secur ity 166

Device Level Security 167

Configuring Device Level Security 167
Device Level Security Backgr ound Info rma ti on 167

Overvie w of Device Auth e ntication Pr ocess 168

User Level Security 168

Configuring User Lev e l Securit y 168
User Level Security Backgr ou nd Info rma tion 168

Authentication Using a Security Token Card 169

System Requirements 170

Authenti cation Process with User Level Securi ty 171

Device and User Level Security 172

Configuring Device an d Us er Level S ecur ity 17 2
Device and User Level Backgroun d In formation 173

USER’S GUIDE

10 CyberSWITCH

Configuring System Options and Information 174

Overview 174
System Options 174

Configuring System Options 174
Syste m Opti ons Conf ig u ratio n E le ment s 1 7 5
System Options Background Information 177

System Information 178

Configuring Syst em Information 178
System Information Configuration Elements 178
System Information Background Information 179

Administ rative Session 179

Configuring Administrative Sessions 179
Administrativ e Sessio n Conf igur ation Ele m ent s 180
Administrative Session Backgroun d In formation 181

Alterna tive Database Location Background Information 181

Session Inactiv i ty Background Information 181

Number of Administrat ive Telnet Sessions Background Information 181

Telnet Server TCP Port Number Background Information 181

Emergency Telnet Server Port Number Background Information 182

Configuring Device Level Databas e s 18 3

Overview 183
On-node Devi ce Database 183

Configuring an On-node Device Database 183

On-node Device Entries 184

Configuring On-node Device Entries 184
On-node Dev ice Database Con f iguration Elements 19 1

General Configuration Ele m ent s 191

ISDN Configuration Elements 191

Frame Relay Access Configur ation Ele m ent s 193

X.25 Access Configur ation Elements 193

Digital Modem Configuration Elements 194

Authentication Configuration Elements 194

IP Information Configuration Elements 196

IPX Information Configur ation Elements 196

AppleTalk Information Configuration Elements 197

Bridge Information Co nfiguration Element s 198

Compression Configuration Elements 199
On-node Device Database Background Information 199

On-node Dev ice Database Se cu rity Requirements 199

Off-node Device Database Location 203

Configuring Off-node Device Database Location 203
Off-node Device Database Location Configuration Elements 204
Off-node Device Database Location Background Information 204

Configuring User Level Databases 205

Overview 205
User Le vel Au th e ntica tion Data b ase Locatio n 205

Configuring Authentication Database Location 205
User Level Authen tica tion Datab as e Loc ation Co nfigur a tion Ele me nt s 206
User Level Authentication Database Location Background Information 206

Central Site Remote Access Switch 11

Configuring Off-node Server Information 207

Overview 207

Multiple Administration Login Names 207

CSM Authentication Se rver 208

Configuring CSM Authentication Server 208
CSM Authentication Se rver Configuration Elemen ts 209
CSM Authentication Server Backgrou nd Information 209

RADIUS Server 209

Configuring a RADIUS Authentication Server 209
RADIUS Authentication S e rver Configur ation Elements 211
RADIUS Authentication Server Background Information 211
Configuring a RADIUS Accounting Server 212
RADIUS Accounting Serv er Conf igur ation Ele me nts 214
RADIUS Accounting Server Background Information 214

Performance 214

Verification and Diagnosis 215

RADIUS RFC2138 215

Enabling RADIUS Type 215
RADIUS Type Configuration Elements 216
Background Informati on 216

Dynamic Device Option 216

Configuring the D ynamic Device Option 216
Dynamic Device Configura tion Elem ent s 217
Background Informati on 217

TACACS Authenti cation Server 218

Configuring a TACACS Authenti cation Server 218
TACACS Authentication Server Configuration Elements 219
TACACS Authentication Server Background Information 219

ACE Authentication Server 220

Configuring an ACE Authenti cation Server 220

Alternate Method of Configuration 221
ACE Authentication Server Configuration Elements 221
ACE Authentication Server Background Information 222

Configuring Network Login Infor mation 223

Overview 223
Network Login General Configuration 223

Configuring General Network Login Information 223

Authenti cation Timeout 224

Terminal Server Security 224
Network Login General Configuration Background Information 225

Network Login Banners 225

Configuring Netw ork Lo gin Banner s 225
Network Login Banners Background Information 226

Login Configuration Specific to RADIUS Server 226

Configuring RADIU S Serve r Login Info rma tion 226
Login Configuration Specific to RADIUS Server Background Information 227

Login Configuration Specif i c to TACAC S Serv er 228

Configuring TACACS Server Login Information 228
Login Configuration Specif i c to TACAC S Serve r Backg round Information 229

USER’S GUIDE

12 CyberSWITCH

Configuring Encryption 231

Configuration 231

Configuring an Encryption adapter 231
Configuring Security Associations and Authentication (IP Security Only) 232
Configuring Link Layer Encryption (PPP Encryption Only) 233
Encryption Configuration Elements 234

Encryption Background Information 236

IP Network Lay e r En cryption 236

ESP Implementation 236

IP Encryption Example 237

Authentication Headers 237
Link Layer Encryption 23 8

Link Layer Encryption: Manually-Configured Keys 238

Automated Key Exchange 239
Interaction with Other Features 239

IP Filters 239

Multiple MAC/IP Addr ess es 240

PPP Compression 240

ADVANCED CONFIGURATION 241

Configuring Alternate Accesses 242

Overview 242
Dedi ca te d Acce ss e s 2 4 2

Configuring a Dedicat ed Acc es s 242
Dedicated Access Configurat ion Element s 243
Dedicated Access Background Information 243

X.25 Accesses 244

Configuring an X.25 Ac cess 244

Basic Configuration Inf orm a tion 244

LAPB Configura tion Info rma tion 2 45

X.25 Configuration Information 245

Permanent Virtual Circuit Information 247
X.25 Configuratio n Elements 247

X.25 Line Configuration Elements 247

LAPB Configuration Elements 248

X.25 Access Configur ation Elements 249

PVC Configuration Elements 252
X.25 Access Background Inf orm ation 253

Current X.25 Restrictions 255

Frame Relay Accesses 255

Configurin g a Frame Relay Access 255

Configuring General Ac ces s Informa tion 255

Configuring a PVC 256
Frame Relay General Configuration Elements 257
Frame Relay PVC Configuration Elements 258
Frame Relay Access Background Information 260

The Local Management Interface Overview 261

Data Rate Control Overview 261

Congestion Control Overview 262

Curren t Re strictions 262

Central Site Remote Access Switch 13

Configuring Advanced Bridgin g 26 4

Overview 264
Bridge Dial Out 264

Configuring the Device List for Bridge Dial Out 265

Spanning Tr ee Protocol 266

Configuring Spanning Tree Protocol 266
Spanning Tree Protocol Co nfigura tion Elem e nts 267
Spanning Tree Protocol Background Information 267

Bridge Mode of Operation 268

Configuring the Bridge Mode of Operation 268
Bridge Mode of Opera tion Co nfigu ra tion Elem ent s 268
Bridge Mode of Operation Background Infor matio n 268

Unrestricted Bridge Mode 268

Restricted Bridge Mode 269

Bridge Filters 269

Configuring Bridge Filters 269
Bridge Filter Configur atio n Elem ent s 272

Protocol Definition Configuration Elements 272

Bridge Filter Configur atio n Elem ent s 272
Bridge Filters Backgrou nd Info rma tion 273

Protocol Definitions 273

Bridge Filter Definitions 274

Dial Out Using Bridge Filters 283

Example: Bridge Dial Out Using a Destina tion MAC Add ress Filter 283

Known Connect List 285

Configuring the Known Co nnec t List 285

Using CFGEDIT 28 5
Known Connect List Configur ation Ele m ent s 286
Known Connect List Back ground Infor matio n 286

Configur in g A dva n c ed IP Ro uting 287

Overview 287
Static ARP Table Entries 288

Configuring Static AR P Table Entries 288
Static ARP Table Entries Conf igur ation Elements 288
Static ARP Table Entries Backgroun d Infor m ation 288

The Isolate d M ode 289

Configuring the Isolate d Mode 289
Isolated Mode Configuration Elements 289
Isolated Mode Backgroun d In formation 289

Static Route Lookup via RADIUS 289

Configuring Stati c Route Lookup via RADIUS 289
Static Route via RADIUS Configuration Elements 290
Static Route Lookup via RADIUS Background Information 290

IP Address Pool 290

Configuring an IP Address Pool 290
IP Address Pool Configuration Elements 290
IP Address Pool Background Information 291

USER’S GUIDE

14 CyberSWITCH

IP Filters 291

Initiating the IP Filter Configuration 292
Configuring Packet Types 292

Configuring the Comm on IP Portio n 293

Configuring TCP 294

Configuring UDP 294

Configuring ICMP 295
Configuring Forward ing Filt ers 296
Configuring Connection Filters 297
Configuring Exception Filter 298

Modifying the Final Condition for a Filter 299
Applying Filters 299

Applying Filters to Network Interfaces 299

Applying the Global Forwarding Filter 299

Applying per-device Forwarding Filters 299
IP Filters Configuration Elements 300
IP Filters Background Information 301

Filter Compositio n 302

Types of Filters 302

Role of Filters in the IP Processing Flow 303

Packet Types 304
Limitations 305
Example of an IP Filter Configuration 306

DHCP Relay Agent 308

Configuring a DHCP Relay Agent 308
DHCP Configuration Elements 309
DHCP Background Information 309

DHCP/BOOTP Relay Agen t Env ironm ent s 309

Example DHCP Configurations 311

DHCP Proxy Client 315

Configuring the DHCP Proxy Client 315
DHCP Configuration Elements 316
DHCP Background Information 316

Sample Configuration: IP Router with DHCP Proxy Client 317

Security Associations 318

Configuring Secur ity Associa tion s 318

DNS and NetBIOS Addresses 319

Configuring DNS and NetBIOS Addresses 319
DNS/NBNS Co nfigu r ation Ele m ent s 32 0
DNS/NBNS Background Informati on 320

Configuring IPX 321

Overview 321
Configuring IPX Information 322
IPX Routing Op tion 323

Enabling/Disabling IPX 323
IPX Option Configuration Element 323
IPX Option Background Information 324

IPX Internal Network Number 324

Configuring the IPX Internal Network Number 324
IPX Internal Network Number Configuration Element 324
IPX Network Number Background Information 325

Central Site Remote Access Switch 15

IPX Network Interf aces 325

Configurin g IPX Net work Interfaces 325
IPX Network Interface Configuration Elements 327

General IPX Network Interface Configuration Elements 327

RIP IPX Network Interface Configuration Elements 327

SAP IPX Network Interface Configuration Elements 328
IPX Network Interface Background Informatio n 329

IPX Routing P rotocols 330

Configuring IPX Routing Pr otocols 330
IPX Routing P rotocol Configuration Ele ments 330
IPX Routing P rotocol Background Information 331

Routing/Service Tables 331

Special Conside r ations - Remo te LA N Inter f ace 332

IPX Static Routes 333

Configurin g IPX Static Routes 333
IPX Static Routes Confi g uration Elements 334
IPX Static Routes Background Information 334

IPX NetWare Static Servi ces 335

Configuring IPX NetWare Static Services 335
IPX NetWare Static Servi ces Configuration Elements 336
IPX NetWare Static Servi ces Background Information 337

IPX Spoofing 337

Configuring IPX Spoofing 337
IPX Spoofing Configuration Elements 338
IPX Spoofing Background Information 338

Watchdog Protocol 339

SPX Protocol 339

IPX Type 20 Packet Handling 340

Configuring IPX Type 20 Packet Handling 340
IPX Type 20 Packet Handling Configuration Elements 340

IPX Type 20 Packet Handling Device Configuration Elements 341
IPX Type 20 Packet Handling Background Informati on 341

IPX Isolated Mode 341

Configurin g IPX Isolated Mode 341
IPX Isolated Mode Configuration Elements 341
IPX Isolated Mode Background Information 341

IPX Triggered RIP/SAP 342

Displaying WAN Peer List 342
Configuring Triggered RIP/SAP Global Timers 342
Configuration Elements 343
Triggered RIP/SAP Back groun d In formation 343

IPX-Specific Infor mation for Devices 344

Configuring IPX Device s 344

WAN Devices 344

Remote LAN Devices 346
IPX Configuration Elements for Devices 347
IPX Background Information for Devices 349

IPX Triggered RIP/SAP Device Background 349

USER’S GUIDE

16 CyberSWITCH

Configuring SNMP 350

Overview 350
Configuring SNMP 350
SNMP Configuration Elements 352
SNMP Background Information 353

Using Cabletron NMS Systems 356

Configuring AppleTalk Routing 3 5 7

Overview 357
AppleTalk Rou ting Option 357

Enabling AppleTalk Routing 357
AppleTalk Rou ting Option Configuration El e ment 358
AppleTalk Routi ng Background Inf ormation 358

AppleTalk Ports 358

Configuring AppleTalk Ports 358
AppleTalk Ports Configuration Elements 359
AppleTalk Ports B ackground Information 360

The AppleTalk Network Type 360

Dynami c Node Address Assignment 360

The Zone Concept 361

AppleTalk Remote LAN 361

AppleTalk Static Rout e s 362

Configuring AppleTalk Static Routes 362
AppleTalk Routi ng Static Routes Configurati on El e men ts 363
AppleTalk Routi ng Static Routes Background Information 363

AppleTalk Capacities 363

Configuring AppleTalk Capacities 363
AppleTalk Capacities Configuration Elements 363
AppleTalk Capacities Background Information 364

AppleTalk Isolated Mode 364

Configuring the AppleTalk Isolated Mode 364
AppleTalk Isolated Mode Configuration Elements 364

Configuring Call Control 36 5

Overview 365

Call Control Menu 365

Throughput Monitor 366

Configuring the Throughp ut Monitor 366
Throughput Monitor Configuration Elements 367
Throughput Monitor Background Information 367

Overload Condition Monitori ng 368

Underload Condition Monitoring 369

Idle Condition Monit oring 369

Throughput Monitor Configuration Example 369

Call Int erval Param e te r s 3 7 1

Configuring the Call Inter val P arameters 371
Call Interval Config urat ion Element s 371
Call Interval Background Information 371

Monthly Call Charge 371

Configuring Monthly Call Charge 371
Monthly Call Charge Configuration Elements 372
Monthly Call Charge Background Info rmation 372

Central Site Remote Access Switch 17

Call Restrictions 372

Configuring Call Re strict ion s 372
Call Restriction Configuration Elements 373
Call Rest ri c tions Background Informa tion 376

Bandwidth Reservation 376

Configuring Bandw idt h Res erv ation 376
Bandwidth Rese rvatio n Configur a tion Elem ent s 378
Bandwidth Reservation Background Information 379

Semipermanent Connections 379

Configuring Semipermanent Connections 379
Semipermanent Connections Configuration Elements 381
Semipermanent Connection s Background Information 381

Interactions with Other Features 381

CSM as a Call Control Manager 383

Configuring CSM for Ca ll Cont ro l 383
Configuration Elements 383
Background Informati on 384

Call Control Manage m ent 384

Limitations/Considerations 385

D Channel Callback 385

Configuring D Chann el Callba ck 385
D Channel Callback Configuration Elements 386
D Channel Callback Background Information 386

Digital Modem Inactivity Timeout 387

Configuring the Digital Modem Inactivity Timeout 387
Modem Inactivity Timeout Configuration Elements 387
Modem Inacti vity Timeout Background Information 388

Configu ring Other Advance d O p tions 389

Overview 389
The Digital Modem 389

Configuring for a Digital Mode m 389
Digital Modem Backgroun d Informatio n 390

Supported Modes of Connection 391

Relationships between Digital Modem and other Features 392

Default Async Protocol 392

PPP Mode 392
Terminal Mode 393
Call Disconnect 393
Default Async Protocol Configuration Elements 393
Background Informati on 394

Autosense Feature 395

Limitations 395

Interactions with Other Features 395

PPP Configuration 396

Configuring PPP 396
PPP Configuration Elements 396
PPP Background Information 398

PPP Link Failure Detection 398

PPP Reference Documents 399

USER’S GUIDE

18 CyberSWITCH

Default Line Protocol 399

Configuring Default Line P rotocol 399
Default Li ne Protocol Configuration Ele ments 400
Default Line Protocol Background Informatio n 400

Log Options 400

Configuring Log Options 400
Log Options Configuration Elements 401
Log Options B ackground Info rmation 402

Local Log File Overvie w 402

Syslog Server Overview 402

System Messages 404

Authentication Messages 404

Call Detail Recording 404

Compression Options 410

Configur ing Compressi on Options 41 0
Compression Options Configuration Elements 411
Compression Options Bac kground Infor mati on 412

Compr essio n and CCP 412

TFTP 414

Configuring TF TP 414
TFTP Configura tion Elem en ts 414
TFTP Background Information 414

File Attributes 415

Configuring File Attributes 415
File Attributes Configuration Elem ent s 415
File Attributes Background Inf orm ation 4 16

VERIFICATION AND DIAGNOSIS 417

Verify in g th e Base System 418

Overview 418
Hardware Re sou rces Operational? 418

WAN Adapter Initialized? 418
LAN Adapter Init ia lize d? 419

WAN Lines Available for Use? 420

Verifying WAN Line Availability 420
Dedicated Serial Con nections 421

LAN Connecti on O pe rati on al? 422
Bridge Initialized? 423
IP Router Initialized? 423
Remote Device Connectivity 424
Multi-Level Security 4 26
IP Host Mode 427

IP Host Initialized? 427

Verification 427
IP Host Mode Operational? 427

Verification over a LAN conne ct i on 428

Verification over a WAN connection 429

Central Site Remote Access Switch 19

Alternate Accesses 429

Dedicated Co nnections 429
Frame Relay Connections 430

PPP Link Failure Detection 430
X.25 Connections 431

X.25 and a Terminal Server Menu 432

Verify in g Ro u ting Protocols 433

Overview 433
IP Routing Operational? 433

IP Routing Over a LAN Interface 433
IP Routing Over a WAN Interface 434
IP Routing Over a WAN (Direct Host) Interface 436
IP Routing Over a WAN Remote LAN Interf ace 438
IP Routing Over a WAN UnNumbered Interface 439
IP Filters 440
IP RIP Initialized? 441
IP RIP Output P rocessing on a LAN Interface 442
IP RIP Input Processing on a LAN Interface 443
IP RIP Output P rocessing on a WAN Interface 444
IP RIP Input Processing Operational on a WAN Interface 445

IPX 446

IPX Router Initialized? 446
IPX Routing Operational? 447
IPX Routing over a LAN Connection 447
IPX Remote LAN Co nne ction 448
IPX Routing ove r a WAN Connection 450
Triggered RIP/SAP 450

AppleTalk Routing 452

AppleTalk Routing Initialized? 452
AppleTalk Routing Operational? 452
AppleTalk Routing over the LAN connection 453
AppleTalk Routing over a WAN connection 455

Verifying System Options 457

Overview 457
SNMP 457
Dial Out 459
Call Detail Recording 461
Compression 462
Reserved Bandwidt h 463
DHCP Relay Agent 464

Verifying DHCP Relay Agent Initialization 464
Verifying the Relay Agent is Enabled 464
Verifying the Relay Agent is Operational 465

DHCP: Proxy Client 467

Verifying DHCP Proxy Client Initialization 467
Verifying the Proxy Client is Enabled 467
Verifying the Proxy Client is Operational 468

Verification of UDP Ports 468

Verifi c a ti o n of IP A ddress P o ol 469

D Channel Callback 469

USER’S GUIDE

20 CyberSWITCH

Modem Callback 470
Verifying a Semipermanen t Conne cti on 471
Proxy ARP 472

TROUBLESHOOTING 474

LCD Messages 475

Overview 475
LCD Message Groups 475

Initialization LCD Message 475
Normal Operation LCD Messages 475
Error LCD Messages 476

System Messages 480

Overview 480
Informational Messages 481

Initialization Messages 481
Normal Operation Messages 481
Spanning Tree Messages 481

Warning Messages 481
Error Messages 481
System Message Summary 482

Trace Messages 544

Overview 544
Call Trace Messages 545

Call Trace Message Summary 546

IP Filters Trace Messages 551
PPP Packet Trace Messages 552

WAN FR_IETF Trace Messages 554

X.25 Trace Messages 554

X.25 Trace Message Summary 554

X.25 (LAPB) Trace Messages 557

X.25 (LAPB) Trace Message Summary 557

SYSTEM MAINTENANCE 559

Remote Management 560

Overview 560
SNMP 561

Installation and Configuration 562
Usage Instru ctions 562

Telnet 563

Installation and Configuration 564
Usage Instru ctions 564

WIN95 Dial-Up Networking 566

Setting up a New Number 566
Setting Up Server Type 566
Dialing Out 567

Central Site Remote Access Switch 21

TFTP 568

Installation and Configuration 568
Usage Instru ctions 569

Carbon Copy 570

Installation and Configuration 570
Changing CARBON COPY Configuration Parameters 570

CARBON COPY Configuration Parameters for Modem Usage 571
Usage Instru ctions 572

Establishing a Remote Administration Session 572

Terminating a Remot e Admi nistration Session 573
Running without Carbon Copy 574

Remov in g Ca rb o n Co p y 57 5

Null Modem Connection 575

Adding Carbon Copy 575

System Commands 576

Overview 576
Accessing Admin istration Services 576
Setti n g th e I P Ad d r e s s 5 77
Accessing Dynamic Managem ent 577
Viewing Operational Inf orm ation 578
Viewing Throughput Information 582

Throughput Monitor Contents 583

Saving Operational Information 584
Clearing Opera tional Inf orm atio n 584

Configuration-R ela te d Comm an d s 585

Terminating and Restarting the CyberSWITCH 585
Setti n g the D ate and Ti me 586
Terminating Admin istration Sessions 586
AppleTalk Routing Commands 587
Bridge Commands 591
Call Control Co m ma nd s 592
Call Detail Recording Commands 596
Call Restriction Commands 596
Compression Information Commands 597
CSM Commands 597
DHCP Com m an ds 59 7
Digita l Modem Commands 598
Frame Relay Commands 599
IP Routing Commands 601
IPX Rou ting Commands 605
ISDN Usage Commands 607
LAN Commands 608
Log Commands 608
Packet Capture Commands 609
RADIUS Command s 612
Serial Interface Commands 614
SNMP Co mma nds 614
Spanning Tree Comma nds 614

Spanning Tree Port Information 614
Spanning Tree Bridge Information 615

TCP Commands 617

USER’S GUIDE

22 CyberSWITCH

Telnet Commands 618
Termina l Commands 620
TFTP Commands 621
Trace Commands 622
UDP Command s 6 2 3
User Level Security Commands 623
WAN Comm an ds 624
X.25 Commands 625

System Statistics 627

Overview 627
Connectivity Statistics 627
Call Restriction Statistics 628
Call Statistics 628
Throughput Monitoring Statistics 628
AppleTalk Statisti cs 629

AppleTalk Protocol Statistics 629

AppleTalk Data Delivery Protocol (DDP) Statistics 629

AppleTalk Echo Protocol (AEP) Sta ti stics 630

AppleTalk Rou ting Table Maintenance Protocol (RTMP) Statistics 631

AppleTalk Zone Informati on Protocol (ZIP) Statist ics 631

AppleTalk Name Binding Protocol (NBP) Statistics 632

AppleTalk Transaction Protocol (ATP) Statistics 632
AppleTalk Port Statistics 633

Bridge Statistics 634
Call Detail Recording Stat istic s 634
Compression St atistics 635

Compression Related Statistics 635
Decompressi on Related Statistics 635

DHCP Statistics 636

Common DHCP Statisti cs 636
DHCP Relay Agent Statistic s 637
DHCP Proxy Client Statistics 638

Digital Modem Statistics 639
Frame Relay Statisti cs 639

Access Related Statis tics 639
PVC Related Statist i cs 641

LAN Stati st ics 642
IP Statistics 643

IP Group Statistics 643
ICMP Group Statistics 645

IPX Statistics 646

IPX General Statistics 646

IPX Basic System Table Statistics 647

IPX Advanced System Table Stati stics 648
IPX RIP Statis tics 648
IPX Triggered RIP Statisti cs 649
IPX Route Statistics 649
IPX SAP Statistics 650
IPX Triggered SAP Statistics 650
IPX Service Statistics 651

Central Site Remote Access Switch 23

RIP Statist ics 651

RIP Global Stati stics 651
RIP Interface Statistics 651

Serial Interfa ce Statistics 652
SNMP Statistics 652
TCP Statistics 655
TFTP Statistics 656

Statistics for Serve r or Rem o te initia ted TF TP Ac tiv ity 656
Statistics for Loca l or Clien t Initia ted TFTP Ac tiv ity 656
Statistics for all TFTP Activity 657

UDP Statistics 658
WAN FR_IETF Statistics 658
WAN L1P Statistics 659

PRI S/T (T1/E1) Interface Statistics 659
Layer 1 PRI Error Stat istics 659
Layer 1 General Stati stics 660

WAN Statistics 660
X.25 Statistics 661

X.25 Access Related Statistics 661
X.25 Virtual Circuit (VC) Rel ated Statistics 663

Routine Maintena nce 66 5

Overview 665
Installing/Upgrading System Software 665
Executing Configu ration Changes 665

Configuration Files 665
Making Changes Using CFGEDIT 665
Making Changes Using Manage Mode 666

Configuration Backup and Rest ore 666
Obtaining System Custom Information 666

APPENDICES 667

System Adapters 668

Ethern et Ad a pt e r 6 69
Basic Rate Adapter 670
Primary Rate Adapter s 671

The PRI-8 671

The PRI-23 672

The PRI-23/30 673
Expander Adapter 674
V.35 Adapter 675

RS232 Adapter 676

Digital Modems 677

The D M-8 677

The DM-24 678

The DM-24+/DM-30+ 680
Encryption Adapter 682

DES Adapter (US Version) 682

USER’S GUIDE

24 CyberSWITCH

System Worksheets 683

Network Topology 684
System Details 685

Resources 685
Lines 685
Accesses 686

Device Information 687
Bridging and Routing Info rm ation 688

Bridging 688
IP Routing 68 8
IPX Routing 689
AppleTalk Routing 690

CFGEDIT Map 691

Overview 691
Main Menu 691
Physical Resources Menu 692
Options Menu 693
Security Menu 696

Getting Assistance 699

Reporting Problems 699
Contacting Cablet ron Sy stems 699

Administrative Console Commands Table 701
Manage Mode Commands Table 708
Cause Code s Ta ble 712

INDEX 719

U

SING THIS GUIDE

The User’s Guide is divided into the following parts:

S

YSTEM OVERVIEW

We begin with an overview of bridging, routing, and specific CyberSWITCH features. Next, we
provide an overview for both the system software and hardware.

S

YSTEM INSTALLATION

In this segmen t of the User’s Guide we provide guidelines for ordering ISDN service in the US, and
a step-by-step description of installing hardware and upgrading software.

B

ASIC CONFIGURATION

We define basic configuration as the configura tion n eeded by most devices . These are the areas of
configuration that will get your system up and running. Note that not all configuration steps in this
part are required. For example, if you are only using bridging, you will have no need to complete
the configuration steps included in the chapter titled Configuring Basic IP Routing.

S

ECURITY CONFIGURATION

The CyberSWITCH prov ides a great variety of security options. For example, you may use device
level se cu rity, use r l eve l secur ity , or i f pr efe rred , no secu ri ty. You m ay al so perfo rm auth enti ca tion
of a device/ user in different ways. The security information may be stored on several differ e nt
types of databases, either local ly or on a variety of remote databases.

System secu rity also allow s the configuration of administrative session (Teln e t se ssion)
enhancements. This provides secure access to the system along with flexible control.

A

DVANCED CONFIGURATION

We defi n e advan ce d co n fi guration as a w a y to fine tun e your sy st e m, or to confi g ure options tha t
are not necessarily needed by the majority of devices. For example, use this sectio n to configure an
alternate access, or to set up SNMP to manage your syste m.

V

ERIFICATION AND DIAGNOSIS

Once you’ve installed and configured your system, we recommend you verify its operational
featu res. Th is segme nt describe s how to verify (a nd then ad ju s t , if ne cessa r y) th e b a se sy s tem,
protocols and options.

T

ROUBLESHOOTING

Trou bl e shootin g in cl u d es a descrip t i o n of sys tem LCD in d icators , f ol l ow e d by syst e m m essages
and trace messages. Each message listing in these chapters provides the message itself, a message
definition, and where appropriate , possible corrective actions.

S

YSTEM MAINTENANCE

In this section, we provide information to help you maintain your CyberSWITCH once it is
operating. System maintenance information includes information regarding remote management,
a chapter on both the system comm ands and the system statistics, and routine maintenance
procedures.

USER’S GUIDE

26 CyberSWITCH

APPENDICES

The User’s Guide provides the following appendices:

N

ETWORK WORKSHEETS

These worksheets are provided to help you gather pertinent infor mat i on for co n fi guring your

system. We recommend that you print copies of these blank forms and fill in the appropriate

information before you begin configuring your system.

CFGEDI T M

AP

This map provides a guide thro ugh the Conf igur ation Ed itor str ucture, and may be a helpful

reference when configuring the CyberSWITCH using the CFGEDIT utility.

G

ETTING ASSISTANCE

This appendix provides information for getting assistance if you run into problems when

installing your system. A FAX form is included. You can print this form, fill out the information

requested, and FAX it to Cabletron Systems, using the provided FAX number.

A

DMINISTRATION CONSOLE COMMANDS

Provide s a tab ular list ing of the system administration console commands and th e ir uses.

M

ANAGE MODE COMMANDS

Provide s a tab ular list ing of the Manage Mode commands and their uses.

C

AUSE CODES

Provides a tabular listing of Q.931 Cause Codes and their meanings. These cause codes may

appear in call trace messages.

S

YSTEM ADAPTERS

Provides illustrations of available adapters for the CyberSWITCH.

DOCUMENTATION SET

This guide, the User’ s Gu ide, provides information to install and configure your system. It also
provides information you may need to refer to keep your system running efficiently after it is up
and running. For example, it provides a list i ng of system messages. Each message listing provides
a definition of w hat the message means, and where appropriate, corrective action you can take.
Many other subjects are covered, including routine maintenance, hardware information, system
verifi cation, and problem diagnosis.

This gu ide is one i nte g r al part of the e n t ire d o cu m e ntation se t . P le a se re f e r to the d o cuments
described below for additional information.

The Example Networks Guide includes several example networks, beginning with a simple network,
and progressing to m ore complex networks. These example network chapters provide
configuration instructions that you may find helpful in configuring your own similar network.

The CSX7000 Guide is a supplement to the User’s Guide. Because the CSX7000 is a multi-system
platform with ma ny unique fea t u re s , its h ar dw a re an d mo n it o ri ng capabil ities va ry widely fro m
other Cabletron platforms. This guide details these differences.

Central Site Remote Access Switch 27

Guide Conventions

The Qui c k St art provide s abbr evia t ed installa ti on and configuration instruc tions for expe r ienced
users. Specific instructions for setti ng u p various types of remote dev ices are also i nc luded.

The R ADIUS Authentication User’s Guide describ e s the setup of the RADIUS server software on a
UNIX-based system. RADIUS (Remote Authentication Dial In User Service) provides multiple
systems ce ntral data b a se access for security authe ntication purposes. If you have Inte rnet access,
you may obtain this guide by fol lowing the steps outlined below:

• Use your Web browser to get to the following addres s:

http:// ser vice.nei.com

• From the re su lting screen, click on Anonymous.

•Click on the Radius director y.

•Click on the Docs directory. The guide will be under this directory.

The Release Notes provide release highlights and important information related to this release.
Access these notes via your Web browser:

http://www.cabletron.com/support/relnotes

When you initially install or upgrade your system, an abbreviated version of these notes are
availabl e for displ ay. Or , aft er t he syste m i s oper atin g, you ma y displ ay th em by issui ng the

list

rel_note.txt

console command.

GUIDE CONVENTIONS

The following conven tions are used throughout the documentation:

Syste m Commands
All system comma nds (A dm inist rati on and Mana ge Mo de com mand s) are italic iz ed, and in a
different font than the general text. For example, if you are instruct ed to enter the command to test
for proper LAN connections, the command would appear as follows:

lan stats

CFGEDI T S CREENS
Screens that appear on the monitor as you are configuring your system using the CFGEDIT utility
will be displayed using the style shown b elow:

M

ONITOR DISPLAYS

Any messages or text that is displayed on your monitor w ill be shown in the style be low:

LAN Port <port #> is now in the LISTENING state

WAN Port <port #> is now in the FORWARDING state

LAN Port <port #> is now in the LEARNING state

LAN Port <port #> is now in the FORWARDING state

Main Menu:

1) Physical Resources

2) Options

3) Security

4) Save Changes

Select function from above or <RET> to exit:

USER’S GUIDE

28 CyberSWITCH

DOCUMENTATION TITLES
All references to CyberSWITCH documentation titles will use the same font as normal text, but will

be italicized. For example, all references to the User’s Guide will appear as:

User’s Guide

S

YSTEM OVERVIEW

We inc l u de th e f ollowing cha p te rs in the Sy stem Ov ervi ew segment of the User’s Guide.

• The CyberSWITCH

Provides the “big picture” view of a CyberSWITCH network. We include an overview of

unique system features, interoperability, security, interfaces, system components, remote

devices, and switches supported.

• Hardware Overview

A description of system platforms an d adapters.

• Software Overview

A description of the CyberSWITCH’s system and administrative sof t ware. We also include a

description of system files.

T

HE CYBER

SWITCH

The CyberSWITCH family o f products represents t h e l atest in high-speed remote access hardware
and softw are to ol s. T hes e pr oduc ts al low c usto mers t o impl em ent the c onnec tiv ity s oluti on i dea ll y
suited t o the needs of their b usiness - with suppor t over a wide range of tech nologi es cover ing both
permanent and on-demand con nections using IS DN, analog modem, Frame Relay, dedicated l ines,
and X.25.

The CyberSWITCH family of products ca n be used with a mi x of bridges , routers, hosts, PCs, and
workstation s. These com bina t ions pro vi de inter netwo rk ing cap ab ilitie s that will allo w dev ices to
carry out LAN-to-LAN ap plicat ions such as teleco mmut ing, electron ic mail, mult i-m edia

transmission, imaging, and CAD. Devices “dial up” into a single system using a multi-line hunt
group to extend the capabilit ies o ffere d by an enter prise LAN .

The CyberSWITCH’s Central Site platforms utilize a built in CPU to manage analog and digital
communications. The platforms consist of a numbe r of modular slot s that allow har dware
customi zation. This hardware, along with the sys tem’s UAA softw a re , work together to provide
the centralized, concentrat or function needed to support a variety of remote devices in a larger,
Central Site environm e nt.

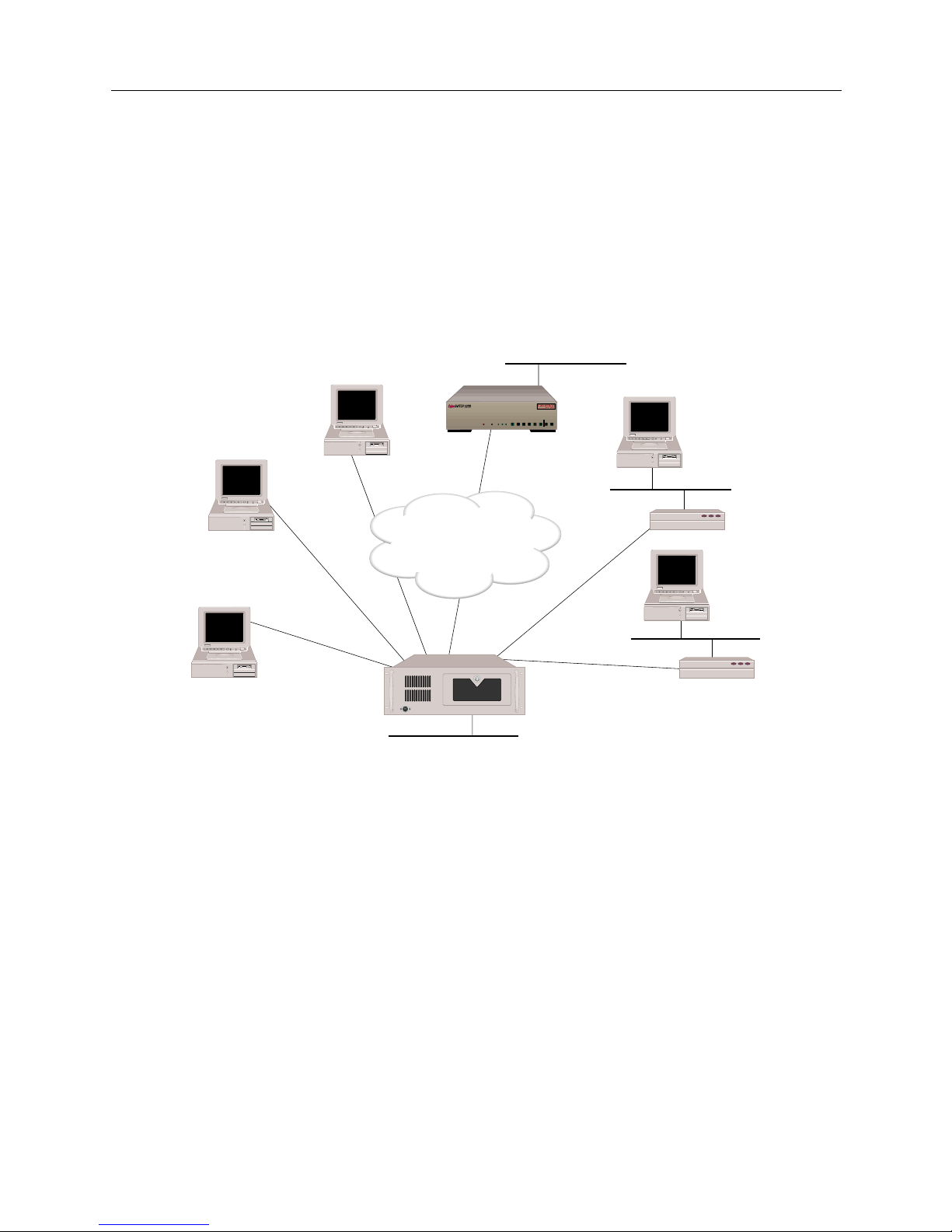

INDY

ISDN

Host

File Server

Router

Remote ISDN Bridge

Workstation

Workstation

Silicon Graphics INDY

Sun SPARCstation

PC

(

with BRI ISDN TA

)

Remote ISDN Bridge

BRI

BRIs or

PRIs

SW 56

Workstation

BRI

BRI

BRI

Z

Central Site Remote Access Switch 31

THE C

YBER

SWITCH

Unique System Features

UNIQUE SYSTEM FEATURES

The CyberSWITCH combines unique features that improve cost-effectiveness, reliability, and
performance for wide area network connections to remote devices. These features include:

• Bandwidth Agility

The CyberSWITCH dynamically controls the bandwidth in use between itself and other PPP

devices. This is accomplis hed by establishing and disconnecting calls. The numb er of calls is

limited only by the types and number of lines available. The system monitors the connections

for utilization and will add and remove the connections based on user-configurable

through put p ar amet er s. As n etw ork band wid th r eq uir emen ts i ncr ea se or decre ase , the syst e m

will automatically adjust the number of networ k connectio ns. Thus, your netwo rk costs will

reflect the actual bandwidth being used.

• Filtering

The CyberSW ITC H’ s filte ring fea ture allow s you to contro l the flow of fram es thro ugh the

network. Filtering becomes necessary if you need to restrict remote access or control

widespread transmission of sporadic messages. Customer-defined filters ca n forward

messages based on addresses, protocol, or packet d ata.

• Combining Leased Line and Switched Connections

Use the Switched Connections feature to automatically backup failed or overloaded leased

lines (for example, in peak hour overflow situations). The capability of combining switched

connections with leased line capacity allows you to reduce costs and greatly improve the

reliability and perfo rma nce of leased line netw orks .

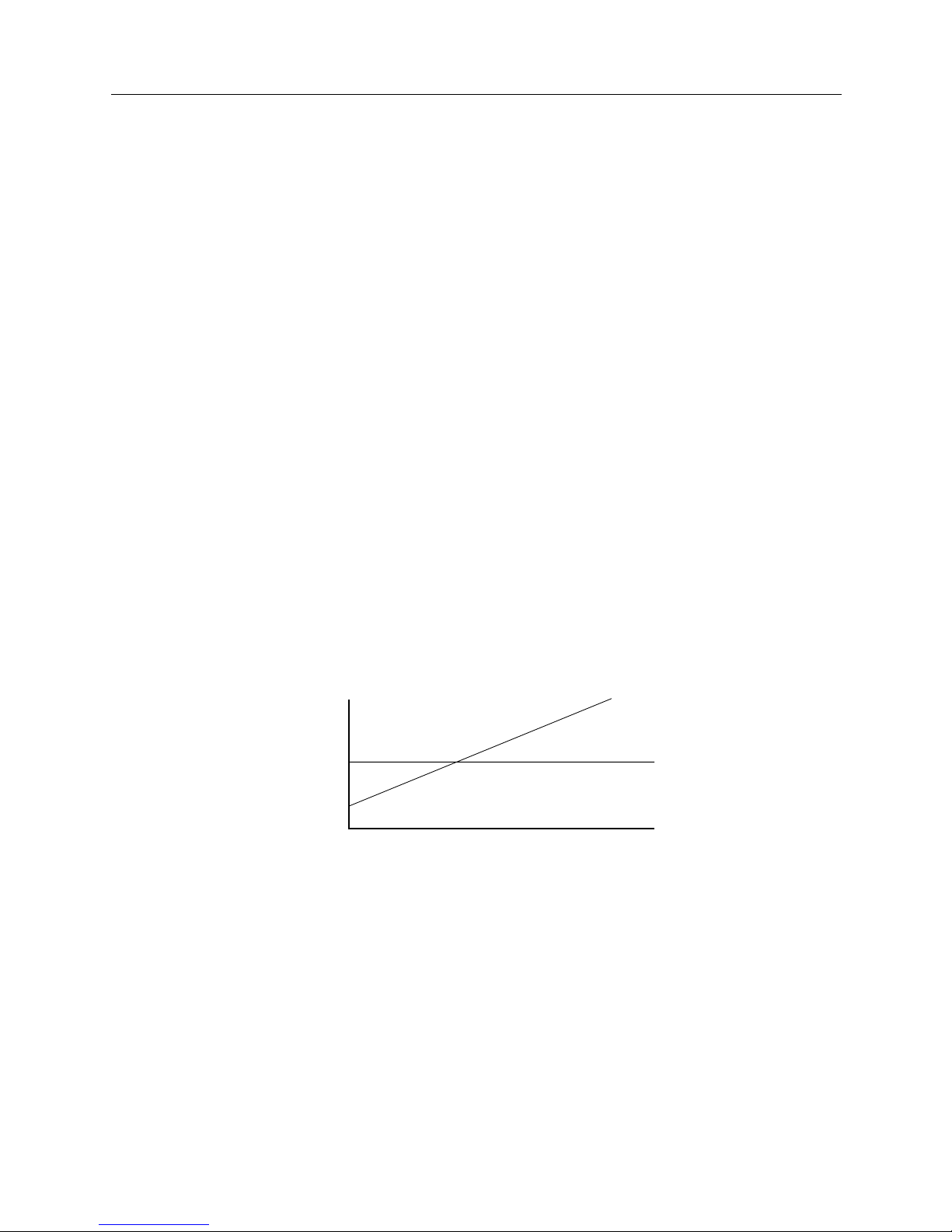

The following graph illustrates the relationship between cost and hours of usage when

comparing a switched connection to a dedi cated connection:

• Data Compressi on

The Cyber SWITCH can negot iate com press ion alg orithms with an other device on the network .

After successfully negotiating compre ssion, data is compressed by the remote device and

transmitte d to the CyberSWITCH system. The sys te m decompresse s the data, processes the

information contained in the user data, and forwards the data as required. The system can

receive data coming over a WAN or a LAN, and compress the data before transmitting it to

another device on the network. The net effect is to increase interconnect bandwidth by

decreasing transmission time. If negotiation for compression fails, data is transmitted

uncompressed.

Cost

Hours of Usa

g

e

Switched
Connection

Dedicated Connection

USER’S GUIDE

32 CyberSWITCH

• Data Encryption

The CyberSWITCH encry p tion option provides da ta e ncryption through th e Data Encryption

Standard (DES) algorithm. DES provides data security for transmissions over the WAN

between e ncryption devices. Options are available for encrypting communications over point-

to-point, frame relay, or Internet-based WANs. For more information, refer to the Encryption

Overview and IP Security discussions.

To activate the data encryption option on the CyberSWITCH, you will need to properly install

and configure the encryption adapter on the system.

• Dial Out Capability

The CyberSWITCH syste m w ill dia l out to rem ote de v ices . Thi s feat ure a llo ws the sys t em to

accept u ser data rec ei ved on t he Et he rnet LAN o r IS DN n etwo rk a nd i niti ate a d ata co nnec tion

to the remote device specified in the user data. This allows devices on the local LAN to initiate

connection s to netw o rk s co n n e ct e d to th e system over th e sw i tc h e d d ig ital ne tw ork. Th e

system monitors the connection for utilization and will remove the connection when it becomes

idle.

• Digital Modem

The CyberSWITCH’s dig ital mo d e m capa bilit y all ow s ana lo g mode m s to be inter mix ed with

ISDN, as required, to best fi t specific networking needs. The d i gital mo dem adapter combines

both hardware and so ftware el ements to s upport a number of modems on a sin gle boa rd (from

eight V.34 modems to t hirty K56Flex modems, depending upon adapter model). The digital

modem feature conform s to the V.90 standa rd.

• Dynamic Management

Manage Mode provides a “real-time” managemen t mechanism that allows many sys tem

paramet e rs to be changed wi thout inter ru p ting the current execution state of th e system

software. This featur e consists of a ser ies of console commands that enable a user to display

current system par a m et e rs , ch an g e ma n y p ar a m et e rs dyn a m ically, an d write changes to di s k

files so that they remain perm ane nt.

• High Speed Digital Connections

The CyberSWITCH system supports 56Kbps and 64Kbps connections to remote locations.

These dial-up digital connections provide reliable high throughput connections for efficient

data transfer for the same cost as analog connection s . If any remote devices connected to the

system support multi-link PPP, up to 32 parallel connections can be made at either 56Kbps or

64Kbps.

• IP Filters

IP filters allow you to control the transmission of individual IP packets based on the packet

type. You can specify packet type by IP address (source or destination) or by IP protocol (TCP,

UDP, ICMP).

Once you specify a packet type, two forms of IP filtering are available:

• Forwarding Filters, applied at discrete points of the IP processing path to determine if a
packet continues its normal processing, and a

• Connection Filter, which determines if an IP packet requiring a WAN connection may con­tinue.

Central Site Remote Access Switch 33

THE C

YBER

SWITCH

Unique System Features

•IP Security
The Cy b erS WITC H e ncrypti on option implem e n ts En c apsulating Se cu r i ty P a y load (ES P )
protocol. ESP allows you to use Cy b e rSWITCH nodes to implement a Secure Wide Area
Network usi ng the Intern e t as a b ackbone. ESP provides confidentiality of data transmissions
using encryption to assure that pack ets intercepted during transit through the in ter n et c an not
be interpreted.

The CyberSWITCH encryption option supports ESP Tunnel mode, in which an entire IP
datagram (includ ing its header) is encrypted and place d in a new IP datagram. This option
provides the flexibility to choose which IP addresses must be sent encrypted data, and which
may receive plain (unencrypted) data. The CyberSWITCH encryption option provides WAN
connectivity for up to 92 B channels (with PRI and/or BRI connections).

• Link Layer Encryption
The CyberSWITCH also provides the ability to do encryption at the PPP layer usin g Encryption
Contr ol Protocol with comp atible de vices.

• Multiple MAC/IP Addresses
This featu re allow s two or more nod es to back up each other th rough th e use of the Connecti on
Services Manager (CSM).

With this feature, two or more identically configured CyberSWITCH nodes on the same LAN
can be monitored by CSM. Should CSM notice some con di tion which precludes one of the
CyberSWITCH no des from proper ly p erfo rming its fun ctio n, it will orde r the other
CyberSWITCH node to take over the other’s duties by taking on its iden tity (i.e., its MAC an d
IP addresses).

•Packet Capture
In order to monitor incoming LAN data, the CyberSWITCH packet capture feature will allow
you to capture, display, save, and load bridged or routed data packets.

• Protocol Discrimination
It is possible for multiple types of remote devices to use the same line. The system can
determine the device type and the protocol encapsulation used by remote devices.

• RS232 Port: Dual Usage
If your installation requires you to process PPP-Async data, this feature allows you to use the
RS232 port for either console acc ess or a serial data connection. This dual usage is possible
through th e CyberSWITCH’s support of Autosense mode (th e system default) and Terminal
mode:

• Autosense mode determines whether you are trying to connect using a VT emulation or PPP-

Async, and connects you appropriately. (VT emulation requires you to perform four car­riage returns to receive a login prompt.)

• Terminal mode assumes that you o nly wa nt to conne ct u sing VT e mulati on. A log in promp t

is displayed as soon as the connec tion is made.

•Security
Security is a key issue for all central site network mana gers and is a priority with the
CyberSWITCHs. The products provide high level features that help prevent unauthorized or
inadvertent access to critica l data and resources . They support extensive security levels
including:

• PPP PAP and CHAP

USER’S GUIDE

34 CyberSWITCH

• User n a me a n d pa ssword

• Calling Line ID (CLID)

• Ethernet Address

• User Authentication

• Device Authentication

• Connectio n Services Manager (CSM)

• TACACS Client with Radius Server

•RADIUS

• Security Dynamic’s A CE/SecurID

• Server Support
The CyberSWITCH supports both Authentication and Accounting Servers. Authentication
Servers provide a central database for networks with more than one CyberSWITCH . Th e
central database consists of manag e ab le, info rmational data (referred to as the Device List or
Device Ta b l e ). T hi s da ta i s a cc e ss e d a nd use d for au the ntica tio n when a new connec t i on is
established to the system.

The CyberSWITCH also supports a RADIUS Accounting Serve r to maintain accounting
information, such as length of connec tion s. This capability should be especially useful to
Internet Service Providers.

• Simultaneous Connections
The CyberSW ITCH system supp orts simult a neo us connec t ion s to mult iple loc a tions . These
locations can connect by using different channels on the same line, or they can connect on
different lines. This pooling of lines among many potential locations is more cost effective than
alternative point-to-point lines.

INTEROPERABILITY OVERVIEW

“Interoperability” is the ability to operate and exchange information in a heterogeneous network.
The CyberSWITCH supports interoperability with many different remote devices over ISDN.

INTEROPERABILITY PROTOCOLS

In order to commun icate wi th vari ous remot e devic es over I SDN, the CyberSWI TCH must i dentif y
the device type and the protocol it is using.

The CyberSWITCH supports the following line protocols:

• HDLC Ethernet Frames

• Ordered Protocol for Ethernet Frames

• RFC1294 Based Encapsulation for IP Datagrams

• Point-to-Point Protocol (PPP) Encapsulation for IP Datagrams

The CyberSWITCH supports the following encr yption protocols:

• Encapsulating Security Payload Proto col (ESP)

• Encryption Co ntro l Protoc ol (EC P)

The CyberSWITCH supports the following PPP protocols:

• Link Control Protocol ( LCP)

• Multilink Protocol (MLP)

Central Site Remote Access Switch 35

THE C

YBER

SWITCH

Interoperability Overview

• Authentication Protocols

Challenge Handshake Authen tication Protocol (CHAP)
Password Authentication Protocol (PAP)

• Network Con trol Protocols (NCP)

Interne t P rotocol Control Protocol for TCP/IP (IPCP)
Intern e t work Packet Exchange Co ntrol Protocol for IPX (I PXCP)
Bridge Control Pro toc ol for bridg es (BCP)

• Compressi on Control Pr otocol (CCP)

• AppleTalk Control Protocol (ATCP)

The CyberSWITCH supports the fo llowing AppleTalk protocols:

• EtherTalk Link Access Protocol (ELAP)

• AppleTalk Address Resoluti on Protocol (AARP)

• PPP AppleTalk/AppleTalk Control Protocol (ATCP)

• Datagram Delivery Protoco l (DDP )

• Routing Tab le Maintenance P rotocol (RTMP)

• AppleTalk Echo Protocol (AEP)

• Name Binding Protocol (NBP)

• Zone Inform ation Protocol (ZIP)

INTEROPERABILITY DEVICES

Remote devi ces that may connect to the Cybe rSWITCH include the following:

• MAC Lay er Bridges

•IP Host Devices

• IP Router Dev ices

• IPX Route rs

• AppleTalk Routers

MAC layer bridge s connec t to the syste m using the HD LC bridge encap sula tion line p rotoc ol .
These devi ces send transpar ently bridged E therne t frames to the sy stem. MAC layer br idges do not
process ne twork layer protocols. The y forward all packets based on source and destinati on MAC
addresses.

IP Host devices are single workstations or PCs that co nne ct to the system at the IP network layer.
These devices use either the RFC1294 based protocol or PPP to communicate with the system.

IP router devices are single devices that represent many ot her IP hosts and ro uters to the syste m.
They must use the CHAP or PAP protocol to identif y themselves to the system. IP routers usually
provide IP network address information at connection time (and use PPP to send user data to the
system).

IPX routers are single devices that perform network layer tasks (addressing, routing, and
switchin g) to move packet s from one location on the network to another. IPX routers use the
Internetwork Packet Exchange (IPX) protocol, typical of the NetWare environment.

AppleTalk routers route AppleTalk datagrams based on address information. They support the
following protocols: RTMP, NBP, and ZIP.

USER’S GUIDE

36 CyberSWITCH

ENCRYPTION OVERVIEW

Cabletron’s encryption options provide two popular approaches for encrypting WAN
communica tions, each with di stinct advantag es i n certai n appli cations . The se opti ons are: Netwo rk
Layer Encryption and Link Layer Encryption.

NETWORK LAYER

Cabletron’s Network Layer Encryption is an IP Security-based form of encryption. IP Security
(IPSec) can potentially reside in many devices within the network. Since IPSec is specific to IP, data
must be cont ained in an IP d ata gram in o rder for en crypt ion to take pla ce. Th is also imp lies that an
IPSec-compliant switch or router must perform network-layer routing. A device which does not
perform network-layer proce ssing (such as a pure bridge) will not be capable of IPSec-ba s ed
encryption. Non-IP protocols su ch as IPX and AppleTalk mu st be encapsulated within IP in order
to take advantage of IPSec.

IPSec is primarily aimed at providing secure communications across IP networks such as the
Interne t . Data can trave rse multiple intermediate (untrusted) nodes (such as Internet backbone
routers) while still ensuring strong data security. But it can also be applied in point-to-point
networks where the layer-3 protocol is IP (for example, IP transported across the WAN using PPP).

Network-layer encryption works as follows:
IP datagrams transmitte d from one LAN to another LAN funnel through a CyberSWITCH node
where they are encrypted and encapsulated. The destination address on the encapsulated
datagram is that of the C yberSWITCH node servicing the other trusted subnet.

When the IP datagram reache s the destination CyberSWITCH node, the Encapsulating Security
Payload (ESP) header is remo ve d, the ESP payload is decrypted , an d th e original IP datagram is
forwarded to its original des tin atio n.

CyberSWI TCH encry ption requir es a dditional Security Associati on information that can be supplied
through CFGEDIT. Each security association identifies a range of IP addresses, encryption
parameters to be used to encrypt communications to those IP addresses, and the IP address of the
peer CyberSWITCH (or other ESP node) responsible for decrypting the communications. The peer
will have knowledge of the same security association.

Security associations between peer CyberSWITCH nodes are identified by a Sec urity Parameter
Index (SPI), which is a 32-bit number. The SPI is transmitted in the ESP header and is used by the
peer CyberSWITCH node to identify the necessary information to decrypt the E SP payload.

IP datagrams to these IP destination addresses are encrypted and encapsulated with an ESP header.
The ESP header indicates a destination address of an intermediate CyberSWITCH node which will
be responsible for decrypting and decapsulating these packets before sending them on to their
intended destination.

LINK LAYER

Link layer encryption occurs at layer 2 of the ISO networking model. In the case of a WAN, PPP
acts as a lay e r 2 p rotocol. Encryption C ontrol Protocol (ECP) serves to handle encryption of a PPP
datagram.

Central Site Remote Access Switch 37

THE C

YBER

SWITCH

Security Overview

Link layer encryption is in dependent of any network layer protocols . Sin ce PPP provides t ransport
of IP, IPX, AppleTalk, and other protocols, link layer encryption based on ECP provides multi­protocol e ncrypti on by def ault. Dev ices im plementin g it can act as router s or brid ges, as l ong as the
underlying WAN protocol is PPP.

To use link layer encryption, the co nnection between encrypting and decrypting devices must truly
be point-to-point. This includes ISD N dial-up connec tions, or point-to-point dedicated lin e s.

SECURITY OVERVIEW

The system provides several options for validating remote devices and for managing network
security. The security options available are dependen t on the remote device type, type of access ,
and the level of security required.

Levels of security include no security, device level security, user level security, and multi-level
security. Device level security is an authentication process between devices, based on protocol and
preconfigured information. Sec urity information is configured either in the system’s On-node
Device Dat abase, or in a ce ntral database such CSM. Here the network administrato r sp e cifies all
of the security information for each individual user. A portion of this information is used to identify
the remote device. The remain ing data is used to perfor m user valida tio n after user iden tifica tion
has been completed.

User level security is an interactive process. It is currently supported on the system through the
TACACS or ACE server programmed for use with security to ken cards. With user leve l security,

the potential network user explicitly connects to the server and must properly “converse” with it
in orde r to co n ne c t with othe r devic e s b ey o n d the serv er .

Import ant to user level authentication is th e se curity token card. Th is card, programmed in
conjun ction with the authentication server, gene rates random passwords. These passwords must
be supplied correctly at syst em login tim e, or acces s to the networ k will be den ied. The secur ity
token cards should be issu e d to each user on the network to properly maintain system inte grity.

Multi-level security provides device level security for all remote devices. Individual devices may
be configu red for user level authentication as well. In this case , device l e ve l authentication takes
place between the system and the remote device. Then a specific user must initiate user level
authentication by sta rting a Telnet session. Both levels of authentication must b e satisfied before
traff ic can pass.

NETWORK INTERFACE OVERVIEW

The network interface is the physical connection of the CyberSWITCH to a data network. For
example, the Ethernet resource in the system provides a net work interface to an Ethernet LAN. The
ISDN lines in th e s yste m prov i de netw ork i nter fac es t o mu ltip le r emote net wor ks. Beca use of th eir
switched nature, the ISDN lines provide virtual network interfaces. That is, the same physical ISDN
line can actually c onnect to different remote networks by d ialing a different phone number.

The CyberSWITCH provides a set of network interfaces that give you a wide range of flexibility.
The network interfaces provided by the system are:

• LAN IP Network Interface

• LAN IPX Network Interface

USER’S GUIDE

38 CyberSWITCH

• WAN IP Network Inte rface

• WAN (Direct Host) IP Network Interface

• WAN RLAN IP N etwork Interface

• WAN RLAN IPX Network Interface

• WAN (UnNumbered) Network Interface

The variety of ne twork interfaces allows the install a tion of a wide ra nge of devices at re mote sites.
As illustrated below, you can simultaneously choose bridges, routers, or host devices based on the
speci f ic re mote site requ i r e ments.

In the diagram above, t he LAN Interface 128.1. 1.1 is attach ed to the IP network 128. 1.0.0. The WAN
Direct Host Int erface represent s LAN Interface 128. 1.1.1 and all ows the remote IP h osts to share the
network address space of 128.1.0.0. The WAN Interface 192.1.1.1 is logically attached to the IP
network 192.1.1.0. The RLAN Interface 100.1.1.1 is logically attached to the IP network 100.1.1.0.

SYSTEM COMPONENTS

The majo r co m p o ne nt s of th e CyberSWI TCH are:

• System hardware consisting of a platform, an administration port provided by the platform,
and adapters.

• System software spec ific to the CyberSWITCH, adapter modules, and administration
function s.

• Administration software that provides configuration, diagnostics and maintenance on the
system.

• System files containing configuration and operational information.

• Remote I S DN devices wh ich inter op e rate with the system and allo w device access to n e twork
resources.

ISDN

128.1.1.2
Host

128.1.1.3
Host

192.1.1.2
Host

(or Router)

192.1.1.3

CyberSWITCH

100.1.1.2

206.32.11.0

206.32.11.1

Remote

Bridge

Remote

Bridge

100.1.1.3

WAN Direct Host

Interface

LAN Interface 128.1.1.1

RLAN

100.1.1.1

WAN

Interface

192.1.1.1

CSX5500

B25B27

B26B28

WORKGROUP REMOTE ACCESS SWITCH

B29

E1 ONLYB-CHANNELS

LAN

10BASE-TRXTXSERVICE

B31

B30L1

B21B23

B22B24

B17B19

B18B20

B13B15

B14B16

E1DT1

D

B9B11

B10B12

B5 B7

B6 B8

B1 B3

B2 B4

POWER

Central Site Remote Access Switch 39

THE C

YBER

SWITCH

Remote ISDN Devices

More deta iled desc ripti ons of sy stem so ftware an d hardwar e are included in the nex t two chap ters .
The following section describes remote ISDN devices.

REMOTE ISDN DEVICES

The CyberSWITCH provides a centralized concentrator function for remote ISDN devices. The
devices can be separated into the following categories:

• remote ISDN bridge devices

• PC based terminal adapters

• ISDN enabled workstations

• other ISDN routers

Typical remote ISDN bridges provide one Ethernet port and one basic rate ISDN port. The basic
rate port is connected to the switched digital network and is used to make connections to the
CyberSWITCH. The Ethernet port is used to connect to a remote LAN. The remote bridge device
sends Ethernet frame s from device s on the remote LA N over the switched network .

PC-based terminal adapte rs connect to a remote personal compute r an d us e the switche d d igital
network to con nect to the system. The termina l ad ap te r sends network protocol specific frames
from the host PC device over the switched network.

Workstat ion-based terminal adapter s connect to a work station and use the switched digi tal
network to con nect to the system. The termina l ad ap te r sends network protocol specific frames
from the wor kstation over the switched network.

USER’S GUIDE

40 CyberSWITCH

SWITCHES SUPPORTED

Switch types supported by the CyberSWITCH’s basic rate and primary rate ISDN adapters:

Switch support may vary from country to country. Use the following as a guideline:

Type of Switch Basic Rate Primary Rate

AT&T #4ESS NA Yes
AT&T #5ESS Yes Yes

AT&T Definity Yes Yes

AT&T Legend Yes NA

NET3 Yes NA

NET5 NA Yes
NT DMS 100 Yes Yes
NT DMS 250 NA Yes
NT DMS 500 NA Yes

NT SL-100 Yes Yes

NTT Yes Yes

NI-1 Yes NA
TS013 Yes NA
TS014 NA Yes

1TR6 Yes Yes

Country Switches supported

(BRI lines)

Switches supported

(PRI lines)

Australia TS013

NET3

TS014
NET5

Germany 1TR6

NET3

1TR6

NET5

Japan NTT NTT

United States AT&T 5ESS

AT&T Definity

AT&T Legend

NT DMS 100

NI-1

AT&T 4ESS
AT&T 5ESS

AT&T Definity

NT DMS 100
NT DMS 250
NT DMS 500

NT SL-100

International NET3 NET5

H

ARDWARE OVERVIEW

The product you have purchased is integrated on the following platforms: the CSX5500, CSX6000,
and CSX7000. Through the use of adapters, these platforms support remote routing and bridging
of local area netw orks using ISDN BRI or PRI services. Options also i nclude V.35, RS232, encryption
adapters, and Digit al Modem connections.

This chapt er pro vides a descri ption of system p latfor ms and adapters . We al so includ e desc riptio ns
of sever al products th at we support that were produced by Network Express.

SYSTEM PLATFORMS

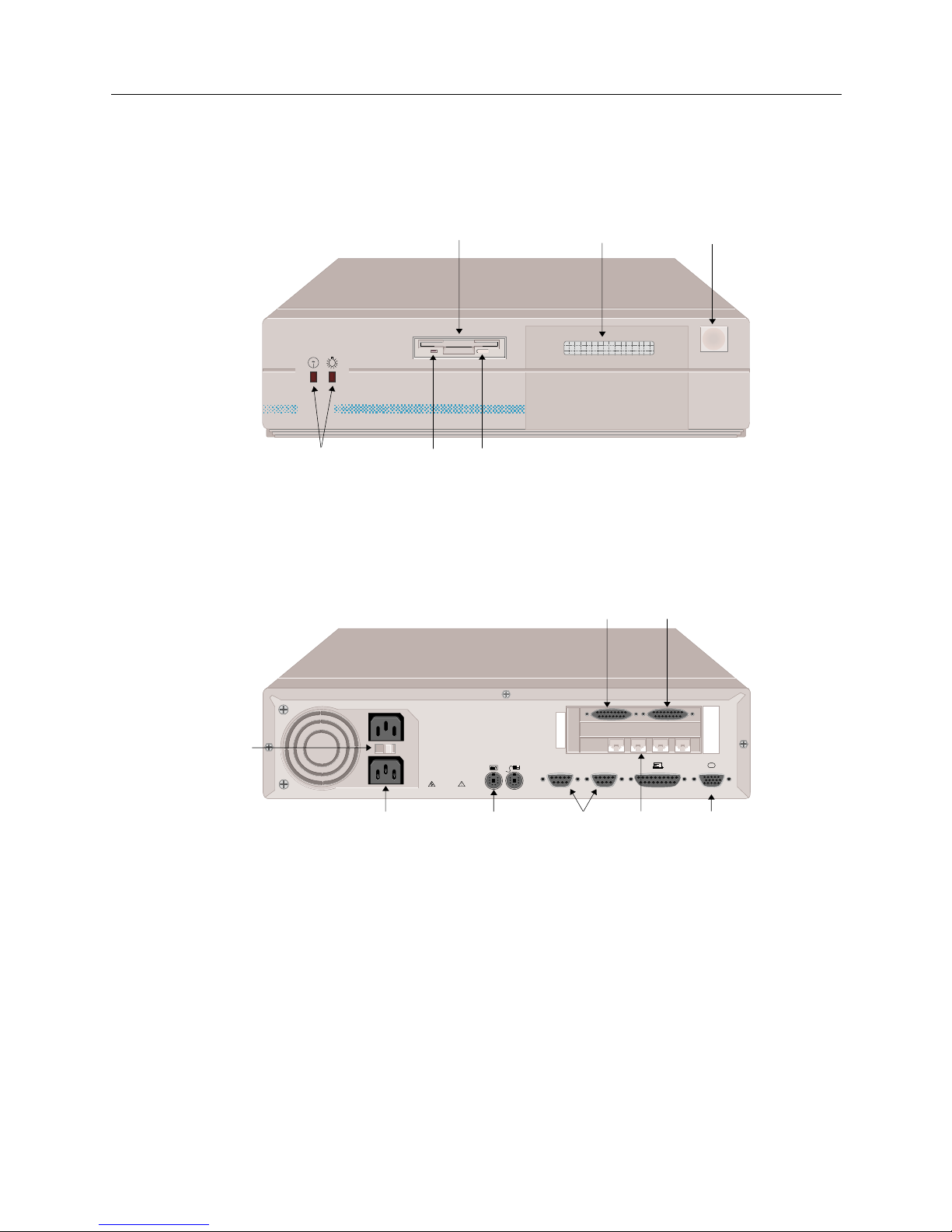

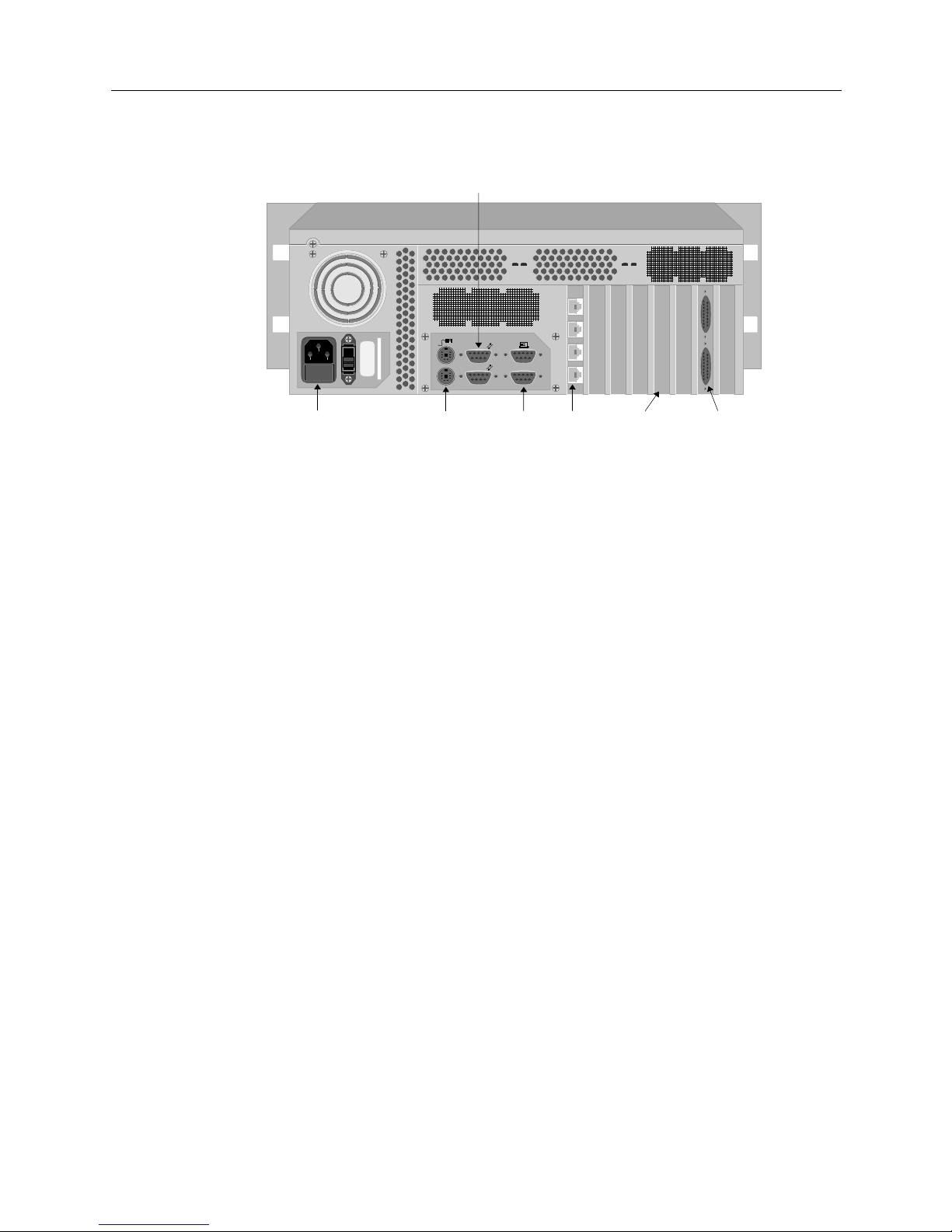

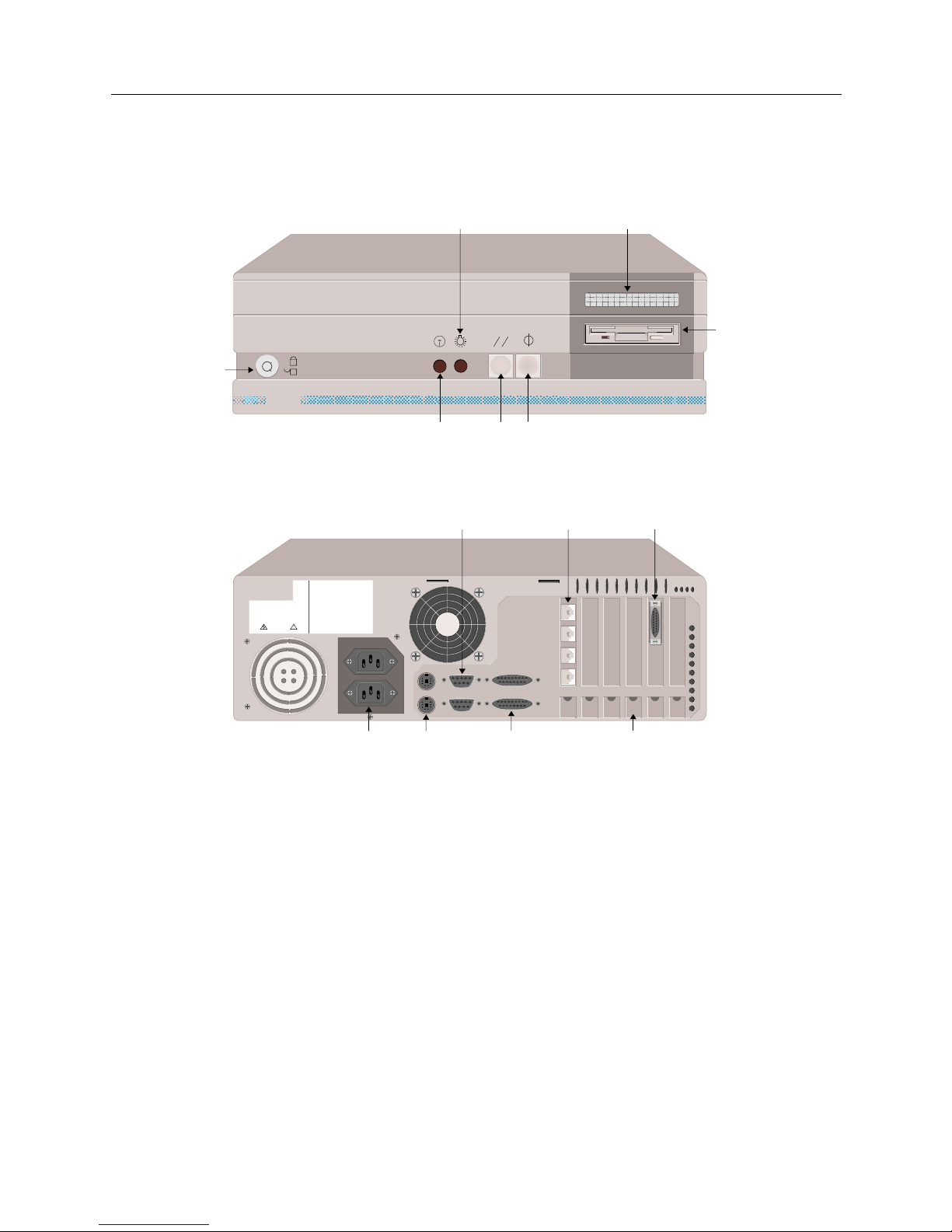

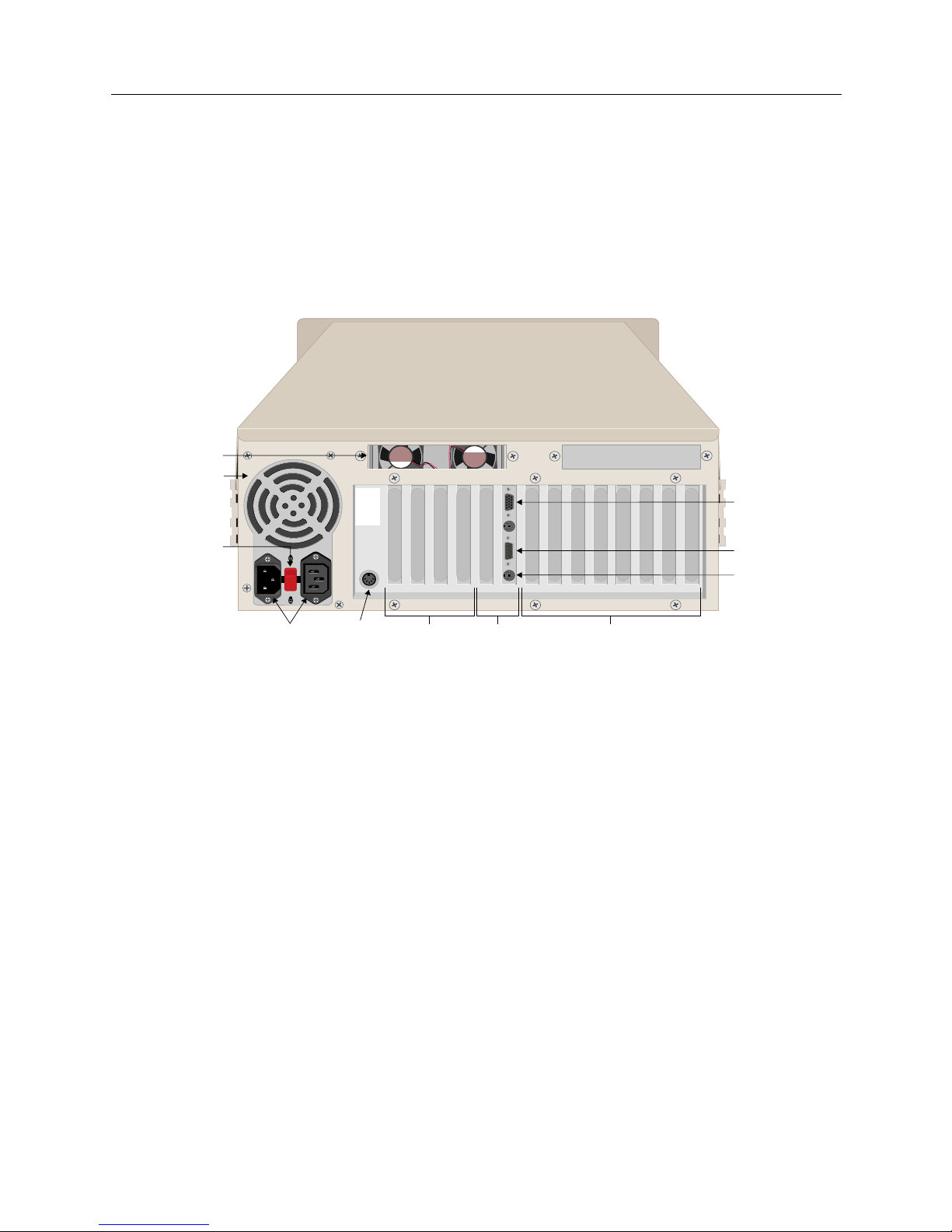

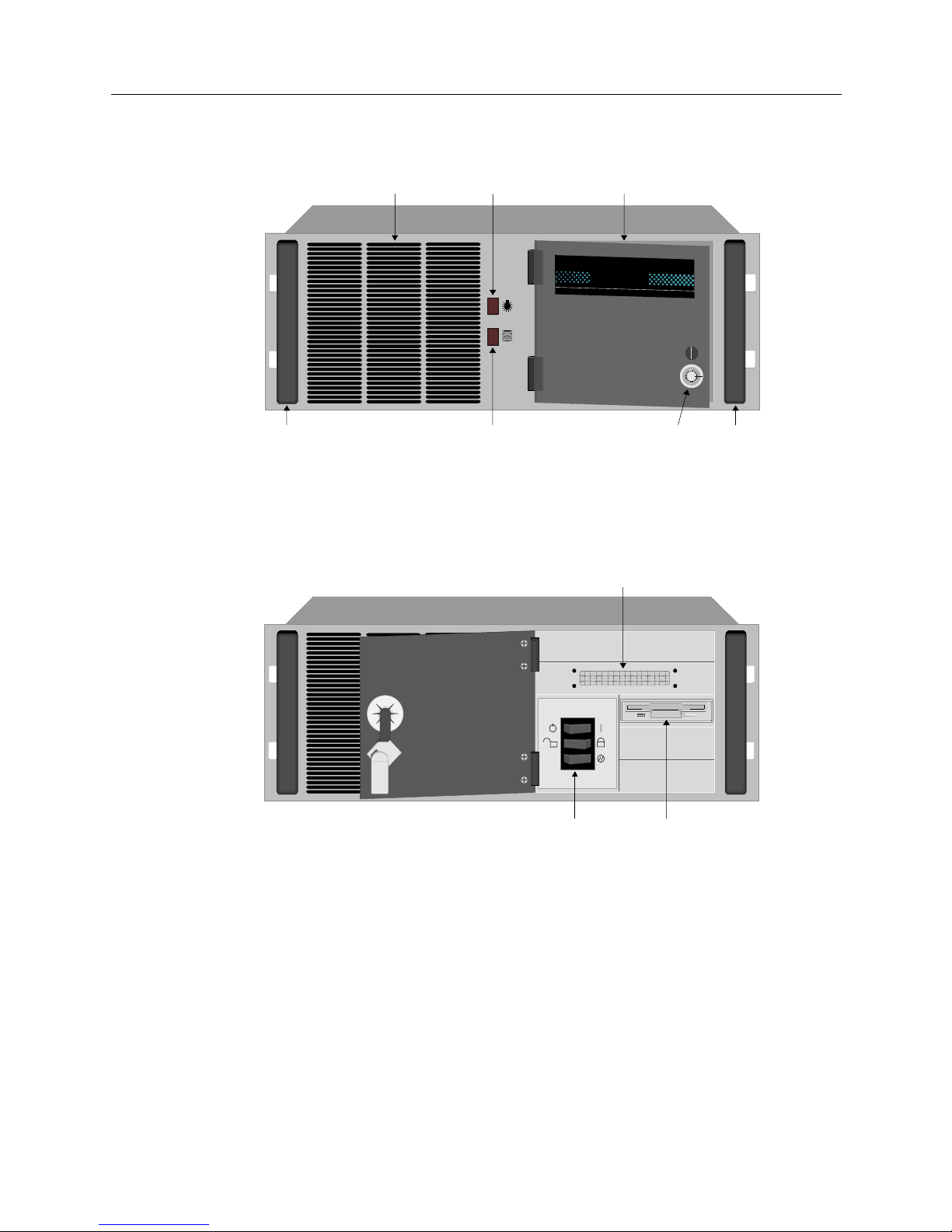

The CyberSWITCH consists of a main proce ssor and system memory. The type of p rocessor and
the number of available slots vary by model. (See table.) The front of the platform has a diskette
drive, control buttons, LED indicators and an LCD display. Connect ors for the power, the LAN,
and the network ar e all loc ated o n the bac k of the chassi s. Ad ministr ation po rts fo r local and re mote
administration console attachments are also located on the back of th e chassis.

Platform Number of

Slots

Main

Processor

Speed

CSX5500 6 Pentium 133 MHz
CSX6000 8 Pentium 90 MHz
CSX7000 16 Pentium 133 MHz

NE 2000-II 3 i486 25 MHz

NE 4000 6 i486 33 MHz
NE 5000 8 i486 66 MHz

USER’S GUIDE

42 CyberSWITCH

THE CSX5500

PLATFORM DESCRIPTION

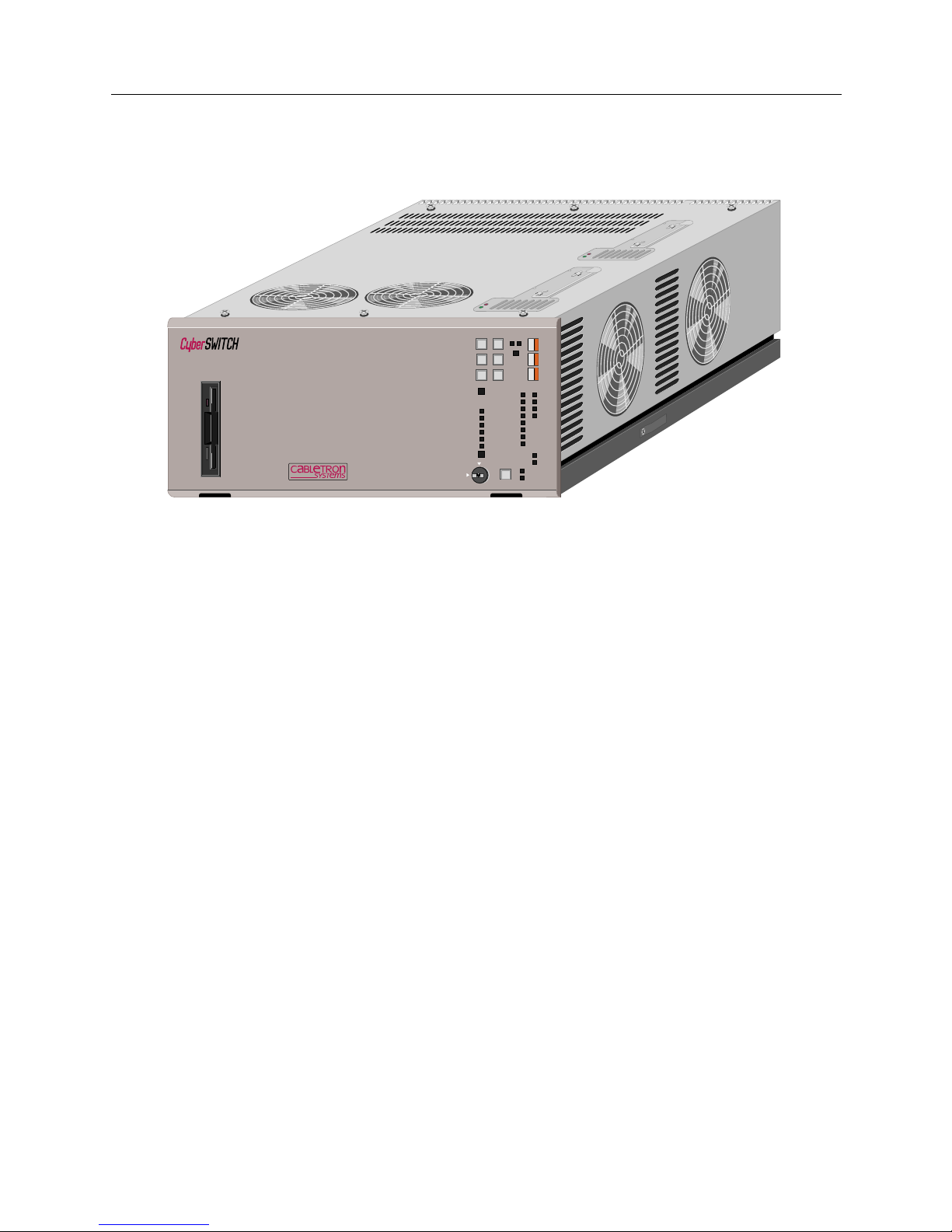

The CSX5500 is a high c apacity, central site communications platform. This platform is a LAN/
WAN bridge /route r b uil t t o acco mmod ate mul tip le WAN t ech nol ogi es. It supp orts up to 16 ISDN
BRI ports or 4 PRI ports, 2 di gital mo dem card s, V.35, Fr ame Rel ay and Dedicated Lines servi ces. It
supports TCP/IP, IPX, and AppleTalk, as well as ML-PPP and compression. It has single or dual
port Ethernet capability. The CSX5500 utilizes a CPU with 133 MHz Pentium processing.

Air Filter

3.5" Diskette Drive

Diskette
Release

Diskette Drive

Activity

Indicator

Power
On/Off

Reset Button

HDD POWER

RESET

TM

Power & Activity

Indicators

Air Intake

Grill

Keyboard Connector

(auxillary)

Door

Latch & Lock

Rack

Mounting

Plates

5500

TM

5500

TM

Central Site Remote Access Switch 43

H

ARDWARE OVERVIEW

System Platforms

The CSX5500 is a rack-mountable platform. The front panel has an air-intake grill, an auxiliary
keyboard jack, and a peripheral access door, which may be latched. The activity indicators for
power-o n and disk activity, diske t te drive, and control bu ttons are located behind the access door.

The back of th e chassis has mountings for a RS- 232 serial port, and connectors for a k e yboard and
monitor. The chassis has eight ISA slots for LAN and WA N adapters. However, because of power
and cooling restr ictions , we limit the number of usable ad apter sl ots to fiv e (one for a LAN adapter ,
and up to four for WAN adapters).

C

LEANING THE CSX5500 A IR FILTER

The CSX5500 has a removable air filter. This filter is provided to ensure system cleanliness and
stability in dusty operating environments. The filter is located just behind the left side of the

chassis ’ front pa nel. F or best performa nce (and as an al ternati ve to rep lacemen t) regul arly wa sh the
filter in warm water and a mild detergent.

Before removing the air filter for cleaning, read the following warning and caution notes.

WARNING

Before removing th e air filter f or cl eaning, ens ure that t he sy stem is po wered off and the po wer
cord is unplugged from the power source. Note th at the Power ON/OF F switch does not
disconnect the power fr om the system. Failure to unplug the power cord can result in serious
injury or equipment damage.

CAUTION

An electrostatic discharge (ESD) can damage your system. We recommend that you perform
this procedure only at an ESD workstat ion . If such a workstation is unavailable, pr ovide some
ESD protection by wearing an antistatic wrist strap attached to chassis ground when handling
components.

115

PCI slots for

Future Use

For

CPUs

ISA slots for LAN & WAN

Adapters

Power

Supply

Fan

Line Voltage

Selector

Switch

AC Power

In/Out

Video

Connector

Com1

Connector

Keyboard

Connector

Auxillary

Ke

y

board

Exhaust

Fans

USER’S GUIDE

44 CyberSWITCH

To clean the air filter:

1. Power down the system and disconnect the system ’s p ower cord from the power sou rce.

2. Open the do or located on the right side of t he front chassis.

3. Once the door is opened, you can slide the air f ilter out from the left side of the chass is.

4. Once removed, clean the filter by washing it in warm water and a mild detergent. Make sure it
is completely dry before you place it back in the system.

5. Slide the filter back into place.

6. Close the ch assis door.

7. Reconnect the power cord and power up the system.

P

LATFORM CHARACTERISTICS

Physical Char acteristics

Height: 171.5 mm (6.86 in)
Width: 430 mm (17.2 in)
Depth: 483 mm (19.32 in)
Weight: 18 kg maximum (40 lb . maximum )

Environmental Characteristi cs

Operating Temp: 0° to 55° C (32° to 131° F)
Operating Humidity: 5 to 95% non- condensing
Operating Altitude: 3048 m maximum (10,000 ft maximum)
Non-operating Shock: 40 G, 11 ms 1/2 sine wave
Storage Temperature: 0° to 70° C (32° to 158° F)

Electrical AC Power Input

Voltage: 90 - 120 V Current:5 A
Voltage: 180 - 265 V Current:4 A
Frequency: 47 - 63 Hz

Regulatory Compliance

Meets or exceeds the following:
Safety: UL 1950, CSA C22.2 No. 950, EN 60950, IEC 950,

and 72/23/EEC

EMI: FCC Part 15, EN 55022, CSA 108.8, EN 50082-1,

VCCI V-3, and 89/336/EEC

Rack Mounting:

475 mm (19 inch) Industrial Rack Mount C hassis meets EIA RS-310C standard

Central Site Remote Access Switch 45

H

ARDWARE OVERVIEW

System Platforms

CAUTION FOR DC-POWERED CSX5500S

• Conn ec t to a reliably-g ro u nd e d SE LV so u r ce .

• Use branch circuit overcurrent protection rated at 15A only.

• Use 12 or 14 AWG conductors only.

• Incorporate a readily-accessible disconnect device in the field wiring that is suitably ap-

proved and rated.

• Install in a restr icted acce ss area in accordance with the NEC or the authority having juris-

diction.

To reduce the risk of electrical shock or energy hazards:

!

CAUTION

USER’S GUIDE

46 CyberSWITCH

THE CSX6000

PLATFORM DESCRIPTION

The CSX6000 is a high density, modular, central-site communications platform. It utilizes a built in
CPU with 90 MHz Pentium p rocessing.

The CSX6000 is a rack-mountable platform. The front panel has the act ivity indicators for power­on and disk activity, an air-intake grill, and a peripheral access door, which may be latched or
locked clo sed. The diske tte drive, control butto ns, and an LCD di splay are loca ted behind the acc ess
door. On the back of the chassis, the rear panel has mountings for a RS-232 serial port, and
connectors for a keyboard and monitor.

The CPU is located in the center of the chassis in the one ISA + PCI slot (labe lle d slot 1 in the back
panel illustration). There are nine additional ISA sl ots for adapter s to the right of the CPU board.
However, be cause of pow er and cool in g r est rict i ons, w e li mit t he n umbe r o f u s able adapt e r sl ot s to
seven (one for a LAN adapter, and up to six for WAN adapters).

A
M
P

A
M
P

Keyboard

Connector

Circuit

Breakers

Power Input

Socket

Z

Slot 1

Central Site Remote Access Switch 47

H

ARDWARE OVERVIEW

System Platforms

CLEANING THE CS X6000 AIR FILTER

The CSX6000 has a removable air filter. This filter is provided to ensure system cleanliness and

stability in dusty operating environments. The filter is located just behind the chassis’ front panel.
For best performance (and as an alternative to replacement) regularly wash the filter in warm water
and a mild detergent.

Before removing the air filter for cleaning, read the following warning and caution notes.

WARNING

Before removing th e air filter f or cl eaning, ens ure that t he sy stem is po wered off and the po wer
cord is unplugged from the power source. Note th at the Power ON/OF F switch does not
disconnect the power fr om the system. Failure to unplug the power cord can result in serious
injury or equipment damage.

CAUTION

An electrostatic discharge (ESD) can damage your system. We recommend that you perform
this procedure only at an ESD workstat ion . If such a workstation is unavailable, pr ovide some
ESD protection by wearing an antistatic wrist strap attached to chassis ground when handling
components.

To clean the air filter:

1. Power down the system and disconnect the s y stem’s power cord from the power source.

2. Tur n the f ou r q u a rt er - turn scre w s se cu r i ng th e fr o nt panel to th e c ha s si s .

3. Remove the front panel to access the fan filter.

4. Remove the f an filter.

5. Once removed, clean the filter by washing it in warm water and a mild detergent. Make sure it
is completely dry before you place it back in the system.

6. Reposition the filter and the front pane l.

7. Tighten the four front pane l quarter-turn screws.

8. Reconnect the power cord and power up the system.

P

LATFORM CHARACTERISTICS

Physical Char acteristics

Height: 178 mm (7.0 in)
Width: 482.6 mm (19.0 in)
Depth: 558.8 mm (22 in)
Weight: 18 kg maximum (40 lb. maximum)

USER’S GUIDE

48 CyberSWITCH

Environmental Characteristi cs

Operating Temp: 0° to 55° C (32° to 131° F)
Operating Humidity: 5 to 95% non- condensing
Operating Altitude: 3048 m maximum (10,000 ft maximum)
Non-operating Shock: 40 G, 11 ms 1/2 sine wave
Storage Temperature: 0° to 70° C (32° to 158° F)

Electrical AC Power Input

Voltage: 90 - 120 V Current:5 A
Voltage: 180 - 265 V Current:4 A
Frequency: 47 - 63 Hz

Regulatory Compliance

Meets or exceeds the following:
Safety: UL 1950, CSA C22.2 No. 950, EN 60950, IEC 950,

and 72/23/EEC

EMI: FCC Part 15, EN 55022, CSA 108.8, EN 50082-1,

VCCI V-3, and 89/336/EEC

C

AUTION FOR DC-POWERED CSX6000S

• Conn ec t to a reliably-g ro u nd e d SE LV so u r ce .

• Use branch circuit overcurrent protection rated at 15A only.

• Use 12 or 14 AWG conductors only.

• Incorporate a readily-accessible disconnect device in the field wiring that is suitably ap-

proved and rated.

• Install in a restr icted acce ss area in accordance with the NEC or the authority having juris-

diction.

To reduce the risk of electrical shock or energy hazards:

!

CAUTION

Central Site Remote Access Switch 49

H

ARDWARE OVERVIEW

System Platforms

THE CSX7000

PLATFORM DESCRIPTION

The CSX7000 is designe d for larg e, central sites and Intern et Service Providers. It is a high
availability, remote access switch that offers modularity and flexibility for these large sites.

The CSX7000 co nsists of a platform, processor modules, and an Environmental Management System
Module, and includes environmental management of one or more platforms. It is ca pable of

containing multiple process or modules (for backup or additio nal line capacity) in the platform’s 16­slot backplane. The CSX7000 may also support other servers, including authentication servers.

Currently, a single CSX7000 platform supports a maximum of four proc essor modules (or system
groups) at a t ime. Each sys tem grou p suppo rts a max imum of one Pr ocessor Module card , one LAN,
and six WAN cards. ( Of course, four fully-maxi mized system groups would not fit into the 16-sl ot
backplane). Up to 31 CSX7000 platforms may be daisy-chained together to form a cluster.

Because of its unique platform feat ures, the CSX 7 000 is descr ibe d in furt her det ail in the CSX7000
Guide.

P

LATFORM CHARACTERISTICS

Environmental Characteristi cs

Operating Temperatu re: 0° to 45° C (32° to 113° F)

Storage Temperature: -20°+70°C

Operating Humidity: 20 -85% non-condensing
Operating Altitude: Up to 3048 m max (10,000 ft max.)
Non-operating Shock: 40 G, 11 ms

GROUP PWR

ON OFF

BC GROUP

MULTIPORT BOARD

MP SERIAL PORT

BC RESET

PWR SUPPLY 1
PWR SUPPLY 2

FANS

DATA HIGHWAY

SUBSYSTEM FAULT

ENVIROMENTAL ALLERT

AUDIBLE CLEAR

TRANSMIT

RECIEVE
CARRIER

DTR
DSR

RING

RTS
CTS

LAN ATTATCHED

DISK ACTIVITY

ENABLED
DISABLED

VIDEO SELECT

UNLOCK

LOCK

MP BC

SUBSYSTEM DATA

CONSOLE

7000

USER’S GUIDE

50 CyberSWITCH

Physical Char acteristics

Height: 218 mm (8.60 in)
Width: 483 mm (19.0 in)
Depth: 641 mm (25.25 in)
Weight: 36 kg max. (80 lb. max.)

Power Supply Specifications

350 Watt power supply; two versions with different input AC voltages:

• Version 1

AC Input Voltage: 90 to 135 V
AC Input Current: 7.5 A
AC Input Frequency: 47 - 63 Hz

• Version 2

AC Input Voltage: 180 to 264 V
AC Input Current: 4.0 A
AC Input Frequency: 47 to 63 Hz

Regulatory Compliance

Meets or exceeds the following:
Safety: UL 1950, CSA C22.2 No. 950, EN 60950, IEC 950,

and 72/23/EEC

EMI: FCC Part 15, EN 55022, CSA 108.8, EN 50082-1,

VCCI V-3, and 89/336/EEC

Disk Drives

Number of 1/3 height,
IDE disk drives supported: 8

C

AUTION FOR DC-POWERED CSX7000S

• Conn ec t to a reliably-g ro u nd e d SE LV so u r ce .

• Use branch circuit overcurrent protection rated at 15A only.

• Use 12 or 14 AWG conductors only.

• Incorporate a readily-accessible disconnect device in the field wiring that is suitably ap-

proved and rated.

• Install in a restr icted acce ss area in accordance with the NEC or the authority having juris-

diction.

To reduce the risk of electrical shock or energy hazards:

!

CAUTION

Central Site Remote Access Switch 51

H

ARDWARE OVERVIEW

System Platforms

THE NE 2000-II (A NETWORK EXPRESS PLATFORM)

PLATFORM DESCRIPTION

The NE 2000-II platform has t hree slots for adapters. This plat form is small enough in size to be
suitabl e for an office en vironment or to fit into a commu nication s rack. The front has a diskette
drive, control buttons and an LCD display. The display presents continuous status and error
information.

Connectors for the power, the LAN, and the network are all located on the back of the chassis. An
administrati ve port (shown as t he Remote RS232 Port o n th e fi gure), an d por ts for an optio nal loc al
monitor and keyboard are also located on th e b a ck of the chassis.

Express

Network

3.5" Diskette Drive LCD Display

Power
On/Off

Power & Activity

Indicators

Activity

Indicator

Diskette

Release

Front View

Line Voltage

Selector

Switch

A/C Power

In/Out

Keyboard
Connector

Remote

RS232 Ports

BRI-4

Adapters

15 Pin

Monitor Port

Board Slots

1-3

Ethernet-2

Adapters

Back View

AUXILARY

POWER

100-120V 2A 50/60HZ

200-240V 1A 50/60HZ

AC POWER

INLET
100-120V 2A 50/60HZ
200-240V 1A 50/60HZ

WARNING

10101

COM 1

10101

COM 2

VIDEO

LPT

3

LAN

2

AUX

1

WAN

USER’S GUIDE

52 CyberSWITCH

PLATFORM CHARACTERISTICS

Physical Char acteristics

Height: 107 mm (4.2 in)
Width: 437 mm (17.2 in)
Depth: 411 mm (16.2 in)
Weight: 9 kg (20 lb)

Environmental Characteristi cs

Operating Temp: 10° to 35° C (50° to 95° F)
Operating Humidity: 20 - 80% non-condensing
Operating Altitude: 3, 048 m maximum (10,000 ft maximum)
Non-operating Shock: 30 G, 11 ms, 1/2 sinewave

Storage Temperature: 40°o to 70°o C (-40° to 158° F)

Electrical AC Power Input

Voltage: 90 - 132 V Current:5 A
Voltage: 180 - 264 V Current:3 A
Frequency: 47 - 63 Hz

Regulatory Compliance

Meets or exceeds the following:
Safety: UL 1950, CSA C22.2 No. 950, EN 60950, IEC 950,

and 72/23/EEC

EMI: FCC Part 15, EN 55022, CSA 108.8, EN 50082-1,

VCCI V-3, and 89/336/EEC

Central Site Remote Access Switch 53

H

ARDWARE OVERVIEW

System Platforms

THE NE 4000 (A NETWORK EXPRESS PLATFORM)

PLATFORM DESCRIPTION

The NE 4000 platform has six slots for adapters. You can place the platform either on its feet or
standing on a s ide . The f ron t has a d isket te d rive, con trol butto ns an d an LCD d ispl ay. The displ ay
presents conti nuous sta tus and e rror i nformati on. Conn ector s for the p ower, the LAN, T 1 inter face,
BRI, mouse , k eyboard and monitor are all located on the back of the chassis.

P

LATFORM CHARACTERISTICS

Physical Char acteristics

Height: 158 mm (6.22 in)
Width: 439 mm (17.3 in)
Depth: 434 mm (17.08 in)
Weight: 17.23 kg (38 lb)

Express

Network

Front Panel

Lock

Power

Indicator

LCD Diagnostic

Display

3.5" Diskette
Drive

Power
On/Off

Reset

Hard Disk

Access

Indicator

Front View

1 2 3 4 5 6

Remote

RS232 Port

BRI-4

Adapters

Ethernet-1

Adapter

Board Slots

1-6

Video

Connector

Keyboard

Connector

A/C Power

In/Out

Back View

WARNING

USER’S GUIDE

54 CyberSWITCH

Environmental Characteristi cs

Operating Temp: 10° to 35° C (50° to 95° F)
Operating Humidity: 80% non-con densing
Operating Altitude: 3, 048 m maximum (10,000 ft maximum)
Non-operating Shock: 30 G, 11 ms, 1/2 sinewave
Storage Temperature: -40° to 65° C (-40° to 149° F)

Electrical AC Power Input

Voltage: 100 - 120 V Current: 8 A
Voltage: 200 - 240 V Current: 5 A
Frequency: 47 - 63 Hz

Regulatory Compliance

Meets or exceeds the following:
Meets or exceeds the following:
Safety: UL 1950, CSA C22.2 No. 950, EN 60950, IEC 950,

and 72/23/EEC

EMI: FCC Part 15, EN 55022, CSA 108.8, EN 50082-1,

VCCI V-3, and 89/336/EEC

Central Site Remote Access Switch 55

H

ARDWARE OVERVIEW

System Platforms

THE NE 5000 PLATFORM (A NETWORK EXPRESS PLATFORM)

PLATFORM DESCRIPTION

The NE 5000 is a rac k-mountable pl atfor m which pr ovides eig ht slo ts fo r adapte rs. The fr ont panel
has the activity indicators for power-on and disk activity, an air-intake grill, and a peripheral access
door, which may b e latched or loc ked close d. Behind the door is loca te d the diskette drive, control
buttons, and a n LCD display . On th e back of th e chassi s, th e rear pa nel has mounting s for a RS- 232
serial port, and connectors for a keyboard and a monitor.

NE 5000

Network
Express

Front Panel
Door Open

Grill

Light Door

Chassis

Handle

Disk
Light

Door

Latch & Lock

Chassis

Handle

LCD

Display

Power
Keyboard Lock
Reset

3.5" Diskette
Drive

USER’S GUIDE

56 CyberSWITCH

CLEANING THE NE 5000 AIR FILTER

The NE 5000 has a removable air filter. This filter is provided to ensure system cleanliness an d

stability in dusty operating environments. The filter is located just behind the chassis’ front panel.
For best performance (and as an alternative to replacement) regularly wash the filter in warm water
and a mild detergent.

Before removing the air filter for cleaning, read the following warning and caution notes.

WARNING

Before removing th e air filter f or cl eaning, ens ure that t he sy stem is po wered off and the po wer
cord is unplugged from the power source. Note th at the Power ON/OF F switch does not
disconnect the power fr om the system. Failure to unplug the power cord can result in serious
injury or equipment damage.

CAUTION

An electrostatic discharge (ESD) can damage your system. We recommend that you perform
this procedure only at an ESD workstat ion . If such a workstation is unavailable, pr ovide some
ESD protection by wearing an antistatic wrist strap attached to chassis ground when handling
components.

To clean the air filter:

1. Power-down the system and disconnect the system’s power cord from the power source.

2. Remove the sy stem’s top cover.

3. Remove the tw o re taining screws holding the air filter in place.

4. Tilt the filter toward the rear of the chassis and lift the filter up and out of its position.

5. Once removed, you can clean the filter by washing it in warm water and a mild detergent.
Make sure it is completely dry before you place it back in the system .

Back Panel

A/C Power

In/Out

Keyboard

Connector

Remote

RS-232 Port

VGA

Port

BRI-4

Adapter

Slots for
Adapters

Ethernet-2

Adapters

1 2 3 4 5 6 7 8

Central Site Remote Access Switch 57

H

ARDWARE OVERVIEW

System Platforms

6. Insert t he clea n and dry air fil ter bac k into i ts slo t behin d the chas sis fr ont. T ilt the f ilter f orward
into place unti l it is flush against the chassis fr ont panel.

7. Reinstall the two retaining screws along the top lip of the chassis.

8. Replace the sy ste m’s top cover.

9. Reconnect the power cord and power up the system.

P

LATFORM CHARACTERISTICS

Physical Char acteristics

Height: 178 mm (7.0 in)
Width: 432 mm (17.0 in)
Depth: 452 mm (17.8 in)
Weight: 22 kg maximum (44 lb. maximum)

Environmental Characteristi cs

Operating Temp: 0° to 50° C (41° to 122° F)
Operating Humidity: 20 - 85% non-condensing
Operating Altitude: 3048 m maximum (10,000 ft maximum)
Non-operating Shock: 40 G, 11 ms 1/2 sine wave
Storage Temperature: -25° to +70° C (-13° to 158° F)

Electrical AC Power Input

Voltage: 90 - 135 V Current:5 A
Voltage: 180 - 265 V Current:4 A
Frequency: 47 - 63 Hz

Regulatory Compliance

Meets or exceeds the following:
Safety: UL 1950, CSA C22.2 No. 950, EN 60950, IEC 950,

and 72/23/EEC

EMI: FCC Part 15, EN 55022, CSA 108.8, EN 50082-1,

VCCI V-3, and 89/336/EEC

USER’S GUIDE

58 CyberSWITCH

SYSTEM ADAPTERS

This section describes the following adapters which are supported by Central Site CyberSWITCH
platforms:

•Ethernet

• Basic Rate

•Primary Rate

•Expander

•V.35

• RS232

• Digital Modem

•Encryption

For adapter illustrations, refer to the System Adapters Appendix. For required adapter settings, refer
to the Hardware Installation ch a pt e r.

ETHERNET ADAPTERS

ETHERNET-2 ADAPTER

The Ethernet-2 adapter wa s f o rmerly known as the Ethe rnet adapter.

The Ethernet-2 provides direct support for two Ethernet (or 802.3) LAN connections. In the
CyberSWITCH, this adapter provides both local and remote bridging of LAN data.

The Ethernet-2 inco rporates an Intel i960 RISC processor executing at 33M hz . When co upled with
the integrated, high-performance Ethernet controllers, the adapter can operate at the maximum
speed of the LAN (10Mbps). This is equivalent to a packet rate of 14,800 packets per second (pps).

The adapte r has 2MB of DRAM, which allows it to execute sophisticated filterin g and forwarding
functions. The adapt e r main tai ns a large table of over 1000 entries for local MAC addresses.

The front of th e adapter has two 15-pin AUI connectors. This provides direct connection for 802.3
transceivers, which accommodates 10Base5, 10Base2, or 10BaseT connectiv i ty .

Hardware Characteristics

Processor: i960
Speed: 33Mhz
Ports: 2
Port Type: 15pin AUI
MTBF: 75000hours
MTTR: 0.25hour

E

THERNET-1 ADAPTER

The Ethernet-1 adapter wa s f o rmerly known as the Ethe rnet LE adapter.

The Ethernet-1 provides direct support for a single Ethernet (or 802.3) LAN connection. In the
CyberSWITCH, this adapter provides remote bridging of LAN data.

Central Site Remote Access Switch 59

H

ARDWARE OVERVIEW

System Adapters

The Ethernet-1 inco rporates an Intel i960 RISC processor executing at 16M hz . When co upled with
the integrated, high-performance Ethernet controller, the adapter can operate at the maximum
speed of the LAN (10Mbps). This is equivalent to a packet rate of 14,800 packets per second (pps).

The adapte r has 2MB of DRAM, which allows it to execute sophisticated filterin g and forwarding
functions. The adapt e r main tai ns a large table of over 1000 entries for local MAC addresses.

The front of the adapter has a 15-pin AUI connector. This provides direct connection for an 802.3
transceiver, which accommodates 10Base5, 10Base2, or 10BaseT transceiver connections.

H

ARDWARE CHARACTERISTICS

Processor: i960
Speed: 16Mhz
Ports: 1
Port Type: 15pin AUI
MTBF: 75000hours
MTTR: 0.25hour

LAN C

ONNECTION

The CyberSWITC H connec ts to an Ethern et LAN using a 15-pin AUI conn ect or. A Media Acc es s
Unit (MAU) is required for each LAN port. (Note that the MAU is NOT normally included with the
CyberSWITCH.) Three options are supported for connection to the Ethernet LAN:

• 10Base5 MAU (Thick Ethernet)

• 10Base2 MAU (Thin Et hernet)

• 10BaseT MAU (Twisted Wire Ethernet)

The MAU's 15-pin connector can directly attach to the Ethernet LAN Adapter, or an AUI cable can
be used between the Ethernet LAN Adapter and the MAU. The MAU and AUI cables are NOT
normally supplie d.

BASIC RATE ADAPTERS

BRI-4 BASIC RATE ADAPTER

The BRI-4 provides four basic rate ports. Each port provides a standard S/T interface for
attachmen t to an IS DN basic ra te li ne. The BRI- 4 can take advanta ge of se rvic es su ch as NTT' s INS­64, BOC's Centrex ISDN Bas ic Rate, or PBX's b a sic rate lines.

Basic rate is a communic ations servi ce that prov ides two 64 Kbps B channel s for data an d a 16Kbps
signaling D channel (2B+D). The CyberSWITCH uses the 2 B channels for switched connections to
carry device data. Both B channel connections can be acti ve at the same time, to the sa me or
different des tin atio ns .

The BRI-4 provides four 4-wire S/T interfac es with separate RJ-45 connectors . It uses external NT1s
(when neces sar y) to c onnec t to th e publi c IS DN. Yo u do not n eed extern al IS DN ter minal adapt ers .

In Japan, NTT provides a dedicated service called High Speed Digital-I that uses the same Basic
Rate Adapters. This can be either a 64 Kb or 128Kbps leas ed circ uit. BRI-4 s upports up to four HSD­I circuits.

USER’S GUIDE

60 CyberSWITCH

Hardware Characteristics

Processor: Intel 80C186
Speed: 16 Mhz
Number of Ports: 4
Connector: RJ-45
Interface: Point-to-Point, Point-Mul tipoint for single device
MTBF: 75000hours
MTTR: 0.25hour

BRI-1 B

ASIC RATE ADAPTER

The BRI-1 provides a single basic rate port with a standard S/T interface for attachment to an ISDN
basic rate line. This adapter can take advantage of such services as NTT’s INS-64, BOC’s Centrex
ISDN Basic Rate and PBX’s basic rate lines.

Hardware Characteristics

Processor: Intel 80C186
Speed: 16 Mhz
Number of Ports: 1
Connector: RJ-45
Interface: Point-to-Point, Point-Mul tipoint for single device
MTBF: 75000hrs
MTTR: 0.25hour

BRI C

ONNECTION

The BRI adapter uses the four wire S/T ISDN Interface. Each bas i c rate line will conn ect to a RJ-45
connector at the back o f the system. Refer to the following tabl e which provides the pin and signal
assignments for the BRI RJ-45 connector(s).

Pin and Si gnal Assignment for the BRI RJ-45 Connector(s)

Note: For NTT lines, if the line has a Termination Resis tor, remove it from the line jack . Th e se

jacks are marked by having their names end in “R” (for example: MJ-8SR or MJ-28SR).

BRI Pin Signal Function

1 NC No Connect
2 NC No Connect
3 TX+ to CO Transmit to Line (T)
4 RX+ from CO Receive from Lin e (T)
5 RX - from CO Receive from Line (R)
6 TX- to CO Transmit to Line( R)
7 NC No Connect
8 NC No Connect

Central Site Remote Access Switch 61

H

ARDWARE OVERVIEW

System Adapters

PRIMARY RATE ADAPTERS

Primary Rate is a communications service that provides up to 23 B channels for data and a 64Kbps
signaling D channel (for North America and Japan), or up to 30 B channels for data and a 64 Kbps
signaling D channel. The system uses the B channels for switched connections to carry device data.

The CyberS W I TC H sup po r ts the follo w ing Prim a r y Ra te ada p ter s:

•PRI-8

•PRI-23

•PRI-23/30

These adapters are described in the following discussion.

T

HE PRI-8

The PRI-8 adapter provides a single primary rate port that the CyberSWITCH uses to connect to
other CyberSWITCHes . This adapter can take advantage o f ser vices s uch as BOC' s and I EC's ISDN
primary rate, or NTT's INS-1500.

Using one PRI -8, up to 8 B channel connections can be active at the same time, to the same or
different destinations. Up to three expander adapters can be used with one PRI-8 to gain 8 B
channel connections per Expander, creating a total of 30 possible connections per line (with one
channel is used for a data link). Only two expander adapters are needed for 23 channels. A TDM
BUS is used to connect the Expander adapters to the PRI-8.

The PRI-8 provides a 4-wire S/T inte rface. It uses external Chann el Service Units (CSUs) to conne ct
to the public ISDN (when necessary). No external ISDN terminal adapters are needed.

In Japan, NTT provides a dedicated service called High Speed Digital -I that uses the same primary
rate adapters. This can be used at rat e s from 192Kbps to 1536Kbps. The PRI- 8 adapter supports up
to eight HSD-I circuits.

Hardware Characteristics

Processor: Intel 80C186
Speed: 16 Mhz
Number of Ports: 1
Connector: RJ-45
Interfac e: Point-to-Poi nt
MTBF: 75000hours
MTTR: 0.25hour

T

HE PRI-23

The PRI-23 adapter uses an HDLC controller that provides up to 23 HDLC channels on a single
adapter. Up to six PRI adapters can be placed in one system.

The PRI-23 adapter provides support for all available data channels on th e primary rate interface.
Used in North America and Japan where primary rate ISDN runs over T1 framing, it provides
support for all 23 available data channels. When used in dedicated line configurations, it supports
up to 24 T1 channels.

USER’S GUIDE

62 CyberSWITCH

The PRI-23 adapter is fully compatible with our other WAN adapters and the digital modem. It has
both a TDM and an MVIP bus connector to accommodate conne ction to these adapters.

Note: The PRI-23 adapte r was former ly call ed PRI-23/30 i n releas es prio r to 7.0. In release 7.0 and

beyond, the name PRI-23 refers to the adapter which supports up to 23 T1 channels only. The
name PRI-23/30 refers to the adapter which suppor ts up to 23 T1 channels or 30 E1
channels.

Hardware Characteristics

Processor: Intel 80C186
Speed: 16 Mhz
Number of Ports: 1
Connector: RJ-45
Interfac e: Point-to-Poi nt

T

HE PRI-23/30

Note: On the PRI-23/30 board, switch 8 (S8 ) on the I/O Switch is not use d. The board shoul d

functi on properly with the swit ch in either ON or OFF position .

The following table defines selected jumpers. Refer to the Hardware Installation chapter for specific

jumper settings.

The PRI-23/30 uses an HDLC contr oller that provides up to 30 H DLC channels on a single adapter .
Up to six PRI-23/30 adapters can be placed in one system.

The PRI-23/30 adapter provides support for all available data channels on the primary rat e
interface. The PRI-23/30 supports up to 23 T1 channels or 30 E1 channels. For dedicated
connections, the adapter supports up to 24 T1 channels or 31 E1 channels.

The PRI-23/30 adapter is fully compatible with our other WAN adapters and the dig it al modem.
It has both a TDM and an MVIP bus c on n e ctor to accommodate connection to these adapt ers. The
PRI-23/30 also provide s integrat ed CSU funct iona lity, so no external CS U is necessary .

Jumper Usage

JP1 T1/E1
JP3 T1/E1
JP4 terminatio n
JP6 T1/E1
JP7 terminatio n
JP8 terminatio n
JP9 MVIP

P11 Robbed-Bit Signalling

Central Site Remote Access Switch 63

H

ARDWARE OVERVIEW

System Adapters

Hardware Characteristics

Processor: Intel 80C186
Speed: 16 Mhz
Number of Ports: 1
Connector: RJ-45
Interfac e: Point-to-Poi nt

PRI-8, PRI-23,

AND PRI-23/30 CONNECTION

The Primary Rate adapters use four wire S/T ISDN interface. Each primary rate line will connect
to a RJ-4 5 co n ne ctor at th e b ac k of th e system. Refer to th e f ollowin g chart f o r pin and si gn a l
assignments.

Pin and Signal Assignment for the PRI RJ-45 Connector

Note: For the PRI-8 and PRI-23 adapters: If you connect the Cy b e rSWITCH to a CSU with a

different pinout than the CyberSWITCH’s PRI pinout described in the above table, you will
need a crossover converter between the CyberSWITCH and the CSU.

EXPANDER ADAPTER

The Expander adapter is used with PRI-8s to increase the number of p ossible connections. Each
Expander supports 8 additional connections. Up to three expander adapters can be used wit h one
PRI-8 to gain 8 B channel connections per Expan der, creating a tota l of 30 possible connections per
line (with one channel is used for a data link). Only two expander adapters are needed for 23
channels.

H

ARDWARE CHARACTERISTICS

Processor: Intel 80C186
Speed: 16 Mhz
MTBF: 75000hours
MTTR: 0.25hour

PRI Pin Signal Function

1 NC No Connect
2 NC No Connect
3 TX + to CO Transmit to Line (T)
4 RX+ from CO Receive from Line (T)
5 RX- from CO Receive from Line (R)
6 TX- to CO Transmit to Line (R)
7 NC No Connect
8 NC No Connect

USER’S GUIDE

64 CyberSWITCH

V.35 ADAPTER

The V.35 adapter provides two V.35 ports. The car d c on tai ns two female DB26 connectors. A V.35
adapter cable convert s the DB26 co nnection to a st andard V.35 c onnect ion. Yo u can configur e each
port for DTE (external clocking) or DCE (internal clocking), and each port supports data rates from
56 Kbps to 2,048 Kbps.

The V.35 suppor ts network side c onnections, providing dedicated connec tions to other sy stems.
The adapter can take advantage of n e twork connections such as NTT’s HSD-Y lines, DDS lines in
the U.S., and private network connections th rough a T1 multiplexer or a channel bank. The V.35
can also take advantage of switched network connections by using an external Data Service Unit
(DSU) or Terminal Adapter. The V.35 su pports lead-controlle d dialing to the Terminal Adapter.

H

ARDWARE CHARACTERISTICS

Number of Ports: 2
Connectors: DB26
Interface: V.35 DTE or DCE (using V.35 adapter cable)
MTBF: 75000hours
MTTR: 0.25hour

V.35 C

ONNECTION

The V.35 interface is provided by an adapter cable that converts the DB26 connection on a V.35
adapter to a standard 34-pin V.35 connection.

Each port on a V.35 adapter has software conf igurable f or DTE (ex ternal clockin g) or DCE (in ternal
clocking). Be sure to use the appropriate V.35 adapter cable (DTE or DCE).

The DTE V.35 adapter cable provides a standard 34-pi n connec ti on with male contacts. The DCE
V.35 adapter cable pro vides a stand ard 34-pin connect ion with femal e contacts. The fo llowing table
shows the pin and si gnal assignme nts for the V.35 adap te r provided by the adapter cable.

Central Site Remote Access Switch 65

H

ARDWARE OVERVIEW

System Adapters

Pin and Signal Assignments for the V.35 Connection

RS232 ADAPTER

The RS232 adapter provi des four RS232 ports. The card contains two female DB26 connec tors. An
RS232 adapter cable converts the DB26 co nnection to two standard RS232 connections. Using the
RS232 adapter cable, DB26 port #1 becomes RS232 port #1A and port #1B. You can configure each
port pair (1A,1B or 2A,2B) for DTE (external clocking) or DCE (internal clocking), and each port
supports data rates from 2.4 Kbps to 56 Kbps.

The RS232 supports network side connections, providing dedicated con nections to oth er sy stems.
The adapter can take advantage of slower speed analog lines by using standard synchronous
analog modems. The RS232 also support s private net work connecti ons through a T1 mult iplexer or
a channel bank.

V.35 Pin Signal Function V.35 Pin Signal Function

A Chass ChassisGround V RXCB Receive Clock B

B Gnd Signal Retu rn W NC No Connect
C RTS Request to Send X RXCA Receive Clock
D CTS Clear to Send Y TXCB Transmit Clock B

E DSR Data Set Ready Z NC No Connect

F DCD Data Carrier

Detect

AA TXCA Transmit Clock

A

H DTR Data Terminal

Ready

BB NC No Connect

J RI Ring Indicator CC NC No Connect

K LT Local Test DD NC No Connect

L NC No Connect EE NC No Connect

M NC No Connect FF NC No Connect

N NC No Co nnect HH NC No Connect

P TDB Transmit Data B JJ NC No Connect

R RDB Receive Data B KK NC No Connect

S TDA Transmit Data A LL NC No Connect

T RDA Receive Data A MM NC No Connect
U NC No Connec t NN NC No Connect

USER’S GUIDE

66 CyberSWITCH

HARDWARE CHARACTERISTICS

Number of Ports: 4 (using RS232 adapter cable)
Connectors: DB26
Interface: RS232 DTE/DCE (using RS232 adapter cable)
MTBF: 75000hours
MTTR: 0.25hour

RS232 C

ONNECTION

The RS232 interface is provided by an adapter cable which converts the DB26 connection on a
RS232 adapter to two standard 25-pi n RS232 connections.

Each port on a RS232 a dapter has software configurable for DTE (external clocking) or DCE
(internal clocking). Be sure to use the appropriate RS232 adapter cable (DTE or DCE).

The DTE RS232 adapter cable provides two stan dard 25-pin conn ections with male contacts. The
DCE RS232 adapter cable provides two standard 25-pin connection s with female contacts. The
following table show s th e pin and sig nal assignments for the RS232 i nt erfaces provided by the
adapter cable.

Pin and Signal Assignments for the RS232 Connection

RS232 Pin Signal Function RS232 Pin Signal Functi on

1 Chass Chassis Ground 14 NC No Connect
2 TD Transmit Data 15 TXC Transmit Clock
3 RD Receive Data 16 NC No Connect
4 RTS Request to Send 17 RXC Receive Clock
5 CTS Clear to Sen d 18 NC No Connect
6 DSR Data S e t Re a dy 19 NC No Connect
7 Gnd Signal Return 20 DTR Data Terminal Ready
8 NC No Connect 21 NC No Conn ect

9 NC No Connect 22 RI Ring Indicator
10 NC No Connect 23 NC No Connect
11 NC No Connect 24 NC No Connect
12 NC No Connect 25 NC No Connect
13 NC No Connect

Central Site Remote Access Switch 67

H

ARDWARE OVERVIEW

System Adapters

DIGITAL MODEMS

The CyberSWITCH supports the DM-8, DM-24, DM-24+ and DM-30+ Digital Modem adapters.
These adapters allow the CyberSWITCH to receive calls from asynchronous PPP remote devices
connected by modem. They also provide a vehicle for remote analog console access.

Available Digital Modem adapters include the following type and quantity of modems on a single
adapter card:

The Digital Modems support the following remote modem options:

All modem adapters:

• V.34+ (33.6 Kbps)

• V.34 (28.8 Kbps)

• V.32 bis (from 300 bps to 14.4 kbps)

• MN4 (with error control)

• MN5 (with data compression)

• V.42 (with error control and data compression )

DM-24+ and DM-30 + modem adap ters only :

• K56Flex (56 Kbps) (firmware may be upgraded to the ITU V .90 standard)

The number of adapters in a system is limited by the number of ISDN channels and adapter slots
available. A maximum of four DM-8s or three DM-24s, DM-24+s, or DM-30+s can be inst all ed and
configured at one time. You may combine DM-8s and DM-24s in the same system as long as you
do not exceed a maximum of three cards.

Note: Digi tal Modem adapter s are al so k nown as DIG-8 ( DM-8), DI G-24 (DM-24 ), DIG-2 4+ (DM-

24+), and DIG-30+ (DM-30+).

For the DM-24+ and DM-30+, no “+” follows the Digi tal Modem adapter designation in
CFGEDIT. Do not be alarmed; in the case of th e DM-24 and DM-24+, th e sy stem
automatically distinguishes between the two different types of modems.

DM-8 eight V-34+ (33.6 Kbps) modems

DM-24 twenty-four V-34+ (33.6 Kbps) modems
DM-24+ twenty-four K56Flex (56 Kbps) modems
DM-30+ thir ty K56Fle x (56 Kbps) modem s

USER’S GUIDE

68 CyberSWITCH

THE DM- 8
Hardware Characteristics

Processor: LSI LOGIC - LR33000RISC
Speed: 25 Mhz
Number of Ports: 8
Connector: MVIP
MTBF: 100,000 hours
MTTR: 0.25 hours

T

HE DM-24

The DM-24 adapter consists of a mother board/daughter board combination. The user­config u rab le switche s on the adapter are located on t he ba ck side of the mother board.

Note: “O N” and dip swit ch numb erin g (“1”,”2”, etc.) may be labeled on opposite sides of the

switch, but the “ON” switch position is always to the right as illustrated in the appendix.

Hardware Characteristics

Processor: Motorola Power PC
Speed: 25 MHz
Number of Por ts: 24
Connector: MVIP
MTBF: 45,500 hours
MTTR: .25 hours

T

HE DM-24+AND DM-30+

The DM-24+ and the DM-30+ adapters consist of a mother board/daughter board combination.
The two adapte rs closely resemble each other; they are distinguishable by the number of modem
chips on each of the boards. The DM-30+ with i ts 30 modems is suitable for E1 (E u ropean) trun k
lines. The DM-24+ (24 modems) accommodates T1 trunk lines in the US and Japan.

To support the ITU V.90 stand ard, the DM-24+ and DM-30+ must be of a certain hardw are revision
level. The ad apter ’s mot her b oard mus t be REV K or highe r; the daught er boar d must b e REV G or
higher.

Revision label and pertin e nt switches are located on the bac k side of the mother bo ard.

Hardware Characteristics

Processor: Motorola Power PC
Speed: 25 MHz
Number of Ports: 24/30
Connector: MVIP
MTBF (DM-24+): 45,498 hours

MTBF (DM-30+): 39,105 hours
MTTR: .25 hours

Central Site Remote Access Switch 69

H

ARDWARE OVERVIEW

System Adapters

ENCRYPTION ADAPTER

The CyberSWITCH suppo r ts the D ES/ RS A Enc ry p tion ada pter . This ad ap ter is avai labl e in the
United States and Canada only.

The DES/RSA adapter includes a high-speed encryption processor that provides data encryption
capabilities to the CyberSWITCH. This processor has been implemented in a hardware LSI chip

and designed into an ISA bus board and a PCMCIA car d. The adapter is a “stand-alone” adapter;
it plugs into any CyberSWITCH slot, needing no lines, cables or connectors.

Only one encry p tion adapter may be installed and configured per Cyb e rSWITCH system.

H

ARDWARE CHARACTERISTICS

MTBF: 100,000 hours
MTTR: 0.25 hour

S

OFTWARE OVERVIEW

OVERVIEW

The system software fits into one of th re e categories:

• system so f tware for the System, adapt er modules and ad ministrati on functio ns

• administration software that provides configuration, diagnostics and mai ntenance on the
CyberSWITCH

• system files containing configuration and operational information

This chapter provides an overview for each of the above software categories.

SYSTEM SOFTWARE

Include d wi th each CyberS WI TCH is a set of 3.5" high-density diskette s which conta in system
software, administration software and all required system files. The system software is a set of
executable programs that collectively implement the system functions. These programs provide the
core interoperability hub feat ures, such as centralized management and high speed digital
connections. Depending on t he software version purchased, it supports up to eight, sixteen, thirty­two, or forty-eight connections.

Instructions for installing new system software and for upgrading existing system software can be
found in the Upgrading System Software chapter.

ADMINISTRATION SOFTWARE

A CyberSWITCH may be configured as an SNMP Agent. An SNMP Manager, such as Cabletron’s
Spectrum product, may u s e these SNMP Age nts to monitor individual network devices' op e rating
statistics and configuration elements. The software for this feature is included with the system
software.

Carbon Cop y, a communication s package from M icrocom Cor poration, is included with the system
software. Carbon Copy allows access to all administration functions through the remote
administration port on the CyberSWITCH. The CyberSWITCH is configured for 9600 bps d irect
connect for Carb on Copy remote a ccess. This modem configuration setting may be changed if
necessary. Refer to the Car bon Copy section in the Re mote Managem ent chapter for instructions on
chang in g mo dem conf ig u r a tio n se t t in gs .

The Manager (Administration Services), is a separate diskette available as an option when you
order your system. T his diskett e contains th e Carbon Copy “Guest” soft ware to access the remote
administration console option.

Central Site Remote Access Switch 71

S

OFTWARE OVERVIEW

System Files

SYSTEM FILES

The system files consist of the required configuration files, as well as the operational files that the
CyberSWITCH mainta ins . All of these files may be acces sed by using ava ilab le admin istrat ive
commands. (Refer to the System Commands chapter for details.)

Below is a brief description of the configuration and operati onal file s.

CONFIGURATION FILES

The configuration files store the configuratio n da ta. These file s are located in the sy ste m’s
\config directory. You can maintain these files by using the CFGEDIT configuration utility,

which is delivered with the system. You can also make changes to these fil e s through Mana ge
Mode.

The configuration files associated with the system are:

network.nei

This configuration file contains info rma tion about the switched netw ork.

devdb.nei

This file contains the On-node Device Database configuration information about each remote
device.

node.nei

This configuration file contains node -spec if ic informat ion like resou rce s, lines, Cybe rSW ITC H
operating mode and secur ity options, along with the Throughput Monitor Configu ration
information. If enabled, SNMP configuration information is also in this file.

lan.nei

This file contains configuration information used when the bridge is enabled. This file also contains
information for the Spann ing Tr e e protoco l used for the bridge. Information from thi s file is
configured and used only when the bridge is enabled.

ip.nei

This file contains configuratio n info rma tion used when th e IP routing is enable d. This file also
contains information regarding network interfaces, RIP, and static routes. Information from this file
is configured and used only when the IP routing is enabled.

ipx.nei

This file contains configuration information used when the IPX routing is enabled. This file also
contains information regarding network interfaces, RIP, and static routes. Information from this file
is configured and used only when the IPX routing is enabled.

filter.nei

This file contains all filter configuration information (bridge, hardware, and IP). This file is new to
Release 7.2 software, but is compatible with previous software versions, which contained filter
information in the lan.nei and/or ip.nei files. With Release 7.2 configuration changes and
configuration file updates, this filter information will be moved to filter.nei.

USER’S GUIDE

72 CyberSWITCH

atalk.nei

This file contains configuration information used when AppleTalk Routing is enabled. This file also
contains information regarding ports and static routes. Information from this file is configured and
used only when the AppleTalk routing is enabled.

platform.nei

This is a text file that contains a list of platform names and the currently selected platform. Each line
in the file contains an ASCII string repres en ting a platform name and a corresponding integer
value. The integer value is the crucial item, since this is what the system software uses to determine
whether any special action is necessary. The string is displayed when the

ver

command is issued.

sdconf.rec

This is not a system file; it is a configuration file delivered on the ACE Server. However, you may

TFTP th i s file to th e sy st e m’s \config directory as an alternate method of providing the system
with ACE Server configurat ion inf ormat ion.

OPERATIONAL FILES

While the Cyb e rSWITCH is running, it col lects syst em statistic s and logs system me ssages. The
system maintains these statistics and messages in separate memory-resident tables. The ten most
recent versions of each table are available on the system disk.

You can re t ri eve and vi e w the current memo ry- reside n t ta bl e s at any time by u sing the foll o w i ng
console commands:

dr

This command will display system messages.

da

This co m m and will dis p la y a u the ntica ti o n me ssage s.

ds

This comma nd will display system stat istics.

You can write the tables to disk by using the following commands:

wr

This command will wri te the curren t system mess ages to disk.

wa

This command will wri te the curren t system mess ages to disk.

ws

This command will wri te the curren t system statistics to disk.

Note: When the system is shut down, the tables are automatically written to disk.

The system stores the tables in ASCII format files on the System disk. When the system writes
system messages to disk, it stores th e m in the following location:

Directory: \log
File Name: rprt_log.nn
Where “nn” is an integer that is incr ement ed e ach time a new file is written.

When the system writes system statistics to disk, it stores them in the follo wi ng locations:

Directory: \log
File Name: stat_log.nn
Where “nn” is an integer that is incr ement ed e ach time a new file is written.

Central Site Remote Access Switch 73

S

OFTWARE OVERVIEW

System Files

USER LEVEL SECURITY FILES

As administrator, you may create a welcome banner file as well as a message-of-the-day fil e to
display at login with user level security. Neither file should exceed the limits of 80 characters in
width and 21 lines in length, and must reside in the \config directory. The creation of these files
is option al; if you choose to use them, create the files, and TF TP them to the CyberSWITCH.

welcome.nei

This file co ntain s the text of the admini strat or-defi ned wel come banner. It is displ ayed whe n a user
initiates a network login.

motd.nei

This file contains the text for t he administrator-defined message of the day. It is di splayed when the
user is validated after log-in.

S

YSTEM INSTALLATION

We include the followin g chap ter s in this segment of the User’s Guide:

• Ordering ISDN Servic e

Provides guidelines for ordering ISDN service in the United States.

• Hardware Installation

Step-by-step instructions for installing hardware components.

• Accessing the CyberSWITCH

Provides a description of the possible ways to access the CyberSWITCH (for diagnostic
purposes or for software upgrades).

• Upgrading S ystem Software

A description of the software upgrade process.

O

RDERING

ISDN S

ERVICE

(US O

NLY

)

OVERVIEW

This chapter was designed to be a guideline f or orderin g ISDN serv ice in the United Stat es.

For BRI ISDN Service:
If you are using NI-1 lines, try using EZ-ISDN Code s to order BRI service. If your service provider
does not support EZ-ISDN Codes, try using the NI-1 ISDN Order ing Co de s .

If your ser vice prov iders do es not su pport ei ther type s of codes , or, if you are usin g a non-NI-1 l ine,
refer to Ordering BRI ISDN Lines using Provisioning Information.

For PRI ISDN Service:
If you are using PRI lines, refer to Ordering PRI ISDN Lines.

ORDERING NI-1 LINES USING EZ-ISDN CODES

If you are using a NI-1 switch type and your service provider supports EZ-ISDN codes, we
recommend using the EZ-ISDN 1 code. EZ-ISDN 1 provid es alternate circuit-switched voic e/data
on both B-Channels. There is a CSV/D terminal associated with each of the B-channels.

The B-channels will be given a unique primary directory number capable of making/receiving one
circuit-switched voice or circuit-switched data call. Additionally, calling line Id is also supported.

ORDERING NI-1 LINES USING NI-1 ISDN ORDERING CODES

If you are using a NI-1 switch type and your service provider supports ordering codes, we
recommend NI-1 ISDN Capability Package I. This package includes circuit-switched data on two B
channels. Data capabilities include Calling Line Id. No voice capabilities are provided. The lack of
voice feature may save you money. However, package K or M will also work.

ORDERING BRI ISDN LINES USING PROVISIONING SETTINGS

If your service provider does not su p por t EZ- IS DN or ISDN Order ing Co de s, o r you a re u sin g a
non-NI-1 line, use this section when ordering your BRI ISDN line.

When the phone company installs the line, they assign it certai n characteristi cs. These are differ ent

depending on the type of ISDN switch to which the line is attached. AT&T’s 5ESS NI-1 and
Northern Telecom’s DMS100 NI-1 are among the most popular.

When ordering an ISDN line, there are general steps to follow that apply to all types, and there are
steps specific to your line type. The general steps to follow are:

1. Contact your service provider to determine the type of available switch.

2. Ask your service provider for the available types of ISDN services.

USER’S GUIDE

76 CyberSWITCH

If the AT&T 5ESS switch type is available, the ISDN services available will be one of the
following:

•NI-1

• Custom Poi nt-to-Point

If Northern Telecom DMS-100 switch type is available, the ISDN services available will be one
of the following:

•NI-1

• DMS-100 Custom

3. Refer to section in this document th at ap plies to your service type .

4. Order your ISDN service. If available, ask for two telephone numbers and two SPIDs for your
ISDN line.

5. If necessary, provide your service provider with the appropriate provisioning settings in this
document.

6. After installation, make sure you have the following information:

• switch type

• telephone numbers

• SPIDs

The following sections provide provisioning settings for your specific service type.

PROVISIONING SETTINGS FOR AT&T 5ESS SWITCHES

The ISDN services supported by AT&T 5ESS switches are as follows (in order of preference of
usage):

1. NI-1

2. AT&T Custom Poin t- to-Point

The sections below provide t he settings f or each 5 ESS servic e type. Note t hat your service provider
may not be able to of f e r all of the features listed.

Central Site Remote Access Switch 77

O

RDERING

ISDN S

ERVICE

(US O

NLY

)

Ordering BRI ISDN Lines using Provisioning Settings

AT&T 5ESS NI-1 SERVICE

Note that some of the elements b elow are set per di rectory number. With NI-1 Se rvice, you will
typica l ly ha ve two dire c to ry numbe rs.

AT&T #5ESS NI-1 Service

Prov isionin g E l e ment Setting

Term Typ e A

CSV 1

CSV ACO unrestricted

CSV limit 2

CSV NB limit 1

CSD 1

CSD ACO unrestricted

CSD limit 2

CSD NB limit 1

EKTS no

ACO yes

USER’S GUIDE

78 CyberSWITCH

AT&T 5ESS CUSTOM POINT-TO-POINT SERVICE

Note that some of the elements b elow are set per di rectory number. With Custom Point-to-Point
Service, you will have two directory numbers.

PROVISION SETTINGS FOR NORTHERN TELECOM DMS-100 SWITCHES

The ISDN services supported by Northern Tele com DMS-100 swit ches are as follows (in order of
preference of usage):

1. NI-1

2. Custom Service

The sections below provide the settings for each DMS-100 service type. Note that your service
provider may not be able to offe r all of the features listed.

AT&T Custom Point-to-Point Service

Prov isionin g E l e ment Setting

Term Typ e E

CA 1

CA quantity 1

CSV 0
CSV CHL no
CSV limit 2

CSD 2

CSD CHL any

CSD limit 2

DSL CLS PP

Central Site Remote Access Switch 79

O

RDERING

ISDN S

ERVICE

(US O

NLY

)

Ordering BRI ISDN Lines using Provisioning Settings

NORTHERN TELECOM DMS1 00 NI-1 SERVICE

Note that you mu st set either EKTS or ACO to yes. You may not set both of them to yes.

Northern Telecom DMS100 NI-1 Service

Provisioning Element Setting

signaling functional

PVC 2

TEI assignment dynamic

maxkeys 3 is preferable

1-64 is acceptable

release key no

ringing indicator no

EKTS no

ACO yes

number of call

appearances

2 is standard

number may vary depending

on voice features ordered

notification busy limit 1

(always one less than number

of call appearances)

LCC ISDNKSET

USER’S GUIDE

80 CyberSWITCH

NORTHERN TELECOM DM S100 CUSTOM SERVICE

Note that you mu st set either EKTS or ACO to yes. You may not set both of them to yes.

BASIC INFORMATION FOR ORDERING PRI ISDN LINES

ISDN Primary Rate is a communications service that allows the system to make up to 23
connections over a sin gle line. It uses a 4-wir e T1 line that carries 24 chann els, each providing 64000
bps bandwidth. The service uses channels 1 to 23 as bearer (B) chan nels to carry connections
between two systems. The 24th channel is used for signaling information (the data link).

The customer should request the following options for a Primary Rate Line that is connected
directly to a CyberSWITCH:

• B8ZS encoding

• ESF framing

• all channels should be Circuit Switched Data

• Hunt Group (if desired)

• call bandwidth su pported (56Kbps, 64Kbps, and/or 384Kbps)

• CLID (calling line Id); usually there is no charge for this

In order to connect to the Primary Rate line, the customer must provide a Channel Service Unit
(CSU). If the line is provided by a LEC or IXC, the CSU is required by the phone company to protect
the phone network from any problems with customer premise equipment. At the t ime that the line

Northern Tel ecom DMS100 Custo m Service

Provisioning Element Setting

signaling functional

PVC 1

TEI assignment dynamic

maxkeys 3 is preferable

1-64 is acceptable

release key no

ringing indicator no

EKTS no

ACO yes

number of call

appearances

2

LCC ISDNKSET

version functional

CS yes

PS no

Central Site Remote Access Switch 81

O

RDERING

ISDN S

ERVICE

(US O

NLY

)

Ordering BRI ISDN Lines using Provisioning Settings

is ordered, the customer may be asked for the FCC registration number for the ty pe of CSU that is
being used. The CSU should support ESF framing and B8ZS line en coding.

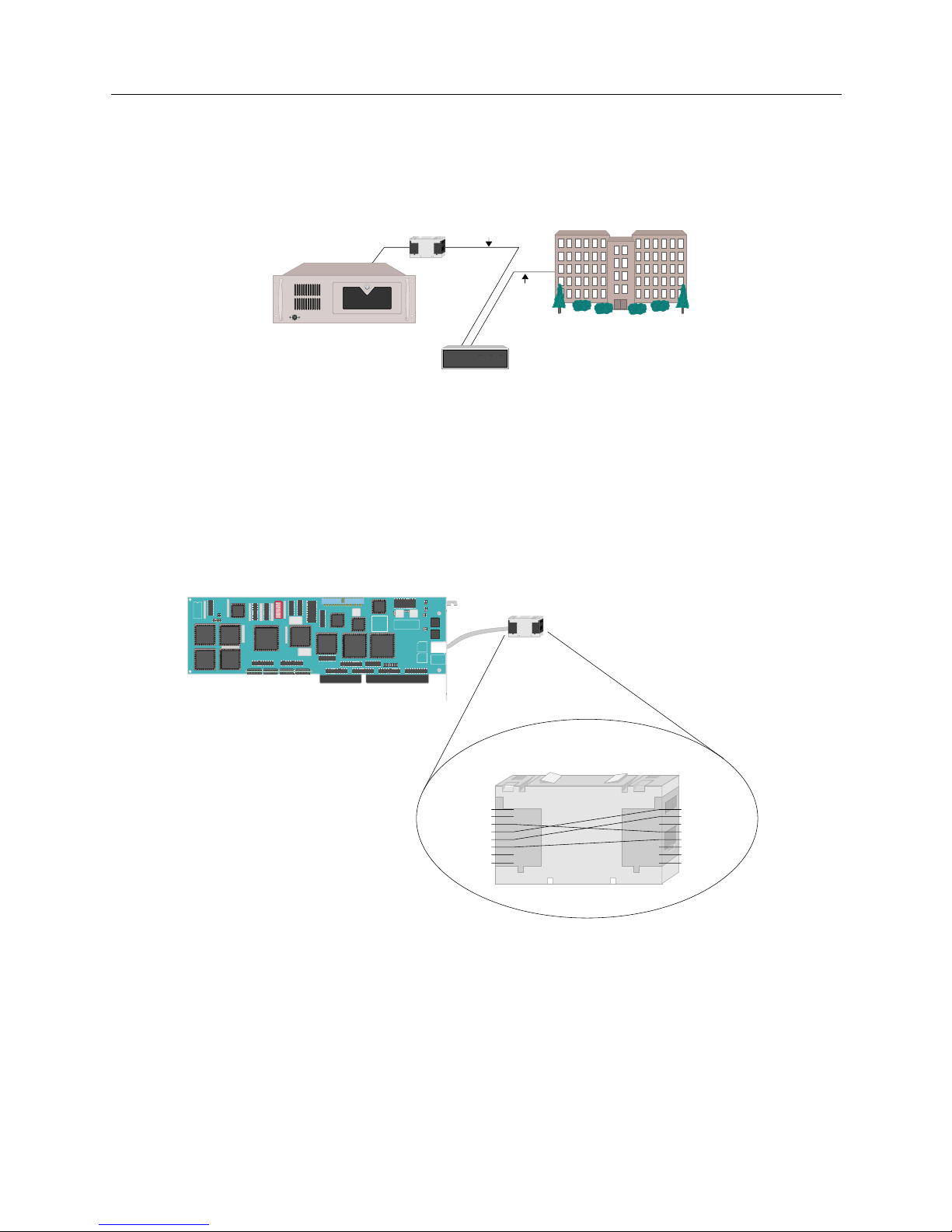

The cabling between the CSU and the CyberSWITCH is very important, and is also where most
problems occur. The system’s PRI RJ-45 adapter uses the international standard of pi ns 3, 4, 5, and
6 for transmit and recei ve. Most T1 lines in the United States use the tra ditional 1, 2, 4, and 5 pins.
We provide an RJ-45 to RJ-45 Adapter that will convert between the two wiring systems. The
customer may still need a special cable to connect from a RJ-45 jack to a DB-15 connector, if that is
what the CSU provides.

Otherwise, a st andard 4 or 8 wire cabl e with RJ-45 jacks i s sufficient between the Adapter and the
CSU.

When the line is installed, the customer must ask the phone company the following questions:

1. What are the phone numbers for the line? (There may be more than one.)

2. Do I need to use any prefix when I dial? (For example, “9” for a Centrex line.)

RJ-45

Adapter

4 Wire

CSU

Local or

InterExchange Carrier

T1 Line

US Only

CSX5500

RJ-45
Pinout

Adapter
RJ-45
Pinout

Primary Rate Adapter

RJ-45 Jack

1
2
3
4
5
6
7
8

Primary Rate Board

1
2
3
4
5
6
7
8

TX+
RX+
RX­TX-

RX+
RX-

TX+
TX-

USER’S GUIDE

82 CyberSWITCH

3. What type of switch is the line connected to?

4. For # 4ESS, what rele a se of so f t wa r e is ru n ni ng on the sw it ch ?

When the phone company installs the line, they assign it certain characteristics (sometimes called
translations). These are different depending on the type of ISDN switch to which the line is
attached. The customer must know what type of switch is being used.

The following table provides correct settings for important configuration options.

Option Local Bell Operatin g Company AT&T

Network

U.S. Sprint &

MCI

Type of Switch #5ESS DMS100 #4ESS DMS250

Encoding B8ZS B8ZS B8ZS B8ZS

Framing ESF ESF ESF ESF
Network

Facilities

NA NA SDS or

Call-By-Call

NA

Echo

Cancellation

NA NA NA OFF

(Disabled)

H

ARDWARE INSTALLATION

OVERVIEW

This chapter provides a description of th e har dware install ation process. It includes:

• pre-installation requirements

• selecting slots for adapters

• setting switches

• inserting adapters into backplane

• connecting inter-board cables

Your distr ibut or may have al rea dy co mplete d th is ad apter instal lati o n. If no t, foll ow this c ha pter ’s
specific instructions .

PRE-INSTALLATION REQUIREMENTS

Before you begin the installation process, be sure to:

• Choose a suitable setup location

Make sure the location is dry, ventilated, dust free, static free, an d free from corrosive
chemicals

• Verify system power requirements

If applicable, make sure the line voltage select switch is set for the AC input power source
you are going to use. The appropriate standard power cord is supplied with the system.

CAUTION:
When changing the line voltage select switch, make sure the AC power cord is unplugged.

• Verify cabling requir ements

The cabling included with your shipment will depend on the country in which your system
will operate. If additional cabling is needed other than what was shipped, contact your
distributor.

Only qualified personnel should install adapters into the
CyberSWITCH.

!

CAUTION

Any time you remove the system module cover, unplug the power
cord. Failure to do so may result in personal injury or equipment
damage.

The CyberSWITCH is sensitive to static discharges. Use a
grounding strap a nd observe all stat ic precautions dur ing this
procedure. Failure to do so could result in damage to the
CyberSWITCH.

USER’S GUIDE

84 CyberSWITCH

• Verify administration console requirements

You will need an administration console to install your system. (We do not provide this.)
The syst em su pport s t wo adm inis tr ation con sole opti o ns: a loc al ad min istr at ion co ns ole i n
which a keyboard and monitor are direc tly connect e d to th e system, or a remote
administration console in which an IBM Compatible PC is remotely connected to the
system. Refer to Accessing the CyberSWITCH for more details.

• Provide a diskette for configuration backup

If you choos e to b ack up your config uration to diskette (as oppose d to a Network

Management Station), you will need a 3 1/2” DOS formatted high-density diskette. Details
on performing a configuration backup are described in the Routine Maintenance chapter.

SELECTING SLOTS FOR THE ADAPT ERS

Most adapter settings are dependent upon the slot in which the adapter will be installed and/or
configured. So, to determine each adapter’s settings, you must first select the proper slot for each
adapte r. As you se l e c t the slot fo r e a ch a dapter , n o te the slot nu mb e r yo u p la n to ass ociate w it h
each adapter. You will need this information for the next step: Adapter Settings.

Throughou t this section, we refer to LAN, WAN, DM (Digital Modem), and Encryption adapters.
The following chart lists the adapters in each group.

A CyberSWITCH sup ports a maximum of one LAN, one Encrypti on, and up to six “othe r” adapters
(WAN+DM). Of this total of six, a maxi mum of 4 DM-8s or 3 DM-24s, DM-24+s or DM-30+s are
allowe d. Refe r to the Hardware Overview for any addit ional restriction s th at may be platform-
specific.

The following steps determine each adapter’s slot placement. Note that all WAN, DM, and
Encryption adapters fall between the CPU and the LAN in the backplane.

1. Select a WAN adapter for the first sl ot adjacent to the CPU. Then continue as foll ows:

a. If you are installing only WAN adapte rs:

Continue to select WAN adapters for the next available slots until you have selected a slot
for all WAN adapter s.

b. If you are installing WAN adapters and DM adapters:

Select a DM adapter for the next availabl e slot. Continue alternating WAN and DM
adapters until you run ou t of WAN or DM cards. At th is point, co ntinue with th e remainin g
WAN or DM adapters until you have selected a slot for all remaining WAN or DM
adapters.

Adapter Group: LAN WAN DM Encryption

Adapters: Ethernet-1

Ethernet-2

BRI-1
BRI-4
PRI-8

PRI-23

PRI-23/30

RS232

V.35

DM-8

DM-24
DM-24+
DM-30+

DES/RSA

(USA)

Central Site Remote Access Switch 85

H

ARDWARE INSTALLATION

Adapter Settings

c. I f you are installi n g WA N ad ap t ers and an Encryption ad a pt er:

Select slots for all WAN adapters as described in step a, then select the next available slot
for the Enc ry p tion adapter.

d. If you are installing WAN and DM adap ters, an d an Encrypt ion adapter:

Select slots for all WAN and DM adapters as described in step b, then select the next
availabl e slot for the Encr yption adapter.

2. Finally, selec t a slot for the LAN adapter , leaving an empty slot bet ween the LAN adapter and
the other adapters, if possible.

ADAPTER SETTINGS

Adapter settings fall into the following groups:

• adapter interrupt and I/O address settings, which are slot-number dependent

• MVIP termina tion set tings to properly terminate the MVIP bus

• Encryption adapter settings

• additional adapter settings, which are specific to the PRI adapters

USER’S GUIDE

86 CyberSWITCH

ADAPTER INTERRUPT AND I/O ADDRESS SETTINGS

WAN ADAPTERS

The WAN adapters (except for the RS-232 and V.35) use jumpers to se t th e interrupt and switches

to set the I/O address. The following chart contains the WAN adapter’s interrupt jumper and I/O
addre s s switch se t t i ng s re qu i r e d fo r e a ch co nf i gu red sl ot nu mb e r .

Refer to the System Adapters Appendix for location and number ing conventi ons of the interrupt
block and I/O sw itch. Note the fol lowing:

• concerning the interrupt block : On som e boards, su ch as the PR I -8 , th e in t e rrupt block is num ­bered from le ft to right, beginni ng with positi on 3 on the left. On the PRI-23 an d PRI-23/30, th e
interrupt block is numb e red from right to left, wi th position 3 starting on the right.

• concerning the I/O Switch: If the adapt er’s I/O address switches are labeled with open as opposed
to either off or on, open corresponds to off. On the PRI-23/30, S8 on the I/O Switch is not used.
The board should function properly with th e switch in either the ON or OFF position.

DM-8 A

DAPTER I/O ADDRESS SETTINGS

The DM-8 is unique in that it has no interrupts, and uses jumpers instead of switches for its I/O
address settings. The DM-8 will take on the interrupt of the slot in which it is configured. You only
need to set its I/O address. When configuring DM-8 adapters, use 380 for the I/O address of the

Configured Slot Interrupt Jumper

(Interrupt Block)

I/O Address Switch Setting (SW1)

1 Position 3 Value 340

S1, S2, S3, S4, S5, S6, S7, S8
on, on, on, of f , on, off, off, off

2 Position 11 Value 348

S1, S2, S3, S4, S5, S6, S7, S8
off, on, on, off, on, off, off, off

3 Position 5 Value 350

S1, S2, S3, S4, S5, S6, S7, S8
on, off, on, off, on, off, off, off

4 Position 10 Value 358

S1, S2, S3, S4, S5, S6, S7, S8
off, off, on, off, on, off, off, off

5 Position 7 Value 360

S1, S2, S3, S4, S5, S6, S7, S8
on, on, off, off, on, off, off, off

6 Position 12 Value 368

S1, S2, S3, S4, S5, S6, S7, S8
off, on, off, off, on, off, off, off

Central Site Remote Access Switch 87

H

ARDWARE INSTALLATION

Adapter Settings

first DM-8 inst alled, 388 for the sec ond, 390 for the thi rd, an d 398 for the four th. Refer to t he System

Adapter Appendix for jump er loc ati ons; refe r to th e fol lowi ng ch ar t for the requi r ed jumper sett i ngs.

Note: When the table says on for a certain pair of prongs (J2, J3, or J4), it means that a jumper

needs to be in place for that pair. Off indi cat es that no jumper is needed for that pair.

DM-24 A

DAPTER INTERRUPT AND I/O ADDRESS SETTINGS

The DM -2 4 adapte r us e s sw i t ches to se t the inte rr u p t and I/O address . Si n ce th e DM - 2 4 ’s only
available interrupts are 10, 11, and 12, and these interrupts are associated with configured slots 2,
4, and 6, these are the only slots available for these cards. Refer to the System Adapter Appendix for
switch lo cations; refer to the f o llowing chart for switch settings.

Note: The silk scr e e ning may vary f rom card to card. If your car d u se s the label ing DIS/EN or

=1/=0, not e the fo llowi ng: F or IR Q, “of f” is th e same as DI S (dis able d); “o n” is the same as
EN (enabled). For I/O address, “off’ is the same as “1” ; “on ” i s th e same as “0”.

DM-8 Adapter (Add res s) I/O Addr ess Ju mper Sett ings

1st adapter

(address 380)

J2, J3, J4

on, on, on

2nd adapter

(address 388)

J2, J3, J4
off, on, on

3rd adapter

(address 390)

J2, J3, J4
on, off, on

4th adapter

(address 398)

J2, J3, J4

off, off, on

Configure d S lots Interrupt Switch (IRQ) S2 I/O Address Switch S etting S 3

2 IRQ = 11

1, 2, 3, 4, 5, 6
off, off, off, off, on, off

Address: 300
1, 2, 3, 4, 5, 6
A4, A5, A6, A7, A8, A9
on, on, on, on, off, off

4 IRQ = 10

1, 2, 3, 4, 5, 6
off, off, off, off, off, on

Address: 310
1, 2, 3, 4, 5, 6
A4, A5, A6, A7, A8, A9
off, on, on, on, off, off

6 IRQ = 12

1, 2, 3, 4, 5, 6
off, off, off, on, off, off

Address: 320
1, 2, 3, 4, 5, 6
A4, A5, A6, A7, A8, A9
on, off, on, on, off, off

USER’S GUIDE

88 CyberSWITCH

DM-24+ AND THE DM-30+ ADAPTER ADDRESS SETTINGS

The DM-24+ and the DM-30+ adapters both use switches to set the interrupt, I/O address, and
MVIP clock termination . Switch blocks SW1 and SW3 determine I/O address, SW2 and SW4
determine interru pts, and SW5 determines MVIP clock termination.

Note: Refer to the System Adapter Appendix for sw itch location s. Con figure a DM-24+ or a D M-30+

only in slots 2, 4, and/or 6. Switch settings will differ depending upon the slot you wish to
configure. Refer to the following charts/descriptions:

To set the IRQ so that it is on, refer to switch bl ocks SW2 and SW4. Set the c orresponding IR swi tch
on these switch blocks to on, with all others off. For exampl e , for an IRQ s e tting of 11, IR11 (switc h

4) on switch block SW2 should be on; all other IR switches on SW2 and SW4 should be off.

To set the address, refer to switch blocks SW1 and SW3. SW1 is labeled 1 through 8 (A15 through
A8). Switches in this block should always remain on, on, on, on, on, on, off, off. SW3 varies based on
address. Use the following chart:

For example, for an address of 300, A9 (sw it ch 7) and A8 (switch 8) on SW1 should be off; all
remaining switches on SW1 and SW3 should be on.

Note: For all configurations, switch 4 on SW4 is a reserved switch and must always remain OFF.

Configured Slots Interrupt Switches (IRQ on)

SW2

Address

2 IRQ=11 300
4 IRQ=10 310
6 IRQ=12 320

Address Switch Settings

300 SW3 1 2 3 4

A7 A6 A5 A4

on on on on

310 SW3 1 2 3 4

A7 A6 A5 A4

on on on off

320 SW3 1 2 3 4

A7 A6 A5 A4

on on off on

Central Site Remote Access Switch 89

H

ARDWARE INSTALLATION

Adapter Settings

ENCRYPTION ADAPTER SETTINGS

DES/RSA Adapter

The DES/RSA adapter is available in the United States and Canada only. The adapter has a set of
eight dip switches in a switch block labelled SW1. Set these dip switches to map the encryption
adapter memory at D800:

The a d apt e r h as on e j u m per (J1) , w hich must be installed!

MVIP SETTINGS

The following adapter s have MVIP connectors:

•PRI-23,

•PRI-23/30,

•DM-8,

• DM-24,

• DM-24+, and

• DM-30+

In order to establish an MVI P bus, follow this process:

1. First, selec t s lots for all MVIP adapter s. If y ou are usi ng both P RI and D M adapters , begin with
a PRI adapter, and then select slots alternating PRI and DM adapters as described in Selecting

Slots for Adapters.

2. Next, terminate the MVIP jumpers on both the first and last adapter in the MVIP adapter series.
(All other MVIP jumpers on the adapters between these two should be left unterminated).

• To terminate the MVIP bus fo r the PRI-23, place the jumpers vertically on JP9.

• To terminate the MVIP bus fo r the PRI-23/30, place the jumpers vertically on JP9.

• To terminate the MVIP bus fo r the DM-8, place jumpers horizontally on J5 and J6.

• To terminate the MVIP bus fo r the DM-24, turn switch blocks S1 and S4 “ON”.

Note: DM-24 adapters may have either toggle or slide switches. In either case, the

switch is “ON” if it is toggled or slid to the right. All four switches should
always be set in the same direction.

• To terminate the MVIP bus fo r the DM-24+ or the DM-30+, place the four switches in

switch block SW5 to the “ON” position.

3. Install MVIP adapters into pre-selected slots.

4. Install MVIP ribbon cable. Refer to Connecting Adapter Inter-board Cables.

5. Install TDM ribbon cable. Refer to Connecting Adapter Inter-board Cables

In order to improve si gnal quality (which in tu rn results in higher modem-connection rates), you
should terminate the MVIP bus at both ends as recommended in step (2). However, not all system
configurations support this. Note that PRI-8, PRI Expansion and BRI boards do not support MVIP
termination.

Note: MVIP termination at both ends (step 2) also applies to six PRI-23/30 configurations.

SW1 Memory Mapped Address 1 2 3 4 5 6 7 8

D800 OFF OFF OFF OFF OFF OFF OFF ON

USER’S GUIDE

90 CyberSWITCH

ADDITIONAL ADAPTER SETTINGS

On certain adapters, there are speci fic jumper settings which are independent of slot configuration.
These adapters include the:

•PRI-8

•PRI-23

•PRI-23/30

Refer to the System Adapters Appendix for the locations of various jumpers.

PRI-8
Line Type Settings

In addition to the interrup t ju mp e r and I/O address se ttings, the PRI- 8 has setting s sp e cific to the
PRI line type in use. Refer to the following table for correct settings. Place the jumper on the pins
identified to enable the function.

PRI Li ne Type J20 Clock J11 Clock J12, J13 Receive Pair J14, J15 Transmit Pair

T1 Bottom Right Bottom Pair Left Pair

E1 75 ohms Top Left Middle Pair Middle Pair

E1 120 ohms Top Left Top Pair Right Pair

Central Site Remote Access Switch 91

H

ARDWARE INSTALLATION

Adapter Settings

PRI-23
Clock Settings

In addition to the inte rrupt jumper and I/O addres s setting s, the PRI- 23 requires clock setti ngs (JP4
through JP7). Refer to the following table for the correct settings. Place the jumper on the pins
identified to enable the function.

Jumper Jumper Setting

North American

and Japan T1

J6 1-2
J7 1-2
J8 1-2

J9 1-2
J10 1-2
J11 1-2
J12 1-2
J13 1-2
J14 1-2

JP2 3-4
JP3 3-4
JP4 1-2
JP5 1-2
JP6 1-2
JP7 1-2

USER’S GUIDE

92 CyberSWITCH

PRI-23/30

In addition to the interrup t ju mp e r and I/O address se ttings, the PRI- 23/30 require s se ttings for:

• channel selection (T1 or E1)

• MVIP bus termination

• Robbed Bit Signaling (RBS)

• E1/R2 signaling

Refer to the f ollowing chart for correct se ttings. Place the jumper on the p ins identifi e d to enable
the funct ion, unless sp e cified othe rwise.

Note: When setting jumpers, orient the adapter so that the bus connectors are at the to p of the

adapter, and all pin numbers are in an upright position.

Note that JP1 has an unusual pin-numbering scheme. Be sure to place jumpers vertically
(on pins 1 and 3 or pins 2 and 4, depend ing upon channel selection). The only jumper that
you will need to place horizontally is JP4.

* T1 mode supports RB S functionality; E1 m ode supports R2 functionality. U se JP1, JP3 and

JP6 to designate either T1 or E1 mode.

** Refer to Term ination Guidelines.

Jumper Function T1 (short haul)

100 ohms TP

T1 (long haul)
100 ohms TP

E1 (short haul)
75 ohms coax

E1 (short haul)
120 ohms TP

E1 (long haul)

120 ohms TP
JP1 T1/E1 2-4 2-4 1-3 1-3 1-3
JP3 T1/E1 3-4 3-4 1-2 1-2 1-2
JP4** termination** 1-2 1-2 3-4 5-6 5-6
JP6 T1/E1 jumper in jumper in no jumpers no jumpers no jumpers
JP7** termination** 1-2 1-2 1-2 1-2 2-3
JP8** termination** 1-2 1-2 1-2 1-2 2-3
JP9 MVIP jum per in

to terminate

jumper in

to terminate

jumper in

to termi nate

jumper in

to termi nate

jumper in

to terminate

JP11* RBS*

R2 signaling

(Korea)

jumper out

to enable

N/A

jumper out

to enable

N/A

N/A

jumper out

to enable

N/A

jumper out

to enable

N/A

jumper out

to ena b le

Central Site Remote Access Switch 93

H

ARDWARE INSTALLATION

Inserting the Adapters into the CyberSWITCH

INSERTING THE ADAPTERS INTO THE CYBERSWITCH

Now that you’ve selecte d the slots and set all switche s and jumpers, insert the cards in this way:

1. Remove any existing board hold-down bars/brackets to obtain clear access to the backplane
ISA bus connectors.

2. Remove the ad ap te r hold-down screw located on the b racket of the appropriate slot, and
remove the bracket. This screw will be needed later to secure the adapter once in place.

3. Holding the adapter by the edges only, slide the adapter into the appropriate slot. Use the
adapter guide to align the adapter into place.

4. Once the adapter's gold contacts are lined up with the slots they fit into, use y o u r thumbs to
apply pressure to the outer edge of the adapter to gently push the contacts into place.

5. Reinsert th e adapter hold-down screw.

USER’S GUIDE

94 CyberSWITCH

CONNECTING ADAPTER INTER-BOARD CABLES

There are three possible cables used to connect adapters: flat, crossover, and LCD. Flat cables
connect adapters with like c onnecto rs, and cross over cab les con nect the fl at cable s of adapters with
differing connector s. LCD cables apply to former Network Express products (NE2000-II, 4000,

5000) only. These cables connect the system’s liquid crystal display (LCD) to the WAN adapter

group.

CONNECTING MULTIPLE ADAPTERS

WAN an d D M a da p te r s need int e r- b o a rd cables to com munic a te with each ot he r over an i nter­board bus. (LAN, V.35, RS232 and encryption adapters never require inter-board cabling.) The
WAN adapters use either a Time Domain Multiplexing (TDM) bus, a Multiple Vendor Integration
Protocol ( MVIP) bus, or both. The DM adapters use an MVIP bus only. Each adapter has at least
one bus connector, and some (such as the PRI-23 and PRI-23/30) have both .

The following table classifies the adapters according to inter-board connector type:

All TDM and MVIP connectors, if present, are along the top of the card as shown in the System

Adapters Appendix. If you are u nsure of the locat i on of the adapte r’s co nnec tors, r efer to the adapte r

illustrations for clarification.

The type of inter-board bus (or buses) you should install depends upon your unique system
configuration. The following suggestions should help you achieve the cleanest connections:

Adapter Inter-Board Connector Type

LAN (Ethernet) (none)

V.35 (none)

RS232 (none)

BRI-1 (none)
BRI-4 TDM
PRI-8 TDM

PRI-23 both TDM and MVIP

PRI-23/30 both TDM and MVIP

Expander TDM

DM-8 MVIP

DM-24 MVIP

DM-24+/30+ MVIP

encryption (DES/RSA) (none)

Central Site Remote Access Switch 95

H

ARDWARE INSTALLATION

Connecting Adapter Inter-Board Cables

If you have P RI-23/30 cards: Use an MVIP bus connection between cards whenever possible to
achieve the b e st results. This applies to both :

• multiple PRI-23/30 configurations

• PRI -23 /30 card s i n combin a tion with DM car ds

If you have only PRI-23 cards: Use a TDM bus bet wee n WAN cards and an MVIP bus to connect to
the DM. (I.e., connect all TDM connectors to other TDM connectors, and all MVIP co n ne ctors to
other MVIP connectors within th e system.)

If you have a mixture of PRI-23 cards and PRI-23/30 cards: Use both a TDM bus and an MVIP bus.
Connect all TDM connectors to other TDM connectors, and all MVIP connectors to other MVIP
connectors within th e system.

If you have BRI, PRI-8 or Expander cards: You must use a TDM bus. If you also have a DM card in
your configuration but no PRI-23 or PRI-23/30, you will need to use a crossover cable to connect the
TDM bus to the MVIP connector of the DM card.

To establish the inter-board bus, you’l l need a flat bus cabl e and possibly a crossover cable.

The flat bus cable is a 40-pin ribbon cable. The cable can have from 2 to 6 connectors, dependi ng on
the adapter configuration of the CyberSWITCH. The ribbon cable connectors are spaced
approximately 1 in ch apart t o mate wi th t he adapter c onnectors . Never cut a f lat cabl e to sho rten it .

Flat Bus (Ribbon) Cable

Some flat cables consist of a primarily grey ribbon , with a single red wire to indicate pin 1. These
are essentially the same as the flat bus cable pictured.

Interconnect all the adapters with the same connectors using one flat bus cable of an appropriate
length. If your installation combines cards that have TDM-only connectors with cards that have
MVIP-only connectors, you will need to use a crossover cable.

The crossover cable is a 12-wire ribbon cable with 40-pin connectors. You only need the crossover
cable if all the following conditions are true:

• a Digital Modem adapter is present,

• BRI-4, or PRI-8 is present, and

• no PRI-23 or PRI-23/30 is present

Notice that the crossove r cable conn e cts between two flat cables. When connecting the crossover
cable to the f lat ca ble, al ig n pi n 1 on b oth conn ect ors. Pin 1 i s ide nti fie d by an em boss ed t rian gle on
the underside of each connector.

40-wire

ribbon cable

pin 1

4 adapter bus

connectors

2 adapter bus

connectors

40-wire

ribbon cable

USER’S GUIDE

96 CyberSWITCH

The following grap hic illust rates a crossov er cable appl icat ion . The adap ter wit h the TDM
connector can be one of the following: BRI-4, PRI-8 or Expander.

For crosso ve r cable applic ations, make absolutely sure that pin 1 (on all six connectors) is aligned
so that it i s closest to the front panel. Pin 1 is identif ied by an embossed triangle (o r arrow) on the
underside of each connector. Note that some cables may be solid grey with one red wire indicating
pin 1 (with no identifying triangles).

CONNECTING A WAN ADAPTER TO THE LCD

Note: This cable is only required for systems with an LCD (NE2000-II, 4000, 5000).

The LCD cable is a rainbow-colored cable, approximately 3/4” wide, found inside the system.
Locate the e mb ossed triangle on the LCD cable connector. This triangle points to the end of the
connector that contains pin 1.

Locate the LCD cable connector on the WAN adapter installed in slot 1. The WAN adapter's LC D
cable connector has a “1” label i ng the end of the connector that contai ns pin 1.

Connect the LC D cable to the WAN adapter in slot 1, making sure that the triangle on the LCD cab le
is at the same end as the WAN adapter's “1” label.

MVIP

Connector

TDM

Connector

Pin 1

Pin 40

Pin 40

Pin 1

(arrow on underside)

Front Panel

Pin1

Pin 1

Digital Modem Adapter BRI Adapter

Central Site Remote Access Switch 97

H

ARDWARE INSTALLATION

Connecting Adapter Inter-Board Cables

CAUTION:

Failure to line up trian g les on LCD cable and WAN adapter’s “1” label may result in
damage to the LCD.

SUMMARY OF GUIDELINES

CABLING GUIDELINES

Now that you have attached all the inter- b o a rd cables, refer to the connector-type table and verify
that:

1. On BRI-4, PRI-8, PRI -23 and Expander adapters, all TDM bus connectors a re connected by a flat
bus cable.

2. On PRI-23/30 only configurations, all MVIP bus conne ctors are connected by a flat bus cable.
A TDM bus is not used.

3. If mixing PRI-23/30s with BRI-4s or PRI-23s, use both an MVIP bus and a TDM bus.

4. When a Digital Modem adapter is installed, it needs to connect to the bus throug h its MVIP
connection.

• If part of a PRI-2 3/30 configura ti on: the DM adapter is part of the MVIP bus.

• If part of a PRI -23 co nfigur ati on: you need two b uses: one TD M bus f or WAN car d con nec-

tions, and one MVIP bus connecting DM adapter with MVIP adapter of the PRI-23.

• If adapters with only TDM connectors are instal led (BRI-4 an d PRI-8) and if a DM adapter

is insta lled, then a cr ossover cable must interconnect the TD M and MV IP b u ses.

T

ERMINATION GUIDELINES

On MVIP adap te rs, the MVIP bus should be terminated on both ends of the bus. Ideally, it should
be terminated on the MVIP adapter closest to the CPU (usuall y the PRI adapte r). It should also be
terminated at the Digital Modem end, on the adapter farthest from the BRI, PRI, or Expander
adapter. Terminati on is enabled by jumpers on DM-8, a nd switches o n the DM-24, DM-24+ or DM­30+, as described earlier. All other MVIP jumpers/switches on all other adapters on the MVIP bus
should not be terminated.

A

CCESSING THE CYBER

SWITCH

OVERVIEW

This chapter describes acc essing yo ur Cyber SWIT CH , w hich includes:

• making proper connections

• establishing an administ ration session

• accessing Release Notes

MAKING CONNECTIONS

There are a numbe r of way s to make a connection to the system, which includ e :

• direct connection using a keyboard and mon itor

• null-modem connection using a null-modem cable and a PC wi th Carbon Copy

• remote connection us ing Telnet

• remote con nection using a modem, a remote PC, and one of the fol lowing:
a. Carbon Copy soft ware
b. PPP Dia l-Up Netw orking software

DIRECT CONNECTION

If you only n e e d to configure or manage the CyberSWITCH in a local environmen t, the simplest
access i s through a direc t connection. The CyberSW ITCH is config ured to support a PS/2 or AT­style keyboard and a VGA 15-pin monitor.

Physical C onnections:

1. Attach k e yboard plug to the keyboard connector located on the back of the CyberSWITCH.

2. Attach monitor cable to the local monitor port located on the back of the CyberSWITCH.

Note: The CSX7000 uses a breakout box for these co nnections. Refer to the Local Console

Connection description in the CSX7000 Guide. For the location of the keyboard connector
and local mon itor port for other platf orms, refer to the Hardware Overvi ew chapter.

Powering On:

1. The rear panel on the system provides an AC input power socket. Plug the standard power
cord (supplied with the system) into this power socket.

CAUTION:
Some pla t forms may have a line voltage select switch on the rear panel. If yo u are using such a
platform, make sure that this switch is set for the correct AC input power source. When
changing the line voltage select switch, make sure the AC power cord is unplugged.

2. Ensure that the POWER-ON bu tton on the CyberSWITCH is in the OF F position.

3. Ensure that the monit or and keyboard ar e connected to the proper con nectors at the rear panel .

4. Plug the power cord into a grounded electrical outlet.

5. Plug the monitor power cord into a proper electrical outlet.

Central Site Remote Access Switch 99

A

CCESSING THE CYBER

SWITCH

Making Connections

6. Turn on the CyberSWITCH by pressing the POWER-ON button.

7. Turn on th e monitor.

8. After a few seconds, power -on initia liza tion wi ll begin. Proceed to Establishing an

Administrative Session.

NULL-MODEM CONNECTION TO A PC

If you wish to use an IBM-compatible PC to locally administer your system , you will need to
establish a null-modem connection between PC and CyberSWITCH. You will also need the
optional Man a ger diskette which inclu des Carbon Copy software. Ca rb on Copy allows you to
manage and configure your CyberSWITCH as if it were a direct connect ion, and additionally
provides a means for file transfer. Refer to the Carbon Copy discussion in the Remote Management
chapte r f or mo re inf or mation.

Physical C onnections:

1. Use a null-modem cable (with 9-pin female RS23 2 connectors) to connect the 9-pin, male RS232
port on the CyberSWITCH to the 9-pin , male RS232 port on the PC. Depending on the type of
administration console PC you use, the null modem pin-outs may vary. The following are
appropri ate connections:

2. On the PC, execute the Manager software from diskette, or install the software on your PC’s

hard disk and exe cu te from hard disk . (1 MB of free space n e e ded for instal lation.) Note that
hard disk operation is more efficient.

Note: You do not need to chan ge Carbon Copy’s port p arameter s. The default va lues are sufficient

for null-modem connection.

Powering On:

1. Verify that the line voltag e se le c t sw it c h is set for the correct AC input power source.

2. Plug the standard power cord into the CyberSWITCH’s AC input power socket.

3. Ensure that the POWER-ON bu tton on the CyberSWITCH is in the OF F position.

CyberSWITCH to IBM AT CyberSWITCH to IBM PC

DCD

DSR
RCV

XMIT

DTR

GND

RTS
CTS

DTR

RCV

XMIT

DCD
DSR

GND

RTS
CTS

1
6
2
3
4
5
7
8

4
2
3
1
6
5
7
8

DCD

DSR
RCV

XMIT

DTR

GND

RTS
CTS

DTR

RCV

XMIT

DCD

DSR

GND

RTS
CTS

1
6
2
3
4
5
7
8

20
3
2
6
8
7
4
5

USER’S GUIDE

100 CyberSWITCH

4. Ensure t hat the admi nistr ati on c onsole is pro perl y co nnec ted to th e admi ni strat io n port o n the
CyberSWITCH.

5. Plug the power cord into a grounded electrical outlet.

6. Power on the CyberSWITCH by pressing the POWER-ON button.

7. Power on the administ ration cons ole PC. After a few seconds , power-o n initia liza tion wi ll
begin.

Initiating a Connection:

1. Execute Carbon Copy’s cchelp program which invokes Carbon Copy for guest operation.

2. Select Call CC Device <F1> from displayed menu.

3. Press <ENTE R> or <RET>. (No te lephon e numb er is ne ces sary sin ce this is a local conne ctio n).

4. Carbon Copy will present you with a login prompt. Proceed to Establishing an Administrative

Session.

REMOTE CONNECTION USING TELNET

Telnet is available by default when IP routing is enab led on the Cybe rSW ITC H.
Note: This ty pe c onnec tio n is no t val id fo r fi r st- time c on necti ons to the Cy ber SWIT CH si nce you

need the CyberSWITCH’s IP address for access. However, it is a viable option for routine
system management and/or data transfer once initial installation and configuration have
been performed.

To access the CyberSW ITC H us ing Telne t , you must have a Teln e t clien t software p acka ge. A
Telnet client software package is built i nto the CyberSWITCH. With the CyberSWITCH acting as
the Telnet client, simply enter the

telnet <ip address>

command to Tel net into the target

host. Refer to the System Commands chapter for a complete li sting of availa b le Telne t commands.

If you are using a PC as a Telnet client, the PC must have a Telnet client software package. From
the Telnet client package, you will access the CyberSWITCH by connecting to the CyberSWITCH’s
IP address.

LAN access:
To access the CyberSWITCH you mu st set the device’s IP address to be on the same su bnet as the
CyberSWITCH. Then place the CyberSWITCH on the LAN and Telnet to the address.

WAN access :

1. Connect the system to the (WAN) IS D N l ine.

2. From a remote device that supports unnumbered IP connections, dial in as a PPP CHAP device
USER1 (USER1 as sec ret). Provide Telnet with the CyberSWITCH address.

3. From a remote device only supporting numbered IP connections, set up an IP Address 2.2.2. 3
and have it dial as a PPP CHAP device USER2 (USER2 as secret). Provide Telnet with the
CyberSWITCH address of 2.2.2.2.
