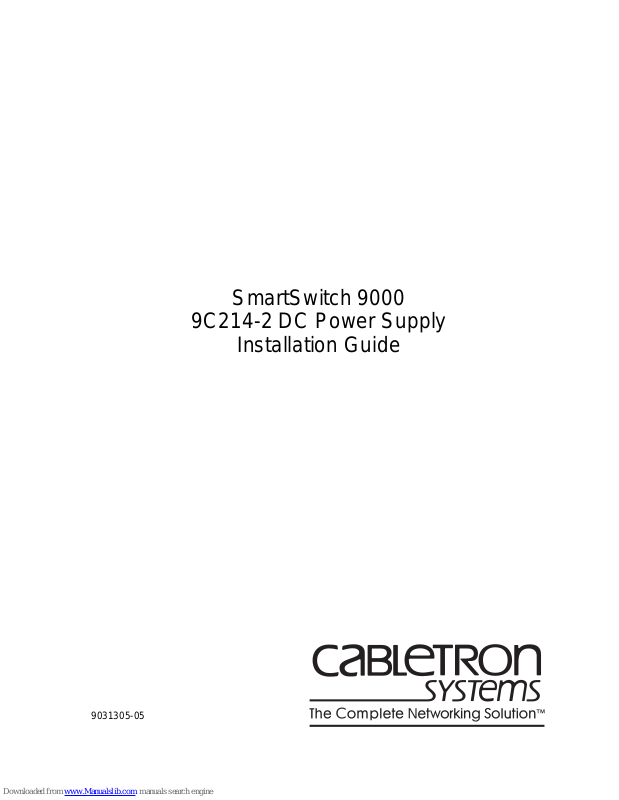

Cabletron Systems 9C214-2 Installation Manual

SmartSwitch 9000

9C214-2 DC Power Supply

Installation Guide

9031305-05

Notice

Notice

Cabletron Systems reserves the right to make changes in specifications and other information
contained in this document without prior notice. The reader should in all cases consult Cabletron
Systems to determine whether any such changes have been made.

The hardware, firmware, or software described in this manual is subject to change without notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL, INDIRECT,

SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED
TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION
CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN ADVISED OF, KNOWN, OR
SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH DAMAGES.

© Copyright April 1998 by:
Cabletron Systems, Inc.

35 Industrial Way
Rochester, NH 03867-5005

All Rights Reserved
Printed in the United States of America

Order Number: 9031305-05

LANVIEW
CompuServe

i960 microprocessor

Ethernet

is a registered trademark, and

is a registered trademark of CompuServe, Inc.

is a registered trademark of Intel Corp.

is a trademark of Xerox Corporation.

SmartSwitch

is a trademark of Cabletron Systems, Inc.

i

Notice

FCC Notice

This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

NOTE:

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial envir onment.
This equipment uses, generates, and can radiate radio frequency energy and if not installed in
accordance with the operator’s manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause interference in which case the user
will be required to correct the interference at his own expense.

WARNING:

party responsible for compliance could void the user’s authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class A digital

Changes or modifications made to this device which are not expressly approved by the

VCCI Notice

This is a Class A product based on the standard of the Voluntary Control Council for Interference by
Information Technology Equipment (VCCI). If this equipment is used in a domestic environment,
radio disturbance may arise. When such trouble occurs, the user may be required to take corrective
actions.

DOC Notice

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.

ii

Notice

DECLARATION OF CONFORMITY

ADDENDUM

Application of Council Directive(s):

89/336/EEC
73/23/EEC

Manufacturer’s Name: Cabletron Systems, Inc.

Manufacturer’ s Address: 35 Industrial Way

PO Box 5005
Rochester, NH 03867

European Representative Name: Mr. J. Solari

European Representative Address: Cabletron Systems Limited

Nexus House, Newbury Business Park
London Road, Newbury
Berkshire RG13 2PZ, England

Conformance to Directive(s)/Product Standards:

EC Directive 89/336/EEC
EC Directive 73/23/EEC
EN 55022
EN 50082-1
EN 60950

Equipment Type/Environment:

Networking Equipment, for use in a

Commercial or Light

Industrial Environment.

We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with
this notice conforms to the above directives.

Manufacturer Legal Representative in Europe
Mr. Ronald Fotino Mr. J. Solari

____________________________________________________ ______________________________________________________

Full Name Full Name
Principal Compliance Engineer Managing Director - E.M.E.A.

____________________________________________________ ______________________________________________________

Title Title
Rochester, NH, USA Newbury, Berkshire, England

____________________________________________________ ______________________________________________________

Location Location

iii

Notice

iv

Contents

Chapter 1 Introduction

Using This Manual........................................................................................................ 1-1

The 9C214-2 Power Supply..........................................................................................1-1

Features ...................................................................................................................1-3

Power Distribution System.......................................................................................... 1-4

Related Manuals............................................................................................................ 1-5

Getting Help .................................................................................................................. 1-5

Chapter 2 Installing the 9C214-2 Power Supply

Connecting Power Source............................................................................................ 2-4

Connecting a Nominal 48/60 Volt Positive Power Source .............................. 2-4

Connecting a Nominal -48/-60 Volt Negative Power Source..........................2-5

Powering Up a 9C214-2 Power Supply......................................................................2-6

Chapter 3 9C214-2 Power Supply Operation

Operating Functions..................................................................................................... 3-1

Diagnostic Controller............................................................................................3-2

Internal Temperature Sensor................................................................................3-2

Power Supply Cooling..........................................................................................3-2

LANVIEW LEDs....................................................................................................3-2

Load Sharing...........................................................................................................3-5

Chapter 4 Specifications

Safety............................................................................................................................... 4-1

Service.............................................................................................................................4-2

Bellcore Standards.........................................................................................................4-2

Physical........................................................................................................................... 4-2

Environmental............................................................................................................... 4-2

DC Input.........................................................................................................................4-3

Voltage .....................................................................................................................4-3

Current ....................................................................................................................4-3

Fusing ............................................................................................................................. 4-3

DC Input Connection ................................................................................................... 4-3

Output Power................................................................................................................4-3

v

Contents

vi

Introduction

Using This Manual

Chapter 1

Read through this manual to become familiar with its contents and gain an
understanding of the features and capabilities of the 9C214-2 Power Supply prior
to installation and operation.

Chapter 1,
Supply and its features. This chapter also includes a list of related manuals and
information on getting help.

Chapter 2,
unpacking, installing, and powering up the 9C214-2 Power Supply.

Chapter 3,
regarding the power supply operation.

Chapter 4,
Supply.

Introduction , provides a brief description of the 9C214-2 Power

Installing the 9C214-2 Power Supply , contains detailed steps for

9C214-2 Power Supply Operation , contains detailed information

Specifications , provides detailed specifications of the 9C214-2 Power

The 9C214-2 Power Supply

The 9C214-2 Power Supply, shown in Figure 1-1, is a 1000 watt, triple output
supply that accepts positive or negative 36–72 volt DC input. It provides power to
the three power busses within the SmartSwitch 9000 chassis. At least one power
supply must be installed; however, additional power supplies can be installed to
achieve redundancy. When two or more power supplies are properly installed,
the power supplies use a current sharing scheme where under all load conditions
each supply provides power equally.

1-1

Introduction

P

POWER SUPPLY MODULE

9C214-2

Load

100%

STATUS

50%

0%

S

W

N

R

B

-OL

GML

SMB
Status
LED

Power Supply
Status LED

Power Supply
Level Indicator
LED

1-2

THIS UNIT TO BE
INSTALLED IN A

!

RESTRICTED ACCESS
AREA IN ACCORCANCE WITH THE
NEC OR THE AUTHORITY HAVING
JURISDICTION

48/60V
30A MAX

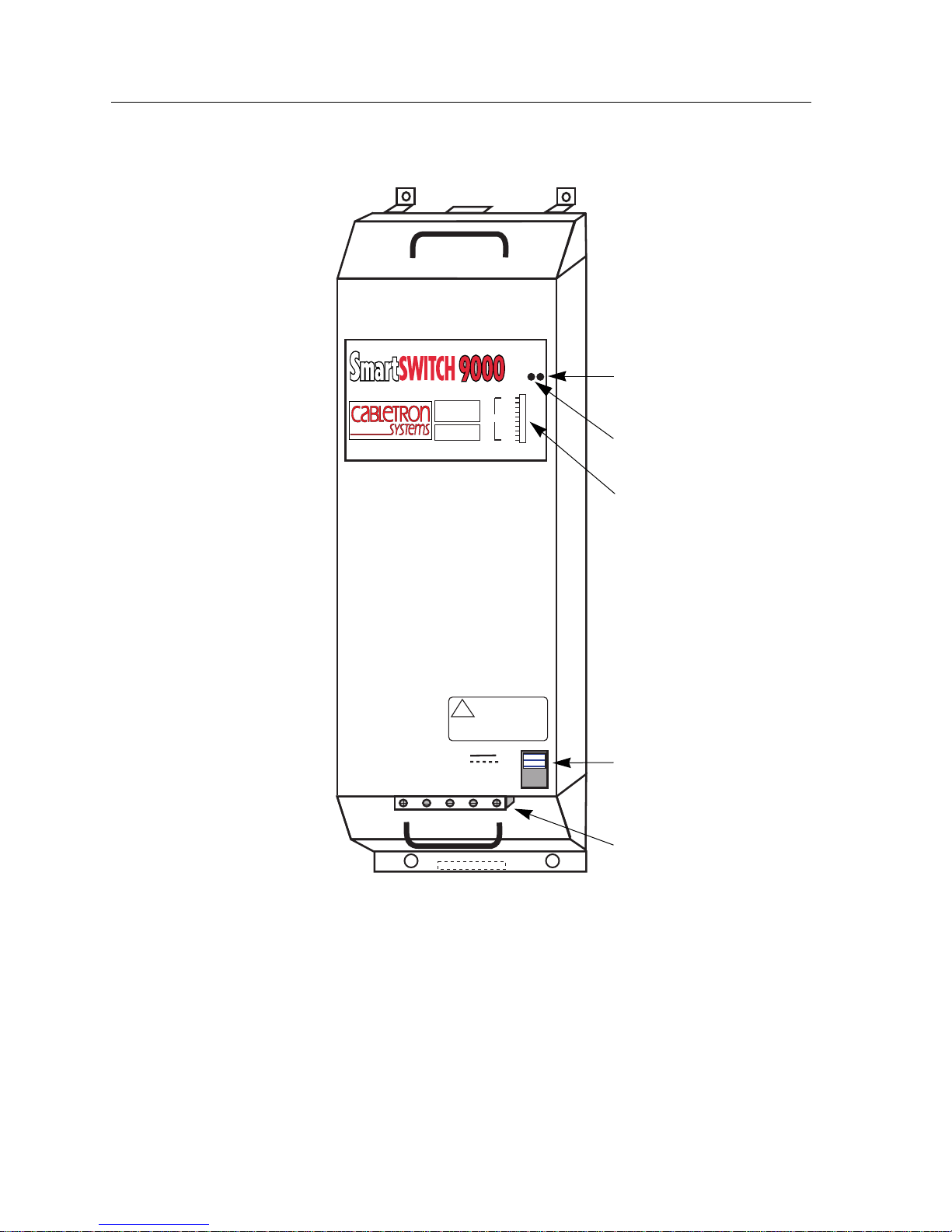

Figure 1-1. The 9C214-2 Power Supply

Circuit
Breaker

Terminal
Block

Features

Diagnostic Controller for Management

Introduction

Each 9C214-2 Power Supply has a diagnostic controller. This diagnostic controller
includes a microprocessor that monitors the numerous power supply functions
available to the Network Manager via the LCD on the 9C300-1 Environmental
Module, as well as local and remote management functions.

Internal Temperature Sensor

Each 9C214-2 Power Supply has its own built-in temperature sensor for
monitoring and reporting its own internal temperature to the Network Manager
via LCD, as well as local and remote management.

Cooling Fan

Each 9C214-2 Power Supply has its own cooling fan. The microprocessor within
the diagnostic controller increases or decreases the fan speed based on the
temperature of the power supply. In the event of microprocessor failure, fan
speed defaults to 100% to ensure protection of the power supply.

Thermal Overload Protection

Each 9C214-2 Power Supply includes a thermal shutdown circuit. This circuit
protects the power supply from overheating by shutting the power supply down
if a thermal overload occurs. Automatic recovery takes place after the thermal
overload condition is corrected.

Load Sharing

Each 9C214-2 Power Supply uses a current sharing design. This design allows
multiple power supplies to equally (within ± 5%) share the output load. For
example, if two power supplies are used, each power supply provides 50% ± 5%
of the output load. This feature increases the life of each power supply.

Input Polarity Detection

The 9C214-2 Power Supply is equipped with an input polarity detection feature.
In the event that input to the terminal block is reversed, a buzzer within the
power supply sounds.

Hot Swapping

A 9C214-2 Power Supply can be installed or r emoved from the back of the chassis
while another power supply is operating without affecting network operation.
However, before removing a power supply make sure the switch is turned off.

LANVIEW

®

LEDs

Each 9C214-2 Power Supply has three LANVIEW LEDS: the PWR Status LED
indicates the status of the 9C214-2 input and all outputs, the SMB Status LED
indicates the status of the diagnostic controller, and the Power Supply Level
Indicator LED indicates the percentage of the power supply’s capacity being
used.

1-3

Introduction

Power Distribution System

The SmartSwitch 9000 uses a distributed DC power system (Figure 1-2) similar to
those used in super computers. Three separate power buses are used to distribute
DC power. The 48 volt DC System Power Bus, located on the backplane, powers
all modules and the system cooling fans. The Diagnostic Power Bus provides 5
volts DC to all of the system’s diagnostic controllers and the environmental
module. The INB termination power bus provides 3.3 volts DC to the
SmartSwitch 9000 9C614 INB termination modules.

36 - 72 volts

DC Power Supply

57 volts 57 volts

DC/DC
CONVERTOR

5 volts 3.3 volts

3.3 Volt INB Termination Power Bus

Communications
Systems Components

48 Volt System Power Bus

5 Volt Diagnostic Power Bus

Diagnostic
Controller

DC/DC
CONVERTOR

36 - 72 volts

DC Power Supply

Communications
Systems Components

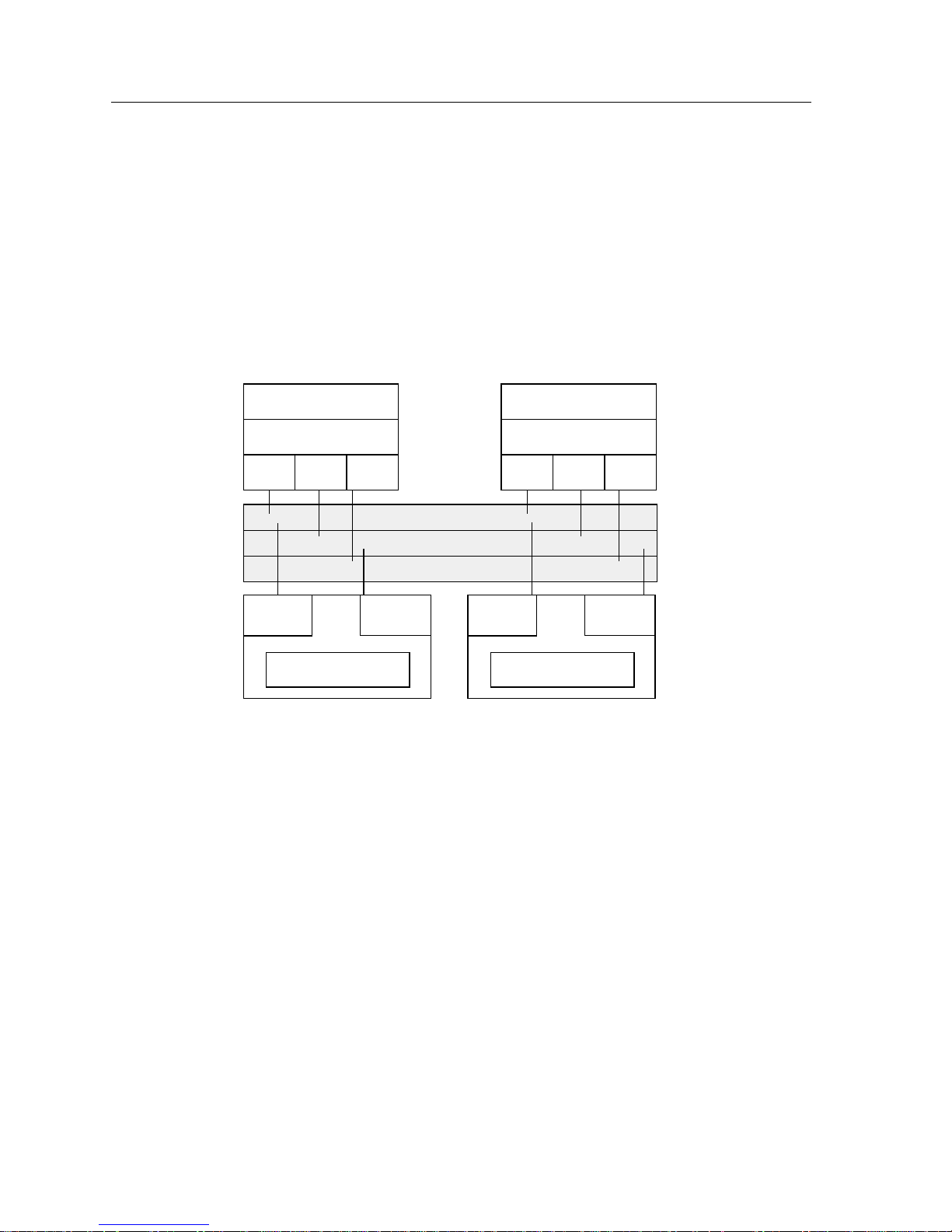

Figure 1-2. Distributed DC Power Distribution System

5 volts 3.3 volts

Diagnostic
Controller

1-4

Related Manuals

The manuals listed below should be used to supplement the procedures and
technical data contained in this manual.

SmartSwitch 9000 Installation Guide
SmartSwitch 9000 Operations Guide
SmartSwitch 9000 9C300-1 Environmental Module User’s Guide
In addition, each Interface Module has a user’s guide.

Getting Help

Introduction

For additional support related to this device or document, contact the Cabletron Systems Global Call
Center:

Phone [phone]
Internet mail [email protected]
FTP ctron.com (134.141.197.25)

Login
Password

BBS [phone]

Modem setting 8N1: 8 data bits, No parity, 1 stop bit

For additional information about Cabletron Systems or its products, visit the
World Wide Web site: http://www.cabletron.com/
For technical support, select Service and Support .

To send comments or suggestions concerning this document, contact the
Cabletron Systems Technical Writing Department via the following
email address: [email protected]

Make sure to include the document Part Number in the email message.

anonymous
your email address

Before calling the Cabletron Systems Global Call Center, have the following information ready:

• Your Cabletron Systems service contract number

• A description of the failure

• A description of any action(s) already taken to resolve the problem (e.g., changing mode switches,
rebooting the unit, etc.)

• The serial and revision numbers of all involved Cabletron Systems products in the network

• A description of your network environment (layout, cable type, etc.)

• Network load and frame size at the time of trouble (if known)

• The device history (i.e., have you returned the device before, is this a recurring problem, etc.)

• Any previous Return Material Authorization (RMA) numbers

1-5

Introduction

1-6

Chapter 2

Installing the 9C214-2 Power Supply

This unit to be installed in a restricted access area in accordance with the NEC or

!

CAUTION

the authority having jurisdiction. When installing the unit the following
guidelines must be met:

• Connect to a 48Vdc SELV source which is reliably connected to earth
ground.

• The branch circuit over current protection must be rated max 30A.

• Use #10AWG copper conductors only.

• A readily accessible disconnect device that is suitably approved and rated
shall be incorporated in the field wiring.

At least one power supply must be installed on the rear of the SmartSwitch 9000
chassis. Additional power supplies can be added to achieve redundancy.

The first power supply is installed on the right side of the chassis (looking from
the back of the chassis to the front) by plugging it into the power supply
connector on the back of the SmartSwitch 9000 chassis as shown in Figure 2-1.

Install the first power supply by following the steps below:

1. Unpack the power supply by removing it from the shipping box and sliding
the two foam end caps off the unit. (Save the shipping box and packing
materials in the event the power supply must be reshipped.)

2. Remove the power supply from the protective plastic bag. (Save the bag in the
event the power supply must be reshipped.)

3. Examine the power supply carefully, checking for damage. If any damage
exists, DO NOT install the power supply. Immediately contact Cabletron
Systems Technical Support.

4. Loosen and remove the two screws from one of the power supply connector
covers on the rear of the SmartSwitch 9000 chassis.

2-1

Installing the 9C214-2 Power Supply

5. Remove the cover . (Keep the cover in the event you need to r emove the power
supply. The cover must be replaced to protect the connector.)

6. Hold the power supply by the handles on the top and bottom of the unit, and
do the following:

a. Align the power supply so that the lip on the bottom and the hook on the

top are slightly above the corresponding slots on the chassis.

b. Ease the power supply down until the hook catches the slot on the top and

the tab is inserted in the slot on the bottom.

c. Plug the power supply into the connector on the back of the chassis by

pushing the power supply until its frame touches the surface of the
SmartSwitch 9000 chassis. Do not force the power supply in place. If
significant resistance is encountered before the frame is flush with the
chassis, remove the power supply, realign it, and push it in again.

d. Secure the power supply to the chassis by tightening the two screws on

the top and two screws on the bottom of the power supply. For proper
chassis grounding, the four screws must be properly tightened.

7. If you are installing a second power supply, repeat steps 1–6.

2-2

Installing the 9C214-2 Power Supply

Slot on
Chassis

21

Securing
Screws

P

S

W

N

R

.
.
.
.

POWER SUPPLY MODULE

9C214-2

.
.
.
.
.
.
.

B

STATUS

-OL

100%

50%

Load

0%

.
.
.
.

GML

.
.
.
.
.
.
.

Terminal
Block

THIS UNIT TO BE
INSTALLED IN A

!

RESTRICTED ACCESS
AREA IN ACCORCANCE WITH THE
NEC OR THE AUTHORITY HAVING
JURISDICTION

48/60V
30A MAX

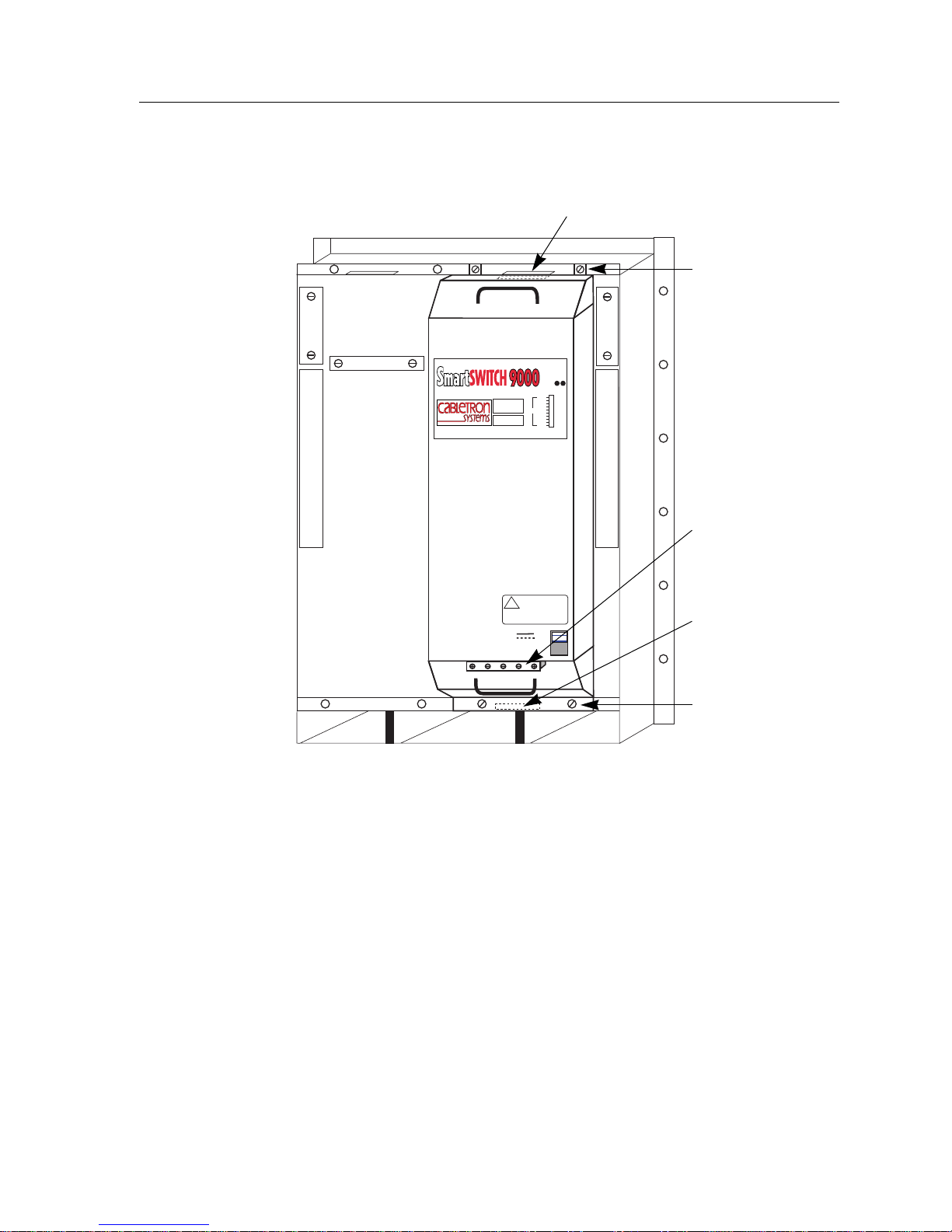

Figure 2-1. Installing the 9C214-2 Power Supply

Tab

Securing
Screws

2-3

Installing the 9C214-2 Power Supply

Connecting Power Source

A nominal 48 or 60 volt positive or negative power source can be connected to a
9C214-2 Power Supply. Follow the appropriate steps starting below to make the
proper connection.

Connecting a Nominal 48/60 Volt Positive Power Source

The nominal 48/60 volt positive power source is connected to a 9C214-2 Power
Supply using at least number 10A WG (5 square millimeters) copper wir e to which
ring or spade terminals that will accept a number ten screw have been attached.
Connect the power source to the connections on the terminal block on the 9C214-2
Power Supply (Figure 2-2) by following the steps below.

NOTE

1. Interrupt power at the nominal 48/60 volt power source.

2. Turn off the power supply circuit breaker.

3. Remove the cover protecting the terminal block.

4. Connect the earth ground lead to the earth ground terminal.

5. Connect the 48/60 volt return lead to the negative terminal.

6. Connect the 48/60 volt lead to the positive terminal.

7. Replace the cover on the terminal block.

8. Restore power to the 48/60 volt power source.

9. Turn on the power supply circuit breaker.

If the input polarity detection buzzer sounds after turning on the power supply
circuit breaker, the connections are wrong. Turn off the power supply circuit
breaker, interrupt power at the nominal 48/60 volt power source, disconnect the
power source and make the necessary changes to the existing connections.

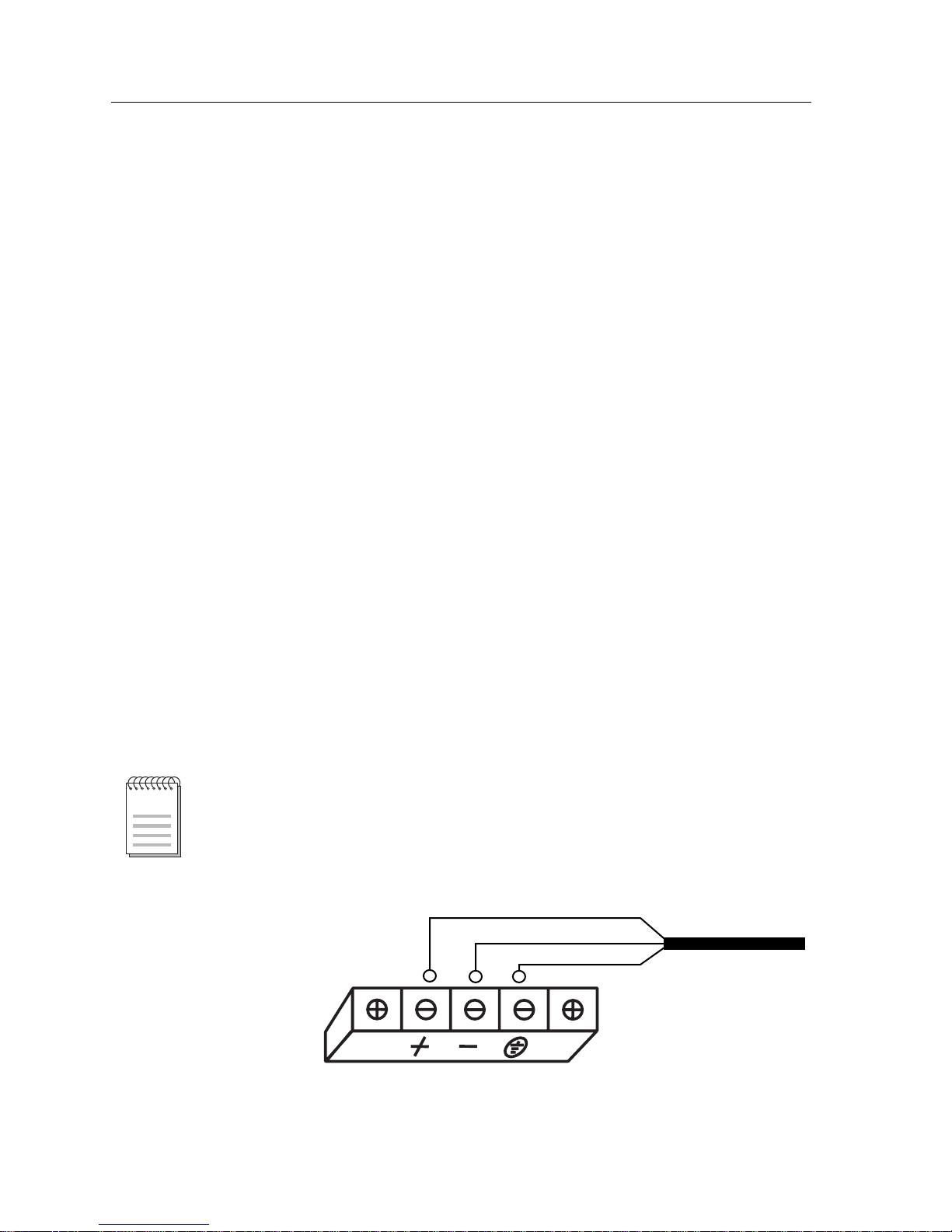

Figure 2-2. Connecting a nominal 48/60 volt Positive Power Source

2-4

48/60 volt lead

48/60 volt return lead

earth ground lead

48/60 volt source

Installing the 9C214-2 Power Supply

Connecting a Nominal -48/-60 Volt Negative Power Source

The nominal -48/-60 volt negative power source is connected to a 9C214-2 Power
Supply using at least number 10 AWG (5 square millimeters) copper wire to
which ring or spade terminals that will accept a number ten screw have been
attached. Connect the power source to the connections on the terminal block on
the 9C214-2 Power Supply (Figure 2-3) by following the steps below.

1. Interrupt power at the nominal -48/-60 volt power source.

2. Turn off the power supply circuit breaker.

3. Remove the cover protecting the terminal block.

4. Connect the earth ground lead to the earth ground terminal.

NOTE

5. Connect the -48/-60 volt return lead to the positive terminal.

6. Connect the -48/-60 volt lead to the negative terminal.

7. Replace the cover on the terminal block.

8. Restore power to the -48/-60 volt power source.

9. Turn on the power supply circuit breaker.

If the input polarity detection buzzer sounds after turning on the power supply
circuit breaker, the connections are wrong. Turn off the power supply circuit
breaker, interrupt power at the nominal -48/-60 volt power source, disconnect the
power source and make the necessary changes to the existing connections.

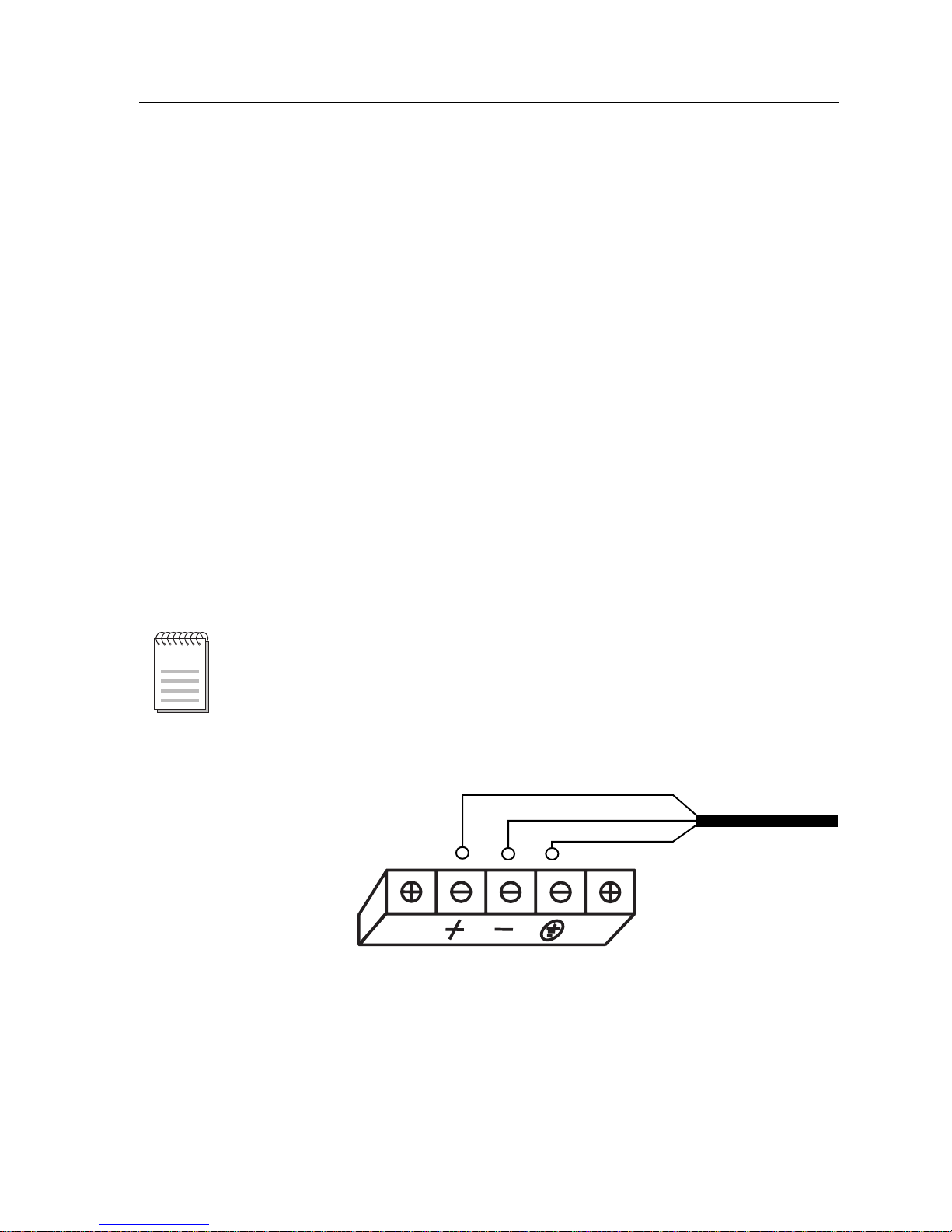

-48/-60 volt return lead

-48/-60 volt lead
earth ground lead

-48/-60 volt source

Figure 2-3. Connecting a Nominal -48/-60 Volt Negative Power Source

2-5

Installing the 9C214-2 Power Supply

Powering Up a 9C214-2 Power Supply

Before you power up a 9C214-2 Power Supply, make sur e that the Envir onmental

NOTE

Module and all modules have been properly installed.

1. Turn on the 9C214-2 Power Supply using the circuit breaker at the bottom
right of the power supply. (The power supply uses a soft start feature and
does a pre-power diagnostic check. Outputs become enabled within 5 seconds
of power on.)

2. Check to make sure that
a. The PWR Status LED is green.
b. The SMB Status LED is green.

If the LEDs are any color other than green, refer to

LANVIEW LEDs in Chapter 3.

2-6

Chapter 3

9C214-2 Power Supply Operation

The 9C214-2 Power Supply can operate with input voltages ranging from
36 – 72 positive or negative Volts Direct Current (VDC). Each 9C214-2 provides a
maximum of 1000 watts of power to the SmartSwitch 9000.

When two or more power supplies are installed, the system uses a current sharing
scheme where under all load conditions each supply provides power equally.

Each 9C214-2 Power Supply converts the 36 – 72 VDC to three different DC
outputs for use by the power buses within the SmartSwitch 9000. Each of these
outputs is described below.

• 57 volts are supplied to the 48 volt DC System Power Bus for use throughout

the chassis for each installed module and the Environmental Module system
fans.

• 5 volts are supplied to the Diagnostic Power Bus used by the diagnostic

controllers and the Environmental Module.

• 3.3 volts are supplied to the INB Termination Power Bus.

Operating Functions

The 9C214-2 Power Supply includes the following functions:

• System Diagnostic Controller

• Temperature Sensor

• Power Supply Cooling

• LANVIEW LEDs

• Load Sharing

3-1

9C214-2 Power Supply Operation

Diagnostic Controller

The diagnostic controller is composed of a Z-80 microprocessor and it’s
supporting logic. The diagnostic controller is designed to monitor the power
supply’s input and output power parameters as well as the temperature and fan
status. In addition, the diagnostic controller adjusts fan speed and controls the
LANVIEW diagnostic LEDs. The information gathered by the diagnostic
controller is available to the network manager via the LCD on the 9C300-1
Environmental Module, as well as local and remote management. If the
diagnostic controller fails, the 9C214-2 Power Supply has been designed to
continue to function and supply power to the system.

Internal T emperature Sensor

Each 9C214-2 Power Supply has a built-in temperature sensor for monitoring its
own internal temperature. The results of the monitoring are available to the
network manager via the LCD on the 9C300-1 Environmental Module, as well as
local and remote management.

Power Supply Cooling

Each 9C214-2 Power Supply includes an internal cooling fan. The diagnostic
controller monitors the internal temperature of the power supply and increases or
decreases the fan speed based on that temperature. If the diagnostic controller
fails, fan speed defaults to 100% to ensure protection of the power supply.

LANVIEW LEDs

The LANVIEW LEDs on the back of the 9C214-2 Power Supply can be used as an
aid in troubleshooting.

There are three LANVIEW LEDs visible to the user (Figure 3-1):

• PWR Status LED

• SMB Status LED

• Power Supply Level Indicator LED

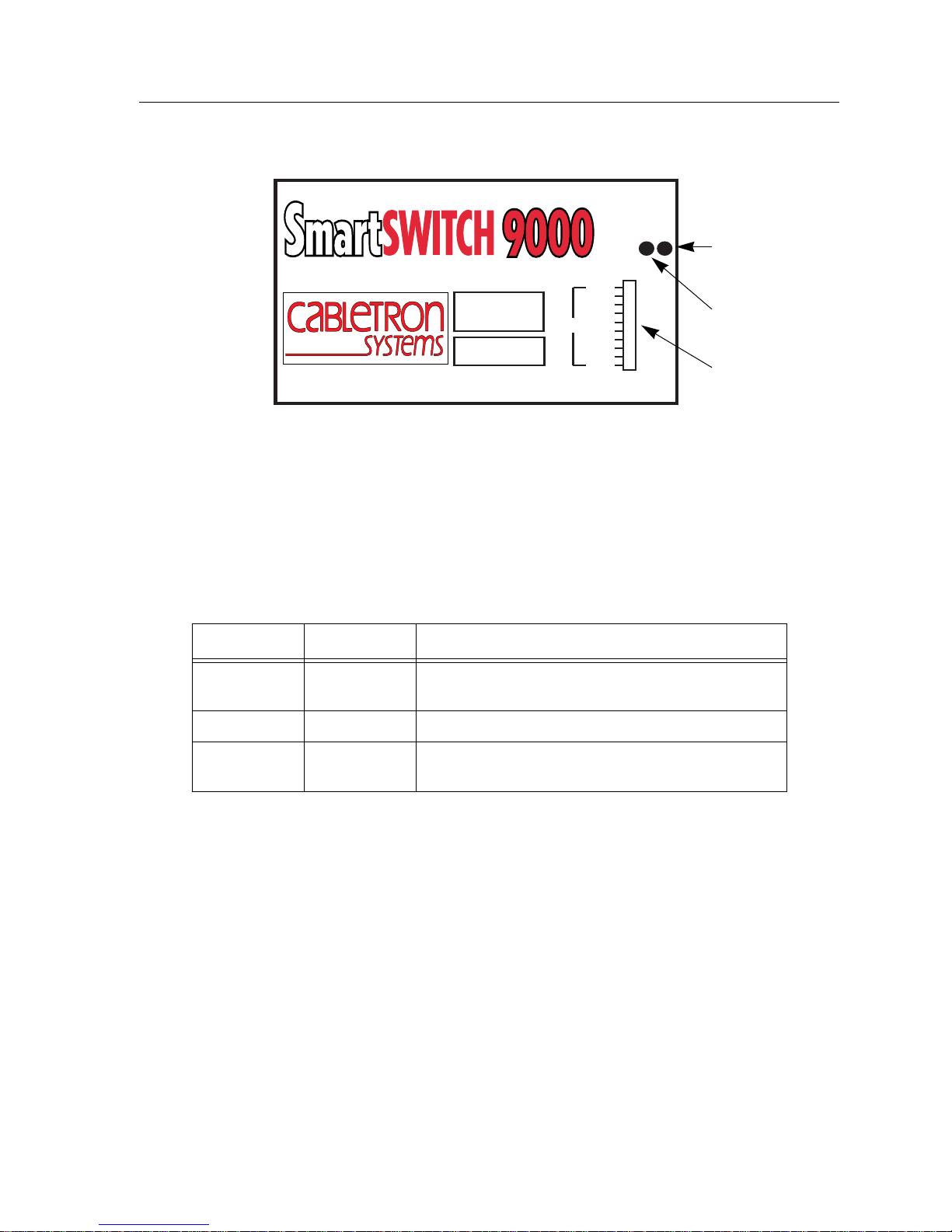

3-2

Load

9C214-2 Power Supply Operation

S

P

N

W

B

STATUS

100%

R

-OL

SMB STATUS
LED

PWR STATUS

50%

LED
Power Supply

Level Indicator
LED

POWER SUPPLY MODULE

9C214-2

0%

GML

Figure 3-1. 9C214-2 Power Supply LANVIEW LEDs

The PWR Status LED indicates, by color, the status of a power supply’s input and
outputs. The possible colors, states, and descriptions of the PWR Status LED are
listed in Table 3-1.

Table 3-1. PWR Status LED

LED Color State Description

Green Functional The 57 volt, 5 volt, and 3.3 volt outputs, as well as

the input, are within established tolerances.
Yellow Crippled Not fully operational due to lack of DC input.
Red Fault One of the system power supply outputs, or input

is out of regulation.

3-3

9C214-2 Power Supply Operation

The SMB Status LED indicates, by color, the status of the diagnostic controller.
The possible colors, states, and descriptions of the SMB Status LED are listed in
Table 3-2.

LED Color State Description

Green Functional Fully operational.
Yellow/Green Booting Flashes yellow and green while booting.
Yellow Testing Power up testing being performed.
Yellow (Flashing) Crippled Limited functionality of the diagnostic

Table 3-2. SMB Status LED

controller or fan failure.
Red Reset Normal power-up reset.
Red (Flashing) Failed Fatal error has occurred.
Off Power off Module powered off.

3-4

9C214-2 Power Supply Operation

The Power Supply Level Indicator LED indicates, by segment number, the
percentage of the power supply’s capacity being used. The possible states and
descriptions of the Power Supply Level Indicator LED are listed in Table 3-3.

Table 3-3. Power Supply Level Indicator LED

Segment

Number(s)

1 - 5 Green 0–49% of power load being

6 - 9 Green 50-89% of power load being

6 - 9 Green/

10 Yellow Greater than 90% of power

11 Red Overload condition exists. Add an additional

LED

Color

Yellow

State Description

used.

used. No parallel power supply
operational.

50-89% of power load being
used. Parallel supply(ies)
installed; however, yellow
indicates loss of redundancy.

supply being used.

No action necessary.

No action necessary.

Add an additional
power supply if
redundancy is
desired.

Add an additional
power supply for
redundancy.

power supply or
reduce number of
modules in the
chassis.

Load Sharing

Each 9C214-2 Power Supply uses a current sharing design. This design allows
multiple power supplies to equally (within ± 5%) share the output load. For
example, if two power supplies are used, each power supply provides 50% ± 5%
of the output load. This feature increases the life of each power supply.

3-5

9C214-2 Power Supply Operation

3-6

Specifications

Safety

Chapter 4

!

CAUTION

It is the responsibility of the person who sells the system to which the modules will
be a part to ensure that the total system meets allowed limits of conducted and
radiated emissions.

The 9C214-2 Power Supply, when properly installed on the SmartSwitch 9000
Chassis, complies with the following specifications and standards:

Safety Requirements of:

• UL 1950

• CSA C22.2 No. 950

• EN 60950

• IEC 950

• TR-NWT-000063

EMI Requirements of:

• FCC Part 15 Class A

• EN 55022 Class A

• VCCI Class I

• GR-1089-CORE
EMC requirements of:

• EN 50082-1

• IEC 801-2 ESD

• IEC 801-3 Radiated susceptibility

• IEC 801-4 EFT

• GR-1089-CORE

4-1

Specifications

Service

The 9C214-2 Power Supply is designed with the following service capability:

MTBF (MIL-STD-217): >200,000 hours projected
MTTR: <.50 hour

Bellcore Standards

The 9C214-2 Power Supply, when properly installed on the SmartSwitch 9000
Chassis, complies with the following standards:

TR-NWT-000063Network Equipment Building System (NEBS) Generic
Equipment Requirements

GR-1089-COREEMC and Electrical Safety Generic criteria for Network
Telecommunications Equipment.

Physical

Dimensions

60.96 H x 19.05 W x 13.97 D centimeters
(24 H x 7.5 W x 5.5 D inches)

Weight

Unit: 5.8 kilograms (13 lbs.)
Shipping: 7.2 kilograms (16 lbs.)

Environmental

The 9C214-2 DC Power Supply has been tested, and found to be in compliance
with Bellcore TR-NWT-000063.

Operating Temperature: 5 – 40° C, 41–104° F
Operating Humidity: 5% to 95% non-condensing
Cooling: 2.15 cubic meters of air per minute drawn through the chassis

4-2

76 cubic feet of air per minute drawn through the chassis

DC Input

Each 9C214-2 Power Supply operates with the following voltage and current.

Voltage

36–72 VDC

Current

30A DC Maximum

Fusing

The DC input to the 9C214-2 Power Supply has a built in 30 amp circuit breaker.

Specifications

DC Input Connection

The DC input connector is a three connector terminal block. Connections are
made from the DC power source to this block using at least number 10 AWG
(5 square millimeters) copper wire to which ring or spade terminals that will
accept a number ten screw have been attached.

Output Power

Each 9C214-2 Power Supply is capable of generating the following output
voltages:

57 volts @ 17A

3.3 volts @ 16A

5.1 volts @ 17A

4-3

Specifications

4-4
