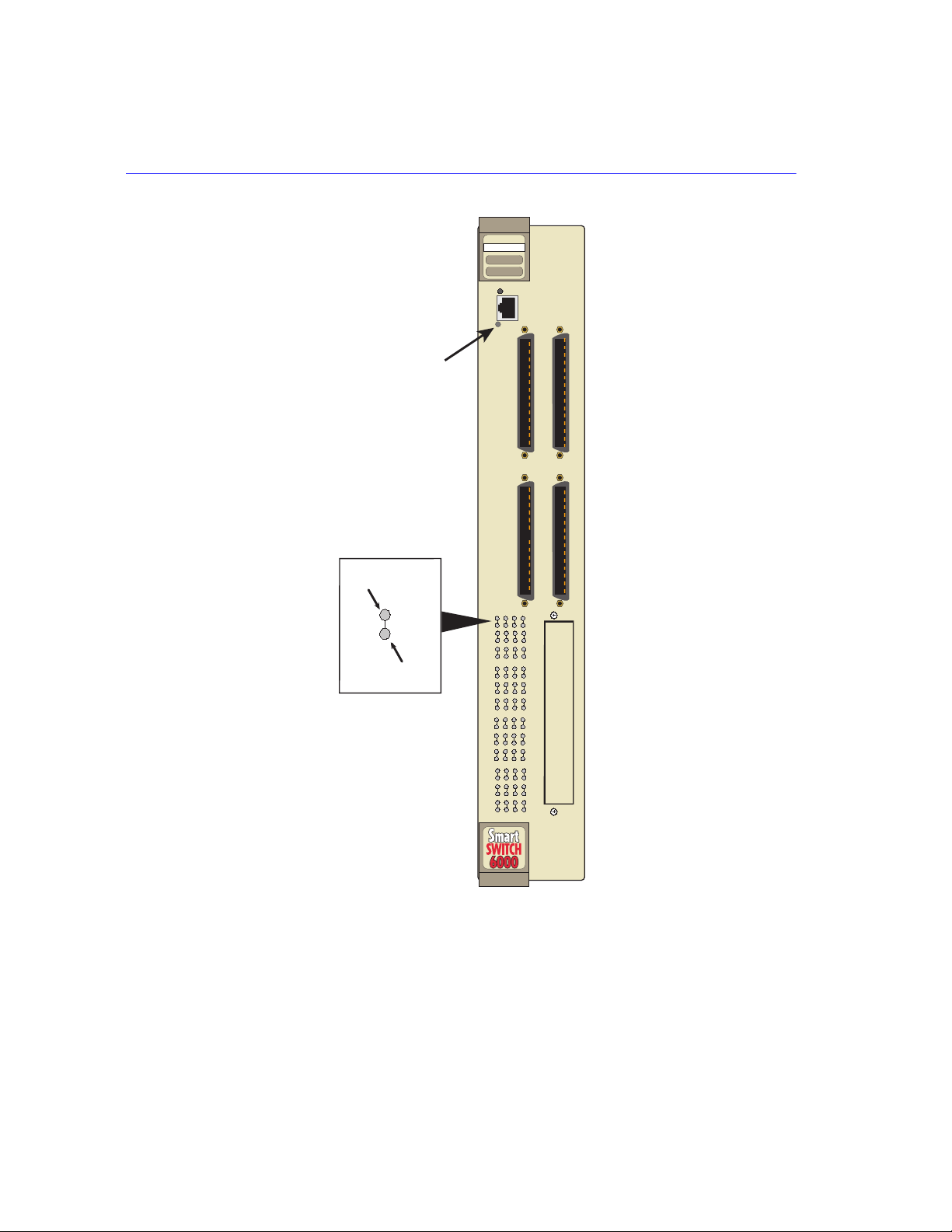

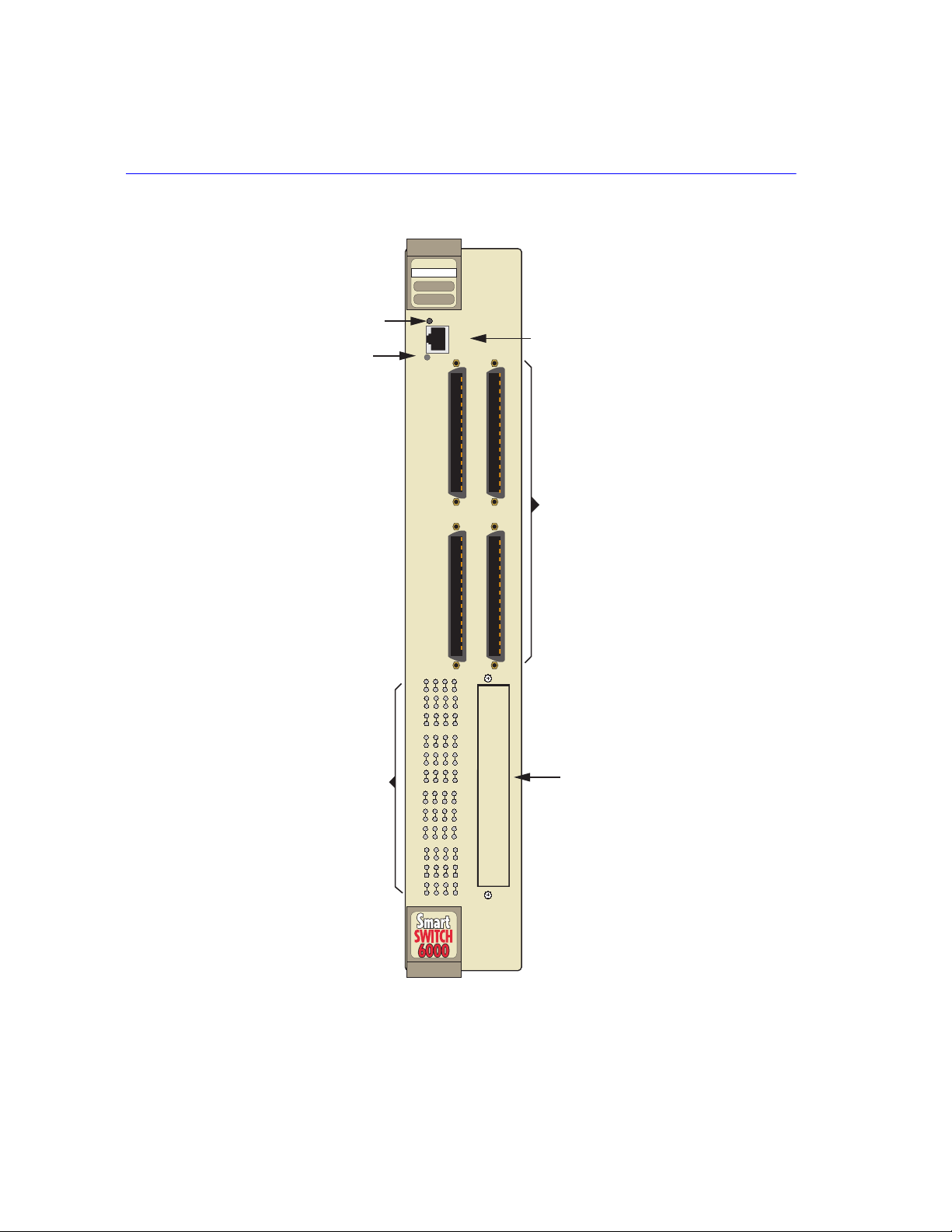

ETHERNET
6E233-49
24
48
37
36
25
24
1
12
59678
10 11 12
1234
13 14 15 16
17 18 19 20
21 22 23 24
25 26 27 28
29 30 31 32
33 34 35 36
37 38 39 40
41 42 43 44
45 46 47 48
13
RESET
COM
CPU
6E233-49
Title Page
SmartSwitch 6000
Interface Module
9033379
User’s Guide
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Only qualified personnel should perform installation procedures.
NOTICE
Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made.
The hardware, firmware, or software described in this manual is subject to change without notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED T O LOST PR OFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN ADVISED OF, KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH DAMAGES.
Cabletron Systems, Inc. 35 Industrial Way Rochester, NH 03866-5005
2000 by Cabletron Systems, Inc. All Rights Reserved Printed in the United States of America
Order Number: 9033379 January 2000
Cabletron Systems, QuickSET, SecureFast, and LANVIEW are registered trademarks and SmartSwitch is a trademark of Cabletron Systems, Inc.
All other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies.
i
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
FCC NOTICE
This device complies with P art 15 of th e FCC rul es. Ope rat ion is sub ject to th e following two conditions: (1) this d evice may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause unde s i re d operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment uses, generates, and can radiate radio frequency
energy and if not instal led in accordance with the operator’s manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference in which case the user will be required to correct the interference at his own expense.
WARNING: Changes or modific ations made t o this de vice which ar e not e xpre ssly ap pro ved by the party r espons ible f or
compliance could void the user’s authority to operate the equipment.
INDUSTRY CANADA NOTICE
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada.
VCCI NOTICE
This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information T echnology Equipment (VCCI). If this equipment is used in a domestic enviro nment, radio disturbance may arise. When such trouble occurs, the user may be required to take corrective actions.
ii
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
CABLETRON SYSTEMS, INC.
PROGRAM LICENSE AGREEMENT
IMPORTANT:THIS LICENSE APPLIES FOR USE OF PRODUCT IN THE FOLLOWING
GEOGRAPHICAL REGIONS: CANADA
MEXICO CENTRAL AMERICA SOUTH AMERICA
BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT.
This document is an agreement (“Agreement”) between You, the end user, and Cabletron Systems, Inc. (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (“Program”) in the package. The Program may be contained in firmware, chips or other media. UTILIZING THE ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME BOUND BY THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND THE LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, RETURN THE UNOPENED PRODUCT TO CABLETRON OR YOUR DEALER, IF ANY, WITHIN TEN (10) DAYS FOLLOWING THE DATE OF RECEIPT FOR A FULL REFUND.
IF YOU HAVE ANY QUESTIONS ABOUT THIS AGREEMENT, CONTACT CABLETRON SYSTEMS +1- 603-332-9400. Attn: Legal Department.
1. LICENSE. You have the right to use only th e one (1) copy of the Program pr o v ide d in this package subject to th e terms and conditions of this License Agreement.
You may not copy, reproduce or transmit any part of the Program except as permitted by the Copyright Act of the
United States or as aut horized in writing by Cabletron.
2. OTHER RESTRICTIONS. You may not reverse engineer, decompile, or disassemble the Program.
3. APPLICABLE LAW. This License Agreement shall be interpreted and governed under the laws and in the state
and federal courts of New Hampshire. You accept the personal jurisdiction and venue of the New Hampshire courts.
4. EXPORT REQUIREMENTS. You understand that Cabletron and its Affiliates are subject to regulation by agencies of the U.S. Government, including the U.S. De partment of Commerce, which prohibi t export or diversion of certain technical pro ducts to certain countrie s, unless a license to expo rt the product is obta ined from the U.S. Gove rnment or an exception fro m obtaining such license may be relied upon by the exporting party.
If the Program is exported from the United States pursuant to the License Exception CIV under the U.S. Export Administration Regulations, Yo u agree that You are a civil end user of the Program and agree that You will use the Program for civil end uses only and not for milita ry pu rpo se s.
iii
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
If the Program is exported from the United States pursuant to the License Exception TSR under the U.S. Export Administration Regulations, in addition to the restriction on transfer set forth in Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia,
Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s Republic of China, Romania, Russia, Rwanda, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, Vietnam, or such other countries as may be designated by the United States Government), (ii) export to Country Groups D:1 or E:2 (as defined herein) the direct product of the Program or t he te c hnolo g y, if such foreign produced direct prod uc t is su bj ect to na ti on al secu rity co nt rols as identified on the U.S. Commerce Control List, or (iii) if the direct product of the technology is a complet e plant o r any major component of a plant, export to Country Groups D:1 or E:2 the direct product of the plant or a major component thereof, if such foreign produced direct product is subject to national security controls as identified on the U.S. Commerce Control List or is subject to State Department controls under the U.S. Munitions List.
5. UNITED STATES GOVERNMENT RESTRICTED RIGHTS. The enclosed Product (i) was developed solely at private expense; (ii) contains “re stricted computer software” submitte d with restricted rights in accordance with section
52.227-19 (a) through (d) of the Commercial Computer Software-Restricted Rights Clause and its successors, and (iii) in all respects is proprietary data belonging to Cabletron and/or its suppliers. For Department of Defense units, the Product is considered commercial computer software in accordance with DFARS section 227.7202-3 and its successors, and use, duplication, or disclosure by the Government is subject to restrictions set forth herein.
6. EXCLUSION OF WARRANTY. Except as may be specifically provided by Cabletron in writing, Cabletron makes no warranty, expressed or implied, concerning the Program (including its documentation and media).
CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO YOU BY CABLETRON IN WRITING, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE ACCOMPANYING WRITTEN MATERIALS, AND ANY ACCOMPANYING HARDWARE.
7. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL CABLETRON OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS, PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR RELIANCE DAMAGES, OR OTHER LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THIS CABLETRON PRODUCT, EVEN IF CABLETRON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR IN THE DURATION OR LIMITATION OF IMPLIED WARRANTIES IN SOME INSTANCES, THE ABOVE LIMITATION AND EXCLUSIONS MAY NOT APPLY TO YOU.
iv
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
CABLETRON SYSTEMS SALES AND SERVICE, INC.
PROGRAM LICENSE AGREEMENT
IMPORTANT: THIS LICENSE APPLIES FOR USE OF PR ODUCT IN THE UNITED S TATES OF AMERICA
AND BY UNITED STATES OF AMERICA GOVERNMENT END USERS. BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ
THIS LICENSE AGREEMENT.
This document is an agreement (“ Agreement”) between You, the end user, and Cabletron Systems Sales and Service, Inc. (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (“Program”) in the package. The Progra m may be contained in firmware, chips or other media. UTILIZING THE ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME BOUND BY THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND THE LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, RETURN THE UNOPENED PRODUCT TO CABLETRON OR YOUR DEALER, IF ANY, WITHIN TEN (10) DAYS FOLLOWING THE DATE OF RECEIPT FOR A FULL REFUND.
IF YOU HAVE ANY QUESTIONS ABOUT THIS AGREEMENT, CONTACT CABLETRON SYSTEMS +1-603-332-9400. Attn: Legal Department.
1. LICENSE. You have the right to use only the one (1) copy of the Program provided in this package subject to the terms and conditions of this License Agreement.
You may not copy, reproduce or transmit any part of the Program except as permitted by the Copyright Act of the
United States or as aut horized in writing by Cabletron.
2. OTHER RESTRICTIONS. You may not reverse engineer, decompile, or disassemble the Program.
3. APPLICABLE LAW. This License Agreement shall be interpreted and governed under the laws and in the state
and federal courts of New Hampshire. You accept the personal jurisdiction and venue of the New Hampshire courts.
4. EXPORT REQUIREMENTS. You understand that Cabletron and its Affiliates are subject to regulation by agencies of the U.S. Government, including the U.S. De partment of Commerce, which prohibi t export or diversion of certain technical pro ducts to certain countrie s, unless a license to expo rt the product is obta ined from the U.S. Gove rnment or an exception fro m obtaining such license may be relied upon by the exporting party.
If the Program is exported from the United States pursuant to the License Exception CIV under the U.S. Export Administration Regulations, Yo u agree that You are a civil end user of the Program and agree that You will use the Program for civil end uses only and not for milita ry pu rpo se s.
If the Program is exported from the United States pursuant to the License Exception TSR under the U.S. Export Administration Regulations, in addition to the restriction on transfer set forth in Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia, Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Mol dova, North Korea, the Peopl e’s Republic of China, Romania, Russia, Rwanda, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, Vietnam, or such other countries as may be designated by the United States Government), (ii) export to Country Gr oups D:1 or E:2 (as defined herein) the direct product of the Program or th e te chn olo g y, if such foreign produced direct prod uct is su bje c t to na tio n al sec uri ty c o ntro ls as identified on the U.S. Commerce Control List, or (iii) if the direct product of the technology is a complete plant o r any major component of a plant, export to Country Groups D:1 or E:2 the direct product of the plant or a major component thereof, if such foreign pro du c ed direct prod uct is sub ject to na tio n al security controls as identified on the U.S. Commerce Control List or is subject to State Department controls under the U.S. Munitions List.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
v
5. UNITED STATES GOVERNMENT RESTRICTED RIGHTS. The enclosed Product (i) was developed solely
at private expense; (ii) contains “re stricted computer software” submitte d with restricted rights in accordance with section
52.227-19 (a) through (d) of the Commercial Computer Software-Restricted Rights Clause and its successors, and (iii) in all respects is proprietary data belonging to Cabletron and/or its suppliers. For Department of Defense units, the Product is considered commercial computer software in accordance with DFARS section 227.7202-3 and its successors, and use, duplication, or disclosure by the Government is subject to restrictions set forth herein.
6. EXCLUSION OF WARRANTY. Except as may be specifically provided by Cabletron in writing, Cabletron makes no warranty, expressed or implied, concerning t he Program (including its documentation and media).
CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO YOU BY CABLETRON IN WRITING, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE ACCOMPANYING WRITTEN MATERIALS, AND ANY ACCOMPANYING HARDWARE.
7. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL CABLETRON OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS, PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR RELIANCE DAMAGES, OR OTHER LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THIS CABLETRON PRODUCT, EVEN IF CABLETRON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR IN THE DURATION OR LIMITATION OF IMPLIED WARRANTIES IN SOME INSTANCES, THE ABOVE LIMITATION AND EXCLUSIONS MAY NOT APPLY TO YOU.
vi
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
CABLETRON SYSTEMS LIMITED
PROGRAM LICENSE AGREEMENT
IMPORTANT: THIS LICENSE APPLIES FOR THE USE OF THE PRODUCT IN THE FOLLOWING
GEOGRAPHICAL REGIONS:
EUROPE MIDDLE EAST AFRICA ASIA AUSTRALIA PACIFIC RIM
BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT.
This document is an agreement (“ Agreement”) between Y ou, the end user, and Cabletron Systems Limited (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (“Program”) in the package. The Program may be contained in firmware, chips or other media. UTILIZING THE ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME BOUND BY THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND THE LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, RETURN THE UNOPENED PRODUCT TO CABLETRON OR YOUR DEALER, IF ANY, WITHIN TEN (10) DAYS FOLLOWING THE DATE OF RECEIPT FOR A FULL REFUND.
IF YOU HAVE ANY QUESTIONS ABOUT THIS AGREEMENT, CONTACT CABLETRON SYSTEMS +1-603-332-9400. Attn: Legal Department.
1. LICENSE. You have the right to use only th e one (1) copy of the Program pr o v ide d in this package subject to th e terms and conditions of this License Agreement.
You may not copy, reproduce or transmit any part of the Program except as permitted by the Copyright Act of the
United States or as aut horized in writing by Cabletron.
2. OTHER RESTRICTIONS. You may not reverse engineer, decompile, or disassemble the Program.
3. APPLICABLE LAW. This License Agreement shall be governed in accordance with English law. The English
courts shall have exclusive jurisdiction in the event of any disputes.
4. EXPORT REQUIREMENTS. You understand that Cabletron and its Affiliates are subject to regulation by agencies of the U.S. Government, including the U.S. De partment of Commerce, which prohibi t export or diversion of certain technical pro ducts to certain countrie s, unless a license to expo rt the product is obta ined from the U.S. Gove rnment or an exception fro m obtaining such license may be relied upon by the exporting party.
If the Program is exported from the United States pursuant to the License Exception CIV under the U.S. Export Administration Regulations, Yo u agree that You are a civil end user of the Program and agree that You will use the Program for civil end uses only and not for milita ry pu rpo se s.
vii
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
If the Program is exported from the United States pursuant to the License Exception TSR under the U.S. Export Administration Regulations, in addition to the restriction on transfer set forth in Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia,
Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s Republic of China, Romania, Russia, Rwanda, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, Vietnam, or such other countries as may be designated by the United States Government), (ii) export to Country Groups D:1 or E:2 (as defined herein) the direct product of the Program or t he te c hnolo g y, if such foreign produced direct prod uc t is su bj ect to na ti on al secu rity co nt rols as identified on the U.S. Commerce Control List, or (iii) if the direct product of the technology is a complet e plant o r any major component of a plant, export to Country Groups D:1 or E:2 the direct product of the plant or a major component thereof, if such foreign produced direct product is subject to national security controls as identified on the U.S. Commerce Control List or is subject to State Department controls under the U.S. Munitions List.
5. UNITED STATES GOVERNMENT RESTRICTED RIGHTS. The enclosed Product (i) was developed solely at private expense; (ii) contains “re stricted computer software” submitte d with restricted rights in accordance with section
52.227-19 (a) through (d) of the Commercial Computer Software-Restricted Rights Clause and its successors, and (iii) in all respects is proprietary data belonging to Cabletron and/or its suppliers. For Department of Defense units, the Product is considered commercial computer software in accordance with DFARS section 227.7202-3 and its successors, and use, duplication, or disclosure by the Government is subject to restrictions set forth herein.
6. EXCLUSION OF WARRANTY. Except as may be specifically provided by Cabletron in writing, Cabletron makes no warranty, expressed or implied, concerning t he Program (including its documentation and media).
CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO YOU BY CABLETRON IN WRITING, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE ACCOMPANYING WRITTEN MATERIALS, AND ANY ACCOMPANYING HARDWARE.
7. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL CABLETRON OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS, PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR RELIANCE DAMAGES, OR OTHER LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THIS CABLETRON PRODUCT, EVEN IF CABLETRON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR IN THE DURATION OR LIMITATION OF IMPLIED WARRANTIES IN SOME INSTANCES, THE ABOVE LIMITATION AND EXCLUSIONS MAY NOT APPLY TO YOU.
viii
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
SAFETY INFORMATION
CLASS 1 LASER TRANSCEIVERS
THE GPIM-01 AND GPIM-09 GIGABIT ETHERNET MODULES
USE CLASS 1 LASER TRANSCEIVERS.
READ THE FOLLOWING SAFETY INFORMATION BEFORE INSTALLING OR OPERATING
THESE MODULES.
The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation limits. This control loop eliminates the need for maintenance checks or adjustments. The output is factory set, and does not allow any user adjustment. Class 1 Laser transceivers comply with the following safety standards:
• 21 CFR 1040.10 and 1040.11 U. S. Department of Health and Human Services (FDA).
• IEC Publication 825 (International Electrotechnical Commission).
• CENELEC EN 60825 (European Committee for Electrotechni cal Standardization).
When operating within their performance limitations, laser transceiver output meets the Class 1 accessible emission limit of all three standards. Class 1 levels of laser radiation are not considered hazardous.
SAFETY INFORMATION
CLASS 1 LASER TRANSCEIVERS
LASER RADIATION AND CONNECTORS
When the connector is in place, all laser radiation remains within the fiber. The maximum amount of radiant power exiting the fiber (under normal conditions) is -12.6 dBm or 55 x 10
Removing the optical connector from the transceiver allows laser radiation to emit directly from the optical port. The maximum radiance from the optical port (under worst case conditions) is
0.8 W cm
Do not use optical instruments to view the laser output. The use of optical instruments to view laser ou tput increases eye hazard. When viewing the output optical port, power must be removed from the network adapter.
-2
or 8 x 103 W m2 sr-1.
-6
watts.
ix
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
DECLARATION OF CONFORMITY
Application of Council Directive(s): 89/336/EEC
73/23/EEC
Manufacturer’s Name: Cabletron Systems, Inc.
Manufacturer’s Address: 35 Industrial Way
PO Box 5005
Rochester, NH 03867
European Representative Name: Mr. J. Solari
European Representative Address: Cabletron Systems Limited
Nexus House, New bury Business Park London Road, Newbury
Berkshire RG14 2PZ, England
Conformance to Directive(s)/Product Standards: EC Directive 89/336/EEC
EC Directive 73/23/EEC EN 55022 EN 50082-1
EN 60950
Equipment Type/Environment: Networking Equipment, for use in a Commercial
or Light Industrial Environment.
We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with this notice conforms to the above directives.
Manufacturer Legal Representative in Europe Mr. Ronald Fotino Mr. J. Solari
___________________________________ ___________________________________ Full Name Full Name
Compliance Engineering Manager Managing Director - E.M.E.A.
___________________________________ ___________________________________ Title Title
Rochester, NH, USA Newbury, Berkshire, England
___________________________________ ___________________________________ Location Location
x
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Contents
Figures............................................................................................................................ xiii
Tables.............................................................................................................................xiv
ABOUT THIS GUIDE
Using This Guide....................... .....................................................................................xv
Structure of This Guide .................................................................................................xvi
Related Documents......................................................................................................xvii
1
INTRODUCTION
1.1 Overview.........................................................................................................1-1
1.1.1 Connectivity ....................................................................................1-3
1.1.2 Auto-Negotiation .............................................................................1-3
1.1.3 Runtime IP Address Discovery.......................................................1-3
1.1.4 Full Duplex Switched Ethernet............................... ...... ....... ...... ......1-4
1.1.5 SmartTrunk..................................................... ....... ...... ....... ...... ......1-4
1.1.6 Remote Monitoring (RMON) .................................. ...... ....... ...... ......1-4
1.1.7 Broadcast Suppression...................................................................1-4
1.1.8 Port/VLAN Redirect Functions........................................................1-5
1.1.9 Rate Limiting...................................................................................1-5
1.1.10 GARP Switch Operation .................................................................1-6
1.1.11 802.1 Port Priority ...........................................................................1-6
1.1.12 Management...................................................................................1-6
1.1.13 Switching Options ...........................................................................1-6
1.1.14 Distributed Chassis Management...................................................1-7
1.1.15 Optional HSIMs...............................................................................1-7
1.1.16 Standards Compatibility...................................................... ...... ......1-7
1.1.17 LANVIEW Diagnostic LEDs............................................................1-7
1.1.18 Year 2000 Compliance ...................................................................1-7
1.2 Getting Help ....................................................................................................1-8
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
xi
2
NETWORK REQUIREMENTS
2.1 SmartTrunk......................................................................................................2-1
2.2 10BASE-T Network.........................................................................................2-1
3
4
A
INSTALLATION
3.1 Required Tools................................................................................................3-1
3.2 Unpacking the 6E233-49 SmartSwitch ...........................................................3-1
3.3 Installing Options.............................................................................................3-2

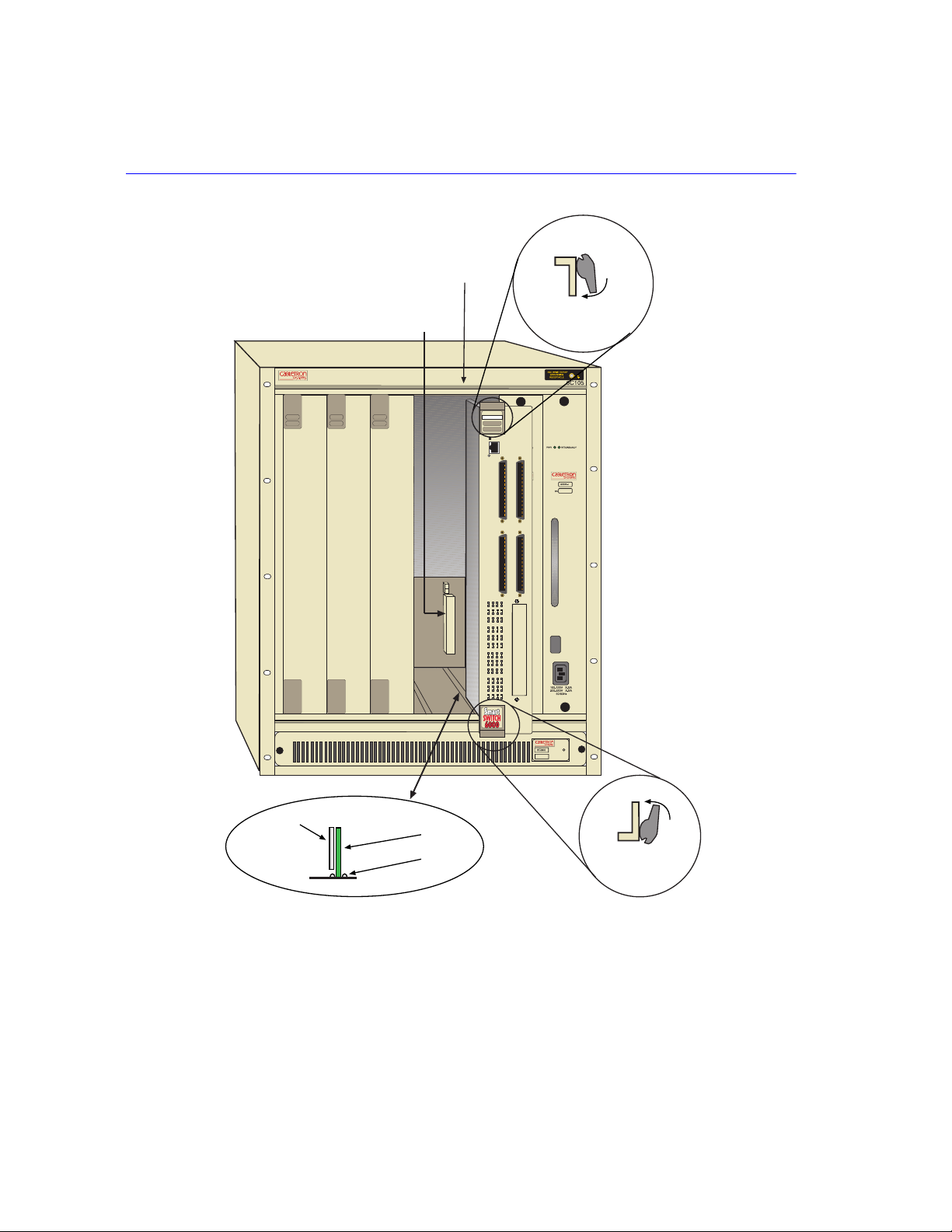

3.4 Installing the 6E233-49 SmartSwitch into the 6C105 Chassis........................3-2
3.5 Connecting to the Network..............................................................................3-5
3.6 Completing the Installation..............................................................................3-8
TROUBLESHOOTING
4.1 Using LANVIEW..............................................................................................4-1
4.2 Troubleshooting Checklist...............................................................................4-5
4.3 Using the RESET Button...............................................................................4-10
SPECIFICATIONS
A.1 Module Specifications .....................................................................................A-1
A.2 Physical Properties .........................................................................................A-1
A.3 Environmental Requirements..........................................................................A-1
A.4 Input/Output Ports...........................................................................................A-2
A.5 COM Port Pinout Assignments .......................................................................A-2
A.6 Regulatory Compliance................................ ...... ....... ...... ................................A-2
B
INDEX
xii
OPTIONAL INSTALLATIONS AND MODE SWITCH BANK SETTINGS
B.1 Required Tools................................................................................................B-1
B.2 Setting the Mode Switches..............................................................................B-1
B.3 SIMM Upgrade................................................................................................B-3
B.3.1 Locating SIMMs..............................................................................B-3
B.3.2 Installing the DRAM SIMM..............................................................B-4
B.4 Installing Optional High Speed Interface Modules..........................................B-5
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Figures
Figure Page
1-1 The 6E233-49 SmartSwitch ............................................................................................1-2
3-1 Installi ng an Interface Mod ule ................................ ...... ....... ...... ...... ....... ...... ....... ...... ......3-4
3-2 Straight Cable Connection ..............................................................................................3-6

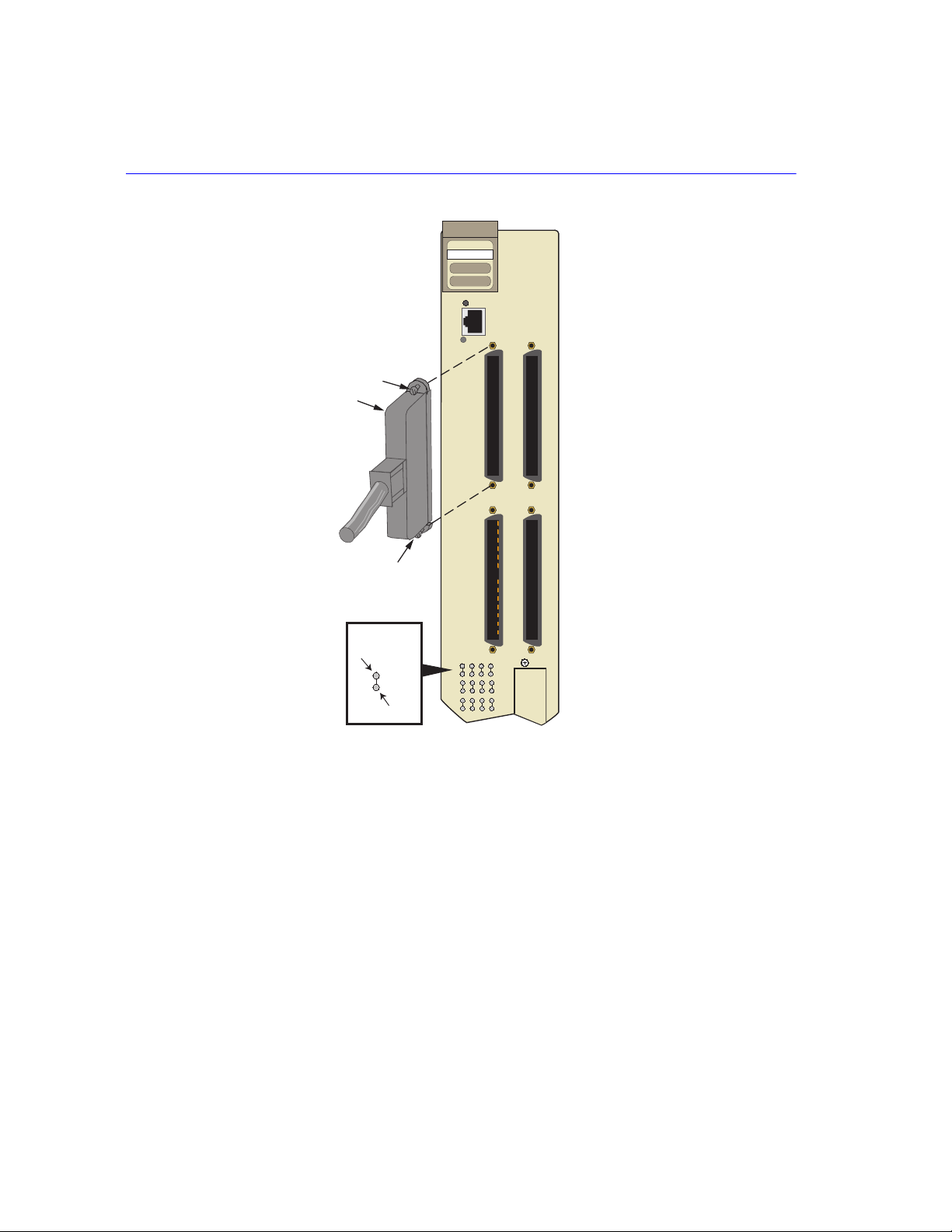

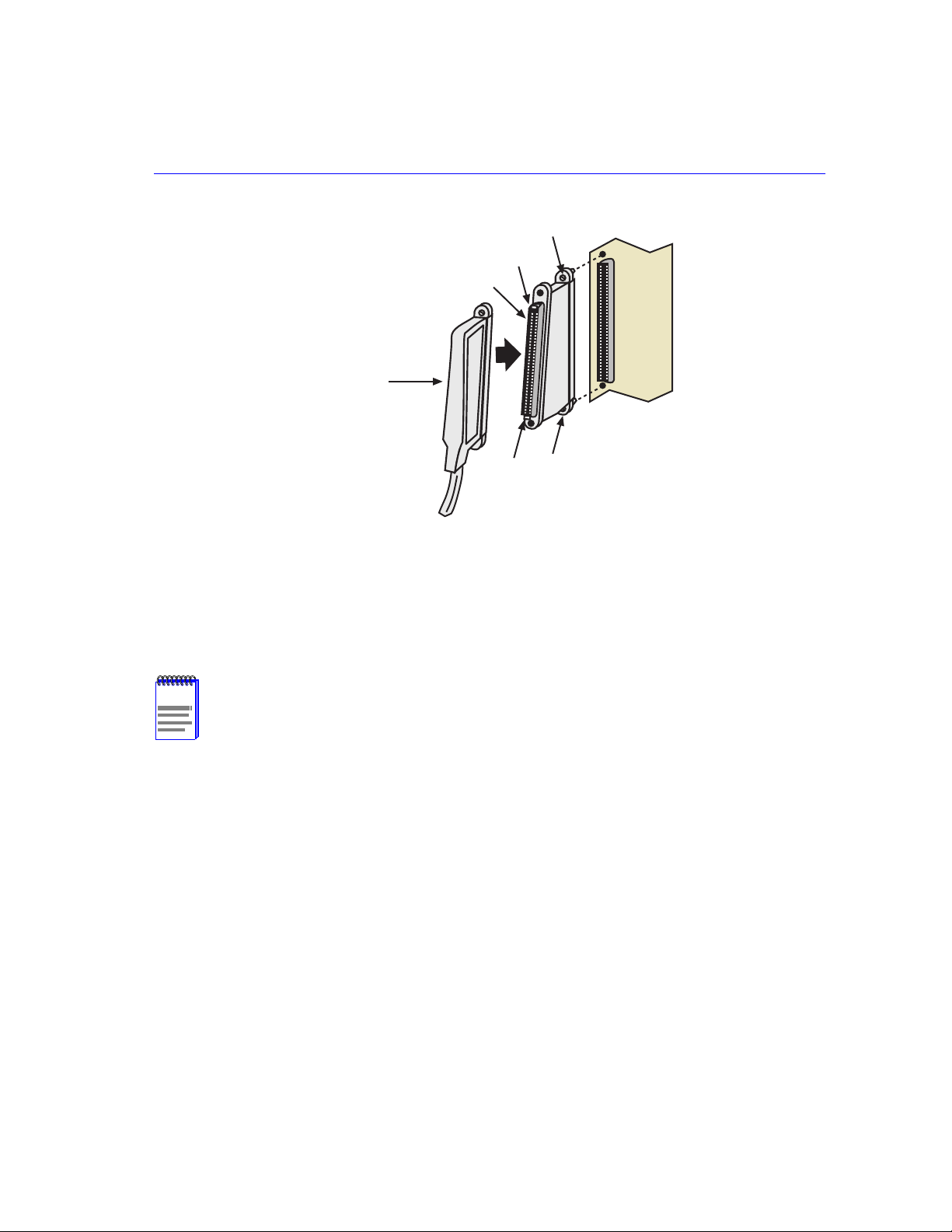

3-3 Connection Using the RJ21 Angle Adapter.....................................................................3-7
4-1 LANVIEW LEDs ..............................................................................................................4-2

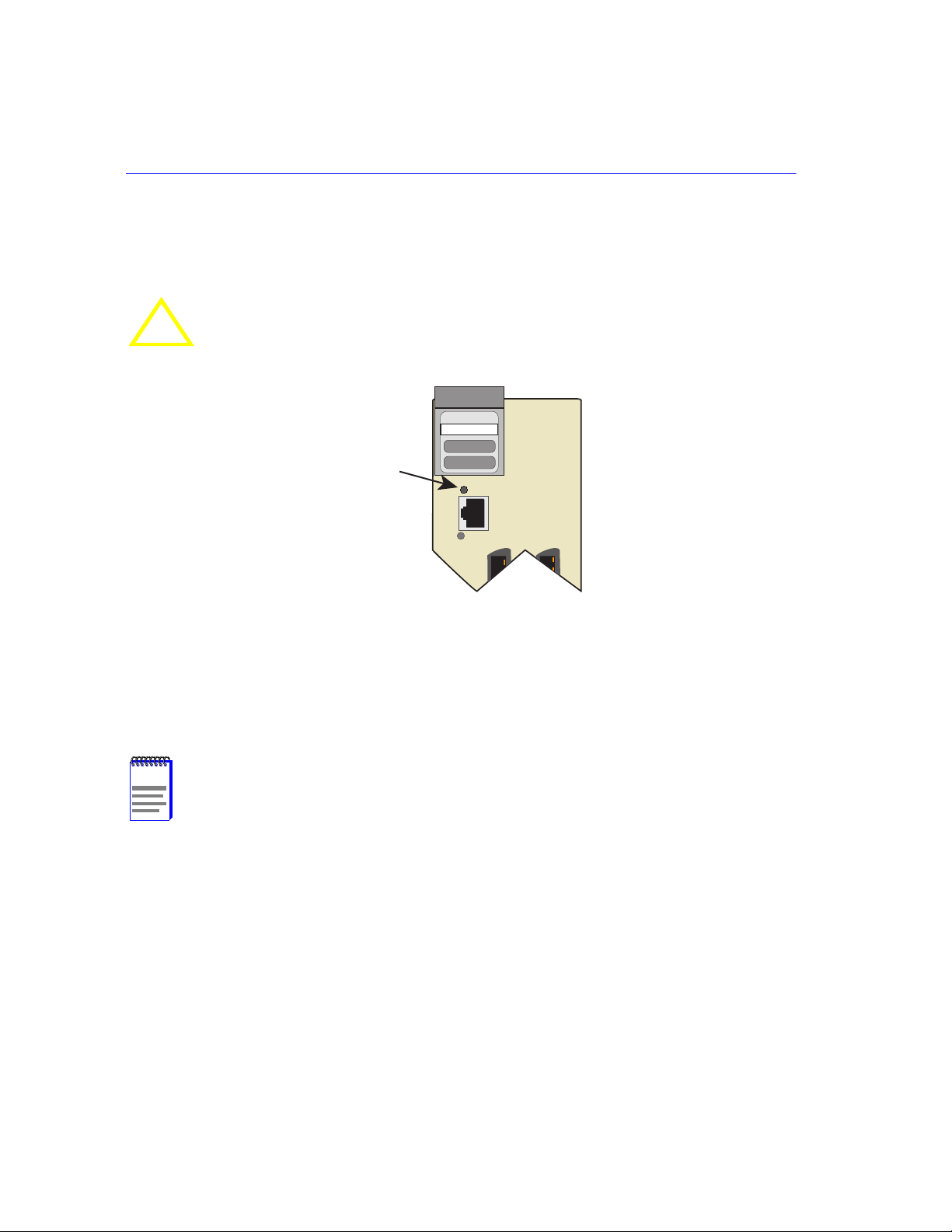

4-2 RESE T Button........................................................ ...... ....... ...... ...... ....... ...... ....... ...... ....4-10

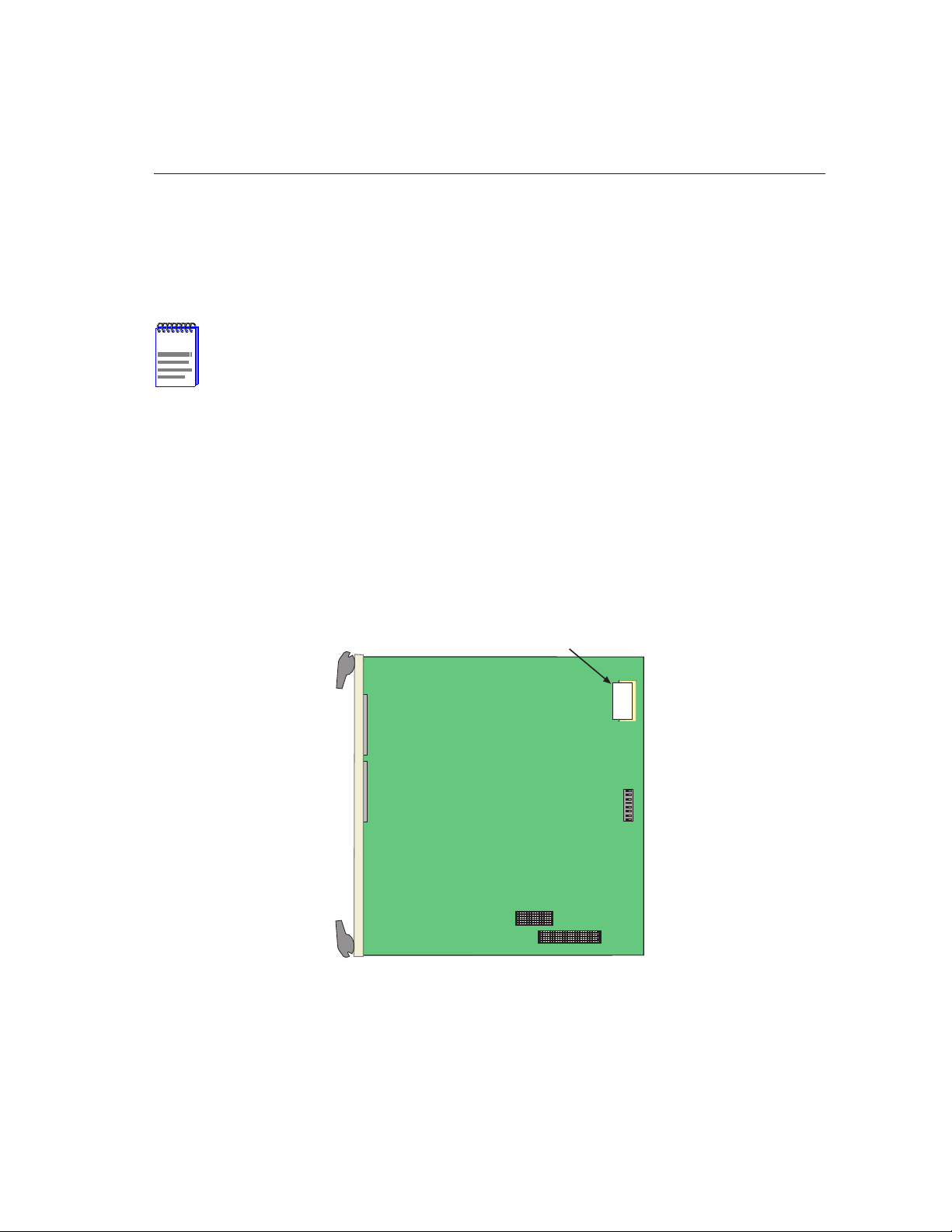

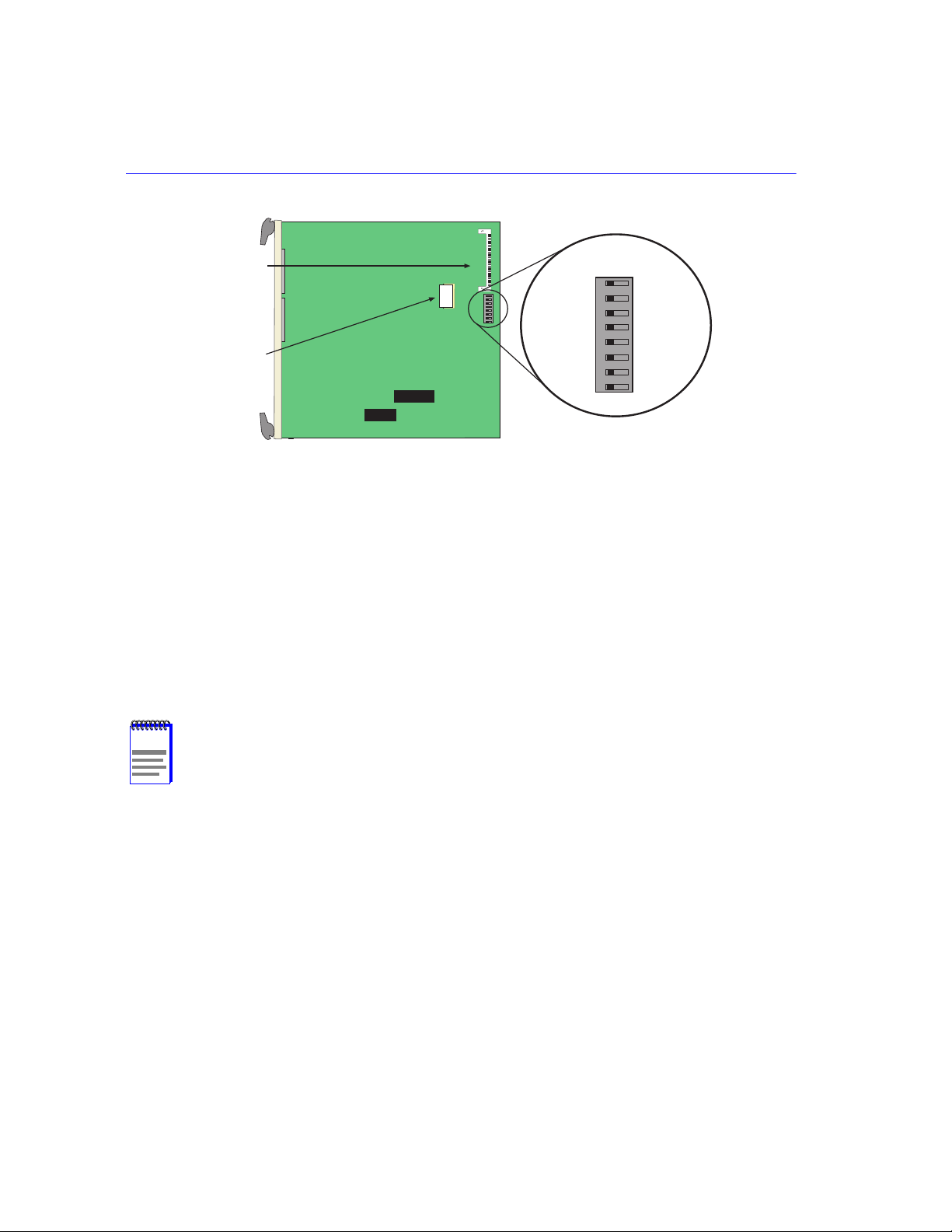

B-1 Module Mode Switch Location/Component Layout.........................................................B-2

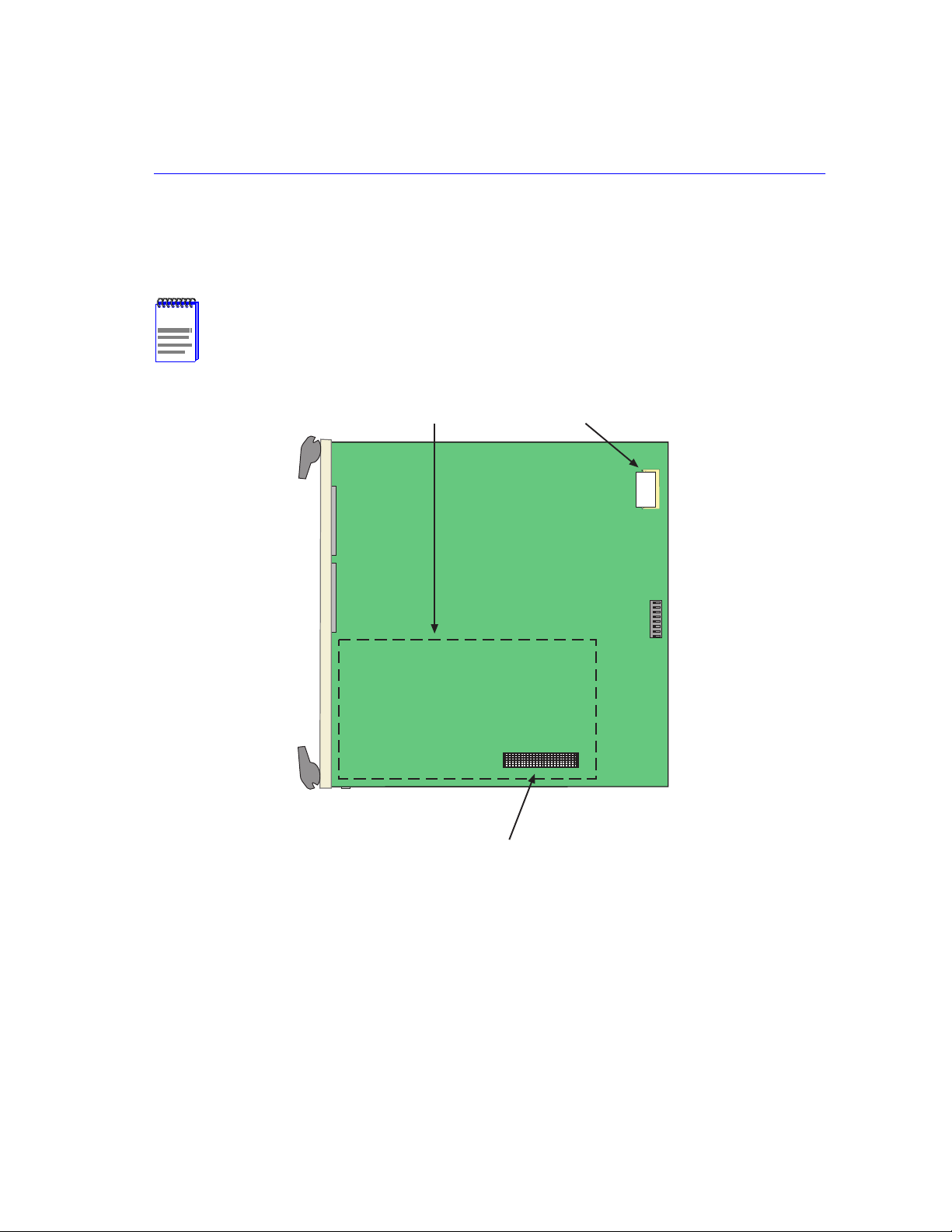

B-2 SIMM Slot Locations .......................................................................................................B-3

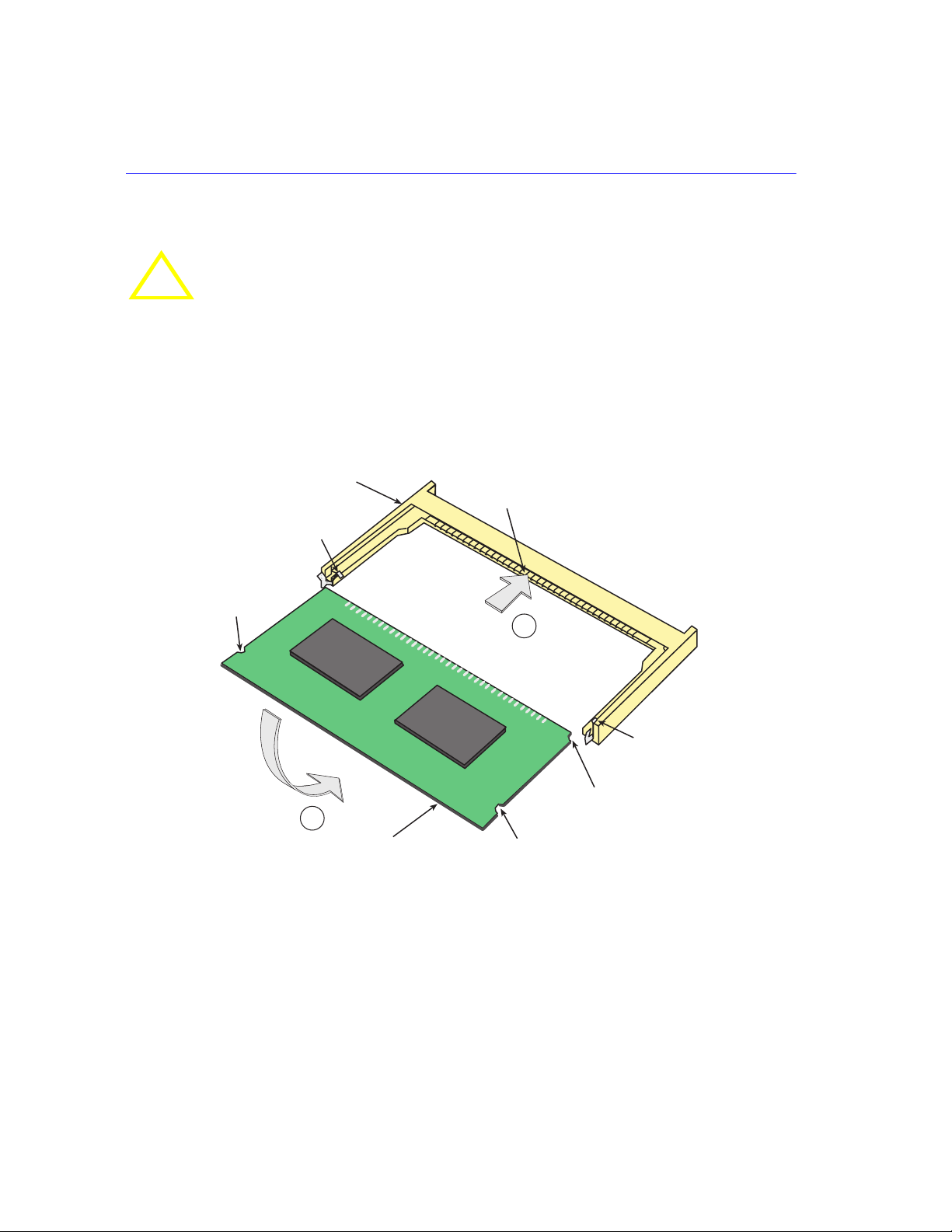

B-3 Installing the DRAM.........................................................................................................B-4
B-4 HSIM Connector Location...............................................................................................B-5
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
xiii
Tables
Table Page
3-1 Contents of 6E233-49 SmartSwitch Carton..................................................................3-2
4-1 LANVIEW LEDs CPU, Receive, and Transmit Status..................................................4-3
4-2 Fault Identification ........................................................................................................4-5
4-3 Power System Troubleshooting....................................................................................4-6
4-4 Firmware Troubleshooting...........................................................................................4-7
4-5 Management System Troubleshooting........................................................................4-8
4-6 Device Setup Troubleshooting .....................................................................................4-9
xiv
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
About This Guide
Welcome t o the Cabletron Syst ems 6E233-49 SmartSwitch 6000 Interface Module User’s Guide. This guide describes the SmartSwitch module and provides information concerning
network requirements, installation, and troubleshooting. For information about how to use Local Management to configure and manage the SmartSwitch series, refer to the SmartSwitch Series
6H202, 6H203, 6H252, 6H253, 6H258, 6H259, 6H262, 6E233, and 6E253 Local Management
User’s Guide.
Important Notice
Depending on the firmware version used in the device, some features described in this document may not be supported. Refer to the Rel ease Notes shipped with the 6E233-49 to determine which features are supported.
USING THIS GUIDE
Read through this guide completely to understand the 6E233-49 SmartSwitch module’s features and capabilities.
A general working knowledge of IEEE 802.3 type data communications networks and their physical layer components is helpful when using these devices.
NOTE
In this document, the SmartSwitch module may also be referred to as “SmartSwitch” or “module”.
xv
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Structure of This Guide
STRUCTURE OF THIS GUIDE
This guide is organized as follows:
Chapter 1, Introduction, outlines the contents of this manual, describes the features of the
SmartSwitch module, and provides instructions for getting additional help. This chapter also includes a list of technology and user guides that may help the user to set up and manage the SmartSwitch module.
Chapter 2, Network Requirements, outlines the network requirements that must be met before
installing the SmartSwitch module into the 6C105 SmartSwitch 6000 chassis.
Chapter 3, Installation, provides instructions on how to install the module in the chassis and
connect segments to the device.
Chapter 4, Troubleshooting, details t he Smart Swit ch modul e LANVI EW L EDs t hat en abl e q uic k
diagnosis of network/operational problems.
Appendix A, Specifications, contains information on functionality and operating specifications,
connector pinouts, environmental requirements, and physical properties.
Appendix B, Optional Installations and Mode Switch Bank Settings, describes how to set the
Mode Switches, and gives information on upgrading the SmartSwitch module.
xvi
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Related Documents
RELATED DOCUMENTS
SmartSwitch Series 6H202, 6H203, 6H252 , 6H253, 6H258, 6H259, 6H262, 6E23 3, and 6E253
Local Management User’s Guide
6C105 SmartSwitch 6000 Overview and Setup Guide
Ethernet Technology Guide
Cabling Guide
802.1Q VLAN User’s Guide
SmartTrunk User’s Guide
The following manuals, as applicable, may help the user to set up and manage the SmartSwitch:
HSIM-A6DP User’s Guide
HSIM-F6 User’s Guide
HSIM-FE6 User’s Guide
HSIM-W6 User’s Guide
HSIM-W84 User’s Guide
HSIM-W87 User’s Guide
HSIM-G01/G09 User’s Guide
VHSIM-G6 User’s Guide
VHSIM-A6DP User’s Guide
WAN Series Local Management User’s Guide
VHSIM-A6DP User’s Guide
The HSIM-W6 Installa tion Guide, the HSIM-W84 Installation Guide, and the WAN Series Local Management User’s Guide are included on the QuickSET CD-ROM and, along with the other
manuals referenced above, can be obtained on the World Wide Web in Adobe Acrobat Portable Document Format (PDF) at the following site: http://www.cabletron.com/
NOTE
All documentation for Cabletron Systems SecureFast VLAN Manager software can be found on the VLAN Manager CD-ROM.
xvii
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Related Documents
DOCUMENT CONVENTIONS
The following conventions are used throughout this document:
NOTE
TIP
CAUTION
Note symbol. Calls the reader’s attention to any item of information that may be
of special importance.
Tip symbol. Conveys helpful hints concerning procedures or actions.
Caution symbol. Contains inf ormation essentia l to avoid damage to the
equipment.
!
Electrical Hazard Warning symbol. W arns against an action that could result in personal injury or death due to an electrical hazard.
xviii
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
1
Introduction
This chapter introduces the 6E233-49 SmartSwitch 6000 device and provides information about how to obtain additional support from Cabletron Systems.
Important Notice
Depending on the firmware version used in the SmartSwitch, some features described in this document may not be supported. Refer to the Release Notes shipped with the SmartSwitch to determine which features are supported.
1.1 OVERVIEW
The 6E233-49 SmartSwitch, shown in Figure 1-1, is an Ethernet interface module for the Cabletron Systems 6C105 chas si s. The 6E233-49 has 48 switched ports via four RJ21 connectors, and 1 slot for an optional High Speed Interface Module (HSIM).
The 6E233-49 SmartSwitch can be used to connect individual high-bandwidth user devices, such as workstations, or to provide a central switching point for multiple 10 Mbps Ethernet segments. The optional HSIMs provide one or more high speed uplinks to networking technologies such as Gigabit Ethernet, Fast Ethernet, Fiber Distributed Data Interface (FDDI), Wide Area Network (WAN) and Asynchronous Transfer Mode (ATM). The ESX-1620 is not capable of supporting VHSIMs.
The 6E233-49 SmartSwitch ports can be configured to control frame traffic several ways, including prioriti zi ng t raffic flow according to protocol typ e. The 6E233- 49 Smar tSwitch can also be configured to establish Virtual Local Area Networks (VLANs) and control the flow of frames associated with each VLAN according to priority and Ether type. Detailed information about VLANs is provided in the Cabletron Systems 802.1Q VLAN User’s Guide.
The following sections describe the features of the 6E233-49 SmartSwitch and concludes with information on how to obtain assistance from Cabletron Systems.
Introduction 1-1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
ETHERNET
6E233-49
24
48
37
36
25
24
1
12
59678
10 11 12
1234
13 14 15 16
17 18 19 20
21 22 23 24
25 26 27 28
29 30 31 32
33 34 35 36
37 38 39 40
41 42 43 44
45 46 47 48
13
RESET
COM
CPU
Overview
RESET Button
COM Port CPU LED
48 Ports (10 Mbps)
Transmit (TX)
Receive (RX)
HSIM Slot
LEDs
2693_01
Figure 1-1 The 6E233-49 SmartSwitch
1-2 Introduction
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Overview
1.1.1 Connectivity
The 6E233-49 SmartSwitch connects to Ethernet networks or workstations through the four RJ21 connectors on the front panel. These ports support Unshielded Twisted Pair (UTP) cables with an impedance between 85 and 111 ohms at lengths up to 100 meters. These ports are IEEE 802.3u 10BASE-TX compliant.
The 6E233-49 has a slot for an optional HSIM to provide additional connectivity to various networking technologies.
1.1.2 Auto-Negotiation
The front panel ports on the 6E233-49 SmartSwitch module have the ability to auto-negotiate the type of connection required to provide a link to another device. During Auto-Negotiation, two
devices automatically exchange information “telling” each other what their operating capabilities are. The Auto-Negotiation featu re targets the maximum capabilities that can be reached betwe en the two devices.
When Auto-Negotiation is supported at both ends of a link, the two devices dynamically adjust to full or half duplex operation based on the maximum capability that can be reached between the two devices. If the device connected to the 6E233-49 SmartSwitch cannot auto-negotiate, the 6E233-49 SmartSwitch interface operates according to the capabilities of the other device.
1.1.3 Runtime IP Address Discovery
This feature enables the module to automatically accept an IP address from a Boot Strap Protocol (BootP) server on the network into NVRAM without requiring a user to enter an IP address through Local Management.
When the module is connected to the network and powered up, Runtime IP Address Discovery (RAD) checks the module for an IP address. If one has not yet been assigned (module and 6C105 chassis IP addre ss set t o 0.0.0.0), RAD checks to see if any of the module interf aces have a link. If so, RAD sends out Rev er se Addr es s Resolution Protocol (RARP) and BootP requests to obtain an IP address from a RARP or BootP server on the network.
The RAD requests start out at an interval of one second. The interval then doubles after every transmission until an interval of 300 seconds is reached. At this point, the interval remains at 300 seconds. The RAD requests contin ue u ntil an IP a ddress is re cei ved from a RARP or BootP serv er, or an IP address is entered using Local Management.
NOTENOTENOTENOTE
The module will reboot after RAD is successful.
Introduction 1-3
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Overview
1.1.4 Full Duplex Switched Ethernet
Each switched Ethernet port on the 6E233-49 SmartSwitch can be configured to operate in Full Duplex Switched Ethernet (FDSE) mode. FDSE allows each port to provide up to 20 Mbps of bandwidth.
1.1.5 SmartTrunk
SmartTrunk, also referred to as SmartTrunking, is Cabletron Systems’ terminology for load balancing or load sharing. SmartTrunk technology provides an easy-to-implement mechanism to group, or aggregate, multiple links of any technology together to scale the backbone bandwidth beyond the limitations of a single link. All links are user-configurable so administrators can scale the backbone bandwidth by adding SmartTrunk links. The benefits of SmartTrunking include the following:
All purchased bandwidth is used.
Distributed, resilient links increase reliability and performance.
Multiple technologies are supported within a single trunk for maximum flexibility.
NOTE
NOTE
NOTE
NOTE
For information on SmartTrunk configuration, refer to the Cabletron Systems
SmartTrunk User’s Guide
.
1.1.6 Remote Monitoring (RMON)
The 6E233-49 SmartSwitch supports all nine Ethernet RMON groups, which include Statistics, Alarms, Events and History. These groups are enabled on all ports by default.
Cabletron Systems RMON Actions is a vendor-specific extension of RMON and provides the
ability to set an “Action” on any SNMP MIB variable. The Action can be triggered by any RMON Event and/or Alarm. An example of an Action would be to turn off a MIB-2 interface if a broadcast threshold is crossed.
1.1.7 Broadcast Suppression
Broadcast Suppressi on enables a user to s et a desire d limit of re cei ve br oadcas t frames per port/per second to be forwarded out the other ports on t he module up to the set li mit. An y broadc ast fr ames above this specified limit are dropped. In the event that broadcast frames are being suppressed, multicast and unicast frames continue to be switched.
1-4 Introduction
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Overview
1.1.8 Port/VLAN Redirect Functions
The port redirect function, also referred to as “Port Mirroring,” is a troubleshooting tool used to map traffic from a single source port to a single destination port within the device. This feature allows frames, including those with errors to be copied and sent to an analyzer or RMON probe. The analyzer or RMON p robe will see the data as if it were dir ectly conn ected to the LAN se gment of the source port.
The VLAN redirect func ti on i s similar to the port red ir ect f unction except that t he fr ames received by the device are redirected to a designated destination port according to the VLAN classification of the frames received. The VLAN redirect function does not support redirecting errors, and is only supported whe n the de vi ce is o perating as an 8 02.1Q switch . Multiple VLANs can be directed to the same ports.
1.1.9 Rate Limiting
The Rate Limiting feature enables the SmartSwitch device to have con trol of traffic rates on a per-port, per - prior ity basis. The netw ork admi nistr ator can co nf igur e a ra te li mit ( from 100 kbps t o 1 Gbps) for a given port with an associated list of IEEE 802.1p priorities (which can include one, some, or all of the eight priority levels defined in 802.1p). Each rate limit is specified as an inbound or an outbound limit. The combined rate of all traffic on the port that matches the listed priorities cannot exceed the programmed limit. If the rate exceeds the defined limit, frames are dropped until the rate falls below the limit.
Administrators can configure up to four rate limit rules per port; however, each rule must not include conflicting 802.1p priority values. In order to control traffic inbound and outbound on the same port, two rate limit rul es must be configured (one inbound and one outbou nd). Since the rate limiting operation occurs after the processing of the multi-layer classification rules, the two features can be combined to provide application-aware rate limiting.
NOTENOTENOTENOTE
This traffic rate function is not supported on ports configured as SmartTrunk ports.
For more information about the application of the Rate Limiting function, refer to the Local
Management User’s Guide.
Introduction 1-5
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Overview
1.1.10 GARP Switch Operation
Some or all ports on the switch may be activated to operate under the Generic Attribute Registration Protocol (GARP) applications, GARP VLAN Registration Protocol (GVRP) and/or GARP Multicast Registration Protocol (GMRP).
GARP is a protocol, or set of ru les, th at outl ines a mechanis m for propa gati ng the por t sta te and/ or user information throughout a bridged LAN to keep track of users and VLANs on the network fabric. MAC bridges and end users alike can take part in the registration and de-registration of GARP attributes su ch as VLAN an d multic ast gr oup membersh ip. F or more detail s on how GVRP and GMRP handle frames under GARP, and ho w to conf igure t he switch p orts to t ake adv ant age of this operation, refer to the SmartSwitch Series 6H202, 6H203, 6H252, 6H253, 6H258, 6H259, 6H262, 6E233, and 6E253 Local Management User’s Guide.
1.1.11 802.1 Port Priority
IEEE 802.1 port priority is incor porat ed in the IEEE 802.1D stan dard. It is used to assign a def aul t priority to the frames received without priority information in their tag header, to map prioritized frames to the appropriate transmit queues, and to prioritize frames according to protocol type.
1.1.12 Management
Management of the 6E233-49 SmartSwitch module and 6C105 chassis is accomplished using Local Management application or remote SNMP management stations. Local Management is accessible through the RS232 COM port on the front panel using a local VT100 terminal, or a remote VT100 terminal via a modem connection, and in-band via a Telnet connection. In-band remote management is possible through any SNMP compliant Network Management Software.
Local Management, as de scrib ed in th is us er’s guide, provides the abil ity t o ma nage t he 6E23 3-49. Local Management information for non-Ethernet HSIMs or VHSIMs is included in their respective user’s guide. For details on how to get manuals, refer to the Related Manuals section in the About This Guide section.
1.1.13 Switching Options
The 6E233-49 SmartSwitch provides 802.1Q switching or SecureFast Switching Virtual Network Services between all of the front panel interfaces including any optional HSIMs. In the 802.1Q mode (the default mode of operation), the switch functions as an 802.1D switch until VLANs are configured. SecureFast switching and IEEE 80 2.1Q switching allow migrati on t o Virtual Network technologies without requiring the replacement of existing equipment.
1-6 Introduction
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Overview
1.1.14 Distributed Chassis Management
From a management perspective, the 6C105 SmartSwitch 6000 chassis can be viewed as a single entity with a single IP address. Its systems management functions are distributed to all modules. The chassis can be managed using a single IP address, or the modules can be managed separately by indi vidu al IP ad dre sses. When using a single IP addr ess, s ystem wi de sett ings can be do ne fr om the chassis menu in Local Management, while module settings are done by selecting the specific module to be modified and changing the settings for that module.
1.1.15 Optional HSIMs
The 6E233-49 provides a slot for an optional High Speed Interface Module (HSIM) for additional connectivity to various networking technologies. Any exceptions to the HSIMs that operate in the 6E233-49 SmartSwitch are list ed in the Rel ease Note s. The 6E233 -49 is not capab le of suppo rting VHSIMs.
1.1.16 Standards Compatibility
The 6E233-49 SmartSwitch is fully compliant with the IEEE 802.3, 802.3x, 802.3u, 802.1D, and especially 802.1Q standards. The 6E233-49 SmartSwitch provides IEEE 802.1D Spanning Tree Algorithm (STA) support to enhance the overall reliability of the network and protect against
“loop” conditions. The 6E233-49 SmartSwitch supports a wide variety of industry standard MIBs including RFC 1213 (MIB II), RFC 1757 (RMON), RFC 1493 (Bridge MIB), RFC 1354 (FIB MIB) and RFC 1190 (Path MTU Discovery). A full suite of Cabletron Systems Enterprise MIBs provide a wide arra y of statist ical info rmation to enha nce tro ubleshooti ng. F or inform ation on ho w to extract and compile individual MIBs, contact Cabletron Systems.
1.1.17 LANVIEW Diagnostic LEDs
LANVIEW diagnostic LEDs serve as an important troubleshooting aid by providing an easy way to observe the stat us of individual ports and o ve rall netwo rk opera tions . Chapt er 4 provides details about the 6E233-49 SmartSwitch LANVIEW LEDs.
1.1.18 Year 2000 Compliance
The 6E233-49 SmartSwitch module and 6C105 chassis have an internal clock that can maintain the time and date beyond the year 1999.
Introduction 1-7
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Getting Help
1.2 GETTING HELP
For additional support related to this device or document, contact Cabletron Systems using one of the followin g methods :
World Wide Web http://www.cabletron.com/ Phone (603) 332-9400 Internet mail support@cabletron.com FTP ftp://ftp.cabletron.com/
Login Password
To send comments or suggestions concerning this document, contact the Cabletron Systems Technical Writing Department via the following email address: TechWriting@cabletron.com
Make sure to include the document Part Number in the email message.
Before cal ling Cabletron Systems, have the follo wing information re ady:
Your Cabletron Systems service contract number
A description of the failure
anonymous your email address
A description of any action(s) already taken to resolve the problem (e.g., changing mode
switches, rebooting the unit, etc.)
The serial and revision numbers of all involved Cabletron Systems products in the network
A description of your network environment (layout, cable type, etc.)
Network load and frame size at the time of trouble (if known)
The device history (i.e., have you returned the device before, is this a recurring problem, etc.)
Any previous Return Material Authorization (RMA) numbers
1-8 Introduction
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
2
Network Requirements
Before installing the 6E233-49 SmartSwitch, review the requirements and specifications referred to in this chapt er concerning the SmartTrunk feature ( Sect io n 2.1) and the10 BASE-T Twisted Pair Network (Section 2.2).
The network installation must meet the guidelines to ensure satisfactory performance of this equipment. Failure to follow the guidelines may produce poor network performance.
NOTE
NOTE
NOTE
NOTE
The Cabletron Syst ems in the following sections can be found on the Cabletron Systems World Wide Web site: http://www.cabletron.com/
SmartTrunk User’ s Guide
and
Cabling Guide
referred to
2.1 SmartTrunk
To connect the 6E233-49 SmartSwitch to a network so it can take advantage of the SmartTrunk feature, there are certain rules concerning port connections and configurations that must be followed for proper operation. For more information on SmartTrunk, refer to the Cabletron Systems SmartTrunk User’s Guide.
2.2 10BASE-T NETWORK
When connecting a 10BASE-T segment to any of the 6E233 -49 SmartSwi tch port s, ens ure t hat the network meets the Ethernet network requirements of the IEEE 802.3 standard for 10BASE-T. Refer to the Cabletron Systems Cabling Guide for details.
Network Requirements 2-1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Installation
Only qualified personnel should install the 6E233-49 SmartSwitch.
Important Notice
Depending on the firmware version used in the SmartSwitch, some features described in this document may not be supported. Refer to the Release Notes shipped with the SmartSwitch to determine which features are supported.
This chapter provides the instructions required to install the 6E233-49 SmartSwitch. Follow the order of the sections listed below to ensure a proper installation:
Required tools (Section 3.1)
Unpacking the 6E233-49 SmartSwitch (Section 3.2)
Installing Options (Section 3.3)
3
Installing the 6E233-49 SmartSwitch in the 6C105 chassis (Section 3.4)
Connecting to the network (Section 3.5)
3.1 REQUIRED TOOLS
A Phillips screwdriver is required to install the HSIMs in the 6E233-49.
3.2 UNPACKING THE 6E233-49 SMARTSWITCH
1. Open the box and remove the packing material protecting the module.
2. Verify the contents of the carton as listed in Table 3-1.
Installation 3-1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Installing Options
.
Table 3-1 Contents of 6E233-49 SmartSwitch Carton
Item Quantity
2H252-25 1 Antistatic Wrist Strap 1 RJ21 Adapter/Extender 4 Release Notes 1 Manual Accessory Kit 1
3.3 INSTALLING OPTIONS
If the 6E233-49 SmartSwitch is to be installed with an optional HSIM, refer to the installation instructions shippe d with t he HSIM. The HSIM must be ins ta ll ed bef or e the 6E233- 49 is i nstalled in the chassis.
3.4 INSTALLING THE 6E233-49 SMARTSWITCH INTO THE 6C105 CHASSIS
Failure to observe static safety precautions could cause damage to the 6E233-49 SmartSwitch. Follow static safety handling rules and properly wear the antistatic wrist
!
CAUTION
strap provided with the 6C105 chassis.
The 6E233-49 SmartSwitch c an be ins talled i n any of the 5 s lots th at are a v aila ble in th e 6C105. To install a module, proceed as follows:
1. Remove the blank pa nel c overing t he slot in whi ch the module will be in stall ed. All o ther slots
must remain covered to ensure proper air flow and cooling. (Save the blank plate in the event you need to remove the module.)
2. Carefully remove t he module from the shipping box. ( Save the box a nd packing mater ials in the
event the module must be reshipped.)
Do not cut the non-conductive bag to remove the module. Damage could result from sharp objects contacting the board or components.
!
CAUTION
3-2 Installation
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Installing the 6E233-49 SmartSwitch into the 6C105 Chassis
3. Locate the antistatic wrist strap shipped with the 6C1 05 chassis. Attach the antistati c wrist strap
to your wrist and plug the cable from the antistatic wrist strap into the ESD grounding receptacle at the upper right corner of the 6C105.
4. Remove the module from the plastic bag. (Save the bag in the event the module must be
reshipped.) Observe all precautions to prevent damage from Electrostatic Discharge (ESD).
5. Examine the module for damage. If any damage exists, DO NOT install the module.
Immediately contact Cabletron Systems. Refer to Section 1.2.
To prevent damaging the backplane connectors in the following step, take care that the module slides in straight and properly engages the backplane connectors.
!
CAUTION
NOTE
NOTE
NOTE
NOTE
In the following step, ensure that the top plastic locking tab lines up with the desired slot number located on the front panel of the chassis. Refer to Figure 3-1.
6. Locate the slot guides that line up with the number of the slot in which the module will be
installed. Insta ll the module in the chassis by align ing the module circuit card betwee n the upper and lower metal rail gui des of the des ired s lot, s lidin g it into t he cha ssis, a nd locki ng d own the top and bottom plastic l ocking tabs, as shown in Figur e 3-1. Take care that the module sli des in straight and properly engages the backplane connectors.
7. If the chassis in which the module is installed was powered down for the installation, turn it
back on. Check to see that the CPU LED settles at solid green after a few minutes. If the LED does not turn solid green, refer to Chapter 4 for details.
Installation 3-3
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Installing the 6E233-49 SmartSwitch into the 6C105 Chassis
ETHERNET
6E233-49
24
48
37
36
25
24
1
12
59678
10 11 12
1234
13 14 15 16
17 18 19 20
21 22 23 24
25 26 27 28
29 30 31 32
33 34 35 36
37 38 39 40
41 42 43 44
45 46 47 48
13
RESET
COM
CPU
Slot Number
Backplane Connector
3
2
1
45
Plastic Locking Tab
PS1
PS2
2159-01
Metal Back-Panel
Circuit Card
Card Guides
Plastic Locking Tab
2693-02
3-4 Installation
Figure 3-1 Installing an Interface Module
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Connecting to the Network
3.5 CONNECTING TO THE NETWORK
This section pro vides the proced ures for co nnecting un shiel ded twiste d pair (UT P) segmen ts to t he modules.
NOTE
NOTE
NOTE
NOTE
If the device is being installed in a network using SmartTrunking, there are rules concerning the cable connections and port configurations that must be followed for SmartTrunking to operate properly. Before connecting the cables, refer to the Cabletron Systems
SmartTrunk User’s Guide
for the configuration information.
T o mak e connect ions to an op tional HSIM i nstalle d in the HSIM slo t of a SmartS witch, ref er to the instructions shipped with that device.
When facing the front panel of a 6E233-49 SmartSwitch, the top-left RJ21 is the connector for 10BASE-T ports 1 through 12; bottom left, ports 13 through 24; top-right, ports 25 through 36; and bottom-right, ports 37 through 48. All 48 ports have internal crossovers.
To connect an RJ21, proceed as follows:
1. Ensure that the device connected to the other end of the segment is powered ON.
2. If using an RJ21 straight connector, plug it into the appropriate RJ21 port as shown in
Figure 3-2, or if using the RJ21 right-angled adapt er supplied with the device, ins ert it as shown
in Figure 3-3. The RJ21 right-angled a dapter ena bles the ca bles to be dr essed clos ely along t he front of the device.
Installation 3-5
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Connecting to the Network
ETHERNET
6E233-49
24
48
37
36
25
24
1
12
59678
10 11 12
1234
13
RESET
COM
CPU
Screw
RJ21
Screw
Port 1 LED RX
1
TX
2693_07
Figure 3-2 Straight Cable Connection
3-6 Installation
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Screw
Connecting to the Network
RJ21 Adapter/Extender
RJ21 Right-Angled Connector
Figure 3-3 Connection Using the RJ21 Angle Adapter
Clip
Clip
Screw
2693_100
3. Tighten the two screws on the RJ21 straight cable connector or RJ21 angle adapter, as
applicable, to secure it to the device.
NOTENOTENOTENOTE
The cable pinouts for a 25-pair cable (RJ21) can be found in the Cabletron Systems
Cabling Guide
on how to obtain this document.
. Refer to th e Related Manuals in the About Thi s Guide p ref ace for details
4. If using the RJ21 angle adapter, plug the RJ21 right- angl ed conne ctor as shown in Figure 3-3.
Depending on the type of RJ21 cab le connector, it can be plugged in until the retaini ng clips on the RJ21 adapter/extender snap into place, or it can be secured with screws.
5. Verify that a link exists on each twisted pair segment of the RJ21 connector by checking that
the associated port RX LED is on (flashing amber, blinking green, or solid green). Figure 3-3 shows the RX and TX LEDs for port 1. If any of the RX LEDs are off, perform the following steps to check the associat ed twisted pair segment. The probl em is resolved when the Link LED comes on.
a. V erify that the de vice at the other end of the twis ted pair segment is on and connected to the
segment.
Installation 3-7
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Completing the Installation
b. Verify that the RJ21 connector associated with the twisted pair segment has the proper
pinouts and check the cable for continuity.
c. Check that the twisted pair connection meets the dB loss and cabl e s pec if ic ations outlined
in Chapter 2.
If a link is not established, contact Cabletron Systems. Refer to Section 1.2 for details.
6. Repeat steps 1 through 5 until all connections are made.
3.6 COMPLETING THE INSTALLATION
After installing the SmartSwitch and any optional HSIM, and making the connections to the network, the SmartSwitch is ready to be configured through Local Management. Refer to
SmartSwitch Series 6H202, 6H203, 6H252, 6H253, 6H258, 6H259, 6H262, 6E233, and 6E253
Local Management User’s Guide for information on how to access and use Local Management. Refer to Chapter 4 for information on LEDs and troubleshooting.
3-8 Installation
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
4
Troubleshooting
This chapter provides information concerning the following:
Using the LANVIEW diagnostic and status monitoring system (Section 4.1)
Troubleshooting network and module operational problems (Section 4.2)
Using the RESET button (Section 4.3)
4.1 USING LANVIEW
The 6E233-49 SmartSwitch uses Cabletron Systems’ built-in visual diagnostic and status monitoring system called LANVIEW. The LANVIEW LEDs (Figure 4-1) allo w quick obser va tion of the network status to aid i n diagnos ing netw ork probl ems. Refer to Table 4-1 for a description of the LEDs.
Refer to the HSIM user’s guide for a description of the HSIM LEDs.
Troubleshooting 4-1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Using LANVIEW
ETHERNET
6E233-49
24
48
37
36
25
24
1
12
59678
10 11 12
1234
13 14 15 16
17 18 19 20
21 22 23 24
25 26 27 28
29 30 31 32
33 34 35 36
37 38 39 40
41 42 43 44
45 46 47 48
13
RESET
COM
CPU
CPU LED
RX
1
TX
2693_09
Figure 4-1 LANVIEW LEDs
4-2 Troubleshooting
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Using LANVIEW
NOTE
NOTE
NOTE
NOTE
The terms flashing, bl inking, and solid used in th e LED definition tab les of this chapter indicate the following:
Flashing indicates an irregular LED pulse. Blinking indicates a steady LED pulse, (approximately 50% on, 50% off). Solid indicates a steady LED light. No pulsing.
Table 4-1 LANVIEW LEDs CPU, Receive, and Transmit Status
LED Color State Recommended Action
CPU Off Power off. Power up chassis.
Red Blinking. Hardware failure
Contact Cabletron Systems.
has occurred. Solid. Resetting, normal
power up reset.
If the LED remains red for several minutes, contact Cabletron Systems.
Amber Blinking. Crippled. Contact Cabletron Systems.
Solid. Testing. If the LED remains amber for several
minutes, contact Cabletron Systems.
Green Solid. Functional. None. Amber
and
Booting. Blinks amber and green while booting.
Green
RX Off No link. No activity. Port
enabled or disabled.
Green Solid. Port enabled, link, no
activity. Blinking. Port disabled, link. None.
Amber Flashing. Port enabled, link,
activity.
Red Diagnostic failure. Contact Cabletron Systems.
None.
None.
None.
None.
Troubleshooting 4-3
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Using LANVIEW
Table 4-1 LANVIEW LEDs CPU, Receive, and Transmit Status (Continued)
LED Color State Recommended Action
TX Off Port enabled, and no activity.
Should flash green every two seconds indicating BPDUs being sent if STA is enabled and there is a valid link.
Green Flashing. Indicates activity.
Rate indicates data rate.
Amber Blinking. Port in standb y. Port
may be disabled due to Spanning Tree.
Red Flashing. Indicates collision
rate.
Solid. Diagnostic Failure. Contact Cabletron Systems.
1. Ensure that the STA is enabled and that there is valid link. The Local Management User’s Guide describes how to enable the STA.
2. Contact Cabletron Systems.
None.
1. Ensure that the port is not disabled. Refer to the Local Management User’s Guide for information on enabling/disabling ports.
2. Contact Cabletron Systems.
None, unless there is a high rate of activity. If so, check for network configuration problems or a defective device.
4-4 Troubleshooting
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Troubleshooting Checklist
4.2 TROUBLESHOOTING CHECKLIST
If the 6E233-49 Smart Swi tch is not working properl y, refer to Table 4-2 for a checklist of possible problems, causes, and recommended actions to resolve the problem.
Table 4-2 Fault Identification
Symptom Possible Causes
All LEDs are off. 1. Installation error - remove 6E233-49 SmartSwitch and perform
installation in accordance w ith installation in structions. Check connectors for dust or dirt and clean as necessary.
2. Power system fault - refer to Table 4-3.
Module stays in BOOT state.
1. Device does not have an operable firmware image, and is sending out BootP requests in an effort to locate a Boot P serv er on the network. Press the RESET button on the front panel to attempt to use the firmware image in FLASH memory.
2. If the problem continues after pre ssing the RESET b utton , refer to Section B.1 for instructions on forcing a BootP image download.
3. Contact Cabletron Systems if the problem continues.
Troubleshooting 4-5
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Troubleshooting Checklist
Table 4-3 Power System Troubleshooting
Possible Causes Instruction
Loss of power to the 6C105 chassis.
Fault in 6C105 power bus.
Perform the following steps:
1. Check ON/OFF switches of 6C105 po wer suppl ies. All switches
must be in the ON ( | ) position.
2. Check all power cords and cables for proper connection. Examine power cords for fraying or other damage. Replace if necessary.
3. Examine 6C105 chassis power supplies. If power supply LEDs or audible warning tone indicate power supply problems, troubleshoot or replace any faulty power supplies.
1. Remove the 6E233-49 SmartSwitch from the current slot and re-install in another free slot in the chassis.
2. If the 6 E233-49 SmartSwitch functions in the selected slot, the 6E233-49 SmartSwitch onboard power converter is operational. The 6C105 chassis po we r bus may have a local iz ed fault. Install the 6E233-49 SmartSwitch in the working slot and contact Cabletron Systems.
3. If the 6E233-49 SmartSwitch does not function in the selected slot, continue the process with all module slots in the chassis. If the module does not function in any slot, the chassis power bus may have a system-wide fault or the module onboard power converter may be inoperable. Diagnose the module power converter as describ ed below to isolate the fault.
Fault in 6E233-49 SmartSwitch module power converter.
4-6 Troubleshooting
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
1. Remove a working module from a known good chassis.
2. Install the 6E233-49 SmartSwitch in the known good slot.
3. If the 6E233-49 SmartSwitch does not function, there may be a fault in the onboard power con v erter. Contact Cabletron Systems immediately.
Troubleshooting Checklist
Table 4-4 Firmware Troubleshooting
Possible Cause Instruction
Autobaud enabled. Press ENTER (RETURN) (may take up to four times). T ermi nal setup is not co rrect . Refer to the Local M anagement User’s Guide for setu p
procedures.
Improper console cable pinouts.
The COM port of the device has been disabled, or the COM port application has been changed.
Corrupt firmware image, or hardware fault.
Refer to Appendix A for proper console port pinouts.
1. Establish a Telnet connection to the device.
2. Refer to the Local Management User’s Guide on enabling/disabling the COM port and changing the COM port application.
1. If possible, attempt to download the image to the device again. Refer to Sec tion B.1 for instructions on how to f orce a download of a new firmware image.
2. Contact Cabletron Systems if the problem continues.
Troubleshooting 4-7
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Troubleshooting Checklist
Table 4-5 Management System Tro ubleshooting
Possible Causes Instruction
Cannot access Local Management.
Cannot contact device through in-band management.
User parameters (IP address, community names, etc.) los t on reset or power-up.
Device is not forwarding traffic from any port.
Improper Community Names Table.
1. Firmware image fault - refer to Table 4-4.
2. Management system fault - refer to Table 4-5.
1. Management System fault - refer to Table 4-5.
2. No link to device - verify all network connections between network management station and 6E233-49 SmartSwitch are valid and op erating.
Device setup fault - refer to Table 4-6.
Device setup fault - refer to Table 4-6.
1. Refer t o the Local Management User’s Guide for Community Names Table setup.
2. If the Community Names have been forgotten, refer to
Section B.1 for instructions on clearing NVRAM.
The 6E233-49 SmartSwitch does not have an IP address.
The applicable front panel port is disabled.
4-8 Troubleshooting
1. Refer t o the Local Management User’s Guide for IP address assignment procedure.
2. If the 6E233-49 SmartSwitch is using the IP address of the 6C105 chassis, ensure that the module is not in STANDALONE management mode. The Local Management User’s Guide provides instructions on setting the management mode.
1. Enable port. Refer to the Local Management User’s Guide for instructions on enabling/disabling ports.
2. Port may disabled due to Spanning Tree. Review network design and delete unnecessary loops.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Table 4-6 Device Setup Troubleshooting
Possible Causes Instruction
Troubleshooting Checklist
The 6E233-49 SmartSwitch detect a looped condition.
Mode switch (7), NVRAM Reset, was changed sometime before either cycling power or pressing the RESET button, causing the user-entered parameters to reset to factory default settings.
Clear NVRAM was set through Local Management.
NOTE
NOTE
NOTE
NOTE
If these troubleshooting tables do not solve any problems that occur with the 6E233-49 SmartSwitch, contact Cabletron Systems. Refer to Section 1.2 for details.
1. Verify that Spanning Tree is enabled. Refer to the Local Management User’s Guide for instructions on setting the type of STA.
2. Review network design and delete unnecessary loops.
1. Reenter the lost parameters as necessary. Refer to the Local Management User’s Guide for instructions on configuring the device through Local Management.
2. Call Cabletron Systems if the problem continues.
1. Reenter the lost parameters as necessary. Refer to the Local Management User’s Guide for instructions on configuring the device through Local Management.
2. Call Cabletron Systems if the problem continues.
Troubleshooting 4-9
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Using the RESET Button
3612
ETHERNET
6E233-49
RESET
COM
CPU
4.3 USING THE RESET BUTTON
The RESET button, located near the upper plastic locking tab of the module (refer to Figure 4-2), resets the 6E233-49 SmartSwitch processor without affecting the NVRAM.
Pressing the RESET button resets the device, and all current switching being performed by the module is halted. A module downtime of up to two minutes
!
CAUTION
results from this action.
RESET Button
26931_10
Figure 4-2 RESET Button
To reset the 6E233-49 SmartSwitch processor, press and release the RESET button. The module processor goes through a re set proc ess of app roximat ely 20 sec onds. Addit ional do wntime may be added as the module reenters the network.
NOTE
NOTE
NOTE
NOTE
It is not recommended to press the RESET button while the module is already in reset mode. The module will enter an extended diagnostic procedure, which is unnecessary for normal operation. This procedure will take much longer than a minute. The ESC key can be used to exit the procedure.
4-10 Troubleshooting
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
A
Specifications
This appendix pro vides oper ating specif ic ations fo r the Cablet ron Systems 6E233-49 Smart Switch Interface Module. Cabletron Systems reserves the right to change these specifications at any time without notice.
A.1 MODULE SPECIFICATIONS
Processor: Intel i960 RISC processor Power PC Dynamic Random Access
Memory (DRAM): 20 MB expandable to 32 MB
FLASH Memory: 8 MB
Shared Memory: 4 MB
A.2 PHYSICAL PROPERTIES
Dimensions: 46.43 H x 6.05 W x 29.51 D (cm)
18.28 H x 2.38 W x 11.62 D (in) Weight (Unit): Approximately 2.7 kg (6 lb) MTBF (Predicted): 200,000 hours
A.3 ENVIRONMENTAL REQUIREMENTS
Operating Temperature: 5°C to 40°C (41°F to 104°F) Storage Temperature: -30°C to 73°C (-22°F to 164°F) Operating Relative Humidity: 5% to 90% (non-condensing)
Specifications A-1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Input/Output Ports
A.4 INPUT/OUTPUT PORTS
6E233-49 Specifications
Ports 1 through 48: Ethernet (10BASE-T compliant) through four RJ21
type connectors.
Slot for optional High Speed Interface Modul e (HSIM ): Slot accepts opt ional HSIMs that pro vi de a variety of
physical cabling types.
A.5 COM PORT PINOUT ASSIGNMENTS
The COM port is a serial commun icati ons port tha t supports Local Manage ment or conn ection to a UPS.
Table A-1 shows the COM port pin assignments:
Table A-1 COM Port Pin Assignments
Pin Signal Name Input/Output
1 Transmit Data (XMT) Output 2 Data Carrier Detect (DCD) Output 3 Data Set Ready (DSR) Input 4 Receive Data (RCV) Input 5 Signal Ground (GND) NA 6 Data Terminal Ready (DTR) O utput 7 Request to Send (RTS) Input 8 Clear to Send (CTS) NA
A.6 REGULATORY COMPLIANCE
T h is eq u ip men t m e e ts th e fo llo wing sa fety a n d e lec tro mag n etic co mpa tib ility (EM C) req u ire m e n ts:
Safety: UL 1950, CSA C22.2 No 950, 73/23/EEC, EN 60950,
IEC 950
Electromagnetic Compatibility (EMC): FCC Part 15, CSA C108.8, 89/336/EEC, EN 55022,
EN 61000-3-2, EN 61000-3-3, EN 50082-1, AS/NZS 3548, VCCI V-3
A-2 Specifications
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Optional Instal lat ions and
Mode Switch Bank Settings
This appendix covers the following items:
Required tools (Section B.1)
Locations, functions, and settings for the mode switches (Section B.2)
Installing the SIMM (Section B.3)
Installing HSIMs (Section B.4)
B.1 REQUIRED TOOLS
You need the following tools to perform the procedures provided in this appendix:
Antistatic wrist strap (provided with 6C105 chassis)
B
B.2 SETTING THE MODE SWITCHES
These switches are set at the factory and do not need to be changed unless you intend to perform the following:
Force download a new image file from a BootP server.
Clear NVRAM and restore all user-e ntered parameters su ch as the IP a ddress and Subnet Ma sks
to the 6E233-49 SmartSwitch “Default” configuration settings.
Clear user-entered passwords stored in NVRAM and restore the default passwords.
Figure B-1 shows the location of the mode switches and the switch settings for normal operation.
Optional Installations and Mode Switch Bank Settings B-1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Setting the Mode Switches
Flash
DRAM
Figure B-1 Module Mode Switch Location/Component Layout
MODE SWITCH
OFF ON
1 2 3
4 5 6 7 8
Switch definitions and positions are as follows:
Switches 1 through 4 – For Cabletron Systems use only.
Switch 5 – COM Port Autobaud . The default (OFF) positi on enables Autobaud sensing on the
COM port for Local Management sessions. Changing the switch to the ON position disables Autobaud sensing and sets the COM port to 9600 baud for Local Management sessions.
Switch 6 – Forced BootP. Changing the posit ion of this switch (i.e. , moving the switch from one
position to the other) cle ar s downloa d in for m ati on f rom NVRAM and forces the SmartSwitch to download a new image file from a BootP server after power to the chassis is restored.
NOTENOTENOTENOTE
is a station acting as a BootP server, which contains the image file.
After changing the position of switch 6 and restarting the module, the SmartSwitch requests a
new image download until they either receive a new image or the RESET button on the front panel is pressed. When the RESET button is pressed, the SmartSwitch continues trying to contact a BootP serv er , b u t will ti me out in a pproxima tely one m inute. If the module times ou t, the image is downloaded from its FLASH memory.
Switch 7 – Clear NVRAM. Changing the position of this switch resets NVRAM on the next
power up. ALL us er ent ered p aramete rs, su ch as I P addre sses, subn et masks , SNMP tr aps, a nd switching functions are restored to their factory default settings.
B-2 Optional Installations and Mode Switch Bank Settings
After changing the position of switch 6, DO NOT reapply power to the chassis until there
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
SIMM Upgrade
Switch 8 – Reset Password/Community Strings. Changing the position of this switch clears
only the user-entered passwords stored in NVRAM, and restores the default passwords. Once the SmartSwitch resets, the passwords can either be reentered or the default passwords (Public and ENTER) may be used.
NOTE
NOTE
NOTE
NOTE
Do not change the position of switch 8 unless it is necessary to reset the module super-user configured passwords to their factory default settings.
B.3 SIMM UPGRADE
Memory upgrade is available for the 6E233-49 SmartSwitch module to expand the DRAM to 32 MB. This section explains how to locate and add/replace a Single In-line Memory Module (SIMM). For informatio n on the av ailabl e SIMM upgrades, contac t Cabletron Systems. F or details on getting help, refer to Section 1.2.
B.3.1 Locating SIMMs
Figure B-2 shows the location of the DRAM SIMM connector.
DRAM SIMM
Figure B-2 SIMM Slot Locations
Optional Installations and Mode Switch Bank Settings B-3
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
SIMM Upgrade
B.3.2 Installing the DRAM SIMM
Observe all antistatic precautions when handling sensitive electronic equipment.
!
CAUTION
To install a DRAM SIMM, refer to Figure B-3 and proceed as follows:
1. With the SIMM alignment notch oriented as shown in Figure B-3, insert the SIMM down
between the connector teeth.
2. Pivot the SIMM d ownward so t he con nector c lips al ign with the t wo side n otches of the SIMM
and the connector clips lock the SIMM into place.
Side Notch
Connector
Clip
2
Connector
Teeth
1
Alignment Notch
SIMM
Figure B-3 Installing the DRAM
Side Notch
Clip
2504-91
B-4 Optional Installations and Mode Switch Bank Settings
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Installing Optional High Speed Interface Modules
B.4 INSTALLING OPTIONAL HIGH SPEED INTERFACE MODULES
Figure B-4 shows the location of the connector for an optional High Speed Interface Module (HSIM).
NOTE
NOTE
NOTE
NOTE
Refer to the installation instructions for the optional HSIM in the associated user’s guide.
Optional HSIM
DRAM
HSIM Connector
2693_93
Figure B-4 HSIM Connector Location
Optional Installations and Mode Switch Bank Settings B-5
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Index
Numerics
10BASE-T
requirements 2-1
C
Cable specifications
100BASE-T network 2-1
COM port
pin assignments A-2
Connecting to the network 3-5
D
Documents, related xvii
E
Environmental requirements A-1
I
Installation
Fast Ethernet Interface Module B-5
L
LANVIEW LEDs 4-1 LDRAM
installation B-4
M
Memory
upgrading B-3
P
Physical properties A-1 Port Redirect Function, introduction to 1-5
R
Redirect functions
port and VLAN, introduct i on to 1-5 Related documents xvii RESET button 4-10
S
Safety A-2 Safety information
laser ix SDRAM
installation B-4 SIMMs
installing
LDRAM B-4
location B-3 SmartTrunk, introduction to 1-4 Specifications A-1 Standards compatibility 1-7
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Index-1
T
Troubleshooting 4-1
checklist 4-5
U
Unpacking 3-1
V
VLAN Redirect Function, introduction to 1-5
Index-2
