2H28-08R

SmartSwitch 2208

User’s Guide

9032380-03

Only qualiﬁed personnel should perform installation procedures.

NOTICE

Cabletron Systems reserves the right to make changes in speciﬁcations and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made.

The hardware, ﬁrmware, or software described in this manual is subject to change without notice. IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL,

INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN ADVISED OF, KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH DAMAGES.



Order Number: 9032380-03 October 1998

Cabletron Systems, SPECTRUM, S

trademarks and All other product names mentioned in this manual may be trademarks or registered trademarks of

their respective companies.

SmartSwitch

ecureFast

QuickSet

is a trademark of Cabletron Systems, Inc.

, and

LANVIEW

are registered

FCC NOTICE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE:

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment uses, generates, and can radiate radio frequency energy and if not installed in accordance with the operator’s manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference in which case the user will be required to correct the interference at his own expense.

WARNING:

party responsible for compliance could void the user’s authority to operate the equipment.

Changes or modiﬁcations made to this device which are not expressly approved by the

2H28-08R SmartSwitch 2208 User’s Guide i

Notice

INDUSTRY CANADA NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada.

VCCI NOTICE

This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be required to take corrective actions.

CABLETRON SYSTEMS, INC. PROGRAM LICENSE AGREEMENT

IMPORTANT:

This document is an agreement between you, the end user, and Cabletron Systems, Inc. (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (the “Program”) contained in this package. The Program may be contained in ﬁrmware, chips or other media. BY UTILIZING THE ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME BOUND BY THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND THE LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, PROMPTLY RETURN THE UNUSED PRODUCT TO THE PLACE OF PURCHASE FOR A FULL REFUND.

Before utilizing this product, carefully read this License Agreement.

ii 2H28-08R SmartSwitch 2208 User’s Guide

Notice

CABLETRON SOFTWARE PROGRAM LICENSE

1. LICENSE

package subject to the terms and conditions of this License Agreement. You may not copy, reproduce or transmit any part of the Program except as permitted by the

2. OTHER RESTRICTIONS. You may not reverse engineer, decompile, or disassemble the

Program.

3. APPLICABLE LA W. This License Agreement shall be interpreted and governed under the laws

and in the state and federal courts of New Hampshire. You accept the personal jurisdiction and venue of the New Hampshire courts.

. You have the right to use only the one (1) copy of the Program provided in this

EXCLUSION OF WARRANTY AND DISCLAIMER OF LIABILITY

1. EXCLUSION OF

writing, Cabletron makes no warranty, expressed or implied, concerning the Program (including its documentation and media).

CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO YOU BY CABLETRON IN WRITING, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE ACCOMP ANYING WRITTEN MA TERIALS, AND ANY A CCOMP ANYING HARDWARE.

2. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL

CABLETRON OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS, PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR RELIANCE DAMAGES, OR OTHER LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THIS CABLETRON PRODUCT, EVEN IF CABLETRON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR ON THE DURATION OR LIMITATION OF IMPLIED WARRANTIES, IN SOME INSTANCES THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.

WARRANTY. Except as may be specifically provided by Cabletron in

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

The enclosed product (a) was developed solely at private expense; (b) contains “restricted computer software” submitted with restricted rights in accordance with Section 52227-19 (a) through (d) of the Commercial Computer Software - Restricted Rights Clause and its successors, and (c) in all respects is proprietary data belonging to Cabletron and/or its suppliers.

For Department of Defense units, the product is licensed with “Restricted Rights” as deﬁned in the DoD Supplement to the Federal Acquisition Regulations, Section 52.227-7013 (c) (1) (ii) and its successors, and use, duplication, disclosure by the Government is subject to restrictions as set forth in subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at

252.227-7013. Cabletron Systems, Inc., 35 Industrial Way, Rochester, New Hampshire 03867-0505.

2H28-08R SmartSwitch 2208 User’s Guide iii

Notice

SAFETY INFORMATION

CLASS 1 LASER TRANSCEIVERS

THE FE-100F3 FAST ETHERNET INTERFACE MODULE, FPIM-05 AND

FPIM-07 FDDI PORT INTERFACE MODULES, AND APIM-29 ATM

PORT INTERFACE MODULE USE CLASS 1 LASER TRANSCEIVERS.

READ THE FOLLOWING SAFETY INFORMATION BEFORE

INSTALLING OR OPERATING THESE MODULES.

The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation limits. This control loop eliminates the need for maintenance checks or adjustments. The output is factory set, and does not allow any user adjustment. Class 1 Laser transceivers comply with the following safety standards:

• 21 CFR 1040.10 and 1040.11 U.S. Department of Health and Human Services (FDA).

• IEC Publication 825 (International Electrotechnical Commission).

• CENELEC EN 60825 (European Committee for Electrotechnical Standardization). When operating within their performance limitations, laser transceiver output meets the Class 1

accessible emission limit of all three standards. Class 1 levels of laser radiation are not considered hazardous.

SAFETY INFORMATION

CLASS 1 LASER TRANSCEIVERS

LASER RADIATION AND CONNECTORS

When the connector is in place, all laser radiation remains within the ﬁber. The maximum amount of radiant power exiting the ﬁber (under normal conditions) is -12.6 dBm or 55 x 10-6 watts.

Removing the optical connector from the transceiver allows laser radiation to emit directly from the optical port. The maximum radiance from the optical port (under worst case conditions) is

0.8 W cm-2 or 8 x 103 W m2 sr-1.

Do not use optical instruments to view the laser output. The use of optical instruments to view laser output increases eye hazard. When viewing the output optical port, power must be removed from the network adapter.

iv 2H28-08R SmartSwitch 2208 User’s Guide

DECLARATION OF CONFORMITY

Notice

Application of Council Directive(s):

Manufacturer’s Name:

Manufacturer’s Address:

European Representative Name:

European Representative Address:

Conformance to Directive(s)/Product Standards:

Equipment T ype/Environment:

W e the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with this notice conforms to the above directives.

Manufacturer Legal Representative in Europe

89/336/EEC 73/23/EEC

Cabletron Systems, Inc. 35 Industrial Way

PO Box 5005 Rochester, NH 03867

Mr. J. Solari Cabletron Systems Limited

Nexus House, Newbury Business Park London Road, Newbury Berkshire RG13 2PZ, England

EC Directive 89/336/EEC EC Directive 73/23/EEC EN 55022 EN 50082-1 EN 60950

Networking Equipment, for use in a Commercial or Light Environment.

Industrial

Mr. Ronald Fotino Mr. J. Solari

___________________________________ ___________________________________

Full Name Full Name Principal Compliance Engineer Managing Director - E.M.E.A.

___________________________________ ___________________________________

Title Title Rochester, NH, USA Newbury, Berkshire, England

___________________________________ ___________________________________

Location Location

2H28-08R SmartSwitch 2208 User’s Guide v

Notice

vi 2H28-08R SmartSwitch 2208 User’s Guide

CHAPTER 1 INTRODUCTION

1.1 Using This Guide......................................................................... 1-1

1.2 Structure of This Guide................................................................1-1

1.3 2H28-08R Overview....................................................................1-2

1.3.1 Connectivity ....................................................................1-3

1.3.2 Switching Options...........................................................1-3

1.3.3 Full Duplex Switched Ethernet........................................ 1-3

1.3.4 SmartTrunk.....................................................................1-4

1.3.5 Runtime IP Address Discovery.......................................1-4

1.3.6 Management...................................................................1-5

1.3.7 Remote Monitoring (RMON)...........................................1-5

1.3.8 LANVIEW Diagnostic LEDs............................................1-5

1.3.9 Broadcast Suppression................................................... 1-5

1.3.10 Port Redirect Function....................................................1-6

1.3.11 Year 2000 Compliance ...................................................1-6

1.3.12 Standards Compatibility..................................................1-6

1.4 Optional Features........................................................................ 1-7

1.5 Document Conventions...............................................................1-8

1.6 Getting Help.................................................................................1-9

1.7 Related Manuals........................................................................1-10

CHAPTER 2 NETWORK REQUIREMENTS

2.1 SmartTrunk..................................................................................2-1

2.2 100BASE-FX Fiber Optic Network ..............................................2-2

2.3 100BASE-TX Network................................................................. 2-3

CHAPTER 3 INSTALLATION

3.1 Required Tools............................................................................3-1

3.2 Unpacking the 2H28-08R............................................................3-1

3.3 Installing Optional Equipment......................................................3-2

3.4 Installing the 2H28-08R............................................................... 3-3

3.4.1 Tabletop or Shelf Installation .......................................... 3-3

3.4.2 Rackmount Installation ...................................................3-4

3.4.3 Connecting Power to the Device ....................................3-7

3.5 Connecting to the Network..........................................................3-8

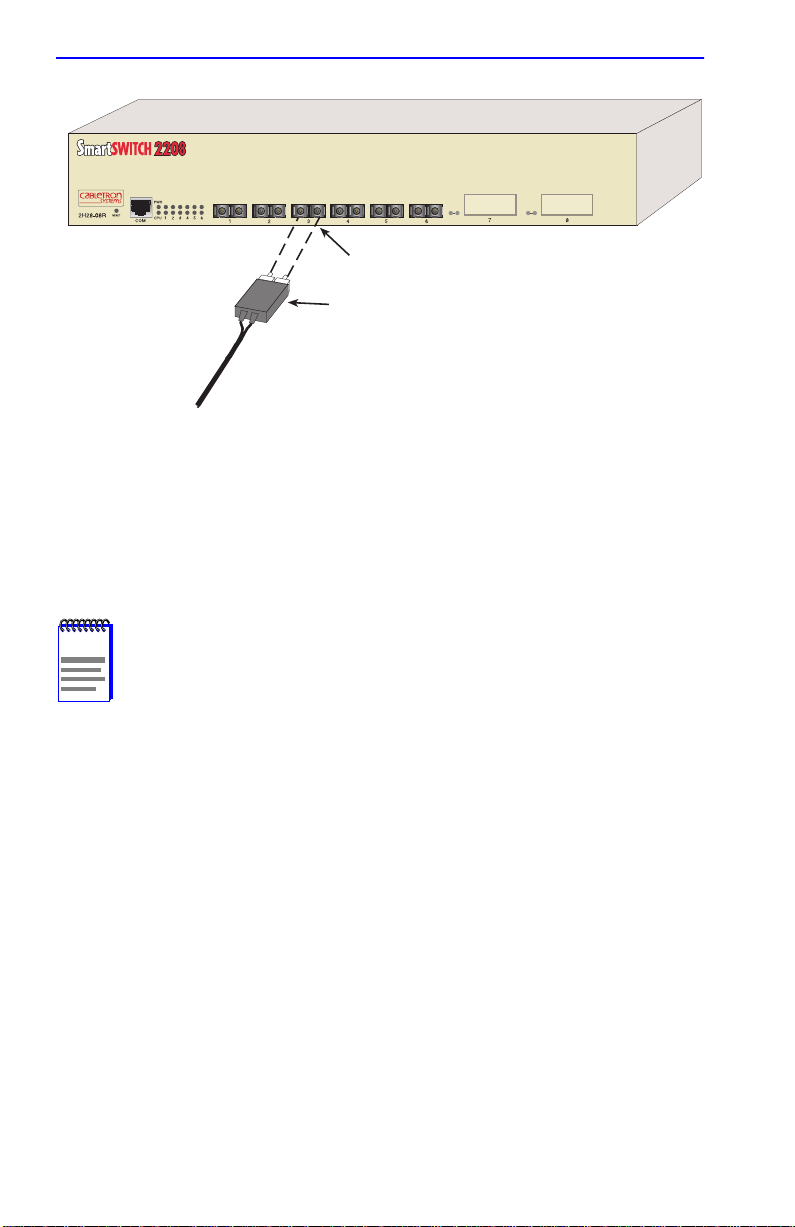

3.5.1 Connecting Fiber Optic Cables to Ports 1 Through 6.....3-8

3.5.2 Connecting a UTP Segment to the FE-100TX.............. 3-11

3.5.3 Connecting a Fiber Optic Segment to the

FE-100FX and FE-100F3 .............................................3-13

3.6 Completing the Installation........................................................3-15

2H28-08R SmartSwitch 2208 User’s Guide vii

Contents

CHAPTER 4 TROUBLESHOOTING

4.1 Using LANVIEW...........................................................................4-1

4.2 FE-100TX LED.............................................................................4-4

4.3 Troubleshooting Checklist............................................................4-5

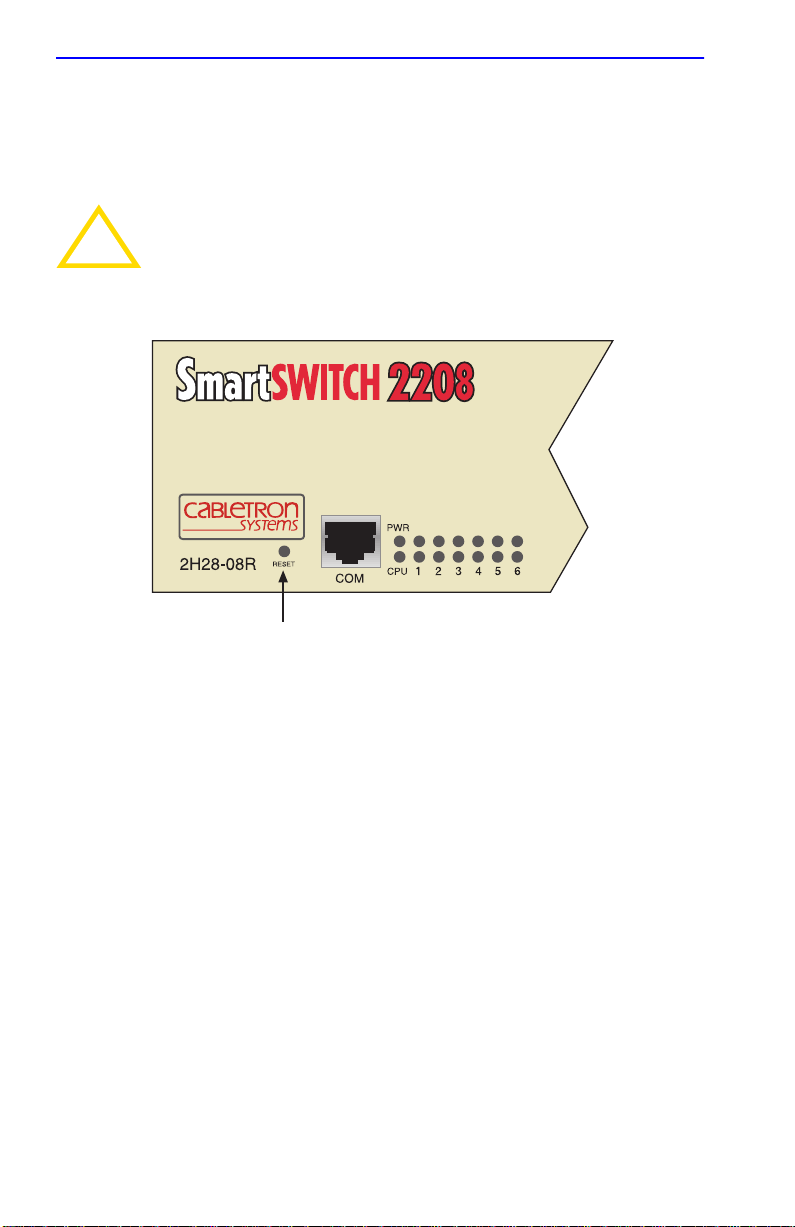

4.4 Using the RESET Button .............................................................4-6

CHAPTER 5 LOCAL MANAGEMENT

5.1 Overview......................................................................................5-1

5.2 Local Management Keyboard Conventions.................................5-2

5.3 Management Terminal Setup.......................................................5-3

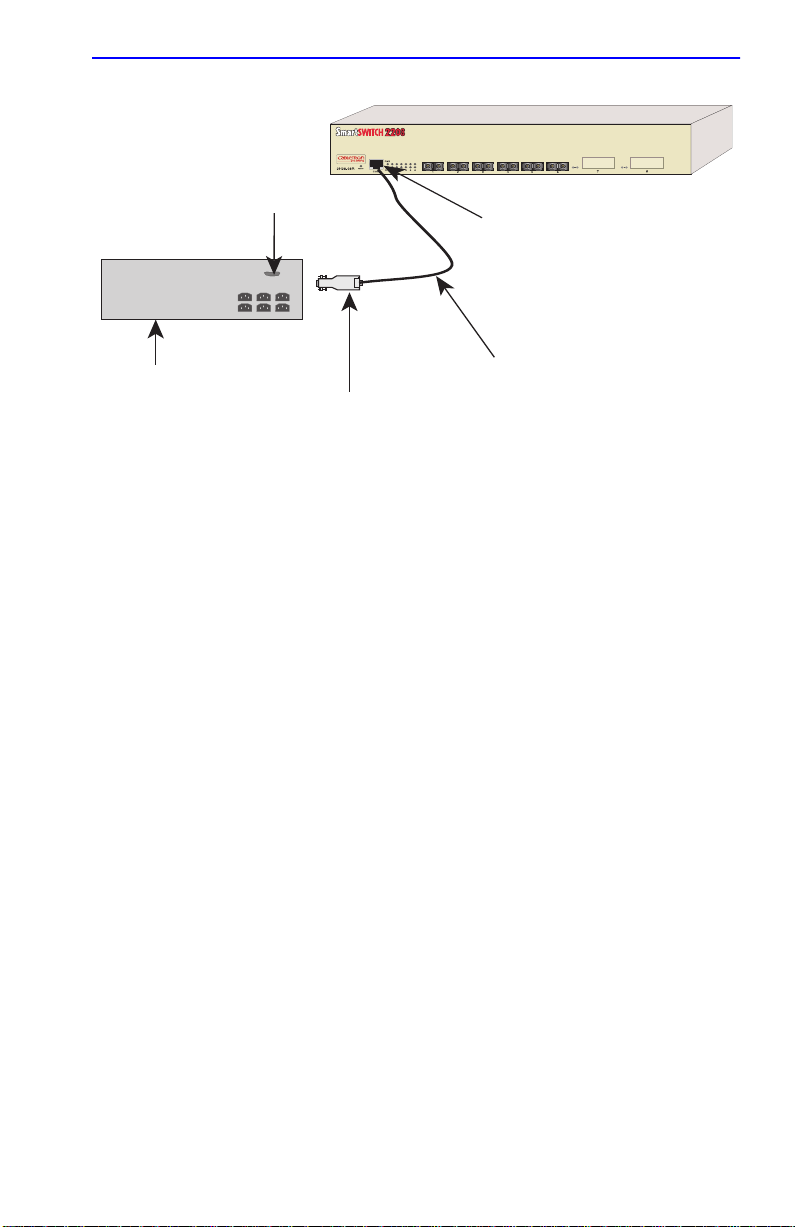

5.3.1 Console Cable Connection..............................................5-4

5.3.2 Management Terminal Setup Parameters ......................5-5

5.3.3 Telnet Connections .........................................................5-6

5.3.4 Monitoring an Uninterruptible Power Supply...................5-6

5.4 Accessing Local Management.....................................................5-8

5.4.1 Navigating Local Management Screens..........................5-9

5.4.2 Selecting Local Management Menu Screen Items........5-11

5.4.3 Exiting Local Management Screens..............................5-11

5.5 Device Menu Screen..................................................................5-13

5.6 Device Configuration Menu Screen ...........................................5-14

5.7 General Configuration Screen ...................................................5-16

5.7.1 Setting the IP Address...................................................5-20

5.7.2 Setting the Subnet Mask...............................................5-21

5.7.3 Setting the Default Gateway..........................................5-22

5.7.4 Setting the TFTP Gateway IP Address .........................5-23

5.7.5 Setting the Device Date.................................................5-23

5.7.6 Setting the Device Time................................................5-24

5.7.7 Entering a New Screen Refresh Time...........................5-24

5.7.8 Setting the Screen Lockout Time..................................5-25

5.7.9 Setting the Operational Mode........................................5-25

5.7.10 Configuring the COM Port.............................................5-27

5.7.10.1 Changing the COM Port Application.............5-29

5.7.11 Clearing NVRAM...........................................................5-30

5.8 SNMP Community Names Screen.............................................5-31

5.8.1 Establishing Community Names ...................................5-33

5.9 SNMP Traps Screen..................................................................5-34

5.9.1 Configuring the Trap Table............................................5-35

5.10 Switch Configuration Screen......................................................5-36

5.10.1 Setting the STA.............................................................5-38

5.10.2 Setting the Age Time Field............................................5-39

5.10.3 Setting (Enabling or Disabling) the Port Status.............5-39

viii 2H28-08R SmartSwitch 2208 User’s Guide

Contents

5.11 Ethernet Interface Configuration................................................5-40

5.11.1 Configuring an FE-100FX Interface or a

Port 7 or 8 FE-100FX/F3 Interface ...............................5-42

5.11.2 Configuring an FE-100TX Interface..............................5-42

5.11.3 Setting the FE-100TX Operational Mode...................... 5-43

5.11.4 Setting the FE-100TX Advertised Ability....................... 5-43

5.12 Device Specific Configuration Menu Screen............................. 5-44

5.13 System Resources Screen........................................................5-46

5.13.1 Setting the Reset Peak Switch Utilization.....................5-48

5.14 Flash Download Screen ............................................................5-48

5.14.1 Image File Download Using TFTP................................5-50

5.14.2 Image File Download Using Runtime ...........................5-51

5.14.3 Image File Download Using BootP...............................5-52

5.15 Port Redirect Function Screen ..................................................5-53

5.15.1 Displaying the Source and Destination Entries............. 5-55

5.15.2 Changing Source and Destination Ports....................... 5-56

5.16 Broadcast Suppression Screen.................................................5-57

5.16.1 Setting the Threshold.................................................... 5-59

5.16.2 Setting the Reset Peak Switch .....................................5-59

5.17 Device Statistics Menu Screen..................................................5-60

5.18 Switch Statistics Screen............................................................ 5-61

5.18.1 Using the Clear Counters Command............................5-63

5.19 Interface Statistics Screen.........................................................5-63

5.19.1 Displaying Interface Statistics.......................................5-66

5.19.2 Using the Clear Counters Command............................5-67

5.20 RMON Statistics Screen............................................................5-67

5.20.1 Displaying RMON Statistics..........................................5-71

5.20.2 Using the Clear Counters Command............................5-71

5.21 Network Tools............................................................................5-72

5.21.1 Built-in Commands .......................................................5-74

5.21.2 Special Commands....................................................... 5-82

APPENDIX A SPECIFICATIONS

A.1 Device Specifications ..................................................................A-1

A.2 Physical Properties......................................................................A-1

A.3 Electrical Specifications...............................................................A-1

A.4 Environmental Requirements......................................................A-2

A.5 Input/Output Ports .......................................................................A-2

A.6 COM Pinout Assignments ...........................................................A-2

A.7 Regulatory Compliance...............................................................A-3

2H28-08R SmartSwitch 2208 User’s Guide ix

Contents

APPENDIX B FE-100TX, FE-100FX AND FE-100F3

SPECIFICATIONS

B.1 FE-100TX.................................................................................... B-1

B.2 FE-100FX.................................................................................... B-2

B.3 FE-100F3....................................................................................B-3

APPENDIX C OPTIONAL INSTALLATIONS AND

MODE SWITCH BANK SETTINGS

C.1 Required Tools............................................................................C-2

C.2 Removing the Chassis Cover ..................................................... C-2

C.2.1 Setting the Mode Switch.................................................C-4

C.3 Installing Optional Fast Ethernet Interface Modules...................C-6

INDEX

x 2H28-08R SmartSwitch 2208 User’s Guide

CHAPTER 1

INTRODUCTION

Welcome to the This guide provides the necessary documentation to install and operate the 2H28-08R SmartSwitch 2208 devices and provides information concerning network requirements, troubleshooting, and the use of Local Management.

2H28-08R SmartSwitch 2208 User’s Guide.

1.1 USING THIS GUIDE

Read through this guide to completely understand the 2H28-08R capabilities and Local Management functions. A general working knowledge of Ethernet and IEEE 802.3 type data communications networks and their physical layer components is helpful when using this device.

1.2 STRUCTURE OF THIS GUIDE

This guide is organized as follows:

Chapter 1,

describes the 2H28-08R features. Directions about how to obtain additional help and a list of related manuals are also included.

Chapter 2,

that must be met before installing the 2H28-08R.

Introduction

Network Requirements

, outlines the contents of this manual and brieﬂy

, explains the network requirements

Chapter 3,

2H28-08R and connect segments to the device.

Chapter 4,

LEDs, which can help to quickly diagnose network/operational problems.

Chapter 5,

Management to conﬁgure and manage the 2H28-08R.

Appendix A,

operational speciﬁcations, connector pinouts, environmental requirements, and physical properties.

2H28-08R SmartSwitch 2208 User’s Guide 1-1

Installation

Troubleshooting

Local Management

Speciﬁcations

, provides instructions on how to install the

, describes the function of the LANVIEW

, contains information on functional and

, describes how to access and use Local

Chapter 1:

Introduction

Appendix B,

FE-100TX, FE-100FX and FE-100F3 Speciﬁcations

, contains information about FE-100TX pinouts and information concerning cable types used with the FE-100FX and FE-100F3.

Appendix C,

Optional Installations and Mode Switch Bank Settings

, describes how to install optional Fast Ethernet Interface Modules and ho w to set the Mode Switch.

1.3 2H28-08R OVERVIEW

The 2H28-08R (Figure 1-1) is a switching device that provides six ﬁxed 100BASE-FX Fast Ethernet ports using multimode ﬁber optic cable. Each Ethernet segment supports 802.1D switching (bridging), IEEE 802.1Q switching, and Cabletron Systems SecureFast Switching Virtual Network technology .

Optional Fast Ethernet Interface

Port LEDs

Switched Ethernet Ports

Module Ports 7 & 8

System LEDs COM Port RESET Button

Figure 1-1 2H28-08R

Receive (RX) Transmit (TX) LEDs

2380_02

The 2H28-08R also has two slots (7 and 8) for optional Fast Ethernet Interface Modules.

The device bridges each Ethernet segment to the other switch ports, and to the optional interface modules in port slots 7 and 8. The optional Fast Ethernet Interface Modules provide uplinks to 100BASE-TX or 100BASE-FX Fast Ethernet networks, and connectivity to 10BASE-T.

1-2 2H28-08R SmartSwitch 2208 User’s Guide

2H28-08R Overview

The 2H28-08R may be used as a tabletop unit or can be installed in a standard 19-inch rack using the supplied rack mounting hardware.

The 2H28-08R has two power supplies. Both are universal ac power supplies with automatic voltage sensing that allows operation using 100–125 or 200–240 Vac, 50/60 Hz. The power supplies load share 50% (+/-5%) of the power required by the device. If one po wer supply fails, the remaining power supply assumes the entire load of the device without interruption to network trafﬁc. Each power supply module supports its own ac input connection, which allows the user to connect each power supply to a different ac power circuit.

1.3.1 Connectivity

The six ﬁxed ports on the 2H28-08R connect to Ethernet networks or workstations using SC ﬁber optic connectors.

The 2H28-08R has two front panel slots (ports 7 and 8) for optional Fast Ethernet Interface Modules to support an uplink to 100 Mbps Fast Ethernet backbones, a high speed connection to a local server, or a connection to 10BASE-T.

1.3.2 Switching Options

The 2H28-08R provides traditional switching (IEEE 802.1D bridging), IEEE 802.1Q, or SecureFast Switching V irtual Network Services between all of the front panel interfaces including the optional Fast Ethernet Interface Modules. SecureFast Switching and IEEE 802.1Q allow for migration to Virtual Network technologies without requiring the replacement of existing equipment.

1.3.3 Full Duplex Switched Ethernet

All the ports for the 2H28-08R, including the optional modules, can be conﬁgured to operate in Full Duplex Switched Ethernet mode, which provides 200 Mbps of throughput.

2H28-08R SmartSwitch 2208 User’s Guide 1-3

Chapter 1:

Introduction

1.3.4 SmartTrunk

SmartTrunk, also referred to as SmartTrunking, is Cabletron Systems’ terminology for load balancing or load sharing. SmartTrunk technology provides an easy-to-implement mechanism to group, or aggregate, multiple physical links together to scale the backbone bandwidth beyond the limitations of a single link. All links are user-conﬁgurable so administrators can scale the backbone bandwidth by adding SmartTrunk links. The SmartTrunk beneﬁts are as follows:

•

All purchased bandwidth is used.

•

Distributed, resilient links increase reliability and performance.

•

Multiple technologies are supported within a single trunk for maximum ﬂexibility.

For more information about SmartTrunk, refer to the Cabletron Systems

SmartTrunk User’s Guide

1.3.5 Runtime IP Address Discovery

This feature enables the 2H28-08R to automatically accept an IP address from a Bootstrap Protocol (BootP) server on the network into NVRAM without requiring a user to enter an IP address through Local Management.

When the 2H28-08R is connected to the network and powered up, Runtime IP Address Discovery (RAD) checks the 2H28-08R for an IP address. If one has not been assigned (2H28-08R default IP address set to

0.0.0.0), RAD checks to see if any of the 2H28-08R interfaces have a link. If so, RAD sends out Reverse Address Resolution Protocol (RARP) and BootP requests to obtain an IP address from a BootP server on the network.

The RAD requests start out at an interval of 1 second. The interval then doubles after every transmission until an interval of 300 seconds is reached. At this point, the interval remains at 300 seconds. The RAD requests continue until an IP address is received from a BootP server, or an IP address is entered using Local Management.

1-4 2H28-08R SmartSwitch 2208 User’s Guide

2H28-08R Overview

1.3.6 Management

Management of the 2H28-08R is accomplished using SNMP compliant management tools for in-band Local Management. Out-of-band Local Management is provided through the RJ45 COM port on the front panel using a VT100 terminal or a VT100 terminal emulator. In-band remote management is possible through any SNMP compliant Network Management Software.

Local Management provides the ability to manage the 2H28-08R and any of the optional Fast Ethernet Interface Modules installed in ports 7 and 8.

1.3.7 Remote Monitoring (RMON)

The 2H28-08R supports all Ethernet RMON groups, which include Statistics, Alarms, Events and History. These groups are enabled on all ports by default.

Cabletron Systems RMON Actions is a vendor speciﬁc extension of RMON and provides the ability to set an “Action” on any SNMP MIB variable. The Action can be triggered by any RMON Event and/or Alarm. An example of an Action would be to turn off a MIB-2 interface if a broadcast threshold is crossed.

1.3.8 LANVIEW Diagnostic LEDs

LANVIEW diagnostic LEDs serve as an important troubleshooting aid by providing an easy way to observe the status of indi vidual ports and overall network operations.

1.3.9 Broadcast Suppression

Broadcast Suppression allows a user to set a desired limit of receive broadcast frames per port/per second to be forwarded out the other ports on the module up to the set limit. Any broadcast frames above this speciﬁed limit are dropped. In the event that broadcast frames are being suppressed, multicast and unicast frames continue to be switched.

2H28-08R SmartSwitch 2208 User’s Guide 1-5

Chapter 1:

Introduction

1.3.10 Port Redirect Function

The port redirect function, also referred to as “Port Mirroring,” is a troubleshooting tool used to map trafﬁc from a single source port or multiple source ports to a destination port(s) within the chassis. This feature functions at the bit level, which allo ws all packets, including those with errors, to be copied and sent to an analyzer or RMON probe. The analyzer or RMON probe will see the data as if it is directly connected to the LAN segment of the source port(s).

1.3.11 Year 2000 Compliance

The 2H28-08R has an internal clock that can maintain the time and date beyond the year 1999.

1.3.12 Standards Compatibility

The 2H28-08R is fully compliant with the IEEE 802.3 standard. The optional Fast Ethernet Interface Modules are fully compliant with the IEEE 802.3u standard.The 2H28-08R provides IEEE 802.1D Spanning Tree Algorithm (STA) support to enhance the overall reliability of the network and protect against “loop” conditions. The 2H28-08R supports a wide variety of industry standard MIBs including RFC 1213 (MIB II), RFC 1757 (RMON), RFC 1493 (Bridge MIB), RFC 1354 (FIB MIB), RFC 1191 (Path MTU Discovery), and RFC 1317 (RS232 MIB). A full suite of Cabletron Systems Enterprise MIBs provide a wide array of statistical information to enhance troubleshooting.

1-6 2H28-08R SmartSwitch 2208 User’s Guide

Optional Features

1.4 OPTIONAL FEATURES

Optional Fast Ethernet Interface Modules are available from Cabletron Systems to support uplinks to 100 Mbps Fast Ethernet backbones or high speed connections to local servers. The Fast Ethernet Interface Modules are listed in Table 1-1.

P/N Description Application

FE-100TX

FE-100FX

FE-100F3

Table 1-1 Fast Ethernet Interface Modules

Uses RJ45 connector

Uses SC connector

Supports Category 5 Unshielded Twisted Pair (UTP) cabling, which has an impedance of 85 to 111 ohms.

Supports multimode ﬁber optic cabling.

Supports single mode ﬁber optic cabling.

2H28-08R SmartSwitch 2208 User’s Guide 1-7

Chapter 1:

Introduction

1.5 DOCUMENT CONVENTIONS

The following conventions are used throughout this document:

Note

NOTE

TIP

symbol. Calls the reader’s attention to any item of

information that may be of special importance.

Tip

symbol. Conveys helpful hints concerning procedures or

actions.

CAUTION

WARNING

Caution

damage to the equipment.

Electrical Hazard Warning

that could result in personal injury or death due to an electrical hazard.

Warning

personal injury or death.

symbol. Contains information essential to avoid

symbol. Warns against an action

symbol. Warns against an action that could result in

1-8 2H28-08R SmartSwitch 2208 User’s Guide

Getting Help

1.6 GETTING HELP

For additional support related to this device or document, contact the Cabletron Systems Global Call Center:

World Wide Web http://www.cab letron.com/ Phone (603) 332-9400 Internet mail support@cabletron.com FTP ftp://ftp.cabletron.com/

To send comments or suggestions concerning this document, contact the Cabletron Systems Technical Writing Department via the following email address: TechWriting@cabletron.com

Make sure to include the document Part Number in the email message.

Before calling the Cabletron Systems Global Call Center, have the following information ready:

•

Your Cabletron Systems service contract number

•

A description of the failure

anonymous your email address

•

A description of any action(s) already taken to resolve the problem (e.g., changing mode switches, rebooting the unit, etc.)

•

The serial and revision numbers of all involved Cabletron Systems products in the network

• A description of your network environment (layout, cable type, etc.)

• Network load and frame size at the time of trouble (if known)

• The device history (i.e., have you returned the device before, is this a

recurring problem, etc.)

• Any previous Return Material Authorization (RMA) numbers

2H28-08R SmartSwitch 2208 User’s Guide 1-9

Chapter 1: Introduction

1.7 RELATED MANUALS

The following manuals may help to set up, control, and manage the 2E4X-27:

Cabletron Systems HSIM-A6DP User’s Guide Cabletron Systems HSIM-F6 User’s Guide Cabletron Systems HSIM-FE6 User’s Guide Cabletron Systems HSIM-W6 Installation Guide Cabletron Systems HSIM-W84 Installation Guide Cabletron Systems HSIM-W87 User’s Guide Cabletron Systems HSIM-G01/G09 User’s Guide Cabletron Systems Ethernet Technology Guide Cabletron Systems Cabling Guide Cabletron Systems Port Based VLAN User’s Guide Cabletron Systems SmartTrunk User’s Guide These manuals can be obtained from the World Wide Web in Adobe

Acrobat Portable Document Format (PDF) at the following site:

http://www.cabletron.com/

NOTE

1-10 2H28-08R SmartSwitch 2208 User’s Guide

All documentation for the Cabletron Systems SecureF ast VLAN Manager software is contained on the VLAN Manager CD-ROM.

The documentation for the HSIM-W6 and HSIM-W64 are on the QuickSET CD-ROM.

CHAPTER 2

NETWORK REQUIREMENTS

Before installing the 2H28-08R or Fast Ethernet Interface Modules (FE-100TX, FE-100FX, or FE-100F3), review the requirements and speciﬁcations referred to in this chapter concerning the following:

• SmartTrunk (Section 2.1)

• 100BASE-FX Fiber Optic Network (Section 2.2)

• 100BASE-TX Twisted Pair Network (Section 2.3)

The network installation must meet the guidelines to ensure satisfactory performance of this equipment. Failure to follow the guidelines may produce poor network performance.

NOTE

The Cabletron Systems following sections, can be found on the Cabletron Systems World Wide Web site: http://www.cabletron.com/

Cabling Guide

, referred to in the

2.1 SmartTrunk

To connect the 2H28-08R to a network so it can take advantage of the SmartTrunk feature, there are certain rules concerning port connections and conﬁgurations that must be followed for proper operation. Refer to the Cabletron Systems SmartTrunk User’s Guide for additional information.

2H28-08R SmartSwitch 2208 User’s Guide 2-1

Chapter 2: Network Requirements

2.2 100BASE-FX FIBER OPTIC NETWORK

NOTE

The 2H28-08R has six SC ﬁber optic ports designed for use with multimode ﬁber. Use of incorrect cabling may cause network problems.

Ports 1 through 6 of the 2H28-08R support the multimode 100BASE-FX interface. Ports 7 and 8 of the 2H28-08R support the Cabletron Systems FE-100FX and FE-100F3 ﬁber optic interface modules. The FE-100FX is designed for use with multimode ﬁber optic cable, while the FE-100F3 is designed for use with single mode ﬁber optic cable.

The device at the other end of the ﬁber optic segment must meet the 100BASE-FX Fast Ethernet network requirements to operate at 100 Mbps.

Multimode Fiber Optic Cable Length

The multimode ﬁber optic cable speciﬁcations for a 100BASE-FX segment is covered in the Cabletron Systems Cabling Guide.

Single Mode Fiber Cable Lengths

With the installation of an optional FE-100F3, single mode ﬁber optic cable may be used to make a connection to a similar device at the other end of the ﬁber. The maximum single mode ﬁber optic length of a 100BASE-FX segment may be no more than 5 km between Data Terminal Equipment (DTE to DTE) in half duplex mode or 20 km (DTE to DTE) in full duplex mode. Refer to Appendix B for more information on single mode ﬁber cable.

2-2 2H28-08R SmartSwitch 2208 User’s Guide

100BASE-TX Network

2.3 100BASE-TX NETWORK

The 2H28-08R, with an optional FE-100TX installed in port 7 or 8, provides an RJ45 connection that supports UTP cabling. The device at the other end of the twisted pair segment must meet IEEE 802.3u 100BASE-TX Fast Ethernet network requirements for the devices to operate at 100 Mbps. Refer to the Cabletron Systems Cabling Guide for details.

NOTE

The 2H28-08R with an FE-100TX installed is capable of operating at either 10 or 100 Mbps. The FE-100TX can be set to automatically sense the speed of the other device and adjust its speed accordingly.

2H28-08R SmartSwitch 2208 User’s Guide 2-3

Chapter 2: Network Requirements

2-4 2H28-08R SmartSwitch 2208 User’s Guide

CHAPTER 3

INSTALLATION

Only qualiﬁed personnel should install the 2H28-08R.

This chapter provides the instructions to install the 2H28-08R. Follow the order of the sections listed below to correctly install the 2H28-08R.

• Required Tools (Section 3.1)

• Unpacking the 2H28-08R (Section 3.2)

• Installing Optional Equipment (Section 3.3)

• Installing the 2H28-08R (on a shelf, tabletop, or into a standard rack)

(Section 3.4)

• Connecting to the Network (Section 3.5)

• Completing the Installation (Section 3.6)

3.1 REQUIRED T OOLS

A Phillips screwdriv er is required to install the 2H28-08R in a rack, and to install any optional Fast Ethernet Interface Modules.

3.2 UNPACKING THE 2H28-08R

T o unpack the 2H28-08R and verify the contents of the shipment, proceed as follows:

1. Open the carton and remove the packing material protecting the

2H28-08R.

2. Verify the contents of the carton as listed in Table 3-1.

2H28-08R SmartSwitch 2208 User’s Guide 3-1

Chapter 3: Installation

Table 3-1 Contents of 2H28-08R Carton

Item Quantity

2H28-08R 1 Antistatic Wrist Strap 1 Console Cable Kit 1 Rackmount Kit 1 Strain-Relief Bracket 1 Manual Accessory Kit 1 Power Cords 2

3. Remove the black and yellow tape seal on the non-conductive bag to

remove the 2H28-08R.

4. Perform a visual inspection of the device for any signs of physical

damage. If there are any items missing or damaged, contact the Cabletron Systems Global Call Center as described in Section 1.6,

Getting Help.

3.3 INSTALLING OPTIONAL EQUIPMENT

NOTE

If the 2H28-08R is to be installed with an optional Fast Ethernet Interface Module, refer to Appendix C for installation instructions.

3-2 2H28-08R SmartSwitch 2208 User’s Guide

Install any optional equipment before proceeding to

Section 3.4.

Installing the 2H28-08R

3.4 INSTALLING THE 2H28-08R

The 2H28-08R may be installed on a tabletop, shelf, or in a 19-inch rack.

Section 3.4.1 describes a tabletop or shelf installation, and Section 3.4.2

describes the rackmount installation.

To prevent possible personal injury and/or damage to the unit, do NOT connect power to the 2H28-08R until instructed to do so.

3.4.1 Tabletop or Shelf Installation

The following two subsections provide guidelines for installation on a tabletop or shelf.

Guidelines for Tabletop and Shelf Installations

Tabletop and shelf installations must be within reach of the network cabling and meet the requirements listed below:

• Locate the 2H28-08R within seven feet of an appropriately grounded

power receptacle that meets the power supply requirements listed in

Appendix A.

• In a shelf installation, the shelf must support 13.6 kg (30 lb) of static

weight for each 2H28-08R.

• Maintain a temperature of between 5°C (41°F) and 40°C (104°F) at

the installation site with ﬂuctuations of less than 10°C (18°F) per hour.

To ensure proper ventilation and prevent overheating, leave a minimum clearance space of 5.1 cm (2.0 in) at the left, right,

CAUTION

Installation

and rear of the 2H28-08R.

For a tabletop or shelf installation, locate the 2H28-08R within seven feet of its power source and with an unrestricted free surface area as shown in

Figure 3-1. Proceed to Section 3.4.3 for power connection instructions.

2H28-08R SmartSwitch 2208 User’s Guide 3-3

Chapter 3: Installation

A = 15 cm (6 in) B = 57.2 cm (22.5 in) C = 53 cm (21 in) D = 213 cm (7 ft)

Figure 3-1 Tabletop or Shelf Installation

2251-06

3.4.2 Rackmount Installation

To install the 2H28-08R in a 19-inch rack, the device is shipped with a rackmount kit containing the rackmount brackets, mounting screws, and a strain-relief bracket for cable management.

Before installing the 2H28-08R into a rac k, ensure that the r ac k

WARNING

supports the device(s) without compromising the stability of the rack. Otherwise, personal injury and/or equipment damage may result.

Guidelines for the Rackmount Installation

The installation site must be within reach of the network cabling and meet the requirements listed below:

• An appropriate grounded power receptacle must be located within

seven feet of the device.

• Maintain a temperature of between 5°C (41°F) and 40°C (104°F) at

the installation site with ﬂuctuations of less than 10°C (18°F) per hour.

To ensure proper ventilation and prevent overheating, leave a minimum clearance space of 5.1 cm (2.0 in) at the left, right,

CAUTION

3-4 2H28-08R SmartSwitch 2208 User’s Guide

and rear of the 2H28-08R.

Installing the 2H28-08R

Installation

Rack mounting the 2H28-08R involves the following:

• Attaching the strain-relief bracket

• Rack mounting the 2H28-08R (attaching the mounting brackets and fastening the 2H28-08R to the rack)

Attaching the Strain-Relief Bracket

Use of the strain-relief bracket is optional, but recommended in order to reduce cable damage and maintain an orderly environment. Attach the strain-relief bracket to the front of the 2H28-08R as follows:

1. Locate the strain-relief bracket and four 8-32 x 5/16-inch pan-head

screws in the rackmount kit.

Do not attempt to attach the strain-relief bracket with screws other than the 8-32 x 5/16-inch screws included with the

CAUTION

2H28-08R. Use of longer screws may damage the unit.

2. Attach the strain-relief bracket to the bottom of the 2H28-08R using

the four 8-32 x 5/16-inch pan-head screws (Figure 3-2).

Screws (4)

Strain-Relief Bracket

ENET 2

LINK 1

LINK 1LINK 1

ENET 1

ENET 3 ENET 4

COM

CPU

PWR

LINK 1

2E43-51

RESET

E3E1E4

2251-47

Figure 3-2 Attaching the Strain-Relief Bracket

2H28-08R SmartSwitch 2208 User’s Guide 3-5

Chapter 3: Installation

Rack Mounting the 2H28-08R

Proceed as follows to install the 2H28-08R into a 19-inch rack.

1. Remove and discard the four cover screws (two from each side)

located along the front edges of each side of the 2H28-08R.

2. Locate the four 6-32 x 3/8-inch flathead cover replacement screws in

the rackmount kit. Use these screws to attach the rackmount brackets to the 2H28-08R as shown in Figure 3-3.

Rackmount Brackets (2)

Screws (4)

Figure 3-3 Installing the Rackmount Brackets

2251-04

3. With the mounting brackets installed, position the 2H28-08R between

the vertical frame members of the 19-inch rack and fasten it securely with user supplied mounting screws as shown in Figure 3-4.

19-Inch Rack

Screws (4)

2251-03

Figure 3-4 Installing the 2H28-08R in a Rack

3-6 2H28-08R SmartSwitch 2208 User’s Guide

Installing the 2H28-08R

3.4.3 Connecting Power to the Device

NOTE

voltage sensing, allowing connection to power sources r anging from 100–125 Vac, 2.0 A to 200–240 Vac, 1.0 A, 50/60 Hz.

To connect the 2H28-08R to the power sources, proceed as follows:

1. Plug both power cords into a separate grounded wall outlet. To take

advantage of the load sharing and redundancy capabilities, each power cord must be plugged into a dedicated ac outlet. The POWER LED turns on (green) and the CPU LED turns on (green) briefly.

8H02-26R

Primary

The 2H28-08R has two power supplies that have automatic

Redundant

Figure 3-5 2H28-08R Rear View

1960-62

NOTE

2. Observe the LANVIEW LEDs. After a successful boot, the CPU LED

turns on (green). If the PWR LED is not green after one minute and turns amber, there is no power redundancy. Check the power cord connections and the power source. If there are no problems with the power cord connections or power source and the PWR LED is still not green, contact the Cabletron Systems Global Call Center. Refer to

Section 1.6 for details.

2H28-08R SmartSwitch 2208 User’s Guide 3-7

It takes approximately one minute for the 2H28-08R to boot up.

Chapter 3: Installation

3.5 CONNECTING TO THE NETWORK

This section provides the procedures for connecting ﬁber optic segments and twisted pair from the network or other devices to the 2H28-08R.

NOTE

If the 2H28-08R is being installed in a network using SmartTrunking, there are rules concerning the network cable and port conﬁgurations that must be followed for SmartTrunking to operate properly. Refer to the Cabletron Systems

SmartTrunk User’s Guide

for additional information.

Ports 1 through 6 on the 2H28-08R have SC connectors for ﬁber connections. The 2H28-08R supports multimode ﬁber optic cable. Ports 7 and 8 support FE-100TX, FE-100FX, or FE-100F3 Fast Ethernet Interface Modules. The FE-100TX has an RJ45 connector for a twisted pair cable connection. The FE-100FX and FE-100F3 have SC connectors for ﬁber optic cable connections; multimode for the FE-100FX, and single mode for the FE-100F3.

Refer to Section 3.5.1 to make ﬁber connections to ports 1 through 6. Refer to Section 3.5.2 to make a twisted pair connection to an FE-100TX

in port 7 or 8. Refer to Section 3.5.3 to make a ﬁber optic cable connection to an

FE-100FX or FE-100F3 in port 7 or 8.

3.5.1 Connecting Fiber Optic Cables to Ports 1 Through 6

Ports 1 through 6 of the 2H28-08R have SC style network ports (see

Figure 3-6). Cabletron Systems supplies ﬁber optic cable that uses SC

style connectors that are keyed to ensure proper crossing over of the transmit and receive ﬁbers. The 2H28-08R is designed for use with multimode ﬁber optic cable. Use of the incorrect ﬁber type may cause network problems. Refer to the Cabletron Systems Cabling Guide for further information.

3-8 2H28-08R SmartSwitch 2208 User’s Guide

Connecting to the Network

An odd number of crossovers (preferably one) must be maintained between devices so that the transmit port of one

CAUTION

Fiber Optic Network Connection

device is connected to the receive port of the other device and vice versa.

If the ﬁber optic cable being used has SC style connectors that do not resemble MIC style connectors, or has SC connectors on one end and a different type on the other, such as ST connectors, ensure that the proper crossover occurs.

1. Remove the protective rubber covers from the fiber optic ports on the

applicable port on the module and from the ends of the SC connectors.

NOTE

CAUTION

Leave the protective rubber covers in place when the connectors are not in use to prevent contamination.

Do not touch the ends of the ﬁber optic strands, and do not let the ends come in contact with dust, dirt, or other contaminants.

Contamination of the ends causes problems in data transmissions. If the ends become contaminated, blow the surfaces clean with a canned duster . A ﬁber port cleaning swab saturated with optical-grade isopropyl alcohol ma y also be used to clean the ends.

2. Insert the SC connector at one end of the fiber optic cable into the port

on the 2H28-08R. See Figure 3-6.

3. At the other end of the fiber optic cable, attach the SC connector to the

other device.

2H28-08R SmartSwitch 2208 User’s Guide 3-9

Chapter 3: Installation

Port

SC Connector

2159-03

Figure 3-6 2H28-08R Fiber Port Connections

4. Verify that a link exists by checking that the port RX LED is on

(flashing amber, blinking green, or solid green). If the RX LED is off and the TX LED is not blinking amber, perform the following steps until it is on:

NOTE

The port RX LED ﬂashes green and amber during bootup.

a. Ensure that the power is turned on for the device at the other end

of the link.

b. Verify that the fiber strands between the applicable port on the

2H28-08R and fiber optic device on the other end of the fiber optic link segment are properly crossed over.

c. Make sure that the fiber connection meets dB loss specifications

outlined in Section 2.2.

d. To manage the connected port, see Section 5.11.

If a link has not been established, refer to Chapter 4, Troubleshooting, before contacting the Cabletron Systems Global Call Center. Refer to

Section 1.6 if the problem has not been resolved.

3-10 2H28-08R SmartSwitch 2208 User’s Guide

Connecting to the Network

3.5.2 Connecting a UTP Segment to the FE-100TX

NOTE

Twisted Pair (UTP) cabling that has an impedance of 85 to 111 ohms.

An FE-100TX installed in port 7 and/or 8 has an internal crossover switch. When connecting a workstation, use a straight-through cable and set the Fast Ethernet Interface Module crossover switch shown in

Figure 3-7 to the crossed over position marked with X. When connecting

networking devices, such as another bridge, repeater, or router, use a straight-through cable and set the Fast Ethernet Interface Module crossover switch shown in Figure 3-7 to the straight-through position (not crossed over), marked with =.

To ensure proper operation, use only Category 5 Unshielded

Position X (crossed over)

1. RX+

2. RX-

3. TX+

4. NC

5. NC

6. TX-

7. NC

FE-100TX

8. NC

Figure 3-7 FE-100TX Crossover Switch

Position = (not crossed over)

1. TX+

2. TX-

100

3. RX+

4. NC

5. NC

6. RX-

7. NC

8. NC

16651_05

A schematic of a crossover cable is shown in Figure 3-8. If a cross o v er is required, but a crossover cable is not available, use the switch on the FE-100TX to internally cross over the RJ45 port.

10BASE-T Device Port

NOTE: RX+/RX– and TX+/TX– must share a common color pair. For example, the RX+/RX- pair may use the bw/wb pair, and the TX+/TX- may use the ow/wo pair.

Figure 3-8 Cable Pinouts - RJ45 Crossover Cable

RJ45 Port RX+ RX– 2

TX+ TX–

3 6

RJ45 to RJ45

2H28-08R SmartSwitch 2208 User’s Guide 3-11

1 2

3 6

RX+ RX–

TX+ TX–

2251-31

Chapter 3: Installation

Connect an FE-100TX to a twisted pair segment as follows:

1. Ensure that the device connected to the other end of the segment is

powered on.

2. Connect the twisted pair segment to the module by inserting the RJ45

connector on the twisted pair segment into the RJ45 port on the module shown in Figure 3-9.

FE-100TX

100

2251-14

RX LED

TX LED

RJ45

Figure 3-9 FE100-TX Port

3. Verify that a link exists by checking that the port RX LED is on

(flashing amber, blinking green, or solid green). If the RX LED is off and the TX LED is not blinking amber, perform the following steps until the RX LED is on:

a. Verify that the 10BASE-T or 100B ASE-TX device at the other end

of the twisted pair segment is powered up.

b. Verify that the RJ45 connector on the twisted pair segment has the

proper pinouts.

c. Check the cable for continuity. d. Make sure that the twisted pair connection meets the cable

specifications outlined in the Cabletron Systems Cabling Guide.

e. Confirm that the crossover switch is in the correct position. f. To manage the connected port, see Section 5.11.

3-12 2H28-08R SmartSwitch 2208 User’s Guide

Connecting to the Network

If a link is not established, refer to Chapter 4, Troubleshooting, before contacting the Cabletron Systems Global Call Center. Refer to

Section 1.6, Getting Help, for details, if the problem has not been

resolved.

3.5.3 Connecting a Fiber Optic Segment to the FE-100FX and FE-100F3

The FE-100FX and FE-100F3 have SC style network ports. See

Figure 3-10. Cabletron Systems offers ﬁber optic cables that use SC style

connectors. The SC connectors are keyed to ensure proper crossover of the transmit and receive ﬁbers.

NOTES

Fiber Optic Network Connection

An odd number of crossovers (preferably one) must be maintained between devices so that the transmit port of one device is connected to the receive port of the other device and vice versa.

Ensure that, when connecting an FE-100F3, single mode cable is used and the device at the other end of the cable is compatible for use with single mode ﬁber.

1. Remove the protective rubber covers from the fiber optic ports on the

applicable port on the module and from the ends of the connectors. Leave the covers on unused ports.

The FE-100F3 uses Class 1 lasers. Do not use optical instruments to view the laser output. The use of optical

CAUTION

instruments to view laser output increases eye hazard. When viewing the output optical port, power must be removed from the network adapter.

2H28-08R SmartSwitch 2208 User’s Guide 3-13

Chapter 3: Installation

Do not touch the ends of the ﬁber optic strands, and do not let the ends come in contact with dust, dirt, or other contaminants.

CAUTION

2. Insert one end of the SC connector into the FE-100FX or FE-100F3

installed in the 2H28-08R. See Figure 3-10.

3. At the other end of the fiber optic cable, attach the SC connector to the

other device.

RX LED

Figure 3-10 FE-100FX and FE-100F3 Ports

TX LED

2251-34

3-14 2H28-08R SmartSwitch 2208 User’s Guide

Completing the Installation

4. Verify that a link exists by checking that the port RX LED is on

(flashing amber, blinking green, or solid green). If the RX LED is off and the TX LED is not blinking amber, perform the following steps until the RX LED is on:

a. Check that the po wer is turned on for the device at the other end of

the link.

b. Verify proper crossover of fiber strands between the applicable

port on the 2H28-08R and the fiber optic device at the other end of the fiber optic link segment.

c. Verify that the fiber connection meets the dB loss specifications

outlined in Cabletron Systems Cabling Guide.

If a link has not been established, see Chapter 4, Troubleshooting, before contacting the Cabletron Systems Global Call Center. Refer to

Section 1.6, Getting Help, if the problem has not been resolved.

3.6 COMPLETING THE INSTALLATION

After installing the 2H28-08R and any optional Fast Ethernet Interface Modules, and making the connections to the network, secure the cables by running the cables along the strain-relief bracket and tying them to the strain-relief bracket using cable ties.

The 2H28-08R is now ready to be set up through Local Management. Refer to Chapter 5, Local Management, for information on how to access and use Local Management to conﬁgure the 2H28-08R.

2H28-08R SmartSwitch 2208 User’s Guide 3-15

Chapter 3: Installation

3-16 2H28-08R SmartSwitch 2208 User’s Guide

CHAPTER 4

TROUBLESHOOTING

This chapter provides information concerning the following:

• Using the LANVIEW diagnostic and status monitoring system

• Troubleshooting network and 2H28-08R operational problems

• Using the RESET button

NOTE

products, refer to the Cabletron Systems

Troubleshooting.

Refer to Section 1.7 for more information on

related manuals.

Guide to Network

4.1 USING LANVIEW

The 2H28-08R uses Cabletron Systems built-in visual diagnostic and status monitoring system called LANVIEW. The LANVIEW LEDs (Figure 4-1) allow quick observation of the network status to aid in diagnosing network problems. Refer to Table 4-1 for a description of the LEDs.

For a functional description of the LANVIEW LED on the optional Fast Ethernet Interface Module (FE-100TX), refer to Section 4.2.

For troubleshooting information about other Cabletron

PWR CPU

TX RX LEDs LEDs

Figure 4-1 LANVIEW LEDs

FE Interface Modules

2380_01

2H28-08R SmartSwitch 2208 User’s Guide 4-1

Chapter 4: Troubleshooting

NOTE

indicate the following: Flashing indicates an LED pulse that is ﬂashing at a random

rate. Blinking indicates an LED pulse ﬂashing at a steady rate

(50% on, 50% off).

Solid indicates a steady LED light. No pulsing.

Table 4-1 LANVIEW LEDs

LED Color State Recommended Action

The terms flashing, blinking, and solid used in Table 4-1

PWR Green Solid. Functional.

Power supply(ies) operating normally.

Amber Solid. Indicates loss of

power supply redundancy.

CPU Off Power off. Power up device.

Red Blinking. Hardware

failure has occurred. Solid. Resetting,

normal power up reset.

Amber Blinking. Crippled. Contact the Cabletron

Solid. Testing. None. Green Solid. Functional. None. Amber

and Green

Blinking amber and

green while booting.

None.

1.Ensure that the power cords are plugged in correctly and that there is power at the power source.

2.Contact the Cabletron Systems Global Call Center if problem still exists.

Contact the Cabletron Systems Global Call Center.

None.

Systems Global Call Center.

None.

4-2 2H28-08R SmartSwitch 2208 User’s Guide

Using LANVIEW

Table 4-1 LANVIEW LEDs (Continued)

LED Color State Recommended Action

RX (Receive) LED for ports 1–6, also ports 7 and 8, with optional FE-100FX or FE-100F3

TX (Transmit) LED for ports 1–6, also ports 7 and 8, with optional FE-100FX or FE-100F3

Off No link. No activity.

Port could be enabled or disabled.

Green Blinking. Port

disabled. Solid. Indicates link. None.

Amber Flashing. Port

enabled, activity.

Red Solid. Diagnostic

failure.

Off Port enabled, and no

activity. Should ﬂash green every two seconds indicating BPDUs being sent if STA is enabled and there is a valid link.

Green Flashing. Indicates

activity. Rate indicates data rate.

Amber Blinking. Port in

standby. Port may be disabled due to Spanning T ree .

Red Flashing. Indicates

collision rate.

Solid. Diagnostic failure.

Check connections if no activity is seen when the port is enabled.

Enable the port if a connection is desired.

None.

Contact the Cabletron Systems Global Call Center.

1.Ensure that the STA is enabled and that there is a valid link.

2.Contact the Cabletron Systems Global Call Center if problem still exists.

None.

1.Ensure that the port is not disabled intentionally.

2.Contact the Cabletron Systems Global Call Center if problem still exists.

No action, unless a high amount of activity-check for network conﬁguration problems or bad device.

Contact the Cabletron Systems Global Call Center.

2H28-08R SmartSwitch 2208 User’s Guide 4-3

Chapter 4: Troubleshooting

4.2 FE-100TX LED

The optional FE-100TX has one LED labeled 10/100. The 10/100 LED together with the RX LED allows the user to determine the link status and the operating speed of the Fast Ethernet Interface Module. The 10/100 LED and the Receive (RX) LED are shown in Figure 4-2. Table 4-2 and

Table 4-3 provide a functional description of the 10/100 LED when the

RX LED is on or off, respectively.

LED

100

Receive (RX) LED

Figure 4-2 FE-100TX LED

100

FE-100TX

2251-41

NOTE

No link exists if the associated port (7 or 8) RX LED is off.

Table 4-2 10/100 LED Indications When RX LED Is On

LED Color Indication

10/100 Off FE-100TX is operating at 10 Mbps.

Green FE-100TX is operating at 100 Mbps.

Table 4-3 10/100 LED Indications When RX LED Is Off

LED Color Indication

10/100 Off No link or no cable attached. FE-100TX

forced to 10 Mbps operation, or is manually set to “auto-negotiate” mode.

Green No link or no cable attached. FE-100TX is

forced to 100 Mbps operation.

A link exists if the associated port (7 or 8) RX LED is on.

4-4 2H28-08R SmartSwitch 2208 User’s Guide

Troubleshooting Checklist

4.3 TROUBLESHOOTING CHECKLIST

If the 2H28-08R is not working properly , refer to Table 4-4 for a checklist of possible problems, causes, and recommended actions to resolve the problem.

Table 4-4 Troubleshooting Checklist

Problem Possible Cause Recommended Action

All LEDs are OFF. Loss of power. Check for proper connection

of the power cables and access to live outlets.

Installed improperly. Check the installation. See

Chapter 3 for details.

No Local Management Password screen.

Cannot contact the 2H28-08R from in-band management.

Port(s) goes into standby for no apparent reason.

User parameters (IP address, Device and Module name, etc.) were lost when the 2H28-08R power was cycled or the front panel RESET button was pressed.

Autobaud is enabled. Press ENTER (RETURN) key

(may take up to four times).

Terminal setup is not correct.

Improper console cable used.

Using incorrect Community Name.

The 2H28-08R does not have an IP address assigned.

Port is disabled. Enable port. No link to device. Check link to device. The 2H28-08R detected

a loop condition.

Mode switch (7), NVRAM Reset, was changed sometime before either cycling power or pressing the RESET button causing the user-entered parameters to reset to factory default settings.

Refer to Chapter 5 for proper setup procedures.

Refer to Appendix A for proper console port pinouts.

Refer to Chapter 5 for Community Name setup.

Refer to Chapter 5 for IP address assignment procedure.

1.Review network design and delete unnecessary loops.

2.Contact the Cabletron Systems Global Call Center if problem still exists.

1.Reenter the lost parameters as necessary.

2.Call the Cabletron Systems Global Call Center if problem still exists.

2H28-08R SmartSwitch 2208 User’s Guide 4-5

Chapter 4: Troubleshooting

4.4 USING THE RESET BUTTON

The RESET button, shown in Figure 4-3, resets the 2H28-08R processor without affecting the NVRAM.

Pressing the RESET button resets the device, and all s witching being performed by the device is halted for approximately two

CAUTION

minutes.

RESET Button

Figure 4-3 RESET Button

2380_03

To reset the 2H28-08R processor, press and release the RESET button. A non-conductive tool is recommended for use in pushing the recessed button. The 2H28-08R goes through a reset process for approximately 45 seconds. The 2H28-08R may be unreachable for a short time as it reenters the network.

4-6 2H28-08R SmartSwitch 2208 User’s Guide

CHAPTER 5

LOCAL MANAGEMENT

This chapter explains how to set up a management terminal to access 2H28-08R Local Management, and how to use the Local Management screens and commands. This chapter also provides instructions for attaching an Uninterruptible Power Supply to the 2H28-08R using the Console Cable Kit provided.

5.1 OVERVIEW

Local Management for the 2H28-08R consists of a series of management screens, some of which allow the management of the 2H28-08R and its attached segments, and some that report statistics. The management screens allow the user to do the following tasks:

• Assign IP address and subnet mask.

• Select a default gateway.

• Control access by establishing community names.

• Download a new software image.

• Designate which Network Management Workstations receive SNMP

traps from the device.

• View statistics.

• Conﬁgure ports.

• Control the number of receive broadcasts that are switched out to the

other interfaces.

• Clear NVRAM.

There are three ways to access Local Management:

• Locally using a VT type terminal connected to the COM port.

• Remotely using a VT type terminal connected through a modem.

• In-band through a Telnet connection.

2H28-08R SmartSwitch 2208 User’s Guide 5-1

Chapter 5: Local Management

5.2 LOCAL MANAGEMENT KEYBOARD CONVENTIONS

All key names appear as capital letters in this manual. Table 5-1 explains the keyboard conventions and the key functions that are used.

Table 5-1 Keyboard Conventions

Key Function

These are selection keys that perform the same

ENTER Key RETURN Key

ESCAPE (ESC) Key

SPACE Bar BACKSPACE Key

Local Management function. For example, “Press ENTER” means that you can press either ENTER or RETURN, unless this manual speciﬁcally instructs you otherwise.

This key allows an escape from a Local Management screen without saving changes. For example, “Press ESC twice” means the ESC key must be pressed quickly two times.

These keys cycle through selections in some Local Management ﬁelds. Use the SPACE bar to cycle forward through selections and use BACKSPACE to cycle backward through selections.

These are navigation keys. Use the UP-ARROW, DOWN-ARROW, LEFT-ARROW, and

Arrow Keys

[–] Key

DEL Key

RIGHT-ARROW keys to move the screen cursor. For example , “Use the arrow keys” means to press whichever arrow key moves the cursor to the desired ﬁeld on the Local Management screen.

This key decreases values from a Local Management increment ﬁeld. For example, “Press [–]” means to press the minus sign key.

The DEL (Delete) key removes characters from a Local Management ﬁeld. F or e xample, “Press DEL” means to press the Delete key.

5-2 2H28-08R SmartSwitch 2208 User’s Guide

Management Terminal Setup

5.3 MANA GEMENT TERMINAL SETUP

Use one of the following systems to access Local Management:

• An IBM or compatible PC running a VT series emulation software

package

• A Digital Equipment Corporation VT100 type terminal

• A VT type terminal running emulation programs for the Digital

Equipment Corporation VT100 series

• A remote VT100 type terminal via a modem connection

• In-band via a Telnet connection

2H28-08R SmartSwitch 2208 User’s Guide 5-3

Chapter 5: Local Management

5.3.1 Console Cable Connection

Use the Console Cable Kit provided with the 2H28-08R to attach the management terminal to the 2H28-08R COM port as shown in Figure 5-1.

Connect an IBM PC or compatible device, running the VT terminal emulation, to the 2H28-08R as follows:

1. Connect the RJ45 connector at one end of the cable (supplied in the

kit) to the COM port.

2. Plug the RJ45 connector at the other end of the cable into the

RJ45-to-DB9 adapter (supplied in the kit).

3. Connect the RJ45-to-DB9 adapter to the communications port on

the PC.

RJ45 COM Port

UTP Cable

with RJ45 Connectors

Figure 5-1 Management Terminal Connection

RJ45-to-DB9

PC Adapter

2286-50

If using a DEC VT style terminal, use the DB25 adapter

NOTE

included in the Console Cable Kit for the connection, instead of the DB9 adapter.

5-4 2H28-08R SmartSwitch 2208 User’s Guide

Management Terminal Setup

5.3.2 Management Terminal Setup Parameters

Table 5-2 lists the setup parameters for the local management device.

Table 5-2 VT Terminal Setup

Display Setup Menu

Columns -> Controls -> Auto Wrap -> Scroll -> Text Cursor -> Cursor Style ->

General Setup Menu

Mode -> ID number -> Cursor Keys -> Power Supply ->

Communications Setup Menu

Transmit -> Receive -> XOFF -> Bits -> Parity -> Stop Bit -> Local Echo -> Port -> Transmit -> Auto Answerback ->

Keyboard Setup Menu

Keys -> Auto Repeat -> Keyclick -> Margin Bell -> Warning Bell ->

80 Columns Interpret Controls No Auto Wrap Jump Scroll Cursor Underline Cursor Style

VT100, 7 Bit Controls VT100ID Normal Cursor Keys UPSS DEC Supplemental

2400, 4800, 9600, 19200 Receive=Transmit XOFF at 64 8 bits No Parity 1 Stop Bit No Local Echo DEC-423, Data Leads Only Limited T r ansmit No Auto Answerback

Typewriter Keys any option any option Margin Bell Warning Bell

2H28-08R SmartSwitch 2208 User’s Guide 5-5

Chapter 5: Local Management

5.3.3 Telnet Connections

Once the 2H28-08R has a valid IP address, the user can establish a Telnet session with Local Management from any TCP/IP based node on the network. Telnet connections to the 2H28-08R require the community name passwords assigned at the SNMP Community Names screen of the 2H28-08R.

For information about setting the IP address, refer to Section 5.7. For information about assigning community names, refer to Section 5.8. Refer to the instructions included with your Telnet application for

information about establishing a Telnet session.

5.3.4 Monitoring an Uninterruptible Power Supply

If the 2H28-08R is connected to an American Power Conversion Uninterruptible Power Supply (UPS) device for protection against the loss of power , a connection from the 2H28-08R COM port to the UPS can be made to monitor the power status of the UPS. To use the COM port for this purpose, it must be reconﬁgured to support the UPS connection using the procedure described in Section 5.7.10. Refer to the UPS documentation for details on how to access the status information.

The Console Cable Kit provided with the 2H28-08R is used to attach the UPS to the 2H28-08R COM port as shown in Figure 5-2.

To connect the UPS device to the COM port of the 2H28-08R, proceed as follows:

1. Connect the RJ45 connector at one end of the cable to the COM port

on the 2H28-08R.

2. Plug the RJ45 connector at the other end of the cable into the

RJ45-to-DB9 male (UPS) adapter.

3. Connect the RJ45-to-DB9 male (UPS) adapter to the female DB9 port

on the rear of the UPS device (see the particular UPS device’s user instructions for more speciﬁc information about the monitoring connection).

5-6 2H28-08R SmartSwitch 2208 User’s Guide

Management Terminal Setup

UPS Device

DB9 Port

RJ45-to-DB9 UPS Adapter

RJ45 COM Port

UTP Cable

with RJ45 Connectors

Figure 5-2 Uninterruptible Power Supply (UPS) Connection

2286-51

2H28-08R SmartSwitch 2208 User’s Guide 5-7

Chapter 5: Local Management

5.4 ACCESSING LOCAL MANAGEMENT

Access to Local Management is controlled through the Local Management Password screen shown in Figure 5-3. Whene v er a connection is made to the 2H28-08R, the Local Management Password screen displays. Before continuing, the user must enter a password (community name) which is compared to the previously stored passwords. The lev el of access allo wed the user depends on the password. To set or change passwords, refer to Section 5.8. The following steps describe the procedure to access Local Management.

1. Turn on the terminal. Press ENTER (up to four times may be needed

to engage the autobaud capability) until the 2H28-08R Local Management Password screen displays.

2H28-08R LOCAL MANAGEMENT

CABLETRON Systems, Incorporated

Rochester, NH 03866-5005 USA

P.O.Box 5005

(603) 332-9400

Module Serial Number: Module Hardware Revision: Module Firmware Revision: XX.XX.XX Module BOOTPROM Revision: XX.XX.XX

Enter Password:

Event Message Line

Figure 5-3 Local Management Password Screen

2. Enter the Password and press ENTER. The default super-user access

password is “public” or press ENTER.

5-8 2H28-08R SmartSwitch 2208 User’s Guide

Accessing Local Management

5.4.1 Navigating Local Management Screens

NOTES

The 2H28-08R Local Management application consists of a series of menu screens. Navigate through Local Management by selecting items from the menu screens.

The 2H28-08R supports three modes of switch operation. The switching modes are as follows:

The user’s password is one of the community names speciﬁed in the SNMP Community Names screen. Access to certain Local Management capabilities depends on the degree of access accorded that community name. Refer to Section 5.8.

If an invalid password is entered, the terminal beeps and the cursor returns to the beginning of the password entry ﬁeld.

Entering a valid password causes the associated access level to display at the bottom of the screen and the Device Menu screen to appear.

If no activity occurs for sev er al minutes , the Local Management Password screen redisplays and the session ends. The password has to be reentered. See Section 5.7.8 for more information.

• 802.1D Switching (traditional switching)

• 802.1Q Switching (port based switching)

• SecureFast VLAN (Cabletron Systems SecureFast switching)

Depending on the Operational Mode set for the device, the hierarchy of the Local Management screens differ as shown in Figure 5-4, Figure 5-5 and Figure 5-6. Refer to the appropriate ﬁgure that relates to the Operational Mode set for the device to see the applicable Local Management screen hierarchy.

2H28-08R SmartSwitch 2208 User’s Guide 5-9

Chapter 5: Local Management

Password

Device Configuration Menu

General Configuration SNMP Community Names SNMP Traps

Switch Configuration Ethernet Interface

Configuration SmartTrunk

Configuration

Device Menu

Device Specific Configuration

System Resources

Flash Download

Device Statistics Menu

Switch Statistics

Interface Statistics RMON Statistics

Port Redirect Function

Broadcast Suppression

Network Tools

Figure 5-4 802.1D Switching Mode, LM Screen Hierarchy

Device Menu

Device Configuration Menu

Device Statistics Menu

Network Tools

General Configuration SNMP Community Names

SNMP Traps Switch Configuration Ethernet Interface

Configuration SmartTrunk

Configuration Device Specific

Configuration

Switch Statistics Interface Statistics

RMON Statistics

System Resources

Flash Download

802.1Q VLAN Configuration

2286-43

2380_100

Figure 5-5 802.1Q Switching Mode, LM Screen Hierarchy

5-10 2H28-08R SmartSwitch 2208 User’s Guide

Accessing Local Management

Password

Device Menu

Device Configuration Menu

Device Statistics Menu

Network Tools

General Configuration SNMP Community Names SNMP Traps

Ethernet Interface Configuration

Device Specific Configuration

Interface Statistics RMON Statistics

System Resources

Flash Download

2380_101

Figure 5-6 SecureFast VLAN Mode, LM Screen Hierarchy

5.4.2 Selecting Local Management Menu Screen Items

Select items on a menu screen by performing the following steps:

1. Use the arrow keys to highlight a menu item.

2. Press ENTER. The selected menu item displays on the screen.

5.4.3 Exiting Local Management Screens

There are two ways to exit the Local Management (LM) screens.

Using the Exit Command

To exit LM using the EXIT screen command, proceed as follows:

1. Use the arrow keys to highlight the EXIT command at the bottom of

the Local Management screen.

2. Press ENTER. The Local Management Password screen displays and

the session ends.

2H28-08R SmartSwitch 2208 User’s Guide 5-11

Chapter 5: Local Management

Using the RETURN Command

To exit LM using the RETURN command, proceed as follows:

1. Use the arrow keys to highlight the RETURN command at the bottom

of the Local Management screen.

2. Press ENTER. The previous screen in the Local Management

hierarchy displays.

NOTE

The user can also exit Local Management screens by pressing ESC twice. This exit method does not warn about unsaved changes and all unsaved changes are lost.

3. Exit from 2H28-08R Local Management by repeating steps 1 and 2

until the Device Menu screen displays.

4. To end the LM session, use the arrow keys to highlight the RETURN

command at the bottom of the Device Menu screen.

5. Press ENTER. The Local Management Password screen displays and

the session ends. If in a Telnet session, the session ends without returning to the Local Management Password screen.

5-12 2H28-08R SmartSwitch 2208 User’s Guide

Device Menu Screen

5.5 DEVICE MENU SCREEN

The Device Menu screen is the access point for all Local Management screens. Figure 5-7 shows the Device Menu screen.

2H28-08R LOCAL MANAGEMENT

Device Menu

Device Type: 2H28-08R

DEVICE CONFIGURATION

DEVICE STATISTICS NETWORK TOOLS

Firmware Revision: XX.XX.XX BOOTPROM Revision: XX.XX.XX

EXIT

RETURN

Figure 5-7 Device Menu Screen

If the terminal is idle for several minutes, the Local

NOTE

Management Password screen redisplays and the session ends.

The following explains each Device Menu screen ﬁeld as shown in

Figure 5-7:

DEVICE CONFIGURATION

The Device Conﬁguration screen provides access to the Local Management screens that are used to conﬁgure the 2H28-08R and also to the Device Speciﬁc Conﬁguration Menu screen. The Device Speciﬁc Conﬁguration Menu screen provides access to the screens that allow the user to check the 2H28-08R resources and set operating parameters speciﬁc to each port. For details, refer to Section 5.6.

2H28-08R SmartSwitch 2208 User’s Guide 5-13

Chapter 5: Local Management

DEVICE STATISTICS

The Device Statistics screen provides statistics and performance information for the 2H28-08R. For details, refer to Section 5.17.

NETWORK TOOLS

The Network Tools function resides on the 2H28-08R and consists of a series of commands that allow the user to access and manage network devices. For details, refer to Section 5.21.

5.6 DEVICE CONFIGURATION MENU SCREEN

The Device Conﬁguration Menu screen, Figure 5-8, provides access to Local Management screens. These screens allow the user to conﬁgure and monitor operating parameters, modify SNMP community names, set SNMP traps, conﬁgure switch parameters and conﬁgure 2H28-08R ports.

NOTE

The following menu items on the Device Conﬁguration Menu screen may not display if the operational mode of the module has been set to SECURE FAST VLAN:

SWITCH CONFIGURATION SMARTTRUNK CONFIGURATION Refer to the Release Notes to see if the functionality provided

by the above screens is supported in SECURE FAST VLAN mode.

Section 5.7.9 provides instructions on setting the operational

mode.

To access the Device Conﬁguration Menu screen from the Device Menu screen, use the arrow keys to highlight the DEVICE CONFIGURATION menu item and press ENTER. The Device Conﬁguration Menu screen displays.

5-14 2H28-08R SmartSwitch 2208 User’s Guide

Device Type: 2H28-08R

Device Conﬁguration Menu Screen

2H28-08R LOCAL MANAGEMENT

Device Configuration Menu

Firmware Revision: XX.XX.XX BOOTPROM Revision: XX.XX.XX

GENERAL CONFIGURATION

SNMP COMMUNITY NAMES SNMP TRAPS SWITCH CONFIGURATION ETHERNET INTERFACE CONFIGURATION SMARTTRUNK CONFIGURATION DEVICE SPECIFIC CONFIGURATION

EXIT

RETURN

2286_66

Figure 5-8 Device Conﬁguration Menu Screen

The following brieﬂy explains each screen accessible from the Device Conﬁguration Menu screen:

GENERAL CONFIGURATION

The General Conﬁguration screen allows the user to monitor and conﬁgure operating parameters for the 2H28-08R. For details, refer to Section 5.7.

SNMP COMMUNITY NAMES

The SNMP Community Names screen allows the user to enter new community names, change, or review the community names used as access passwords for device management operation. Access is limited based on the password level of the user. For details, refer to Section 5.8.

SNMP TRAPS

The SNMP Traps screen provides display and conﬁguration access to the table of IP addresses used for trap destinations and associated community names. For details, refer to Section 5.9.

2H28-08R SmartSwitch 2208 User’s Guide 5-15

Chapter 5: Local Management

SWITCH CONFIGURATION

The Switch Conﬁguration screen provides the basic setup options for customizing the operation of a switch in the network. For details, refer to

Section 5.10.

ETHERNET INTERFACE CONFIGURATION

The Ethernet Interface Conﬁguration screen indicates the link status, current and desired operational mode, advertised ability, and ﬂow control admin status for ports 1 through 8 on the 2H28-08R. For details, refer to

Section 5.11.

SMARTTRUNK CONFIGURATION

The SmartTrunk Conﬁguration screen allows the user to logically group interfacesto aggregate high speed uplinks. Refer to the Cabletron Systems SmartTrunk User’s Guide for additional information.

DEVICE SPECIFIC CONFIGURATION

The Device Speciﬁc Conﬁguration Menu screen allows the user to select screens to conﬁgure ports or check system resources speciﬁc to the 2H28-08R. For details, refer to Section 5.12.

5.7 GENERAL CONFIGURATION SCREEN

The General Conﬁguration screen, Figure 5-9, allows the user to set the device date and time, IP address and subnet mask, the default gatew ay , the TFTP Gateway IP address, screen refresh and lockout time, operational mode, clear the NVRAM, and conﬁgure the COM port.

To access the General Conﬁguration screen from the Device Conﬁguration Menu screen, use the arrow keys to highlight the GENERAL CONFIGURATION menu item and press ENTER. The General Conﬁguration screen displays.

5-16 2H28-08R SmartSwitch 2208 User’s Guide

General Conﬁguration Screen

Event Message Line

Device Type: 2H28-08R

MAC Address: IP Address: Subnet Mask: Default Gateway: TFTP Gateway IP Addr:

Operational Mode: [802.1D SWITCHING] Com 1: [ENABLED] Application: [LM] Clear NVRAM: [NO]

2H28-08R LOCAL MANAGEMENT

General Configuration

00-00-ID-00-00-00

0.0.0.0

0.0.0.0 NONE DEFINED

0.0.0.0

EXIT

Firmware Revision: XX.XX.XX BOOTPROM Revision: XX.XX.XX

Device Date: Device Time: Screen Refresh Time: Screen Lockout Time: Device Uptime: XX D XX H XX M

11/11/1997 14:23:00 03 sec. 15 min.

RETURNSAVE

2286-15

Figure 5-9 General Conﬁguration Screen

The following brieﬂy explains each General Conﬁguration screen ﬁeld:

MAC Address (Read-Only)

Displays the base physical address of the 2H28-08R.

IP Address (Modiﬁable)

Displays and allows the user to set the IP address for the 2H28-08R. To set the IP address, refer to Section 5.7.1. The IP address can also be set through Runtime IP Address Discovery as previously described in

Section 1.3.5.

Subnet Mask (Modiﬁable)

Displays the subnet mask for the 2H28-08R. A subnet mask “masks out” the network bits of the IP address by setting the bits in the mask to 1 when the network treats the corresponding bits in the IP address as part of the network or subnetwork address, or to 0 if the corresponding bit identiﬁes the host. Once an IP address has been entered, the device will automatically generate and display a default subnet mask based on the entered IP address. For details about changing the subnet mask from its default value, refer to Section 5.7.2.

2H28-08R SmartSwitch 2208 User’s Guide 5-17

Chapter 5: Local Management

Default Gateway (Modiﬁable)

Displays the default gateway for the 2H28-08R. This ﬁeld is not deﬁned until an appropriate value is entered. For details about why and ho w to set the default gateway, refer to Section 5.7.3.

TFTP Gateway IP Addr (Modiﬁable)

Displays and allows the user to set the TFTP Gateway IP address for the 2H28-08R. To set the TFTP Gateway IP address, refer to Section 5.7.4.

Device Date (Modiﬁable)

Contains a value that the device recognizes as the current date. To set a new device date, refer to Section 5.7.5.

Device Time (Modiﬁable)

Contains a value that the device recognizes as the current time. To enter a new time, refer to Section 5.7.6.

Screen Refresh Time (Modiﬁable)

Contains the rate at which the screens are updated. This setting determines how frequently (in seconds) information is updated on the screen. To enter a new Screen Refresh time, refer to Section 5.7.7.

Screen Lockout Time (Modiﬁable)

Contains the number of minutes (to a maximum of 30) that the Local Management application displays a screen while awaiting input or action from a user. For example, if the number 5 is entered in this ﬁeld, the user has up to ﬁve minutes to utilize each of the speciﬁed module’s Local Management screens.

In this example, after ﬁve minutes of “idleness” (no input or action), the terminal “beeps” ﬁve times, the Local Management application terminates the session, and the display returns to the Local Management Password screen. To enter a new screen lockout time, refer to

Section 5.7.8.

Device Uptime (Read-Only)

Displays the total time that the device has been operating, in days, hours, and minutes.

5-18 2H28-08R SmartSwitch 2208 User’s Guide

General Conﬁguration Screen

Operational Mode (Selectable)

Allows the user to set the 2H28-08R to operate as a traditional switch (802.1D SWITCHING option), a prestandard IEEE 802.1Q, (802.1Q SWITCHING option) or as a Cabletron Systems SecureFast switch (SECURE FAST VLAN option).

In 802.1D SWITCHING mode, the 6 ﬁxed ports located on the front panel and any installed Fast Ethernet Interface Modules are bridged to each other.

In 802.1Q SWITCHING mode, the 2H28-08R is able to increase its switching functionality by creating and maintaining port based VLANs. When this operation is selected, 802.1Q VLAN CONFIGURATION will appear as a menu item on the Device Speciﬁc Conﬁguration Menu. If the device is not set to 802.1Q, the menu item will not appear as an option.

When the operational mode is set to SECURE FAST VLAN, the 2H28-08R acts as a SecureFast switch. With the Cabletron Systems VLAN Manager software, the 2H28-08R is able to increase its switching functionality by creating and maintaining VLANs. Certain options that are available in other modes in the menu screens will not be a vailable with the SecureFast option.

For details on how to select the Operational Mode, refer to Section 5.7.9.

Com (Toggle)

Allows the user to enable or disable the COM port. The selection toggles between ENABLED and DISABLED. The default is ENABLED. For details about setting up the COM port, refer to Section 5.7.10.

Application (Toggle)

Allows the user to set the application that the COM port supports. The ﬁeld toggles between LM (Local Management) and UPS (Uninterruptible Power Supply).

The UPS setting allows the COM port to be used to monitor an American Power Conversion Smart Uninterruptible Power Supply (UPS).

The baud rate setting for LM is automatically sensed. For the UPS, the baud rate is automatically set to 2400.

The default setting is LM. For details about how to conﬁgure the COM port for various applications, refer to Section 5.7.10. See the caution before changing the setting for this selection.

2H28-08R SmartSwitch 2208 User’s Guide 5-19

Chapter 5: Local Management

Clear NVRAM (Toggle)

Allows the user to reset NVRAM to the factory default settings. All user-entered parameters, such as IP address and Community Names, are then replaced with 2H28-08R default conﬁguration settings. For details, refer to Section 5.7.11.

5.7.1 Setting the IP Address

To set the IP address, perform the following steps:

1. Use the arrow keys to highlight the IP Address field.

2. Enter the IP address into this field using Dotted Decimal Notation

(DDN) format. For example: 134.141.79.120

3. Press ENTER. If the IP Address is a valid format, the cursor returns to

the beginning of the IP Address field. If the entry is not valid, the screen displays the message “INVALID IP ADDRESS OR FORMAT ENTERED”. Local Management does not alter the current value and refreshes the IP Address field with the previous value.

4. Use the arrow keys to highlight the SAVE command, then press

ENTER. The warning screen shown in Figure 5-10 displays.

5-20 2H28-08R SmartSwitch 2208 User’s Guide

General Conﬁguration Screen

Event Message Line

WARNING!

YOU HAVE ELECTED TO SAVE ONE OR MORE CONFIGURATION ITEMS THAT REQUIRE RESETTING THIS MODULE.

ARE YOU SURE YOU WANT TO CONTINUE?

YES

Figure 5-10 Conﬁguration Warning Screen

174252

5. Use the arrow keys to highlight the YES command and press ENTER.

The changes are saved and the module reboots.

5.7.2 Setting the Subnet Mask

If the management workstation that is to receive SNMP traps from the 2H28-08R is located on a separate subnet, the subnet mask for the 2H28-08R may need to be changed from its default.

To change the subnet mask from its default, perform the following steps:

1. Use the arrow keys to highlight the Subnet Mask field.

2. Enter the subnet mask into this field using Dotted Decimal Notation

(DDN) format. For example: 255.255.0.0

2H28-08R SmartSwitch 2208 User’s Guide 5-21

Chapter 5: Local Management

3. Press ENTER. If the subnet mask is valid, the cursor returns to the

beginning of the Subnet Mask field. If the entry is not valid, the screen displays the message “INVALID SUBNET MASK OR FORMAT ENTERED”. Local Management does not alter the current value, but it does refresh the Subnet Mask field with the previous value.

4. Use the arrow keys to highlight the SAVE command. The warning

screen shown back in Figure 5-10 displays.

5. Use the arrow keys to highlight the YES command and press ENTER.

The changes are saved and the module reboots.

5.7.3 Setting the Default Gateway

If the SNMP management station is located on a different IP subnet than the 2H28-08R, a default gateway must be speciﬁed. When an SNMP trap is generated, the 2H28-08R sends the trap to the default gateway. To set the default gateway, perform the following steps:

1. Use the arrow keys to highlight the Default Gateway field.

2. Enter the IP address of the default gateway using the DDN format.

For example: 134.141.79.121

3. Press ENTER. If the default gateway entered is a valid format, the

cursor returns to the beginning of the Default Gateway field. If the entry is not valid, the screen displays “INVALID DEFAULT GATEWAY OR FORMAT ENTERED”. Local Management does not alter the current value, but it does refresh the Default Gateway field with the previous value.

4. Use the arrow keys to highlight the SAVE command.

5. Press ENTER. The message “SAVED OK” displays at the top of the

screen.

5-22 2H28-08R SmartSwitch 2208 User’s Guide

General Conﬁguration Screen

5.7.4 Setting the TFTP Gateway IP Address

If the network TFTP server is located on a different IP subnet than the 2H28-08R, a Gateway IP address should be speciﬁed. To set the TFTP Gateway IP address, perform the following steps:

1. Use the arrow keys to highlight the TFTP Gateway IP Addr field.

2. Enter the IP address of the TFTP gateway using the DDN format.

For example: 134.141.80.122

3. Press ENTER. If the TFTP gateway IP address entered is a valid

format, the cursor returns to the beginning of the TFTP Gateway IP Address field. If the entry is not valid, the screen displays “INVALID TFTP GATEWAY IP ADDRESS OR FORMAT ENTERED”. Local Management does not alter the current value, but it refreshes the TFTP Gateway IP Address field with the previous value.

4. Use the arrow keys to highlight the SAVE command.

5. Press ENTER. The message “SAVED OK” displays at the top of the

screen.

5.7.5 Setting the Device Date

The 2H28-08R is year 2000 compliant so that the Device Date ﬁeld can be set beyond the year 1999.

To set the device date, perform the following steps:

1. Use the arrow keys to highlight the Device Date field.

2. Enter the date in this format: MM/DD/YYYY

NOTE

3. Press ENTER to set the system calendar to the date in the input field.

4. Use the arrow keys to highlight the SAVE command at the bottom of

2H28-08R SmartSwitch 2208 User’s Guide 5-23

It is not necessary to add separators between month, day, and year numbers, as long as each entry has the correct number of numeric characters. For example, to set the date to 03/17/1997, type “03171997” in the Device Date ﬁeld.

the screen and press ENTER.

Chapter 5: Local Management

If the date entered is a valid format, the message displays “SAVED OK” at the top of the screen. If the entry is not valid, Local Management does not alter the current value, but it refreshes the Device Date ﬁeld with the previous value.

5.7.6 Setting the Device Time

To set the device time, perform the following steps:

1. Use the arrow keys to highlight the Device Time field.

2. Enter the time in this 24-hour format: HH:MM:SS

NOTE

When entering the time in the Device Time ﬁeld, separators between hours, minutes, and seconds are not needed as long as each entry uses two numeric characters. F or e xample, to set the time to 6:45 P.M., type “184500” in the Device Time ﬁeld.

3. Press ENTER to set the system clock to the time in the input field.

4. Use the arrow keys to highlight the SAVE command at the bottom of

the screen and press ENTER.

If the time entered is a valid format, the message displays “SAVED OK” at the top of the screen. If the entry is not valid, Local Management does not alter the current value and refreshes the Device Time ﬁeld with the previous value.

5.7.7 Entering a New Screen Refresh Time

The screen refresh time is set from 3 to 99 seconds with a default of 3 seconds. To set a new screen refresh time, perform the following steps:

1. Use the arrow keys to highlight the Screen Refresh Time field.

2. Enter a number from 3 to 99.

NOTE

If the entry is not valid, when you hit ENTER or try to exit the ﬁeld using the arrow keys, the message “Permissible Range:

3...99” displays momentarily and the ﬁeld refreshes with the previous value.

5-24 2H28-08R SmartSwitch 2208 User’s Guide

General Conﬁguration Screen

3. Press ENTER to set the refresh time to the time entered in the input

field.

4. Use the arrow keys to highlight the SAVE command at the bottom of

the screen and press ENTER.

If the time entered is within the 3 to 99 seconds range, the message “SAVED OK” displays at the top of the screen.

5.7.8 Setting the Screen Lockout Time

The screen lockout time can be set from 1 to 30 minutes, with a default of 15 minutes. To set a new lockout time, perform the following steps:

1. Use the arrow keys to highlight the Screen Lockout Time field.

2. Enter a number from 1 to 30.

NOTE

If the entry is not valid, when you hit ENTER or try to exit the ﬁeld using the arrow keys, the message “Permissible Range:

1...30” displays momentarily and the ﬁeld refreshes with the previous value.

3. Press ENTER to set the lockout time in the input field.

4. Use the arrow keys to highlight the SAVE command at the bottom of

the screen and press ENTER.

If the time entered is within the 1 to 30 minutes range, the message “SAVED OK” displays at the top of the screen.

5.7.9 Setting the Operational Mode

To set the Operational Mode, proceed as follows:

1. Use arrow keys to highlight the Operational Mode field.

2. Press the SPACE bar to step to the appropriate operation mode

(802.1D SWITCHING, 802.1Q SWITCHING, or SECURE FAST VLAN).

2H28-08R SmartSwitch 2208 User’s Guide 5-25

Chapter 5: Local Management

3. Use the arrow keys to highlight the SAVE command, then press

ENTER. The warning screen shown in Figure 5-11 displays.

Event Message Line

WARNING!

YOU HAVE ELECTED TO SAVE ONE OR MORE CONFIGURATION ITEMS THAT REQUIRE RESETTING THIS MODULE.

ARE YOU SURE YOU WANT TO CONTINUE?

YES

Figure 5-11 Conﬁguration Warning Screen

174252

4. Use the arro w keys to highlight the YES command and press ENTER.

The changes are saved and the device reboots.

NOTE

Upon saving the new operational mode, the device will reboot. If the 2H28-08R has been set to 802.1Q SWITCHING, refer to

the Cabletron Systems

Port Based VLAN User’s Guide

conﬁgure the devices for this type of operation. If the 2H28-08R has been set to SECURE F AST VLAN, ref er to

the Cabletron Systems SecureFast documentation set to conﬁgure the devices for this type of operation.

5-26 2H28-08R SmartSwitch 2208 User’s Guide

General Conﬁguration Screen

5.7.10 Conﬁguring the COM Port

Before altering the COM port settings, ensure that a valid IP address is set for the device. (Refer to Section 5.7.1, Setting

CAUTION

The 2H28-08R COM port supports the following applications:

• Local Management connections

• American Power Conversion Uninterruptible Power Supply (UPS)

the IP Address.) Read this entire COM port conﬁguration

section before changing the COM port settings.

connections

NOTE

Refer to the Release Notes included with the 2H28-08R to verify which COM Port applications are currently supported.

To conﬁgure the COM port, proceed as follows:

1. Use the arrow keys to highlight the Com field.

Do NOT disable or alter the settings of the COM port while operating the current Local Management connection through a

CAUTION

terminal. Altering the COM port settings disconnects the Local Management terminal from the port, and ends the Local Management session.

If you are disconnected accidently, and the 2H28-08R was previously assigned a valid IP address, reenter Local Management by establishing a Telnet connection to the device.

If the device does not have a valid IP address and the COM port has been disabled or the settings changed, reset NVRAM on the 2H28-08R (refer to Appendix C, Section C.2.1) to reestablish COM port communications. Clearing NVRAM results in the loss of all user-entered parameters.

2H28-08R SmartSwitch 2208 User’s Guide 5-27

Chapter 5: Local Management

2. Press the SPACE bar to choose either ENABLED or DISABLED.

The COM port must be ENABLED if it will be used for Local Management or UPS applications. Select DISABLED if you wish to disable the COM port for device security.

If the COM port is reconﬁgured without a valid IP address set

CAUTION

Do not continue unless the outcome of the action is fully

on the device, the message shown in Figure 5-11 displays.

understood.

Event Message Line

WARNING

THE COM PORT HAS BEEN RECONFIGURED AND THERE IS NO IP ADDRESS SET FOR THIS DEVICE. YOU WILL NO LONGER BE ABLE TO MANAGE THIS BOARD. DO YOU STILL WISH TO RECONFIGURE THIS COM PORT?

YES

Figure 5-12 COM Port Warning Screen

174252

If the 2H28-08R has been conﬁgured with a valid IP Address,

NOTE

this screen will not appear. Go to Step 4 if you do not get the screen.

3. Use the arrow keys to highlight YES. Press ENTER.

4. If you ENABLED the port, proceed to step 5. If you DISABLED the

port, use the arrow keys to highlight SAVE at the bottom of the screen, then press ENTER.

5-28 2H28-08R SmartSwitch 2208 User’s Guide

General Conﬁguration Screen

5. When the message “SAVED OK” appears, the edits are saved.

NOTE

Exiting without saving causes the message “NOT SAVED -PRESS SA VE TO KEEP CHANGES” to display. Exiting without saving causes all edits to be lost.

5.7.10.1 Changing the COM Port Application

After enabling the COM port as described in Section 5.7.10, you can select one of the applications supported by the COM port: LM or UPS. The default application is LM.

To change the COM port application:

1. Use the arrows keys to highlight the Application field.

2. Use the SPACE bar or BACKSPACE to toggle the available settings

until the operation you require appears. Table 5-3 lists the available settings and their corresponding applications.

Table 5-3 COM Port Application Settings

Setting Application

LM Local Management Session UPS APC Power Supply SNMP Proxy

3. Press ENTER to accept the application.

4. Use the arrow keys to highlight the SAVE command at the bottom of

the screen, then press the ENTER key.

5. When the message “SAVED OK” displays, the edits are saved.

When the COM port is conﬁgured to perform the UPS application, all future Local Management connections must be

CAUTION

2H28-08R SmartSwitch 2208 User’s Guide 5-29

made by establishing a Telnet connection to the device. Ensure that the device has a valid IP address bef ore sa ving changes to the COM port application. If the module does not have a valid IP address and the changes are saved, refer to Appendix C for instructions on clearing NVRAM in order to reestablish COM port communications.

Chapter 5: Local Management

5.7.11 Clearing NVRAM

Clearing NVRAM results in the loss of all user-entered parameters. Do not proceed unless the following procedure is

CAUTION

Clearing NVRAM allows the user to clear all user-entered parameters, such as the IP address and community names from NVRAM.

Clear NVRAM as follows:

1. Use the arrow keys to highlight the Clear NVRAM field.

2. Use the SPACE bar to toggle the field to YES.

3. Use the arrow keys to highlight SAVE at the bottom of the screen.

4. Press ENTER. The warning shown in Figure 5-13 displays.

completely understood.

Event Message Line

WARNING

YOU HAVE ELECTED TO CLEAR NVRAM. THIS WILL CLEAR ALL SYSTEM DEFAULTS INCLUDING BUT NOT LIMITED TO IP ADDRESS, INTERFACE CONFIGURATION, AND COM PORT CONFIGURATION, THEN RESET THE BOARD. ARE YOU SURE YOU WANT TO CLEAR NVRAM?

YES

Figure 5-13 Clear NVRAM Warning Screen

174251

5. Use the arrow keys to highlight YES and press ENTER. The message

“CLEARING NVRAM. REBOOT IN PROGRESS...” displays.

6. The 2H28-08R clears NVRAM and reboots. All user-entered

parameters return to the factory default settings.

5-30 2H28-08R SmartSwitch 2208 User’s Guide

SNMP Community Names Screen

5.8 SNMP COMMUNITY NAMES SCREEN

The SNMP Community Names screen allows the user to set SNMP Management community names. Community names act as passwords to Local/Remote Management and are agents of security access to the 2H28-08R. Access to the 2H28-08R is controlled by enacting an y of three different levels of security authorization (read-only, read-write, and super-user).

NOTE

allows existing passwords to be changed, and all modiﬁable MIB objects for the Cabletron Container MIB and Internet MIB-II to be edited.

To access the SNMP Community Names screen from the Device Conﬁguration Menu screen, use the arrow keys to highlight the SNMP COMMUNITY NAMES menu item and press ENTER. The SNMP Community Names screen, Figure 5-14, displays.

Super-user access gives the user full management privileges,

Event Message Line

Device Type: 2H28-08R

2H28-08R LOCAL MANAGEMENT

SNMP Community Names

Community Name

public

public public

Firmware Revision: XX.XX.XX BOOTPROM Revision: XX.XX.XX

Access Policy

read-only read-write super-user

EXIT

RETURNSAVE

2286-16

Figure 5-14 SNMP Community Names Screen

2H28-08R SmartSwitch 2208 User’s Guide 5-31

Chapter 5: Local Management

The following explains each SNMP Community Names screen ﬁeld:

Community Name (Modiﬁable)

Displays the user-deﬁned name through which a user accesses the 2H28-08R SNMP Management. An y community name assigned here acts as a password to Local/Remote Management.

Access Policy (Read-Only)

Indicates the access accorded each community name. The available access levels are as follows:

read-only This community name gives the user read-only

access to the 2H28-08R MIB objects, and excludes access to security-protected ﬁelds of read-write or super-user authorization.

read-write This community name gives the user read-write

access to the 2H28-08R MIB objects, excluding security protected ﬁelds for super-user access only.

super-user This community name gi ves the user read-write

access to the 2H28-08R

MIB objects and

allows the user to change all modiﬁable parameters including community names, IP addresses, traps, and SNMP objects.

5-32 2H28-08R SmartSwitch 2208 User’s Guide

SNMP Community Names Screen

5.8.1 Establishing Community Names

The password used to access Local Management at the Password Screen must have super-user access to view and edit the SNMP Community Names screen. Using a password with read-only or read-write access does not allow the user to view or edit the SNMP Community Names screen.

NOTE

Any community name assigned in the SNMP Community Names screen is a password to its corresponding level of access to Local Management. The community name assigned super-user access is the only one that gives the user complete access to Local Management.

To establish community names, proceed as follows:

1. Use the arrow keys to highlight the Community Name field adjacent

to the selected access level.

2. Enter the password in the field (maximum 31 characters).

3. Press ENTER.

4. Repeat steps 1 through 3 to modify the other community names.

5. Use the arrow keys to highlight the SAVE command at the bottom of

the screen and press ENTER. The message “SAVED OK” displays. The community names are saved to memory and their access modes implemented.

NOTE

Exiting without saving causes a “NOT SAVED--PRESS SAVE TO KEEP CHANGES” message to display at the top left of the screen. Edits are lost if they are not saved before exiting.

2H28-08R SmartSwitch 2208 User’s Guide 5-33

Chapter 5: Local Management

5.9 SNMP TRAPS SCREEN

Since the 2H28-08R is an SNMP compliant device, it can send messages to multiple Network Management Stations to alert users of status changes. The SNMP Traps screen is shown in Figure 5-15.

To access the SNMP Traps screen from the Device Conﬁguration Menu screen, use the arrow keys to highlight the SNMP TRAPS menu item and press ENTER. The SNMP Traps screen displays.

Event Message Line

Device Type: 2H28-08R

Trap Destination

0.0.0.0

2H28-08R LOCAL MANAGEMENT

SNMP Traps

Firmware Revision: XX.XX.XX BOOTPROM Revision: XX.XX.XX

Trap Community Name

public public public public public public public public

EXIT

Enable Traps

[NO] [NO] [NO] [NO] [NO] [NO] [NO] [NO]

RETURNSAVE

2286-1

Figure 5-15 SNMP Traps Screen

The following explains each ﬁeld of the SNMP Traps screen.

Trap Destination (Modiﬁable)

Indicates the IP address of the workstation to receive trap alarms. Up to eight different destinations can be deﬁned.

Trap Community Name (Modiﬁable)

Displays the community name included in the trap message sent to the Network Management Station with the associated IP address.

5-34 2H28-08R SmartSwitch 2208 User’s Guide

SNMP T raps Screen

Enable Traps (Toggle)

Enables transmission of the traps to the network management station with the associated IP address. This ﬁeld toggles between YES and NO.

5.9.1 Conﬁguring the Trap Table

To conﬁgure the Trap table, proceed as follows:

1. Use the arrow keys to highlight the appropriate Trap Destination

field.

2. Enter the IP address of the workstation that is to receive traps. IP

address entries must follow the DDN format. For example: 134.141.79.121

3. Press ENTER. If an invalid entry is made, the message “INVALID IP

ENTERED” displays.

4. Use the arrow keys to highlight the Trap Community Name field.

Enter the community name.

5. Press ENTER.

6. Use the arrow keys to highlight the Enable Traps field. Press the

SPACE bar to choose either YES (send alarms from the 2H28-08R to the workstation), or NO (prevent alarms from being sent).

7. Use the arrow keys to highlight the SAVE command and press

ENTER. The message “SAVED OK” displays on the screen.

NOTE

Exiting without saving causes a “NOT SAVED?” message to appear above the SAVE command. Edits are lost if they are not saved before exiting.

The designated workstations now receive traps from the 2H28-08R.

2H28-08R SmartSwitch 2208 User’s Guide 5-35

Chapter 5: Local Management

5.10 SWITCH CONFIGURATION SCREEN

NOTE

operational mode of the module has been set to SECURE FAST VLAN. This screen may only be used by modules conﬁgured to operate as traditional or 802.1Q switches.

The Switch Conﬁguration screen, Figure 5-16, provides the basic setup options to make a switch operational in your network.

T o access the Switch Conﬁguration screen from the De vice Conﬁguration Menu screen, use the arrow keys to highlight the SWITCH CONFIGURATION menu item and press ENTER. The Switch Conﬁguration screen displays showing Ports 1 through 6. The optional ports, 7 and 8, will display also if Fast Ethernet Interface Modules are installed.

Event Message Line

2H28-08R LOCAL MANAGEMENT

Switch Configuration

The Switch Conﬁguration screen will not be available if the

Device Type: 2H28-08R

Switch Address: 00-00-1D-00-00-00 Number of Ports: 8

Firmware Revision: XX.XX.XX BOOTPROM Revision: XX.XX.XX

Type of STA: [DEC] Age Time (sec): 300

Port #

1 2 3 4 5 6 7 8

MAC Address

00-00-1D-00-00-00 00-00-1D-00-00-01 00-00-1D-00-00-02 00-00-1D-00-00-03 00-00-1D-00-00-04 00-00-1D-00-00-05 00-00-1D-00-00-06 00-00-1D-00-00-07

State

learning disabled blocking disabled listening disabled forwarding forwarding

EXIT

Status

[ENABLED] [DISABLED] [ENABLED] [DISABLED] [ENABLED] [DISABLED] [ENABLED] [ENABLED]

RETURNSAVE

2286-18

Figure 5-16 Switch Conﬁguration Screen

5-36 2H28-08R SmartSwitch 2208 User’s Guide

Switch Conﬁguration Screen

The following describes each ﬁeld of the Switch Conﬁguration screen:

Switch Address (Read-Only)

Displays the MAC address of the switch.

Number of Ports (Read-Only)

Displays the total number of switched ports on the 2H28-08R.

Type of STA (Selectable)

Allows the user to set the method that switches use to decide which switch is the controlling (Root) switch when two or more switches exist in parallel (Spanning Tree Algorithm). Valid selections are IEEE, DEC, and NONE. To set the STA, refer to Section 5.10.1.

Age Time (Modiﬁable)

Allows the user to set the amount of time (in seconds) that the 2H28-08R keeps an address in its switch table before discarding it. An address is automatically discarded when a valid Bridge Protocol Data Unit (BPDU) is not received from that address within the time speciﬁed in the Age T ime ﬁeld. To change the Age T ime ﬁeld from the default v alue of 300 seconds, refer to Section 5.10.2.

Port # (Read-Only)

Lists each switched port on the device.

MAC Address (Read-Only)

Displays the hardware address assigned to each listed port.

State (Read-Only)

There are ﬁve states that can display in this ﬁeld. These states are described as follows:

• Disabled: Management disabled this interface. No trafﬁc is receiv ed or

forwarded while the interface is disabled.

• Learning: The switch is learning the addresses on this interface. The

switch enters the learning state when the Transparent Database is created (during start-up or after being deleted), or when the Spanning Tree Algorithm detects a network topology change.

2H28-08R SmartSwitch 2208 User’s Guide 5-37

Chapter 5: Local Management

• Listening: The switch is not adding information to the Transparent

Database. The switch is monitoring the Bridge Protocol Data Unit (BPDU) trafﬁc while preparing to move from the learning to the forwarding state.

• Forwarding: The switch is operating and this interface is forwarding

trafﬁc.

• Blocking: This interface will not forward any traf ﬁc through the switch

because a loop condition has been detected by the STA.

Status (Toggle)

Allows the user to disable or enable a port by setting the status of the listed interface to either ENABLED or DISABLED. To set the port status, refer to Section 5.10.3.

5.10.1 Setting the STA

The Spanning Tree Algorithm (STA) setting allows the user to set the method that the switches use to decide which is the controller (Root) switch when two or more switches are in parallel. The av ailable selections are IEEE, DEC, and NONE.

To set the STA, proceed as follows:

1. Use the arrow keys to highlight the Type of STA field.

2. Use the SPACE bar to step to the appropriate setting of IEEE, DEC,

or NONE.

3. Use the arrow keys to highlight the SAVE command at the bottom of

the screen.

4. Press ENTER. The message “SAVED OK” displays.

5-38 2H28-08R SmartSwitch 2208 User’s Guide

Switch Conﬁguration Screen

5.10.2 Setting the Age Time Field

To set the Age Time, proceed as follows:

1. Use the arrow keys to highlight the Age Time field.

2. Type in the desired Age Time in increments of 10. The available Age

Time range is 10 to 1,000,000 seconds with the default value being 300 seconds. Press the ENTER key.

3. Use the arrow keys to highlight the SAVE command at the bottom of

the screen.

4. Press ENTER. The message “SAVED OK” displays.

5.10.3 Setting (Enabling or Disabling) the Port Status

To set the status of a port, proceed as follows:

1. Use the arrow keys to highlight the Status field of the port.

2. Use the SPACE bar to toggle to either ENABLED or DISABLED.

3. Use the arrow keys to highlight the SAVE command at the bottom of

the screen.

4. Press ENTER. The message “SAVED OK” displays.

2H28-08R SmartSwitch 2208 User’s Guide 5-39

Chapter 5: Local Management

5.11 ETHERNET INTERFACE CONFIGURATION

Access the Ethernet Interface Conﬁguration screen from the Device Conﬁguration Menu screen by using the arrow keys to highlight the ETHERNET INTERFACE CONFIGURATION menu item and pressing ENTER. The Ethernet Interface Conﬁguration screen displays.

Event Message Line

Device Type: 2H28-08R

Port

Num

Type

FE-100FX

7 8

FE-100FX

SAVE

2H28-08R LOCAL MANAGEMENT

Ethernet Interface Configuration

Link

Status

No Link No Link No Link No Link Link No Link Link Link

Current

Oper. Mode

100Base-FX N/A 100Base-FXFD 100Base-FXFD 100Base-FXFD 100Base-FXFD 100Base-FXFD 100Base-FX 100Base-FXFD

Firmware Revision: XX.XX.XX BOOTPROM Revision: XX.XX.XX

Desired

Oper. Mode

[100Base-FX] [100Base-FXFD] [100Base-FXFD] [100Base-FXFD] [100Base-FXFD] [100Base-FXFD] [Auto-Neg] [100Base-FXFD]

EXIT

Advertised Ability

N/A N/A N/A N/A N/A

[10Base-TFD] [Enabled]

N/A

RETURN

2159-23

Figure 5-17 Ethernet Interface Conﬁguration Screen for the 2H28-08R

The following section brieﬂy explains each ﬁeld of the Ethernet Interface Conﬁguration screen:

Port Num (Read-only)

Identiﬁes the port number.

Port Type (Read-only)

Displays the name of the interface in ports 1 through 8. “Unknown” will be displayed for port 7 or 8 if a Fast Ethernet Module is not installed in those ports.

5-40 2H28-08R SmartSwitch 2208 User’s Guide

Ethernet Interface Conﬁguration

Link Status (Read-only)

Indicates whether or not there is a physical connection from a particular port to another 10BASE-T, 100BASE-TX/FX, or 100BASE-TXFD/FXFD device. One of the following values is displayed:

• Link – There is a link signal present and a valid physical connection to

another 10Base-T , 100Base-TX/FX, or 100Base-TXFD/FXFD device.

• No Link – There is no link signal present and there is no valid physical

connection to another device.

Current Oper. Mode (Read-only)

This ﬁeld displays the current operating mode of a port. Depending on the interface installed (100BASE-FX, 100BASE-F3, or 100BASE-TX), this ﬁeld displays the following:

• 100Base-TX interface – Auto-Neg, Unknown (if there is no link),

10Base-T, 10Base-TFD (full duplex), 100Base-TX, or 100Base-TXFD (full duplex).

• 100Base-FX (multimode) or 100Base-F3 (single mode) interface –

Unknown (if there is no link), 100Base-FX or 100Base-FXFD (full duplex).

Desired Oper. Mode (Selectable)

This ﬁeld allows the user to select the desired operational mode for an interface.

• FE-100TX Interface – The ﬁeld toggles between Auto-Neg, 10Base-T ,

10Base-TFD (full duplex), 100Base-TX, and 100Base-TXFD (full duplex). In normal operation, the port with an FE-100TX interface is capable of auto-negotiating the operational mode and no further user setup is required. See Section 5.11.3 for more details.

• FE-100FX/F3 Interface – The ﬁeld toggles between 100Base-FX or

100Base-FXFD (full duplex) operation. Section 5.11.1 describes how to conﬁgure a port with an FE-100FX or FE-100F3 interface.

NOTE

2H28-08R SmartSwitch 2208 User’s Guide 5-41

In normal operation, the port with an FE-100TX installed automatically establishes a link with the device at the other end of the segment without requiring user setup. However, Local Management provides the user with the option of manually conﬁguring that port.

Chapter 5: Local Management

Advertised Ability (Selectable)

During auto-negotiation, the FE-100TX informs the device at the other end of the segment what its capabilities are. The capabilities of a port with an FE-100TX installed are 10BASE-T, 10BASE-TFD (full duplex mode), 100BASE-TX and 100BASE-TXFD (full duplex mode). In normal operation, with all capabilities enabled, the FE-100TX “advertises” that it has the ability to operate in any mode. The Network Manager may choose to set up the port so that only a portion of the available capabilities are advertised and the others are disabled. For example, only 100BASE-TX and 100BASE-TXFD might be enabled so that only devices that operate at 100 Mbps can communicate with that port. Section 5.11.4 describes how to enable or disable advertised modes.

5.11.1 Conﬁguring an FE-100FX Interface or a

Port 7 or 8 FE-100FX/F3 Interface

Whether conﬁguring the ﬁxed interface (ports 1–6) or an FE-100FX or FE-100F3 installed in port 7 or 8, the procedure is the same. The port must be manually set to operate in the same mode as the device at the other end of the connected segment. Use the Desired Oper. Mode ﬁeld to set the FE-100FX or FE-100F3 ports. This ﬁeld toggles between 100BASE-FX and 100BASE-FXFD (full duplex). To set the active technology through Local Management, proceed as follows:

1. Use the arrow keys to highlight the Desired Oper. Mode field.

2. Use the SPACE bar to select 100Base-FX or 100Base-FXFD (full

duplex).

3. Press ENTER. The port now operates in the chosen mode.

4. Use the arrow keys to highlight the SAVE command. Press ENTER.

The message “SAVED OK” displays and Local Management saves the changes to memory.

5.11.2 Conﬁguring an FE-100TX Interface

In normal operation, a port with an FE-100TX interface automatically establishes a link with the device at the other end of the segment and no user setup is required. Section 5.11.3 and Section 5.11.4 provide instructions to manually conﬁgure the port with an FE-100TX installed.

5-42 2H28-08R SmartSwitch 2208 User’s Guide

Ethernet Interface Conﬁguration

5.11.3 Setting the FE-100TX Operational Mode

Use this ﬁeld to set the active technology. This ﬁeld steps between Auto-Negotiation, 10BASE-T, 10BASE-TFD (full duplex), 100BASE-TX, and 100B ASE-TXFD (full duplex). If Auto-Negotiation is selected, the FE-100TX automatically sets the active technology. To manually set the active technology through Local Management, proceed as follows:

1. Use the arrow keys to highlight the Desired Oper. Mode field.

2. Use the SPACE bar to select the desired mode. Press ENTER. If any

mode other than Auto-Negotiation is selected, the port only operates in the chosen mode and auto-negotiation is disabled.

3. Use the arrow keys to highlight the SAVE command. Press ENTER.

The message “SAVED OK” displays and Local Management saves the changes to memory. The selected mode is displayed in both the Desired Operational Mode field and the Current Operational Mode field.

5.11.4 Setting the FE-100TX Advertised Ability

During normal operation, a port (7 or 8) with an FE-100TX auto-negotiates to the highest speed possible. Under some circumstances, the Network Administrator may want the port to advertise only some of the available modes and not operate in other modes. This ﬁeld steps between 10BASE-T, 10BASE-TFD (full duplex), 100BASE-TX, and 100BASE-TXFD (full duplex). To set the advertised ability, proceed as follows:

1. Use the arrow keys to highlight the Advertised Ability field.

2. Use the SPACE bar to select the desired mode.

3. Use the RIGHT-ARROW key to move across to the

ENABLED/DISABLED field to the right of the selection.

4. Use the SPACE bar to select ENABLED or DISABLED. Press

ENTER.

5. Use the LEFT-ARROW key to move back to the Advertised Ability

selection and use the SPACE bar to select the next mode to enable or disable.

2H28-08R SmartSwitch 2208 User’s Guide 5-43

Chapter 5: Local Management

6. Continue this process until you have completed enabling or disabling

the advertised modes required.

7. Use the arrow keys to highlight the SAVE command. Press ENTER.

The message “SAVED OK” displays and Local Management saves the changes to memory.

5.12 DEVICE SPECIFIC CONFIGURATION MENU

SCREEN

The Device Speciﬁc Conﬁguration Menu screen, Figure 5-18, allows the user to select screens to conﬁgure ports or check system resources speciﬁc to the 2H28-08R.

NOTE

The following menu items on the Module Speciﬁc Conﬁguration Menu screen may not display if the operational mode of the module has been set to SECURE FAST VLAN or 802.1Q SWITCHING:

PORT REDIRECT FUNCTION BROADCAST SUPPRESSION When in SecureFast mode, the Device Conﬁguration screen

may not display the SMARTTRUNK CONFIGURATION menu item.

Refer to the Release Notes to see if the functionality provided by the above screens is supported.

Section 5.7.9 provides instructions on setting the operational

mode.

To access the Device Speciﬁc Conﬁguration screen from the Device Conﬁguration Menu screen, use the arrow keys to highlight the DEVICE SPECIFIC CONFIGURATION menu item and press ENTER. The Device Speciﬁc Conﬁguration Menu screen displays.

5-44 2H28-08R SmartSwitch 2208 User’s Guide

Device Type: 2H28-08R

Device Speciﬁc Conﬁguration Menu Screen

2H28-08R LOCAL MANAGEMENT

Device Specific Configuration

Firmware Revision: XX.XX.XX BOOTPROM Revision: XX.XX.XX

SYSTEM RESOURCES FLASH DOWNLOAD PORT REDIRECT FUNCTION BROADCAST SUPPRESSION

EXIT

RETURN

2286-2

Figure 5-18 Device Speciﬁc Conﬁguration Menu Screen

The following deﬁnes each selectable item in the Device Speciﬁc Conﬁguration Menu screen:

SYSTEM RESOURCES

The System Resources screen displays the amount of FLASH memory, DRAM and NVRAM installed, indicates the amount of available memory and provides information on 2H28-08R operation. For details, refer to

Section 5.13.

FLASH DOWNLOAD

The FLASH Download screen allows the user to download a software image to FLASH memory. For details, refer to Section 5.14.

PORT REDIRECT FUNCTION

The Port Redirect Function screen allows the user to redirect trafﬁc from one or multiple switch ports to a speciﬁc destination switch port. Port Redirect has also been referred to as Port Mirroring. For details, refer to

Section 5.15.

2H28-08R SmartSwitch 2208 User’s Guide 5-45

Chapter 5: Local Management

BROADCAST SUPPRESSION

The Broadcast Suppression screen allows the user to set a desired limit of received broadcast frames that are forwarded per port per second. For details, refer to Section 5.16.

802.1Q VLAN CONFIGURA TION

This menu item will only appear on the Device Speciﬁc Conﬁguration Menu screen if 802.1Q switching is chosen as the operational mode. Refer to the Cabletron Systems Port Based VLAN User’s Guide for information on how to conﬁgure the device for this type of operation.

5.13 SYSTEM RESOURCES SCREEN

The System Resources screen, Figure 5-19, provides information concerning the processor used in the 2H28-08R and the amount of FLASH memory , DRAM, and NVRAM that is installed and how much of that memory is available. This screen also allows the user to monitor the current processor (switch) utilization and the peak switch utilization.

To access the System Resources screen from the Device Speciﬁc Conﬁguration Menu screen, use the arrow keys to highlight the SYSTEM RESOURCES menu item and press ENTER. The System Resources screen displays.

5-46 2H28-08R SmartSwitch 2208 User’s Guide

System Resources Screen

Event Message Line

Device Type: 2H28-08R

Flash Memory Installed : 4 MB

DRAM Installed: 16 MB

NVRAM Installed: 32 KB

SAVE

2H28-08R LOCAL MANAGEMENT

System Resources

CPU Type: i960 HT 25 Mhz

Available: XXXXX Bytes

Current Switch Utilization: 66% Peak Switch Utilization: 75%

Reset Peak Switch Utilization: [NO]

EXIT

Firmware Revision: XX.XX.XX BOOTPROM Revision: XX.XX.XX

RETURN

Figure 5-19 System Resources Screen

The following deﬁnes each ﬁeld of the System Resources screen.

CPU Type (Read-only)

Indicates the microprocessor used in the 2H28-08R.

2286-23

Flash Memory Installed (Read-only)

Indicates the amount of FLASH memory installed in the 2H28-08R and how much is currently available.

DRAM Installed (Read-only)

Indicates the amount of DRAM installed in the 2H28-08R and how much of it is currently available.

NVRAM Installed (Read-only)

Indicates the amount of NVRAM installed in the 2H28-08R and how much is currently available.

2H28-08R SmartSwitch 2208 User’s Guide 5-47

Chapter 5: Local Management

Current Switch Utilization (Read-only)

Shows how much (percentage of processor capacity) of the 2H28-08R is currently being used.

Peak Switch Utilization (Read-only)

Shows the peak percentage of maximum switching capacity, since last reset.

Reset Peak Switch Utilization (Toggle)

Allows the user to reset the Peak Switch Utilization ﬁeld. Setting the switch to YES resets the Peak Switch Utilization ﬁeld.

5.13.1 Setting the Reset Peak Switch Utilization

To reset the Peak Switch Utilization ﬁeld, proceed as follows:

1. Use the arrow keys to highlight the Reset Peak Switch Utilization

field.

2. Press the SPACE bar to toggle the selection to YES.

3. Use the arrows keys to highlight the SAVE command at the bottom of

the screen.

4. Press ENTER. The message “SAVED OK” displays.

5.14 FLASH DOWNLOAD SCREEN

The Flash Download screen, shown in Figure 5-20, allows the user to upgrade the device with a different ﬁrmware image.

NOTE

Before downloading an image to the device, copy the image to the network TFTP server .

NOTE

5-48 2H28-08R SmartSwitch 2208 User’s Guide

The user may also force the do wnload of an image by changing the position of Switch 6 located inside the device. Refer to

Section C.2.1, for details.

For information about how to set up a workstation as a TFTP server, refer to the speciﬁc workstation documentation.

Flash Download Screen

To access the Flash Download screen from the Device Speciﬁc Conﬁguration Menu screen, use the arrow keys to highlight the FLASH DOWNLOAD menu item and press ENTER. The Flash Download screen displays.

TFTP DOWNLOAD. WILL COMMIT TO FLASH. REBOOT IN PROGRESS...

Device Type: 2H28-08R

EXECUTE

2H28-08R LOCAL MANAGEMENT

Flash Download

Download Method: Reboot After Download: TFTP Gateway IP Addr:

Last Image Server IP:

Last Image File Name:

Download Server IP:

Download File Name:

EXIT

[TFTP] [YES]

134.141.79.123

134.141.79.121 /tftpboot/2H28.hex

Figure 5-20 Flash Download Screen

Download Server IP and Download File Name display only

NOTE

when TFTP or RUNTIME are selected in Download Method.

Firmware Revision: XX.XX.XX BOOTPROM Revision: XX.XX.XX

RETURN

2286-49

The following deﬁnes each ﬁeld of the Flash Download screen:

Download Method (Selectable)

This ﬁeld toggles between BOOTP, TFTP, and RUNTIME. If set for BootP, the device sends out a BootP request to determine the IP address of the TFTP server and the ﬁle name of the image to be downloaded. If set for TFTP or RUNTIME, the 2H28-08R attempts a TFTP download based on the IP address and ﬁle name entered in the ﬁelds at the bottom of the Flash Download screen. Section 5.14.3 describes how to download using

2H28-08R SmartSwitch 2208 User’s Guide 5-49

Chapter 5: Local Management

BootP. Section 5.14.1 describes how to download using TFTP.

Section 5.14.2 describes how to download using Runtime.

Reboot After Download (Modiﬁable only when user chooses RUNTIME)

This ﬁeld notiﬁes the user that the 2H28-08R will reboot after completing the download. If a Runtime Download is performed, this ﬁeld toggles between YES and NO. If YES is selected, the device reboots after the download is completed. If NO is selected, the device continues using the existing ﬁrmware image and stores the new ﬁrmware image in FLASH memory . When the device is reset or during the next power-up, the de vice boots from FLASH memory using the new image.

TFTP Gateway IP Addr (Modiﬁable)

This ﬁeld shows the IP address of the TFTP gate way serv er deﬁned on the General Conﬁguration screen in Section 5.7.4.

Last Image Server IP (Read-only)

This ﬁeld shows the IP address of the server used for the pre vious FLASH Download.

Last Image File Name (Read-only)

This ﬁeld shows the complete path and ﬁle name of the last image downloaded to FLASH.

If TFTP or RUNTIME is selected as the download method (Figure 5-20), the following two additional ﬁelds display:

Download Server IP (Modiﬁable)

The IP address of the TFTP server to be used for the FLASH download is entered in this ﬁeld.

Download File Name (Modiﬁable)

The complete TFTP server path and ﬁle name of the new image is entered in this ﬁeld.

5.14.1 Image File Download Using TFTP

To download a ﬁrmware image to the 2H28-08R using TFTP, proceed as follows:

1. Use the arrow keys to highlight the Download Method field.

5-50 2H28-08R SmartSwitch 2208 User’s Guide

Flash Download Screen

2. Use the SPACE bar to select TFTP.

3. Use the arrow keys to highlight the TFTP Gateway IP Addr field.

4. Set the IP address of the TFTP gateway server (this defaults to the

same IP address as that set in the TFTP Gateway IP Addr field on the General Configuration screen). To set the IP address, refer to

Section 5.7.4.

5. Use the arrow keys to highlight the Download Server IP field.

6. Enter the IP address of the TFTP server using the DDN format.

For example: 134.141.79.121

7. Use the arrow keys to highlight the Download File Name field.

8. Enter the complete pathway and file name of the image stored on the

download server. For example: /tftpboot/2H28.hex

9. Use the arrow keys to highlight EXECUTE at the bottom of the screen

and press ENTER. The message “TFTP DOWNLOAD. WILL COMMIT TO FLASH. REBOOT IN PROGRESS...” displays in the event message line at the top of the screen and the new image is downloaded into FLASH memory.

5.14.2 Image File Download Using Runtime

To download a ﬁrmware image to the 2H28-08R using Runtime, proceed as follows:

1. Use the arrow keys to highlight the Download Method field.

2. Use the SPACE bar to select RUNTIME.

3. Use the arrow keys to highlight the Reboot After Download field.

4. Use the SPACE bar to select either YES or NO. Select YES if you

want the device to reboot after the download is completed. Select NO if you want the device to store the new image in FLASH memory until the device is reset or during the next power-up.

5. Use the arrow keys to highlight the TFTP Gateway IP Addr field.

2H28-08R SmartSwitch 2208 User’s Guide 5-51

Chapter 5: Local Management

6. Set the IP address of the TFTP gateway server (this defaults to the

same IP address as that set in the TFTP Gateway IP Addr field on the General Configuration screen). To set the IP address, refer to

Section 5.7.4.

7. Use the arrow keys to highlight the Download Server IP field.

8. Enter the IP address of the TFTP server using the DDN format.

For example: 134.141.79.121

9. Use the arrow keys to highlight the Download File Name field.

10. Enter the complete pathway and file name of the image stored on the

download server. For example: /tftpboot/2H28.fls

11. Use the arrow keys to highlight EXECUTE at the bottom of the screen

5.14.3 Image File Download Using BootP

To download a ﬁrmware image to the 2H28-08R using BootP, proceed as follows:

1. Use the arrow keys to highlight the Download Method field.

2. Use the SPACE bar to select BOOTP.

3. Use the arrow keys to highlight the TFTP Gateway IP Addr field.

4. Set the IP address of the TFTP gateway server (this defaults to the

same IP address set in the TFTP Gateway IP Addr field in the General Configuration screen). To set the IP address, refer to Section 5.7.4.

5. Use the arrow keys to highlight EXECUTE at the bottom of the screen

and press ENTER. The message “BOOTP DOWNLOAD. WILL COMMIT TO FLASH. REBOOT IN PROGRESS...” displays in the

5-52 2H28-08R SmartSwitch 2208 User’s Guide

Cabletron Systems 2H28-08R User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

NOTICE

CONTENTS
