RapidRun® Optical Wall Plates

Use with a RapidRun Optical Runner for any display requiring an HDMI connection for audio/video

OVERVIEW

RapidRun Optical is designed to be the standard for in-wall audio/video installations. Using pre-terminated break-away ﬂying leads and wall plates with an in-wall runner ensures ﬂexible, efﬁcient, high quality connections for all types of equipment, with no ﬁeld terminations.

Ideal for high resolution displays utilizing HDMI, DVI and DisplayPort—these wall plates receive HDMI from the Runner cable and allow for a clean termination to a wall plate.

Please note: Each complete RapidRun Optical solution requires a break-away ﬂying lead or wall plate to terminate each end of the runner cable. Each runner requires (2) break-away ﬂying leads, (2) wall plates, OR (1) break-away ﬂying lead and (1) wall plate.

FEATURES

– Supports full 1080p, 4k, 3D HDMI features up to 1000 feet, which meet and exceed today’s HDMI requirements – Utilizes ﬁber cabling, so no need to worry about EMI/RFI interference that is present in copper cabling – Powered with USB at the display side, which allows the source side to be clean of excess cables

APPLICATIONS

– In-wall rated HDMI signal extension – Long distance HDMI signal extension

Page 2

TECHNICAL MARKETING DOCUMENT

ELECTRICAL CHARACTERISTICS:

Resolutions Supported: 4k x 2k 60Hz, 4k x 2k 30Hz, 1080p, 720p, 480p HDMI Features Supported: Ethernet Return Channel, HDMI High Speed, HDCP, EDID, CEC,

Audio Return Channel Power Consumption: Max 5V @ 135mA Idle: 5V @ 125mA Normal Operation: 5V @ 128mA

PHYSICAL CHARACTERISTICS:

Flying Lead Length: 4 inches Color Designation: Optical Temperature Rating: 0°C ~ 70°C Humidity: 0% ~ 90% RH Bend Radius: 5mm Compliance: UL/CSA, CE, FCC, RoHS2

SPECIFICATIONS:

RapidRun Optical Wall Plates

ITEM DESCRIPTION

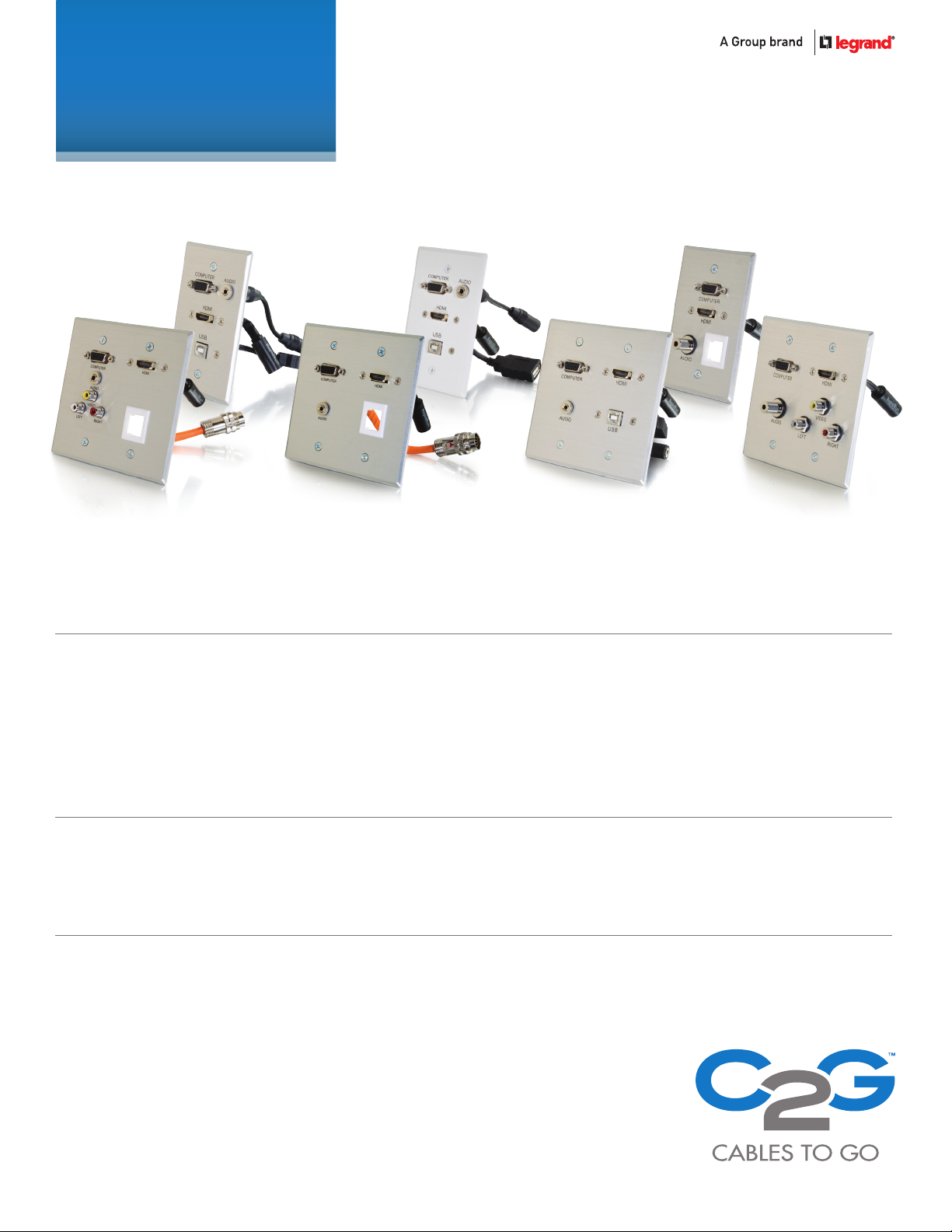

60134 RapidRun HDMI, VGA, Stereo Audio, Composite Video and Audio Double Gang Wall Plate with One Keystone – Aluminum 60135 RapidRun HDMI, VGA and Stereo Audio Double Gang Wall Plate with One Keystone – Aluminum 60136 RapidRun HDMI Double Gang Wall Plate with VGA, Stereo Audio and USB – Aluminum 60137 RapidRun HDMI Double Gang Wall Plate with VGA, Stereo Audio, Composite Video and Audio – Aluminum 60138 RapidRun HDMI Single Gang Wall Plate with VGA, Stereo Audio and One Keystone - Aluminum 60139 RapidRun HDMI Single Gang Wall Plate with VGA, Stereo Audio and USB – White 60140 RapidRun HDMI Single Gang Wall Plate with VGA, Stereo Audio and USB – Aluminum 60147 RapidRun Dual HDMI, VGA, Stereo Audio, Composite Video + RCA Stereo Audio Double Gang Wall Plate – Aluminum 60148 RapidRun Dual HDMI Double Gang Wall Plate with One Decora Compatible Cutout – White 60149 RapidRun Dual HDMI Double Gang Wall Plate with One Decora Compatible Cutout – Aluminum 60150 RapidRun HDMI Decora Style Wall Plate – White 60151 RapidRun HDMI Decora Style Wall Plate with One Keystone – White 60152 RapidRun HDMI Single Gang Wall Plate with VGA + Stereo Audio Pass Through – Aluminum 60153 RapidRun HDMI, VGA + Stereo Audio Single Gang Wall Plate – Aluminum 60154 RapidRun HDMI, VGA + Stereo Audio Single Gang Wall Plate with USB Pass Through – White
