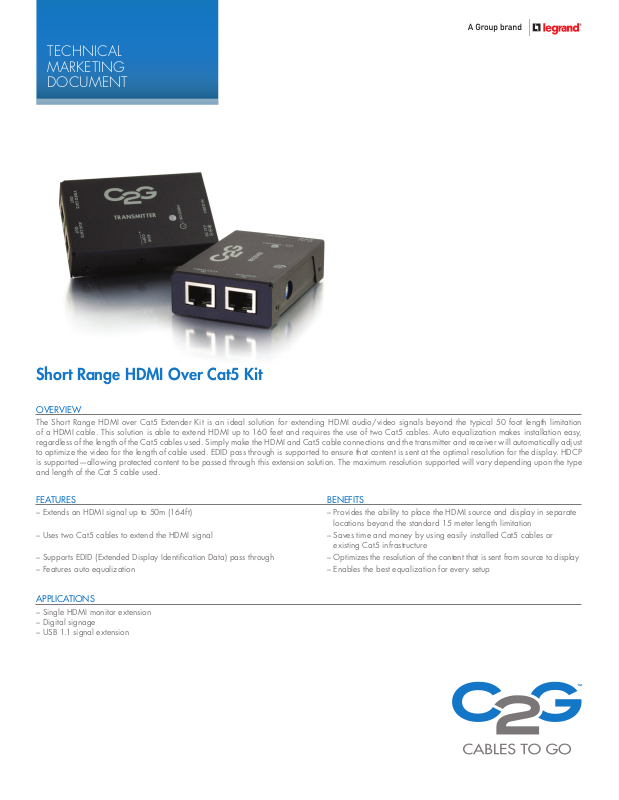

Page 1
TECHNICAL
MARKETING
DOCUMENT
Short Range HDMI Over Cat5 Kit
OVERVIEW
The Short Range HDMI over Cat5 Extender Kit is an ideal solution for extending HDMI audio/video signals beyond the typical 50 foot length limitation
of a HDMI cable. This solution is able to extend HDMI up to 160 feet and requires the use of two Cat5 cables. Auto equalization makes installation easy,
regardless of the length of the Cat5 cables used. Simply make the HDMI and Cat5 cable connections and the transmitter and receiver will automatically adjust
to optimize the video for the length of cable used. EDID pass through is supported to ensure that content is sent at the optimal resolution for the display. HDCP
is supported—allowing protected content to be passed through this extension solution. The maximum resolution supported will vary depending upon the type
and length of the Cat 5 cable used.
FEATURES BENEFITS
– Extends an HDMI signal up to 50m (164ft) – Provides the ability to place the HDMI source and display in separate
locations beyond the standard 15 meter length limitation
– Uses two Cat5 cables to extend the HDMI signal – Saves time and money by using easily installed Cat5 cables or
existing Cat5 infrastructure
– Supports EDID (Extended Display Identification Data) pass through – Optimizes the resolution of the content that is sent from source to display
– Features auto equalization – Enables the best equalization for every setup
APPLICATIONS
– Single HDMI monitor extension
– Digital signage
– USB 1.1 signal extension
Page 2
TECHNICAL
MARKETING
DOCUMENT
VIDEO CHARACTERISTICS:
Maximum Video Resolution
Extension Distance: 1080p
Cat6 - 1080i - 50m
Cat6 - 1080p - 40m
Cat5e (solid conductor) - 1080i - 50m
Cat5e (solid conductor) - 1080p - 20m
Cat5e (stranded conductor) - 1080i - 40m
Cat5e (stranded conductor) - 1080p - 16m
PHYSICAL CHARACTERISTICS:
Dimensions (HxWxD): 0.8 x 2.0 x 3.1in
Operating Temperature: 0~40°C, 0~80% RH (non-condensing)
Storage Temperature: 0~40°C, 0~80% RH (non-condensing)
Enclosure: Metal
POWER ADAPTER SPECIFICATIONS:
Input: 100~240 VAC, 50~60Hz, 0.6A
Output: 12 VDC, 1.5A
Cable Length: 5 feet
Pin Diameter: OD: 5.5mm, ID: 2.1mm
Center Pin Polarity: Positive
KIT CONTENTS:
Transmitter
Receiver
Page 3
TECHNICAL
TECHNICAL
MARKETING
MARKETING
DOCUMENT
DOCUMENT

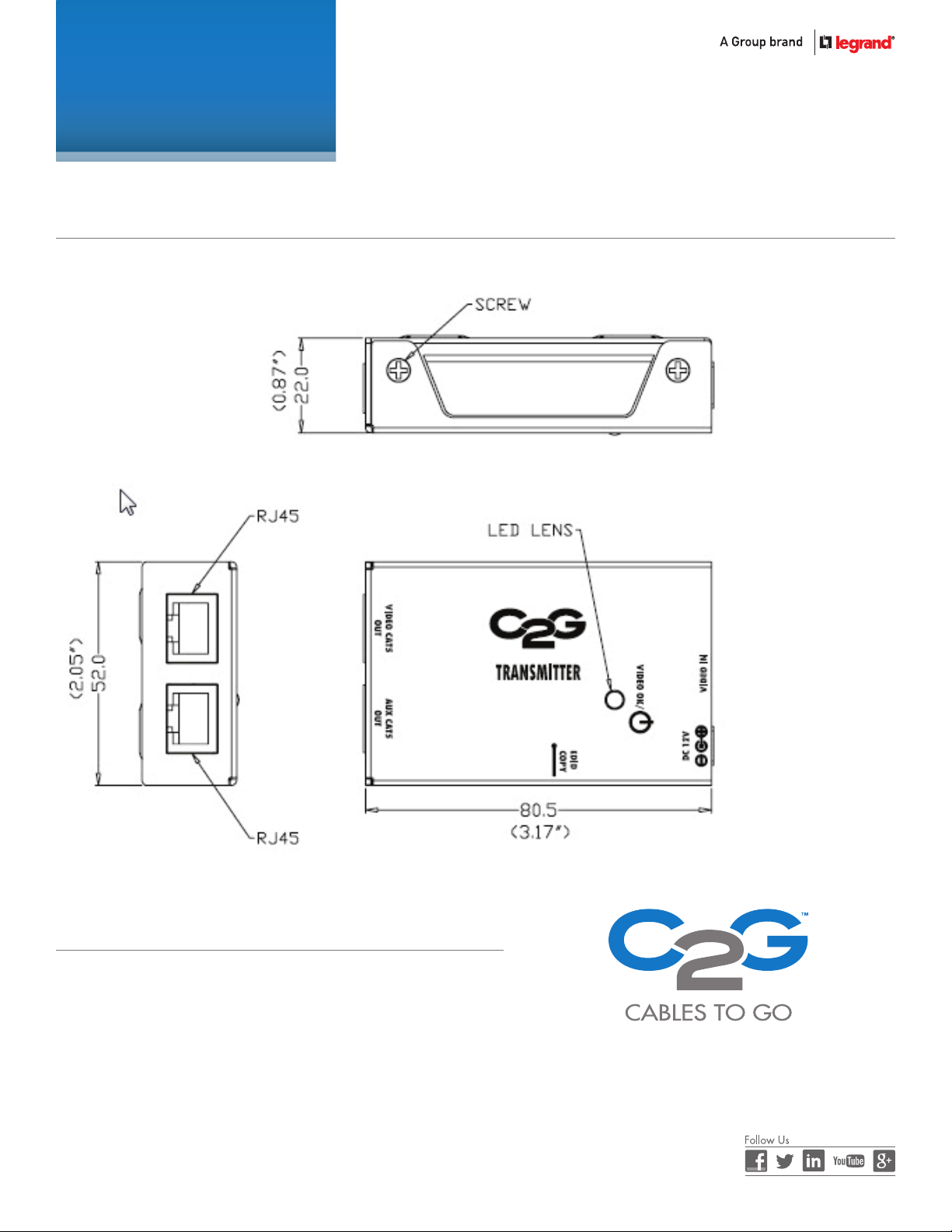

PRODUCT DRAWINGS:
SPECIFICATIONS:
Short Range HDMI Over Cat5 Kit
ITEM DESCRIPTION
29298 Short Range HDMI Over Cat5 Extender Kit
© 2014 Legrand All Rights Reserved rev.06/14 TMD–11848_05.14_PDF
Cables To Go
3555 Kettering Blvd.
Moraine, OH 45439
Phone: 800.287.2843
www.c2g.com
