CABASSE ANTIGUA IN WALL MT30, TOBAGO MT30, JERSEY MT30, ALDERNEY MT30, ORION MT30 Specifications

...

Download

Page 1

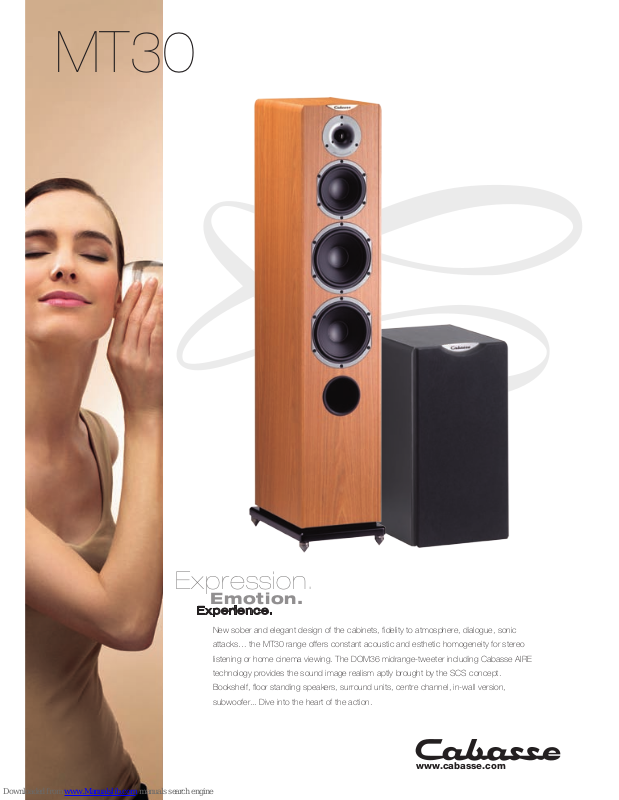

New sober and elegant design of the cabinets, fidelity to atmosphere, dialogue, sonic

attacks… the MT30 range offers constant acoustic and esthetic homogeneity for stereo

listening or home cinema viewing. The DOM36 midrange-tweeter including Cabasse AIRE

technology provides the sound image realism aptly brought by the SCS concept.

Bookshelf, floor standing speakers, surround units, centre channel, in-wall version,

subwoofer... Dive into the heart of the action.

www.cabasse.com

Expression.

Emotion.

Experience.

ALTURA MC

MT30

Page 2

Because of technical improvements already under way in our constant search for optimum quality, Cabasse reserves the right to modify all the models presented in specification sheets, advertising materials and manuals without prior notice. - DC0235 - 08/08

YOUR CABASSE DEALER

www.cabasse.com

MT30

TOBAGO

Main speaker

JERSEY

Main speaker

ALDERNEY

Main speaker

ORION

Active subwoofer

ANTIGUA IN WALL

In wall

ANTIGUA

Main speaker

SOCOA*

Center

PICO

Surround

Position floorstanding floorstanding floorstanding floorstanding in wall booksheft / Stand on / under screen booksheft / On wall

Ways 2 2 3 1 2 2 2 2

Drivers complement

1 tweeter

DOM 36

2 x 13 cm/5” 13TD15

1 tweeter

DOM 36

2 x 17 cm/7” 17TD15

1 tweeter DOM 36

1 x 13 cm/5” 13TD15M

2 x 17 cm/7” 17T15

1 x 21 cm/8”

21 MT3

1 tweeter

DOM 36

1 x 17 cm/7” 17T15

1 tweeter

DOM 36

2 x 17 cm/7” 17T15

1 tweeter

DOM 36

2 x 13 cm/5” 13TD15TV

1 tweeter

DOM 36

1 x 13 cm/5” 13TD15

Sensivity 1 W/1 m 88 dB 91 dB 91 dB active 91 dB 89.5 dB 88 dB 88 dB

Cross-over points 3,500 Hz 2,800 Hz 900 - 3,000 Hz adjustable 30-180 Hz 3,500 Hz 3,000 Hz 4,000 Hz 2,800 Hz

Frequency response 55 - 23,000 Hz 58 - 22,000 Hz 59 - 23,000 Hz 35 - 200 Hz 80 - 23,000 Hz 69 - 23,000 Hz 70 - 23,000 Hz 110 - 23,000 Hz

Nominal impedance 8 ohms 8 ohms 8 ohms active 8 ohms 8 ohms 8 ohms 8 ohms

Minimum impedance 4.7 ohms 4.5 ohms 3.6 ohms active 6.9 ohms 4.3 ohms 4.9 ohms 4.2 ohms

Power handing / Peak power 85 / 600 W 100 / 700 W 110 / 770 W 250 / 750 W 75 / 550 W 75 / 550 W 85 / 600 W 70 / 500 W

Dimensions (h x w x d) (cm) (inches)

95 x 19 x 32

37“5 x 7“1 x 12“7

99 x 22 x 32

39“ x 8“2 x 12“7

108 x 24 x 37

42“1 x 9“5 x 14“7

42 x 31 x 43

16“1 x 12“1 x 16“11

32 x 27 x 10

12“7 x 10“2 x 3“11

41 x 23 x 30

16“1 x 10“2 x 11“5

16 x 48 x 37

6“1 x 18“11 x 14“7

34 x 18 x 12

13“5 x 10“1 x 4“3

Weight (kg)

(lbs)

16 35

18.5 41

21 46

16 35

3.5 8

8.6 19

10.5 23

4.5 10

Standard finish

Wenge / black front grill Cherry / black front grill

Wenge / Cherry Paintable white

Wenge / black front grill Cherry / black front grill

* Magnetic shielding

ANTIGUA

JERSEY

SOCOA

TOBAGO ALDERNEY

PICO

ORION SUBWOOFER

ANTIGUA IN WALL
