A Letter to Our Customers
Dear Customers,
Congratulation for selecting the cab e2 series printer!
We believe soon you will find that you have made clever choice!
This booklet is intended for helping you to know your printer better,
then further to optimize it.
Basically , this booklet contains two part s:
operation guidance and related valuable information.
In the part of the operation guidance, we will furnish you
with a lot of complementary illustrations, so you may pick
up those operation guides more quickly.
In the later chapters of T rouble Shooting, Maintenance as
well as Reference T echnical information, which we think,
you may need them just in case. Therefore, for your quick
reference, we try to table them as much as possible.
Enjoy your reading and have a good time with your printer!
Best wishes,
cab Produkttechnik GmbH u. Co.KG
4 cab Produkttechnik GmbH
Contents
Proprietary Statement ......................................................................................................2
Checking Y our Box...........................................................................................................5
Power Supply...................................................................................................................6
Parts and Features ..........................................................................................................7
Loading the Ribbon..........................................................................................................9
Loading the Media .........................................................................................................12
Peel Off Mode................................................................................................................16
Cutter Mode ................................................................................................................... 19
OPERA TOR CONTROLS ..............................................................................................20
Performing Calibration ...................................................................................................21
Printing Configuration Report .........................................................................................21
Resetting the Printer to Factory Default Settings.............................................................21
Hooking up the Printer and Computer.............................................................................22
Parallel Interface Requirements......................................................................................23
Communicate with the Printer.........................................................................................24
Installing Driver...............................................................................................................25
Troubleshooting..............................................................................................................36
D. Miscellaneous............................................................................................................38
Caring for Y our Printer....................................................................................................40
Replacing Thermal Print Head........................................................................................40
Reference T echnical Information .....................................................................................41
Printer Programming Language A, PPLA...................................................................... 43
Interface Specifications ..................................................................................................44
ASCII TABLE ................................................................................................................48
Appendix I - Installing Dispenser Kit................................................................................49
Appendix II - Installing the Cutter .....................................................................................53
cab Produkttechnik GmbH 5
Checking Your Box
Receiving the box of your printer, you are advised to check first for the possible shipping
damage. There are two ways you can do it:
1. Inspect the outer appearances of both the box and the printer for possible damage.
2. Raise the top cover of the printer to see if the media compartmentsare in order . If
damages did occur, immediately file the claim to the shipping comp any for settlement.
Having performed the primary inspections, next step, please check whether you have
received the following accessories together with the printer. If there is any item missing,
contact your local dealer to get it.
6 cab Produkttechnik GmbH
Power Supply
WARNING:
NEVER OPERATE THE PRINTER AND POWER SUPPLY IN AN AREA WHERE
THEY CAN GET WET.
1. The Power Adapter has a barrel connector on one end that must be inserted into the
power jack on the back of the printer.
2. Plug the other end of the cord into an appropriate AC electrical outlet.
3. When plugging the connector into power jack, please leave the power switch at
„O“position and don’t touch the 36 pin parallel connector .
cab Produkttechnik GmbH 7
Parts and Features
8 cab Produkttechnik GmbH
cab Produkttechnik GmbH 9
Loading the Ribbon
Note: This section is not applicable to the direct thermal printing.
1. Lift the top cover to expose the media compartment.
2. Unlatch the print head module by pushing the two white release levers on the sides
toward the rear.
3. Turn over the print head module to expose the ribbon supply holder .
10 cab Produkttechnik GmbH
4. Unwrap the ribbon roll pack and separate the ribbon roll and the bare core.
5. Attach the edge of the ribbon on the bare core and wind it a little bit onto the core.
6. Insert the ribbon roll into the supply holder. ( first snap in the lef t side and then the right
side)
7. Turn back the print head module and then insert the bare core into the pick-up holder .
(first snap in the left side, then the right side)
cab Produkttechnik GmbH 11
8. Turn the wheel of the print head module to ensure the ribbon is tightly wound.
9. Press down the print head module firmly till you hear a snap.
12 cab Produkttechnik GmbH
Loading the Media
e2 printers can be operated in three different options: standard, peel-off, or with a cutter .
- St andard mode allows you to collect each label freely.
- In peel-off mode, the backing material is being peeled away from the label as it is
printed. After the former label is removed, the next one will be printed.
- In cutter mode, the printer automatically cuts the label after it is printed.
Standard Mode
1. Lift the top cover to expose the media compartment.
2. Remove the media hanger.
3. Load the media roll onto the hanger from the left.
cab Produkttechnik GmbH 13
4. Click the media hanger back to the media compartment.
5. Move the media roll to the left end.
6. Move the shield to the left next to the media.
14 cab Produkttechnik GmbH
7. Unlatch the print head module.
8. Hold the print head module upright with one hand to allow the media pass under it.
Lead the media through the media guides with the other hand.
9. Lead the media over the platen roller.
cab Produkttechnik GmbH 15
10. Turn back the print head module and then press it down firmly till you hear a snap.
1 1. Close the top cover and turn on the printer or press the feed button if the printer is
already on.
16 cab Produkttechnik GmbH
Peel Off Mode
(Installing the dispenser kit, please refer to the Appendix I)
Follow the common procedure of „Loading the Media“of Standard Mode from step 1 to
step 8.
9. Remove approximately 6" long labels from the label backing paper .
cab Produkttechnik GmbH 17
10. Trim the edge of the label backing p aper with scissor or knife.
1 1. Lead the backing paper over the dispenser bar , then thread it back into the slot
between the dispenser bar and H cover, ensuring that it is inserted between white
plastic roller and platen roller.
18 cab Produkttechnik GmbH
15. Close the top cover and turn on the printer or press the „FEED“ button if the printer is
already on.
Note : The „FEED“ button will not drive the printer to peel. The peeling work can be
executed only when the softwaresetting is ready .

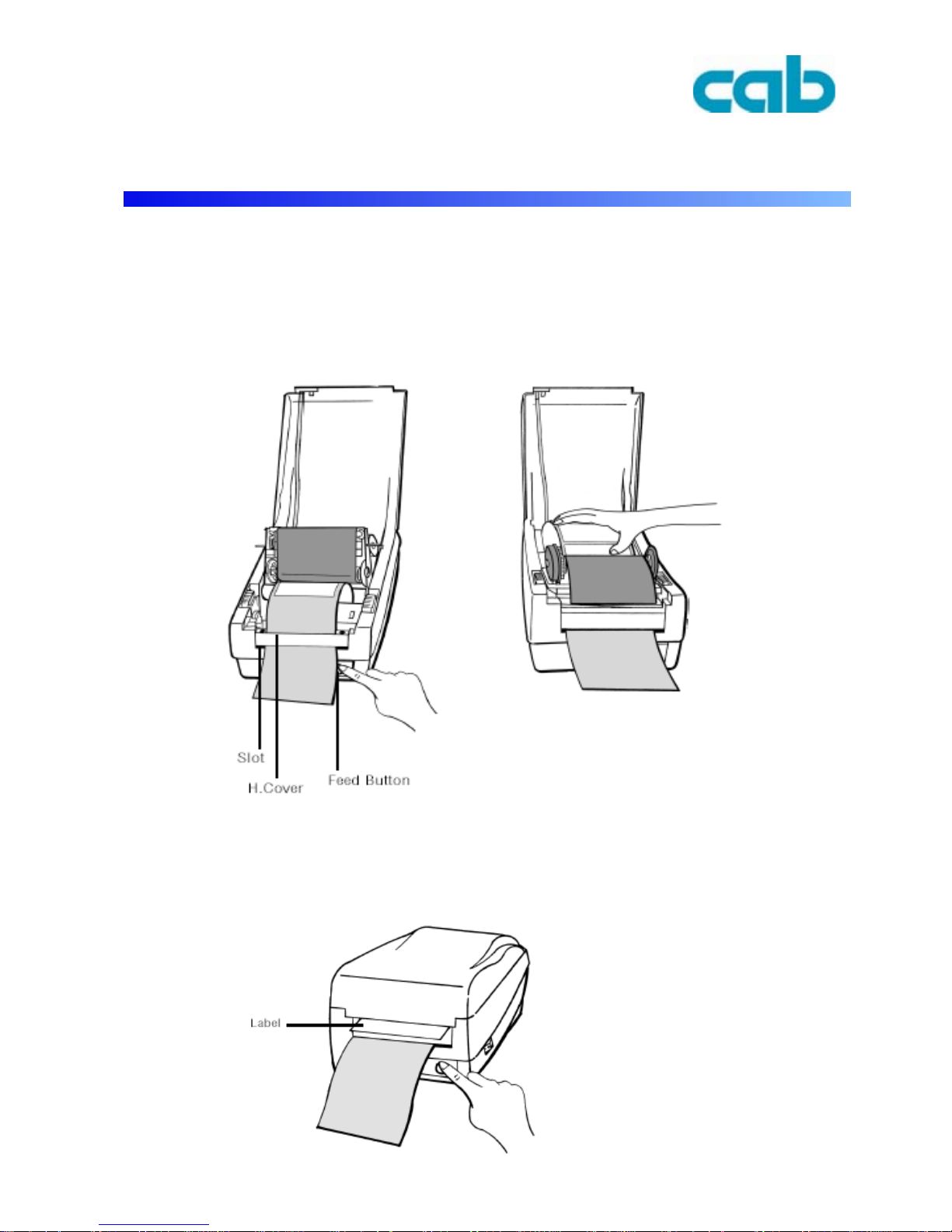

12. Press „FEED“ button and the label backing paper will come out from the slot under the
H cover.
13. On e2 Peel-Off mode, powered on status, in case of improper installation, just keep
pressing the „FEED“button to back-feed thelabel stock to re-install it.
14. To remove any slack, just rewind the media onto the roll. Press down the print head
module firmly .
cab Produkttechnik GmbH 19

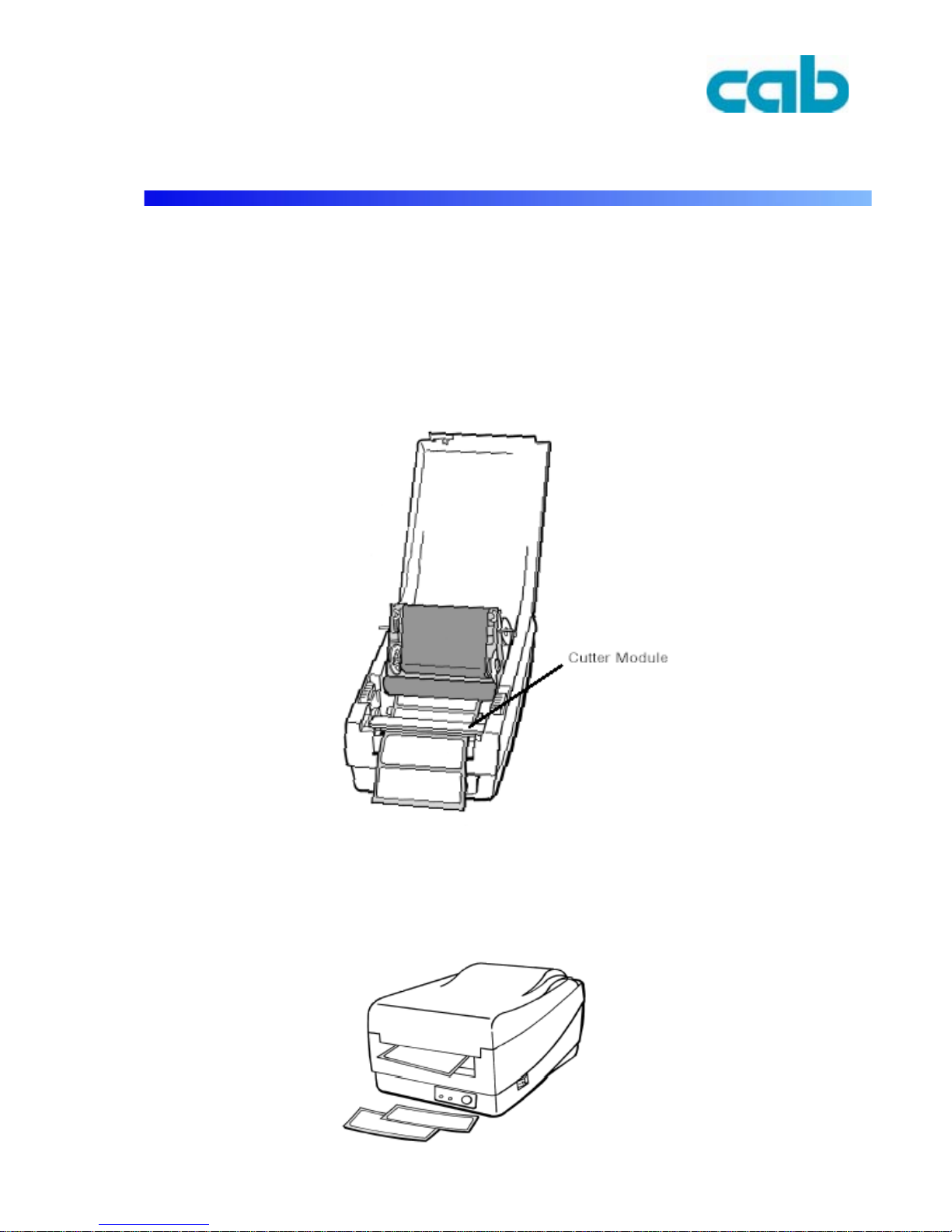

Cutter Mode
(Installing the cutter , please refer to Appendix II )
Follow the same procedure as „Loading the Media“ from step 1 to step 8.
9. Thread the media over the platen roller , then route the media through the slot of the
cutter module.
10. Press down the print head module firmly .
1 1. Close the top cover and turn on the printer or press the „FEED“ button if the printer is
already on.
Note : The „FEED“ button will not drive the printer to cut. The cutting work can be executed
only when the software setting is ready .
20 cab Produkttechnik GmbH

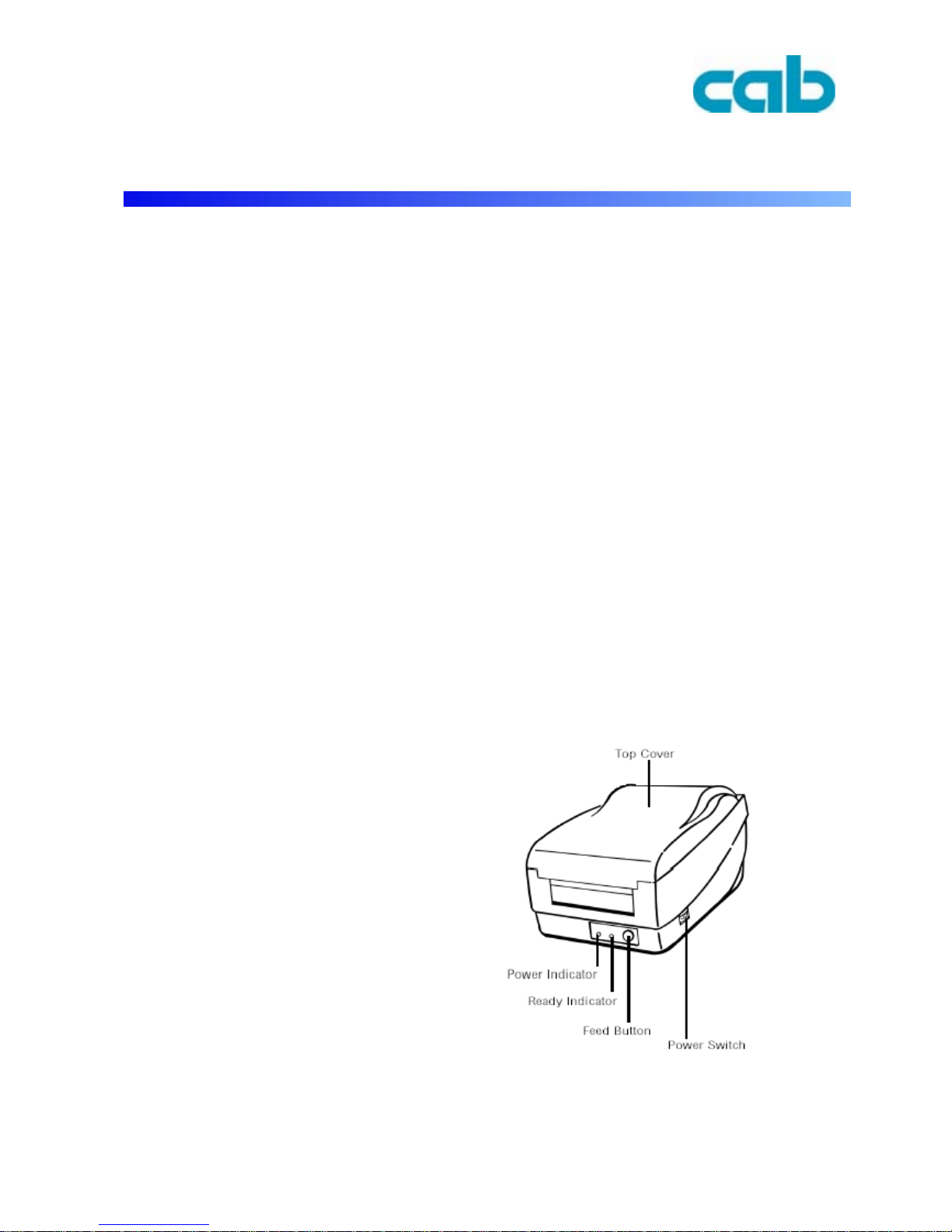

OPERA TOR CONTROLS
Power Switch
Controls printer power
On-normal operation
Off-the power should be turned off before connect or disconnect the
communication cables and power cables
Feed Button
Advance the label media to first printing position
Press-to advance a label
Press-takes the printer out of a „pause“ condition
Press-back feed the label to correct label installation, in case that label
is not properly installed.
Keep pressing while turning on the power- to print out a configuration
profile
Ready Indicator
Show the printers status
Green-printer is ready to operate
Blinking-printer is paused
Power indicator
Shows the power and error status
Off-printer power off
Green-printer power on
Blinking-error occurs
cab Produkttechnik GmbH 21
Performing Calibration
1. Keep pressing the feed button while turning on the power, until the printing motor
becomes activated.
2. The calibration has been performed while the printer automatically feed label stock for
certain length.
Note: This step is very important and must always be carried out whenever media is being
changed. Failure to do so will result in miss-detection of the label sensor.
Printing Configuration Report
1. Keep pressing the feed button while turning on the power, until the printing motor
becomes activated.
2. After feeding 12-inch blank media, the printing motor will suspend for one second, then it
will print out the configuration profile. This profile states the firmware version, ROM
checksum, RS232, thermal transfer/direct thermal settings, hardware configuration and
font types.
3. At PPLB emulation, the printer will enter character dump mode. T o exit from dump
mode, just press the feed button again.
Resetting the Printer to Factory Default Settings
1. Turn on the printer and wait for 5 or more seconds.
2. Press „Feed“ button for about 10 seconds, then the „Ready“ indicator and „Power“
indicator will go off in order .
3. While two indicators become lit again, release the feed button.
4. At this moment, the printer will feed the label stock 12 inches in length, and come back
to the factory default settings.
Note : All settings are stored in non-volatile E2PROM andcannot be destroyed even turn
off the printer.
22 cab Produkttechnik GmbH
Hooking up the Printer and Computer
Note : The power supply barrel connector must be inserted into the power jack on the back
of the printer before connecting thecommunication cables.

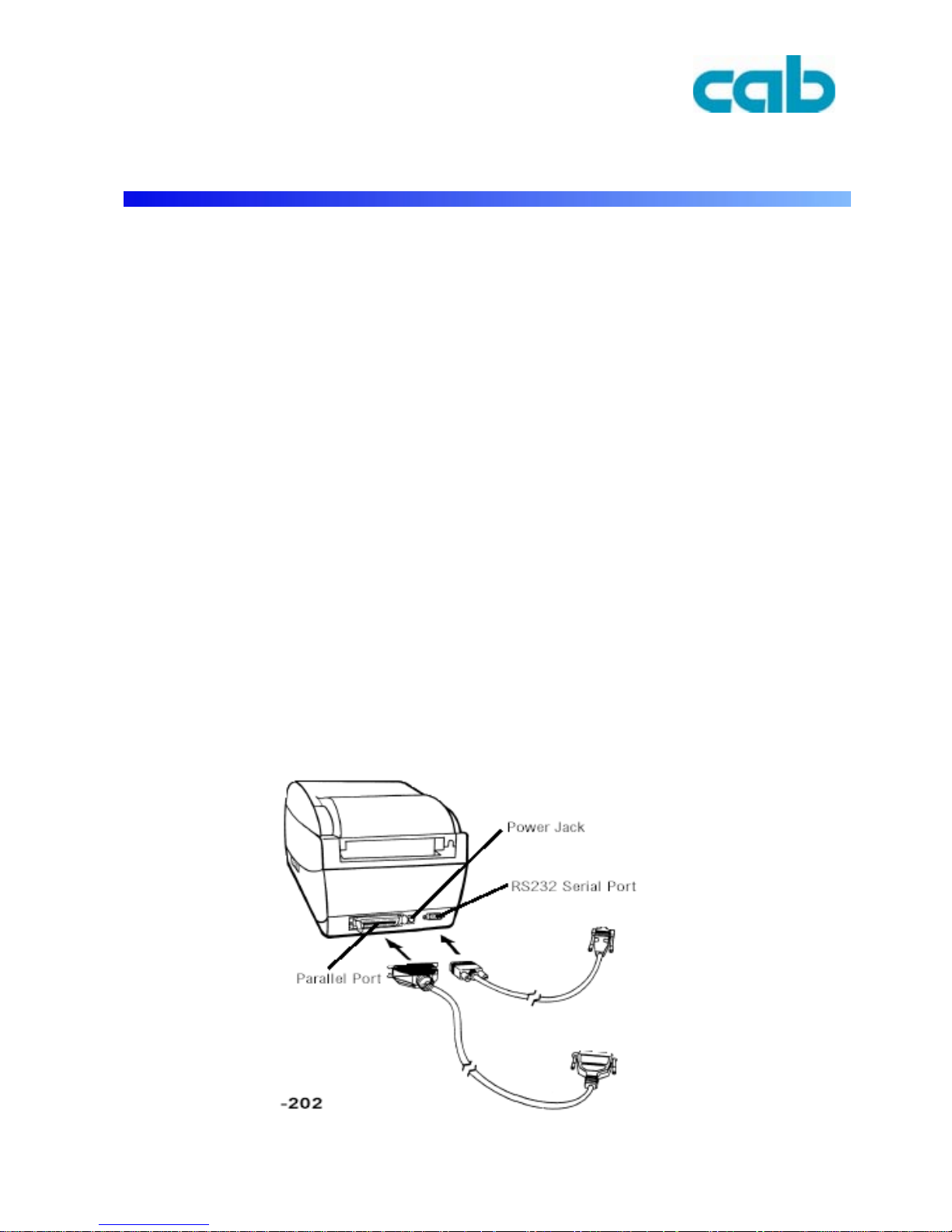

This printer comes with both a nine-pin Electronics Industries Association (EIA) RS232 serial data interface and a standard Centronics parallel interface. In either case, you
must supply the required interface cable for your application.
Note : This printer complies with FCC „Rules and Regulations“ , Part 15, for Class B
Equipment, using fully shielded six-foot data cables. Use of longer cables or unshielded
cables may increase radiated emissions above the Class B limits.
Serial (RS-232) Interface Requirements
The required cable must have a nine-pin „D“ type male connector on one end, which is
plugged into the mating serial port located on the back of the printer. The other end of this
signal interface cable connects to a serial port at the host computer .

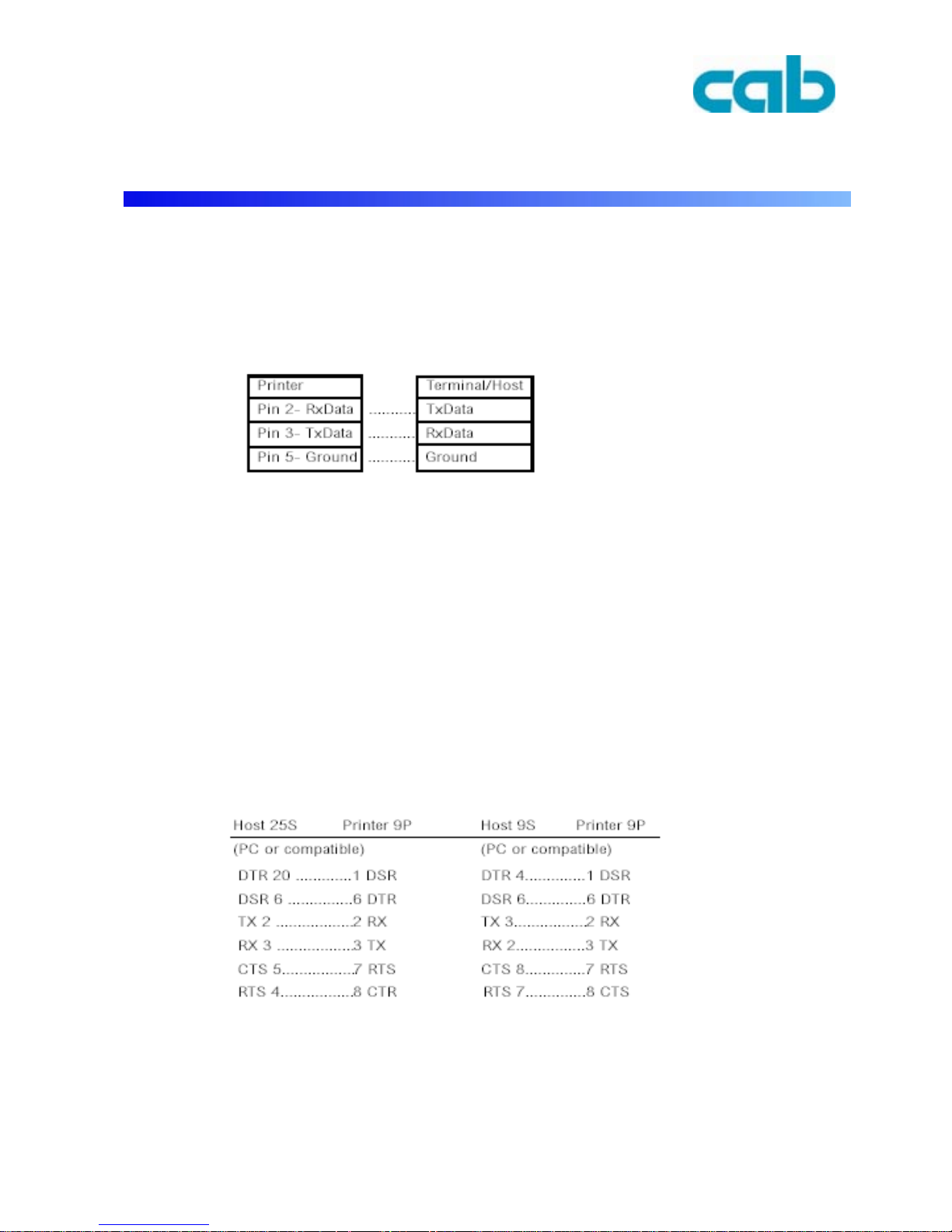

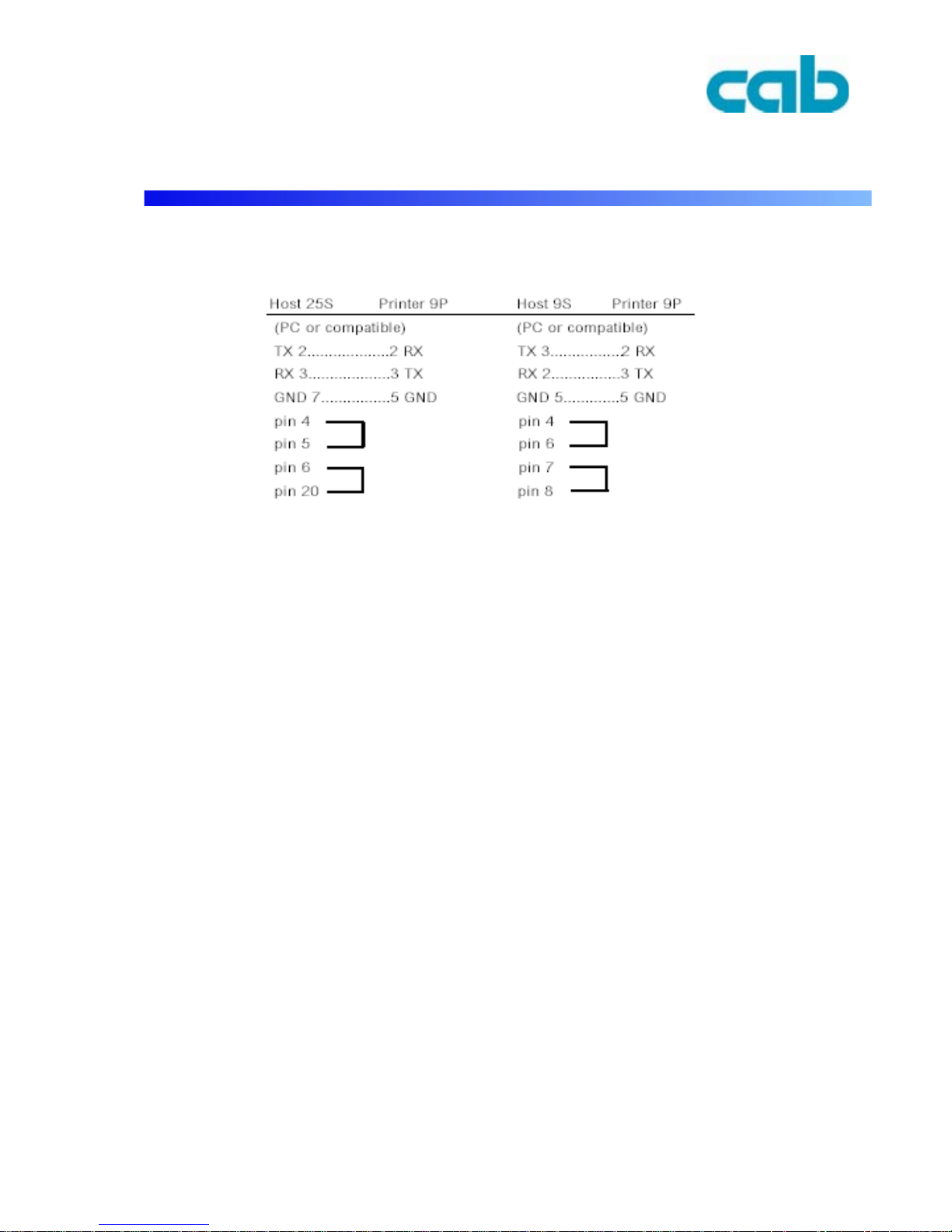

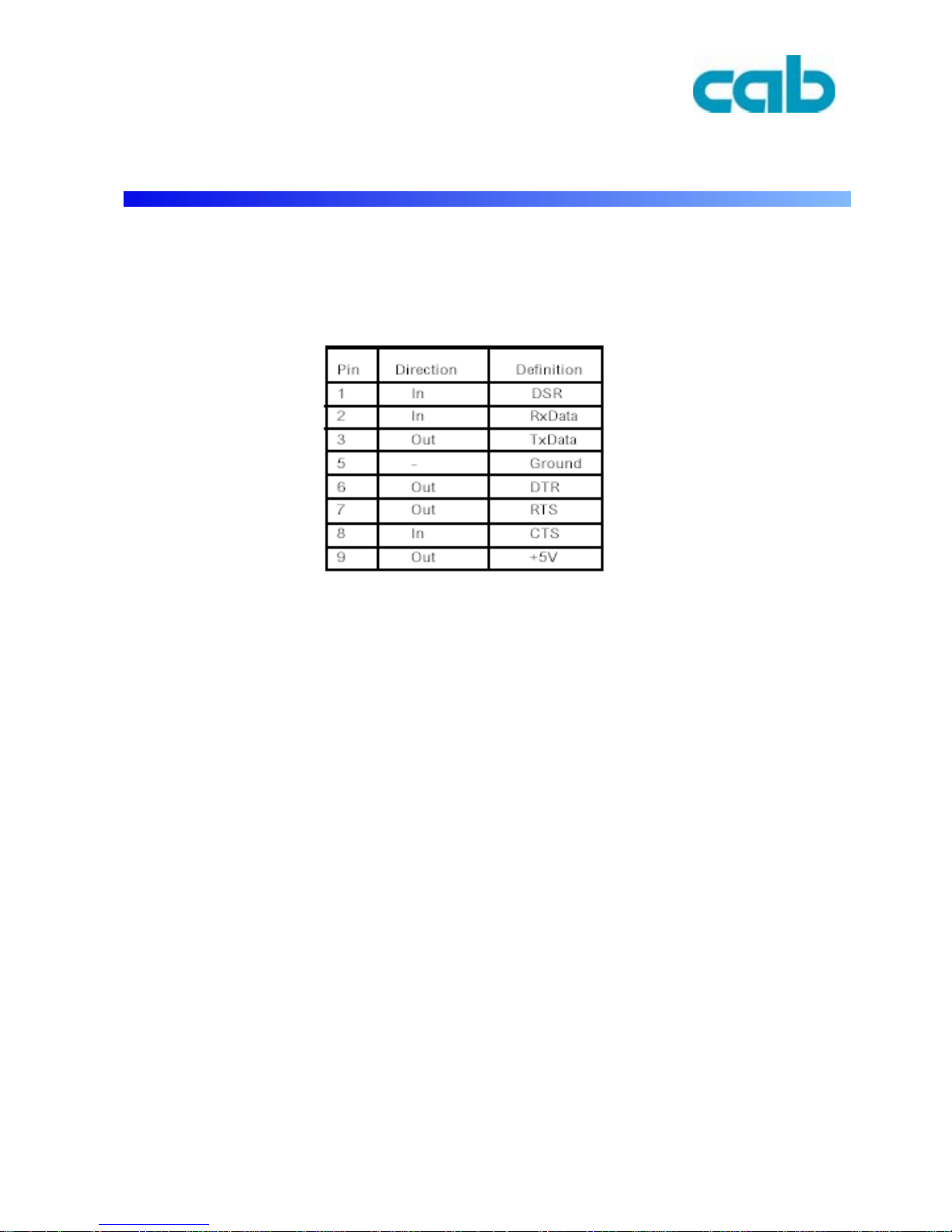

For technical and pinout information, please refer to the Reference Technical Information-Interface Specification on this booklet.
cab Produkttechnik GmbH 23
Parallel Interface Requirements
The required cable (IEEE 1284-compliant is recommended) must have a standard 36-pin
parallel connector on one end, which is plugged into the parallel port located on the back of
the printer. The other end of the p arallel interface cable connects to the printer connector at
the host computer. For pinout information, refer to the Reference Technical InformationInterface Specification. Serial and Parallel Cabling Requirements.
Data cables must be of fully shielded construction and fitted with metal or metalized
connector shells. Shielded cables and connectors are required to prevent radiation and
reception of electrical noise. T o minimize electrical noise pickup in the cable:
• Keep data cables as short as possible (6 [1.83m] recommended).
• Do not tightly bundle the data cables with power cords.
• Do not tie the data cables to power wire conduits.
Notes :
1. Using Centronics allows for a much higher speed communication than the use of a
serial.
2. It is not necessary to set the switch or send any command to select the parallel or serial
port . The printer can automatically detect it.
3. The default settings can be read from the configuration report.
24 cab Produkttechnik GmbH
Communicate with the Printer
The bundled printer driver can be applied to all the applications under
Windows 2000/98/95, and Windows NT . Through this driver you may
run any popular software applications e.g. MS-Word and print out the
contents by this label printer as long as they are for Windows.
Before installation
1. Check the contents of the driver to ensure it is complete.
2. Make a backup copy of this driver.
3. Read the README.TXT file for installation guide and change notices.
cab Produkttechnik GmbH 25
Installing Driver
1. Click the „Start“ button.
2. Select „Settings“, then select „Printers“ and double click the „Add Printer“ icon. Click
„Next“.
3. Click the „Network“ or „Local“ button and click the „Next“button.
4. Click „Have Disk“, click the pull-down menu to select CD ROM driver path.
5. Click „Browse“ button.
6. Select the proper directory for installation:
-WIN95
-WIN98
-WIN2000
-NT4.0
7. The driver name „Label Dr . 200“ (or Label Dr.300) will appear in the „List of Printers“,
click „Next“.
8. Select the communication port for the label printer. For p arallel port, select „LPT1 :“,
„LPT2 :“ or „LPT3 :“ , for serial port select „COM1 :“ or „COM2 :“.
9. After the related files have been copied to your system, theinstallation is complete.
10. If you need to print from the label printer, set „Label Dr . 200"(or Label Dr .300) as the
Default Printer.
26 cab Produkttechnik GmbH
Notes :
1. If you are just updating your driver, make sure to delete the previous version first.
2. If you install a new bar code application software like ArgoBar , LabelView or CodeSoft,
the Label Dr . 200 (orLabel Dr. 300) driver should be activated and set as the current
printer driver:
ArgoBar
File ⇒ New ⇒ Select Printer ⇒ Label Dr. on LPT1: ⇒ OK
LabelView
File ⇒ Select Printer ⇒ Label Dr. on LPT1: ⇒ OK
CodeSoft
File ⇒ Printer ⇒ Windows ⇒ Label Dr . on LPT1: ⇒ OK
LabelMatrix
File ⇒ Printer Setup ⇒ Label Dr. on LPT1: ⇒ OK
cab Produkttechnik GmbH 27
Set the Parameters

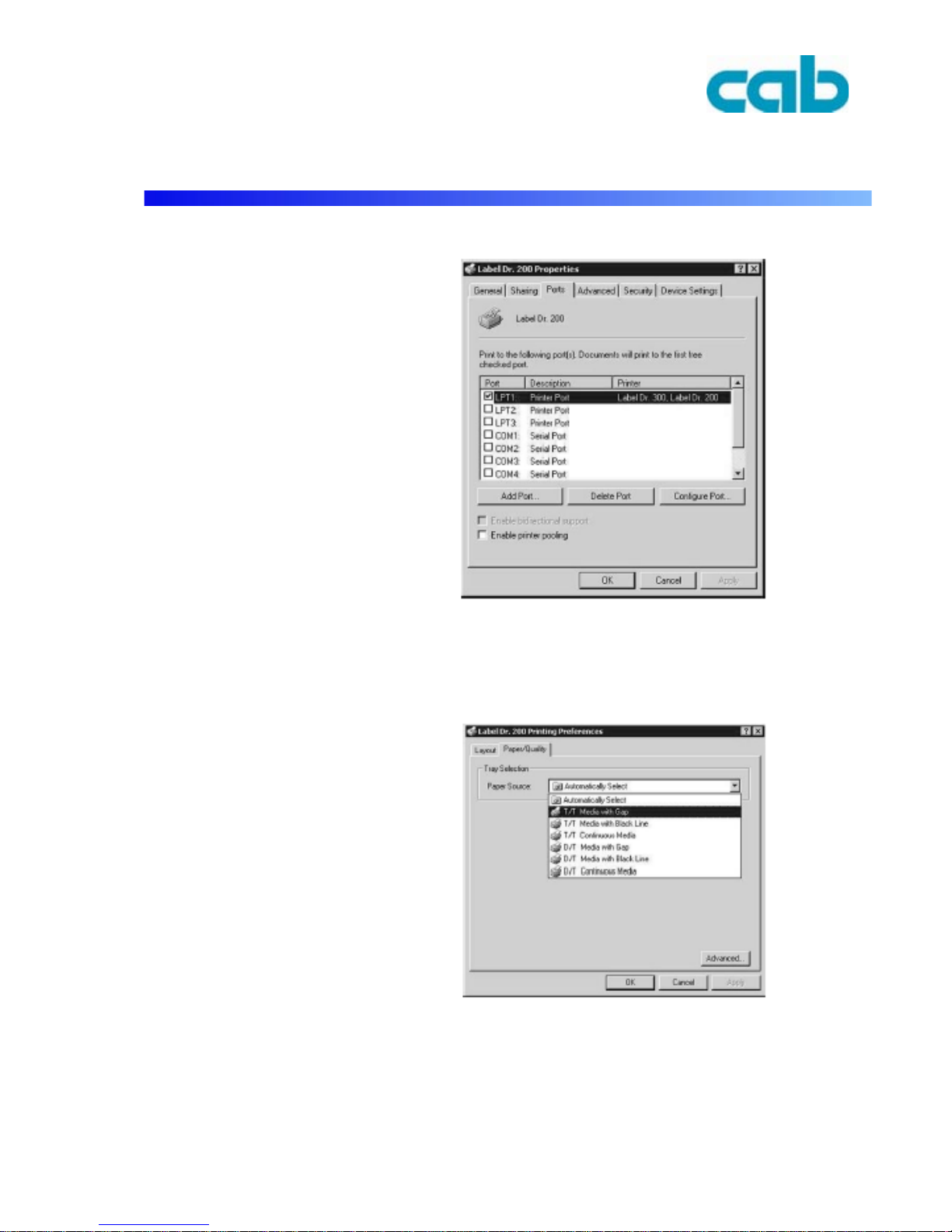

After installing the driver , you can follow the path below to set parameters:
Start ⇒ Settings ⇒ Printers ⇒ Label Dr. ⇒ Properties
The parameters include:
Ports
Select the IO port to link with the printer. The port may be one of parallel (LPT), serial
(COM), net work port or file.
Paper size
Select the proper size on the menu. If there is no desired size, select „Custom“ to define
the paper size.
Orientation
Set portrait or landscape according to the print direction.
Paper source (Media type)
T/T stands for thermal transfer(ribbon) mode and D/T for direct thermal mode (without
ribbon).
Media choice (Darkness)
Set the heat value or darkness from this field. The darkness value ranges from 0 to 15.
Copies
This function designates the number of printed copies of each page.
More option
(Accessory setting) T o use the cutter and peeler function you still need to enter More
Options and select one of the items.
Device options (Speed)
Set the print speed. For the e2 printer , the speed ranges from 1 to 3 IPS.
28 cab Produkttechnik GmbH

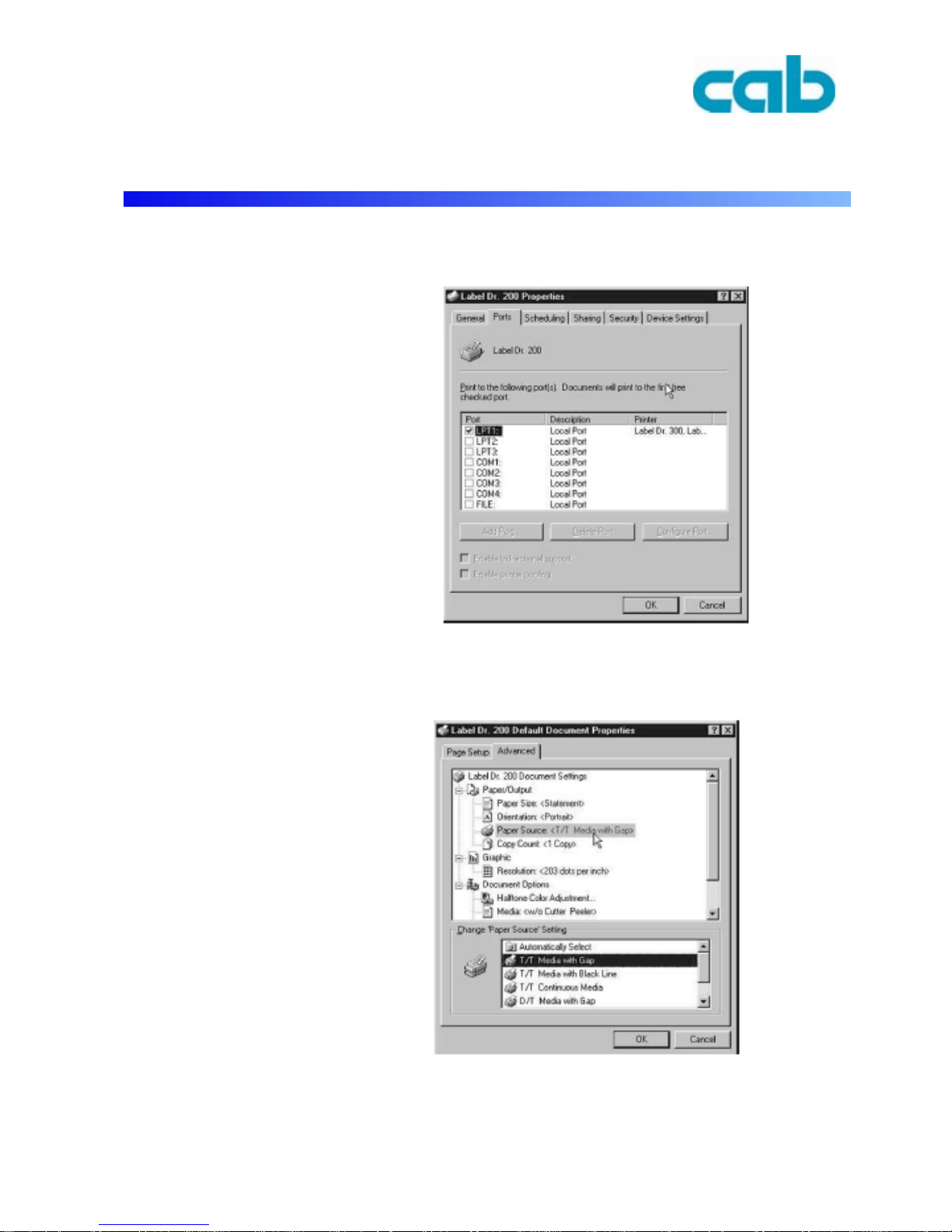

Ports
Properties menu
⇒ click „Details“
⇒ select the IO port
⇒ click „OK“
Paper size
Orientation
Paper source(Media type)
Media choice (Darkness)
Copies
Properties menu
⇒ click „Paper“
⇒ click each item to select desired
parameter
⇒ click „OK“.

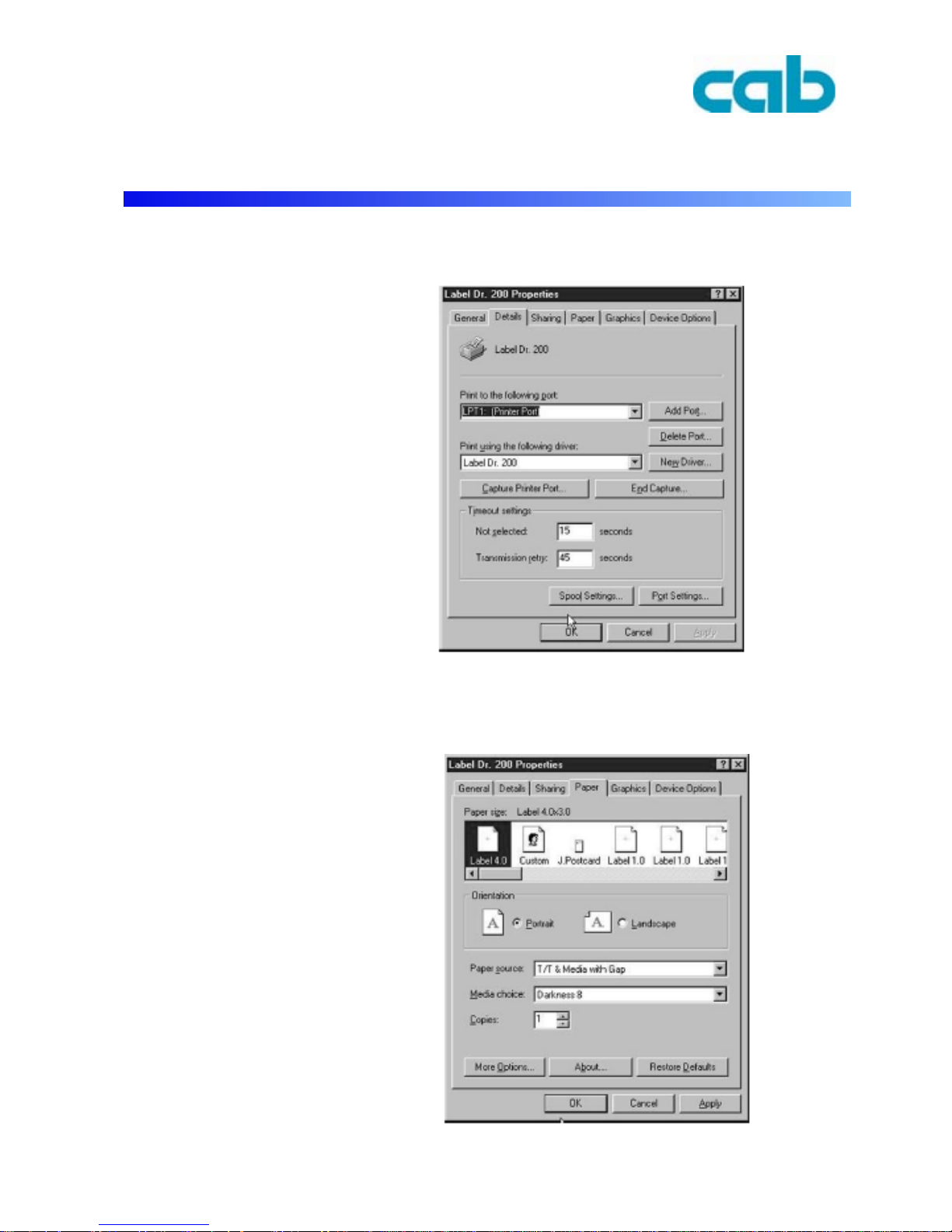

For Win 98
cab Produkttechnik GmbH 29
Output bin
(Accessory setting)
Properties menu
⇒ click „Paper“
⇒ click „more option“
⇒ select Enable/without
⇒ cutter, peeler
⇒ click „OK“
Print quality (Speed)
Properties menu
⇒ click „Device Options“
⇒ select parameters
⇒ click „OK“
30 cab Produkttechnik GmbH

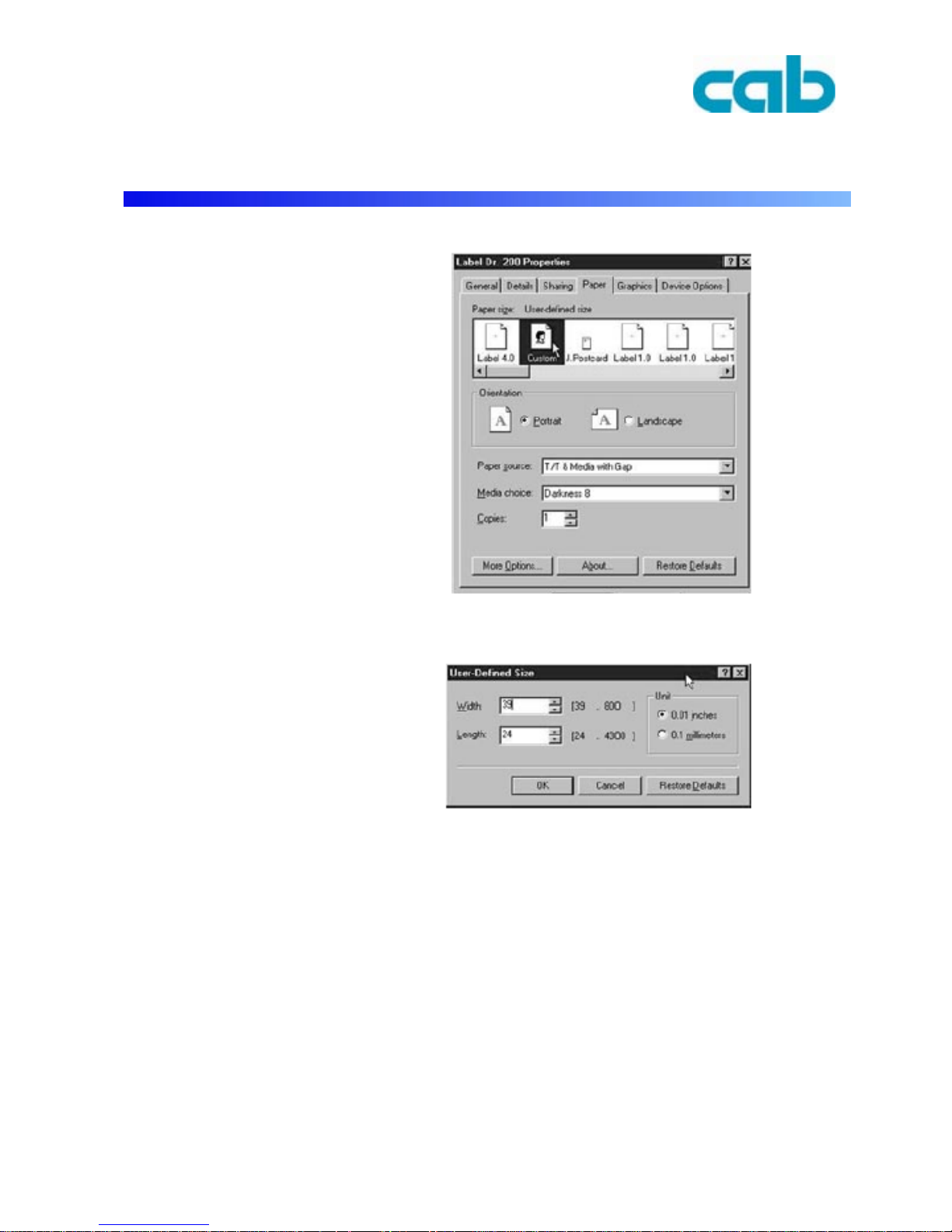

Create a new size
Properties menu
⇒ click „Paper“
⇒ select „Custom“
⇒ User-Define size
⇒ set up a new size
⇒ click „OK“
cab Produkttechnik GmbH 31
Ports
Properties menu
⇒ click „Ports“
⇒ select the IO port
⇒ click „OK“
Paper source (Media type)
Back to Printers menu
⇒ right click to get pop-up menu
⇒ select „Printing Reference“
⇒ click „Paper Quality“
⇒ select media type
⇒ click „OK“
For Win 2000
32 cab Produkttechnik GmbH

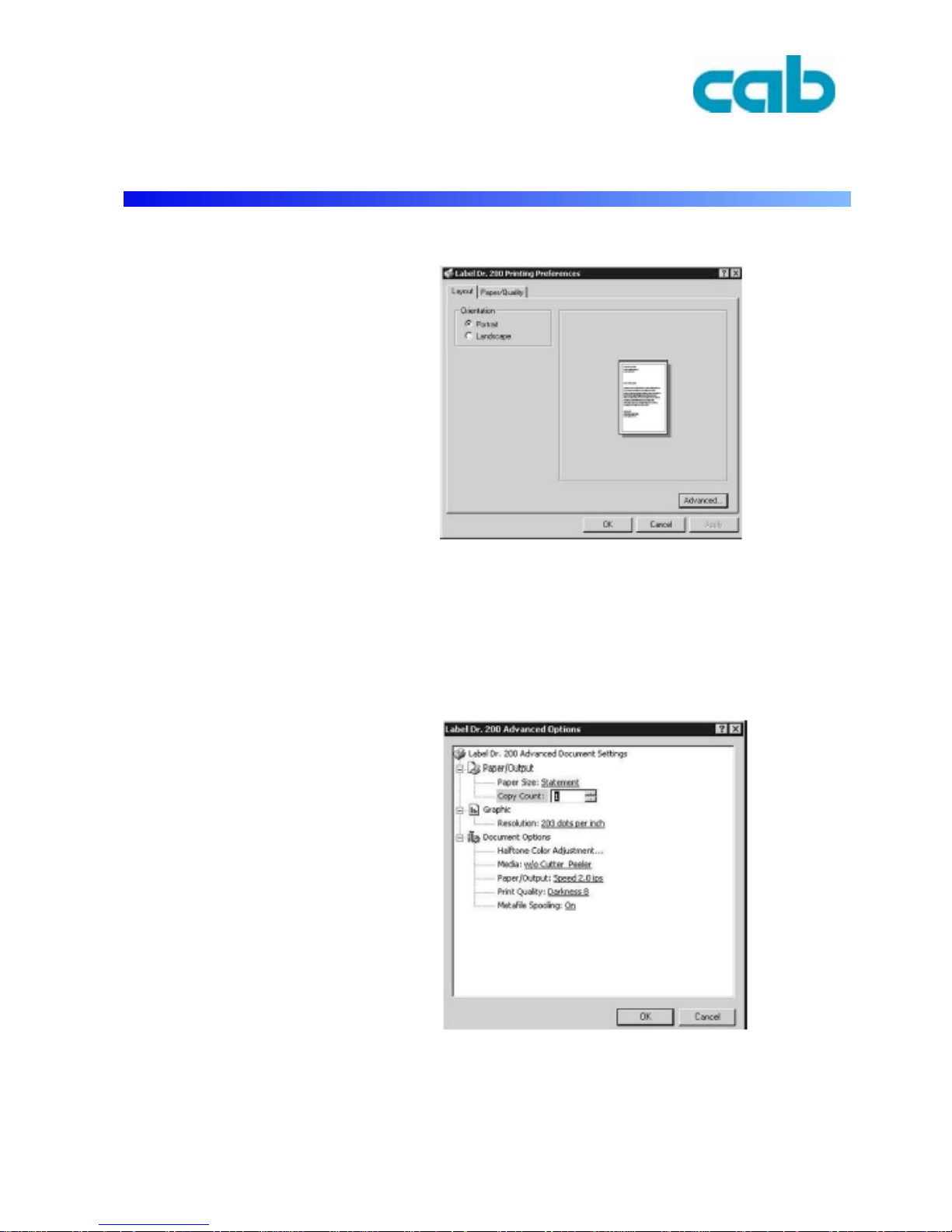

Orientation
Printing Reference menu
⇒ click „Layout“
⇒ select „Portrait“ or „Landscape“
⇒ click „OK
Paper size
Copies
Media choice
(Accessory setting)
Paper/Output
(Speed)
Print quality
(Darkness)
Printing Reference menu
⇒ click „Layout“
⇒ click „Advanced“button
⇒ click each item to select
the parameters
⇒ click „OK“
cab Produkttechnik GmbH 33
Create a new size
Printer menu
⇒ right click to get popup menu
⇒ select „Server Properties“
⇒ enter a form name for
the new form in „Form
description for“
⇒ reset the paper size in
the specific squares
of the „Measurements“
⇒
⇒ click „OK“
34 cab Produkttechnik GmbH
Ports
Properties menu
⇒ click „Ports“
⇒ select the IO port
⇒ click „OK“
Paper size
Orientation
Paper source
(Media type)
Copies
Media choice
(Accessory setting)
Printers menu
r⇒ ight click to get pop-up menu
⇒ select „Document Defaults“
⇒ click „Advanced“ button
⇒ click each item to select desired
parameter
For Win NT4.0
cab Produkttechnik GmbH 35

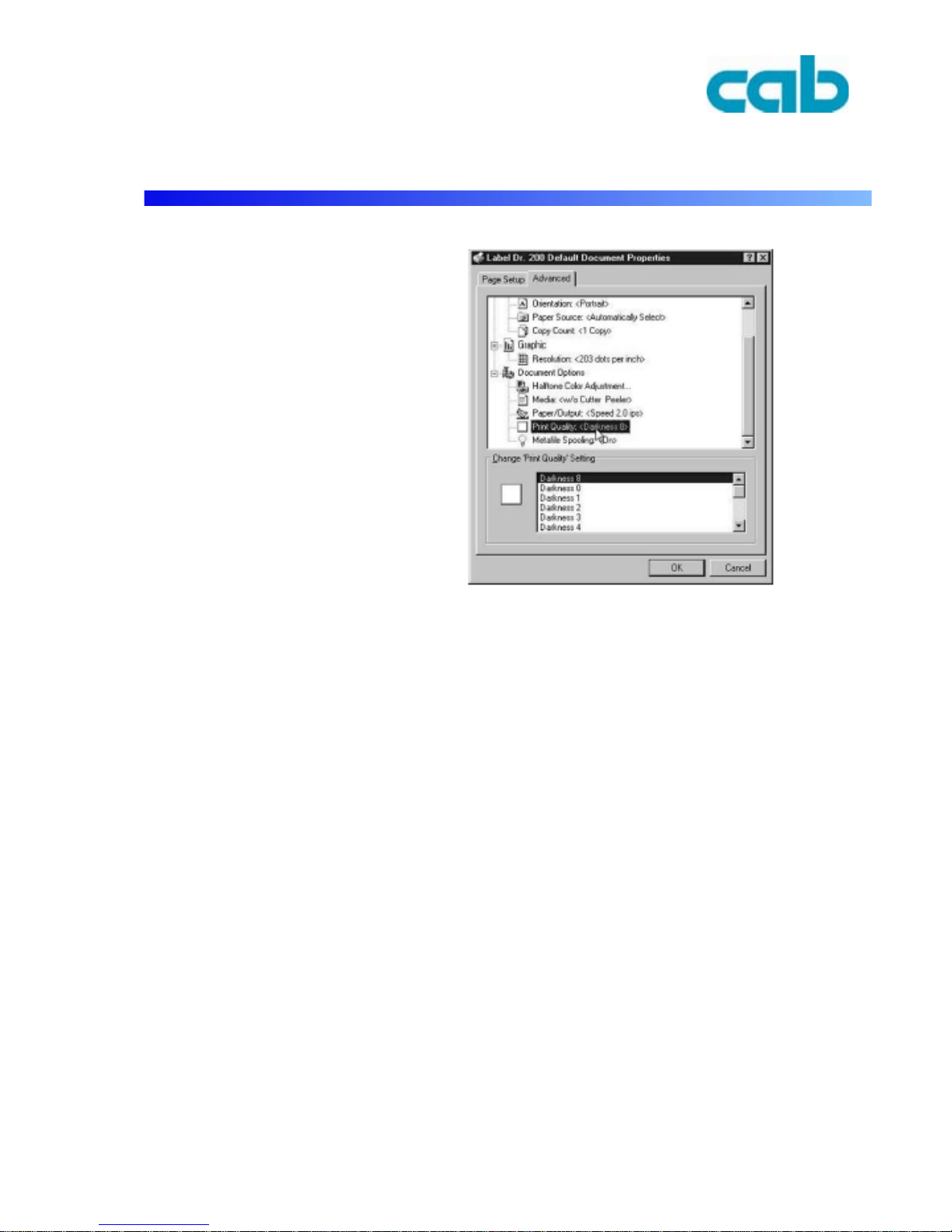

Paper/Output (Speed)
Print quality (Darkness)
Default Document menu
⇒ click „Advanced“
⇒ click each item to
⇒ select desired parameter
click „OK“
Create a new size
Please refer to the procedure of create
a new size on Win 2000.
36 cab Produkttechnik GmbH
Troubleshooting
Normally , when the printer is in abnormal condition, the „POWER“ LED will keep blinking.
The printing work and the communication between the host and printer will stop.
To understand the problem, please check both LEDs first:

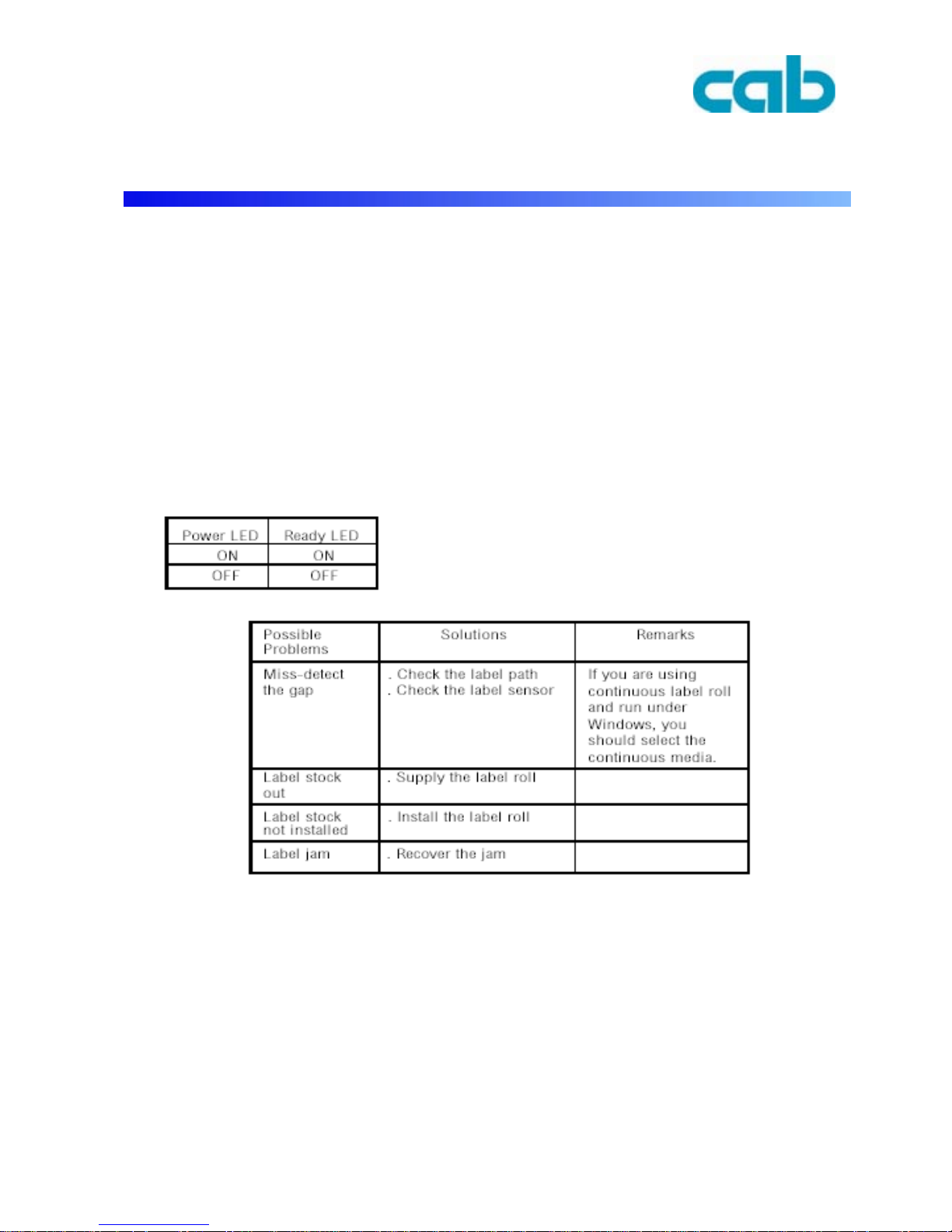

A. Power and Ready LEDs blink at the same tempo
cab Produkttechnik GmbH 37
B. Power and Ready LEDs blink alternately
C. Only the Power LED blinks
38 cab Produkttechnik GmbH
D. Miscellaneous
• •
• •
• The host shows „Printer T ime out“
1. Check if the communication cable(parallel or serial) is connected securely to your
parallel or serial port on the PC and to the connector on the printer at the other end.
2. Check if the printer pow er is turned on.
• If the power cord is connected, the power switch is at position „I“ and the power LED has
still not illuminated, check the fuse inside the power adapter case.
• The data has been sent, but there is no output from the printer . Check the active printer
driver, if Label Dr . for your Windowssystem and the label printer has been selected.
• Vertical streaks in the printout usually indicate a dirty or faulty print head.(Refer to the
following example)
Clean the print head first, if they still persist, replace the print head.
cab Produkttechnik GmbH 39
• Poor printout quality .
. The ribbon may not be qualified.
. The media may not be qualified.
. Adjust the Darkness(heat temperature).
. Slow down the print speed.
. Refer to the next chapter and clean the related spare parts.
Recovery
T o continue your print jobs after the abnormal conditions have been
corrected, simply press the panel button or restart the printer . Make
sure that the LED is not blinking and remember to resend your files.
40 cab Produkttechnik GmbH
Replacing Thermal Print Head
1. Switch off the power and wait for both LEDs to go off.
2. Unlatch the print head module.
3. Remove the ribbon.
4. Push the print head firmly into the casing and shift it to the left. It will release from the
module.
5. Disconnect the print head cable.
6. Dissemble the print head and the mounting bracket by releasing screws.
7. Replace with new print head, then resemble the print head module in reverse order. Be
careful not to touch the print head elements.
Caring for Your Printer
Clean the following areas of the printer after 8 rolls of label stocks have• been used. In
each case, use a cotton bud dampened with alcohol. Do not soak the cotton bud
excessively.
Note : Always switch off the power before cleaning.
Cleaning
Thermal Print Head
Thermal paper stock and ribbon will release debris on the print head and degrade
printing quality . Clean the print head with methanol or isopropyl alcohol with a cotton
bud. Do not touch the heater element with your fingers. Debris or dirt on the roller
should be cleaned with alcohol.
Paper Sensor
Debris or dirt on the paper sensor will cause a miss-read or unstable detection of the
label gap. Clean with a cotton bud dampened with alcohol.
cab Produkttechnik GmbH 41
Print Method Dircet thermal and thermal transfer
Resolution 203 DPI (8dots/mm)
Maximum print width 4.13 in (105mm)
Maximum print length 45 in (1143mm)
Maximum print speed 2 in. (51mm) per sec.
Onboard RAM 512kB
Rotation 0°, 90°, 180° and 270°, 4 direction rotations
Media type: I. Direct thermal:
paper or vinyl, vinyl, visible light and infrared scannable
label, tag stock, butt cut or die cut, with various
adhesives.
II. All above media,
plus thermal transfer paper or vinyl labels and tags, butt
cut or die cut, with various adhesives.
Max. label roll diameter 4.3 in.(109mm) outside diameter , 1 in.(25 mm) inside
diameter
Label indexing Black stripe and gap
Ribbon types Wax, W ax/Resin and Resin
Ribbon size OD 1.45 in. (37 mm); ID 0.5 in. (12.7mm); Length1 1
Dimension W7.3 x D10.9 x H6.0 in.
Reference Technical Information
42 cab Produkttechnik GmbH
Weight 1.7 kg (3.74 lbs)
Electrical FCC class B
19Vac
Or DC24V (min 2.5A), 50/60Hz
CE, UL and CUL approved.
Operating temperature 40°F ~100°F (4°C~38°C)
Storage temperature 40°F~140°F (4°C~60°C)
Humidity 15~85% RH
cab Produkttechnik GmbH 43
Printer Programming Language A, PPLA
Fonts, Bar Codes and Graphics Specification
The specifications of fonts, bar codes and graphics depend on the printer emulation. The
emulation is a printer programming language, through which the host can communicate
with your printer.
General fonts 7 alpha-numeric fonts, OCR A and OCR B ASD
Smooth fonts 6, 8, 10, 12, 14 and 18 points
Courier fonts 8 symbol set (PC,PC-A,PC-B, EAMA-94, Roman8,
Legal, (Greek and Russian)
Soft fonts Downloadable PCL fonts
Bar code types Code 39, Code 93, Code 128/subset A,B,C,Codabar,
Interleave 2 of 5, UPC A/E/2 and 5add-on, EAN-8/13,
UCC/EAN-128, Postnet,Plessey , HBIC, T elepen and FIM.
MaxiCode and PDF417 (2D symbologies).
Graphics PCX, BMP, IMG and HEX formats
44 cab Produkttechnik GmbH
Connection with host:
3. Interface Specifications
Serial
The RS232 connector on the printer side is a female, DB-9.
Note : Pin 9 is reserved for KDU (keyboard device unit), therefore do not connect these
pins if you are using a general host like a PC.
cab Produkttechnik GmbH 45
Alternatively you can just connect the 3 wires in the following way.
46 cab Produkttechnik GmbH
The most simple way to connect to other hosts(not PC compatible) or
terminals is:
In general, as long as the data quantity is not too large and you use Xon/Xoff as flow
control, it will be problem free.
Baud rate: 2400, 4800, 9600, 19200 and 38400.
(programmable by command)
Data format : always 8 data bits, 1 start bit and 1 stop bit.
Parity : always non parity
Handshaking : XON/XOFF as well as CTS/RTS (hardware flow control).
If you run an application with the bundled printer driver under Windows and use the serial
port, you should check the above parameters and set the flow control to „Xon/Xoff „or
„hardware“.
cab Produkttechnik GmbH 47
Parallel (Centronics)

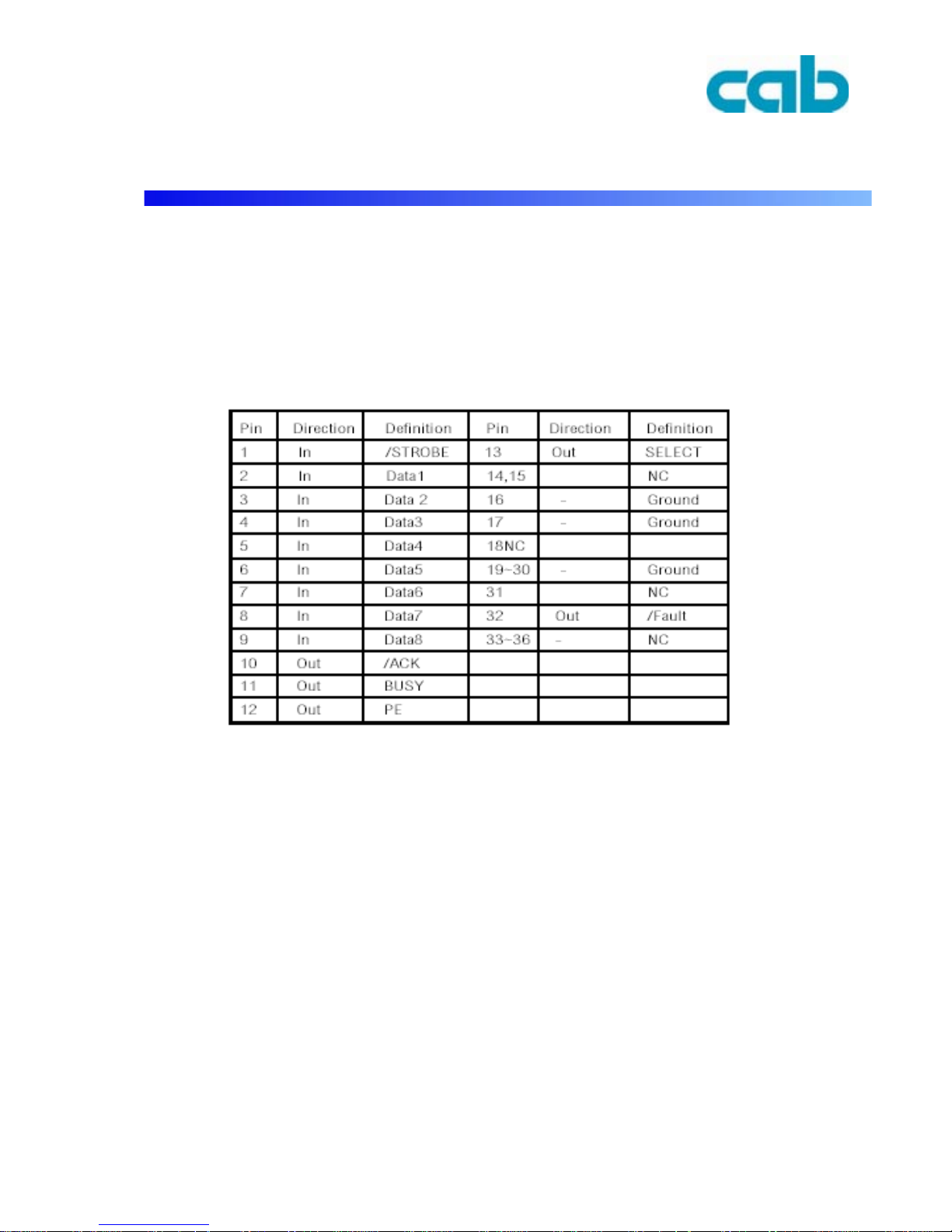

The parallel port is a standard 36-pin Centronics. Its pin assignments
are listed as following.
Auto Polling
Both the serial port and parallel port of this printer can be activated at the same time, i.e
the printer can simultaneously communicate with two PC via different port. However as
no port contention is made for this printer, If both PC transmit dat a at the same time to this
printer, the dat a may become damaged in the receiving buffer.
48 cab Produkttechnik GmbH

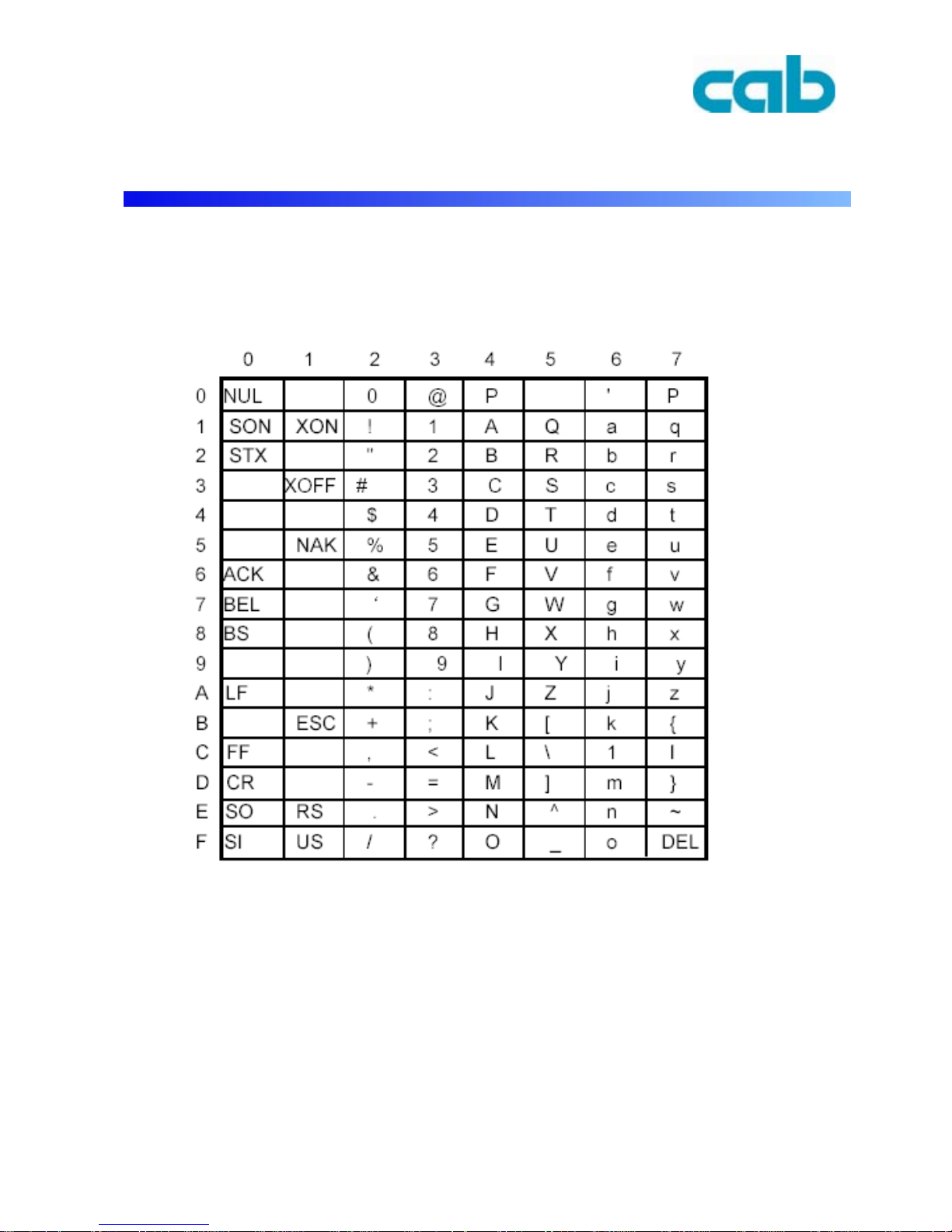

ASCII TABLE
cab Produkttechnik GmbH 49
Appendix I - Installing Dispenser Kit
1. Turn of f the printer power and unplug the printer.

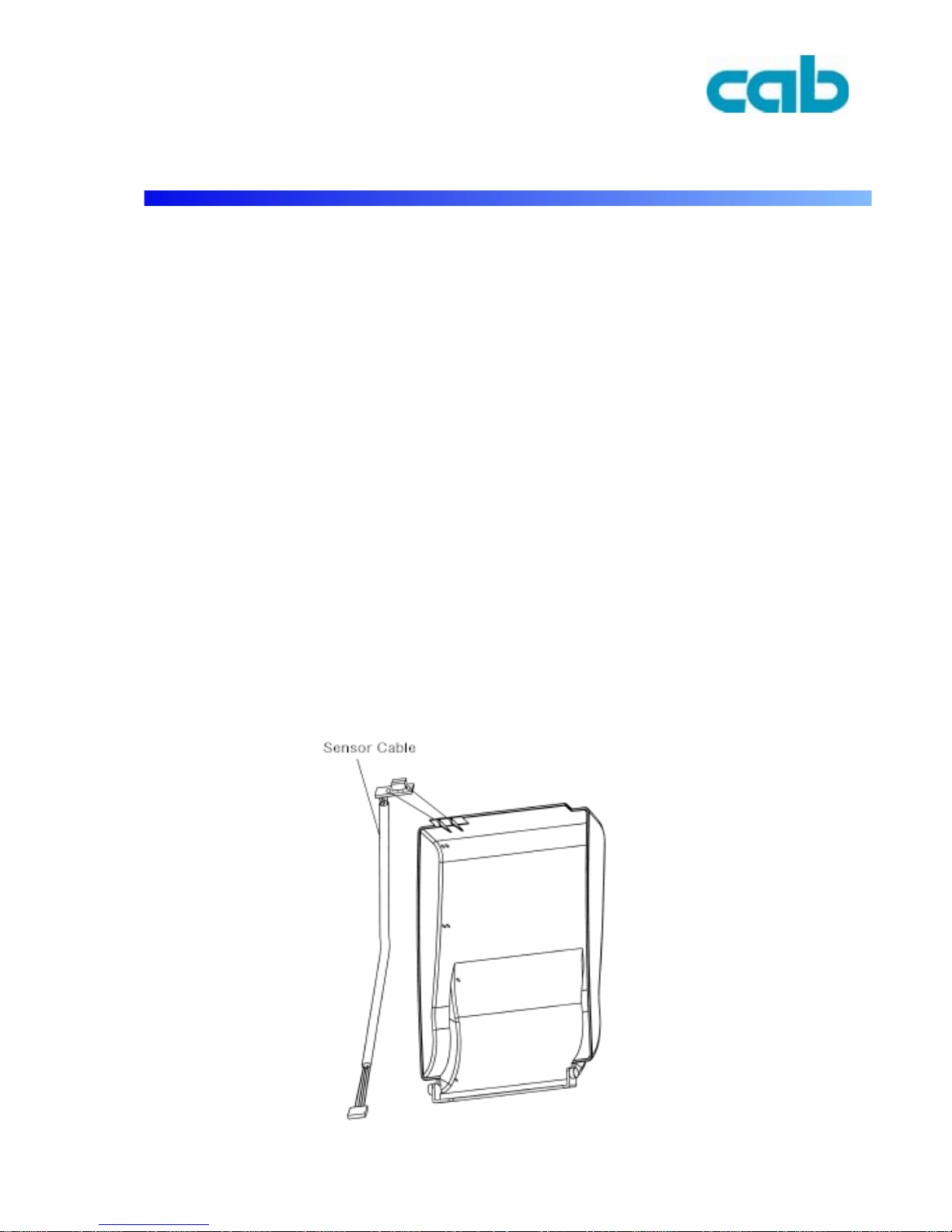

2. Unwrap the PC bag of dispenser kit to take out the screw , the shaft, the plastic roller, the
dispenser bar, the direction label and the peelersensor cable.
Top Cover
3. T ake of f the top cover of the printer.
4. The peeler sensor cable has a sensor board at one end and a connector at the other
end.
5. Mount the two little holes of the sensor board on the two spines at left upper corner
inside the top cover, keeping the cable at the lef t.
6. Route the peeler sensor cable through the guides along the left side of the top cover.
7. Fix the sensor cable and sensor board with Loctite-444 instant adhesive or equivalent.
50 cab Produkttechnik GmbH
Middle Cover

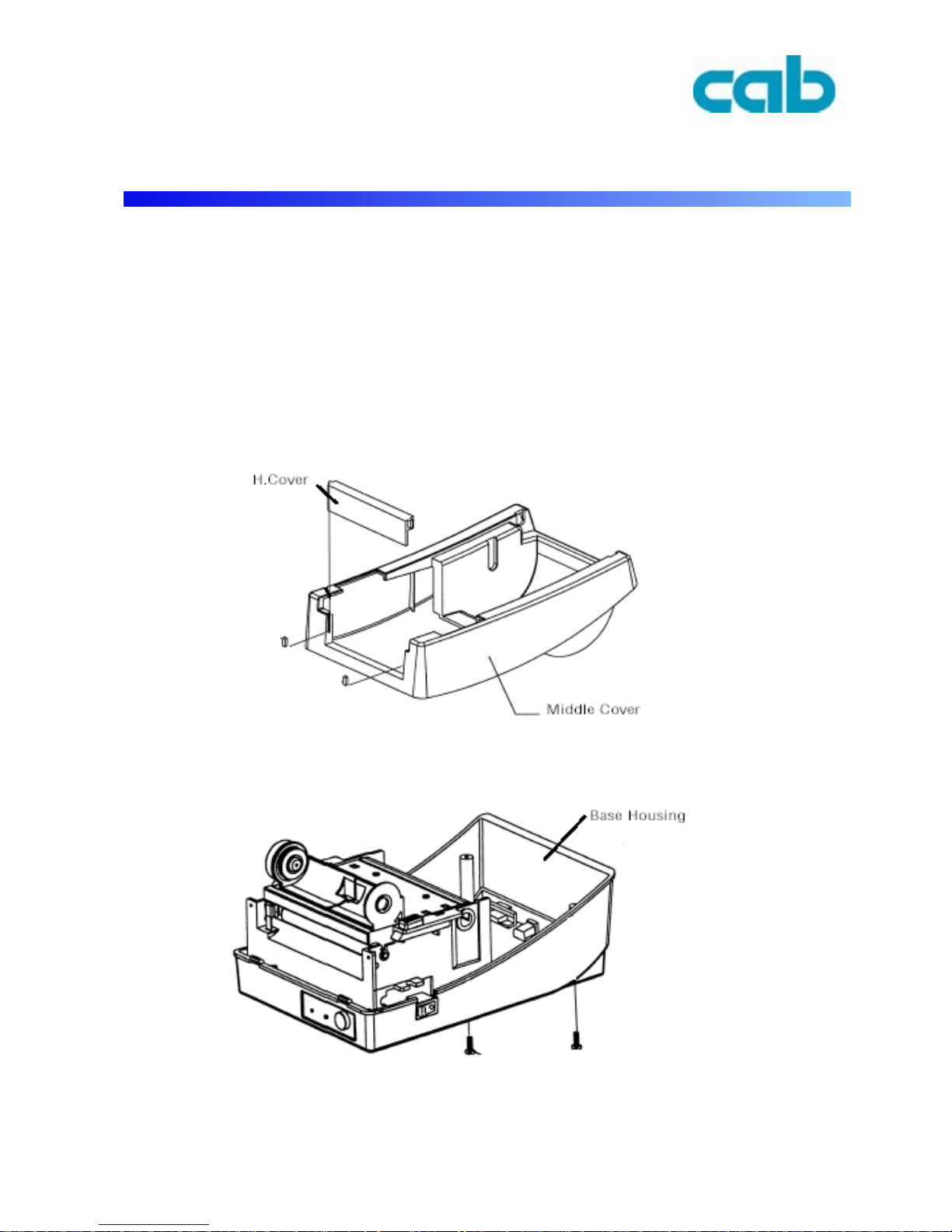

8. Release the two screws at the bottom of the base housing.
9. Remove the middle cover.
10. Take off the H Cover.

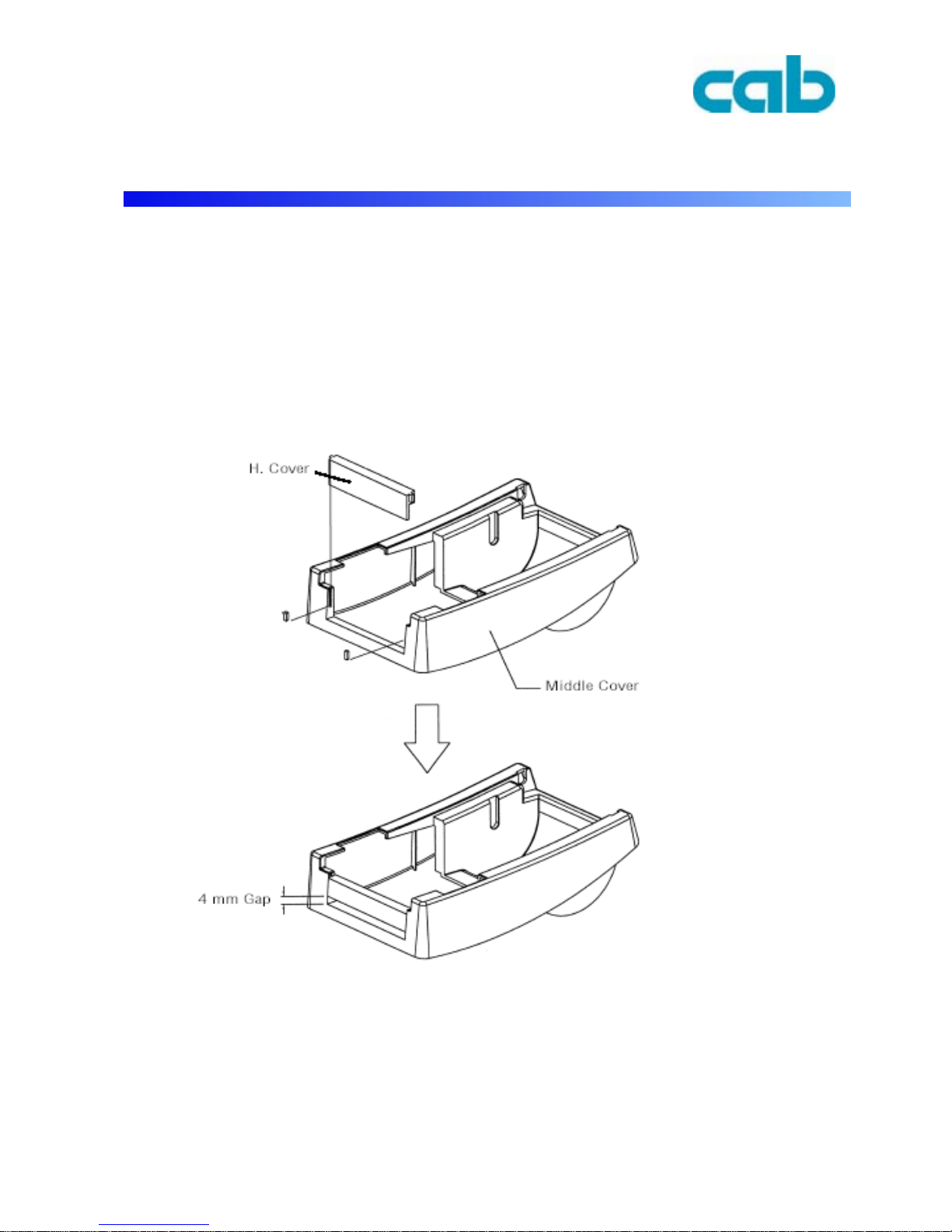

1 1. T ape the direction label on the top of the H cover with the arrow sign heading toward
the opposite of you.
cab Produkttechnik GmbH 51
Base Housing
13. Release the screw on the left bracket of the chassis.

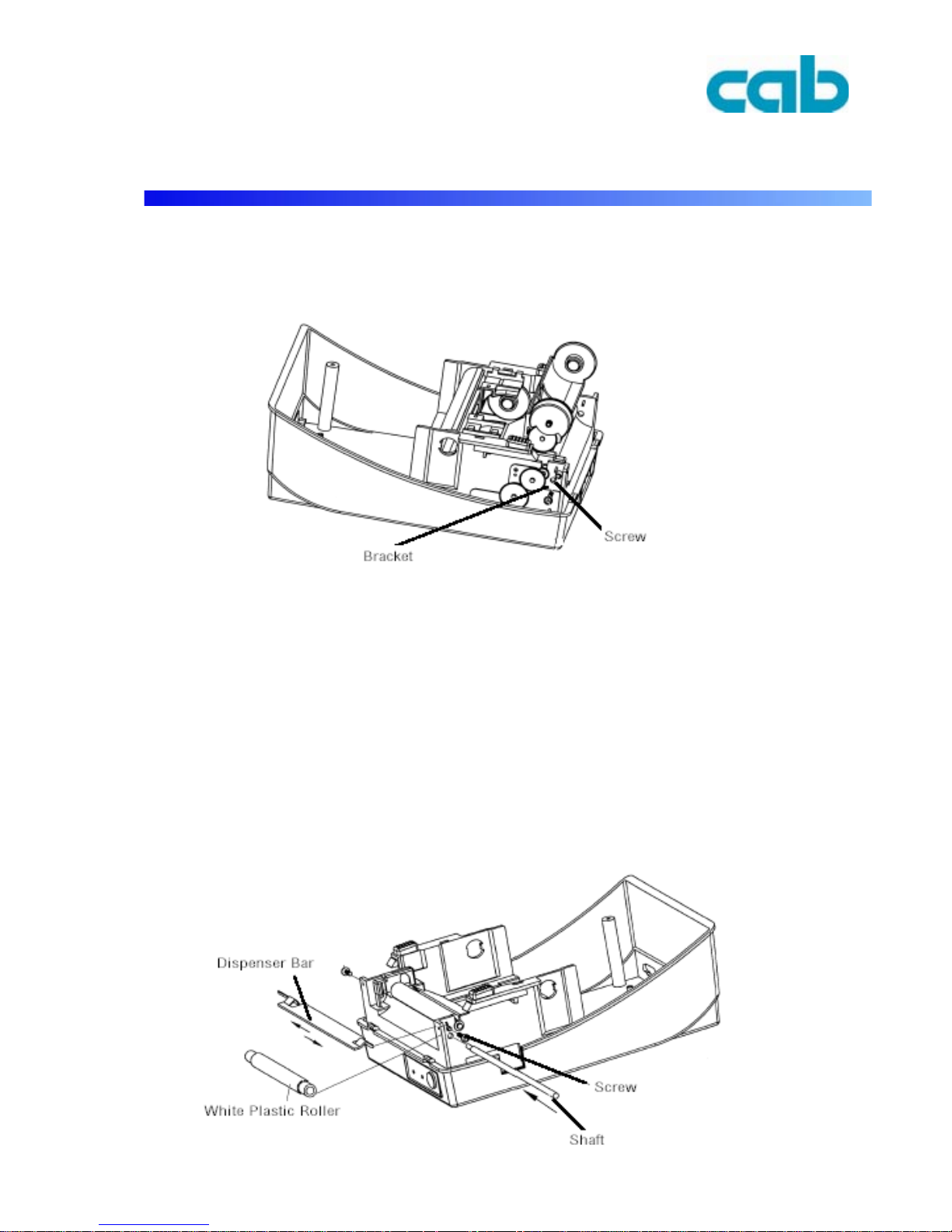

14. Unlatch the print head module. Hook the white roller on the brackets of the chassis,
ensuring the long thinner end at the left side.
15. Guide the shaft go through the respective holes on the left bracket, the white roller, and
the right bracket in order. (To smooth this procedure, better hold the white roller with one
hand.)
16. Secure the attached screw at right bracket of the chassis to fix the shaft.
17. Hook the dispenser bar on the brackets of the chassis, positioning it above the white
roller. Ensure that the dispenser bar is paralleled with the black platen roller and it’ s long
thinner end is at the left.
18. Secure back the screw on the left bracket of the chassis.
19. Guide the sensor cable connector through the hole on the upper left corner of middle
cover.
52 cab Produkttechnik GmbH
19. Click the top cover back to the middle cover .
20. Insert the sensor connector into its receptacle on the main logic board of the base
housing.
21. Click the middle cover back to the base housing. First click in the front part then the
rear.
22. Secure the two screws at the bottom of the base housing.
cab Produkttechnik GmbH 53
Appendix II - Installing the Cutter
1. Turn of f the printer power, unplug the power cable and Centronics / Serial cable.
2. Remove the top cover.
3. Remove two screws at base housing.
54 cab Produkttechnik GmbH

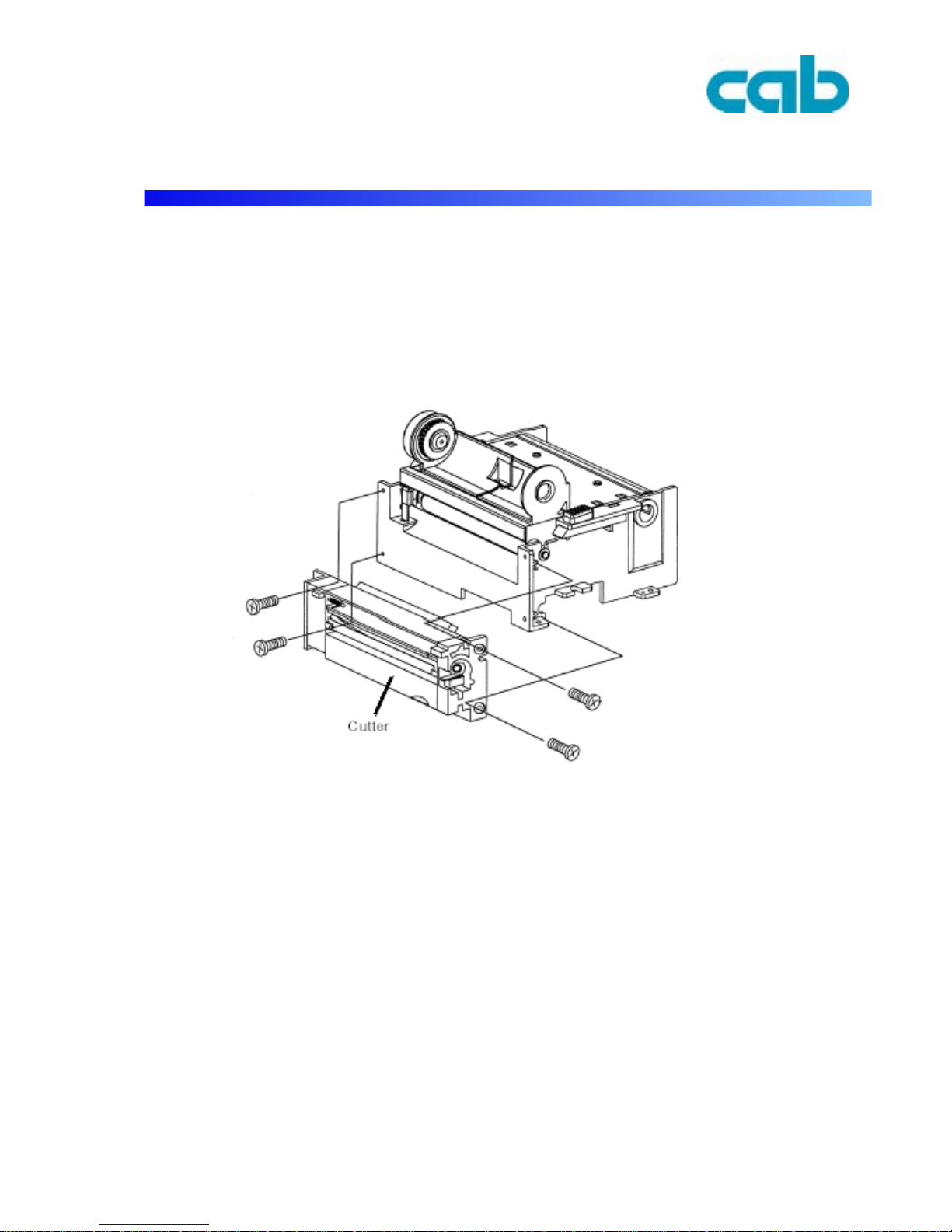

4. Remove the whole print head assembly by releasing 4 screws at its feet.
cab Produkttechnik GmbH 55
5. Add a driver IC to U19 on the main board.
6. Secure four attached screws for the cutter.
7. Plug the cutter’s connector into the PCB’s header connector (JP13).
8. Reinstate the print head assembly by securing back the 4 screws.
9. Click back the middle cover.
10. Secure two screws back at base housing.
1 1. Click back the top cover .
Loading...
