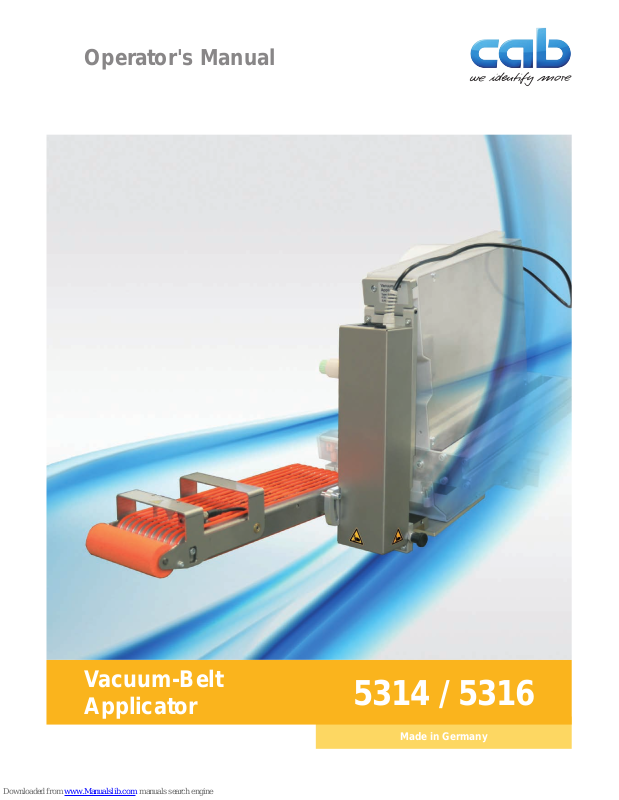

CAB 5314, 5316 Operator's Manual

Made in Germany

Operator's Manual

5314 / 5316

Vacuum-Belt
Applicator

2 2

Family Type

Vacuum-Belt Applicator 5314

5316

Edition: 10/2017 - Part No. 9009884

Copyright

This documentation as well as translation hereof are property of cab Produkttechnik GmbH & Co. KG.
The replication, conversion, duplication or divulgement of the whole manual or parts of it for other intentions than its original

intended purpose demand the previous written authorization by cab.

Editor

Regarding questions or comments please contact cab Produkttechnik GmbH & Co. KG.

Topicality

Due to the constant further development of our products discrepancies between documentation and product can occur.
Please check www.cab.de for the latest update.

Terms and conditions

Deliveries and performances are effected under the General conditions of sale of cab.

Operator's Manual
for the following products

Germany

cab Produkttechnik
GmbH & Co KG

Postfach 1904
D-76007 Karlsruhe
Wilhelm-Schickard-Str. 14
D-76131 Karlsruhe

Telefon [phone]
Telefax [phone]

www.cab.de
[e-mail]

France

cab technologies s.a.r.l.
F-67350 Niedermodern
Téléphone [phone]

www.cab.de/fr
[e-mail]

USA

cab Technology Inc.
Tyngsboro MA, 01879
Phone [phone]

www.cab.de/us
[e-mail]

Asia

cab Technology Co., Ltd.
Junghe, Taipei, Taiwan

Phone [phone]
www.cab.de/tw

[e-mail]

China

cab (Shanghai)Trading Co., Ltd.
Phone [phone]

www.cab.de/cn
[e-mail]

Representatives in other countries on request

3

Table of Contents

1 Introduction ............................................................................................................................................4

1.1 Instructions ...............................................................................................................................................4

1.2 Intended Use ............................................................................................................................................4

1.3 Safety Instructions ....................................................................................................................................4

1.4 Safety Markings .......................................................................................................................................5

1.5 Environment .............................................................................................................................................5

2 Product Description ...............................................................................................................................6

2.1 Important Features ...................................................................................................................................6

2.3 Technical Data .......................................................................................................................................... 6

2.4 Overview ..................................................................................................................................................7

2.5 Contents of Delivery .................................................................................................................................8

3 Operation ................................................................................................................................................9

3.1 Standard Operation ..................................................................................................................................9

3.2 Cleaning ...................................................................................................................................................9

3.3 Mounting ................................................................................................................................................10

3.4 Power Supply of the Devices ..................................................................................................................11

3.5 Start Signal via External Sensor .............................................................................................................11

3.6 Mounting & dismounting the Applicator ..................................................................................................12

4 Adjustments .........................................................................................................................................13

4.1 Setting the Angle to the Printer ..............................................................................................................13

4.2 Adjusting the Setup of the Printer ..........................................................................................................13

4.3 Signals ...................................................................................................................................................14

5 Error Messages ....................................................................................................................................15

5.1 Error Messages of the Printer ................................................................................................................15

5.2 Error Messages of the Applicator ...........................................................................................................15

6 Licences ................................................................................................................................................16

6.1 Declaration of Incorporation ...................................................................................................................16

6.2 EU Declaration of Conformity .................................................................................................................17

4 4

1 Introduction

1.1 Instructions

Important information and instructions in this documentation are designated as follows:

Danger!

Draws attention to an exceptionally great, imminent danger to your health or life due to hazardous
voltages.

!

Danger!

Draws attention to a danger with high risk which, if not avoided, may result in death or serious injury.

!

Warning!

Draws attention to a danger with medium risk which, if not avoided, may result in death or serious injury.

!

Caution!

Draws attention to a danger with low risk which, if not avoided, may result in minor or moderate injury.

!

Attention!

Draws attention to potential risks of property damage or loss of quality.

i

Note!
Advice to make work routine easier or on important steps to be carried out.







Environment!
Gives you tips on protecting the environment.



Handling instruction



Reference to section, position, illustration number or document.



Option (accessories, peripheral equipment, special ttings).

Time

Information in the display.

1.2 Intended Use

• The device is manufactured in accordance with the current technological status and the recognized safety rules.
However, danger to life and limb of the user or third parties and/or damage to the device and other tangible assets
can arise during use.

• The device may only be used for its intended purpose and if it is in perfect working order, and it must be used with
regard to safety and dangers as stated in the operating manual.

• The device applicator mounted on a cab printer of the Hermes+ series is intended exclusively for applying suitable
materials that have been approved by the manufacturer. Any other use or use going beyond this shall be regarded
as improper use. The manufacturer/supplier shall not be liable for damage resulting from unauthorized use; the
user shall bear the risk alone.

• Usage for the intended purpose also includes complying with the operating manual, including the manufacturer‘s

maintenance recommendations and specications.

i

Note!
The complete and current version of the documentation can be found in the Internet.

1.3 Safety Instructions

!

Attention!

Initiation, adjustments and changing of parts are to be performed by qualied service personnel only.

!

Warning!

This is a class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.

5

1 Introduction

• Before mounting the delivered components disconnect the printer from the power supply and close the shutoff
valve of the applicator.

• Only connect the device to other devices which have a protective low voltage.

• Switch off all affected devices (computer, printer, accessories) before connecting or disconnecting.

• In operation, moving parts are easily accessible.
This applies especially for the zone, where the pad is moved between the starting and the labelling position.
During operation do not reach into that zone and keep long hair, loose clothes, and jewelry distant. Before any
manipulations in those areas, close the shutoff valve.

• The device may only be used in a dry environment, do not expose it to moisture (sprays of water, mists, etc.).

• Do not use the device in an explosive atmosphere.

• Do not use the device close to high-voltage power lines.

• Perform only those actions described in this operating manual.
Work going beyond this may only be performed by trained personnel or service technicians.

• Unauthorized interference with electronic modules or their software can cause malfunctions.

• Other unauthorized work on or modications to the device can also endanger operational safety.

• Always have service work done in a qualied workshop, where the personnel have the technical knowledge and
tools required to do the necessary work.

• There are various warning stickers on the device. They draw your attention to dangers. Warning stickers must
therefore not be removed, as then you and other people cannot be aware of dangers and may be injured.

1.4 Safety Markings

2

3

3

with demounted cover

1

1:

Danger of electrocution! 2: Warning of damage by rotating parts!

3:

Danger of crushing of hands and/

or ngers by the swing motion of the

applicator!

Fig.1 Safety marking

1.5 Environment







Obsolete devices contain valuable recyclable materials that should be sent for recycling.

 Send to suitable collection points, separately from residual waste.

The modular construction of the applicator enables it to be easily disassembled into its component parts.

 Send the parts for recycling.

!

Attention!

Never remove or cover safety
markings!

Replace them in case of
damage!

6 6

2 Product Description

2.1 Important Features

• Use the I/O interface of the printer for operation within a system.

2.2 Technical Data

1)

The product speed must be higher than the vacuum belt speed.

2)

Calculated at label height 100 mm / print speed 250 mm/s

Technical data

Vacuum belt applicator

5314-3 5316-3

Labeling on the surface on the surface
Label width mm 20-114 46-174
Label height mm 60-356 60-356
Product during labeling in motion

 

Labeling on the product from top
from below
from the side

 
 
 

Product distance steady

 

Product height

steady steady

Product speed max. m/s

0,5 0,5

Distance between one product and the next min. m

1,0 1,0

Vacuum belt speed

1)

mm/s

100-500 100-500

Length mm

390 390

Cycle time

2)

max. labels/min 30 30

Label distance to conveyor belt
when labeling from the side Y min. mm

20

20

Table 1 Technical Data

7

2.3 Overview

3

6 7 9

4

11 12

1

5

13108

2

Fig.2 Device overview

1 Power switch applicator
2 3-pin female connector for a start sensor
3 Power cable (Voltage) to the printer
4 SUB-D 15 Interface to the printer
5 Power module
6 Pressure roller
7 Sensor
8 Fans
9 Screws to adjust the angle of the applicator

10 Control unit
11 Locking pin
12 Base plate for mounting on printer
13 Screw roller changing (pressure)

2 Product Description

8 8

2 Product Description

2.4 Contents of Delivery

3

4

1

2

Fig.3 Contents of delivery

- Applicator mounted (1)

- Base Plate to mount to the printer (2)

- Cable-clip self-adhesive 4x (3)

- Screws to mount on the printer (4)

- Documentation

2.5

i

Note!
Please keep the original packaging in case the applicator must be returned.

!

Attention!

The device and printing materials will be damaged by moisture and wetness.

 Only set up label printer with applicator in dry locations protected from moisture and splashes.

9

3 Operation

3.1 Standard Operation

 Check all external connections.
 Load the material. Ensure that the locking system is locked  "Operator's Manual" of the printer.
 Switch on the printer.
 Press the feed key on the printer.

A synchronization feed is released. The processed labels have to be removed manually. After a few seconds the
printer carries out a short backfeed to position the front edge of the next label at the printing line.

i

Note!
The synchronization also has to be carried out when the print job has been interrupted with the cancel key.
Synchronizing is not necessary when the print head was not lifted between print jobs. This also applies if

the printer was powered down between print jobs.

 Start a print job.
 Start the labelling process via PLC interface.

Error messages during labelling process are shown in the display of the printer  Error Messages.

3.2 Cleaning

!

Attention!

Never use solvent and abrasive.

1 2 3 4

 1: Clean the pressure roller with multi

purpose cleaner.

 2: Use glass cleaner to clean the reex

sensor.

 3: Clean the fan area with a soft brush

and/or a vacuum cleaner.

 4: Clean the outside surfaces and

transport belts with a multi purpose
cleaner.

Fig.4 Cleaning

10 10

3 Operation

3.3 Mounting

5 6 7 8 10

12 1311

9

1 2

3 4

Fig.5 Mounting
To clean the applicator and printer it's sometimes necessary to turn away or even dismount the applicator from the

printer.
Do not adjust the setting screws, throttle valves or other alignment elements. This will enable use of the applicator
directly after cleaning.

1 Pull out the locking bolt (3) and put the base plate (2) into the opening (1).
2 Let the locking bolt (3) snap into the holes (4).
3 It may be necessary to lay the printer on its side or back to gain access to the bottom of it.
4 Put the hole of mounting plate (9) over the pin (3).
5 Connect SUB-D 9 male connector (8) to the female connector (6) of the printer.
6 Swing the applicator to the printer and turn in the screw (10) loosely.
7 The holes in the mounting plate (13) must be aligned to the holes in the printer base plate (11).
8 Place the screws (12) and tightening them.
9 Tighten screw (10).

!

Attention!

Initiation, adjustments and changing of parts is to be performed by qualied service personnel only.
 Initiation/Service Manual Applicator

!

Attention!

 Disconnect the printer and applicator from the power supply before mounting the applicator!
 Ensure the printer is in a stable position!

11

3.4 Power Supply of the Devices

1 3 542

Fig.6 Power supply of the applicator and printer

!

Attention!

The connected power cable delivers the full voltage to the printer module.
The switch on the applicator only provides power to the applicator.

1. Plug in the power supply cable (2) from the printer into power input module of the applicator.

2. Plug in connector (4) of the support cable (3) from applicator into power input module of the printer.

3. Switch on the applicator via the on switch (1).

4. Switch on the printer.

i

Note!
If only the printer and not the applicator is switched on the error message: Air pressure ins. will
appear.

5. For better cable guidance and organization use the four self-adhesive cable-clips (5) within the scope of the
delivery. These are freely applyable to suit the individual setup of the system.

3.5 Start Signal via External Sensor

The start signal for applying labels can be initiated by an external sensor that is connected to the 3-pin female
connector (1) directly on the applicator.

1

Fig.7 Connector for the starting sensor of the applicator
The start of the printing order is still initiated via the I/O interface of the printer.

To congure the external sensor see the above illustration and  „4.3 Signals on page 14.

3 Operation

12 12

3 Operation

3.6 Mounting & dismounting the Applicator

3

3

2

1

4

5

Fig.8 Mounting/dismounting the applicator

!

Attention!

Danger of crushing to hands and ngers by the swinging motion of the applicator!
When releasing the locking pins be aware of the downward motion caused by the weight of the applicator.

1. To dismount the applicator (5) for cleaning or loading material pull both locking pins (3) outward from the control
unit.

2. Raise the applicator (5) with pulled out locking pins (3) so that the they snap into the holes (4) of the mounting
plate (2).

3. Remount the applicator (5) by pulling out the locking pins (3) and moving the applicator toward the printer untill
the locking pins (3) can snap back into the holes (1) of the mounting plate (2).

13

4 Adjustments

Note!

The alignment of the applicator to the printer is xed according to factory standards and should not be

altered to ensure a safe label application. Only the angle to the printer may be changed.

4.1 Setting the Angle to the Printer

1

max 30°

Fig.9 Setting the angle to the printer

Warning!

Take care when loosening screw (1). The device drops due to its own weight.

 Loosen screws (1) to adjust the angle and thus the depth of the applicator to the printer.
 Set the angle or depth of the product and tighten the screws (1).  4.2 Adjust the Setup of the Printer

4.2 Adjusting the Setup of the Printer

The conguration parameters of the applicator can be found in the menu Setup > Machine param.

Speed

Note!
The speed of the belt and the label transportation will set by the parameter Support del. OFF.
The value is displayed in ms and not in real value used mm/s.

Note!
It's necessary to set exact the values in the table.
Deviations will result in automatic defaulting back to the standard value of 100.

Parameter to set the speed of the belts.
Four steps are available.
100 ms : 100 mm/s speed of the transportation belt
150 ms : 150 mm/s speed of the transportation belt
220 ms : 220 mm/s speed of the transportation belt
300 ms : 300 mm/s speed of the transportation belt
500 ms : 500 mm/s speed of the transportation belt

> Support del. OFF

i

i

i

!

14 14

4 Adjustments

Waiting position of the label

3
2

1

4

Fig.10 Label transport / Reex sensor
In the setup the operation mode "Blow on" must be selected to gain access to the parameter "Blow time".

After reaching the reex sensor (1) and the detection point (3) the transportation process continues a certain time to

ensure that the label (2) it is applied by the pinch roller (4). The time and distance of this process can be adjusted vie
the parameter:

> Blow time
A higher value means the label will be transported further.
200 ms represents about 10 mm.

Follow up feed of the label

After the label (2) has left the the reex sensor area (3) the application will continue transportation will continue to

apply the label to the product. This length of this transportation process can be ajusted via the parameter:

> Support del. ON

4.3 Signals

• The signal DREE will start the print the label and move it to the reex sensor before the pinch roller.

• The signal START will feed the label past the reex sensor including the follow up transportation of the pinch

roller.
In the apply-mode "Apply - Print" will print the next label of the print job after it has applied the previous label.

In the apply-mode "Print - Apply" the printing of a new label depends on the signal DREE.

Pin Signal Name Description Activation / Active State

without applicator with applicator

1

DREE - Print rst label

in mode "Apply-Print"

Switch on +24V between
Pin 1 and Pin 25

13

START Starting of the printing pro-

cess dependant on: Supe-

rior control has conrmed

the ETE signal, previous
label has been taken from
the peel-off position.

Print/application start signal +24V between Pin 13 and Pin 25

Table 2 Pin assignment of the I/O interface  Interface description of the label printer Hermes+

15

5 Error Messages

5.1 Error Messages of the Printer

For detailed information about printer errors (e.g. 'Paper out', 'Ribbon out', etc.)  Operator's manual of the printer
Error treatment:

 Clear the error results.
 Press the feed key to synchronize the label feed, remove the peeled labels manually.
 Press the pause key to quit the error state.

After error correction, the printing of the label causing the error will be repeated.

5.2 Error Messages of the Applicator

The following table contains an overview of error messages and their possible causes. It also suggests methods to
resolve the problem:

Error Message Possible Cause

Vac. plate empty

The Label has been lost on the way or at the waiting position infront of the princh roller
before the START signal was received.

Upper position

The label has not arrived at the sensor area 5 sec. after printing or it wasn't detected.

Air pressure ins.

Applicator is not switched on.

Table 3 Error messages of the applicator
Error treatment:

 Clear the error results.
 Press the pause key to quit the error state.

i

Note!
When receiving errors check the settings and adjustment parameters in the service manual.

 After error correction, the printing of the label causing the error cannot be repeated without re-starting the print

job.
Except at the error " Vac. plate empty". In this case, the last label will be printed again after the error state
has been exited with the pause key and by then pressing the Enter button

.

 In the application mode "Apply/Print" sends the signal "Print rst label" and pressing the button will send the

printed label to the applicator.

16 16

6 Licences

6.1 Declaration of Incorporation

cab Produkttechnik
GmbH & Co KG
Wilhelm-Schickard-Str. 14
D-76131 Karlsruhe
Germany

Declaration of Incorporation

We declare herewith that the following „partly completed machinery“ as a result of design, construction and the version
put in circulation complies with the essential requirements of the Directive 2006/42/EC on machinery:

Annex I, Article 1.1.2, 1.1.3, 1.1.5, 1.1.6, 1.2.1, 1.3.2, 1.5.2, 1.5.8, 1.6.3, 1.7
In the event of any alteration which has not been approved by us being made to any device as designated below, this

statement shall thereby be made invalid.

Device: Vacuum-Belt Applicator
Type: 5314/5316

Applied EU Regulations: Applied Standards:

Directive 2006/42/EC on machinery:

• EN ISO 12100:2010

• EN ISO 13849-1:2015

• EN 60950-1:2006
+A11:2009+A12:2011+A1:2010+A2:2013

Other Relevant Directives:

• Directive 2014/30/EU relating to electromagnetic compatibility

• Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and
electronic equipment

Person authorised to compile the technical le: Erwin Fascher

Am Unterwege 18/20
99610 Sömmerda

Signed for, and on behalf of the Manufacturer:

cab Produkttechnik Sömmerda
Gesellschaft für Computer­und Automationsbausteine mbH
99610 Sömmerda

Sömmerda, 04.10.2017

Erwin Fascher
Managing Director

The product must not be put into service until the nal machinery into which it is to be incorporated has been declared in

conformity with the provisions of the Directive on machinery.
The documents according annex VII part B from the incomplete machinery are created and will commit to state agencies

on request in electronic kinds.

17

6 Licences

6.2 EU Declaration of Conformity

cab Produkttechnik
GmbH & Co KG
Wilhelm-Schickard-Str. 14
D-76131 Karlsruhe
Germany

EU Declaration of Conformity

We declare herewith that the following device as a result of design, construction and the version put in circulation
complies with the relevant fundamental regulations of the EU Rules for Safety and Health. In the event of any alteration
which has not been approved by us being made to any device as designated below, this statement shall thereby be
made invalid.

Device: Vacuum-Belt Applicator
Type: 5314/5316

Applied EU Regulations: Applied Standards:

Directive 2014/30/EU relating to electromagnetic compatibility:

• EN 55032:2012

• EN 55024:2010

• EN 61000-6-2:2005

Directive 2011/65/EU on the restriction of the use of certain
hazardous substances in electrical and electronic equipment:

• EN 50581:2012

Signed for, and on behalf of the Manufacturer:

cab Produkttechnik Sömmerda
Gesellschaft für Computer­und Automationsbausteine mbH
99610 Sömmerda

Sömmerda, 04.10.2017

Erwin Fascher
Managing Director
