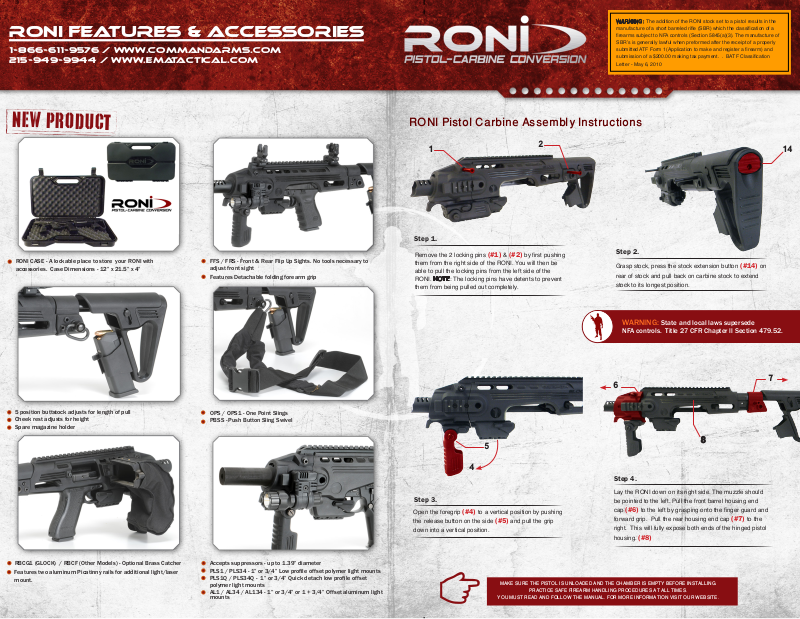

CAA RONI User Manual

RONI FEATURES & ACCESSORIES
1-866-611-9576 / WWW.COMMANDARMS.COM 215-949-9944 / WWW.EMATACTICAL.COM
WAR NIN G: The addition of the RONI stock set to a pistol results in the manufacture of a short barreled rie (SBR) which the classication of a rearms subject to NFA controls (Section 5845(a)(3). The manufacture of SBR’s is generally lawful when preformed after the receipt of a properly submitted ATF Form 1(Application to make and register a rearm) and submission of a $200.00 making tax payment. . BATF Classication
Letter - May 6, 2010
New Product
RONI CASE - A lockable place to store your RONI with accessories. Case Dimensions - 12” x 21.5” x 4”
5 position buttstock adjusts for length of pull Cheek rest adjusts for height Spare magazine holder
FFS / FRS - Front & Rear Flip Up Sights. No tools necessary to adjust front sight
Features Detachable folding forearm grip
OPS / OPS1 - One Point Slings PBSS - Push Button Sling Swivel
RONI Pistol Carbine Assembly Instructions
1
Step 1.
Remove the 2 locking pins (#1) & (#2) by rst pushing them from the right side of the RONI. You will then be able to pull the locking pins from the left side of the RONI. NOTE: The locking pins have detents to prevent them from being pulled out completely.
5
2
Step 2.
Grasp stock, press the stock extension button (#14) on rear of stock and pull back on carbine stock to extend stock to its longest position.
WARNING: State and local laws supersede
NFA controls. Title 27 CFR Chapter ll Section 479.52.
6
14
7
8
RBCG1 (GLOCK) / RBCF (Other Models) - Optional Brass Catcher
Features two aluminum Picatinny rails for additional light/laser mount.
Accepts suppressors - up to 1.39” diameter PLS1 / PLS34 - 1” or 3/4” Low prole offset polymer light mounts PLS1Q / PLS34Q - 1” or 3/4” Quick detach low prole offset polymer light mounts AL1 / AL34 / AL134 - 1” or 3/4” or 1 + 3/4” Offset aluminum light
mounts
4
Step 3.
Open the foregrip (#4) to a vertical position by pushing the release button on the side (#5) and pull the grip down into a vertical position.
MAKE SURE THE PISTOL IS UNLOADED AND THE CHAMBER IS EMPTY BEFORE INSTALLING.
YOU MUST READ AND FOLLOW THE MANUAL. FOR MORE INFORMATION VISIT OUR WEBSITE.
PRACTICE SAFE FIREARM HANDLING PROCEDURES AT ALL TIMES.
Step 4.
Lay the RONI down on its right side. The muzzle should be pointed to the left. Pull the front barrel housing end cap (#6) to the left by grasping onto the nger guard and forward grip. Pull the rear housing end cap (#7) to the right. This will fully expose both ends of the hinged pistol housing. (#8)
RONI assembly instructions
1-866-611-9576 / WWW.COMMANDARMS.COM 215-949-9944 / WWW.EMATACTICAL.COM
WAR NING: If you act ua ll y po ssess , or con st ru ctively poss es s, a pist ol a nd t he R ON I de vi ce , ev en i f th e pistol is not assem bl ed i nt o the R ON I devi ce , t he c om bi na tion w ou ld con st it ut e a s ho rt bar re le d rifl e, whic h may not be lawfu ll y pos sesse d unl es s it is reg ister ed in the Nati on al Fi re ar ms Re gi st ra tion an d Tr an sf er Re co rd You are in con st ructive poss es sion of an obj ect if you have dominio n and co ntrol ove r it, whethe r or no t you are ac tu al ly ha nd li ng it .
Prov id ed b y our l eg al coun se l. s
WARNING: Always keep the trigger guard positioned over the trigger
unless shooting to prevent the trigger from being activated
8
Step 5.
Open hinged pistol housing of the RONI by gently pulling from the inside at the top of the hinged pistol housing
(#8). It will easily open outwards.
Step 6.
MAKE SURE YOUR PISTOL IS UNLOADED AND THE CHAMBER IS EMPTY Install the charging handle over the rear sight of the pistol. The charging handle (#13) ts over the rear sight and grasps the slide serrations on the dust cover (slide) of the pistol.
9
b
a
c
16
10
13
6
10
8
Step 9.
(Applicable only to full size pistol) Tighten the barrel shroud set screw the barrel muzzle. This can be visually checked by closing the forward housing end cap while the hinged pistol housing is open
(#8)
(#10)
insuring the barrel shroud covers
. (Reopen front housing end cap)
roni parts
1
6
16
5
(#6)
3
4
1
6
Step 10.
Lu b ri ca te a s Ne ce ss ar y
10
Close the hinged pistol housing front housing end cap
IMPORTANT
make sure both locking pins are fully out. Completely reinsert forward and rear locking pins.
: While closing the front & rear housing end caps
7
13
9
9
(#8)
(#6)
and rear housing end cap
8
12
2
8
and push in the
11
15
14
(#7)
7
2
Step 7.
Install the pistol inside the hinged pistol housing, making sure it is laying at. Proper positioning will insure: (a) The under barrel rail slot on the pistol is engaged in the male rail bar on the RONI. (b) The trigger guard is mated to the trigger guard housing in the RONI housing.
(c)Pistol tang mates to tang cutout in RONI housing.
Step 8.
(Applicable only to full size pistol) Installation requires the barrel shroud screw (#10) in the lower rail be loosened until the barrel shroud (#16) will move. The barrel shroud has two threaded holes for the barrel shroud screw. Reposition the barrel shroud in the second hole (increasing the overall length of the RONI) so it is in contact with full size pistol barrel muzzle face when you close the forward housing end cap (#6).
Bottom View
1.
Forward Locking Pin
Rear Locking Pin
2.
3.
Vertical Forward Grip Removal Button
4.
Vertical Forward Grip
5.
Vertical Forward Grip Position Selection Button
6.
Forward Barrel Housing End Cap
7.
Rear Housing End Cap
8.
Hinged Pistol Housing
Trigger Guard
9.
Muzzle Shroud Screw
10.
Adjustable Cheek Piece
11.
Extra Magazine Holder
12.
Charging Handle
13.
Stock Extension Button
14.
15.
Adjustable Cheek Piece Screw Muzzle Shroud
16.
