C2G WIRELESS USB TO VGA ADAPTER KIT User Manual
USER GUIDE
WIRELESS USB TO VGA ADAPTER KIT
Model: 29572
1
TABLE OF CONTENTS
Introduction.................................................................................................................................................2
Features......................................................................................................................................................3
System Requirements.................................................................................................................................4
Package Contents.......................................................................................................................................5
Device Overview
Wireless USB Host Adapter...............................................................................................................6
Wireless VGA Device Adapter...........................................................................................................7
Software/Device Installation........................................................................................................................8
Using the Wireless USB To VGA Adapter Kit...........................................................................................15
Frequently Asked Questions.....................................................................................................................25
Video Playback Tips..................................................................................................................................28
Technical Specifications............................................................................................................................29
Cables To Go Warranty............................................................................................................................30
Important Safety Information.....................................................................................................................31
Appendix
Association with other devices.........................................................................................................32
Cable Association Procedure...........................................................................................................33
PIN Association Procedure..............................................................................................................35
PIN Change Procedure....................................................................................................................37
1
INTRODUCTION
Thank you for purchasing the TruLink™ Wireless USB To VGA Adapter Kit. This product utilizes the
latest in wireless technology, so you can display video and images on a remote monitor, projector, or
television up to 30 feet away. With a highly secure connection you can use this product in settings such
as conference rooms, classrooms, or in your home office/entertainment system. We recommend that
you read this manual thoroughly and retain for future reference.
2
FEATURES
Supports high resolution UXGA video of 1600 x 1200 at distances up to 30ft
Works in both extended desktop and mirror screen modes
Supports native mode for playback of high resolution video
Up to six computers can share one wireless display
Supports video streaming at up to 720p
Operates in WiMedia Band Group 1 frequency range (3.1GHz to 4.8GHz)
Certified Wireless USB 1.0 compliant
WiMedia 1.0 MAC & 1.1 PHY compliant
3
SYSTEM REQUIREMENTS
Microsoft® Windows® XP 32-bit with Service Pack 3 or higher
Microsoft® Vista® 32-bit/64-bit
Microsoft Windows 7 32-bit/64-bit
VGA cable to connect from the Wireless VGA Device Adapter to your display device
Minimum Requirements (Office, Productivity, and Web applications)
Windows XP- Processor: 1.66GHz Atom or Celeron
Ram: 512MB
Windows Vista/
Windows 7- Overall WEI Score: 3.0 or better
Processor: 1.6GHz Core2Duo or better
Memory: 1GB
Video Card: Any GPU
Recommended Requirements (Full-Screen Video Playback)
Windows XP- Processor: 1.8GHz Core2Duo or better
RAM: 1GB
Windows Vista/
Windows 7- Overall WEI Score: 3.5 or better
Processor: 1.8GHz Core2Duo or better
Memory: 1GB
Video Card: Any GPU
You must also have administrative privileges on your PC to install the software package.
4
PACKAGE CONTENTS
Wireless USB Host Adapter for your computer
Wireless VGA Device Adapter for your display
Two (2) Dipole Antennas (one for each adapter)
3ft USB A Male/Mini-B Male Cable
USB Extender with Cradle
One (1) Power Adapter (cord approx. 4ft)
Pin-Association Stickers
User Guide
Quick Start Guide
Driver CD w/Electronic User Guide
5
DEVICE OVERVIEW
WIRELESS USB HOST ADAPTER
1. Link: Data Connection Indicator
• LED is solid when transfer device is connected
• LED blinks when data is being transferred
2. PWR: Power
• LED is solid when powered by the PC
1 2
6
DEVICE OVERVIEW
IRELESS VGA DEVICE ADAPTER
W
1. VGA : VGA Activity Indicator
1
• LED is solid when display cable is connected.
• LED is blinking when data is being transferred.
2. PWR: Power Indicator
• LED is solid when power is applied.
3. 1-2-3: Status Indicator
• Illuminated number/s indicates the Wireless USB host
adapter that is currently synced with the Wireless VGA
Device Adapter
4. PWR plug
• Power adapter socket
5. RESET
• Association history can be erased by pressing and
holding this button for 10 seconds.
6. HOST
• This button is used to select a different Wireless
USB host adapter.
7. USB connector
2
3
4 6 8
• In wireless mode, this connector is used for cable association
• In wired mode, this connector is used for wired operation
8. WIRELESS/WIRED switch
• Choose from wired or wireless mode by using this switch.
7
5
7
SOFTWARE/DEVICE INSTALLATION
IMPORTANT NOTE:
• If installing on Windows XP, Service Pack 3 (SP3) is required. Verify that this has been
installed before installing the Wireless USB To VGA Adapter Kit software.
• Before installing the software, make sure that the Wireless USB Host Adapter and the
Wireless VGA Device Adapter are not connected to the computer and the Wireless VGA
Device Adapter is not powered.
S
TEP 1-INSTALLING THE SOFTWARE
Insert the CD provided and the screen below will appear. Select the “Software Installation” from the
menu.
8
SOFTWARE/DEVICE INSTALLATION
This will take you to the TruLink Wireless USB Kit InstallShield Wizard.
Click “Next” to go to proceed with the install.
Read and accept the Wireless USB software License
Agreement by clicking “Yes”.
9
SOFTWARE/DEVICE INSTALLATION
Read and accept the License Agreement for the
DisplayLink software.
After the software installs, your installation is complete
and you can hit the “Finish” button to exit the wizard.
Important: reboot/restart if prompted.
10
SOFTWARE/DEVICE INSTALLATION
STEP 2 -DRIVER INSTALLATION FOR THE WIRELESS USB HOST ADAPTER

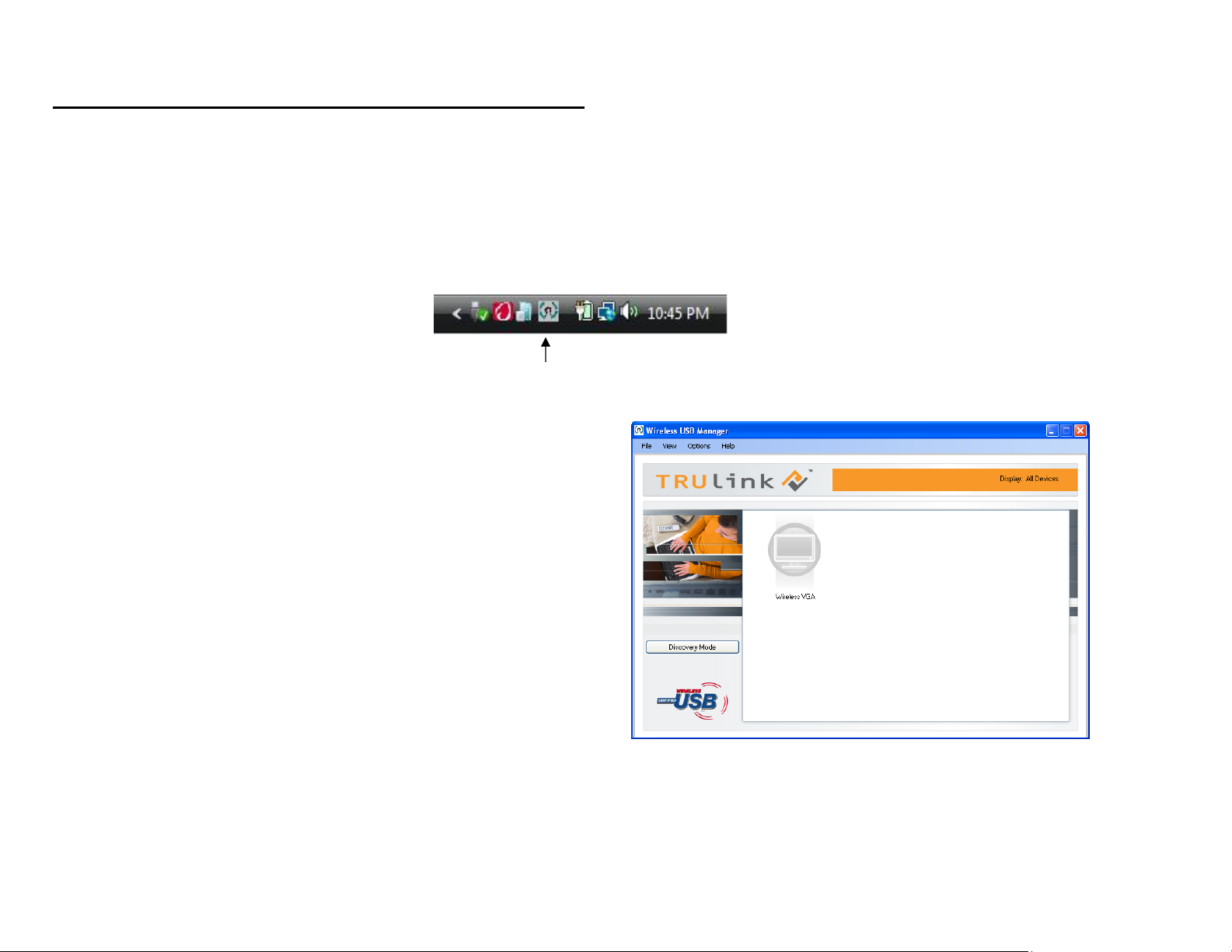

Your Wireless USB to VGA Adapter Kit has been pre-associated for you meaning the Wireless USB Host
Adapter will automatically recognize the Wireless VGA Device Adapter upon being powered. After
software installation you should see the Wireless USB Manager icon in your Windows icon tray. Doubleclick on this icon to open the manager utility.
The Wireless USB Manager will open and instruct you on
what to do next. Screw on one of the supplied dipole
antennas to the Wireless USB Host Adapter and connect
the Wireless USB Host Adapter to an available USB port
on your computer. You also have the option to connect
the Wireless USB Host Adapter to the USB Cradle
provided in the package if you need to make the adapter
more mobile.

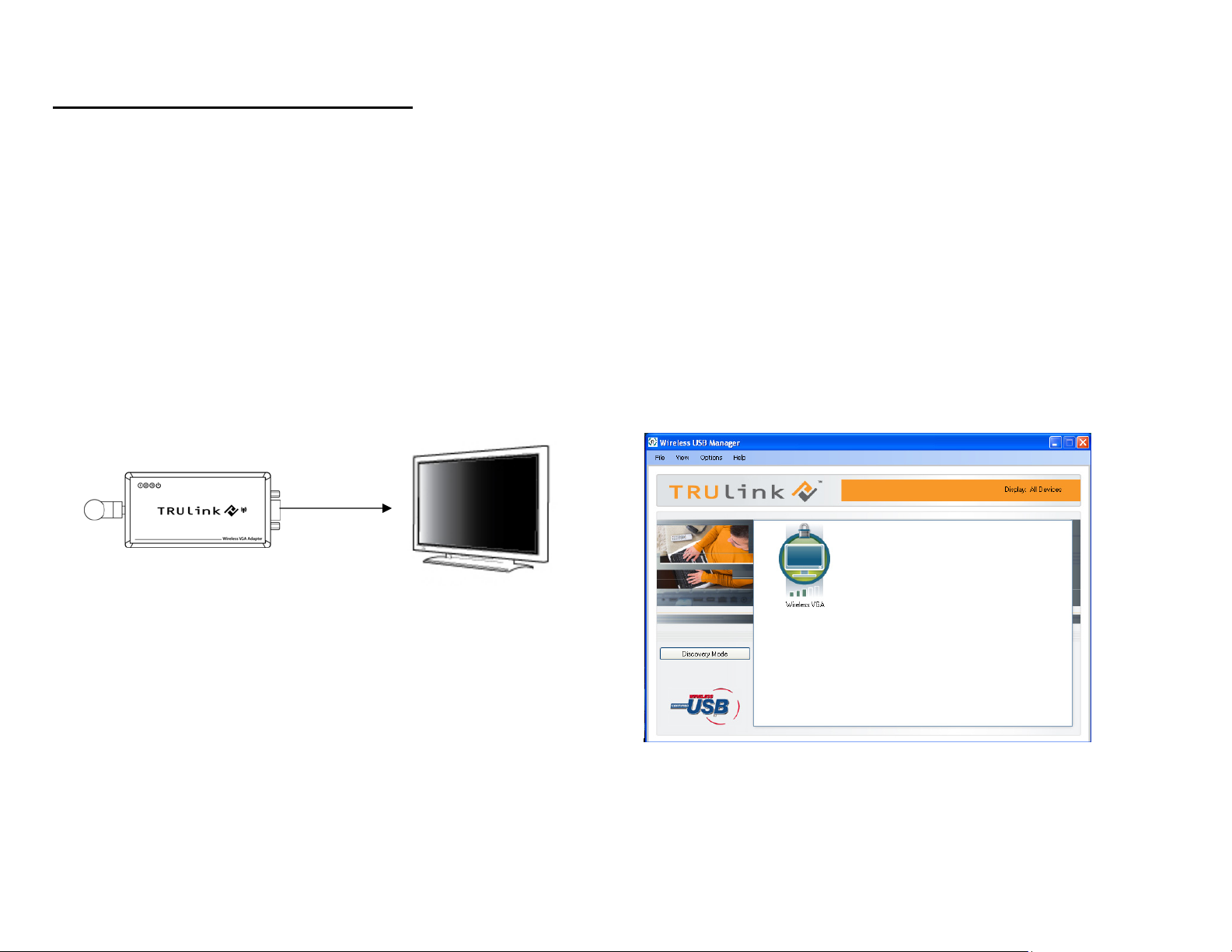

Figure: Wireless USB Manager
11
SOFTWARE/DEVICE INSTALLATION
After you connect the Host Adapter to your computer, Windows will automatically install the \Wireless
USB Host Adapter and you should get a successful install message in your icon tray such as this figure
shows.
Figure: Successful Install Message
12
