C2G 4 x 2 Matrix HDTV SWITCH User Manual

I

N
S

T
R

U
C
T

I

O
N

M
A

N
U
A
L

Component Video/Audio

4 x 2 Matrix

HDTV SWITCH

with Analog and Digital Audio

Model:

SW204HD

* Allows you to connect 4 HD sources to either of the two outputs without having
to swap cables. Full Matrix capabilities.

* Full metal cabinet has the weight to stay on the table even with all the cables
connected. Rack mountable.

* Front Panel, Network and IR Remote control.

* Learns IR commands, so you can use an existing IR remote to control all switch
commands.

* Network interfaces for remote PC control.

* High Bandwidth and low crosstalk provides maximum picture performance.

Cable Electronics, Inc.

3209 Wood Street
Garland, Texas 75041
[phone] Fax [phone]

CE Labs, Inc. SW204HD Matrix Switch

Installation / Operation Instructions

Unpack the switch and wall power supply from the box. Pick a suitable location and place the switch close to
the equipment to be connected.

Plug the end of the power supply into the power jack on the unit. Connect the wall transformer into an
appropriate wall outlet jack.

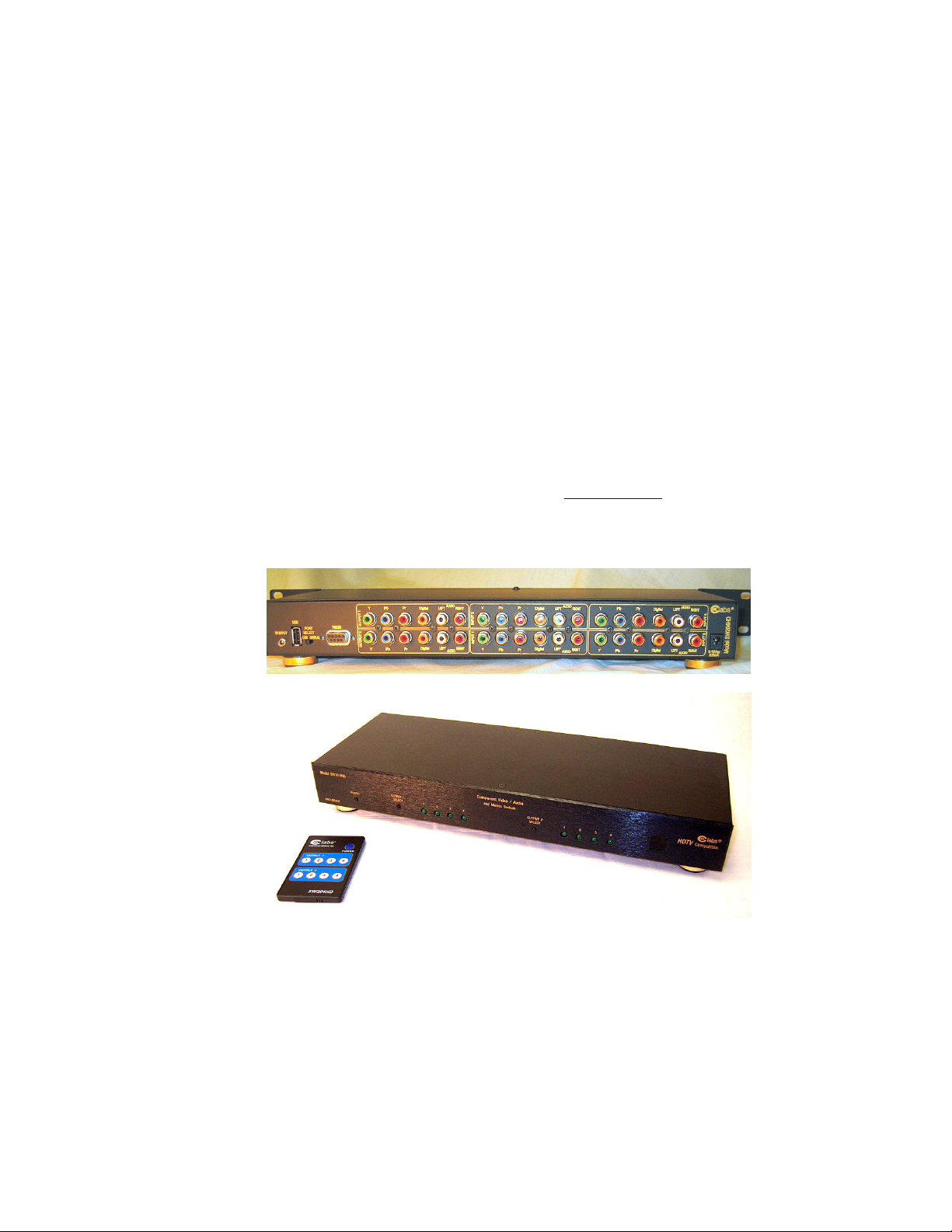

Connect the devices to be switched and the TV monitors to the jacks on the back of the SW204HD as shown
above. Component video cables are to be supplied by the customer.

On the front of the SW204HD, press the “POWER” button. Two of the channel LEDs will be on.

Press the “OUTPUT 1 SELECT” button to choose the device you wish to see on the monitor connected to
OUTPUT 1. Press the “OUTPUT 2 SELECT” button to choose the device you wish to see on the monitor
connected to OUTPUT 2.

If the unit is to be rack mounted:

1. Remove the four feet from the bottom of the unit.

2. Attach the included rack mount brackets with the screws provided.

3. Position the switch at the desired location in the rack and secure with rack mount screws

(user provided).

CE Labs, Inc. SW204HD Matrix Switch

SW204HD

Installation / Operation Instructions

IR Remote Learning Function

1. Press and hold the power switch for 4 seconds. The power may be in the off or on position. The SW204HD
will enter the learning mode and Output 1, LED 1 will flash.

To learn a command:

2. Using any existing handheld remote (Some Philips models may not work), press a button that you want to
assign to the currently flashing LED channel. The SW204HD will move to the next position and wait for you
to press the next remote button. (You may bypass any selection by pressing either Output Select button on
the SW204HD. Therefore, one or more commands can be changed without disturbing existing commands.)

3. When all eight of the individual channels have been programmed, all 4 of the Output 1 LEDs will begin to
flash. The next button pressed on the users remote control will be programmed to perform the channel
advance function just like the Output Select button on the front of the SW204HD. The last 4 LEDs will flash
next to allow the Output 2 channel advance function to be programmed.

4. At last all 8 of the LEDs will flash, allowing the user to program the power on/off function to the next button
pressed on the users’ remote control. Learning is now complete.

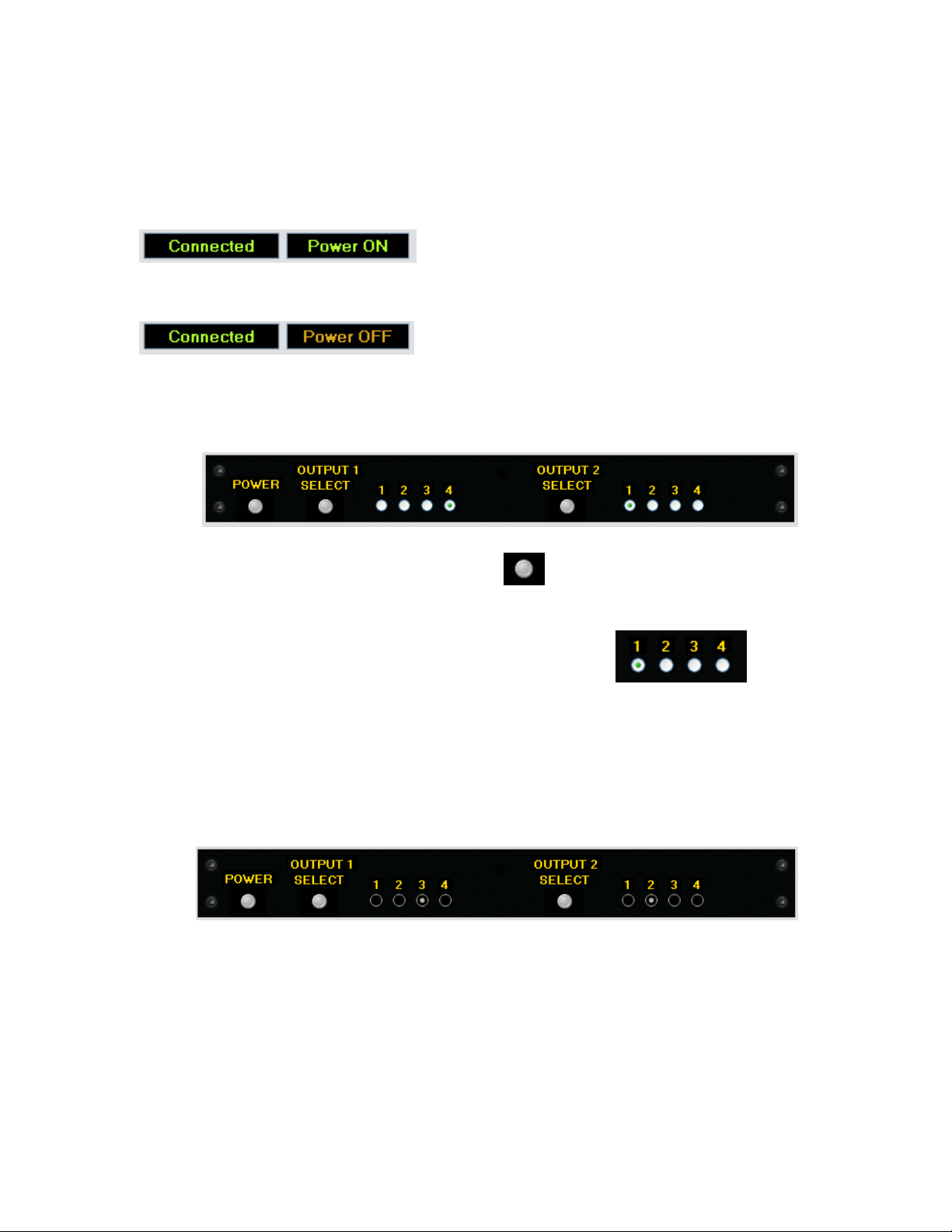

The SW104HD includes a remote control to select the desired device or turn power on or off. In addition to

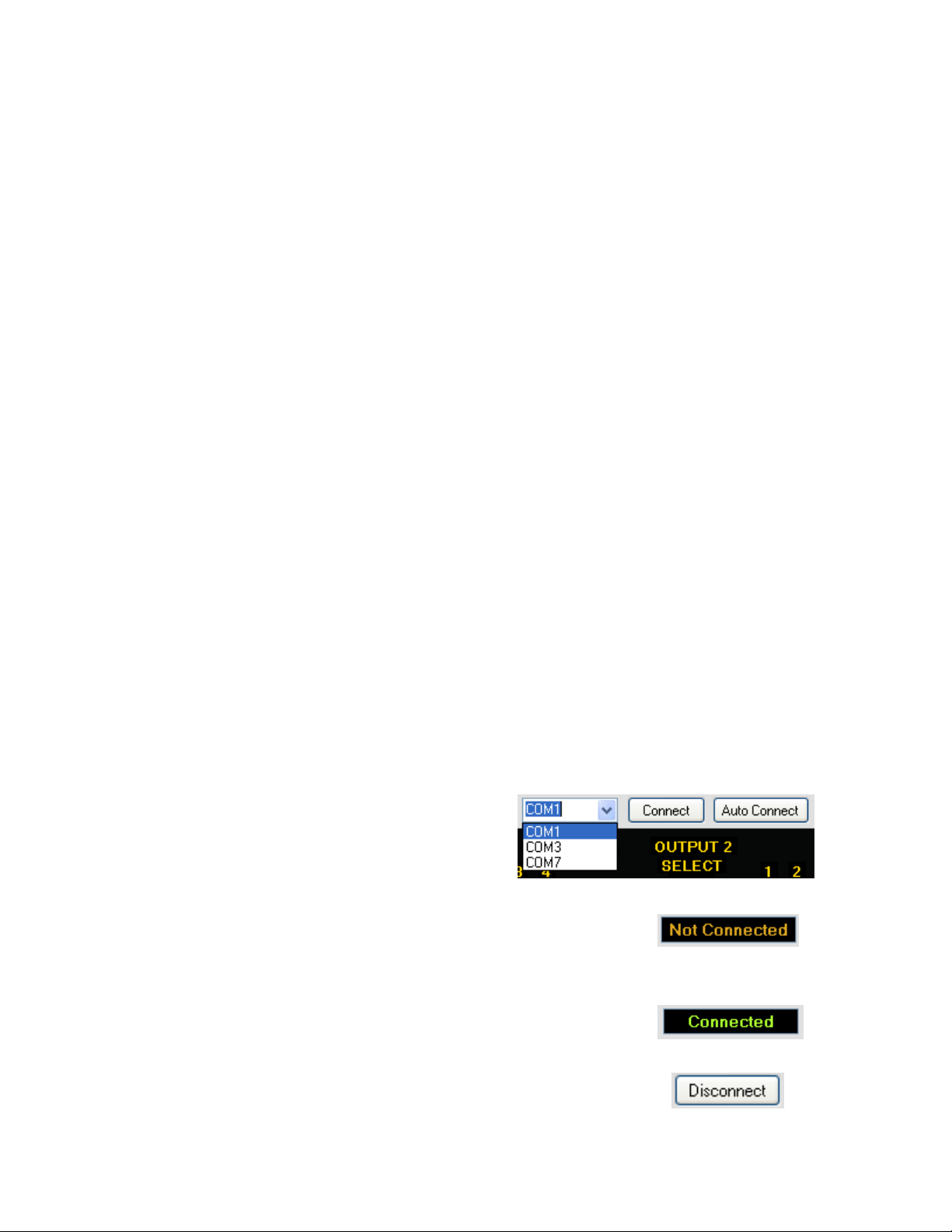

the front panel controls and the IR remote, the SW204HD may be controlled over USB or RS-232 with a PC
using a software application included on the CD or downloaded from “www.celabs.net”.

IR PROTOCOL

CE Labs, Inc. SW204HD Matrix Switch
