BZBGEAR BG-SDITPG User guide

12G/6G/3G/HD/SD-SDI Pattern

Generator

User Manual

BG-SDITPG

Safety and Notice

TABLE OF CONTENTS

INTRODUCTION ..................................................................................................................... 1

FEATURES .............................................................................................................................. 1

PACKAGE CONTENTS........................................................................................................... 1

SPECIFICATIONS ................................................................................................................... 2

CONNECTION DIAGRAM ....................................................................................................... 4

NOTICE .................................................................................................................................... 5

APPENDIX ............................................................................................................................... 6

WARRANTY ............................................................................................................................ 8

The BG-SDITPG 12G/6G/3G/HD/SD-SDI Pattern Generator has been tested for conformity to safety
regulations/requirements and has been certified for international use. However, like all electronic
equipment, the BG-SDITPG should be used with care. Please read and follow the safety instructions to
protect yourself from possible injury and to minimize the risk of damage to the unit.

● Follow all instructions and warnings marked on this unit.

● Do not attempt to service this unit yourself, except where explained in this manual.

● Provide proper ventilation and air circulation and do not use near water.

● Keep away from objects that might damage the device and assure that the placement of this unit is on a

stable surface.

● Use only the power adapter and power cords and connection cables designed for this unit.

● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

PANEL DESCRIPTIONS ......................................................................................................... 3

MISSION STATEMENT ........................................................................................................... 8

1

INTRODUCTION

The BG-SDITPG 12G/6G/3G/HD/SD-SDI Pattern Generator is an advanced SDI pattern generator with
multi-format (12G/6G/3G/HD/SD) and multi-pattern support. Besides still and moving video test patterns,
other features such as audio (SMPTE-291M) are also provided. BG-SDITPG can support up to 8 channel
AES compliant audio with 48KHz sample rate. BG-SDITPG is equipped with four buttons and LCM
screen to ease the control. This device provides a cost-effective way to calibrate and test SDI enable
video devices and displays.

FEATURES

● Supported output resolution

NTSC 525@60, PAL 625@50, [email protected], 720p@50,[email protected], 720p@60, 1080i@50,
[email protected], 1080i@60, [email protected], 1080p@24, 1080p@25, [email protected], 1080p@30,
1080p@50, [email protected], 1080p@60, [email protected], 4K2K @24, 4K2K @25, 4K2K @29.97,
4K2K @30, 4K2K @50, 4K2K @59.94, 4K2K @60
Bit Rate: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835 Gbps, 5.94Gbps, 5.934Gbps, 11.88Gbps,

11.868Gbps,270 Mbps
Resolution: 10bit

● Video Patterns

100% Color Bars, Borderline, Random Noise, Check Field, Black, Vertical Lines, Black / White
alternate fields, Full Grey / Full White, Black to White Gradient, Random Generator for all still
patterns, moving squares White noise, Inverse effect with still pattern, Scrolling Title (see Appendix
for illustrations)

● Save Settings to Memory Option

● ANC Data

EDH (RP-165), SMPTE 352M, SMPTE291M

● Control

By LCM & panel buttons

● Video Output
SDI output (SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI)

PACKAGE CONTENTS

●1x BG-SDITPG

●1x 12V power supply unit

●1x User Manual

2

Model Name

Technical

Role of usage

Pattern generator

SDI standards

Auto SDI rate detection

Supported protocols

SMPTE 259M (270Mbps / 360Mpbs)
SMPTE 292M / HDTV (1.485 & 1.485/1.001Gbps)
SMPTE 424/425M (2.97 & 2.97/1.001Gbps)
SMPTE ST-2081 (5.94&5.94/1.001Gbps)
SMPTE ST-2082 (11.88&11.88/1.001Gbps)

Video bandwidth

11.88Gpbs

Data rates

143 / 270 / 1483 / 1485 / 2967 / 2970 / 5934 / 5940 / 11868 / 11880 Mbps

Video support

[12G] 4K2K@50/59.94/60
[6G] [email protected]/24, 25, 30
[3G] 1080p@50/59.94/60 (4:2:2)
[HD] 720p50/59.94/60, 1080p24/30, 1035i50/59.94/60, 1080i50/59.94/60
[SD] [email protected], PAL@50Hz

SDI signal type

SMPTE-292M / 259M / 424M / ST-2081 / ST-2082

Output impedance

75

Cable (Belden 1694A)
equalization /
transmission

[12G-SDI] up to 50m (165ft) / [6G-SDI] up to 100m (330ft) / [3G-SDI] up to
200m (660ft)

Audio support

Yes

PCB Stack-up

6-layer board [impedance control — differential 100; single 75]

Output

2x BNC [SDI]

BNC connector

75 interlocking socket

[HD] Eye pattern
characteristics

Amplitude: Within 800mV <10%Long time jitter <1.0 UI
Rise overshoot: Less than 2% Timing jitter <1.0 UI
Fall overshoot: Less than 2% Alignment jitter <0.2 UI

Mechanical

Dimensions
[L x W x H]

Model

150 x 190 x 32mm [5.9” x 7.5” x 1.3”]

Package

263 x 170 x 97mm [10.3" x 6.7" x 3.8"]

Carton

512 x 364 x 288mm [1'7" x 1.2' x 11.3"]

Weight
Model

660g [1.5 lbs]

Package

1260g [2.8 lbs]

Relative humidity

SPECIFICATIONS

BG-SDITPG

12G/6G/3G/HD/SD-SDI

Yes

Housing Metal enclosure

Fixedness Interlocking power supply
Power supply 12V
Power consumption 8 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]

20~90% RH [no condensation]

2A DC

3

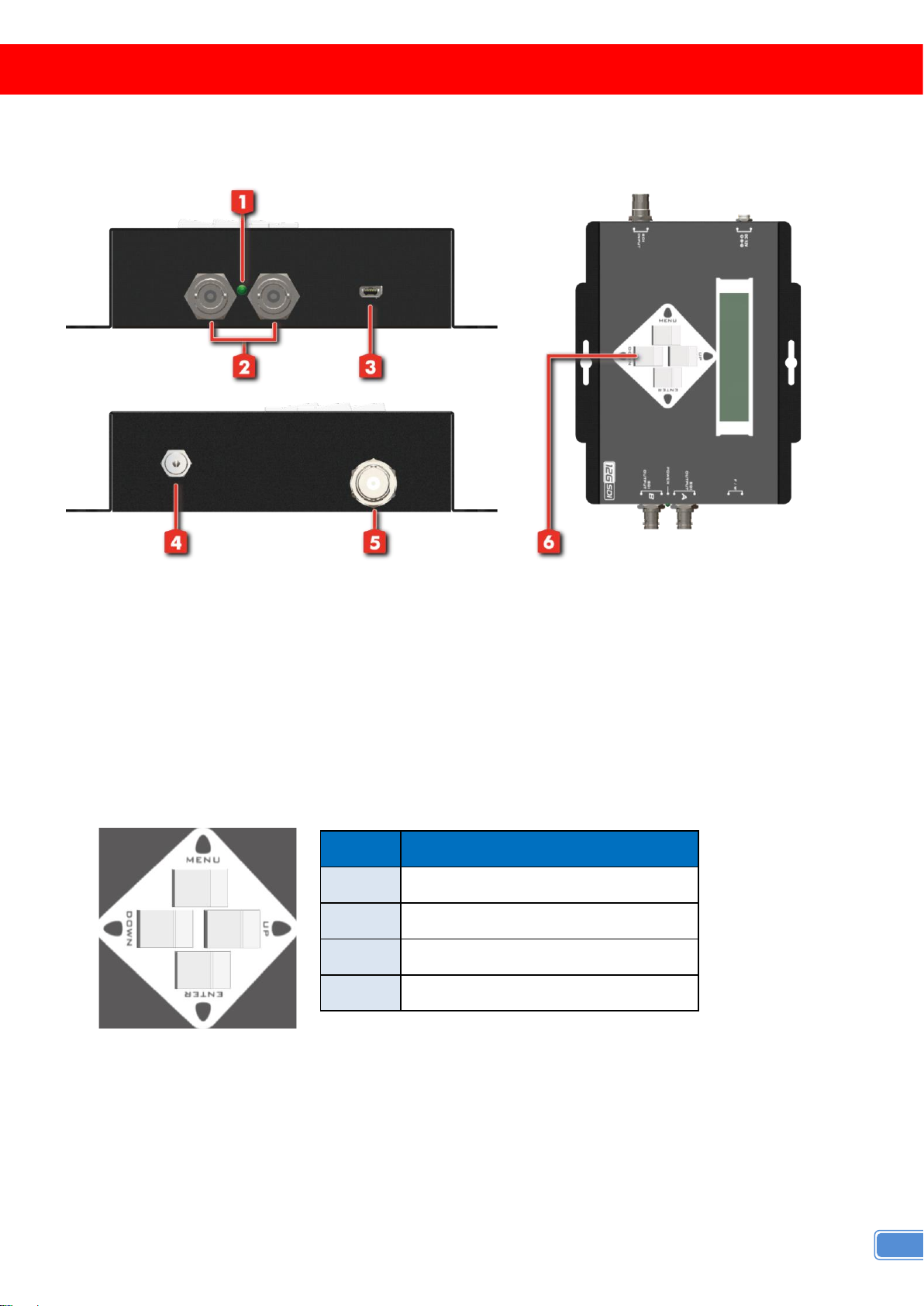

PANEL DESCRIPTIONS

Front/ Rear Panel

1. POWER LED: Power LED indicator

2. SDI OUTPUT: Connect to an SDI device for SDI signal output either from the chosen

pattern or the SDI source signal

3. Mini-USB: F/W update

4. +12V DC: Connect to a 12V DC power supply unit

5. SDI INPUT: Connect to an SDI source

6. PUSH BUTTON:

Button

Function

Menu

Trigger the menu operation

Enter

Enter the menu item

Up

Choose the last menu item

Down

Choose the next menu item

4

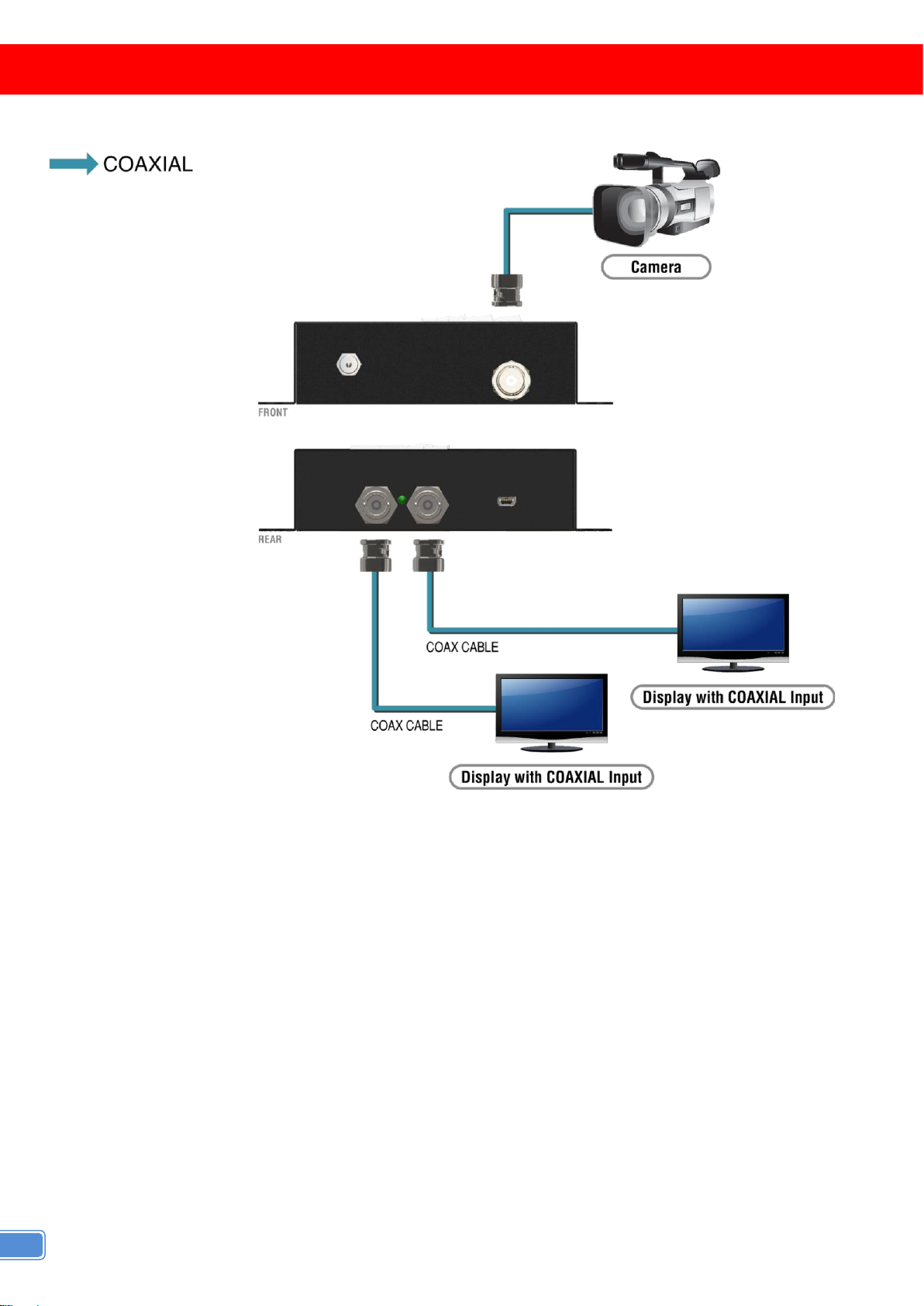

CONNECTION DIAGRAM

5

NOTICE

1. In HDMI bypass mode, users must be aware that the jitters coming from HDMI sources, such as DVD
players, may be much higher than typical requirement according to SMPTE request on HD-SDI signals.
This will result in SDI output with high jitters or even no SDI outputs!

2. Due to the high frequency bandwidth and low jitter requirement of 3G-SDI signals, it is strongly
recommended to use just one SDI OUTPUT with one 75 ohm.

3. Features including timings and patterns may change without notice after the firmware is updated!

6

APPENDIX

ANC Data

DID

SDID/DBN

352M

0x41

0x01

RP-165-EDH*

0xF4

0x00

Data Identification Word of Ancillary Data Packet

* Data Type 1(SMPTE-291M)

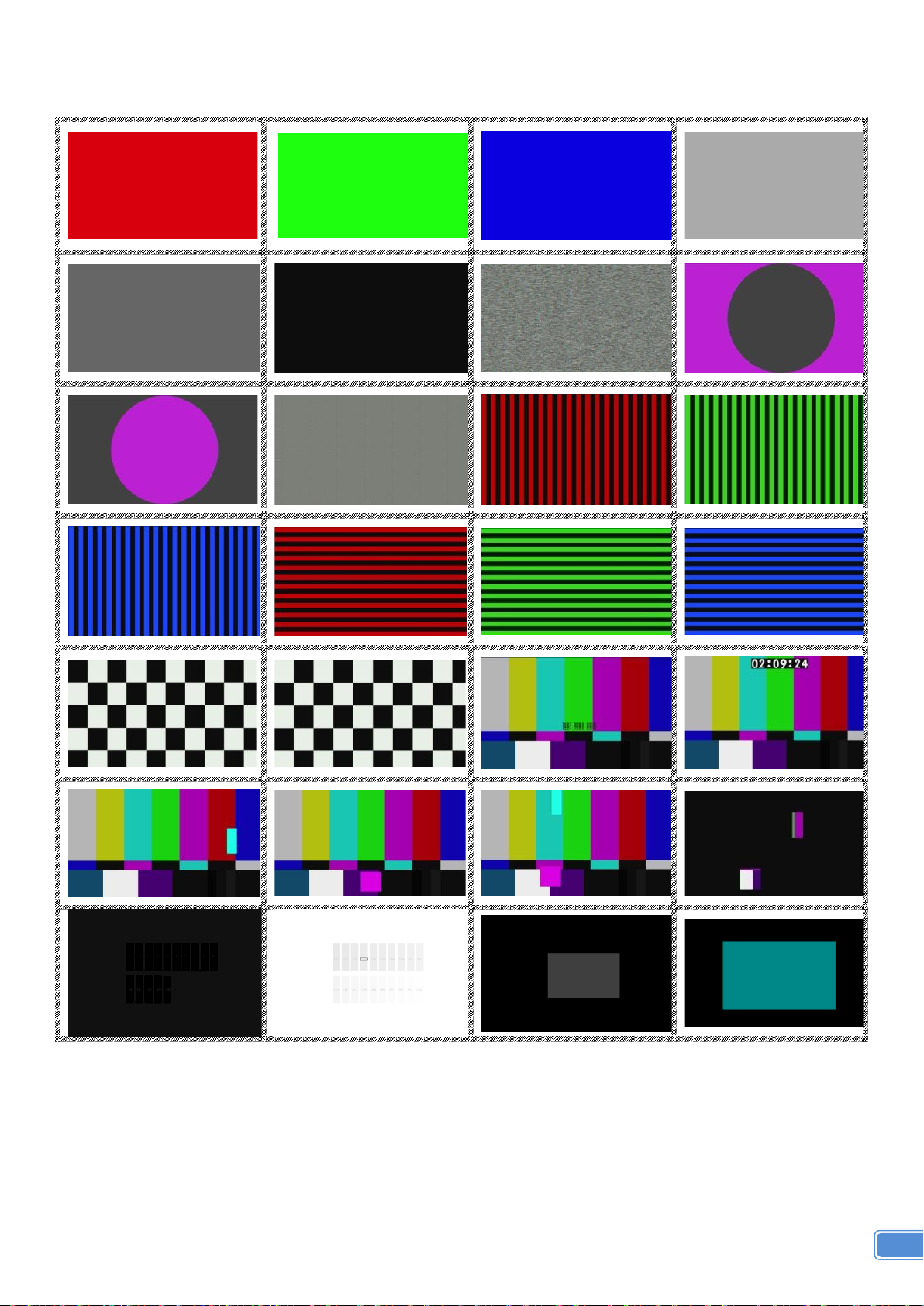

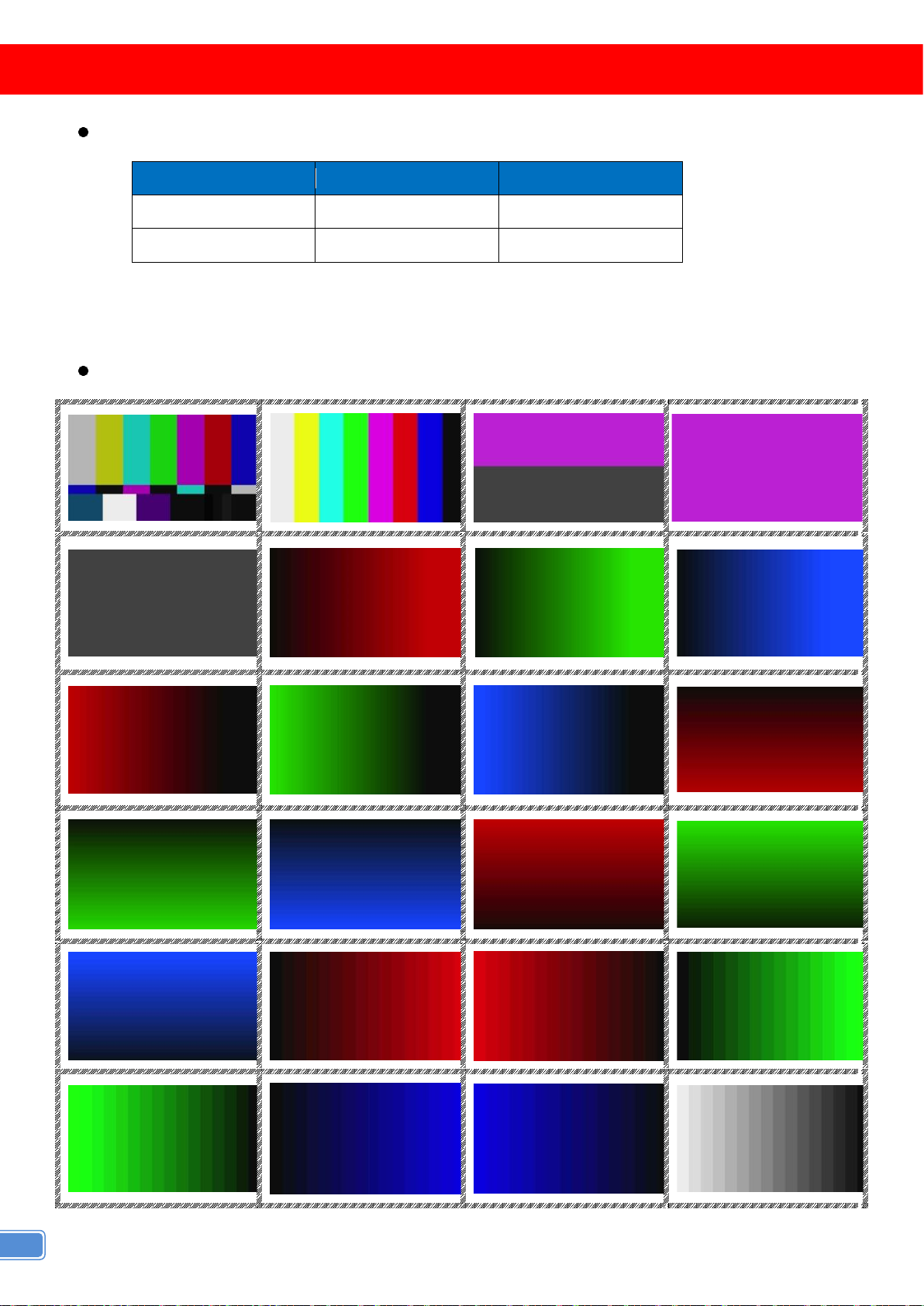

Built-in Video Patterns

7

8

WARRANTY

BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that
along with the manufacturer's one-year limited warranty, we are offering free second-year warranty
coverage upon registration*.

Taking advantage of this program is simple, just follow the steps below:

1. Register your product within 90 days of purchase by visiting BZBGEAR.com/warranty.

2. Complete the registration form. Provide all necessary proof of purchase details, including serial

number and a copy of your sales receipt.

For questions, please call 1.888.499.9906 or email [email protected].

For complete warranty information, please visit BZBGEAR.com/warranty or scan the QR code below.

*Terms and conditions apply. Registration is required.
