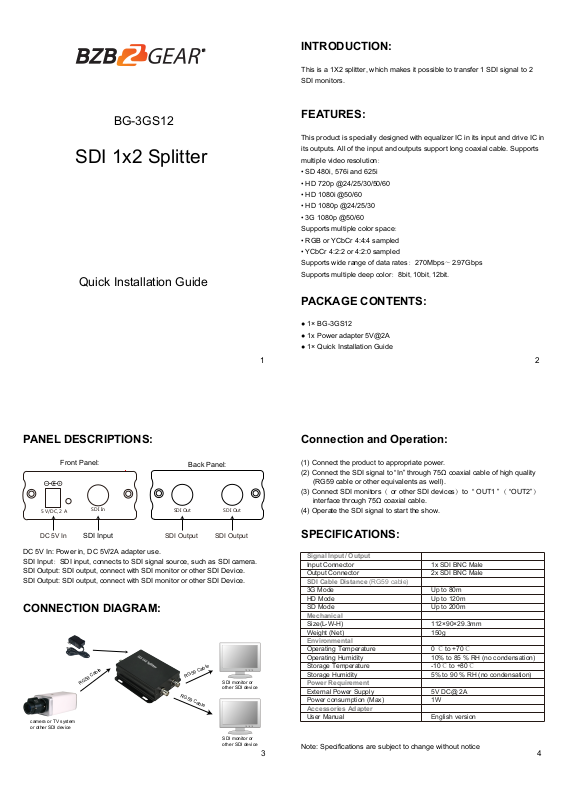

INTRODUCTION:
This is a 1X2 splitter, which makes it possible to transfer 1 SDI signal to 2
SDI monitors.
BG-3GS12
SDI 1x2 Splitter
Quick Installation Guide
FEATURES:
This product is specially designed with equalizer IC in its input and drive IC in
its outputs. All of the input and outputs support long coaxial cable. Supports
multiple video resolution：
• SD 480i, 576i and 625i
• HD 720p @24/25/30/50/60
• HD 1080i @50/60
• HD 1080p @24/25/30
• 3G 1080p @50/60
Supports multiple color space：
• RGB or YCbCr 4:4:4 sampled
• YCbCr 4:2:2 or 4:2:0 sampled
Supports wide range of data rates：270Mbps～2.97Gbps
Supports multiple deep color：8bit, 10bit, 12bit.
PACKAGE CONTENTS:
● 1× BG-3GS12
● 1x Power adapter 5V@2A
● 1× Quick Installation Guide
1
2
PANEL DESCRIPTIONS:
Front Panel:
5 V/DC, 2 A
DC 5V In SDI Output SDI Output
DC 5V In: Power in, DC 5V/2A adapter use.
SDI Input：SDI input, connects to SDI signal source, such as SDI camera.
SDI Output: SDI output, connect with SDI monitor or other SDI Device.
SDI Output: SDI output, connect with SDI monitor or other SDI Device.
SDI In
SDI Input
Back Panel:
SDI Out SDI Out

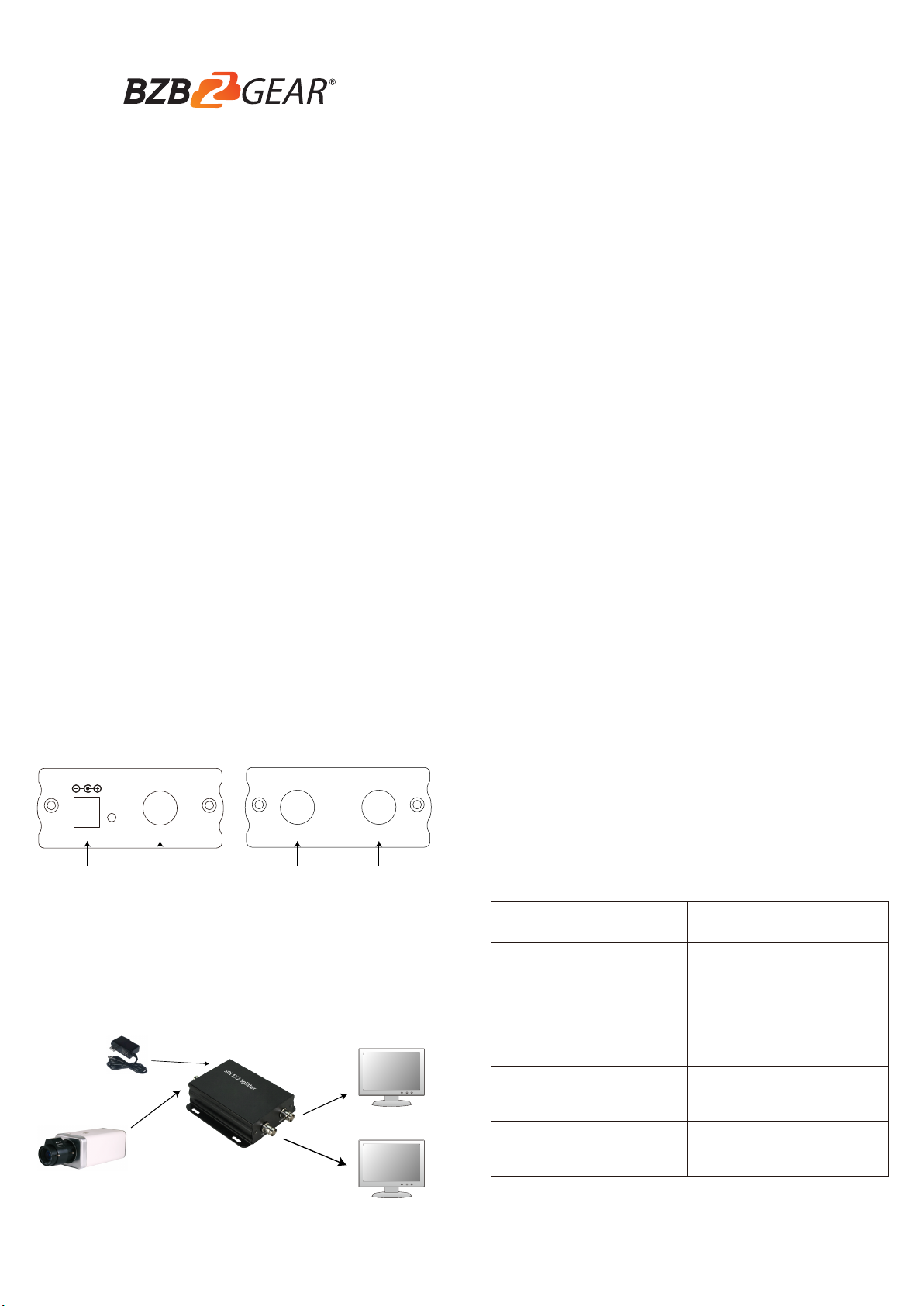

CONNECTION DIAGRAM:
camera or TV system
or other SDI device
RG59 Cable
RG59 Cable
RG59 Cable
SDI monitor or
other SDI device
SDI monitor or
other SDI device
Connection and Operation:
(1) Connect the product to appropriate power.
(2) Connect the SDI signal to “In” through 75Ω coaxial cable of high quality
(RG59 cable or other equivalents as well).
(3) Connect SDI monitors（ or other SDI devices）to “ OUT1 ”（ “OUT2”）
interface through 75Ω coaxial cable.
(4) Operate the SDI signal to start the show.
SPECIFICATIONS:
Signal Input/ Output
Input Connector
Output Connector
SDI Cable Distance (RG59 cable)
3G Mode
HD Mode
SD Mode
Mechanical
Size(L-W-H)
Weight (Net)
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Power Requirement
External Power Supply
Power consumption (Max)
Accessories Adapter
User Manual
3
Note: Specifications are subject to change without notice
1x SDI BNC Male
2x SDI BNC Male
Up to 80m
Up to 120m
Up to 200m
112×90×29.3mm
150g
0 ℃ to +70℃
10% to 85 % RH (no condensation)
-10℃ to +80℃
5% to 90 % RH (no condensation)
5V DC@ 2A
1W
English version
4
Page 2
WARRANTY: MISSION STATEMENT:
BZBGEAR wants to assure you peace of mind. We're so confident in the
quality of our products that along with the manufacturer's one-year limited
warranty, we are offering free second-year warranty coverage upon
registration*!
Taking advantage of this program is simple, just follow the steps below:
1. Register your product within 90 days of purchase by visiting
BZBGEAR.com/warranty.
2. Complete the registration form. Provide all necessary proof of purchase
details, including serial number and a copy of your sales receipt.
For questions, please call 1.888.499.9906 or email [email protected].
For complete warranty information, please visit BZBGEAR.com/warranty or
scan the QR code below.
*Terms and conditions apply. Registration is required.
BZBGEAR manifests from the competitive nature of the audiovisual industry
to innovate while keeping the customer in mind. AV solutions can cost a
pretty penny, and new technology only adds to it. We believe everyone
deserves to see, hear, and feel the advancements made in today’s AV world
without having to break the bank. BZBGEAR is the solution for small to
medium-sized applications requiring the latest professional products in AV.
We live in a DIY era where resources are abundant on the internet. With that
in mind, our team offers system design consultation and expert tech support
seven days a week for the products in our BZBGEAR catalog. You’ll notice
comparably lower prices with BZBGEAR solutions, but the quality of the
products is on par with the top brands in the industry. The unparalleled
support from our team is our way of showing we care for every one of our
customers. Whether you’re an integrator, home theater enthusiast, or a
do-it-yourselfer, BZBGEAR offers the solutions to allow you to focus on your
project and not your budget.
