En glish

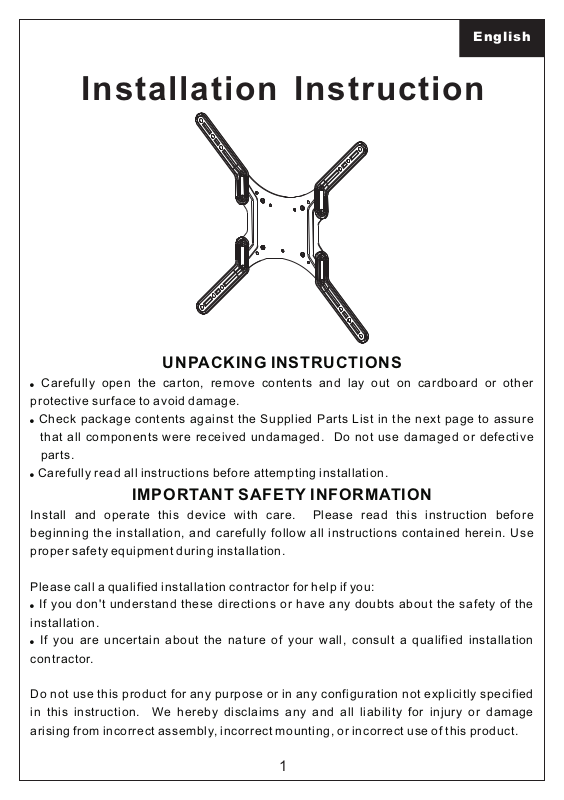

Installation Instruction
UNPACKING INSTRUCTIONS
! Careful ly o pen the carton, remo ve contents and lay out on car dboar d or other
protective s urface to avoid damage.
! Che ck package co ntents a gainst the Supplied P arts Lis t in the next pa ge to as sure
that all c omponents were recei ved u ndama ged. Do not use dama ged or defective
parts.
! Carefully re ad all in structions befo re attempting installa tion.
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instructi on before
beginning the installatio n, an d car efull y fol low a ll in structions contained herein. Use
proper safet y equip ment during insta llation.
Please call a qu alifi ed installation c ontractor for help if you:
! If you don't und erstand these directi ons or have a ny doubt s about the s afety of the
installati on.
! If you are uncert ain about the nature of your wall, consu lt a qu alified installatio n
contractor.
Do not use this produc t for any p urpos e or in any configuration not expli citly specified
in this in struction. We hereby discla ims any and all liabi lity for inju ry or da mage
arising from i ncorr ect assembly, incorre ct moun ting, or incorrec t use of this product.
1
Su pp li ed Par ts List
(8)M6 Nut-e
VESA 200x2 00
VESA 400x2 00
(2)VESA Adapto r-b (8)M6 Wash er-d(1)VESA 200 Pla te-a
h
g
Not included
(8)M6x10 Bol t-c
(4)Nut-g (4)Washe r-i(4)Bolt-f (4)Spring Washer-h
a
i
VESA 300x3 00
VESA 400x4 00
f
c
d
e
b
b
c
d
e
Thank you for choosing our products!
