Byron DBY-22313 User guide

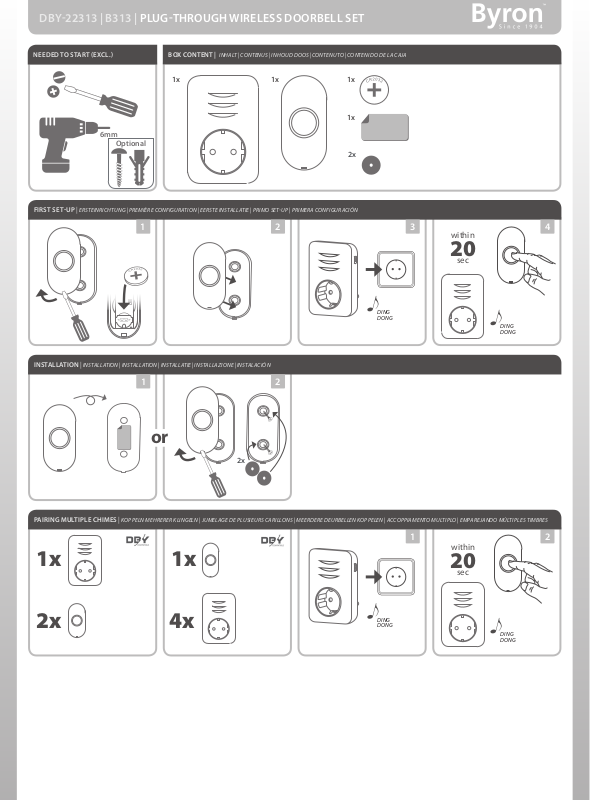

DBY-22313 | B313 | PLUG-THROUGH WIRELESS DOORBELL SET

NEEDED TO START (EXCL.)

6mm

Optional

FIRST SET-UP | ERSTEINRICHTUNG | PREMIÈRE CONFIGURATION | EERSTE INSTALLATIE | PRIMO SETUP | PRIMERA CONFIGURACIÓN

BOX CONTENT | INHALT | CONTENUS | INHOUD DOOS | CONTENUTO | CONTENIDO DE LA CAJA

1x 1x

1x

1x

2x

1 2 3

DING
DONG

within

20

sec

DING
DONG

4

INSTALLATION | INSTALLATION | INSTALLATION | INSTALLATIE | INSTALLAZIONE | INSTALACIÓN

1

2

or

2x

PAIRING MULTIPLE CHIMES | KOPPELN MEHRERER KLINGELN | JUMELAGE DE PLUSIEURS CARILLONS | MEERDERE DEURBELLEN KOPPELEN | ACCOPPIAMENTO MULTIPLO | EMPAREJANDO MÚLTIPLES TIMBRES

1 2

within

1x 1x

4x2x

DING
DONG

20

sec

DING
DONG

1616

DBY-22313 | B313 | PLUG-THROUGH WIRELESS DOORBELL SET

FEATURES | EIGENSCHAFTEN | CARACTÉRISTIQUES | KENMERKEN | CARATTERISTICHE | CARACTERÍSTICAS

1

1

2

2

TROUBLESHOOTING | FEHLERBEHEBUNG | RÉSOLUTION DE PROBLÈMES | PROBLEMEN OPLOSSEN | RISOLUZIONE DEI PROBLEMI | SOLUCIÓN DE PROBLEMAS

RESET

WWW.CHBYRON.EU

Find us on

DING
DONG

1 2

within 20 sec.

DING
DONG

Or contact us directly:

Conforms to all relevant
European Directives.

FIRST SET-UP | ERSTEINRICHTUNG | PREMIÈRE

CONFIGURATION | EERSTE INSTALLATIE | PRIMO
SET-UP | PRIMERA CONFIGURACIÓN

3 4

Frequency band: 433.92MHz (433.050 - 434.790 MHz)
Maximum radio-frequency power: +5.92dB
Maximum wattage: 3680W
Range: 150 meters

Wireless Doorbell DBY-22313 Push button - DBY-23510

Power: 220-240V – 50 Hz Power supply: 1 x CR2032 3V
Indoor Use Only IP44 Weather Resistant

3

and

ZINK/ZINC

RECHARGEABLE

ALKALINE

LITHIUM
