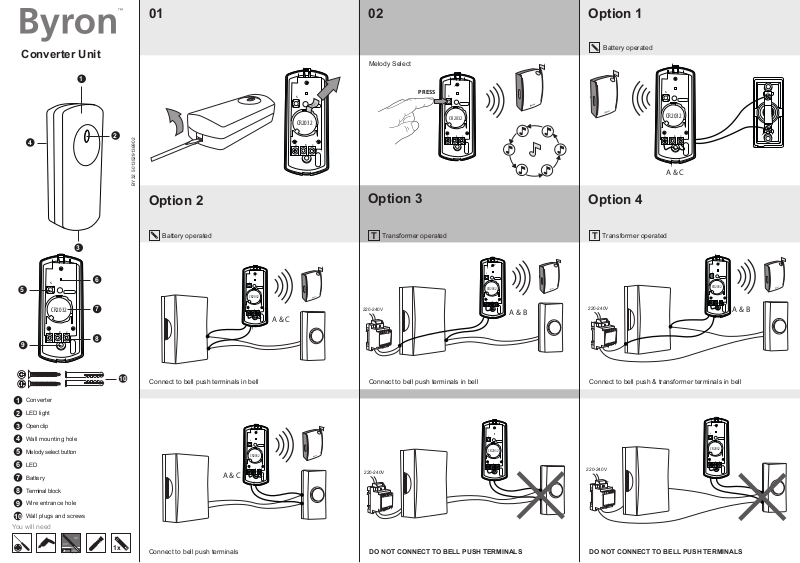

Converter Unit
1
|
2 |
4 |
<![if ! IE]> <![endif]>5013529136902 |
|
|
|
<![if ! IE]> <![endif]>BY32 |
3
s 6
5
CR2032 7
A B C
8 9
10
1Converter
2LED light
3Open clip
4Wall mounting hole
5Melody select button
6LED
7Battery
8Terminal block
9Wire entrance hole
10 Wall plugs and screws
You will need
2mm |
1x |
01 |
02 |
|
|
|
Melody Select |
s |
PRESS |
s |
CR2032
CR2032
A B C
A B C
Option 2 |
Option 3 |
||||
Battery operated |
T Transformer operated |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
s |
s |
|
|
|
|
CR2032 |
CR2032 |
|
|
|
|
A B C |
A B C |
220-240V |
A & B |
|
A & C |
|
Connect to bell push terminals in bell |
Connect to bell push terminals in bell |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
s
s
|
CR2032 |
|
CR2032 |
|
A B C |
|
A B C |
A & C |
220-240V |
|
Connect to bell push terminals |
DO NOT CONNECT TO BELL PUSH TERMINALS |
Option 1
Battery operated
s
CR2032
A B C
A & C
Option 4
T Transformer operated
s
CR2032 |
|
A |
B C |
220-240V |
A & B |
Connect to bell push & transformer terminals in bell
s
CR2032
A B C
220-240V
DO NOT CONNECT TO BELL PUSH TERMINALS
03 |
04 |
Pairing Wirefree Bells |
|
Mounting |
|
HOLD |
BEEP BEEP |
BEEP BEEP |
|
PRESS |
s |
||
|
|
|
|
10s |
|
|
CR2032 |
|
|
|
|
|
|
|
A B C |
NB: For full pairing instruction for door bells please check through Wirefree Bell manuals.
Getting started...
Safety
The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc...
The normal operation of the product may be disturbed by strong electromagnetic interference.
This equipment is intended for domestic use only.
The appliance shall not be exposed to dripping or splashing.
n the appliance.
nt ventilation.
Ensure the bell push is not mounted where it could become immersed by water/ rain.
DO NOT allow children to play with this appliance.
Battery Warnings
An adult must carry out battery replacement and installation. Remove exhausted batteries from this product.
DO NOT short-circuit the battery terminals.
DO NOT mix used and new batteries.
DO NOT mix alkaline standard (carbon-zinc), lithium or rechargeable batteries.
DO NOT use rechargeable batteries in this product. DO NOT recharge non-rechargeable batteries.
DO NOT allow water to come into contact with the batteries or wiring.
Install carefully to prevent any damage to the batteries
When installing batteries in the battery compartments, ensure the batteries are placed as marked (+)(-).
Only the recommended batteries should be used.
Remove batteries from product when not in use for long periods of time.
Keep this product out of the reach of small children.
Store unused batteries in their original packaging.
Dispose of used batteries responsibly.
In more detail...
Converter unit
Power: 1x 3V CR2032 (included)
Consumption: 3.0mA - ON, 0.003mA - OFF
Operating Temperature: -10°C to +40°C
Operating Distance: 100 metres in open field
Works with all Byron BY range products only.
Smartwares Safety & Lighting declares that the appliance, model (BY32), Conforms to all relevant European Directives. The complete declaration of conformity is available on request at:
Smartwares Safety & Lighting
34, Sherwood Road Bromsgrove
B60 3DR United Kingdom www.chbyron.eu
Helpline
Help line number: 0845 2301231
Open 10am-4pm Mon-Fr, except Thurs 12:30pm-4pm.
Local call charges apply.
Recycling
This symbol is known as the ‘Crossed-out Wheelie Bin Symbol’. When this symbol is marked on a product or battery, it means that it should not be disposed of with your general household waste. Some chemicals contained within electrical/electronic products or batteries can be harmful to health and the environment. Only dispose
of electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes and for the protection of the environment
IMPORTANT - RETAIN THIS INFOMATION FOR FUTURE REFERENCE READ CAREFULLY
|
|
