Door Chime
720
Page 2
1:1
[03]×04
[04]×04
[01]×01 [02]×01
Page 3
03
GB
IE
Getting started...
GB
IE
Before you start
GB
IE
Getting started...
Things to check before you start
Your product
Getting started...
For domestic use only.
Children or persons unable to use this appliance
safely should never use this door chime.
Thanks to throw the plastic packagings and keep them out
of reach of children.
1. Door chime
2. Bell push button
GB
IE
You will need
1
2
IMPORTANT-RETAIN THIS
INFORMATION FOR FUTURE
REFERENCE: READ CAREFULLY
Page 4
Safety
Getting started...
GB
IE
GB
IE
IMPORTANT SAFETY POINTS
· The ventilation should not be impeded by covering the ventilation openings with
items, such as newspapers, tablecloths, curtains, etc...
· DO NOT allow this product to come into direct contact with heat or a naked
flame.
· The normal operation of the product may be disturbed by strong
electromagnetic interference.
· This equipment is intended for domestic use only.
· The appliance shall not be exposed to dripping or splashing.
· No objects filled with liquids, such as vases ,shall be placed on the appliance.
· Keep a minimum distance of 10 cm around the product for sufficient ventilation.
· Ensure the bell push is not mounted where it could become immersed by
water/rain.
· DO NOT allow children to play with this appliance.
BATTERY WARNINGS
· An adult must carry out battery replacement and installation.
· Remove exhausted batteries from this product.
· Do not dispose of batteries in a fire, batteries may explode or leak.
· Do not short-circuit the battery terminals.
· Do not mix used and new batteries.
· Do not mix alkaline standard (carbon-zinc), lithium or rechargeable batteries.
· Do not use rechargeable batteries in this product.
· Do not recharge non-rechargeable batteries.
· Do not allow any part to come in contact with heat or a direct flame.
· Do not allow water to come into contact with the batteries or wiring.
· Install carefully to prevent any damage to the batteries
· When installing batteries in the battery compartments, ensure the batteries are
placed as marked (+)(-).
· Only the recommended batteries should be used.
· Remove batteries from product when not in use for long periods of time.
· Keep this product out of the reach of small children.
· Store unused batteries in their original packaging.
· Dispose of used batteries responsibly.
Page 5

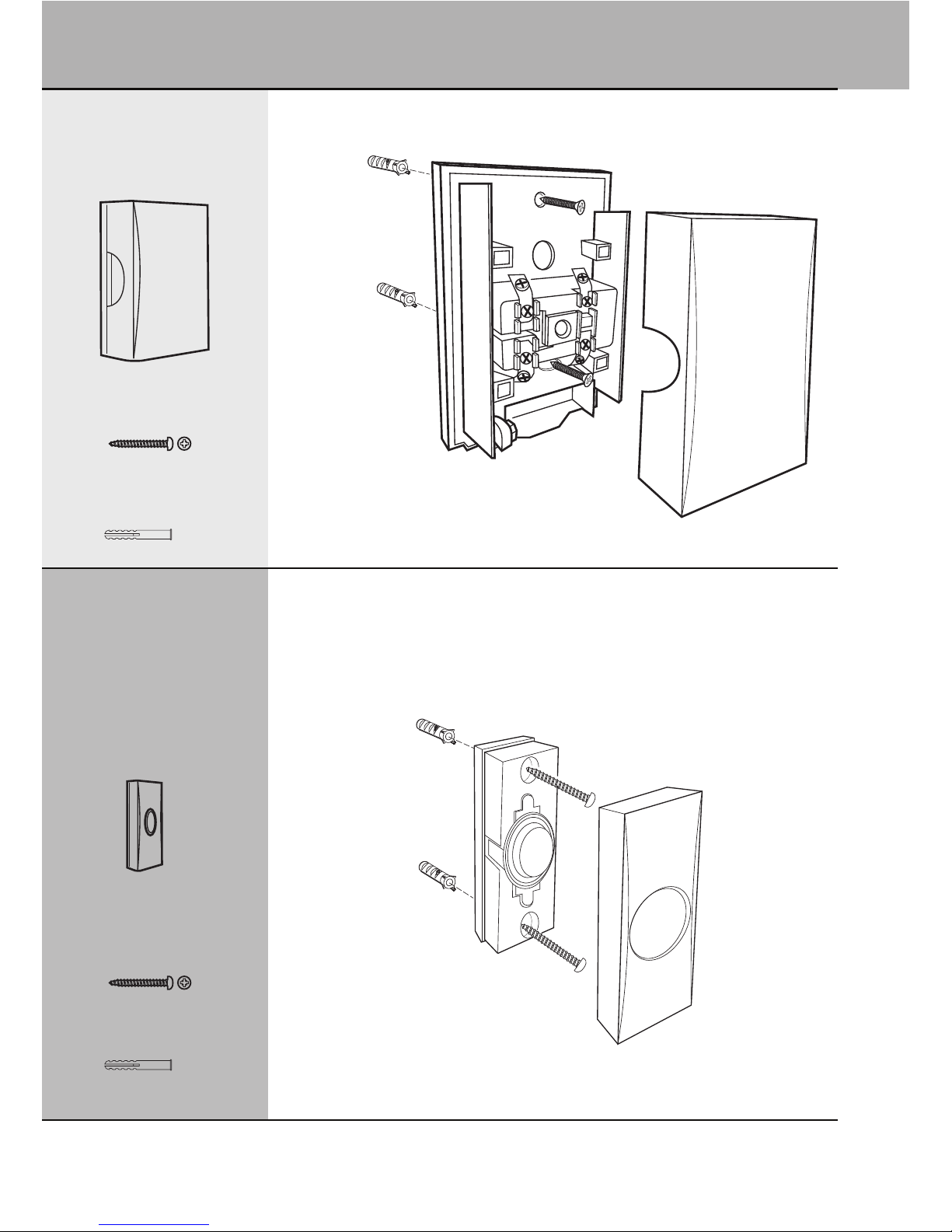

Assembly
Installation
01
02
[02]×01
[04]×02
[03]×02
[04]×02
[03]×02
[01]×01
Page 6
Technical specifications
> Model: 720
> Power supply: 9V battery (not included)
> Rated Power: 1W
> Type of sound signal: Type R1
> No sound volume control function and 1 set melody chime provided.
Conforms to all relevant European Directives.
Installation
03
[01]×01
Recycling
This symbol is known as the 'Crossed-out Wheelie Bin Symbol'. When this symbol is marked on a product or
battery, it means thatit should not be disposed of with your general household waste. Some chemicals
contained within electrical/electronic products or batteries can be harmful to health and the environment.
Only dispose of electrical/electronic/battery items in separate collection schemes, which cater for the recovery
and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes
and for the protection of the environment.
Remark:
The electrical installation shall be made according
above drawing.
Open the cover of the door chime. Insert the
battery in the door chime with the correct polarity.
Ensure that the electrical connections are correct
and put the cover back.
The door chime shall be fixed correctly on the
wall with screws and pegs (supplied)
Can not be used with lighted push on battery
operation.
1
23
0
9V
