BYD FORKLIFTS
A COMPLETE MODEL RANGE POWERED BY LITHIUM IRON PHOSPHATE BATTERIES
Vareseweg 53, 3047 AT Rotterdam，the Netherlands
No. 3009, BYD Road, Pingshan, Longgang, Shenzhen, 518118, P.R.China
www.byd.com
BYD trucks conform to the European Safety Requirements
Page 2
ABOUT BYD
The BYD Company Limited employs 180.000 employees with a yearly turnover of over €8.5 billion, and is
headquartered in Shenzhen (China).
BYD FORKLIFT
BYD ebus – Pure Electric
BYD e6 – Pure Electric
Established in 1995, BYD is listed on both the Hong Kong and Shenzhen Stock Exchanges, and specializes in
forklift, automotive, electric vehicles and buses, as well as in new energy (solar) and IT, with its ultimate goal
to spur mass-market adoption of green technologies and help preserve the environment, reduce air pollution
and resolve global energy crisis.
BYD Europe has been present in Europe since 1999, servicing the European market for batteries and energy
storage solutions from Rotterdam. Lately BYD Europe has become a major supplier of pure electric solutions
to public transportation all over Europe. Major countries like the Germany, UK, France, Netherlands, Spain and
Poland are using BYD pure electric buses and/or taxis.
BYD Forklift started operations in 2010 in Shaoguan (China), with a one million ㎡ – 50.000 units per year
factory, equipped with the latest manufacturing technology such as automatic robot welding. The BYD forklifts
have been since then marketed in China, and will be sold and serviced in all of Europe starting 2015. The BYD
forklift headquarters is located since 2013 in Rotterdam.
BYD QIN-PHEV
BYD LIGHTING
BYD SOLAR
Page 3
THE BYD CONCEPT

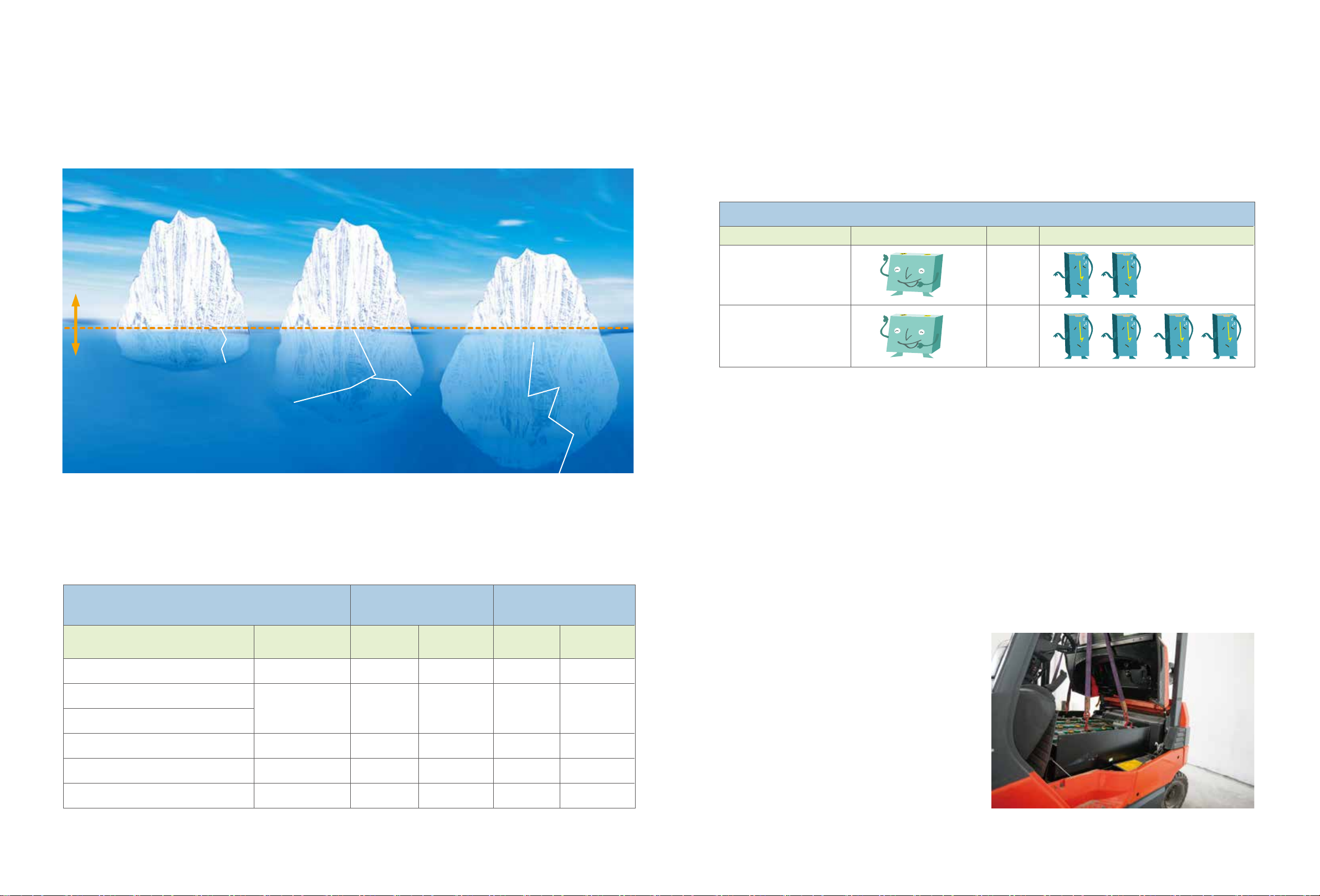

THE LOWEST COST OF OPERATION
Owning and operating a forklift entails many costs in addition to the purchase price or the rental monthly fee.
We call them hidden costs, and can be very high, depending on the power technology used, be that an internal
combustion engine or a battery powered forklift.
BYD Fe-battery forklift Lead-acid battery forklift
Diesel forklift
Acquisition/rental cost
Electricity cost
Hidden cost
OPERATING COSTS NOT PRESENT WHEN USING A BYD FORKLIFT
Maintenance cost
Battery changing cost
Electricity cost
Maintenance cost
Fuel cost
Maintenance cost
INVESTMENT IN NEW BATTERIES EVERY 4-6 YEARS IS UNNECESSARY WITH A BYD FORKLIFT
The BYD lithium iron phosphate battery has an extremely long life.
Compared with a life of 1.000-1.500 cycles of a typical lead-acid battery, the BYD battery will operate much
longer. After 4.000 cycles the BYD battery will retain 75% of its capacity.
75% remaining capacity after 4.000 cycles means that the BYD battery will continue to operate for many more
years.
10 Year Operation
BYD solution: 1 battery
Single shift - light use
Single shift - heavy use
Multi-shift
CHARGING THE BYD WAY
The BYD batteries are charged so fast that they never need to be removed from the forklift.
Depending on the chosen BYD charger, full charging takes 1.5 hours or even less.
Quick charging at lunch break will keep the BYD forklift ready for the rest of the shift. Of course side charging
is so easy that the coffee breaks can be also used without reducing the life expectancy of the battery (no
memory effect).
=
=
Lead-acid solution: many batteries
• Energy loss due to heating resulting from lead-acid battery charging
• Labour time to maintain the lead-acid battery (frequent level checking and refilling)
• Labour time to regularly replace the empty battery with a fully charged one
• Large amounts of expensive distilled water for lead-acid batteries
SAVINGS IN YEARLY OPERATING COSTS (*)
CONCEPT
ENERGY LOST AS HEATING
BATTERY DAILY REPLACEMENT
BATTERY MAINTENANCE
DISTILLED WATER REFILL
YEARLY BATTERY AMORTIZATION
TOTAL EXTRA COSTS
*Estimate based on average data. Final savings depend on factors such as battery size, electricity price,
labour cost, heavy or light use
CRITERIA LEAD-ACID LEAD-ACID
(1.7€/DAY)
(46 HR/YEAR)
(250 L/YEAR)
(OVER 5 YEARS)
ONE SHIFT OPERATION
COST/YEAR
BYD
FE BATTERY
400 €
690 €
100 €
500 €
1,690 €
0 €
0 €
0 €
0 €
0 €
TWO SHIFT OPERATION
COST/YEAR
FE BATTERY
800 €
1,380 €
200 €
1,000 €
3,380 €
MORE PRODUCTIVITY, SAFETY, AND DRIVER SATISFACTION WITH A BYD FORKLIFT
With a BYD forklift, the driver’s time utilization is optimized. Instead of spending time replacing the battery,
more productive tasks can be performed.
Side charging is extremely user friendly and minimizes the risks of accident. A safer environment and happier
drivers impact productivity in a positive way.
BYD
0 €
0 €
0 €
0 €
0 €
The old fashion wayThe BYD way
Page 4

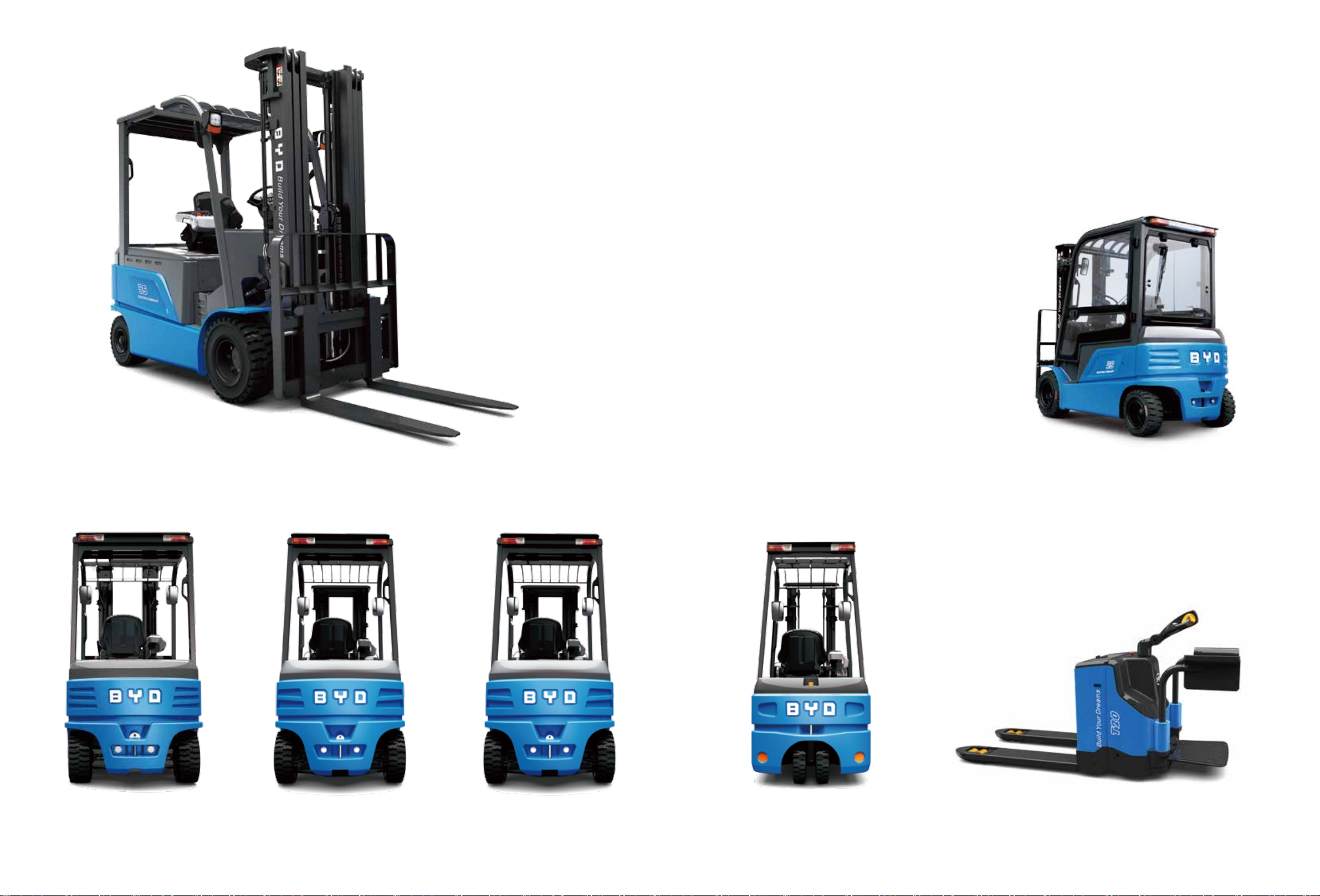

BYD FORKLIFT RANGE-2015
From 1.6T to 3.5T, the BYD forklift range covers the needs of the European rental and end-user markets.
Every BYD forklift features as standard equipment the lithium iron phosphate battery, side charging, and
ultra-fast charger, along with a high level of equipment.
Whether you choose the Comfort or the Basic version, your BYD forklift will always deliver the lowest cost of
ownership.
Comfort equipment: full suspension seat, fingertip controls, triplex mast with dual free lift cylinders,
and 4 way hydraulic valve.
Optional full-steel cabin with heater
3.5 Ton Counterbalance 2.5 Ton Counterbalance 2.0 Ton Counterbalance
1.6 Ton Counterbalance 2.0 Ton Pallet truck
Page 5

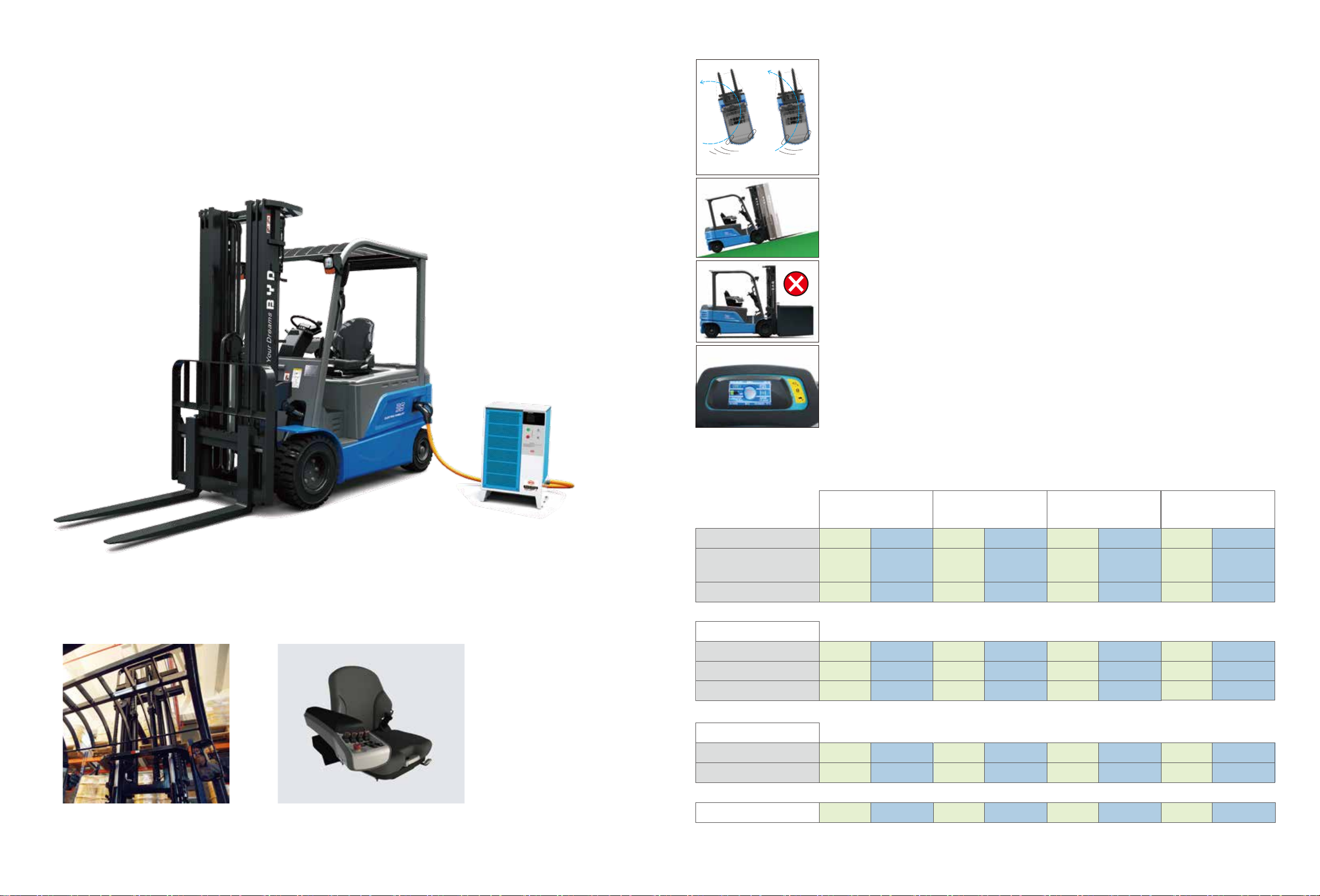

COUNTERBALANCE FORKLIFT
Ergonomically designed forklift to reduce driver fatigue and optimize productivity.
Ultra-fast charging and one battery for life result in lower operating costs.
Dual AC front drive motors and oil- immersed brakes, as well as a maintenance-free battery
guarantee less maintenance costs.
User-friendly side-charging and comprehensive safety features maximize driver’s satisfaction.
Automatic Speed Reduction when Cornering
The speed of the truck will be automatically reduced when cornering to enhance lateral
stability and reduce the risk of tipping over.
Slow Fast
Braking Assist System
Braking Assist System allows the truck to stand still instead of rolling forward or backwards
after releasing the brake on a slope.
Overload Protection
When load exceeds 10% of the rated load capacity, the lifting motor stops working for
safety concern.
Over load
Multifunction TFT Screen
Displays travel speed, battery remaining capacity, clock, working hours and
accumulated working hours;
Three speed modes setting.
All BYD forklifts are equipped with side charging
COMFORT EQUIPMENT
Triplex mast with dual free lift
cylinders
Full suspension seat with fingertip
controls
Load (Kg)
Seat
Controls
Battery
200 AH 80 V
400 AH 80 V
600 AH 80 V
Charger
90 A
180 A
Heated Steel Cabin
ECB16
Basic Comfort
1,600
Standard
Levers
Standard Standard
Standard
Optional
Optional
1,600
Full
suspension
Minilevers
Standard
Optional
Optional
ECB20
Basic Comfort
2,000
Standard
Levers
Standard
Optional
Standard
Optional
Optional
2,000
Full
suspension
Minilevers
Standard
Optional
Standard
Optional
Optional
ECB25
Basic Comfort
2,500
Standard
Levers
Standard
Optional
Standard
Optional
Optional
2,500
Full
suspension
Minilevers
Standard
Optional
Standard
Optional
Optional
ECB35
Basic Comfort
3,500
Standard
Levers
Standard
Optional
Standard
Optional
Optional
3,500
Full
suspension
Minilevers
Standard
Optional
Standard
Optional
Optional
Page 6

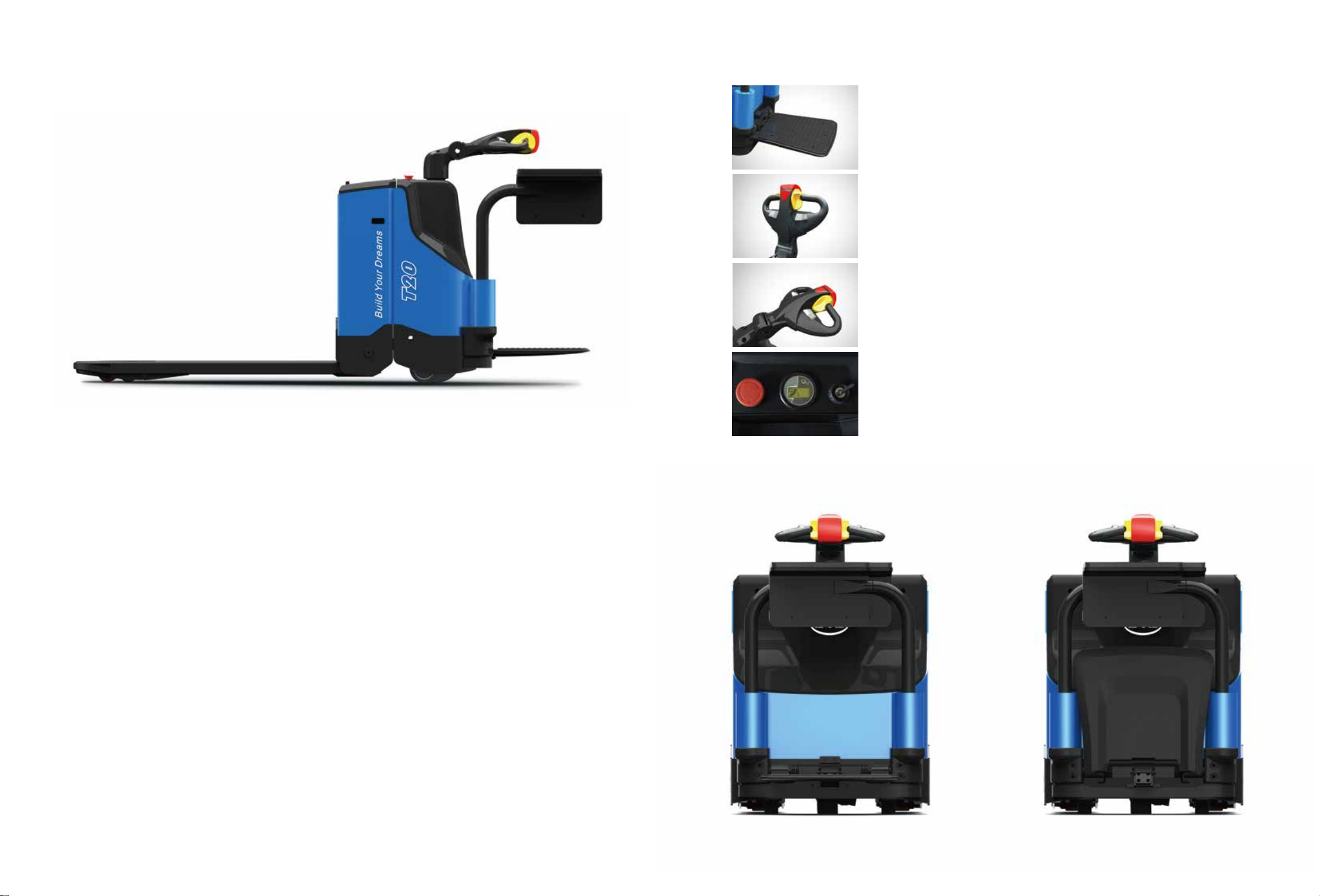

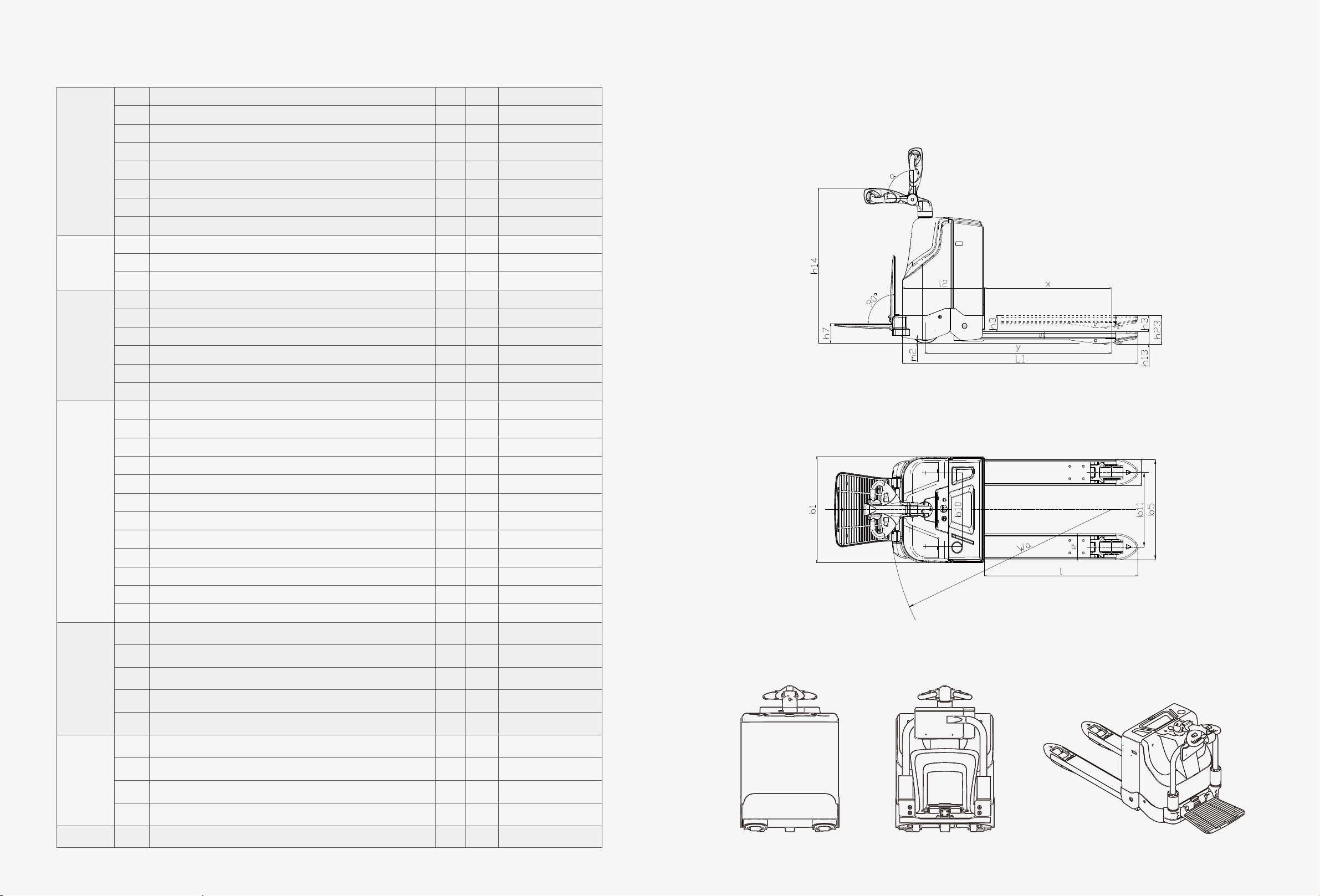

PALLET TRUCK
Electric Power Steering
Allows the operator to maneuver the pallet truck with great ease and
reduces fatigue
Shock-absorbing and anti-skid platform
Delivers stable and comfortable standing for operator.
180 degree rotatable steering handle
Enables forklift work in narrow places.
Ergonomically designed
Steering tiller handles with perfect touch match hands of different size.
Automatic shut down
When handle is released or in vertical and horizontal position.
The forklift will reverse immediately
Once the operator leans on the reverse protection button.
The ergonomically designed BYD pallet truck offers maximum versatility due to its standard foldable platform
and foldable side support protection side bars. It can be used to speedily load and unload trucks as well as in
reduced space warehouse operations.
Efficient top charging of the lithium iron phosphate battery allows for increased productivity and lower operat-
ing costs.
As with any other BYD forklift, the life time battery can be partially charged and never needs to be removed,
thus increasing operator user friendliness and safety, while greatly reducing fatigue.
Model description PTP20
Load/capacity: 2000 kg
Easy to shut down
Optimal location of the emergency stop button
Battery: BYD Lithium Iron Phosphate
Charging: upside charging inlet
Fast charging/partial charging without memory effect
Page 7

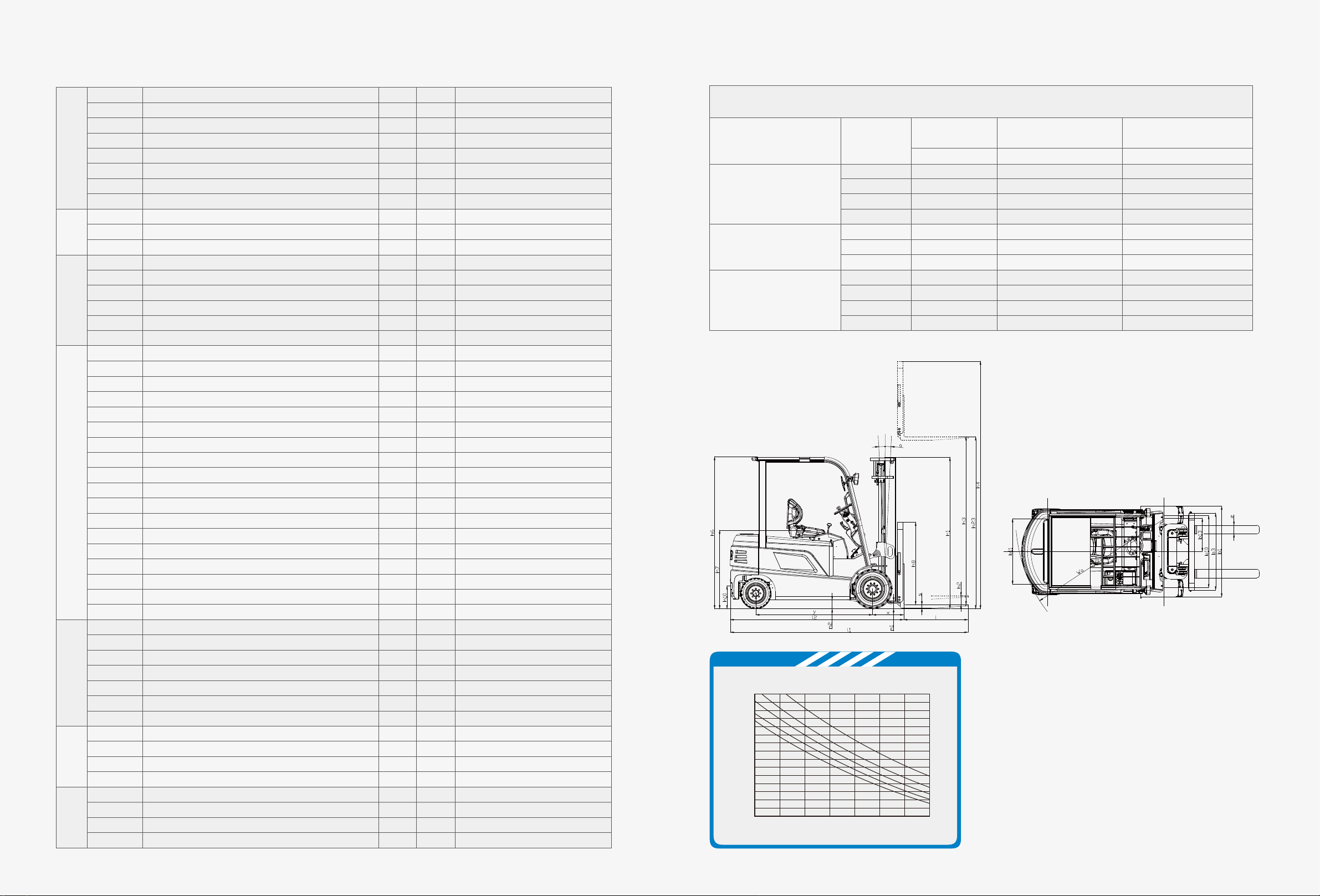

SPECIFICATION SHEETS

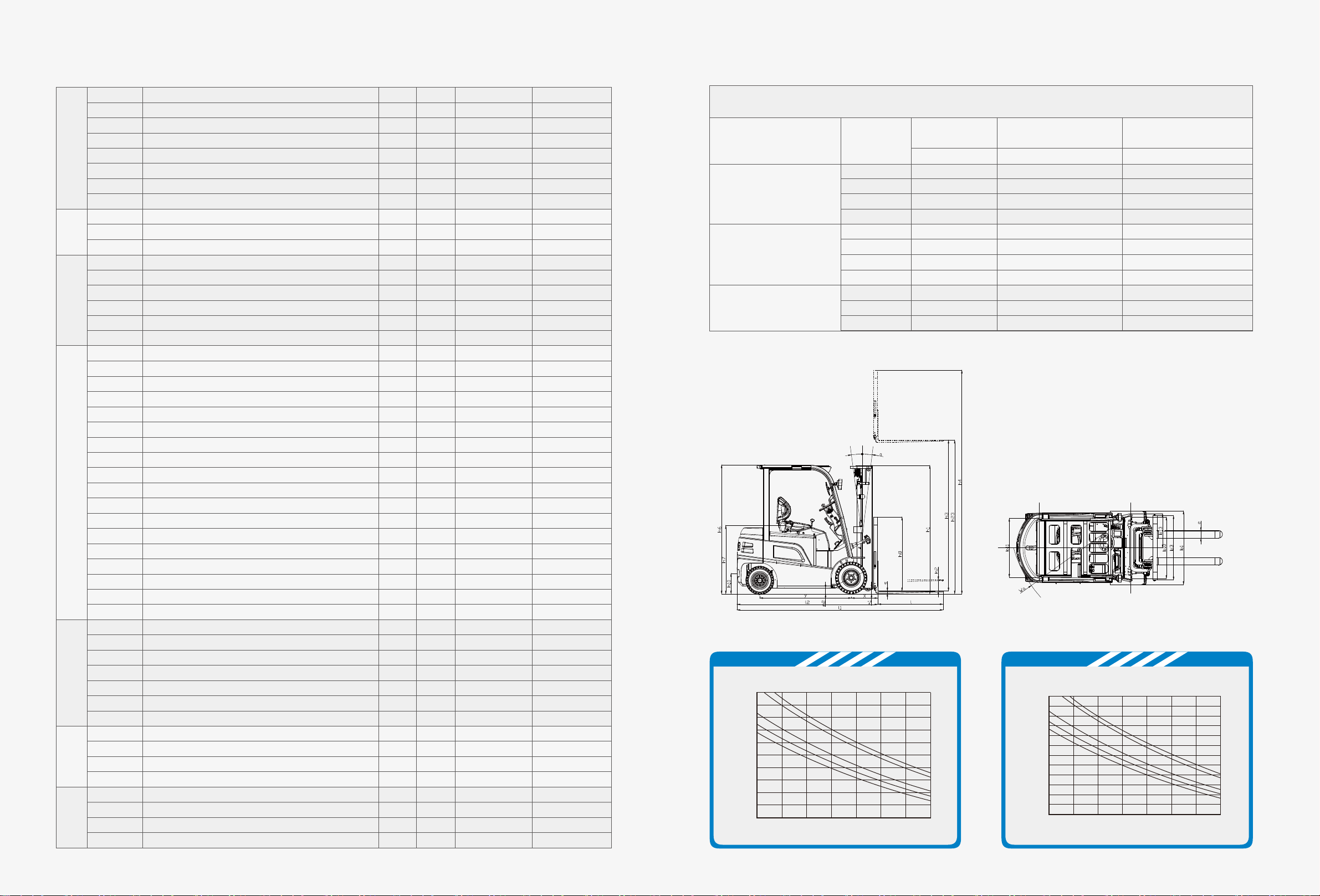

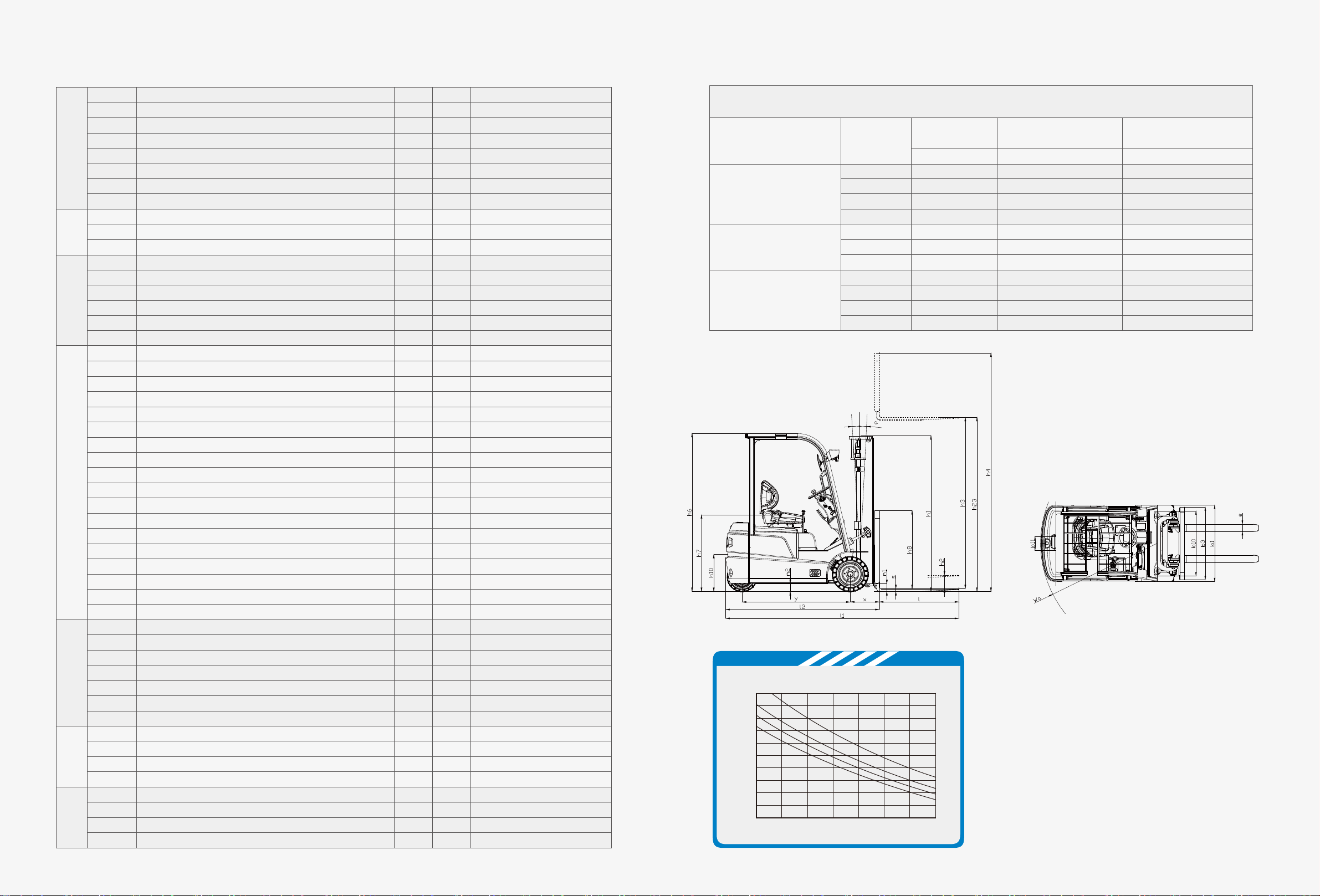

Counterbalance Forklift
ECB16
WeightBasic DimensionsMotor
Wheels, Chassis IdentificationPerformance DataOthers
1.1
1.2
1.3
1.4
1.5
1.6
1.8
1.9
2.1
2.2
2.3
3.1
3.2
3.3
3.5
3.6
3.7
4.1
4.2
4.3
4.4
4.5
4.7
4.8
4.12
4.19
4.20
4.21
4.22
4.24
4.31
4.32
4.33
4.34
4.35
5.1
5.2
5.3
5.6
5.8
5.9
5.10
6.1
6.2
6.4
6.5
8.1
8.2
8.4
8.5
Manufacturer
Model
Drive
Operator type
Rated capacity
Load center
Load distance, center of drive axle to fork
Wheelbase
Service weight
Axle load, with load, front/rear
Axle load, without load, front/rear
Tyres
Tyre size, front
Tyre size, rear
Wheels, number front rear (X=driven wheels)
Track width, front
Track width, rear
Tilt of mast/fork carriage forward/backward
Height, mast lowered
Free lift
Lift height
Height, mast extended
Height of overhead guard
Seat height
Coupling height
Overall length
Length to face of forks
Overall width
Fork dimensions
Fork carriage width
Ground clearance, with load, below mast
Ground clearance, center of wheelbase
Aisle width for pallets 1000x1200 crossways
Aisle width for pallets 800x1200 lengthways
Turning radius
Travel speed, with/without load
Lift speed, with/without load
Lowering speed, with/without load
Max. drawbar pull, with/without load
Max. gradeability, with/without load
Acceleration time, with/without load
Service brake
Drive motor rating S2 60 min.
Lift motor rating at S3 15%
Battery voltage, nominal capacity K5
Battery weight
Type of drive control
Operating pressure for attachments
Sound level at the driver's ear
Towing coupling, type
Q
c
x
y
b10
b11
a/b
h1
h2
h3
h4
h6
h7
h10
l1
l2
b1
s/e/l
b3
m1
m2
Ast
Ast
Wa
kg
mm
mm
mm
kg
kg
kg
mm
mm
mm
mm
deg
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
Km/h
m/s
m/s
KN
%
s
kW
kW
V/Ah
kg
bar
dB(A)
BYD
ECB16
Electric
Seat
1600
500
365
1360
3100
4083/617
1466/1634
SE
18x7-8
15x4.5-8
2x/2
890
190
5/7
2020
150
3000
4050
2050
985
480
2935
1935
1050
35/100/1000
1000
95
95
3460
3580
1570
16/16
0.4/0.6
0.58/0.47
9.0/7.9
20/20
4.5/4.0
Mech./Hydr.
5.5x2
12
80/200
760
AC
160
65
PIN
Description
Two stage mast
Two stage FFL mast
Three stage FFL mast
CAPACITY (kg)
1600
1500
1400
1300
1200
1100
1000
900
800
700
400...
500 600 700 800 900
LOAD CENTER (mm)
Lift height h3
β
ECB16
(mm)
3000
3500
4000
4500
3000
3500
4000
4500
5000
5500
6000
1000 1100 1200
MAST TABL E
Free lift h2
(mm)
ECB16 ECB16 ECB16
150
150
150
150
970
1270
1520
995
1195
1395
1595
LIFT HEIGHT
(mm)
3000
3500
4000
4500
Height, mast lowered h1
(mm)
2020
2260
2510
2809
2020
2320
2570
2045
2245
2445
2645
Height, mast extended h4
(mm)
4050
4550
5050
5550
4050
4550
5050
5550
6050
6550
7050
Page 8
SPECIFICATION SHEETS
Counterbalance Forklift
ECB20/25
1.1
1.2
1.3
1.4
1.5
1.6
1.8
1.9
2.1
2.2
WeightBasic Dimensions Wheels, Chassis Identification
2.3
3.1
3.2
3.3
3.5
3.6
3.7
4.1
4.2
4.3
4.4
4.5
4.7
4.8
4.12
4.19
4.20
4.21
4.22
4.24
4.31
4.32
4.33
4.34
4.35
5.1
5.2
5.3
5.6
5.8
5.9
5.10
6.1
6.2
6.4
Motor Performance DataOthers
6.5
8.1
8.2
8.4
8.5
Manufacturer
Model
Drive
Operator type
Rated capacity
Load center
Load distance, center of drive axle to fork
Wheelbase
Service weight
Axle load, with load, front/rear
Axle load, without load, front/rear
Tyres
Tyre size, front
Tyre size, rear
Wheels, number front rear (X=driven wheels)
Track width, front
Track width, rear
Tilt of mast/fork carriage forward/backward
Height, mast lowered
Free lift
Lift height
Height, mast extended
Height of overhead guard
Seat height
Coupling height
Overall length
Length to face of forks
Overall width
Fork dimensions
Fork carriage width
Ground clearance, with load, below mast
Ground clearance, center of wheelbase
Aisle width for pallets 1000x1200 crossways
Aisle width for pallets 800x1200 lengthways
Turning radius
Travel speed, with/without load
Lift speed, with/without load
Lowering speed, with/without load
Max. drawbar pull, with/without load
Max. gradeability, with/without load
Acceleration time, with/without load
Service brake
Drive motor rating S2 60 min.
Lift motor rating at S3 15%
Battery voltage, nominal capacity K5
Battery weight
Type of drive control
Operating pressure for attachments
Sound level at the driver's ear
Towing coupling, type
Q
c
x
y
b10
b11
a/b
h1
h2
h3
h4
h6
h7
h10
l1
l2
b1
s/e/l
b3
m1
m2
Ast
Ast
Wa
kg
mm
mm
mm
kg
kg
kg
mm
mm
mm
mm
deg
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
Km/h
m/s
m/s
KN
%
s
kW
kW
V/Ah
kg
bar
dB(A)
BYD
ECB20
Electric
Seat
2000
500
425
1505
3600
4901/699
1672/1928
SE
21x8-9
18x7-8
2x/2
1000
955
5/8
2035
150
3000
4040
2195
1100
333
3375
2305
1195
40/120/1070
1085
95
105
4250
4045
2020
20/20
0.36/0.54
0.45/0.37
12.7/9.0
20/20
4.9/4.3
Mech./Hydr.
5.5x2
12
80/200
540
AC
160
65
PIN
BYD
ECB25
Electric
Seat
2500
500
425
1505
4200
5811/889
1775/2425
SE
21x8-9
18x7-8
2x/2
1000
955
5/8
2035
150
3000
4040
2195
1100
333
3375
2305
1195
40/120/1070
1085
95
105
4250
4045
2020
20/20
0.36/0.54
0.45/0.37
12.5/9.5
20/20
4.9/4.3
Mech./Hydr.
5.5x2
12
80/200
840
AC
186
65
PIN
Description
Two stage mast
Two stage FFL mast
Three stage FFL mast
2000
CAPACITY (kg)
1300
1600
1400
1200
1100
400...
500 600 700 800 900
LOAD CENTER (mm)
Lift height h3
β
ECB20
(mm)
3000
3300
4000
4500
3000
3500
4000
4500
4800
5000
6000
1000 1100 1200
MAST TABL E
Free lift h2
(mm)
ECB20/25 ECB20/25 ECB20/25
150
150
150
150
985
1285
1535
1075
1175
1435
1635
LIFT HEIGHT
(mm)
3000
3300
4000
4500
4800
Height, mast lowered h1
(mm)
2035
2185
2575
2830
2025
2325
2575
2115
2215
2475
2675
CAPACITY
2500
2300
2100
(kg)
1900
1700
1500
1400
400...
500 600 700 800 900
LOAD CENTER (mm)
Height, mast extended h4
(mm)
4040
4340
5040
5540
4040
4540
5040
5540
5840
6540
7040
ECB25
1000 1100 1200
LIFT HEIGHT
(mm)
3000
3500
4000
4500
4800
Page 9
SPECIFICATION SHEETS
β
Counterbalance Forklift
ECB35
WeightBasic DimensionsMotor
Wheels, Chassis IdentificationPerformance DataOthers
1.1
1.2
1.3
1.4
1.5
1.6
1.8
1.9
2.1
2.2
2.3
3.1
3.2
3.3
3.5
3.6
3.7
4.1
4.2
4.3
4.4
4.5
4.7
4.8
4.12
4.19
4.20
4.21
4.22
4.24
4.31
4.32
4.33
4.34
4.35
5.1
5.2
5.3
5.6
5.8
5.9
5.10
6.1
6.2
6.4
6.5
8.1
8.2
8.4
8.5
Manufacturer
Model
Drive
Operator type
Rated capacity
Load center
Load distance, center of drive axle to fork
Wheelbase
Service weight
Axle load, with load, front/rear
Axle load, without load, front/rear
Tyres
Tyre size, front
Tyre size, rear
Wheels, number front rear (X=driven wheels)
Track width, front
Track width, rear
Tilt of mast/fork carriage forward/backward
Height, mast lowered
Free lift
Lift height
Height, mast extended
Height of overhead guard
Seat height
Coupling height
Overall length
Length to face of forks
Overall width
Fork dimensions
Fork carriage width
Ground clearance, with load, below mast
Ground clearance, center of wheelbase
Aisle width for pallets 1000x1200 crossways
Aisle width for pallets 800x1200 lengthways
Turning radius
Travel speed, with/without load
Lift speed, with/without load
Lowering speed, with/without load
Max. drawbar pull, with/without load
Max. gradeability, with/without load
Acceleration time, with/without load
Service brake
Drive motor rating S2 60 min.
Lift motor rating at S3 15%
Battery voltage, nominal capacity K5
Battery weight
Type of drive control
Operating pressure for attachments
Sound level at the driver's ear
Towing coupling, type
Q
c
x
y
b10
b11
a/b
h1
h2
h3
h4
h6
h7
h10
l1
l2
b1
s/e/l
b3
m1
m2
Ast
Ast
Wa
kg
mm
mm
mm
kg
kg
kg
mm
mm
mm
mm
deg
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
Km/h
m/s
m/s
KN
%
s
kW
kW
V/Ah
kg
bar
dB(A)
BYD
ECB35
Electric
Seat
3500
500
460
1725
5440
7722/1218
2274/3166
SE
23x10-12
200/50-10
2x/2
1110
955
5/8
2115
150
3000
4120
2215
1140
333
3630
2560
1360
50/125/1000
1145
110
130
4410
4260
2210
20/20
0.38/0.42
0.55/0.45
17.2/13.6
20/20
4.9/4.3
Mech./Hydr.
10x2
22
80/400
1460
AC
180
65
PIN
Description
Two stage mast
Two stage FFL mast
Three stage FFL mast
CAPACITY (kg)
3500
3300
3100
2900
2700
2500
2300
2100
400...
500 600 700 800 900
LOAD CENTER (mm)
Lift height h3
ECB35
(mm)
3000
3500
4000
4500
3000
3500
4000
4500
4800
5500
6000
1000 1100 1200
MAST TABL E
Free lift h2
(mm)
ECB35 ECB35 ECB35
150
150
150
150
960
1260
1510
1080
1230
1500
1750
LIFT HEIGHT
(mm)
3000
3500
4000
4500
4800
Height, mast lowered h1
(mm)
2115
2315
2615
2915
2080
2380
2630
2200
2350
2620
2870
Height, mast extended h4
(mm)
4120
4620
5120
5620
4120
4620
5120
5620
6120
6620
7120
Page 10
SPECIFICATION SHEETS
Electric Pallet Truck
1.1
1.2
1.3
1.4
1.5
1.6
1.8
1.9
2.1
2.2
WeightDimensions Electric motor
Wheels, Chassis IdentificationPerformance Data
2.3
3.2
3.3
3.4
3.5
3.6
3.7
4.4
4.8
4.9
4.15
4.19
4.20
4.21
4.22
4.25
4.32
4.34
4.35
Manufacturer
Model
Drive
Operator type
Load capacity
Load center
Load distance, center of support arm wheel to face of forks
Wheelbase
Service weight including battery
Axle load, with load, driver/castor/fork wheel
Axle load, without load, driver/castor/fork wheel
Wheel size, front
Wheel size, rear
Additional wheels
Wheels, number front /rear（x=driven wheels）
Track width, front
Track width, rear
Lift
Platform height
Height of tiller in drive position, min/max
Lowered height
Overall length
Length to the face of forks
Overall width
Fork dimensions
Width over forks
Ground clearance, center of wheelbase
Aisle width for pallets 800X1200 lengthways
Turing radius
Q
c
x
y
b10
b11
h3
h7
h14
h13
l1
l2
b1
s/e/l
b5
m2
ast
Wa
kg
mm
mm
mm
kg
kg
kg
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
BYD
PTP20B
Electric
Stand-on/Pedestrian
2000
600
930
1365
550
880/150/1520
270/150/130
230x70
85x75
120x50
1x+2/4
430
510
100
95
1055/1340
85
1730
605
725
50/180/1120
590/650/560
21
2094
1650
Others
5.1
5.2
5.3
5.8
5.10
6.1
6.2
6.4
6.5
8.1
Travel speed, with/without load
Lift speed, with/without load
Lowering speed, with/without load
Max. gradeability, with/without load
Service brake
Drive motor rating S2 60 min
Lift motor rating at S3 15%
Battery voltage/nominal capacity K5
Battery weight
Type of drive control
km/h
m/s
m/s
%
kW
kW
V/Ah
kg
5.5/6
0.05/0.06
0.070/0.065
8/15
electromagnetic
1.5
1.5
24/110
60
AC
Loading...
