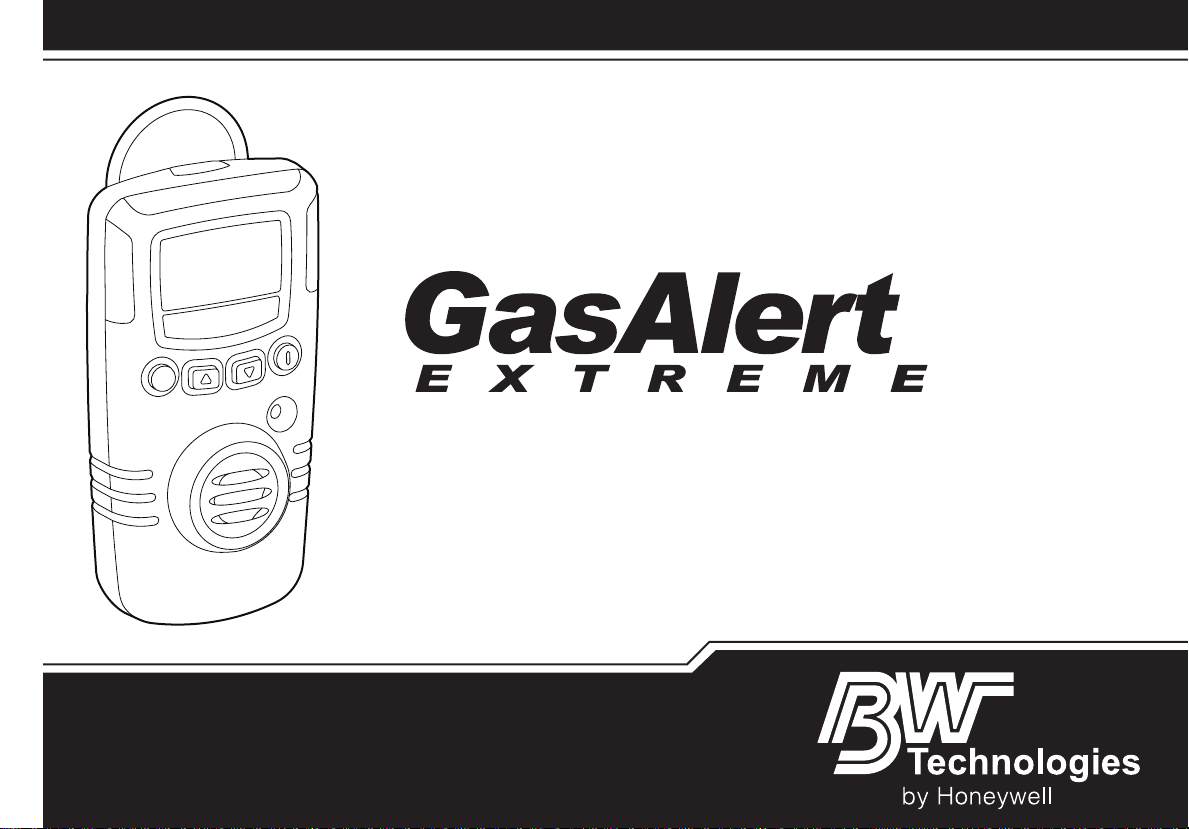

Single Gas Detector
User Manual
Limited Warranty and Limitation Liability
BW Technologies LP (BW) warrants the product to be free from defects in material and workmanship under normal use and service for a period of two years, beginning on the date of
shipment to the buyer. This warranty extends only to the sale of new and unused products to the original buyer. BW’s warranty obligation is limited, at BW’s option, to refund of the purchase
price, repair or replacement of a defective product that is returned to a BW authorized service center within the warranty period. In no event shall BW’s liability hereunder exceed the
purchase price actually paid by the buyer for the Product.
This warranty does not include:
a) fuses, disposable batteries or the routine replacement of parts due to the normal wear and tear of the product arising from use;
b) any product which in BW’s opinion, has been misused, altered, neglected or damaged, by accident or abnormal conditions of operation, handling or use;
c) any damage or defects attributable to repair of the product by any person other than an authorized dealer, or the installation of unapproved parts on the product; or
The obligations set forth in this warranty are conditional on:
a) proper storage, installation, calibration, use, maintenance and compliance with the product manual instructions and any other applicable recommendations of BW;
b) the buyer promptly notifying BW of any defect and, if required, promptly making the product available for correction. No goods shall be returned to BW until receipt by the buyer of
shipping instructions from BW; and
c) the right of BW to require that the buyer provide proof of purchase such as the original invoice, bill of sale or packing slip to establish that the product is within the warranty period.
THE BUYER AGREES THAT THIS WARRANTY IS THE BUYER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BU T NOT LIMITED TO ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. BW SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR BASED ON CONTRACT, TORT OR RELIANCE
OR ANY OTHER THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or limitation of incidental or consequential damages, the limitations and exclusions of
this warranty may not apply to every buyer. If any provision of this warranty is held invalid or unenforceable by a court of competent jurisdiction, such holding will not affect the validity or
enforceability of any other provision.
BW Technologies by Honeywell BW Technologies by Honeywell BW Technologies by Honeywell
Corporate Headquarters America Europe
2840 - 2nd Ave. SE 3279 West Pioneer Parkway 5 Canada Close
Calgary, AB Arlington, TX Banbury, Oxfordshire
Canada T2A 7X9 USA 76013 United Kingdom OX16 2RT
Table of Contents
Title Page
Introduction ......................................................................................................................................................................... 1
Contacting BW Technologies by Honeywell .................................................................................................................... 2
Safety Information - Read First.......................................................................................................................................... 2
Getting Started .................................................................................................................................................................... 5
Activating the Detector....................................................................................................................................................... 9
Self-Test .......................................................................................................................................................................... 9
Self-Test Pass ............................................................................................................................................................... 12
Self-Test Fail.................................................................................................................................................................. 12
Deactivating the Detector................................................................................................................................................. 13
Confidence Beep............................................................................................................................................................... 13
User Options Menu ........................................................................................................................................................... 14
Exit ................................................................................................................................................................................ 15
Clock Option .................................................................................................................................................................. 15
Passcode Protection Option .......................................................................................................................................... 16
Enable Passcode Protection .................................................................................................................................... 16
Disable Passcode Protection.................................................................................................................................... 17
Deactivation Passcode Protection............................................................................................................................ 17
Stealth Mode Option ...................................................................................................................................................... 18
Automatic Backlight Option............................................................................................................................................ 19
Latching Alarm Option ................................................................................................................................................... 19
Automatic Oxygen (O
Calibration Past Due Option .......................................................................................................................................... 21
Languages ..................................................................................................................................................................... 21
) Calibration Option.................................................................................................................... 20
2
i
GasAlert Extreme
User Manual
Title Page
Portuguese Option.................................................................................................................................................... 21
Spanish Option ......................................................................................................................................................... 22
German Option ......................................................................................................................................................... 22
French Option ........................................................................................................................................................... 22
English Option .......................................................................................................................................................... 23
Datalogger Sampling Rate Option ................................................................................................................................. 23
Data Transfer Option ..................................................................................................................................................... 24
LAST and ALL Transfers .......................................................................................................................................... 25
EVNT Transfer .......................................................................................................................................................... 25
Unsuccessful Transfer .............................................................................................................................................. 25
Alarms ................................................................................................................................................................................26
Computed Gas Exposures ............................................................................................................................................. 28
Viewing Gas Exposures ................................................................................................................................................. 28
Toxic Gases.............................................................................................................................................................. 28
Oxygen ..................................................................................................................................................................... 28
Gas Alarm Setpoints ...................................................................................................................................................... 29
Stopping a Gas Alarm .................................................................................................................................................... 29
Clearing Gas Exposures ................................................................................................................................................ 30
Resetting Gas Alarm Setpoints ...................................................................................................................................... 30
Sensor Alarm ................................................................................................................................................................. 30
Low Battery Alarm.......................................................................................................................................................... 31
Automatic Shutdown Alarm............................................................................................................................................ 31
Calibration and Setting Alarm Setpoints ........................................................................................................................ 32
Guidelines ...................................................................................................................................................................... 32
Test Cap ........................................................................................................................................................................ 33
Calibration...................................................................................................................................................................... 34
Start Calibration ........................................................................................................................................................ 34
ii
GasAlert Extreme
User Manual
Title Page
Auto Zero .................................................................................................................................................................. 34
Auto Zero Fail ........................................................................................................................................................... 34
Passcode Protected.................................................................................................................................................. 35
Set Span ................................................................................................................................................................... 35
Span ......................................................................................................................................................................... 36
Setting the Calibration Due Date ................................................................................................................................... 37
Setting the TWA Alarm Setpoint ............................................................................................................................... 37
Setting the STEL Alarm Setpoint .............................................................................................................................. 38
Setting the Low Alarm Setpoint ................................................................................................................................ 38
Setting the High Alarm Setpoint................................................................................................................................ 39
Verification ..................................................................................................................................................................... 39
Datalog and Event Log ..................................................................................................................................................... 40
Datalog........................................................................................................................................................................... 40
Event Log....................................................................................................................................................................... 40
Maintenance ...................................................................................................................................................................... 41
Replacing the Battery or Sensor .................................................................................................................................... 43
Replacing the Battery ............................................................................................................................................... 43
Replacing the Sensor ............................................................................................................................................... 43
Cleaning a Sensor Screen ............................................................................................................................................. 44
Clearing a Sensor .......................................................................................................................................................... 45
WEEE Directive and Battery Directive ............................................................................................................................ 45
Removal and Disposal of the Battery............................................................................................................................. 45
Troubleshooting................................................................................................................................................................ 46
Replacement Parts and Accessories .............................................................................................................................. 49
Specifications.................................................................................................................................................................... 50
General Specifications for Datalogger Units.................................................................................................................. 51
iii
GasAlert Extreme
User Manual
iv
List of Figures
Title Figure Page
1. GasAlert Extreme Detector .................................................................................................................................. 6
2. Display Elements.................................................................................................................................................. 7
3. Test Cap ............................................................................................................................................................. 33
4. Replacing the Battery or Sensor ........................................................................................................................ 41
5. Rear Shell Seal .................................................................................................................................................. 42
6. Front Shell Seal.................................................................................................................................................. 42
v
GasAlert Extreme
User Manual
vi
List of Tables
Table Title Page
1. GasAlert Extreme Models .................................................................................................................................... 1
2. International Symbols ........................................................................................................................................... 4
3. GasAlert Extreme Detector .................................................................................................................................. 6
4. Display Elements.................................................................................................................................................. 7
5. Pushbuttons ......................................................................................................................................................... 8
6. Alarms ................................................................................................................................................................ 26
7. Computed Gas Exposures ................................................................................................................................. 28
8. Gas Alarm Setpoints .......................................................................................................................................... 29
9. Factory Alarm Setpoints ..................................................................................................................................... 30
10. Test Cap ............................................................................................................................................................. 33
11. Replacing the Battery or Sensor ........................................................................................................................ 41
12. Rear Shell Seal .................................................................................................................................................. 42
13. Front Shell Seal.................................................................................................................................................. 42
14. Troubleshooting Tips.......................................................................................................................................... 46
15. Replacement Parts and Accessories ................................................................................................................. 49
vii
GasAlert Extreme
User Manual
viii
GasAlert Extreme
Introduction
a Warning
To ensure your personal safety, read “Safety Information” before
using the detector.
The GasAlert Extreme gas detector (“the detector”) warns of hazardous
gas at levels above a factory set alarm setpoint. This product is a gas
detector, not a measurement device.
The detector is a personal safety device. It is your responsibility to
respond properly to the alarms.
Table 1 lists the GasAlert Extreme models and the gases monitored. This
manual includes examples from each model.
Table 1. GasAlert Extreme Models
Model Gas Monitored
GasAlert Extreme O
2
GasAlert Extreme CO
GasAlert Extreme CO Carbon monoxide (ppm)
GasAlert Extreme H
S
2
Oxygen (% by volume)
Carbon monoxide (ppm)
Low H2 sensitivity
Hydrogen sulfide (ppm)
High range
Model Gas Monitored
GasAlert Extreme H2S
GasAlert Extreme PH
GasAlert Extreme SO
GasAlert Extreme Cl
GasAlert Extreme NH
GasAlert Extreme NH
GasAlert Extreme NO
3
2
2
3
3
2
Hydrogen sulfide (ppm)
Phosphine (ppm)
Sulfur dioxide (ppm)
Chlorine (ppm)
Ammonia (ppm)
Ammonia (ppm)
High range
Nitrogen dioxide (ppm)
GasAlert Extreme HCN Hydrogen cyanide (ppm)
GasAlert Extreme ETO Ethylene oxide (ppm)
GasAlert Extreme ClO
GasAlert Extreme O
3
Chlorine dioxide (ppm)
2
Ozone (ppm)
GasAlert Extreme NO Nitric oxide (ppm)
1
GasAlert Extreme
User Manual
Contacting BW Technologies by Honeywell
To contact BW Technologies by Honeywell, call:
USA: 1-888-749-8878
Canada: 1-800-663-4164
Europe: +44 (0) 1295 700300
Other countries: +1-403-248-9226
Address correspondence to:
BW Technologies by Honeywell
2840 – 2 Avenue S.E.
Calgary, AB T2A 7X9
CANADA
Email us at:info@gasmonitors.com
Visit BW Technologies by Honeywell’s website at:
www.gasmonitors.com
ISO 9001
Safety Information - Read First
Use the detector only as specified in this manual, otherwise the protection provided by the detector may be impaired.
International symbols used on the detector and in this manual are
explained in Table 2.
Read the Warnings and Cautions on the following pages before using
the detector.
c Note
This instrument contains a lithium battery. Do not mix with
the solid waste stream. Spent batteries should be disposed of by a qualified recycler or hazardous materials
handler.
2
GasAlert Extreme
User Manual
To avoid possible personal injury, adhere to the following:
• Warning: Substitution of components may impair Intrinsic Safety.
• Warning: To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing.
• Do not use the detector if it is damaged. Before using the detector, inspect the case. Look for cracks and missi
pa
rts.
• Use only a sensor specifically designed for the GasAlert Extreme model. Refer to Replacement Parts and Accesso-
ries.
• Do not deactivate the detector during a work shift. Deactivating the detector resets the time-weighted average (TWA),
short-term exposure limit (STEL), and maximum gas exposure values to 0. Refer to Alarms
• Ensure the sensor screen is not blocked.
• If the detector is damaged or parts are missing, contact BW Technologies by Honeywell
• If the detector has been disassembled, ensure the front and rear shells are properly aligned and fastened before activating the detector. Refer to Maintenance
BW recommends to bump test the sensor, before each day’s use, to confirm their ability to respond to gas by expos-
•
ing the detector to a gas concentration that exceeds the alarm setpoints. Manually verify that the audible and visual
alarms are activated. For detectors with the calibration feature, calibrate the sensor if the reading is not within
speci
• Calibrate the detector before first-time use, and then at least once every 180 days. For HCN detectors,
ev
ery 30 days.
• Use only the Panasonic CR-2 battery. Refer to Replacing the Battery or Sensor
• To reduce the risk of ignition of a flammable atmosphere, batteries must only be changed in a safe area free of hazardous gas.
fied limits.
Caution
a
ng
.
immediately.
.
the
calibrate once
.
3
GasAlert Extreme
User Manual
To avoid possible damage to the detector, adhere to the following:
• Do not expose the detector to electrical shock and/or severe continuous mechanical shock.
• The oxygen GasAlert Extreme detector is classified by Underwriters Laboratories Inc. up to an atmosphere of 21
oxygen.
•
Do not attempt to disassemble, adjust, or service the detector unless instructions for that procedure are contained in
the user manual, and/or that part is listed as a replacement part. Use only BW Technologies by Honeywell replacemen
arts. Refer to Replacement Parts and Accessories
p
• The detector warranty will be voided if customer personnel or third parties damage the detector during repair
attempts. Non-BW Technologies by Honeywell repair/service attempts void this warranty.
Caution
a
.
%
t
4
GasAlert Extreme
User Manual
a Attention
Pour éviter toute blessure possible, respectez ce qui suit :
• Avertissement : Le remplacement d'un composant de l'appareil peut altérer sa sécurité intrinsèque.
• Avertissement : Pour éviter l'inflammation d'atmosphères inflammables ou combustibles, coupez l'alimentation électrique
to
ut entretien.
• N'utilisez pas le détecteur s'il est endommagé. Avant d'utiliser le détecteur, inspectez le boîtier. Assurez-vous qu'aucune pièce ne
manque et vérifiez l'absence de fissures.
• Utilisez uniquement un capteur spécialement conçu pour le modèle GasAlert Extreme. Reportez-vous à la section Replacement
Parts and Accessories.
• Ne désactivez pas le détecteur pendant un quart de travail. Si vous désactivez le détecteur, les valeurs de la moyenne pondéré
dans
le temps (MPT), de la limite d'exposition (LECT) à court terme et d'exposition maximale aux gaz sont réinitialisées à 0. Repor-
tez-vous à la section Alarms.
• Assurez-vous que l'écran du capteur est verrouillé.
• Si le détecteur est endommagé ou que des pièces sont manquantes, contactez immédiatement BW Technologies by Honeywell.
• Si le détecteur a été démonté, assurez-vous que les coques avant et arrière sont correctement alignées et serrées avant d'activer le
détecteur. Reportez-vous à la section Maintenance.
• Avant chaque utilisation quotidienne, BW recommande d'effectuer un test fonctionnel du capteur afin de vérifier qu'il réagit bie
aux gaz
les alarmes sonore et visuelle sont activées. Pour les détecteurs dotés de la fonction d'étalonnage, étalonnez le capteur si la valeur
ne se trouve pas dans les limites spécifiées.
• Étalonnez le détecteur lors de la première utilisation, puis une fois tous les 180 jours. Pour les détecteurs HCN, étalonnez-les to
l
• Utilisez uniquement la batterie Panasonic CR-2PE/BN. Reportez-vous à la section Replacing the Battery or Sensor.
• Afin de réduire le risque d'inflammation d'une atmosphère inflammable, les batteries doivent être changées dans un lieu sûr exem
de gaz dangereux.
présents, en exposant le détecteur à une concentration de gaz supérieure aux seuils d'alarme. Vérifiez manuellement que
es 30 jours.
avant
e
n
us
pt
5
GasAlert Extreme
User Manual
a Attention
Pour éviter d'endommager le détecteur, respectez ce qui suit :
• Ne soumettez pas le détecteur à des chocs électriques et/ou à d'importants chocs mécaniques continus.
• Le détecteur d'oxygène GasAlert Extreme est classifié conforme par Underwriters Laboratories Inc. jusqu'à une atmosphère contenant 21 % d'oxygène.
• N'essayez pas de démonter, d'ajuster ou d'entretenir le détecteur, sauf si les instructions pour cette procédure vous sont fourni
dans
le manuel d'utilisation et/ou si la pièce concernée est répertoriée comme pièce de rechange. Utilisez uniquement des pièce
echange de BW Technologies by Honeywell. Reportez-vous à la section Replacement Parts and Accessories.
de r
• La garantie du détecteur sera annulée si le personnel du client ou des tiers ont endommagé le détecteur pendant des tentatives de répara-
tion. Les tentatives de réparation/d'entretien effectuées par des parties autres que BW Technologies by Honeywell entraîneront l'annulation de cette garantie.
es
s
6
GasAlert Extreme
User Manual
Table 2. International Symbols
Symbol
h
X
g
ATEX Conforms to European ATEX Directives
IECEx
EAC Ex Conforms to Russian Custom Union Certification and Declaration
Classified to both U.S. and Canadian Safety standards by Underwriter’s Laboratories, Inc.
Conforms to European Union Directives
European Explosives Protection
International Electrotechnical Commission Scheme for Certification to Standards for Electrical Equipment for Explosive Atmospheres
Conforms to Korea Testing Laboratory (KTL) Certification
Conforms to Brazilian InMetro Certification
Australian Regulatory Compliance Mark (RCM)
Meaning
7
GasAlert Extreme
User Manual
Getting Started
The items listed below are included with the detector. If the detector is
damaged or parts are missing, contact the place of purchase immediately.
• 3 V lithium CR2-series battery
• GasAlert Extreme O
GasAlert Extreme CO model: CO sensor
(low H2 sensitivity);
GasAlert Extreme CO model: CO sensor;
GasAlert Extreme H
GasAlert Extreme H
GasAlert Extreme PH
GasAlert Extreme SO
GasAlert Extreme Cl
GasAlert Extreme NH
GasAlert Extreme NH
GasAlert Extreme NO
GasAlert Extreme HCN model: HCN sensor;
GasAlert Extreme ETO model: ETO sensor;
GasAlert Extreme ClO
GasAlert Extreme O
GasAlert Extreme NO model: NO sensor.
• Test cap and hose
model: O2 sensor;
2
S model: H2S sensor (high range);
2
S model: H2S sensor;
2
model: PH3 sensor;
3
model: SO2 sensor;
2
model: Cl2 sensor;
2
model: NH3 sensor;
3
model: NH3 sensor (high range);
3
model: NO2 sensor;
2
model: ClO2 sensor;
2
model: O3 sensor;
3
The detector is shipped with the battery and sensor installed. To order
replacement sensors and accessories, refer to Replacement Parts and
Accessories.
To become familiar with the features and functions of the detector, study
the following figures and tables:
• Figure 1 and Table 3: GasAlert Extreme Detector
(describes the detector’s components).
• Figure 2 and Table 4: Display Elements
(describes the LCD screen and icons).
• Table 5: Pushbuttons
(describes the buttons on the detector.
8
GasAlert Extreme
User Manual
Figure 1. GasAlert Extreme Detector
Table 3. GasAlert Extreme Detector
Item Description
1 Visual alarm indicators (LEDs)
2 Liquid crystal display (LCD)
3 Pushbuttons
4 Audible alarm
5 Sensor and sensor screen
6 Infrared (IR) communication port
7 Alligator clip
9
GasAlert Extreme
User Manual
Figure 2. Display Elements
Note
When enabled, the backlight option automatically activates for
3 seconds whenever there is insufficient light to view the LCD.
Press and hold (until the backlight activates) any button to activate the backlight for 6 seconds. The detector is shipped with
the backlight option enabled.
The backlight does not operate when stealth mode is enabled.
Table 4. Display Elements
Item Description
1Numeric value
2 Gas cylinder
3 Automatically span sensor
4 Passcode lock
5 Set alarm setpoints and user options
6 Maximum gas exposure
7 Alarm conditions
8 Battery
9 Data transmission
10 Alarm or alarm setpoint
11 Automatically zero sensor
12 Optional datalogger indicator
13 Parts per million (ppm)
14 Percentage by volume (% vol.)
15
Percentage by lower explosive limit (% LEL)
(future use)
10
GasAlert Extreme
User Manual
button Description
Push
A
E
D
C
Table 5. Pushbuttons
• To activate the detector, press A.
• To enable/disable the confidence beep, while the detector is deactivated press and hold
holding
C, press A to enable or disable the confidence beep during start-up.
• To deactivate the detector, press
code protected to prevent deactivation, PASS will display. A passcode must be entered to deactivate
he detector. For more information, refer to Deactivation Passcode Protection
t
• To decrement the displayed value or to scroll down, press E.
• To enter the user options menu, press
displays (5 seconds).
• To initiate calibration and set alarm setpoints, press and hold
displays.
• To increment the displayed value, press D.
• To view the TWA, STEL and maximum (MAX) gas exposures, press
• To save a displayed value, press C.
• To clear TWA, STEL, and maximum (MAX) gas exposures, press and hold
• To acknowledge a latched alarm, press
C. While
A and hold until OFF displays (5 seconds). If the detector is pass-
.
E and D simultaneously and hold until OPTN and then EXIT
E and C simultaneously until CAL.
D and C simultaneously.
C for 6 seconds.
C.
11
GasAlert Extreme
User Manual
Activating the Detector
To activate the detector, press A in a safe area, free of hazardous gas.
Self-Test
When the detector is activated, it performs several self-tests. Confirm the
following tests occur.
Note
The following tests are listed in the order they are automatically
performed on the detector.
1. Display Elements Test: The LCD displays all screen elements.
2. Alarm Function Test: The detector beeps, the LEDs flash, t
backlight activates briefly, and the detector vibrates.
3. Battery Test: The detector tests the batteries. If the battery volt-
age is too low to continue, the detector performs an automati
shu
tdown. Refer to Automatic Shutdown Alarm
.
he
c
4. Date and Time: The LCD displays the date and time automati-
cally in the following order.
Year: The LCD displays
the current year (20XX).
Month:
JAN, FEB, MAR, etc.
Day of the month:
(1 to 31)
Day of the week:
MON, TUE, WED, etc.
Hour/Minute:
00:00 hours to 23:59
hours
To adjust the date or time, refer to Clock Option
.
12
GasAlert Extreme
User Manual
5. Sensor Test: The detector tests the sensor. If the sensor test
fails, the detector beeps slowly, the LEDs flash slowly, and
ALARM f
lashes.
If the sensor test passes, the self-test continues.
6. Gas Type: The LCD displays the type of gas the detector is man-
ufactured to monitor.
Refer to Table 1 for the type of gases monitored.
If the battery is low, the LCD displays the low battery icon and the
self-test continues.
7. TWA Alarm Setpoint: The LCD displays the TWA alarm set-
point.
Note
The TWA alarm setpoint screen does not apply to O
detectors.
2
8. STEL Alarm Setpoint: The LCD displays the STEL alarm set-
point.
Note
The STEL alarm setpoint screen does not apply to O
detec-
2
tors.
13
GasAlert Extreme
User Manual
9. Low Alarm Setpoint: The LCD displays the low alarm setpoint.
10. High Alarm Setpoint: The LCD displays the high alarm setpoint.
11. Calibration Due Test: The LCD displays the calibration du
te.
da
The LCD displays the number of days remaining before the
detector must be calibrated. For more information, refer to Cali-
bration.
If calibration is past due, CAL. PAST displays.
e
C to acknowledge the warning message.
Press
If the calibration past due option is enabled or disabled, one of
the following two events will occur.
• Calibration Past Due Disabled: If the detector is not passcode protected and after the CAL. PAST message is acknowl-
edged, the detector continues the self-test and then ent
norma
l operation.
• Calibration Past Due Enabled: If the detector is passco
protected and when CAL. PAST displays, press C to
acknowledge the message and to access the PASS screen. If
required, refer to Passcode Protection Option
Press
D or E to scroll to the required passcode, and press
.
ers
de
C within 10 seconds to confirm the selection. The detector
enters normal operation.
Note
Calibrate the detector before continuing operation.
If the passcode is not confirmed within 10 seconds or the passcode is incorrect, the detector beeps eight times, the LEDs
flash 8 times, and the LCD displays the following screen.
14
GasAlert Extreme
User Manual
The detector then automatically deactivates.
12. Bump Test Fail: If a previous bump test failed, the detecto
eps, vibrates, and BUMP FAIL displays:.
be
Press
C to acknowledge the alarm.
Note
Bump test the detector before continuing operation.
For information regarding bump tests, refer to the MicroDock ll
User Manual.
Self-Test Pass
r
If the detector passes the self-test, it enters normal operation. The LCD
displays the ambient gas reading.
The detector begins recording immediately. It records the
• maximum (MAX) gas exposure,
• the short-term exposure levels (STEL), and
• calculates the time-weighted average (TWA).
Self-Test Fail
If the detector fails the self-test, refer to Troubleshooting.
15
GasAlert Extreme
User Manual
Deactivating the Detector
Note
If Deactivation Passcode Protection is enabled, the detector
cannot be disabled without entering a passcode first. PASS
displays immediately after OFF, refer to Deactivation Passcode
Protection. This option can only be enabled at the factory and
cannot be disabled by the customer.
To deactivate the detector, complete the following:
1. Press and hold
2. The detector beeps and vibrates four times, the LEDs flash f
t
imes, and then the detector deactivates.
A is not held down until OFF displays, the detector will
If
remain activated.
A until OFF displays (approximately 5 seconds).
Note
our
Confidence Beep
The confidence beep provides continuous confirmation that the detector
is operating properly. When the confidence beep is enabled, the detector
beeps every 5 seconds.
The confidence beep can be enabled or disabled during start-up.
Note
The detector is shipped with the confidence beep disabled.
Enabling the confidence beep decreases battery life.
To enable/disable the confidence beep, complete the following:
1. Ensure the detector is deactivated.
2. Press and hold
When the confidence beep option is enabled, the detector automatically begins beeping when activated.
When the confidence beep option is enabled in stealth mode, th
de
tector vibrates one time every 60 seconds. For more informa-
tion refer to Stealth Mode Option
If confidence beep is enabled and a low battery alarm occurs,
the confidence beep deactivates.
C. While holding C, press A.
and Alarms.
Note
e
16
GasAlert Extreme
User Manual
User Options Menu
Note
When selecting a user option, Set flashes and the LCD displays the opposite of what is currently enabled.
To access the user options menu, complete the following:
1. Press and hold
a
nd then release the buttons.
The detector beeps and vibrates four times and the LEDs fl
f
our times while accessing the user options menu.
If the passcode protection is not enabled, the EXIT screen auto-
matically displays.
If the detector is passcode protected, the following screen displays.
D and E simultaneously until OPTN displays
ash
2. Press
If the passcode is not confirmed within 10 seconds, NO displays and the detector returns to normal operation.
3. From the EXIT screen, press
4. Press
As a safety precaution, if an option is not selected within
20 seconds the detector automatically returns to normal operation.
5. Press
D or E to scroll to the required passcode. Press C to
confirm the selection and access the EXIT screen.
Note
D or E to scroll through the user
op
tions.
C to select a displayed option.
Note
When the required activities have been performed for a selected
option, the EXIT screen automatically displays.
D or E to select another option or press C to exit the
user options menu and return to normal operation.
17
GasAlert Extreme
User Manual
Exit
When entering user options, the EXIT screen displays immediately following the options (OPTN) screen. The LCD automatically returns to the
EXIT screen after a user option has been accessed.
From the EXIT screen, use
Or
C to exit user options and return to normal operation.
Press
D or E to scroll to additional user options.
Clock Option
The clock (CLCK) option sets the date (year/month/day/day of the week)
and time (hour/minute) of the detector. To set the time or date, complete
the following:
1. From the EXIT screen, press
option.
2. Press
3. Press
4. Repeat step #3 for the remaining date/time changes.
C to select the option and access the first date/time
op
tion, the year. Set and the last two digits of the year continually
flash.
D or E to scroll to the required year and press C to
confirm the selection.
Or
To bypass the year, press
automatically proceed to the month screen.
D or E to scroll to the CLCK
C to retain the current value and
5. Press
D or E to select another option or press C to exit the
user options menu and return to normal operation.
Note
The time and date values can only be changed in the
order they are presented in this table. To bypass any
setting, press
the current value and proceeds to the next date/time
option.
C. The detector automatically retains
Year: Requires only the last two
numerals of the year (00-99).
Month: Scroll to select the
required month (JAN, FEB, MAR,
etc.).
Day: Scroll to select the required
day (1-31). For months with 30
days (1-30) is available. For February, (1-28 & 29) is available.
Day of the week: Scroll to select
the required day (MON, TUE,
WED, etc.).
Time: The hour value flashes first.
Scroll to select (0:00 hours. to
23:59 hours).
18
GasAlert Extreme
User Manual
Note
If a value is not bypassed by pressing
the detector automatically proceeds to the next date/time
option. If the Time Minute value was not bypassed, the detector automatically proceeds to the Exit screen.
If a new value is selected but not confirmed by pressing
within 10 seconds, NO displays and the detector proceeds to
the next date/time option. If a new Time Minute value was
selected but not confirmed, the detector automatically proceeds to the Exit screen.
C within 10 seconds,
C
Passcode Protection Option
The passcode protection option (PASS ) prevents unauthorized access to
the user options and the calibration/set alarm setpoint functions.
The passcode protection option can be enabled or disabled.
Note
The detector is shipped with the passcode protection option
disabled.
Enable Passcode Protection
To enable passcode protection, complete the following:
Note
The passcode is provided on a separate card inside the shipping container.
19
1. From the EXIT screen of the user options menu, press
to
scroll to the PASS option.
2. Press
3. Set and PAS S continually flash. Press
4. The ON screen displays and flashes continually. Press
5. Press
If an incorrect passcode is selected or a correct passcode is
not confirmed within 10 seconds, NO displays and the LCD
returns to the EXIT screen.
C to select the option.
D or E to scroll to the
ired passcode, and press
requ
confirm. The LCD then returns to the EXIT screen.
C to confirm the selection.
D or E to select another user option, or press C to exit
the user options and return to normal operation.
Note
D or E
C to
GasAlert Extreme
User Manual
Disable Passcode Protection
When the detector is passcode protected, the key icon displays continually. To disable the passcode protection option, complete the following:
1. Press and hold
options menu.
The OPTN screen displays briefly before the flashing passco
sc
reen displays.
2. Press
3. Press
4. The LCD displays a flashing OFF screen. Press
D or E to scroll to the required passcode and press C
t
o confirm. The following EXIT screen displays.
The key icon indicates that the passcode protection is currently
enabled.
D or E to scroll to the PAS S option, and press C to
select the option.
the disabling option.
D and E simultaneously to access the user
de
C to confirm
Note
To ensure if the passcode protection option is enabled/disabled, use
options. Display the desired option and press
selection.
The LCD returns to the EXIT screen.
5. Press
the user options and return to normal operation.
If a passcode value is not selected or confirmed by pressing
D and E to toggle between the ON and OFF
C to confirm the
D or E to select another user option, or press C to exit
Note
C within 10 seconds, NO displays and the LCD returns to the
EXIT screen.
Deactivation Passcode Protection
As a backup safety precaution, the deactivation passcode protection
option can be enabled prevent unauthorized deactivation. A separate
security passcode is required for this option and will be available to limited personnel only.
Note
The detector can be shipped with this option enabled permanently. This option can only be enabled at the factory and cannot be disabled by a customer.
The passcode must be entered every time the detector is deactivated.
20
GasAlert Extreme
User Manual
To deactivate the detector, complete the following:
1. From normal operation, press and hold
de
tector.
If the detector is passcode protected to prevent deactivation,
OFF displays briefly and then PASS immediately displays.
2. Press
D or E to scroll to the required security passcode.
Press
C to confirm the selection.
The detector then deactivates.
A to deactivate the
Stealth Mode Option
The stealth (STLH) mode option ensures that the detector is undetected
in situations that require concealment. This option disables the
• audible alarms,
• visual alarms, and
• backlight.
Only the vibrator alarm remains enabled.
Note
The detector is shipped with stealth mode disabled.
To enable/disable the stealth mode, complete the following:
21
1. From the EXIT screen, press
option.
2. Press
3.
If stealth mode has been enabled, the screen displays STLH continually
unless
• functions are being performed,
• readings are not 0 ppm for toxics, or
• reading is not 20.9% vol for oxygen.
The vibrator alarm is disabled at -20°C.
4. Press
C to select the option. The LCD flashes either ON or
OFF.
Enabled Disabled
D or E to toggle between the ON/OFF options. Ensure
Press
he desired option is displayed and press
t
selection.
The LCD returns to the EXIT screen.
D or E to scroll to a new user option or press C to exit
and return to normal operation.
D or E to scroll to the STLH
C to confirm the
Note
GasAlert Extreme
User Manual
Note
If the option is not confirmed by pressing
the detector returns to normal operation.
C within 10 seconds,
Automatic Backlight Option
The automatic backlight (BKLT) option enables or disables the backlight
of the detector. When enabled, the backlight automatically activates for 3
seconds whenever there is insufficient light to view the LCD.
Press any button to activate the backlight for 6 seconds.
Note
The detector is shipped with the automatic backlight option
enabled. The backlight option is not available in the user
options menu when stealth mode is enabled.
To enable/disable the automatic backlight, complete the following:
1. From the EXIT screen, press
option.
2. Press
3.
C to select the option. The LCD flashes either ON or
OFF.
Press
D or E to toggle between the ON/OFF options. Ensure
he desired option is displayed and press
t
se
lection.
The LCD returns to the EXIT screen.
D or E to scroll to the BKLT
C to confirm the
4. Press
If the option is not confirmed by pressing
the detector returns to normal operation.
D or E to scroll to a new user option or press C to exit
and return to normal operation.
Note
C within 10 seconds,
Latching Alarm Option
The latch alarm (LTC H) option ensures that an alarm persists until it is
acknowledged by the user.
If enabled, during an alarm condition the latched alarms (LTCH ) option
causes the low and high gas alarms (audible, visual, and vibrator) to persist until the gas concentration is below the alarm setpoint and the
alarms have been acknowledged by pressing
The audible alarm can be temporarily deactivated (press
onds, but the LCD continues to display the peak concentration until the
alarm condition no longer exists.
In stealth mode, the detector continues to vibrate until the alarm is
acknowledged.
Note
The detector is shipped with the latching alarm option disabled.
C.
C) for 30 sec-
22
GasAlert Extreme
User Manual
To enable/disable the latching alarm option, complete the following:
1. From the EXIT screen, press
option.
2. Press
3.
4. Press
If the option is not confirmed by pressing
the detector returns to normal operation.
C to select the option. The LCD flashes either ON or
OFF.
Press
D or E to toggle between the ON/OFF options. Ensure
he desired option is displayed and press
t
se
lection.
The LCD returns to the EXIT screen.
D or E to scroll to a new user option or press C to exit
and return to normal operation.
D or E to scroll to the LT CH
C to confirm the
Note
C within 10 seconds,
Automatic Oxygen (O2) Calibration Option
Note
For oxygen detectors only.
If the automatic oxygen (O
ensure the detector is activated in safe area in normal (20.9%)
oxygen atmosphere.
) calibration option is enabled,
2
This option enables/disables the automatic oxygen (O
calibration begins automatically during start-up after the calibration
O
2
due screen displays.
Note
The detector is shipped with the automatic O
disabled.
To enable/disable the automatic O
lowing:
1. From the EXIT screen of the user options menu, press
to
scroll to the ACAL option.
2. Press
3. Press
4. Press
If the option is not confirmed by pressing
the detector returns to normal operation.
C to select this option. The LCD flashes either ON or
OFF.
D or E to toggle between the ON/OFF options. Ensure
he desired option is displayed and press
t
selection.
The LCD returns to the EXIT screen.
D or E to scroll to a new user option or press C to exit
and return to normal operation.
calibration option, complete the fol-
2
Note
C within 10 seconds,
) calibration. The
2
calibration option
2
D or E
C to confirm the
23
GasAlert Extreme
User Manual
Calibration Past Due Option
The calibration past due (PAST) option enables an automatic shutdown
during start-up if the detector is past due for calibration.
Note
The detector is shipped with the calibration past due shutdown
option disabled.
To calibrate a past due calibration detector, refer to Calibration Past Due
Enabled in Self-Test.
To enable/disable the calibration past due automatic shutdown option,
complete the following:
1. From the EXIT screen of the user options menu, press
t
o scroll to the PAS T option.
2. Press
3.
4. Press
C to select the option. The LCD flashes either ON or
OFF.
Press
D or E to toggle between the ON/OFF options. Ensure
he desired option is displayed and press
t
se
lection.
The LCD returns to the EXIT screen.
C to confirm the
D or E to scroll to a new user option or press C to exit
and return to normal operation.
24
D or E
Note
If the option is not confirmed by pressing
the detector returns to normal operation.
C within 10 seconds,
Languages
The LCD can display text in five different languages. Refer to the following language options.
Portuguese Option
The Portuguese (PORT) option enables the LCD to display text in Portuguese.
Note
If the multi-language option is included, the detector is shipped
with English selected as the default language.
1. From the EXIT screen of the user options menu, press
to
scroll to the PORT option.
2. Press
3. Press
C to select the option. The LCD then displays the Portu-
guese exit screen.
D or E to scroll to another user option or press C to
exit and return to normal operation.
D or E
GasAlert Extreme
User Manual
Spanish Option
The Spanish (ESPA) option enables the LCD to display text in Spanish.
Note
If the multi-language option is included, the detector is shipped
with English selected as the default language.
1. From the EXIT screen of the user options menu, press
t
o scroll to the ESPA option.
2. Press
3. Press
C to select the option. The LCD then displays the Span-
ish exit screen.
D or E to scroll to another user option or press C to
exit and return to normal operation.
D or E
German Option
The German (DEUT) option enables the LCD to display text in German.
Note
If the multi-language option is included, the detector is shipped
with English selected as the default language.
1. From the EXIT screen of the user options menu, press
to
scroll to the DEUT option.
2. Press
3. Press
C to select the option. The LCD then displays the Ger-
man exit screen.
D or E to scroll to a new user option or press C to exit
and return to normal operation.
D or E
French Option
The French (FRAN) option enables the LCD to display text in French.
Note
If the multi-language option is included, the detector is shipped
with English selected as the default language.
1. From the EXIT screen of the user options menu, press
t
o scroll to the FRAN option.
D or E
25
GasAlert Extreme
User Options Menu
2. Press C to select the option. The LCD then displays the French exit screen.
3. Press
D or E to scroll to another user option or press C to
exit and return to normal operation.
English Option
The English (ENGL) option enables the LCD screens to display text in
English.
Note
If the multi-language option is included, the detector is shipped
with English selected as the default language.
1. From the EXIT screen of the user options menu, press
to scrol
l to the ENGL option.
2. Press
C to select the option. The LCD then displays the English
exit screen.
D or E
3. Press
D or E to scroll to another user option or press C to
exit and return to normal operation.
Datalogger Sampling Rate Option
The datalogger sampling rate (RATE) option defines how often the
detector records a datalog. The datalogger sampling rate ranges from
1 to 60 seconds.
Note
The detector is shipped with a datalogging sampling rate of
5 seconds.
To adjust the datalogger sampling rate, complete the following:
1. From the EXIT screen of the user options menu, press
D and
E to scroll to the RATE option.
2. Press
3. The sample rate screen displays the current selected rate. Press
C to select the option and display the sample rate screen.
D or E to scroll to a new rate and press C to save the new
value.
26
GasAlert Extreme
User Manual
4. Press D or E to scroll to another user option or press C to exit and return to normal operation.
Note
If a datalogging sample rate value is not selected or confirmed
by pressing
displays the EXIT screen.
C within 10 seconds, NO displays and the LCD
Data Transfer Option
The data transfer (SEND) option transfers the datalog/event log information from the detector to a PC.
Note
An IR DataLink (or other BW accessory) is required to transfer
the data from the detector to a PC.
To transfer data, complete the following:
1. Connect the IR DataLink (or other BW accessory) to the detect
d the PC.
an
Refer to the IR DataLink Instruction Sheet.
2. From the EXIT screen of the user options menu, press
t
o scroll to the SEND option.
or
D or E
3. Press
4. Select one of the following options to transfer data.
5. When the data transfer is complete, the detector beeps and
C to select the option and to access the data transfer
op
tion screens.
Press D or E to scroll to the
event (EVNT) option. Press
automatically transfer all events.
Press
D or E to scroll to the
last (LAST) option. Press
automatically send all of the datalogs since the last datalog download.
Press
D or E to scroll to the all
(ALL) option. Press
matically send all of the datalogs
that are saved on the detector.
vibrates, and the LEDs flash. The LCD displays the EXIT screen.
C to
C to
C to auto-
27
GasAlert Extreme
User Manual
LAST and ALL Transfers
If the LAST or ALL option is selected, the LCD displays a countdown
and the data transmission icon to indicate that the detector is transferring
data.
Note
The number at the beginning of the countdown depends upon
the amount of data to transfer.
EVNT Transfer
If the EVNT option is selected, the event logs transfer immediately and
the LCD displays the EXIT screen.
Unsuccessful Transfer
If the connection between the detector and the IR DataLink is disconnected during a transfer, FAIL displays.
The LCD then displays the EXIT screen.
1. From the PC, save the previously transferred data to ensure that it will not be deleted.
2. Repeat steps #3-5 of the Data Transfer Option
3. From the detector, select LAST to automatically resume t
ransfer from where it stopped sending.
t
Or
Select ALL to transfer all of the data again.
.
he
28
GasAlert Extreme
User Manual
Alarms
Table 6 describes detector alarms and corresponding screen. During an
alarm condition, the detector activates the backlight and the LCD displays the current ambient gas reading.
Alarm Display Alarm Display
Low Alarm:
• Slow beep
•Slow flash
• ALARM flashes
• Slow vibrations
High Alarm:
• Fast beep
• Fast flash
• ALARM flashes
• Fast vibrations
Sensor Alarm:
• Slow beep
•Slow flash
• ALARM flashes
• Slow vibrations
To change the factory-set alarm setpoints, refer to Calibration and Set-
ting Alarm Setpoints.
Table 6. Alarms
TWA Alarm:
• Slow beep
•Slow flash
• ALARM flashes
• Slow vibrations
STEL Alarm:
• Fast beep
• Fast flash
• ALARM flashes
• Fast vibrations
Low Battery Alarm:
• One beep and one flash ever
5
seconds, and one quick vibrati
every
minute (when confiden
beep i
s disabled).
• If confidence beep is enabled no
beeps, flashes, or vibrations
• LOW displays
y
on
ce
29
GasAlert Extreme
User Manual
Table 6. Alarms
Alarm Display Alarm Display
Automatic Shutdown Alarm:
(Low battery)
• Eight beeps, flashes, and vibrations
• LOW displays
Automatic Shutdown Alarm:
(After Automatic Shutdown Alarm)
• No beep
• No flash or vibrations
•
splays for a short time
di
Note
The high alarm and STEL alarm have the same priority. A high
alarm and/or STEL alarm overrides a low alarm and/or TWA
alarm. To check STEL and TWA alarms specifically, press and
C and D simultaneously.
hold
The vibrator alarm is disabled at -20°C.
The high and low alarms deactivate when the gas concentration is lower than the low alarm setpoint. If the alarms are set to
latch, alarms persist until the gas concentration is below the
alarm setpoint and the alarms have been acknowledged by
pressing
ing the TWA and STEL peak exposure. Refer to Clearing Gas
Exposures.
C. The TWA and STEL alarms deactivate by clear-
Automatic Shutdown Alarm:
(Calibration past)
• Eight beeps, flashes, and vibrations
Confidence Beep:
• One beep every 5 seconds
• One quick vibration per minute
Note
If the detector enters low battery
alarm, the confidence beep deactivates.
30
GasAlert Extreme
User Manual
Computed Gas Exposures
a Warning
To avoid possible personal injury, do not deactivate the detector
during a work shift. The detector automatically resets the TWA,
STEL, and MAX gas exposures during start-up. If the detector is
reactivated during a work shift, the new values will not reflect the
entire work shift.
Table 7. Computed Gas Exposures
Gas Exposure Description
TWA Time-weighted average based on an
8-hour workday.
Accumulated value.
STEL Short-term exposure limit (STEL) to
gas based on a 15-minute period.
Accumulated value.
MAX* Maximum (MAX) concentration
encountered during a work shift.
*For oxygen, it is the highest or the lowest value fr
20
.9% encountered.
om
Viewing Gas Exposures
Toxic Gases
1. Press C and D simultaneously. The LCD displays the TWA
g
as exposure first.
2. Then the LCD displays the STEL gas exposure.
3. Then the LCD displays the MAX gas exposure.
Oxygen
For oxygen detectors, press C and D simultaneously to view both the
maximum low and maximum high levels of oxygen exposure.
31
GasAlert Extreme
User Manual
Gas Alarm Setpoints
Table 8 describes the gas setpoints that trigger the gas alarms.
Table 8. Gas Alarm Setpoints
Alarm Condition
Low alarm Toxic gases: Ambient gas level
above low alarm setpoint.
O
: ambient gas level may be set
2
to above or below 20.9%.
High alarm Toxic gases: ambient gas level
above high alarm setpoint.
O
: ambient gas level may be set
2
to above or below 20.9%.
TWA alarm TWA above TWA alarm setpoint.
(O
: not applicable)
2
STEL alarm STEL above STEL alarm setpoint.
: not applicable)
(O
2
Stopping a Gas Alarm
The low and high alarms deactivate when the ambient gas level returns
to below the low alarm setpoint.
Note
If alarms are set to latch, the alarms deactivate after the gas
concentration is lower than the low alarm setpoint and the
alarms have been acknowledged by pressing
C.
The TWA and STEL alarms can be stopped either by
• Clearing the MAX, TWA, and STEL peak exposures. Refer to
Clearing Gas Exposures
.
or
• deactivating the detector and reactivating it again.
If the detector is passcode protected to prevent deactivation,
refer to Deactivation Passcode Protection
.
a Caution
Follow all safety procedures as defined by your employer. Confirm
with your supervisor before clearing TWA and STEL alarms.
32
GasAlert Extreme
User Manual
Clearing Gas Exposures
The peak gas exposures automatically clear after deactivating the detector.
To clear the MAX, TWA, and STEL peak exposure readings immediately,
press and hold
C for 6 seconds. The detector beeps and vibrates two
times to confirm that the exposures have been cleared.
a Caution
Follow all safety procedures as defined by your employer. Confirm
with your supervisor before clearing TWA and STEL alarms.
Resetting Gas Alarm Setpoints
Note
Standard factory alarm setpoints vary by region.
Table 9 lists the factory alarm setpoints.
To change the factory alarm setpoints, refer to Calibration and Setting
Alarm Setpoints.
Note
To disable an alarm, set the alarm setpoint to 0.
The ETO sensor is extremely cross sensitive and it responds
strongly to CO.
Table 9. Factory Alarm Setpoints
Gas TWA STEL Low High
O
2
CO
(low H2)
N/A N/A 19.5% vol. 22.5% vol.
35 ppm 200 ppm 35 ppm 200 ppm
CO 35 ppm 200 ppm 35 ppm 200 ppm
H2S
(high range)
S 10 ppm 15 ppm 10 ppm 15 ppm
H
2
PH
3
SO
2
Cl
2
NH
3
NH
3
(high range)
NO
2
10 ppm 15 ppm 10 ppm 15 ppm
0.3 ppm 1.0 ppm 0.3 ppm 1.0 ppm
2.0 ppm 5.0 ppm 2.0 ppm 5.0 ppm
0.5 ppm 1.0 ppm 0.5 ppm 1.0 ppm
25 ppm 35 ppm 25 ppm 50 ppm
25 ppm 35 ppm 25 ppm 50 ppm
2.0 ppm 5.0 ppm 2.0 ppm 5.0 ppm
HCN 4.7 ppm 10.0 ppm 4.7 ppm 10.0 ppm
ETO 1.0 ppm 5.0 ppm 1.0 ppm 5.0 ppm
ClO
O
3
2
0.1 ppm 0.3 ppm 0.1 ppm 0.3 ppm
0.10 ppm
0.10 ppm 0.10 ppm 0.20 ppm
NO 25 ppm 25 ppm 25 ppm 25 ppm
Sensor Alarm
The detector tests for a missing or defective sensor during the activation
self-test. Refer to Troubleshooting
.
33
GasAlert Extreme
User Manual
Low Battery Alarm
If a low battery alarm occurs, follow your company’s safety procedures.
The detector tests the battery upon activation and continuously thereafter. If the battery voltage is low, the detector activates the low battery
alarm.
The low battery alarm continues until the battery is replaced or the battery power is almost depleted. If the battery voltage drops too low, the
detector automatically deactivates.
Note
If the detector enters low battery alarm, the confidence beep
deactivates.
a Caution
Replace the battery in only a safe area, free of hazardous
gas.
Automatic Shutdown Alarm
There are two situations when an automatic shutdown alarm occurs.
1. If the battery voltage is in immediate danger of falling below the
minimum operating voltage, the detector beeps and vibrates
eight times, and the LEDs flashes eight times. After 3 second
t
he LCD deactivates and the detector deactivate
The LCD pe
depleted.
To replace the battery, refer to Replacing the Battery or Sensor
riodically displays until the battery power is
Note
s.
s,
The low battery alarm continues for approximately 30 minutes
before an automatic shutdown occurs.
2. If the calibration past due user option is enabled and the detector
is past the calibration due date, the detector automatically deactivates.
.
34
GasAlert Extreme
User Manual
Calibration and Setting Alarm Setpoints
Guidelines
When calibrating the detector, adhere to the following guidelines.
• Recommended gas mixture:
O
: clean air, 20.9% vol.
2
CO (low H
CO: 50 to 500 ppm balance N
H
S (high range): 10 to 100 ppm balance N
2
H2S: 10 to 100 ppm balance N
PH3: 1 to 5 ppm balance N
SO2: 10 to 50 ppm balance N
Cl2: 3 to 25 ppm balance N
NH3: 20 to 100 ppm balance N
NH3: (high range) 20 to 100 ppm balance N
NO2: 5 to 50 ppm balance N
HCN: 5 to 20 ppm balance N
ETO: 5 to 50 ppm balance N
ClO2: 0.1 to 1.0 ppm balance N
O3: 0.1 to 1.0 ppm balance N
NO: 10 to 250 ppm balance N
• Before operating an ETO detector, allow the detector to stabilize
the temperature it will be operating in. After the detector ha
at
abilized, zero the detector.
st
• It is necessary to periodically re-zero the ETO detector.
• To ensure accurate calibration, BW recommends using a premium-grade calibration gas approved by the National Institute of
Standards and Technology (NIST).
• Do not use a gas cylinder beyond its expiration date.
sensitivity): 50 to 500 ppm balance N
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
• Before calibrating a new NO or ETO sensor, allow the sensor to
stabilize for 2 hours in a safe area that is free of hazardous gas.
• Calibrate a new sensor before use. Allow the sensor to stabili
be
fore starting calibration (used: 60 seconds; new: 5 minutes).
• Calibrate the detector at least once every 180 days (for
de
tectors calibrate at least once every 90 days), depending up
use
and sensor exposure to poisons and contaminants.
ze
HCN
on
• Calibrate the detector if the ambient gas display varies at
start-up.
• It is best to calibrate the sensor before changing the alarm setpoints.
• Calibrate only in a safe area that is free of hazardous gas.
• To disable an alarm, set the alarm setpoint to zero.
• If a certified calibration is required, contact
BW Technologies by Honeywell
.
Note
A generator must be used to calibrate O
and ClO2 GasAlert
3
Extreme sensors.
s
35
GasAlert Extreme
User Manual
Test Cap
The calibration cap and hose are shipped with the detector for calibration.
Refer to Table 10 and Figure 3 for installation information.
Note
Only use the calibration cap during calibration.
Table 10. Test Cap
Item Description
1Test cap
2Hose
3 Regulator
4 Gas cylinder
36
Figure 3. Test Cap
GasAlert Extreme
User Manual
Calibration
Calibration requires several steps, some of which can be bypassed. A
note is added to each option that can be bypassed.
Start Calibration
Note
To quit calibration at any point, press
any saved values and the detector beeps and vibrates four
times before returning to normal operation.
Calibrate O
1. To enter calibration, in a safe area free of hazardous gas, pres
an
vi
After the CAL. screen displays, the detector beeps one time and
the auto zero screen displays.
in clean air only.
2
d hold
C and E simultaneously as the detector beeps and
brates four times, and the LEDs flash four times.
A. The detector retains
Auto Zero
The auto zero function automatically zeroes the detector.
2. The LCD flashe
the sensor. When the auto zero is complete the detector beeps
twice.
Do not apply the calibration gas until the LCD displays the
flashing gas cylinder icon; otherwise, the detector auto zero will
fail.
s
while the detector automatically zeroes
Note
Auto Zero Fail
If the sensor fails auto zero, the following screen displays.
s
The detector then bypasses the sensor span and automatically proceeds
to the alarm setpoints.
1. Press
2. Restart the calibration procedures in a safe area that is free of
3. If the auto zero is successful and the passcode protection is dis-
A to exit the alarm setpoint screens and to return to nor-
mal operation.
hazardous gas. If auto zero fails a second time, deactivate an
t
hen reactivate the detector to test the sensors.
abled, the detector automatically proceeds to the auto span function.
d
37
GasAlert Extreme
User Manual
Passcode Protected
After a successful auto zero, and if the passcode protected option is
enabled, PASS displays. The passcode is required to access the auto
span and alarm setpoint functions.
3. Press
D or E to scroll to the required passcode and press C
t
o confirm. For additional information, refer to Passcode Protec-
tion Option.
If the correct code is confirmed by pressing
onds, the detector beeps twice and automatically proceeds to th
se
t span screen.
If the passcode is not confirmed within 10 seconds or the passcode is incorrect, NO displays.
The detector then beeps four times and automatically returns to
normal operation.
C within 10 sec-
Set Span
Note
To bypass the set span function, press
ceed to the span screen.
The set span function inputs a new calibration gas concentration value.
4. Set SPAN flashes.
D or E to scroll to the required gas concentration. The
Press
de
e
tector value must match the concentration value on the ga
cyl
inder.
Note
If a new value is selected but not confirmed within 10 seconds
by pressing
plays. The detector beeps six times and retains the original
value. The detector automatically proceeds to the span screen.
5. Press
C, the detector rejects the new value and NO dis-
C to save the new value and proceed to the span screen.
C to automatically pro-
s
38
GasAlert Extreme
User Manual
Span
Note
To bypass the span function, press
ceed to the alarm setpoint screens. If the span is bypassed, the
calibration due date cannot be changed.
Verify that the calibration gas being used matches the span
concentration values that are defined for the detector. For more
information, refer to Calibration Guidelines
6. The set span screen displays a flashing .
The flashing does not display for oxygen (O
7. Apply the calibration gas.
8. Apply gas to the sensor at a flow rate of 500 ml/min.
(for NH
, Cl2, and ETO: 1000 ml/min.)
3
The gas readings change as gas is applied to the sensor. When
the detector senses a sufficient concentration of gas (approximately 30 seconds), the detector beeps once.
9. The detector then begins spanning the sensor as follows:
•NH
•O
, Cl2, ClO2, O3, and ETO: 5 minutes to span
3
: 30 seconds to span
2
• other gases: 2 minutes (approximately) to span.
The detector beeps three times when the span is complete.
C to automatically pro-
.
Note
) detectors.
2
Successful Span
If the span is successful, the LCD automatically displays the calibration
due date screen.
Unsuccessful Span
If the detector fails to span a sensor successfully,
FAIL displays.
The detector vibrates and beeps, and the LEDs flash. Then the detector
automatically proceeds to the alarm setpoint screens.
If the span fails confirm that
• gas is being applied to the sensor,
• the sensor is detecting a sufficient gas concentration within
30 seconds, and
• the gas concentration has not dropped significantly during the
2-minute span.
If the span is still unsuccessful, use a new gas cylinder.
If the span continues to be unsuccessful, replace the sensor. Refer to
Replacing the Battery or Sensor
.
39
GasAlert Extreme
User Manual
Setting the Calibration Due Date
After a successful calibration, the LCD displays the CAL. DUE screens
and the number of days remaining before the next calibration.
Note
To bypass the calibration due notification, press
tor automatically proceeds to the TWA alarm setpoint.
BW Technologies by Honeywell recommends that the detector
be calibrated every 180 days (6 months). The detector is
shipped with the factory default setting of 180 days.
10. Press
11. Press
If a new value is selected but not confirmed within 10 seconds
by pressing
value and NO displays. The detector proceeds to the TWA
alarm setpoint.
D or E to scroll to the required value
(1 to 365).
C to save the new value and automatically proceed to the
TWA alarm setpoint screen.
Note
C, the detector automatically retains the original
C. The detec-
Setting the TWA Alarm Setpoint
Note
To bypass and retain the current TWA alarm setpoint value,
C. The detector automatically proceeds to the STEL
press
alarm setpoint.
When the CAL. DUE function has been completed, the Set TWA alarm
setpoint screen automatically displays.
12. Press
13. Press
If a new value is selected but not confirmed within 10 seconds
by pressing
value and NO displays. The detector proceeds to the STEL
alarm setpoint.
D or E to scroll to the required value.
C to save the new value and proceed to the STEL alarm
setpo
int.
Note
C, the detector automatically retains the original
40
GasAlert Extreme
User Manual
Setting the STEL Alarm Setpoint
Note
To bypass and retain the current STEL alarm setpoint value,
C. The detector automatically proceeds to the low
press
alarm setpoint.
When the TWA alarm setpoint value has been changed or bypassed, the
Set STEL alarm setpoint screen displays.
14. Press
15. Press
If a new value is selected but not confirmed within 10 seconds
by pressing
value and NO displays. The detector proceeds to the low alarm
setpoint.
D or E to scroll to the required value.
C to save the new value and proceed to the low alarm
s
etpoint.
Note
C, the detector automatically retains the original
Setting the Low Alarm Setpoint
Note
To bypass and retain the current low alarm setpoint value,
C. The detector automatically proceeds to the high
press
alarm setpoint.
When the STEL alarm setpoint value has been changed or bypassed,
the Set LOW alarm setpoint screen displays.
\
16. Press D or E to scroll to the required value.
17. Press
If a new value is selected but not confirmed within 10 seconds
by pressing
value and NO displays. The detector proceeds to the high
alarm setpoint.
C to save the new value and proceed to the high alarm
setpo
int.
Note
C, the detector automatically retains the original
41
GasAlert Extreme
User Manual
Setting the High Alarm Setpoint
Note
To bypass and retain the current high alarm setpoint value,
C. The detector then returns to the normal operation.
press
When the low alarm setpoint value has been changed or bypassed, the
Set HIGH alarm setpoint screen displays.
18. Press
19. Press
If a new value is selected but not confirmed within 10 seconds
by pressing
value and NO displays. The detector proceeds to normal operation.
When calibration is complete, the detector beeps and vibrates four
times, and the LEDs flash four times before returning to normal operation.
D or E to scroll to the required value.
C to save the new value and return to normal operation.
Note
C, the detector automatically retains the original
Verification
1. After calibration is complete and the detector is in normal operation, verify calibration by using a gas cylinder other than the o
u
sed for calibration.
2. The gas concentration should not exceed the sensor’s detecti
rang
e. Confirm that the LCD displays the expected concentrati
val
ues.
3. To ensure that the reading is accurate, apply the verification
f
or the same period of time as was applied to the sensor when it
was calibrated.
Example: SO
tion gas for 2 minutes.
span time was 2 minutes therefore, apply verifica-
2
ne
on
on
gas
42
GasAlert Extreme
User Manual
Datalog and Event Log
The GasAlert Extreme datalogger version allows the detector to record
various information so a report can be compiled.
Datalog
Datalog sampling rate is defined in the detector user options. To set the
sample rate, refer to Datalogger Sampling Rate Option
The following information is recorded in a datalog:
• Date and time
• Detector serial number
• Type of gas the detector monitors
• Current gas reading
• Sensor status
• Detector status
• Passcode protect enabled/disabled
• STEL period setting (fixed to a 15 minute period)
• Confidence beep enabled/disabled
• Automatic backlight enabled/disabled
• Stealth mode enabled/disabled
• Latching alarm enabled/disabled
• Calibration past due user option enabled/disabled
• Language the detector is set to display
.
Event Log
Event log information is recorded when an event (i.e., an alarm) occurs.
The following information is recorded in an event log:
• Detector serial number
• Type of exposure the detector that occurred
• Time the alarm started and ended
• Peak exposure of the alarm
43
GasAlert Extreme
User Manual
Maintenance
To maintain the detector in good operating condition, perform the following basic maintenance as required:
• Calibrate, bump test, and inspect the detector at regular intervals.
• Maintain an operations log of all maintenance, calibrations, bump
tests, and alarm events.
• Clean the exterior with a soft damp cloth. Do not use solvents,
soaps, or polishes.
• Do not immerse the detector in liquids.
Table 11. Replacing the Battery or Sensor
Item Description
1 Rear shell machine screws (4)
2 Rear shell
3Battery
4 PCB machine screws (2)
5PCB
6 Sensor
7 Sensor screen
8 Front shell
44
Figure 4. Replacing the Battery or Sensor
GasAlert Extreme
Maintenance
Figure 5. Rear Shell Seal
Table 12. Rear Shell Seal
Item Description
1 Seal
Figure 6. Front Shell Seal
Table 13. Front Shell Seal
Item Description
1 Seal
45
GasAlert Extreme
User Manual
Replacing the Battery or Sensor
a Warning
To avoid possible personal injury, adhere to the following:
• Replace the battery in a safe area, free
i
mmediately when the detector enters low battery alarm.
• Use only the Panasonic CR-2PE/BN battery.
• Use only the sensor specifically designed for the GasAle
Extreme model
t
arget gas. Refer to Replacement Parts and Accessories
• After replacing a sensor, allow the new sensor 5 minute
abilize before use. For an ETO or NO sensor, allow the ne
st
nsor 2 hours to stabilize before use.
se
• Do not expose a sensor to vapors of organic solvents
aint fumes or organic solvents.
p
When the battery is removed from the detector, the clock
reverts back to the default value. Refer to Clock Option
To preserve the life of the battery, deactivate the detector when not in
use.
For additional information regarding problems caused by a sensor
requiring calibration or replacement, refer to Troubleshooting
. Otherwise, the detector will not monitor th
Note
of hazardous gas
rt
e
.
s to
w
such as
.
.
Replacing the Battery
To replace a battery, complete the following. Refer to Figures 4, 5, and 6
and Tables 11, 12, and 13. Replace the battery in a safe area, free of
hazardous gas.
46
1. Deactivate the detector.
2. Remove the four machine screws on the rear shell and remove the rear shell.
3. Remove the battery.
c Warning
This instrument contains a lithium battery. Do not mix with the
solid waste stream. Spent batteries should be disposed of by a
qualified recycler or hazardous materials handler.
4. Insert the new battery.
5. Re-assemble the detector. When assembling the detecto
aware of
• Clean the seal on the front and rear shells with a soft
• Ensure the front and rear shells are properly aligned to ensure
• Torque the screws to 3-4 in-lbs in a crisscross pattern to
the following:
cl
ean cloth. Do not use solvents, soaps, or polishes. Refer to
Figures 5 and 6.
a proper environmental seal.
ensure a proper environmental seal. Do not overtighten.
Replacing the Sensor
To replace a sensor, complete the following. Refer to Figures 4, 5, and 6
and Tables 11, 12, and 13.
1. Deactivate the detector.
2. Remove the four machine screws on the rear shell and remove the rear shell.
3. Remove the two machine screws from the PCB.
r be
damp
GasAlert Extreme
Maintenance
4. Remove the PCB.
Replace the sensor.
5.
Gently rock the sensor back and forth to remove a tightly hel
nsor.
se
Note
Allow the new sensor 5 minutes to stabilize before use. For a
new ETO or NO sensor, allow the new sensor 2 hours to stabilize before use.
6. Re-assemble the detector. When assembling the detector
aware of
• Clean the seal on the front and rear shells with a soft damp
• Ensure the front and rear shells are properly aligned to ens
• Torque the screws to 3-4 in-lbs in a crisscross pattern
the following:
clean cloth. Do not use solvents, soaps, or polishes. Refer to
Figures 5 and 6.
proper environmental seal.
a
sure a proper environmental seal. Do not overtighten.
en
d
be
ure
to
Cleaning a Sensor Screen
Clean or replace the sensor screen as required. If replacement sensor
screens are required, refer to Replacement Parts and Accessories
To clean a removed sensor screen, complete the following. Refer to Figures 4, 5, and 6 and Tables 11, 12, and 13.
1. Deactivate the detector.
2. Remove the four machine screws on the rear shell and remove the rear shell.
.
3. Remove the two machine screws from the PCB.
4. Remove the PCB. Place the PCB on a clean surface.
5. Remove the screen.
6. Using a soft, clean brush, wash the screen with clean,
water
.
7. Insert the sensor screen with the shiny side facing the sens
g
rill.
Note
Ensure the screen is dry before inserting back into the detector.
8. Re-assemble the detector. When assembling the detecto
aware of
• When inserting the sensor screen back into the detector,
• Clean the seal around the edge of the front and rear shells wi
• Ensure the front and rear shells are properly aligned to guaran-
• Torque the screws to 3-4 in-lbs in a crisscross pattern to
the following:
ensure the sensor screen is inserted with the shiny side facing
the sensor grill.
a sof
t damp clean cloth. Do not use solvents, soaps, or pol-
ishes. Refer to Figures 5 and 6.
tee a proper environmental seal.
ensure a proper environmental seal. Do not overtighten.
warm
r be
or
th
47
GasAlert Extreme
User Manual
Clearing a Sensor
Each sensor has a high degree of resistance to common vapors and
gases. To clear a sensor, move the detector to a clean environment and
wait 10 to 30 minutes.
Note
Do not expose a sensor to the vapors of inorganic solvents,
such as paint fumes or organic solvents.
WEEE Directive and Battery Directive
Failure to comply with the following battery removal and disposal instructions may result in battery shorting, battery leakage, and/or other damage. Ensure a qualified technician completes the following procedures.
Removal and Disposal of the Battery
Only a qualified technician should complete the following procedure.
Refer to Figure 4.
Dispose of the battery according to local laws.
1. Press and hold
2. Remove the four machine screws on the rear shell and remove the rear shell.
3. Remove the two machine screws from the PCB.
4. Remove the PCB. Place the PCB on a clean, non-conductiv
surface
5. Remove the battery.
6. Dispose of the battery according to local laws.
for parts of the detector.
C to deactivate the detector.
e
.
48
GasAlert Extreme
User Manual
Troubleshooting
If a problem occurs, refer to the solutions provided in Table 14. If the problem persists, contact BW Technologies by Honeywell.
Table 14. Troubleshooting Tips
Problem Possible Cause Solution
The detector does not activate. No battery Install a battery. Refer to Replacing the Bat-
tery or Sensor.
Depleted battery Replace the battery. Refer to Replacing the
Battery or Sensor.
Damaged or defective detector Contact BW Technologies by Honeywell
Reversed battery Reinstall the battery correctly.
.
The detector enters alarm mode immediately when it is activated.
The start up self-test fails during one of the
checks.
49
Sensor needs to stabilize Used sensor: wait 60 seconds.
New sensor: wait 5 minutes.
Low battery alarm Replace the battery. Refer to Replacing the
Battery or Sensor.
Sensor alarm Replace the sensor. Refer to Replacing the
Battery or Sensor.
General fault Contact BW Technologies by Honeywell
Alarm setpoints are incorrect Reset the alarm setpoints. Refer to Reset-
ting Gas Alarm Setpoints.
.
GasAlert Extreme
User Manual
Table 14. Troubleshooting Tips
blem Possible Cause Solution
Pro
The detector does not display a normal
ambient gas reading after the activation
self-test.
The detector does not respond to the pushbuttons.
Target gas is present Detector is operating properly. Use caution
in suspect areas.
Detector requires calibration Calibrate the detector. Refer to Calibration
and Setting Alarm Setpoints.
Sensor not stabilized Used sensor: wait 60 seconds.
New sensor: wait 5 minutes.
Battery is depleted Replace the battery. Refer to Replacing the
Battery or Sensor.
Detector is performing operations that does
not require user input
Pushbutton operation restores automatically
when the operation ends.
The detector does not accurately measure
the gas.
The detector does not enter alarm mode. Alarm setpoint(s) are set incorrectly Reset the alarm setpoints. Refer to Reset-
Detector requires calibration Calibrate the sensor. Refer to Calibration
and Setting Alarm Setpoints.
Detector is colder/hotter than ambient gas Allow the detector to acquire ambient tem-
perature before use.
Sensor screen is blocked Clean the sensor screen. Refer to Cleaning
a Sensor Screen.
ting Gas Alarm Setpoints.
Alarm setpoint(s) set to zero Reset the alarm setpoints. Refer to Reset-
ting Gas Alarm Setpoints.
Detector is in calibration mode Complete calibration. Refer to Calibration
and Setting Alarm Setpoints.
50
GasAlert Extreme
User Manual
Table 14. Troubleshooting Tips
blem Possible Cause Solution
Pro
The detector intermittently enters alarm
mode without apparent reason.
The detector automatically deactivates. Automatic shutdown feature activated due
Detector does not auto zero or calibrate. Sensor may be expired Change the sensor.
sensor reading is erratic. Sensor may be expired Change the sensor.
O
2
Ambient gas levels are near alarm setpoint
or the sensor is exposed to a puff of the target gas
Alarms set incorrectly. Reset the alarm setpoints. Refer to Calibra-
Missing or faulty sensor Replace the sensor. Refer to Replacing the
to depleted battery
Detector is operating normally. Use caution
in suspect areas. Check MAX gas exposure
reading.
tion and Setting Alarm Setpoints.
Battery or Sensor.
Replace the battery. Refer to <Replacing
the Battery or Sensor.
51
GasAlert Extreme
User Manual
Replacement Parts and Accessories
a Warning
To avoid personal injury or damage to the detector, use only
specified replacement parts.
To order any parts or accessories, contact BW Technologies by Honey-
well.
Table 15. Replacement Parts and Accessories
Model No. Description Qty
SR-X10
Replacement O
PS-RM04H Replacement CO sensor
PS-RM04 Replacement CO sensor 1
PS-RH04S
SR-P04
PS-RS04
PS-RC10
SR-A04
SR-A204
PS-RD04
Replacement H
Replacement PH
Replacement SO
Replacement Cl
Replacement NH
Replacement NH
Replacement NO
PS-RZ10 Replacement HCN sensor 1
SR-E04 Replacement ETO sensor 1
SR-V04
SR-G04
Replacement ClO
Replacement O
SR-N04 Replacement NO sensor 1
GAXT-SS Sensor screens 10
sensor
2
(low H2 sensitivity) 1
S sensor
2
sensor
3
sensor
2
sensor
2
sensor
3
sensor (high range)
3
sensor
2
sensor
2
sensor
3
1
1
1
1
1
1
1
1
1
1
Model No. Description Qty
GA-TC-1 Test cap and hose 1
GA-BALERT Concussion-proof boot 1
GA-BSPLASH-K Splash guard filters 5
GA-HC-1 Hard hat clip 1
GA-AG-1 Alligator clip (non-conductive) 1
GA-AG-2 Alligator clip (stainless-steel) 1
GA-CL-1 Belt clip with screw 1
GA-NS-1 Neckstrap with safety release 1
GA-LY-1 Short strap (6 in./15.2 cm) 1
GA-USB2 IR DataLink 1
52
GasAlert Extreme
Specifications
Specifications
Instrument dimensions: 2.8 x 5.0 x 9.5 cm
(1.1 x 2.0 x 3.75 in.)
Weight: 82 g (2.9 oz.)
Operating temperature:
H
S, SO2, HCN: -40°C to +50°C (-40°F to +122°F)
2
CO: -30°C to +50°C (-22°F to +122°F)
NH3 (high range): -20°C to +40°C (-4°F to +104°F)
NH
3,
Other gases: -20°C to +50°C (-4°F to +122°F)
Operating humidity:
S, SO2, Cl2, HCN, NO2, NH3, PH3, ETO, NO, O3:
CO, H
2
15% to 90% relative humidity (non-condensing)
Cl2: 10% to 95% relative humidity (non-condensing)
ClO2: 15% to 95% relative humidity (non-condensing)
O2: 0% to 99% relative humidity (non-condensing)
Detection range:
GasAlert Extreme O
GasAlert Extreme CO: 0 – 1000 ppm (1 ppm increments)
GasAlert Extreme CO (low H
(1 ppm increments)
GasAlert Extreme H
GasAlert Extreme H
GasAlert Extreme PH
GasAlert Extreme SO
GasAlert Extreme Cl
GasAlert Extreme NH
GasAlert Extreme NH
GasAlert Extreme NO
GasAlert Extreme HCN: 0 – 30.0 ppm (0.1 ppm increments)
: 0 – 30.0% vol. (0.1% vol. increments)
2
sensitivity): 0 – 1000 ppm
2
S: 0 – 100 ppm (1 ppm increments)
2
S (high range): 0 – 500 ppm (1 ppm increments)
2
: 0 – 5.0 ppm (0.1 ppm increments)
3
: 0 – 100.0 ppm (0.1 ppm increments)
2
: 0 – 50.0 ppm (0.1 ppm increments)
2
: 0 – 100 ppm (1 ppm increments)
3
: (high range) 0 – 400 ppm (1 ppm increments)
3
: 0 – 100.0 ppm (0.1 ppm increments)
2
GasAlert Extreme ETO: 0 – 100.0 ppm (0.1 ppm increments)
GasAlert Extreme ClO
GasAlert Extreme O
: 0 – 1.00 ppm (0.01 ppm increments)
2
: 0 – 1.00 ppm (0.01 ppm increments)
3
GasAlert Extreme NO: 0 – 250 ppm (1 ppm increments)
Sensor type: Plug-in electrochemical cells
Calibration: Auto zero, set span, and span sensor
Alarm conditions: TWA alarm, STEL alarm, low alarm, high alarm, sen-
sor alarm, low battery alarm, confidence beep, automatic shutdown
alarm.
Audible alarm: 95 dB at 0.3 m (1 ft.) typical
Visual alarm: Red light-emitting diode (LED)
Display: Alpha-numeric liquid crystal display (LCD)
Backlight: Automatically activates for 3 seconds whenever there is
insufficient light to view the display and during alarm conditions. Any
pushbutton reactivates the backlight for 6 seconds.
Self-test: Initiated upon activation
Battery test: Every 0.5 seconds
Battery: Panasonic CR-2PE/BN battery
Warranty: 2 years including sensors.
Approvals:
Classified by UL to both U.S. and Canadian Standards as Intrinsically
Safe for Class I, Division 1, Group A, B, C, D
European Explosives Protection EEx ia IIC
CE 0539
g II 1 G DEMKO 04 ATEX 03 36363
IECEx
ABS Type Approved: VA-348-169-X
KTL: 12-KB4BO-0199X
1
EAC Certificate: RU С-GВ.ГБ05.В.0111 5
53
GasAlert Extreme
User Manual
Inmetro: Ex ia IIC T4 Ga DNV 12.0137 X
Ratings and Cert
ifications
The GasAlertExtreme is in conformity with the following standards:
UL 913 8th Edition
CSA C22.2 No. 157-92:2012
EN 60079-0:2012 +A11:2013
EN 60079-11:2012
EN 60079-26:2007
IEC 60079-0:2011
IEC 60079-11:2011
IEC 60079-26:2006
General Specifications for Datalogger Units
Storage: Maximum of 8 months of data at 5 second intervals (based on
a normal workweek).
Memory Type: Wrap-around memory ensures most recent data is
always saved.
Sample Rate: One reading every 5 seconds (standard)
Data Recorded: All sensor readings, all alarm conditions, calibrations,
event flags, battery status, sensor status, confidence beep activation,
and detector status along with the time and date and the detector serial
number.
Indicators: Icon advising datalogger is operating normally
Transfer Accessory: IR DataLink or other BW accessory
Support:
BW Excel Datalog Manager (EDM): This software organizes GasAlert
Extreme datalog and event log files into a readable report
Fleet Manager CD Support: This software organizes GasAlert Extreme
datalog and event log files into a readable report
1. http://www.honeywellanalytics.com/~/media/honeywell-analytics/
products/gasalert-extreme/documents/certifications/koreanexcertificate_bw_gaextreme_12kb4bo0199x-(2).pdf?la=en
54
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules and ICES003 Canadian EMI requirements. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that radio interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit differen
t
hat to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician fo
lp.
he
t from
r
GasAlert Extreme
General Specifications for Datalogger Units
55
GasAlert Extreme
User Manual
56
www.GlobalTestSupply.com
125465 UM-EN-GAXT-K1
[English]
© BW Technologies 2016. All rights reserved.
Loading...
