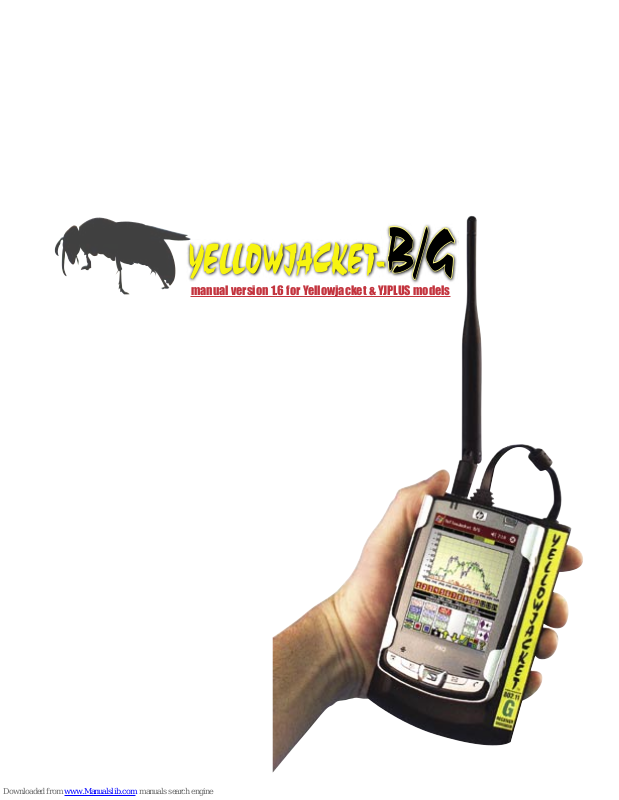

BVSystems Yellowjacket, YellowJacket Plus User Manual

TM

YELLOWJACKET-

manual version 1.6 for Yellowjacket & YJPLUS models

B/G

Contents

INTRODUCTION................................................................................................. 2

STARTING UP................................................................................................... 2

YELLOWJACKET ACCESSORIES.............................................................................. 3

STARTING UP YOUR YELLOWJACKET....................................................................... 4

STARTUP SCREEN............................................................................................. 5

MAIN SCREEN.................................................................................................. 6

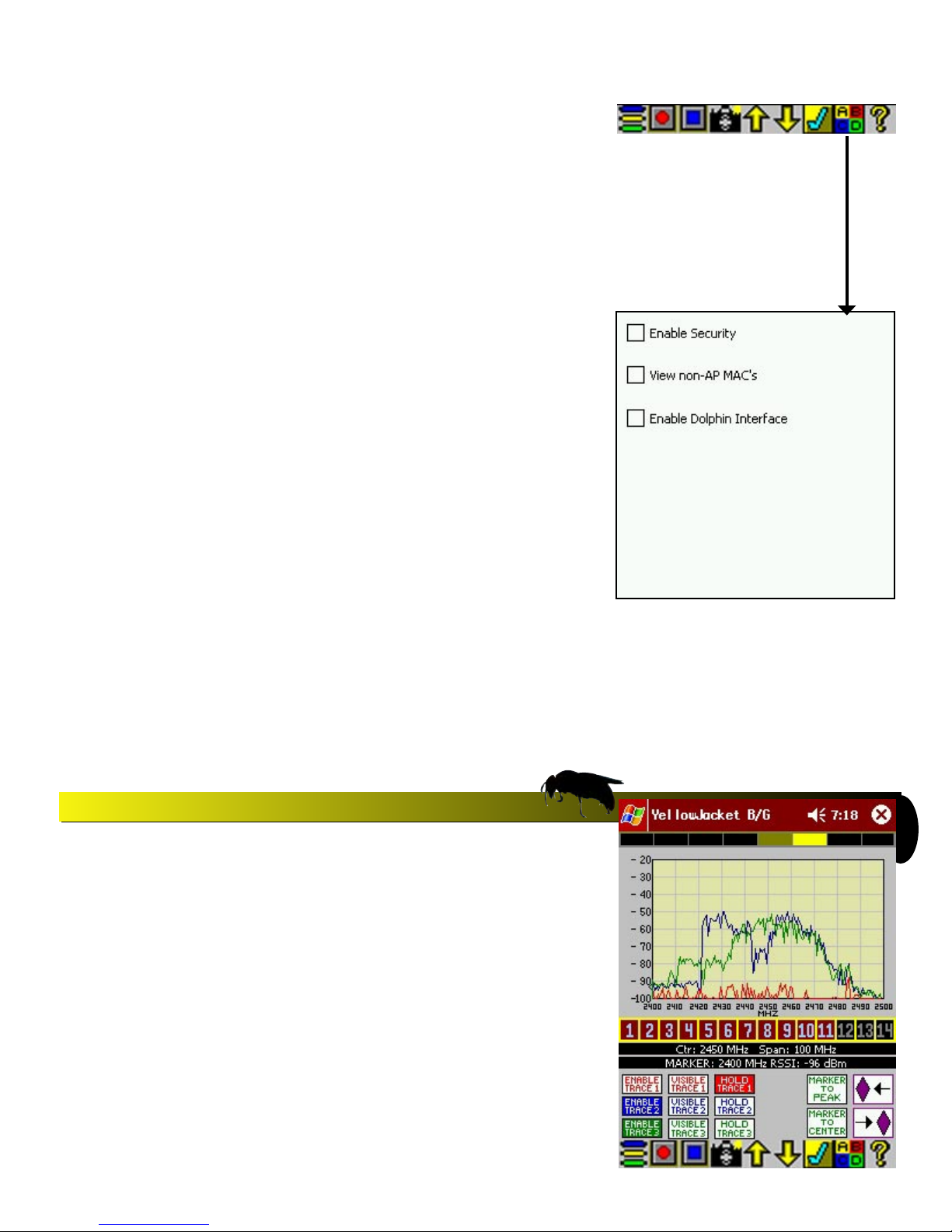

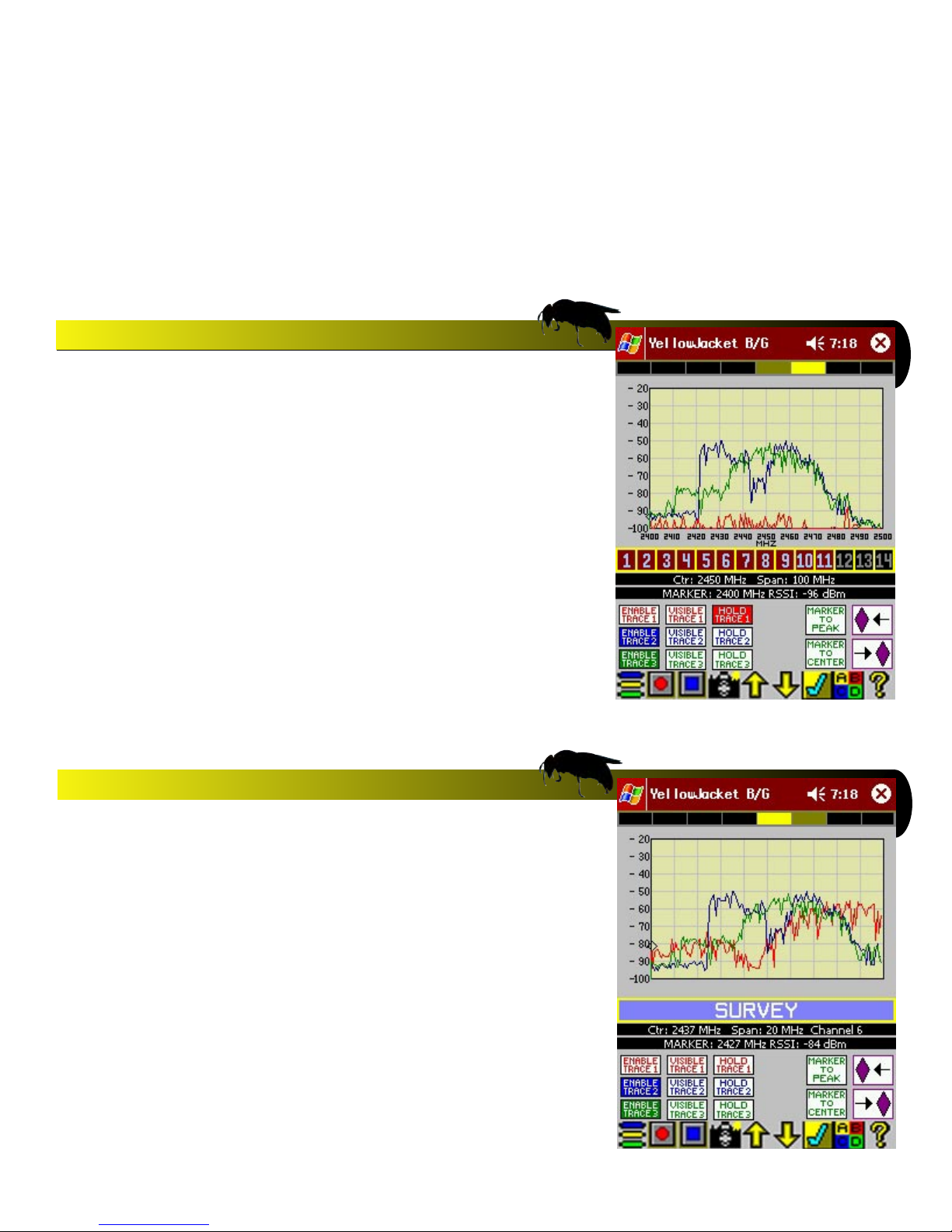

SPECTRUM ANALYSIS SCREEN.............................................................................. 6

FULL SPECTRUM SCREEN.................................................................................... 7

SINGLE CHANNEL SPECTRUM SCREEN.................................................................... 7

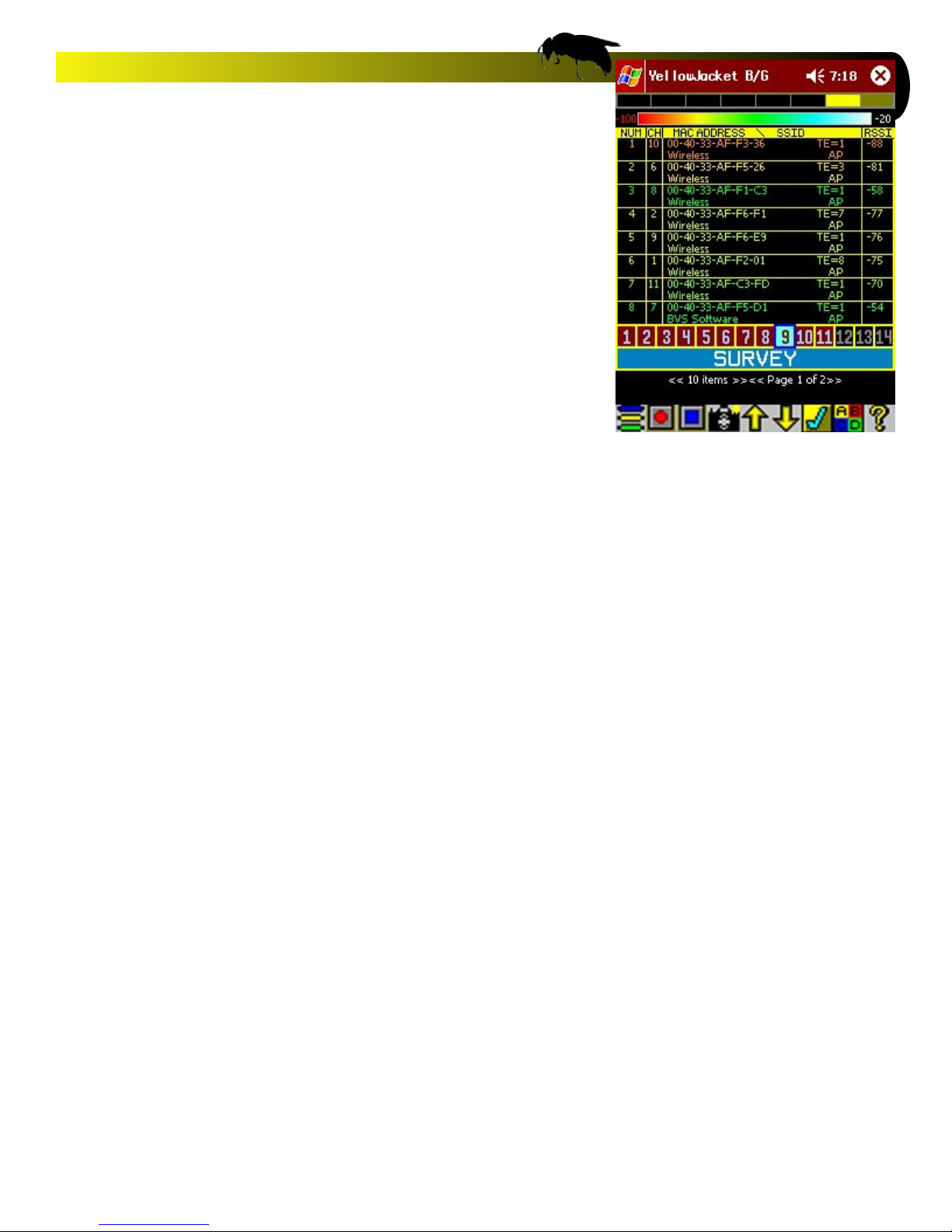

ACCESS POINT LIST SCREEN................................................................................ 8

MAC LIST

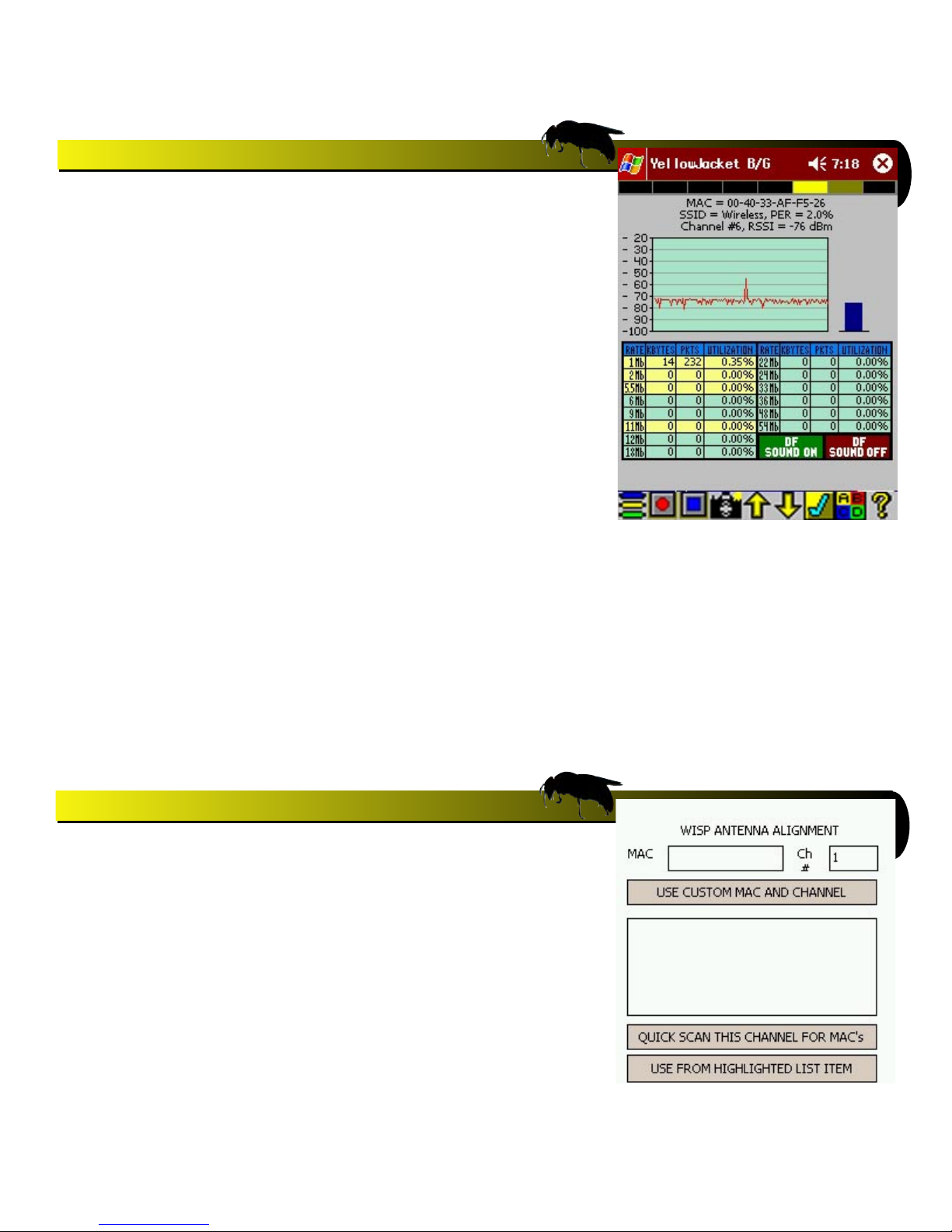

SINGLE MAC ADDRESS MODE SCREEN.................................................................... 9

WISP ANTENNA ALIGNMENT SCREEN...................................................................... 9

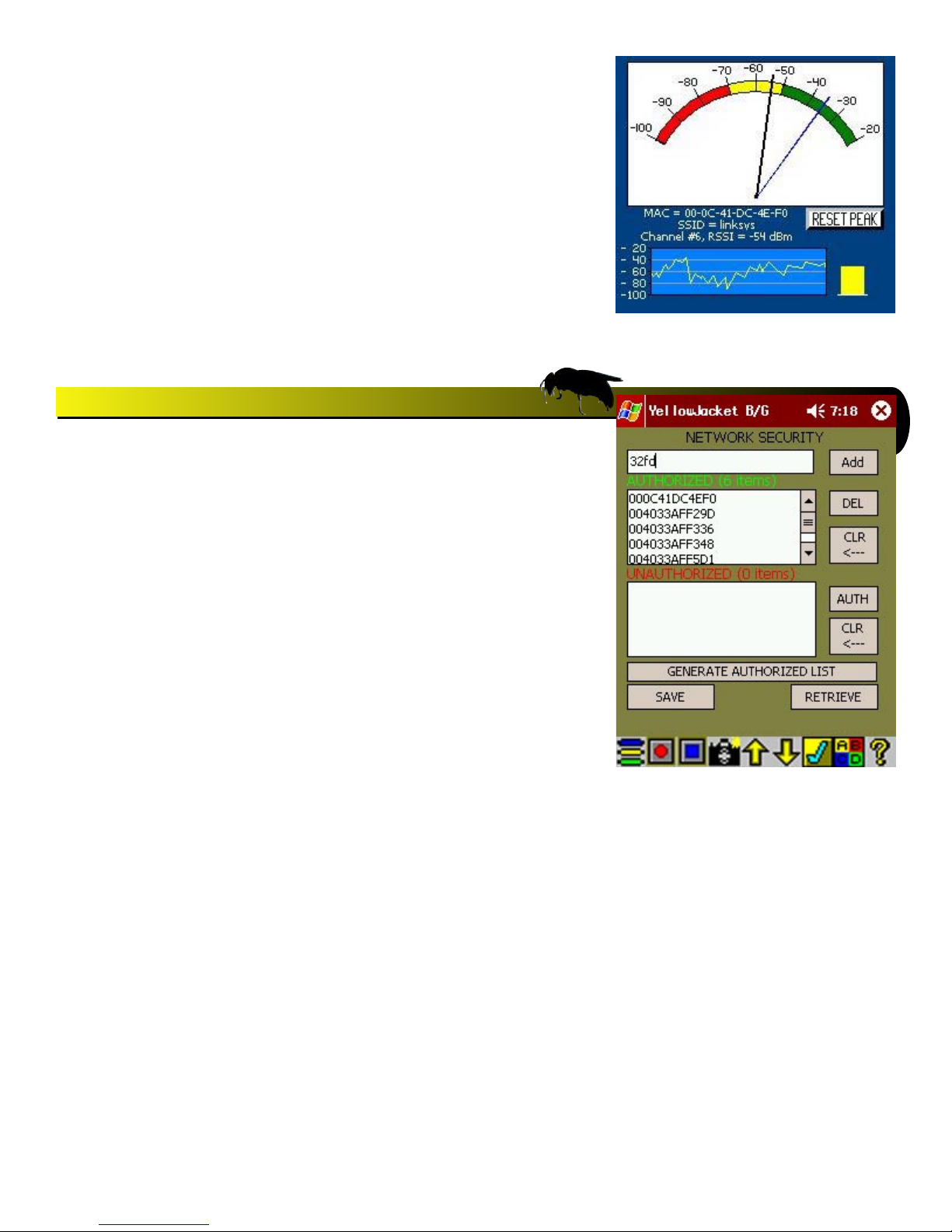

SECURITY SCREEN............................................................................................ 10

AUTHORIZED LIST
UNAUTHORIZED LIST

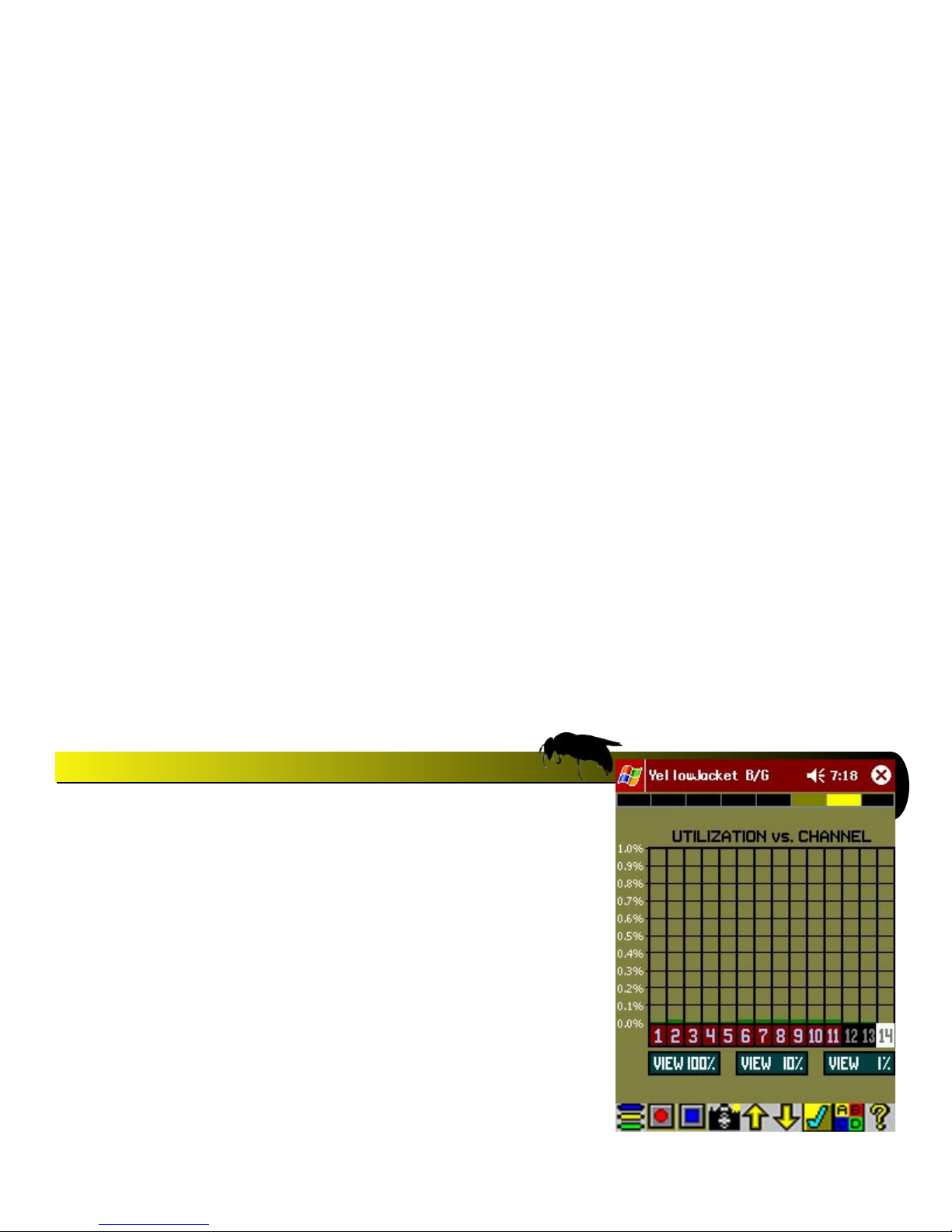

NETWORK UTILIZATION....................................................................................... 11

DATA RECORDING
MARKERS
SNAPSHOTS

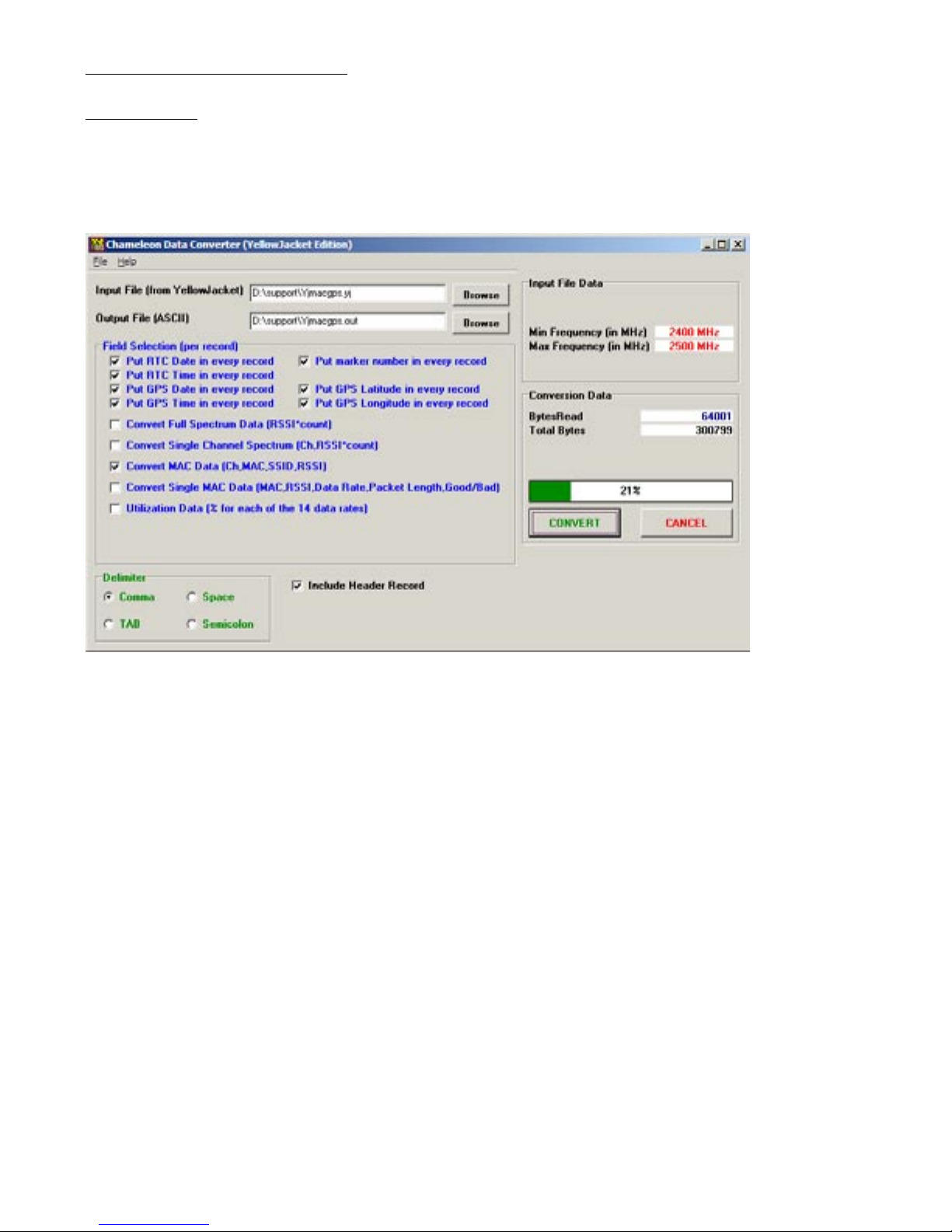

DATA CONVERSION USING CHAMELEON

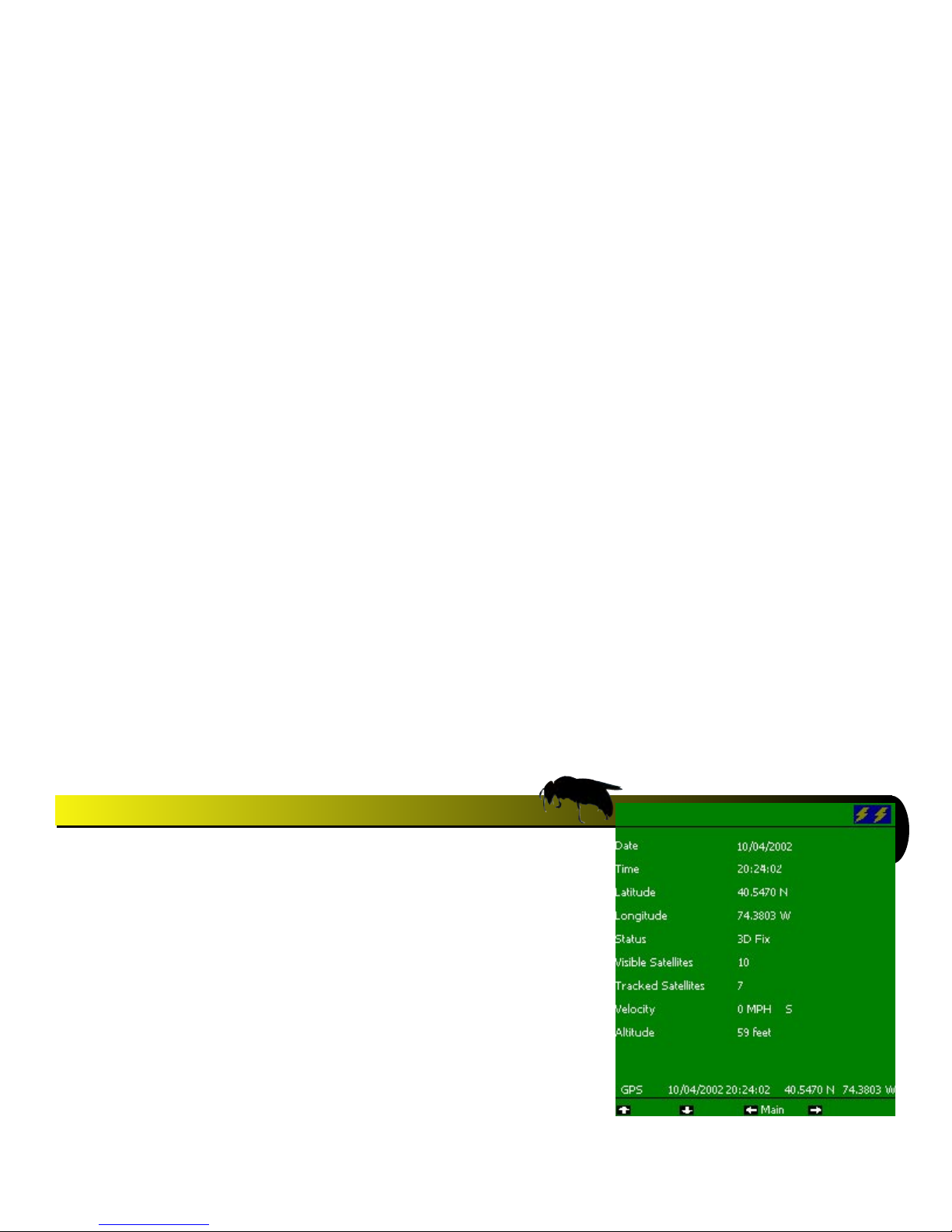

YELLOWJACKETPLUS GPS STATUS........................................................................ 12

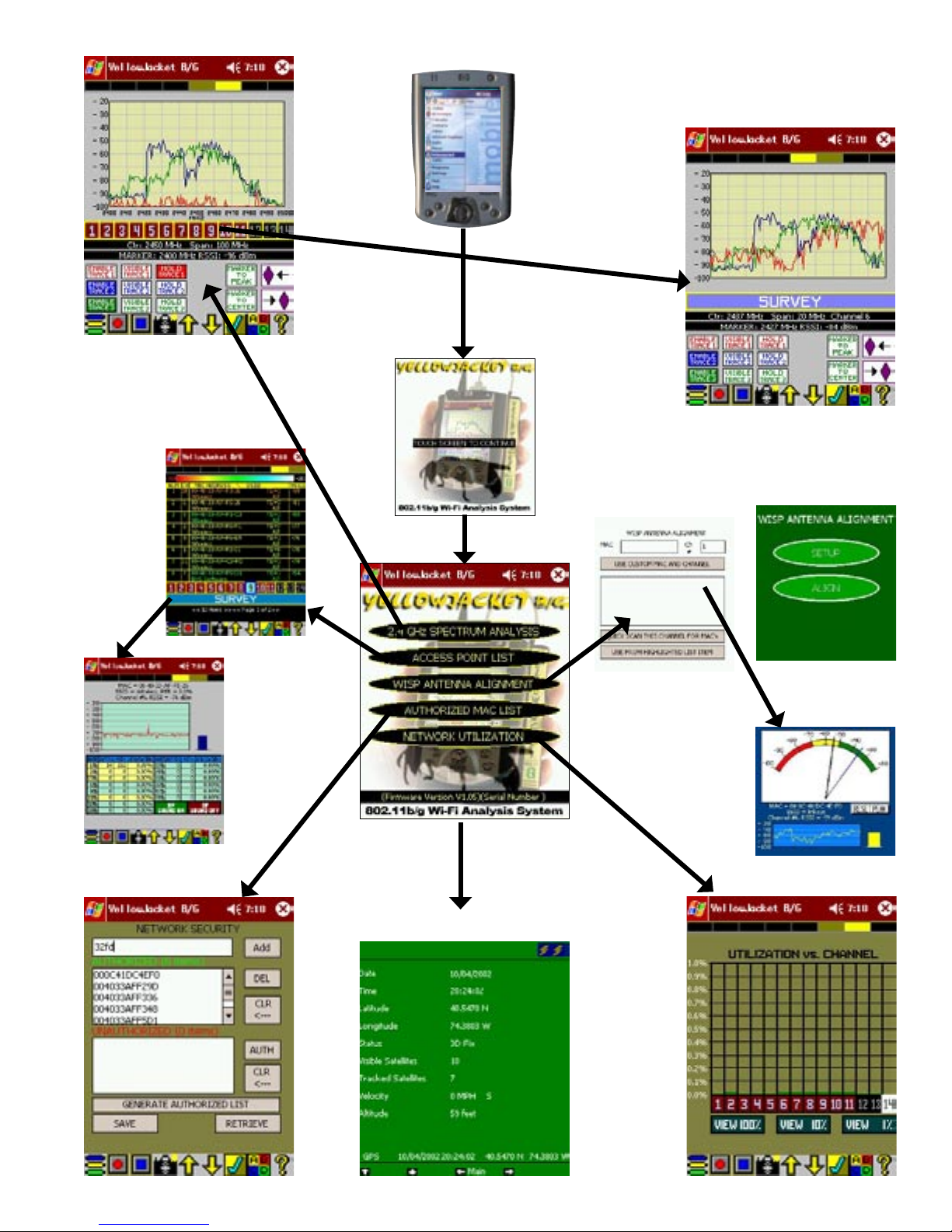

YELLOWJACKET POCKET PC SOFTWARE FLOW CHART................................................. 14

YELLOWJACKET TROUBLESHOOTING SETUP STEPS.................................................... 15

BATTERY CHARGING SYSTEM............................................................................... 16

TIPS.............................................................................................................. 17

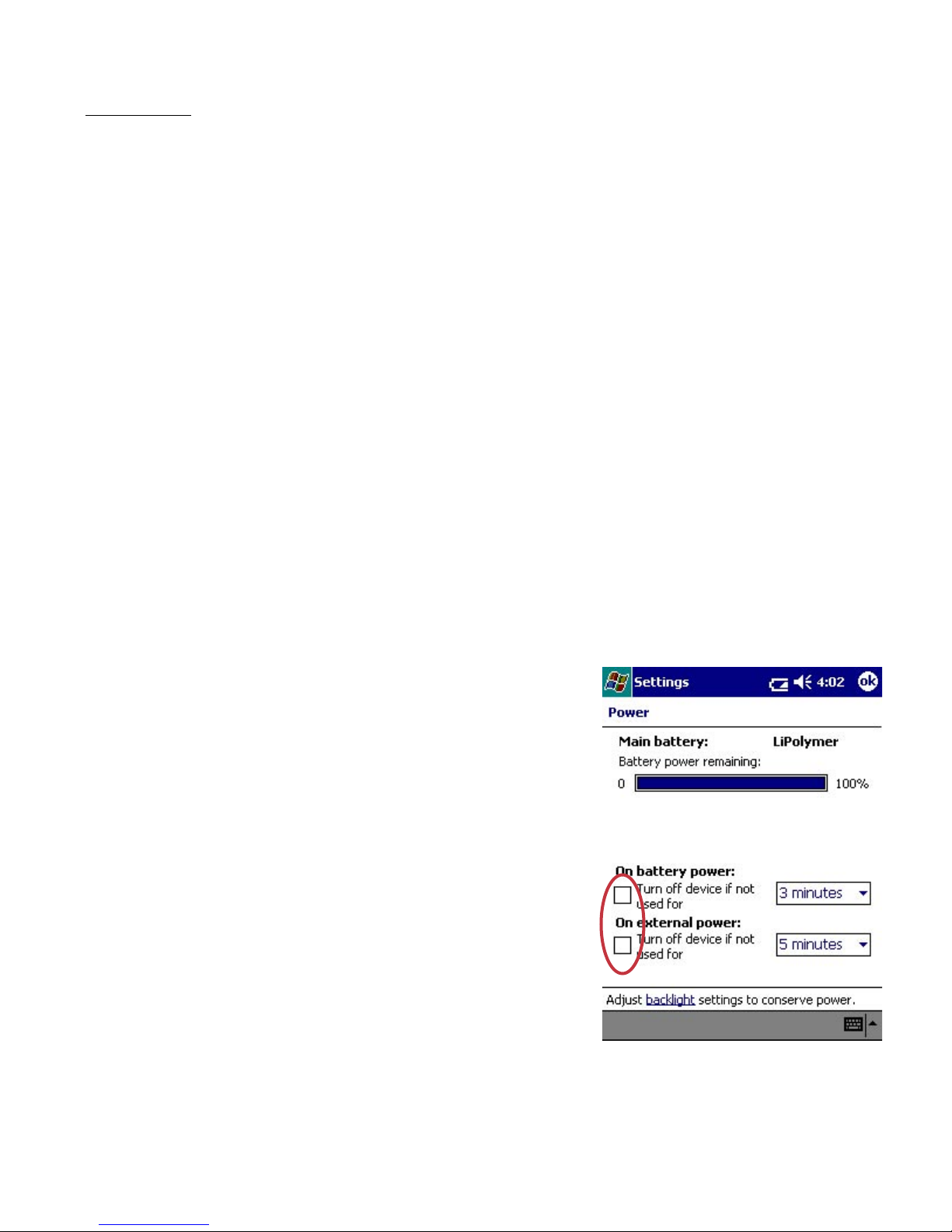

BATTERY LIFE......................................................................................... 17

SOFTWARE INSTALLATION.......................................................................... 18

DRIVER INSTALLATION............................................................................... 18

SURVEYING............................................................................................ 18

CHAMELEON (YELLOWJACKET EDITION) SOFTWARE.................................................... 19

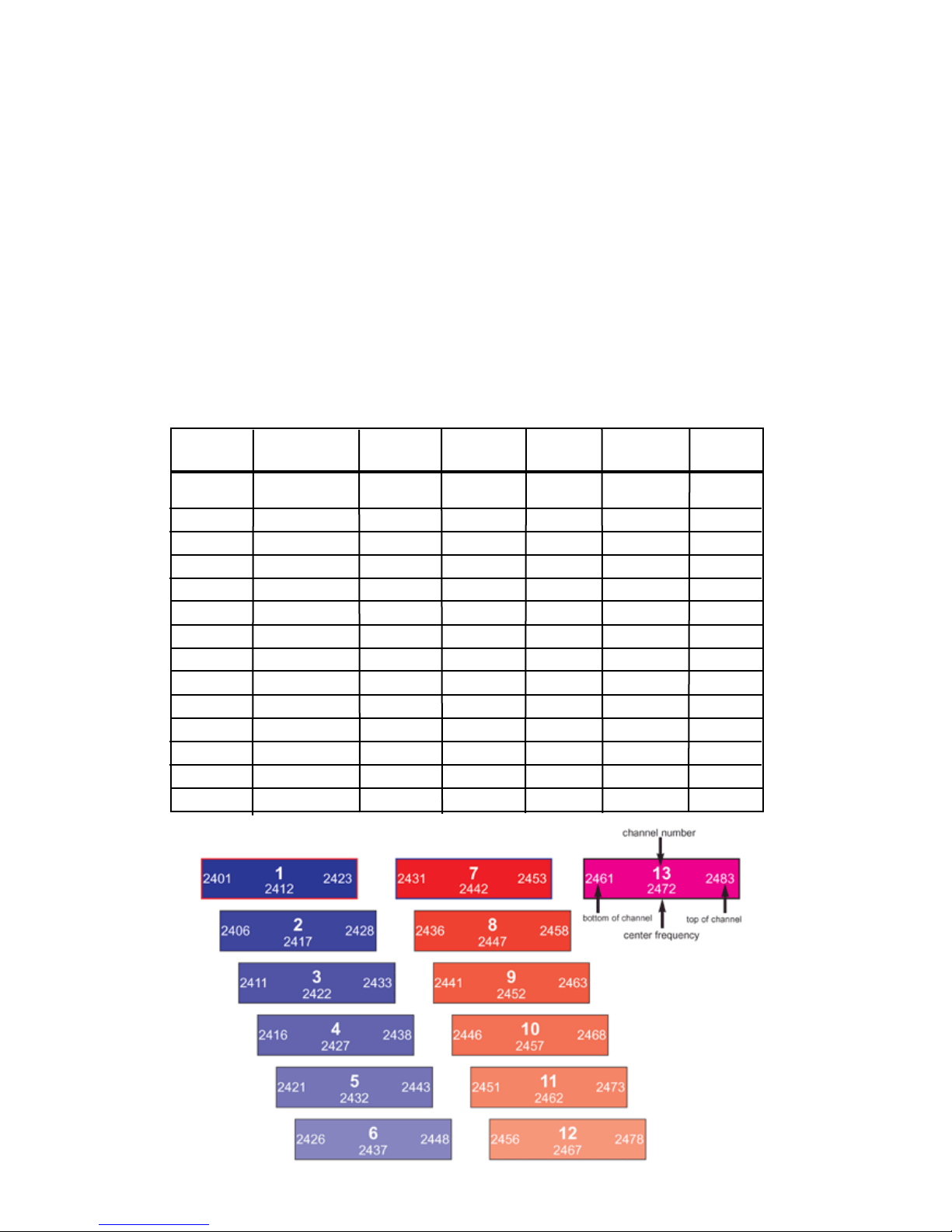

NETWORKING BASICS......................................................................................... 20

GLOSSARY OF ACRONYMS................................................................................... 22

YELLOWJACKET ACCESSORIES.............................................................................. 23

GENERAL SAFETY

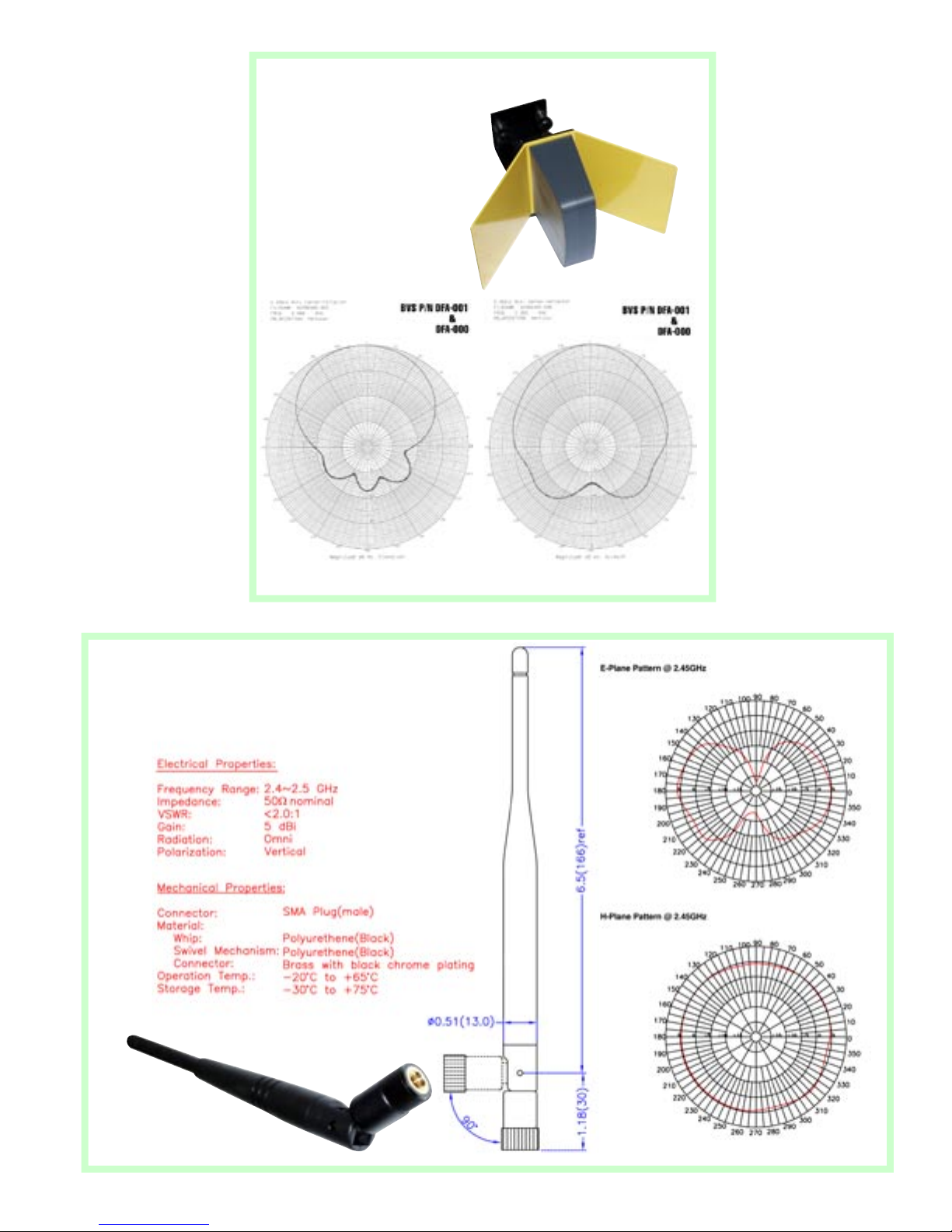

ANTENNA RADIATION PATTERNS
HIVE INDOOR MAPPING SOFTWARE
BEEKEEPER 802.11b Wi-Fi ANALYSIS PC SOFTWARE

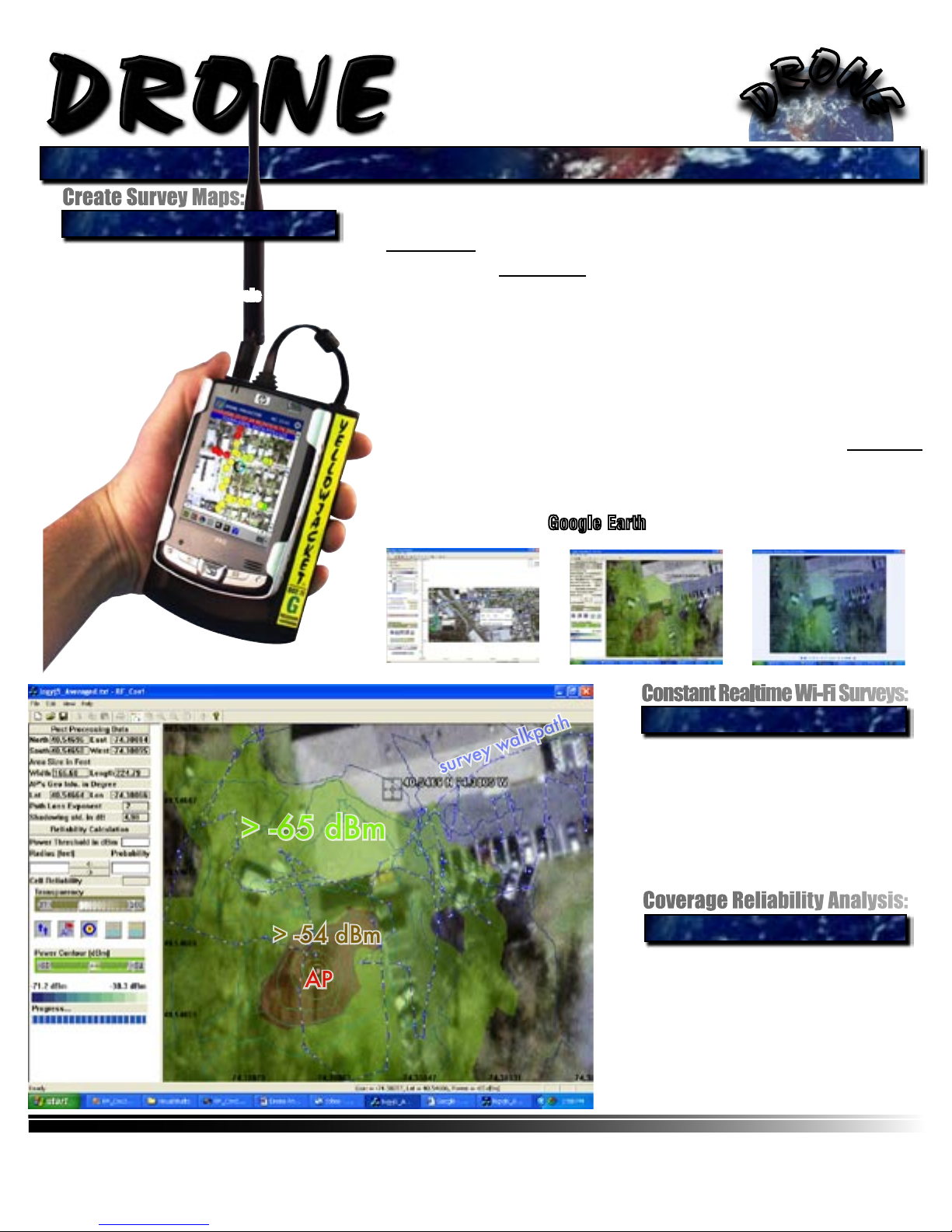

DRONE GPS-BASED Wi-Fi SITE SURVEY SOFTWARE
YELLOWJACKET™ 802.11b/g DATA SHEET

Page 1

INTRODUCTION

The Yellowjacket™ is an 802.11b/g analysis system consist­ing of an HP iPAQ PocketPC® coupled with custom hardware
and software designed and manufactured by BVS. This system
contains a variety of features to analyze 802.11b and 802.11g
networks including spectrum analysis over all 14 channels
(2.4 GHz), a list of AP’s and/or stations over all 14 channels
and packet-error rate information for each individual MAC
address. The Yellowjacket also contains a security feature to
warn the user of possible unauthorized AP/ STAtions in the
area based on a list of authorized MAC addresses. The data
from a Yellowjacket may be logged into resident memory,
CF or SD storage card for transfer to a desktop PC at a later
time and then be converted from binary to ASCII using BVS
Chameleon™ software. YellowjacketPLUS is identical to stan­dard Yellowjacket in every way accept for the addition of GPS
receiver hardware and PocketPC software screens. Except
for the GPS antenna jack on the receiver, all Yellowjacket

802.11b/g models look identical.

Yellowjacket receiver (top view) has an SMA male connector
for the supplied antenna. This manual contains operational
procedures to get the user up-and-going right out of the box.
For any details regarding the iPAQ, users should read all
materials from Compaq/HP and contact them.

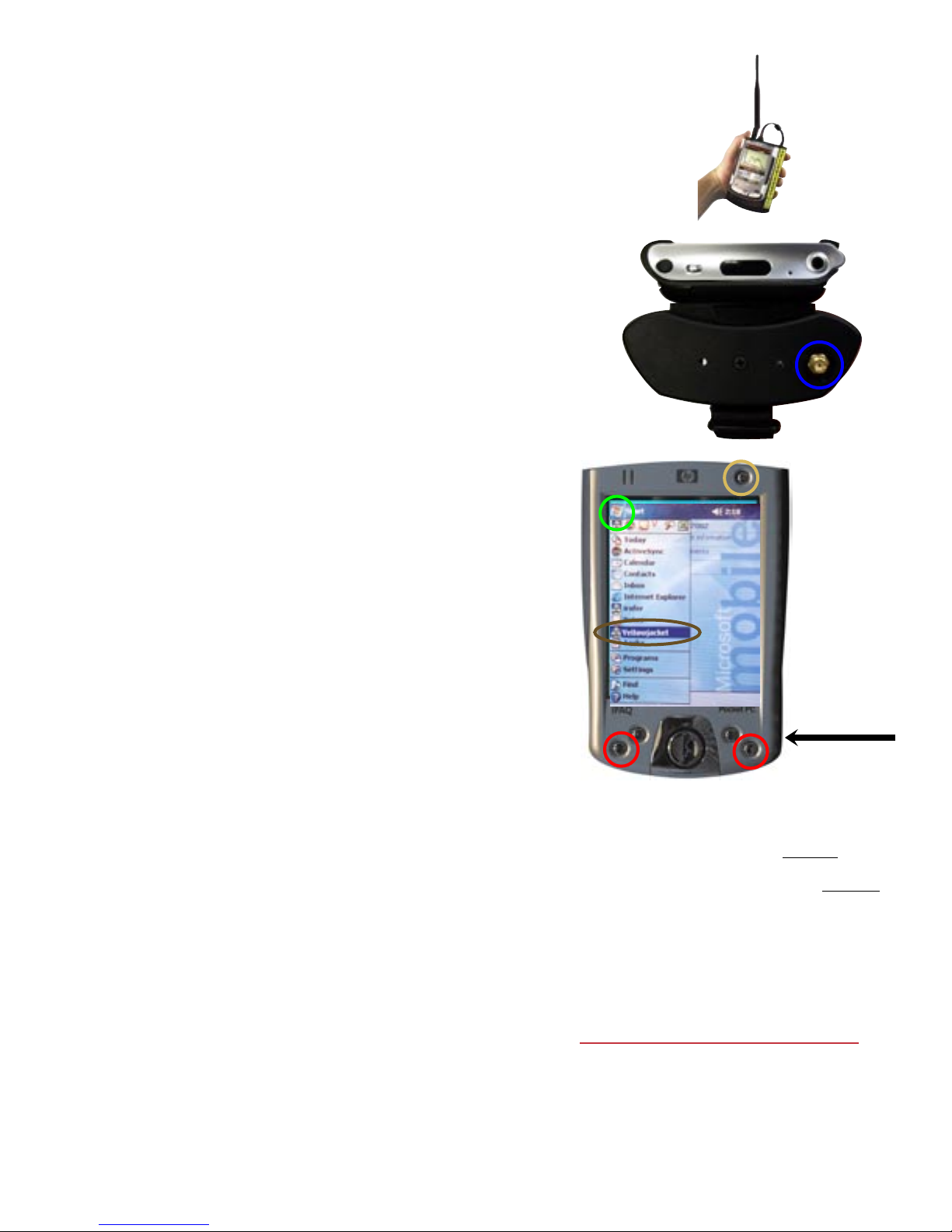

STARTING UP YELLOWJACKET

Power up your Yellowjacket by pushing power button in upper
right corner of unit. This power will automatically power up
the Yellowjacket receiver also. When you power down the
iPAQ, (push the power button on the upper right quickly­holding this button will also toggle the backlight on and off)
your Yellowjacket receiver will also shut down. Connect the
included antenna to the SMA connector and remove the stylus
by pulling it up. Use your stylus to tap onto the Windows® icon
in the upper left corner. Choose Yellowjacket in the pulldown
menu. Data may be transferred to a PC via the IrDA window
or USB or serial connection. Install Yellowjacket software by
connecting your iPAQ to your PC and inserting included BVS
software CD-ROM into PC to begin installation. You may also
use the provided Compact Flash Installer card. Be sure to turn
off any internal WLAN or Bluetooth in your iPAQ before using
your Yellowjacket.

Page 2

Reset button
located on back
just below battery

Your iPAQ can be reset using 2 different methods.
If Yellowjacket software loses communications with
Yellowjacket hardware, perform a soft reset with your
stylus by pressing the reset button on the back left cor­ner just below the battery door. Perform a hard reset by
holding in the two outer buttons for at least 10 seconds
while performing a soft reset. Warning! Hard reset
erases all RAM data from iPAQ so be sure to backup
all data and re-install your Yellowjacket application
software after a hard reset.

WARNING FOR USERS WITH BUILT-IN WIRELESS
(you must disable your iPAQ’s Bluetooth and WLAN)

1. Press the START button on the upper left hand side
of the touch screen.

2. Click on the “iPAQ Wireless” folder.

3. Click on the “Wireless Control” program.

4. Click on “All wireless features OFF”. The icons for
Bluetooth and WLAN will have red backgrounds when
disabled.

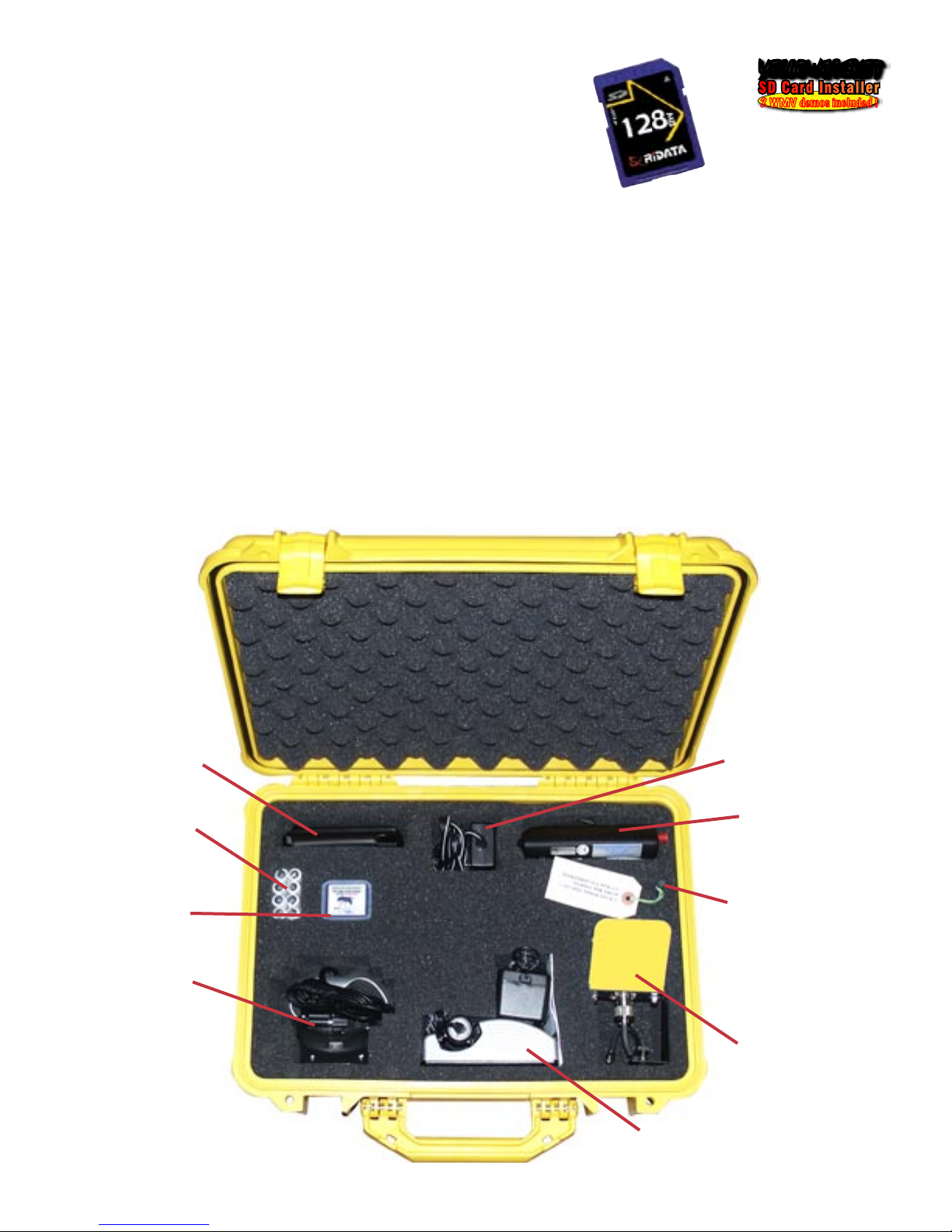

YELLOWJACKET ACCESSORIES

Your Yellowjacket includes the following accessories: anten­na, 2 sets of AA (Ni-MH) removable batteries (8 total), Simply
insert depleted batteries into charger and plug charger into AC
outlet. See top of charger for LED status indicator lights (see
end of manual for charger specs). Approximate charging time
for 4 Ni-MH batteries is just over one hour. Run time is just
over two hours. Yellowjacket uses common AA battery cells
found in any convienence store. Ni-Cad, Alkalines, Ni-MH and
Li-Ion cells may all be used. Yellowjacket does require 4 AA
cells with at least 1500 mAh per cell. BVS supplies 2 battery
sets (8 Ni-MH battery cells total) to get users working right out
of the box. Ni-MH cells are recommended for best performance
from your Yellowjacket. Batteries that are warm or hot to the

touch (from constant usage or warm ambient temperatures)
will take longer to charge than batteries of a normal tempera­ture. Contact BVS for new Ni-MH battery packs. Expect over
500 cycles from each Ni-MH battery or battery pack.

YELLOWJACKET

SD Card Installer

2WMVdemosi ncluded!

Insert SD card into the SD slot on the top of iPAQ
Tap on the “Start” icon on top left of screen
Tap on “Programs” in menu
Tap on the “File Explorer” folder
Choose “My Device”
Tap on “SD Card” or “Storage Card”
Tap on “install” executable
Choose Yellowjacket receiver and iPAQ model for
installation and tap on that “install” button

Tap on Windows Media Viewer icon to play either
of the 2 Yellowjacket demos included on this SD card

DATE:____________

If the Yellowjacket CF or SD Backup Installer
card has been included, it may be used to log
data files onto. It can also be used on iPAQs
that have never been initially set up at the
BVS factory, have had files erased or dam­aged in the ROM or after a hard reset has been
performed on an iPAQ. Yellowjacket software
that has been erased/lost from RAM may be
restored at anytime by accessing the “install”
file from the SD Card or Storage Card directory.
Always make sure batteries are fully charged
when doing any software installs. Yellowjacket
software that has been erased from RAM may
be restored at anytime by accessing the “rein­styj” file from the \\iPAQ File Store\\My Device
directory.

iPAQ (optional)
inside iPAQ cradle.

eight AA Ni-MH
batteries

Y e l l o w j a c k e t
CF / SD Backup
Installer card

iPAQ charging
cradle.

iPAQ / Yellowjacket
charger

Yellowjacket
c al i b ra te d
receiver

2.4 GHz antenna

Direction Finding
Antenna (optional)

Rayovac® Ni-MH fast
charger with AC adapter
and auto adapter

Page 3

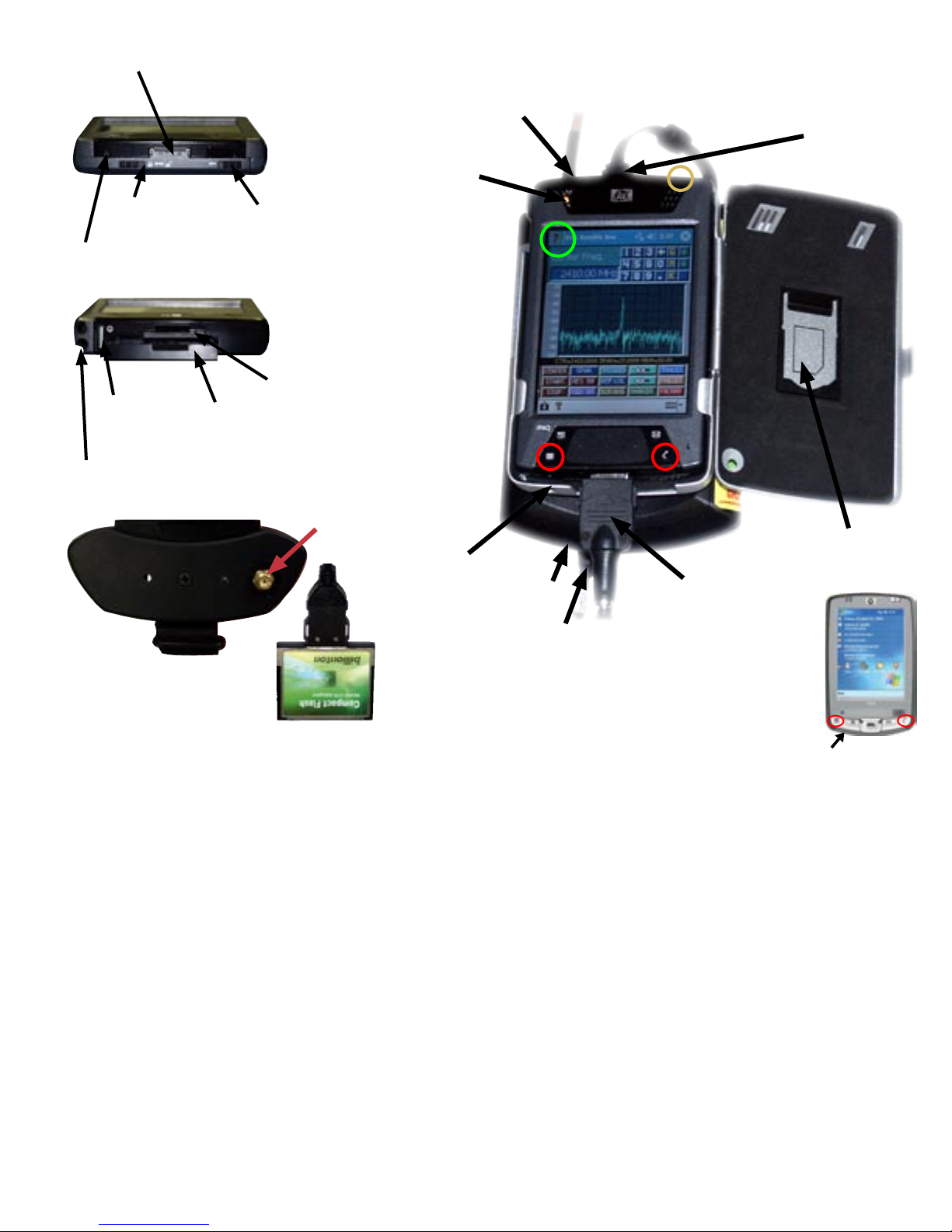

iPAQ Power/Charging

iPAQ BOTTOM VIEW

Recommended iPAQ 4700/4705 model shown with Yellowjacket receiver

SMA Male antenna input

Warning: Maximum input 0 dBm NO DC Input

iPAQ Power/Charging LED
Blinking=Charging
Solid=Fully Charged

Compact Flash Serial Cable
from Yellowjacket receiver

iPAQ Battery
Release Lock

iPAQ Reset Button

iPAQ Battery Release

iPAQ TOP VIEW

iPAQ Power
Button

Stylus Holder

Compact Flash Slot
Removable Tray
(same as iPAQ 2200)

RECEIVER TOP VIEW

Yellowjacket’s serial connection
is made via Billionton CF card.

SD Card Slot

SMA Antenna
connection

iPAQ Reset Button

External Power
LED (green)

BumbleBee Receiver
Power

SD card holder

iPAQ Power/Charging

Optional iPAQ
2400/2700
model shown

Reset button located on bottom of iPAQ

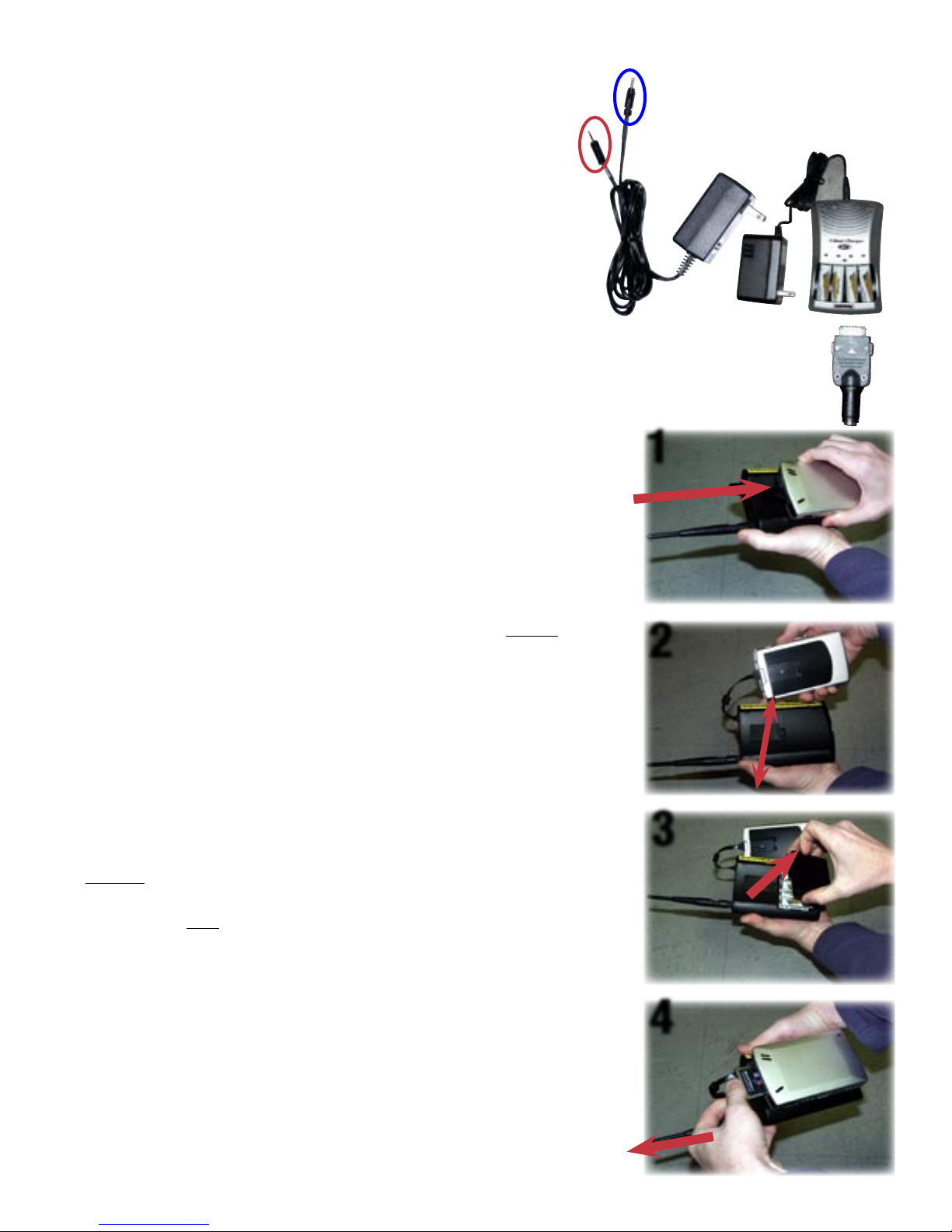

Starting Up Your Yellowjacket

Unpack and assemble your Yellowjacket unit as shown. Slide the iPAQ case onto the Yellowjacket and slide your iPAQ computer
into the iPAQ case. Remove the Compact Flash cover and install the Compact Flash serial cable. The Compact Flash serial cable
is the communication link between the Yellowjacket receiver and the iPAQ. Connect both the Yellowjacket and iPAQ to external
power as shown with the “Y” power cable.

Power up the iPAQ by pushing the power button in the upper right corner of the iPAQ. Connect the appropriate frequency antenna
to the SMA male antenna input. iPAQs shipped by BVS are optimized for the Yellowjacket. If you are using your own iPAQ, see
the optimization section to set up your iPAQ.

iPAQs supplied by BVS have the Yellowjacket software pre-installed. If you need to install the Yellowjacket software, see the
software installation/re-installation section.

Tap the windows Start icon in the upper left corner and then choose Yellowjacket in the pulldown menu. If the Yellowjacket does
not appear in the pulldown menu, tap on the “Programs” folder. Tap on the Yellowjacket icon.

Running the Yellowjacket software will power the Yellowjacket receiver.

If the Yellowjacket software loses communication with the Yellowjacket, perform a soft reset by pressing the iPAQ’s reset button.
If communications problems persist, perform a hard reset by holding down the two outer buttons on the front of the iPAQ while
holding in the soft reset button. Remember, hard resets erase all data collected and software installed so backup all data and
see software installation for details.

Page 4

Getting Started

To start the YellowJacket 802.11b/g software:

1. Press the Start button on the iPAQ.

2. Press the PROGRAMS option.

3. Press the “Yellow Jacket BG” icon (usually at the bot­tom of the alphabetized list).

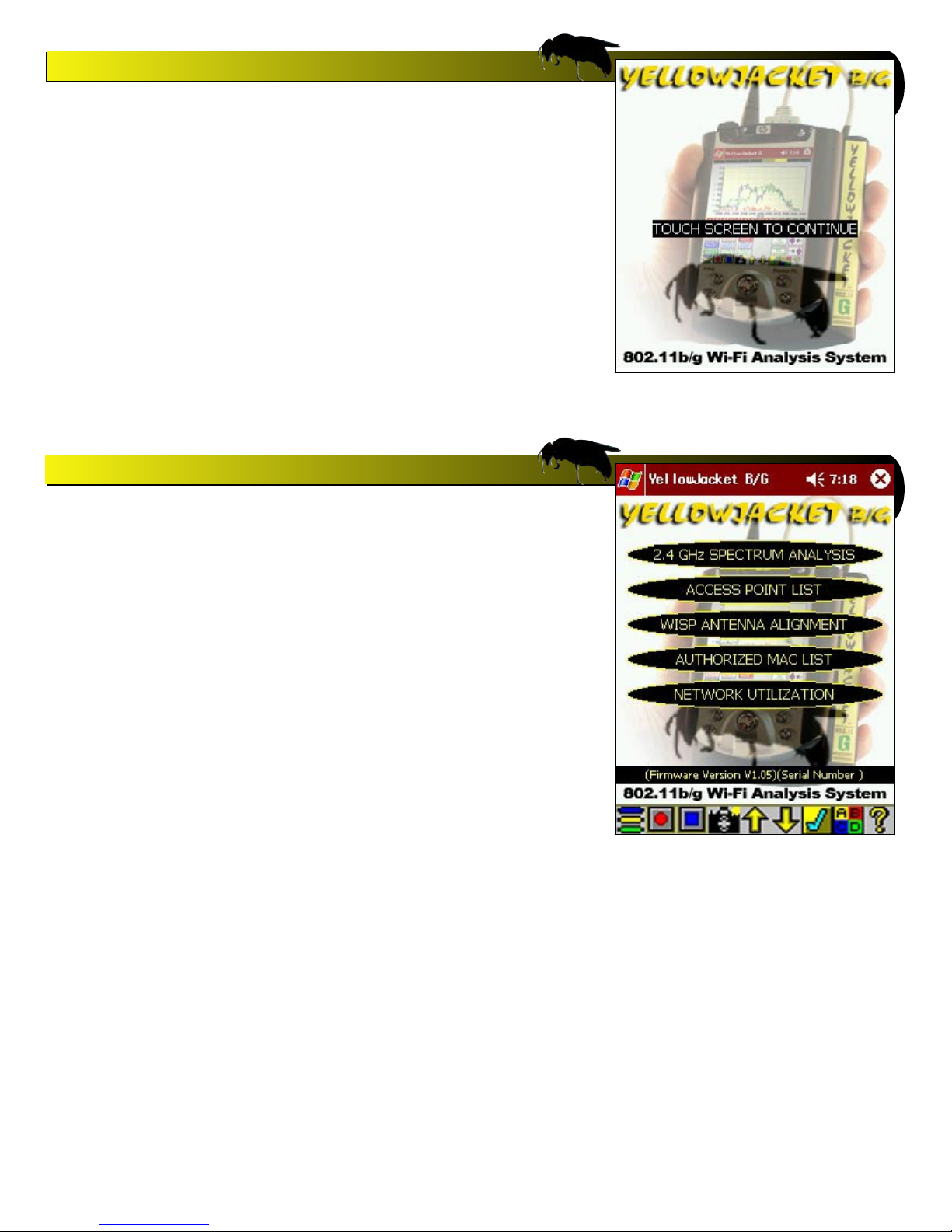

4. Tap anywhere on the screen when the splash screen
appears as shown below.

Note: This splash screen may vary slightly depending upon the
Yellowjacket model.

Main Menu

The main menu of the YellowJacket software contains option
buttons in the main viewing area and a series of toolbar
options. The main viewing area is shown below. There are
five choices in the main viewing area. You may choose spec­trum analysis, which enters a spectrum analyzer-type screen
that will show all RF being received within the range of the
receiver. This mode also allows for zooming in to a particular
channel.

The next option is the access point screen. This will allow
the user to view individual access points (and stations) being
seen by the receiver and then to proceed to an individual MAC
address screen for closer examination.

The third option is the “WISP Antenna Alignment” screen.
This screen allows the user to select an access point to focus
on for antenna alignment.

The fourth option is the security screen. This screen allows the
entry and maintenance of authorized and unauthorized access
point lists. This screen is useful in determining if there are
any rogue access points in the area that can be potentially
invasive to an existing network.

The fifth option is the network utilization screen. This screen
shows the system utilization for each channel.

The sixth button shown takes the user to the GPS receiver
screen displaying LAT,LON,ALT and satellite information. This

Note: Users should normally see genuine
firmware and serial numbers on this screen
when Yellowjacket is functioning properly.
If your firmware and serial number appear
as 0.00 and XXXXXX, then the iPAQ soft­ware is not communicating properly with
the Yellowjacket receiver. Try troubleshoot­ing procedures found in this user’s manual.

Page 5

button will only appear on YellowjacketPLUS models.

The toolbar gives the user more options on every screen.
The first icon has three colored circles. Using this option will
always return the user to the main menu.

The “record” button is for logging a data file. The “stop” but­ton is for terminating the logging of data.

The fourth icon represents a camera. This option takes snap­shots of the current screen for later viewing.

The fifth and sixth icons are arrows pointing upward and
downward. These options have different uses depending on
the currently active screen. For instance, on the access point
screen, the arrows are used to flip the current page of access
points.

The “checkmark” icon is used to increment the current marker
number. This starts at 1 when the software is started. It will
increment by 1 on every touch. This is of use when a file is
being logged. Any change in value will be recorded in the log
file.

The icon with the letters “ABCD” enters the system options
screen. There is an option to report any unauthorized MAC
addresses. This is discussed further in the “SECURITY” sec­tion later in this manual. The “Enable Dolphin port” option
only applies to YellowjacketPLUS receivers with the internal
GPS receiver installed at the BVS factory.

The question mark icon reveals the application about box.

Spectrum Analysis

The spectrum analysis feature of the YellowJacket allows a
user to view any RF signals that is received by the receiver.
It uses frequency for the X-axis and RSSI (received signal
strength indicator) in dBm on the Y-axis.

Both the full spectrum and the single channel screens have
the same options for the most part. There are three available
traces, red, blue, and green traces. Only one trace can be
active at any one time.

Each of the three traces can be made visible by pressing their
respective “visible” buttons. The active trace can be peak
held by pressing it’s “hold trace” button.

Use the “marker to peak” button to move the diamond marker

Page 6

to the current highest dBm valued point. Use the “marker to
center” button to move the diamond marker to the center of
the currently displayed section.

There are also buttons for moving the diamond peak mark to
the left or right in the currently displayed screen.

Each spectrum screen displays information regarding the cen­ter frequency of the screen as well as the span in MHz. The
current marker position and value is also displayed.

Full Spectrum

The full spectrum screen is the first one entered when going
into the spectrum analysis option. This screen shows RF
energy in dBm over all 14 channels seen by the receiver. Each
vertical section represents 10 MHz.

To “zoom in” on a single channel, simply tap one of the num­bered boxes. For example, clicking on the channel 4 box will
zoom in to channel 4.

Single Channel Spectrum

The single channel screen displays RSSI valued data within
the channel specified. To return to the full spectrum mode,
press the “SURVEY” button.

Page 7

Access Point List

The access point list screen provides the user with a list of
access points that are seen by the receiver. The user can then
“zoom in” on a particular access point for further analysis as
well as for pinpointing the AP’s location.

MAC List

The MAC list is shown on the main access point list screen.
This list shows each of the MAC’s seen and other information
on each of them. This information includes such fields as the
channel number associated with each access point, the MAC
address and SSID of the access point, as well as the RSSI
value in dBm of the access points.

A note on the channel number. If the particular MAC address is
a client, the channel number will be what the receiver is set to
at the time. If the receiver sees the access point to which the
client is talking, the channel will be readjusted to the proper
transmitting channel. A gray background box signifies that the
channel number is that which was observed. The lack of the
gray background denotes that it is the actual channel that the
client is on.

The RSSI value may appear as a couple of dashes (--) if:

1. The MAC address is an access point.

2. The channel that the access point is truly on has not
been reached in the survey yet.

The YellowJacket will only report RSSI values from access
points when it is from the actual channel from which the AP’s
are transmitting.

Also shown is the time elapsed since the last packet received
by each MAC. This is signified by the “TE=#” next to the MAC
address. Below this is an indicator signifying whether or not
this particular MAC address is related to an access point. If
“WEP” appears next to this, WEP encryption is detected.

The color of the information text for each access point will
change as the RSSI value increases and decreases. The scale
of the colors is shown on the top of the list. White is the stron­gest value while red is the weakest. It is loosely based on
the colors of stars, white being the hottest and red being the
coolest.

Also, there may be multiple pages of the MAC list. To flip
between pages, use the up and down arrows provided on the
bottom of the screen in the toolbar.

Page 8

To look at one particular MAC address, simply tap on the box
containing the MAC address of interest.

Single MAC Address Mode (Locator Mode)

When a single MAC address is selected, the locator mode
screen appears. This screen has individual MAC address
information as well as a visual and audio representation of
proximity to the access point.

As the signal from the access point becomes stronger, the
audio effect of a submarine ping becomes higher in pitch.
Selecting the “DF Sound Off” button on the screen will mute
this audible sound. This mode is even more useful when
coupled with a directional antenna that would allow the user
to “home” in on the transmitted signal more efficiently.

The information provided on the locator screen includes the
MAC address and the SSID, as well as the channel on which
the access point is transmitting.

The packet error rate (PER) is displayed next to the SSID. This
is the overall PER for the last 200 packets received.

The RSSI level is displayed as a numeric value in dBm, as
well as a in a bar graph format and a temporal display.

Below the RSSI readings is a table relating packets received to
their data rates. Information such as kilobytes received, pack­ets received, and utilization percentage are displayed.

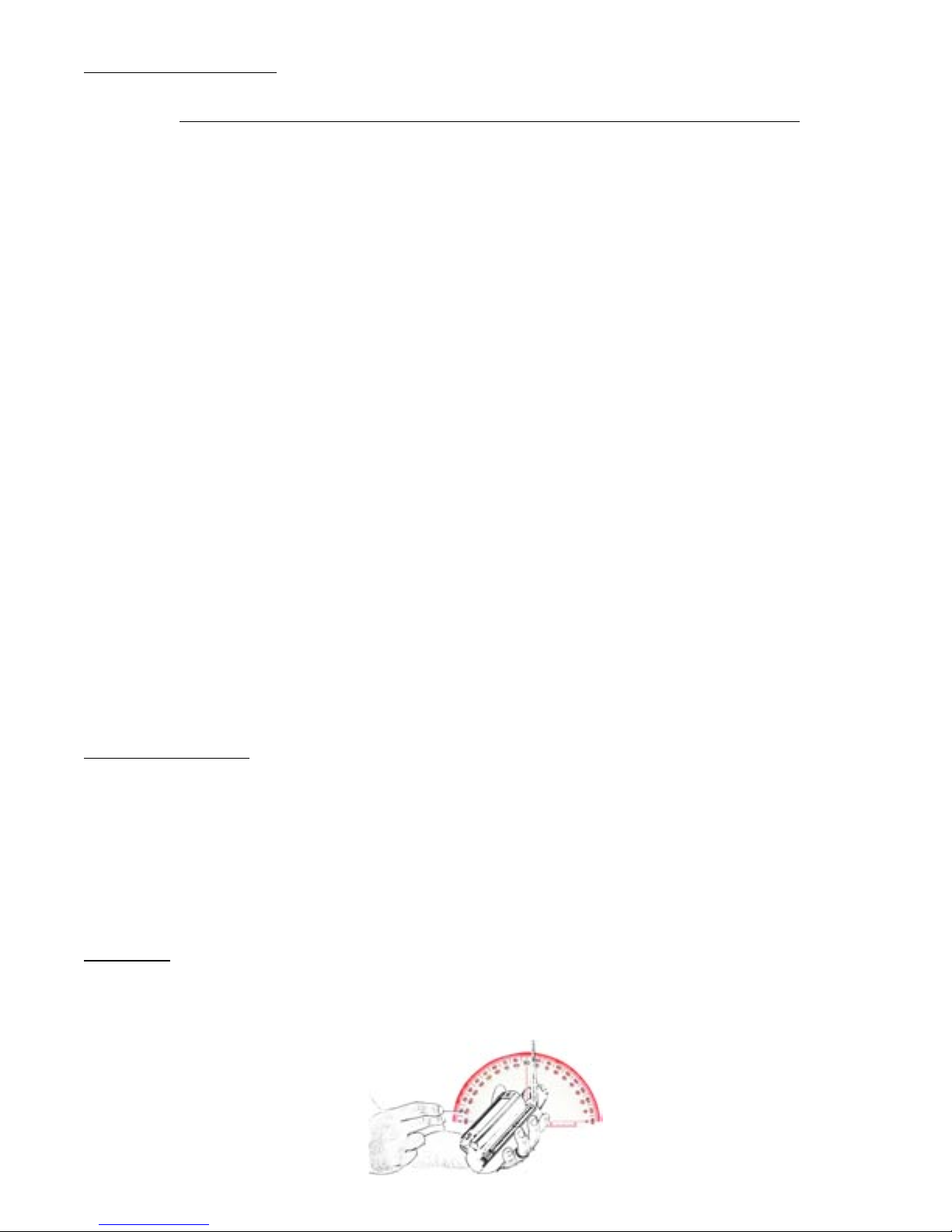

WISP Antenna Alignment

The WISP Antenna alignment screen allows the user to select
a MAC address from a list or enter one manually for setting up
an antenna. If the MAC List screen has been entered recently,
the list box will have a number of MAC addresses to choose.
Also, a MAC may be entered separately in the edit box.

After choosing the MAC, the user will then see a screen with
a gauge that shows current signal strength and allows for a
peak hold. This peak hold can be reset at any time using the
“RESET PEAK” button.

Also, the temporal and bar RSSI displays are on the bottom of
the screen. Using a direction-finding antenna with this screen
is a fast way of locating the direction of the required signal

Page 9

from the MAC in question.

Security

The security screen allows for entering and maintaining of
authorized and unauthorized access point lists. This is a
feature that is used for determining if there are rogue/hostile
access points within striking distance of the network.

Checking the “check for unauthorized AP’s” option in the
option screen enables the security feature.

Authorized List

The authorized list is a list that contains the MAC addresses
of access points that are authorized to broadcast in the area
to be concerned. This list can be created one of three ways.
The first way is by entering MAC addresses in the topmost edit
field on the security screen. Then the “ADD” button is pressed
to add the address to the list. The next method is to retrieve
a previously saved list or a list that has been created on a PC
or laptop.

The final method is by pressing the “GENERATE AUTHORIZED
LIST” button. This may be pressed after leaving the
YellowJacket in the access point screen for a period where all
access points have been seen. All of these MAC addresses will
be moved into the authorized list.

This list can be saved to RAM by pressing the “SAVE” button.
This list can be cleared by pressing the “CLR” button next to
the list box.

The input file format for the authorized MAC list is as follows:

It is an ASCII file separated by CR/LF’s. The first line is the
number of addresses in the list. Then each MAC is on a sepa-

Page 10

Unauthorized Warning

When Yellowjacket detects any AP that is
not included in the Authorized list, an audi­ble warning beep will be heard. Remember
that Yellowjacket will continue to sound off
the alarm each time any unauthorized AP is
detected until it is placed in the Authorized
list by the user. Check your Options Screen
to turn this security alert ON or OFF.

rate line.

N
MAC#1
MAC#2
.
.
.
MAC#N

After creating this file, it may be imported into the Yellowjacket
software by using the ‘Retrieve’ option.

Unauthorized List

The unauthorized list is populated when the security feature
is turned on via the option screen. Any MAC addresses seen
and demodulated by the receiver which are not in the current
authorized list will be flagged and inserted into the unauthor­ized MAC address list.

Items in this list can be saved or retrieved to/from RAM by
pressing the “SAVE” or “RETRIEVE” buttons.

If the MAC addresses in the unauthorized list are wished to be
authorized, simply select the entry in the list box and press the
“AUTH” button.

This list can be cleared by pressing the “CLR” button next to
the list box.

Network Utilization

The Network Utilization screen shows the utilization seen by
the YellowJacket for each of the 14 channels. The view can be
switched from 0-100% to 0-10% to 0-1%.

Data Recording

When the “record” button icon is pressed from the toolbar at
the bottom of the screen, the user will be prompted for a file­name. This filename will be used to store collected data for
later conversion by Chameleon WLAN.

The data is stored in a compact proprietary binary format. The
YellowJacket will store data as it received from the hardware,
depending on the currently active screen. If the spectrum
screen is currently active, spectrum data will be stored. If the
access point screen is currently active, access point informa­tion will be stored.

Page 11

To save the collected data, press the “stop” button icon. To
view the size of the log file while still logging, simply return to
the main menu screen.

WARNING! : Make sure that the “stop” button is pressed to
avoid the loss of data saved.

Markers

There is a marker number associated with logged data records.
When the checkmark button is pressed on the toolbar, this
marker number is incremented. This can be useful when need­ing to mark a specific point in time for later post-processing.

Snapshots

When the camera icon is pressed from the toolbar at the bot­tom of the screen, a snapshot of the currently viewable display
is taken. The snapshot can be saved as a JPEG format picture
(just like a digital camera) for viewing at a later time or for
importing into documents and reports. As an example, the
images of the YellowJacket screens shown in this section of
the manual were saved using this option.

Data Conversion using Chameleon (YellowJacket Edition)

Data that has been logged by the YellowJacket is stored in a
proprietary binary format. It can be transferred to a PC or lap­top. Once on the PC or laptop, the Chameleon (YellowJacket
Edition) utility application can be used to convert the binary
data into an ASCII-readable format that can be imported into
spreadsheet applications such as MS Excel or other applica­tions that accept ASCII-delimited data.

YellowjacketPLUS GPS Status

The GPS screen of the Yellowjacket Plus provides position and
timing information from the Global Positioning System of sat­ellites. The Motorola GPS receiver provides accurate informa­tion after synchronizing with at least 3 of the 24 satellites.

The Yellowjacket Plus must have a clear view of a good por­tion of the sky in order to communicate with the GPS satel­lites. The GPS receiver should lock within a few minutes. The
only exception is when the unit is turned on in a new area. If
the receiver was last turned on in California and now in New
Jersey, the GPS receiver could take up to an hour to lock.

The status bar at the bottom of the Yellowjacket Plus screen
shows the current date and time (Greenwich Mean) as well as

Page 12

the current latitude and longitude in decimal degrees. There
is also a separate GPS screen which shows satellite informa­tion.

The GPS information is stored in the log file when enabled for
later conversion by Chameleon. Each record will be tagged
with GPS information if so desired.

If you require GPS time-stamping with your 802.11b/g mea­surements and your Yellowjacket does not display the GPS
screen or the main menu screen does not show a bottom GPS
data line similar to this:

Ask about our internal GPS option to upgrade your
Yellowjacket.

Page 13

START HERE

This GPS screen is only available on the PLUS
verison with the internal GPS receiver installed

Page 14

Yellowjacket Troubleshooting Setup Steps

STEP 1

When you start the software and tap past the startup screen, what do you see for the rmware and
serial number?

XXXXXX and 0.00 Proceed to STEP 2
Valid SN and FW Proceed to STEP 10

STEP 2

Do you have the AC adapter Y cable attached to the iPAQ and YJ base unit?

YES Proceed to STEP 4
NO Proceed to STEP 3

STEP 3

Plug in the Y power adapter to the iPAQ and base unit and power from an AC source. Does the
software see a rmware number and serial number now?

YES The batteries on the iPAQ or base unit are not fully charged.
NO Proceed to STEP 4

STEP 4

Reset iPAQ by pushing the button on the bottom of iPAQ using stylus. Run the YJ software again. Does
the unit respond with a valid serial number and rmware version?

NO Proceed to STEP 5

STEP 5

How does the ash card serial cable attach to the base unit?

RJ-11 connector Call BVS at 732-548-3737 for a cable upgrade
Grommet (xed) Proceed to STEP 6

STEP 6

Re-seat the ash card and reset the iPAQ again. Does the unit respond with a valid serial number and
rmware version when running the software again?

NO Proceed to STEP 7

STEP 7

Verify that the AC Y cable is rmly attached to the base unit. You should hear a click while feeling a
little resistance. Was the cable rmly attached?

YES Proceed to STEP 8
NO Proceed to STEP 3

STEP 8

Verify that the iPAQ is rmly seated in its expansion pack through the large connector at the bottom of
the iPAQ. When you remove the iPAQ and then re-seat it, do you hear and see a conrmation (on the
iPAQ screen) that the expansion pack was recognized?

YES Proceed to STEP 9
NO Connection is not made with expansion pack. Reset iPAQ and proceed to STEP 9 when a

connection is made. If no connection is ever made, proceed to STEP 10.

STEP 9

Reset iPAQ and try the software again. Do you see a valid serial number and rmware version?

NO Proceed to STEP 10

STEP 10

Call BVS at 732-548-3737 for further technical support and/or an RMA.

Page 15

Charging System

The Yellowjacket has 2 different battery sources that need charging
power. There is an internal battery for the Pocket PC and removable
batteries for the receiver module. The 4 AA Ni-MH receiver batter­ies may only be charged using the supplied fast charger or another
comparable Ni-MH charger. The Compaq iPAQ internal battery may
be charged by either plugging in the supplied power transformer or
by inserting the iPAQ PDA into the supplied charging / data transfer
cradle. The BVS supplied charger will power the Yellowjacket receiver
AND power and charge the iPAQ PDA. Batteries for the Yellowjacket
receiver (4 AA cells) must be charged in the provided charger. See
Compaq’s documentation for complete charging instructions.

Troubleshooting

Use this included power
adapter for iPAQs with no
separate power input.

Replacing Batteries

If your Yellowjacket or Hive has difficulty connecting or col­lecting data and you have verified the iPAQ is fully charged,
then you may need to change your AA Ni-MH batteries out for
fresh ones. To access batteries under iPAQ:

1. Slide iPAQ back and away from antenna end of receiver.

Be sure not to pull too hard on the cable in any way. NEVER
remove the Compact Flash connector from the iPAQ sled
unless troubleshooting for connectivity issues.

2. Flip over iPAQ exposing the battery compartment on the top

of the BumbleBee receiver.

3. Change 4 Ni-MH AA batteries for fresh Ni-MH batteries and

repeat steps above in reverse order.

4. When troubleshooting connectivity issues, be sure to

GENTLY remove the Compact Flash serial adapter card from
the iPAQ. Slowly slide the card out holding it by the very top of
the card and NOT the cable. Be sure it is seated properly and
slowly slide it back into the iPAQ’s CF housing.

1

2

3

• Cannot Open Com Port or System Not Responding – Try
restarting the application. If the system locks up completely,

press the small reset button located at the back of your iPAQ.

See HP’s usage instructions for more info on performing a
hard reset.

• Yellowjacket software is missing or corrupted ­Re-install your Yellowjacket software.

4

Page 16

TIPS

BATTERY LIFE

Yellow Jacket™ and Yellow Jacket Plus receivers use 4 or 5 Ni-MH long-lasting “AA Cells”.

1. Ni-MH batteries do not charge to full capacity the first time they are charged.

2. Ni-MH batteries do not charge to full capacity the first time they are charged after a long period of inactivity. or after a long
period of non-use.

Cause:

When charging Ni-MH batteries for the first time after long-term storage, deactivation of reactants may lead to increased
battery voltage and decreased capacity, (which causes premature termination of charging). Because batteries are chemical
products involving internal chemical reactions, performance deteriorates with prolonged storage. This is normal in Ni-MH bat­teries.

Resolution:

Ni-MH batteries may not charge to full capacity the first time they are charged, or after a long period of inactivity.

The first-time charge of the Ni-MH Rechargeable Battery Pack should take approximately 2 hours. If the charger indicates a
full charge, in less than 2 hours, repeat the charge cycle as follows:

First-time Charge:

1. To begin charging, provide power to charger and insert NI-MH batteries.

2. When the charge is complete, remove the batteries from charger and place back in after several seconds.

3. Repeat steps 1 and 2 three or four times or until the combined charge time is 2 hours.

Subsequent charges of the W-LAN Ni-MH Battery Pack will not require multiple charging cycles unless left uncharged for a
long period of time (greater than 2 months).

NOTE: In order to prevent the Ipaq from freezing when running
YellowJacket software (therefore rendering the power button useless),
make sure to:

1. ALWAYS leave the checkboxes in the SETTINGS/SYSTEM/POWER
screen unchecked. Power-save mode will lock up the application due
to the fact that the application is stopped while communicating with
the hardware..

2. Make sure that the battery level on the Ipaq remains above 40%.
The serial card interface may cease to operate when the battery level
is under 40%.

To resolve the freeze, simply press the soft reset button on the bottom
of the Ipaq with the stylus.

NEVER LEAVE THE IPAQ ON FOR EXTENDED TIMES (10 HOURS OR GREATER)
WITHOUT EXTERNAL POWER. ALWAYS SAVE ANY DATA AND THEN TURN OFF
IPAQ (TOP RIGHT POWER BUTTON) WHEN NOT IN USE. NOT DOING SO WILL
RESULT IN DAMAGE TO THE IPAQ’S INTERNAL BATTERY.

In the PocketPC’s OS, choose Settings and then
choose System settings at the bottom. Select the
battery icon for Power Settings to access this
screen. These power settings come unchecked
from the BVS factory to ensure Yellowjacket soft­ware runs optimally. Power must remain on during

logging or else data might be corrupted.

Page 17

SOFTWARE INSTALLATION

YELLOWJACKET SOFTWARE INSTALLATION FROM A SECURE DIGITAL (SD) CARD

Yellowjacket software comes pre-installed on your iPAQ, but as a courtesy, BVS includes a 128MB SD card
containing a Yellowjacket software installer should you provide your own iPAQ or lose the factory installed
files. This SD card may be used to store Yellowjacket data or other data.

Remember you must switch “lock” tab on side of SD card to “unlock” before storing or erasing any data.

To install the YellowJacket application from the SD card provided in the YellowJacket package, complete
the following steps:

1. Insert SD card into the SD slot on the top of the iPAQ.

2. Using the stylus, tap on the “Start” button on the top of the screen.

3. Tap on “Programs” near the bottom of the menu.

4. Tap on the “File Explorer” folder.

5. Make sure that the shaded area on the top of the File Explorer says “My Device”. If not, use the

upside-down triangle next to the text to choose “My Device”.

6. Tap on “SD Card”.

7. Make sure that the shaded area on the top of the File Explorer says “SD Card”. If not, use the

upside-down triangle next to the text to choose “SD Card”.

8. Choose your Yellowjacket receiver and iPAQ model for installation and tap on “install”.

9. When the message “Installation is Complete” appears, you have successfully installed the applica-

tion.

The YellowJacket application will be accessible by tapping on “Start” and then “Programs”. Scroll down
to the bottom and the YellowJacket application icon will appear.

DRIVER INSTALLATION

The 24xx model iPAQ needs an updated driver for the Quatech serial card which interfaces to your BVS
product. The driver installation program can be found in the “driver” directory of your product CD. Run this
executable from your PC while the iPAQ is connected via ActiveSync. After installation, soft boot the iPAQ.
Your product should be ready to go. Symptoms of an iPAQ needing this driver include loss of communica­tion in a high-speed data transfer mode (such as spectrum on YellowJackets and Bumble Bee).

SURVEYING

While surveying, Yellowjacket achieves the most accuracy when antenna is at a vertical 90 degree angle
and completely perpendicular to the ground or floor as shown below.

Page 18

Chameleon (YellowJacket Edition)

PC Application

The Chameleon application converts data logged by the YellowJacket into an ASCII delimited file for use in
post-processing. The data converted is based on correlation records collected in the measurement mode
of the iPAQ YellowJacket Receiver Interface.

To convert a file, use the following steps:

1. Copy the log file off of the iPAQ and onto your desktop or laptop.

2. Run the Chameleon application.

3. Click BROWSE on the Input File line to choose a file to convert.

4. A default output filename will be created. Change if needed.

5. Choose which fields you wish to have in the output file.

6. Choose the delimiter to place between fields.

7. Choose whether or not you would like a header record with titles for each column.

8. Press the CONVERT button.

The progress bar will monitor the progress of the conversion.

Page 19

Networking Basics

Packets and traffic
Information travels across a network in chunks called “packets.” Each packet has a header that tells where
the packet is from and where it’s going, similar to what you write on the envelope when you send a letter.
The flow of all these packets on the network is called “traffic.”

Hardware addresses
Your PC “listens” to all of the traffic on its local network and selects the packets that belong to it by check­ing for its hardware address in the packet header or MAC (Media Access Control). Every hardware product
used for networking is required to have a unique hardware address permanently embedded in it.

IP addresses
Since the Internet is a network of networks (connecting millions of computers), hardware addresses alone
are not enough to deliver information on the Internet. It would be impossible for your computer to find its
packets in all the world’s network traffic, and impossible for the Internet to move all traffic to every net­work, your PC also has an IP (Internet Protocol) address that defines exactly where and in what network
it’s located. IP addresses ensure that your local Ethernet network only
receives the traffic intended for it. Like the hierarchical system used to define zip codes, street names,
and street numbers, IP addresses are created according to a set of rules, and their assignment is carefully
administered.

Put another way, the hardware address is like your name; it uniquely and permanently identifies you. But it
doesn’t offer any clues about your location, so it’s only helpful in a local setting. An IP address is like your
street address, which contains the information that helps letters and packages find your house.

Rules for Sending Information (Protocols)
A protocol is a set of rules that define how communication takes place. For instance, a networking proto­col may define how information is formatted and addressed, just as there’s a standard way to address an
envelope when you send a letter.

Networking Devices:
Bridges
A bridge joins two networks at the hardware level. This means that as far as other protocols are concerned,
the two networks are the same.

Routers
A router connects two IP networks. In contrast to a bridge, which joins networks at the hardware level, a
router directs network IP traffic based on information stored in its routing tables. A routing table matches
IP addresses with hardware addresses. The router stamps each incoming IP packet with the hardware
address that corresponds to that IP address. As a result, the packet can be picked up by the right computer
on the hardware network.

DNS (Domain Name Server)
Networks (domains) on the Internet have names that correspond to their IP addresses. A Domain Name
Server maintains a list of domain names and their corresponding addresses. This is why you can go to
Berkeley’s Web site by entering www.bvsystems.com, instead of the IP address.

Networking Terms:

Page 20

TCP/IP (Transport Control Protocol/Internet Protocol)
TCP/IP is a collection of protocols that underlies almost every form of communication on the Internet.
DHCP (Dynamic Host Control Protocol)
DHCP is a method of automatically assigning IP addresses. Instead of assigning addresses to individual
users, addresses are assigned by the DHCP server when clients need them. This means that instead of
entering several fields of long addresses, users need only to select DHCP as their configuration method
for IP networking.
PPP (Point-to-Point Protocol)
PPP is the most common protocol for providing IP services over a modem.
NAT (Network Address Translation)
NAT is used to share one IP address among several computers. A device set up as a NAT router uses a col­lection of “private” IP addresses (in the range 10.0.1.2 to 10.0.1.254 for example) to allow several com­puters to access the Internet using one “public” IP address. When a computer using a private IP address
requests information from the Internet, the NAT router keeps a record of the computer making the request,
and sends the information to the Internet using its own IP address. When the response comes back from
the Internet, the NAT router forwards the packet to the appropriate computer.

Channel Frequency North Europe Spain France Japan
Number GHz America MKK

1 2.412 X X
2 2.417 X X
3 2.422 X X
4 2.427 X X
5 2.432 X X
6 2.437 X X
7 2.442 X X
8 2.447 X X
9 2.452 X X
10 2.457 X X X X
11 2.462 X X X X
12 2.467 X X
13 2.472 X X
14 2.483 X

Page 21

Glossary of Acronyms

AC Alternating Current
A/D Analog to Digital converter
AGC Automatic Gain Control
AP Access Point
Applet a small Application
BER Bit Error Rate
BPSK Binary Phase Shift Keying
BSS Basic Service Set
BW Band Width
CDMA Code Division Multiple Access (spread spectrum modulation)
DC Direct Current
D/A Digital to Analog
dB decibel
dBm decibels referenced to 1 milliwatt
DOS Digital Operating System
DSP Digital Signal Processing
DSSS Direct Sequence Spread Spectrum
ESS Extended Service Set
FHSS Frequency-Hopping Spread Spectrum
FIR Finite Impulse Response
GHz GigaHertz
IF Intermediate Frequency
I and Q In phase and Quadrature
IBBS Independent Basic Service Set
IrDA Infrared Data Association
kHz kiloHertz
LCD Liquid Crystal Display
LO Local Oscillator
MAC Medium Access Control
Mbits Megabits
MHz MegaHertz
NIC Network Interface Card
OFDM Orthogonal Frequency Domain Multiplexing (802.11a)
PC Personal Computer
PCS Personal Communications Service (1.8 to 2.1 GHz frequency band)
PER Packet Error Rate
PN Pseudo Noise
QPSK Quaternary Phase Shift Keying, 4-level PSK
RF Radio Frequency
RSSI Receiver Signal Strength Indicator
SSID Service Set IDentification
STA STAtion (generally a laptop WLAN card)
UCT Universal Coordinated Time
VAC Volts Alternating Current
VGA Video graphic
WEP Wired Equivalent Protocol
WLAN Wireless Local Area Network

Page 22

Accessories for your

Hive™ Indoor Mapping Software
P/N 0075-BEA
$ Call for Pricing

Drone™ GPS-Based Wi-Fi Site
Survey Software
$ Call for Pricing

YELLOWJACKET

2.4 GHz Antenna
adjustable angle
SMA connector
$ 25.00

TM

Rugged Carrying Case
ABS Plastic
P/N P-CASE
$ 100.00

Dolphin GPS Mapping Software
P/N 0038-DOLP
$ Call for Pricing

Ni-MH Fast-Charger
4 AA 6 V
P/N NIMH-001
$ 55.00

2.4 GHz Direction Finding
Antenna with mounting brack­et, cable & type N SMA male
9 dBi gain
P/N DFA-001
$ 250.00

IrDA USB Interface
wireless data transfer Adaptor
P/N IRDA-000
$ 125.00

Internal GPS Receiver Upgrade
12-channel receiver
check with BVS sales for pricing and details.

Page 23

IMPORTANT SAFETY INSTRUCTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric
shock and injury to persons, including the following:

1)Read and understand all instructions.

2)Follow all warnings and instructions marked on the product.

3)Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.

4)Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement,
or near a swimming pool.

5)Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

6)Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect it from overheating these
openings must not be blocked or covered The openings should never be blocked by placing the product on the bed, sofa, rug or
other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be
placed in a built-in installation unless proper ventilation is provided.

7) This product should be operated only from the type of power source indicated on the appliance. If you are not sure of the type
of power supply to your home, consult your dealer or local power company.

8)Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking
on it.

9)Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.

10)Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short
out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product.

11) To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service faciI4 when some
service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect
reassembly can cause electric shock when the appliance is subsequently used.

12)Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A) When the power supply cord or plug is damaged or frayed. B) If liquid has been spilled into the product.

C)If the product has been exposed to rain or water.

D) If the product does not operate normally by following the operating instructions. Adjust only those controls, that are
covered by the operating instructions because improper adjustment of other controls may result in damage and will often require
extensive work by a qualified technician to restore the product to normal operation.

E) If the product has been dropped or the cabinet has been damaged. F) If the product exhibits a distinct change in perfor­mance.

13)Avoid using the product during an electrical storm. There may be a remote risk of electric shock from lightning.

14)Do not use the telephone to report a gas leak in the vicinity of the leak.

INSTALLATION INSTRUCTIONS

1. Never install telephone wiring during a lightning storm.

2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.

3. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network inter­face.

4. Use caution when installing or modifying telephone lines.

INSTRUCTION FOR BATTERIES

CAUTION: To Reduce the Risk of Fire or Injury to Persons, Read and Follow these Instructions:

1. Use only the type and size of batteries mentioned in owner’s manual.

2. Do not dispose of the batteries in a fire. The cells may explode. Check with local codes for possible special disposal
instructions.

3. Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It
may be toxic if swallowed.

4. Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets,
and keys. The battery or conductor may overheat and cause burns.

5. Do not attempt to recharge the batteries provided with or identified for use with this product. The batteries may leak
corrosive electrolyte or explode.

6. Do not attempt to rejuvenate the batteries provided with or identified for use with this product by heating them. Sudden
release of the battery electrolyte may occur causing burns or irritation to eyes or skin.

7. When replacing batteries, all batteries should be replaced at the same time. Mixing fresh and discharged batteries
could increase internal cell pressure and rupture the discharged batteries. (Applies to products employing more than one sepa­rately replaceable primary battery.)

8. When inserting batteries into this product, the proper polarity or direction must be observed. Reverse insertion of bat­teries can cause charging, and that may result in leakage or explosion. (Applies to product employing more than one separately
replaceable primary battery.)

9. Remove the batteries from this product if the product will not be used for a long period of time (several months or more)
since during this time the battery could leak in the product.

10. Discard “dead” batteries as soon as possible since “dead” batteries are more likely to leak in a product.

11. Do not store this product, or the batteries provided with or identified for use with this product, in high-temperature
areas. Batteries that are stored in a freezer or refrigerator for the purpose of extending shelf life should be protected from con­densation during storage and defrosting. Batteries should be stabilized at room temperature prior to use after cold storage.

2.4 GHz Direction Finding
Corner Reflector

2.4 GHz Omni-Directional (7.5” long)

TM

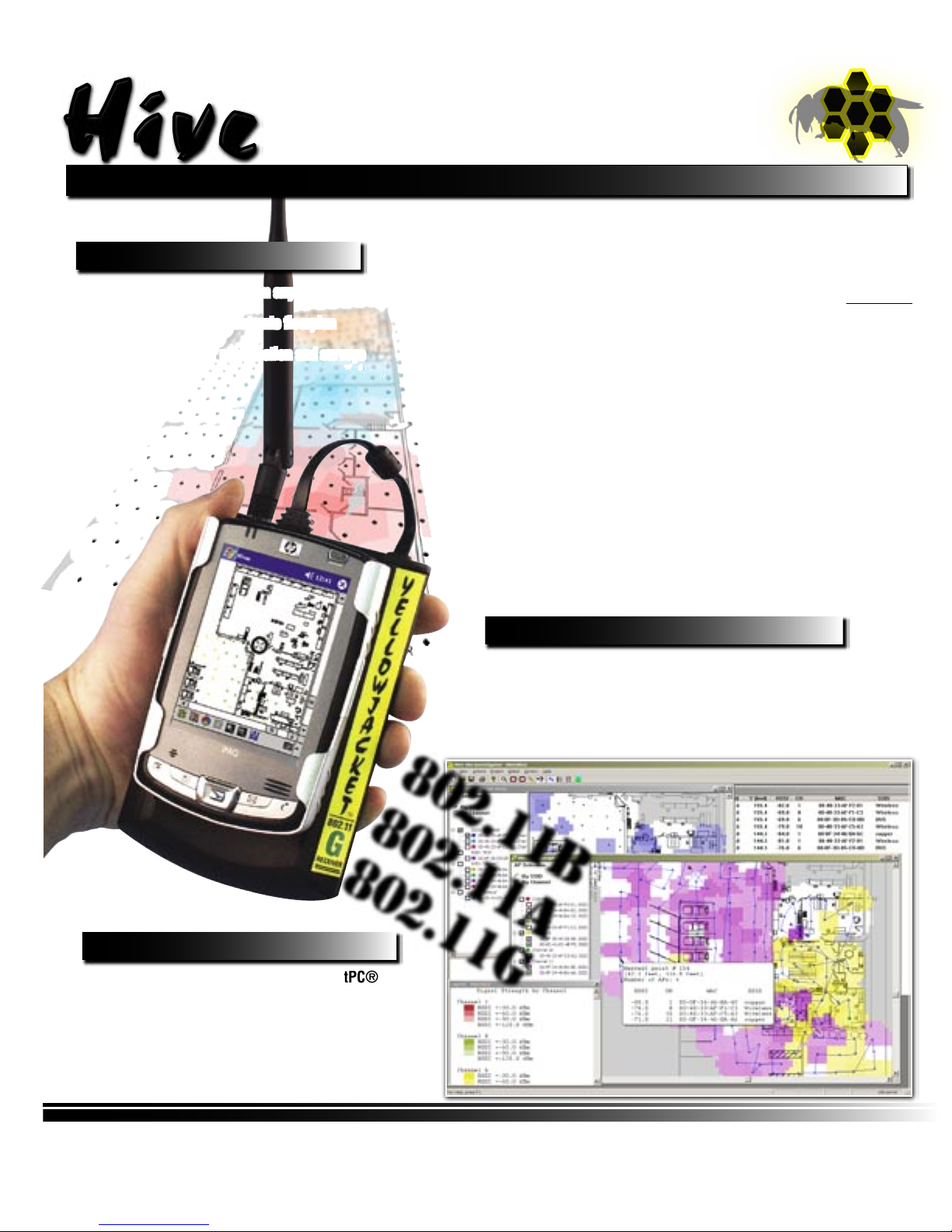

Hive

Yellowjacket® Indoor 802.11 Wi-Fi Mapping Software

Create your floorplan:

Site Initiator

1

Create floorplans from scratch or from any BMP, GIF, JPEG, TIF

User defined objects for placement onto floorplan

Import existing floorplans for modification and surveys

Survey floorplans on
a PocketPC. Create
and organize survey
maps on a PC.

Hive™ is powerful mapping software that works with
Berkeley’s Yellowjacket® 802.11 (B, A or B/G) Wi-Fi receiver
system. Hive™ runs on an iPAQ® Pocket PC® allowing site
surveys to be handheld and performed completely INDOORS
or outdoors using real-time mapping coverage technology. No
GPS reception needed. First, import bitmap files into Hive™
Site Initiator and scale your rooms and walls for measurement
overlays. Walk through an office space, warehouse or multi­floor building - any interior space that needs to be surveyed

- and take Access Point measurements with Site Supervisor.
Then place those measurements on top of any structural floor­plan to get a comprehensive, bird’s eye view of any WLAN
based upon MAC addresses, RSSI, SSID and more. Finally,
view your Wi-Fi coverage results in table and graphical views

using Site Investigator running under Windows 2000 and XP.

Organize and plot your coverage:

Site Investigator:

3

Plot and view surveys in multiple data table or graphical windows

802.11g

Take your AP measurements:

2

Site Supervisor

Touch-screen measurement points using PocketPC®

Customizable surveys based on MAC, RSSI, SSID

Take floorplan survey snapshots anytime

Visible survey path throughout floorplan

Plot coverage by AP or AP groups

Print and export plots or table data into ASCII format for spreadsheets

Create RTF files that import into MS Word & most popular word processors

802.11b

802.11a

OPTIONAL SOFTWARE AVAILABLE FOR YOUR YELLOWJACKET

™

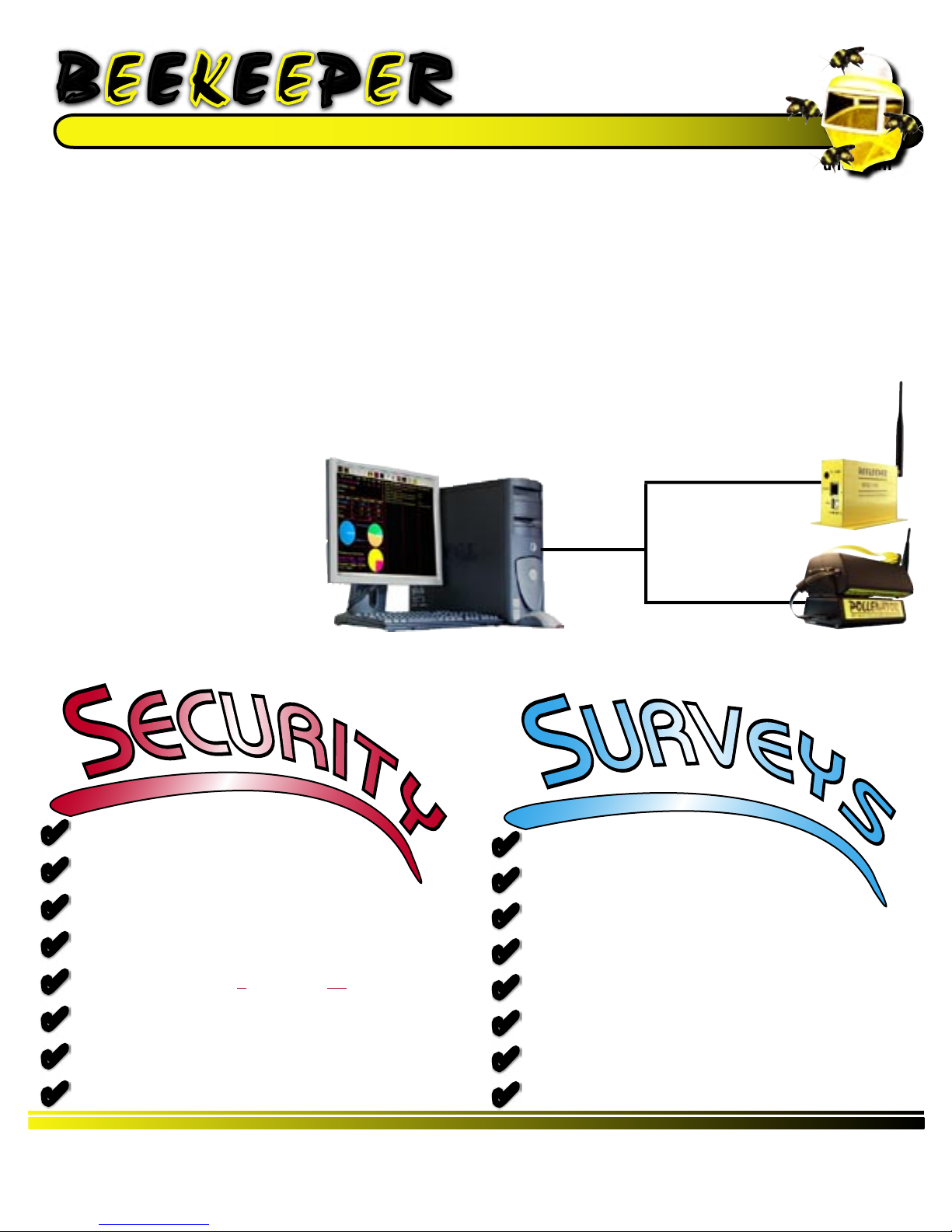

BEEKEEPER

802.11b Wi-Fi Analysis PC Software

BeeKeeper™ is a Windows® XP software application that graphically & textually scans, monitors and logs all

2.4 GHz 802.11b Wi-Fi networks. BeeKeeper™ utilizes the BeeKeeper™ Receiver Module monitoring all 14
DSSS network channels as well as MAC, SSID, AP manufacturer, SNR, data rate and RSSI signal levels of any
access point or NIC. Yellowjacket® users may use their 802.11b receivers with the Pollenator™ PC interface
with BeeKeeper™ software. User selectable scanning and log settings ensure that BeeKeeper™ will identify
any unauthorized MAC and notifies the user instantly with audible and email alerts and time-stamped log file
onto any desktop or laptop PC. Vital RF data is captured, logged (24/7) and may be used to identify neighbor­ing 2.4 GHz interference, WLAN interference and even nearby client cards trying to wirelessly “hack” into the
network. In addition, APs can be traced from local NICs in ad-hoc mode they are connected to allowing users
to view the network transparently. Unlike NIC based analyzers, BeeKeeper™ is a passive, network indepen­dent hardware & software package with the ability to see the “whole picture” wirelessly without being seen
or detected by anyone on or off
the network. BeeKeeper™ soft­ware is controllable via any PC’s
serial or ethernet port allowing
RF surveys to be performed all
from your desk.

receive 802.11b

via PC

BeeKeeper™

receiver module

or

Pollenator™

BeeKeeper™ monitors and logs con-

tinuously on any Windows® PC for both
realtime and time-stamped RSSI analysis.

U

C

E

S

Detection of ad-hoc mode for non-APs

✔

Detects WEP encryption & client ad-hoc mode

✔

Useful for SOX/DoD/GLBA/HIPAA compliance monitoring

✔

Detects Access Points & Network Interface Cards

✔

Classification of 802.11B and 802.11BG devices

✔

Protocol Analysis & Packet Classification for any device

✔

Flag unauthorized devices based on Access Control List

✔

R

I

T

Y

receiver interface

BeeKeeper™ utilizes an 802.11b calibrated receiver for

dBm accurate analysis. Yellowjacket® users may use their
receivers with Pollenator™ to interface with BeeKeeper™.

V

E

Y

S

U

R

S

Scan & Display Devices on ALL channels

✔

Display Capacity of 300 Devices

✔

Full 2.4 GHz 802.11b Spectrum Waveform

✔

MAC address, SSID, Vendor, Signal Strength, Channel & SNR

✔

Single Channel Spectrum Waveform

✔

Passive Surveys with Calibrated Receiver

✔

Channel-Wise Signal-to-Noise Display

✔

Audible & e-mail alerts for unauthorized devices

✔

OPTIONAL SOFTWARE AVAILABLE FOR YOUR YELLOWJACKET

Network Bandwidth Utilization for 802.11b data rates

✔

TM

> -54 dBm

> -65 dBm

survey walkpath

AP

DRONE

GPS-Based Wi-Fi Site Survey Software

R

D

O

N

E

Create Survey Maps:

Drone Projector (iPAQ)

1

Import any bitmap for surveys

Create geo-coded site files for analysis

Tap on 802.11b/g site points

Use Yellowjacket

802.11b/g PLUS
receiver hard­ware for hand­held surveys
anywhere in
the world.

Drone™ combines the power of realtime Yellowjacket® Wi-Fi measure­ments with GPS geo-coding accuracy. Create your survey bitmap with
PROJECTOR. Next, simply walk or drive to any spot with GPS reception
while Drone™ COLLECTOR automatically scans all 802.11b/g channels
and correlates them to your exact location in realtime. Drone™ only
needs a few reference points to fill in the locations for the rest making
it effective for quick outdoor studies. GPS measurements provide both
LAT and LON as well as time stamping for a complete Wi-Fi survey path
anywhere in the world. Drone™ allows JPEG screen snapshots to be
taken at particular points of interest throughout the survey. Survey data
such as RSSI, MAC and SSID may be exported into Drone’s ANALYZER
for further mapping coverage studies in multiple graphical and tabular

layouts. Surveys may be exported further into KML files for plotting in
applications such as Google Earth™.

Constant Realtime Wi-Fi Surveys:

Drone Collector (iPAQ)

2

Scan all 14 channels at periodic intervals

Place data points on LAT and LON

JPEG snapshots of any survey screen

Handheld Windows Mobile® 5.0 environment

Coverage Reliability Analysis:

Drone Analyzer (PC)

3

Plot surveys in graphical or tabular views

Plot coverage by SSID, MAC, RSSI, AP or AP groups

Locate unknown APs’ positions

Print and export plots into bmp les for spreadsheets

Create KML le for plotting coverage over Google Earth™

OPTIONAL SOFTWARE AVAILABLE FOR YOUR YELLOWJACKET
