Manual P/N 854-10200 BVM Limited,
Hobb Lane,
Hedge End,
Southampton,
SO30 0GH, UK.
TEL: +44 (0)1489 780144
FAX: +44 (0)1489 783589
E-MAIL: sales@bvmltd.co.uk
WEB: http://www.bvmltd.co.uk

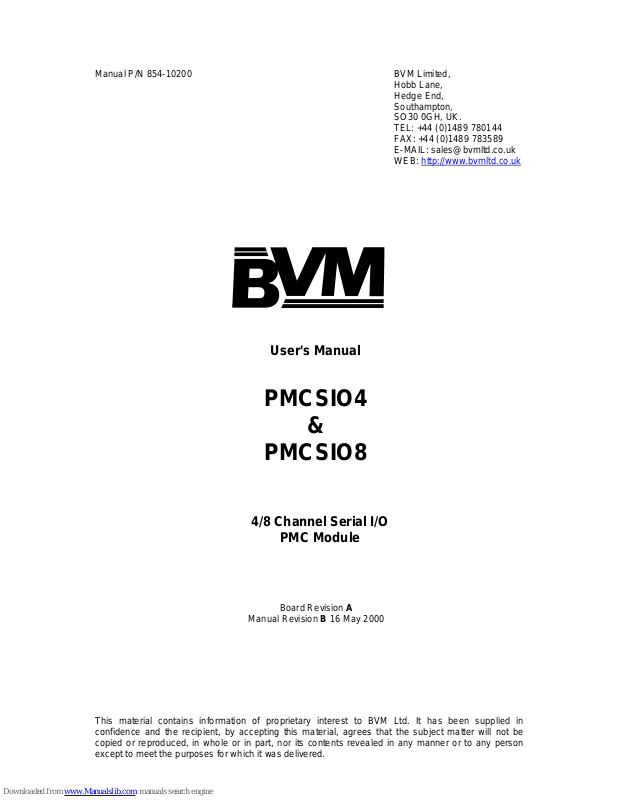

User's Manual
PMCSIO4
&
PMCSIO8
4/8 Channel Serial I/O
PMC Module
Board Revision A
Manual Revision B 16 May 2000
This material contains information of proprietary interest to BVM Ltd. It has been supplied in
confidence and the recipient, by accepting this material, agrees that the subject matter will not be
copied or reproduced, in whole or in part, nor its contents revealed in any manner or to any person
except to meet the purposes for which it was delivered.
i
DISCLAIMER
The information in this document has been checked and
is believed to be entirely reliable, however no
responsibility is assumed for inaccuracies. BVM Ltd.
reserves the right to make changes and/or improvements
in both the product and the product documentation without
notice. BVM Ltd. does not assume any liability arising out
of the application or use of any product described herein;
neither does it convey any licence under its patent rights
or the rights of others.
USE OF PRODUCT
This product has been designed to operate in a PMC
compatible electrical environment. Insertion and removal
of the module or cable(s) from the carrier board must not
be done whilst in a powered condition.
Do not lever out any devices from the product, which uses
surface-mounted devices extensively, as these can be
fractured by excessive force.
This product uses devices sensitive to static electricity.
Ensure adequate static electricity precautions are
observed when handling the product and associated
devices.
RF. INTERFERENCE
This product complies with European Council Directive
89/336/EEC (EMC directive), and conforms to EN55022 :
1994 Class B (Limits and methods of measurement of
radio interference characteristics of information
technology equipment) and EN50082-1 : 1997
(Electromagnetic compatibility - Generic immunity
standard, Part 1: residential, commercial and light
industry) when used in accordance with the BVM EMC
Guidelines Manual part number 454-77000 (available on
request from BVM Ltd.).
GENERAL NOTICES
UNPACKING AND INSPECTION
This product contains components which are
susceptible to static discharge, and should be
handled with appropriate caution.
Upon receipt of this product, visually inspect the board for
missing, broken or damaged components and for physical
damage to the printed circuit board or connectors. This
product was shipped in perfect physical condition. Any
physical damage to the product is the responsibility of the
shipping carrier and should be reported to the carrier's
agent immediately.
RETURN OF GOODS
Before returning a product for repair, verify as well as
possible that the suspected unit is at fault. Then call BVM
Ltd. for a Customer Return (CR) number. Carefully
package the unit, in the original shipping carton if this is
available, and ship prepaid and insured, preferably by
courier, with the CR number written on the outside of the
package.
Include a return address and the telephone number of a
technical contact, and a detailed description of the
observed fault. For out-of-warranty repairs, a purchase
order for repair charges must accompany the return. BVM
Ltd. will not be responsible for damage due to improper
packaging of returned items. Out of warranty repairs can
be arranged, and will be charged on a material and labour
basis, subject to a minimum repair charge. Return
transportation and insurance will be charged as part of the
repair and is in addition to the minimum charge.
SOFTWARE LICENCE NOTICE
Any software that is provided as Copyright BVM Ltd. is
proprietary and confidential property of BVM Ltd., and
each single copy is given on the agreed understanding
that it is licensed for use on product combinations
supplied by BVM Ltd. or their appointed distributors only.
The software product may not be copied (except for
backup purposes), given away, rented, loaned,
reproduced, distributed or transmitted in any way or form,
in whole or in part, without written permission of BVM Ltd.
This applies to any merged, modified or derivative version
of the software including, but not limited to, versions
produced by customising, translating, reverse
engineering, de-compiling or disassembly.
This licence may be automatically terminated without
notice if any of its provisions are breached. Reasonable
legal costs may be awarded to the prevailing party in
connection with this licence agreement. Use of, or
accepted delivery of these products shall constitute your
acceptance of the provisions of this licence agreement.
WARRANTY
A) BVM Ltd. warrants that the articles furnished hereunder
are free from defects in material and workmanship for one
year after the date of shipment.
B) All warranties and conditions, express and implied,
statutory and otherwise, as to the quality of the goods or
their fitness for any purpose are hereby excluded and with
the exception of liability for death or personal injury
caused by negligence as defined in the Unfair Contract
Terms Act 1977 the seller shall not be liable for any loss,
injury or damage arising directly or indirectly from the use,
application or storage of such goods.
C) Subclause (B) above shall not apply where the buyer
deals as a consumer as this expression is defined in the
Unfair Contract Terms Act 1977.
D) The liability of BVM Ltd. hereunder shall be limited to
repair or replacement at the manufacturers discretion of
any defective unit. Equipment or parts which have been
subject to abuse, misuse, accident, alteration, neglect,
unauthorised repair or installation are not covered by this
warranty. BVM Ltd. shall have the right of determination
as to the existence and cause of any defect.
E) The warranty period of the replacement or a repaired
product or part shall terminate with the termination of the
warranty period with respect to the original product or part
for all replacement parts supplied or repairs made during
the warranty period.
F) Although BVM Ltd. offer a high level of technical
support and advice, due to the complex nature and wide
application of product configurations it is the
responsibility of the purchaser to be satisfied at the time
of purchase that the products are suitable for the final
application.
G) The term 'Software' used herein is defined as 'any
program data or code in source or binary format recorded
in or on any readable device or media'.
H) BVM Ltd. will effect all reasonable effort to resolve
accepted reproducible software errors reported within 12
months of purchase. Acceptance of an error shall solely
be based on conformance to supporting specifications.
Proper operation of earlier releases is not guaranteed.
NOTICES
Copyright 2000 by BVM Ltd.
All trademarks are acknowledged to their respective
owners.
PMCSIO4/8
Copyright 2000 BVM Ltd.
ii
Table Of Contents
Contents Page
1. Introduction.......................................................................................................................................1
1.1 Scope......................................................................................................................................... 1
1.2 PMCSIO Series Part Numbers..................................................................................................1
2. Overview ..........................................................................................................................................2
2.1 Board Layout..............................................................................................................................2
2.2 Features.....................................................................................................................................3
2.3 Applications................................................................................................................................3
3. Operation..........................................................................................................................................4
3.1 Block Diagram ...........................................................................................................................4
3.2 OX16PCI954 Serial Controller...................................................................................................4
3.3 OX16C954 Serial Controller......................................................................................................5
3.4 Serial Clocks..............................................................................................................................5
3.5 Serial Buffers.............................................................................................................................5
3.6 Buffer Control and Select...........................................................................................................6
3.7 EEPROM ...................................................................................................................................6
3.8 Power Management...................................................................................................................7
3.8.1 PME Generation from RI........................................................................................................ 7
3.8.2 RS232 Power Control............................................................................................................. 7
4. Installation........................................................................................................................................8
5. Configuration....................................................................................................................................9
5.1 LED Indicators...........................................................................................................................9
5.2 Link Settings..............................................................................................................................9
5.3 Switch Settings ..........................................................................................................................9
5.3.1 SW1 (1 & 2) - OX16PCI954 Clock Selection......................................................................... 9
5.3.2 SW1 (3 & 4) - OX16C954 Clock Selection ............................................................................ 9
5.3.3 SW2 (1) - UART Mode Selection........................................................................................... 9
5.3.4 SW2 (2 & 3) - Low Power Selection..................................................................................... 10
5.3.5 SW2 (4) - PME Enable.........................................................................................................10
5.3.6 SW150 to SW850 - RS422/RS485 Mode Select ................................................................ 10
6. Connections ................................................................................................................................... 11
6.1 Front Panel Connector.............................................................................................................11
6.2 Rear I/O Connector..................................................................................................................12
6.3 PCI Connections......................................................................................................................13
7. Programming..................................................................................................................................14
7.1 Windows® Driver Disc.............................................................................................................. 14
7.2 Configuration EEPROM...........................................................................................................14
7.3 Diagnostic Software.................................................................................................................14
8. Specification...................................................................................................................................15
8.1 On-Board Functions.................................................................................................................15
8.1.1 OX16PCI954 PCI Serial Controller ...................................................................................... 15
8.1.2 OX16C954 Local Bus Serial Controller................................................................................ 15
8.1.3 Clocks & Serial Buffers......................................................................................................... 15
8.2 Board Configuration.................................................................................................................15
8.3 PMC Interface..........................................................................................................................15
iii
8.4 Operating Environment............................................................................................................15
Appendix A - Data Sheets & Manual References.................................................................................16
A.1 OX16PCI954 PCI Quad UART............................................................................................. 16
A.2 OX16C954 Local Bus Quad UART......................................................................................16
A.3 MAX3245E RS232 Buffers...................................................................................................16
A.4 MAX1486 RS422/485 Buffers ..............................................................................................16
A.5 PMC Specification................................................................................................................16
Appendix B - Baud Rate Settings ......................................................................................................... 17
List of Figures
Figure Page
Figure 1 Board Layout Topside............................................................................................................... 2
Figure 2 Board Layout Underside........................................................................................................... 2
Figure 3 Block Diagram.......................................................................................................................... 4
Figure 4 Buffer Control ........................................................................................................................... 6
Figure 5 Connector Pin-outs for 9-way D-type...................................................................................... 11
Figure 6 Diagnostic Loop-back Connections........................................................................................ 14
PMCSIO4/8
Copyright 2000 BVM Ltd.
1
1. Introduction
1.1 Scope
This manual provides:-
A getting started guide.
Configuration details.
A user reference guide.
Details of implementation specific considerations for major devices.
General Hardware Description.
This user manual does not provide:-
Detailed data on the operation of the serial controller or serial buffer devices.
Detailed data on the operation of the EEPROM.
Details on the content of the PMC specification.
Information is provided to allow the module to be integrated into a system and configured by the
system engineer. The User manual is intended for use by system integrators, service personnel,
software engineers and end users.
Unless otherwise stated, address information is in hexadecimal notation.
1.2 PMCSIO Series Part Numbers
The PMCSIO series is available in two different basic types, the PMCSIO4 which supports 4 serial
channels and the PMCSIO8 which supports 8 serial channels. The board is referred to generically as a
PMCSIO throughout this User's Manual. The PMCSIO is available in various build options, the more
popular ones are listed below. Please contact your supplier for details of other configurations.
Part Number Type Description
853-10214 PMCSIO4 4 channels RS232
853-10218 PMCSIO8 8 channels RS232 *
853-10224 PMCSIO4 4 channels RS422
853-10228 PMCSIO8 8 channels RS422
853-10238 PMCSIO8 4 channels RS232 and 4 channels RS422
Note: * denotes a standard stock item.
A connecting lead is available for the PMCSIO connecting from the front-panel connector to standard
9-way D-type connectors.
Part Number Description
853-10240 connecting lead 9-way D-type
A Windows® driver disc is available containing the Oxford Semiconductor Serial Controller drivers,
BVM installation files & diagnostic software.
Part Number Description
850-10250
Windows® Driver Disc
PMCSIO4/8
Copyright 2000 BVM Ltd.
2
2. Overview
2.1 Board Layout
P
2
OX16PCI954
OX16C954
M4-32/32
SW1
M4-128/64
50MHz1.8432MHz
SW2
SW150
SW550
SW650
SW250
SW750SW350SW850SW450
P
1
P
4
Figure 1 Board Layout Topside
JTAG
RXD
TXD
Ch 1
PMCSIO8
RXD
TXD
Ch 2
RXD
TXD
Ch 3
RXD
TXD
Ch 4
RXD
TXD
Ch 5
RXD
TXD
Ch 6
RXD
TXD
Ch 7
RXD
TXD
Ch 8
Figure 2 Board Layout Underside
PMCSIO4/8
Copyright 2000 BVM Ltd.
3
2.2 Features
• Conformance to PMC standard IEEE P1386.1/Draft 2.0 4th April 1995.
• 32bit PCI single chip quad serial controller. (Oxford Semiconductor OX16PCI954).
• Secondary quad serial controller. (Oxford Semiconductor OX16C954).
• Configuration EEPROM for PCI subsystem, subsystem vendor ID and other configuration
information.
• Build options of either RS232 or RS422/485 on a per channel basis.
• All 8 serial channel available via front panel connector and PMC rear I/O.
• RS232 option provides TXD, RXD, CTS, RTS, DSR, DTR, DCD and RI.
• RS422/485 option provides differential TXD, RXD, CTS and RTS.
• Switch selectable full or half duplex operation for RS485.
• RS232/422 Oxford Semiconductor drivers.
• RS232 communication up to 1Mbaud.
• RS422/485 communication up to 12.5Mbaud.
2.3 Applications
• Interfacing industrial equipment to desktop PC's or servers.
• Fast point-to-point communications link.
• Multi-drop industrial interface.
• Multiple modem interface.
PMCSIO4/8
Copyright 2000 BVM Ltd.
4
3. Operation
3.1 Block Diagram
PCIOX16PCI954
P1 P2
P4
EEPROM
RS232/
RS422/
RS485
4
OX16C954
Local bus
RS232/
RS422/
RS485
4
Figure 3 Block Diagram
3.2 OX16PCI954 Serial Controller
The PMCSIO uses an OX16PCI954 single chip PCI solution to offer serial expansion functions on a
PMC module. It is a dual function PCI device offering four ultra-high performance OX16C950 UART's,
and a local bus which is interfaced to the OX16C954 Local Bus Serial Controller.
Each channel in the OX16PCI954 offers data rates up to 15Mbps (realisable on the PMCSIO as
1Mbps on RS232 or 12.5Mbps on RS422/485) and 128 byte deep transmitter and receiver FIFO's.
Deep FIFO's reduce CPU overhead and allow utilisation of higher data rates.
Each channel is software compatible with the widely used industry-standard 16C550 devices and
compatibles as well as the OX16C95x family of high performance UART's. In addition to increased
performance and FIFO size, the UART's also provide the full set of OX16C95x enhanced features
including automated in-band flow control, readable FIFO levels etc. - see section "3.3 OX16C954
Serial Controller (page 5)".
The efficient 32-bit, 33MHz target-only PCI interface is compliant with version 2.2 of the PCI Bus
Specification and version 1.0 of PCI Power Management Specification.
For full flexibility, all the default register values can be overwritten using the EEPROM connected via
the Microwire serial interface. To enhance device driver efficiency and reduce interrupt latency,
internal UART's have multi-port features such as shadowed FIFO fill levels, a global interrupt source
register and Good-Data Status, readable in four adjacent DWORD registers visible to logical functions
in IO space and memory space.
PMCSIO4/8
Copyright 2000 BVM Ltd.
5
3.3 OX16C954 Serial Controller
The PMCSIO uses an OX16C954 four-channel ultra-high performance UART connected via a local
bus to an OX16PCI954. This offers data rates up to 15Mbps (realisable on the PMCSIO as 1Mbps on
RS232 or 12.5Mbps on RS422/485) and 128 byte deep transmitter and receiver FIFO's. Deep FIFO's
reduce CPU overhead and allow utilisation of higher data rates.
It is software compatible with the widely used industry-standard 16C550 type devices and compatibles,
as well as other OX16C95x family devices. In addition to increased performance and FIFO size, the
OX16C954 also provides enhanced features including improved flow control. Automated software flow
control using Xon/Xoff and automated hardware flow control using CTS#/RTS# and DSR#/DTR# can
be used to prevent FIFO over-run. Flow control and interrupt thresholds are fully programmable and
readable, enabling programmers to fine-tune the performance of their system. FIFO levels are
readable to facilitate fast driver applications.
The addition of software reset enables recovery from unforeseen error condition allowing drivers to
restart gracefully.
The OX16C954 is ideally suited to industrial applications, such as high-speed multi-port functions that
enable users to take advantage of the maximum performance of analogue modems or ISDN terminal
adapters. It is also suitable for any equipment requiring high speed RS232/RS422/RS485 interfaces.
3.4 Serial Clocks
Two oscillators are provided: 1.8432MHz and 50MHz. When used at 1.8432MHz and the UART set to
16C550 mode (via configuration switch) the PMCSIO will behave like and octal 16C550 UART with
operation at all the standard PC baud rates up to 115kbps. This is designed be used in systems where
enhanced drivers are not available.
When used at 50MHz, with the UART's set to enhanced mode and used with the Oxford
Semiconductor drivers variable baud rates up to 12.5Mbps are available - see section "Appendix B Baud Rate Settings (page 17)" for further details.
3.5 Serial Buffers
MAX3245E buffer chips are used for the RS232 channels. These have the following properties:
– 3 drivers and 5 receivers, one IC per channel.
– Maximum data rate of 1Mbps.
– Single 5V operation.
– ±15kV ESD protected.
MAX1486 buffer chips are used for the RS422/485 channels. These have the following properties:
– 1 driver and one receiver, two IC's per channel.
– Maximum data rate of 12.5Mbps.
– Single 5V operation.
– 10 pin µMAX package.
– Selectable full/half duplex.
PMCSIO4/8
Copyright 2000 BVM Ltd.
6
3.6 Buffer Control and Select
Control and select lines from the serial controller chips to the buffer chips are fed by via a PLD device
enabling polarity and control selection, as shown below in Figure 4.
OX16PCI954/
OX16C954
SOUT
RTS
DTR
SIN
CTS
DSR
RI
DCD
RS232 Driver D-type
1
9
6
8
2
4
7
3
5
RS422 Driver
RS232 Enable
Full/half
MIO
8
120R
120R
120R
120R
Enable
Select
RS485 OE
RS422 Enable
Figure 4 Buffer Control
3.7 EEPROM
The PMCSIO is fitted with 128bytes of EEPROM using a 93C46 device, which is supplied preprogrammed by BVM.
The contents of the EEPROM are read by the OX16PCI954 on coming out of reset and are used to
set up the control registers after reset, allowing the following to be set:
• PCI interface configuration.
• PCI Subsystem and Subsystem Vendor ID.
• Various other configuration parameters.
See section "7.2 Configuration EEPROM (page 14)" and "A.1 OX16PCI954 PCI Quad UART (page
16)" for further details.
PMCSIO4/8
Copyright 2000 BVM Ltd.
7
3.8 Power Management
The OX16PCI954 is PCI power management 1.0 compliant. In power saving mode the OX16PCI954
will consume 40mA (as opposed to 120mA). The OX16C954 has a power saving mode and will
consume 10mA (as opposed to 20mA).
The MAX4245E RS232 transceivers have an auto-shutdown mode where if there is no activity for 30
seconds they enter a low power state. Their supply current drops from 1mA to 1µA. The autoshutdown feature may be disabled, via a switch, if required.
3.8.1 PME Generation from RI
MIO2 on the OX16PCI954 can be programmed via either EEPROM or device driver to generate a
PME event when the RI signal is asserted by any channel. This feature is enabled/disabled by SW2 see section "5.3.5 SW2 (4) - PME Enable (page 10)".
The feature is not enabled in the PMCSIO EEPROM, as the Oxford Semiconductor drivers do not
currently support this function.
3.8.2 RS232 Power Control
The MIO pins can be used to control the power state of the RS232 transceivers via SW2 - see section
"5.3.4 SW2 (2 & 3) - Low Power Selection (page 10)".
The selection of which MIO pins controls which channels is via PCB LK7 - see section "5.2 Link
Settings (page 9)".
LK7 open (default) gives the following mapping: MIO4 to channels 0 & 1; MIO5 to channels 2 & 3;
MIO6 to channels 4 & 5; MIO7 to channels 6 & 7.
LK7 made gives MIO0 to channel 0, MIO1 to channel 1, ..... MIO7 to channel 7.
The EEPROM is set up to support MIO4, MIO5, MIO6 and MIO7 controlling power saving.
MIO0..MIO3 are unused (saving MIO2 to be used for PME if required) and MIO8..MIO11 used to
interrupts from the second quad UART.
The standard Oxford Semiconductor drivers do not support selection of power saving by use of the
MIO signals, but auto shutdown mode may still be used.
PMCSIO4/8
Copyright 2000 BVM Ltd.
8
4. Installation
1. PMC modules should only be installed when the host carrier board is in a powered-off condition to
avoid damage to the PMC module and host carrier board.
2. After removing any blanking panels on the host carrier front panel, the PMC module should be
offered up to the host carrier site and the front panel carefully positioned through the host carrier
front panel opening, taking care not to damage the EMC gasket on the PMC module front panel.
3. The PMC module should be fixed to the host carrier using four M2.5 x 6mm pan-head screws into
the four fixing holes provided (two on the front panel and two on the spacers).
4. The PMCSIO is voltage-keyed for +5V host carriers only.
5. The PMCSIO can be used with a BVM supplied connecting lead to standard 9-way D-type
connectors, or a use supplied alternative.
6. Switches must be set accordingly for power management, RS422 termination, half/full duplex &
UART clocks -see section "5.3 Switch Settings (page 9)".
7. The installation can be tested with the diagnostic software on the Windows® Driver Disc - see
section "7.3 Diagnostic Software (page 14)".
PMCSIO4/8
Copyright 2000 BVM Ltd.
9
5. Configuration
5.1 LED Indicators
Two LED indicators are fitted per channel, viewable from the top of the board when it is fitted onto a
host carrier. The GREEN LED indicates receive data and the RED LED indicates transmit data.
5.2 Link Settings
The following solder pad links are for factory configuration only, but are provided here for information
purposes only.
OperationLink
Made Open
LK1 OX16PCI954 clock 50MHz OX16PCI954 clock switch controlled
LK2 OX16C954 clock 50MHz OX16C954 clock switch controlled
LK3 Bypass IC4 PLD from JTAG chain Include IC4 PLD in JTAG chain
LK4 Channels 0 - 3 are RS422 Channels 0 - 3 are RS232
LK5 Channels 4 - 7 are RS422 Channels 4 - 7 are RS232
LK6 4 Channels on board 8 Channels on board
LK7
1
MIO0-7 control power saving MIO4-7 control power saving
5.3 Switch Settings
5.3.1 SW1 (1 & 2) - OX16PCI954 Clock Selection
SW1 poles 1 & 2 are used to select the OX16PCI954 UART clocks, if not forced by link settings, either
pole 1 OR 2 should be selected.
SW 1 OperationPole
ON OFF
1 50MHz OX16PCI954 clock 2 1.8432MHz OX16PCI954 clock -
5.3.2 SW1 (3 & 4) - OX16C954 Clock Selection
SW1 poles 3 & 4 are used to select the OX16C954 UART clocks, if not forced by link settings, either
pole 3 OR 4 should be selected.
SW 1 OperationPole
ON OFF
3 OX16C954 clock same as OX16PCI954 4 OX16C954 uses OX16PCI954 UART clock out -
5.3.3 SW2 (1) - UART Mode Selection
SW2 pole 1 is used to select the OX16PCI954 and OX16C954 as standard 16C550 mode (baud rates
up to 115kbps) with 16 byte FIFO sizes or enhanced UART with larger 128 byte FIFO sizes.
SW 2 OperationPole
ON OFF
1 Standard 16C550 (16 byte) Enhanced UART (128 bytes)
1
For LK7 power saving settings - see section "3.8.2 RS232 Power Control (page 7)".
PMCSIO4/8
Copyright 2000 BVM Ltd.
10
5.3.4 SW2 (2 & 3) - Low Power Selection
SW2 poles 2 & 3 are used to select the low power operation mode for the RS232 transceivers.
SW 2 OperationPole
ON OFF
2 Low power mode select 0
3 Low power mode select 1
Select 0 Select 1 RS232 transceiver operation
OFF OFF Always on
OFF ON Auto shutdown mode
ON OFF Controlled by MIO
ON ON Controlled by MIO and auto-shutdown mode
In auto-shutdown mode the RS232 transceivers enter a low power mode after 30 seconds of inactivity.
5.3.5 SW2 (4) - PME Enable
SW2 pole 4 is used to enable the RI signal from any channel to activate the PME (power management
event) signal via the OX16PCI954 MIO2 pin.
SW 2 OperationPole
ON OFF
4
1
RI connected to MIO2 RI not used
5.3.6 SW150 to SW850 - RS422/RS485 Mode Select
A switch is provided per channel when RS422/485 buffers are fitted, SW150 for channel 1 through to
SW850 for channel 8 (only fitted for RS422/485 channels).
SW150 to SW850 OperationPole
ON OFF
1
120Ω termination TXD
No termination
2
120Ω termination RXD
No termination
3
120Ω termination RTS
No termination
4
120Ω termination CTS
No termination
5 TXD/RXD full duplex TXD/RXD half duplex
6 CTS/RTS full duplex CTS/RTS half duplex
7 RS485 driver controller by DTR Always enable RS485 driver
8 - -
1
For PME enable - see section "3.8.1 PME Generation (page 7)".
PMCSIO4/8
Copyright 2000 BVM Ltd.
11
6. Connections
6.1 Front Panel Connector
A 68-way SCSI II style connector is fitted to the front of the board. An eight way break-out lead (68 way
to 8 off 9 pin D-types) with screw-locks is fitted to make the serial connections.
The mapping between the 68-way pins and the 8 serial channels is shown below.
68-way connector pin
Ch. 1 Ch. 2 Ch. 3 Ch. 4 Ch. 5 Ch. 6 Ch. 7 Ch. 8
RS232
signal
RS422
signal
D-type
pin
1 9 19 27 35 43 53 61 DCD RTS+ 1
2 10 20 28 36 44 54 62 DSR RTS- 6
3 11 21 29 37 45 55 63 RXD TXD+ 2
4 12 22 30 38 46 56 64 RTS TXD- 7
5 13 23 31 39 47 57 65 TXD RXD+ 3
6 14 24 32 40 48 58 66 CTS RXD- 8
7 15 25 33 41 49 59 67 DTR CTS+ 4
8 16 26 34 42 50 60 68 RI CTS- 9
17 17 18 18 51 51 52 52 GND GND 5
This pin out is compatible with the BVM cIO200 used with cPC200 i.e. the same breakout lead may be
used with the front panel or rear panel I/O. With rear panel there are no ground pins.
This pin out allows the use of crimp ribbon cable from the 68-way SCSI connector to the D-types if
required.
The resulting 9 way D-type pin-outs are shown below in Figure 5.
1
2
3
4
5
6
7
8
9
DCD
RS232
RXD
TXD
DTR
GND
DSR
RTS
CTS
RI
1
2
3
4
5
6
7
8
9
RTS+
RS422
TXD+
RXD+
CTS+
GND
RTSTXDRXDCTS-
Figure 5 Connector Pin-outs for 9-way D-type
PMCSIO4/8
Copyright 2000 BVM Ltd.
12
6.2 Rear I/O Connector
The 8 serial channels are also connected to the P4 connector, the pin-out is shown below:
P4 I/O
Pin RS232
Signal Name
RS422
Signal Name
RS422
Signal Name
RS232
Signal Name
Pin
1 Ch. 1 DCD Ch. 1 RTS+ Ch. 5 DCD Ch. 5 RTS+ 2
3 Ch. 1 DSR Ch. 1 RTS- Ch. 5 DSR Ch. 5 RTS- 4
5 Ch. 1 RXD Ch. 1 TXD+ Ch. 5 RXD Ch. 5 TXD+ 6
7 Ch. 1 RTS Ch. 1 TXD- Ch. 5 RTS Ch. 5 TXD- 8
9 Ch. 1 TXD Ch. 1 RXD+ Ch. 5 TXD Ch. 5 RXD+ 10
11 Ch. 1 CTS Ch. 1 RXD- Ch. 5 CTS Ch. 5 RXD- 12
13 Ch. 1 DTR Ch. 1 CTS+ Ch. 5 DTR Ch. 5 CTS+ 14
15 Ch. 1 RI Ch. 1 CTS- Ch. 5 RI Ch. 5 CTS- 16
17 Ch. 2 DCD Ch. 2 RTS+ Ch. 6 DCD Ch. 6 RTS+ 18
19 Ch. 2 DSR Ch. 2 RTS- Ch. 6 DSR Ch. 6 RTS- 20
21 Ch. 2 RXD Ch. 2 TXD+ Ch. 6 RXD Ch. 6 TXD+ 22
23 Ch. 2 RTS Ch. 2 TXD- Ch. 6 RTS Ch. 6 TXD- 24
25 Ch. 2 TXD Ch. 2 RXD+ Ch. 6 TXD Ch. 6 RXD+ 26
27 Ch. 2 CTS Ch. 2 RXD- Ch. 6 CTS Ch. 6 RXD- 28
29 Ch. 2 DTR Ch. 2 CTS+ Ch. 6 DTR Ch. 6 CTS+ 30
31 Ch. 2 RI Ch. 2 CTS- Ch. 6 RI Ch. 6 CTS- 32
33 Ch. 3 DCD Ch. 3 RTS+ Ch. 7 DCD Ch. 7 RTS+ 34
35 Ch. 3 DSR Ch. 3 RTS- Ch. 7 DSR Ch. 7 RTS- 36
37 Ch. 3 RXD Ch. 3 TXD+ Ch. 7 RXD Ch. 7 TXD+ 38
39 Ch. 3 RTS Ch. 3 TXD- Ch. 7 RTS Ch. 7 TXD- 40
41 Ch. 3 TXD Ch. 3 RXD+ Ch. 7 TXD Ch. 7 RXD+ 42
43 Ch. 3 CTS Ch. 3 RXD- Ch. 7 CTS Ch. 7 RXD- 44
45 Ch. 3 DTR Ch. 3 CTS+ Ch. 7 DTR Ch. 7 CTS+ 46
47 Ch. 3 RI Ch. 3 CTS- Ch. 7 RI Ch. 7 CTS- 48
49 Ch. 4 DCD Ch. 4 RTS+ Ch. 8 DCD Ch. 8 RTS+ 50
51 Ch. 4 DSR Ch. 4 RTS- Ch. 8 DSR Ch. 8 RTS- 52
53 Ch. 4 RXD Ch. 4 TXD+ Ch. 8 RXD Ch. 8 TXD+ 54
55 Ch. 4 RTS Ch. 4 TXD- Ch. 8 RTS Ch. 8 TXD- 56
57 Ch. 4 TXD Ch. 4 RXD+ Ch. 8 TXD Ch. 8 RXD+ 58
59 Ch. 4 CTS Ch. 4 RXD- Ch. 8 CTS Ch. 8 RXD- 60
61 Ch. 4 DTR Ch. 4 CTS+ Ch. 8 DTR Ch. 8 CTS+ 62
63 Ch. 4 RI Ch. 4 CTS- Ch. 8 RI Ch. 8 CTS- 64
This pin-out is compatible with the BVM cIO200 used with cPC200.
PMCSIO4/8
Copyright 2000 BVM Ltd.
13
6.3 PCI Connections
P1 and P2 provide the standard PCI signals on the PMC module, as defined in the PMC specification
and reproduced for reference purposes below.
P1 32 Bit PCI P2 32 Bit PCI
Pin Signal Name Signal Name Pin Pin Signal Name Signal Name Pin
1 TCK -12V 2 1 +12V TRST# 2
3 Ground INTA# 4 3 TMS TDO 4
5 INTB# INTC# 6 5 TDI Ground 6
7 BUSMODE1# +5V 8 7 Ground PCI-RSVD* 8
9 INTD# PCI-RSVD* 10 9 PCI-RSVD* PCI-RSVD* 10
11 Ground PCI-RSVD* 12 11 BUSMODE2# +3.3V 12
13 CLK Ground 14 13 RST# BUSMODE3# 14
15 Ground GNT# 16 15 3.3V BUSMODE4# 16
17 REQ# +5V 18 17 PME# Ground 18
19 V (I/O) AD[31] 20 19 AD[30] AD[29] 20
21 AD[28] AD[27] 22 21 Ground AD[26] 22
23 AD[25] Ground 24 23 AD[24] +3.3V 24
25 Ground C/BE[3]# 26 25 IDSEL AD[23] 26
27 AD[22] AD[21] 28 27 +3.3V AD[20] 28
29 AD[19] +5V 30 29 AD[18] Ground 30
31 V (I/O) AD[17] 32 31 AD[16] C/BE[2]# 32
33 FRAME# Ground 34 33 Ground PMC-RSVD 34
35 Ground IRDY# 36 35 TRDY# +3.3V 36
37 DEVSEL# +5V 38 37 Ground STOP# 38
39 Ground LOCK# 40 39 PERR# Ground 40
41 SDONE# SBO# 42 41 +3.3V SERR# 42
43 PAR Ground 44 43 C/BE[1]# Ground 44
45 V (I/O) AD[15] 46 45 AD[14] AD[13] 46
47 AD[12] AD[11] 48 47 Ground AD[10] 48
49 AD[09] +5V 50 49 AD[08] +3.3V 50
51 Ground C/BE[0]# 52 51 AD[07] PMC-RSVD 52
53 AD[06] AD[05] 54 53 +3.3V PMC-RSVD 54
55 AD[04] Ground 56 55 PMC-RSVD Ground 56
57 V (I/O) AD[03] 58 57 PMC-RSVD PMC-RSVD 58
59 AD[02] AD[01] 60 59 Ground PMC-RSVD 60
61 AD[00] +5V 62 61 ACK64# +3.3V 62
63 Ground REQ64# 64 63 Ground PMC-RSVD 64
PMCSIO4/8
Copyright 2000 BVM Ltd.
14
7. Programming
7.1 Windows® Driver Disc
BVM can supply a disk containing the OX16PCI954 and OX16C954 Serial Controller driver files for
Windows® from Oxford Semiconductor along with BVM installation files. The BVM installation files will
ensure that the correct driver configuration is selected upon installation.
Windows® 95, 98, NT4.0 and 2000 are currently supported using the serial ports in their enhanced
mode i.e. variable baud rates and large data FIFO's. Support for other operating systems should be
built in, as the UART's will appear to be standard 16C550 UART devices.
The standard drivers from Oxford Semiconductor for Windows® 95, 98 and NT4.0 do not support
RS485 driver enable (via the DTR line), power saving or power management. The source code is
available from Oxford Semiconductor, so modifications are possible. Control of the RS485 driver
enables, by setting bits in the OX16PCI954 and OX16C954 control registers could be based upon the
PCI subsystem ID enabling automatic identification of RS422/485 channels.
The standard Windows® 2000 drivers from Oxford Semiconductor do support RS485 driver enable
(via the DTR line), but not power saving or power management.
7.2 Configuration EEPROM
The EEPROM contains the BVM PCI Subsystem Vendor ID, which is 15C0 (hexadecimal) and the PCI
Subsystem ID's, which are 0110 (hexadecimal) for the OX16PCI954 with RS232 or 0111
(hexadecimal) for the OX16PCI954 with RS422 and 0112 (hexadecimal) for the OX16C954 with
RS232 or 0113 (hexadecimal) for the OX16C954 with RS422. Use of these ID's in addition to the
standard Oxford Semiconductor OX16PCI954 Serial Controller ID allows selection of the Oxford
Semiconductor driver via the BVM supplied installation files.
The EEPROM is supplied pre-programmed by BVM, but the OXPROM.EXE programming utility is
available from BVM if it proves necessary to reprogram the EEPROM memory device.
7.3 Diagnostic Software
Also supplied on the Windows® Driver Disc is a modified Oxford Semiconductor diagnostic utility for
the OX16PCI954 and OX16C954 Serial Controllers on the PMCSIO running under DOS. Follow the
utility instructions to check the PMCSIO.
The diagnostic utility requires serial loop-back connectors to function. The connections for these on 9way D-type connectors is shown below.
1
2
3
4
5
6
7
8
9
DCD
RS232
RXD
TXD
DTR
GND
DSR
RTS
CTS
RI
1
2
3
4
5
6
7
8
9
RTS+
RS422
TXD+
RXD+
CTS+
GND
RTSTXDRXDCTS-
Figure 6 Diagnostic Loop-back Connections
PMCSIO4/8
Copyright 2000 BVM Ltd.
15
8. Specification
8.1 On-Board Functions
8.1.1 OX16PCI954 PCI Serial Controller
PCI Quad UART; 128byte FIFO's; 16C550 compatible; RS232 1Mbps/RS422 12.5Mbps; EEPROM
interface; Local Bus; Xon/Xoff, CTS/RTS & DSR/DTR flow control.
8.1.2 OX16C954 Local Bus Serial Controller
Local Bus Quad UART; 128byte FIFO's; 16C550 compatible; RS232 1Mbps/RS422 12.5Mbps;
Xon/Xoff, CTS/RTS & DSR/DTR flow control.
8.1.3 Clocks & Serial Buffers
1.8432MHz and 50MHz UART clocks.
MAX3245E RS232 buffers - up to 1Mbps, 5V only, ±15kV ESD protected.
MAX1486 RS422/485 buffers - up to 12.5Mbps, 5V only, full/half duplex.
8.2 Board Configuration
LINKS: Clocks, No. Channels, Power Mode
SWITCHES: Clocks, UART Mode, Power Mode, PME, Buffer Termination & Mode
EEPROM: PCI Configuration
LED Indicators (8/16): TXD, RXD
8.3 PMC Interface
Bus Interface: PCI 2.1 compliant
Bus Width: 32-bit
Data Transfer: PCI 2.1 Bus Mastering
Interrupts: PCI INT #A & INT #B
Memory Address: BIOS assigned
PCI configuration: DWORD, WORD & BYTE
8.4 Operating Environment
Dimensions: 74.0mm x 149.0mm (single PMC size)
Power: +5V 360mA typical RS232
+5V 250mA typical RS422 half-duplex un-terminated
+5V 630mA typical RS422 half-duplex all terminated
Environmental: 0 to 70 °C, 95% humidity non-condensing (extended range to order)
PMCSIO4/8
Copyright 2000 BVM Ltd.
16
Appendix A - Data Sheets & Manual References
A.1 OX16PCI954 PCI Quad UART
Oxford Semiconductor OX16PCI954 Integrated Quad UART and PCI interface, OX16PCI954 Data
Sheet Revision 1.1 – Feb. 1999, Part No. OX16PCI954-TQC60-A
(http://www.oxsemi.com)
A.2 OX16C954 Local Bus Quad UART
Oxford Semiconductor OX16C954 High Performance Quad UART with 128 byte FIFOs, OX16C954
Data Sheet R2.2 – July 1999, Part No. OX16C954-PCC60-A
(http://www.oxsemi.com)
A.3 MAX3245E RS232 Buffers
Maxim MAX3224–MAX3227/MAX3244/MAX3245, 1µA Supply Current, 1Mbps, 3.0V to 5.5V, RS-232
Transceivers with AutoShutdown Plus, Data Sheet, 19-1289; Rev 1; 3/98
(http://www.maxim-ic.com)
A.4 MAX1486 RS422/485 Buffers
Maxim MAX1481/MAX1484/MAX1485/MAX1486 Software-Selectable, Half-/Full-Duplex, Slew-RateLimited, RS-485/RS-422 Transceivers in µMAX Package, Data Sheet, 19-1312; Rev 0; 10/97
(http://www.maxim-ic.com)
A.5 PMC Specification
IEEE Draft Standard Physical and Environmental Layers for PCI Mezzanine Cards: PMC
P1386.1/Draft 2.0 April 4, 1995 DS5316
(http://www.ieee.org)
PMCSIO4/8
Copyright 2000 BVM Ltd.
17
Appendix B - Baud Rate Settings
This Appendix lists the "higher speed" baud rates available on the PMCSIO8. This is using just the
extra divisor (1 to 31.875) and CLK "DIV 1" or "DIV 4" options available on the quad UART part.
A standard 16550 UART would use CLK "DIV 4" @ 1.8432MHz giving a top baud rate of 115.2Kbps
and generate other baud rates using the standard UART divisor register.
With the PMCSIO8 @ 50MHz, 27.125 would be placed in the pre-divisor register giving 50/27.125 ~
1.8432MHz making the UART appear to be a standard clocked UART.
CLK DIV 1 CLK DIV 4Clock
Divisor
50000 1843.2 50000 1843.2
1 12500.00 460.80 3125.00 115.20
1.125 11111.11 409.60 2777.78 102.40
1.25 10000.00 368.64 2500.00 92.16
1.375 9090.91 335.13 2272.73 83.78
1.5 8333.33 307.20 2083.33 76.80
1.625 7692.31 283.57 1923.08 70.89
1.75 7142.86 263.31 1785.71 65.83
1.875 6666.67 245.76 1666.67 61.44
2 6250.00 230.40 1562.50 57.60
2.125 5882.35 216.85 1470.59 54.21
2.25 5555.56 204.80 1388.89 51.20
2.375 5263.16 194.02 1315.79 48.51
2.5 5000.00 184.32 1250.00 46.08
2.625 4761.90 175.54 1190.48 43.89
2.75 4545.45 167.56 1136.36 41.89
2.875 4347.83 160.28 1086.96 40.07
3 4166.67 153.60 1041.67 38.40
3.125 4000.00 147.46 1000.00 36.86
3.25 3846.15 141.78 961.54 35.45
3.375 3703.70 136.53 925.93 34.13
3.5 3571.43 131.66 892.86 32.91
3.625 3448.28 127.12 862.07 31.78
3.75 3333.33 122.88 833.33 30.72
3.875 3225.81 118.92 806.45 29.73
4 3125.00 115.20 781.25 28.80
4.125 3030.30 111.71 757.58 27.93
4.25 2941.18 108.42 735.29 27.11
4.375 2857.14 105.33 714.29 26.33
4.5 2777.78 102.40 694.44 25.60
4.625 2702.70 99.63 675.68 24.91
4.75 2631.58 97.01 657.89 24.25
4.875 2564.10 94.52 641.03 23.63
5 2500.00 92.16 625.00 23.04
5.125 2439.02 89.91 609.76 22.48
5.25 2380.95 87.77 595.24 21.94
5.375 2325.58 85.73 581.40 21.43
5.5 2272.73 83.78 568.18 20.95
5.625 2222.22 81.92 555.56 20.48
5.75 2173.91 80.14 543.48 20.03
5.875 2127.66 78.43 531.91 19.61
6 2083.33 76.80 520.83 19.20
PMCSIO4/8
Copyright 2000 BVM Ltd.
18
6.125 2040.82 75.23 510.20 18.81
6.25 2000.00 73.73 500.00 18.43
6.375 1960.78 72.28 490.20 18.07
6.5 1923.08 70.89 480.77 17.72
6.625 1886.79 69.55 471.70 17.39
6.75 1851.85 68.27 462.96 17.07
6.875 1818.18 67.03 454.55 16.76
7 1785.71 65.83 446.43 16.46
7.125 1754.39 64.67 438.60 16.17
7.25 1724.14 63.56 431.03 15.89
7.375 1694.92 62.48 423.73 15.62
7.5 1666.67 61.44 416.67 15.36
7.625 1639.34 60.43 409.84 15.11
7.75 1612.90 59.46 403.23 14.86
7.875 1587.30 58.51 396.83 14.63
8 1562.50 57.60 390.63 14.40
8.125 1538.46 56.71 384.62 14.18
8.25 1515.15 55.85 378.79 13.96
8.375 1492.54 55.02 373.13 13.76
8.5 1470.59 54.21 367.65 13.55
8.625 1449.28 53.43 362.32 13.36
8.75 1428.57 52.66 357.14 13.17
8.875 1408.45 51.92 352.11 12.98
9 1388.89 51.20 347.22 12.80
9.125 1369.86 50.50 342.47 12.62
9.25 1351.35 49.82 337.84 12.45
9.375 1333.33 49.15 333.33 12.29
9.5 1315.79 48.51 328.95 12.13
9.625 1298.70 47.88 324.68 11.97
9.75 1282.05 47.26 320.51 11.82
9.875 1265.82 46.66 316.46 11.67
10 1250.00 46.08 312.50 11.52
10.125 1234.57 45.51 308.64 11.38
10.25 1219.51 44.96 304.88 11.24
10.375 1204.82 44.41 301.20 11.10
10.5 1190.48 43.89 297.62 10.97
10.625 1176.47 43.37 294.12 10.84
10.75 1162.79 42.87 290.70 10.72
10.875 1149.43 42.37 287.36 10.59
11 1136.36 41.89 284.09 10.47
11.125 1123.60 41.42 280.90 10.36
11.25 1111.11 40.96 277.78 10.24
11.375 1098.90 40.51 274.73 10.13
11.5 1086.96 40.07 271.74 10.02
11.625 1075.27 39.64 268.82 9.91
11.75 1063.83 39.22 265.96 9.80
11.875 1052.63 38.80 263.16 9.70
12 1041.67 38.40 260.42 9.60
12.125 1030.93 38.00 257.73 9.50
12.25 1020.41 37.62 255.10 9.40
12.375 1010.10 37.24 252.53 9.31
12.5 1000.00 36.86 250.00 9.22
12.625 990.10 36.50 247.52 9.12
12.75 980.39 36.14 245.10 9.04
12.875 970.87 35.79 242.72 8.95
13 961.54 35.45 240.38 8.86
PMCSIO4/8
Copyright 2000 BVM Ltd.
19
13.125 952.38 35.11 238.10 8.78
13.25 943.40 34.78 235.85 8.69
13.375 934.58 34.45 233.64 8.61
13.5 925.93 34.13 231.48 8.53
13.625 917.43 33.82 229.36 8.46
13.75 909.09 33.51 227.27 8.38
13.875 900.90 33.21 225.23 8.30
14 892.86 32.91 223.21 8.23
14.125 884.96 32.62 221.24 8.16
14.25 877.19 32.34 219.30 8.08
14.375 869.57 32.06 217.39 8.01
14.5 862.07 31.78 215.52 7.94
14.625 854.70 31.51 213.68 7.88
14.75 847.46 31.24 211.86 7.81
14.875 840.34 30.98 210.08 7.74
15 833.33 30.72 208.33 7.68
15.125 826.45 30.47 206.61 7.62
15.25 819.67 30.22 204.92 7.55
15.375 813.01 29.97 203.25 7.49
15.5 806.45 29.73 201.61 7.43
15.625 800.00 29.49 200.00 7.37
15.75 793.65 29.26 198.41 7.31
15.875 787.40 29.03 196.85 7.26
16 781.25 28.80 195.31 7.20
16.125 775.19 28.58 193.80 7.14
16.25 769.23 28.36 192.31 7.09
16.375 763.36 28.14 190.84 7.04
16.5 757.58 27.93 189.39 6.98
16.625 751.88 27.72 187.97 6.93
16.75 746.27 27.51 186.57 6.88
16.875 740.74 27.31 185.19 6.83
17 735.29 27.11 183.82 6.78
17.125 729.93 26.91 182.48 6.73
17.25 724.64 26.71 181.16 6.68
17.375 719.42 26.52 179.86 6.63
17.5 714.29 26.33 178.57 6.58
17.625 709.22 26.14 177.30 6.54
17.75 704.23 25.96 176.06 6.49
17.875 699.30 25.78 174.83 6.44
18 694.44 25.60 173.61 6.40
18.125 689.66 25.42 172.41 6.36
18.25 684.93 25.25 171.23 6.31
18.375 680.27 25.08 170.07 6.27
18.5 675.68 24.91 168.92 6.23
18.625 671.14 24.74 167.79 6.19
18.75 666.67 24.58 166.67 6.14
18.875 662.25 24.41 165.56 6.10
19 657.89 24.25 164.47 6.06
19.125 653.59 24.09 163.40 6.02
19.25 649.35 23.94 162.34 5.98
19.375 645.16 23.78 161.29 5.95
19.5 641.03 23.63 160.26 5.91
19.625 636.94 23.48 159.24 5.87
19.75 632.91 23.33 158.23 5.83
19.875 628.93 23.18 157.23 5.80
20 625.00 23.04 156.25 5.76
PMCSIO4/8
Copyright 2000 BVM Ltd.
20
20.125 621.12 22.90 155.28 5.72
20.25 617.28 22.76 154.32 5.69
20.375 613.50 22.62 153.37 5.65
20.5 609.76 22.48 152.44 5.62
20.625 606.06 22.34 151.52 5.59
20.75 602.41 22.21 150.60 5.55
20.875 598.80 22.07 149.70 5.52
21 595.24 21.94 148.81 5.49
21.125 591.72 21.81 147.93 5.45
21.25 588.24 21.68 147.06 5.42
21.375 584.80 21.56 146.20 5.39
21.5 581.40 21.43 145.35 5.36
21.625 578.03 21.31 144.51 5.33
21.75 574.71 21.19 143.68 5.30
21.875 571.43 21.07 142.86 5.27
22 568.18 20.95 142.05 5.24
22.125 564.97 20.83 141.24 5.21
22.25 561.80 20.71 140.45 5.18
22.375 558.66 20.59 139.66 5.15
22.5 555.56 20.48 138.89 5.12
22.625 552.49 20.37 138.12 5.09
22.75 549.45 20.25 137.36 5.06
22.875 546.45 20.14 136.61 5.04
23 543.48 20.03 135.87 5.01
23.125 540.54 19.93 135.14 4.98
23.25 537.63 19.82 134.41 4.95
23.375 534.76 19.71 133.69 4.93
23.5 531.91 19.61 132.98 4.90
23.625 529.10 19.50 132.28 4.88
23.75 526.32 19.40 131.58 4.85
23.875 523.56 19.30 130.89 4.83
24 520.83 19.20 130.21 4.80
24.125 518.13 19.10 129.53 4.78
24.25 515.46 19.00 128.87 4.75
24.375 512.82 18.90 128.21 4.73
24.5 510.20 18.81 127.55 4.70
24.625 507.61 18.71 126.90 4.68
24.75 505.05 18.62 126.26 4.65
24.875 502.51 18.52 125.63 4.63
25 500.00 18.43 125.00 4.61
25.125 497.51 18.34 124.38 4.59
25.25 495.05 18.25 123.76 4.56
25.375 492.61 18.16 123.15 4.54
25.5 490.20 18.07 122.55 4.52
25.625 487.80 17.98 121.95 4.50
25.75 485.44 17.90 121.36 4.47
25.875 483.09 17.81 120.77 4.45
26 480.77 17.72 120.19 4.43
26.125 478.47 17.64 119.62 4.41
26.25 476.19 17.55 119.05 4.39
26.375 473.93 17.47 118.48 4.37
26.5 471.70 17.39 117.92 4.35
26.625 469.48 17.31 117.37 4.33
26.75 467.29 17.23 116.82 4.31
26.875 465.12 17.15 116.28 4.29
27 462.96 17.07 115.74 4.27
PMCSIO4/8
Copyright 2000 BVM Ltd.
21
27.125 460.83 16.99 115.21 4.25
27.25 458.72 16.91 114.68 4.23
27.375 456.62 16.83 114.16 4.21
27.5 454.55 16.76 113.64 4.19
27.625 452.49 16.68 113.12 4.17
27.75 450.45 16.61 112.61 4.15
27.875 448.43 16.53 112.11 4.13
28 446.43 16.46 111.61 4.11
28.125 444.44 16.38 111.11 4.10
28.25 442.48 16.31 110.62 4.08
28.375 440.53 16.24 110.13 4.06
28.5 438.60 16.17 109.65 4.04
28.625 436.68 16.10 109.17 4.02
28.75 434.78 16.03 108.70 4.01
28.875 432.90 15.96 108.23 3.99
29 431.03 15.89 107.76 3.97
29.125 429.18 15.82 107.30 3.96
29.25 427.35 15.75 106.84 3.94
29.375 425.53 15.69 106.38 3.92
29.5 423.73 15.62 105.93 3.91
29.625 421.94 15.55 105.49 3.89
29.75 420.17 15.49 105.04 3.87
29.875 418.41 15.42 104.60 3.86
30 416.67 15.36 104.17 3.84
30.125 414.94 15.30 103.73 3.82
30.25 413.22 15.23 103.31 3.81
30.375 411.52 15.17 102.88 3.79
30.5 409.84 15.11 102.46 3.78
30.625 408.16 15.05 102.04 3.76
30.75 406.50 14.99 101.63 3.75
30.875 404.86 14.92 101.21 3.73
31 403.23 14.86 100.81 3.72
31.125 401.61 14.80 100.40 3.70
31.25 400.00 14.75 100.00 3.69
31.375 398.41 14.69 99.60 3.67
31.5 396.83 14.63 99.21 3.66
31.625 395.26 14.57 98.81 3.64
31.75 393.70 14.51 98.43 3.63
31.875 392.16 14.46 98.04 3.61
32 390.63 14.40 97.66 3.60
32.125 389.11 14.34 97.28 3.59
32.25 387.60 14.29 96.90 3.57
32.375 386.10 14.23 96.53 3.56
32.5 384.62 14.18 96.15 3.54
32.625 383.14 14.12 95.79 3.53
32.75 381.68 14.07 95.42 3.52
32.875 380.23 14.02 95.06 3.50
33 378.79 13.96 94.70 3.49
