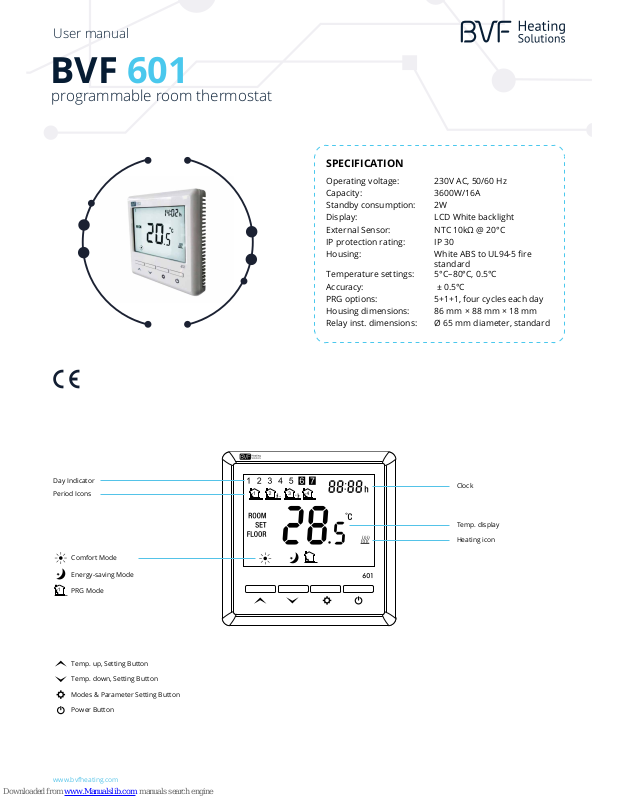

User manual
www.bvfheating.com
BVF 601
programmable room thermostat
SPECIFICATION
Operating voltage: 230V AC, 50/60 Hz
Capacity: 3600W/16A
Standby consumption: 2W
Display: LCD White backlight
External Sensor: NTC 10kΩ @ 20°C
IP protection rating: IP 30
Housing: White ABS to UL94-5 re
standard
Temperature settings: 5°C–80°C, 0.5°C
Accuracy: ± 0.5°C
PRG options: 5+1+1, four cycles each day
Housing dimensions: 86 mm × 88 mm × 18 mm
Relay inst. dimensions: Ø 65 mm diameter, standard
Day Indicator
Comfort Mode
Temp. up, Setting Button
Clock
Temp. display
Heating icon
Period Icons
Energy-saving Mode
Temp. down, Setting Button
PRG Mode
Modes & Parameter Setting Button
Power Button
