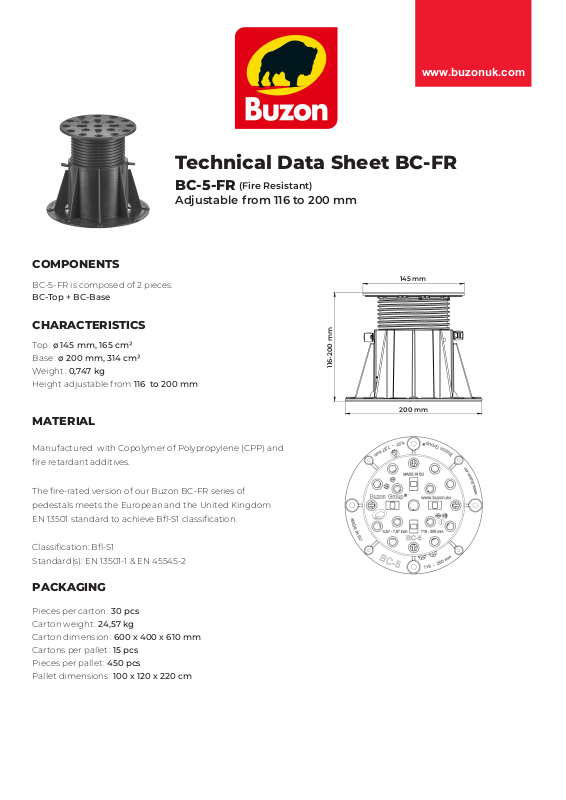

Technical Data Sheet BC-FR
BC-5-FR
(Fire Resistant)
Adjustable from 116 to 200 mm
COMPONENTS
BC-5-FR is composed of 2 pieces:
BC-Top + BC-Base
CHARACTERISTICS
Top : ø 145 mm, 165 cm²
se : ø 200 mm, 314 cm²
Ba
Weight : 0,747 kg
Height adjustable from 116 to 200 mm
MATERIAL
Manufactured with Copolymer of Polypropylene (CPP) and
fire retardant additives.
145 mm
116-200 mm
200 mm
The fire-rated version of our Buzon BC-FR series of
pedestals meets the European and the United Kingdom
EN 13501 standard to achieve Bfl-S1 classification.
Classification: Bfl-S1
Standard(s): EN 13501-1 & EN 45545-2
PACKAGING
Pieces per carton : 30 pcs
Carton weight : 24,57 kg
Carton dimension : 600 x 400 x 610 mm
Cartons per pallet : 15 pcs
Pieces per pallet : 450 pcs
Pallet dimensions : 100 x 120 x 220 cm
Page 2
APPLICATIONS
Rectangular Tabs
Buzon BC-FR is manufactured with Fire Retardant
additives and can be used, depending on the local
requirements, for a wider range of applications, such as
Height:
17 mm
terraces, pool decks, and water features and in landscape
areas and on rooftops.
Thickness:
2, 3, 4.5, 6 and 8mm
Circular Tabs
Height:
17 mm
Thickness:
2, 3, 4.5, 6 and 8mm
COMPRESSION TEST*
Performed on the full ( 1/1 ) and quarter ( 1/4 ) surface of the head ( 1kN= 100 kg= 224,8 lbF )
Position Height ( mm )
Breaking load
( kN )
Breaking load
( lbF )
Height:
25 mm
Thickness:
2, 4.5, 6, 8 and 10mm
Height:
25 mm
Thickness:
2, 4.5, 6, 8 and 10mm
1/1
1/4
200
200
14,76
( 1476 kg )
7,50 ( 750 kg )
3318
1686
* Tests carried out by SIRRIS
SAFETY INSTRUCTIONS
Buzon pedestals are designed to support external raised oors for pedestrian trafc only and are not designed to
support or be subjected to moving and/or vibrating machinery & equipment, including maintenance, cleaning
vehicles, automobiles and other similar equipment.
[email protected] +44 (0)20 8614 0874
Buzon has a policy of continuous improvement and reserves the right to modify, revise or change the above
specications without notice. This brochure is for descriptive purpose only and is based on the product as on the
date of publication of this information.
