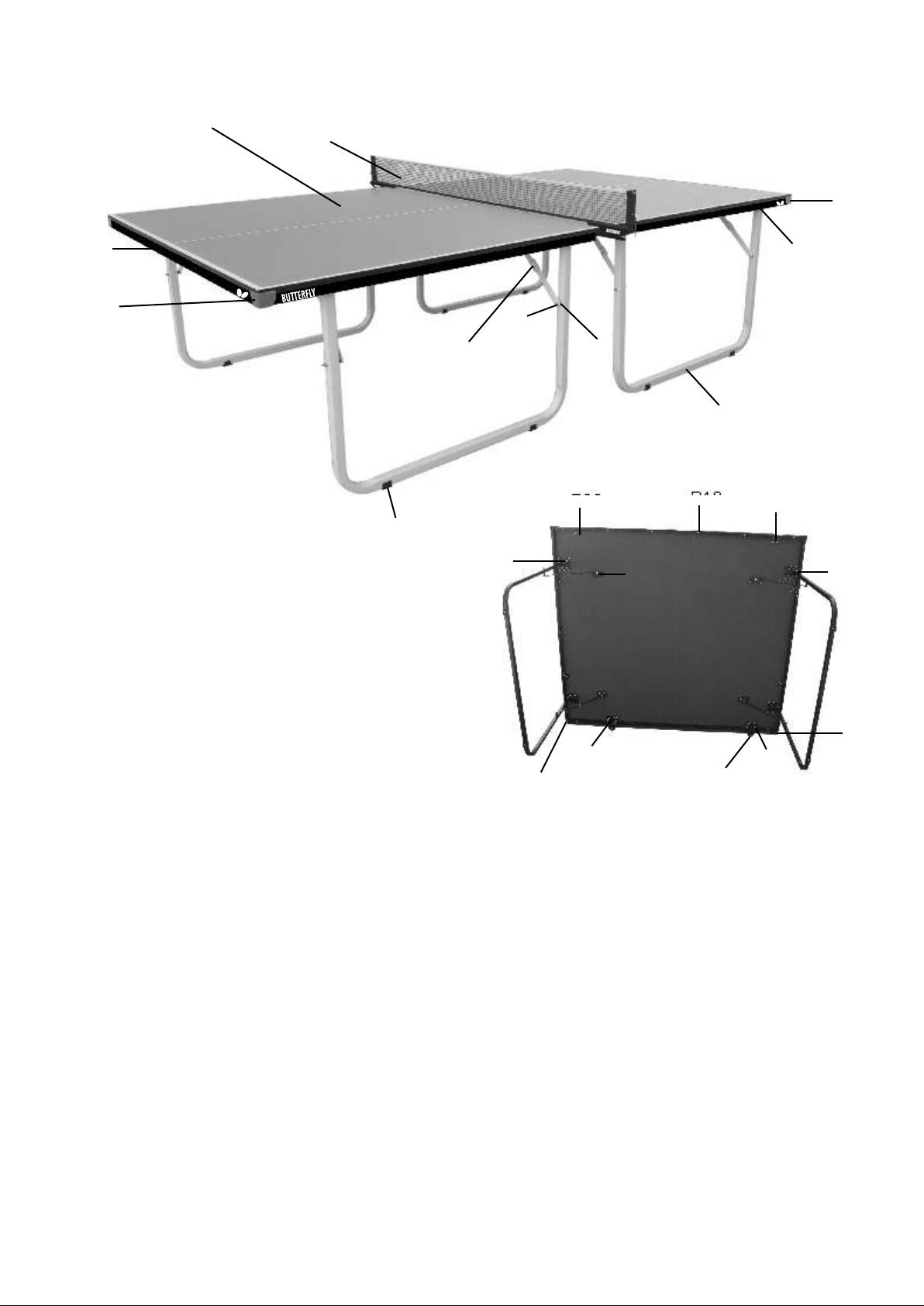

PART LIST
pa
Com
c 19
P17
pact 19
m
Co
t
P3
P21
P9
P4
P5
P12
P10
P11
P20
P6
P14
P19
P22
P8
P13
P18
P15
P7
TABLE TOP - 1525×1370×18 MM - 2 NOS.
1.
P
END FRAME PIPE & INNER FRAME PIPE - 1490×29×19MM - 4 NOS.
2.
P
SIDE FRAME PIPE - 1310×29×19MM - 4 NOS.
3.
P
HINGES TO CLOSE & OPEN LEGS - 360×19×4MM - 8 NOS.
4.
P
5.
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
BRACKET TO ATTACH LEGS WITH TABLE TOP - 78×18MM - 24 NOS.
6.
BRACKET TO ATTACH WHEEL CLIP WITH TABLE TOP - 100×18MM - 4 NOS.
7.
WHEELS - 50MM - 4 NOS.
8.
BRACKET TO ATTACH FRAME PIPE WITH TABLE TOP - 38×38MM - 12 NOS.
9.
PLASTIC CAP FOR LEGS - 32MMSQ - 8 NOS.
10.
PLASTIC L-CORNER TO ATTACH SIDE FRAME WITH INNER FRAME - 29×19MM - 4 NOS.
11.
PLASTIC SPACER B/W LEGS & HINGES - 18MM - 8 NOS.
12.
MACHINE SCREW TO ATTACH HINGES WITH LEGS - 50×6MM - 8 NOS.
13.
MACHINE SCREW TO ATTACH LEGS WITH BRACKET - 42×6MM - 8 NOS.
14.
MACHINE SCREW TO ATTACH LEGS WITH BRACKET & HINGES - 19×6MM - 8 NOS.
15.
NUT, BOLT & WASHER TO ATTACH WHEELS WITH INNER FRAME PIPE - 38×6MM - 8 NOS.
16.
NET & POST - 1 SET
17.
OUTER CORNER -40×40MM - 4 NOS.
18.
POST PATTI - 50×25×2MM - 4 NOS.
19.
SCREW - 8×32 - 44 NOS.
20.
SCREW - 8×13 - 216 NOS.
21.
SCREW - 6×13 - 12 NOS.
22.
LESG - 32 MMSQ
