Page 1

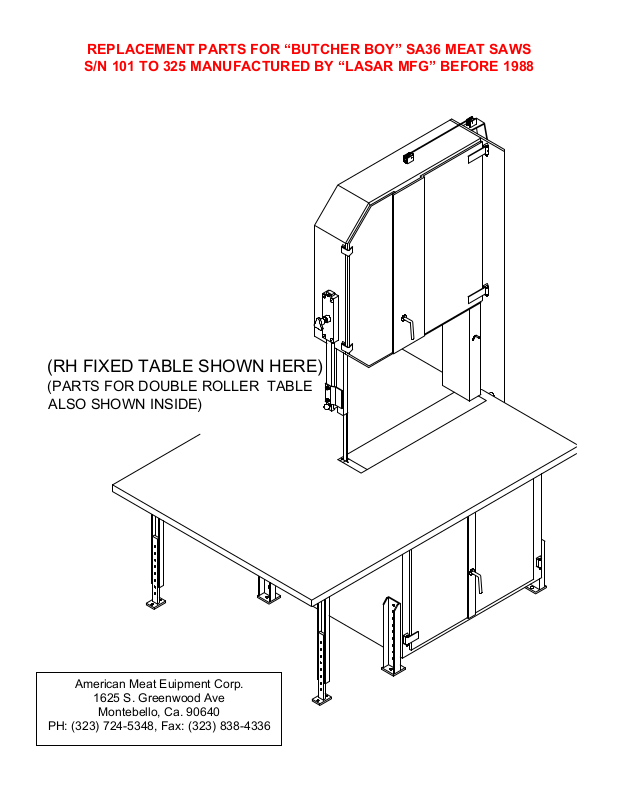

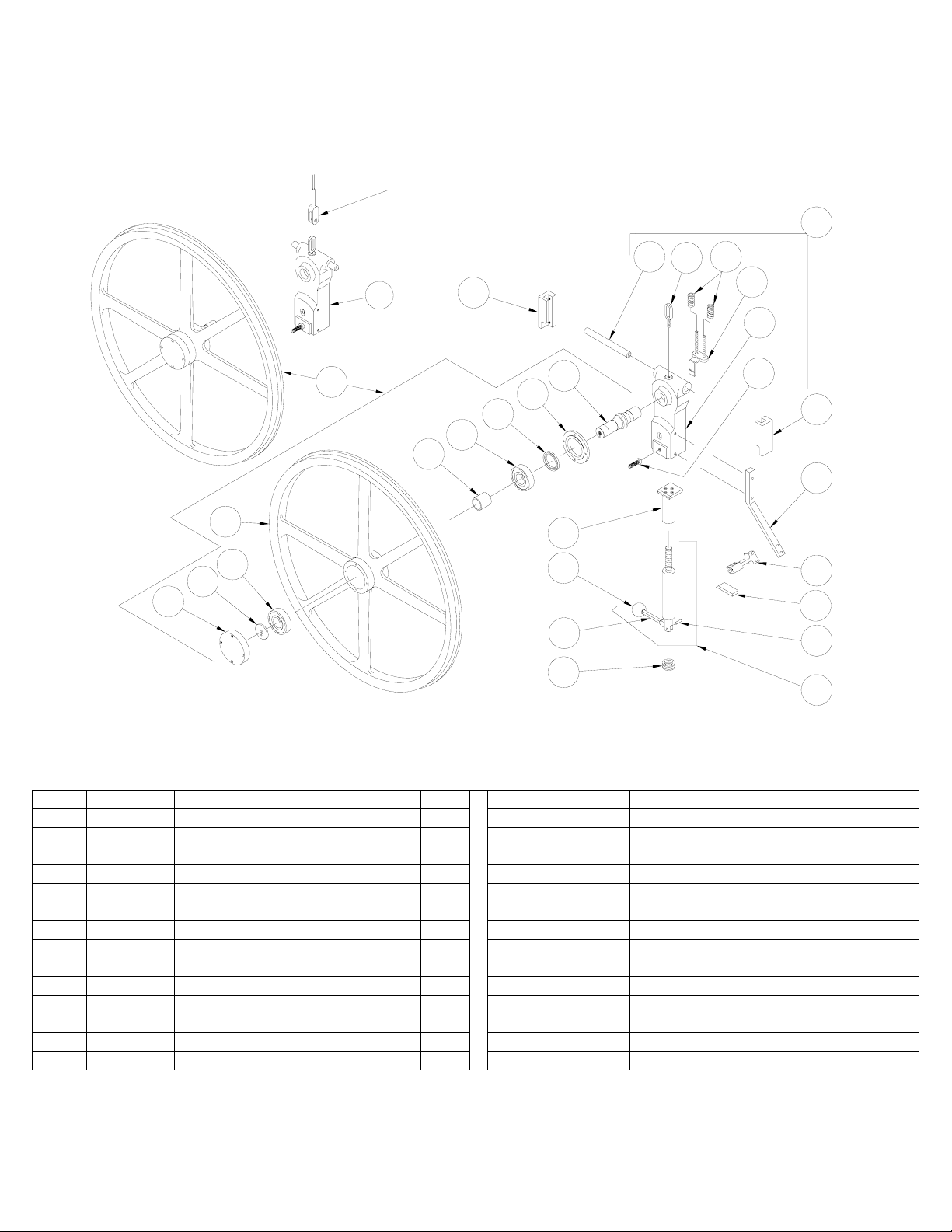

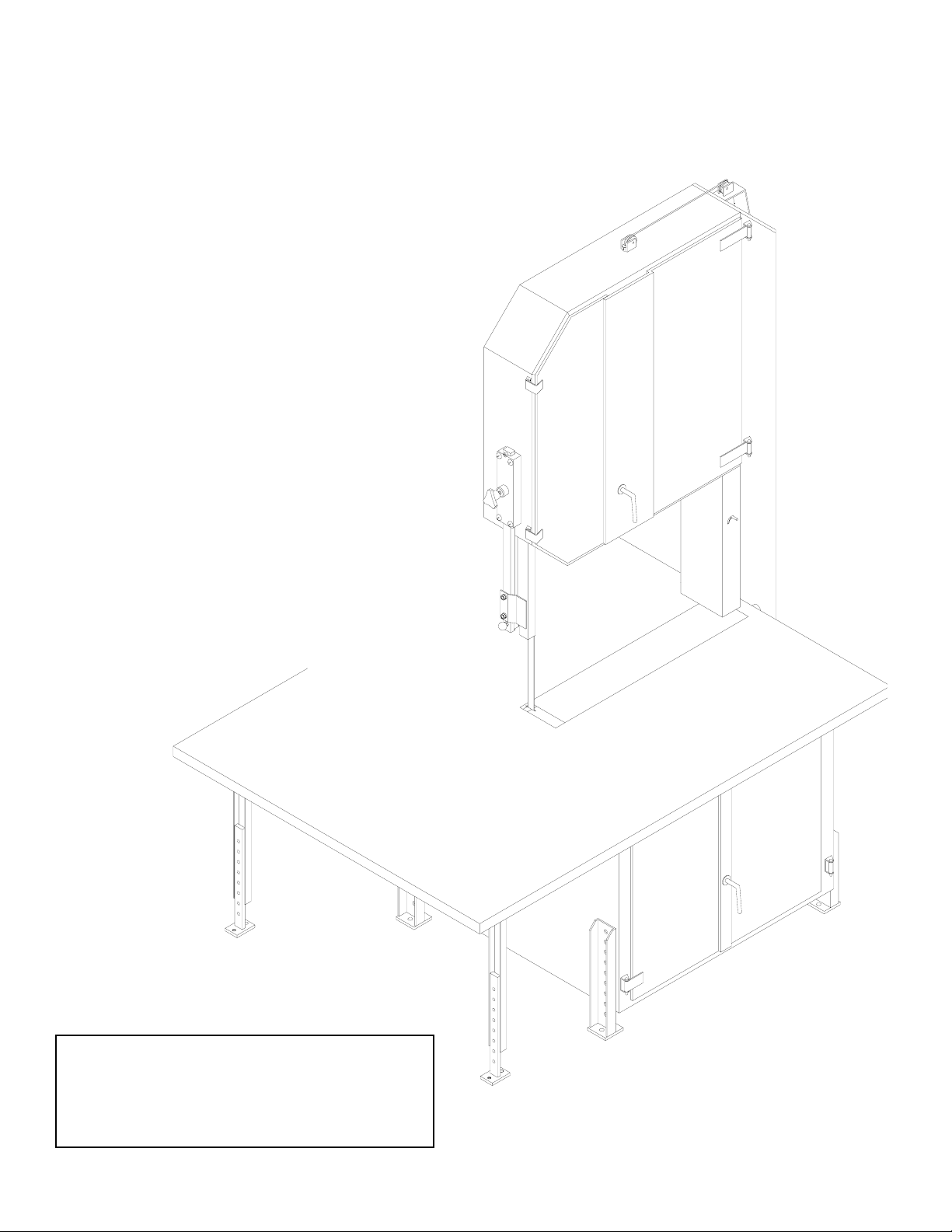

REPLACEMENT PARTS FOR “BUTCHER BOY” SA36 MEAT SAWS
S/N 101 TO 325 MANUFACTURED BY “LASAR MFG” BEFORE 1988
(RH FIXED TABLE SHOWN HERE)
(PARTS FOR DOUBLE ROLLER TABLE
ALSO SHOWN INSIDE)
American Meat Euipment Corp.
1625 S. Greenwood Ave
Montebello, Ca. 90640
PH: (323) 724-5348, Fax: (323) 838-4336
Page 2
REPLACEMENT PARTS FOR “BUTCHER BOY” SA36 MEAT SAWS
S/N 101 TO 325 MANUFACTURED BY “LASAR MFG” BEFORE 1988
FOR CABLE
AND ROLLER ASSY
SEE P5
10
17
LH
11
12
13
14
15
B
1
7
4
6
9
8
16
RH
2
B
5
4
3
27
26
25
24
10
18
B
19
20
21
22
B
23
ITEM PART# DESCRIPTION QTY ITEM PART# DESCRIPTION QTY
1B 0036040 SA36 UPPER WHEEL ASSY 1 15 0030013 HANGER (RH & LH SAWS) 1
2 0030086 WHEEL COVER 1 16 0030065 ADJUSTING SCREW 1
3 0030087S WASHER 1 17 0030175S SS GUIDE BLOCK LH 1
4 0090306 BEARING 2 18 0030176S SS GUIDE BLCOK RH 1
5B 0036041 SA36 UPPER WHEEL 1 19B 0036130 SA36 SCRAPER BAR 1
6 0030091 SPACER 1 20 0030097 SCRAPER HOLDER 1
7 0090417 SEAL 1 21 0030092 SCRAPER 1
8 0030085 SEAL CUP 1 22 DP-04-14 PIN 1
9 0030084 UPPER WHEEL SHAFT 1 23B 0036114S SA36 SS TENSION SCR. ASSY 1
10 0030066 UPPER WHEEL HANGER ASSY 1 24 0090318 THRUST BEARING 1
11 0030074 HANGER PIN 1 25 0020208S SS HANDLE 1
12 0030510 EYE BOLT 1 26 0090638 KNOB 1
13 0010082 SPRING 2 27 0030078 TENISON NUT ASSEMBLY 1
14 0030071S TENSION INDICATOR 1
Page 1
Page 3
REPLACEMENT PARTS FOR “BUTCHER BOY” SA36 MEAT SAWS
S/N 101 TO 325 MANUFACTURED BY “LASAR MFG” BEFORE 1988

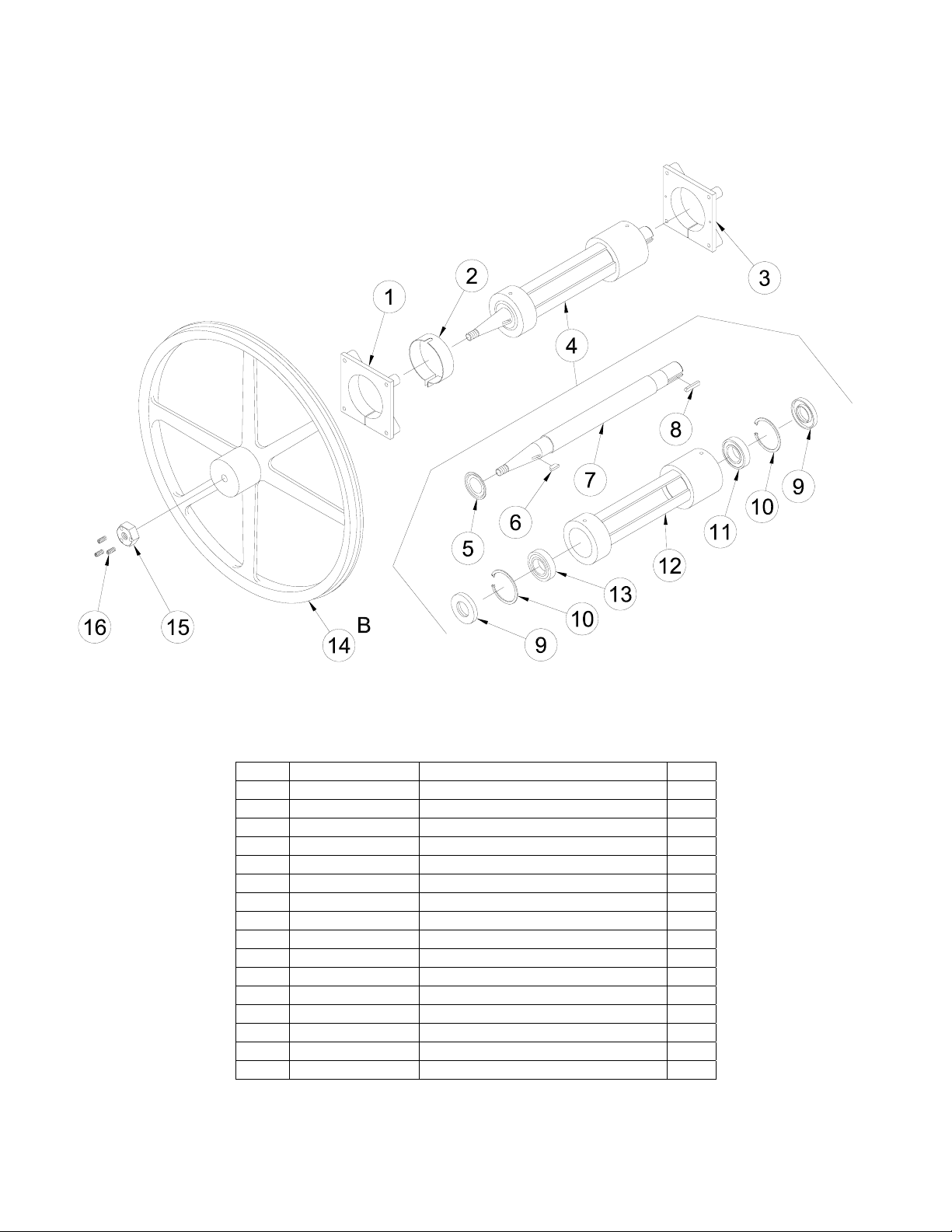

LOWER WHEEL & HOUSING ASSEMBLY
ITEM PART# DESCRIPTION QTY
1 0030016 HOUSING SUPPORT WHEEL 1
2 0030512 BEARING COVER 1
3 0030052 HOUSING SUPPORT PULLEY 1
4 0030230 SHAFT & HOUSING ASSEMBLY 1
5 0090420 NILOS RING 1
6 0090649 WOOD RUFF KEY 1
7 0030014 LOWER WHEEL SHAFT 1
8 0059247-7 KEY 1
9 0090437 SEAL 2
10 0090226 RETAING RING 2
11 0090313 BALL BEARING 1
12 0030015 BEARING HOUSING 1
13 0090315 ROLLER BEARING 1
14B 0036046 SA36 LOWER WHEEL 1
15 0036181 WHEEL NUT 1
16 SHSS-28-12-SS SET SCREW 3
Page 2
Page 4
REPLACEMENT PARTS FOR “BUTCHER BOY” SA36 MEAT SAWS
S/N 101 TO 325 MANUFACTURED BY “LASAR MFG” BEFORE 1988

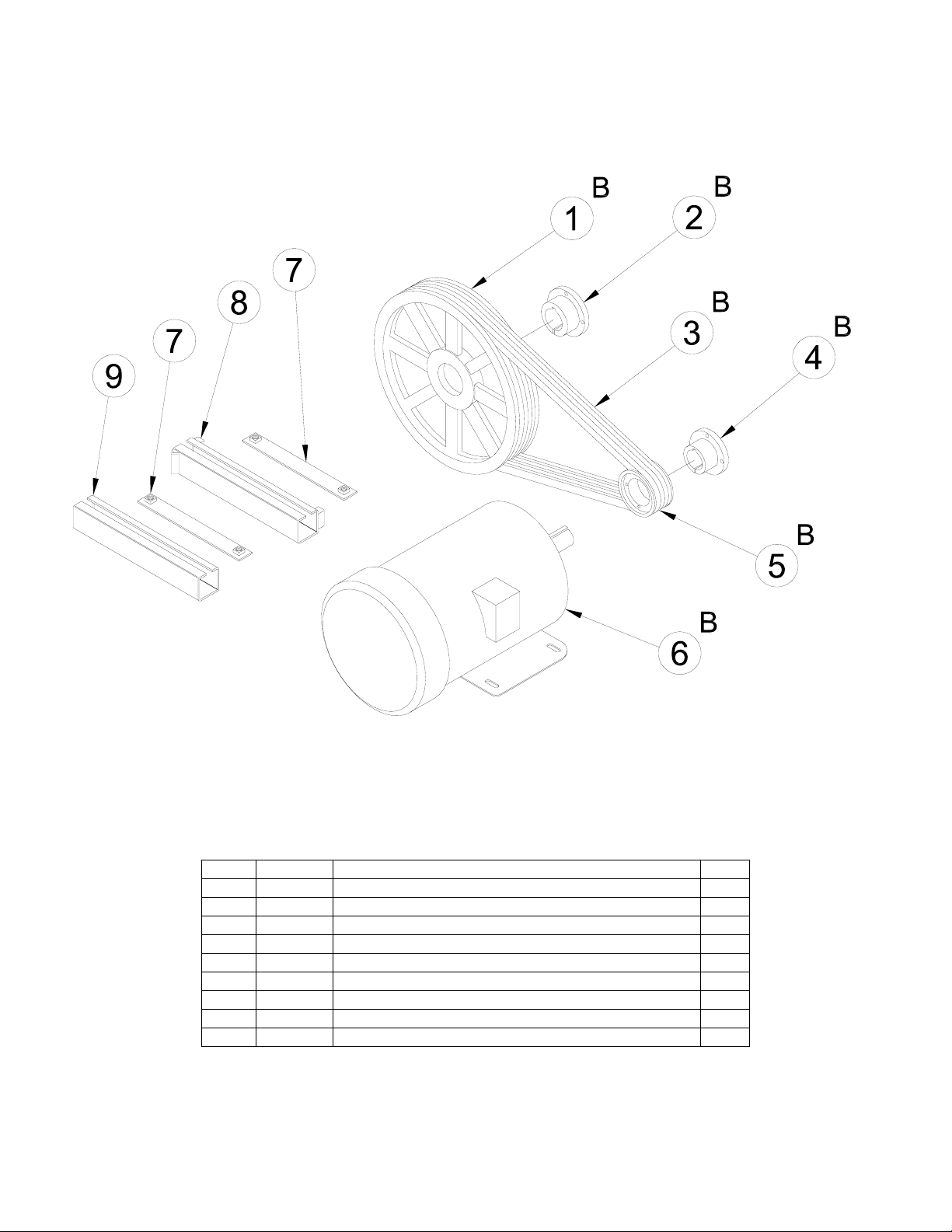

MOTOR & DRIVE COMPONTENTS
ITEM PART# DESCRIPTION QTY
1B 0090159 SA36 DRIVEN PULLEY (PURCHASE W#2B) 1
2B 0090171 SA36 HUB DRIVEN PULLEY (PURCHASE W#1B) 1
3B 0090514 SA36 BELT 4
4B 0090149 SA36 HUB MOTOR PULLEY (PURCHASE W#5B) 1
5B 0090114 SA36 MOTOR PULLEY (PURCHASE W#4B) 1
6B 0092265 SA36 10 HP TEFC MOTOR 230V/460V-3PH-60Hz 1
7 0030226 NUT PLATE 2
8 0030242 MOTOR RAIL INNER 1
9 0030241 MOTRO RAIL OUTTER 1
Page 3
Page 5
REPLACEMENT PARTS FOR “BUTCHER BOY” SA36 MEAT SAWS
S/N 101 TO 325 MANUFACTURED BY “LASAR MFG” BEFORE 1988

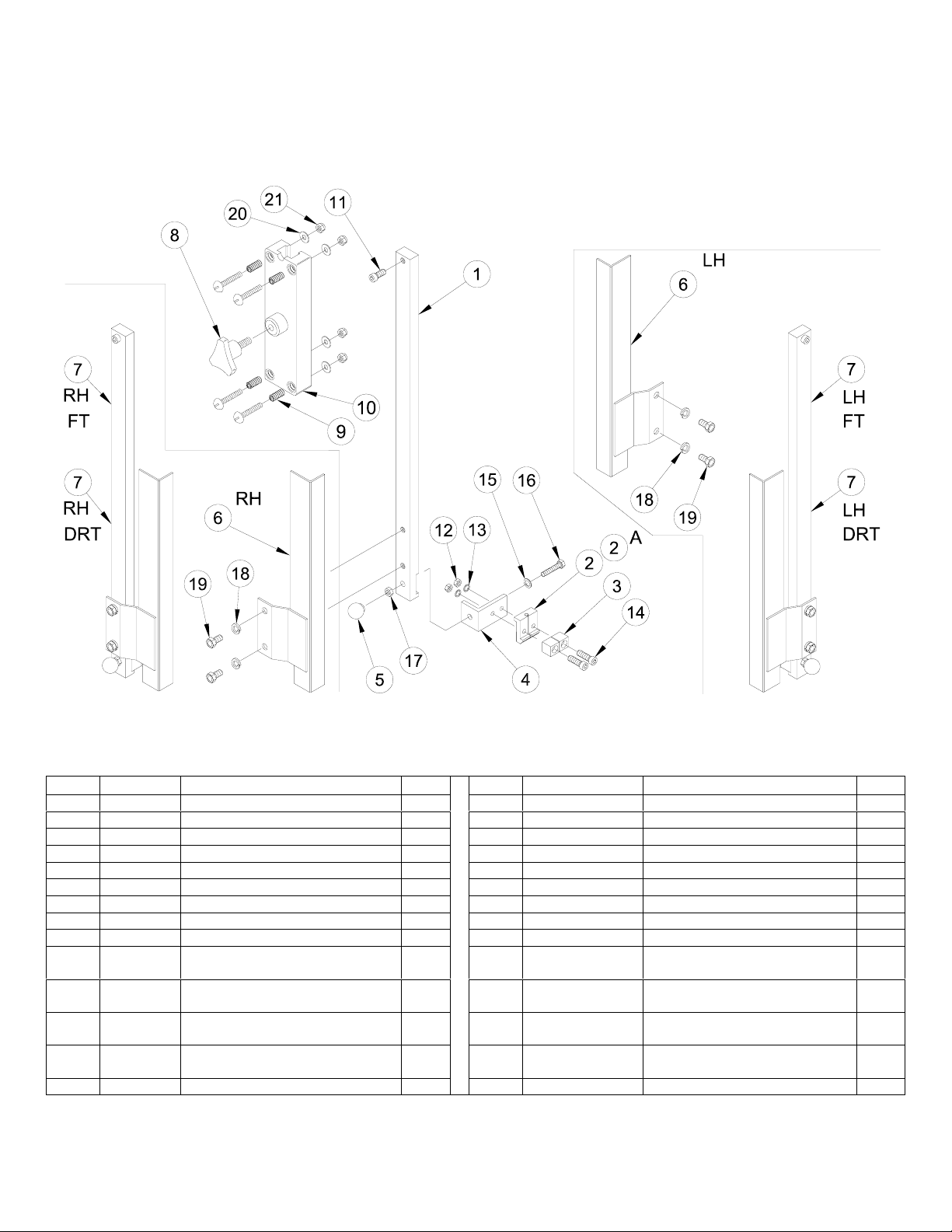

BAR GUIDE ASSEMBLY RH & LH FIXED TABLE
ITEM PART# DESCRIPTION QTY ITEM PART# DESCRIPTION QTY
1 0030121S SS BAR GUIDE F.T. 1 9 0030245S SS ADJUSTING SCREW 4
1 0030251S SS BAR GUIDE D.R.T. 1 10 0030119 ADJUSTING BAR GUIDE 1
2 0030178 BLOCK SUPPORT W#2A 1 11 SHCS-23-12-SS SOCKET HD CAP SCERW 1
2A 0030209 CARBONIZED INSERT 1 12 HN-19-SS HEX NUT SS 2
3 0030090 GUIDE BLOCK 2 13 ISW-04-SS INT. SHAKE PROOF WASHER 2
4 0030122S MOUNT GUIDE BLOCK 1 14 SHCS-19-20-SS SOCKET HD CAP SCREW 2
5 0090638 BALL KNOB 1 15 FW-05-SS FLAT WASHER SS 1
6-RH 0030249S RH BLADE GUARD FT OR DRT 1 16 HHCS-22-24-SS HEX HD CAP SCREW 1
6-LH 0030250S LH BLADE GUARD FT OR DRT 1 17 HH-22-SS HEX NUT SS 1
7-RH
7-LH
7-RH
DRT
7-LH
DRT
0030246S
FT
0030247S
FT
0030447S
0030449S
8 0030258 HAND WHEEL & STUD 1
RH BAR GUIDE ASSY FT
USES #1 THRU 6-RH
LH BAR GUIDE ASSY DRT
USES #1 THRU 6-LH
RH BAR GUIDE ASSY DRT
USES #1 THRU 6-RH
LH BAR GUIDE ASSY DRT
USES #1 THRU 6-LH
1 18 ISW-06-SS INT. SHAKE PROOF WASHER 1
1 19 HHCS-23-10-SS HEX HD CAP SCREW 2
1 20 FW-05-SS FLAT WASER SS 4
1 21 HH-NI-21-SS NYLOCK HEX NUT SS 4
Page 4
Page 6
REPLACEMENT PARTS FOR “BUTCHER BOY” SA36 MEAT SAWS
S/N 101 TO 325 MANUFACTURED BY “LASAR MFG” BEFORE 1988
W

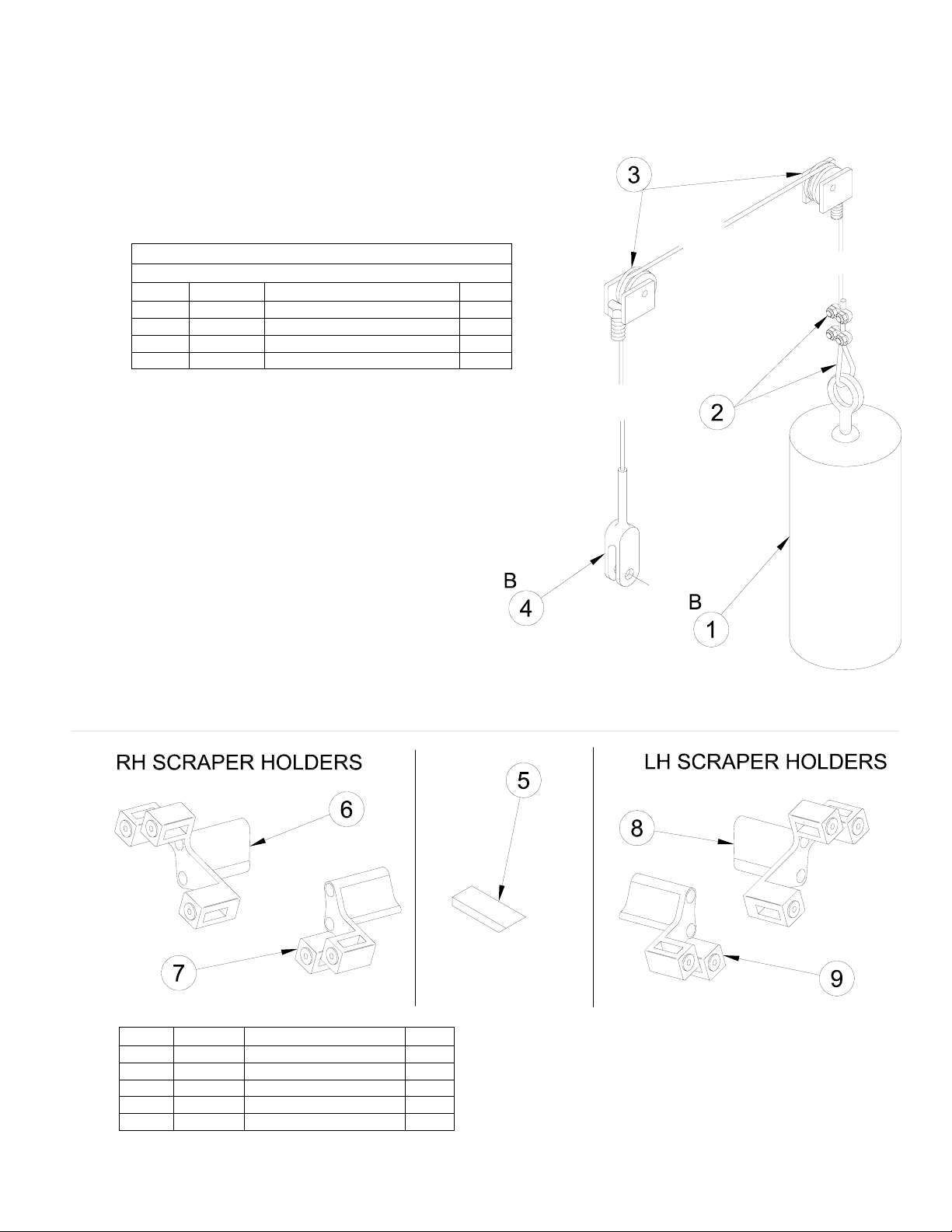

COUNTER WEIGHT AND CABLE ASSEMBLY
ITEM PART# DESCRIPTION QTY
1B 0036118 SA36 C’WEIGHT 1
2 0095007 CABLE CLIPS & THIMBLE 1
3 0030294 CABLE ROLLER 2
4B 0036116 SA36 CABLE 1
ITEM PART# DESCRIPTION QTY
5 0030092 FIBER SCRAPER 5
6 0030095 RH FRONT SCRAPER 1
7 0030096 RH REAR SCRAPER 1
8 0030094 LH FRONT SCRAPER 1
9 0090098 LH REAR SCRAPER 1
Page 5
Page 7
REPLACEMENT PARTS FOR “BUTCHER BOY” SA36 MEAT SAWS
S/N 101 TO 325 MANUFACTURED BY “LASAR MFG” BEFORE 1988

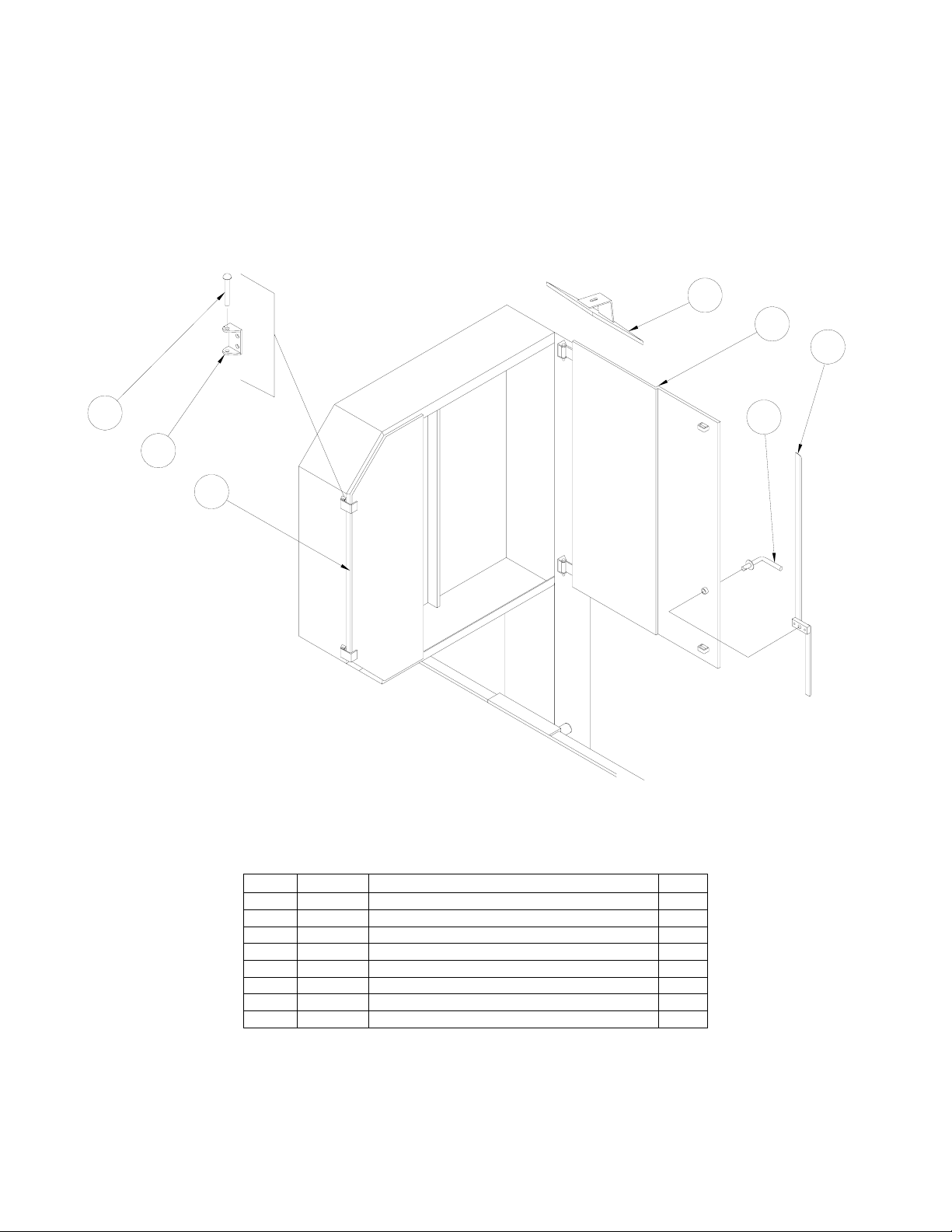

COVERS & UPPER DOORS W/COMPONTENTS
4
1
2
B
3
B
5
7
B
6
ITEM PART# DESCRIPTION QTY
1 0030758 SS HINGE PIN-UPPER & LOWER DOOR 8
2 0010566 SS HINGE HALF-UPPER & LOWER DOOR 8
3B 0036259 SA36 SS FRONT UPPER DOOR HALF 1
4 0030616 SS COLUMN COVER 1
5B 0036257 RH SA36 SS REAR UPPER DOOR HALF 1
5B 0036258 LH SA36 SS REAR UPPER DOOR HALF 1
6B 0036286 SA36 UPPER DOOR BOLT ASSEMBLY 1
7 0030628 SS HANDLE 2
Page 6
Page 8
REPLACEMENT PARTS FOR “BUTCHER BOY” SA36 MEAT SAWS
S/N 101 TO 325 MANUFACTURED BY “LASAR MFG” BEFORE 1988

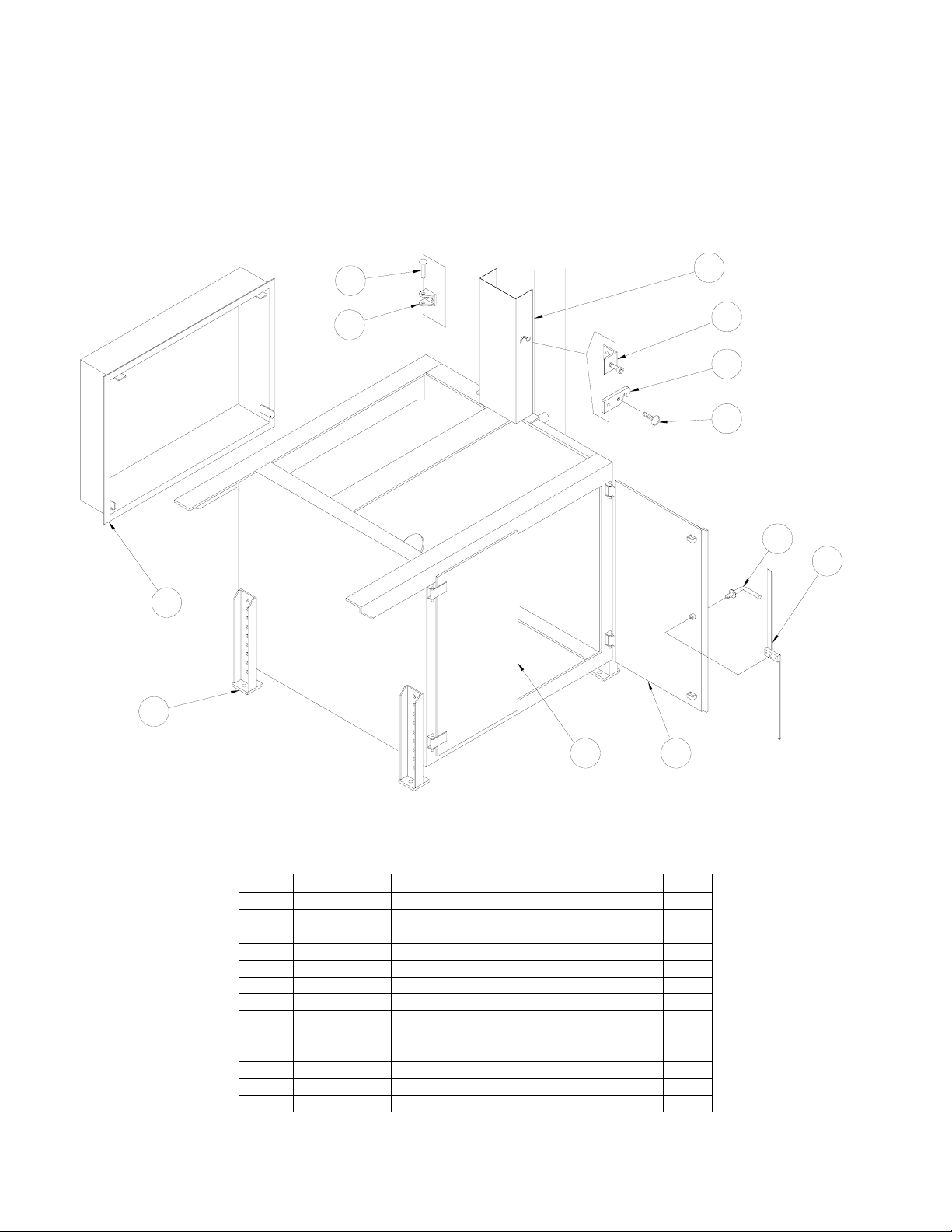

COVERS, LEGS & LOWER DOORS W/COMPONTENTS
1
5
2
3
4
6
B
12
7
B
8
11
B
ITEM PART# DESCRIPTION QTY
1 0010571 SS HINGE HALF-SAW BLADE DOOR 2
2 00160672 SS HINGE PIN-SAW BLADE DOOR 2
3 0030619 LATCH ANGLE 1
4 0030618 SS CATCH 1
5-R 0030601 RH SAW BLADE DOOR FIXED TABLE 1
5-L 0030602 LH SAW BLADE DOOR FIXED TABLE 1
6 TS-21-16-SS THUMB SCREW SS 1
7 0030628 SS HANDLE LOWER DOOR 1
8B 0036289 SA36 LOWER DOOR BOLT ASSEMBLY 1
*9B 0036280 SA36 SS LOWER DOOR HALF 1
*10B 0036285 SA36 SS LOWER DOOR HALF 1
11 0030515 SS LEG CABINET 4
12B 0036254 SA36 SS BELT DRIVE COVER 1
* SEE PAGE 9 FOR SA36 DOUBLE ROLLER TABLES LOWER DOORS
B
910
Page 7
Page 9
REPLACEMENT PARTS FOR “BUTCHER BOY” SA36 MEAT SAWS
S/N 101 TO 325 MANUFACTURED BY “LASAR MFG” BEFORE 1988

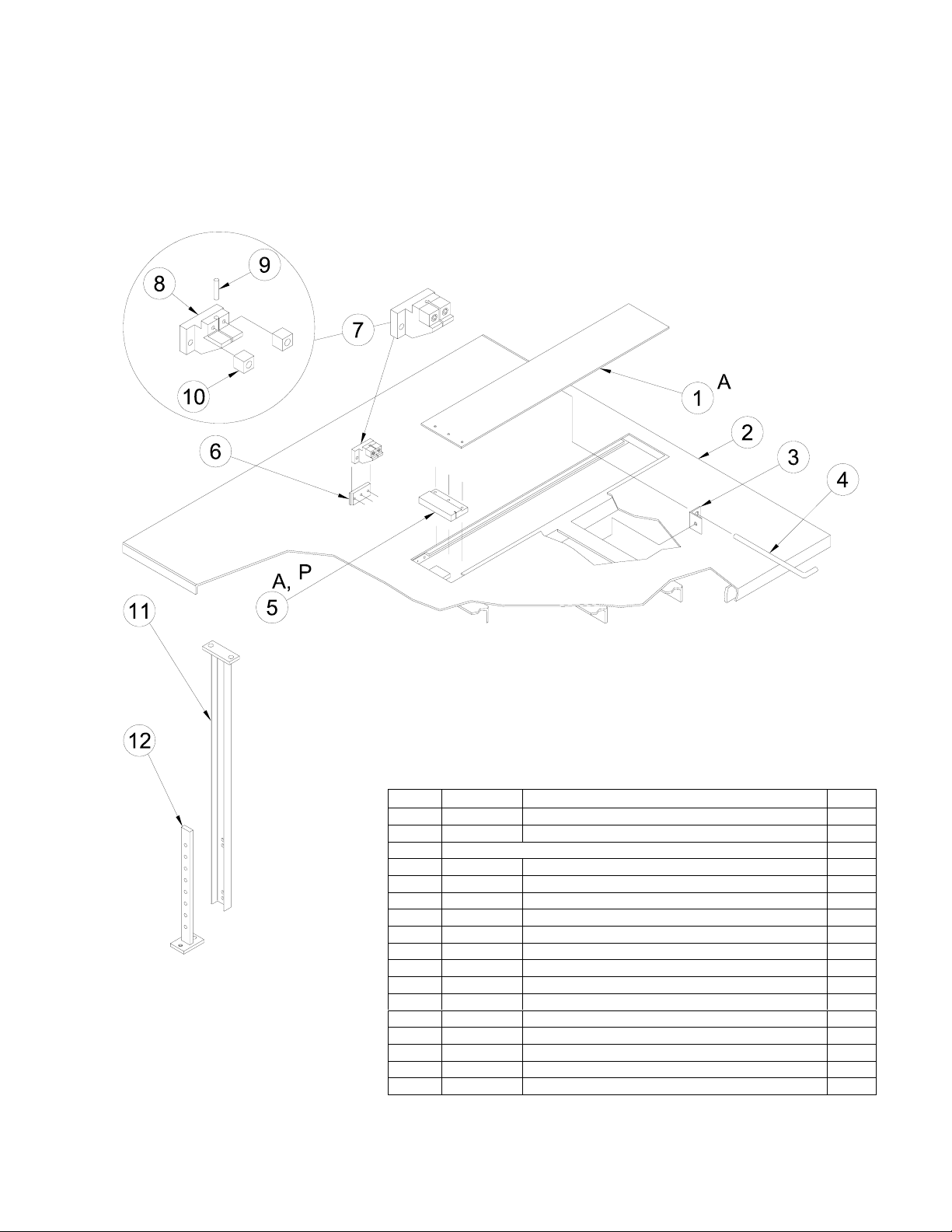

STANDARD RH & LH BEEF & PORK TABLE ASSEMBLY
ITEM PART# DESCRIPTION QTY
1B-R 0036083 SA36 RH REMOVABLE TABLE-FT 1
1B-L 0036084 SA36 LH REMOVABLE TABLE-FT 1
2 SA36 FIXED TABLE (SPECIFY SIZE & RH OR LH) 1
3-R 0036366 SS RH ROD GUIDE 1
3-L 0036367 SS LH ROD GUIDE 1
4 0036369 SS TABLE LOCK ROD 1
5A-R 0030228 BLADE BLOCK RH SAW ALUMINUM 1
5A-L 0030225 BLADE BLOCK LH SAW ALUMINUM 1
5P-R 0030228P BLADE BLOCK RH SAW (HARD PLASTIC) 1
5P-L 0030225P BLADE BLOCK LH SAW (HARD PLASTIC) 1
6 0030116S SS LOWER GUIDE PAD 1
7 0030117 LOWER GUIDE BRACKET W/PIN & BLOCKS 1
8 0030134 LOWER GUIDE BRACKET 1
9 0030209 CARBIDE PIN 1
10 0030090 GUIDE BLOCK 2
11 0036132S SA36 SS TABLE SUPPORT LEG 3
12 0030420S SS TABLE ADJUSTING LEG 4
Page 8
Page 10
REPLACEMENT PARTS FOR “BUTCHER BOY” SA36 MEAT SAWS
S/N 101 TO 325 MANUFACTURED BY “LASAR MFG” BEFORE 1988

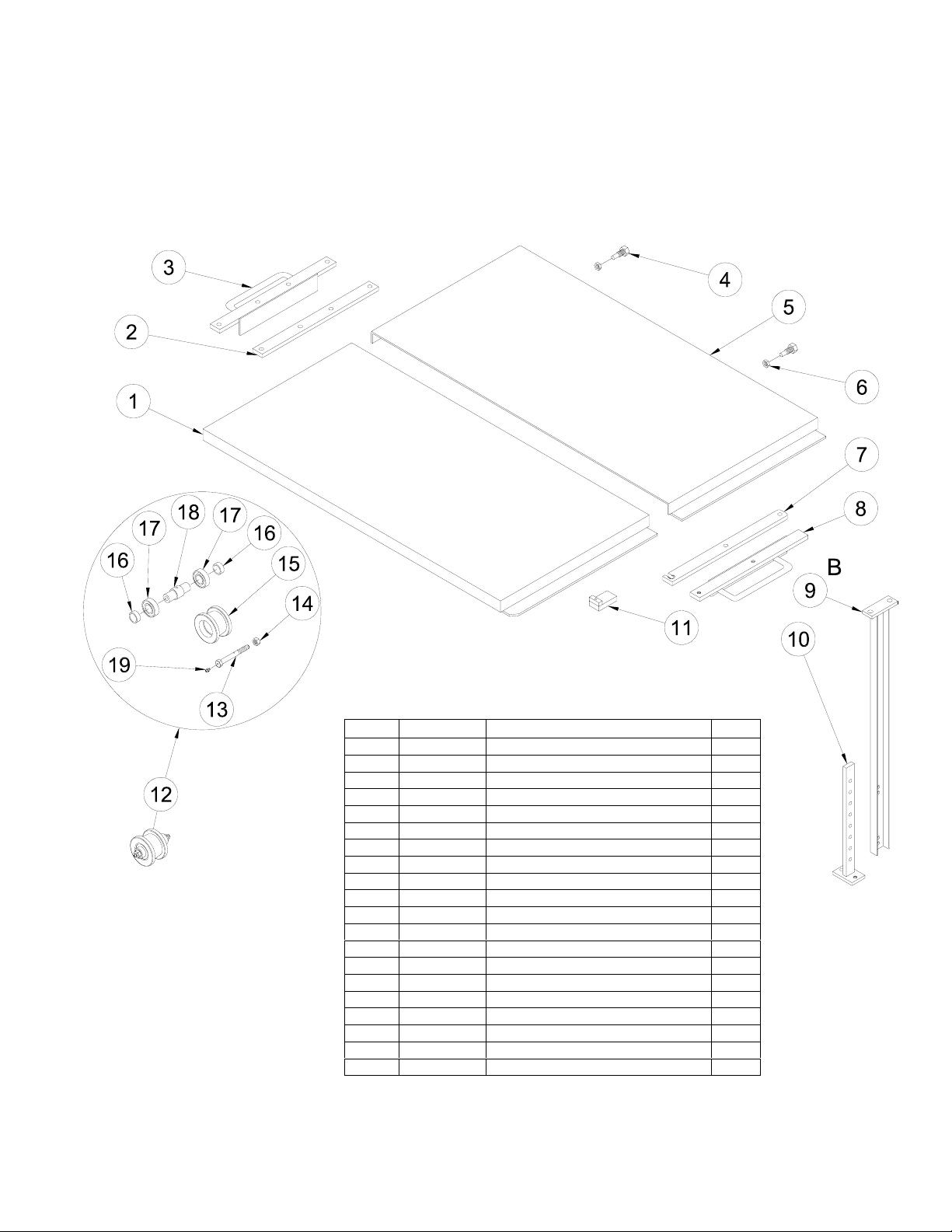

DOUBLE ROLLER TABLE ASSEMBLY (SA36 S/N 118-325)
CONTINUED ON P10
ITEM PART# DESCRIPTION QTY
1 0036162 SS OUTER ROLLER TABLE 1
2 0030433S SS CLAMP BAR 1
3 0030454S SS TABLE HANDLE 1
4 0036179 TRACK HOLDING PIN 4
5 0036163 SS INNER ROLLER TABLE 1
6 HNJ-32-SS SS JAM NUT 4
7 0030434S SS SWING CLAMP 1
8-R 0030452S SS TABLE HANDLE RH SAW 1
8-L 0030453S SS TABLE HANDLE LH SAW 1
9B 0036132S SA36 SS TABLE SUPPORT LEG 3
10 0030420S SS TABLE ADJUSTING LEG 4
11 0030438S SS CLAMP ASSEMBLY 1
12 0036170 ROLLER ASSEMBLY 4
13 0036166 ROLLER AXLE BOLT 4
14 HN-27-SS SS HEX NUT 4
15 0036165 ROLLER 4
16 0036168 BUSHING 8
17 0090302 BEARING 8
18 0036167S SS ROLLER AXLE 4
19 0095131 GREASE FITTING 4
Page 9
Page 11
REPLACEMENT PARTS FOR “BUTCHER BOY” SA36 MEAT SAWS
S/N 101 TO 325 MANUFACTURED BY “LASAR MFG” BEFORE 1988

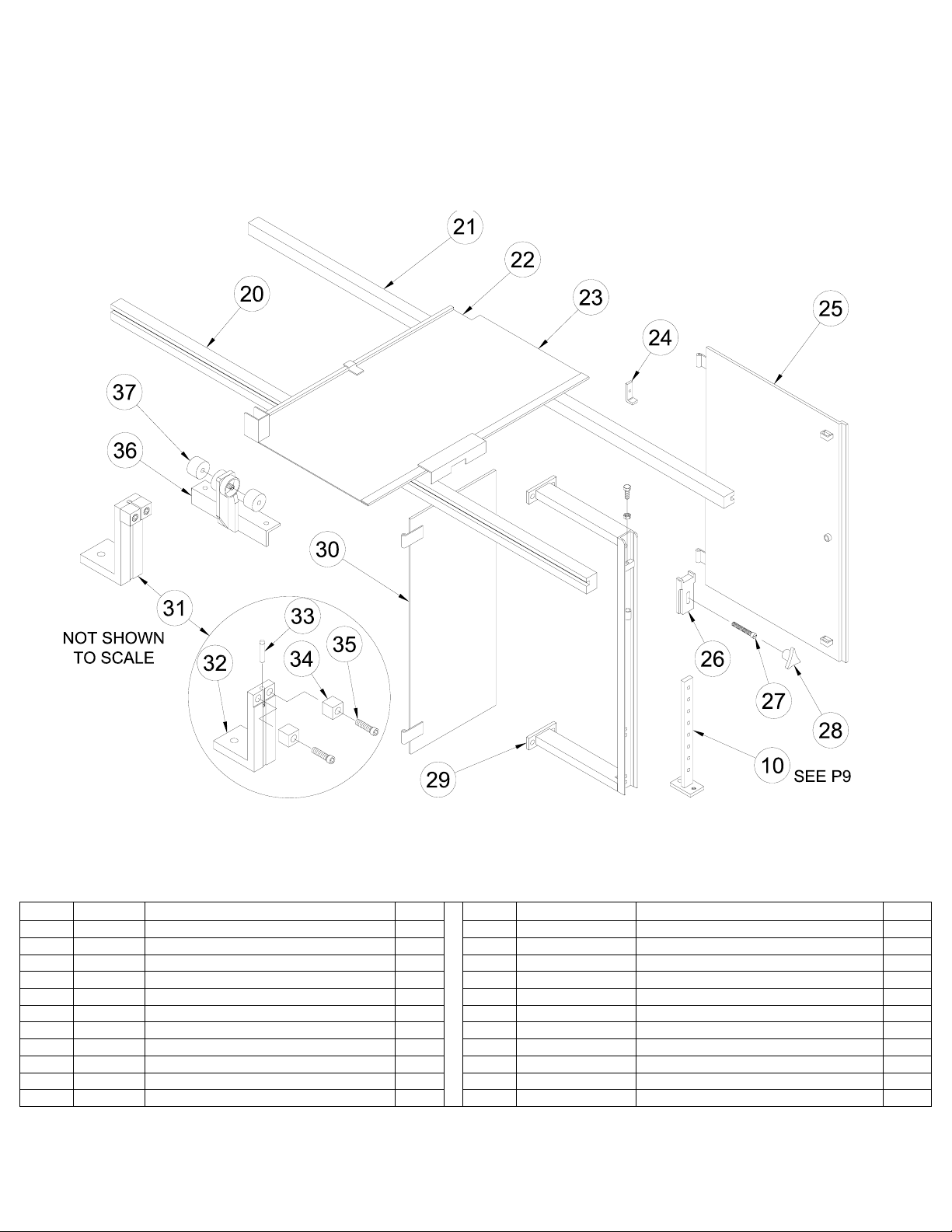

DOUBLE ROLLER TABLE ASSEMBLY (SA36 S/N 118-325)
CONTINUED FROM P9
ITEM PART# DESCRIPTION QTY ITEM PART# DESCRIPTION QTY
20 0036173 ROLLER TRACKER OUTER 1 28 0036201 HAND WHEEL 1
21-R 0036172 ROLLER TRACKER INNER RH SAW 1 29 0036195 SA36 DRT TRACK SUPPORT 1
21-L 0036171 ROLLER TRACKER INNER LH SAW 1 30 0036256 SA36 SS DOOR HALF DRT 1
22-R 0030550 SAW BLADE DOOR RH DRT 1 31 0030481S DRT SS GUIDE BLOCK ASSEMBLY 1
22-L 0030551 SAW BLADE DOOR LH DRT 1 32 0030383 DRT SS GUIDE BLOCK BRACKET 1
23-R 0036299 SA36 RH CABINET COVER DRT 1 33 0030209 CARBONIZED INSERT 1
23-L 0036300 SA36 LH CABINET COVER DRT 1 34 0030090 GUIDE BLOCK 2
24 0030669 SS COVER LOCK 1 35 SHCS-19-14-SS SOCKET HD CAP SCREW 2
25 0036255 SA36 SS DOOR HALF DRT 1 36 0030490S SS BUMPER BRACKET 1
26 0036178 TRACK CALMP PLATE 1 37 0030482 RUBBER BUMPER 2
27 0036202 HANDLE WHEEL STUD 1
Page 10
