Butcher Boy SA16RH Parts List

®

MAINTENANCE AND PARTS MANUAL

B
U
T

SA16

C
H
E
R

B

STAINLESS STEEL
BAND SAW

O
Y

®

ORDER PARTS AND SERVICE FROM:

Last printed 4/18/2003 8:51 AM

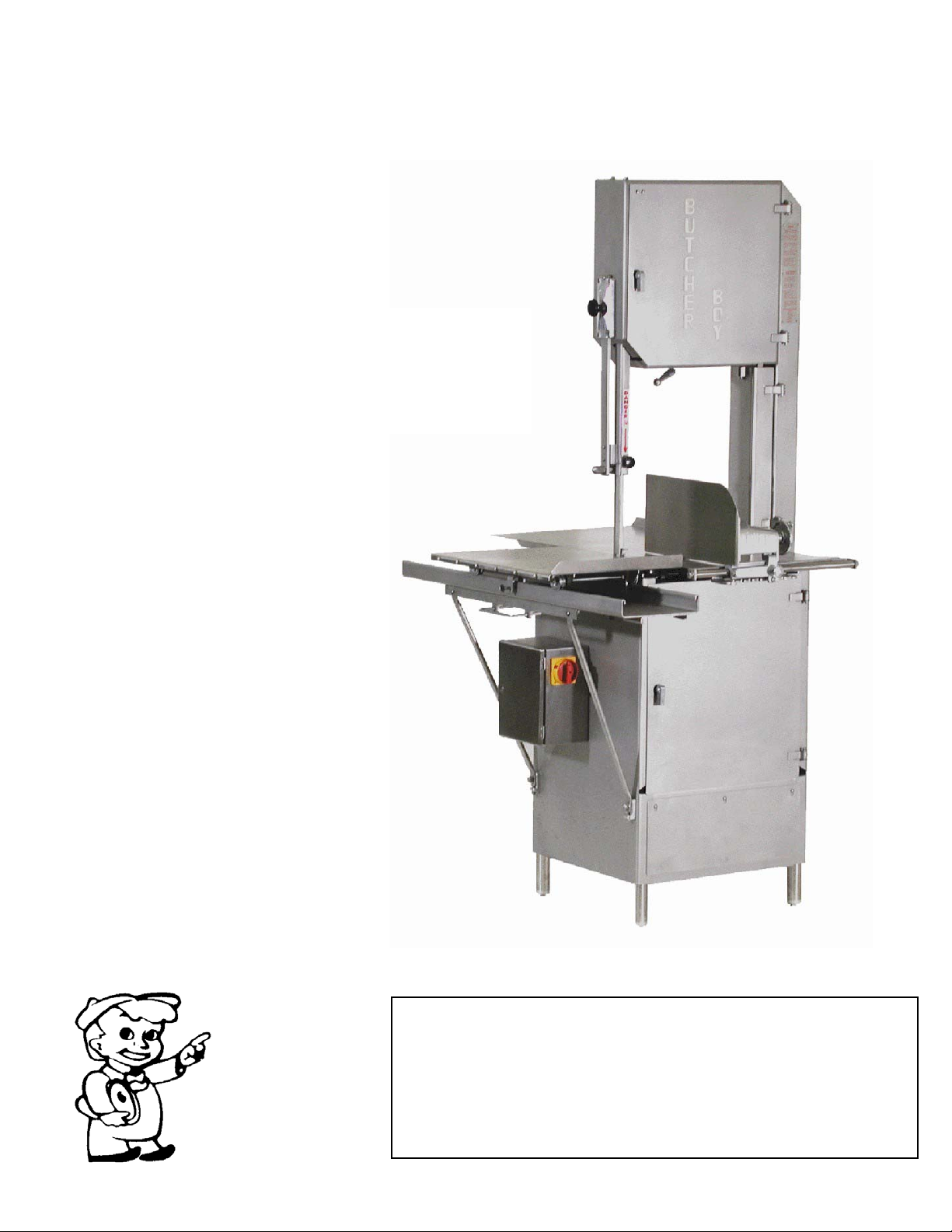

BUTCHER BOY SA16 STAINLESS STEEL BAND SAW

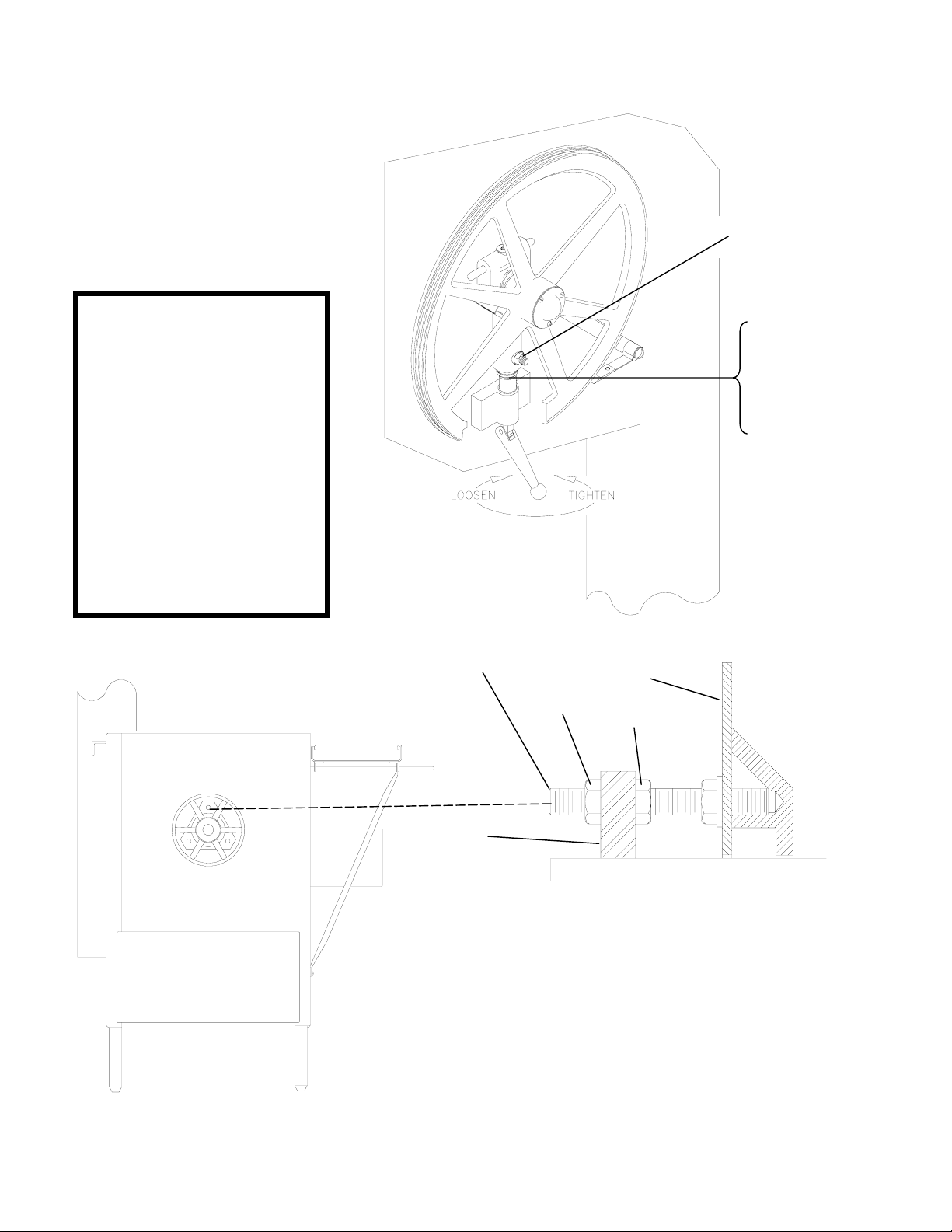

Adjusting screw

WARNING

NEVER TIGHTEN BLADE
BEYOND RED
INDICATOR LINE.

BLADE BREAKAGE,
SHORTENED BEARING
LIFE AND SHAFT
BREAKAGE MAY
OCCUR.

Correct tension is
on blade when red
line on indicator
lines up with the
edge of the wheel
hanger.

Stud
Cabinet Wall

Top Nut
Back Nut

Flange

ADJUST CAMBER OF LOWER WHEEL BY:

1. Completely release tension on saw blade by loosening
tension handle (see above).

2. Loosen top nut in front of flange, then turn nut in back of
flange clockwise ½ turn. Tighten top nut. Repeat this
procedure as many time as necessary. When finished, tighten
top nut securely

PAGE 1

BUTCHER BOY SA16 STAINLESS STEEL BAND SAW

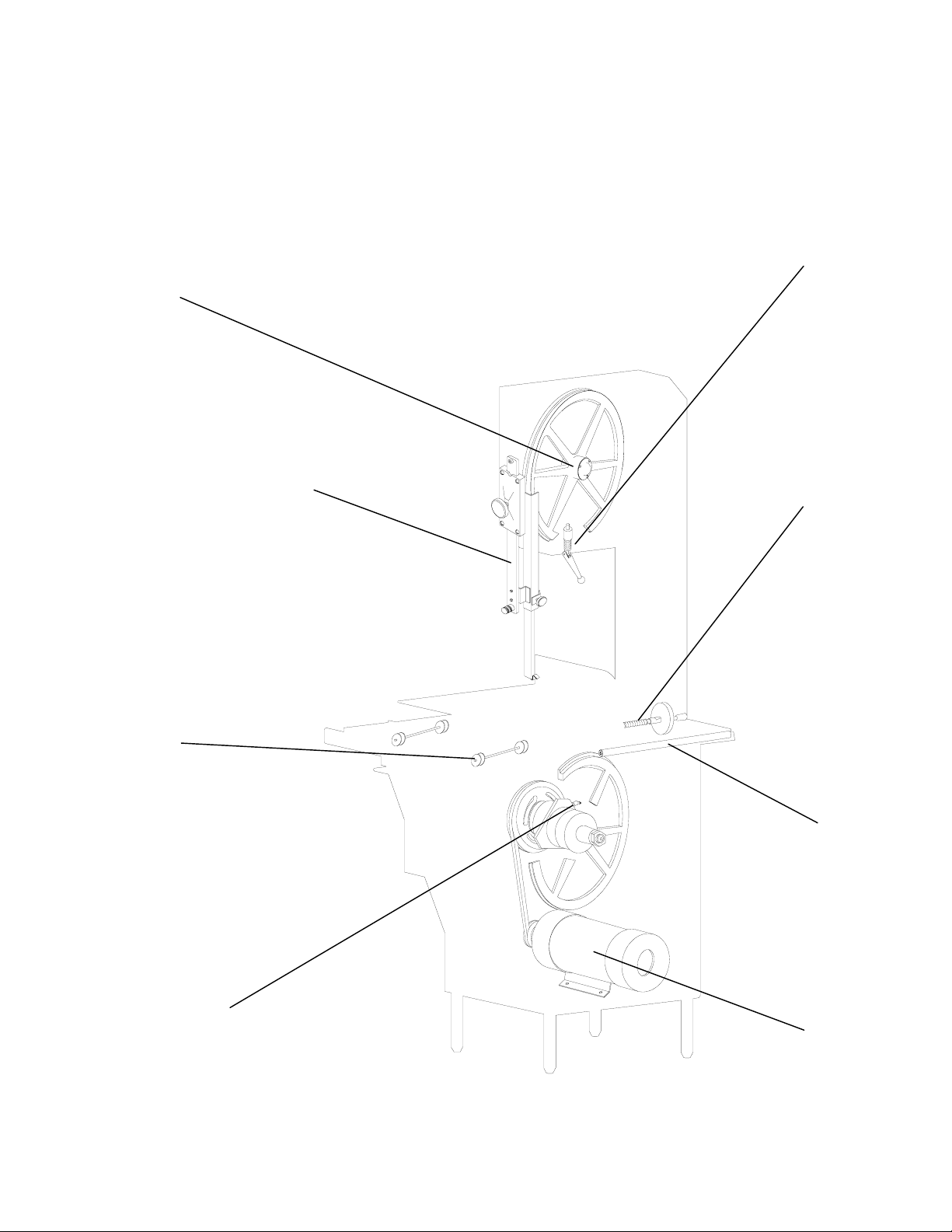

UPPER
WHEEL:
2 to 4
strokes with
grease gun
every 30
days, as
needed

MEAT
CARRYING
TABLE
WHEELS (4):
Lubricate daily
with edible oil

UPPER BLADE
GUIDE SUPPORT
BAR:
Lubricate daily with
food grade oil while
moving up and down

TENSION
HANDLE:
Lubricate daily
with edible oil
while screwing
in and out

THICKNESS
GAUGE
THREADS:
Lubricate daily
with edible oil
while screwing
in and out

THICKNESS
GAUGE SLIDE
ROD:
Lubricate daily
with edible oil
while sliding full
length.

LOWER WHEEL
BEARING
HOUSING:
2 to 4 strokes with
grease gun every
30 days as needed

After washing and sanitizing spray entire saw (interior and exterior) with food grade white oil.

PAGE 2

MOTOR:
If equipped with
grease fittings
grease every six
months with
bearing grease

BUTCHER BOY SA16 STAINLESS STEEL BAND SAW

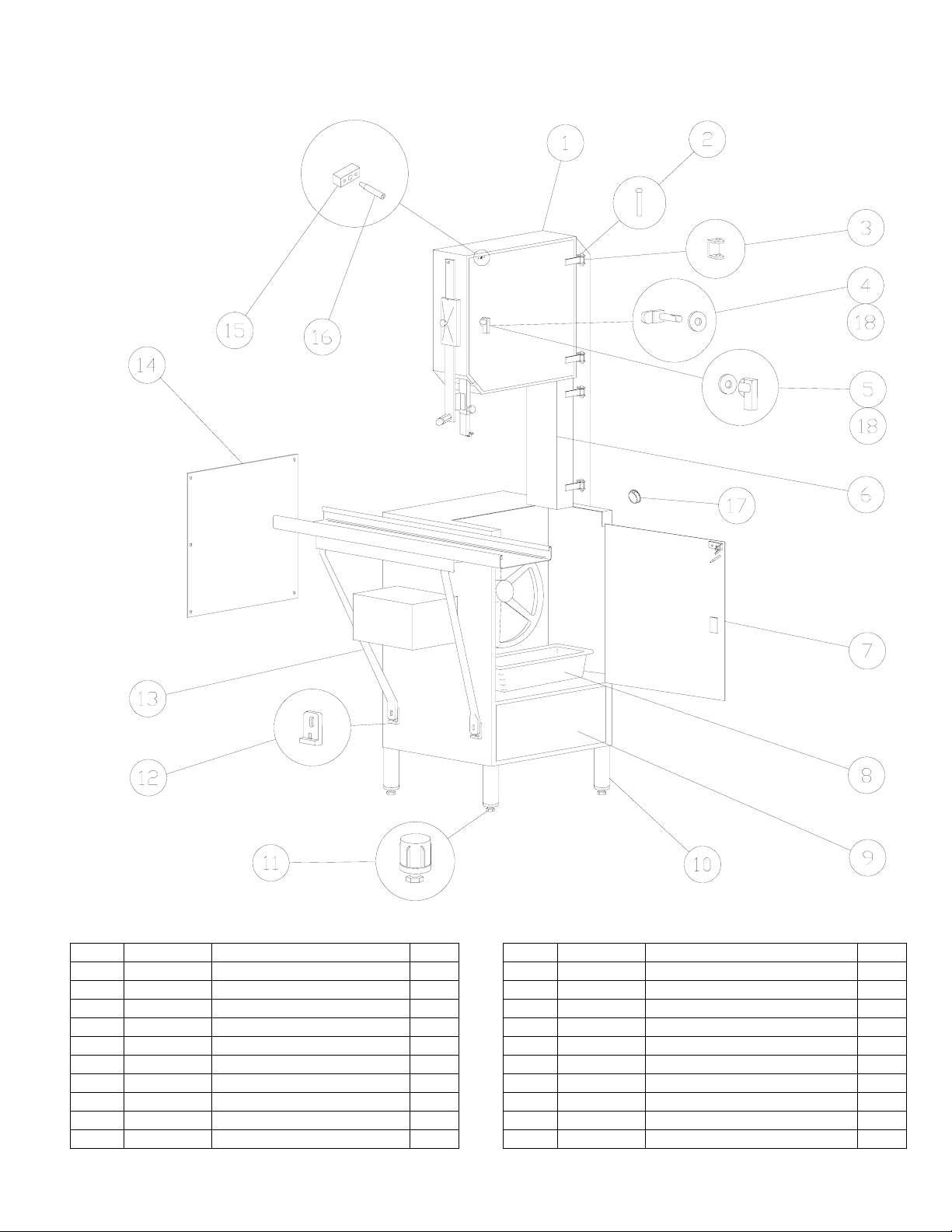

CABINET

ITEM PART# DESCRIPTION USE

1 00160635 UPPER DOOR ASSY. 1
2 00160672 S/S HINGE PIN 6
3 0010571 S/S HINGE 6
4 0010650S S/S LATCH ASSY. 2
5 0010401 DOOR HANDLE 2
6 00160645 COLUMN DOOR ASSY. 1
7 00160640 LOWER DOOR ASSY. 1
8 0014069 BONE BOX 1
9 0016111 MOTOR ACCESS PANEL 2

PAGE 3

ITEM PART# DESCRIPTION USE

10 0010307S LEG & FOOT ASSY. 4
11 0059390 FOOT ASSY. 4
12 0010260 BRACE ADJUST BRACKET 2
13 0010014 BRACE 2
14 0016106 DOOR 1
15 00160704 LOCATING BLOCK 1
16 00160703 LOCATING PIN 1
17 0093695 PLUG 1
18 0090602 RUBBER WASHER 4

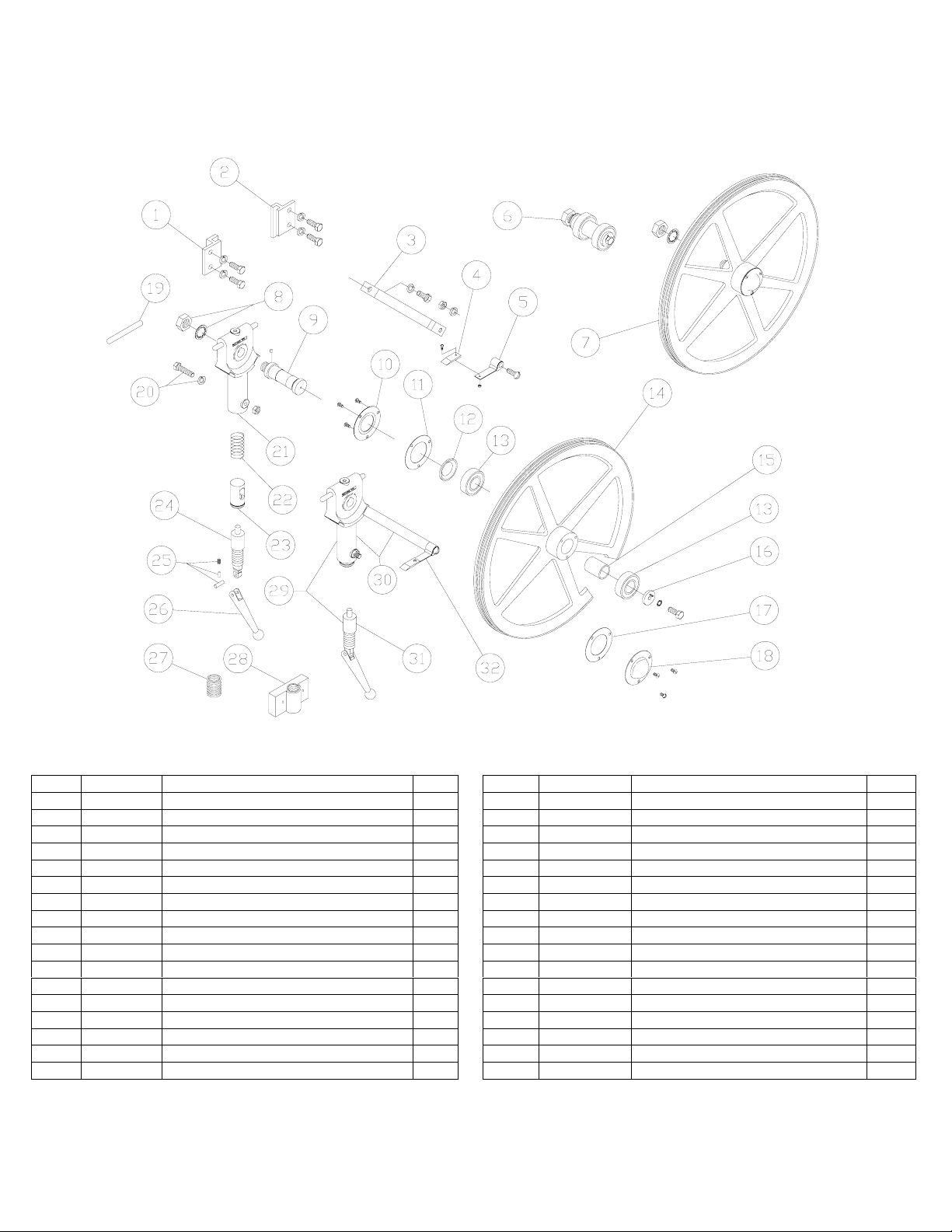

UPPER WHEEL

BUTCHER BOY SA16 STAINLESS STEEL BAND SAW

ITEM PART# DESCRIPTION USE

1 0010282 GUIDE BLOCK LH 1
2 0010283 GUIDE BLOCK RH 1
3 0016511S SCRAPER ARM 1
4 0010040 FIBER SCRAPER 1
5 0010277 SCRAPER SPRING 1
6 0010574 UPPER SHAFT & BEARING ASSY. 1
7 0016038 16” UPPER WHEEL & SHAFT ASSY. 1
8 0010770 WHEEL SHAFT NUT AND WASHER 1

9 0010150 UPPER SHAFT W/NUT & WASHER 1
10 0010030 BEARING RETAINER 1
11 0010127 GASKET 2
12 0090400 RUBBER SEAL 1
13 0090302 BEARING 2
14 0016040 16” UPPER WHEEL RH 1
15 0010258 BEARING SPACER 1
16 0010121S RETAINER & SCREW ASSY. 1

PAGE 4

ITEM PART# DESCRIPTION USE

17 0010127 GASKET 2
18 0010031 HUB CAP 1
19 0016034 GUIDE PIN-TENSION GAUGE 1
20 0016675 ADJUSTING SCREW & NUT 1
21 0010730 UPPER HANGER 1
22 0010082 TENSION SPRING 1
23 0010056 INDICATOR 1
24 0010033S ADJUSTING SCREW 1
25 0016093 PINS & SPRING ASSY. 1
26 0016090 TENSION HANDLE 1
27 0010034 THREADED INSERT 1
28 0016620 GAUGE BLOCK & INSERT 1
29 0016029 BLADE TENSION ASSY. 1
30 0016059 HANGER & ARM ASSY. 1
31 0016089S TENSION HANDLE ASSY. 1
32 0010377 WHEEL SCRAPER ASY. 1

BUTCHER BOY SA16 STAINLESS STEEL BAND SAW

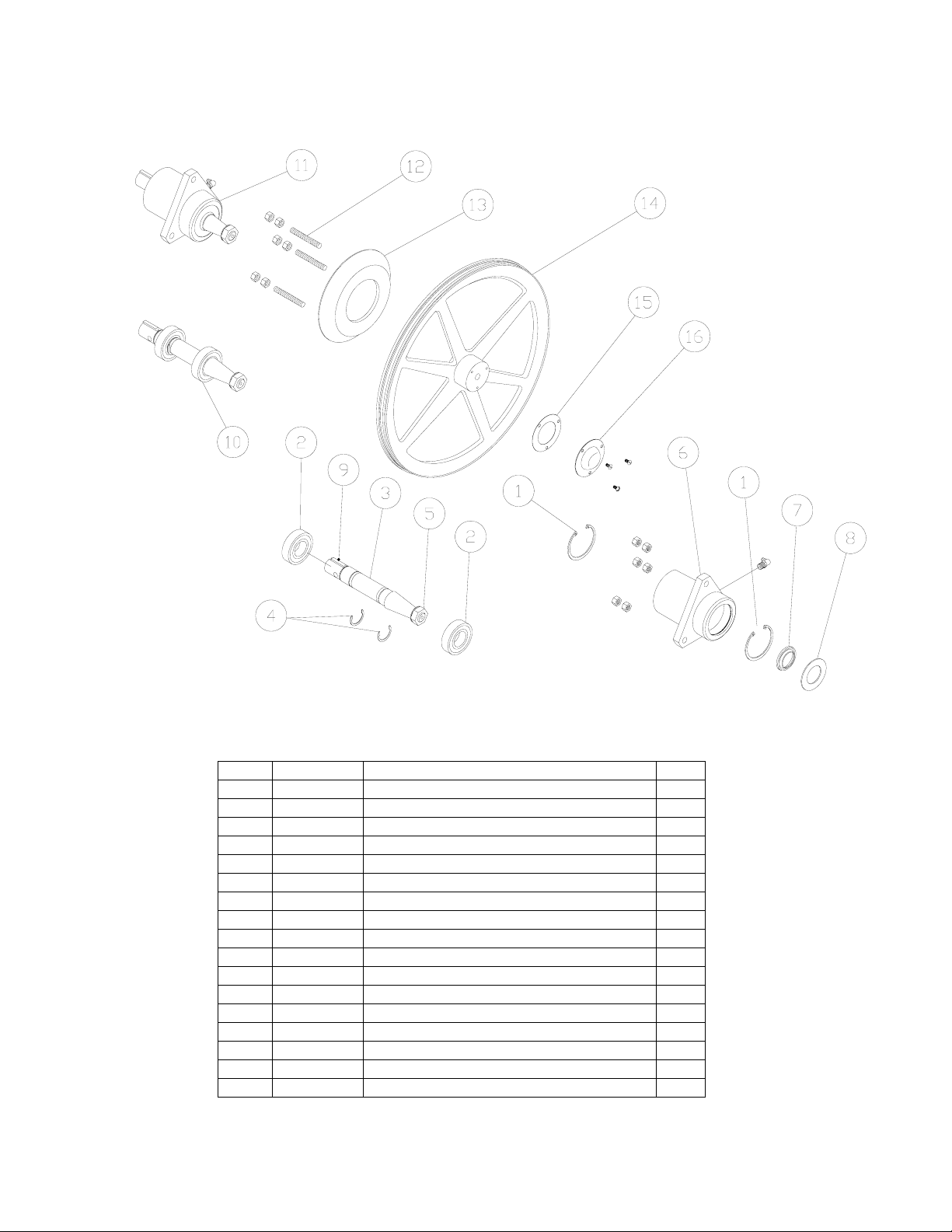

ITEM PART# DESCRIPTION USE

1 0090200 RETAINING RING 2
2 0090300 BRARING 2
3 0010023 SHAFT ASSY. W/WASHER & NUT 1
4 0090201 RETAINING RING 2
5 0010770 NUT AND WASHER 1
6 0010024 BEARING HOUSING 1
7 0090400 RUBBER SEAL 1
8 0010029 SPECIAL WASHER 1

9 0059247-8 KEY 1
10 0010575 LOWER SHAFT AND BEARING ASSY. 1
11 0010025 LOWER SHAFT AND HOUSING ASSY. 1
12 0010078 STUD 3
13 0010077 BEARING HOUSING SUPPORT 1
14 0016041 16” LOWER WHEEL RH 1
15 0010127 GASKET 1
16 0010031 HUB CAP 1

PAGE 5

BUTCHER BOY SA16 STAINLESS STEEL BAND SAW

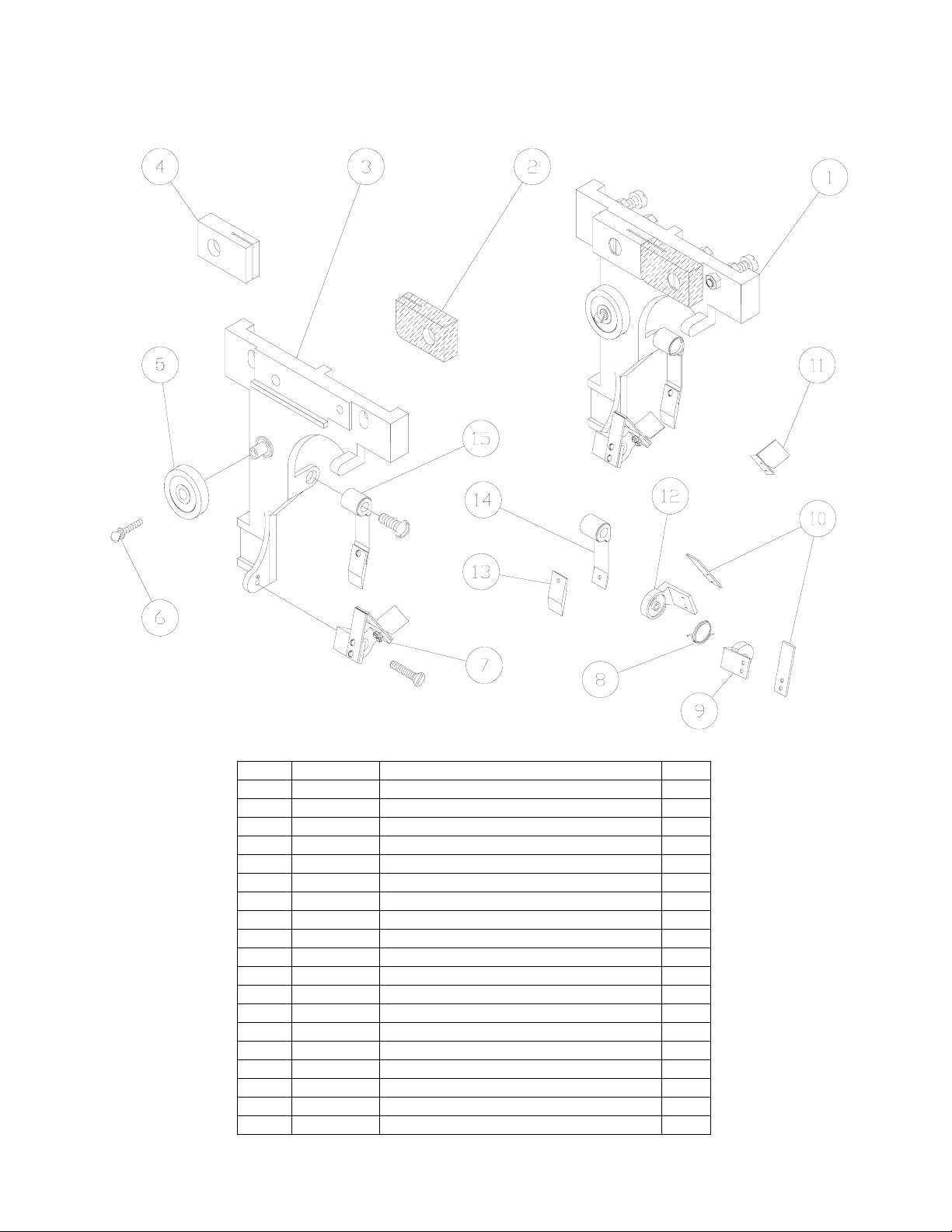

ITEM PART# DESCRIPTION USE

1 0010304 FRONT SCRAPER ASSY. 1
2 0010000 FIBER BLADE BLOCK 1
2 0010000P WHITE PLASTIC BLADE BLOCK 1
3 0010305 SCRAPER & ROLLER MOUNT 1
4 0010002 LOWER BLADE GUIDE (STANDARD) 1
4 0020785 LOWER BLADE GUIDE H.S. (.030) *
4 0020786 LOWER BLADE GUIDE H.S. (.018) *
5 0090301 BACK-UP BEARING 1
6 0010369 THUMB SCREW 1
7 0010464 BLADE SCRAPER ASSY. 1
8 0010199 SPRING 1

9 0010302 LH SCRAPER HOLDER 1
10 0010310 SCRAPER – STAINLESS STEEL 2
11 0010197 DEFLECTOR 1
12 0010301 RH SCRAPER HOLDER 1
13 0010040 FIBER WHEEL SCRAPER 1
14 0010277 SCRAPER SPRING 1
15 0010377 WHEEL SCRAPER ASSY. 1

PAGE 6

BUTCHER BOY SA16 STAINLESS STEEL BAND SAW

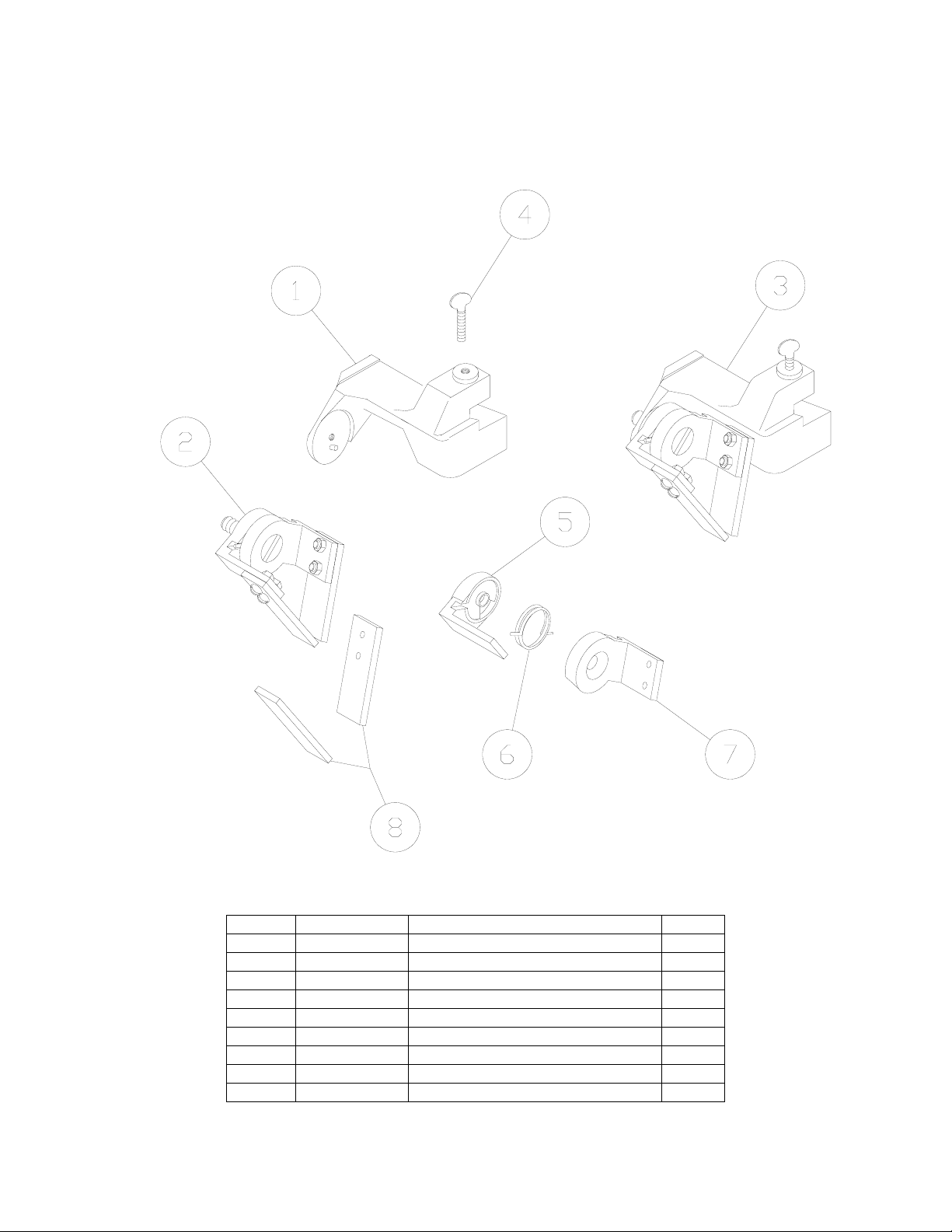

REAR BLADE SCRAPER

ITEM PART# DESCRIPTION USE

1 00160617 SCRAPER MOUNT 1
2 0010460 BLADE SCRAPER ASSY. 1
3 00160618 REAR SCRAPER ASSY. 1
4 0010303S THUMB SCREW 1
5 0010302 LH SCRAPER HOLDER 1
6 0010199 SPRING 1
7 0010301 RH SCRAPER HOLDER 1
8 0010300 FIBER SCRAPER 2

PAGE 7

BUTCHER BOY SA16 STAINLESS STEEL BAND SAW

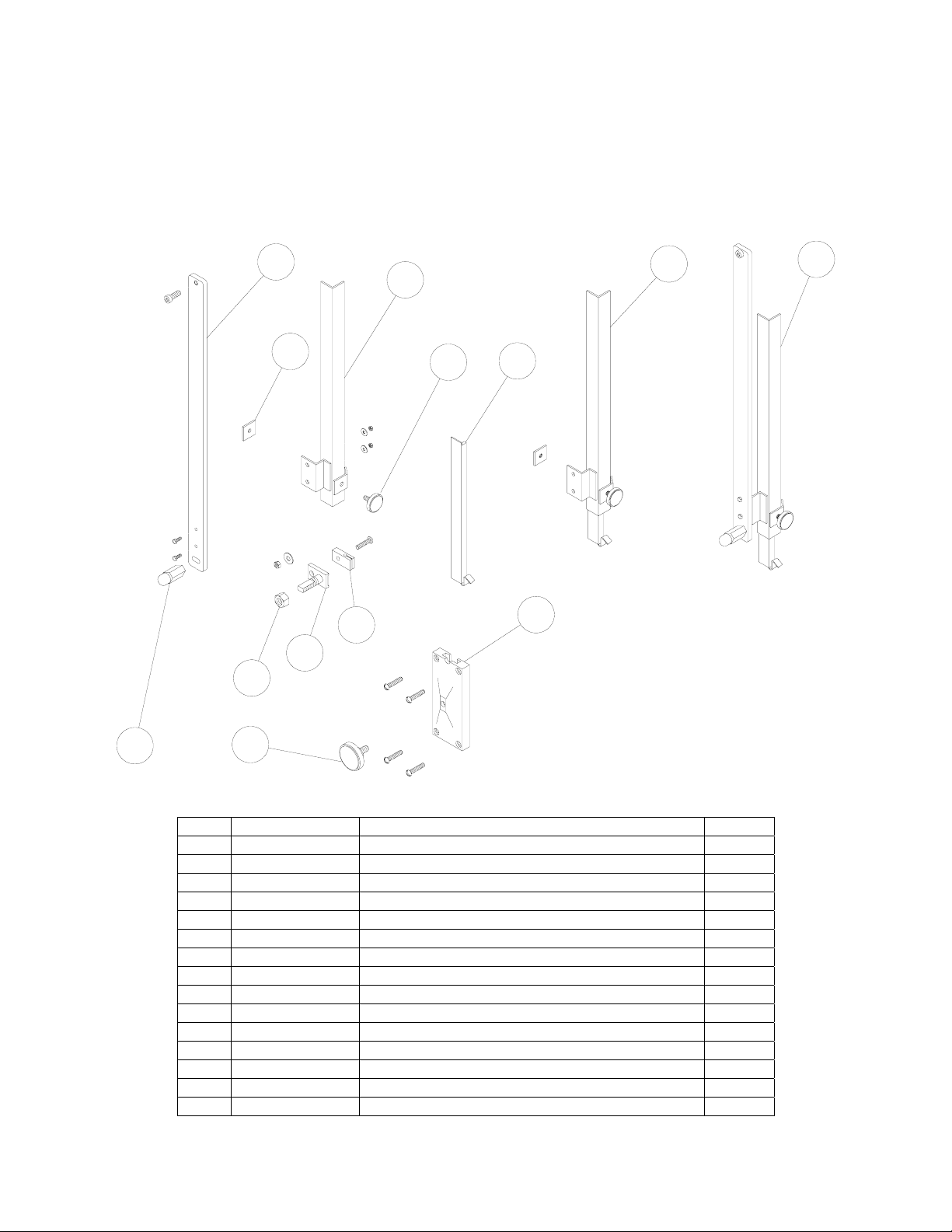

BLADE GUARD

1

12

13

2

5

3

6

4

11

7

8

9

ITEM PART# DESCRIPTION USE

10

1 00160695 BLADE SUPPORT ADJ. BAR (26” BAR) 1
2 00160700S BLADE GUARD ASSY. RH (26” BAR) 1
3 0095084S KNOB 1
4 00160665 BLADE GUARD EXTENSION RH 1
5 0010714 EXTENTION STOP 1
6 0020785 BLADE GUIDE (.030 CARBIDE) 1
6 0020786 BALDE GUIDE (.018 CARBIDE) 1
7 0020782S HOLDER 1
8 0020788S LOCK NUT 1

9 0020789S HAND GRIP HEX NUT 1
10 0090600S KNOB 1
11 0020779 BLADE SUPPORT BAR GUIDE 1
12 00160701 BLADE GUARD ASSY. W/EXT-RH (26” BAR) 1
13 00160705 BLADE GUARD ASSY. W/EXT & ADJ. BAR 1

PAGE 8

BUTCHER BOY SA16 STAINLESS STEEL BAND SAW

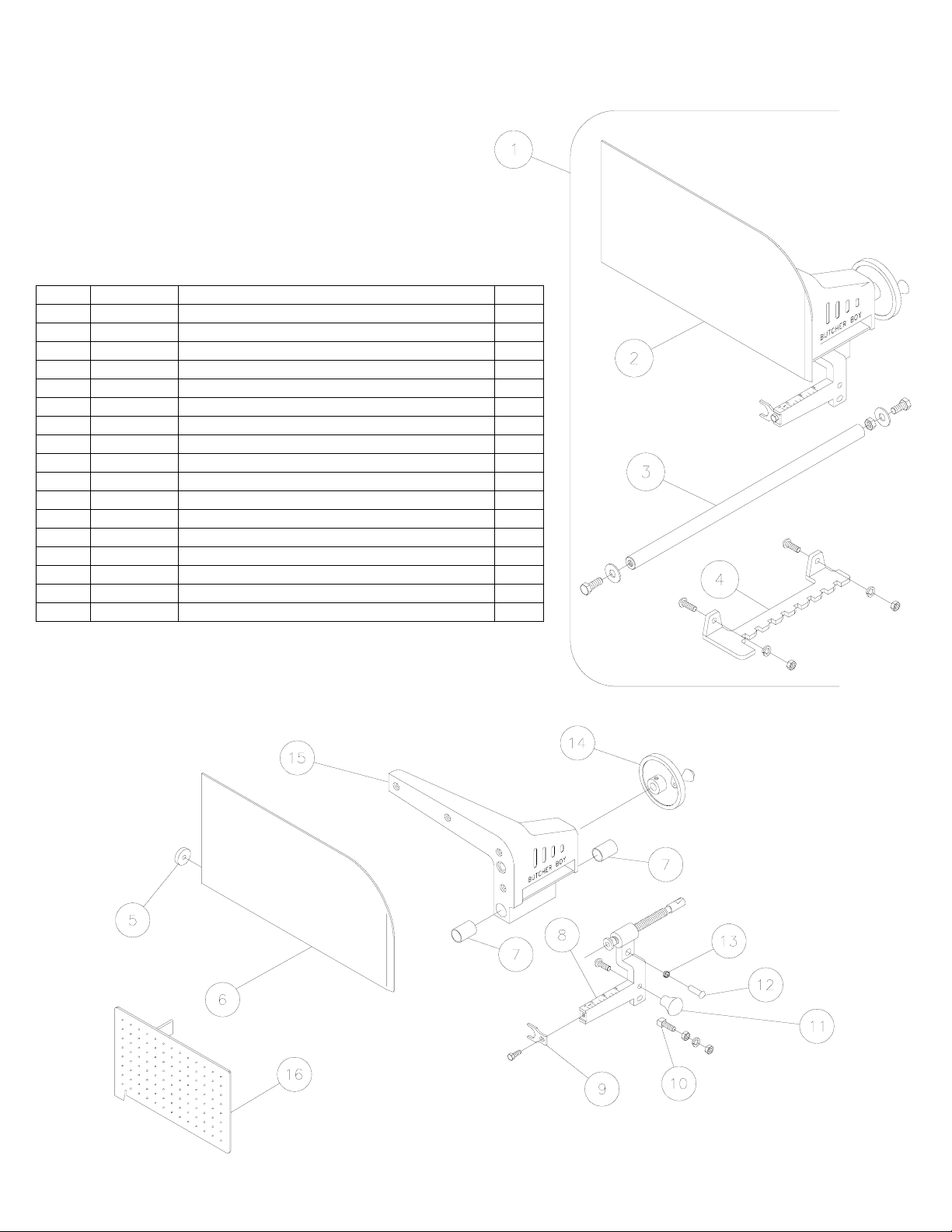

THICKNESS GAUGE

ITEM PART# DESCRIPTION USE

1 0016072 THICKNESS GAUGE W/RATCHET & ROD 1
2 0010316 THICKNESS GAUGE ASSY. 1
3 0016541 GAUGE SLIDE ROD ASSY. 1
4 0010180 RATCHET LOCK W/HARDWARE 1
5 0010297 ROLLER 1
6 0010250 GAUGE PLATE 1
7 0090700 BUSHING 2
8 0010284 GAUGE SPINDLE & ARM ASSY. 1

9 0010313 GAUGE ARM SUPPORT 1
10 0010782S LOCK PIN W/WASHER AND NUT 1
11 0010315 KNOB 1
12 0010211 PIN 1
13 0010314 SPRING 1
14 0010287 HAND WHEEL 1
15 0010291 HOUSING 1
16 0010208 RH SHORT CUT PLATE 1

PAGE 9

BUTCHER BOY SA16 STAINLESS STEEL BAND SAW

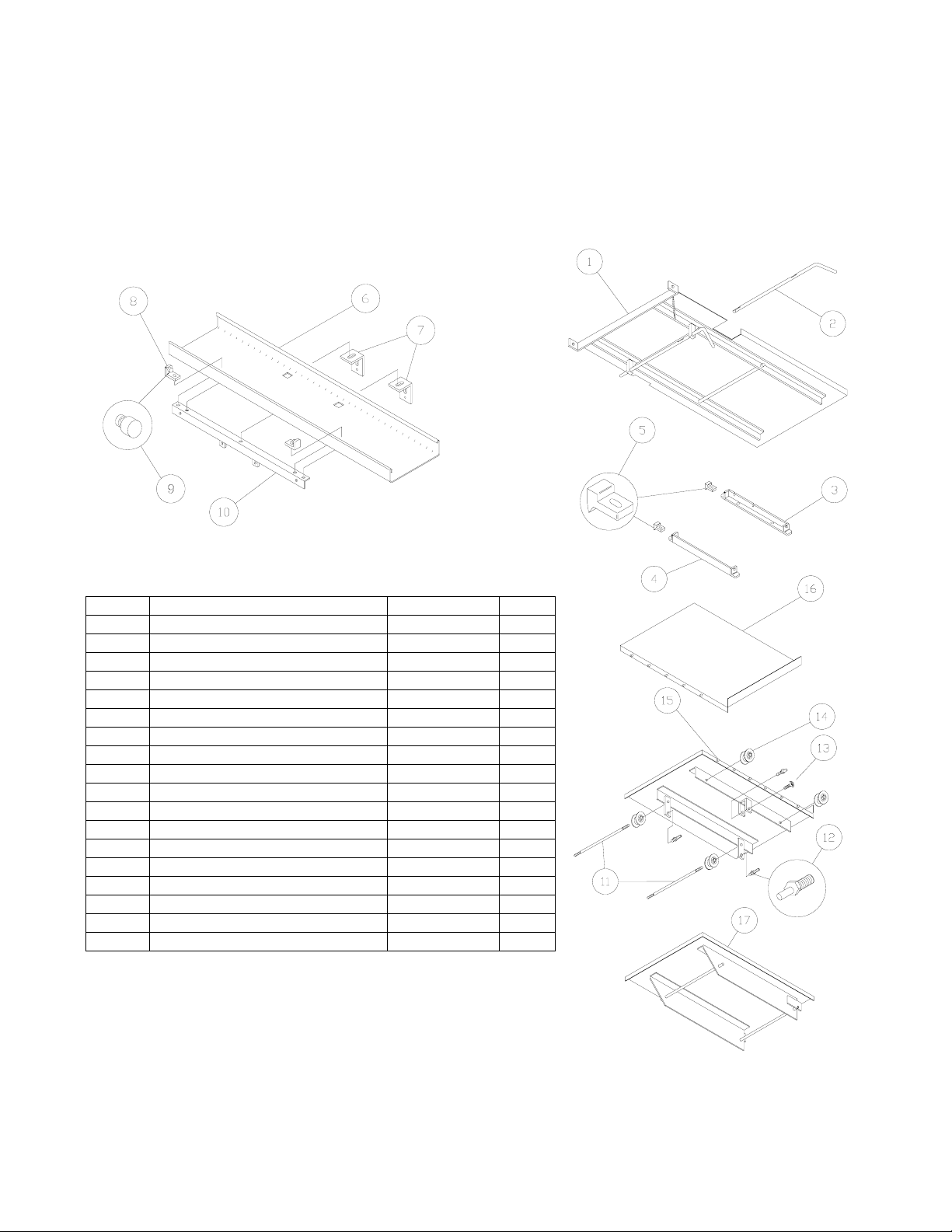

TABLES AND SUPPORT

ITEM DESCRIPTION PART# USE

1 STATIONARY TABLE ASSY. 00160660 1
2 TABLE LOCK LEVER 0016060 1
3 FRONT TABLE SUPPORT 0010331 1
4 REAR TABLE SUPPORT 0010332 1
5 LEVER ADJUSTING LOCK 0010293 2
6 TABLE TRACK 0016120 1
7 TABLE TRACK SUPPORT 0010126 2
8 STOP BRACKET ASSY. 0010037 2

9 RUBBER STOP 0090612 2
10 ANGLE SUPPORT ASSY. 0010294 1
11 TABLE WHEEL AXEL 0010329 2
12 TABLE HOLDING PIN 0010098 3
13 THUMB SCREW TS-21-16-S 1
14 U-GROOVE WHEEL 0010068 4
15 TABLE BUTTON 0010016 6
16 ROLLER TABLE ASSY 0016023 1
17 EXTENSION TABLE (OPT) 0010003 1

PAGE 10

BUTCHER BOY SA16 STAINLESS STEEL BAND SAW

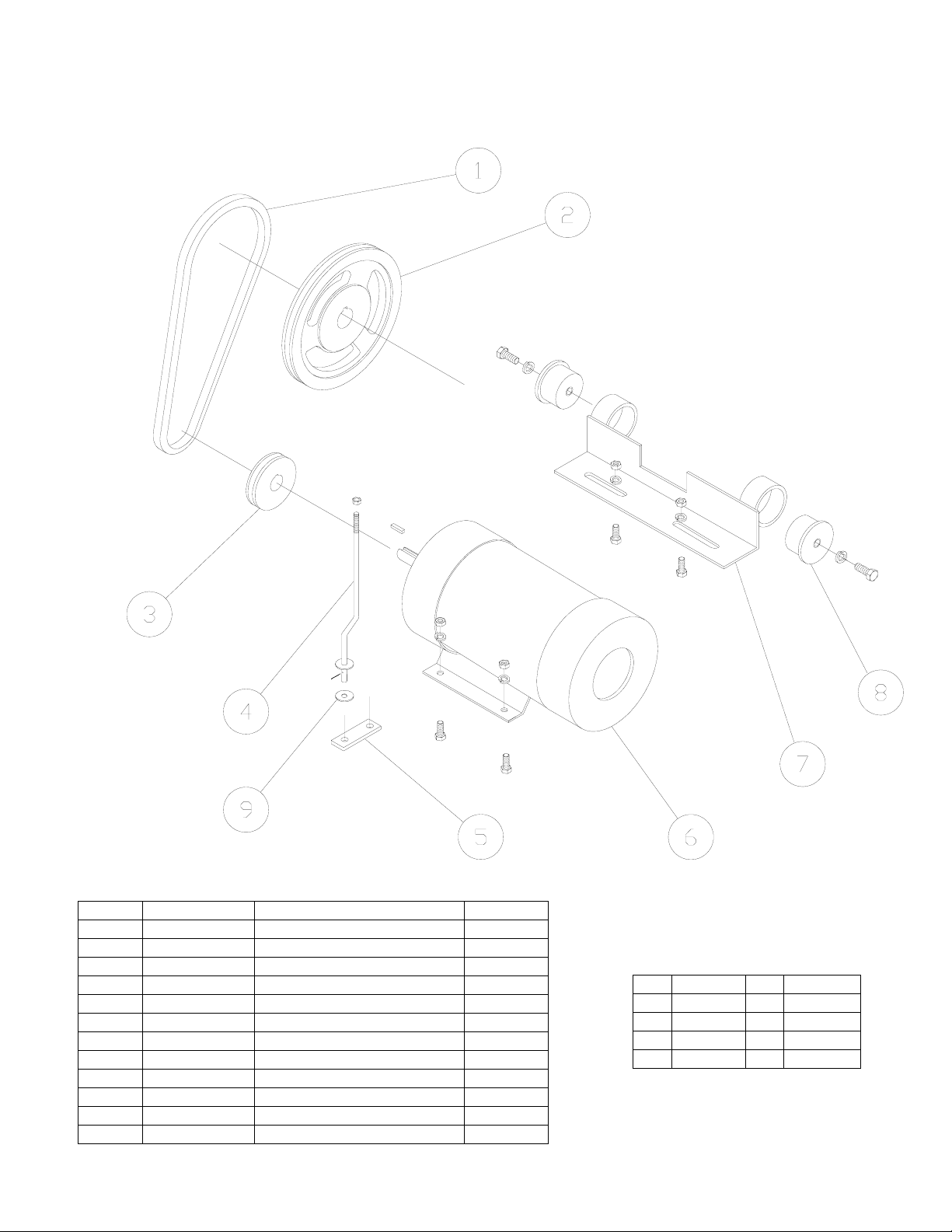

DRIVE UNIT

ITEM PART# DESCRIPTION USE

1 0090537 STANDARD SPEED BELT 1
1 0090513 HIGH SPEED BELT 1
2 0010876 DRIVEN PULLEY (8 ¾”) 1
2 0090199-142 DRIVEN PULLEY (6”) 1
3 **** MOTOR PULLEY 1
4 0010384S TORQUE ROD ASSY. 1
5 0010430S TORQUE BRACKET 1
6 MOTOR – SEE: PAGE 13 1
7 0010344S MOTOR MOUNT ASSY. 1
8 0010118 RUBBER MOUNT ASSY. 2
9 0090602 RUBBER WASHER 1

PAGE 11

MOTOR PULLEY****

HP VOLT PH PART#

1.5 115 1 0010485

2.0 208-575 3 0010485

2.0 208-230 1 0010477

3.0 208-575 3 0010477

Last printed 3/20/2003 9:10 AM

BUTCHER BOY SA16 STAINLESS STEEL BAND SAW

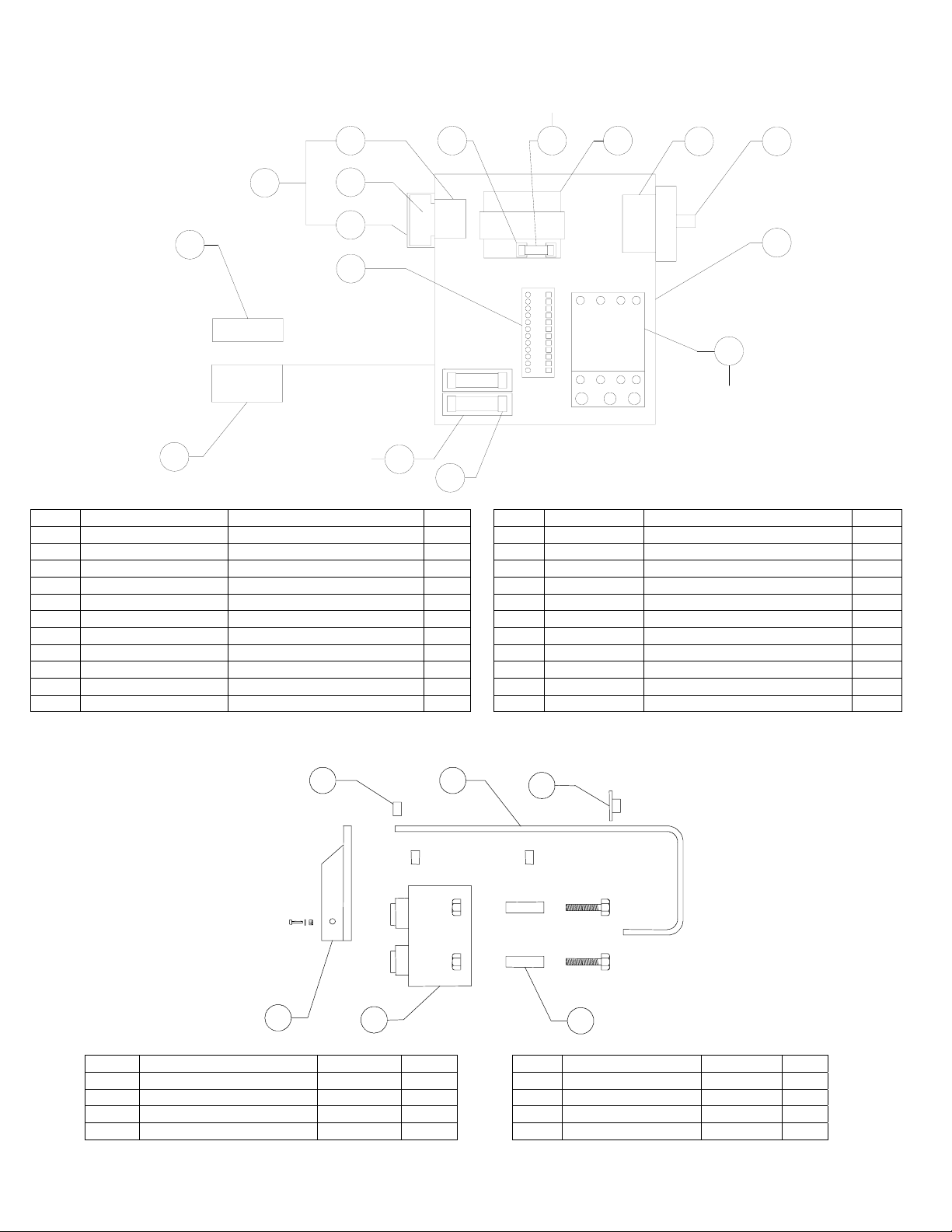

FUSE F2

(SEE PAGE 13)

2

16

9

ITEM PART# DESCRIPTION USE

1 STARTER (SEE PAGE 13) 1
2 0093999-030 START BUTTON ASSY. 1
3 0093999-029 RUBBER BOOT 1
4 0093999-031 PUSH BUTTON 1
5 0093999-026 CONTACT BLOCK 1
6 SEE ITEM #9C
7 0093999-023 DISCONNECT SWITCH 1
8 0093999-055 SWITCH HANDLE 1
9 0093999-285 READ & ACTUATOR

9C 0093999-224 EVALUATION RELAY 1

FUSE F1
(SEE PAGE 13)

4

3

6

13

12

1411105

7

1

8

15

STARTER

ITEM PART# DESCRIPTION USE

10 0093999-096 FUSE CLIP 1
11 FUSE F2 (SEE PAGE 13) 1
12 0093999-024 FUSE HOLDER (PRIMARY) 1
13 FUSE F1 (SEE PAGE 13) 2
14 0093999-067 TRANSFORMER (115/24) opt
14 0093999-230 TRANSFORMER (208)
14 0093999-095 TRANSFORMER (230-460/24) 1
14 0093999-068 TRANSFORMER (575/24) opt
15 0093999-052 ENCLOSURE 1
16 SEE ITEM # 9

ITEM DESCRIPTION PART# USE

17 SWITCH ROCKER 0010911S 1
18 PUSH BUTTON ASM. 0093279 1
19 SPACER 0010909 2

22

17

18

21

PAGE12

20

19

ITEM DESCRIPTION PART# USE

20 COLLAR-WASHER 0010915 1
21 SWITCH HANDLE 0010912S 1
22 COLLAR 0090606S 3

MANUFACTURED BY:

AMERICAN MEAT EQUIPMENT CORP.

1625 S. GREENWOOD AVE

MONTEBELLO, CA 90640

PH: 323-724-5348 • FAX: [phone]
