Effective March 2015
Technical Data 1170
Supersedes April 2014
TM
SurgePOD
Standard and Universal Surge Protective Device Modules
When a surge condition exceeds either the
Standard or Universal SPD module’s MCOV, the
patented Metal Oxide Varistor (MOV) technology
becomes conductive to safely shunt the surge to
ground.
The same MOV technology also eliminates the
need for additional fusing in UL applications by
safely disconnecting the SPD module upon
reaching an overvoltage breakdown condition.
All Standard or Universal SPD modules are UL
Recognized 1449 3rd Edition for installation in Type
1 or Type 2 surge protective devices.
Optional remote contact signaling is accomplished
with a Normally Open (NO) microswitch that
closes upon the module reaching an overvoltage
breakdown condition.
Optional local visual indication is accomplished

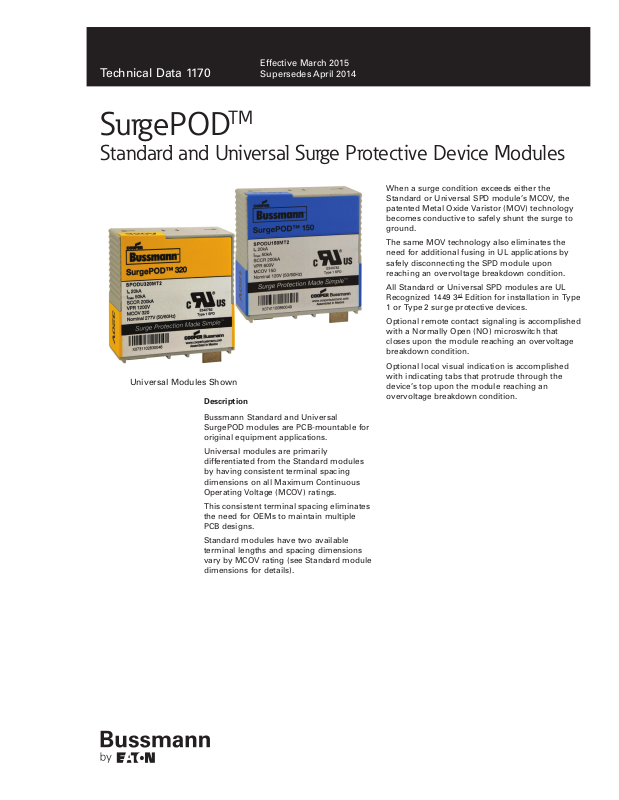

Universal Modules Shown
Description
Bussmann Standard and Universal
SurgePOD modules are PCB-mountable for
original equipment applications.
Universal modules are primarily
differentiated from the Standard modules
by having consistent terminal spacing
dimensions on all Maximum Continuous
Operating Voltage (MCOV) ratings.
This consistent terminal spacing eliminates
the need for OEMs to maintain multiple
PCB designs.
Standard modules have two available
terminal lengths and spacing dimensions
vary by MCOV rating (see Standard module
dimensions for details).
with indicating tabs that protrude through the
device’s top upon the module reaching an
overvoltage breakdown condition.
Technical Data 1170
Effective March 2015
Bussmann SurgePOD
Standard and Universal Modules
Catalog symbols
•
SPOD (Standard module)
•
SPODU (Universal module)
Ratings
See ratings table
Agency information
•
UL Recognized, 1449 3rd Edition Type 1 Surge Protective Device;
E340782
Flammability rating
•
UL 94V0
Terminal material
•
Nickel-plated copper
Storage and operating temperature range
•
-25°C to +85°C
Traceability
•
Each SurgePOD SPD module is marked with a serial number for
identification and tracking
Options
•
Remote contact signaling is accomplished with a Normally Open
(NO) microswitch that closes upon the module reaching an
overvoltage breakdown condition.
•
Local visual indication is accomplished with indicating tabs that
protrude through the device’s top upon the module reaching an
overvoltage breakdown condition.
Optional Local Visual Indication Tabs
Standard and Universal modules
SurgePOD device under
normal operation.
Local visual indication
tabs exposed upon
reaching an overvoltage
breakdown condition.
Packaging
•
200 units per master pack
Additional information
•
The SurgePOD module may be damaged by excessive
mechanical shock or rough handling. To ensure integrity of
finished device, do NOT install any SurgePOD module that was
dropped or abused during assembly.
•
Suitability for final application of a SurgePOD module to be
determined by the OEM.
Specications for SurgePOD Standard and Universal Modules
Color Code Blue Green Yellow Red Brown
Maximum Continuous Operating Voltage MCOV (V
Nominal system voltage @ 50/60Hz (V
rms
rms
Nominal discharge current rating 8/20µs (In) 20kA 20kA 20kA 20kA 20kA
Max discharge current rating 8/20µs (I
max
Short-Circuit Current Rating (SCCR) 200kA 200kA 200kA 200kA 200kA
Voltage Protection Rating (VPR) 600V 900V 1200V 1500V 1500V
) 150V 270V 320V 420V 550V
) 120V 220V 277V 347V 480V
) 50kA 50kA 50kA 50kA 50kA
www.cooperbussmann.com/surge2
