Bussmann SPP40SP1120SN, SPP40SP2240PN, SPP40SP3240DLG, SPP40SP3480DLG, SPP40SP3208WYG Data Sheet

S

2-1/16” 2-1/16”

1-11/16”

1-11/16”

4-1/8”

3-3/16”

4-1/16”

3-3/8”

7/8”

1-1/16” Dia.

URGEPROTECTIONMADESIMPLE™ FORLIGHTCOMMERCIAL

URGE

S

POD™ PRO SPD

FOR

UL 1449 3rdEdition Listed Loadside and Lineside Protection

Description

The Cooper Bussmann SurgePOD™ PRO is a Type 1 UL
Listed 1449 3rdEdition surge protective device suitable for
installation on both the loadside or lineside of the service
entrance overcurrent protective device.

Available in popular voltage and system specific versions to
match common residential and light commercial electrical
system and equipment requirements. The SurgePOD PRO
delivers superior surge protection using MOV thermal
disconnect technology that eliminates the need for additional
overcurrent protection.

Parallel connection to the electrical system permits the
SurgePOD PRO SPD to be installed on any ampacity panel.

rd

• Type 1 UL 1449 3
and installed on the loadside or lineside of the service
entrance overcurrent protective device

• Voltage specific models precisely match and protect
electrical systems and equipment better than
“one-size-fits-all” SPDs

• Thermal disconnect technology eliminates the need for
additional fusing

• Compact UV resistant NEMA 4X enclosure for indoor or
outdoor applications

• easyID™ LED status indicator provides surge protection
status at a glance

Edition Listed SPDs are easily selected

SPP40SP1120SN
SPP40SP2240PN

& R

ESIDENTIALAPPLICATIONS

Status Indicator

SPP40SP3240DLG
SPP40SP3480DLG

NEMA 4X Rated Pro

Type 1 UL Listed SPD

easyID™ LED

SPP40SP3208WYG
SPP40SP3480WYG

Dimensions - in

0213 BU-SB13071 Page 1 of 3 Data Sheet 10033

Type 1 SPD Part Number System

SPP = Product Series

Surge Protection PRO

Surge Rating

40S = 40kA max discharge current

No of Wires/Poles

P1 = 1 P2 = 2 P3 = 3 P4 = 4

Rated System Voltage

120, 208, 240, 480Vac

System

SN = Single-Phase 2 Wire, 2 Connection Points
PN = Split-Phase, 3 Wire, 3 Connection Points
DLG = Three-Phase Delta 3 Wire + G, 4 Connection Points
WYG = Three-Phase Wye 3 Wire, 4 Connection Points

SPP 40S PX XXX XXX

SurgePOD™ PRO Technical Information

Nominal Max. Continuous

System Operating AC Connection

Catalog Number Voltage Voltage (MCOV) (VC) System Type Points

SPP40SP1120SN 120V 150V Single-Phase 2 Wire 2
SPP40SP2240PN 120/240V 150V Split Phase 3 Wire 3
SPP40SP3240DLG 240V 320V Three-Phase Delta 3 Wire + G 4
SPP40SP3480DLG 480V 550V Three-Phase Delta 3 Wire + G 4
SPP40SP3208WYG 208V 150V Three-Phase Wye 3 Wire + G 4
SPP40SP3480WYG 480V 320V Three-Phase Wye 3 Wire + G 4

Specifications (for all SurgePOD PRO units) Values

Short Circuit Current Rating (SCCR) 200kA
Nominal Discharge Current (8x20µs) I
Max. Discharge Current (8x20µs) I
Response Time (ns) t

A

max

n

10kA
40kA

<25ns
Frequency 50/60Hz
Operating State/Fault Indication Bi-Color LED - Green (good) / Red (replace)
Conductor Length / Guage 18 inches, 10 AWG Stranded Tinned Copper
Mounting Chase Nipple / Bracket*
Enclosure / Flammability Ratings NEMA 4X - UL 94-5VA
Degree of Protection (Installed State) IP20 (finger-safe)
SPD Install Location Indoor/Outdoor
Circuit Location Lineside or Loadside of service entrance overcurrent protective device
Standard UL 1449 3rdEdition Type 1 Listed SPD
Agency Information cULus, RoHS Compliant
Product Warranty 2 Years**
Operating Temperature -40˚C to +65˚C
Maximum Operating Altitude 12000FT

* Customer-supplied bracket.

** See Cooper Bussmann SPD Limited Warranty Statement (3A1502)

Voltage Protection Ratings (VPRs)

Nominal System MCOV Voltage Protection Ratings (VPRs)

Catalog Number Voltage (VC) L-N L-L L-G

SPP40SP1120SN 120V 150V 700 ——
SPP40SP2240PN 120V/240V 150V 700 1200 —
SPP40SP3240DLG 240V 320V — 2500 1200
SPP40SP3480DLG 480V 550V — 3000 1800
SPP40SP3208WYG 208V 150V — 1200 700
SPP40SP3480WYG 480V 320V — 2500 1200

0213 BU-SB13071 Page 2 of 3 Data Sheet 10033

L (Black)

N (White)

Black

White

L

1 (Black)

L2 (Black)
L3 (Black)

GND (Green)

easyID™ LED Status Indicator

Tighten

locknut to

20.3 Lb-In (2.3N•m)

For NEMA 4X installation,
install appropriate customer
supplied gasket between
SurgePOD™ PRO
SPD and enclosure wall.

Black
Black

White

L1 (Black)

L2 (Black)

N (White)

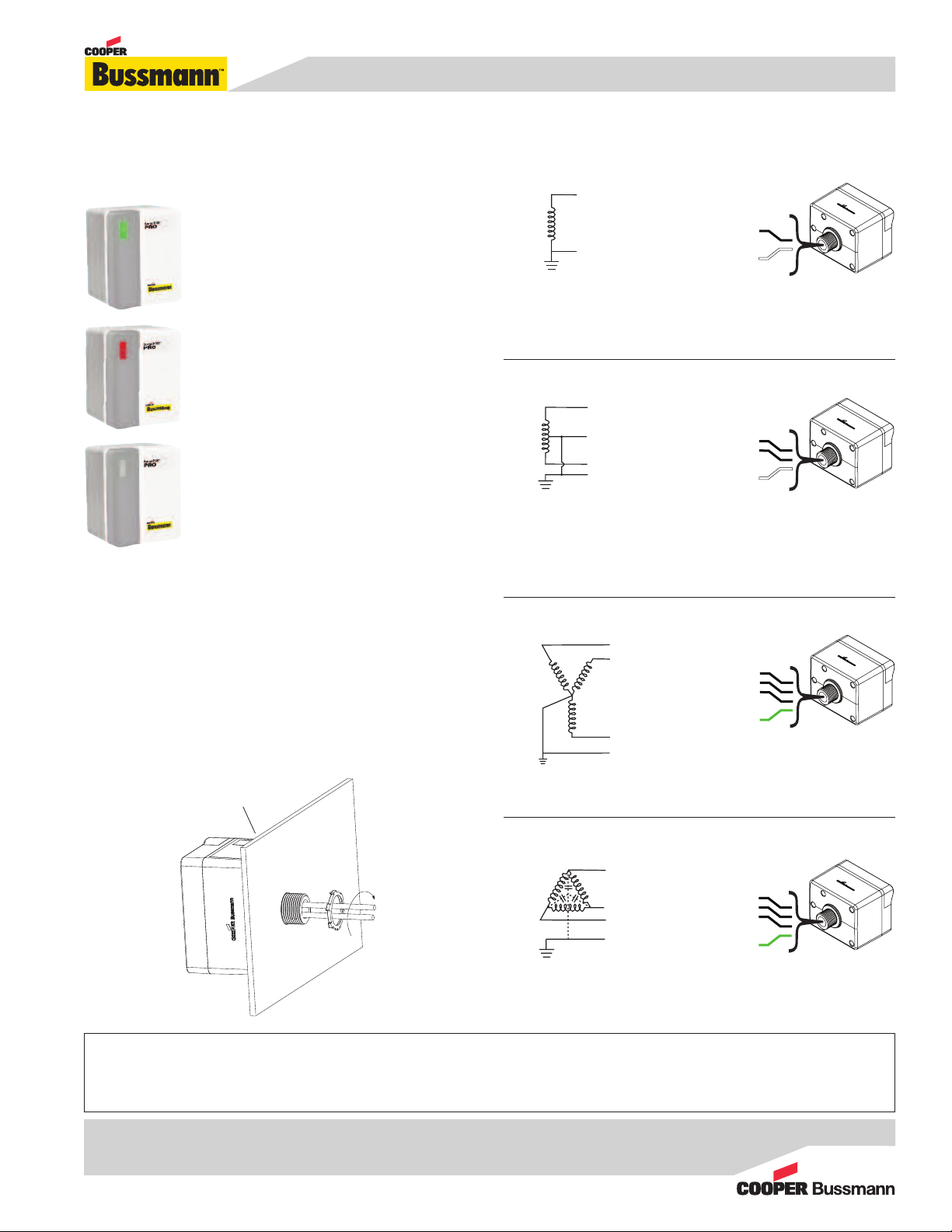

The easyID™ LED status indicator will illuminate when the unit is
properly installed and the system or equipment being protected is
energized. The following LED color/status indicates:

GREEN LED = Good

The circuit is energized and protected.

Wiring Connections

Single-Phase

RED LED = Replace

The circuit is energized and unprotected.

The unit needs replacing.

LED is Out / Unlit:

•The circuit is most likely deenergized

• The unit’s leads are disconnected

• The unit is damaged

Authorized personnel should follow all
prescribed lockout/tagout and safety
procedures in troubleshooting the cause for
the above conditions. Opening SurgePOD
PRO enclosure will void UL listing and
warranty.

Mounting

SurgePOD PRO is a panel mount device. It may also be
mounted using a customer supplied bracket or directly onto a
female threaded conduit fitting.

120V (L-N)

2 Wire

Must be installed within 10 feet (3m) of a bonded
neutral-ground connection per IEEE C62.41-1991

Two-Pole with Neutral

120V (L-N) / 240V (L1-L2),

Single Phase (Split) Center Tap

For installations at or less than 10 feet (3m)
from the transformer.

Wye + Ground

L1 (Black)
L2 (Black)

L3 (Black)

GND (Green)

208, 480V (L-L)

3 Wire Wye + Ground

Black
Black
Black

Green

SPP40SP1120SN

SPP40SP2240PN,

SPP40SP3208WYG,
SPP40SP3480WYG

The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by
definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user with design
applications. Cooper Bussmann reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any
products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been
selected, it should be tested by the user in all possible applications.

0213 BU-SB13071 Page 3 of 3 Data Sheet 10033

Delta + Ground

3 Wire Delta + Ground

240, 480V (L-L)

Black
Black
Black

Green

SPP40SP3240DLG,
SPP40SP3480DLG
