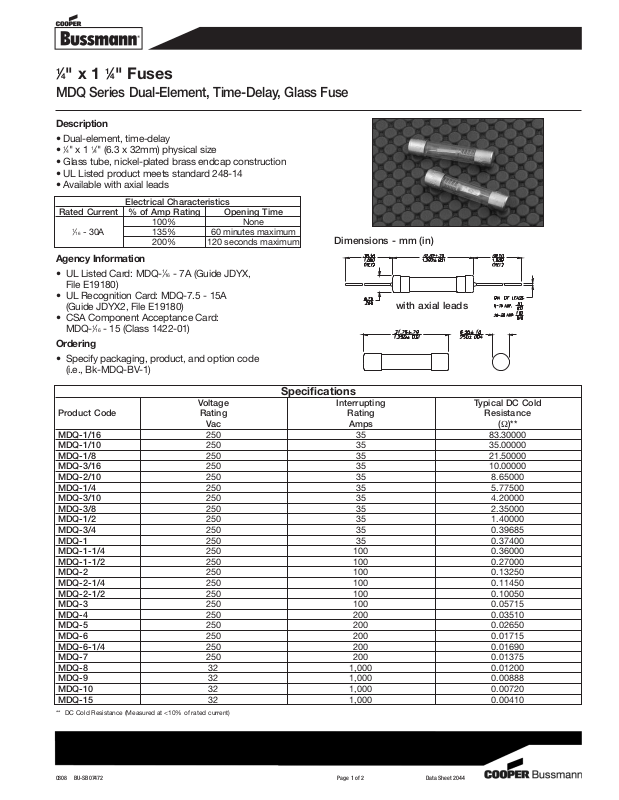

Bussmann MDQ Series Data Sheet

Description

• Dual-element, time-delay

• 1⁄4" x 1 1⁄4" (6.3 x 32mm) physical size

• Glass tube, nickel-plated brass endcap construction

• UL Listed product meets standard 248-14

• Available with axial leads

Agency Information

• UL Listed Card: MDQ-1⁄16 - 7A (Guide JDYX,
File E19180)

• UL Recognition Card: MDQ-7.5 - 15A
(Guide JDYX2, File E19180)

• CSA Component Acceptance Card:
MDQ-1⁄16 - 15 (Class 1422-01)

Ordering

• Specify packaging, product, and option code
(i.e., Bk-MDQ-BV-1)

** DC Cold Resistance (Measured at <10% of rated current)

Electrical Characteristics

Rated Current % of Amp Rating Opening Time

100% None

1

⁄16 - 30A 135% 60 minutes maximum

200% 120 seconds maximum

Specifications

Voltage Interrupting Typical DC Cold

Product Code Rating Rating Resistance

Vac Amps (Ω)**
MDQ-1/16 250 35 83.30000
MDQ-1/10 250 35 35.00000
MDQ-1/8 250 35 21.50000
MDQ-3/16 250 35 10.00000
MDQ-2/10 250 35 8.65000
MDQ-1/4 250 35 5.77500
MDQ-3/10 250 35 4.20000
MDQ-3/8 250 35 2.35000
MDQ-1/2 250 35 1.40000
MDQ-3/4 250 35 0.39685
MDQ-1 250 35 0.37400
MDQ-1-1/4 250 100 0.36000
MDQ-1-1/2 250 100 0.27000
MDQ-2 250 100 0.13250
MDQ-2-1/4 250 100 0.11450
MDQ-2-1/2 250 100 0.10050
MDQ-3 250 100 0.05715
MDQ-4 250 200 0.03510
MDQ-5 250 200 0.02650
MDQ-6 250 200 0.01715
MDQ-6-1/4 250 200 0.01690
MDQ-7 250 200 0.01375
MDQ-8 32 1,000 0.01200
MDQ-9 32 1,000 0.00888
MDQ-10 32 1,000 0.00720
MDQ-15 32 1,000 0.00410

1

⁄4" x 1 1⁄4" Fuses

MDQ Series Dual-Element, Time-Delay, Glass Fuse

with axial leads

Dimensions - mm (in)

0308 BU-SB07472 Page 1 of 2 Data Sheet 2044

Packaging

Packaging Code Prefix Description

BK 100 pieces of fuses packed into a cardboard carton

BK1 1000 pieces of fuses packed into a cardboard carton

Time-Current Curve

Option Code

Option Code Suffix Description

B Board Washable - Hermetically sealed to withstand aqueous cleaning
V Axial leads - copper tinned wire with nickel plated brass overcaps

© 2008 Cooper Bussmann

St. Louis, MO 63178
www.cooperbussmann.com

0308 BU-SB07472 Page 2 of 2 Data Sheet 2044
